OVERVIEW
High-quality, integrated insert rangehoods seamlessly blend
with cabinetry and can be installed in a variety of kitchen
layouts. With three fan speeds, plus a boost function,
powerful extraction quickly removes odours and steam.
Enjoy seamless operation with Wi-Fi enabled remote control
and Bluetooth Hood to Hob connectivity.
MODELS
Integrated Rangehood, 60cm
HP60IDCHX4
Integrated Rangehood, 90cm
HP90IDCHX4
SERIES & STYLE
Series 7
Integrated
PRELIMINARY SPECIFICATION GUIDE INTEGRATED RANGEHOOD
SERIES 7
FEATURES
1 Seamlessly integrated
2 Wi-Fi enabled for remote control and notifications
through the SmartHQ™ app and Bluetooth connectivity
3 Powerful 750m3/hr maximum airflow
4 Energy-ecient LED lighting creates a warm (or cold),
even glow
5 Sleek black glass finish with real stainless steel frame
6 Three fan speeds plus a boost function
7 Automatic alert works as a reminder to clean filters for
optimal performance
8 Removable, easy-to-clean filters that eectively trap
grease
"0 Delayed turn o
*Selected markets and models
OPTIONAL ACCESSORIES
1 Roof Ducting PD-RHK150T
2 Eave Ducting PD-RHK15OE
3 Side Wall Ducting PD-RHK15OW
4 Recirculation Carbon Filter 792481
5 Aluminium Filter 792942 for HP60IDCHX4
6 Aluminium Filter 792943 for HP90IDCHX4
90002739 Date: 28.11.2022 | Product specifications may vary from those shown in this Preliminary Specification Guide. This document is superseded and will become obsolete upon launch of the product.
This Preliminary Specification Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation
guidance will be available with the product on delivery and on our website fisherpaykel.com

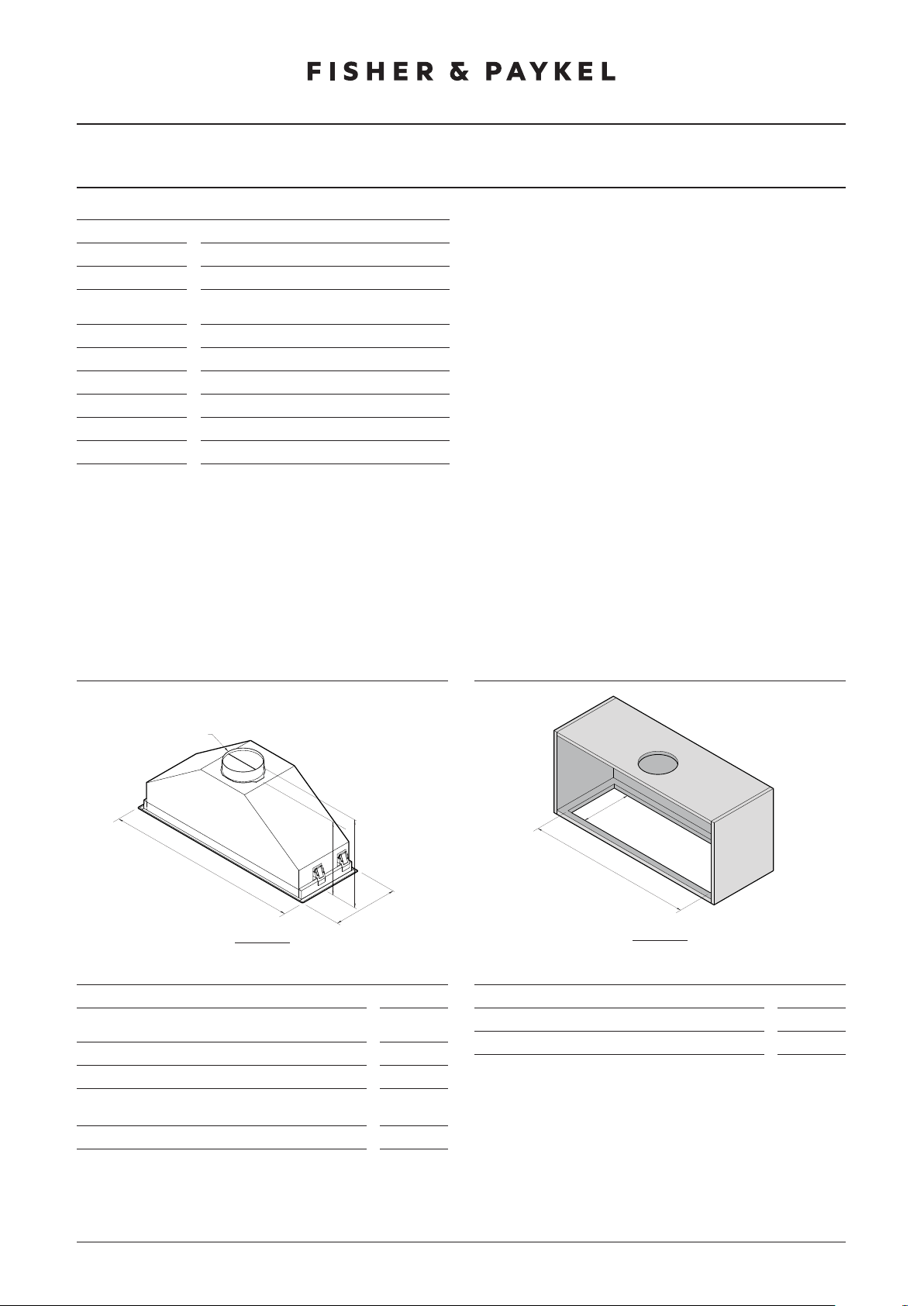

PRODUCT DIMENSIONS
mm
A
Overall height of rangehood without
ducting adapter
16
B
Overall height of rangehood
withducting adapter
61
C
Overall width of rangehood 50
D
Overall depth of rangehood
(excl. cabinetry front panel)
280
E
Diameter of ducting adaptor 150
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A
Width of cutout 500
B
Depth of cutout 260
Note: We recommend the cabinet has a door or service panel that can be easily opened to
access the power connection.
SPECIFICATIONS
Model No. HP60IDCHX4
Dimensions H 61mm x W 50mm x D280mm
Weight 8.2kg
Minimum distance
above cooktops
600–750mm
Electrical
Supply 220–240VAC, 50Hz
Receptacle -pin plug
Light source
Type Bi colour LED strip
Temperature 4000K
A
ISO VIEW ISO VIEW
D
E
PRELIMINARY SPECIFICATION GUIDE 60CM INTEGRATED RANGEHOOD
SERIES 7
A
B
B
C
90002739 Date: 28.11.2022 | Product specifications may vary from those shown in this Preliminary Specification Guide. This document is superseded and will become obsolete upon launch of the product.
This Preliminary Specification Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation
guidance will be available with the product on delivery and on our website fisherpaykel.com
PRODUCT DIMENSIONS
mm
A
Overall height of rangehood without
ducting adapter
16
B
Overall height of rangehood withducting adapter 61
C
Overall width of rangehood 80
D
Overall depth of rangehood
(excl. cabinetry front panel)
280
E
Diameter of ducting adaptor 150
SPECIFICATIONS
Model No. HP90IDCHX4
Dimensions H 61mm x W 80mm x D280mm
Weight 11.5kg
Minimum distance
above cooktops
Electric: 600–750mm
Electrical
Supply 220–240VAC, 50Hz
Receptacle -pin plug
Light source
Type Bi colour LED strip
Temperature 4000K
A
B
ISO VIEW
c
E
PRELIMINARY SPECIFICATION GUIDE 90CM INTEGRATED RANGEHOOD
SERIES 7
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A
Width of cutout 800
B
Depth of cutout 260
Note: We recommend the cabinet has a door or service panel that can be easily opened to
access the power connection.
ISO VIEW
A
B
D
