KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
Page 2 of 6
Mar 30, 2020 - PR5230 - Rev. A
COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION

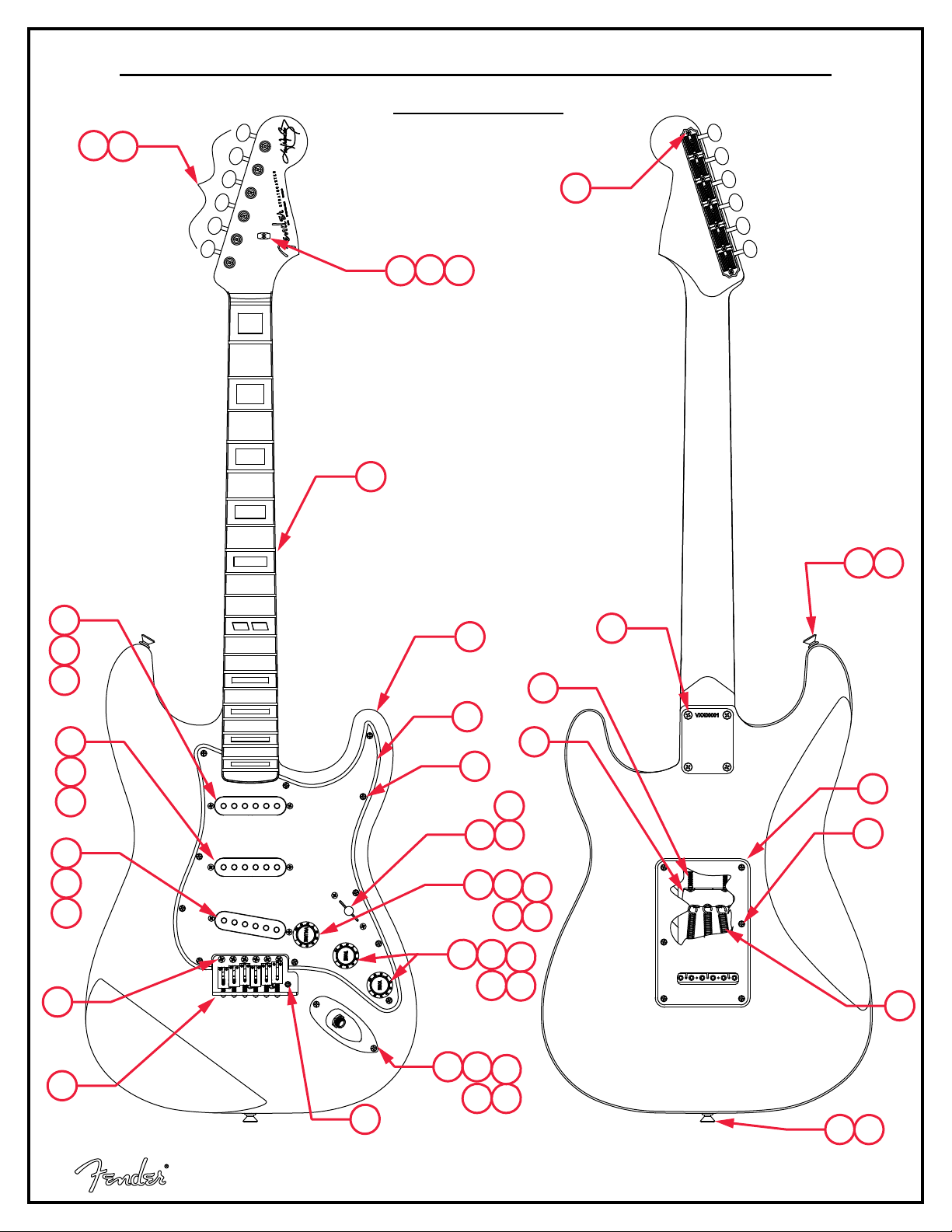

PARTS LIST
REF# DESCRIPTION PART
NUMBER
1 BODY HOLLOW KWS SIG STRAT TFSB 7719086511
2 NECK ASSY KWS SIG STRAT RW 7713121000
3 SCREW SMA 8 X 1-3/4 OHP NI 0015636049
4 KEY SET GTR VINT DLX FENDER LOGO NI W/HDWR 0992074000
5 BUSHING STRING POST VINT SET 0994946000
6 SCREW SMAB 3 X 3/8 RHP NI 0011357049
7 SCREW SMA 3 X 5/8 RHP NI 0011358049
8 SPACER NYLON STRING TREE 0093999000
9 STRING TREE VINT NI W/HDWR 0992083000
10 PICKGUARD STRAT AS WHITE PEARL 0058677000
11 SCREW SMAB 4 X 1/2 OHP NI 0015578049
12 PICKUP ASSY KWS UPG NECK 7716925000
13 TUBING LATEX CUT .300 X 1/8ID X 1/4OD 0994916000
14 SCREW TF 6-32 X 3/4 RHP STL NI 0048631049
15 PICKUP ASSY KWS UPG MIDDLE 7716926000
16 PICKUP ASSY KWS UPG BRIDGE 7716927000
17 SWITCH 5-WAY LEVER 0991367000
18 KNOB PICKUP SWITCH WHT 0994940000
19 KNOBS STRAT WHITE (1 VOL) (2 TONE) 0992035000
20 PCB ASSY TREBLE BLEED AM PRO STRAT/TELE 7711092000
21 WASHER LCK INTL 3/8 X .500 X .020 0022384049
22 NUT HEX 3/8-32 X 3/32 TK NI 0016352049
23 CONTROL 250K 10% TPR SPLIT 0990830000
24 CAPACITOR CERAMIC DISC .01µF 0068989000
25 FERRULE JACK CHROME 0991940100
26 WASHER LOCK INTL 3/8 X .687 0016436049
27 JACK PHONE OPEN CIRT 11 0021956049
28 BRIDGE ASSY KWS STRAT UPG 7716962000
28A BRIDGE PLATE STRAT AM VINT NARROW 7714853000
28B BRIDGE BLOCK 86 STRAT 0026098000
28C SCREW MACH 8-32 X 3/8 FHP NI 0019656049
28D BRIDGE SECTION GRAPHTECH W/HDWR 7716515000
29 SPRING 150 OD 1/2” LONG .039” 0994931000
30 SCREW WOOD PH 6 X 1-1/8 NI 0016170049
31 SCREW SMA 5 X 5/8 OHP NI 0015602049
NOT PICTURED IN DIAGRAM
*
=
KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
Page 3 of 6
Mar 30, 2020 - PR5230 - Rev. A
COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION
REF# DESCRIPTION PART
NUMBER
32 PLATE BACK STRAT AS RH WHITE PEARL 0080924000
33 CLAW SPRING TENSION ZINC 0010272149
34 SPRING TREMOLO TENSION VINT 0031643049
35 BUTTON STRAP NI .1 V56 0994915000
36 SCREW WOOD 6 X 1 OHP NI 0016188049
* CASE STRAT/TELE BLACK 0068102011
* WRENCH .050HEX KEY 0018531049
* ARM TREMOLO VINT STRAT 0992039000
* KNOB TREMOLO ARM WHITE 0994935000
NOT PICTURED IN DIAGRAM
*
=

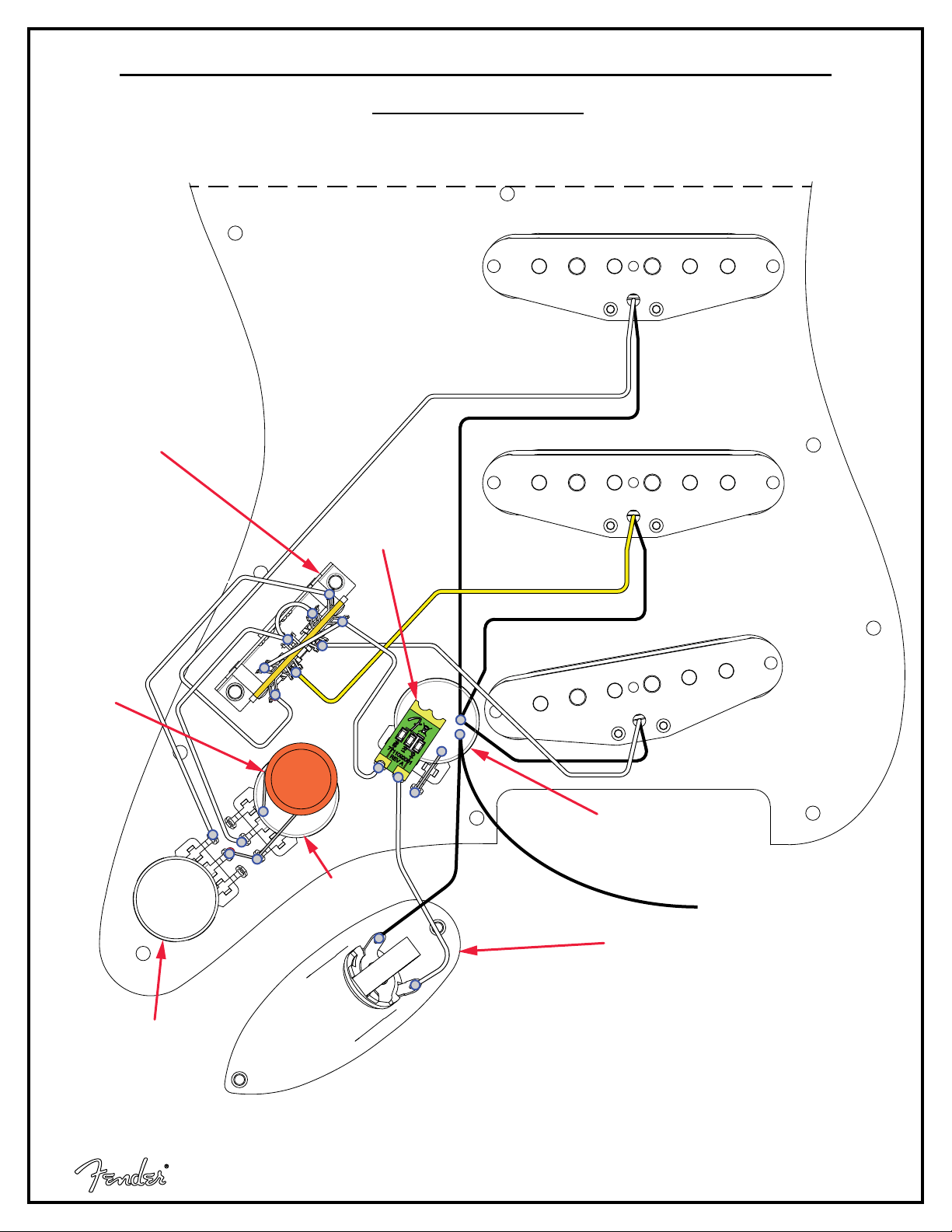

KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
Page 5 of 6
Mar 30, 2020 - PR5230 - Rev. A
COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION

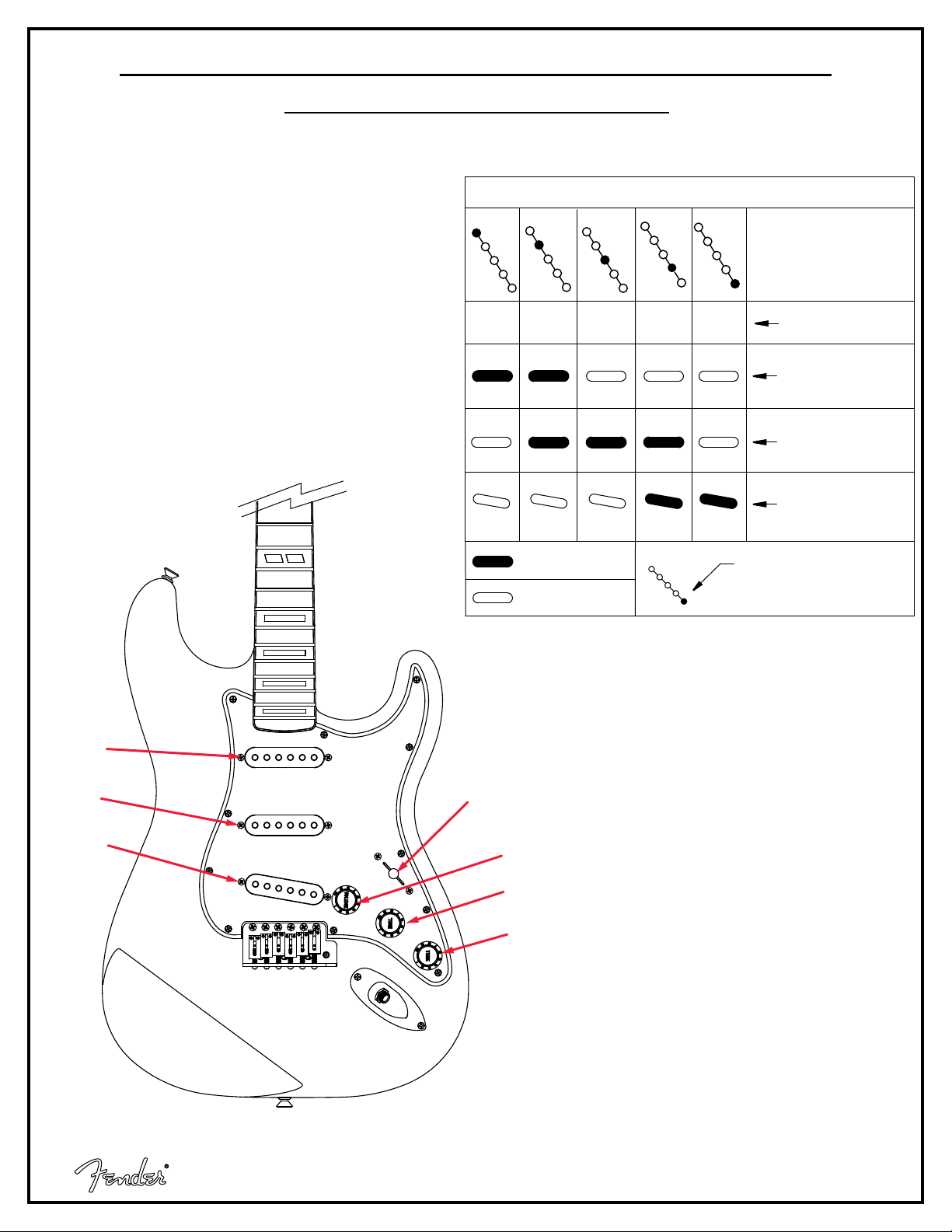

SWITCH AND CONTROL FUNCTION
SWITCH POSITION
4
3
2
1
5
TONE CONTROLTONE CONTROL
OF 5 WAY SWITCH
INDICATES POSITION
PICKUP IS OFF
PICKUP IS ON
1
BRIDGE PICKUP
5 WAY SWITCH POSITION
NECK PICKUP
MIDDLE PICKUP
T1
T1 & T2
T2
T1
T2
NECK
PICKUP
MIDDLE
PICKUP
BRIDGE
PICKUP
5 - WAY
SWITCH
MASTER
VOLUME
TONE 1 (T1)
TONE 2 (T2)
KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
Page 6 of 6
Mar 30, 2020 - PR5230 - Rev. A
COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION

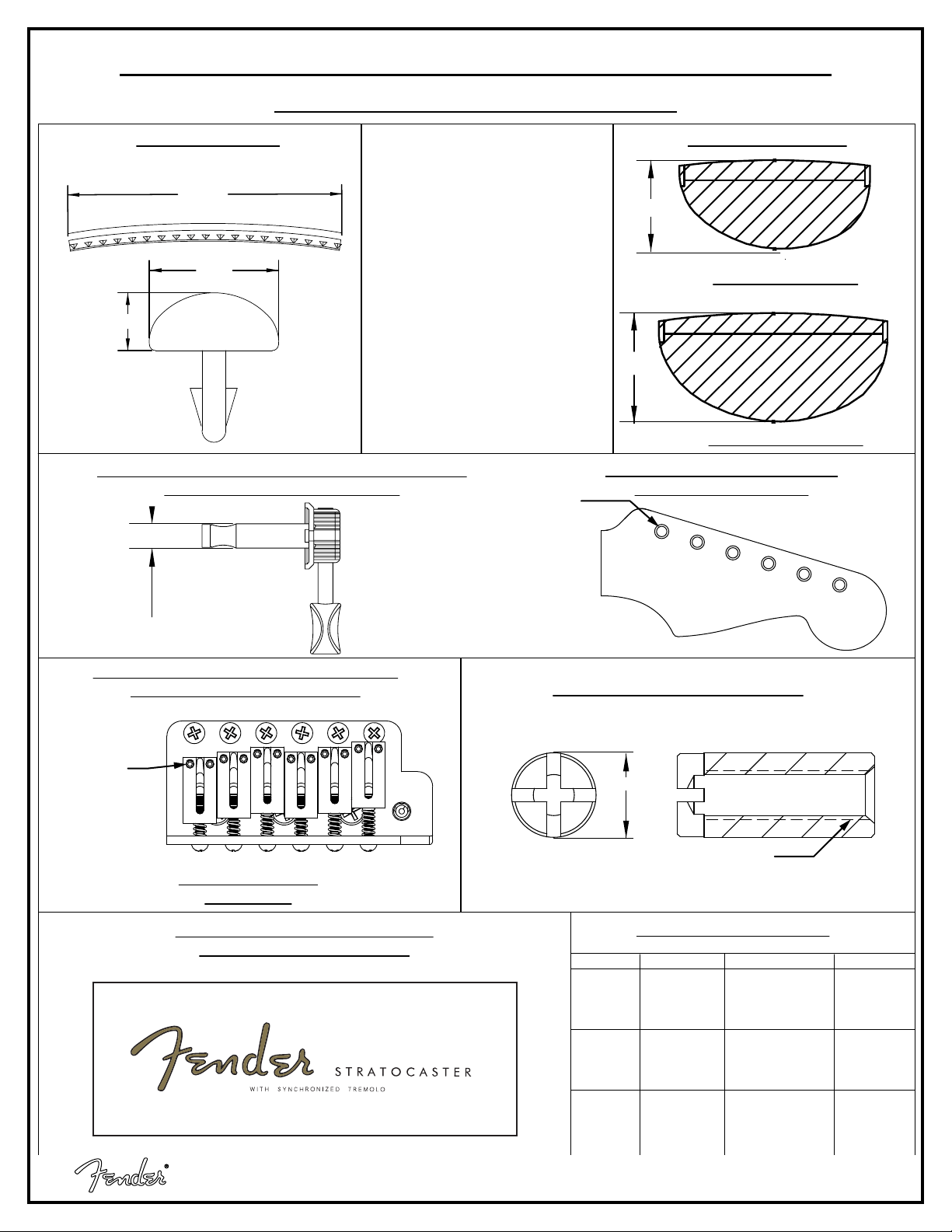

ADDITIONAL SPECIFICATION DETAIL
.055”
.110”
2-7/16”
.785”
.960”
8-32
THREAD
.050” HEX
Ø
.375”
TUNING MACHINE SET W/HDWR P/N 0992074000
OUTER SHAFT DIAMETER .250”
TUNING MACHINE THRU-HOLE
INNER DIAMETER .261”
LOGO: VINTAGE STRATOCASTER
APPLIED OVER THE FINISH
TRUSS ROD NUT P/N 0058171000
SADDLE HEIGHT ADJUSMENT WRENCH:
.050” HEX KEY P/N 0018531049
1ST FRET PROFILE
12TH FRET PROFILE
NECK PROFILE:KWS FRET SIZE: JUMBO
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
Ø
.261”
Ø .250”.250”
PLEASE NOTE: AS EACH NECK
IS SANDED & FINISHED BY
HAND, THICKNESS DIMENSIONS
MAY VARY SLIGHTLY FROM
THOSE SHOWN.
SADDLE W/HDWR:
7716515000
PICKUP SPECIFICATIONS
NECK
MIDDLE
BRIDGE
DC RESISTANCE
5.7 - 6.31KΩ
6.8 - 7.4KΩ
6.4 - 7.0KΩ
MAGNETS
ALNICO 3
UNBEVELED
ALNICO 3
UNBEVELED
ALNICO 3
UNBEVELED
POLARITY
NORTH
SOUTH
SOUTH
POSITION
