Shenzhen Xtooltech Intelligent Co., LTD
X100MAX Auto Key
Programmer
User Manual
I
Please read this user manual carefully before using the X100MAX
Auto Key Programmer. When reading the manual, please pay
attention to the words “Note” or “Caution” and read them carefully
for appropriate operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech
Intelligent CO., LTD.
In countries that the trademarks, service marks, domain names,
logos and the name of the company are not registered, Xtool claims
that it still reserves the ownership of the unregistered trademarks,
service marks, domain names, logos and the company name. All
other marks for the other products and the company’s name
mentioned in the manual still belong to the original registered
company.
You may not use the trademarks, service marks, domain names,
logo and company name of Xtool or other companies mentioned
without written permission from the trademark holder.
Xtool reserves the right for the final interpretation of this manual
content.
II
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co.,
Ltd., any company or individual shall not copy or backup this
operation manual in any form (electronic, mechanical, photocopying,
recording or other forms).
DECLARATION
This manual is designed for the usage of X100MAX Auto Key
Programmer, and provides operating instructions and product
descriptions for users of the X100MAX Auto Key Programmer.
No part of this manual can be reproduced, stored in a retrieval
system or transmitted, in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise), without the
prior written permission of Xtool.
Use the device only as described in this manual. Xtool is not
responsible for any consequences of violating the laws and
regulations caused by using the product or its data information
Xtool shall not be liable for any incidental or consequential damages
or for any economic consequential damages arising from the
accidents of individual users and the third parties, misuse or abuse
of the device, unauthorized change or repair of the device, or the
III
failure made by the user not to use the product according to the
manual.
All information, specifications and illustrations in this manual are
based on the latest configurations and functions available at the
time of printing. Xtool reserves the right to make changes at any
time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
Keep the device away from heat or fumes when you are using it.
If the vehicle battery contains acid, please keep your hands and
skin or fire sources away from the battery during testing.
Exhaust gas of vehicle contains harmful chemicals, please
ensure adequate ventilation.
Do not touch the cooling system components or exhaust
manifolds when engine is running due to the high temperatures
reached.
Make sure the car is securely parked, Neutral is selected or the
selector is at P or N position to prevent the vehicle from moving
when engine starts.
Make sure the (DLC) diagnostic link connector is functioning
properly before starting the test to avoid damage to the
Diagnostic Tablet.
IV
Do not switch off the power or unplug the connectors during
testing, otherwise you may damage the ECU and/or the
Diagnostic Tablet.
CAUTIONS!
Avoid shaking or dismantling the unit as it may damage the
internal components.
Do not use hard or sharp objects to touch the LCD screen;
Do not use excessive force;
Do not expose the screen to strong sunlight for a long period.
Please keep it away from water, moisture, high temperature or
very low temperature.
If necessary, calibrate the screen before testing to ensure the
accuracy of LCD performance.
Keep the main unit away from strong magnetic fields.
AFTERSALES-SERVICES
E-Mail: supporting@xtooltech.com
Tel: +86 755 21670995 or +86 755 86267858 (China)
Official Website: www.xtooltech.com
i
CONTENT
TRADEMARKS .......................................................................................................................... I
COPYRIGHT ............................................................................................................................. II
DECLARATION ......................................................................................................................... II
OPERATION INSTRUCTIONS ................................................................................................ III
CAUTIONS! ............................................................................................................................. IV
AFTERSALES-SERVICES ..................................................................................................... IV
1 GENERAL INTRODUCTION .............................................................................................. 4
X100MAX Tablet ......................................................................5
Front View of Tablet ........................................................................................................................................... 5
Back View of Tablet ............................................................................................................................................ 6
Host Ports ............................................................................................................................................................... 7
VCI communication box ...........................................................8
Front/Back View of VCI BOX ............................................................................................................................ 8
Top/Bottom View of VCI BOX ......................................................................................................................... 9
KC501 Key & Chip Programmer ..............................................9
Exposed view of KC501 ................................................................................................................................... 10
Technical Specifications ......................................................... 13
2 GETTING STARTED ........................................................................................................ 14
Activation Guide ..................................................................... 14
Main Interface ........................................................................ 19
Operation System .............................................................................................................................................. 19
X100MAX App Menu ....................................................................................................................................... 22
Function Buttons ................................................................................................................................................ 23
Navigation Buttons ........................................................................................................................................... 24
ii
Notification Bar .................................................................................................................................................. 25
3 UPDATE............................................................................................................................ 26
4 KEY PROGRAMMING ...................................................................................................... 27
Vehicle Connection ................................................................ 27
KC501 Connection ................................................................. 28
Immobilizer Menu ................................................................... 29
Immobilizer Functions ............................................................ 30
Read PIN code/Pin Code Calculation ......................................................................................................... 30
Check Number of Keys .................................................................................................................................... 33
Add Keys ............................................................................................................................................................... 34
All Key Lost .......................................................................................................................................................... 36
5 DIAGNOSIS ...................................................................................................................... 38
Vehicle Selection ................................................................... 38
Diagnose Functions ............................................................... 40
6 SPECIAL FUNCTIONS ..................................................................................................... 47
Oil Light Reset ....................................................................... 48
EPB........................................................................................ 49
SAS........................................................................................ 50
DPF........................................................................................ 51
BMS Reset ............................................................................. 52
Throttle ................................................................................... 53
TPMS Reset ........................................................................... 53
ABS Bleeding ......................................................................... 54
Injector Coding ....................................................................... 55
iii
Gearbox Match ...................................................................... 55
Suspension ............................................................................ 56
Windows Initialization ............................................................. 56
Seat Calibration ..................................................................... 57
Headlight ................................................................................ 57
ECU Configuration ................................................................. 57
*A/F Reset ............................................................................. 58
*Stop/Start Reset ................................................................... 58
Airbag Reset .......................................................................... 58
Instrument Cluster .................................................................. 59
7 REPORT ........................................................................................................................... 59
Report .................................................................................... 60
Replay .................................................................................... 63
File Manager .......................................................................... 63
8 SETTINGS ........................................................................................................................ 64
Language ............................................................................... 65
Units....................................................................................... 66
Bluetooth ................................................................................ 67
My Workshop Info .................................................................. 67
VCI Information ...................................................................... 68
About ..................................................................................... 69
9 REMOTE ASSISTANCE ................................................................................................... 70
SHENZHEN XTOOLTECH INTELLIGENT CO., LTD ............................................................ 72
4
1 GENERAL INTRODUCTION
The X100MAX Auto Key Programmer is a professional key
programming device, based on the Android operating system. It
supports multi-language switching and is suitable for different
countries and regions. Equipped with KC501, this auto key
programmer supports key programming functions like read PIN
code/read immobilizer data/add key/all key lost for various vehicles,
and supports basic diagnosis functions and multiple special
functions.
5
X100MAX TABLET
The main unit of the X100MAX is the tablet. It allows you to operate
all the key programming and diagnosis functions, and it can also
work as a normal Android tablet.
FRONT VIEW OF TABLET

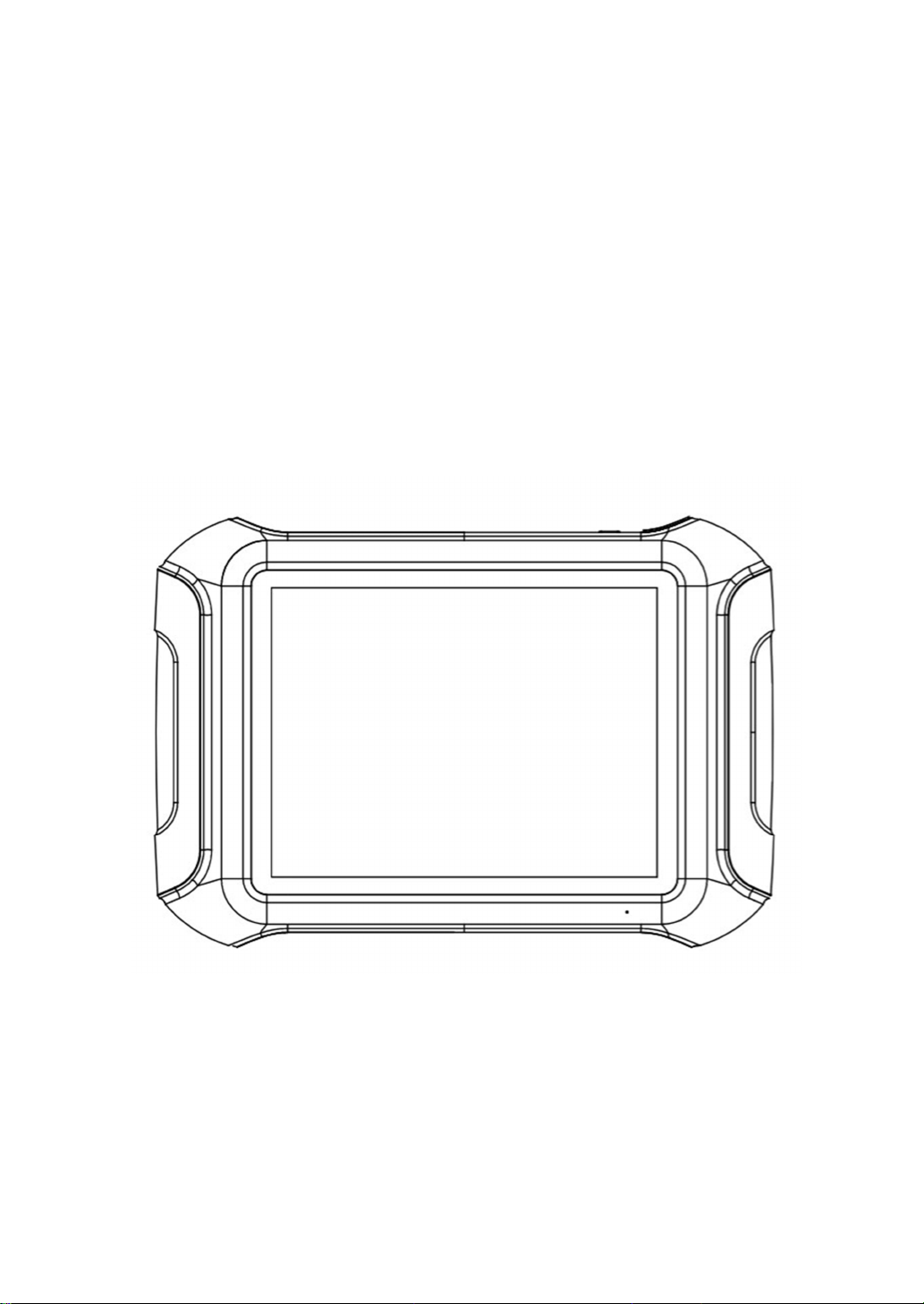

Fig 1-1 Tablet Front View
The front of the tablet is mainly a touchable display screen, you can
use your fingers to operate on the screen to finish most of the key
programming process.
6

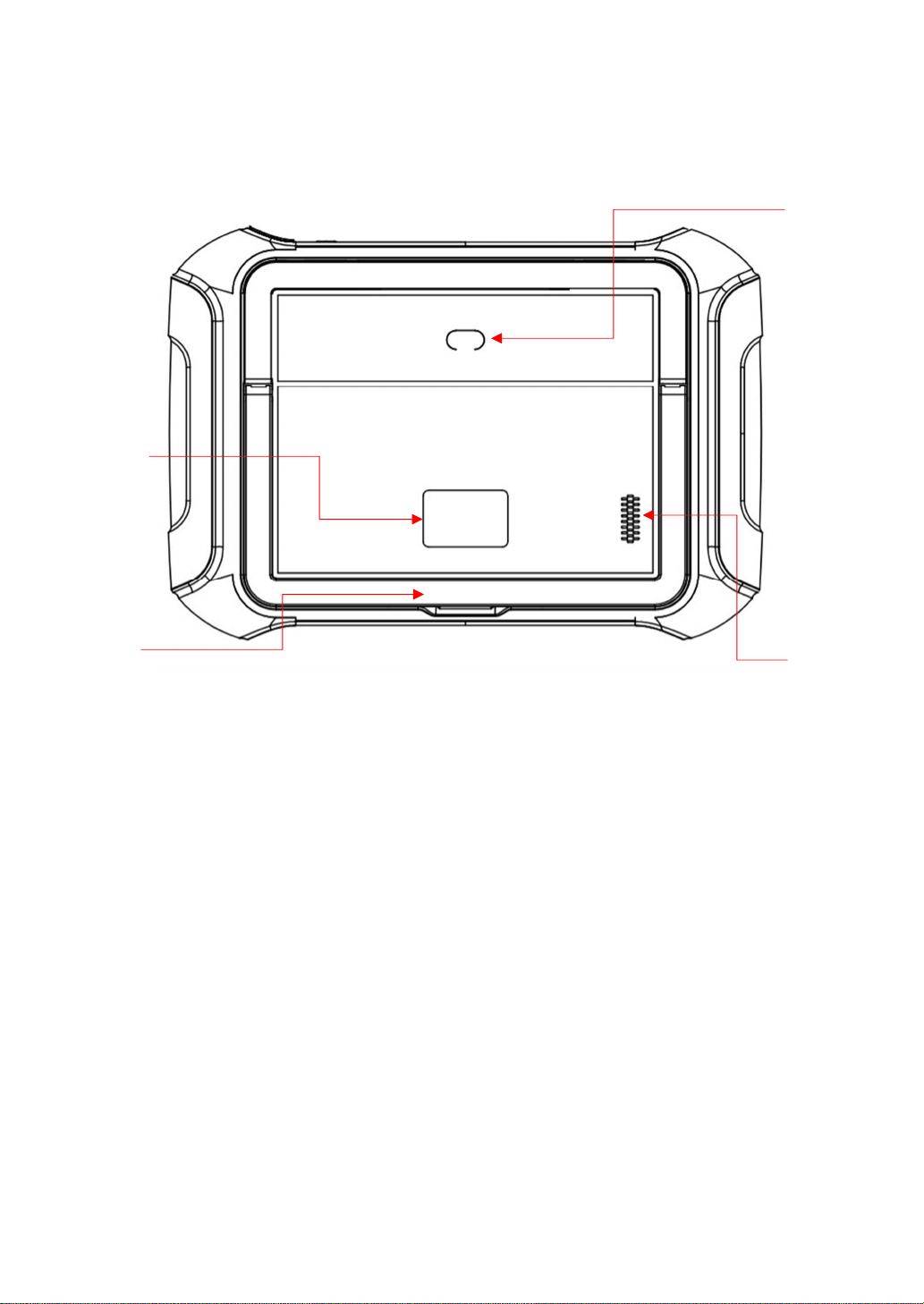

BACK VIEW OF TABLET
Fig 1-2 Tablet Back View
① Camera: Used for taking pictures.
② Tablet Holder: Used to support the tablet, hold the tablet on the
steering wheel or adjust of the tablet height as needed.
③ Nameplate: Show the basic information about tablet such as
product name and serial number, etc.
④ Loudspeaker: It supports external sound playback.
③
①
④
②
7
HOST PORTS
Fig 1-3 Tablet Host Ports
① DOIP port: Supports ECU programming for vehicles with DOIP
protocol. (Doesn’t support in X100MAX)
② USB 3.0 port: Used for data transfer for tablet & PC
communication, KC501 connection for key programming, and
data transfer with VCI box when working on immobilizer reset
process.
③ VGA port: Diagnostic communication port, which can be used
for OBD connection. (Doesn’t support in X100MAX)
④ DC charging port: Charging port, connected to the power
adapter to charge the device.
⑤ Power button: Long press to turn device on/off, short press to
switch the device into sleep mode. Hold for about 20 seconds
to force shutdown the device.
①
②
③
④
⑤
8
VCI COMMUNICATION BOX
To communicate with the vehicle via OBD, X100MAX also comes
up with a VCI box. The tablet needs Bluetooth connection with VCI
box to get access to all the immobilizer & diagnosis software.
Although some functions (like EEPROM Adapter) will not need you to communicate
to vehicle, please power up the VCI box using 12V power adapter to get access to the
software.

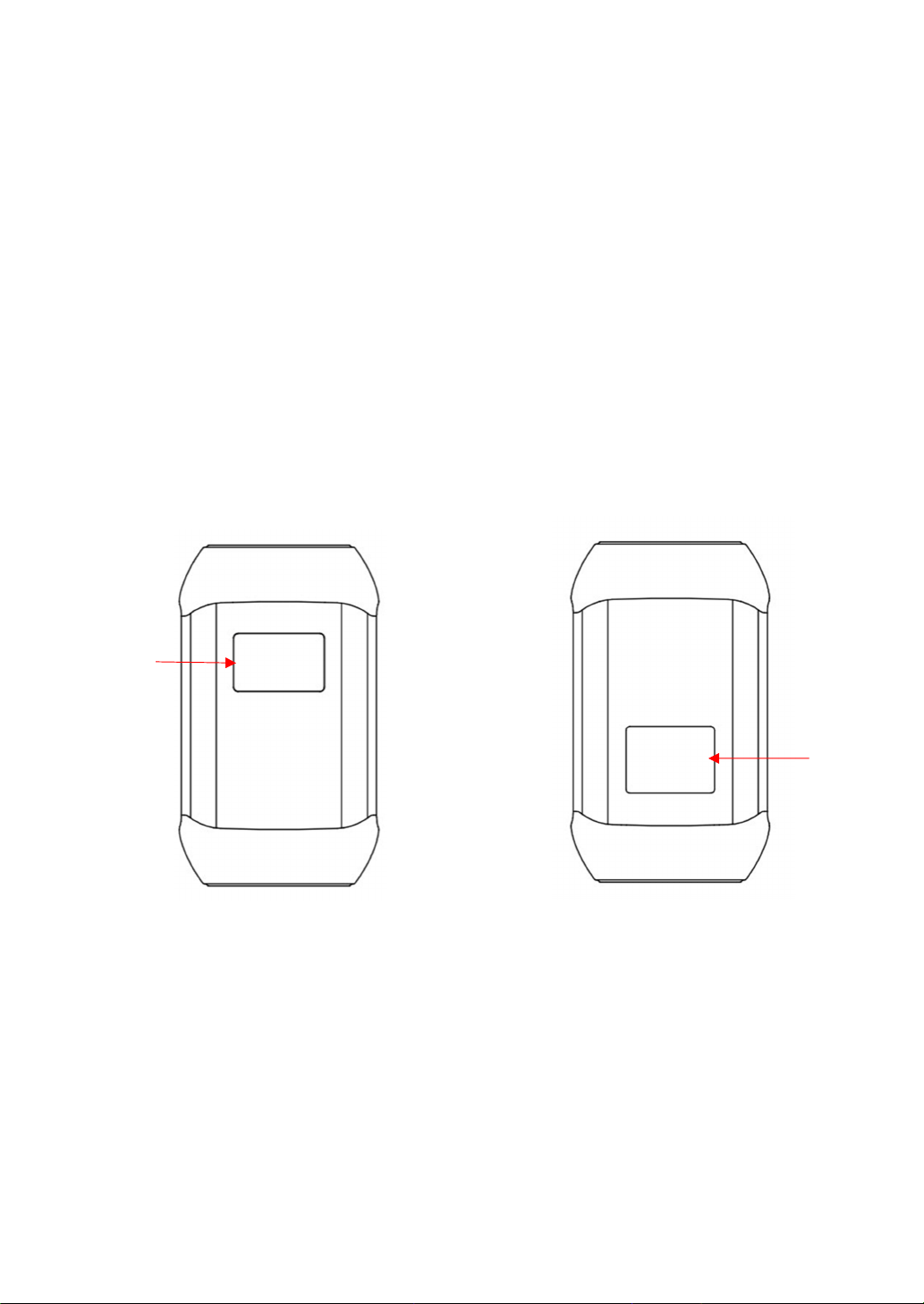

FRONT/BACK VIEW OF VCI BOX
Front Back
Fig 1-3/1-4 VCI box front/back View
① Display Screen: Show status of the VCI box like battery
voltage, Bluetooth connection and car communication status.
② Nameplate: Show basic information about the VCI box, like the
serial number.
①
②
9
Make sure that you’re using the VCI box that is paired with the tablet, or it will
not communicate. The serial number of the VCI box must be the same as the serial
number of the tablet.
TOP/BOTTOM VIEW OF VCI BOX
Top Bottom
Fig 1-5/1-6 VCI box top/bottom View
① DB15 Port: Used to connect the VCI box to the OBDII port on
the vehicle.
② USB-B Port: Used to connect the VCI box to the tablet using
USB-B to USB3.0 cable.
KC501 KEY & CHIP PROGRAMMER
KC501 is a multipurpose key & chip programmer that supports
these functions:
Read & write car keys & key chip
Generate dealer keys
Read remote frequency, chip type & chip ID
Read & write Mercedes-Benz infrared key
Read & write MCU/EEPROM chip
①
②
10
This programmer needs to work together with X100MAX tablet or
PC.

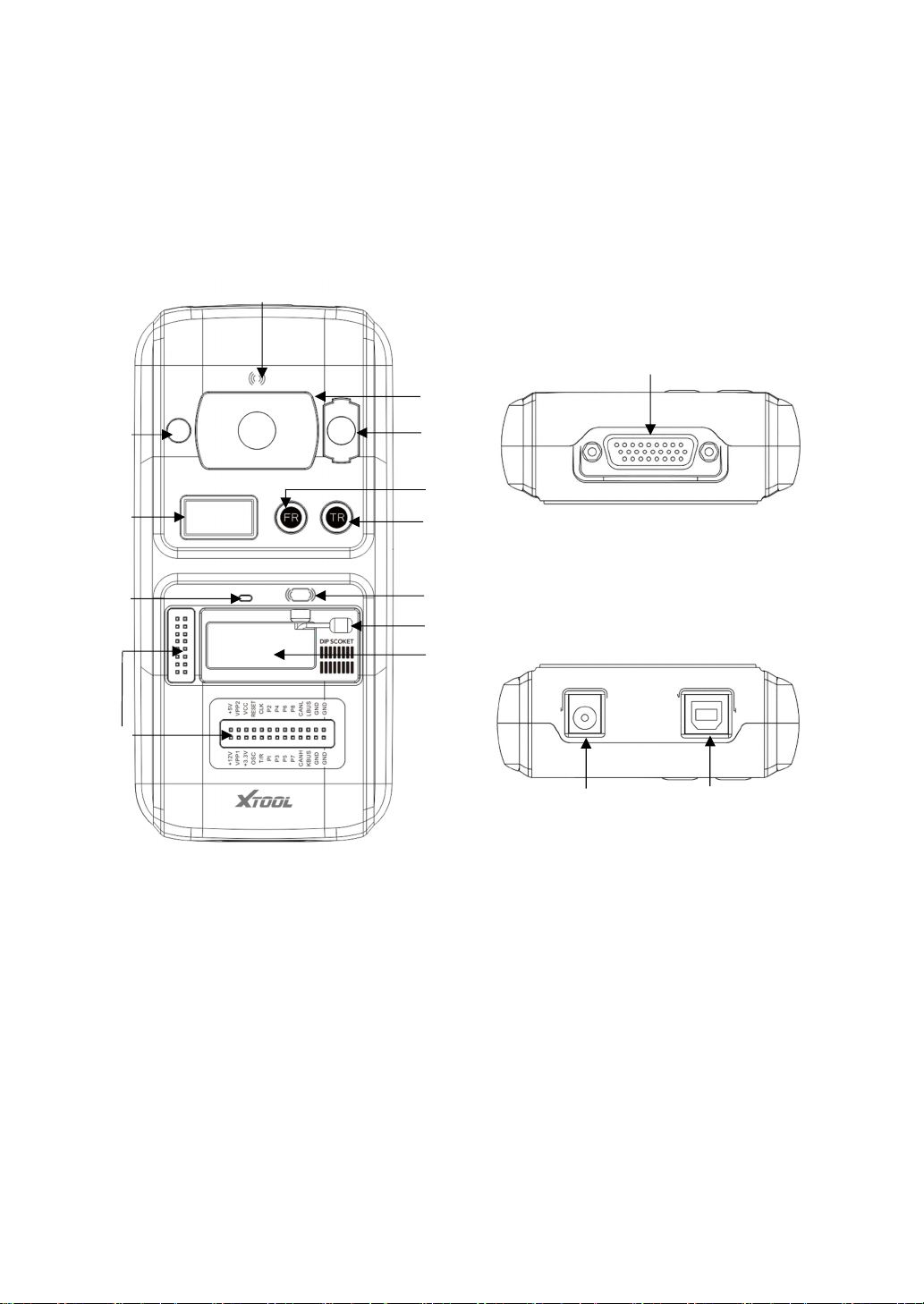

EXPOSED VIEW OF KC501
Fig 1-7 KC501 Exposed View
①
②
③
④
⑧
⑤
⑥
⑦
⑨
⑩
⑪
⑫
⑬
⑮
⑭
Front
Bottom
Top
11
① DC Port: Provides 12V DC power supply.
Please connect 12V power supply to KC501 when working on MCU/ECU
reading & writing process.
② USB-B Port: Provides data transmission between KC501 and
X100MAX or PC. Also provides 5V power supply when
connected.
③ DB 26-Pin Port: Can be connected with Mercedes-Benz infrared
cable, ECU cable, MCU cable and MC9S12 cable.
④ Cross Signal Pins: Holds the MCU board, MCU spare cable or
DIY signal interface.
The Cross-shaped signal pin is used to place MCU board, MCU spare cable or
DIY signal cable to read or write MCU and ECU chips.
⑤ Locker: Locks the EEPROM component transponder slot to
make sure it is functioning.
⑥ EEPROM Component Transponder Slot: Holds the EEPROM
plug-in transponder or EEPROM socket, used to read & write
EEPROM chip.
⑦ Status LED: Indicates current operating status.
⑧ IC Card Induction Area: Used to read and write IC card data.
⑨ Display Screen: Show remote frequency or transponder ID.
⑩ Remote Frequency Button: Press this button to show remote
frequency in the display screen.
When detecting remote frequency, please click the remote button of the key
once so KC501 can receive the remote signal and report frequency.
12
⑪ Transponder ID Button: Press this button to show transponder
ID in the display screen.
⑫ Transponder Slot: Holds the transponder to read or write
transponder data.
⑬ Vehicle Key Slot: Used to hold the vehicle key to read or write
vehicle key data.
⑭ Remote Control Transponder Induction Area: Used to read
and write remote control transponder data.
⑮ Mercedes Infrared Key Slot: Used to read or write Mercedes
vehicle key data.
13
TECHNICAL SPECIFICATIONS
Table 1-1 Specifications
Item
Description
OS
Android 5.1
Processor
Quad-core processor 1.8GHz
Ram
2G
Rom
64G
Display
9.7-inch capacitive, 1024×768 resolution
Connectivity
USB
Wi-Fi
Bluetooth
Camera
8-megapixel autofocus rear camera with
flash
Sensor
Gravity sensor
Audio Input/ Audio
Output
Microphone/ Loudspeaker
Ports
USB3.0
DC charging port
VGA port
DOIP port
Battery
10000mAh 3.7V lithium polymer battery
Input Voltage
12V DC
Operating
Temperature
-10~50℃
Relative Humidity
< 90%
Dimensions
315.07×218.35×34.61 mm
14
2 GETTING STARTED
ACTIVATION GUIDE

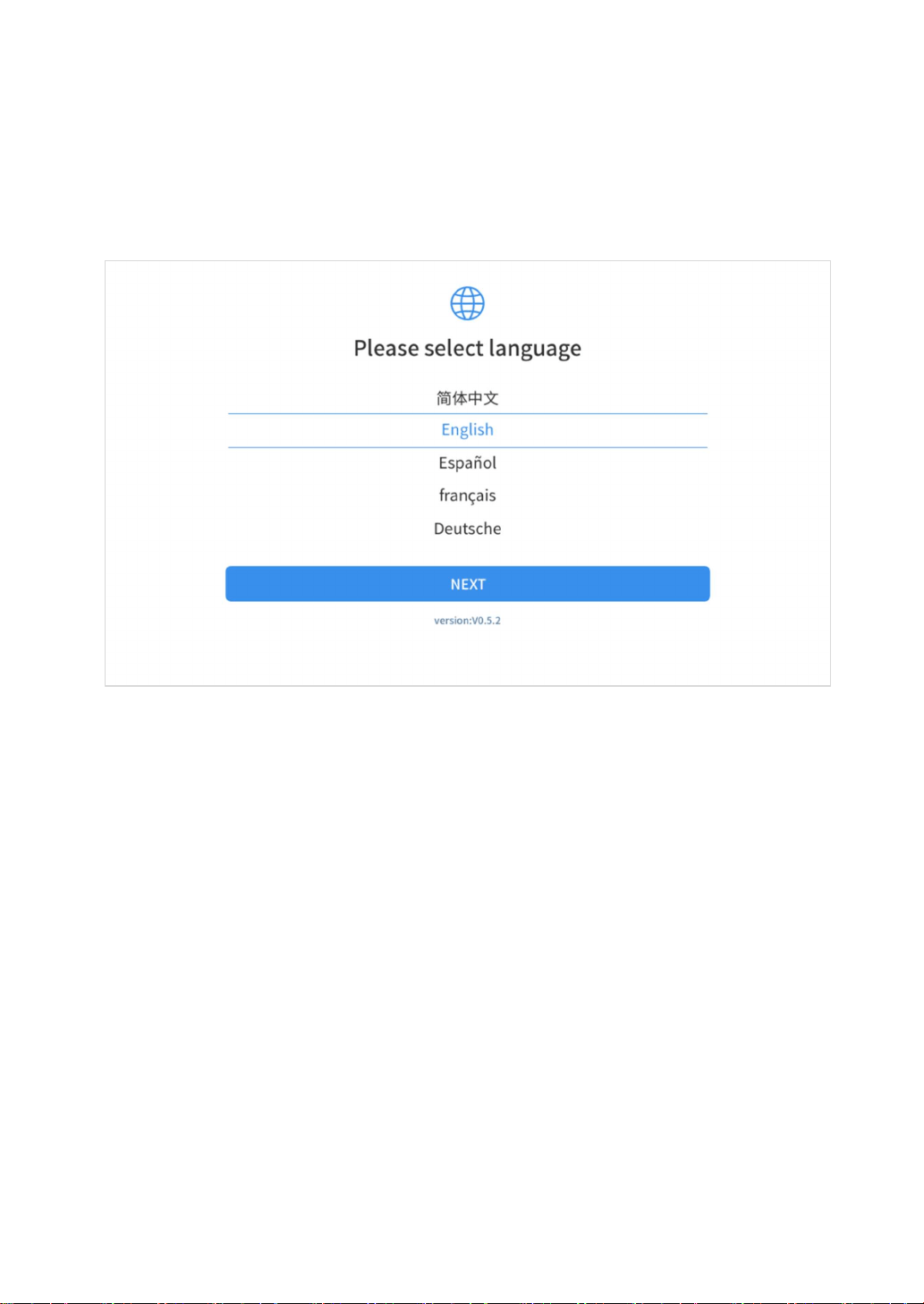

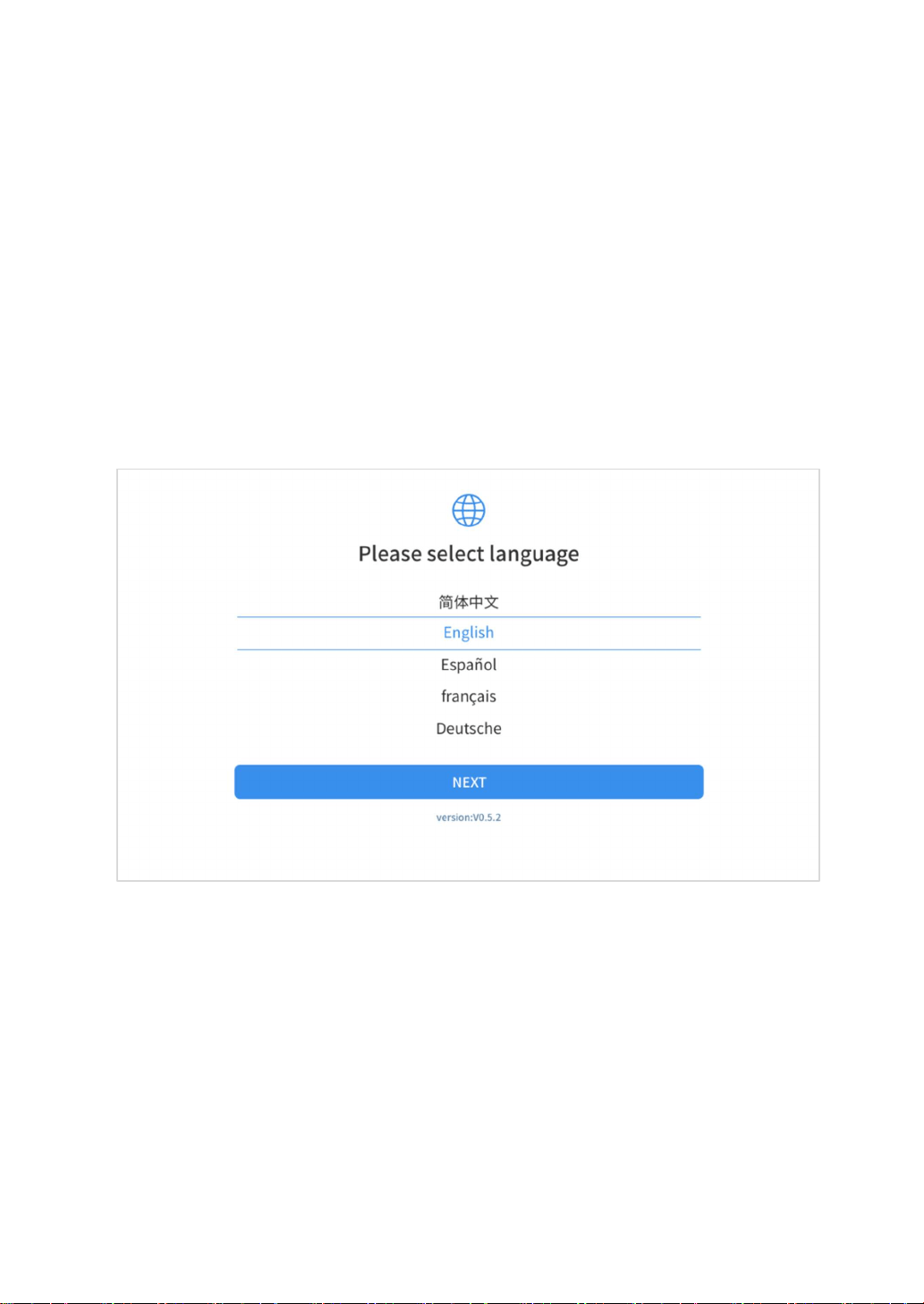

When you turn on the system for the first time, the system will
automatically enter the guide process and request the user to select
the system operating language.
Fig 2-1

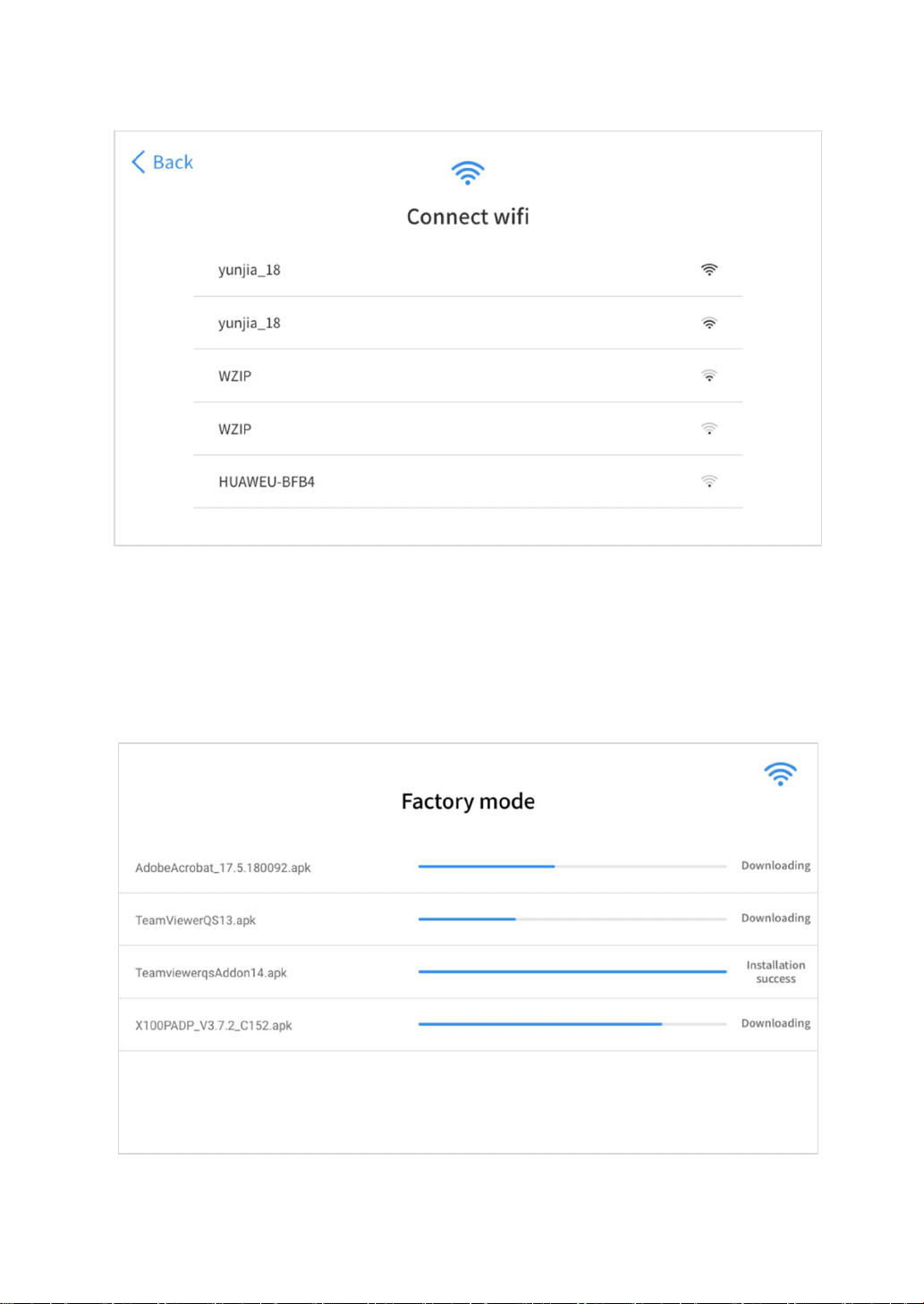

After selecting the system language, click Next to enter the Wi-Fi
connection page, as shown below:
15
Fig 2-2
Select a network to connect to on the Wi-Fi connection page.
After successful network connection, the automatic system will jump
to Factory mode to download the software:
Fig 2-3
16
Once the software has been downloaded, the tablet will
automatically reboot and request the system language selection
again.
Fig 2-4
After setting the system language, you will enter the activation page,
as shown in the figure below. You can also click the "Trial" button in
the upper right corner to try it out before activation.
17

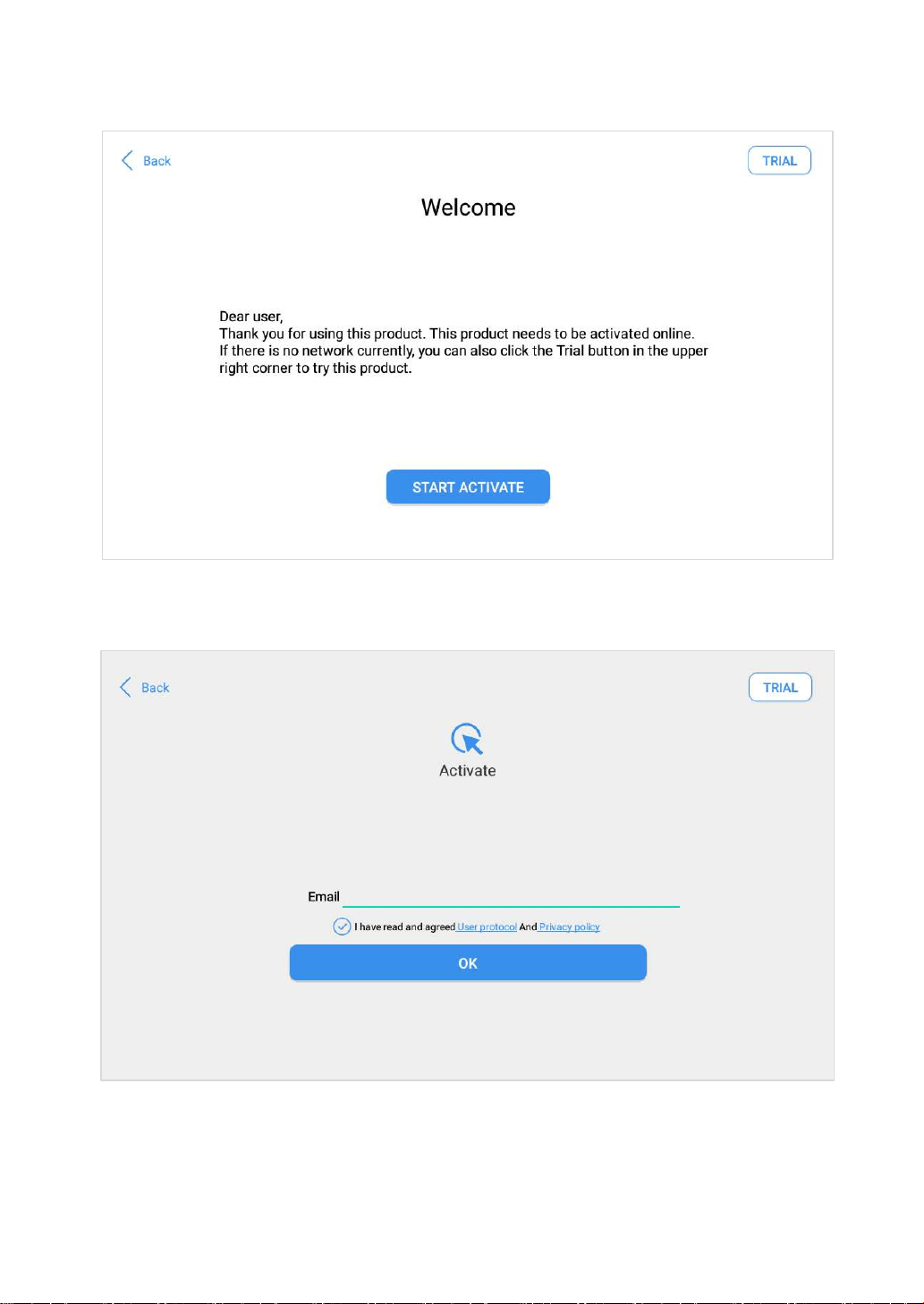

Fig 2-5
Click Start Activate to enter the activation page, as shown below:
Fig 2-6
18
A pop-up window showing Activation Success indicates that you
have completed the first boot setup, click OK to enter the diagnostic
system and start using the device.
Fig 2-7
If you meet problems like “Registration failed”, please check your network or
contact Xtool aftersales services.
19
MAIN INTERFACE
OPERATION SYSTEM
The picture below (Fig 2-8) is the home screen of the operating
system of the device. You can also return to this interface at any
time by clicking 【 】on the bottom navigation bar.
Fig 2-8

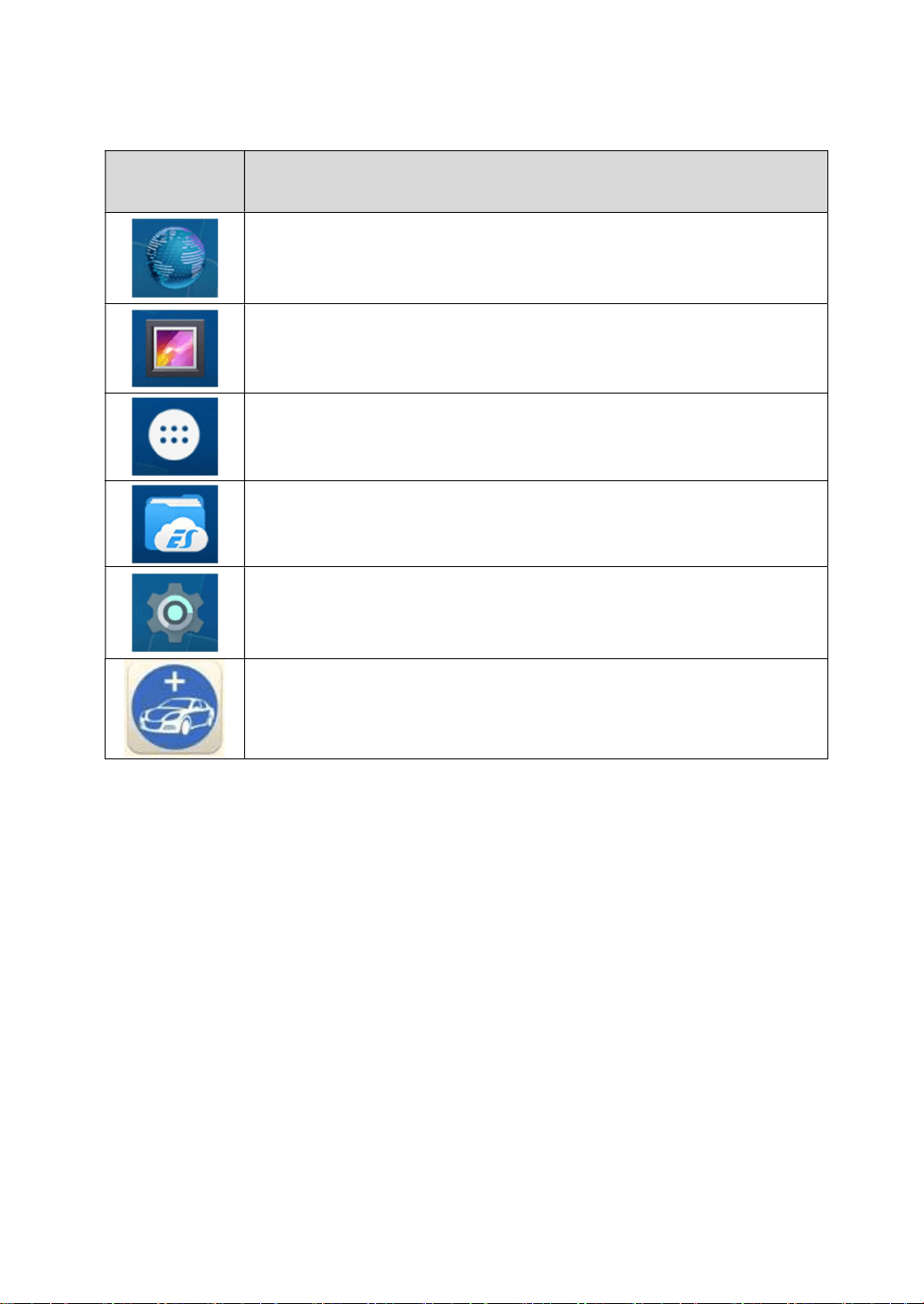

The app icons are as follows:
20
Table 2-1
Items Descriptions
Browser
Gallery
Application Menu
ES File Explorer
Android Settings
X100MAX Key Programming System
a) Browser: Click on the browser icon to enter the browser to view
the official website of Xtool or search for other information.
b) Gallery: Click the Gallery icon to enter the album and you can
quickly view the pictures or screenshots stored in the device.
You can select the picture you need, click the share button on
the upper right, and send the picture to your mobile phone or PC
via Bluetooth or USB connection
c) Application Menu: Show all the apps that you have installed
into the device. Also allows you to manage them.
21

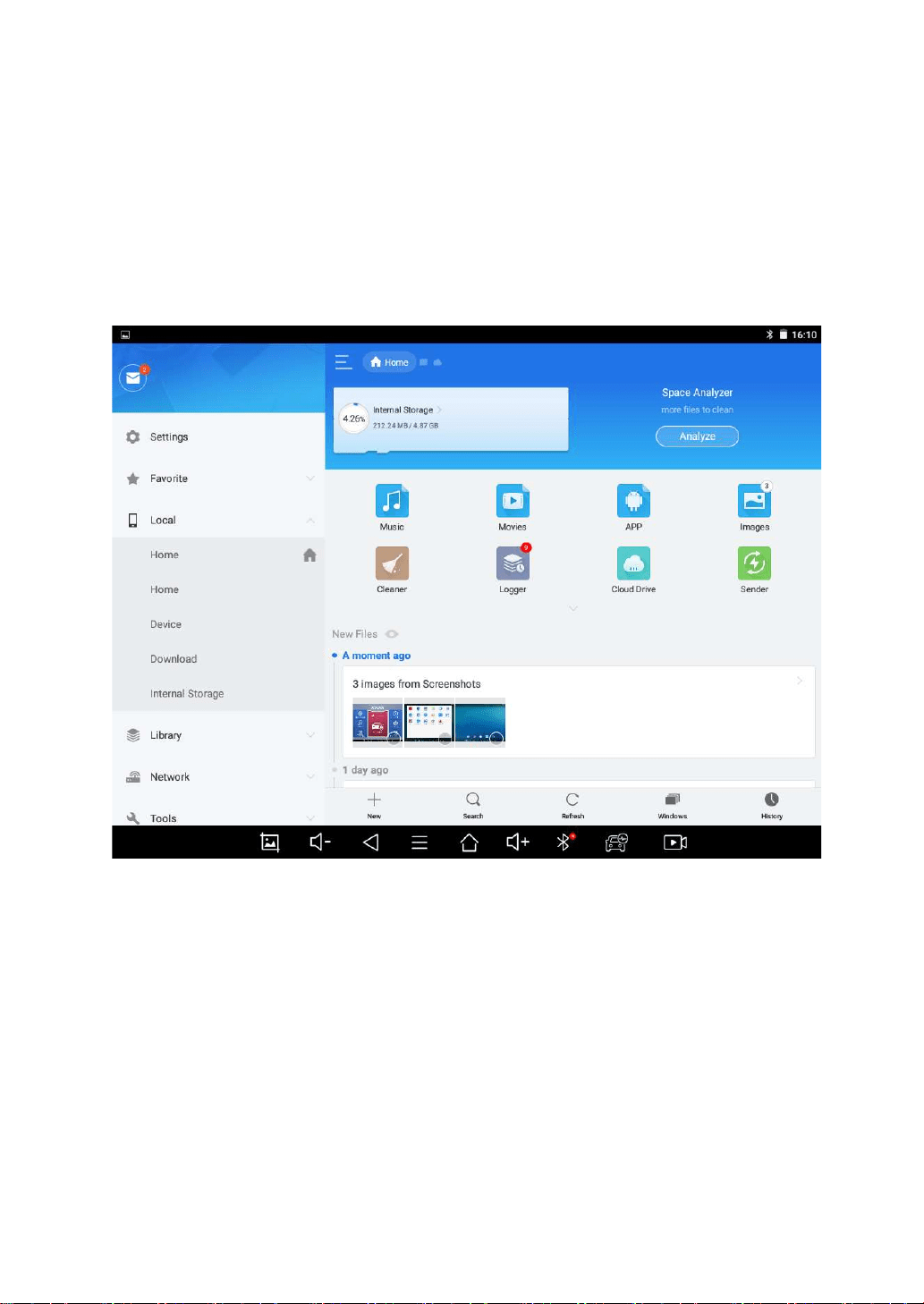

d) ES File Explorer: You can manage APP, music, files, pictures,
etc. in the device in this function, and you can also use
Local/Home/Cleaner to clean up files.
If you need to check the files inside X100MAX app (not recommended),
please use the file explorer inside X100MAX app.
Fig 2-9
e) Android Settings: Allows you to check and change the settings
of the Android system, including network, battery status,
language, device info and factory reset.
f) X100MAX Key Programming System: This app provides all
the key programming and diagnostic functions, and also offers
a range of special maintenance services.
It will be referred as “X100MAX app” later in this manual.
22
X100MAX APP MENU
Every time you start the tablet, you will automatically enter the
X100MAX app with the following main screen. Tap on diagnosis
application button on the menu, the main menu will be shown as
below:

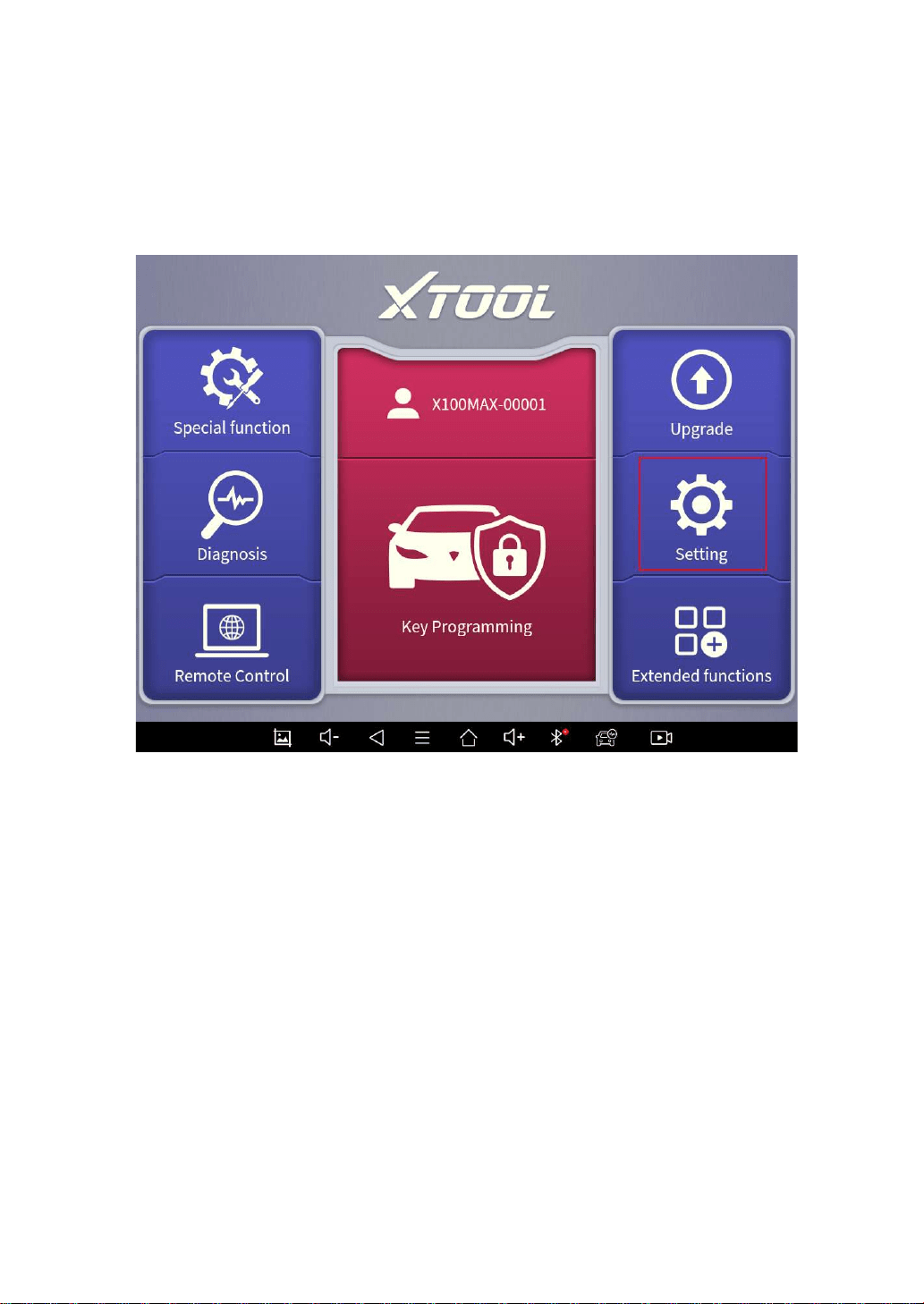

Fig 2-10
This main menu contains Function Buttons and Navigation
Buttons. The touch screen navigation is made up by several menus,
and you can quickly access functions by clicking on the icons. A
detailed description of the menu structure can be found in the next
section Function Buttons.
23
FUNCTION BUTTONS
The following table briefly describes each function button.
Table 2-2
Icon Description
Enter immobilizer menu
Includes various special functions for vehicles
Enter vehicle diagnosis menu

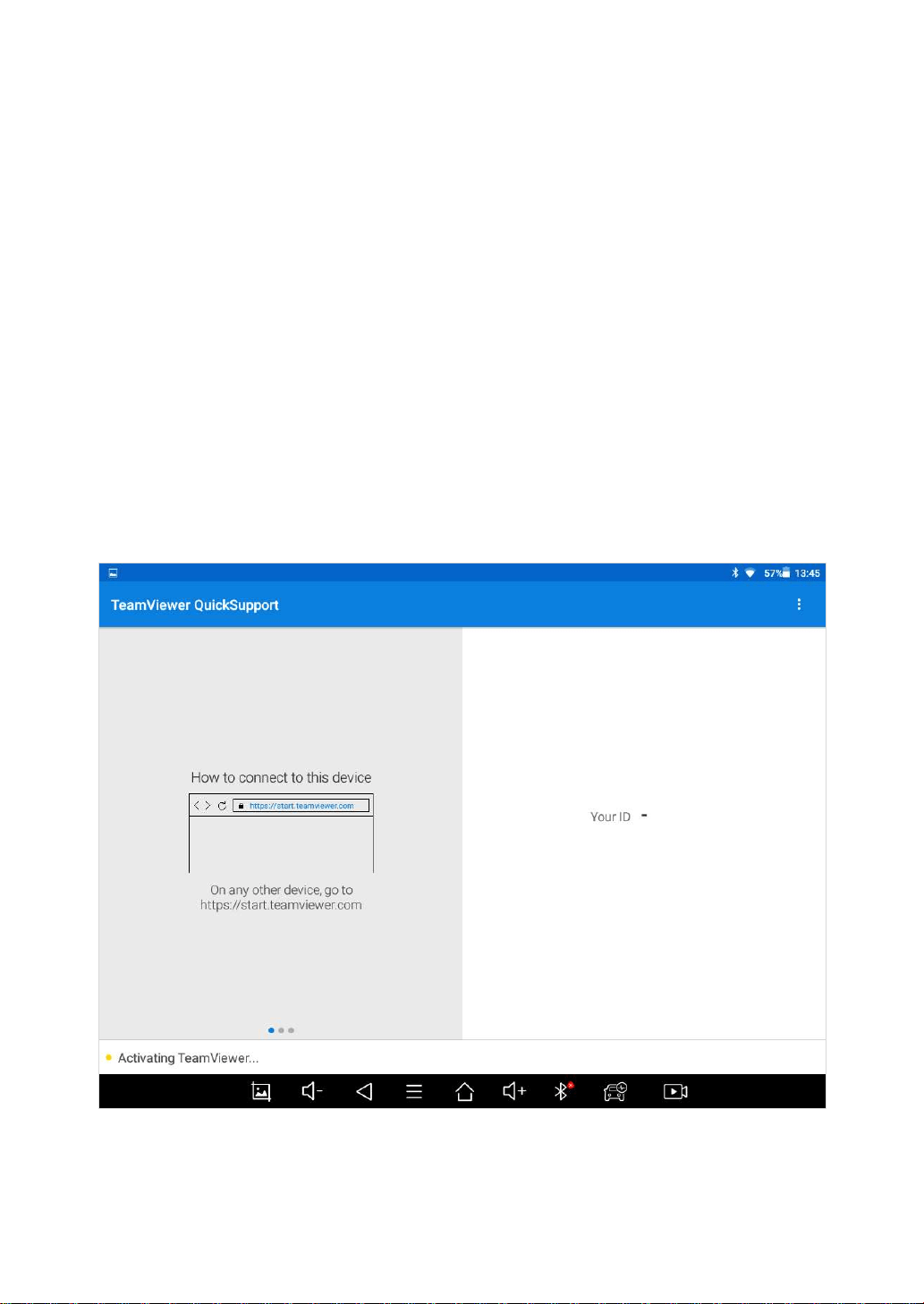

Enter TeamViewer for remote support
Update the immobilizer/diagnosis software through
Internet

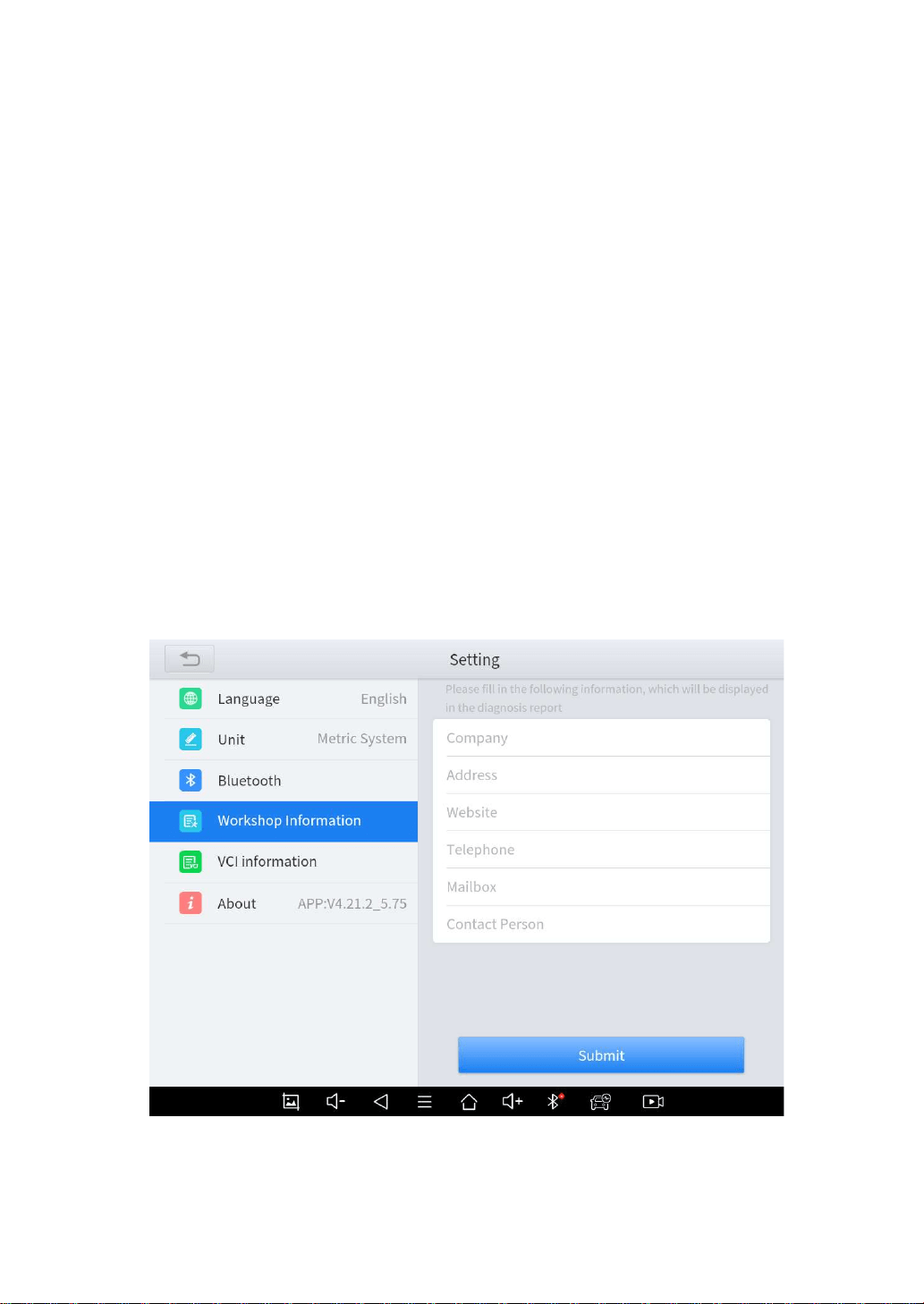

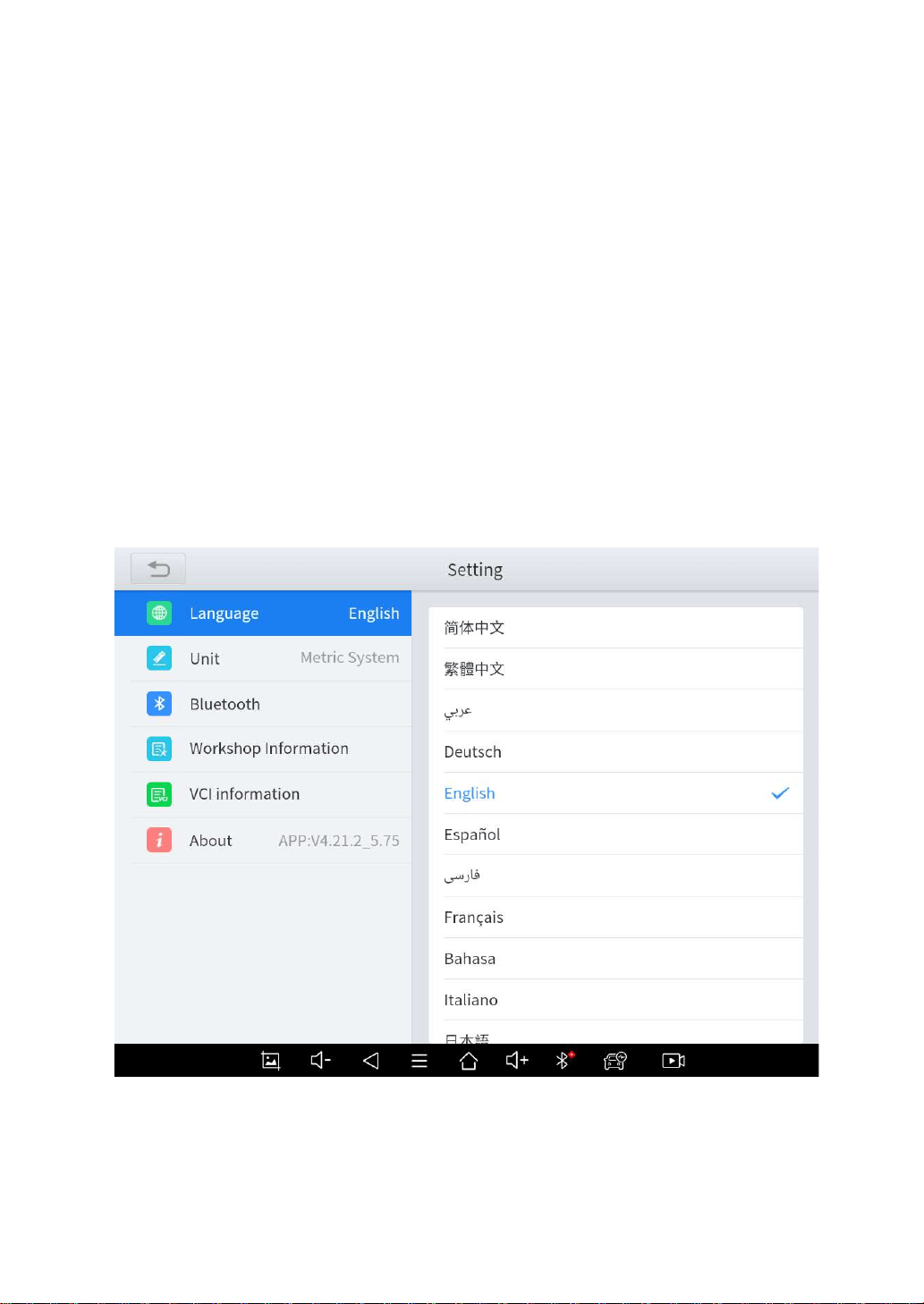

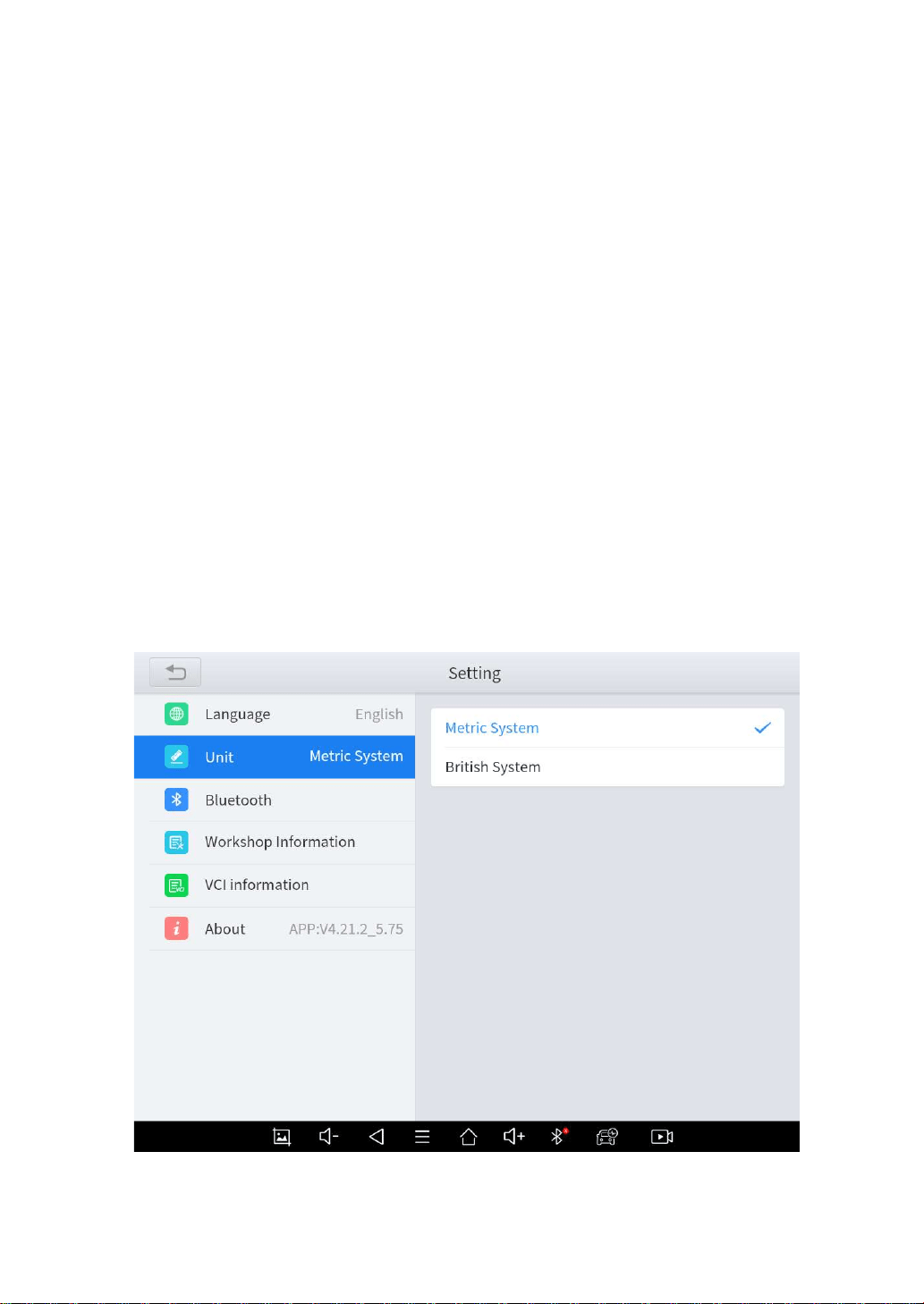

Select the language and
unit shown in the app, and check
the Bluetooth status, device info and workshop info

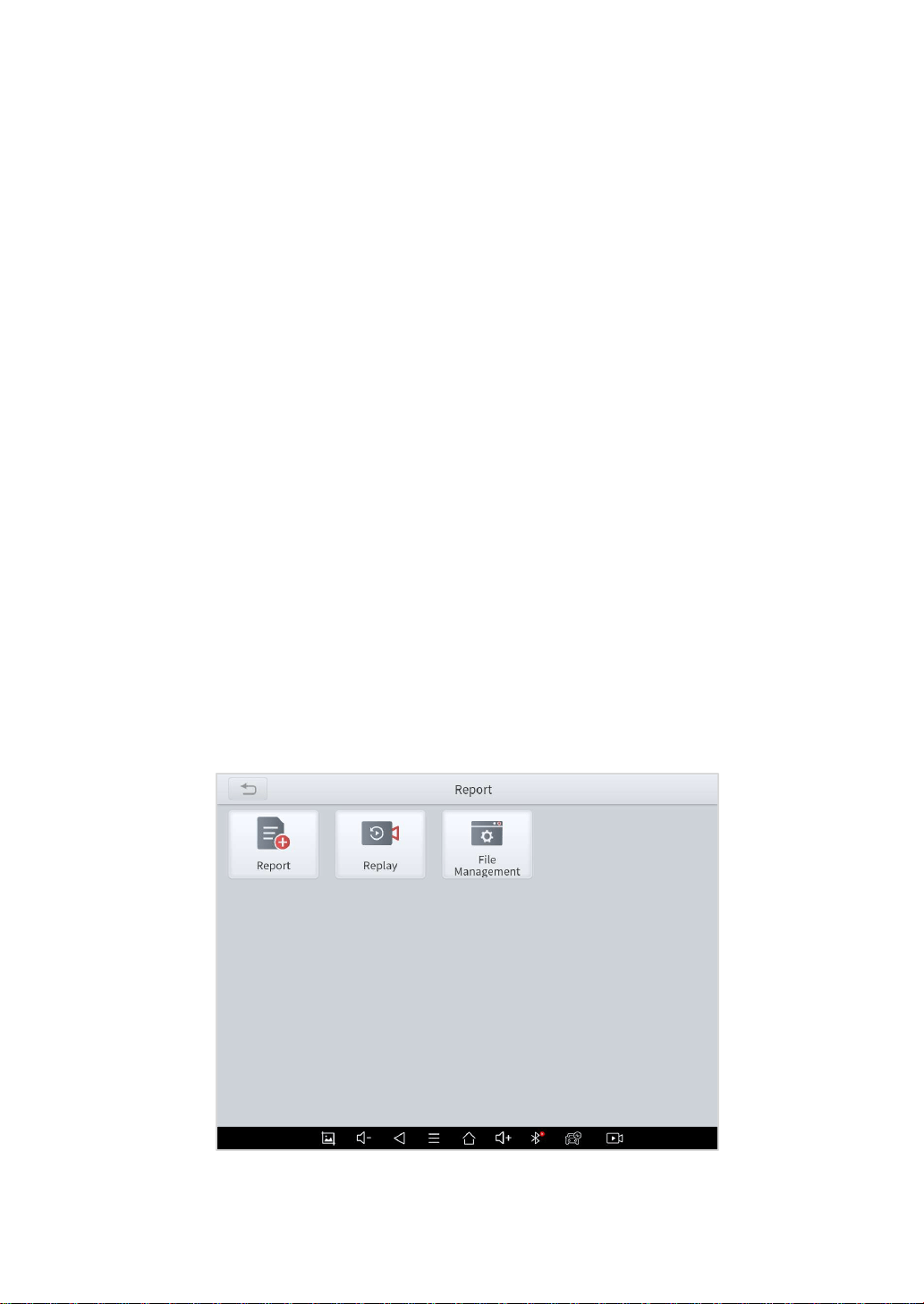

View extended functions like checking reports and check
Xtool official website

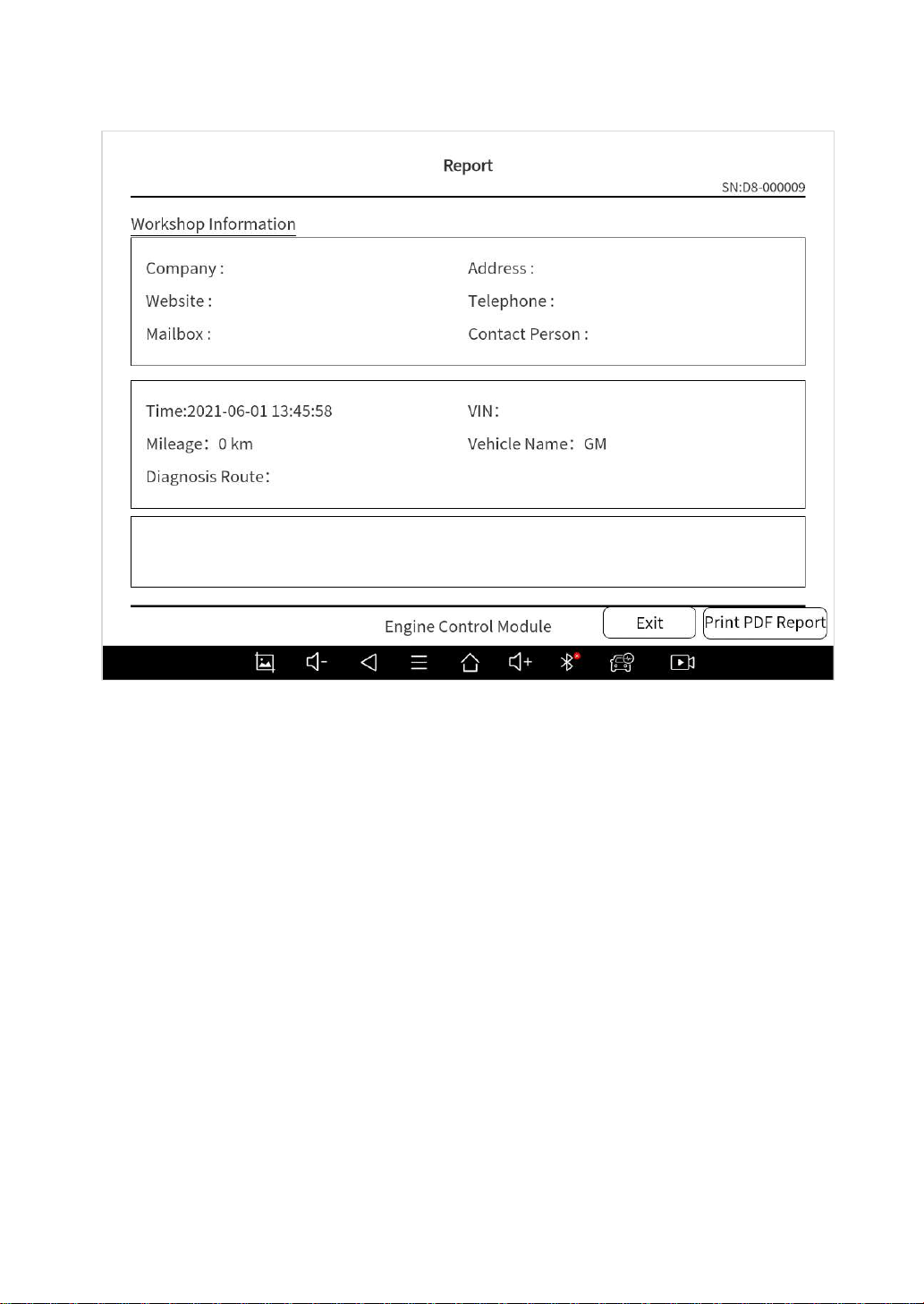

Check the diagnosis report that recorded in your device,
print as PDF files, or share to other devices
24
NAVIGATION BUTTONS
Instructions for operating the navigation bar buttons at the bottom
of the screen, as described in the table below:
Table 2-3
Items Descriptions
Back to previous screen
Back to the main screen of Android system
Shows recently used applications
Press to screenshot
Increase volume
Click here to return to diagnostic vehicle models
interface
Decrease volume
Check Bluetooth status (Red – disconnected/Green
– connected)
25
NOTIFICATION BAR
Slide down to open the notification bar. You can adjust the
brightness of the screen when you need, and you can also connect
Wi-Fi and so on.
Fig 2-11
26

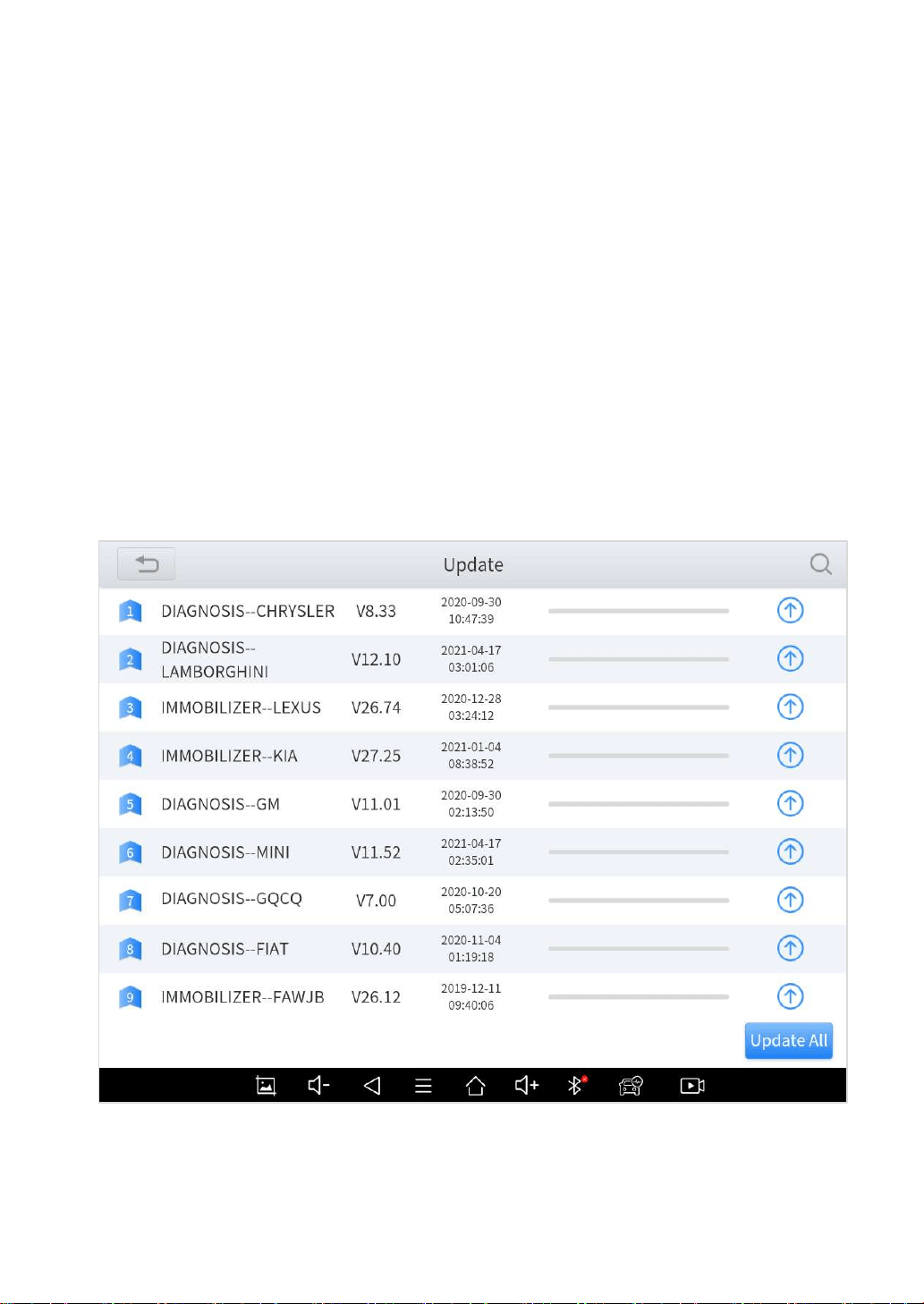

3 UPDATE
After activating the device, please update the software in "Update"
first. The device will pull all currently supported software packages
from our servers, and you can download them as needed. To
access the update application, open the diagnosis application and
click UPGRADE, and it will show as below:
X100MAX has a two-year free subscription when activated. When you click “update”
and it shows “your device is now out of subscription”, please contact your dealer.
Fig 3-1
27
4 KEY PROGRAMMING
The key programming software inside X100MAX app can get
access to the immobilizer system inside the vehicles and supports
multiple functions like key programming, generate dealer key, all
key lost, immobilizer reset or changing, EEPROM chip coding and
much more.
For different manufacturers, the menu inside each software and the supported
functions will be different. We suggest checking the support list inside our official
software first or ask XTOOL aftersales services if you have any questions.
VEHICLE CONNECTION
To start the key programming process, the VCI communication box
should establish communication with the vehicle, and Bluetooth
should be connected between the tablet and the VCI box. Please
follow the steps below.

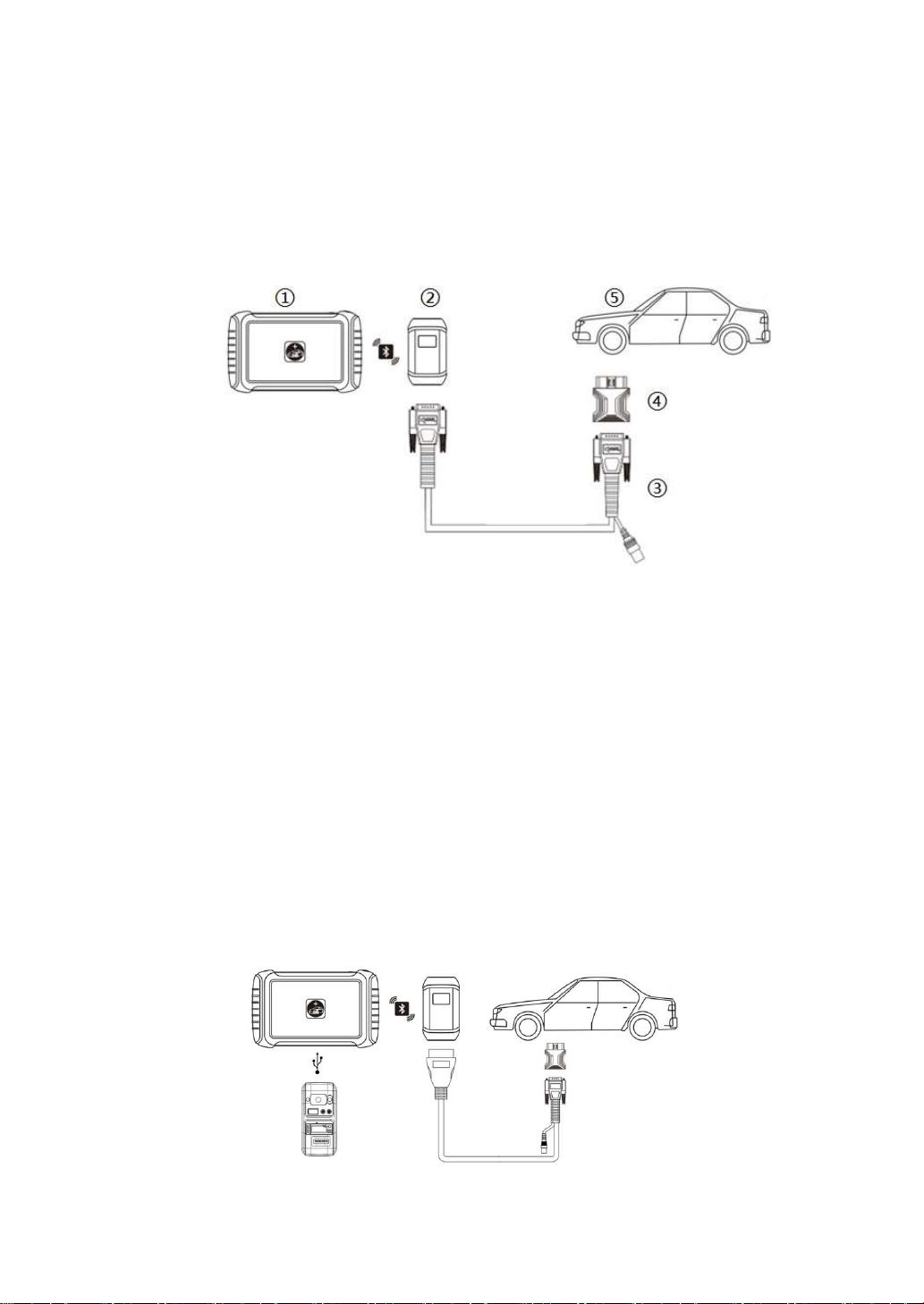

1. Turn on the tablet.
2. Connect the vehicle, the VCI box and the tablet following the
diagram below. Usually, the OBD port is located under the
dashboard, inside driver’s footwell.
3. Wait for the VCI box to communicate with the tablet, then click
into the menus to perform the functions.
If necessary, please connect the VCI box with the tablet using the USB 3.0 to USB-
B cable, especially when working on some processes that needs to transfer lots of
data, like resetting the immobilizer ECU.
28
Some older vehicles are not using the OBD2-16 port, please make sure you’re
using the correct connector. There are 4 extra connectors that’s attached into
X100MAX, but please contact your dealer if you need other connectors.
Fig 4-1
KC501 CONNECTION
KC501 could be connected to the tablet via USB-B to USB3.0 cable.
If you need to connect KC501 to the tablet while programming,
please check the diagram below.
KC501 could also be connected to PC via USB. Please check XTOOL official
website and download “KC501 Studio” to perform key programming, ECU/MCU &
EEPROM modifying functions.
Fi
g
4
-
2
29

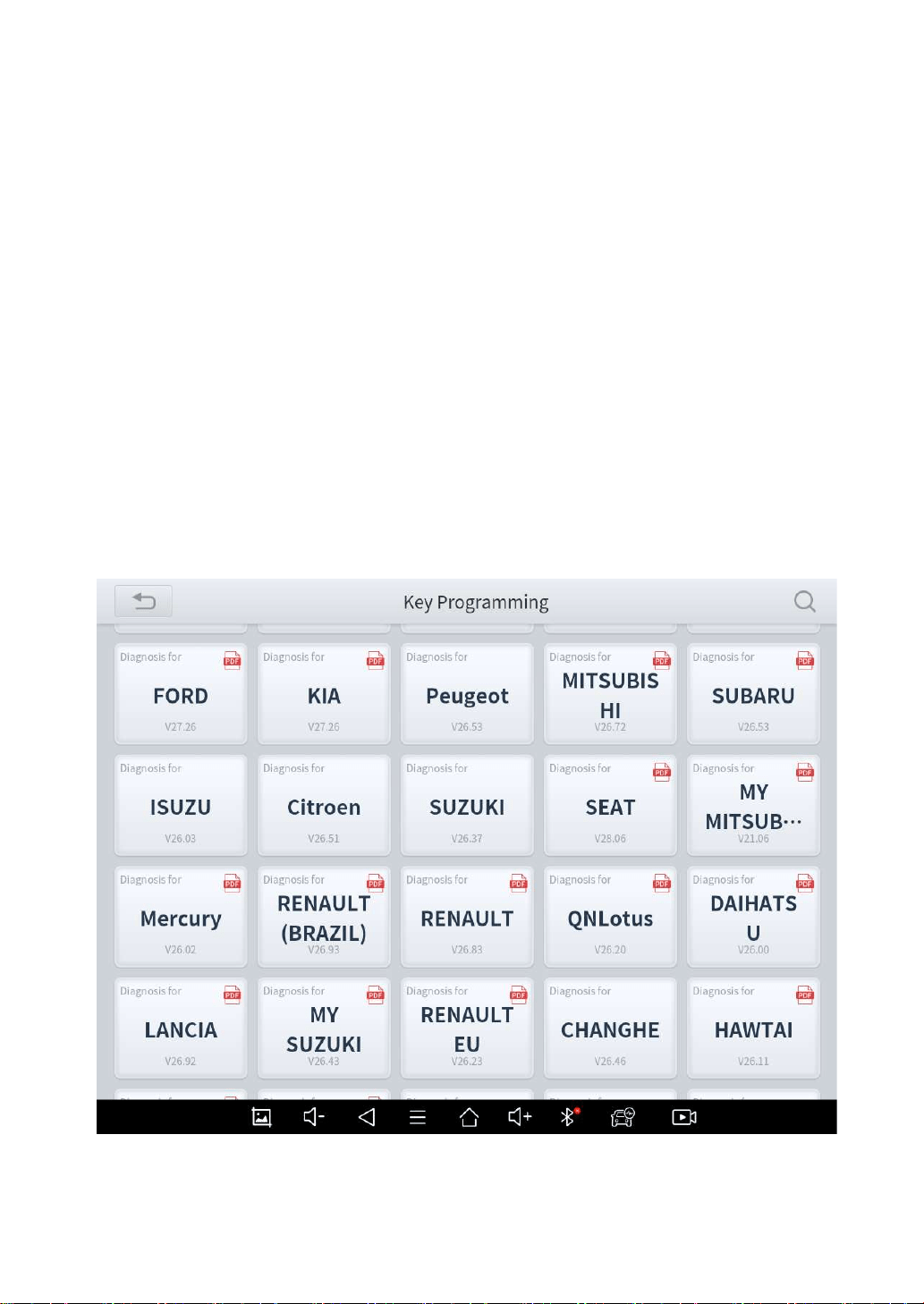

IMMOBILIZER MENU
Click “Key Programming” icon on the main screen and get into the
immobilizer menu. Choose the brand of the vehicle to start the
programming process. You can also click the search icon on the
top-right corner of the screen and find the brand you need.
For different models with different immobilizer modules, the key programming
process will be completely different. Most of the process could be done by following
the instructions on the screen. But if you are not sure how to do that, please check
the tutorials.
If you need to check if your car is supported, you can click the PDF icon at the top
right of the model brand button.
Fi
g
4
-
3 Immobilizer Menu
30
IMMOBILIZER FUNCTIONS
Normally the key programming software supports these functions:
Check number of keys
Read PIN code/pin code calculation
Add key
Generate dealer key
All key lost
And more…
Some examples will be provided in this manual to help you
understand the process.
For different models with different immobilizer modules, the key programming
process will be completely different. Because of that we can only give some
examples about how to do that. Most of the process could be done by following the
instructions on the screen. But if you are not sure how to do that, please check the
tutorials.
READ PIN CODE/PIN CODE CALCULATION

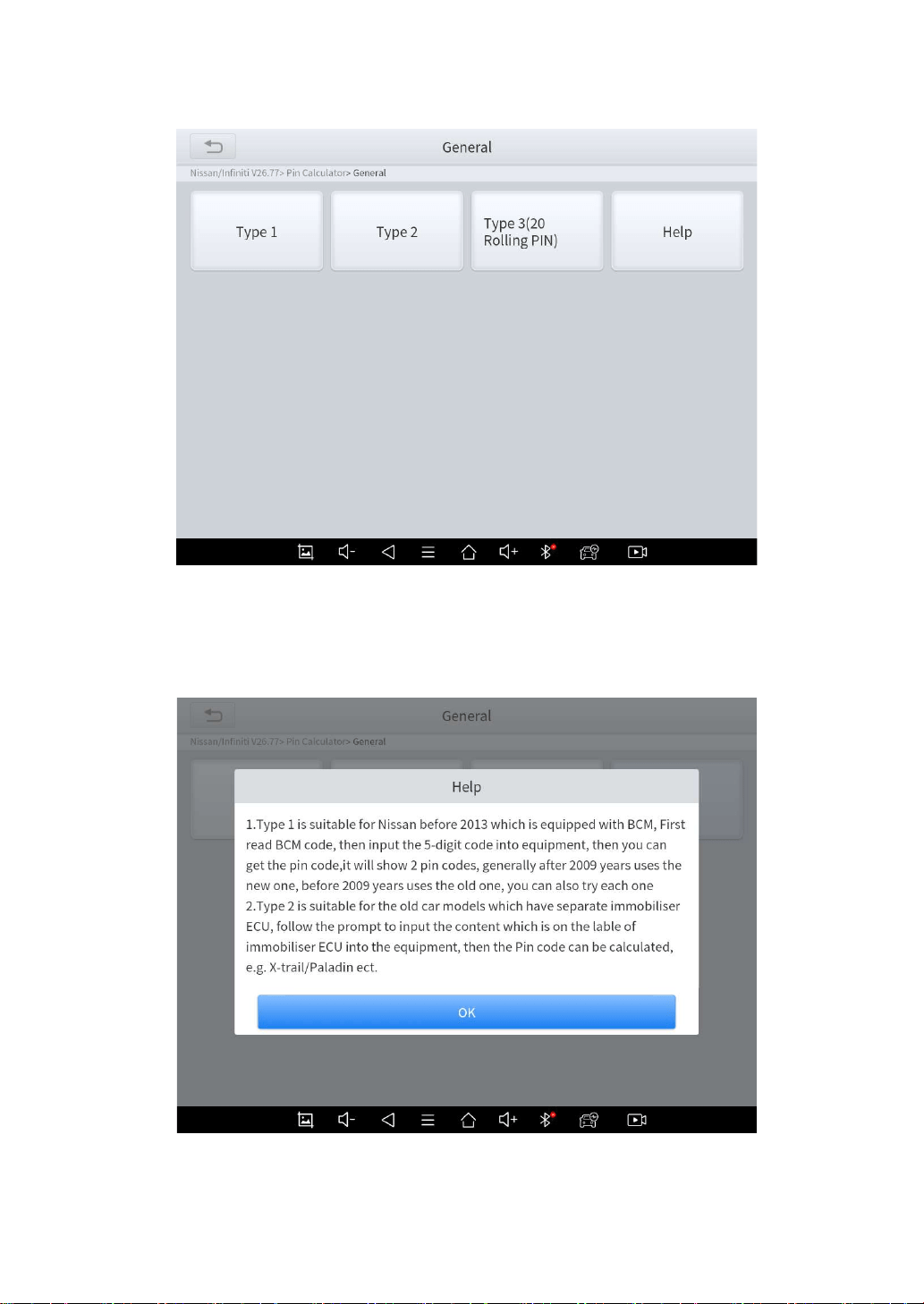

Let’s take Nissan/Infiniti software for example. Click “Key
Programming – Nissan/Infiniti – Pin Calculator” to enter the
system. After selecting the manufacturer (here we choose
“General”), the menu below will show up.
31
Fig 4-4
Please choose the type of your vehicle. If you have any questions,
please click “Help” for more details.
Fig 4-5
32

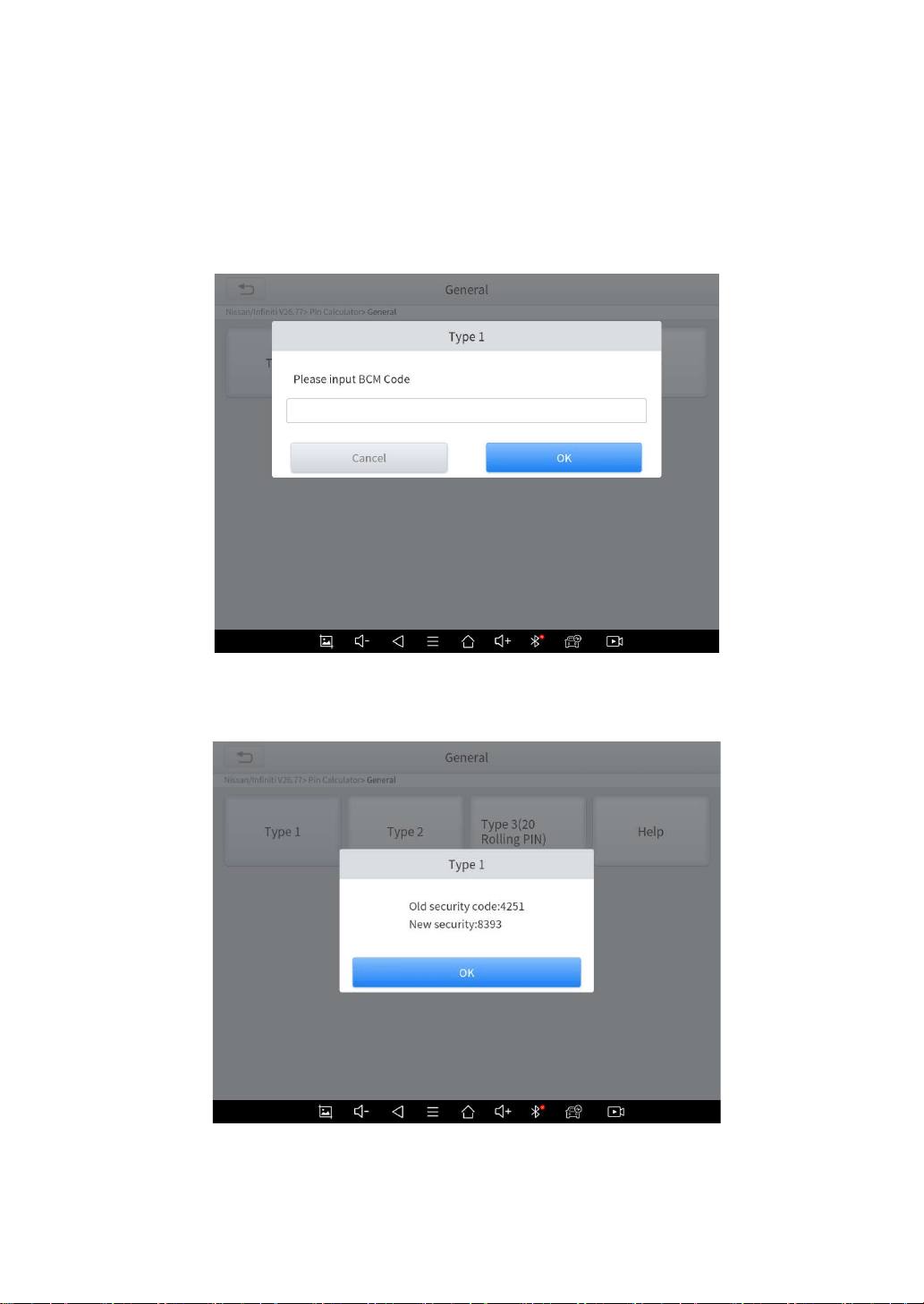

Here we choose “Type 1”, then insert the 5-digit BCM code.
The BCM for Nissan vehicles may be found under the steering wheel, behind the
glove box, behind the passenger/driver side kick panel and behind dash cluster -
depending on the model of vehicle.
Fig 4-6
After you inserted the code, the results will show up.
Fig 4-7
33
Quick Tip: If you have trouble working on Nissans, please change the language
into English, check the updates and see if there is a “NISSAN PIN DATA”. Usually
download it will solve the problem.
CHECK NUMBER OF KEYS
Here we take a 2007 Ford Focus with mechanical key as an
example. Click “Key Programming – Ford – North American Ford –
Focus – 2005-2007” to enter the system.
Fig 4-8

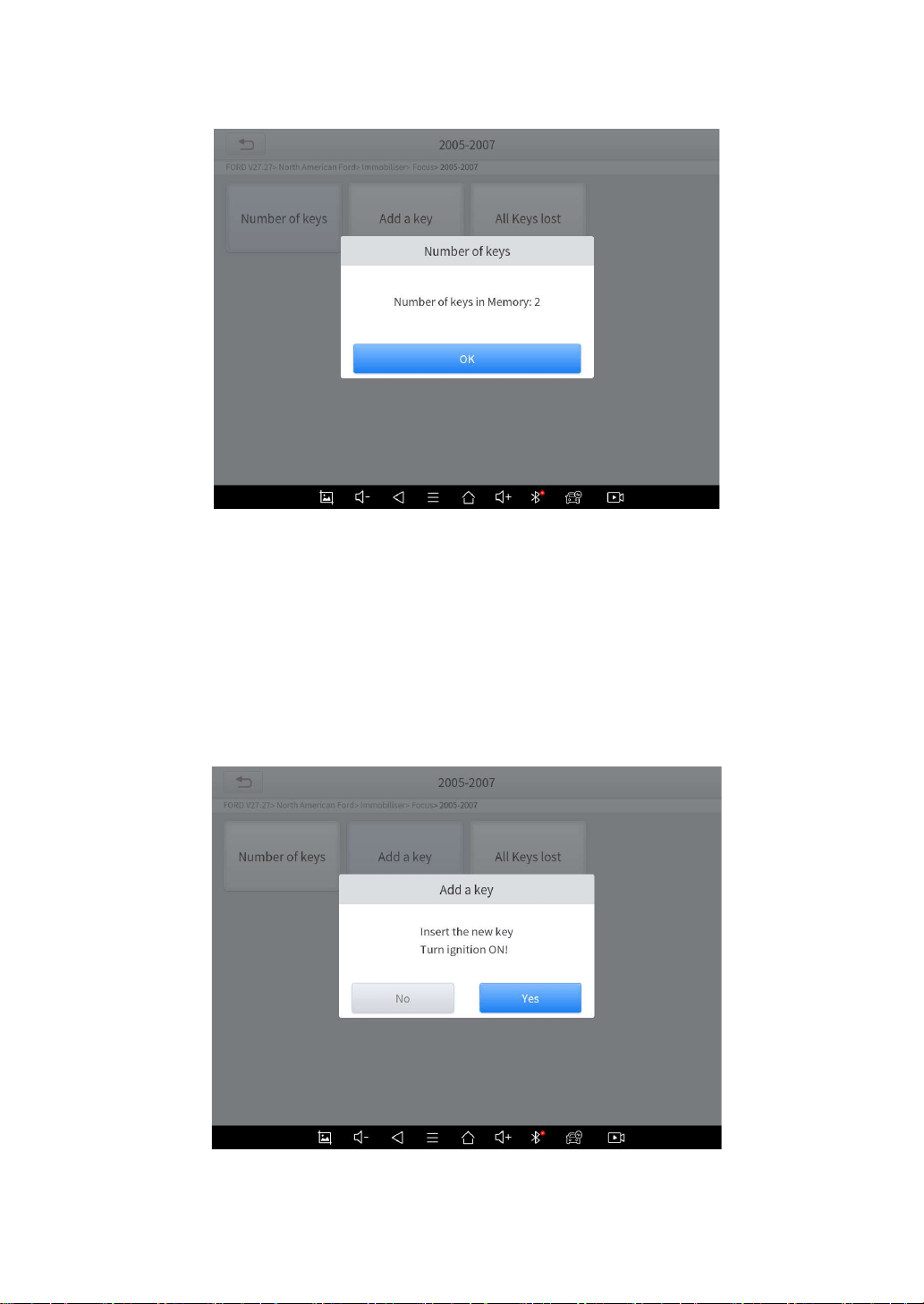

Click “Number of keys” and it will show the number of the keys that
are registered to the vehicle.
34
Fig 4-9
ADD KEYS
Still take the 2007 Ford Focus as an example. Click “Add key”
menu, then follow the instruction on the screen. Take a new key,
insert it into ignition, and switch ignition ON.
Fig 4-10
35

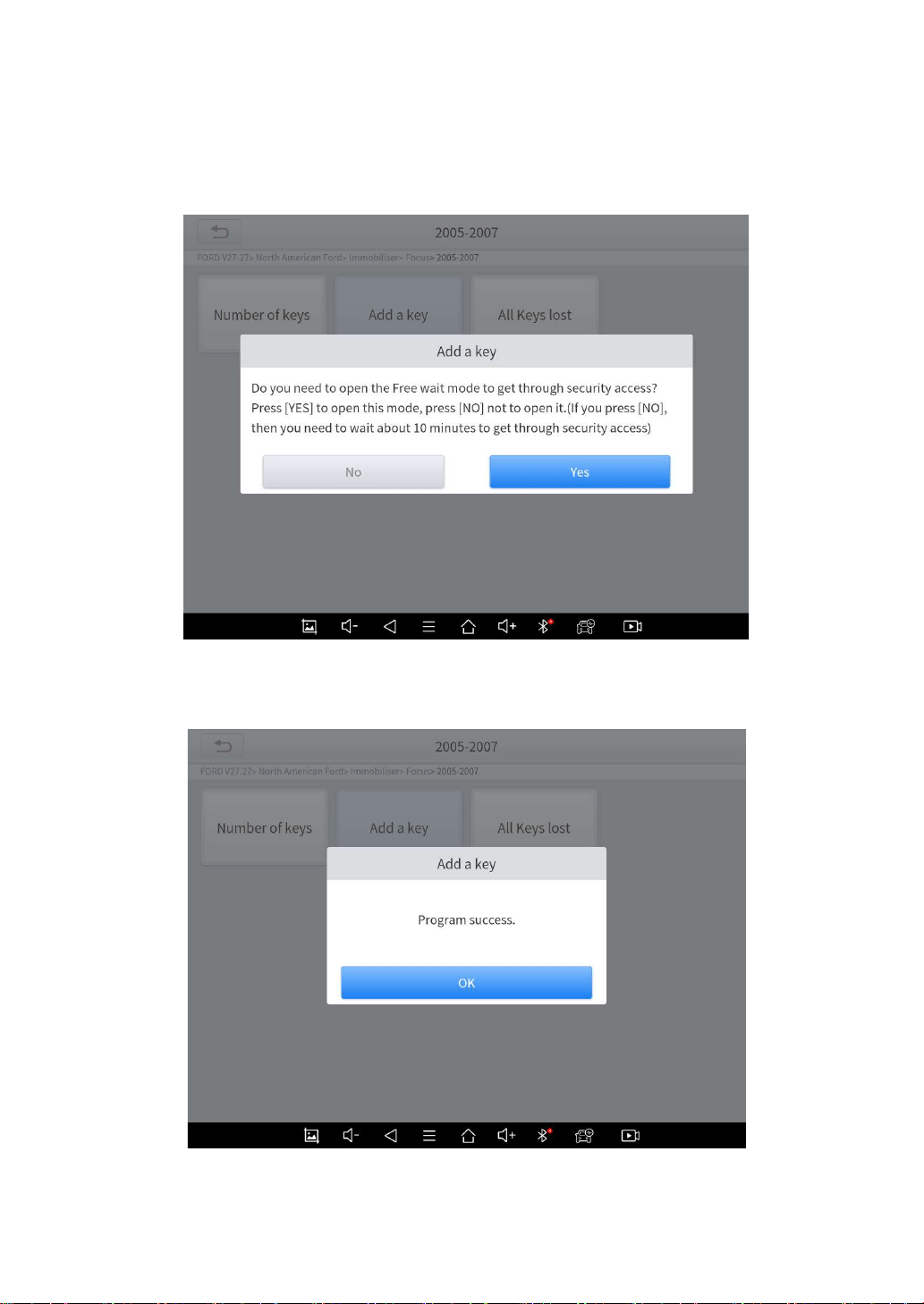

You can choose “Free-wait mode” to bypass the security access,
or you’ll need to wait for about 10 minutes. We choose “Yes” here.
Fig 4-11
Wait for a while until it shows the results.
Fig 4-12
36
ALL KEY LOST
Still take the 2007 Ford Focus as an example. Click “All keys lost”
menu and this notice will show up. Since this is an all-key-lost
situation and we need to clear all the registered key, choose “Yes”
here.
Fig 4-13
This also has a “Free-wait mode”, click “Yes” here.
Fig 4-14
37
Wait a while until the results shows up.
Fig 4-15
After successfully reset, please insert two new keys into the
ignition switch and turn them on one by one.
Fig 4-16
We suggest checking all the keys every time after you programmed the key.
38
5 DIAGNOSIS
The diagnostic application can read ECU information, read and
clear DTC and check living data and freeze frames. The diagnosis
application can access the electronic control unit (ECU) of various
vehicle control systems, including the engine, transmission, anti-
lock braking system (ABS), airbag system (SRS), and perform kinds
of actuation tests.
VEHICLE SELECTION
Click “Diagnosis” icon on the main screen and get into the diagnosis
menu. Like the immobilizer menu, the brands will be shown on the
screen. Select the region of your vehicle, click the correct brand,
and start diagnosis process.
Fig 5-1
39

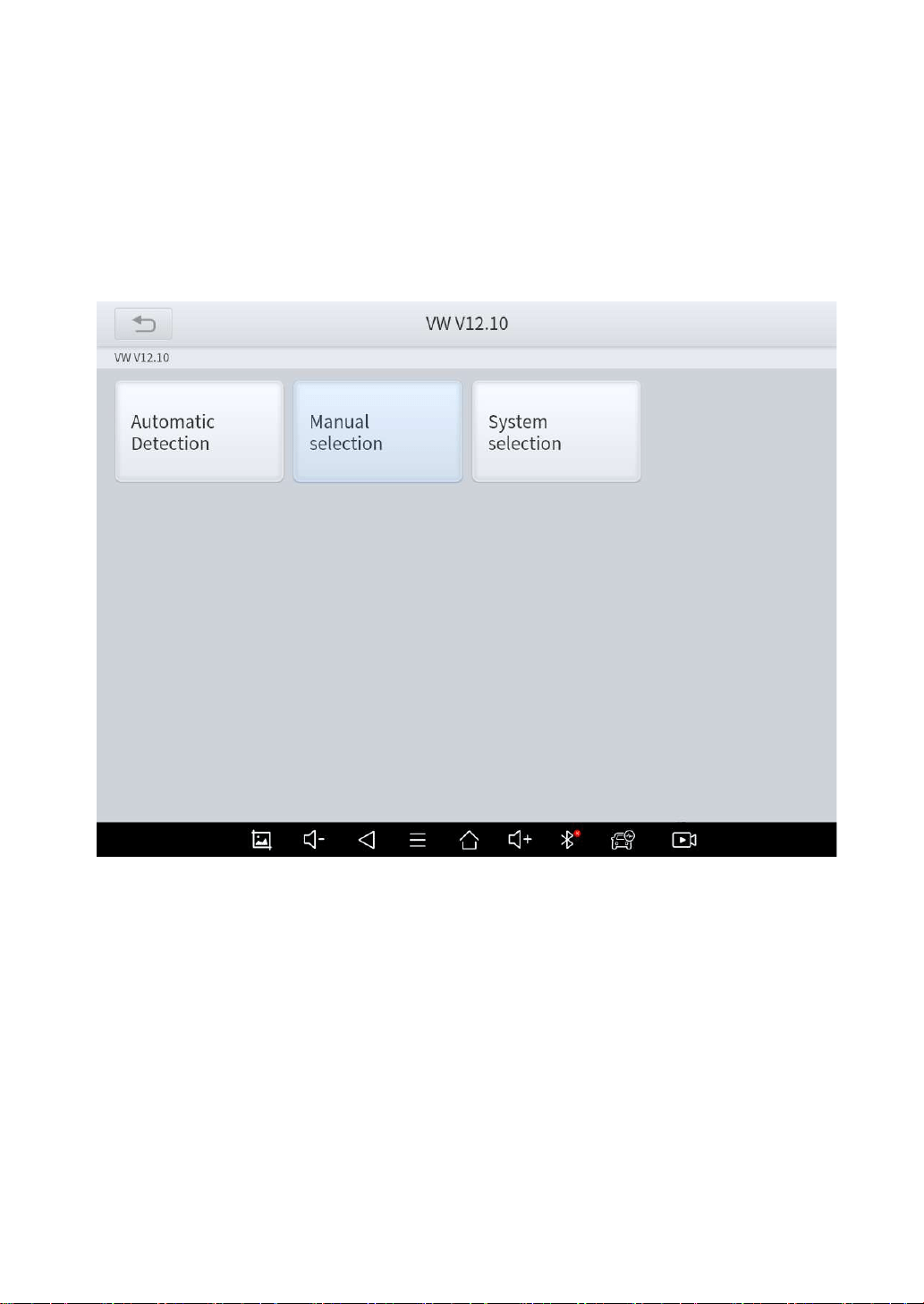

For some of the brands (like Volkswagen), when you click in the
software, there are several ways to select the model or system you
want to run a diagnosis, including Automatic Detection, Manual
Selection and System Selection.
Fig 5-2
Automatic Detection will automatically identify the vehicle's VIN
code, and then read the information of your target diagnostic object.
If you choose "Manual selection", then you can continue to select
the vehicle brand, year, and model of the vehicle in the sub-menu
to diagnosis the vehicle. Enter "System Selection", you can also
diagnose the vehicle according to the system according to your
needs after selecting the model.
40
OBDII menu supports reading the common fault codes in the engine. The DTCs
may not be the same when comparing with using common diagnosis software.
DEMO is a demonstration program. You can perform basic diagnosis functions
without connecting to the car.
DIAGNOSE FUNCTIONS

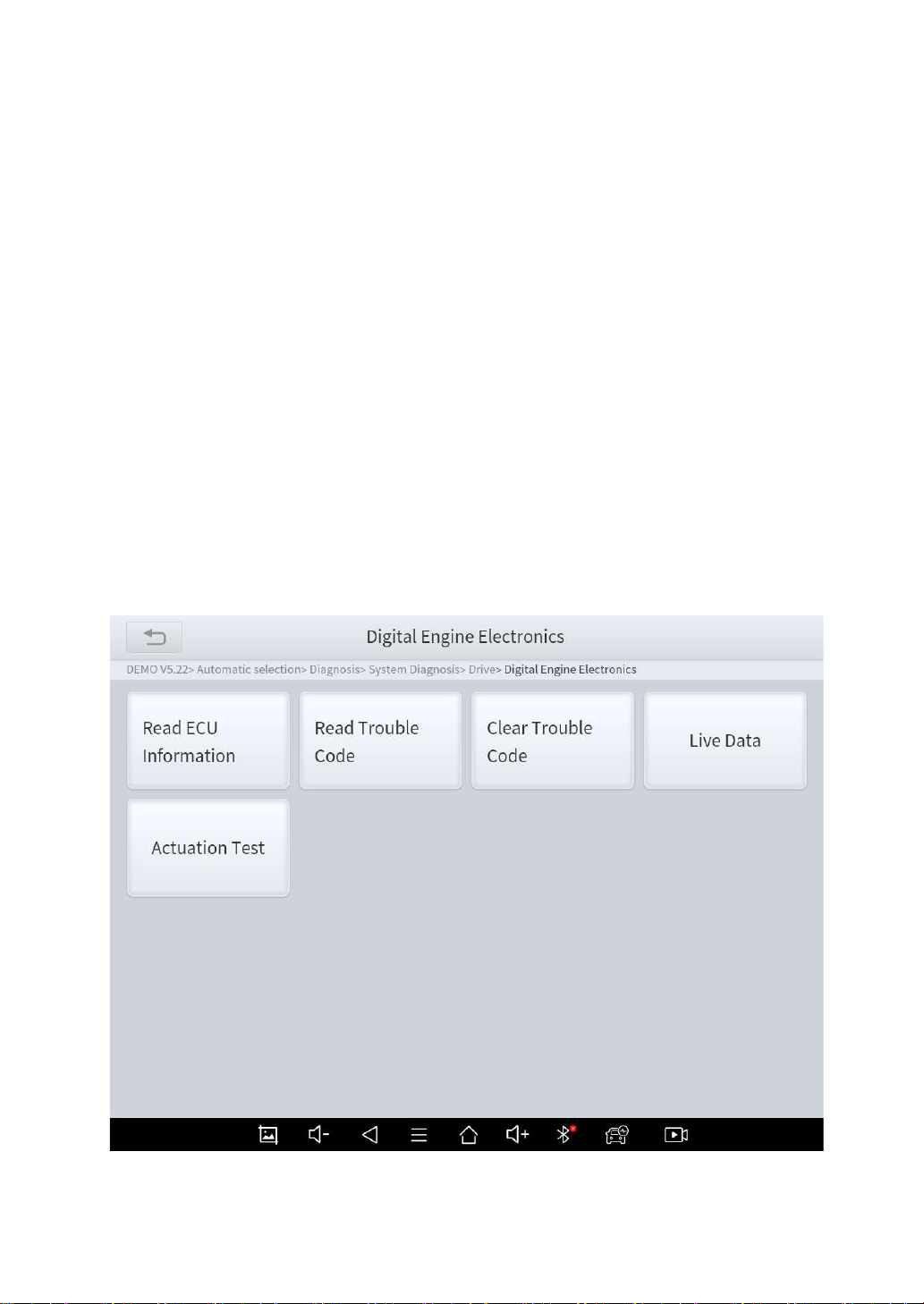

The diagnosis system supports 5 basic diagnosis functions:
Read ECU Information
Read/Clear Trouble Code
Read Live Data
Actuation Test (Bi-Directional Control)
Freeze Frame
Fig 5-3
41
Read ECU Information
This function is to read ECU version information, which is the
equivalent of "System Identification" or "System information” in
some electronic control systems, which means to read ECU related
software and hardware versions, models and production date of
diesel engine, part number, etc.
Fig 5-4
42

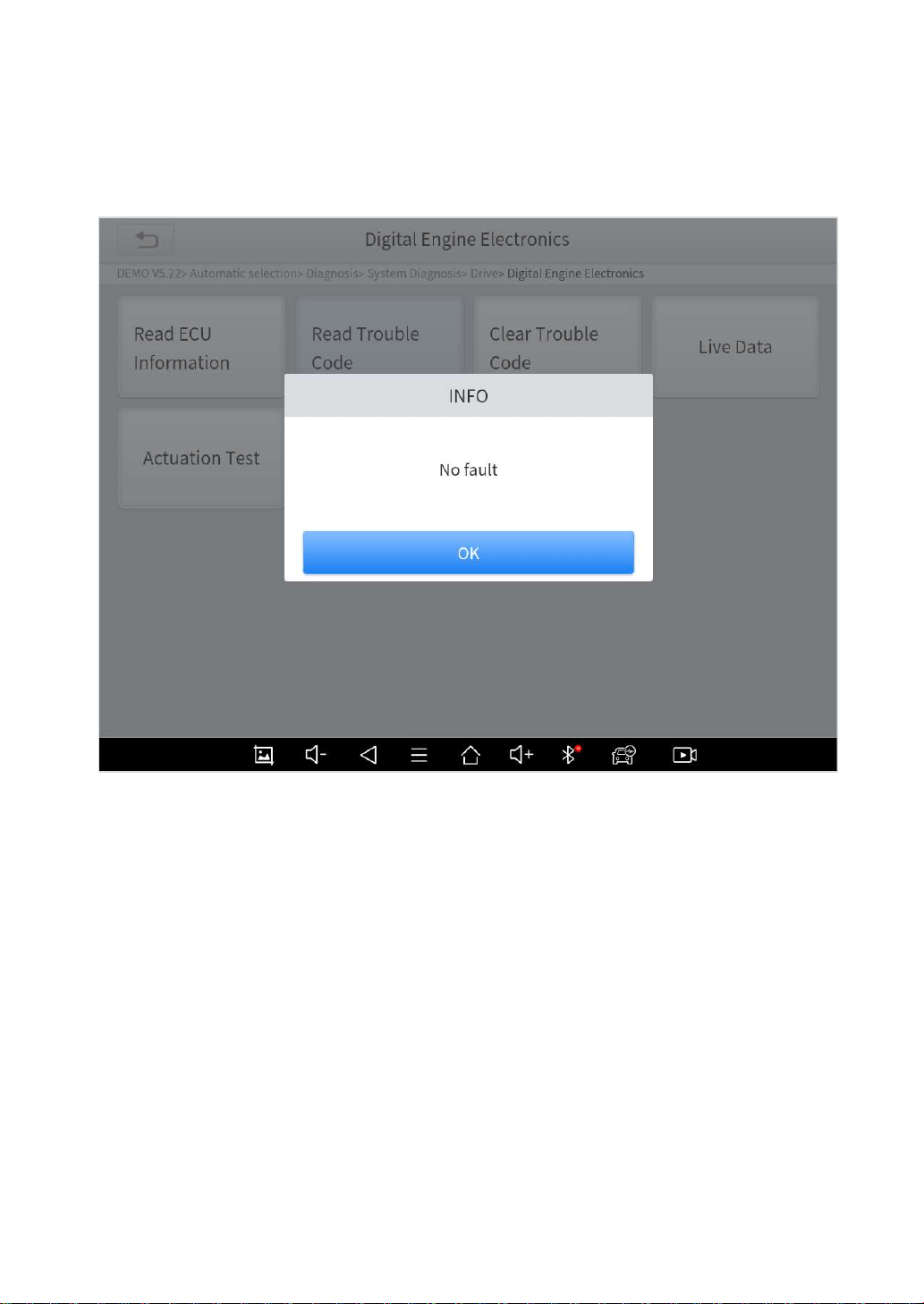

Read Trouble Code
Read trouble codes that’s stored in ECU.
Fig 5-5
In the process of diagnosis, if the device shows “System is OK” or “No Trouble
Code”, it means there is no related trouble code stored in ECU or some troubles are
not under the control of ECU, most of these troubles are mechanical system troubles
or executive circuit troubles, it is also possible that signal of the sensor may bias within
limits, which can be judged in Live Data.
43

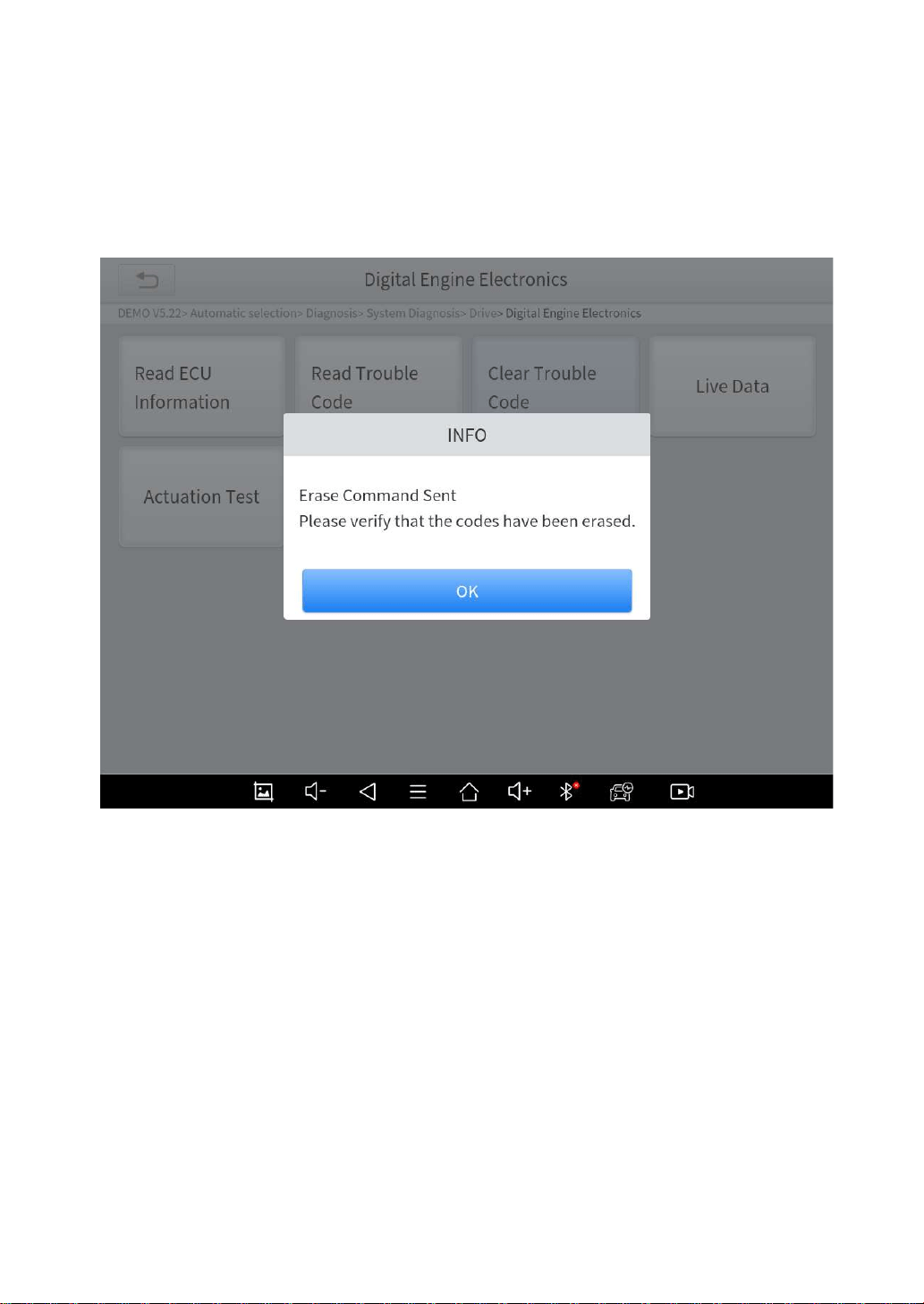

Clear Trouble Code
It allows to clear current and historical trouble codes memory in
ECU, under the premise that all the troubles are eliminated.
Fig 5-6
The trouble codes can’t be erased without eliminating all the troubles, which will
cause the diagnostic tool always reading the trouble code because the code will
always be saved in ECU.

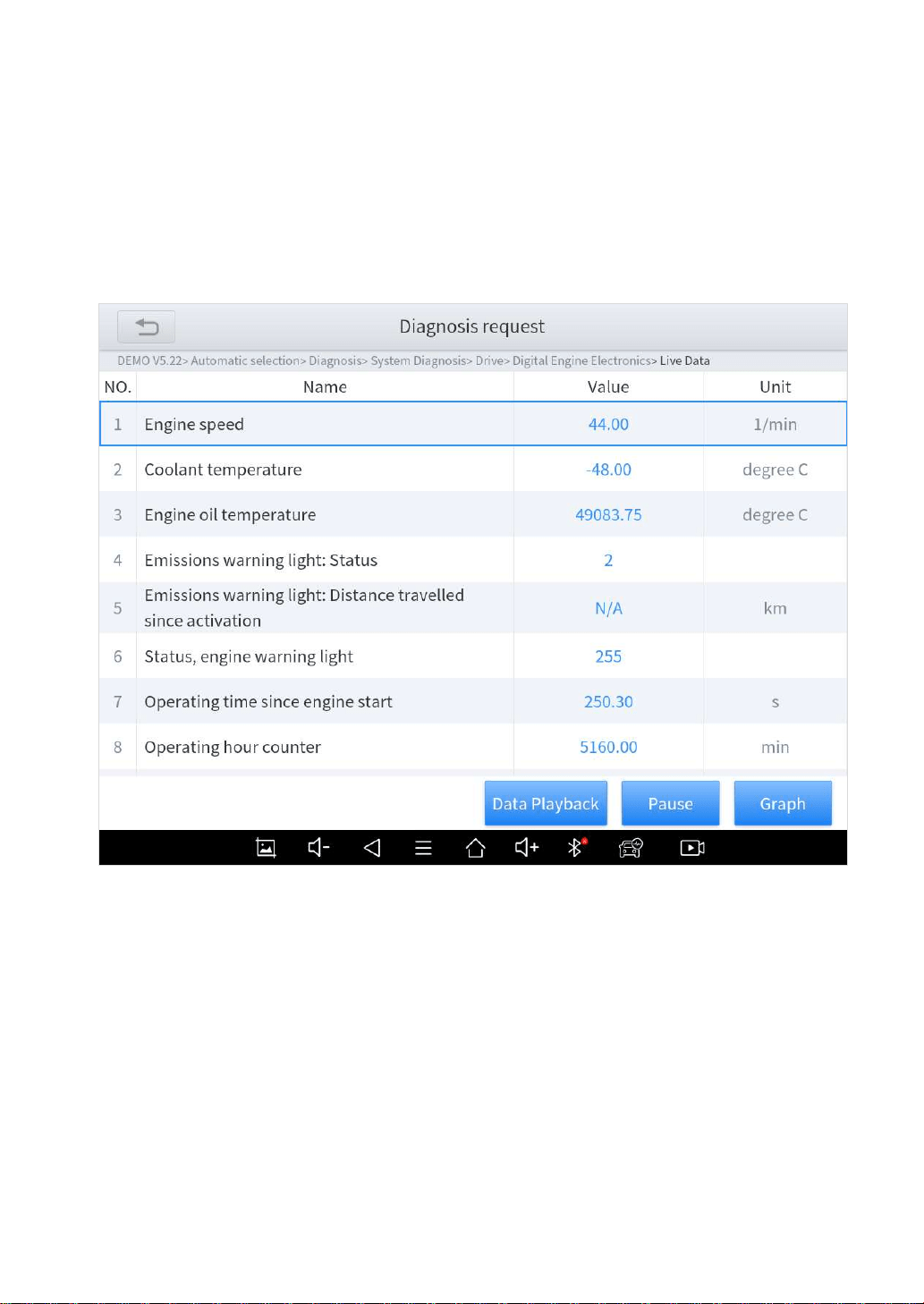

Read Live Data
That is to read the parameters of the system, like for engine
diagnosis, there are parameters like oil pressure, temperature,
engine speed, fuel oil temperature, coolant temperature, intake air
temperature, etc. Based on these parameters, we can judge directly
44
where the problem lies, which helps to narrow the scope in
maintenance. For some vehicles, during their actual operation, the
problems such as performance characteristics offset, sensitivity
reduction, can be judged in live data.
Fig 5-7

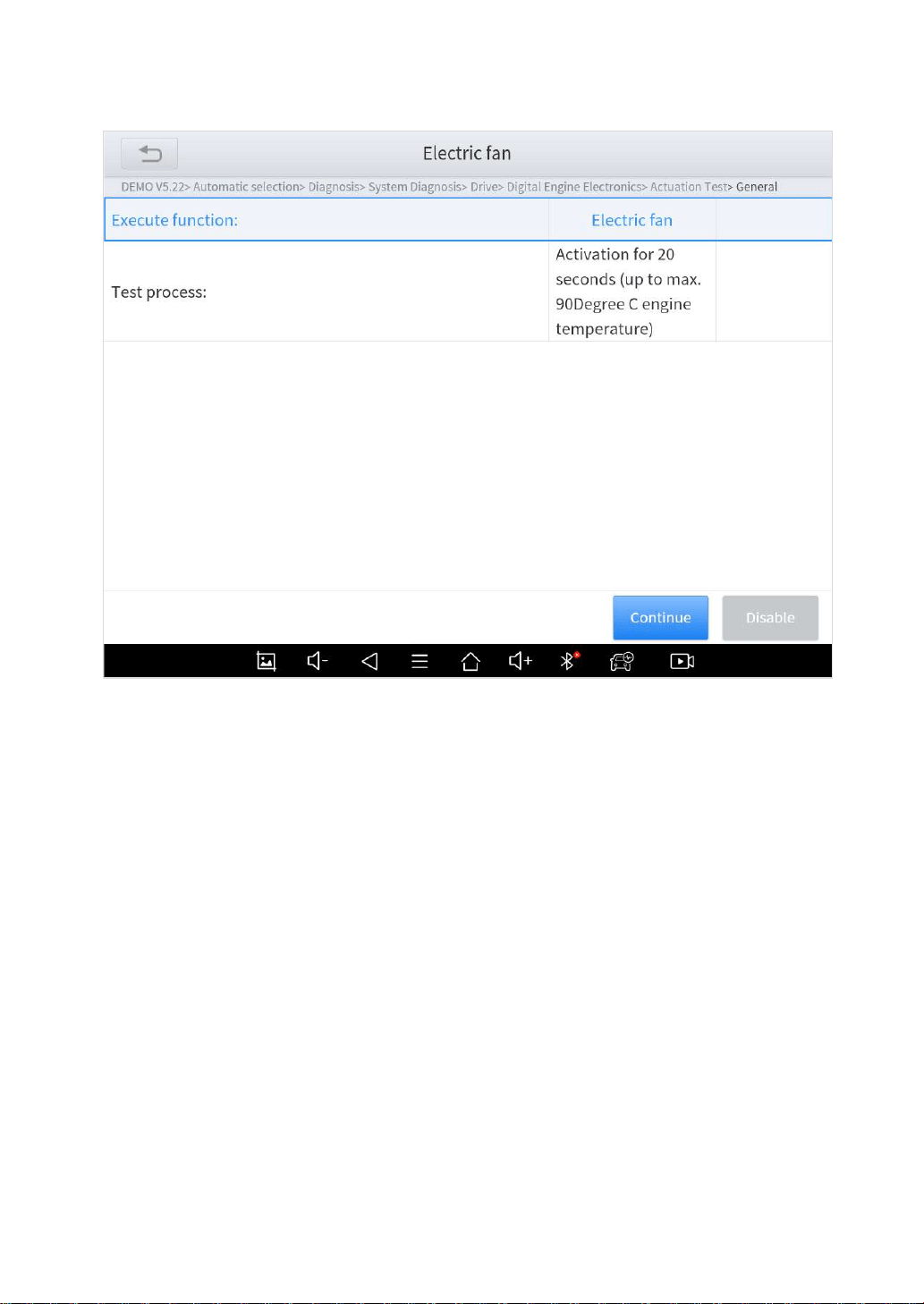

Actuation Test
Actuation test, also known bidirectional control, is a generic term
used to describe sending and receiving information between one
device and another.
45

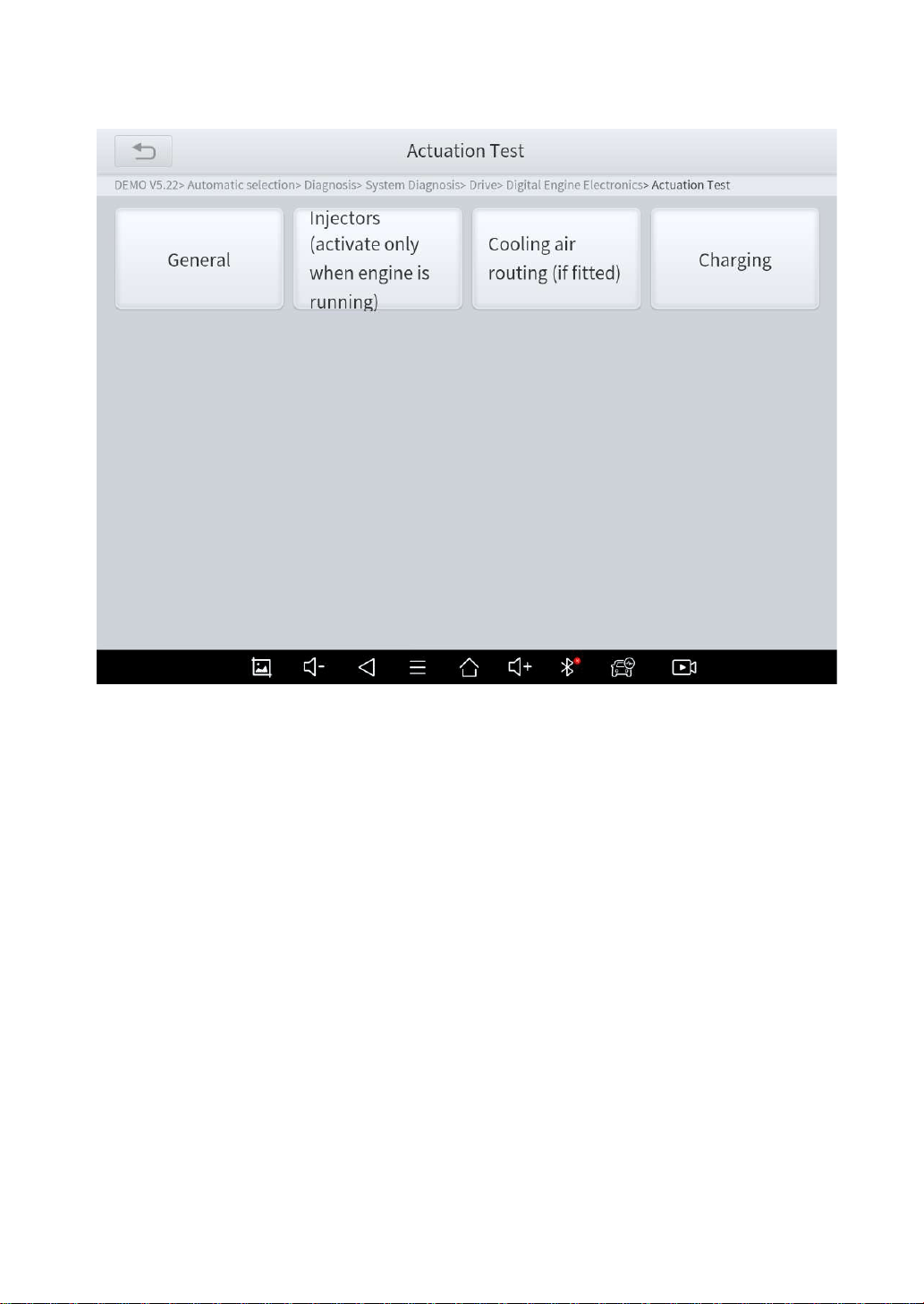

Fig 5-8
The vehicle engineers responsible for designing computer control
systems programmed them so a scan tool could request information
or command a module to perform specific tests and functions. Some
manufacturers refer to bidirectional controls as functional tests,
actuator tests, inspection tests, system tests or the like.
Reinitialization and reprogramming also can be included in the list
of bidirectional controls.
46
Fig 5-9
This function allow device sends information to, and receives
information from, vehicle control modules. For example, in the case
of OBD II generic information Mode 1 (which relates to data
parameters), the scan tool user initiates a request for information
from the powertrain control module (PCM), and the PCM responds
by sending the information back to the scan tool for display. Most
enhanced scan tools also have the ability to actuate relays, injectors
and coils, perform system tests, etc. Users could check the
individual part to see what is working properly by actuation test.
47
Freeze Frame
When the signal of the sensor is abnormal, the ECU will save the
data at that moment of failure to form a freeze frame. It is usually
used to analyze the reasons that may lead to car failures.
The living data items supported by vehicles of different brands are
not exactly the same, so the freeze frames displayed when
diagnosing vehicle of different brands may also be different. Some
vehicles may not have the option of freeze frame, because the
model does not support this function.
6 SPECIAL FUNCTIONS
X100MAX Auto Key Programmer also supports 23 commonly used
special reset functions, allowing you to quickly access your vehicle
system for various scheduled services, maintenance and reset
performance, eliminating the need to reset after resolving common
problems. This user manual lists some of the commonly used
special reset services for your reference. The special functions
interface is shown as below:
48
Fig 6-1
Due to the limitation of screenshots, the special functions shown in this picture are not
complete.
All special functions supported by X100MAX are subject to the actual special functions
displayed on the device.
Please make sure the vehicle you’re working on supports the original functions.
OIL LIGHT RESET
Reset the Engine Oil Life System, which calculates the optimum oil
life change interval based on the vehicle's driving conditions and
climate. The oil life reminder must be reset each time the oil is
49
changed so that the system can calculate when the next oil change
is required.
This function allows you to perform reset for the engine oil life
system, which calculates an optimal oil life change interval
depending on the vehicle driving conditions and climate.
This function can be performed in the following cases:
If the service lamp is on, you must provide service for the car.
After service, you need to reset the driving mileage or driving
time so that the service lamp turns off and the system enables
the new service cycle.
After changing engine oil or electric appliances that monitor oil
life, you need to reset the service lamp.
EPB
Electronic Parking Brake (EPB) System reset is a popular special
function. You can use this function to reset the electronic parking
brake system and brake pads, which also supports the brake pad
replacement (retraction, release of the brake pump), G-sensor and
body angle calibration. This function has multiple uses and can
safely and effectively maintain the electronic brake system. These
applications include deactivating and activating brake control
systems, assisting in controlling brake fluid, opening and closing
50
brake pads, and setting brakes after replacing brake discs or brake
pads, etc.
1. If the brake pad wears the brake pad sense line, the brake pad
sense line sends a signal sense line to the on-board tablet to
replace the brake pad.
After replacing the brake pad, you must reset the brake pad.
Otherwise, the car alarms.
2. Reset must be performed in the following cases:
The brake pad and brake pad wear sensor are replaced.
The brake pad indicator lamp is on.
The brake pad sensor circuit is short, which is recovered.
The servo motor is replaced.
SAS
Steering Angle Sensors (SAS) System Calibration permanently
stores the current steering wheel position as the straight-ahead
position in the SAS EEPROM. Therefore, the front wheels and the
steering wheel must be set exactly to the straight-ahead position
before calibration. In addition, the VIN is also read from the
instrument cluster and stored permanently in the SAS EEPROM.
On successful completion of calibration, the SAS fault memory is
automatically cleared.
51
To reset the steering angle, first find the relative zero-point position
for the car to drive in straight line. Taking this position as reference,
the ECU can calculate the accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing
steering mechanical parts (such as steering gearbox, steering
column, end tie rod, steering knuckle), performing four-wheel
alignment, or recovering car body, you must reset the steering angle.
DPF
The Diesel Particle Filter (DPF) function manages DPF
regeneration, DPF component replacement teach-in and DPF
teach-in after replacing the engine control unit.
The ECM monitors driving style and selects a suitable time to
employ regeneration. Cars driven a lot at idling speed and low load
will attempt to regenerate earlier than cars driven more with higher
load and speed. For regeneration to take place, a prolonged high
exhaust temperature must be obtained.
In the event of the car being driven in such a way that regeneration
is not possible, i.e., frequent short journeys, a diagnostic trouble
code will eventually be registered in addition to the DPF light and
“Check Engine” indicators displaying. A service regeneration can be
requested in the workshop using the diagnostic tool.
52
DPF regeneration is used to clear PM (Particulate Matter) from the
DPF filter through continuous combustion oxidation mode (such as
high temperature heating combustion, fuel additive or catalyst
reduce PM ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
The exhaust back pressure sensor is replaced.
The PM trap is removed or replaced.
The fuel additive nozzle is removed or replaced.
The catalytic oxidizer is removed or replaced.
The DPF regeneration MIL is on and maintenance is performed.
The DPF regeneration control module is replaced.
BMS RESET
The Battery Management System (BMS) allows the scan tool to
evaluate the battery charge state, monitor the close-circuit current,
register the battery replacement, and activate the rest state of the
vehicle.
This function enables you to perform a resetting operation on the
monitoring unit of vehicle battery, in which the original low battery
fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
Main battery is replaced. Battery matching must be performed
to clear original low battery information and prevent the related
control module from detecting false information. If the related
53
control module detects false information, it will invalidate some
electric auxiliary functions, such as automatic start & stop
function, sunroof without one-key trigger function, power window
without automatic function.
Battery monitoring sensor. Battery matching is performed to re-
match the control module and motoring sensor to detect battery
power usage more accurately, which can avoid an error
message displaying on the instrument panel.
THROTTLE
Throttle Position Sensor (TPS) Match, this function enables you to
make initial settings to throttle actuators and returns the “learned”
values stored on ECU to the default state. Doing so can accurately
control the actions of regulating throttle (or idle engine) to adjust the
amount of air intake.
TPMS RESET
Tire Pressure Monitor System (TPMS) Reset allows you to quickly
look up the tire sensor IDs from the vehicle ECU, as well as to
perform TPMS replacement and reset procedures after tire sensors
are replaced.
This function allows you to quickly look up the tire sensor IDs from
the vehicle’s ECU, as well as to perform TPMS replacement and
sensor test.
54
After the tire pressure MIL turns on and maintenance is
performed, the tire pressure resetting function must be
performed to reset tire pressure and turn off the tire pressure
MIL.
Tire pressure resetting must be performed after maintenance is
performed in the following cases: tire pressure is too low, tire
leaks, tire pressure monitoring device is replaced or installed,
tire is replaced, tire pressure sensor is damaged, and tire is
replaced for the car with tire pressure monitoring function.
ABS BLEEDING
Anti-lock Braking System (ABS) Bleeding allows you to perform
various bi-directional tests to check the operating conditions of ABS.
1. When the ABS contains air, the ABS bleeding function must be
performed to bleed the brake system to restore ABS brake
sensitivity.
2. If the ABS tablet, ABS pump, brake master cylinder, brake
cylinder, brake line, or brake fluid is replaced, the ABS bleeding
function must be performed to bleed the ABS.
3. After the oil in the brake oil tank is seriously insufficient or the
brake fluid is replaced, ABS Bleeding is also required
When performing ABS Bleeding, it is necessary to unscrew the exhaust screw of the
ABS pump.
After completing the tire pressure sensor learning, it takes a while for the fault light to
go out.
55
Tire pressure imbalance will also cause the tire pressure light to light up.
INJECTOR CODING
This function can write the identification code of the fuel injector into
the ECU so that the ECU can recognize and work normally. Write
injector actual code or rewrite code in the ECU to the injector code
of the corresponding cylinder so as to more accurately control or
correct cylinder injection quantity.
After the ECU or injector is replaced, injector code of each cylinder
must be confirmed or re-coded so that the cylinder can better
identify injectors to accurately control fuel injection.
After cleaning, generally there is no need to do the coding matching function.
The identification of the fuel injector includes its working accuracy value and type value.
When replacing it, you need to find the corresponding model for replacement.
At present, mainstream cars support injector coding function
GEARBOX MATCH
After changing the gearbox or changing the gearbox ECU, you need
to use the gearbox matching function to re-match the engine and
the gearbox.
*Cautions!
Before resetting the gearbox, please check the gearbox control unit
to ensure that there is no fault code. If there is a fault code, the
gearbox memory function cannot be reset. Please road test after
reset.
56
SUSPENSION
This function can adjust the height of the vehicle body. When
replacing the body height sensor in the air suspension system, or
control module or when the vehicle level is incorrect, you need to
perform this function to adjust the body height sensor for level
calibration.
The air suspension system reset function enables the tablet ECU to
match the current air suspension system information, thereby
ensuring the normal damping effect of the vehicle when driving.
Application scenarios:
The shock absorber is not the same height due to air leakage,
maintenance, replacement, etc.;
After replacing the air pump assembly;
After replacing the electronic control module.
WINDOWS INITIALIZATION
This function is to match the windows to restore the initial memory
of the ECU and restore the automatic raising and lowering functions
of the power window. Usually when the vehicle window fails or after
replacing the window glass, we need to use this function to initialize
the car window.
57
SEAT CALIBRATION
This function is suitable for the matching of replacement and
maintenance seats with memory function. After the seat fails or is
replaced or repaired, it is generally necessary to use this function to
match the seat.
Needed for cars with seats with memory function, general gasoline cars don’t need.
HEADLIGHT
This function is used to initialize the adaptive headlight system. It
refers to the adaptive front lighting system (when using bi-xenon
headlights at night), it can be rotated to the sides, pressing the
button means that they remain direct, and do not turn when you turn.
After replacing the headlights, the adaptive headlight system needs
to be matched.
ECU CONFIGURATION
When a car with a high-level configuration and a car with a low-level
configuration share the same ECU, or you need to change or add
some features unique to the high-end vehicles, you can use this
function to support the activation of the hidden functions of the car
(except those that are not supported by the hardware). Different
hidden functions may require different operation steps, please be
sure to operate under the guidance.
58
Cautions!
The functions that the original ECU must support can be flashed
out.
Brushing to hide will not destroy the ECU system layer, but only
open and close some functions.
Most of them can be re-flashed multiple times.
Support cars:
Volkswagen, Toyota, BMW, Ford, Mazda
*A/F RESET
This function is applied to set or learn Air/Fuel ratio parameters.
*STOP/START RESET
This function is used to open or close the automatic start-stop
function via setting the hidden function in ECU (provided that the
vehicle has a hidden function and supported by hardware).
AIRBAG RESET
Supplemental Restraint System (SRS) Reset allows you resets the
airbag data to clear the airbag collision fault indicator. Generally,
SRS reset is required after airbag replacement
59
INSTRUMENT CLUSTER
This function allows you to copy, write or rewrite the kilometers in
the odometer chip by using the car diagnostic tablet and data cable,
so that the odometer can display the actual mileage.
7 REPORT
Diagnostic Report is used for viewing and printing the saved files,
such as Live Data, Trouble codes or pictures generated in the
process of diagnosis, users also can view a record of which cars
have been previously tested. It includes 3 parts:
Report
Replay
File Management
Fig 7-1
60
REPORT
This feature provides a history of diagnostic reports, where you can
view and delete the vehicle's diagnostic reports according to your
needs.
Fig 7-2
When you open the report, located in the header of the table is the
studio information you filled in advance in the system setup, then
the information of the vehicle, including the diagnosis date and time,
VIN number, vehicle brand, diagnosis path, etc., as shown as below:
61
Fig 7-3
Print PDF Report
As you can see, you also could click " Print PDF Report " at the
bottom right corner to output the pdf report. If you need to close the
report, you could tap on the button “Exit”.
Please follow below steps to print your report▼
Step 1: Install an APP that can drive your target printer. Add the
printer and input the IP address of the printer in the APP, or you can
contact your dealer for help.
Step 2: Back to Android main menu, go to Settings -> Printing->
Turn printer on.
62
Step 3: Report-> Choose report-> Print PDF Report-> Print
Fig 7-4
Step 4: Click the top-left corner of the screen and choose the printer
you added before. Then click the button on the right to print.
Fig 7-5
63
REPLAY
This function allows you to replay the living data recorded during the
diagnosis process.
Before replaying the living data, please make sure you click on
"Save to Reference" button during the diagnosis
FILE MANAGER
This function allows you to check and delete files in the device.
Please use this function under the guidance of professionals.
Ordinary users are not recommended to use it by themselves, as it
may cause software missing or malfunctioning.
64

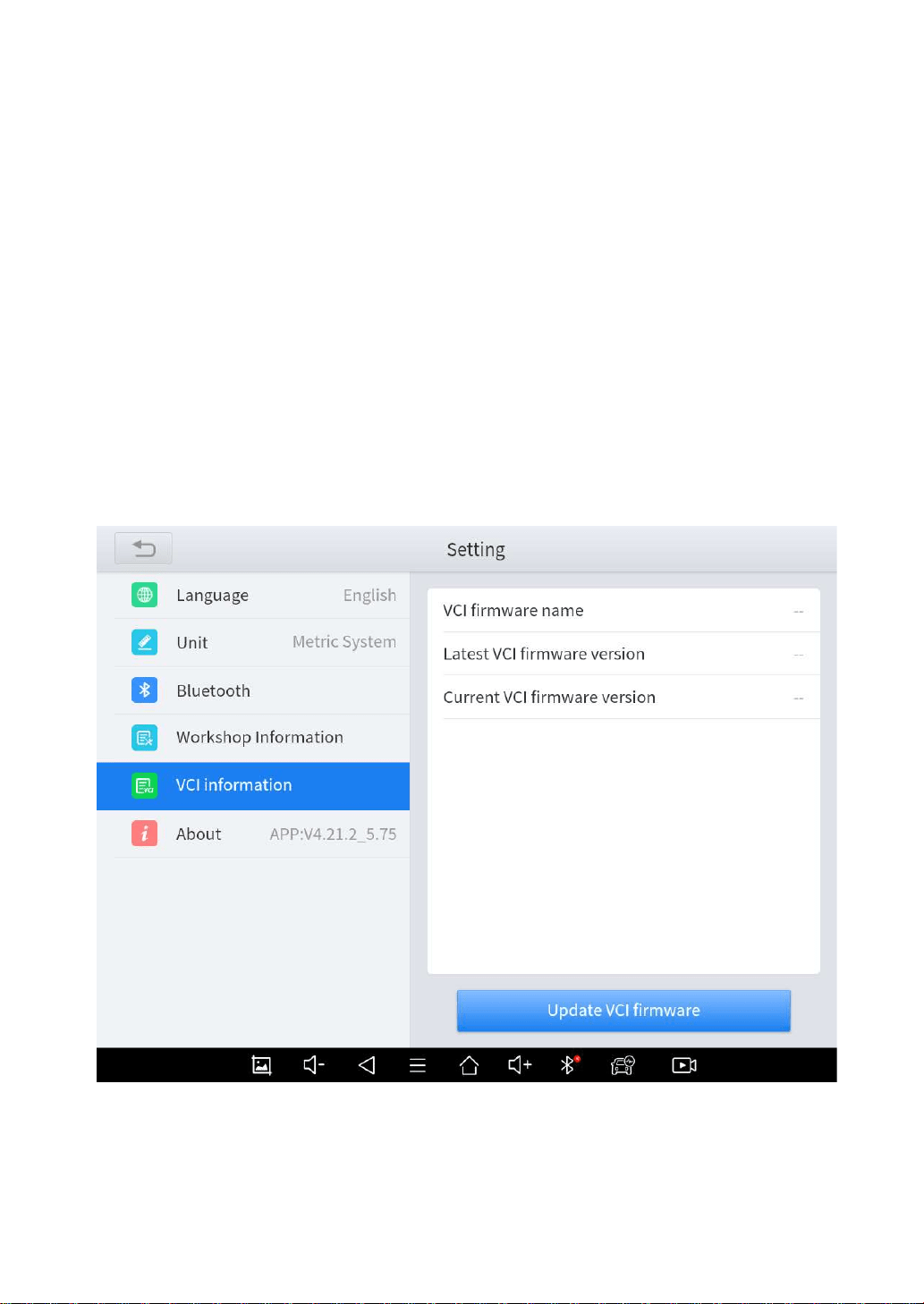

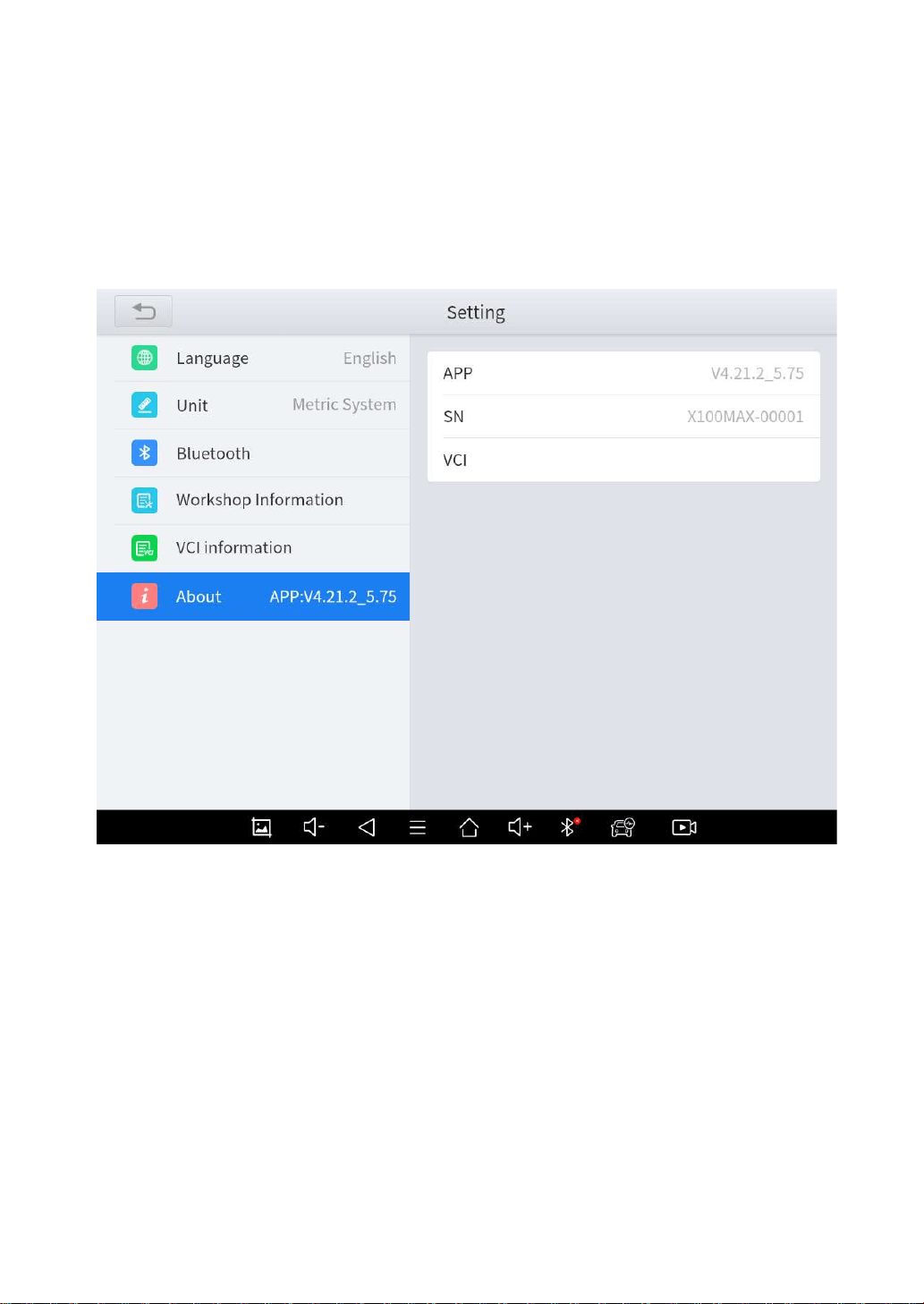

8 SETTINGS
Fig 8-1
Click the Settings button to adjust the default settings and view the
information of X100MAX Auto Key Programmer. There are several
options available in the system settings:
Language
Units
Bluetooth
My Workshop Info
VCI Info
About
65
LANGUAGE
The languages supported by this device are listed in Settings. In
areas outside the English area, the default language is English and
the local official language. Users can switch between English and
local official languages on the device by themselves. If you need to
switch other languages, please contact the dealer to unbind the
current language configuration and rebind it to the language
configuration you need to switch. After the configuration is
successfully changed, you can switch the target language.
Fig 8-2
This will only change the language of the APP. If you want to change system
language, please go to Android Settings.
66
How to change the language of your software?
Step1: Contact your dealer and leave a message about the
language you need and the S/N of your device
Step2: Settings->Language->Choose language
Step3: OS Settings->Language & input->Choose Language
Step4: Back to Upgrade
UNITS
You can switch the unit used by the system. X100MAX provides you
with metric and imperial units.
You can directly click on the unit when you need, after the switch is
successful, a blue check mark will be shown behind the unit’s name.
Fig 8-3
67
BLUETOOTH
You can check the Bluetooth connection status here. If you meet
any communication issues, please check the Bluetooth status first.
MY WORKSHOP INFO
Click on My Workshop Information, you can input your workshop
information here. As shown in the figure below, you just need to fill
in the valid information in the corresponding column and click
"SUBMIT". And then it will show your workshop information in the
report when you generate a diagnostic report, including your
company name, address, website, telephone, and mailbox.
Fig 8-4
68
VCI INFORMATION
You can view the VCI information here, including the VCI firmware
name, the latest firmware version, the currently used firmware
version, and the VCI firmware type. If the current firmware version
is lower than the latest firmware version, you can choose to update
your firmware version and click "Update VCI Firmware" to
complete the operation.
Before updating the VCI Firmware, please ensure the tablet’s connection to the Internet
is stable.
Fig 8-5
69
ABOUT
Tap on ABOUT, you can check the serial number and APP version
here.
Fig 8-6
70
9 REMOTE ASSISTANCE
Tap on "Remote" to start the TeamViewer quick support program,
which is a simple, fast, and secure remote-control screen. You can
use this application to enable them to control your tablet on a PC
through the TeamViewer software, thereby obtaining temporary
remote support from Xtool technical support center.
Tablets and mobile devices running TeamViewer are identified by a
globally unique ID. When the remote application is started for the
first time, the ID will be automatically generated according to the
hardware characteristics and will not be changed in the future. This
TeamViewer ID can individually access all TeamViewer clients.
Before launching the remote desktop application, make sure that
the tablet is connected to the Internet so that you can access the
tablet to receive remote support from a third party. If you encounter
problems and are not able to solve them, you could open this
application and ask for remote assistance.
To obtain remote support from your partners or Xtool After-service
Center:
1. Turn on the power of the tablet.
2. Click Remote in the diagnosis application. The TeamViewer
screen is displayed, and the device ID will be generated.
71
3. Your partner must install the remote-control software on his/her
tablet by downloading the full version of TeamViewer program
(http://www.teamviewer.com) online, and then start the software on
his/her tablet at the same time, in order to provide support and
remote control of the tablet.
4. Provide your ID to the partner or Xtool technician, and then wait
for him/her to send you a remote-control request.
5. A pop-up window will be shown for asking you to confirm to allow
the remote-control program to control your device.
6. Click Allow to accept, or click Reject to reject.
Fig 9-1
