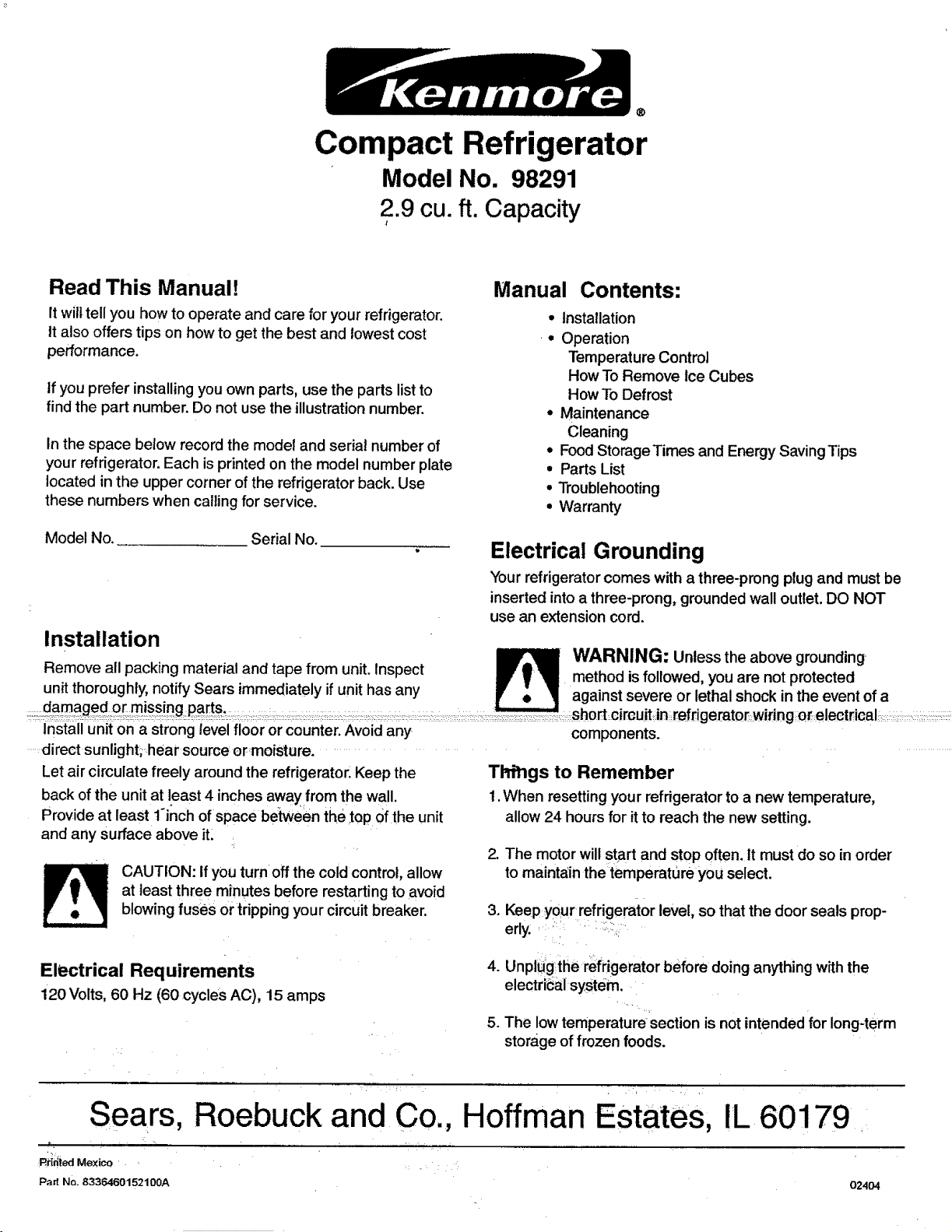

Compact Refrigerator
Model No. 98291
2.9 cu. ft. Oapacity
Read This Manual!
It will tell you how tooperate and care for your refrigerator.
tt also offers tips on how to get the best and lowest cost
performance.
tf you prefer installing you own parts, use the parts list to
find the part number. Do not use the illustration number.
In the space below record the model and serial number of
your refrigerator. Each is printed on the model number plate
located in the upper corner of the refrigerator back. Use
these numbers when calling for service.
Model No. Serial No.
Installation
Remove all packing material and tape from unit. Inspect
unit thoroughly, notify Sears immediately if unit has any
damaged or missin( _ _ . _ _
Install unit on a strong level floor or counter. Avoid any
........direct sunlight;-_hear source or moisture. ............
Let air circulate freely around the refrigerator_Keep the
back ofthe unitat least 4 inches away from the wall.
Provide at least 1-inch of space between the_topOfthe unit
and any surface above iL
CAUTION: if you turnoff the coid control, allow
at least three minutes before restarting to avoid
blowing fuses or tripping your circuit breaker.
Electrical Requirements
120 Volts, 60 Hz (60 cycles AC), 15 amps
Manual Contents:
• Installation
• Operation
Temperature Control
How To Remove ice Cubes
How To Defrost
° Maintenance
Cleaning
• Food Storage Times and Energy Saving Tips
° Parts List
° Troublehooting
° Warranty
Electrical Grounding
Your refrigeratorcomes with a three-prong plug and mustbe
inserted intoa three-prong, grounded wall outlet. DO NOT
use an extension cord.
WARNING: Unless the above grounding.
method isfollowed, you are not protected
against severe or lethal shock in the event of a
_rtcircuit: in refrigerator wiring O_electrical ._
components.
ThUgs to Remember
1.When resetting your refrigerator to a new temperature,
allow 24 hours for it to reach the new setting.
2. The motor willstart and stop often. It must do so in order
to maintain the temperature you select.
3. Keep your refrigerator level, so that the door seals prop-
erly.
4. Unplug,the refrigerator before doing anything withthe
electrical system,
5. The lowtemperature section is not intended for long-term
storage of frozen foods.
Sears,
Rt[filed Mex co
Pad No. 8336460152100A
Roebuck and Co., Hoffman Estates, IL
60179
024O4

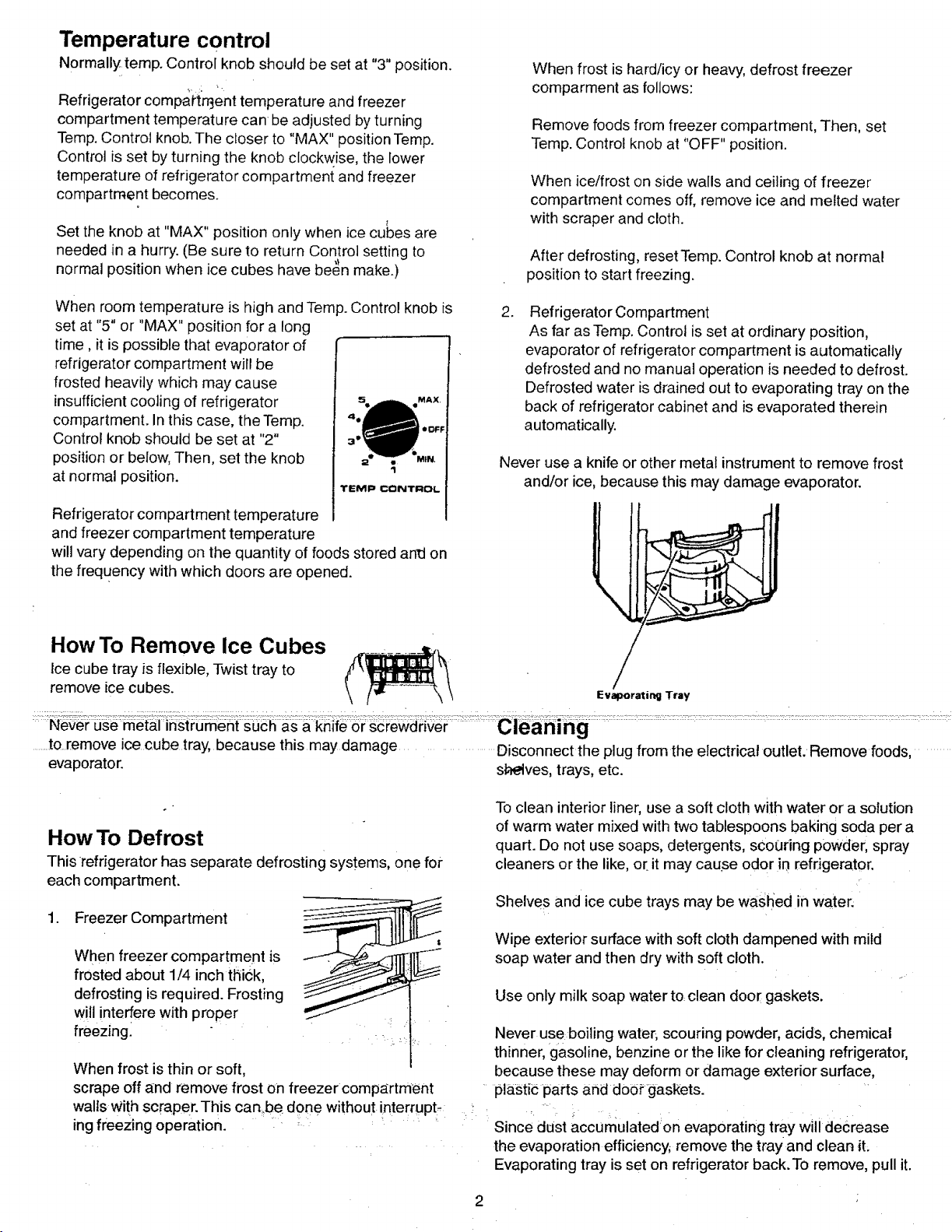

Temperature control
Normally temp. Control knob should be set at "3" position.
Refrigerator compai'tn3ent temperature and freezer
compartment temperature can be adjusted by turning
Temp. Control knob. The closer to "MAX" position Temp.
Control is set by turning the knob clockwise, the lower
temperature of refrigerator compartment and freezer
compartment becomes.
Set the knob at "MAX" position only when ice cubes are
needed in a hurry. (Be sure to return Control setting to
normal position when ice cubes have be_n make.)
When frost is hard/icy or heavy, defrost freezer
comparment as follows:
Remove foods from freezer compartment, Then, set
Temp. Control knob at "OFF" position.
When ice/frost on side walls and ceiling of freezer
compartment comes off, remove ice and melted water
with scraper and cloth.
After defrosting, reset Temp. Control knob at normal
position to start freezing.
When room temperature is high and Temp. Control knob is
set at "5" or "MAX" position for a long
time, it is possible that evaporator of
refrigerator compartment will be
frosted heavily which may cause
insufficientcooling of refrigerator
compartment. In this case, the Temp.
Control knob should be set at "2"
position or below, Then, set the knob
at normal position.
Refrigerator compartment temperature
and freezer compartment temperature
will vary depending on the quantity of foods stored anti on
the frequency with which doors are opened.
How To Remove Ice Cubes
Ice cube tray is flexible, Twist tray to
remove ice cubes.
,
Refrigerator Compartment
As far as Temp. Control is set at ordinary position,
evaporator of refrigerator compartment is automatically
defrosted and no manual operation is needed to defrost.
Defrosted water isdrained out to evaporating tray on the
back of refrigerator cabinet and is evaporated therein
automatically.
Never use a knife or other metal instrument to remove frost
and/or ice, because this may damage evaporator.
Evaporating Tray
.........to remove ice cube tray, because this may damage ...................... Disconnect the plug from the electrical outlet. Remove foods, .........
evaporator, st_elves, trays, etc.
o
HowTo Defrost
This refrigerator has separate defrosting systems, one for
each compartment.
To clean interior liner, use a soft cloth with water or a solution
of warm water mixed with two tablespoons baking soda per a
quart. Do not use soaps, detergents, scouring powder, spray
cleaners or the like, or it may cause odor in refrigerator.
1. Freezer Compartment
When freezer compartment is
frosted about 1/4 inch tt_ick,
defrosting is required. Frosting
will interfere with proper
freezing•
When frost is thin or soft,
Shelves and ice cube trays may be washed in water.
Wipe exterior surface with soft cloth dampened with mild
soap water and then dry with soft cloth.
Use only milk soap water to:clean door gaskets.
Never use boiling water, scouring powder, acids, chemical
thinner, gasoline, benzine or the like for cleaning refrigerator,
because these may deform or damage exterior surface,
scrape off and remove frost on freezer comp_rtment ....plastic parts and door gaskets.
walls Withscraper. This canbe done without Jnterrupt_ ,_ : .....
ingfreezing operation. " _ ..... Since dust accumulated:on evaporating tray will decrease
the evaporation efficiency; remove the trayand clean it;
Evaporating tray is set on refrigerator back.To remove, pull it.
2

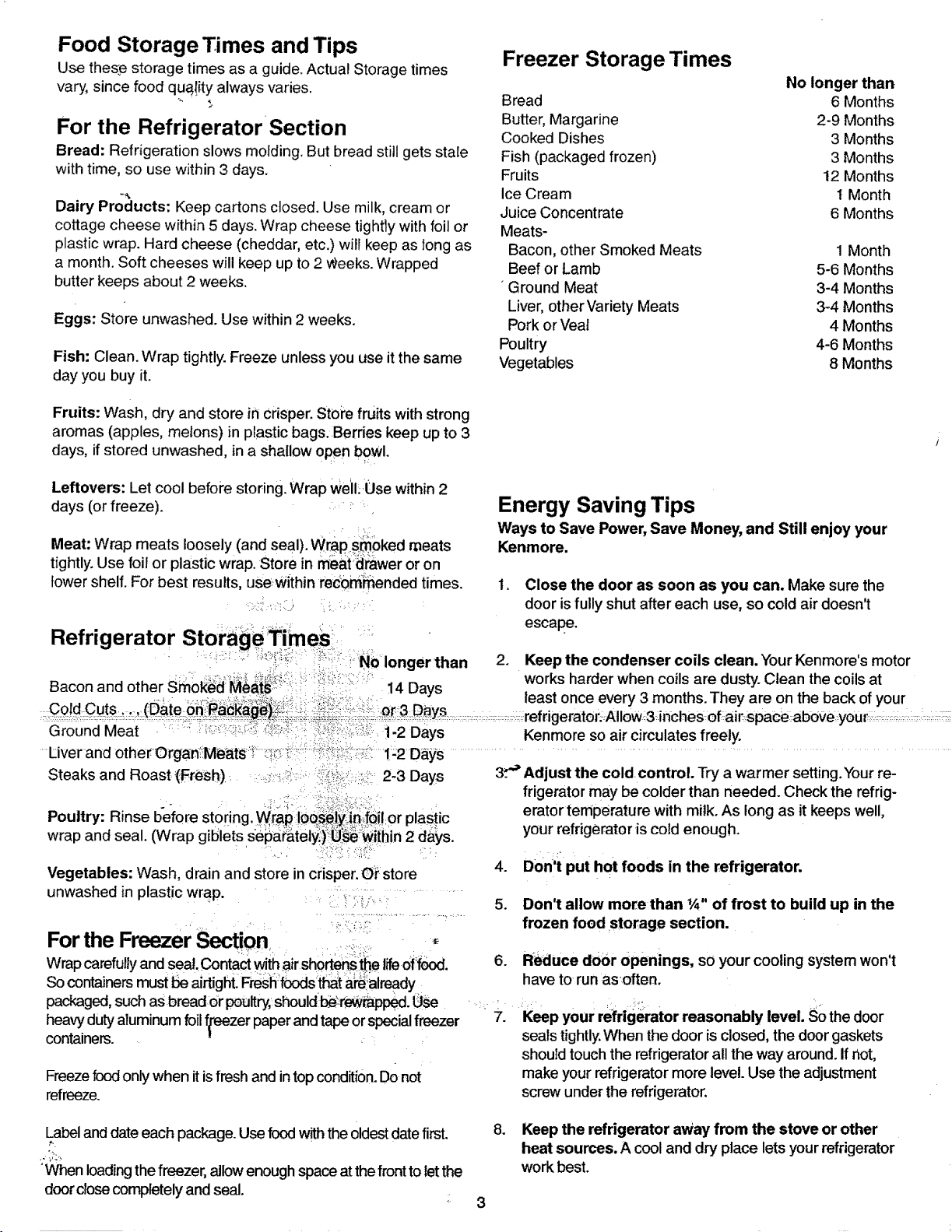

Food Storage Times and Tips
Use thes_estorage times as a guide. Actual Storage times
vary, since food qua!ity always varies.
For the Refrigerator Section
Bread: Refrigeration slows molding. But bread still gets stale
with time, so use within 3 days.
Dairy Products: Keep cartons closed. Use milk, cream or
cottage cheese within 5 days. Wrap cheese tightly with foil or
plastic wrap. Hard cheese (cheddar, etc.) will keep as long as
a month. Soft cheeses will keep up to 2 Weeks.Wrapped
butter keeps about 2 weeks.
Eggs: Store unwashed. Use within 2 weeks.
Fish: Clean. Wrap tightly. Freeze unless you use it the same
day you buy it.
Freezer Storage Times
No longer than
Bread 6 Months
Butter, Margarine 2-9 Months
Cooked Dishes 3 Months
Fish (packaged frozen) 3 Months
Fruits 12 Months
Ice Cream 1 Month
Juice Concentrate 6 Months
Meats-
Bacon, other Smoked Meats 1 Month
Beef or Lamb 5-6 Months
"Ground Meat 3-4 Months
Liver, other Variety Meats 3-4 Months
Pork or Veal 4 Months
Poultry 4-6 Months
Vegetables 8 Months
Fruits: Wash, dry and store in crisper. Stoi'e fruits with strong
aromas (apples, melons) in plastic bags, Berries keep up to 3
days, if stored unwashed, in a shallow open bowl.
Leftovers: Let cool before storing, Wrap We'll_Use within 2
days (or freeze). .:r ,
Meat: Wrap meats loosely (and seal), Wrapsrnoked meats
tightly, Use foil or plastic wrap. Store in m:eatdrawer or on
lower shelf. For best results, usewithin recommended times.
Refrigerator StoraqeTimes
,; -7':_:::_:_!'_:._!i".::._:,::No longer than
Bacon and other Smok_:d: _!_i:_:_:i:: i!-i!;;!_:!_:i:ii 14 Days
Cold Cuts.., (D&teo:tli_#_#_i_i_:!i!! :i :;_iii:i:ii:i:::;i!::_3 Days
GroundMeat ..........: :.:_:i?_i!::-i_i'i;':i!i_:::":_i'i;:i;!::i:_:ii.;::_i:i_iiii!:I: :J-2 Days
Liver and :'::i';!?:!:;::;i:!:C 1_2 Days
Steaks and Roast :(Fresh) -:-: - "_;i_);i;i;../ 2-3 Days
' ,°_ i ,! _% 4
Poultry: Rinse before storing. _rap Ioo_8_i_i_f0.i!:or plastic
wrap and seal. (Wrap giblets se_pa&tel_}:._:"eithin 2 da_s.
Vegetables: Wash, drain and store in crisper. Oi' store
unwashed in plastic wrap .....
Forthe Freezer Section
Wrap carefullyand seal Contactwithair shorter_si_e lifeoffood.
So containersmust be airtight.Fresilfoodsthat are:already
packaged,such asbread Orpoultry,shou d be::_rewi_pped.Use
heavy duty aluminumfoilfreezer paperandtape orspecialfreezer
containers.
Freeze foodonly when it isfresh and intop condition. Donot
refreeze.
Energy Saving Tips
Ways to Save Power, Save Money, and Still enjoy your
Kenmore.
1. Close the door as soon as you can. Make sure the
door isfully shut after each use, so cold air doesn't
escape.
2. Keep the condenser coils clean. YourKenmore's motor
works harder when coils are dusty.Clean the coils at
least once every 3 months.They are on the back of your
: : refrigerator.AIIow3inchesofair.spaceabOveyouri::;::::.:.,::,::_:
Kenmore so air circulates freely.
3._ Adjust the cold control. Try a warmer setting.Your re-
frigerator may be colder than needed. Check the refrig-
erator temperature with milk. As long as it keeps well,
your refrigerator is cold enough.
4. Don't put hot foods in the refrigerator.
5.
Don't allow more than W' of frost to build up in the
frozen food storage section.
6. Reduce door openings, so your cooling system won't
have to run asoften.
7. Keep your refrigerator reasonably level. So the door
seals tightly.When the door isclosed, the door gaskets
should touchthe refrigeratorall the way around. Ifr_ot,
make your refrigeratormore level.Use the adjustment
screw under the refrigerator.
Label and date each package. Use foodwith the oldest datefirst.
"When loadingthe freezer, allow enough space atthe front to letthe
door close completely and seal.
8_
3
Keep the refrigerator away from the stove or other
heat sources. A cool and dry place lets yourrefrigerator
work best.

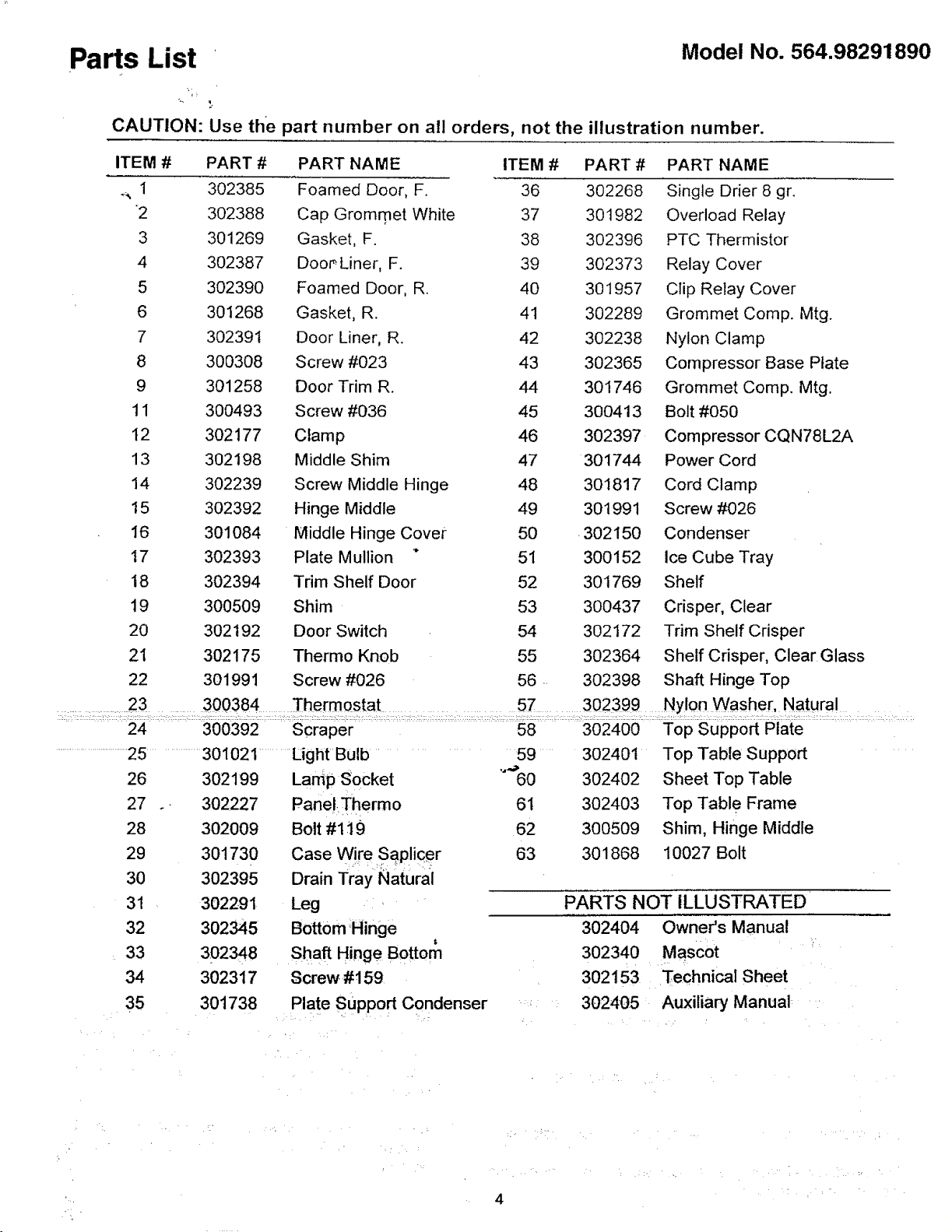

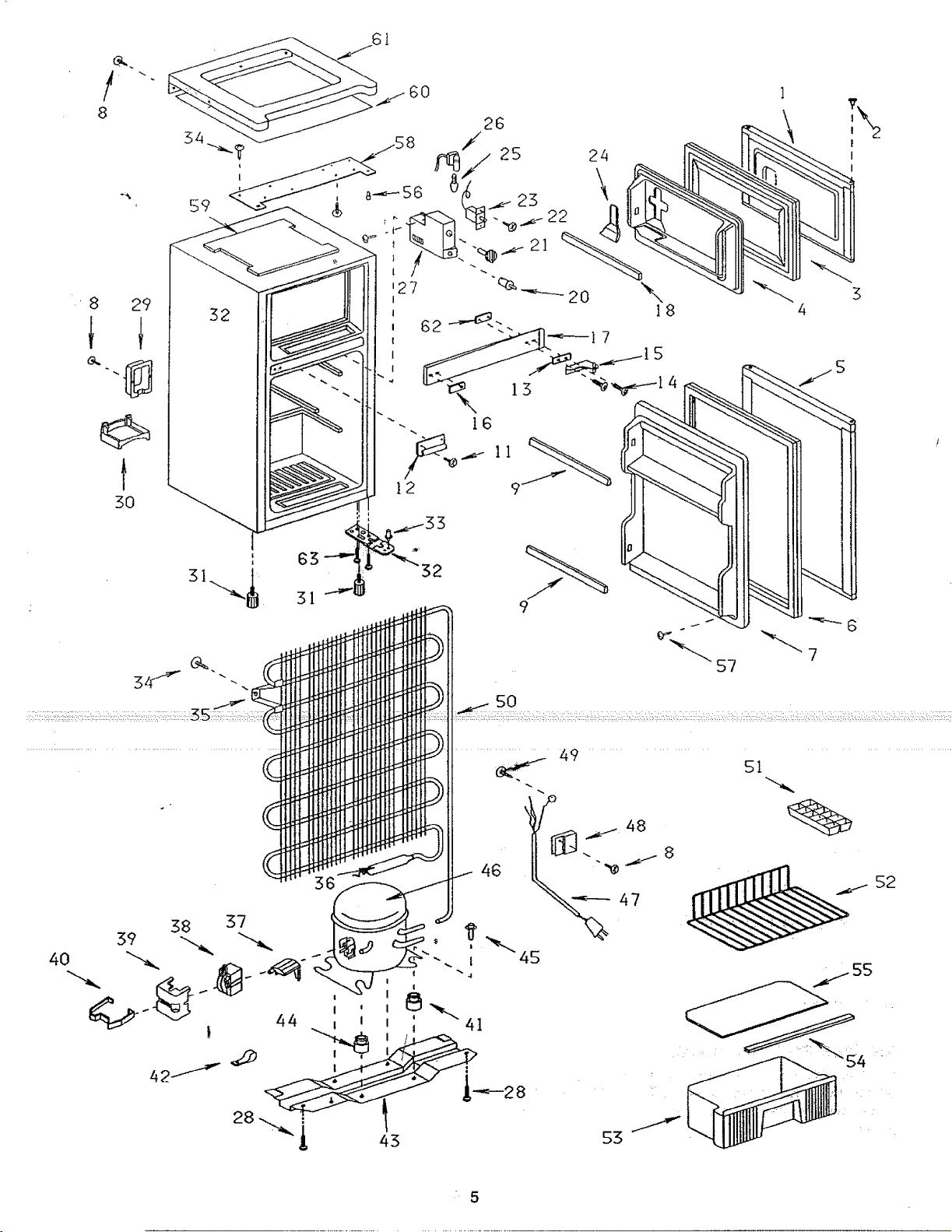

Parts List Model No. 564.98291890
CAUTION:
Use the part number on all orders, not the illustration number.
ITEM # PART # PART NAME ITEM # PART # PART NAME
_, 1 302385 Foamed Door, F. 36 302268 Single Drier 8 gr.
'2 302388 Cap Grommet White 37 301982 Overload Relay
3 301269 Gasket, F. 38 302396 PTC Thermistor
4 302387 Doo_ Liner, F. 39 302373 Relay Cover
5 302390 Foamed Door, R. 40 301957 Clip Relay Cover
6 301268 Gasket, R. 41 302289 Grommet Comp. Mtg.
7 302391 Door Liner, R. 42 302238 Nylon Clamp
8 300308 Screw#023 43 302365 Compressor Base Plate
9 301258 Door Trim R. 44 301746 Grommet Comp. Mtg.
11 300493 Screw #036 45 300413 Bolt #050
12 302177 Clamp 46 302397 Compressor CQN78L2A
13 302198 Middle Shim 47 301744 Power Cord
14 302239 Screw Middle Hinge 48 301817 Cord Clamp
15 302392 Hinge Middle 49 301991 Screw #026
16 301084 Middle Hinge Cover 50 .302150 Condenser
17 302393 Plate Mullion " 51 300152 Ice Cube Tray
18 302394 Trim Shelf Door 52 301769 Shelf
19 300509 Shim 53 300437 Crisper, Clear
20 302192 Door Switch 54 302172 Trim Shelf Crisper
21 302175 Thermo Knob 55 302364 Shelf Crisper, ClearGlass
22 301991 Screw#026 56 .. 302398 Shaft Hinge Top
..... 23 300384 Thermostat 57 302399 Nylon Washer, Natural
....................................24 .............................3001392 Scraper
58 302400
........................................25 ...................301021 ............LightBulb ............. 59 ..... 302401
26 302199 LampSocket "_60 302402
27 .- 302227 Panel Thermo 61 302403
28 302009 Bolt#1_9 62 300509
29 301730
30 302395
31 302291
32 3O2345
33 302348
Case Wire Saplic.er
Drain Tray Natural
Leg
Bo_om:Hinge
i
Shaft Hinge Bottom
63 301868
34 302317 Screw #159
Top Support Plate
Top Table Support
Sheet Top Table
Top Table Frame
Shim, Hinge Middle
10027 Bolt
PARTS NOT ILLUSTRATED
302404 Owner's Manual
302340 Mascot
302153 Technical Sheet
35
301738 Plate Support Condenser
302405 Auxilia_ Manual
4
!
8
8 29
I I
!
59
60
\
t8
5
:\
I
I
I
3O
9
5O
Before Calling_for Service
Caution: ,_"_
Your Kenmore refrigerator is an electrical appliance and
should be unplugged before changing the light bulb or other
servicing that involves the electrical system.
See if y_r questions can be answered on this page.
My Refrigerator is Too Warm
Review adjusting Temperature Control setting.
Model Number Location
If you ever need service, be sure to give the complete
eleven digit model number. It's on a small label on the back
of the refrigerator. For example ifyou have Kenmore 98291,
your complete number may be 564.98291890
To Order Repair Parts, See p. 4-5.
My Refrigerator Has Stopped Running
and The Light is Not On
1. Check the light bulb.
2. Make sure the power cord plug is making full contact in
the walt outlet. Check the outlet with another appliance or
lamp.
3. Check the fuse box for a blown fuse or tripped circuit
breaker.
When Power Fails
1. Keep the refrigerator door closed.
3. When the power is off for more than 5 hours,fill extra
space in freezer with dry ice or transfer the food to the
nearest food locker.
Moisture Collects on The Outside of My
Refrigera tor .........................................
2. Make sure the doors seals tightly. If the don't, adjust the
leveling feet.
My Refrigerator Sounds Noisy
Make sure the cabinet is levelfrom side to side and from
front to back. Make sure the cabinet is nottouching the
wall and rests squarely on the floor at all four corners.
Thereis an Odor in My Refrigerator
1. Check covers on food containers in both sections. Oheck
for spilled foods.
2. Clean both sections.
Ice Xasan Odd_Flavor
ice, regardless of how it is made, will sometimes develop an
off flavor or color if it kept too long. To avoid this empty ice
cube trays and make a completely new supply about once a
month.
Fu!! One YearWarranty on
Refrigerator
For one year from the date of purchase, when this refrigerator is operated and
maintained in accordance with the owner's instructions that come with it, Sears
will repair it, free of charge, if defective in material or workmanship.
Full One YearWarranty on
Sealed Refrigeration System
For one year from the date of purchase, when this refrigerator is operated and
maintained in accordance with the owner's instructions that come with it, Sears
will repair the sealed system (consisting of refrigerant, connecting tubing and
compressor motor), free of charge, if defective in material or workmanship.
The above warranty coverage applies only to refrigerators which are used for the
storage of food for private household purposes.
Warranty service is available by contacting the nearest Sears Service
Center throughout the United States.
This warranty applies only while this product is in use in the United States. This
warranty gives you specific rights and you may also have other rights which vary
from state to state.
Sears, Roebuck and,_Co.......
7
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling system,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® (1-800-469-4663)
Callanytime,dayornight(U.S.A.andCanada)
www.sears.com www.sears.ca
OurHome
For repair of carry-in itemslike vacuums, lawn equipment,
andelectronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-i222
...........................................................................................www.sears.com..........................................
Topurchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparacion
a domicilio, y para ordenar piezas:
1-888-SU-HOGARsM,
(1-888-784-6427)
Au Canada pour service en fran_ais:
1-888-LE-FOYERMc
ww.sears.ca
SE/, R8
® Registered Trademark/TMTrademark/_' Service Mark ofSears, Roebuck and Co.
® Marca Registrada/TM Marca de F_brica/_ Marca de Servicio de Sears, Roebuck and Co.
": Marque commerce/_ Marque d_pos_e de Sears, Roebuck and Co.
Printed Mexico Part No. 8336460152100A
