CAUTION READ THMANAL BEFORE USING YOUR EQUIPMENT
E BIKE
USER'S MANUAL
PRODUCT FUNCTION DIAGRAM
PARAMETERS
CAUTION
List of Accessories
Product Function Diagram
Battery and Charge
Quick Start Unfolded Folding
Maintenance
Mount The Pedal Clockwise Rotation
Bike Usage
Tool List
Function
Parameters
Warranty
Responsibility announcement
01
02
03
CONTENTS
03
02
10
03
16
03
04
05
07
13
15
09
12
06
01
....................
..............
...................
.........................
......................
............................
............................
..........................
..........................
............................
..........................
............
...........
......
......
ANCHEER
1
PRODUCT FUNCTION
DIAGRAM
01
ANCHEER
2
Product Function Diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15 16 17
18
19
20
21
22
23
24
13. Wheel hub
14. Front fender
15. Frame
16. Battery box
17. Pedal
18. Kickstand
19. Brake pad
20. Disc-brake
21. Rear fender
22. Seat tube
23. Saddle
1. Throttle
2. LED meter
3. Handlebar lock
4. Power Switch
5. Brake handle
6. Stem
7. Vertical folding clasp
8. Safety buckle
9. Front light
10. Head tube
11. The front fork
12. Tyre
ANCHEER
3

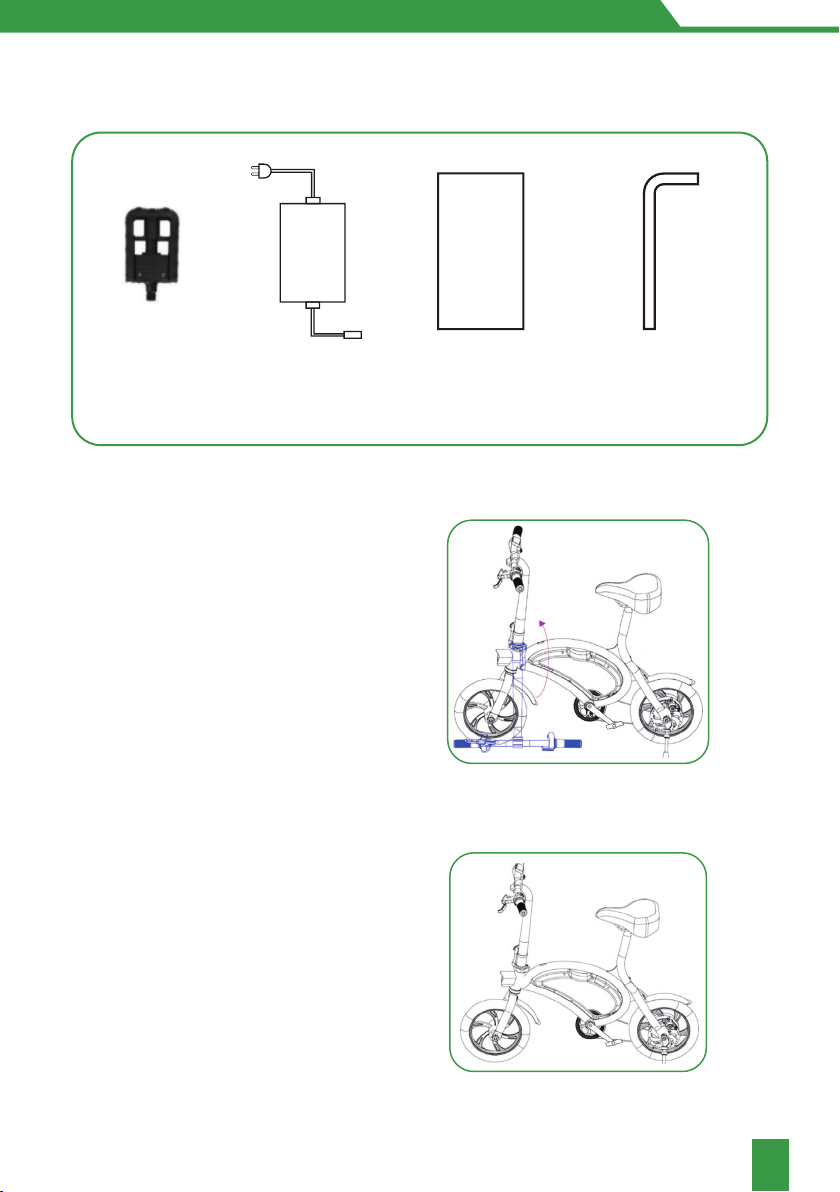

Pedal *2 Instruction *1 Inner hexagon
spanner*1 (optional)
The power
adapter *1
List of Accessories
Quick Start
Unfolded Folding
Mount The Pedal
Clockwise Rotation
ANCHEER
4
Tool List
CORRECT FRAME SIZE
Model: AMA005183
For safe and comfortable riding there should be clearance of 56cm/22in from ground to
the crotch of the intended rider. Also, at least 3-8cm/1-3in between the crotch and the top
tube of the bicycle with both feet flat on the ground. Women can use a men's style bicycle
to determine the correct size for women's model.
ANCHEER
5

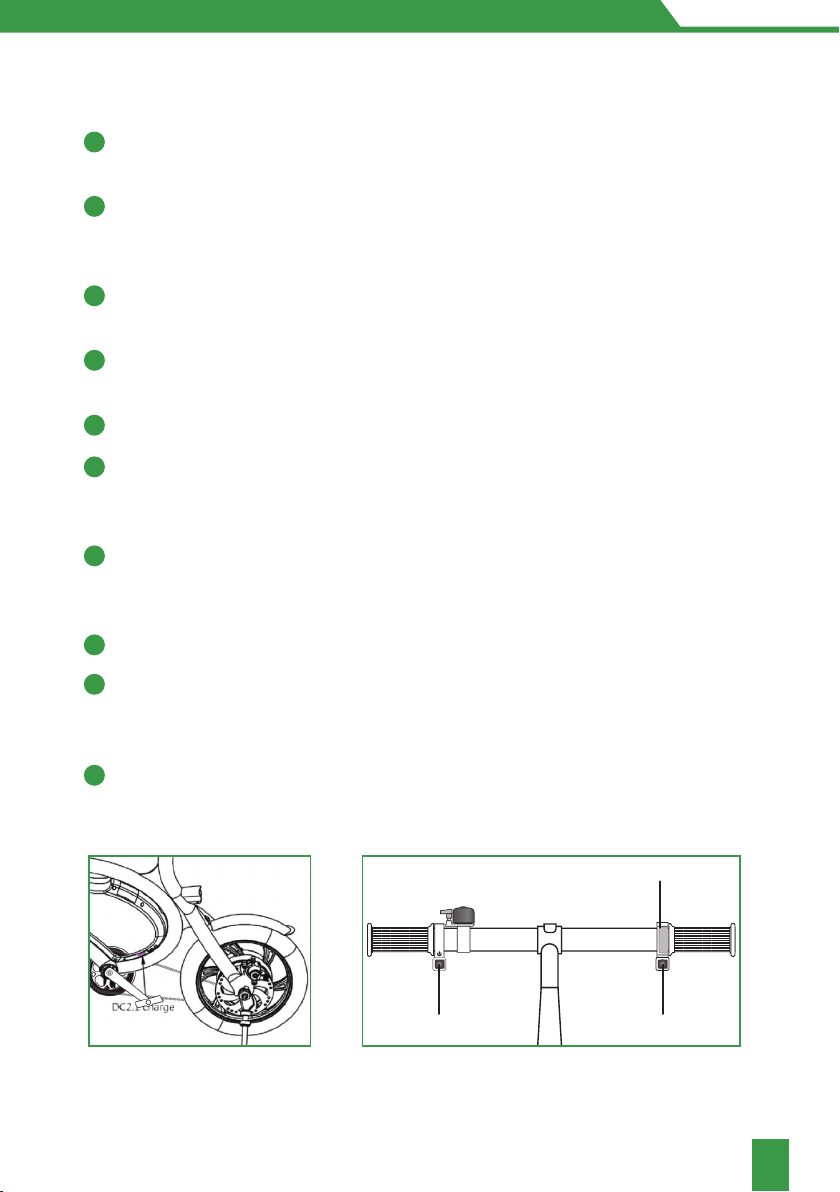

Function
Charging: Connect the charger to the power plug and then to the E-bike.When the
charger indicator turns green from red, it shows full power.
Press the boot button: Push forward the boot button to turn on the bike.The dash
board lights up after booting;Push back the boot button to turn off the bike.The dash
board light will be off after turning off the power.
Battery status: After booting,the dash board lights up, and electricity shows up, it has
four grid,in according with high,medium and low power.
Horn: Pressing the horn button, the horn sounds up. Clicking recommended.When
pressing for over 10 seconds, the horn stops, you need to repress it.
Front light: Keep pressing the horn button for 3 seconds to turn on/off the light.
Brake and rear light: when braking, the rear light is slow to flash; when the Ebike is
locked, the rear light is fast to flash;in other conditions,the rear light is same with the
front light. You can not speed up before fully loosed the brake.
Zero speed booting and none zero speed booting: Zero speed booting: when the E-bike
on standby mode, you can accelerate with speeding bar; None zero speed booting: the
bike boots when it runs only at a certain initial speed. (APP controlled)
Speeding: Please speed up slowly,don’t force the rotating bar hard or it will be broken.
Cruise control: When you are riding, press and release the cruise button.Then the bike
will move at the current speed. If press the button again or repress the accelerator or
brake will cancel the cruise control.
For more functions, please download the APP ( you can install it through scanning the
QR code on Users Manual). The initial password is :123456
Switch Button Horn/Cruise
LED Display
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
ANCHEER
6
PARAMETERS
02
ANCHEER
7
Performance index Project Parameter
Folding size
Material
1180*505*720mm
Released size 1180*505*1000mm
Pedal height
Package size
200mm
1180*220*610mm
Hub size
Color
14 inch
Black/ White
Weight 39.7 lbs
Max load 120kg
Riding speed 12.5mph
Max speed 15.5mph(App adjusted )
Mileage(pure electric)
Temperature
15.5miles
-10℃~45℃
Battery
Uphill
Waterproof
15 degree
IP54
7.5Ah
Rated power 500W
Rated voltage 48V
Charging voltage DC42V
Input voltage AC100~240V
BMS Yes
Charging time 4H
Aluminium alloy
SIZE
PERFORMANCE
STANDARDS
Parameters
ANCHEER
8
Performance index Project Parameter
Personal sticker
App
Support
Lights Yes
Cruise Yes
Brake mode Rear disc brake
Yes
FEATURES
Remark:
Many factors will affect the max speed,such as power,load,tyre pressure, road conditions,
chain,lubrication degree etc. Mileage has been measured on basis of temperature 25℃ ,
load of 60KG,speed of 12.5-15.5mph, smooth and hard road,and from full battery to dead
battery. It also is subjected to other factors,such as driving habits,temperature,load,tire
pressure,road conditions etc.
Parameters
ANCHEER
9
CAUTION
03
ANCHEER
10
Battery And Charging: Further Information
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge,
and it is strictly forbidden to mix them. The charging time shall not exceed 12 hours,
and the charging current shall not exceed 2A.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space, residential building or in a hot environment.
When charging, insert the battery first, then add the mains. After charging fully (the
green light will be on), first cut off the mains, and then unplug the battery. It is forbidden
to connect the charger to the AC power supply without load for a long time. During
the charging process, if the indicator light is abnormal, a peculiar smell appears, or the
charger casing is overheated, stop charging immediately, and repair the charger or
replace the charger.In the process of use and storage, pay attention to avoid the entry
of foreign objects, especially avoid the inflow of water or other liquids, so as to avoid
short circuit inside the charger.
The charger should not be carried with the car as much as possible. If it is really
necessary to carry it, it should be placed in the toolbox after the shock absorption
treatment is done. It is not allowed to disassemble or replace the components in the
charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge
the battery for two hours a month.
●
●
●
●
●
●
Battery: Further information
Charging: Safe operation guide
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do not
store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from rain,
fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely, and
it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be disassembled
without authorization, and recycled by relevant professional departments.
Use the original battery. Do not replace it with other brand’s or product’s battery.
●
●
●
●
●
●
ANCHEER
11
Reminder
Battery and charging: Further Information
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
●
●
●
Battery Disposal
Charge a new battery 4-6 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which can
more effectively extend the battery life. Besides, Overheating or undercharging the battery
may shorten battery life.
How far can a fully charged battery go? It depends on the load weight, road conditions and
battery capacity. But under the same conditions, the average speed can last longer riding
distances. Using pedal assist mode allows you to go further.
ANCHEER
12
Maintenance
The front and rear wheels of the vehicle should be located in the center of the front
fork or frame.
After riding, please store the bike in a place without sunlight and rain.
Water showering is forbidden, and the surface of the car body can be wiped with a
semi-dry cloth.
Do not touch the charging hole on the bicycle, or touch it with metal, otherwise, it
may cause an accident due to an instantaneous short circuit of the current.
Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace
if necessary.
Check the motor and brake frequently, and do not fill the brake area with oil.
Additionally, check the brake pads for any damage as they will be worn over time
and eventually need replacement.
Regularly check the various screws of the car and the places that need to be fastened,
and regularly reinforce to prevent injury and unnecessary wear and tear on your
e-bike..
Recommended torque (unit: kgf.cm): the horizontal screw 60-80, the stem screw
175- 200, the seat cushion screw 175-250, the wheel screw 320-450.
Regularly check the tension of the chain, which can be adjusted by the chain
regulator.
Always check the tire for scratches, cracks, or excessive wear. The inner tube and
the valve should be perpendicular to the wheel hub and not crooked. Accidentally
punctured, damaged or excessively worn inner and outer tires need to be replaced
immediately, please seek professional technicians to repair or replace your tires.
It is forbidden to modify key structural parts such as the frame, front fork, standpipe,
and electrical function parts. If damaged, use the original parts to replace it.
Otherwise, the guarantee service will not be provided. Any loss or damage caused
by the modification shall be solely responsible.
●
●
●
●
●
●
●
●
●
●
●
ANCHEER
13
Bike Usage
Before Riding
During riding
After riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
1.
2.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the battery capacity can meet you riding demand.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
If the pressure exceeds the recommended maximum value, the tire may blow out
of the rim, which may damage the bicycle and cause injury to the cyclist and nearby
people.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side
edge of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is
firm to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
●
●
●
●
●
●
●
●
●
●
●
●
ANCHEER
14
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
Loosen or tighten the barrel adjuster at the end of the brake cable lever. This will make a
small adjustment to the gap of the brake pads. If this is not enough to create the correct
gap, then:
Loosen the two positioning bolts, but do not remove them. Slowly rotate the wheel
and check the space between the rotor and the brake pad; adjust the position of the
brake pad so that the rotor does not rub and is slightly close to the outer pad (the gap
between the rotor and the pad should be just enough to prevent friction). Make sure
that the rotor and the pads are parallel to each other. After the adjustment is complete,
tighten the bolts.
If the rotor always rubs against the brake pads or the gap is too large, you can adjust
the brake pad gap by loosening the cable clamp bolts and slightly releasing the cable to
increase the gap or tightening the cable to reduce the gap, and then tighten the bolts
again.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
●
●
●
1.
2.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
ANCHEER
15
Warranty
One-Year Limited Hardware Warranty
Your electric bike includes a One Year Limited Hardware Warranty. BIKFUN provides
warranty service for the electric bikes. If there is a hardware defect and a valid claim is
received during the warranty period, we will resend new parts within the scope permitted
by law.
The Warranty covers product defects in materials and workmanship under normal use.
This Warranty is limited to original purchasers and is not assignable or transferable.
The Warranty starts on the date of your purchase and lasts for one year (the "Warranty
Period") and the Warranty Period is not extended if the product is repaired or replaced.
The Warranty does not cover any damage due to: improper use; failure to follow the
product instructions or to perform any preventive maintenance; unauthorized repair;
external causes such as accidents, abuse, or other actions or events beyond our reasonable
control.
Customer Services
We provide lifetime customer support services. For any questions about the product, please
contact customer service from where you brought the equipment. We will be happy to
answer your questions.
Any question about the item, please contact the Customer Service:
ANCHEER support team:[email protected]
☛
ANCHEER
16
All the product model, type and related information copy right and explain right are reserved.
This instruction is suitable for denoted models.
Any changing or replace part of the E-bike will not be informed again.
No copy, modification, propaganda or publication before getting the permission form
Ancheer.
Read the instructions and follow the instructions or the user will be responsible for the
damage.
Ancheer won’t be responsible for injuries, casualties and possession damages.
Responsibility announcement
Download Link for APP
MADE IN CHINA
Search ANCHEER SPORT on Youtube.Our Youtube Channel:
https://www.youtube.com/channel/UCtl3IkK0U0GqIL7c8AJf4pA
ANY QUESTION OF THIS E BIKE,PLEASE CONTACT:[email protected]
