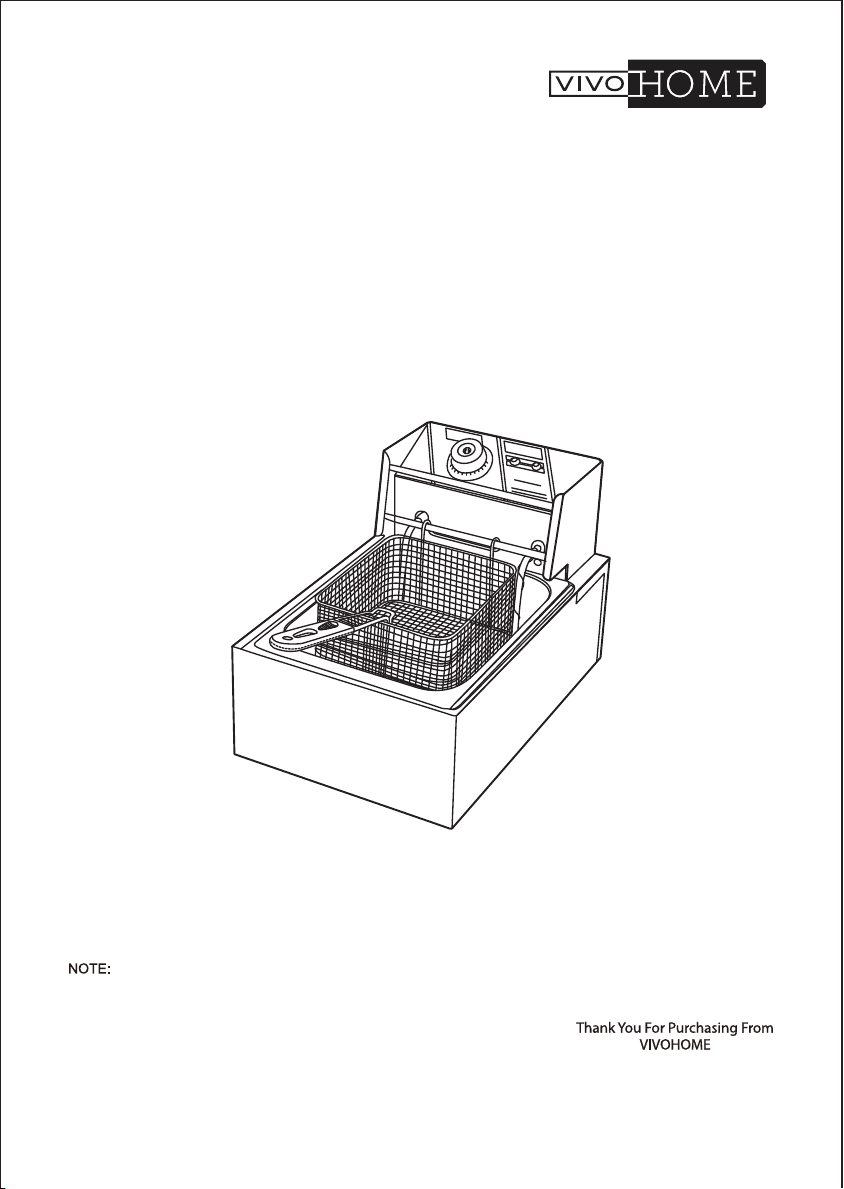

10.35Qt Deep Fryer
Instruction Manual
TROUBLESHOOTING
SAFETY PRECAUTIONS
The voltage used by this machine must be the same as the rated voltage. The
machine should be connected to a 16A socket.
Users must not use extension cables with this machine.
There is a grounding bolt at the back of the machine. A copper core wire of no less
than 2.5mm² should be reliably connected to a grounding wire that complies with
safety regulations.
Before use, check all the wiring is tight, the operating voltage is correct, and the outlet
is reliably grounded. The shell of the machine should be attached properly to ensure
safe operation. Thank you for your cooperation and understanding as this is a
dangerous machine.
1.
2.
3.
4.
-3-
Problem
Cause
Solution
1. Connect the power cord
to the socket, but the green
indicator light is not on and
the machine is not working.
1. The machine is not
connected to power.
1. Fasten the power cord
and ensure the socket is
powered on.
2. The fuse of the socket
connected by the user is
blown or the socket is
damaged.
2. Replace a fuse (>16A)
for the socket, or replace a
suitable 16A socket.
1. The wiring of the
electric heating tube is
loose.
1. Tighten the connecting
screw of the electric
heating tube.
1. The thermostat does
not work.
1. Replace the thermostat.
1. The indicator light is
burned out.
1. Replace the indicator
light.
1. The temperature
limiter has already
worked for overheating
protection.
1. Reset the temperature
limiter. (Refer to Instruction
No.10)
2. The electric heating
tube is burnt out.
2. Replace the heating
tube.
2. The red and green
indicator lights are on at the
same time, but the oil
temperature does not rise.
3. The red indicator light is
always on, and the oil
temperature rise cannot be
controlled.
4. The temperature is
controlled normally, but the
red indicator light is not on.
5. The green indicator light is
on, but the red indicator light
is not on and the tempera-
ture does not rise even if it is
set to any temperature.
To continuously improve its products, VIVOHOME reserves the
right to modify this information without prior notification.
For any questions regarding assembly, please watch the video on
the product page or contact our customer service. Our customer
service will gladly assist you with any additional questions,
comments, or concerns.
Thank you for using VIVOHOME products in your home!
Made in China
BASIC PARAMETERS
CIRCUIT DIAGRAM
INSTRUCTIONS

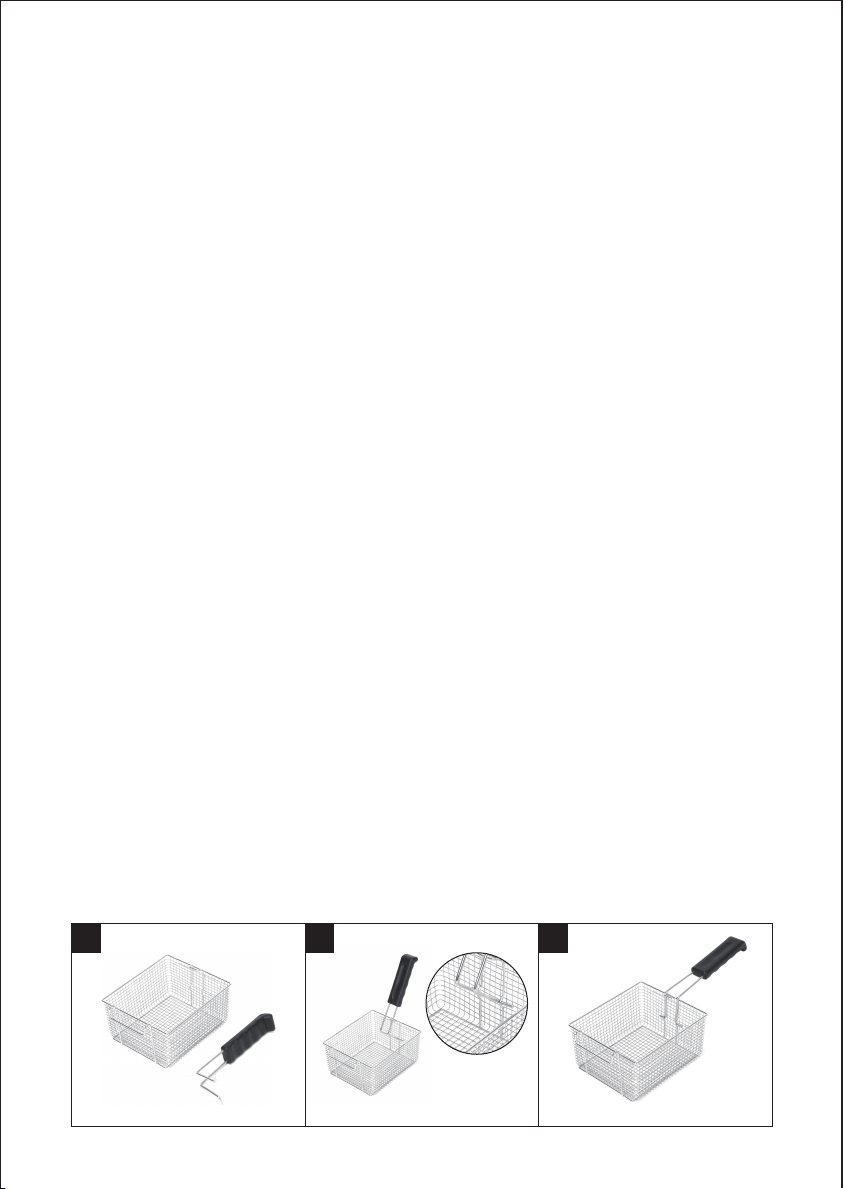

BASEKET HANDLE INSTALLATION
10.35qt Deep Fryer
VH1203
AC110V
50Hz-60Hz
2.5kW
Item Name
Item Number
Voltage
Frequency
Max Power
Check whether the power supply is reliable and installed correctly.
Keep the oil level over the MIN line and lower than the MAX line of the oil pans during
cover, the user should make sure there is no water on it in case that water drips into
use.
1) Keep the reference point on both knobs aligned with OFF position, and insert the
power cord plug into a suitable socket. The green POWER indicator light will turn on. At
this time, electricity will be supplied to the machine.
2) Rotate the temperature knob clockwise to align the reference point with the
required degree. At this time, the red HEATING indicator light will turn on, which shows
the pot, which will cause hot oil to splash and hurt people.
1.
2.
The enclosed special basket is used for frying small pieces of food. There is a hanger
and a handle on the basket. Put the basket into the oil while cooking. After frying, lift
and hang the basket on the machine to filter oil. The filtered oil will flow into the pot. If
that the electric heater is working. The oil will start to heat up.
3) During cooking, the thermostat will cut off heating automatically when the oil
reaches the set temperature. At this time, the red HEATING indicator light will turn off,
which shows that the electric heater is no longer heating up.
4) When the temperature drops a little, the thermostat will automatically send a signal
to the heater to start heating again. Then, the red HEATING indicator light will turn on.
The oil temperature will rise.
5) The machine works in this way repeatedly in order to make sure the oil temperature
is within a certain selected range.
3.
The cover is designed for keeping the device warm and clean. When putting on the
frying a large piece of food, you can put it directly in the pot.
After cooking, please turn the temperature knob to the OFF position and pull the plug
out for safety.
If the user wants to pour oil out of the pot, the user should do it after the temperature
reaches to room temperature. First, the user should take out the basket and back
plate. Then, cut off the power and turn over the control box (at this moment the
electric heating tube in the pot is upright). Alternatively, the user can take out the
control box and put it in a dry place. Afterwards, the oil pot can be removed for
cleaning.
The user should clean the oil, grime, and residue on the electric heating tube
regularly.
The back plate is designed for protecting the electric heating tube. The back plate
must be installed properly in the oil pot when frying food.
Every fryer with a temperature range of 140 to 392°F has a RESET protection button
for overheating. When the temperature is higher than the pre-set one (460°F), the
temperature limiter will work to cut off the power and protect the machine. Users
may find the temperature limiter activates in the following situation: While the power
connection is normal and the green POWER indicator light is on, if the temperature
knob is rotated to any specific temperature but the red HEATING indicator light does
not turn on and the temperature does not rise. At this time, twist the black RESET lid
on the panel in a counter-clockwise direction and open it manually. If a small black
button inside sticks out about 5mm, it means the temperature limiter has already
activated. If the user wants to use the machine again, the user must follow these
steps to reset the temperature limiter: (1) Wait for 10 minutes in case the tempera-
ture is still higher than the pre-set one. (2) If the RESET lid has not been opened yet,
twist it in a counter-clockwise direction and open it manually. (3) Press the small
black button inside the RESET lid to reset. (4) Twist the lid back to its original place
and use the machine normally.
4.
5.
6.
7.
8.
9.
-1- -2-
L - Live Wire
N - Neutral Wire
E - Earth Wire
HL1 - Power Indicator
HL2 – Heating Indicator
EE – Heating Tube
W – Temperature Limiter
RT - Thermostat
L
N
E
W RT
HL1 HL2 EE
1 2 3
BASIC PARAMETERS
CIRCUIT DIAGRAM
INSTRUCTIONS
BASEKET HANDLE INSTALLATION
10.35qt Deep Fryer
VH1203
AC110V
50Hz-60Hz
2.5kW
Item Name
Item Number
Voltage
Frequency
Max Power
Check whether the power supply is reliable and installed correctly.
Keep the oil level over the MIN line and lower than the MAX line of the oil pans during
cover, the user should make sure there is no water on it in case that water drips into
use.
1) Keep the reference point on both knobs aligned with OFF position, and insert the
power cord plug into a suitable socket. The green POWER indicator light will turn on. At
this time, electricity will be supplied to the machine.
2) Rotate the temperature knob clockwise to align the reference point with the
required degree. At this time, the red HEATING indicator light will turn on, which shows
the pot, which will cause hot oil to splash and hurt people.
1.
2.
The enclosed special basket is used for frying small pieces of food. There is a hanger
and a handle on the basket. Put the basket into the oil while cooking. After frying, lift
and hang the basket on the machine to filter oil. The filtered oil will flow into the pot. If
that the electric heater is working. The oil will start to heat up.
3) During cooking, the thermostat will cut off heating automatically when the oil
reaches the set temperature. At this time, the red HEATING indicator light will turn off,
which shows that the electric heater is no longer heating up.
4) When the temperature drops a little, the thermostat will automatically send a signal
to the heater to start heating again. Then, the red HEATING indicator light will turn on.
The oil temperature will rise.
5) The machine works in this way repeatedly in order to make sure the oil temperature
is within a certain selected range.
3.
The cover is designed for keeping the device warm and clean. When putting on the
frying a large piece of food, you can put it directly in the pot.
After cooking, please turn the temperature knob to the OFF position and pull the plug
out for safety.
If the user wants to pour oil out of the pot, the user should do it after the temperature
reaches to room temperature. First, the user should take out the basket and back
plate. Then, cut off the power and turn over the control box (at this moment the
electric heating tube in the pot is upright). Alternatively, the user can take out the
control box and put it in a dry place. Afterwards, the oil pot can be removed for
cleaning.
The user should clean the oil, grime, and residue on the electric heating tube
regularly.
The back plate is designed for protecting the electric heating tube. The back plate
must be installed properly in the oil pot when frying food.
Every fryer with a temperature range of 140 to 392°F has a RESET protection button
for overheating. When the temperature is higher than the pre-set one (460°F), the
temperature limiter will work to cut off the power and protect the machine. Users
may find the temperature limiter activates in the following situation: While the power
connection is normal and the green POWER indicator light is on, if the temperature
knob is rotated to any specific temperature but the red HEATING indicator light does
not turn on and the temperature does not rise. At this time, twist the black RESET lid
on the panel in a counter-clockwise direction and open it manually. If a small black
button inside sticks out about 5mm, it means the temperature limiter has already
activated. If the user wants to use the machine again, the user must follow these
steps to reset the temperature limiter: (1) Wait for 10 minutes in case the tempera-
ture is still higher than the pre-set one. (2) If the RESET lid has not been opened yet,
twist it in a counter-clockwise direction and open it manually. (3) Press the small
black button inside the RESET lid to reset. (4) Twist the lid back to its original place
and use the machine normally.
4.
5.
6.
7.
8.
9.
-1- -2-
L - Live Wire
N - Neutral Wire
E - Earth Wire
HL1 - Power Indicator
HL2 – Heating Indicator
EE – Heating Tube
W – Temperature Limiter
RT - Thermostat
L
N
E
W RT
HL1 HL2 EE
1 2 3
10.35Qt Deep Fryer
Instruction Manual
TROUBLESHOOTING
SAFETY PRECAUTIONS
The voltage used by this machine must be the same as the rated voltage. The
machine should be connected to a 16A socket.
Users must not use extension cables with this machine.
There is a grounding bolt at the back of the machine. A copper core wire of no less
than 2.5mm² should be reliably connected to a grounding wire that complies with
safety regulations.
Before use, check all the wiring is tight, the operating voltage is correct, and the outlet
is reliably grounded. The shell of the machine should be attached properly to ensure
safe operation. Thank you for your cooperation and understanding as this is a
dangerous machine.
1.
2.
3.
4.
-3-
Problem
Cause
Solution
1. Connect the power cord
to the socket, but the green
indicator light is not on and
the machine is not working.
1. The machine is not
connected to power.
1. Fasten the power cord
and ensure the socket is
powered on.
2. The fuse of the socket
connected by the user is
blown or the socket is
damaged.
2. Replace a fuse (>16A)
for the socket, or replace a
suitable 16A socket.
1. The wiring of the
electric heating tube is
loose.
1. Tighten the connecting
screw of the electric
heating tube.
1. The thermostat does
not work.
1. Replace the thermostat.
1. The indicator light is
burned out.
1. Replace the indicator
light.
1. The temperature
limiter has already
worked for overheating
protection.
1. Reset the temperature
limiter. (Refer to Instruction
No.10)
2. The electric heating
tube is burnt out.
2. Replace the heating
tube.
2. The red and green
indicator lights are on at the
same time, but the oil
temperature does not rise.
3. The red indicator light is
always on, and the oil
temperature rise cannot be
controlled.
4. The temperature is
controlled normally, but the
red indicator light is not on.
5. The green indicator light is
on, but the red indicator light
is not on and the tempera-
ture does not rise even if it is
set to any temperature.
To continuously improve its products, VIVOHOME reserves the
right to modify this information without prior notification.
For any questions regarding assembly, please watch the video on
the product page or contact our customer service. Our customer
service will gladly assist you with any additional questions,
comments, or concerns.
Thank you for using VIVOHOME products in your home!
Made in China
