Operation Manual
Embroidery Machine
Product Code: 882-W80/W82
Be sure to read this document before using the machine.
We recommend that you keep this document nearby for future reference.
1
Thank you for purchasing this machine. Before using this
machine, carefully read the “IMPORTANT SAFETY
INSTRUCTIONS”, and then study this manual for the
correct operation of the various functions.
In addition, after you have finished reading this manual,
store it where it can quickly be accessed for future
reference.
Failure to follow these instructions may result in an
increased risk of personal injury or damage to property,
including through fire, electrical shock, burns or
suffocation.
Please read these safety instructions before attempting to
use the machine.
DANGER
- To reduce the risk of electric shock
1Always unplug the machine from the
electrical outlet immediately after using,
cleaning, when making any user
servicing adjustments mentioned in this
manual, or if you are leaving the
machine unattended.
WARNING
- To reduce the risk of burns, fire, electric shock, or
injury to persons.
2Always unplug the machine from the electrical
outlet when removing covers, or when making any
adjustments mentioned in the instruction manual.
• To unplug the machine, switch the machine to the
symbol “O” position to turn it off, then grasp the
plug and pull it out of the electrical outlet. Do not
pull on the cord.
• Plug the machine directly into the electrical outlet.
Do not use an extension cord.
• Always unplug your machine if the power is cut.
3Electrical Hazards:
• This machine should be connected to an AC power
source within the range indicated on the rating
label. Do not connect it to a DC power source or
inverter. If you are not sure what kind of power
source you have, contact a qualified electrician.
• This machine is approved for use in the country of
purchase only.
4Never operate this machine if it has a damaged cord
or plug, if it is not working properly, if it has been
dropped or damaged, or water is spilled on the unit.
Return the machine to the nearest authorized
Brother dealer for examination, repair, electrical or
mechanical adjustment.
• While the machine is stored or in use if you notice
anything unusual, such as an odor, heat,
discoloration or deformation, stop using the
machine immediately and unplug the power cord.
• When transporting the machine, be sure to carry it
by its handle. Lifting the machine by any other part
may damage the machine or result in the machine
falling, which could cause injuries.
• When lifting the machine, be careful not to make
any sudden or careless movements, otherwise you
may injure your back or knees.
5Always keep your work area clear:
• Never operate the machine with any air openings
blocked. Keep ventilation openings of the machine
free from the build up of lint, dust, and loose cloth.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are
being used or where oxygen is being administered.
• Do not use the machine near a heat source, such as
a stove or iron; otherwise, the machine, power cord
or garment being embroidered may ignite, resulting
in fire or an electric shock.
• Do not place this machine on an unstable surface,
such as an unsteady or slanted table, otherwise the
machine may fall, resulting in injuries.
INTRODUCTION
IMPORTANT SAFETY
INSTRUCTIONS
2
6Special care is required when embroidering:
• Always pay close attention to the needle. Do not use
bent or damaged needles.
• Keep fingers away from all moving parts. Special
care is required around the machine needle.
• Switch the machine to the symbol “O” position to
turn it off when making any adjustments in the
needle area.
• Do not use a damaged or incorrect needle plate, as
it could cause the needle to break.
• Do not push or pull the fabric when embroidering.
7This machine is not a toy:
• Your close attention is necessary when the machine
is used by or near children.
• The plastic bag that this machine was supplied in
should be kept out of the reach of children or
disposed of. Never allow children to play with the
bag due to the danger of suffocation.
• Do not use outdoors.
8For a longer service life:
• When using and storing this machine, avoid direct
sunlight and high humidity locations. Do not use or
store the machine near a space heater, iron, halogen
lamp, or other hot objects.
• Use only neutral soaps or detergents to clean the
case. Benzene, thinner, and scouring powders can
damage the case and machine, and should never be
used.
• Always consult the Operation Manual when
replacing or installing any assemblies, the presser
feet, needle, or other parts to assure correct
installation.
9For repair or adjustment:
• If the light unit is damaged, it must be replaced by
an authorized Brother dealer.
• In the event a malfunction occurs or adjustment is
required, first follow the troubleshooting table in the
back of the Operation Manual to inspect and adjust
the machine yourself. If the problem persists, please
consult your local authorized Brother dealer.
Use this machine only for its intended use as described
in the manual.
Use accessories recommended by the manufacturer as
contained in this manual.
Use only the mouse designed specifically for this
machine.
The contents of this manual and specifications of this
product are subject to change without notice.
For additional product information and updates, visit
our website at www.brother.com
SAVE THESE
INSTRUCTIONS
This machine is intended
for household use.
FOR USERS IN COUNTRIES EXCEPT
CENELEC COUNTRIES
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
FOR USERS IN CENELEC COUNTRIES
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
3
FOR USERS IN THE UK,
EIRE, MALTA AND
CYPRUS ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse
approved by ASTA to BS 1362, i.e. carrying the
mark, rating as marked on plug.
• Always replace the fuse cover. Never use plugs with
the fuse cover omitted.
• If the available electrical outlet is not suitable for the
plug supplied with this equipment, you should
contact your authorized Brother dealer to obtain the
correct lead.
Federal Communications
Commission (FCC)
Supplier’s Declaration of
Conformity (For U.S.A.
Only)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the authorized Brother dealer or an
experienced radio/TV technician for help.
• This transmitter must not be co-located or operated
in conjunction with any other antenna or
transmitter.
Important
Changes or modifications not expressly approved by
Brother Industries, Ltd. could void the user’s authority
to operate the equipment.
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE).
Responsible Party: Brother International Corporation
200 Crossing Boulevard
P.O. Box 6911
Bridgewater, NJ 08807-0911
USA
TEL : (908) 704-1700
declares that the product
Product Name:
Model Number:
Brother Embroidery Machine
XE1
4
For Users in Canada
This device complies with Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets the
FCC radio frequency (RF) Exposure Guidelines and RSS-102
of the IC radio frequency (RF) Exposure rules. This equipment
has very low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation (MPE).
For Users in Mexico
The operation of this equipment is subject to the following
two conditions:
(1) it is possible that this equipment or device may not cause
harmful interference, and
(2) this equipment or device must accept any interference,
including interference that may cause undesired
operation.
Declaration of Conformity
(Europe and Turkey only)
We, Brother Industries, Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that this product is in
conformity with the essential requirements of all relevant
directives and regulations applied within the European
Community.
The Declaration of Conformity (DoC) can be downloaded
from Brother Solutions Center.
Visit http://s.brother/cpeab/
and:
click “Manuals”
select your model
click “Declaration of Conformity”
click “Download”
Your Declaration will be downloaded as a PDF file.
Declaration of Conformity
for RE Directive 2014/53/
EU (CENELEC and Turkey
only)
(Applicable to models with
radio interfaces)
We, Brother Industries, Ltd. 15-1 Naeshiro-cho, Mizuho-ku,
Nagoya 467-8561 Japan declare that these products are in
conformity with the provisions of the RE Directive 2014/53/
EU. A copy of the Declaration of Conformity can be
downloaded by following the instructions in the Declaration
of Conformity (Europe and Turkey only) section.
Wireless LAN (Models with
Wireless LAN function
only)
This machine supports wireless interface.
Frequency band(s): 2400-2483.5 MHz
Maximum radio-frequency power transmitted in the
frequency band(s): Less than 20 dBm(e.i.r.p)
For Users in Norway
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Alesund on
Svalbard.
Dette underavsnittet gjelder ikke for det geografiske området
innenfor en radius av 20 km fra sentrum av Ny-Ålesund på
Svalbard.
For Users in Thailand
This telecommunication equipment conforms to NTC
technical requirement.
5
Terms of Use
IMPORTANT-PLEASE READ
CAREFULLY:
This Terms of Use (“Agreement”) is a legal agreement
between Brother Industries, Ltd. (“Company”) and you that
governs your use of any Software, installed on or made
available by Company for use with sewing or craft products
(“Company Product”). The term of “Software” means any and
all contents data, design data, data format, firmware of
Company Product, and PC application or mobile device
application.
By using the Software and Company Product, you shall be
deemed to have agreed to be bound by the terms of this
Agreement. If you do not agree to the terms of this Agreement,
Company is unwilling to license the Software and you are not
allowed to use the Software. Amendments and supplements to
this Agreement may be attached to the Software.
An individual who accepts this Agreement on behalf of an
entity represents to Company that he or she has the legal right
to enter into a binding legal agreement for that entity.
Terms and Conditions
1 Grant of License.
1.1 Subject to this Agreement, Company hereby
grants you a personal, non-exclusive, non-
transferable and revocable license to use the
Software only within the Company Product.
1.2 Your right to use of the Software is licensed and
not sold, and solely for your use subject to this
Agreement. Company or its suppliers retains all
right, title, and interest relating to Software,
including without limitation all intellectual
property rights relating thereto.
2 Restrictions
2.1 Except as expressly set out in this Agreement or
as required by any local law, you shall
undertake:
2.1.1 not to disassemble, de-compile, reverse
engineer, translate or otherwise attempt
to learn the source code of the Software
(including the data or contents created
by using the Company Product or
contents editing application software;
hereinafter the same shall apply in this
Clause 2.);
2.1.2 not to create derivative works based on
the whole or any part of the Software;
2.1.3 not to distribute, provide or make
available the Software in any form, in
whole or in part to any person without
prior written consent from Company;
2.1.4 not to copy the Software, except where
such copying is incidental to normal
use of the Software with Company
Product or where it is necessary for the
purpose of back-up or operational
security;
2.1.5 not to transfer, rent, lease, sub-license,
loan, translate, merge, adapt, vary, alter
or modify, the whole or any part of the
Software nor permit the Software or any
part of it to be combined with, or
become incorporated in, any other
programs;
2.1.6 to include Company’s copyright notice
and this Agreement on all entire and
partial copies of the Software; and
2.1.7 not to use the Software for any purpose
(including, but not limited to, use with
unauthorized sewing/craft products or
software) other than as provided under
Clause 1 of this Agreement.
3No warranty
TO THE EXTENT PERMISSIBLE BY
APPLICABLE LAW, THIS SOFTWARE IS
PROVIDED TO YOU “AS IS” WITHOUT
WARRANTIES OR CONDITIONS OF ANY
KIND, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. COMPANY
SPECIFICALLY DISCLAIMS ANY IMPLIED
WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY
QUALITY, NON-INFRINGEMENT AND/OR
FITNESS FOR A PARTICULAR PURPOSE.
4 Limitation of liability
4.1 COMPANY SHALL NOT BE LIABLE TO YOU,
ITS END-USERS OR ANY OTHER ENTITY FOR
ANY LOSS OF PROFITS OR INCOME OR
SAVINGS, LOSS OF DATA, INTERRUPTION
OF USE, OR CONSEQUENTIAL,
INCIDENTAL, SPECIAL, PUNITIVE OR
INDIRECT DAMAGES INCURRED BY SUCH
PARTY (WHETHER IN AN ACTION IN
CONTRACT OR TORT), EVEN IF COMPANY
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES, ARISING OUT OF OR
RELATING TO THE SOFTWARE, SUPPORT
SERVICE OR THIS AGREEMENT. THESE
LIMITATIONS SHALL APPLY TO THE
MAXIMUM EXTENT ALLOWED BY
APPLICABLE LAW NOTWITHSTANDING
ANY FAILURE OF ESSENTIAL PURPOSE OF
ANY LIMITED REMEDY.
4.2 NOTWITHSTANDING THE CLAUSE 3 OR 4.1
HEREOF, THIS AGREEMENT DOES NOT
PURPORT TO EXCLUDE OR RESTRICT
COMPANY’S LIABILITY FOR DEATH OR
PERSONAL INJURY RESULTING FROM
NEGLIGENCE OR LIMIT THE STATUTORY
RIGHTS OF A CONSUMER.
5Termination
5.1 Company shall have the right to terminate this
Agreement at any time by providing a written
notice to you if you commit a material breach
of any terms of this Agreement and fail to
immediately rectify such breach upon
Company’s request.
5.2 Upon termination for any reason all rights
granted to you under this Agreement shall
cease, you shall cease all activities authorized
by this Agreement and you shall immediately
delete or remove the Software from all
computer equipment in your possession and
delete or destroy all copies of the Software or
its derivative works in your possession. In
addition to the above, you shall delete contents
6
or design data created by you from the
Company Product in your possession.
6 Miscellaneous terms
6.1 You shall not export or re-export the Software
or any copy or adaptation thereof in violation
of any applicable laws or regulations.
6.2 You shall not assign all or any part of this
Agreement to any third party or any interest
therein, without prior written consent of
Company. A change of control or
reorganization of you pursuant to a merger,
sale of assets or stock shall be deemed to be an
assignment under this Agreement.
6.3 You agree that a breach of this Agreement will
cause irreparable injury to Company for which
monetary damages would not be an adequate
remedy and Company shall be entitled to seek
equitable relief in addition to any remedies it
may have hereunder or at law without a bond,
other security, or proof of damages.
6.4 If any provisions of this Agreement shall be
declared or determined as void or
unenforceable by a court of competent
jurisdiction, such provisions shall be severable
and independent from the other provisions of
this Agreement and the validity of the other
provisions and of the entire Agreement shall
not be affected thereby.
6.5 This Agreement, together with all exhibits or
other attachments referenced herein,
constitutes the entire agreement between the
parties on the subject matter hereof, and
supersedes all proposals, oral and written,
between the parties on this subject.
6.6 If Company fails to insist that you perform any
of your obligations under this Agreement, or if
Company does not enforce any rights against
you, or if Company delay in doing so, that will
not mean that Company have waived any
rights against you and will not mean that you
do not have to comply with those obligations.
If Company does waive a default by you,
Company will only do so in writing, and that
will not mean that Company will automatically
waive any later default by you.
6.7 The laws of the state or country where you live
(or, if a business, where your principal place of
business is located) govern all claims and
disputes concerning the Software or this
Agreement.
Secure Digital (SD) Card is a registered trademark or a
trademark of SD-3C, LLC.
CompactFlash is a registered trademark or a trademark of
Sandisk Corporation.
Memory Stick is a registered trademark or a trademark of
Sony Corporation.
SmartMedia is a registered trademark or a trademark of
Toshiba Corporation.
MultiMediaCard (MMC) is a registered trademark or a
trademark of Infineon Technologies AG.
xD-Picture Card is a registered trademark or a trademark of
Fuji Photo Film Co. Ltd.
This software is based in part on the work of the
Independent JPEG Group.
WPA™ and WPA2™ are trademarks of Wi-Fi Alliance®.
Each company whose software title is mentioned in this manual has a
Software License Agreement specific to its proprietary programs.
Any trade names and product names of companies appearing on
Brother products, related documents and any other materials are all
trademarks or registered trademarks of those respective companies.
This product includes open-source software.
To see the open source licensing remarks, please go to the
manual download section on your model’s home page of
Brother Solutions Center at “ http://s.brother/cpeab/
”.
TRADEMARKS
OPEN SOURCE LICENSING
REMARKS
CONTENTS
7
1
2
3
4
5
CONTENTS
Chapter 1 Getting Ready 9

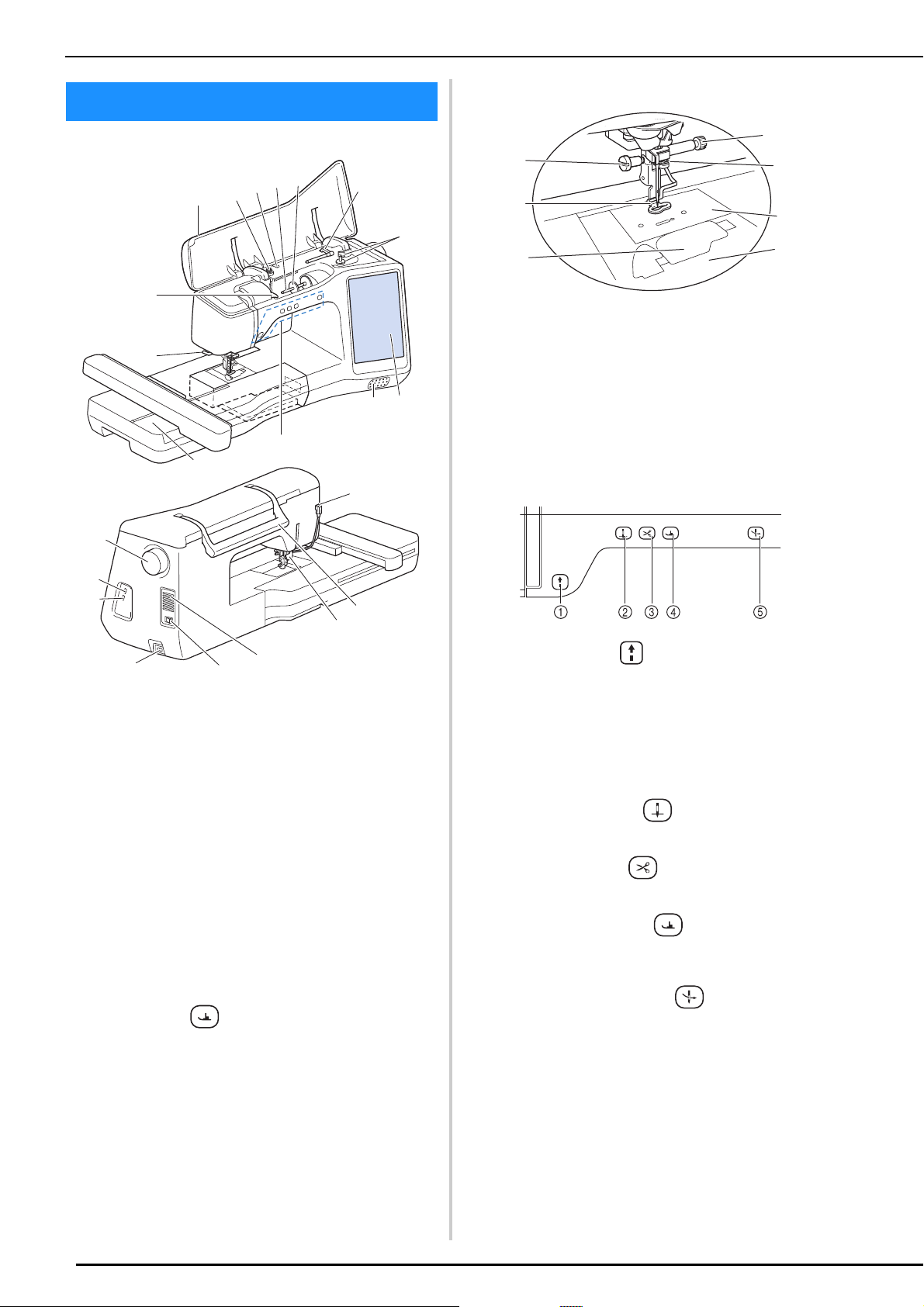

NAMES OF MACHINE PARTS.............................. 10
Included Accessories ........................................................... 11
Accessories that are Included in Some Countries or
Regions................................................................................ 12
Options................................................................................ 13
TURNING THE MACHINE ON/OFF .................. 14
LCD SCREEN ...................................................... 15
Using the Machine Settings Key ........................................... 16
Using the Machine Help ...................................................... 19
WIRELESS NETWORK CONNECTION
FUNCTIONS ...................................................... 20
Enabling a Wireless Network Connection ............................ 20
Setting Up the Wireless Network Connection ...................... 21
CONNECTING THE ACCESSORY TO THE
MACHINE .......................................................... 23

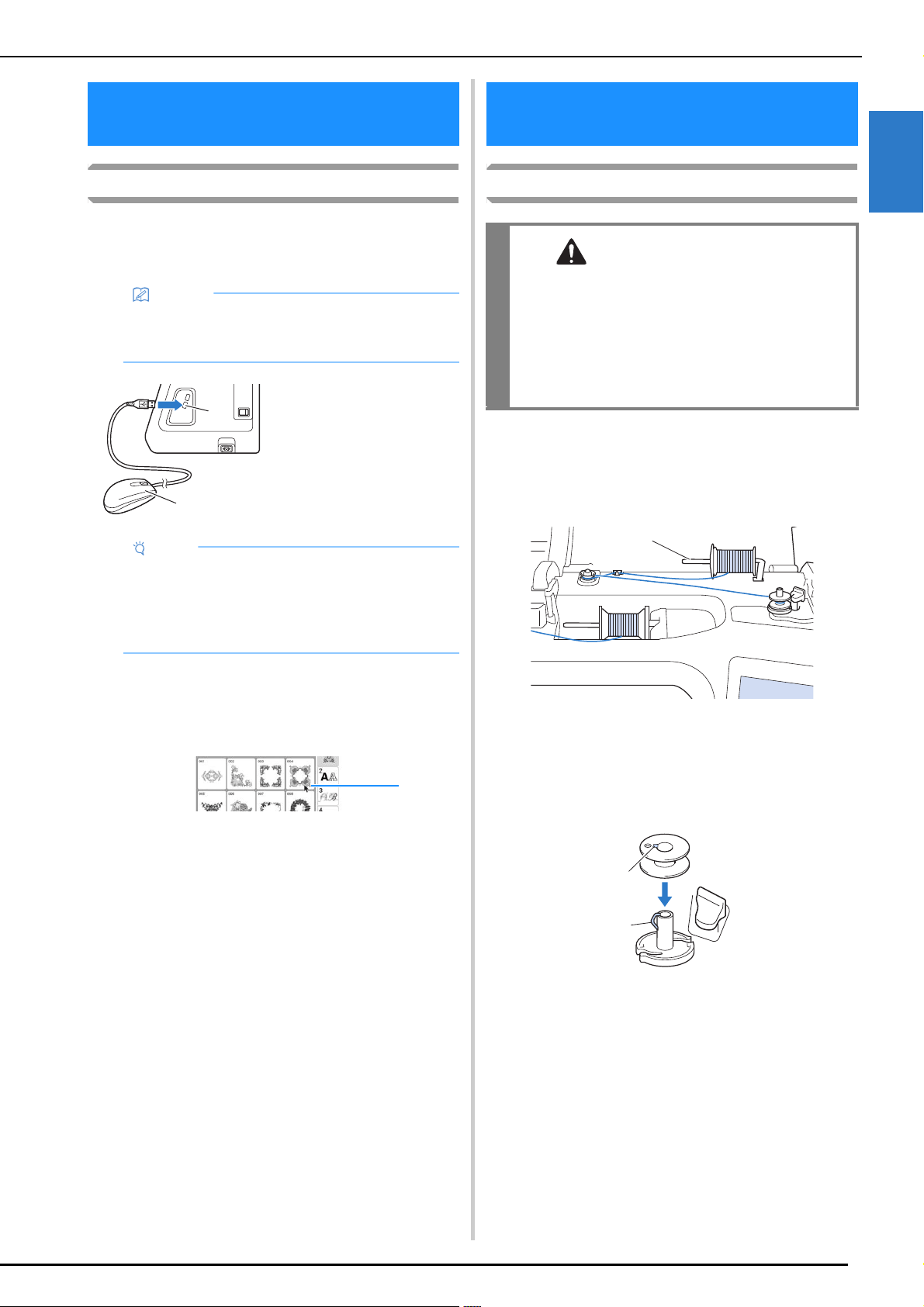

Using a USB Mouse (Sold Separately) .................................. 23

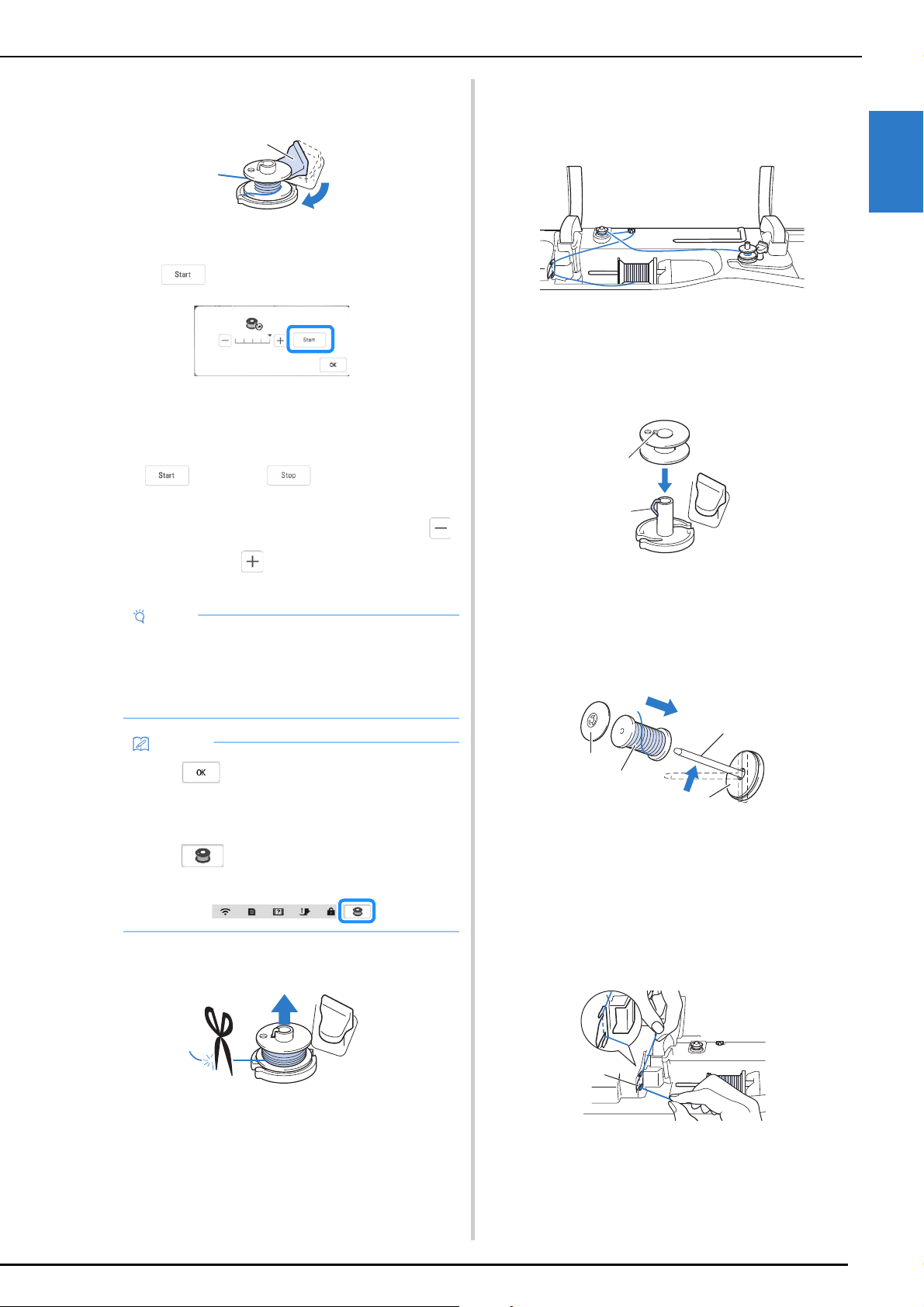

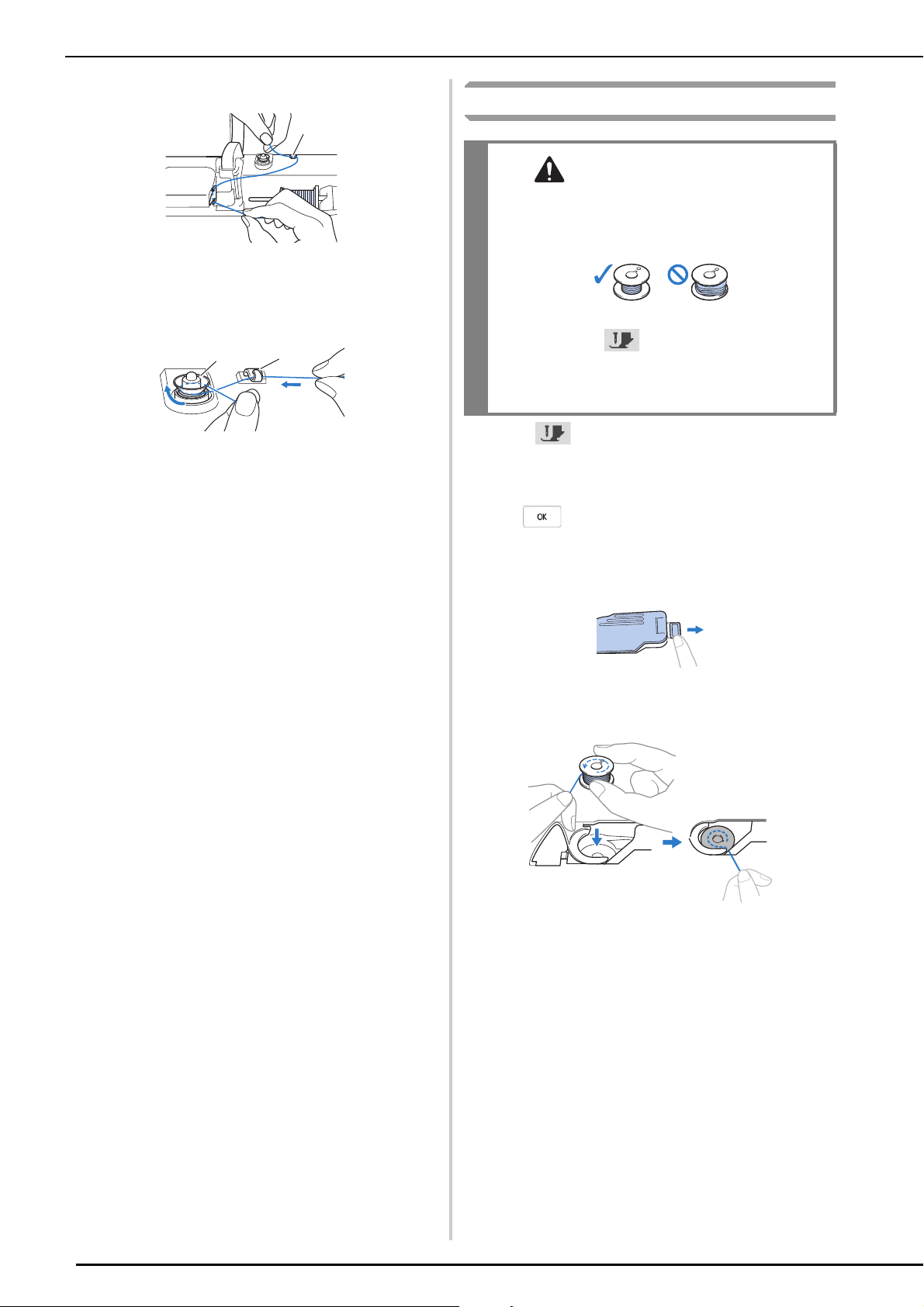

WINDING/INSTALLING THE BOBBIN.............. 23
Winding the Bobbin............................................................. 23
Setting the Bobbin................................................................ 26
UPPER THREADING .......................................... 28
Upper Threading.................................................................. 28
CHANGING THE NEEDLE.................................. 30
Chapter 2 Basic Embroidery 33
BEFORE EMBROIDERING .................................. 34
Embroidery Step by Step ...................................................... 34
About the Embroidery Unit .................................................. 34
SELECTING PATTERNS....................................... 36
Selecting Embroidery Patterns .............................................. 36
Selecting Character Patterns................................................. 38
Selecting Frame Patterns ...................................................... 39
Combining Patterns.............................................................. 40
EDITING PATTERNS .......................................... 42
Previewing the Pattern ......................................................... 44
Changing the Size and the Density of the Pattern ................. 44
Creating Repeated Patterns .................................................. 45
Embroidering the Pattern Repeatedly ................................... 47
EDITING COLORS ............................................. 49
Changing the Thread Color .................................................. 49
Finding New Color Schemes with
the Color Shuffling Function ................................................ 50
Thread Color Sorting............................................................ 52

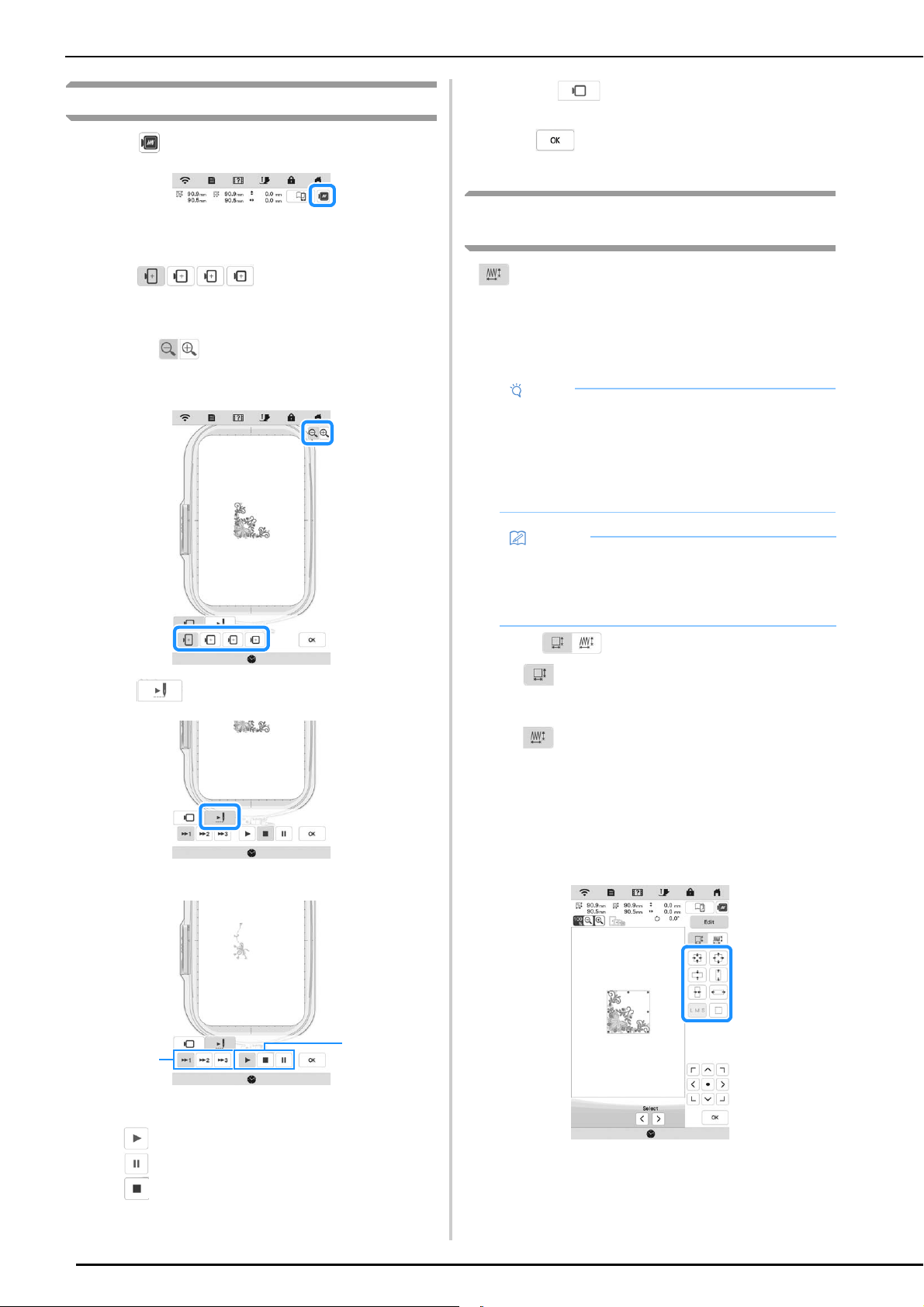

VIEWING THE EMBROIDERY SCREEN .............. 53
PREPARING THE FABRIC................................... 55
Attaching Iron-on Stabilizers (Backing) to the Fabric ............ 55
Hooping the Fabric in the Embroidery Frame ....................... 56
ATTACHING THE EMBROIDERY FRAME........... 58
CONFIRMING THE PATTERN POSITION.......... 59
Checking the Needle Drop Point with
the Embroidery Foot “W+” with LED Pointer........................ 59
Displaying a Background Image........................................... 60
Checking the Pattern Position .............................................. 61
EMBROIDERING A PATTERN ............................ 62
Embroidering Attractive Finishes .......................................... 62
Embroidering Patterns .......................................................... 63
Using Appliqués .................................................................. 64
ADJUSTMENTS DURING THE EMBROIDERY
PROCESS ............................................................. 66
If the Thread Breaks or the Bobbin Runs out of Thread
During Embroidering ........................................................... 66
Resuming Embroidery after Turning off the Power................ 67
Chapter 3 Advanced Embroidery 69
VARIOUS EMBROIDERING FUNCTIONS......... 70
Basting Embroidery .............................................................. 70

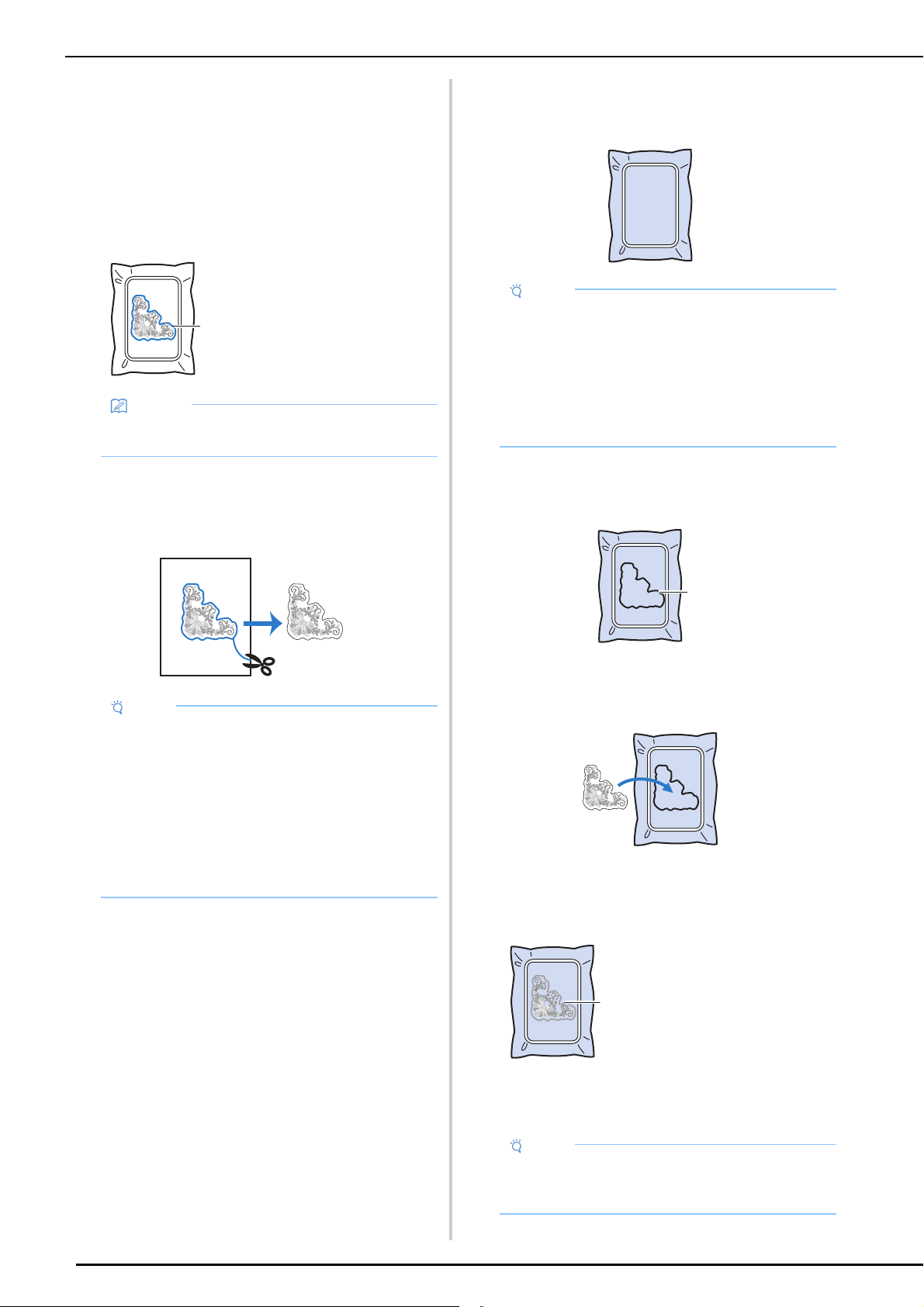

Creating an Appliqué Piece .................................................. 70

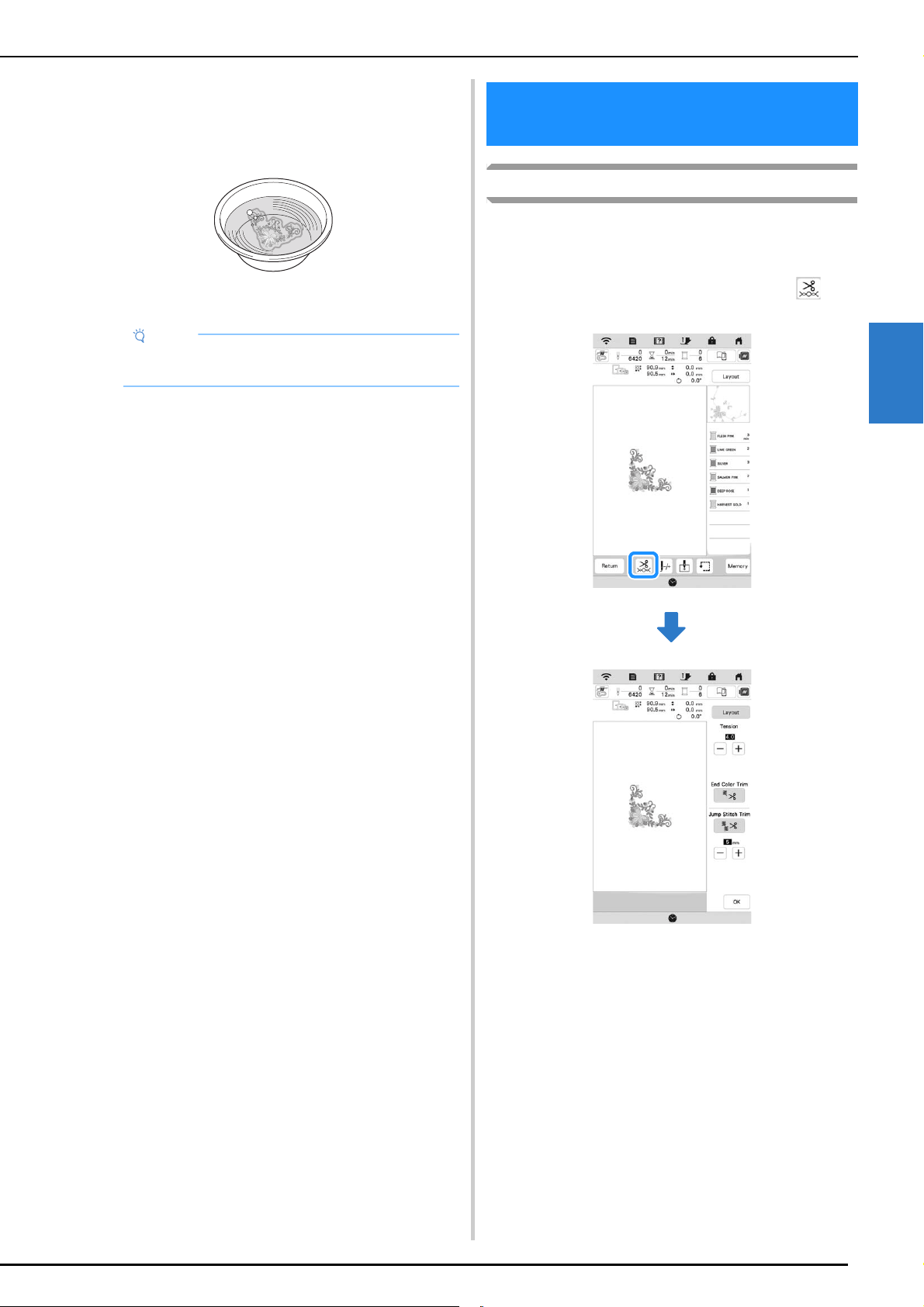

MAKING EMBROIDERY ADJUSTMENTS........... 73
Adjusting Thread Tension..................................................... 73
Adjusting the Bobbin Case (with No Color on
the Screw) ............................................................................ 75

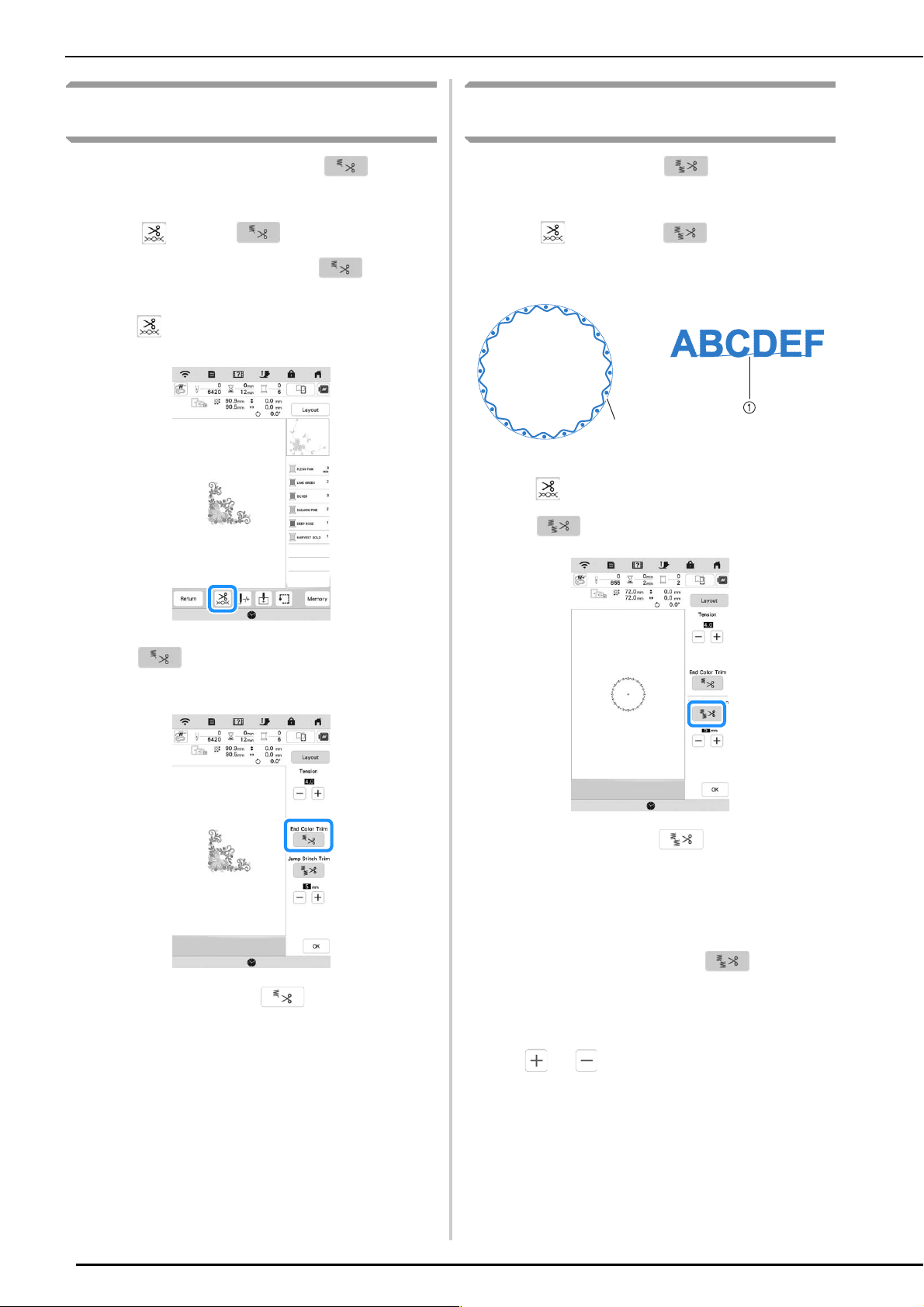

Using the Automatic Thread Cutting Function
(End Color Trim)................................................................... 76
Using the Thread Trimming Function (Jump Stitch Trim) ...... 76

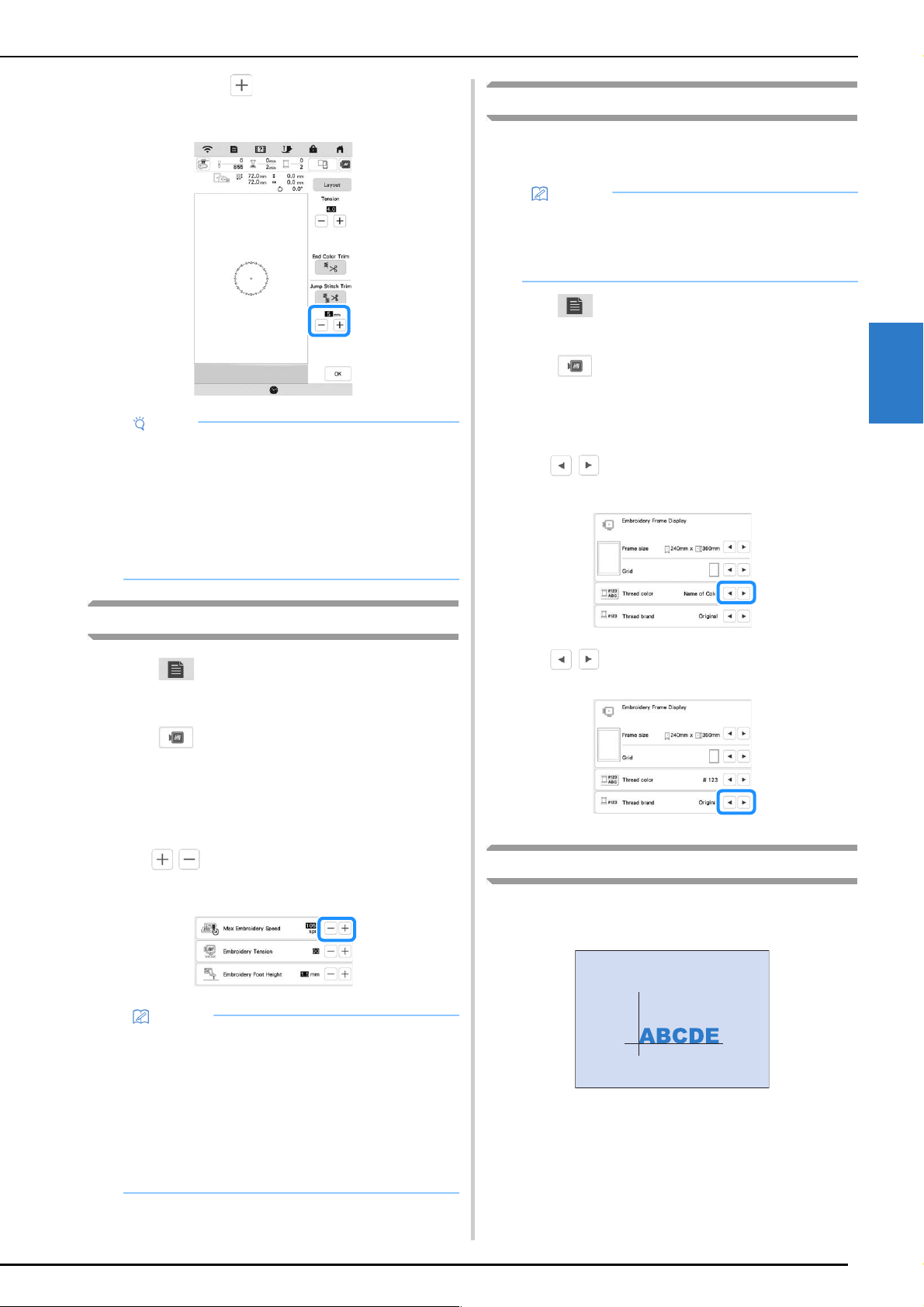

Adjusting the Embroidery Speed........................................... 77
Changing the Thread Color Display...................................... 77
Aligning the Pattern and the Needle ..................................... 77

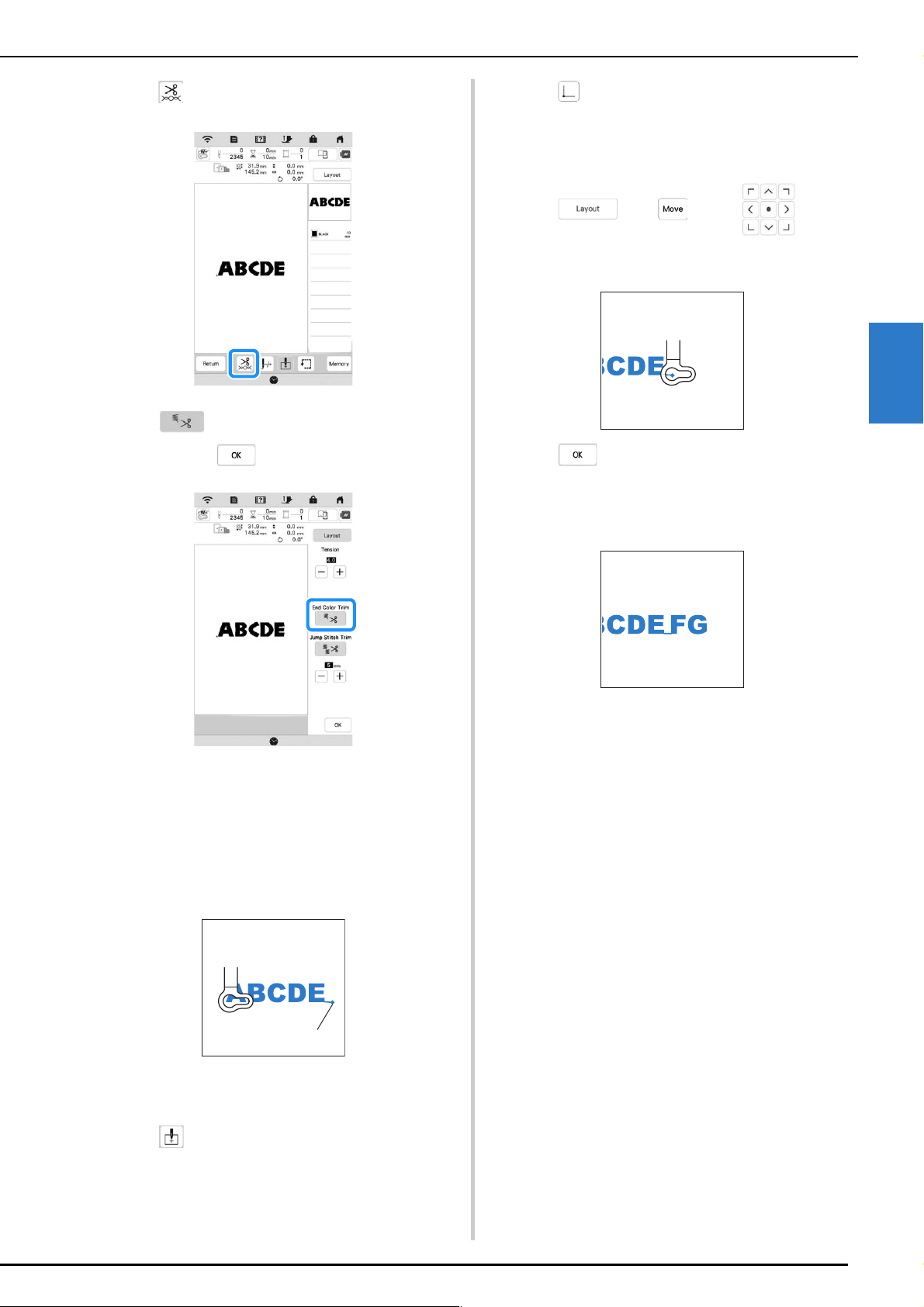

Embroidering Linked Characters........................................... 78

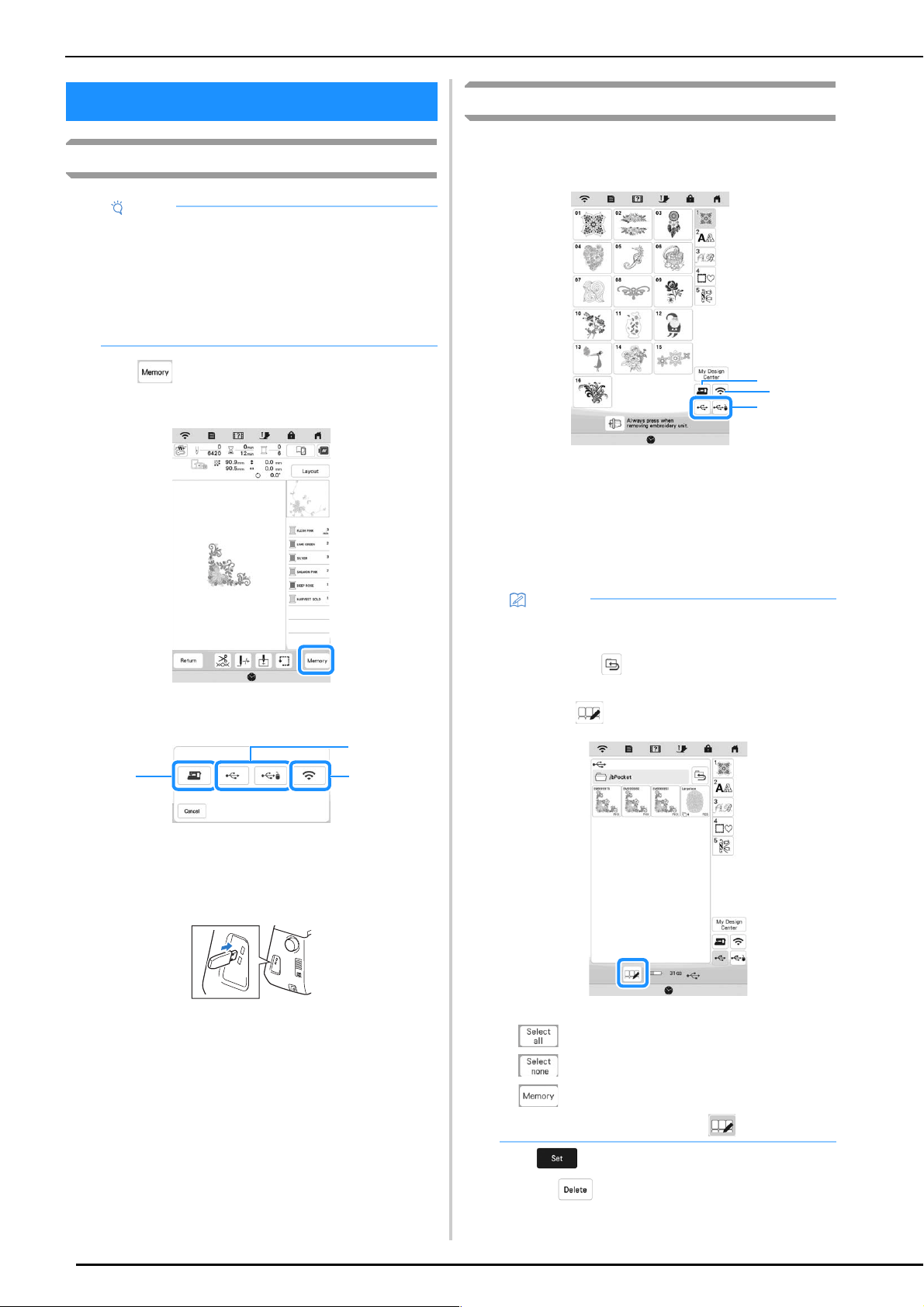

USING THE MEMORY FUNCTION ................... 80
Saving Embroidery Patterns .................................................. 80
Retrieving Embroidery Patterns............................................. 80
EMBROIDERY APPLICATIONS .......................... 81
Using a Frame Pattern To Make an Appliqué........................ 81
Embroidering Split Embroidery Patterns................................ 82
Chapter 4 My Design Center 85
ABOUT MY DESIGN CENTER............................ 86
PATTERN DRAWING SCREEN........................... 86
Before Creating Designs ....................................................... 88
Drawing Lines...................................................................... 88
Drawing Regions.................................................................. 89
Using the Stamp Key ............................................................ 90
Using the Erase Key.............................................................. 91
Using the Select Key............................................................. 91
STITCH SETTINGS SCREEN ............................... 92
Specifying Individual Stitch Settings ..................................... 92
Specifying Global Stitch Settings .......................................... 93

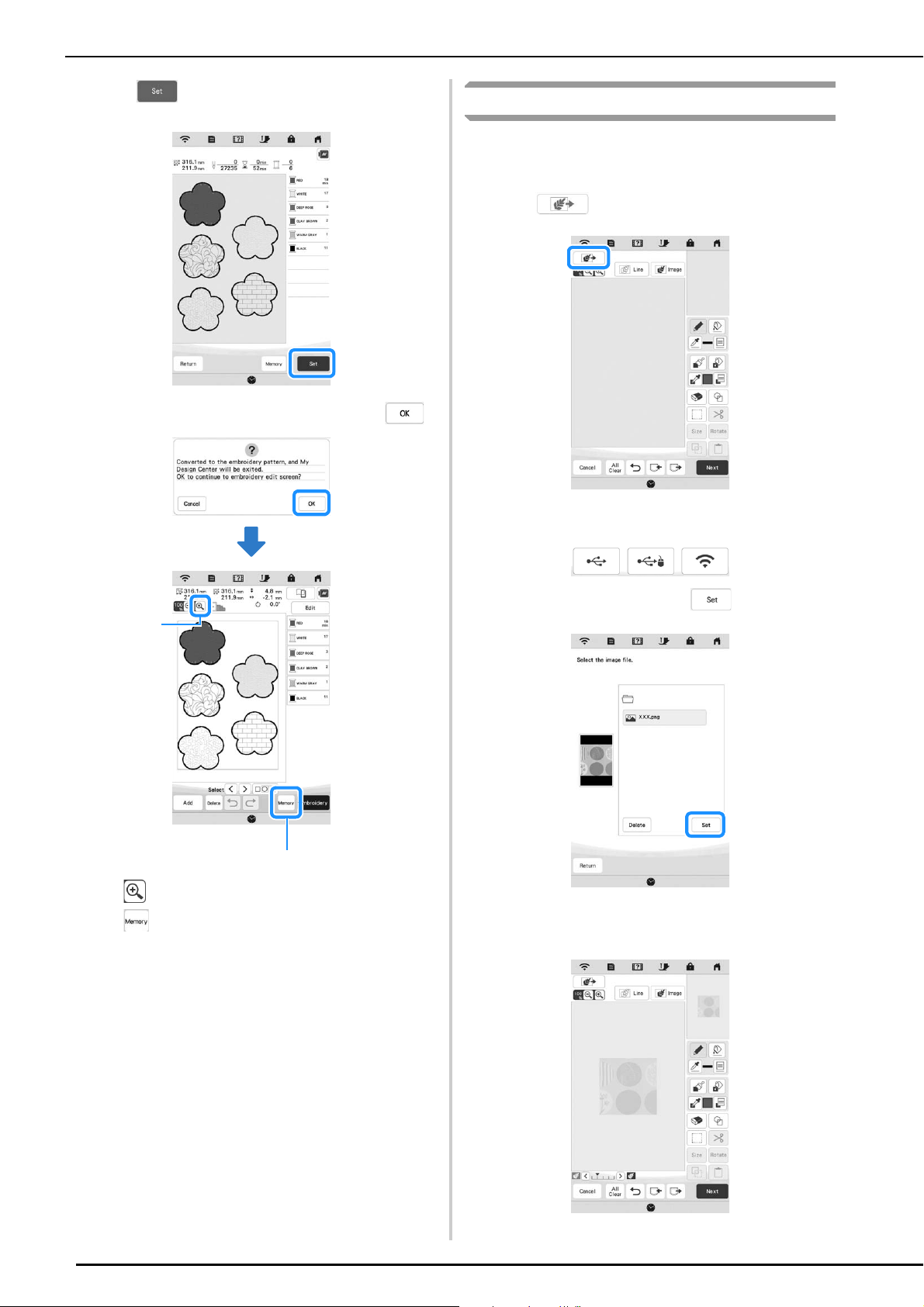

Loading the Background Image ............................................ 94

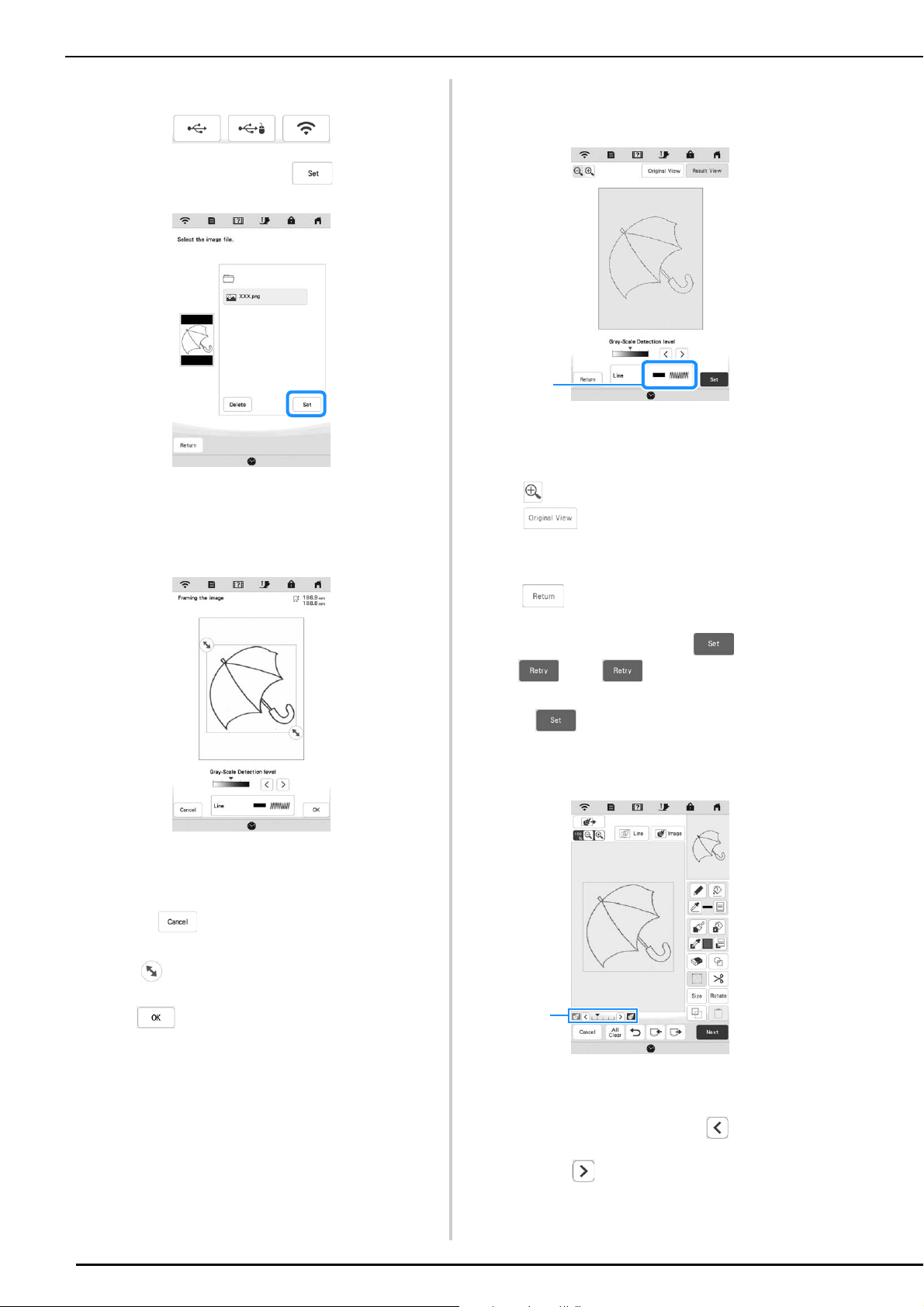

LINE CONVERSION........................................... 95
Create a Pattern with Line Conversion.................................. 95

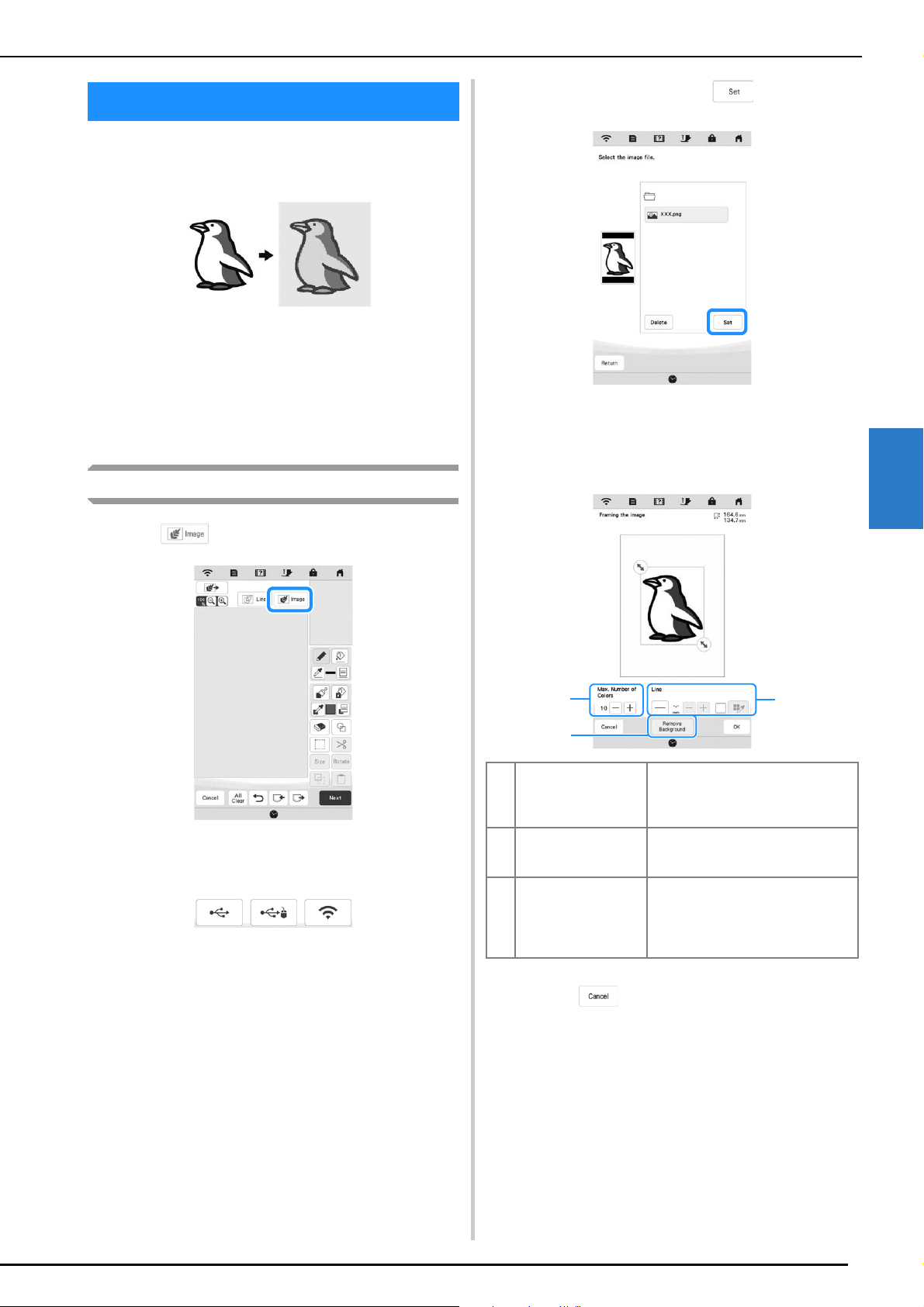

ILLUSTRATION CONVERSION ......................... 97
Create a Pattern with Illustration Conversion........................ 97

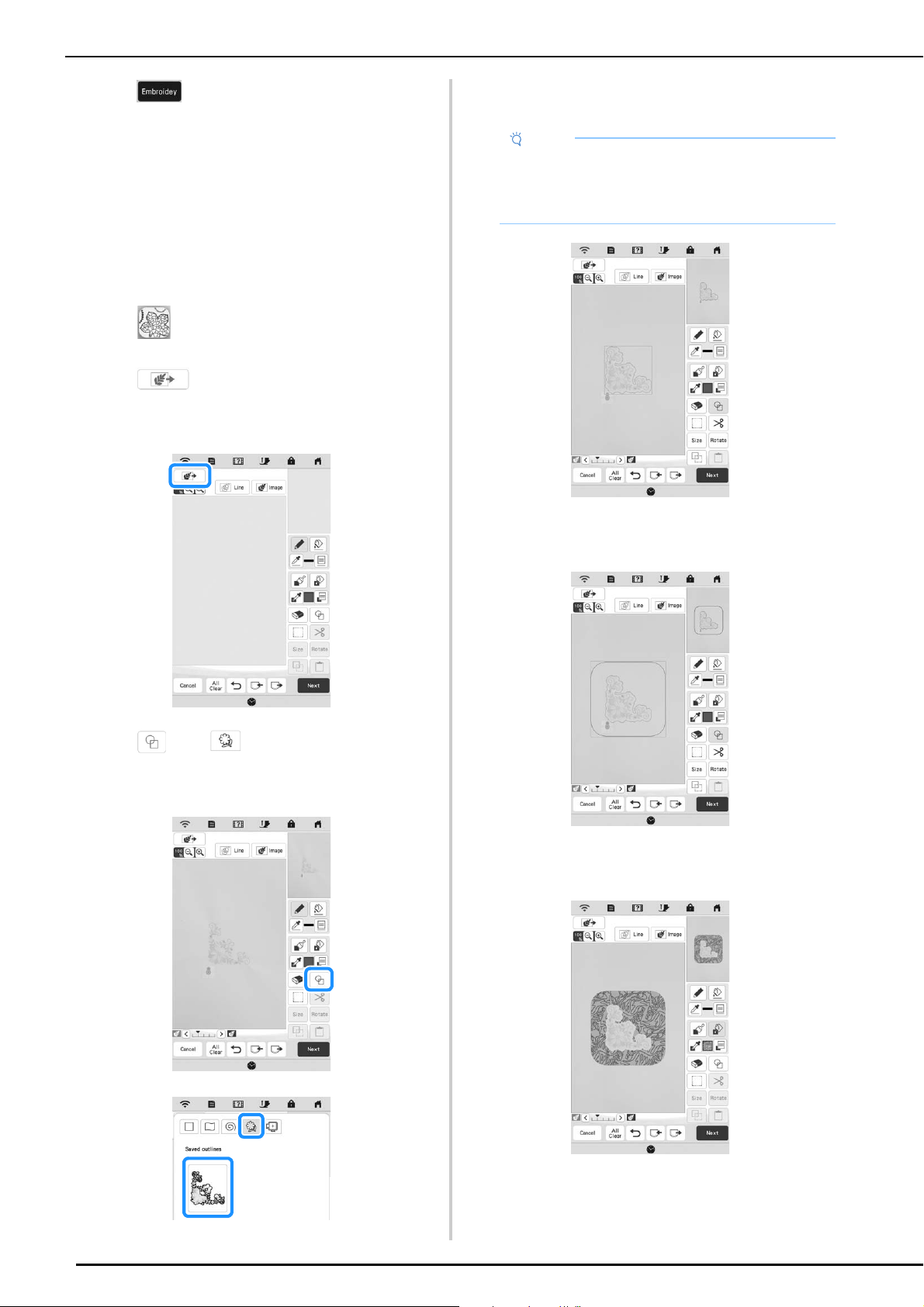

STIPPLING......................................................... 99
Basic Stippling with My Design Center................................. 99
Decorative Stitching around a Pattern in Embroidery
(a Quilting Function) .......................................................... 101
Chapter 5 Appendix 105
CARE AND MAINTENANCE ............................ 106
Restrictions on Oiling......................................................... 106
Precautions on Storing the Machine ................................... 106
Cleaning the Race ............................................................. 106
Cleaning the Cutter in the Bobbin Case Area...................... 107
Changing Embroidery Foot “W+” with LED Pointer ............ 107
ADJUSTING THE SCREEN ............................... 108
Touch Panel is Malfunctioning ........................................... 108
TROUBLESHOOTING ..................................... 109
Untangling Thread from beneath the Bobbin
Winder Seat ....................................................................... 109
List of Symptoms ................................................................ 110
ERROR MESSAGES........................................... 113
SPECIFICATIONS............................................. 116
UPGRADING YOUR MACHINE’S
SOFTWARE ...................................................... 118
INDEX.............................................................. 119
CONTENTS
8
Chapter 1
Getting Ready
Be sure to install the latest software.
Refer to “UPGRADING YOUR MACHINE’S SOFTWARE” on page 118.
http://s.brother/cpeab/
NAMES OF MACHINE PARTS
10
■ Main Parts
1 Top cover
2 Pretension disk (page 24)
3 Thread guide for bobbin winding (page 24)
4 Spool pin (page 25)
5 Spool cap (page 23)
6 Supplemental spool pin (page 23)
7 Bobbin winder (page 23)
8 LCD (liquid crystal display) (page 15)
9 Speaker
0 Operation buttons (page 10)
A Embroidery unit (page 35)
B Thread cutter (page 29)
C Thread guide plate (page 25)
D Connector for the presser foot (page 108)
E Handle
Carry the machine by its handle when transporting the
machine.
F Presser foot lever
You cannot use the presser foot lever after the presser foot has
been raised using (Presser foot lifter button).
G Air vent
The air vent allows the air surrounding the motor to circulate.
Do not cover the air vent while the machine is being used.
H Main power switch (page 14)
I Power cord receptacle (page 14)
J USB port for mouse (page 23)
K USB port
L Handwheel
Turn the handwheel toward you (counterclockwise) to raise and
lower the needle.
■ Needle and Presser Foot Section
1 Screw for embroidery foot (page 108)
2 Embroidery foot
The embroidery foot helps control fabric flexibility for better
stitch consistency.
3 Bobbin cover (page 26)
4 Needle plate cover (page 27)
5 Needle plate (page 107)
6 Needle bar thread guide (page 29)
7 Needle clamp screw (page 31)
■ Operation Buttons
1 “Start/Stop” button
Press the “Start/Stop” button to start or stop the machine. The
button changes color according to the machine’s operation
mode.
2 Needle position button
Press the needle position button to raise or lower the needle
position. Pressing the button twice embroiders a single stitch.
3 Thread cutter button
Press the thread cutter button after embroidering to trim the
excess thread.
4 Presser foot lifter button
Press the presser foot lifter button to lower the presser foot and
apply pressure to the fabric. Press this button again to raise the
presser foot.
5 Automatic threading button
Use the automatic threading button to automatically thread the
needle.
NAMES OF MACHINE PARTS
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
Green: The machine is ready to embroider or is
embroidering.
Red: The machine is not ready to start
embroidering.
a
b
c
d
e
f
g
NAMES OF MACHINE PARTS
Getting Ready
11
1
Included Accessories
After opening the box, check that the following
accessories are included. If any item is missing or
damaged, contact your authorized Brother dealer.
Part Name
Part Code
Embroidery foot “W+” with LED pointer (on
machine)
SA197 (U.S.A.) / SA197C (Canada)
FLED1: XF4168-001 (Europe)
FLED1AP: 115C05E700W (other areas)
Needle set
75/11 6 needles:
Ball point needle for embroidery
XC6469-001
Bobbin × 10 (One bobbin is in machine.)
SA156 (Americas)
SFB: XA5539-151 / 115J05E0001 (Europe)
SFB: 115J05E7001 (other areas)
Seam ripper
XF4967-001
Scissors
XF2052-001
Cleaning brush
X59476-051
Screwdriver (small)
X55468-051
Screwdriver (large)
XC4237-021
Disc-shaped screwdriver
XC1074-051
W+
Spool cap (small)
130013-154
Spool cap (medium) × 2 (One spool cap is on
machine.)
X55260-153
Spool cap (large)
130012-054
Thread spool insert (mini king thread spool)
XA5752-121
Vertical spool pin
XC8619-052
Spool felt (on machine)
X57045-051
Spool net × 2
XA5523-050
Embroidery needle plate cover
XE5131-001
Touch pen (stylus)
XA9940-051
Bobbin case (no color on the screw) (on
machine)
XF5790-101
Part Name
Part Code
NAMES OF MACHINE PARTS
12
Accessories that are Included in Some
Countries or Regions
If these accessories are not included with your
machine, these are available as optional accessories.
Bobbin cover (on machine)
XE8992-101
Accessory bag
XC4487-021
Embroidery frame with decal set
H 36 cm × W 24 cm
(H 14 inches × W 9-1/2 inches)
SA449S (Americas)
EF95S: XH4465-001 / 115D05E0017 (Europe)
EF95SAP: 115D05E7017 (other areas)
Embroidery frame with decal set
H 18cm × W 13cm
(H 7 inches × W 5 inches)
SA439S (Americas)
EF75S: XH4464-001 / 115D05E0016 (Europe)
EF75SAP: 115D05E7016 (other areas)
Embroidery bobbin thread (#90, white)
EBT-PE (Americas)
EBT-PEN: XC5996-101 (Europe)
EBT-PEN: 115G05E7002 (other areas)
Embroidery positioning sticker sheets × 4
SAEPS2 (U.S.A.) / SAEPS2C (Canada)
EPS2: XG6749-001 / 115Z05E000E (Europe)
EPS2CN: 115Z05E600E (China)
EPS2: XF0763-001 (other areas)
Lens calibration sheet
XH4336-001
Operation Manual
This manual
Quick Reference Guide
XH3875-001 (Americas)
XH3951-001 (other areas)
Memo
• The screw for the embroidery foot is available
through your authorized Brother dealer (Part code
XA5904-051).
• Please visit “ http://s.brother/cpeab/
” to download
documents.
Part Name
Part Code
Part Name
Part Code
Embroidery frame with decal set
H 10 cm × W 10 cm
(H 4 inches × W 4 inches)
SA438S (Americas)
EF74S: XH4463-001 / 115D05E0015 (Europe)
EF74SAP: 115D05E7015 (other areas)
Bobbin center pin and instruction sheet
XF5048-001
Stabilizer material
SA519 (Americas)
BM3: XG6683-001 / 115Z05E0007 (Europe)
BM3CN: 115Z05E6007 (China)
BM3: XE0806-001 (other areas)
Bobbin clip × 10
XE3060-001
Memo
• Placing bobbin clips on bobbins helps prevent the
thread from unwinding from the bobbin. In
addition, snapping bobbin clips together allows the
bobbins to be conveniently stored and prevents
them from rolling around if they are dropped.
NAMES OF MACHINE PARTS
Getting Ready
13
1
Options
The following are available as optional accessories to
be purchased separately from your authorized Brother
dealer.
* These embroidery frames can be used for general
embroidery but cannot be used with the application (My
Design Snap).
Part Name
Part Code
*
Embroidery frame set
H 30 cm × W 20 cm
(H 12 inches × W 8 inches)
SA447 (Americas)
EF92: XG6717-001 (Europe)
EF92: 115D05E700Z (other areas)
Embroidery frame with decal set
H 24 cm × W 24 cm
(H 9-1/2 inches × W 9-1/2 inches)
SA450S (Americas)
EF97S: XH4466-001 / 115D05E0018 (Europe)
EF97SAP: 115D05E7018 (other areas)
*
Embroidery frame set
H 20 cm × W 20 cm
(H 8 inches × W 8 inches)
SA446 (U.S.A.) / SA446C (Canada)
EF91: XG6715-001 (Europe)
EF91: XE5068-101 (other areas)
*
Embroidery frame set
H 15 cm × W 15 cm
(H 6 inches × W 6 inches)
SA448 (U.S.A.) / SA448C (Canada)
SEF150: XG6761-001 (Europe)
SFE150: 115D05E700E (other areas)
*
Embroidery frame set
H 2 cm × W 6 cm
(H 1 inch × W 2-1/2 inches)
SA437 (Americas)
EF73: XG6663-001 (Europe)
EF73CN: 115D05E600W (China)
EF73: 115D05E700W (other areas)
*
Border embroidery frame
H 30 cm × W 10 cm
(H 12 inches × W 4 inches)
SABF6200D1 (U.S.A.) / SABF6200D1C
(Canada)
BF3: XG6763-001 (Europe)
BF3: XF4170-001/115D05E700N (other areas)
Embroidery foot “W”
XF4012-001
Multi-purpose screwdriver
SAMDRIVER1 (U.S.A.) / SAMDRIVER1C
(Canada)
MDRIVER1: XG1298-001 / 115Z05E0003
(Europe)
MDRIVER1AP: 115Z05E7003 (other areas)
W
10 spool stand
SA561 (U.S.A.) / SA561C (Canada)
TS5: XG6765-001 (Europe)
TS5: 115L05E7003 (other areas)
Spool stand
SA562 (U.S.A.) / SA562C (Canada)
TS6: XF4180-001 (Europe)
TS6: 115L05E7002 (other areas)
Stabilizer material
SA519 (Americas)
BM3: XG6683-001 / 115Z05E0007 (Europe)
BM3CN: 115Z05E6007 (China)
BM3: XE0806-001 (other areas)
Water soluble stabilizer
SA520 (Americas)
BM5: XG6681-001 (Europe)
BM5CN: 115Z05E600J (China)
BM5: XE0615-001 (other areas)
USB mouse
XE5334-101
Memo
• To obtain optional accessories or parts, contact
your authorized Brother dealer or visit our site
“ http://s.brother/cpeab/ ”.
• All specifications are correct at the time of printing.
Please be aware that some specifications may
change without notice.
• Visit your nearest authorized Brother dealer or our
site “ http://s.brother/cpeab/
” for a complete
listing of optional accessories available for your
machine.
• Always use accessories recommended for this
machine.
Part Name
Part Code
TURNING THE MACHINE ON/OFF
14
a
Insert the power supply cord into the power cord
receptacle, then insert the plug into a wall outlet.
1 Main power switch
2 Power supply cord
b
Turn the main power switch to “I” to turn on the
machine.
c
When the machine is turned on, the opening movie is
played. Press anywhere on the screen.
d
Turn the main power switch to “O” to turn off the
machine.
■ Setting Your Machine for the First Time
When you first turn on the machine, set the language and
time/date to your language and local time/date.
a
Press and to set your local language and then
press .
TURNING THE MACHINE ON/OFF
WARNING
• Use only regular household electricity for the
power source. Using other power sources may
result in fire, electric shock, or damage to the
machine.
• Make sure that the plugs on the power cord
are firmly inserted into the electrical outlet
and the power cord receptacle on the
machine. Otherwise, a fire or electric shock
may result.
• Do not insert the plug on the power cord into
an electrical outlet that is in poor condition.
• Turn the main power to OFF and remove the
plug in the following circumstances:
• When you are away from the machine
• After using the machine
• When the power fails during use
• When the machine does not operate correctly
due to a bad connection or a disconnection
• During electrical storms
CAUTION
• Use only the power cord included with this
machine.
• Do not use extension cords or multi-plug
adapters with many other appliances plugged
in to them. Fire or electric shock may result.
• Do not touch the plug with wet hands. Electric
shock may result.
• When unplugging the machine, always turn
the main power to OFF first. Always grasp the
plug to remove it from the outlet. Pulling on
the cord may damage the cord, or lead to fire
or electric shock.
• Do not allow the power cord to be cut,
damaged, modified, forcefully bent, pulled,
twisted, or bundled. Do not place heavy
objects on the cord. Do not subject the cord to
heat. These things may damage the cord, or
cause fire or electric shock. If the cord or plug
is damaged, take the machine to your
authorized Brother dealer for repairs before
continuing use.
• Unplug the power cord if the machine is not to
be used for a long period of time. Otherwise, a
fire may result.
•(For U.S.A only)
This appliance has a polarized plug (one blade
wider than the other). To reduce the risk of
electrical shock, this plug is intended to fit in a
polarized electrical outlet only one way.
If the plug does not fit fully in the electrical
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper electrical outlet. Do not modify the
plug in any way.
Memo
• The light, LCD and the “Start/Stop” button light up
when the machine is turned on. The machine will
make a sound. This is not a malfunction.
a
b
LCD SCREEN
Getting Ready
15
1
b
The message screen, confirming if you want to set
time/date, appears. Press .
c
Press or to set time/date.
1 Select [ON] to display time/date on the screen.
2 Press or to select the date display format.
3 Set the year (YYYY), month (MM) and date (DD).
4 Select whether 24h or 12h setting will display.
5 Set the current time.
d
Press to set.
The clock starts from 0 second of the time you set.
Touch the LCD screen or a key with your finger or the
included touch pen to select a machine function.
■ Home Page Screen
Note
• The time/date you set may be cleared, if you don't
turn on the machine for an extended period of time.
LCD SCREEN
CAUTION
• Only touch the screen with your finger or the
touch pen (stylus) included with the machine.
Do not use a mechanical pencil, screwdriver
or any other hard or sharp object. In addition,
do not press the screen with extreme pressure.
Otherwise the screen may be damaged.
• All or part of the screen may sometimes
become darker or lighter due to changes in the
surrounding temperature or other changes in
the environment. This is not a sign of a
malfunction. If the screen is difficult to read,
adjust its brightness.
3
1
4
5
2
No.
Display
Explanation Page
Name
1 Select an embroidery pattern. 34
Embroidery
key
2 Create an original embroidery
pattern.
86
My Design
Center key
3 Shows the machine’s signal
strength. Press this key to specify
the wireless settings.
17, 20
Wireless LAN
key
4 Change the needle stop position,
adjust the pattern or screen, and
change other machine settings.
16
Machine
settings key
5 See explanations on how to use
the machine. You can see the
tutorial videos and also MP4
movie files that you have saved on
USB media.
19
Machine help
key
6 Press this key before changing the
needle, the presser foot, etc. This
key locks all key and button
functions to prevent operation of
the machine. Press this key again
to unlock the settings.
26, 30
Presser foot/
Needle
exchange key
7 Lock the screen. When the screen
is locked, can still embroider, but
cannot change any of the screen
functions. Press this key again to
unlock the screen.
—
Screen lock
key
8 Return to the home page screen at
any time and select a different
mode ([Embroidery] or [My Design
Center]).
—
Home page
screen key
9 Set the time/date. 14
Time/Date key
2
1
9
3 4 5 6 7 8
LCD SCREEN
16
Using the Machine Settings Key
Press to change the default machine settings
(needle stop position, embroidery speed, opening
display, etc.). To display the different settings screens,
press for “General settings”, for
“Embroidery settings” or for “Wireless LAN
settings”.
■ General Settings
1 Select the needle stop position (the needle position
when the machine is not operating) to be up or down.
2 Select the operation of the (Needle position
button) from the following two sequences.
Each press of the (Needle position button):
[ON] : Switches the needle position between being
raised, stopped immediately before entering the fabric,
or lowered.
[OFF] : Switches the needle position between being
raised or lowered.
3 Select the shape of the pointer when a USB mouse is
used.
4 Turn both the upper and bobbin thread sensors [ON] or
[OFF]. If it is turned [OFF], the machine can be used
without thread.
5 Select the speaker volume. Increase the number for
louder volume, decrease for softer volume.
6 Select the brightness of the work area lights.
7 Select the screen display brightness.
8 You can save the current settings screen image in a USB
media by pressing this button when the USB media is
inserted into the USB port. The files are saved in a folder
labeled [bPocket].
9 Reset settings on this page to original default. Some
settings are not reset.
0 Set the [Eco Mode] and the [Shutoff Support Mode] to
save the machine power (page 17).
A Select the length of time until the screen saver appears.
B Select the image of the screen saver (page 18).
C Select the initial screen that is displayed when the
machine is turned on.
D Select the display language.
E Shows the service count which is a reminder to take your
machine in for regular servicing. (Contact your
authorized Brother dealer for details.)
F Shows the total number of stitches embroidered on this
machine.
G Shows the internal machine number for this machine.
H Shows the program version.
Note
• The machine default setting is highlighted.
Memo
• Press or to display a different settings
screen.
1
4
6
7
2
3
5
9
8
A
0
B
C
D
CAUTION
• When [Upper and Bobbin Thread Sensor] is set
to [OFF], the machine cannot detect tangled
upper thread. Continuing to use the machine
with tangled thread may cause damage.
Memo
• Install the latest software. Check with your local
authorized Brother dealer or at “ http://s.brother/
cpeab/ ” for available updates (page 118).
H
G
E
F
LCD SCREEN
Getting Ready
17
1

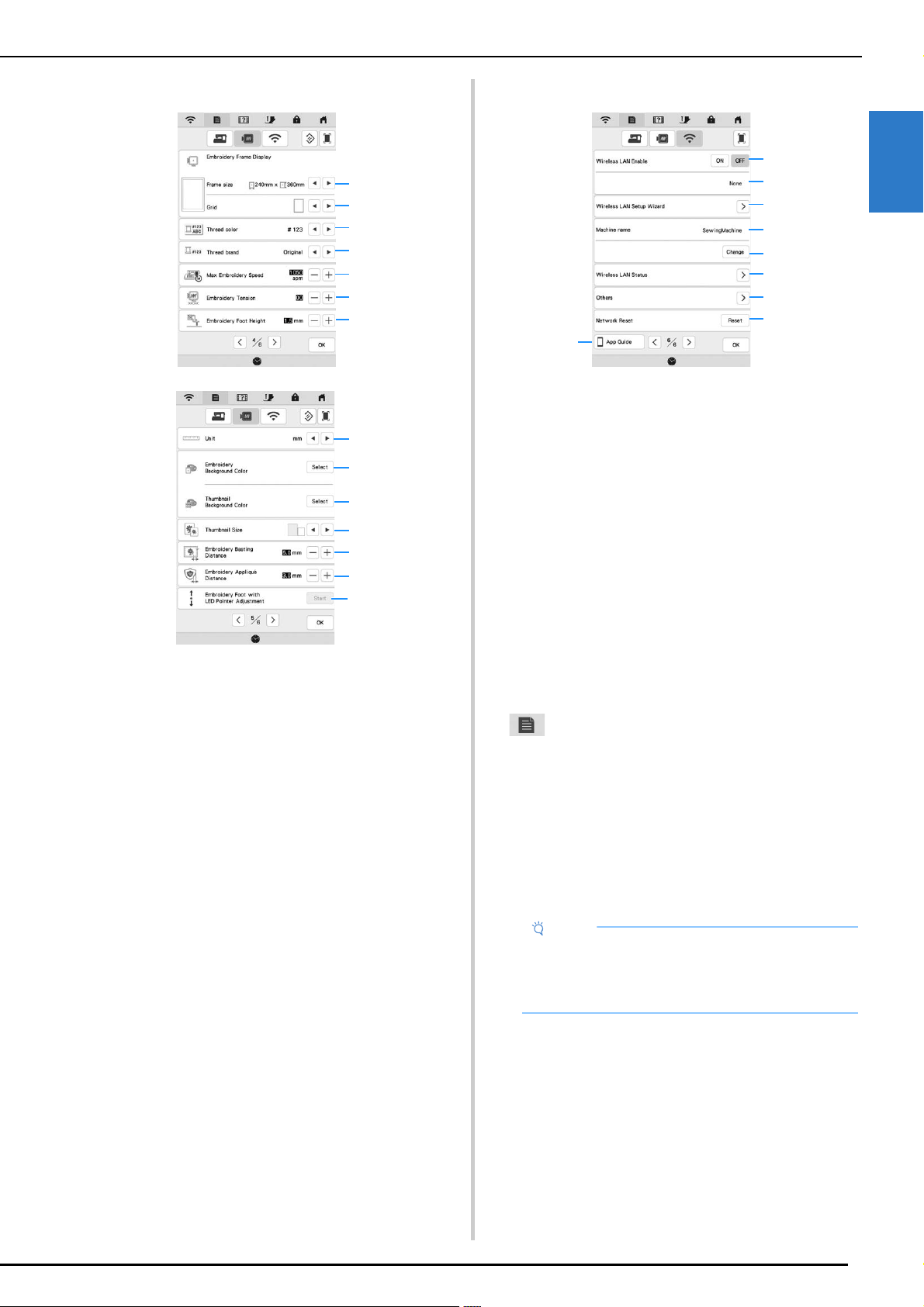

■ Embroidery Settings
1 Select the embroidery frame to be used.
2 Select the center point marker or grid lines.
3 Select the thread color display on the embroidery
screen; thread number, color name. (page 77)
4 Select the thread brand of the thread color display.
(page 77)
5 Adjust the maximum embroidery speed (page 77).
6 Adjust the upper thread tension for embroidering
(page 74).
7 Select the height of the embroidery foot during
embroidering (page 55).
8 Select the display units for embroidering (mm/inch).
9 Select the color of the background for the embroidery
display area.
0 Select the color of the background for the thumbnail
area.
A Select the size of pattern thumbnails.
B Adjust the distance between the pattern and the basting
stitching. (page 70)
C Adjust the distance between the appliqué pattern and
the outline (page 70).
D Adjust the position and brightness of the embroidery foot
“W+” with LED pointer (this setting is available if
embroidery foot “W+” with LED pointer has been
attached.) (page 59)
■ Wireless LAN Settings
1 Enable/Disable the wireless LAN function (page 20).
2 Shows the connected SSID.
3 Set the machine to connect wireless LAN function.
4 Shows the machine name used on the wireless network.
This name is used when transferring files from the
machine to the embroidery editing software (PE-DESIGN
11).
5 Change the machine name used on the wireless
network.
6 Check the wireless LAN status.
7 Display other menus.
8 Reset network operations.
9 Display the introduction to the application.
■ Setting the [Eco Mode] and the [Shutoff
Support Mode]
You can save the machine power by setting the [Eco
Mode] and the [Shutoff Support Mode].
If you leave the machine turned on without using it for the
set period of time, the machine enters in each mode. Press
to display [Eco Mode] and [Shutoff Support Mode].
(page 16)
[Eco Mode];
Machine will enter a sleep mode after the set period of
time. Touch the screen or press the “Start/Stop” button to
continue operating.
[Shutoff Support Mode];
Machine will enter the lower power mode after the set
period of time. Turn the machine off and then back on to
restart operating.
1
4
5
6
2
3
7
B
C
8
9
A
D
0
Note
• If you turn off the machine while the machine is in
the [Eco Mode] or the [Shutoff Support Mode], wait
for about 5 seconds before turning on the machine
again.
1
4
5
6
2
3
7
8
9
LCD SCREEN
18
■ Changing the Screen Saver Image
Instead of the default image, you can select your own
personal images for the screen saver of your machine.
Before changing the screen saver image, prepare the
image on USB media. For details on compatible image
files, refer to “SPECIFICATIONS” on page 116.
a
Press .
The settings screen appears.
b
Press .
The general settings screen appears.
c
Display [Screen Saver] in the general settings screen.
d
Press in [Screen Saver].
e
Press .
f
Connect the USB media that contains your personal
image to the USB port of the machine.
g
Press to select the first image.
h
Select the device that is connected.
A list of your personal images appears on the screen.
* : Delete the selected image.
* : Return to the previous page.
i
Select a file name and then press .
The selected image is stored on your machine.
* : Return to the previous page.
j
Repeat steps g through i to set the remaining
images.
k
Press to return to the original screen.
LCD SCREEN
Getting Ready
19
1
Using the Machine Help
Press to display the machine help screen.
Functions are available from the screen shown below.
1 Explanation for upper threading, winding the bobbin,
preparing to embroider a pattern, and how to use the
machine (page 19)
2 Tutorial videos or MPEG-4 (MP4) videos (page 19,
page 20)
3 Introduction to the application
■ Using the Operation Guide Function
Press to display the screen shown
below. Categories are displayed at the top of the screen.
Press a key to see more information about that category.
Some of the functions are described in the movies. Watch
these movies for a better understanding of the functions.
1 Information about the main parts of the machine and
their functions
2 Information about the operation buttons
3 Information about threading the machine, changing
needles, etc.
4 Information about attaching the embroidery unit,
preparing fabric for embroidering, etc.
5 Information about troubleshooting
6 Information about cleaning the machine, etc.
■ Playing a Tutorial Video
This machine provides tutorial videos on how to use the
machine.
a
Press .
b
Press .
c
Select the category and the tutorial video.
1 Category
2 Tutorial video
d
Play the tutorial video.
1 Number of seconds elapsed/Total number of seconds
2 Repeat
3 Return to beginning
4 Skip back 10 seconds
5 Play
6 Skip forward 10 seconds
7 Stop
8 Pause
9 Save to machine (when playing from USB media).
A video can be saved to (favorites) of the
machine, from where it can be played.
When playing from the machine’s memory,
changes to . Press to delete the video.
e
After you are finished playing the video, press .
1
2
3
2
4
6
3
5
1
Note
• The specifications shown in the movie may differ
from the ones on the actual product, in details.
2
1
1
9
2
3
4
5
8
7
6
WIRELESS NETWORK CONNECTION FUNCTIONS
20

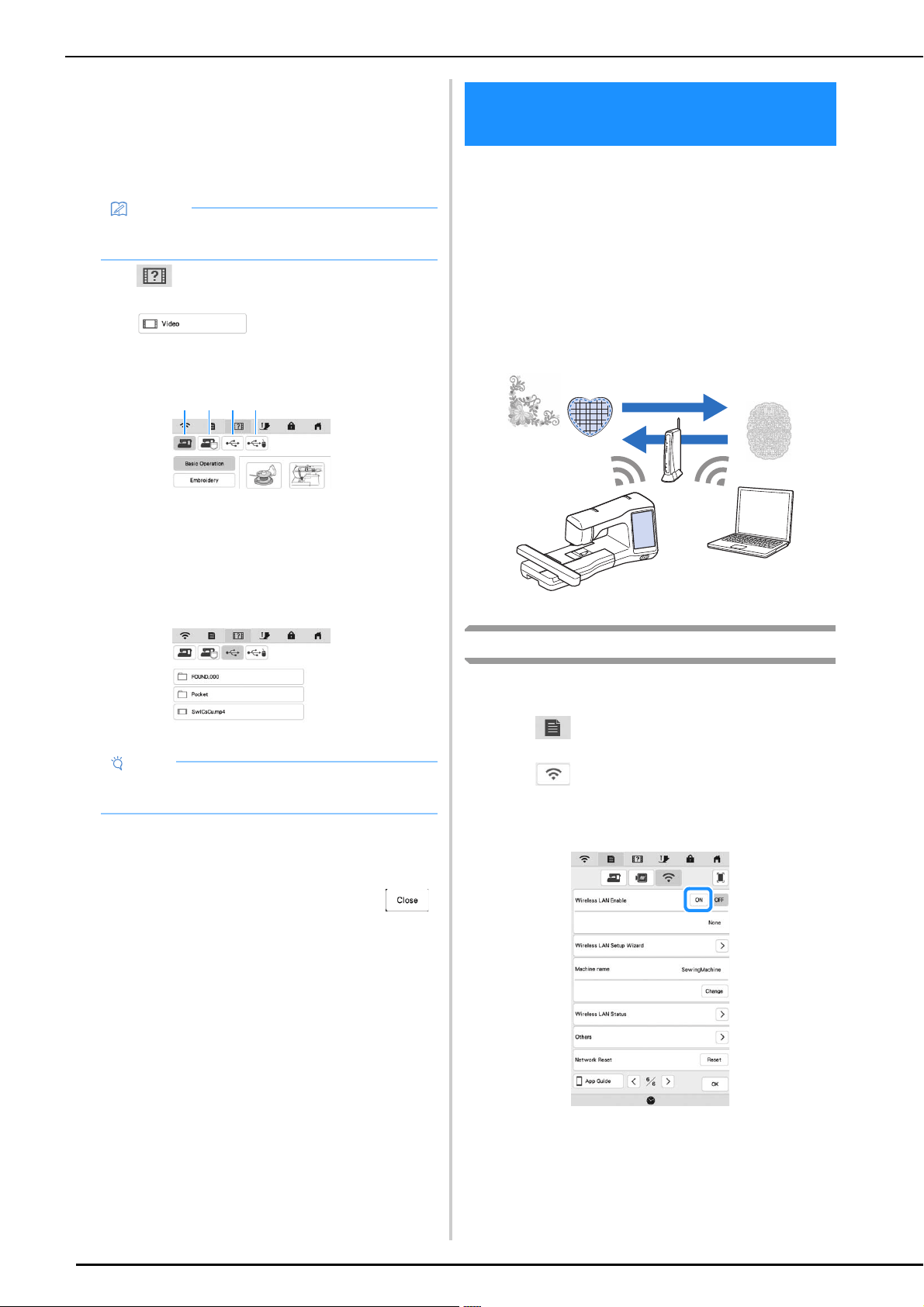

■ Playing MPEG-4 (MP4) Videos
Your MP4 videos can be played from USB media. In
addition, the MP4 video can be saved to the machine so
that a tutorial video on creating a project, for example,
can be viewed at any time. For details on supported file
extensions, refer to “SPECIFICATIONS” on page 116.
a
Press .
b
Press .
c
Select the device where the video is saved.
1 Tutorial videos
2 Videos saved on the machine (favorites)
3 Videos from USB media plugged into the USB port
4 Videos from USB media plugged into the USB port for
mouse
d
Select the video that you want to play.
e
Play the video.
* Use the operation keys as described in “Playing a
Tutorial Video” on page 19.
f
After you are finished playing the video, press .
This machine supports a wireless network connection.
Using this function, an embroidery pattern edited in
embroidery editing software (PE-DESIGN 11) with wireless
transfer functions can be transferred to the machine from a
computer. Embroidery patterns can be transferred from the
machine to the embroidery editing software. The machine
and computer must be connected to the same network. For
detailed procedures, refer to the manual for the
embroidery editing software. The wireless network must
be set up and enabled to use the special application to
transfer images to the embroidery machine.
Enabling a Wireless Network Connection
The machine can be connected to your wireless
network.
a
Press .
b
Press .
c
Set [Wireless LAN Enable] to [ON].
The machine begins to emit the wireless network
signal.
Memo
• Some type of MP4 file cannot be played with the
machine.
Note
• Long file names may be shortened when they are
displayed.
1 2 3 4
WIRELESS NETWORK
CONNECTION FUNCTIONS
WIRELESS NETWORK CONNECTION FUNCTIONS
Getting Ready
21
1
■ Requirements for a Wireless Network
Connection
The wireless network connection complies with IEEE
802.11 n/g/b standards and uses the 2.4 GHz frequency.
Setting Up the Wireless Network
Connection
There are multiple ways to set up the wireless network
connection. We recommend the method that uses the
wizard on this machine.
■ Using the Wizard to Set Up the Wireless
Network Connection
a
In order to connect your machine to a wireless
network, the security information (SSID and network
key) for your home network will be required. The
network key may also be called a password, security
key or encryption key. First, find your security
information and note it.
b
Press beside [Wireless LAN Setup Wizard].
A list of available SSIDs appears.
c
Press beside the SSID that was noted.
The screen for entering the network key (password)
appears.
d
Enter the network key (password) that was noted, and
then press .
1 Text input area
2 Character keys
3 Caps key
4 Space key
5 Letters/numbers/symbols key
6 Backspace key (Deletes the character at the cursor's
position.)
7 Cursor keys (Move the cursor to the left or right.)
Memo
• A wireless network cannot be set up with WPA/
WPA2 Enterprise.
SSID Network Key (Password)
Memo
• The wireless network connection cannot be set up
if you do not have the security information.
• How to find the security information
1 Check the manual provided with your
home network.
2 The default SSID may be the
manufacturer's name or the model
name.
3 If you cannot find the security
information, contact the manufacturer of
the router, your network administrator or
your Internet provider.
Memo
• If the SSID that was noted does not appear in the
list, press .
• If the SSID that was noted is not displayed, specify
it as described below.
1 Select in the list of SSIDs.
2 Enter the desired network SSID, and
then press .
3 Select the authentication method and
encryption mode.
• If the machine had already been connected to the
home network, press , and then select the
saved SSID.
3
2
1
5
4
6
7
WIRELESS NETWORK CONNECTION FUNCTIONS
22
e
When the following message appears, press .
When a connection is established, the following
message appears.
f
Press to exit the setup.
■ Using the [Others] Menu to Set Up the
Wireless Network Connection
The [Others] menu contains the following items.
1 TCP/IP settings can be manually entered.
2 Shows the MAC address.
3 Use when proxy settings are required.
Memo
• While connected, the signal strength is indicated
by the icon in the upper-left corner of the display.
• Once a wireless network connection has been set
up, a connection will be established each time the
machine is turned on. However, [Wireless LAN
Enable] in the network settings screen must remain
set to [ON].
1
2
3
CONNECTING THE ACCESSORY TO THE MACHINE
Getting Ready
23
1
Using a USB Mouse (Sold Separately)
The USB mouse, connected to the machine, can be
used to perform a variety of operations in the screens.
Connect a USB mouse to the USB port.
■ Clicking a Key
When the mouse is connected, the pointer appears on the
screen. Move the mouse to position the pointer over the
desired key, and then click the left mouse button.
1 Pointer

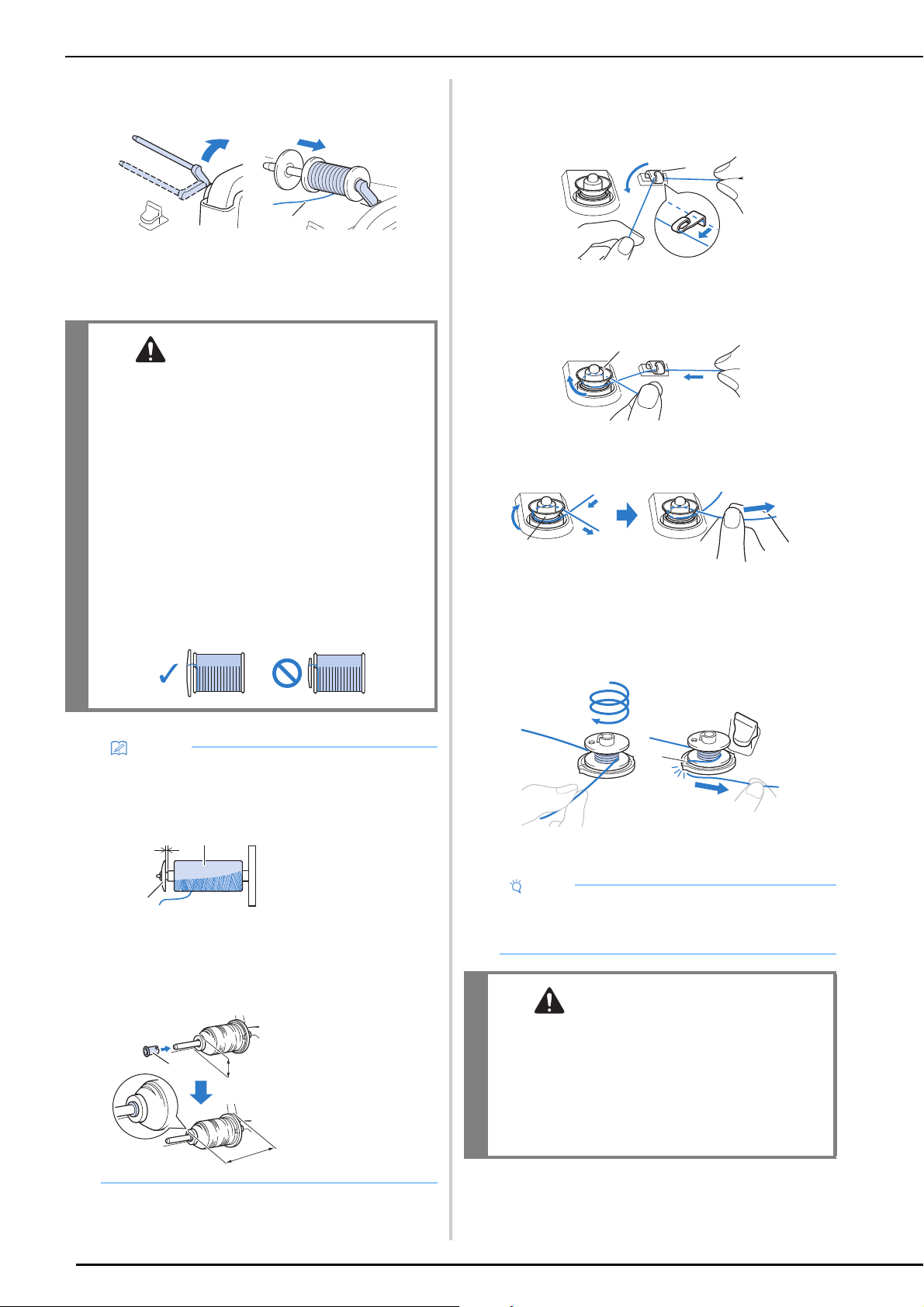

Winding the Bobbin
■ Using the Supplemental Spool Pin
With this machine, you can wind the bobbin during
embroidering. While using the main spool pin for
embroidery, you can conveniently wind the bobbin using
the supplemental spool pin.
1 Supplemental spool pin
a
Turn the main power to ON and open the top cover.
b
Align the groove in the bobbin with the spring on the
bobbin winder shaft, and set the bobbin on the shaft.
1 Groove in the bobbin
2 Spring on the bobbin winder shaft
c
Place the spool of thread for the bobbin and the spool
cap onto the supplemental spool pin.
Slide the spool onto the supplemental spool pin so that
the thread unwinds to the front from the bottom.
CONNECTING THE ACCESSORY TO
THE MACHINE
Memo
• If a mouse other than the optional USB mouse is
used, it may not perform as described in this
Operation Manual.
1 USB port
2 USB mouse
Note
• Only the left mouse button can be used to perform
operations. Double-clicking has no effect. No other
buttons can be used.
• The mouse pointer does not appear in the screen
saver or opening screen.
a
b
1
WINDING/INSTALLING THE
BOBBIN
CAUTION
• The included bobbin was designed specifically
for this machine. If bobbins from other models
are used, the machine will not operate
correctly. Use only the included bobbin or
bobbins of the same type (part code: SA156,
SFB: XA5539-151 / 115J05E0001, SFB:
115J05E7001). SA156 is Class 15 type bobbin.
a
a
b
WINDING/INSTALLING THE BOBBIN
24
Otherwise the thread may become tangled around the
supplemental spool pin.
1 The thread unwinds to the front from the bottom.
d
Slide the spool cap onto the spool pin as far as possible
to the right, with the rounded side on the left.
e
With your right hand, hold the thread near the thread
spool. With your left hand, hold the end of the thread,
and use both hands to pass the thread through the
thread guide.
1 Thread guide
f
Pass the thread around the pretension disk making sure
that the thread is under the pretension disk.
1 Pretension disk
Make sure that the thread passes under the
pretension disk.
2 Pretension disk
3 Pull it in as far as possible.
g
Wind the thread clockwise around the bobbin 5 or 6
times, pass the thread through the guide slit in the
bobbin winder seat, and then pull the thread to cut it.
1 Guide slit in bobbin winder seat
(with built-in cutter)
CAUTION
• If the spool or the spool cap is not installed
correctly, the thread may become tangled
around the spool pin, causing the needle to
break.
• Three spool cap sizes are available, allowing
you to choose a spool cap that best fits the size
of spool being used. If the spool cap is too
small for the spool being used, the thread may
catch on the slit in the spool or the machine
may be damaged. When using mini king thread
spool, use the thread spool insert (mini king
thread spool).
For details on thread spool insert (mini king
thread spool), refer to “Memo” on page 24.
Memo
• When using the spool as shown below, use the
small spool cap, and leave a small space between
the cap and the spool.
• If a spool of thread whose core is 1.2 cm (approx.
1/2 inch) in diameter and 7.5 cm (approx. 3 inches)
high is inserted onto the spool pin, use the thread
spool insert (mini king thread spool).
a
1 Spool cap (small)
2 Spool (cross-wound
thread)
3 Space
2
1
3
1 Thread spool insert
(mini king thread
spool)
2 1.2 cm (approx. 1/2
inch)
3 7.5 cm (approx. 3
inches)
21
3
Note
• Be sure to wind the thread clockwise around the
bobbin, otherwise the thread may become
wrapped around the bobbin winder shaft.
CAUTION
• Be sure to cut the thread as described. If the
bobbin is wound without cutting the thread
using the cutter built into the guide slit in the
bobbin winder seat, the thread may become
tangled in the bobbin or the needle may bend
or break when the bobbin thread starts to run
out.
a
a
b
c
a
WINDING/INSTALLING THE BOBBIN
Getting Ready
25
1
h
Set the bobbin winding switch to the left, until it clicks
into place.
1 Bobbin winding switch
The bobbin winding window appears.
i
Press .
Bobbin winding starts. The bobbin stops rotating
when bobbin winding is completed. The bobbin
winding switch will automatically return to its
original position.
changes to while the bobbin is
winding.
You can change the winding speed by pressing
(to decrease) or (to increase) in the bobbin
winding window.
j
After bobbin winding is finished, cut the thread with
scissors and remove the bobbin.
■ Using the Spool Pin
You can use the main spool pin to wind the bobbin before
embroidering. You cannot use this spool pin to wind the
bobbin while embroidering.
a
Turn the main power to ON and open the top cover.
b
Align the groove in the bobbin with the spring on the
bobbin winder shaft, and set the bobbin on the shaft.
1 Groove in the bobbin
2 Spring on the bobbin winder shaft
c
Remove the spool cap and place the spool of thread for
the bobbin onto the spool pin.
Slide the spool onto the spool pin so that the thread
unwinds to the front from the bottom.
1 Spool pin
2 Spool cap
3 Spool of thread
4 Spool felt
d
Slide the spool cap onto the spool pin as far as possible
to the right, with the rounded side on the left.
e
While holding the thread with both hands, pass the
thread through grooves of the thread guide plate.
1 Thread guide plate
Note
• The sound of winding the bobbin with stiff thread,
such as metallic thread for quilting, may be
different from the one produced when winding
normal thread; however, this is not a sign of a
malfunction.
Memo
• Press to minimize the bobbin winding
window. Then, you can perform other operations,
such as selecting a pattern or adjusting the thread
tension, while the bobbin is being wound.
• Press (in top right of the LCD screen) to
display the bobbin winding window again.
a
a
b
a
b
c
d
a
WINDING/INSTALLING THE BOBBIN
26
f
Pass the thread through the thread guide.
1 Thread guide
g
Pass the thread around the pretension disk making sure
that the thread is under the pretension disk.
Pull the thread as far as possible.
1 Pretension disk
2 Thread guide
h
Follow steps g through j on page 24 through
page 25.

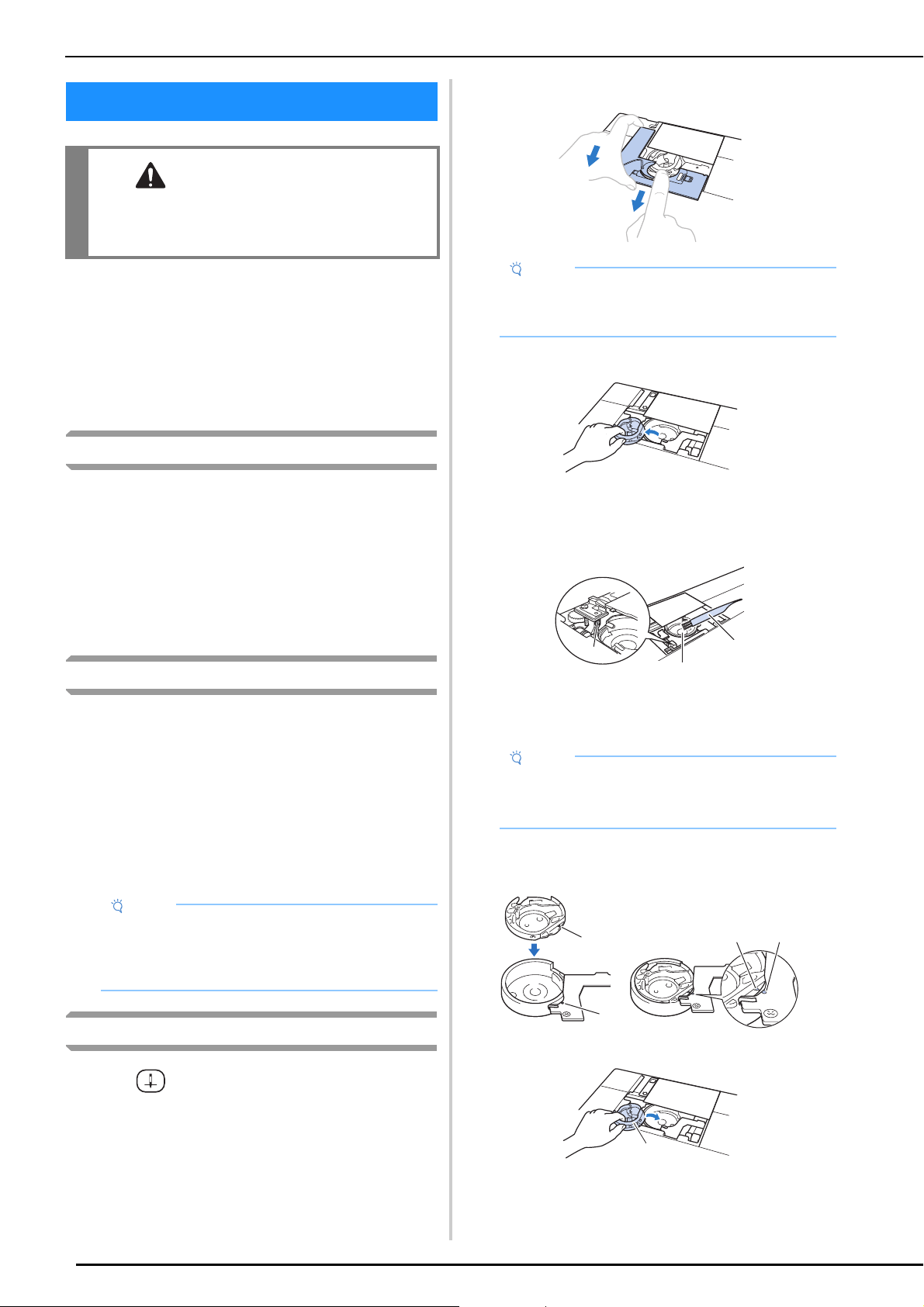

Setting the Bobbin
a
Press to lock all keys and buttons and raise the
presser foot.
* If the message [OK to automatically lower the
presser foot?] appears on the LCD screen, press
to continue.
b
Slide the bobbin cover latch to the right and remove
the bobbin cover.
c
Insert the bobbin into the bobbin case so that the
thread unwinds to the left.
a
a
b
CAUTION
• Use a bobbin that has been correctly wound
with thread, otherwise the needle may break
or the thread tension will be incorrect.
• Before inserting or changing the bobbin, be
sure to press in the LCD to lock all keys
and buttons. Otherwise injuries may occur if
the “Start/Stop” button or any other button is
pressed and the machine starts embroidering.
WINDING/INSTALLING THE BOBBIN
Getting Ready
27
1
d
Lightly hold down the bobbin with your right hand
(1), and then guide the end of the thread around the
tab of the needle plate cover with your left hand (2).
e
While lightly holding down the bobbin with your right
hand (1), guide the thread through the slit in the
needle plate cover (2) and lightly pull it with your left
hand (3).
f
While lightly holding down the bobbin with your right
hand (1), continue guiding the thread through the slit
with your left hand (2). Then, cut the thread with the
cutter (3).
g
Reattach the bobbin cover.
Insert the tab of the bobbin cover into the notch of the
needle plate cover, and then lightly press down on the
right side.
h
Press to unlock all keys and buttons.
1 Tab
CAUTION
• Be sure to hold down the bobbin with your
finger and unwind the bobbin thread
correctly, otherwise the thread may break or
the thread tension will be incorrect.
Memo
• By guiding the thread around the tab of the needle
plate cover, passing the thread as shown by 2 in
this illustration, then lightly pulling the thread at 3,
the thread will enter the tension spring of the
bobbin case to apply the appropriate tension to the
bobbin thread during embroidering.
Memo
• Be sure to complete the bobbin threading correctly
according to these instructions. If the thread is
simply placed in the slit in the needle plate cover,
the bobbin thread will not be correctly threaded,
resulting in poor embroidering performance or
incorrect thread tension.
UPPER THREADING
28
Upper Threading
a
Turn the main power to ON.
b
Press (Presser foot lifter button) to raise the
presser foot.
The upper thread shutter opens so the machine can
be threaded.
1 Upper thread shutter
c
Press (Needle position button) to raise the needle.
d
Remove the spool cap and place the spool of thread
onto the spool pin.
Slide the spool onto the spool pin so that the thread
unwinds to the front from the bottom.
1 Spool pin
2 Spool cap
3 Spool of thread
4 Spool felt
e
Slide the spool cap onto the spool pin as far as possible
to the right, with the rounded side on the left.
f
While holding the thread with both hands, pass the
thread through grooves of the thread guide plate.
1 Thread guide plate
UPPER THREADING
CAUTION
• Be sure to thread the machine properly.
Improper threading can cause the thread to
tangle and break the needle, leading to injury.
Memo
• The automatic threading function can be used with
home sewing machine needle size 75/11.
• The following threads are incompatible with the
needle threader. Manually pass the thread through
the eye of the needle.
- Speciality threads such as metallic threads
Note
• If you try to thread the needle automatically without
raising the needle, the needle may not be thread
correctly and the needle threader may be
damaged.
a
CAUTION
• Choose a spool cap that best fits the size of
spool being used. For more information, refer
to “Memo” on page 24.
• If the spool or the spool cap is not positioned
correctly, the thread may become tangled
around the spool pin or the needle may break.
Memo
• When using thread that winds off quickly, such as
metallic thread, place the spool net over the spool
before placing the spool of thread onto the spool
pin.
If the spool net is too long, fold it to fit the size of
the spool.
When threading the spool with the spool net on,
make sure that about 5 cm (2 inches) of thread is
pulled out. It may be necessary to adjust the thread
tension when using the spool net.
a
b
c
d
a
UPPER THREADING
Getting Ready
29
1
g
While holding the thread in your right hand, pass the
thread through the thread guide in the direction
indicated.
h
Guide the thread down, up, then down through the
groove, as shown in the illustration.
i
Pass the thread through the needle bar thread guide
(marked “6”) by holding the thread with both hands
and guiding it as shown in the illustration.
1 Needle bar thread guide
2 Tab
j
Pass the thread through the notch in the thread guide.
Then firmly pull the thread from front to back into the
slit of the thread guide disk (marked “7”).
1 Notch in thread guide
2 Thread guide disk
k
Press (Presser foot lifter button) to lower presser
foot.
l
Pull the thread up through the thread cutter to cut the
thread, as shown in the illustration.
1 Thread cutter
m
Press (Automatic threading button) to have the
machine automatically thread the needle.
The thread passes through the eye of the needle.
Memo
• Look in the upper groove area to check if the
thread catches on the thread take-up lever visible
inside the upper groove area.
a
b
a
b
Note
• When using thread that quickly winds off the spool,
it may be difficult to thread the needle if the thread
is cut.
Therefore, instead of using the thread cutter, pull
out about 8 cm (3 inches) of thread after passing it
through the thread guide disks (marked “7”).
1 About 8 cm (3 inches) or more
Memo
• When (Automatic threading button) is
pressed, the presser foot will be automatically
lowered. After threading is finished, the presser
foot moves back to the position before
(Automatic threading button) was pressed.
Note
• Some needles and threads cannot be threaded
with the needle threader. In this case, instead of
using the needle threader after passing the thread
through the needle bar thread guide (marked “6”),
manually pass the thread through the eye of the
needle from the front.
a
a
CHANGING THE NEEDLE
30
n
Carefully pull the end of the thread that was passed
through the eye of the needle.
* If a loop was formed in the thread passed through
the eye of the needle, carefully pull on the loop of
thread through to the back of the needle.
o
Raise the presser foot lever and pull out about 10 cm (4
inches) of the thread, and then pass it under the presser
foot toward the rear of the machine.
1 About 10 cm (4 inches)
■ Using the Vertical Spool Pin
Use the vertical spool pin when using an irregularly
shaped thread spool, and when embroidering with
metallic thread.
a
Insert the vertical spool pin onto the bobbin winder
shaft.
b
Install the spool felt and the thread spool in that order,
and then thread the upper thread.
■ Thread and Needle Number
The lower the thread number is, the heavier the thread;
the higher the needle number, the larger the needle.
■ Embroidery Needles
Use a ball point needle 75/11.
a
Press (Needle position button) to raise the needle.
b
Press to lock all keys and buttons.
* If the message [OK to automatically lower the
presser foot?] appears on the LCD screen, press
to continue.
c
Remove the presser foot. (page 107)
Memo
• If the needle could not be threaded or the thread
was not passed through the needle bar thread
guides, perform the procedure again starting from
step
c.
Then, pass the thread through the eye of the
needle after step
i.
1 Bobbin winder shaft
2 Vertical spool pin
1 Spool felt
2 Thread spool
Memo
• When setting the thread spool, set it so that the
thread winds off from the front of the spool.
• This method keeps the thread from twisting as it
comes off the spool pin.
b
a
b
a
CHANGING THE NEEDLE
CAUTION
• Always press on the screen to lock all
keys and buttons before changing the needle.
If is not pressed and the “Start/Stop”
button or another operation button is pressed
accidentally, the machine will start and injury
may result.
• Use only home sewing machine needles. Other
needles may bend or break and may cause
injury.
• Never use a bent needle. A bent needle will
easily break and may cause injury.
Memo
• To check the needle correctly, place the flat side of
the needle on a flat surface. Check the needle from
the top and the sides. Throw away any bent
needles.
1 Parallel space
2 Flat surface (bobbin cover, glass, etc.)
Note
• Before replacing the needle, cover the hole in the
needle plate with fabric or paper to prevent the
needle from falling into the machine.
a
b
CHANGING THE NEEDLE
Getting Ready
31
1
d
Use the disc-shaped screwdriver to turn the needle
clamp screw toward you (counterclockwise) to loosen
the screw. Remove the needle.
e
With the flat side of the needle facing the back, insert
the new needle all the way to the top of the needle
stopper (viewing window) in the needle clamp. Use the
disc-shaped screwdriver to securely tighten the needle
clamp screw.
1 Needle stopper
2 Hole for inserting the needle
3 Flat side of the needle
f
Attach the presser foot. (page 107)
g
Press to unlock all keys and buttons.
CAUTION
• Be sure to push in the needle until it touches
the stopper, and securely tighten the needle
clamp screw with the disc-shaped screwdriver.
If the needle is not completely inserted or the
needle clamp screw is loose, the needle may
break or the machine may be damaged.
a
b
c
CHANGING THE NEEDLE
32
Chapter 2
Basic Embroidery
BEFORE EMBROIDERING
34
Embroidery Step by Step
Follow the steps below to prepare the machine for
embroidery.
About the Embroidery Unit
BEFORE EMBROIDERING
Step # Aim Action Page
1 Presser foot
attachment
Attach embroidery foot “W+”
with LED pointer.
107
2 Checking the
needle
Use needle 75/11 for
embroidery.
30
3 Embroidery unit
attachment
Attach the embroidery unit. 34
4 Bobbin thread
setup
For the bobbin thread, wind
embroidery bobbin thread and
set it in place.
23
5 Fabric preparation Attach a stabilizer material to
the fabric, and hoop it in the
embroidery frame.
55
6 Pattern selection Turn the main power to ON,
and select an embroidery
pattern.
36
7 Embroidery frame
attachment
Attach the embroidery frame
to the embroidery unit.
58
8 Checking the
layout
Check and adjust the size and
position of the embroidery.
59
9Embroidery upper
thread setup
Set up embroidery upper
thread according to the
pattern.
28
Step 3
Step 1, 2
Step 7
Step 5
Step 4
Step 6, 8
Step 9
CAUTION
• Before attaching or removing the embroidery
unit, be sure to turn off the machine.
Otherwise, injuries may occur if one of the
operation buttons is accidentally pressed.
• Do not move the machine with the embroidery
unit attached. The embroidery unit could fall
off and cause injury.
• Keep your hands and foreign objects away
from the embroidery carriage and frame when
the machine is embroidering. Otherwise,
injuries or damage may result.
• To avoid distorting your embroidery design, do
not touch the embroidery carriage and frame
when the machine is embroidering.
• Do not push on the carriage when installing
the embroidery unit onto the machine. Moving
the carriage may damage the embroidery unit.
• Allow sufficient space around the embroidery
unit. Otherwise, the embroidery unit could fall
off foreign object, and may cause injury.
• Do not touch the embroidery carriage until the
initialization finishes.
• Be sure to turn off the power before attaching
or removing the embroidery unit. Otherwise,
the machine may be damaged.
• Do not touch the inner connector of the
embroidery unit. The pins on the embroidery
unit connection may be damaged.
• Do not apply strong force to the embroidery
unit carriage or pick up the unit by the
carriage. Otherwise, the embroidery unit may
be damaged.
• Store the embroidery unit in a safe place to
prevent damage to the unit.
• Do not carry the embroidery unit by holding
the carriage or release lever compartment.
BEFORE EMBROIDERING
35
Basic Embroidery
2
■ Attaching the Embroidery Unit
a
Turn the main power to OFF.
b
Insert the embroidery unit connection into the
machine connection port. Push lightly on the
connection port cover until the unit clicks into place.
1 Embroidery unit connection
2 Machine connection port
3 Carriage
c
Turn the main power to ON.
The following message will appear.
d
Press .
The carriage will move to the initialization position.
■ Removing the Embroidery Unit
a
Press , then press .
The carriage will move to the removal position.
b
Turn the main power to OFF.
c
Squeeze the release lever, and pull the embroidery unit
away from the machine.
Note
• Be sure there is no gap between the embroidery
unit and the machine. If there is a gap, the
embroidery patterns will not embroider with the
correct registration.
a
b
c
CAUTION
• Always remove the embroidery frame before
pressing . Otherwise, the frame may strike
the embroidery foot, and possibly cause injury.
SELECTING PATTERNS
36
■ Copyright Information
The patterns stored in the machine and patterns sold
separately are intended for private use only. Any public or
commercial use of copyrighted patterns is an infringement
of copyright law and is strictly prohibited.
■ About Embroidery Patterns
There are many character and decorative embroidery
patterns stored in the machine’s memory (see the “Quick
Reference Guide” for a full summary of patterns in the
machine’s memory or visit “ http://s.brother/cmeac/
”).
You can also use patterns sold separately.
Once the machine has finished the initialization and the
carriage has moved to the start position, the pattern
selection screen appears.
1 Embroidery patterns
2 Character patterns
3 Decorative alphabet patterns
4 Frame patterns
5 Utility embroidery patterns
6 Pattern type selection keys
7 My Design Center (page 86)
8 Patterns saved in the machine’s memory (page 80)
9 Patterns to be transferred via the wireless network (page
80)
0 Patterns saved in USB media (page 80)
A Move the embroidery unit carriage to the storage
position.
Selecting Embroidery Patterns
a
Press the category tab and then press the pattern type
selection key or pattern key you want to embroider.
1 Pattern category tab
2 Pattern type/pattern selection key
b
Select a pattern.
* Press the category tab or to return to the
previous screen.
The selected pattern is displayed.
SELECTING PATTERNS
1
A
2
3
4
5
6
8
9
0
7
1
2
SELECTING PATTERNS
37
Basic Embroidery
2
c
Press to set the pattern.
* Press to darken the background color for the
pattern image with bright thread colors, to get a
clearer image.
The pattern is designated with a red box around it on
the edit screen.
d
Press to edit the selected pattern. (page 42)
e
Press .
The embroidery screen appears.
f
Press to edit the pattern before
embroidering. (page 53)
* To return to the edit screen, press .
g
Start embroidering. (page 63)
SELECTING PATTERNS
38
Selecting Character Patterns
a
Press .
b
Press the key of the font you want to embroider.
* : View the next page.
: View the previous page.
c
Select the character category and then type in the text.
(page 38)
d
Press .
The edit screen appears.
e
Follow the steps from d to g of “Selecting
Embroidery Patterns” on page 36.
■ Character Pattern Input Keys
Memo
• If a key display is grayed out, you cannot use that
function with the selected pattern.
No. Display Explanation
Name
1 Return to the previous screen.
Return key
2 Change the size of the character patterns.
To change the size of one character, press
to display and then select
the character. The size of the selected
character is changed.
Size key
3 Change the layout of the character patterns.
• To arrange the character patterns on an
arc, press , , or .
: Make the arc flatter.
: Make the arc rounder.
• To arrange the character patterns on an
incline, press .
: Change the incline
counterclockwise.
: Change the incline clockwise.
• : Reset the layout.
Array key
4 Change the spacing of the character
patterns.
• : Increase the character spacing.
• : Decrease the character spacing.
• To change the spacing after one character,
press to display and then
select the character. The spacing between
the selected character and the next
character is changed.
• : Move the one selected character
up.
• : Move the one selected character
down.
• : Reset the spacing.
Character
spacing key
0
9
8
A
B
C
5 76431 2
SELECTING PATTERNS
39
Basic Embroidery
2
Selecting Frame Patterns
a
Press .
b
Press the key of the frame shape you want to
embroider in the top part of the screen.
Various frame patterns are displayed at the bottom
part of the screen.
1 Frame shapes
2 Frame patterns
c
Press the key of the frame pattern you want to
embroider.
The selected pattern is displayed on the screen.
d
Press .
The edit screen appears.
e
Follow the steps from d to g of “Selecting
Embroidery Patterns” on page 36.
5 Switch alignment. This function is available
when multiple lines of characters are input.
• : Right alignment
• : Left alignment
• : Center alignment
Alignment key
6 Change the font of the characters.
Depending on the font that was selected, it
may not be possible to change the font.
• To change the font of one character, press
to display and then
select the character. The font of the
selected character is changed.
Font Type key
7 Apply the character pattern editing.
Set key
8 Enter a space.
Space key
9 Make a new line.
Line feed key
0 Delete the character.
Delete key
A — Select the category of character.
Category keys
B Select to edit all characters or one character.
• : Edit all characters.
•
: Edit one character.
Select one/all
key
C Move the cursor and select a character.
Character
selection keys
No. Display Explanation
Name
1
2
SELECTING PATTERNS
40
Combining Patterns
Example:
a
Select a pattern and then press .
b
Press .
c
Press .
d
Select and enter “LOVE”.
The characters you enter will be displayed in the
center of the embroidery pattern area.
e
Press .
f
Press and then press .
g
Use to move the characters.
* Characters can also be moved by directly dragging
them with your finger or the touch pen.
h
Press .
i
Press to change the color of the characters.
(page 49)
j
Press .
k
When all editing is finished, press .
■ Selecting a Pattern
If multiple patterns have been combined, use
to select the pattern to be edited. Patterns
can also be selected by directly touching the screen with
your finger or touch pen.
Note
• Combined patterns will be embroidered in the order
they were entered.
SELECTING PATTERNS
41
Basic Embroidery
2

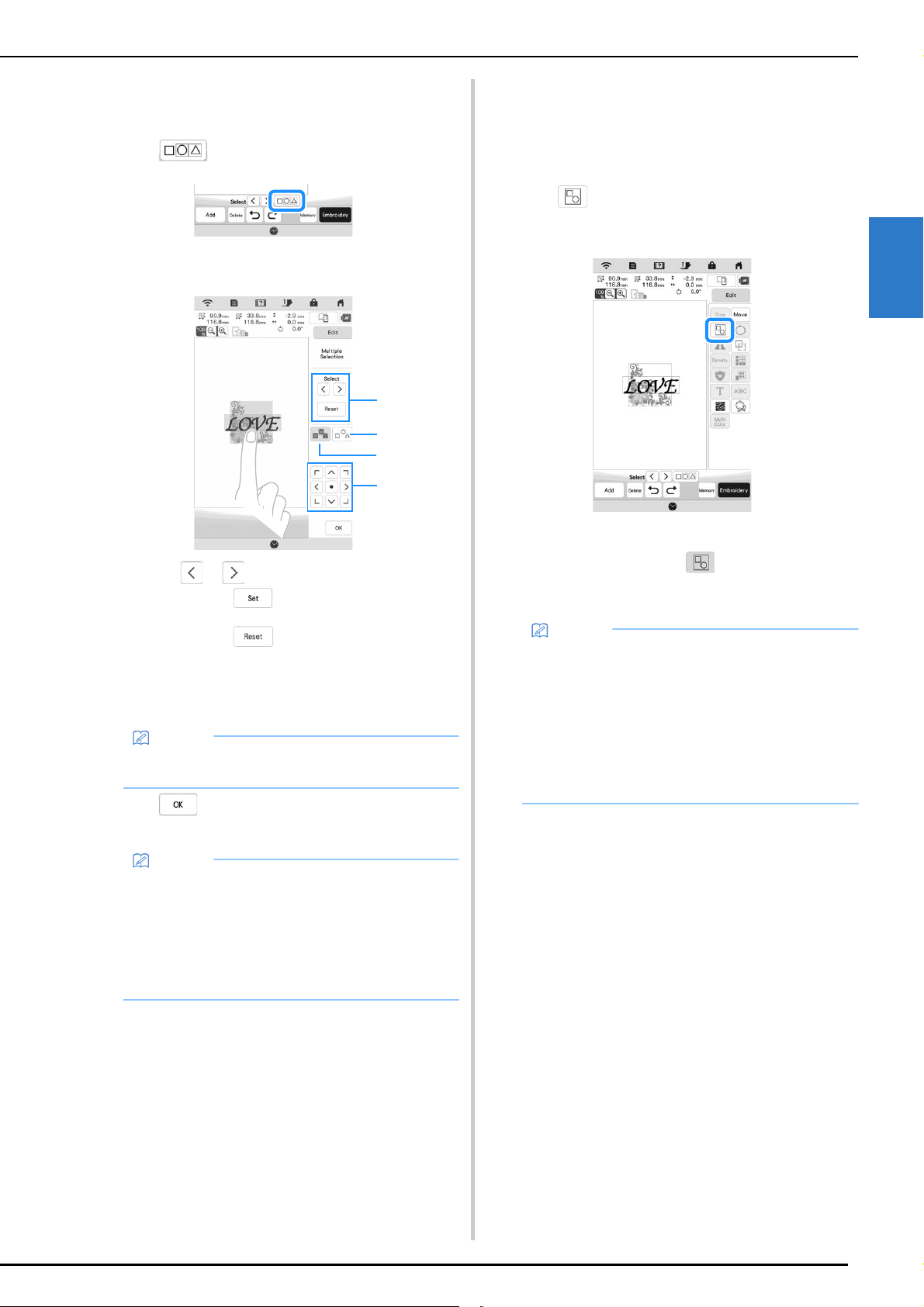

■ Selecting Multiple Patterns at the Same Time
Multiple patterns can easily be edited, for example, when
moving patterns, if they are all selected together.
a
Press .
b
Touch each pattern to be selected.
1 Press or to check the patterns to be selected,
and then press . The selected patterns are
highlighted with a red box. To deselect the selected
patterns, press .
2 Press this key to deselect all selected patterns.
3 Press this key to select all patterns in the pattern display
area.
4 Patterns can be moved with this key.
c
Press to return to the edit screen.
Each selected pattern is surrounded with a red box.
■ Grouping Patterns
If the multiple patterns are grouped, they can be edited as
a single pattern.
a
Select patterns you want to group. (page 41)
b
Press .
The selected patterns are grouped.
* To ungroup a grouped pattern, select the grouped
pattern, and then press . At this time, multiple
patterns are selected. To cancel the multiple
selection, press any other pattern or the blank area.
Memo
• You can also select multiple patterns by dragging
your finger to specify the area of selection.
Memo
• The following functions are available while multiple
patterns are selected.
-Moving
-Copying
-Grouping
-Stippling
- Extracting pattern outlines
1
2
4
3
Memo
• The following functions are applied to all patterns in
the grouped pattern.
-Moving
-Rotating
- Appliqué
-Border
- Extracting pattern outlines
- Simple stippling
- Thread color changing
EDITING PATTERNS
42

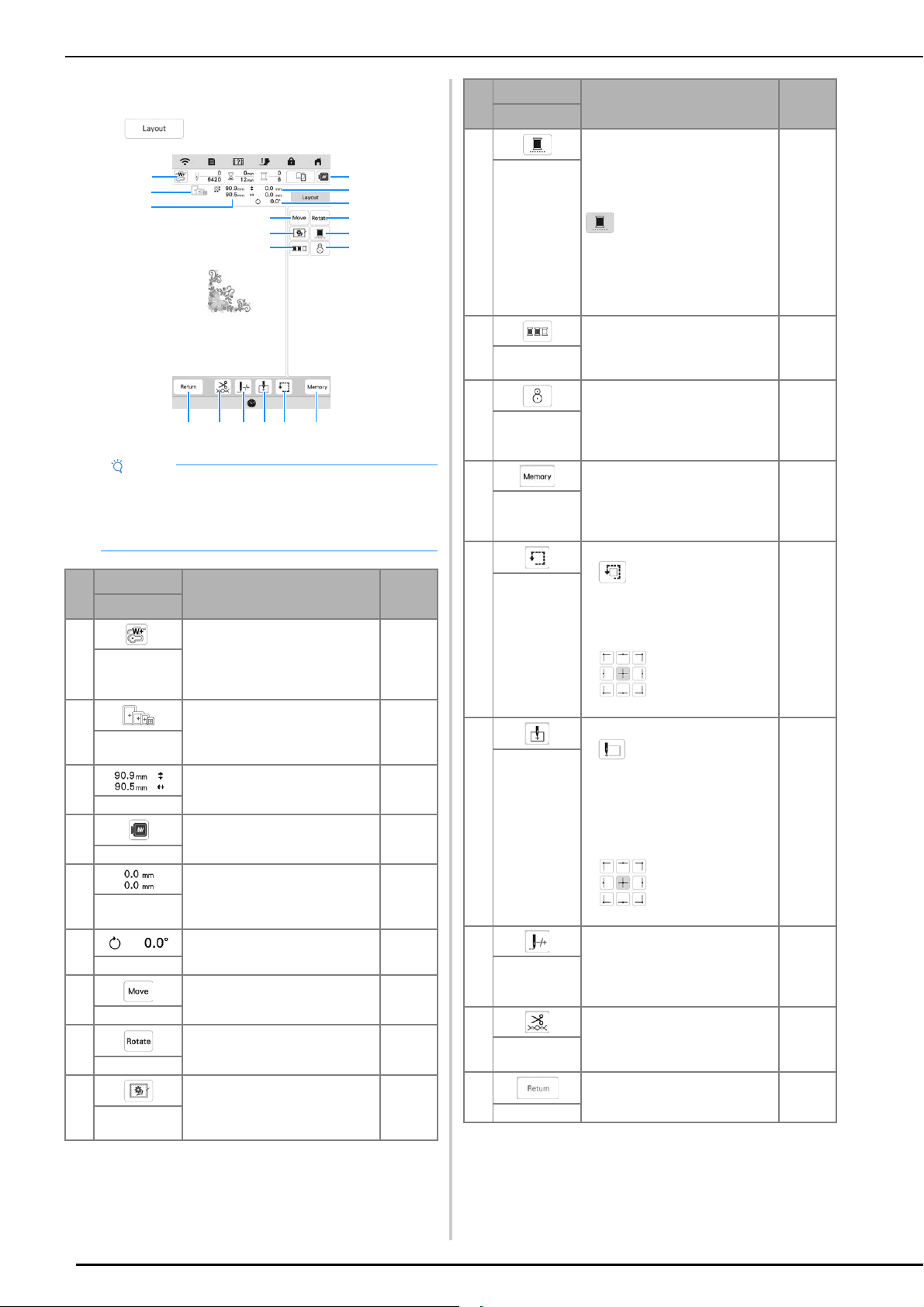

1 Size of the entire combined pattern
2 Size of the pattern currently selected
3 Distance from the center of the frame to the center of the
pattern currently selected
4 Degree of rotation for the pattern currently selected
5 Color sequence and stitching times of each step of the
pattern
■ Key Functions
Using these keys, you can edit the selected pattern. Press
to display the editing window.
EDITING PATTERNS
Memo
• If a key display is grayed out, you cannot use that
function with the selected pattern.
No.
Display
Explanation Page
Name
1 Display the pattern moving
window.
• : Move the pattern in
the direction shown by the
arrow.
• : Center the pattern.
40
Move key
2
1
5
3
4
K J G FH
N
O
1
3
5
7
9
A
C
E
2
4
6
8
0
B
D
M
L
I
2 Display the pattern sizing window.
• : Decrease the pattern
proportionately.
• : Decrease the pattern
vertically.
• : Decrease the pattern
horizontally.
• : Enlarge the pattern
proportionately.
• : Stretch the pattern
vertically.
• : Stretch the pattern
horizontally.
• : Change the size of the
character patterns.
• : Reset the size. (except for
character patterns.)
• : Move the pattern in
the direction shown by the
arrow.
44
Size key
3 Display the pattern rotating
window.
• : Reset the position.
• : Move the pattern in
the direction shown by the
arrow.
You can also rotate the pattern by
dragging the red point at the
corners of the pattern.
—
Rotate key
4 Group selected multiple patterns. 41
Group key
5 Duplicate the pattern. —
Duplicate key
6 Change the pattern to a horizontal
mirror image.
—
Horizontal
mirror image
key
7 Make and edit the repeated
pattern.
45
Border key
8 Change thread density for some
alphabet character and frame
patterns. Other patterns are
available after enabling patterns to
change the density.
44
Density key
9 Change the thread color. 49
Thread palette
key
0 Create an appliqué outline of the
pattern.
71
Appliqué key
No.
Display
Explanation Page
Name
EDITING PATTERNS
43
Basic Embroidery
2
■ Editing Letters
For details on input keys, refer to “Character Pattern
Input Keys” on page 38.
A Separate the continuous character
patterns to adjust the spacing or
edit separately afterwards.
• : Select where the
patterns is to be separated.
• : Separate the patten. A
separated character pattern
cannot be combined again.
—
Separate key
B Edit characters. 38, 43
Letter Edit key
C Extract the outline of the pattern.
The extracted pattern can be used
with My Design Center.
101
Outline key
D Create stippling around the
pattern.
—
Stippling key
E Press this key when you want to
change the thread color, character
by character in character
embroidery. Since the machine
stops at the end of each character,
the upper thread can be changed
as you embroider.
—
Multi color key
F Proceed to the embroidery screen. —
Embroidery
key
G Save a pattern in the machine’s
memory or USB media. The
pattern can also be transferred to
a computer via a wireless network
connection.
80
Memory key
H Redo the last operation that was
undone.
—
Redo key
I Undo the last operation. —
Undo key
J Delete the selected pattern (the
pattern outlined by the red box).
—
Delete key
K Add another pattern to the editing
pattern.
40
Add key
L Select the pattern to edit when
there are multiple patterns.
40
Pattern select
key
M Make multiple patterns to be
selected at the same time.
41
Multiple
selection key
N
• : Magnify the image.
Use / / / to
scroll through the display in any
direction.
• : Demagnify the image
(minimum: 100%).
• : Select the percent of
magnification.
—
Magnify keys
O Preview the embroidery image. 44
Image key
No.
Display
Explanation Page
Name
Memo
• To edit character patterns with multiple lines in the
edit screen, ungroup the pattern. (page 41)
EDITING PATTERNS
44
Previewing the Pattern
a
Press .
An image of the pattern as it will be embroidered
appears.
b
Press to select the frame used in
the preview.
* Frames displayed in gray cannot be selected.
* Press to enlarge the image of the pattern.
* The pattern can be embroidered as it appears in the
display.
c
Press to check the embroidering order.
The stitch simulator screen appears.
1 Simulation speed keys
2 Operation keys
: Start the simulation at the set speed.
: Pause the simulation.
: Stop the simulation.
* Press to return to the embroidery frame
selection screen.
d
Press .
Changing the Size and the Density of the
Pattern
If is selected, you can change the pattern size
while maintaining the thread density. The machine
recalculates the stitch density automatically. With this
function, the pattern will be enlarged or reduced at a
larger ratio than with normal pattern resizing.
a
Select in the size window.
* : Change the pattern size while maintaining
the number of stitches. The thread density for the
pattern increases or decreases.
* : Change the pattern size while maintaining
the thread density. After the pattern size is changed,
the thread density can be changed in the edit screen.
The number of stitches is recalculated depending on
the pattern size.
b
Select the direction in which to change the pattern
size.
1
2
Note
• This function cannot be used with alphabet
character patterns, frame patterns, repeated
patterns or buttonhole patterns.
• Patterns with a large number of stitches (100,001
or more) cannot be resized while maintaining a
thread density.
Memo
• Depending on the pattern, the size of the pattern
increases up to 200% or reduces to 60%.
• You can also change the size by dragging the red
point at the sides and corners of the pattern.
EDITING PATTERNS
45
Basic Embroidery
2

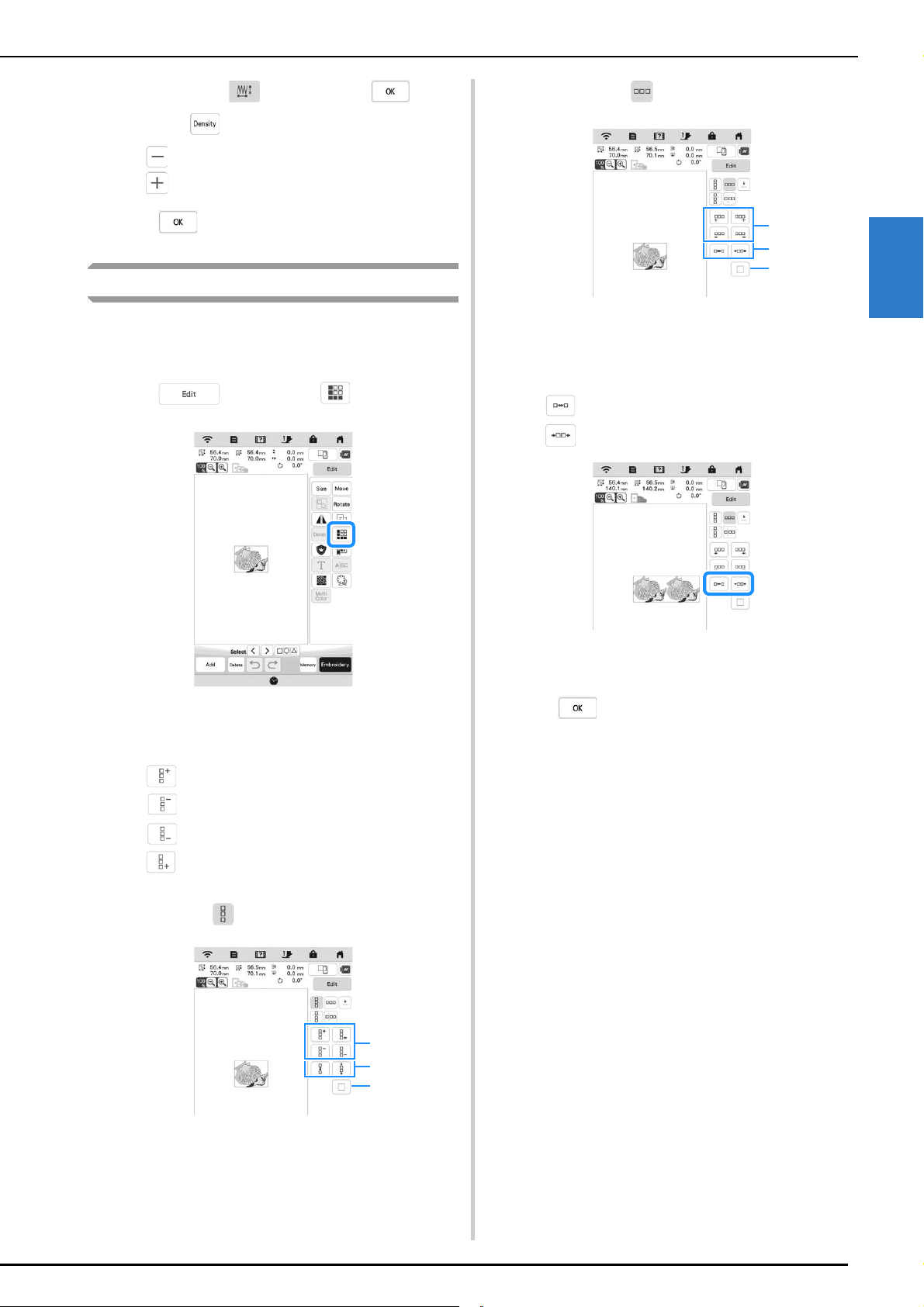

c
When you select in step a, press , and
then press to change the thread density.
* : Make the pattern less dense.
* : Make the pattern more dense.
d
Press .
Creating Repeated Patterns
Using the border function, you can create repeated
patterns. You can also adjust the spacing of the
patterns.
a
Press , and then press .
b
Select the direction in which the pattern will be
repeated.
* : Repeat the pattern above.
* : Delete above pattern.
* : Delete below pattern.
* : Repeat the pattern below.
Vertical direction
1 Repeating and deleting keys
2 Spacing keys
3 Key to cancel pattern repeating
Horizontal direction
1 Repeating and deleting keys
2 Spacing keys
3 Key to cancel pattern repeating
c
Adjust the spacing of the repeated pattern.
* : Widen spacing.
* : Tighten spacing.
d
Complete repeated patterns by repeating steps b
through
c.
e
Press .
2
1
3
2
1
3
EDITING PATTERNS
46

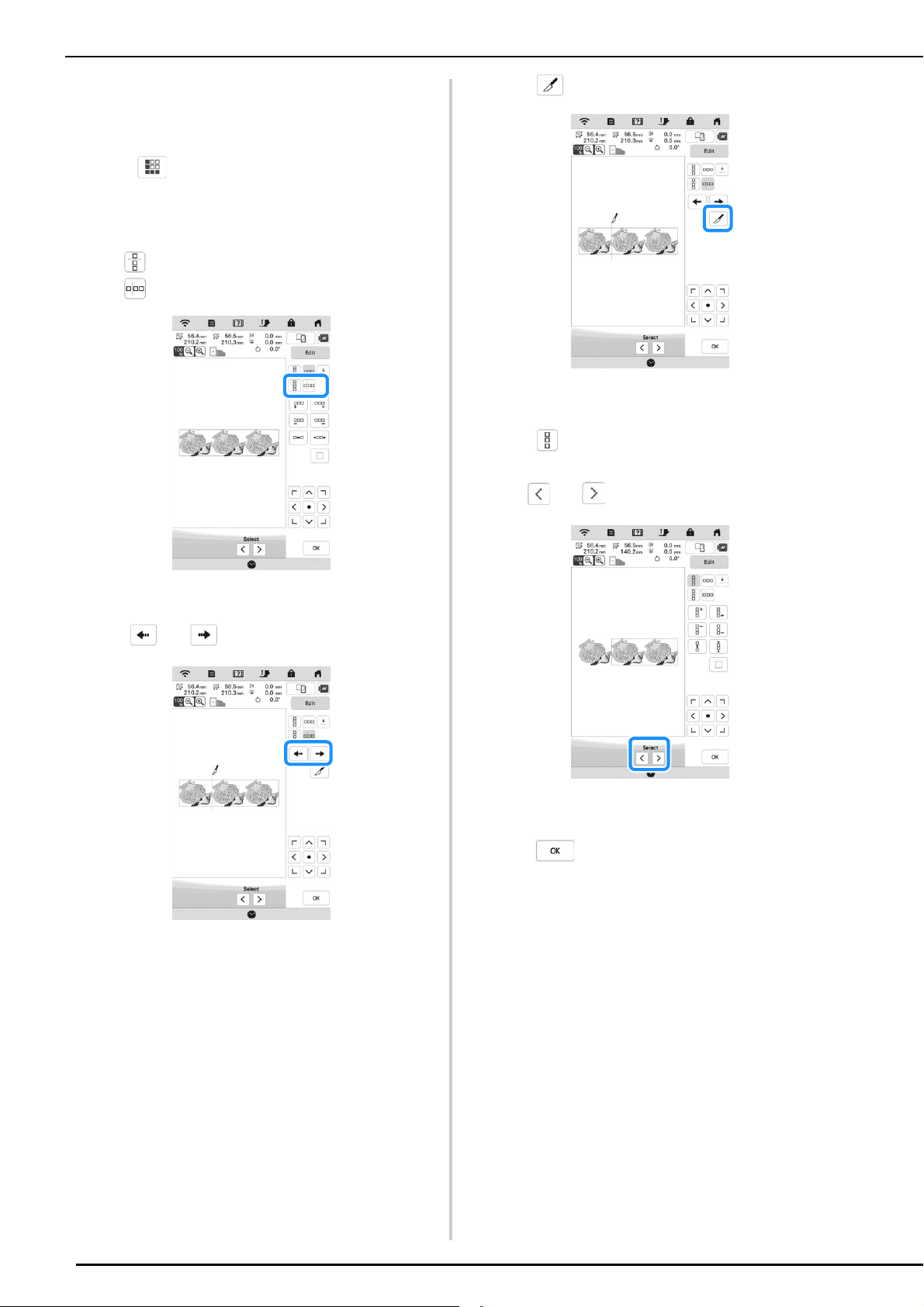

■ Repeating One Element of a Repeated Pattern
You can select one element of a repeated pattern and
repeat only that single element. This function allows you
to create complex repeated patterns.
a
Press .
b
Choose the direction in which the repeated pattern will
be cut.
*
: Cut horizontally.
*
: Cut vertically.
The pattern direction indicator will change
depending on the direction selected.
c
Use and to select the cut line.
d
Press .
The repeated pattern will be divided into separate
elements.
e
Press .
f
Use and to select the element to repeat.
g
Repeat the selected element.
h
Press .
EDITING PATTERNS
47
Basic Embroidery
2
■ Color Sorting Repeated Patterns
Press to automatically change the embroidering
order of colors in combined border embroidery patterns so
that the same color can be continuously embroidered.
This allows you to continue embroidering without
repeatedly changing the upper thread or changing the
embroidering order manually.
■ Assigning Thread Marks
By sewing thread marks, you can easily align patterns
when rehooping the fabric to embroider a series. When
embroidering is finished on a pattern, a thread mark in the
shape of an arrow will be sewn using the final thread.
When embroidering a series of patterns, use the point of
this arrow for positioning the following designs to be
embroidered.
a
Press .
b
Press .
c
Press to select the thread mark to be sewn.
d
Press .
Embroidering the Pattern Repeatedly
After creating the repeated pattern, rehoop the
embroidery frame and keep embroidering for the next
pattern.
Memo
• When a grouped pattern is repeated, the
embroidering order is changed in each pattern.
• If there are repeated patterns with other repeated
patterns or other patterns, the embroidering order
of only the repeated patterns is changed.
Memo
• When there are two or more elements, use or
to select an element to assign a thread
mark(s) to.
Memo
• The optional border frame allows you to easily
rehoop the fabric without removing the
embroidering frame from the machine.
EDITING PATTERNS
48

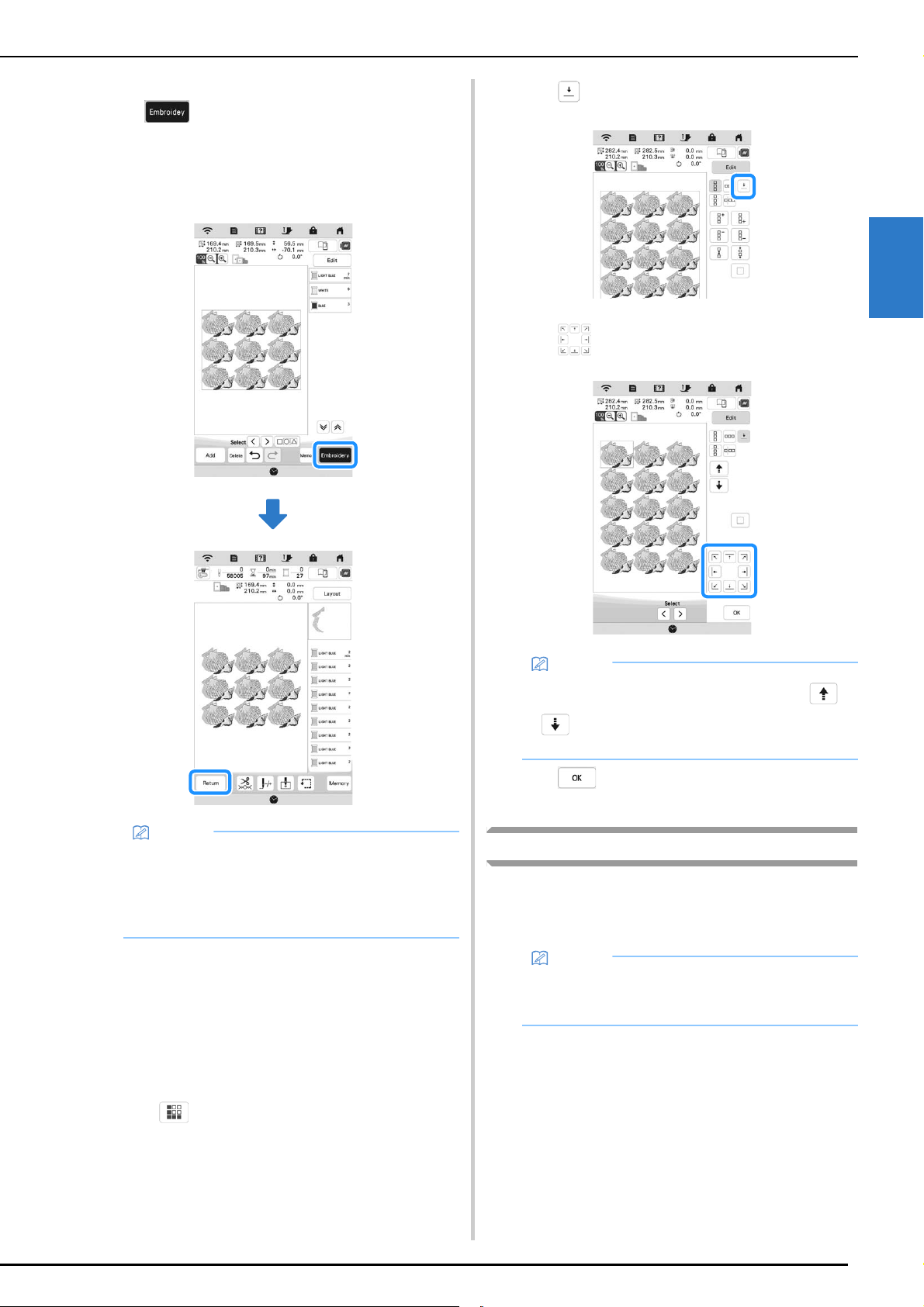

a
Select the repeated pattern and assign the thread mark
at the center of the bottom of the pattern.
* Refer to “Assigning Thread Marks” on page 47.
b
Press , then .
c
Press the “Start/Stop” button to start embroidering.
When embroidering is finished, the thread mark is
embroidered with the last thread color.
d
Remove the embroidery frame.
e
Rehoop the fabric in the embroidery frame.
f
Attach the embroidery frame to the machine, and then
press .
g
Press to set the starting point to the center top of
the pattern.
h
Press .
i
Press , and then press .
Note
• Adjust the position of the fabric so that the
embroidering area for the next pattern is within the
embroidering area of the embroidery sheet.
1 Pattern embroidered first
2 Position of pattern to be embroidered next
3 Embroidering area of embroidery sheet
c
a
b
EDITING COLORS
49
Basic Embroidery
2
j
Press to move the embroidery frame until the
thread mark on the fabric is aligned with the light of
the LED pointer.
* To check the needle drop point with the light of the
LED pointer, press .
k
Press .
l
Remove the thread mark.
m
Start embroidering.
Changing the Thread Color
You can change the thread color from the thread colors
assigned by the machine.
a
Press , and then press .
The thread color palette appears.
b
Press the color of the part to be changed.
* Press or to display the thread color that is
not on the screen.
The selected thread color image appears.
1 Selected thread color image
Memo
• For the accurate needle drop point, slowly turn the
handwheel toward you (counterclockwise) to lower
the needle. Then, turn the handwheel away from
you (clockwise) until the mark on the handwheel is
at the top. The carriage cannot move if the mark on
the handwheel is not at the top.
1 Mark
a
EDITING COLORS
Memo
• When you directly touch a part of the pattern
whose color is to be changed, the part can be
selected and displayed.
1
EDITING COLORS
50
c
Select a new color from the thread color palette, and
then press .
1 Thread brand for colors
2 Thread color palette
The display shows the changed colors.
* To return to the original color, press . If
multiple colors have been changed, this command
will return all colors to their original colors.
Finding New Color Schemes with the Color
Shuffling Function
With the color shuffling function, the machine suggests
new color schemes for the embroidery pattern that you
have selected. After you select the effect ([Random],
[Vivid], [Gradient] or [Soft]), sample color schemes for
the selected effect are displayed.
a
Press , and then press .
The thread color palette screen appears.
b
Press .
c
Select the thread brand for colors and the number of
colors you want to create the pattern with.
1 Thread brand for colors
2 Number of colors to be used
d
Select the desired effect.
1 Effects for schemes
If you select [Random] or [Gradient], the color
specifying screen will appear.
If you select [Vivid] or [Soft], proceed to step
g.
Memo
• Press to specify a thread color by entering its
number. If you enter the wrong number, press ,
and then enter the correct number. After entering
the number, press .
2
1
Note
• This function may not be available depending on
the pattern you select (ex. a repeated pattern,
licensed pattern).
2
1
1
EDITING COLORS
51
Basic Embroidery
2
e
Press to set and specify the thread
color to use in the effect.
* If you don’t need to specify the thread color, just set
to .
[Manual] setting for [Random]
You can select up to 6 colors to be used in the [Random]
effect. The effect will be created using the selected colors.
1 Select colors from the palette.
2 Selected colors are listed.
[Manual] setting for [Gradient]
You can select one color to be used in the [Gradient] effect.
The effect will be created with a color you select.
1 Select a color from the palette.
2 Selected color is displayed.
f
Press .
g
Select the color scheme from samples.
* Press to add the new schemes.
1 Press to review the previous schemes.
1
2
1
2
1
EDITING COLORS
52
h
Select the displayed color scheme.
* : Return to the previous screen.
* or : Display the other color schemes.
* : Select the displayed color scheme.
The thread color palette screen will appear.
Thread Color Sorting
This function allows you to embroider while replacing
the thread spool a minimal number of times.
Before starting to embroider, press in the
embroidery screen to rearrange the embroidery order
and sort it by thread colors.
a
Press in the embroidery screen.
b
Press .
* Press again to check the sorted thread
colors.
Memo
• To temporarily register your favorite schemes,
press (to release your favorite schemes, press
again). 9 color schemes can be added. Press
to check the registered favorite
schemes.
To cancel the registration, press .
Note
• Maximum 20 pages of schemes can be reviewed.
VIEWING THE EMBROIDERY SCREEN
53
Basic Embroidery
2
The embroidery color order is rearranged and sorted
by thread colors.
* Press , then to cancel color sorting
and embroider with the original embroidery color
order.
* This screen appears when embroidery starts.
1 The presser foot symbol
Attach embroidery foot “W+” with LED pointer or
embroidery foot “W” (sold separately) for all embroidery
projects.
2 A preview of the pattern
3 The boundary for embroidering with the selected frame
in the settings screen
4 Total number of stitches in the selected pattern and
number of stitches that have already been embroidered
5 The time necessary to embroider the pattern, and the
time already spent embroidering the pattern (not
including time for changing and automatically trimming
the thread)
6 The number of colors in the pattern, and the number of
the color currently being embroidered
7 Switch the progress bar (which shows the embroidering
progress) between showing only one color or all colors.
This key appears after starting embroidering or after
pressing the key.
8 The part of the embroidery pattern that will be
embroidered with the thread color at the top of the list
9 The order for thread color changes and the embroidering
time for each thread color
* The displayed time is the approximate time that will
be required. The actual embroidering time may be
longer than the displayed time, depending on the
embroidery frame that is used.
Note
• This function does not work on overlapping
patterns.
VIEWING THE EMBROIDERY
SCREEN
9
1
2
3
7
4 5 6
8
VIEWING THE EMBROIDERY SCREEN
54
■ Key Functions
Using these keys, you can move or rotate pattern, etc.
Press to display the editing window.
Note
• Some operations or functions are not available for
certain patterns. If the key display grayed out, you
cannot use that function or operation with the
selected pattern.
No.
Display
Explanation Page
Name
1 Turn on the light of the LED
pointer.
Press this key to check the needle
drop point with the light of the LED
pointer.
59
Needle point
check key
2 Shows the embroidery frames that
can be used for the selected
pattern.
Be sure to use the proper frame.
56
Available
frames
3 Shows the size of the selected
pattern.
—
Pattern size
4 Preview the embroidery image. 44
Image key
5 Shows the distance between the
embroidering position and the
center (when the embroidery
pattern is moved).
—
Distance
6 Shows the degree of rotation of
the pattern.
—
Degree
7 Display the pattern moving
window.
—
Move key
8 Display the pattern rotating
window.
—
Rotate key
9 Add the basting stitch around the
pattern. You can select the
distance from the pattern to the
basting stitching.
17, 70
Basting key
8
DEG F
0
B
1
CH
7
9
A
3
2
4
5
6
0 Change the setting to embroider
the pattern with a single color.
Press the key again to return to the
original setting.
Even if uninterrupted embroidering
has been set, the automatic
thread cutting function and the
thread trimming function can be
used.
The icons of the spool of thread
are grayed out.
—
Uninterrupted
embroidery
key
A Rearrange the embroidery order
and sort it by thread colors.
52
Thread color
sorting key
B Press this key to align the
embroidering position.
61
Embroidery
positioning
key
C Save the pattern to the machine’s
memory or USB media. The
pattern can also be transferred to
a computer via a wireless network
connection.
80
Memory key
D Check the position of the pattern.
• : Move the carriage to
trace the embroidery area of the
pattern. This allows you to
check that there is enough
space to embroider the pattern.
• : Move the carriage to
the selected position.
61
Trial key
E Specify the needle start position.
• : Set the needle start
position to the lower-left corner
of the pattern. This setting is
useful when connecting
patterns since it allows you to
continue embroidering until the
first stitch of the next pattern.
• : Move the carriage to
the selected position.
77, 78
Starting point
key
F Move the needle forward or back
in the pattern; useful if the thread
breaks while embroidering or if
you want to start again from the
beginning.
66
Forward/Back
key
G Set automatic thread cutting,
thread trimming or the thread
tension. For embroidery, these
functions are set automatically.
73-76
Cut/Tension
key
H Return to the edit screen. —
Return key
No.
Display
Explanation Page
Name

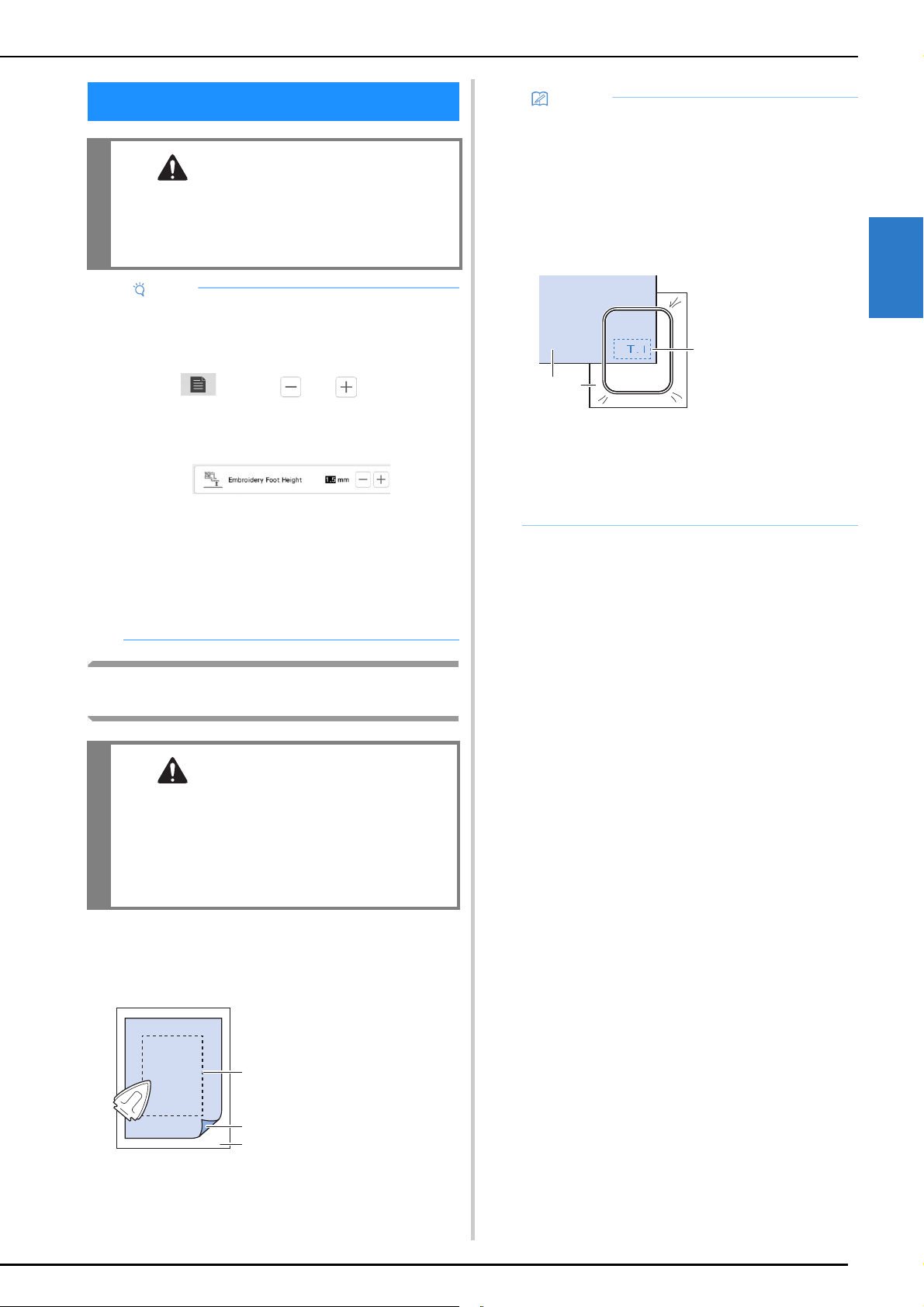

PREPARING THE FABRIC
55
Basic Embroidery
2
Attaching Iron-on Stabilizers (Backing) to
the Fabric
a
Iron the iron-on stabilizer material to the wrong side of
the fabric.
• Use a piece of stabilizer which is larger than the
embroidery frame being used.
PREPARING THE FABRIC
CAUTION
• Use fabrics with a thickness of less than 3 mm
(approx. 1/8 inch). Using fabrics thicker than 3
mm (approx. 1/8 inch) may cause the needle to
break.
Note
• When using layers with thicker batting etc., you can
embroider more attractive finishes by adjusting the
embroidery presser foot height in the embroidery
settings screen.
Press , and use and in the
[Embroidery Foot Height] in the embroidery
settings screen. Adjust the presser foot height for
thick or puffy fabrics.
• To increase the space between the embroidery foot
and the right side of the fabric, set the [Embroidery
Foot Height] to a larger number.
• In the case of thick terry cloth towels, we
recommend that you place a piece of water soluble
stabilizer on the top surface of the towel. This will
help to reduce the nap of the toweling and result in
more attractive embroidery.
CAUTION
• Always use a stabilizer material for embroidery
when embroidering on stretch fabrics,
lightweight fabrics, fabrics with a coarse
weave, or fabrics which cause pattern
shrinkage. Otherwise, the needle may break
and cause injury.
1 Fusible side of stabilizer
2 Fabric (wrong side)
3 Size of the embroidery
frame
a
b
c
Memo
• When embroidering small pieces of fabric that
cannot be hooped in an embroidery frame, use
stabilizer material as a base. After lightly ironing the
fabric to the stabilizer material, hoop it in the
embroidery frame. If stabilizer material cannot be
ironed onto the fabric, attach it with a basting
stitch. After completing the embroidery, remove the
stabilizer material carefully.
• When embroidering on thin fabrics such as
organdy or lawn, or on napped fabrics such as
towel or corduroy, use water soluble stabilizer (sold
separately) for best results. The water soluble
stabilizer material will dissolve completely in water,
giving the project a more attractive finish.
1 Fabric
2 Stabilizer
3 Basting
a
b
c
PREPARING THE FABRIC
56
Hooping the Fabric in the Embroidery Frame
■ Types of Embroidery Frames
Optional embroidery frames can be used. When choosing
frames that do not appear on the screen, be sure to check
the design size of the embroidery field of the optional
frame. Check with your authorized Brother dealer for
frame compatibility.
Select a frame that matches the pattern size. Available
frame options are displayed on the LCD.
1 Highlighted: Can be used
2 Shaded: Cannot be used
■ Inserting the Fabric
a
Lift-up and loosen the frame adjustment screw and
remove the inner frame.
1 Frame adjustment screw
2 Inner frame
b
Lay the fabric right side up on top of the outer frame.
c
Insert the inner frame making sure to align the inner
frame’s with the outer frame’s .
1 Inner frame’s
2 Outer frame’s
d
Slightly tighten the frame adjustment screw.
e
Gently smooth out the fabric. Make sure fabric is flat
and without wrinkles.
* After stretching the fabric, make sure the fabric is
taut.
* Make sure the inside and outside frames are even
before you start embroidering.
1 Outer frame
2 Inner frame
3 Fabric
Note
• If the fabric is not securely held in the embroidery
frame, the pattern will embroider out poorly. Insert
the fabric on a level surface, and gently stretch the
fabric taut in the frame.
• Embroidery frames with factory-coded stickers can
be used with the application (My Design Snap).
a
b
1 Factory-
coded
stickers
1
a
b
a
b
c
a
b
c
PREPARING THE FABRIC
57
Basic Embroidery
2
f
Tighten the frame adjustment screw to keep the fabric
from loosening while stitching.
g
Return the frame adjustment screw to its initial
position.
■ Using the Embroidery Sheet
When you want to embroider the pattern in a particular
place, use the embroidery sheet with the frame.
a
With a chalk pencil, mark the area of the fabric you
want to embroider.
1 Embroidery pattern
2 Mark
b
Place the embroidery sheet on the inner frame. Align
the guide lines on the embroidery sheet with the mark
you made on the fabric.
1 Inner frame
2 Guide line
c
Gently stretch the fabric so there are no folds or
wrinkles, and press the inner frame into the outer
frame.
1 Inner frame
2 Outer frame
d
Remove the embroidery sheet.
Memo
• You can use the disc-shaped screw driver, when
you loosen or tighten the frame adjustment screw.
ATTACHING THE EMBROIDERY FRAME
58
a
Press (Presser foot lifter button) to raise the
presser foot.
b
Align the embroidery frame guide with the right edge
of the embroidery frame holder.
1 Embroidery frame holder
2 Embroidery frame guide
c
Slide the embroidery frame into the holder, making
sure to align the embroidery frame’s with the
holder’s .
1 Arrow mark
d
Lower the frame-securing lever to be level with the
frame to secure the embroidery frame in the
embroidery frame holder.
1 Frame-securing lever
■ Removing the Embroidery Frame
a
Press (Presser foot lifter button) to raise the
presser foot.
b
Raise the frame-securing lever.
c
Pull the embroidery frame toward you.
ATTACHING THE EMBROIDERY
FRAME
Note
• Wind embroidery bobbin thread and insert the
bobbin before attaching the embroidery frame.
Check that there is enough thread in the bobbin.
CONFIRMING THE PATTERN POSITION
59
Basic Embroidery
2
The pattern is normally positioned in the center of the
embroidery frame. If the pattern needs to be repositioned
for better placement on the garment, you can check the
layout before starting embroidery.
Checking the Needle Drop Point with the
Embroidery Foot “W+” with LED Pointer
a
Press in the embroidery screen.
The LED pointer indicates the needle drop point.
■ Adjusting the LED Pointer
Adjust the LED pointer if it indicates a point different than
the actual needle drop point. Before adjusting the LED
pointer, mark the actual needle drop point on the fabric to
be embroidered, and attach the embroidery frame.
a
Press .
The settings screen appears.
b
Press .
The embroidery settings screen appears.
c
Display [Embroidery Foot with LED Pointer
Adjustment] in the embroidery setting screen.
d
Press .
The Embroidery Foot “W+” with LED Pointer
Adjustment screen appears.
1 LED pointer adjustment
e
Use or to adjust the LED pointer so that it
indicates the actual needle drop point.
f
Press to return to the original screen.
■ Adjusting the Brightness of the LED Pointer
a
Follow the steps from a to c of “Adjusting the LED
Pointer” on page 59 to display the embroidery foot
with LED pointer adjustment screen.
b
Use or to adjust the brightness of the LED
pointer.
c
Press to return to the original screen.
CONFIRMING THE PATTERN
POSITION
Memo
• When the LED pointer turns on, the presser foot
height is automatically adjusted according to the
fabric thickness.
• appears when the embroidery foot “W+” with
LED pointer is attached to the machine.
• If is not displayed, you cannot use the LED
pointer.
• The LED pointer turns off automatically by lowering
the presser foot or returning to the previous page.
Note
• With spongy fabric, the position may not be
accurate due to the various depths of the fabric.
• With fabric that has a very uneven surface such as
quilting, the fabric thickness may not be correctly
measured. In this case, the pointer indication
should be used only as a reference.
Note
• As a default, appears gray. After the
embroidery foot “W+” with LED pointer is attached
to the machine, the key becomes available and
settings can be specified.
Note
• The specified setting is saved in the machine’s
memory. This is useful for positioning during
continuous embroidering.
• For normal use, return the setting to [00].
Memo
• In order to more accurately check the needle drop
point, turn the handwheel toward you
(counterclockwise) to lower the needle.
1
CONFIRMING THE PATTERN POSITION
60
Displaying a Background Image
Using a special application downloaded to a
smartphone or tablet, you can transfer a photo of the
hooped fabric to be embroidered to the machine to be
used as a background image.
The embroidery frame is displayed in the application.
You can see how the pattern will be arranged on the
actual fabric.
■ Displaying the Background Image on the
Screen of the Machine
a
Select the pattern. (page 36)
b
Photograph the fabric in the frame with the easy mode
of the application, and then transfer it to the machine.
For a detailed procedure, refer to the application.
c
Press .
* Attach the frame used in the image before pressing
.
The transferred background image appears on the
screen of the machine.
■ Calibrating the Position of the Background
By calibrating the position of the background image
transferred to the machine, the pattern can be positioned
more accurately.
a
Select a pattern. (page 36)
b
Set the application to advanced mode, attach the
embroidery positioning sticker to the fabric in the
hoop, take the photo of the background, and with the
advanced mode of the application, transfer it to the
machine.
For a detailed procedure, refer to the application.
c
Press .
* Attach the frame used in the image before pressing
.
The carriage will move, and the LED pointer will turn
on.
d
Use to align the LED pointer with the center
of the larger circle in the embroidery positioning
sticker.
1 Center of the larger circle in the embroidery positioning
sticker
e
Press .
The position of the background image is calibrated.
Note
• The wireless network settings must first be
specified on the machine. Refer to “WIRELESS
NETWORK CONNECTION FUNCTIONS” on
page 20.
• Embroidery frames with factory-coded stickers can
be used with the application (My Design Snap).
Memo
• To hide the background image, press .
Press to display the background image
again.
• The transferred background image includes the
embroidery frame display.
1 Factory-
coded
stickers
1
Memo
• The position can also be calibrated by lowering the
needle with the handwheel. This method enables
more accurate positioning. Slowly turn the
handwheel toward you (counterclockwise) to check
the needle drop point. Then, turn the handwheel
away from you (clockwise) until the mark on the
handwheel is at the top. The carriage cannot move
if the mark on the handwheel is not at the top.
1
1 Mark
a
CONFIRMING THE PATTERN POSITION
61
Basic Embroidery
2

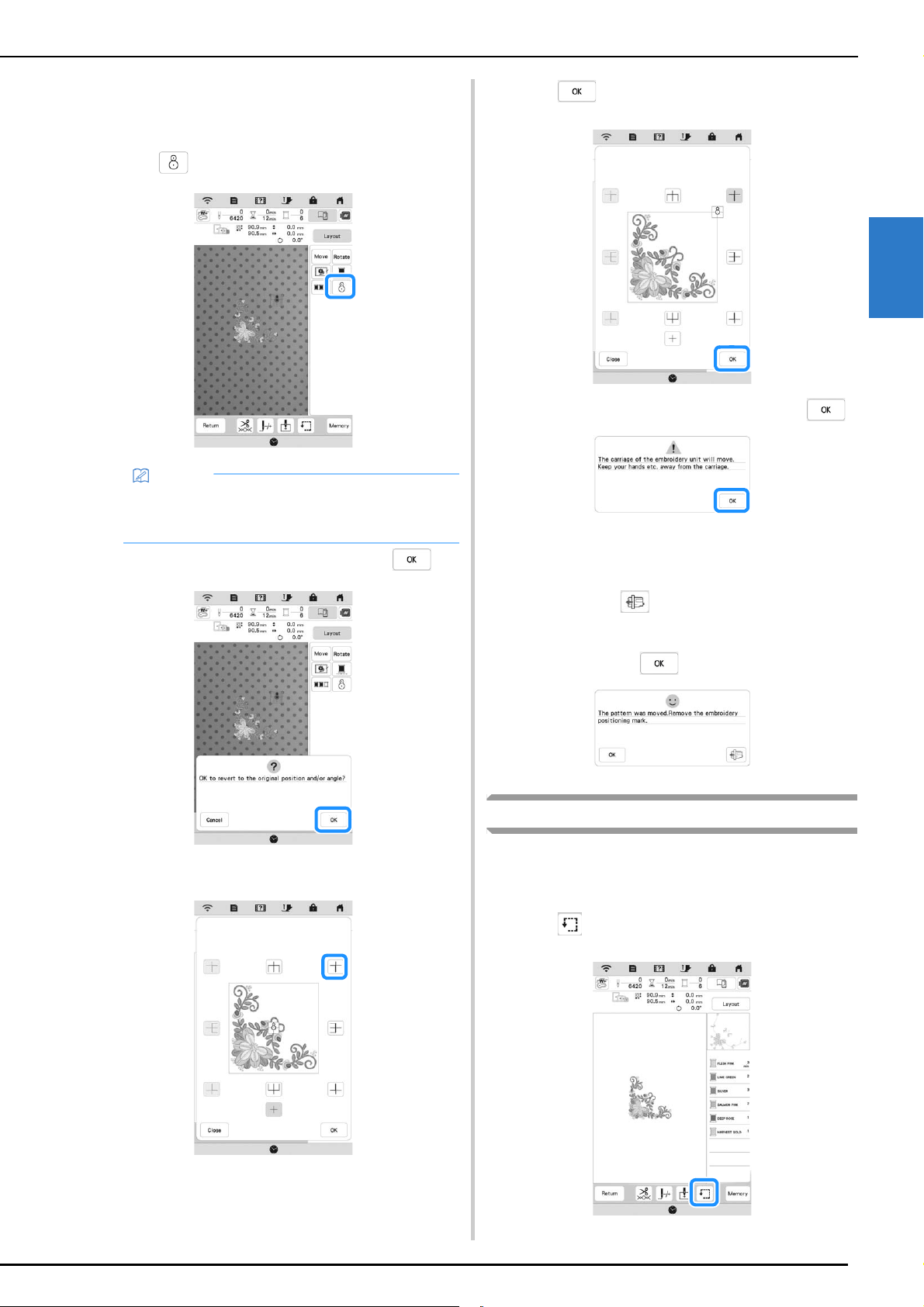

■ Aligning the Embroidering Position
a
Calibrate the position of the background image.
(page 60)
b
Press .
c
When the following message appears, press .
d
Select the position to be set as the reference point.
e
Press .
When the following message appears, press .
f
Remove the embroidery positioning sticker, and then
start embroidering.
* To remove the embroidery positioning sticker more
easily, press so that the embroidery frame
moves slightly forward and away from under the
needle. After the embroidery positioning sticker is
removed, press .
Checking the Pattern Position
The carriage moves and shows the pattern position.
Watch the embroidery frame closely to make sure the
pattern will be embroidered in the right place.
a
Press .
Memo
• The orientation of the pattern will change
depending on the orientation of the embroidery
positioning sticker.
EMBROIDERING A PATTERN
62
b
From , press the key for the position that you
want to check.
1 Selected position
The carriage will move to the selected position on
the pattern.
c
Press .
Embroidering Attractive Finishes
Many factors are involved in achieving a beautiful
embroidery result. Using the appropriate stabilizer
(page 55) and hooping the fabric in the frame (page 56)
are two important factors mentioned earlier. Another
important point is the appropriateness of the needle and
thread being used. See the explanation of threads
below.
Bobbin case (recommended for embroidering with
included 90 weight bobbin thread)
1 Bobbin case (no color on the screw)
The included bobbin case is set for 90 weight bobbin
thread. When you use different weights of bobbin
thread, the tension screw on this bobbin case can be
adjusted if necessary. For details, refer to “Adjusting the
Bobbin Case (with No Color on the Screw)” on
page 75.
■ Embroidery Needle Plate Cover
Under some conditions, based on the type of fabric,
stabilizer, or thread being used, there may be some
looping in the upper thread. In this case, attach the
included embroidery needle plate cover to the needle
plate. Attach the cover by inserting the two projections on
Memo
• To see the entire embroidering area, press .
The carriage moves and shows the embroidery
area.
CAUTION
• Make sure the needle is up when the carriage
is moving. If the needle is down, it could break
and result in injury.
1
EMBROIDERING A PATTERN
Thread Upper thread Use embroidery thread intended for
use with this machine.
Bobbin thread Use embroidery bobbin thread
intended for use with this machine.
Memo
• If you use threads other than those listed above,
the embroidery may not embroider out correctly.
CAUTION
• When embroidering on large garments
(especially jackets or other heavy fabrics), do
not let the fabric hang over the table.
Otherwise, the embroidery unit cannot move
freely and the embroidery frame may strike the
needle, causing the needle to bend or break
and possibly cause injury.
Place the fabric so that it does not hang off the
table or hold the fabric to keep it from
dragging.
EMBROIDERING A PATTERN
63
Basic Embroidery
2
the underside of the cover into the notches on the needle
plate as shown below.
To remove the embroidery needle plate cover, place your
fingernail in the groove and lift the plate out.
Embroidering Patterns
a
Prepare embroidery threads of the colors shown on the
screen.
1 Embroidery color order
2 Cursor
b
Using the automatic needle threader, thread the
machine for the first color. (page 28)
c
Lower the presser foot, then press the “Start/Stop”
button to start embroidering.
When the first color is completely embroidered, the
machine will automatically trim the threads and stop.
The presser foot will then automatically be raised.
On the embroidery color order display, the next
color will move to the top.
d
Remove the upper thread for the first color from the
machine. Thread the machine with the next color.
e
Repeat the same steps for embroidering the remaining
colors.
1 Current stitch numbers/Total stitch numbers
2 Current time/Total time
3 Part of pattern to be embroidered next
4 Embroidered colors/Total colors
When the last color is embroidered, [Finished
embroidering] will appear on the display. Press
, and the display will return to the original
screen.
1 Groove
2 Projection
3 Notch
CAUTION
• Push the embroidery needle plate cover as far
as possible to attach it. If the embroidery
needle plate cover is not securely attached, it
may cause the needle to break.
Memo
• The [+] cursor moves over the pattern, showing
which part of the pattern is being embroidered.
a
b
c
2
1
Memo
• If you want to get more attractive finishes, try the
procedures below;
- After 5-6 stitches, press the “Start/Stop” button
again to stop the machine.
- Trim the excess thread at the beginning of the
pattern. If the excess thread tail is under the
embroidery foot, raise the embroidery foot, then
trim the excess thread.
• If there is thread left over from the beginning of
embroidering, it may be embroidered over as you
continue embroidering the pattern, making it very
difficult to deal with the thread after the pattern is
finished. Trim the threads at the beginning of each
thread change.
3
4
2
1
EMBROIDERING A PATTERN
64

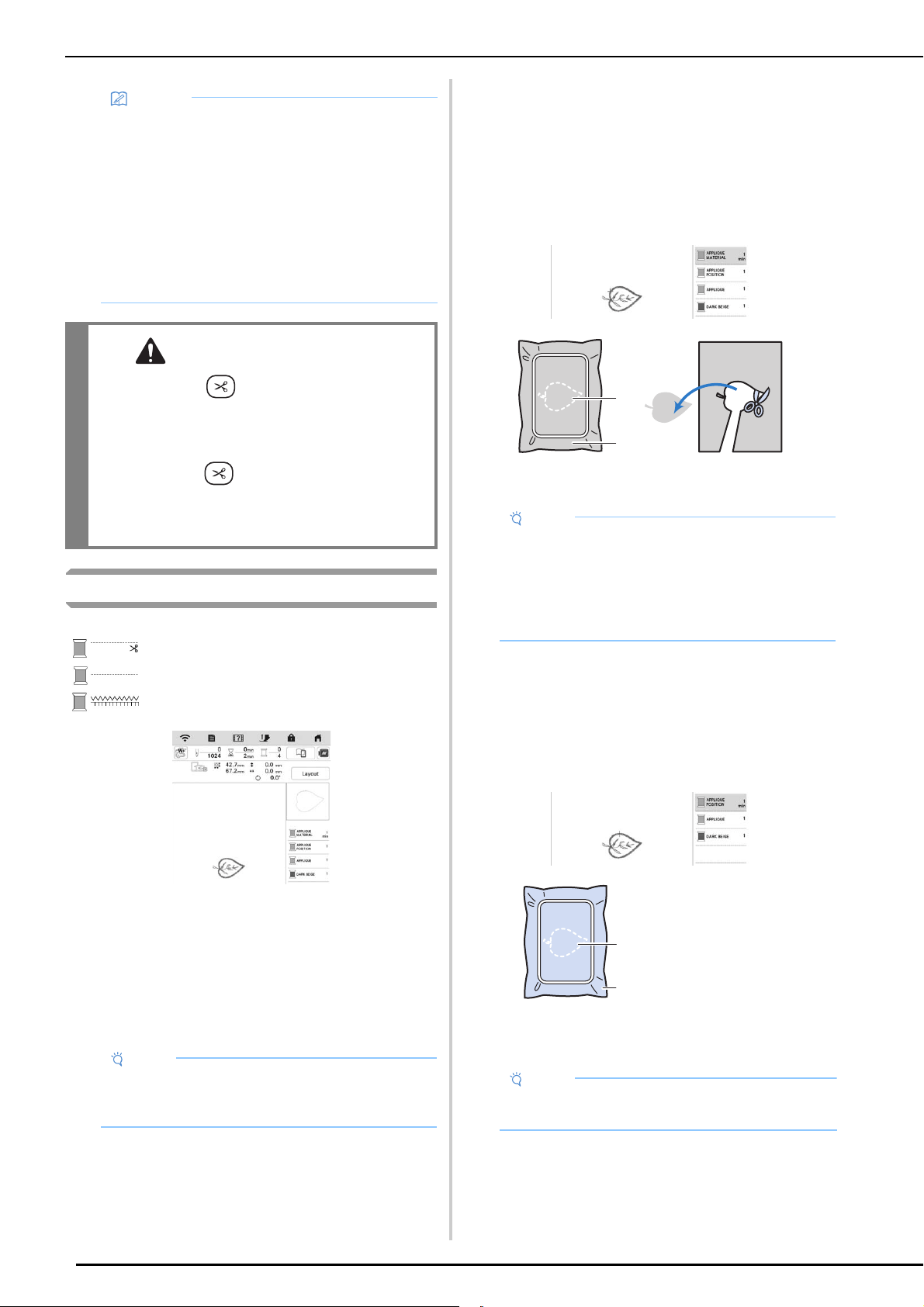

Using Appliqués
When the color embroidering order display shows
[ (APPLIQUE MATERIAL)],
[ (APPLIQUE POSITION)] or
[ (APPLIQUE)], follow the procedure below.
Required materials
• Fabric for the appliqué piece
• Fabric for the appliqué base
• Stabilizer material
• Fabric glue or temporary spray adhesive
• Embroidery thread
■ 1. Creating an Appliqué Piece
a
Attach stabilizer material to the wrong side of the
fabric for the appliqué piece.
b
Sew the cutting line of the appliqué piece. Remove the
fabric for the appliqué piece from the embroidery
frame, and then carefully cut along the sewn cutting
line.
1 Outline of appliqué
2 Fabric for appliqué piece
■ 2. Sewing the Appliqué Position on the Base
Fabric
a
Attach stabilizer material to the wrong side of the
fabric for the appliqué base.
b
Sew the appliqué position.
c
Remove the embroidery frame from the embroidery
unit.
Memo
• The thread trimming function is originally set to trim
excess thread jumps (threads linking parts of the
pattern, etc.). Depending on the type of thread and
fabric that are used, an end of upper thread may
remain on the surface of the fabric at the beginning
of the stitching. After embroidering is finished, cut
off this excess thread.
If the setting has been turned off, trim the excess
thread jumps using scissors after the pattern is
finished. Refer to page 76 for information on the
thread trimming function.
CAUTION
• Do not press (Thread cutter button) after
the threads have been cut. Doing so could
tangle the thread or break the needle and
damage the machine.
• Do not press (Thread cutter button) when
there is no fabric set in the machine or during
machine operation. The thread may tangle,
possibly resulting in damage.
Note
• The correct names and numbers of the thread
colors to be used will not appear. Use the thread
colors depending on those in the appliqué pattern.
Note
• If the appliqué piece is cut out along the inside of
the cutting line, it may not be correctly attached to
the fabric. Therefore, carefully cut out the appliqué
piece along the cutting line.
• After cutting out the appliqué piece, carefully
remove the thread.
1 Position of appliqué
2 Base fabric
Note
• Do not remove the base fabric from the embroidery
frame until all embroidering is finished.
a
b
a
b
EMBROIDERING A PATTERN
65
Basic Embroidery
2
■ 3. Affixing the Appliqué Piece to the Base
Fabric
a
Lightly apply fabric glue or temporary spray adhesive
to the back of the appliqué piece, and then attach it to
the base fabric within the outline of the position sewn
in step
b of “2. Sewing the Appliqué Position on the
Base Fabric”.
b
After the appliqué piece is attached, attach the
embroidery frame to the machine.
Thread the machine with the embroidery thread, lower
the presser foot lever, and then press the “Start/Stop”
button to embroider the appliqué.
■ 4. Embroidering the Remainder of the Pattern
a
Change the embroidery thread according to the
embroidery color order display, and then finish
embroidering the remainder of the pattern.
Note
• If the appliqué piece cannot be attached to the
base fabric with fabric glue or temporary spray
adhesive, securely baste it in place with basting
stitches.
• If thin fabric is used for the appliqué piece,
reinforce and secure it in place with an iron-on
adhesive sheet. An iron can be used to attach the
appliqué piece to the appliqué location.
Memo
• Since glue may become attached to the presser
foot, needle or needle plate, clean off any glue after
finishing embroidering the appliqué pattern.
• For best results, trim all excess threads each time
the thread color is changed.
ADJUSTMENTS DURING THE EMBROIDERY PROCESS
66
If the Thread Breaks or the Bobbin
Runs out of Thread During
Embroidering
a
Redo the upper threading or replace the bobbin.
If the upper thread breaks, stop the machine, trim the
bobbin thread, and then rethread the machine.
If the bobbin thread is almost empty or broken, press
of the displayed message, remove the embroidery
frame, and then replace the bobbin.
b
Press .
c
Press , , , or to move the needle
back the correct number of stitches before the area
where the thread broke, and then press .
• Press to restart from the beginning.
d
Lower the presser foot and press the “Start/Stop”
button to continue embroidering.
ADJUSTMENTS DURING THE
EMBROIDERY PROCESS
Note
• If [Upper and Bobbin Thread Sensor] in the settings
screen of the machine is set to [OFF], the message
shown above does not appear.
Note
• It is recommended to stitch over the top of the last
two or three stitches for complete coverage.
Memo
• If you cannot move back to the spot where the
thread broke, press or
to select the color
and move to the beginning position of that color,
then use , , , or
to move ahead
to slightly before where the thread broke.
ADJUSTMENTS DURING THE EMBROIDERY PROCESS
67
Basic Embroidery
2
Resuming Embroidery after Turning off the
Power
The current color and stitch number are saved when
embroidery is stopped. The next time the machine is
turned on, you have the option to continue or delete the
pattern.
ADJUSTMENTS DURING THE EMBROIDERY PROCESS
68
Chapter 3
Advanced Embroidery
VARIOUS EMBROIDERING FUNCTIONS
70
Basting Embroidery
Before embroidering, basting stitches can be sewn
along the outline of the pattern. This is useful for
embroidering fabric that cannot have stabilizer material
affixed with an iron or adhesive. Basting stitches can be
used to attach material that cannot be hooped to
stabilizer, making it possible to be embroidered.
a
Press .
b
Use and to specify the distance from the
pattern to the basting stitching.
c
Press to return to the embroidering screen.
d
Press , and then press to select the
basting setting.
Basting is added to the beginning of the
embroidering order.
e
Press the “Start/Stop” button to start embroidering.
f
When embroidering is finished, remove the basting
stitching.
Creating an Appliqué Piece
Creating an appliqué piece is convenient for fabrics that
cannot be embroidered or when you wish to attach an
appliqué to a garment.
■ Creating an Appliqué Piece
The following pattern will be used to create an appliqué
piece.
VARIOUS EMBROIDERING
FUNCTIONS
Note
• It is recommended to finish combining and editing
the pattern before selecting the basting setting. If
the pattern is edited after selecting the basting
setting, the basting and pattern may become
misaligned, and the basting under the pattern may
be difficult to remove after embroidering is
complete.
Memo
• The higher the setting, the farther the basting is
from the pattern.
• The setting remains selected even if the machine is
turned off.
Note
• When is pressed, the pattern is moved to the
center. After selecting the basting setting, move the
pattern to the desired position.
Note
• Felt or denim fabrics are recommended to make
the appliqué piece. Depending on the pattern and
fabric used, lighter weight fabrics may cause the
stitching to appear smaller.
• For best results, be sure to use stabilizer material
for embroidering.
• When making appliqué pieces, do not use the
optional border embroidery frame. Depending on
the pattern density and fabric used, shrinkage of
the stitching may occur.
VARIOUS EMBROIDERING FUNCTIONS
71
Advanced Embroidery
3
a
Select the pattern, and edit it if necessary.
b
Press to display the settings screen.
c
Use and to specify the distance from the
pattern to the appliqué outline.
d
Press .
e
Press and then, press to position the
satin stitching around design.
The steps for creating the appliqué piece are added
to the embroidering order.
Note
• Finish combining and editing the pattern before
selecting the appliqué setting. If the pattern is
edited after selecting the appliqué setting, the
appliqué stitching and pattern may become
misaligned.
• Since an outline is added, the pattern for an
appliqué piece (when the appliqué setting is
selected) will be larger than the original pattern.
First, adjust the size and position of the pattern as
shown below.
1 Embroidering area
2 About 1cm (1/2 inch)
3 Pattern size
a
b
c
Note
• When is pressed, the pattern is moved to the
center. After selecting the appliqué setting, move
the pattern to the desired position.
Memo
• The appliqué setting is applied only to the selected
pattern. To select multiple patterns, refer to
“Selecting Multiple Patterns at the Same Time” on
page 41.
• Three steps are added to the embroidering order:
appliqué cutting line, position of pattern placement
on the stabilizer material, and appliqué stitching.
1 Cutting line for appliqué
2 Position of pattern placement on stabilizer
material
3 Appliqué stitching
Note
• An appliqué piece cannot be created if the pattern
is too large or too complicated or a combined
pattern is separated. Even if the selected pattern
fits within the embroidering area, the entire
appliqué pattern may exceed the embroidering
area when the outline is added. If an error message
appears, select a different pattern or edit it.
1
2
3
VARIOUS EMBROIDERING FUNCTIONS
72
f
Fuse or stick a piece of stabilizer to the back of the felt
or denim fabric to be used as the appliqué piece.
g
Hoop the fabric for the appliqué piece in the
embroidery frame, attach the embroidery frame to the
machine, and then start embroidering.
h
After the pattern is embroidered, thread the machine
with the thread for the cutting line, and then sew the
cutting line (APPLIQUE MATERIAL).
i
Remove the fabric for the appliqué piece from the
embroidery frame, and then carefully cut along the
stitching. After cutting, carefully remove all of the
cutting line thread.
j
Use two layers of adhesive water soluble stabilizer
material with their sticky sides together, and then hoop
them in the embroidery frame.
k
Thread the machine with the thread for the outline,
and then sew the placement line for the appliqué
position (APPLIQUE POSITION).
1 Pattern placement line
l
Use two-sided stabilizer material, and paste the
appliqué piece so that it aligns with the placement line.
m
With the machine threaded using the thread for the
outline from step
k, embroider the outline
(APPLIQUE).
n
After embroidering is finished, remove the stabilizer
material from the embroidery frame.
1 Cutting line for appliqué
Memo
• We recommend using thread for the cutting line
that is closest to the color of the fabric.
Note
• Depending on the pattern density and fabric used,
there may be shrinking of the pattern, or the
appliqué may be misaligned with the placement
line. We recommend cutting slightly outside of the
cutting line. Do not cut inside the cutting line,
otherwise the appliqué fabric will not be caught by
the appliqué stitch.
• When using patterns that are vertically and
horizontally symmetrical, use a chalk pencil to
indicate the pattern orientation before cutting it out.
a
Note
• If water soluble stabilizer is used, it is not
necessary to remove the stabilizer material after
sewing the appliqué outline. To reduce shrinkage
of the pattern, we recommend using water soluble
stabilizer.
• Put together two layers of water soluble stabilizer,
otherwise the stabilizer material may tear during
embroidering.
1 Outline of appliqué
piece
Note
• Since glue may become attached to the presser
foot, needle or needle plate, clean off any glue after
finishing embroidering the appliqué pattern.
a
a
MAKING EMBROIDERY ADJUSTMENTS
73
Advanced Embroidery
3
o
Use scissors to cut the excess water soluble stabilizer
from outside the appliqué outline.
p
Soak the appliqué piece in water to dissolve the water
soluble stabilizer.
q
Dry the appliqué piece, and then iron it if necessary.
Adjusting Thread Tension
When embroidering, the thread tension should be set so
that the upper thread can slightly be seen on the wrong
side of the fabric.
The following screen appears when you press .
Note
• Do not apply a strong force when ironing,
otherwise the stitching may be damaged.
MAKING EMBROIDERY
ADJUSTMENTS
MAKING EMBROIDERY ADJUSTMENTS
74
■ Correct Thread Tension
The pattern can be seen from the wrong side of the fabric.
If the thread tension is not set correctly, the pattern will
not finish well. The fabric may pucker or the thread may
break.
Follow the operations described below to adjust thread
tension according to the situation.
■ Upper Thread Is Too Tight
The tension of the upper thread is too tight, resulting in the
bobbin thread being visible from the right side of the
fabric.
Press in to weaken the upper thread
tension. (The tension number will decrease.)
■ Upper Thread Is Too Loose
The tension of the upper thread is too loose, resulting in a
loose upper thread, loose thread locks, or loops appearing
on the right side of the fabric.
Press in to tighten the upper thread tension.
(The tension number will increase.)
■ Adjusting Overall Upper Thread Tension
When embroidering, if the overall tension of the upper
thread is too tight or too loose, adjust it from the setting
screen. The selected setting will be applied to all patterns.
If an individual embroidery pattern needs additional fine
tuning, refer to “Adjusting Thread Tension” on page 73.
a
Press .
The settings screen appears.
b
Press .
The embroidery settings screen appears.
c
Display [Embroidery Tension] in the embroidery
settings screen.
d
Use to adjust the upper thread tension.
* : Tighten the upper thread tension.
* : Loosen the upper thread tension.
e
Press .
1 Right side
2 Wrong side
Note
• If the thread tension setting is made extremely
weak, the machine may stop during embroidering.
This is not the sign of a malfunction. Increase the
thread tension slightly, and start embroidering
again.
Memo
• I
f you turn the main power to OFF or select a
different pattern, the thread tension will reset to the
automatic setting.
Note
• If the bobbin thread was incorrectly threaded, the
upper thread may be too tight. In this case, refer to
“Setting the Bobbin” on page 26 and rethread the
bobbin thread.
1 Right side
2 Wrong side
Note
• If the upper thread was incorrectly threaded, the
upper thread may be too loose. In this case, refer
to “Upper Threading” on page 28 and rethread the
upper thread.
1 Right side
2 Wrong side
MAKING EMBROIDERY ADJUSTMENTS
75
Advanced Embroidery
3
Adjusting the Bobbin Case (with No Color
on the Screw)
The bobbin case (with no color on the screw) can be
easily adjusted when bobbin tension changes are
required to accommodate different bobbin threads.
Refer to “Embroidering Attractive Finishes” on page 62.
To adjust the bobbin tension for embroidery function,
using the bobbin case (with no color on the screw), turn
the slotted screw (-) with a (small) screwdriver.
1 Do not turn a phillips screw (+).
2 Adjust with a screwdriver (small).
■ Correct Tension
Upper thread slightly appears on the wrong side of fabric.
■ Bobbin Thread Is Too Loose
Bobbin thread appears slightly on the right side of fabric.
If this occurs, turn the slotted screw (-) clockwise, being
careful not to over-tighten the screw, approximately 30-45
degrees to increase bobbin tension.
■ Bobbin Thread Is Too Tight
Upper thread on the right side of fabric seems to be lifting/
looping and bobbin thread is not seen on the wrong side
of fabric.
If this occurs, turn the slotted screw (-) counterclockwise,
being careful not to over-loosen the screw, approximately
30-45 degrees to decrease bobbin tension.
1 Right side
2 Wrong side
1 Right side
2 Wrong side
1 Right side
2 Wrong side
a
b
CAUTION
• When adjusting the bobbin case, be sure to
remove the bobbin from the bobbin case.
• DO NOT adjust the position of the phillips (+)
screw on the bobbin case as this may result in
damage to the bobbin case, rendering it
unusable.
• If the slotted screw (-) is difficult to turn, do
not use force. Turning the screw too much or
providing force in either (rotational) direction
may cause damage to the bobbin case. Should
damage occur, the bobbin case may not
maintain proper tension.
MAKING EMBROIDERY ADJUSTMENTS
76
Using the Automatic Thread Cutting
Function (End Color Trim)
The automatic thread cutting function will cut
the thread at the end of embroidering each color. This
function is initially turned ON. To turn this function
OFF, press and then .
* This setting returns to its default when the
machine is turned off.
a
Press .
b
Press to turn off the automatic thread cutting
function.
The key will display as . When one color
thread is embroidered, the machine will stop without
cutting the thread.
Using the Thread Trimming Function
(Jump Stitch Trim)
The thread trimming function will automatically
trim any excess thread jumps within the color. This
function is initially turned ON. To turn this function
OFF, press key and then .
* Your customized setting remains after turning the
machine off and on.
1 Jump stitch
a
Press .
b
Press to turn off the thread trimming function.
The key will display as . The machine will
not trim the thread before moving to the next
stitching.
■ Selecting the Length Of Jump Stitch Not to
Trim
When the thread trimming function is turned on,
you can select the length of the jump stitch.
Select a setting from 5 mm to 50 mm in 5 mm increments.
* Your customized setting remains after turning the
machine off and on.
Press or to select the length of jump stitch.
a
MAKING EMBROIDERY ADJUSTMENTS
77
Advanced Embroidery
3
For example: Press to select 25 mm (1 inch) and the
machine will not trim a jump stitch of 25 mm or less
before moving to the next stitching.
Adjusting the Embroidery Speed
a
Press .
The settings screen appears.
b
Press .
The embroidery settings screen appears.
c
Display [Max Embroidery Speed] in the embroidery
settings screen.
d
Use to change the maximum embroidery
speed.
Changing the Thread Color Display
You can display the name of the thread colors or
embroidery thread number.
a
Press .
The settings screen appears.
b
Press .
The embroidery settings screen appears.
c
Display [Thread Color] in the embroidery settings
screen.
d
Use to display the name of the thread colors
or the embroidery thread number.
e
Use to select a thread brand.
Aligning the Pattern and the Needle
Example: Aligning the lower left side of a pattern and
the needle
Note
• If design has many trims it is recommended to
select a higher jump stitch trim setting in order to
reduce the amount of excess tails on backside of
fabric.
• The higher number of the jump stitch length
selected, the fewer number of times the machine
will trim. In this case, more jump stitches remain on
the surface of the fabric.
Memo
• SPM is the number of stitches embroidered in one
minute.
• Decrease the embroidery speed when
embroidering on thin, thick, or heavy fabrics and
when using a speciality thread like a metallic
thread.
• The setting specified before the main power is set
to OFF remains selected the next time that the
machine is turned ON.
Memo
• Colors on the screen may vary slightly from actual
spool colors.
• [Original], imported data remains the brand thread
created with the software, is set as a default.
MAKING EMBROIDERY ADJUSTMENTS
78
a
Mark the embroidery start position on the fabric, as
shown.
b
Press .
c
Press .
1 Start position
The needle is positioned in the lower-left corner of
the pattern. The carriage moves so that the needle is
positioned correctly.
d
Press .
e
Press and then, press .
f
Use to align the needle and the mark on the
fabric, and start embroidering the pattern.
Embroidering Linked Characters
Follow the procedure described below to embroider
linked characters in a single row when the entire
pattern extends beyond the embroidery frame.
Example: Linking “FG” to the characters “ABCDE”
a
Select the character patterns for “ABCDE”.
b
Press .
c
Press .
The needle is positioned in the lower-left corner of
the pattern. The carriage moves so that the needle is
positioned correctly. The machine is set to embroider
until the first stitch of the next character pattern (F).
d
Press .
1
Note
• To cancel the starting point setting and return the
starting point to the center of the pattern, press
or .
• Using can select a different starting point
for embroidering. However, the starting point
setting is canceled.
MAKING EMBROIDERY ADJUSTMENTS
79
Advanced Embroidery
3
e
Press .
f
Press to turn off the thread cutting function
and then press .
g
Start embroidering.
h
After the characters are embroidered, cut the threads
to a generous length, remove the embroidery frame,
reposition the fabric in the hoop so that the remaining
characters (“FG”) can be embroidered, and then attach
the embroidery frame.
1 End of the embroidering
i
As in step a, select the character patterns for “FG”.
j
Press .
k
Press .
The needle is positioned in the lower-left corner of
the pattern. The carriage moves so that the needle is
positioned correctly.
l
Press , then and use to align
the needle with the end of embroidering for the
previous pattern.
m
Press .
n
Press the “Start/Stop” button to start embroidering the
remaining character patterns.
a
USING THE MEMORY FUNCTION
80
Saving Embroidery Patterns
a
Press when the pattern you want to save is in
the embroidering screen.
b
Press the desired destination to start saving.
1 Save to the machine’s memory.
2 Save to the USB media. The pattern is saved in a folder
labeled [bPocket].
When saving the embroidery pattern in a USB media,
insert the USB media into the USB port on the machine.
3 Save the pattern via the wireless network connection.
For detailed procedures, refer to PE-DESIGN manual
(Version 11 or higher).
Retrieving Embroidery Patterns
a
Press the desired destination, and then select the
desired embroidery pattern.
1 Retrieve from the machine’s memory.
2 Retrieve from a USB media.
When retrieving the embroidery patterns from a USB
media, insert the USB media into the USB port on the
machine.
3 Retrieve the pattern via the wireless network connection.
For detailed procedures, refer to PE-DESIGN manual
(Version 11 or higher).
b
Press .
* Press to delete the embroidery pattern.
USING THE MEMORY FUNCTION
Note
• Do not turn the main power to OFF while the
[Saving…] screen is displayed. You will lose the
pattern you are saving.
• Embroidery patterns cannot be transferred if the
computer and machine are connected to different
home networks. Be sure to connect to the same home
network.
1 3
2
Memo
• If the embroidery pattern to be retrieved is in a
folder of the USB media, press the key for that
folder. Press to return to the previous screen.
• You can save all or multiple data to the machine by
pressing .
• To select multiple patterns, press their thumbnails.
• : Select all patterns.
• : Deselect all patterns.
• : Save the selected patterns to the machine.
* To cancel the selection, press again.
2
1
3
EMBROIDERY APPLICATIONS
81
Advanced Embroidery
3
Using a Frame Pattern To Make an Appliqué
■ Method 1
You can use framed patterns of the same size and shape to
create an appliqué. Embroider one pattern with a straight
stitch and one pattern with a satin stitch.
a
Select a straight stitch frame pattern. Embroider the
pattern onto the fabric for the appliqué piece, then cut
neatly around the outside of the shape.
b
Embroider the same pattern from step a onto the
base fabric.
c
Apply two-sided stabilizer material to the back of the
fabric for the appliqué piece created in step
a. Attach
the appliqué to the base fabric matching the shapes.
d
Select the satin stitch frame pattern of the same shape
as the appliqué. Embroider over the fabric for the
appliqué piece and base fabric from step c to create
the appliqué.
■ Method 2
a
Select a straight stitch frame pattern, and embroider
the pattern onto the base fabric.
b
Place the fabric for the appliqué piece over the pattern
embroidered in step
a and embroider the same
pattern on the fabric for the appliqué piece.
* Be sure that the fabric for the appliqué piece
completely covers the stitched line.
EMBROIDERY APPLICATIONS
Note
• If you change the size or position of the patterns
when making an appliqué, make a note of the size
and the location.
EMBROIDERY APPLICATIONS
82
c
Remove the embroidery frame from the embroidery
unit, and cut around the outside of the stitches of the
fabric for the appliqué piece. And then, reattach the
embroidery frame to the embroidery unit.
d
Select the satin stitch frame pattern of the same shape
as the appliqué and embroider the satin stitch pattern
to create an appliqué.
Embroidering Split Embroidery Patterns
Split embroidery patterns created with PE-DESIGN Ver.
7 or later, or PE-DESIGN NEXT can be embroidered.
With split embroidery patterns, embroidery patterns
larger than the embroidery frame are divided into
multiple sections, which combine to create a single
pattern after each section is embroidered.
For details on creating split embroidery patterns and for
more detailed embroidery instructions, refer to the
Instruction manual included with PE-DESIGN Ver. 7 or
later, or PE-DESIGN NEXT.
a
Insert the USB media containing the created split
embroidery pattern, and then select the split
embroidery pattern to be embroidered. (page 80)
b
Select section to be embroidered.
c
Press .
Note
• Do not remove the fabric from the embroidery
frame to cut it. Also, do not pull or push on the
fabric. Otherwise, the fabric may loosen in the
frame.

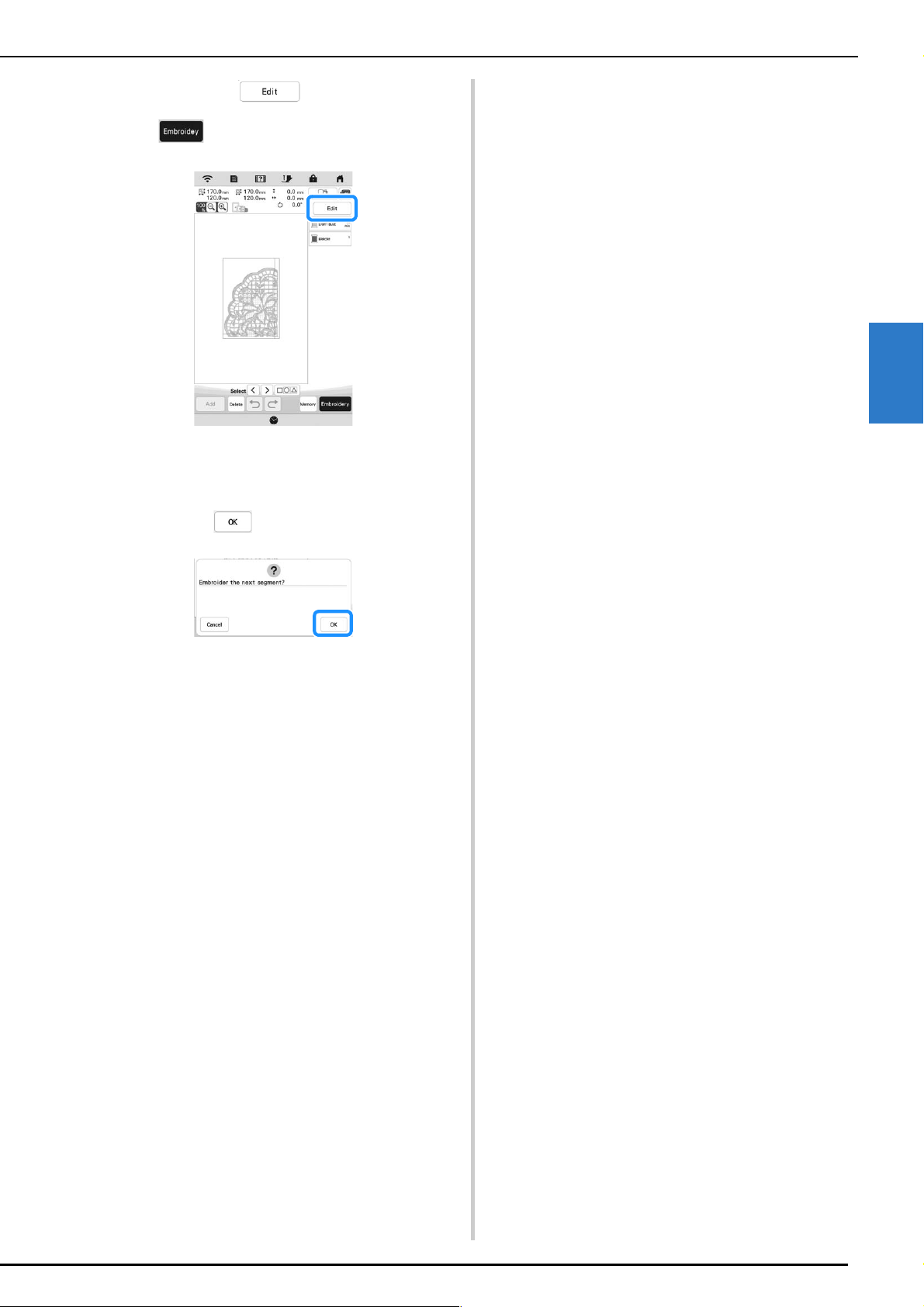

EMBROIDERY APPLICATIONS
83
Advanced Embroidery
3
d
If necessary, press and edit the pattern.
Press to display the embroidery screen.
e
Embroider the pattern section.
f
When embroidering is finished, the following screen
appears. Press .
A screen appears so that a section of the split
embroidery pattern can be selected.
g
Repeat steps b through f to embroider the
remaining sections of the pattern.
EMBROIDERY APPLICATIONS
84
Chapter 4
My Design Center
ABOUT MY DESIGN CENTER
86
With My Design Center, you can use the functions listed
below:
• Hand-drawn functions - creating embroidery patterns
by drawing on the LCD screen
• Loading functions - creating embroidery patterns by
transferring data from the application or USB media.
You can also combine patterns that you have created with
the machine’s built-in patterns.
Start My Design Center by pressing in the home
page screen or pressing in the embroidery pattern
selection screen.
1 Pattern drawing area
2 Pattern preview area
ABOUT MY DESIGN CENTER PATTERN DRAWING SCREEN
Memo
• The actual dimension of the pattern area is the size
of the embroidery frame, which is shown in the
pattern preview area. The pattern you drew may be
bigger than you expected. Please resize the pattern
after converting the design to the embroidery
pattern.
• When the pattern is enlarged so that only a part of
it appears in the pattern drawing area, the entire
pattern is displayed in the pattern preview area.
The red frame in the pattern preview area indicates
the part of the pattern displayed in the pattern
drawing area. Move the red frame in the pattern
preview area with the touch pen (stylus) or your
finger to display the corresponding area in the
pattern drawing area.
3
L
5 6
G
8
0
B
D
K J I H
F
1
4
2
7
9
A
C
E
My Design Center
4
PATTERN DRAWING SCREEN
87
■ Key Functions
No.
Display
Explanation Page
Name
3 Magnify the pattern. 89
Magnify key
4 Load the fabric as the
background or the picture as the
reference when creating the
pattern. You can load the image
file from the application or USB
media.
94
Load key
5 Load a line drawing, then edit and
convert it to embroidery data. You
can load a line drawing from the
application or USB media to
create the embroidery design.
95
Line design key
6 Load an image, then edit and
convert it to embroidery data. You
can load an image from the
application or USB media to
create the embroidery design.
97
Image design
key
7 Draw lines and set the color. You
can select the line type, stitch
type and color as you need.
Press to pick up the color,
line type and stitch type from a
line in the pattern within the
pattern drawing area. The picked
up color is shown as the currently
selected line color beside the
button and as the selected color
in the Line Property screen.
88
Line tool key
8 Paint with brush and set the color.
You can select the brush type, fill
type and color as you need.
Painted lines and regions will be
converted to the pattern to be
embroidered with fill stitch.
Press to pick up the color,
brush type and fill type from a
region in the pattern within the
pattern drawing area. The picked
up color is shown as the currently
selected region color beside the
button and as the selected color
in the Region Property screen.
89
Brush tool key
9 Erase lines and shapes that have
been drawn. You can select the
size/shape of the eraser.
91
Erase key
0 Select the stamp shape for
pattern drawing.
90
Stamp key
A Select a section for moving by
finger or pen, copying, deleting,
changing size and rotating lines
and shapes that have been
drawn.
91
Select key
B Cut out the selected section. —
Cut key
C Change the size of the selected
section.
99
Size key
D Rotate the selected section. —
Rotate key
E Duplicate the selected section.
The temporarily positioned
section can immediately be
rotated, enlarged, reduced or
moved.
—
Duplicate key
F Paste in the pattern drawing area
a selected section duplicated with
the duplicate key or a selected
section using the cut key.
—
Paste key
G Proceed to the stitch settings
screen.
—
Next key
H Recall image data created with
My Design Center from the
machine’s memory or the USB
media.
—
Recall key
I Store the pattern being created to
the machine’s memory or the
USB media.
—
Memory key
J Undo the last operation that was
performed and return to the
previous state. Each press of this
key will undo one operation.
—
Undo key
K Clear all the lines and shapes and
start from the beginning. The
background image is also
cleared.
—
All Clear key
L Exit from My Design Center. All
lines and shaped are erased
when you press this key.
—
Cancel key
No.
Display
Explanation Page
Name
PATTERN DRAWING SCREEN
88
Before Creating Designs
The pattern preview displays the design smaller than
the actual size. You can view the actual pattern size by
setting the [Embroidery Frame Display].
With [Embroidery Frame Display] in the settings screen,
the embroidery frame and grid can be specified
separately.
a
Press .
The settings screen appears.
b
Press .
The embroidery settings screen appears.
c
Display [Embroidery Frame Display] in the embroidery
settings screen.
d
Select the embroidery frame display.
1 Embroidery frame types
2 Grid types
Drawing Lines
a
Press and draw lines.
■ Setting the Line Types, Stitch Types and Colors
You can set or change the line types, stitch types and
colors anytime. You can also specify the line types, stitch
types and colors before drawing lines.
a
Press to set the line types, stitch types and colors.
The settings screen appears.
1 Line types
2 Stitch types
3 Line color selection: touch the color palette to activate
the drawing pen color.
Line types
Memo
• When is pressed, all regions will be displayed
in the background to clarify the drawing lines on
the screen.
1
2
Freehand line with the end open.
Freehand line closing the end automatically.
Straight line with one stroke
Straight line changing directions to the point
you select. If the end point is created near the
start point, a closed object will be created.
1
3
2
My Design Center
4
PATTERN DRAWING SCREEN
89
Stitch types
b
Press to return to the pattern drawing screen.
The color bar on the line tool key is changed to the
selected color.
* The appearance of the line does not change even if
the line type was changed. The specified line type
can be checked in the stitch settings screen.
1 Color bar
c
Press then press on the line to change its color.
The connected line will be changed to the selected
color.
Drawing Regions
a
Press and draw with brush.
■ Setting the Brush Types and Fill Colors
a
Press to set the brush types and fill colors.
1 Brush types
2 Fill stitch types
3 Fill color selection: touch the color palette to activate the
paint brush color.
Brush shapes/sizes
Fill stitch types
Select when you don’t want fill stitch.
Zigzag stitch
Running stitch
Triple stitch
Candlewicking stitch
Chain stitch
Line without stitch for creating a region.
Created region will be defined by the gray line.
Memo
• Press to magnify the image when you cannot
press on the line correctly.
• Press , and then select a color within the
pattern drawing area to apply the same color to
other lines or parts of the pattern.
1 Use to select the line color.
2 Press for changing the line color, and then
select the pattern to be changed.
1
1
2
Square brush
Round brush
Small brush
Medium brush
Large brush
Fill stitch
Stippling stitch
Decorative fill stitches
Displays a stitch selection screen, where
can be pressed to select a stitch.
1
3
2
PATTERN DRAWING SCREEN
90
b
Press to return to the pattern drawing screen.
The color bar on the brush tool key is changed to the
selected color. If a stippling stitch or decorative fill
stitch has been selected, the stitch is displayed.
1 Color bar
c
Press and press on the brush line to change color
and fill stitch type. You can also set the color and fill
stitch type of a closed region made of the line.
Using the Stamp Key
a
Press .
b
Select a stamp type and stamp shape.
1 Stamp shapes
2 Stamp types
3 Saved outlines
4 Frame embroidering areas
Stamp shapes
Stamp types (Only for Basic shapes)
* Select the outline ( ), fill stitch ( ), or outline
and fill stitch ( ) of a basic shape.
Memo
• Press to magnify the image when you cannot
press on the fill correctly.
• Press , and then select a pattern color in the
pattern drawing area to apply that fill color to other
patterns.
1 Use to select the fill color.
2 Press for changing the fill color, and then
select the pattern to be changed.
1
1
2
Basic shapes
Closed shapes
Open shapes
Outline
Fill stitch
Outline and fill stitch
3
2
4
1
My Design Center
4
PATTERN DRAWING SCREEN
91
Saved outlines
Frame embroidering areas
* Press to return to the pattern drawing screen.
c
Press to set the selected stamp.
The pattern drawing screen appears.
* You can change size of, rotate or move the shape
right after you create it by pressing or .
Using the Erase Key
a
Press .
b
Select the shape of the eraser.
The pattern drawing screen appears.
c
Drag along the area or line that you want to erase
while the key appears as .
Using the Select Key
You can select the part of the design to move and/or
edit. Some keys are available only after you select the
part.
a
Press .
b
Select the area you want to edit.
* To select an area you want to edit, hold the touch
pen (stylus) at a point on the screen and drag the
touch pen (stylus) to create the red box around your
selected area to be edited.
c
Edit the design with available keys. (Refer to “Key
Functions” on page 87 for the details of each key
function.)
d
Press , and then specify the stitch setting.
Embroidery pattern outlines can be registered
as stamp shapes. When registering stamp
shapes, select from the last six embroidery
patterns used. If more than six shapes are
registered, the oldest one is automatically
erased. For details on registering a stamp
shape, refer to “Decorative Stitching around a
Pattern in Embroidery (a Quilting Function)” on
page 101.
Select an embroidering area in order to
arrange the pattern to fit an embroidery frame.
STITCH SETTINGS SCREEN
92
Before creating the embroidery pattern, specify the stitch
settings. Lines of the design are embroidered with various
stitches and regions are embroidered with fill stitches or
stippling stitches. Stitching of the regions was already
selected in “Drawing Regions” on page 89, so specify
values of detailed settings.
After specifying the settings, press to create the
embroidery pattern.
Specifying Individual Stitch Settings
Select a pattern in the stitch settings screen to specify its
line and region stitch settings. If multiple patterns are
selected, the settings are applied to those patterns.
■ Line Settings
1 Shows the stitch type and color for the selected line.
2 Shows the stitch settings for the selected line.
Line stitch settings
Select the type of stitching you want applied to your line
art, from zigzag stitch ( ), running stitch ( ), triple
stitch ( ), candlewicking stitch ( ) or chain stitch
().
Zigzag stitch
Running stitch /Triple stitch
* Both includes an under sewing.
Candlewicking Stitch
Chain stitch
■ Region Settings
1 Shows the stitch type and color for the selected region.
2 Shows the stitch settings for the selected region.
Fill stitch settings
Stippling stitch settings
Decorative fill stitch settings
STITCH SETTINGS SCREEN
Zigzag width
Specifies the width of the stitch.
Density
Specifies the density of the stitch.
Run pitch
Specifies the length of the stitch.
1
2
Size
Increases/reduces the size of the stitch.
Spacing
Specifies the spacing of the stitch.
Size
Increases/reduces the size of the stitch.
Repetition
Sets repeated embroidering at the same
part.
Direction
Specifies the embroidering direction. Select
to change to the desired direction of
fill stitch.
Density
Specifies the stitch density of fill stitch.
Pull
compensation
Specifies to correct the shrinkage of the
pattern by slightly shortening or lengthening
the stitching. Change the setting after you
embroider the pattern and can check the
shrinkage.
Under
sewing
Select if you need or do not need the under
sewing for the stabilized fabric.
Run pitch
Specifies the length of a stitch of the
stippling stitch.
Spacing
Specifies the spacing between the stitches
when embroidering the stippling stitch.
Distance Specifies the offset from the pattern outline.
Size
Increases/reduces the size of the pattern.
Direction
Specifies the rotation angle of the pattern.
Outline
Select whether [ON] or [OFF] the outline is
also converted to embroidery data. If [ON] is
selected, the number of thread jumps can be
reduced.
1
2
My Design Center
4
STITCH SETTINGS SCREEN
93
a
Use to select the line or region to be changed.
Each press of moves the highlighting of the
selected pattern in order.
b
Select the setting to be changed, and then change the
setting in the screen that appears. (In this example, the
embroidering direction will be changed.)
The setting screen appears.
c
Press , and then use to change the
direction.
d
Press to apply the setting.
* appears on the tab for settings that were
changed.
* Change other settings in the same way.
Specifying Global Stitch Settings
The same stitch settings can be changed at the same
time for multiple patterns of the same type.
a
Use
to select the stitch whose settings are to
be changed, and then press .
The same stitch type lines or regions will be selected
at the same time.
b
Follow steps b through d in “Specifying Individual
Stitch Settings” on page 92 to change the settings.
c
Press to create the embroidery pattern.
When the following message appears, press .
STITCH SETTINGS SCREEN
94
d
Press to display the pattern editing screen.
When the following message appears, press .
1 : Check an enlarged view of the pattern.
2 : Save the embroidery data.
Loading the Background Image
Prepare the data file of your favorite picture so that you
can create an embroidery pattern. Load the image file
from the application or a USB media.
a
Press .
b
Select the device you saved the data to.
c
Select the data, and then press .
d
The selected image is displayed transparently in the
pattern drawing area.
1
2
My Design Center
4

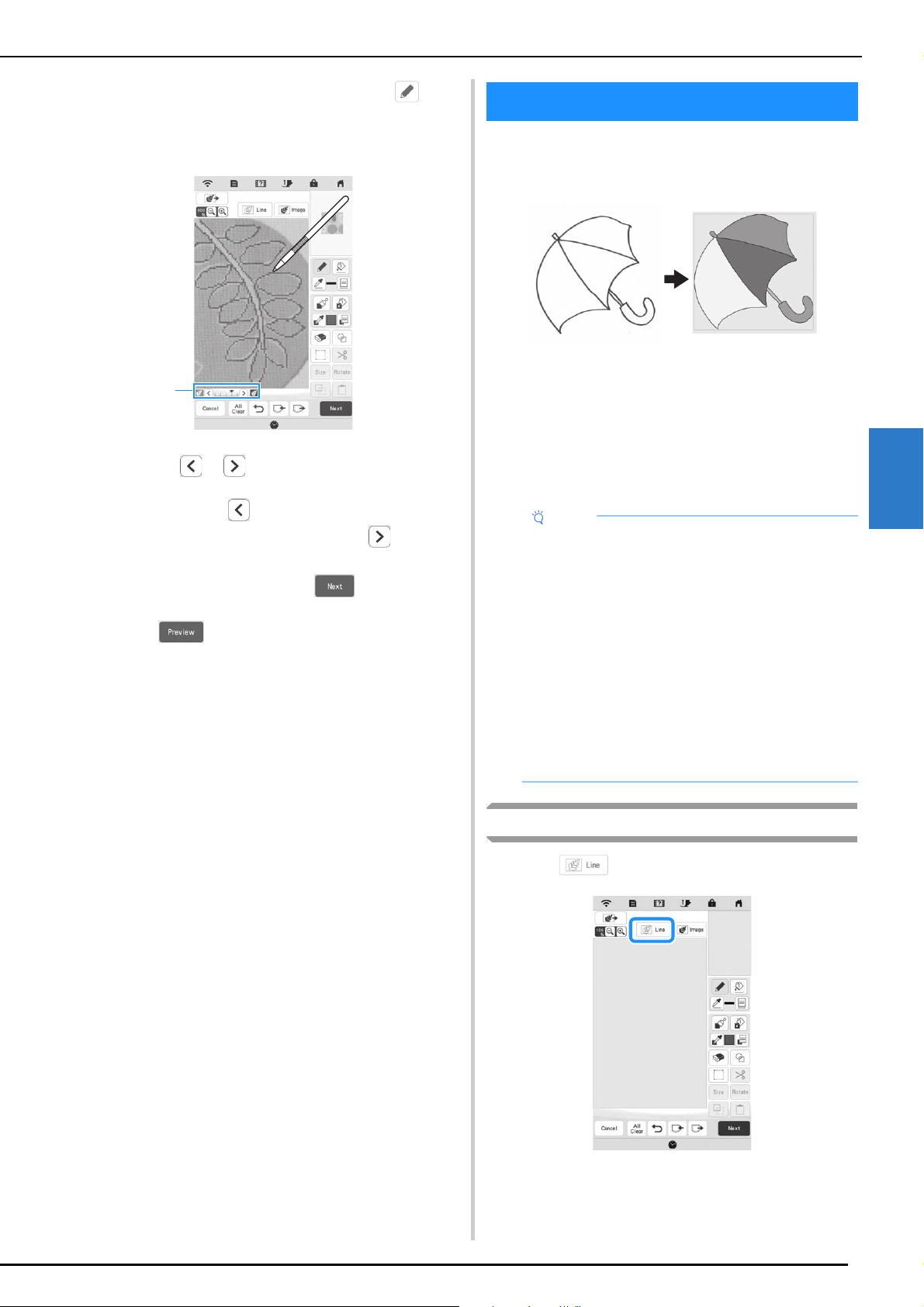

LINE CONVERSION
95
e
Using the included touch pen (stylus), press , and
then draw lines to trace the image.
* For details on drawing lines, refer to “Drawing
Lines” on page 88.
1 Transparency adjustment
* Press or to adjust the transparency of the
background.
Each press of lightens the background, making
the line pattern darker. Each press of darkens
the background, making the line pattern lighter.
f
After editing the pattern, press to specify the
settings for pattern.
g
Press to create the embroidery pattern.
Custom patterns can be created from drawings. You can
create patterns by loading an image on the application or a
USB media.
Recommended line drawings for Line Conversion
• Line drawings must be drawn clearly using lines with
approximately 1 mm thickness.
• Line drawings should be drawn in a strong contrast.
• If the lines are too short or gathered too densely, they
will not be loaded correctly.
Create a Pattern with Line Conversion
a
Press .
The image display screen appears.
1
LINE CONVERSION
Note
• For details on creating patterns using color
illustrations, refer to “ILLUSTRATION
CONVERSION” on page 97.
• If you cannot convert the drawings as expected,
you can edit the design in My Design Center. Refer
to “PATTERN DRAWING SCREEN” on page 86.
• Line drawings are converted without recognizing
the thickness of lines. If you want to change the
thickness of lines, specify in the settings screen.
Refer to “STITCH SETTINGS SCREEN” on
page 92.
• Line drawings are converted as black lines. If you
want to change the colors, specify in My Design
Center. Refer to “Drawing Lines” on page 88.
LINE CONVERSION
96
b
Select the device you saved the data to.
c
Select the data, and then press .
d
When loading is finished, specify the [Gray-Scale
Detection level] on the screen if necessary.
The [Gray-Scale Detection level] can change the black
and white threshold for the image.
* If you do not know how the settings should be
changed, first continue the operation without
specifying settings and check the results.
* To stop loading and return to the screen in step
b,
press . The loaded image will be deleted
when you return to the previous screen.
e
Move to frame the image for the pattern.
f
Press .
The screen for confirming the converted image
appears.
g
In the screen for confirming the converted image, you
can adjust the [Gray-Scale Detection level] again, if
necessary.
1 The settings for the lines to be embroidered appear.
* If you do not know how the settings should be
changed, first continue the operation without
specifying settings and check the results.
* : Enlarge the image.
* : Display the image before being
converted. Compare the images before and after
being converted, and then change the settings if
necessary.
* : Return to the previous screen.
After changes to the settings for [Gray-Scale
Detection level] are applied, changes to
. Press to check that the image is as
desired.
h
Press .
The pattern drawing screen appears.
i
If necessary, edit the loaded image.
* After the loaded image is converted to stitching, it
appears as a background in the pattern drawing
screen. Use gauge 1 to adjust the transparency of
the background. Each press of lightens the
background, making the line pattern darker. Each
press of darkens the background, making the
line pattern lighter.
1
1
My Design Center
4
ILLUSTRATION CONVERSION
97
Custom patterns can be created from color illustrations.
You can create patterns by loading an image on the
application or a USB media.
Recommended illustrations for Illustration Conversion
• Illustrations that are clearly drawn, with no
gradation, fading or blurriness.
• Illustrations that are at least a 5 mm square
• Illustrations that are extremely simple images
Create a Pattern with Illustration Conversion
a
Press .
The image display screen appears.
b
Select the device you saved the data to.
c
Select the data, and then press .
d
When loading is finished, specify the necessary settings
in the loaded image confirmation screen.
Change the settings to adjust the image so it can easily
be converted to the desired pattern.
* To stop loading and return to the screen in step
b ,
press .
ILLUSTRATION CONVERSION
1 [Max. Number of
Colors]
The number of colors in an image will
be reduced less than the number
specified here, and then the outline
will be extracted.
2 [Remove Background] Select whether or not the
background color will be included as
one of the colors.
3 [Line] Select whether or not the outline will
be detected as a line. A thick outline
can also be detected as a region.
When detected as a line, the line
thickness and color can be specified.
3
2
1
ILLUSTRATION CONVERSION
98
e
Move to frame the image for the pattern.
f
Press .
The screen for confirming the converted image
appears.
g
In the screen for confirming the converted image,
adjust the image as necessary as in step
d.
* : Enlarge the image.
* : Display the image before being
converted. Compare the images before and after
being converted, and then change the settings if
necessary.
* : Return to the previous screen.
After changes to the settings described above have
been applied, changes to . Press
to check that the image is as desired.
h
Press .
The pattern drawing screen appears.
i
If necessary, edit the loaded image.
* After the loaded image is converted to stitching, it
appears as a background in the pattern drawing
screen. Use gauge 1 to adjust the transparency of
the background. Each press of lightens the
background, making the illustration pattern darker.
Each press of darkens the background, making
the illustration pattern lighter.
Memo
• Press to detect the outline.
Line thickness can be specified from 1.0 mm (1/16
inch) to 5.0 mm (3/16 inch).
• Press to select the outline color. Select by
touching the color, or moving icon using
in the color selection screen.
1
My Design Center
4

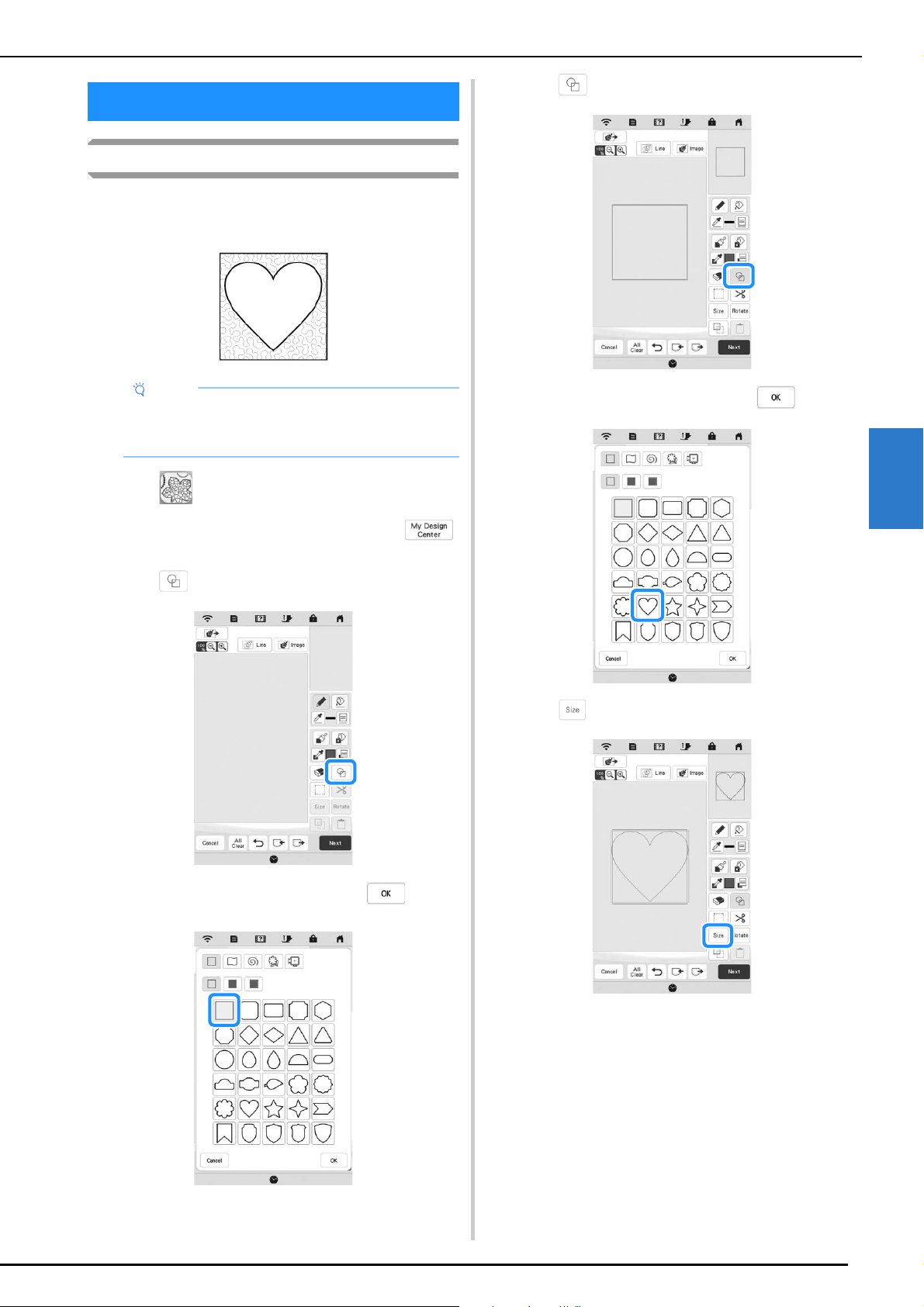

STIPPLING
99
Basic Stippling with My Design Center
Create a stippling design with the basic procedure.
Example:
a
Press .
* You can also start the function by pressing
in the embroidery pattern selection screen.
b
Press .
c
Select the square shape, and then press .
d
Press .
e
Select the heart shape, and then press .
f
Press .
STIPPLING
Note
• You can load a line drawing to create a stippling
stitch or use image design function of a fabric
pattern and incorporate the stippling stitch.
STIPPLING
100
g
Press until the heart shape fits in the square
shape, and then press .
h
Press , and then press .
i
Press , and then select the stitch color. Press
after setting the color.
j
Select the region you want to set stippling effect.
1 Select this region.
k
Press .
l
Adjust the stippling stitch settings to create the desired
effect, and then press .
* For details, refer to “Specifying Individual Stitch
Settings” on page 92.
When the following message appears, press .
1
My Design Center
4
STIPPLING
101
m
Press to convert into embroidery.
When the following message appears, press .
n
Follow the procedure described on “EDITING
PATTERNS” on page 42 to edit the pattern as desired.
Decorative Stitching around a Pattern in
Embroidery (a Quilting Function)
A quilt can be created with stippling stitch around an
embroidery pattern.
a
Hoop the top layer of fabric in the embroidery frame,
and then attach the frame to the machine.
b
Press in the home page screen and select the
pattern that decorative stitching will be added around,
and then press in the embroidery edit screen.
The outline of the pattern is displayed.
c
Set the distance and press .
A message appears, and the pattern outline is
registered as a stamp shape in My Design Center.
Press .
Memo
• For best results, reduce the embroidery speed.
(page 17)
STIPPLING
102
d
Press to continue to the embroidery screen,
and then embroider the pattern at the center.
e
Remove the embroidery frame from the carriage.
f
Photograph the embroidery frame with the application.
g
Attach the embroidery frame to the carriage again.
h
Place the batting and bottom layer of fabric under the
embroidery frame.
i
Press in the home page screen to start My
Design Center.
j
Press to load the embroidered fabric. Refer to
“Loading the Background Image” on page 94 for
details.
k
Press , press to recall the stamp shape
registered in step
c, and then arrange it over the
loaded pattern.
l
Use a stamp or rectangular frame to determine the
region to be stitched.
m
Use the brush tool keys to select the stitch and color of
the decorative stitching.
n
Fill the region to be stitched outside of the stamp shape
outline.
Note
• If the region is to be drawn by hand, be sure to
draw a completely closed shape. If the region is not
closed, it will not be correctly closed with any of
the fill stitches.
My Design Center
4
STIPPLING
103
o
Set the line type for the frame and pattern to , and
then press .
* Stitch settings can be adjusted in the stitch settings
screen. For details, refer to “STITCH SETTINGS
SCREEN” on page 92.
p
Specify the stitch spacing and length in the stitch
settings screen, and then press .
Check the pattern, and then press .
q
Embroider the stippling stitch around the embroidery
pattern.
STIPPLING
104
Chapter 5
Appendix
CARE AND MAINTENANCE
106
If the surface of the machine is dirty, lightly soak a cloth
in neutral detergent, squeeze it out firmly, and then
wipe the surface of the machine. After cleaning it once
with a damp cloth, wipe it again with a dry cloth.
If the screen is dirty, gently wipe it with a soft, dry cloth.
Do not wipe the LCD screen with a damp cloth. Do not
use organic solvents or detergents.
Restrictions on Oiling
In order to prevent damaging this machine, it must not
be oiled by the user. This machine was manufactured
with the necessary amount of oil applied to ensure
correct operation, making periodic oiling unnecessary.
If problems occur, such as difficulty turning the
handwheel or an unusual noise, immediately stop using
the machine, and contact your authorized Brother
dealer or the nearest Brother authorized service center.
Precautions on Storing the Machine
Do not store the machine in any of the locations
described below, otherwise damage to the machine
may result, for example, rust caused by condensation.
* Exposed to extremely high temperatures
* Exposed to extremely low temperatures
* Exposed to extreme temperature changes
* Exposed to high humidity or steam
* Near a flame, heater or air conditioner
* Outdoors or exposed to direct sunlight
* Exposed to extremely dusty or oily environments
Cleaning the Race
a
Press (Needle position button) to raise the needle.
b
Turn the main power to OFF.
c
Remove the needle and presser foot (page 30,
page 108).
d
Remove the bobbin cover.
e
Slide the needle plate cover toward you to remove it.
f
Grasp the bobbin case, and then gently lift out.
g
Use the cleaning brush or a vacuum cleaner to remove
any lint and dust from the race and bobbin thread
sensor and the surrounding area.
1 Cleaning brush
2 Race
3 Bobbin thread sensor
h
Insert the bobbin case so that the mark on the
bobbin case aligns with the
● mark on the machine.
* Align the and
● marks.
1 mark
2
● mark
3 Bobbin case
CARE AND MAINTENANCE
CAUTION
• Be sure to unplug the machine before cleaning
it. Otherwise, electric shock or injury may
result.
Note
• In order to extend the life of this machine,
periodically turn it on and use it. Storing this
machine for an extended period of time without
using it may reduce its efficiency.
Note
• If the embroidery unit is attached, the needle plate
can be removed when the bobbin cover is
removed.
Note
• Do not apply oil to the bobbin case.
• If lint or dust collects on the bobbin thread sensor,
the sensor may not operate correctly.
a
b
c
a
b
a
b
c
CARE AND MAINTENANCE
107
Appendix
5
* Make sure that the indicated points are aligned
before installing the bobbin case.
i
Insert the tabs on the needle plate cover into the
needle plate, and then slide the cover back on.
j
Reattach the bobbin cover.
Cleaning the Cutter in the Bobbin Case Area
The cutter below the needle plate should be cleaned. If
dust or lint accumulate on the cutter, it will be difficult
to cut the thread when (Thread cutter button) is
pressed or the automatic thread cutting function is used.
Clean the cutter when the thread is not easily cut.
a
Follow steps a through e in “Cleaning the Race” to
remove the needle plate cover.
b
Use the screwdriver included with the machine to
unscrew and remove the needle plate.
c
Use the cleaning brush or a vacuum cleaner to remove
any lint and dust from the cutter in the bobbin case
area.
1 Cutter
d
Align the two screw holes in the needle plate with the
two holes at the needle plate mounting base, and then
fit the needle plate onto the machine.
e
Lightly finger-tighten the screw on the right side of the
needle plate. Then, use the screwdriver included to
firmly tighten the screw on the left side. Finally, firmly
tighten the screw on the right side.
f
Replace the bobbin case and the needle plate cover
following steps
h through j in “Cleaning the Race”.
Changing Embroidery Foot “W+” with LED
Pointer
a
Press (Needle position button) to raise the needle.
b
Press to lock all keys and buttons.
* If the message [OK to automatically lower the
presser foot?] appears on the LCD screen, press
to continue.
CAUTION
• Never use a bobbin case that is scratched,
otherwise the upper thread may become
tangled, the needle may break or machine
performance may suffer. For a new bobbin
case, contact your nearest Brother authorized
service center.
• Be sure that the bobbin case is correctly
installed, otherwise the needle may break.
a
CAUTION
• Do not touch the cutter, otherwise injuries
may result.
CAUTION
• When attaching an embroidery foot, always
press on the screen. You may
accidentally press the “Start/Stop” button and
possibly cause injury.
• Be sure to use embroidery foot “W+” with LED
pointer when doing embroidery. Using
another embroidery foot may cause the needle
to strike the embroidery foot, causing the
needle to bend or break and possibly cause
injury.
Note
• Before replacing the needle, cover the hole in the
needle plate with fabric or paper to prevent the
needle from falling into the machine.
ADJUSTING THE SCREEN
108
c
Raise the presser foot lever.
d
Remove the connector of the embroidery foot “W+”
with LED pointer from the connector on the back of
the machine.
e
Use the included disc-shaped screwdriver to loosen the
screw for the embroidery foot, and then remove the
embroidery foot “W+” with LED pointer.
f
Position the embroidery foot “W+” with LED pointer
on the presser foot bar by aligning the notch of the
presser foot to the large screw.
Side view
g
Hold the embroidery foot in place with your right
hand, and then use the disc-shaped screwdriver to
securely tighten the screw for the embroidery foot.
1 Screw for embroidery foot
h
Plug the connector of the embroidery foot “W+” with
LED pointer into the jack on the back left side of your
machine.
i
Press to unlock all keys and buttons.
All keys and operation buttons are unlocked, and the
previous screen is displayed.
Touch Panel is Malfunctioning
If the screen does not respond correctly when you
touch a key (the machine does not perform the
operation or performs a different operation), follow the
steps below to make the proper adjustments.
a
Holding your finger on the screen, turn the main
power switch to OFF and back to ON.
The touch panel adjustment screen appears.
CAUTION
• Use the disc-shaped screwdriver to firmly
tighten the screw for the embroidery foot. If
the screw is loose, the needle may strike the
embroidery foot and possibly cause injury.
a
a
ADJUSTING THE SCREEN
TROUBLESHOOTING
109
Appendix
5
b
Using the included touch pen, lightly touch the center
of each +, in order from 1 to 13.
c
Turn the main power to OFF, then turn it back to ON.
If the machine stops operating correctly, check the
following possible problems before requesting service.
You can solve most problems by yourself. If you need
additional help, the Brother Solutions Center offers the
latest FAQs and troubleshooting tips.
Visit us at “ http://s.brother/cpeab/
”.
If the problem persists, contact your authorized Brother
dealer or the nearest Brother authorized service center.
Untangling Thread from beneath the Bobbin
Winder Seat
If the bobbin winding starts when the thread is not
passed through the pretension disk correctly, the thread
may become tangled beneath the bobbin winder seat.
Wind off the thread according to the following
procedure.
a
Press to stop the bobbin winding.
b
Cut the thread with scissors near the pretension disk.
1 Pretension disk
c
Push the bobbin winder switch to the right, and then
raise the bobbin at least 10 cm (4 inches) from the
shaft.
Note
• Only use the included touch pen to touch the
screen. Do not use a mechanical pencil, pin, or
other sharp object. Do not press too hard on the
screen. Otherwise, damage may result.
Note
• If you finish the screen adjustment and the screen
still does not respond, or if you cannot do the
adjustment, contact your authorized Brother
dealer.
TROUBLESHOOTING
1 Thread
2 Bobbin winder seat
CAUTION
• Do not remove the bobbin winder seat even if
the thread becomes tangled under the bobbin
winder seat. It may result in injuries.
a
b
a
TROUBLESHOOTING
110
d
Cut the thread near the bobbin to completely remove
the bobbin from the shaft. Hold the thread end with
your left hand, and wind off the thread clockwise from
under the bobbin winder seat with your right hand as
shown below.
List of Symptoms
Check the following possible problems before requesting
service. If the reference page is “*”, contact your
authorized Brother dealer or the nearest Brother
authorized service center.
■ Getting Ready
Symptom, Cause/solution
Reference
Cannot thread the needle.
Needle is not in the correct position.
• Press (Needle position button) to raise
the needle.
10
Needle is installed incorrectly. 30
Needle is turned, bent or the point is dull. 30
Upper threading is incorrect. 28
The needle threader hook is bent and does not
pass through the eye of the needle.
*
The needle threader lever cannot be moved or
returned to its original position.
*
Cannot lower the presser foot with the presser foot
lever.
Presser foot was raised using (Presser foot
lifter button).
• Press (Presser foot lifter button) to lower
the presser foot.
10
Bobbin thread does not wind neatly on the bobbin.
The thread is not passed through the bobbin
winding thread guide correctly.
24
Bobbin spins slowly. 25
The thread that was pulled out was not wound
onto the bobbin correctly.
24
The empty bobbin was not set on the pin
properly.
23
While winding the bobbin, the bobbin thread was
wound below the bobbin winder seat.
You have not wound the bobbin thread properly
when you initially wound thread on the bobbin.
Ensure that the bobbin thread was properly set in
the guides.
23
The bobbin thread cannot be pulled up.
Needle is turned, bent or the point is dull. 30
Bobbin is set incorrectly. 26
Machine does not operate
All keys and buttons have been locked by .
30, 107
Nothing appears in the LCD.
Main power switch is not turned on.
14
The plug of the power cord is not inserted into an
electrical outlet.
14
The LCD screen does not look very clear.
The brightness of the screen is not adjusted. 16
Nothing happens, even if the LCD display is pressed
Adjust the screen.
108
The screen has been locked.
• Press either of the following keys to unlock the
screen.
—
The LCD screen is fogged up.
Condensation has formed on the LCD screen.
• After a while, the cloudiness will disappear.
—
Embroidery unit does not operate.
Embroidery unit is not attached correctly.
34
Embroidery frame was attached before the unit
was initialized.
34
Symptom, Cause/solution
Reference
TROUBLESHOOTING
111
Appendix
5
■ While Operating
Pointer of the embroidery foot “W+” with LED pointer
does not indicate the position correctly
With thick elastic fabric, the position will be
misaligned only at raised parts in the fabric.
59
With fabric having a very uneven surface, the
position is not correctly aligned.
• The pointer indication should be used only as a
reference.
—
Symptom, Cause/solution
Reference
Machine does not operate.
“Start/Stop” button was not pressed.
10
Presser foot is not lowered.
10
Needle breaks.
Needle is installed incorrectly. 30
Needle clamp screw is not tightened. 31
Needle is turned or bent. 30
Using improper needle, thread or the fabric
prepared insufficiently for embroidering.
30, 55,
62
Upper thread tension is too tight. 73
Fabric is pulled during embroidering. —
Spool cap is set incorrectly. 28
There are scratches around the opening in the
presser foot.
*
There are scratches on the bobbin case. *
Needle is defective. 30
A bobbin designed specifically for this machine is
not being used.
23
Upper threading is incorrect. 28
Bobbin is set incorrectly. 26
Presser foot is attached incorrectly. 107
Stabilizer is not attached to fabric being
embroidered.
55
Bobbin thread is incorrectly wound. 23
Upper thread breaks.
Machine is not threaded correctly (used the
wrong spool cap, spool cap is loose, the thread
did not catch the needle bar threader, etc.)
28
Knotted or tangled thread is being used.
—
Upper thread tension is too tight. 73
Thread is twisted.
—
Symptom, Cause/solution
Reference
Needle is turned, bent or the point is dull. 30
Needle is installed incorrectly. 30
There are scratches around the opening in the
presser foot.
*
There are scratches on the bobbin case. *
Using improper needle or thread for the selected
fabric.
30
A bobbin designed specifically for this machine is
not being used.
23
Thread is weak, dry rotted, or of poor quality. —
The thread is tangled on the wrong side of the fabric.
Upper threading is incorrect. 28
Using improper needle or thread for the selected
fabric.
30
The upper thread is too tight.
The bobbin thread is incorrectly installed. 26
Bobbin thread breaks.
Bobbin is set incorrectly. 26
Bobbin thread is incorrectly wound. 23
There are scratches on the bobbin or it doesn’t
rotate properly.
26
Thread is twisted.
—
A bobbin designed specifically for this machine is
not being used.
23
Fabric puckers.
There is a mistake in the upper or bobbin
threading.
26, 28
Spool cap is set incorrectly. 28
Using improper needle or thread for the selected
fabric.
30
Needle is turned, bent or the point is dull. 30
Thread tension is set incorrectly. 73
Fabric and stabilizer are not taut in the
embroidery frame.
56
Incorrect or insufficient stabilizer is being used. 55
The pattern is not embroidered correctly.
The thread tension is incorrect. 73
The thread is tangled, for example, in the bobbin
case.
106
Symptom, Cause/solution
Reference
TROUBLESHOOTING
112
■ After Finishing an Operation
Skipped stitches
Machine is threaded incorrectly. 28
Using improper needle, thread or the fabric
prepared insufficiently for embroidering.
30, 55,
62
Needle is turned, bent or the point is dull. 30
Needle is installed incorrectly. 30
Needle is defective. 30
Dust or lint has collected under the needle plate. 106
Not embroidering
Needle is turned, bent or the point is dull. 30
Bobbin is set incorrectly. 26
Upper threading is incorrect. 28
High-pitched sound while embroidering
Needle is turned, bent or the point is dull. 30
Pieces of thread are caught in the race. 106
Upper threading is incorrect. 28
A bobbin designed specifically for this machine is
not being used.
23
There are needle holes or friction scratches in the
bobbin case.
106
The needle contacts the needle plate.
The needle clamp screw is loose. 30
Needle is turned, bent or the point is dull. 30
The handwheel feels sluggish when it is turned.
Thread is tangled in the bobbin case. 106
Symptom, Cause/solution
Reference
Thread tension is incorrect.
Upper threading is incorrect. 28
Bobbin is set incorrectly. 26
Using improper needle, thread or the fabric
prepared insufficiently for embroidering.
30, 55,
62
Thread tension is set incorrectly. 73
Bobbin thread is incorrectly wound. 23
Needle is turned, bent or the point is dull. 30
A bobbin designed specifically for this machine is
not being used.
23
Symptom, Cause/solution
Reference
The pattern is not embroidered correctly.
Thread is twisted.
—
Thread tension is set incorrectly. 73
Fabric was not inserted into the frame correctly
(fabric was loose, etc.).
56
Stabilizing material was not attached.
• Always use stabilizing material, especially with
stretch fabrics, lightweight fabrics, fabrics with
a coarse weave, or fabrics that often cause
pattern shrinkage. See your authorized Brother
dealer for the proper stabilizer.
55
There was an object placed near the machine,
and the carriage or embroidery frame hit the
object during embroidering.
34
Fabric outside the frame edges interferes with the
arm, so the embroidery unit cannot move.
• Reinsert the fabric in the embroidery frame so
that the excess fabric is away from the arm,
and rotate the pattern 180 degrees.
56
Fabric is too heavy, so the embroidery unit
cannot move freely.
• Place a large thick book or similar object under
the arm head to lightly lift the heavy side and
keep it level.
—
Fabric is hanging off the table.
• If the fabric is hanging off the table during
embroidery, the embroidery unit will not move
freely. Place the fabric so that it does not hang
off the table or hold the fabric to keep it from
dragging.
62
Fabric is snagged or caught on something.
• Stop the machine and place the fabric so that it
does not get caught or snagged.
—
Embroidery frame was removed during
embroidering (for example, to reset the bobbin).
The presser foot was bumped or moved while
removing or attaching the embroidery frame, or
the embroidery unit was moved.
66
Stabilizer is incorrectly attached, for example, it is
smaller than the embroidery frame.
55
Loops appear on the surface of the fabric when
embroidering
The thread tension is incorrectly set.
73
The tension of the upper thread is incorrectly set
for the combination of the fabric, thread and
pattern being used.
• Use the embroidery needle plate cover.
62
The combination of the bobbin case and bobbin
thread is incorrect.
62
Symptom, Cause/solution
Reference
ERROR MESSAGES
113
Appendix
5
Below is an explanation of error messages. Refer to these when necessary (if you press or do the operation correctly
while the error message is displayed, the message disappears).
ERROR MESSAGES
Error messages Cause/solution
1
Attach the embroidery frame. This message is displayed when the machine is ready to embroider pattern,
and the “Start/Stop” button is pushed while the embroidery frame is not
attached.
2
Cannot change the configuration of the characters. This message is displayed when there are too many characters and the
curved character configuration is impossible.
3
Cannot embroider since the embroidery unit is not
attached. Turn off the machine, and then attach the
embroidery unit.
This message is displayed when the “Start/Stop” button is pushed and the
machine is in embroidery mode, but the embroidery unit is not attached.
4
Cannot recognize the data for the selected pattern.
The data may be corrupted.
This message is displayed when there is a possibility that the data for the
selected pattern is corrupted.
5
Change to a larger embroidery frame. This message is displayed when the machine is in embroidery mode and the
small frame is attached, and the selected pattern does not fit in the small
frame.
6
Check and rethread the upper thread. This message is displayed when the upper thread is broken or not threaded
correctly, and the “Start/Stop” button is pressed.
7
Failed to save file. This message appears when you try to save more than 100 settings screen
image files in the USB media. In this case, delete a file from the USB media
or use different USB media.
8
Includes a special pattern that cannot be saved to
external memory. Save the pattern in the machine's
memory.
This message is displayed when you try to save a copyright protected
pattern to USB media.
According to copyright laws, patterns that are illegal to reproduce or edit
cannot be saved to USB media. If this message displays, save the pattern in
the machine’s memory.
9
Lower the presser foot lever.
This message is displayed when (Presser foot lifter button) is pushed
while the presser foot lever is raised/the needle is lowered.
10
Make sure embroidery frame is moved as far back
as possible. LOCK DOWN THE FRAME-SECURING
LEVER.
This message is displayed when the embroidery frame is attached.
11
No more patterns can be added to this
combination.
This message is displayed when you cannot combine patterns.
12
Not enough available memory to save the data.
Delete some patterns or use a different media.
This message is displayed when the memory is full and the embroidery
pattern cannot be saved.
13
Not enough available memory to save the pattern.
Delete another pattern?
This message is displayed when the memory is full and the embroidery
pattern cannot be saved.
14
OK to cancel the current pattern selection?
This message is displayed when, after selecting a pattern, is pressed
and the pattern is about to be deleted.
15 OK to delete the selected picture? This message is displayed when the image is deleted.
16
OK to move the embroidery carriage to its previous
position?
This message is displayed when replacing the embroidering bobbin thread.
17
OK to recall and resume previous memory? This message appears if the machine is turned off while embroidering, then
turned on again. Press to return the machine to the condition (pattern
position and number of stitches) when it was turned off. Follow the
procedure described in “If the Thread Breaks or the Bobbin Runs out of
Thread During Embroidering” on page 66 to align the needle position and
embroider the remainder of the pattern.
18
OK to revert to previous color changes?
This message is displayed when is pressed when changing thread
colors.
ERROR MESSAGES
114
19
OK to separate the combined border pattern? This message is displayed when rotating a saved combined pattern in the
embroidery screen.
20
Pattern extends to the outside of embroidery frame. This message is displayed when the machine is in embroidery mode, and the
character pattern combination is too large to fit in the embroidery frame.
21
Pattern extends to the outside of embroidery frame.
If you plan to add more patterns, rotate the pattern
combination.
This message is displayed when the machine is in embroidery mode and the
combined character pattern is too large for the embroidery frame. You can
rotate the pattern 90 degrees and continue combining characters.
22
Preventive maintenance is recommended. This message is displayed when the machine needs to be maintained.
Once this message appears, it is recommended to take your machine to an
authorized Brother dealer or the nearest Brother authorized service center for
a regular maintenance check. Although this message will disappear and the
machine will continue to function once you press , the message will
display several more times until the appropriate maintenance is performed.
23
Select a pattern. This message is displayed when there is no embroidery pattern selected and
the “Start/Stop” button is pressed.
24
Set the clock. This message appears when the time/date is not set. Set time/date.
(page 14)
25
The bobbin thread is almost empty. This message is displayed when the bobbin thread is running out.
Although a few stitches can be embroidered when the “Start/Stop” button is
pressed, replace with a wound bobbin immediately. When embroidering,
press , press , remove the embroidery frame, and then replace
the bobbin with one wound with plenty of embroidery bobbin thread.
If [Upper and Bobbin Thread Sensor] in the general settings screen of the
machine setting mode is set to [OFF], this message does not appear.
26
The bobbin winder safety device has activated. Is
the thread tangled?
This message is displayed when the bobbin is being wound, and the motor
locks because the thread is tangled, etc.
27
The carriage of the embroidery unit will move. Keep
your hands etc. away from the carriage.
This message is displayed when the embroidery unit is initializing.
28
The safety device was activated since the main
shaft motor was heated. Is the thread tangled?
This message is displayed when the temperature of the motor increases,
activating the safety device. Wait until the temperature decreases. If the error
persists, contact your nearest authorized Brother dealer.
29
The safety device was activated since the main
shaft motor seized. Is the thread tangled?
This message is displayed when the motor locks due to tangled thread or for
other reasons related to thread delivery.
30
The safety device was activated since the needle
position sensor malfunctioned.
This message is displayed when an error in the needle position sensor is
detected, activating the safety device. Turn the machine off, then on again. If
the message continues to appear, the machine may be damaged. Contact
your nearest authorized Brother dealer.
31
The upper thread may not be threaded correctly.
Thread the upper thread from the beginning.
This message is displayed when it seems that the upper thread has not been
threaded correctly.
32
The USB media was changed. Do not change the
USB media while it is being read.
This message is displayed when you attempt to select a pattern after the
USB media in which the pattern is saved has been changed.
33
There is no needle plate cover. Attach a needle
plate cover.
This message is displayed when the needle plate cover is not attached.
34
This editing function cannot be used when the
pattern is out of the red outline. Use this function
after moving the pattern.
This message is displayed when the machine is in embroidery edit mode,
and you try to use an editing function when the pattern is not completely
within the red outline.
35
This file cannot be used. This message appears if the file format is incompatible with this machine.
Check the list of compatible file formats. (page 116)
36
This file exceeds the data capacity and cannot be
used. Use a suitable size file.
This message is displayed when the file size exceeds the data capacity of
the machine.
Confirm the file size and format. (page 116)
37
This key does not operate when the needle is down.
Raise the needle and press the key again.
This message is displayed when a key on the LCD display is touched while
the needle is in the down position.
38 This USB media cannot be used. This message is displayed when you try to use incompatible media.
Error messages Cause/solution
ERROR MESSAGES
115
Appendix
5
■ Alarm Sounds
If the operation was performed incorrectly, an alarm sounds to indicate that an error occurred. If the operation was performed
correctly, the machine beeps to confirm the operation.
39
This USB media is incompatible. This message is displayed when you try to use incompatible USB media.
For a list of compatible USB media, visit “ http://s.brother/cpeab/
”.
40 USB media error This message is displayed when an error occurs with the USB media.
41
Use the presser foot lifter button to lower the
presser foot.
This message is displayed when a button, such as the “Start/Stop” button, is
pushed while the presser foot is raised.
42
Use the presser foot lifter button to raise the presser
foot.
This message is displayed when the embroidery unit is attached and the
power is turned on with the needle in the down position.
Memo
• To cancel the operation beep or to change the volume, press and then change the setting for [Machine
Speaker Volume]. Refer to page 16 for more details.
Error messages Cause/solution
SPECIFICATIONS
116
SPECIFICATIONS
Item Specification
Size and
Weight
Machine
(Box 1 of 2)
Dimensions of machine Approx. 612 mm (W) × 348 mm (H) × 321 mm (D)
(approx. 24-3/32 inches (W) × 13-11/16 inches (H) × 12-5/8
inches (D))
Dimensions of box Approx. 740 mm (W) × 620 mm (H) × 405 mm (D)
(approx. 29-1/8 inches (W) × 24-13/32 inches (H) × 15-15/16
inches (D))
Weight of machine Approx. 15 kg (approx. 33.1 lb)
Weight of box (for shipping) Approx. 25.5 kg (approx. 56.2 lb)
Embroidering speed 70 to 1050 stitches per minute
Needles Home sewing machine needles (HA 130)
Embroidery Unit
(Box 2 of 2)
Dimensions of embroidery unit Approx. 595 mm (W) × 139 mm (H) × 524 mm (D)
(approx. 23-7/16 inches (W) × 5-15/32 inches (H) × 20-5/8
inches (D))
Dimensions of machine with
embroidery unit attached
Approx. 916 mm (W) × 348 mm (H) × 524 mm (D)
(approx. 36-1/16 inches (W) × 13-11/16 inches (H) × 20-5/8
inches (D))
Dimensions of box Approx. 735 mm (W) × 620 mm (H) × 190 mm (D)
(approx.28-15/16 inches (W) × 24-13/32 inches (H) × 7-15/
32 inches (D))
Weight of embroidery unit Approx. 4.6 kg (approx. 10.1 lb)
Weight of box (for shipping) Approx. 6.8 kg (approx. 15.0 lb)
Total Shipping Weight (Combination of all 2 boxes complete) Approx. 32.7 kg (approx. 72.1 lb)
Data
Precaution
Memory Embroidery patterns 10 MB
Images can be imported to the
machine (My Design Center)
100 MB
Data Types
Embroidery patterns
*1
.pes .phc .phx .dst .pen
Data that can be loaded when using
My Design Center
.jpg .png .bmp
Types of USB Devices/
Media that can be
Used
*2
Embroidery patterns Embroidery data can be saved to or recalled from USB
media. Use media that meets the following specifications.
• USB Flash drive (USB Flash memory)
Embroidery data can be recalled only.
• USB CD-ROM, CD-R, CD-RW drives
You can also use the following types of USB media with the
USB Memory Card Reader/USB card writer module.
• Secure Digital (SD) Card
• CompactFlash
• Memory Stick
•Smart Media
• Multi Media Card (MMC)
•xD-Picture Card
SPECIFICATIONS
117
Appendix
5
*1
• Using data other than that saved using our data design systems or this machine may cause this machine to malfunction.
When the machine is used to save a file with any extension, it is saved as a .phx data file.
• .dst data is displayed in the pattern list screen by file name (the actual image cannot be displayed).
The full file name may not be displayed depending on the number of characters in the file name.
Since Tajima (.dst) data does not contain specific thread color information, it is displayed with our default thread color sequence.
Check the preview and change the thread colors as desired.
*2
• USB media is commercially available, but some USB media may not be usable with this machine. Please visit our website “ http://
s.brother/cpeab/ ” for more details.
• Depending on the type of USB devices/media being used, either directly plug the USB device into the machine’s USB port or plug the
USB media Reader/Writer into the machine’s USB port.
* Please be aware that some specifications may change without notice.
Condition of the [Eco
Mode] and [Shutoff
Support Mode]
[Eco Mode] Available time OFF, 10 - 120 (minute)
“Start/Stop”
button
Green flashing
Suspended
function
Machine light, Screen display, LED pointer
After recovering The machine starts from the previous operation.
[Shutoff Support
Mode]
Available time OFF, 1 - 12 (hour)
“Start/Stop”
button
Green slow flashing
Suspended
function
All functions
After recovering An error message appears.
You need to turn off and on the machine to restart.
Compatible image files
of the Screen Saver
Format JPEG format (.jpg)
File size Max. 150 KB for each image
File dimension 1280 × 1280 pixels or less (If the width is between 800 and
1279 pixels, the image will be displayed at 800 pixels.)
Number allowed 5 or less
Videos that can be
played
MP4 file format Video - H.264/MPEG-4 AVC, Audio – AAC
Size 450 (H) × 800 (W)
Maximum file size 1 GB
CAUTION
• When using embroidery data other than our original patterns, the thread or needle may break when
embroidering with a stitch density that is too fine or when embroidering three or more overlapping
stitches. In that case, use one of our original data design systems to edit the embroidery data.
Item Specification
UPGRADING YOUR MACHINE’S SOFTWARE
118
You can use USB media to upgrade software for your
machine.
When an upgrade program is available on “ http://
s.brother/cpeab/ ”, please download the files following the
instructions on the website and steps below.
a
While pressing (Automatic threading button),
turn the main power to ON.
b
Press .
c
Insert the USB media into the primary (top) USB port
on the machine.
d
Press .
When upgrading is finished, the completion message
appears.
e
Turn the machine off, remove the USB media, and turn
the machine on again.
UPGRADING YOUR MACHINE’S
SOFTWARE
Note
• When using USB media to upgrade the software,
check that no data other than the upgrade file is
saved on the USB media being used before
starting to upgrade.
INDEX
119
Appendix
5
INDEX
A
Accessories
options
.................................................................................... 13
Air vent
....................................................................................... 10
Alarm sounds
............................................................................ 115
Alphabet characters
embroidery
.............................................................................. 38
Appliqué
using an embroidery frame pattern
.......................................... 81
Automatic threading button
................................................. 10, 28
B
Bobbin
setting
...................................................................................... 26
winding
................................................................................... 23
Bobbin case
cleaning
................................................................................. 106
Bobbin cover
............................................................................... 10
Bobbin threading
setting the bobbin
.................................................................... 26
winding the bobbin
................................................................. 23
Bobbin winder
............................................................................. 10
Bobbin winding switch
................................................................ 25
Border key
........................................................................... 45, 47
C
Cleaning
race
....................................................................................... 106
Clock
........................................................................................... 14
Color shuffling function
............................................................... 50
E
Eco mode .................................................................................... 17
Editing
embroidery edit
....................................................................... 42
Embroidery
adjusting the speed
.................................................................. 77
automatic thread cutting function (End color trim)
................... 76
key functions
........................................................................... 54
resuming embroidery after turning off the power
..................... 67
selecting patterns
..................................................................... 36
thread color display
................................................................. 77
thread trimming function (Jump stitch trim)
.............................. 76
Embroidery appliqué
................................................................... 64
Embroidery edit
changing the thread color
........................................................ 49
key functions
........................................................................... 42
repeated patterns
..................................................................... 45
Embroidery foot “W+” with LED pointer
.................................... 107
Embroidery frames
attaching
.................................................................................. 58
inserting fabric
......................................................................... 56
removing
................................................................................. 58
types
........................................................................................ 56
using the embroidery sheet
...................................................... 57
Embroidery needle plate cover
.................................................... 62
Embroidery patterns
checking the position
............................................................... 61
editing
..................................................................................... 42
embroidering
........................................................................... 62
linked characters
..................................................................... 78
retrieving
................................................................................. 80
saving
...................................................................................... 80
selecting
.................................................................................. 36
using a frame pattern to make an appliqué
.............................. 81
Embroidery sheet
......................................................................... 57
Embroidery unit
........................................................................... 34
Error messages
........................................................................... 113
F
Favorite color scheme .................................................................. 52
H
Handle ......................................................................................... 10
Handwheel
.................................................................................. 10
Home page screen
....................................................................... 15
I
Image key .................................................................................... 44
K
Key functions
embroidery
.............................................................................. 54
embroidery edit
........................................................................ 42
L
LCD screen .......................................................................... 10, 15
light
......................................................................................... 16
M
Machine help key ........................................................................ 19
Main power switch
...................................................................... 10
Metallic thread
............................................................................. 28
MPEG-4 (MP4) videos
.................................................................. 20
My Design Center
........................................................................ 86
N
Needle
changing the needle
................................................................. 30
Needle bar thread guide
.............................................................. 10
Needle plate
................................................................................ 10
Needle position button
................................................................ 10
O
Operation buttons ........................................................................ 10
P
Power cord .................................................................................. 14
Power cord receptacle
................................................................. 10
Presser foot code
.......................................................................... 53
Presser foot lever
.......................................................................... 10
Presser foot lifter button
............................................................... 10
Presser foot/Needle exchange key
...................................... 30, 107
Pretension disk
............................................................. 10, 24, 26
R
Race .......................................................................................... 106
Repeated patterns
........................................................................ 45
Retrieving
embroidery patterns
................................................................. 80
machine’s memory
................................................................... 80
S
Saving
embroidery patterns
................................................................. 80
INDEX
120
machine’s memory ................................................................... 80
Screen saver
................................................................................. 18
Screw for embroidery foot
............................................................ 10
Settings
automatic thread cutting
.......................................................... 76
embroidery settings
.................................................................. 17
general settings
........................................................................ 16
machine settings key
................................................................ 16
thread tension
.......................................................................... 73
thread trimming
....................................................................... 76
Shutoff support mode
................................................................... 17
Speaker
........................................................................................ 16
Specifications
............................................................................. 116
Spool cap
..................................................................................... 10
Spool net
..................................................................................... 28
Spool pin
..................................................................................... 10
Stabilizer
...................................................................................... 55
Start/Stop button
.......................................................................... 10
Starting point key
......................................................................... 78
Supplemental spool pin
....................................................... 10, 23
T
Terms of Use .................................................................................. 5
Thread
thread tension
.......................................................................... 73
Thread color display
.................................................................... 77
Thread color palette
..................................................................... 49
Thread cutter
............................................................................... 10
Thread cutter button
.................................................................... 10
Thread guide
................................................................ 10, 24, 26
Thread guide plate
............................................................... 10, 25
Thread marks
............................................................................... 47
Touch pen
................................................................................. 109
Trial key
....................................................................................... 61
Troubleshooting
......................................................................... 109
Tutorial video
.............................................................................. 19
U
Upgrading .................................................................................. 118
Upper threading
using the Automatic threading button
....................................... 28
USB mouse
.................................................................................. 23
USB port
...................................................................................... 10
