6-PATTERN ROTARY GEAR DRIVE SPRINKLER
WITH TELESCOPING TRIPOD
Step 2
Attach the Extension Tube to the tripod, then
connect the sprinkler head to the top of the
Tripod or Extension Tube (do not overtighen).
18.7”
(47.5cm)
63.7”
(162cm)
43.7”
(111cm)
Quick Connect Starter Set
with Shut O Valve ts
standard garden hoses and
watering tools
6 spray patterns to meet all your watering needs
- at, fan, large, jet, full and mini
Spray Angle - adjust the tabs to change the spray
angle from 5° to 360°
Range tab - adjust range and prevent water waste
Connects to any Eden sprinkler base with "H"
shape or tripod base
Added lter to prevent water sediment
Tripod
length

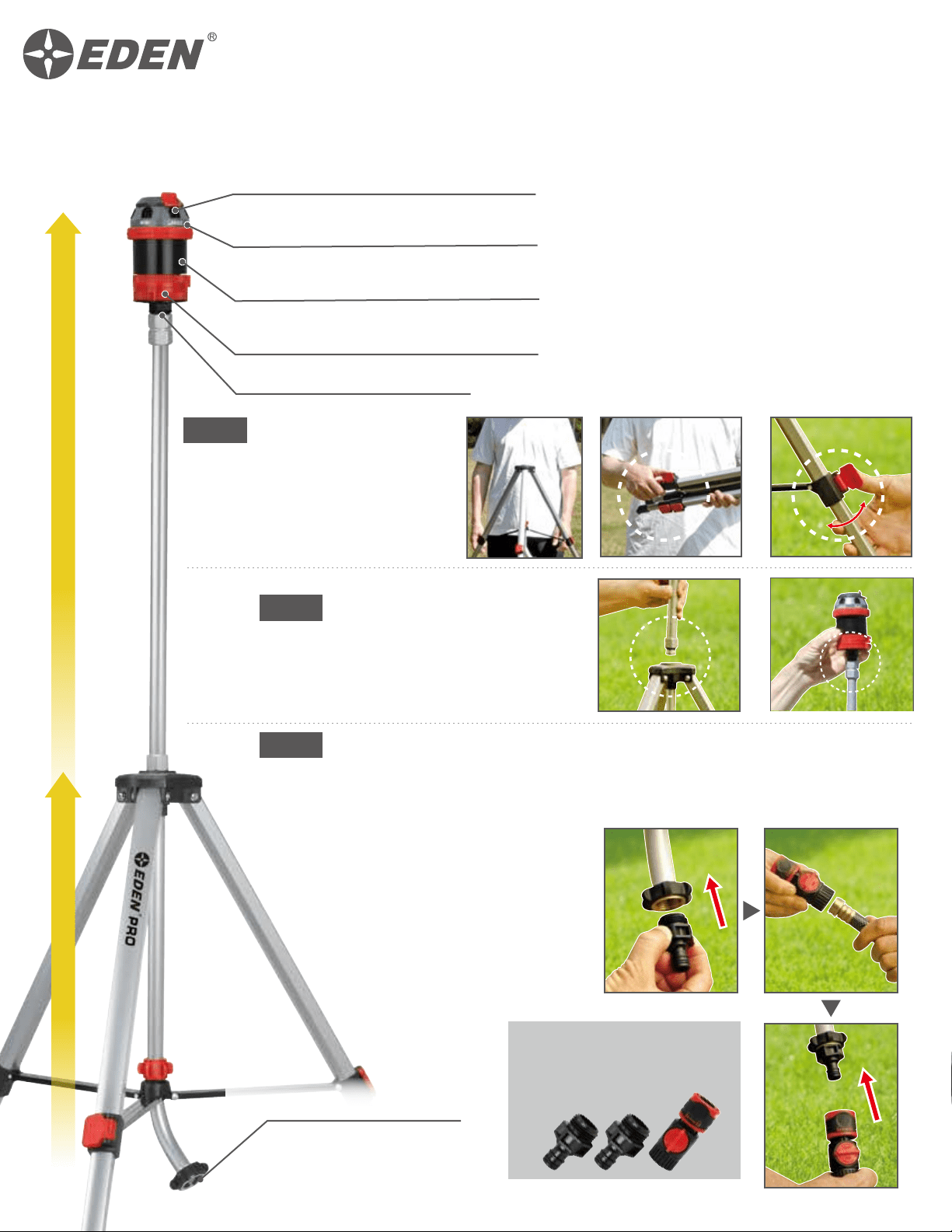

Place the tripod in the area where you
want to water. Open the latches to
release the legs. Push down on the
tripod legs until the legs are well seated
on the ground.
Step 1
Step 3
Using the Quick Connect with Shut O Valve allows you to easily shut o the water and swap
tools without having to return to the faucet – saving time and water. Attach the lockable Quick
Connect to the end of the hose, then snap the hose to the tripod to begin using.
Note: If you are not using the
Quick Connect System, connect
the sprinkler directly to the hose.
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
CAUTION
WARNING: This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer and birth defects
reproductive harm, and styrene which is known to the State of California to
cause cancer. For more information go to www.P65Warnings.ca.gov
Made in Taiwan www.edengarden.com
UNLOCK LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
A
C
A B C D
B
D
Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and/or
any other garden watering tools
UNLOCK
LOCK
The Premium Quick Connect with Shut O Valve Set will simplify your watering
experience. Attach the connector at the end of your hose. Then connect the adapters
to your watering tools. Interchange various tools with a snap without turning o the
water, as the shut-o valve of the connector will stop the water ow. No more kinking
or hose twisting, as the connector allows you to swivel your hose 360 degrees.

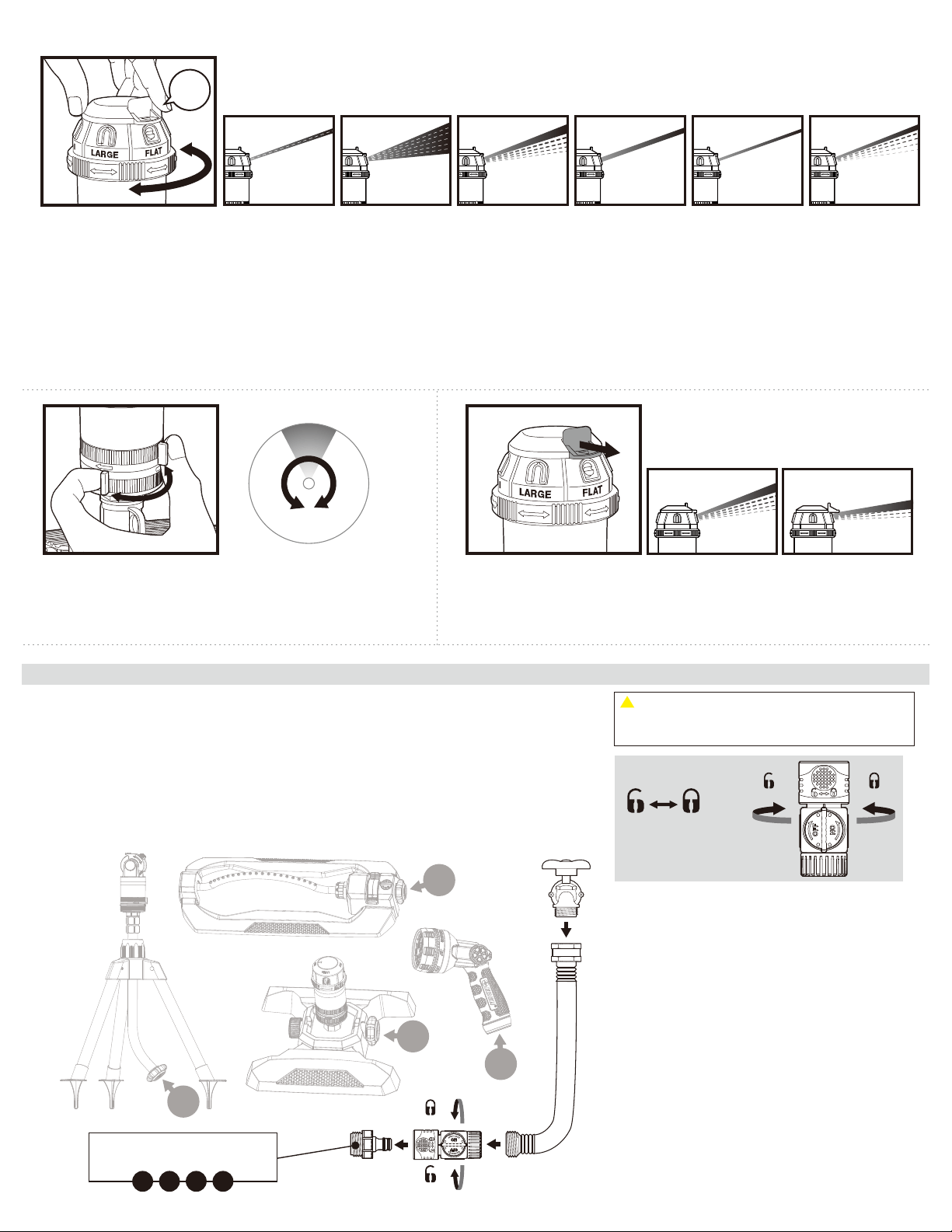

Spray Pattern Adjustments
Depending on your watering needs, you can manually select from the various pattern settings:
Flat - The at pattern will provide a at wave of water.
Fan - The fan pattern disperses water in a wide fan shape.
Large - This provides a larger watering spray area.
Full - This pattern provides strong distance watering.
Jet - Concentrated far distance watering.
Mini - Provides gentle spray for delicate plants.
5°-360°
Spray Angle Adjustment
Adjust the tabs to change the spray angle to t your needs
(from 5°up to 360°).
Range Tab
Move the tab in or out to control the spray distance and
water where it's needed.
CLICK!
MINILARGE
FLAT
FAN JETFULL
