Fig. 2
METAL 20 NOZZLES OSCILLATING SPRINKLER
Base
Spray nozzles (20)
Oscillator tube
Sliding tabs
Plastic nozzle heads :
Adjustable range control :
Coverage Max :
96215EDAMZ
Attach your garden hose to the sprinkler.
Use the range sliding tabs to select desired rectangular watering distance. (Fig 1 )
Turn water ow control knob to regulate water pressure. (Fig 2)
Turn on the faucet and check to see how the process is working. Make adjustments to suit your needs.
20
Yes
4300 sq ft (399 m²)
(Based on 40PSI / 2.76Bar)
1.
2.
3.
4.
Flow control
Hose-end
Inlet lter
Cleaning pin
5.
6.
7.
8.
Get To Know Your Sprinkler
Usage
Specications
If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following
maintenance task.
Remove your hose from your sprinkler.
Notice a small inlet lter from the hose-end of the
oscillator, remove it and run under water to remove
the dirt (Fig. 3).
1.
Maintenance + Care
Storage Tips
To ush, connect the oscillator to a faucet.
Turn on the faucet and while the water continues
running, spin the tube gently back and forth for few
minutes (Fig 4)
2.
Remove the cleaning pin from the opposite end of
the oscillator (Fig. 5).
3.
Use the provided cleaning pin to clear any clogs
from the spray nozzles while running water in
step 2 (Fig. 6).
Drain the sprinkler after use. DO NOT allow water to
freeze in the sprinkler (Fig. 7).
4.
1.
2.
3.
4.
Fig. 7
Fig. 6
Fig. 1
Fig. 3
inlet lter
Fig. 5
cleaning pin
cleaning pin
spray nozzles
cleaning pin
spray nozzles
8.
2.
1.
6.
7.
5.
4.
3.
Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the
sprinkler. Save this manual for future reference.
Fig. 4
hose-end
tube
1.
2.
3.
4.
Think of the best coverage design for the watering
without wasting water resources before placing the
sprinkler in the location where you want to water.
Drain any water from the sprinkler after use. This
will preserve the unit for longer lasting use.
Place the sprinkler in a dry warm storage area until
it is required.
Water only when necessary, preferably in the
morning as this will minimize water loss through
evaporation. To obtain deep root growth,water
deeply but do not water often. Watering every
second day will provide for better water coverage.
Using a timer can be helpful in reducing waste.
Watch water application to avoid water run-o.
Fig. 6
2 Extra stainless steel
lter washers for a
leak-free seal
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
A
C
A B C D
B
D

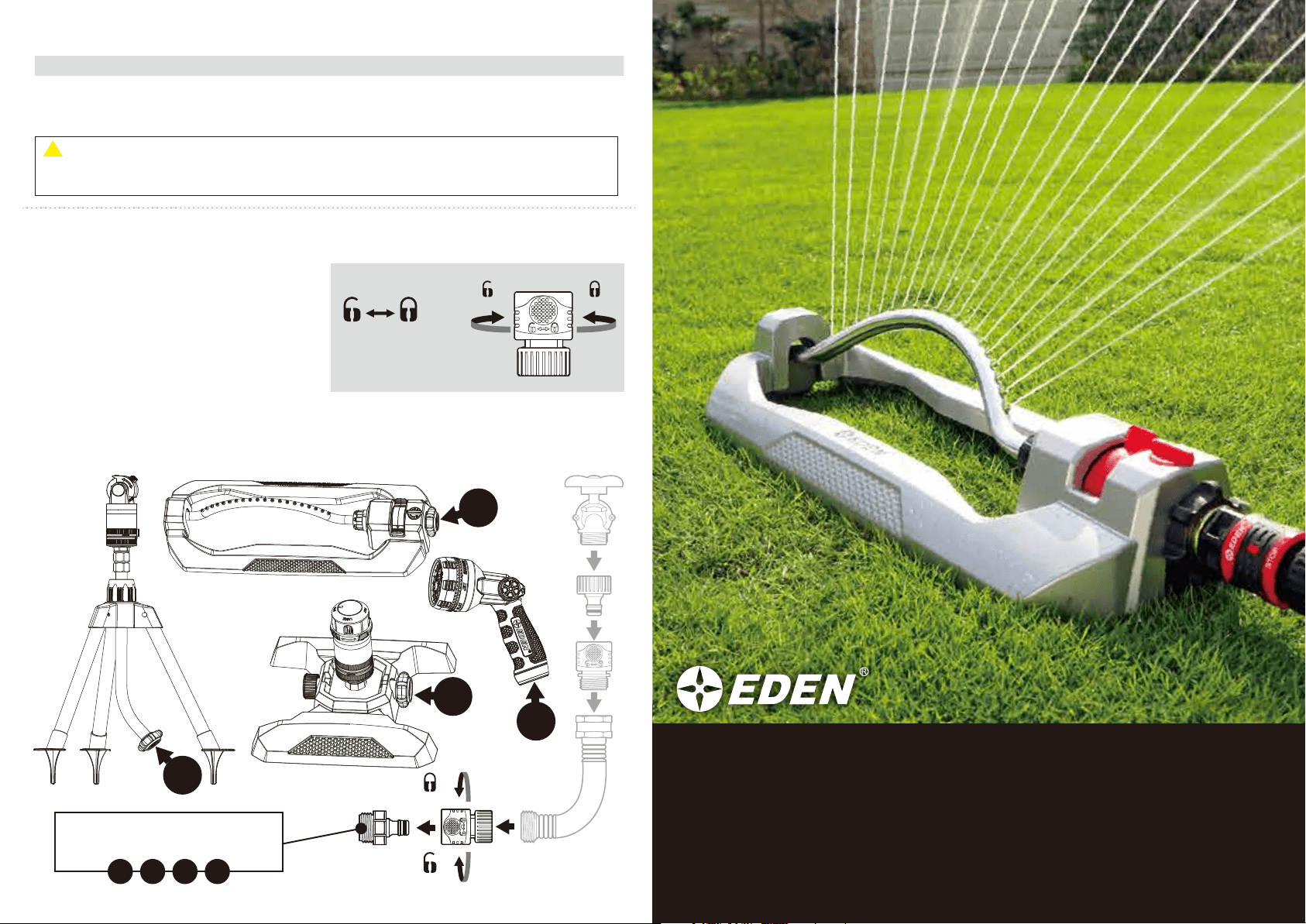

Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and/or
any other garden watering tools
UNLOCK
LOCK
m CAUTION m
METAL 20 NOZZLES
OSCILLATING SPRINKLER
96215EDAMZ
• Coverage up to 4300 sq. ft. ( 399 m² ) (Based on 40 PSI / 2.76 Bar)
• 20 Brass nozzles
• Water ow control
• Sliding tabs allow for simple range adjustment
• Needle plug for nozzle cleaning
UNLOCK
LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
The Quick Connect Adapter (2 pcs) and Hose
Connector with Water Stop (1 pc) simplify your
watering experience. Simply attach the
connector at the end of your hose. Then,
connect the adapters to your watering tools.
Interchange various tools in a snap without
turning o the water as the adapter will stop
the water ow. No more kinking or hose
twisting as the adapter allows the hose to
swivel 360 degrees.
mWARNING: This product can expose you to chemicals including lead, which is known to the State
of California to cause cancer and birth defects reproductive harm, and styrene which is known to the State
of California to cause cancer. For more information go to www.P65Warnings.ca.gov
