UNPACKING
After unpacking unit, inspect carefully for any damage
that may have occurred during transit. Check for
loose, missing, or damaged parts. If any damage is
observed, a shipping damage claim must be filed with
carrier. DO NOT use the OEMTOOLS
®
Fan if broken,
bent, cracked or damaged parts (including labels) are
noted. Any Fan that appears damaged in any way,
operates abnormally or is missing parts should be
removed from service immediately. If you suspect that
the Fan was subjected to shock load (a load that was
dropped suddenly, unexpectedly, etc.) immediately
discontinue use until it has been checked by a factory
authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself
and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in
personal injury and/or damage to product or property. Please retain instructions for future reference.
Operating Instructions and Parts Manual 24883/24884
11/16
2016 OEMTOOLS
®
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
24"/30" OSCILLATING WALL FAN
Thank you very much for choosing an OEMTOOLS
®
Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS
®
cannot be responsible for issues arising
from modification. We strongly recommend this product is not modified and/or used for any application other than that for which it was
designed. If you have any questions relative to a particular application, DO NOT use the product until you have first contacted customer
service to determine if it can or should be performed on the product.
WARNING: Pursuant to California Proposition 65, this product contains chemicals known to the state of California to cause
cancer and birth defects or other reproductive harm. Wash hands after handling.
The following safety information is provided as a guideline to help you operate your fan under the safest possible conditions. Any tool or piece
of equipment can be potentially dangerous to use when safety or safe handling instructions are not known or not followed. The following safety
instructions are to provide the user with the information necessary for safe use and operation. Please read and retain these instructions for the
continued safe use of your tool. Failure to follow instructions listed below may result in serious injury. In addition, make certain that anyone who
uses the equipment understands and follows these safety instructions as well.
WARNING
Explanation of Safety Signal Words
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES: Provide clarity and helpful information.
2
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your fan. Read this manual carefully. Learn the fan’s
applications and limitations, as well as, potential hazards
specific to it.
2. Keep work area clean and well lit. Cluttered or dark work
areas invite accidents.
3. Keep children away. All children should be kept away from
the work area. Never let a child handle a fan without strict
adult supervision.
4. .DO NOT operate this fan if under the influence of alcohol or
drugs. Read warning labels on prescriptions to determine if
your judgment or reflexes are impaired while taking drugs. If
there is any doubt, DO NOT attempt to operate.
5. Use safety equipment. Eye protection should be worn at all times
when operating this fan. Use ANSI approved safety glasses.
Everyday eyeglasses are NOT safety glasses. Dust mask, non-
skid safety shoes, hard hat or hearing protection should be used
in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,
bracelets or other jewelry may present a potential hazard
when operating this fan. Keep all apparel clear of the fan.
7. Don’t overreach. Keep proper footing and balance at all times
when operating this fan.
8. Check for damage. Check your fan regularly. If part of the fan
is damaged it should be carefully inspected to make sure
that it can perform its intended function correctly. If in doubt,
the part should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
9. Keep away from flammables. DO NOT attempt to operate
this fan near flammable materials or combustibles. Failure to
comply may cause serious injury or death.
10. Store idle fans out of the reach of children and
untrained persons. Fans may be dangerous in the hands
of untrained users.
11. Maintain fan with care.
12. Keep fan dry and clean.
13. .DO NOT use a damaged fan. Tag damaged fan “DO NOT use”
until repaired.
14. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool may become hazardous when used on
another fan.
15. Fan service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified
personnel could result in a risk of injury.
16. When servicing a fan, use only identical replacement parts.
Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of injury.
17. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
18. Maintain labels and nameplates on this product. These carry
important information. If unreadable or missing, contact
OEMTOOLS
®
for a replacement.
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations that
may occur. The operator must understand that common sense
and caution are factors which cannot be built into this product, but
must be supplied by the operator.
DISPOSAL
At the end of the useful life of the OEMTOOLS
®
24" (24883) / 30"
(24884) Oscillating Wall Fan, dispose of the components according
to all state, federal and local regulations.
PURPOSE
The OEMTOOLS
®
24" (24883) / 30" (24884) Oscillating Wall Fan
helps circulate the air and keep it in motion while maintaining
a fresh breeze. It also helps prevent the inhalation of dangerous
gasses and fumes by adding ventilation.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS.
WARNING
1. Unplug the fan before moving it or performing maintenance.
2. DO NOT touch the fan when your hands are wet.
3. Those who are not qualified electricians should not
disassemble, repair or rebuild the fan.
4. Unplug the fan when it is not in use.
5. DO NOT unplug the Oscillating Wall Fan by pulling on the
cable cord. Unplug by pulling the plug.
6. Avoid the use of extension cords when possible. Ensure that
they are UL listed if they must be used. DO NOT use a single
extension cord to operate more than one fan. DO NOT plug
the Oscillating Wall Fan into any other cord-connected device
(power strip, surge protector, multiple outlet adapters etc.).
7. DO NOT use the fan close to any fire or heat source.
8. DO NOT insert your hand or other objects into the guard or
the movable parts.
9. To reduce the risk of fire or electric shock, DO NOT use this
fan with any solid-state speed control device.
11/16
2016 OEMTOOLS
®
Size:
24" (24883) / 30" (24884)
Weight:
27 Lbs. (24883) / 34 Lbs. (24884)
Voltage:
120V/60Hz
Current:
2.0 Amp (24883) / 2.4 Amp (24884)
PRODUCT SPECIFICATIONS
3
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
10. DO NOT use this fan outdoors.
11. DO NOT operate any Oscillating Wall Fan with a damaged
cord or plug. Discard fan or return to an authorized service
facility for examination and/or repair.
12. DO NOT run cord under carpeting. DO NOT cover cord with
throw rugs, runners, or similar coverings. DO NOT route cord
under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
13. DO NOT use if electrical cord is frayed or bent.
14. DO NOT immerse the Oscillating Wall Fan in water.
CAUTION
15. Fit the guard onto fan before starting up the Oscillating Wall Fan.
16. This fan is not intended for use by people (including
children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge
unless they have been given supervision or instructions
concerning use of the fan by a person responsible for
their safety. Supervise children to ensure they DO NOT
play with the Oscillating Wall Fan.
17. Always make sure the fan is securely mounted to the wall
prior to operating, to avoid the chance of the Oscillating
Wall Fan from detaching and falling off the wall.

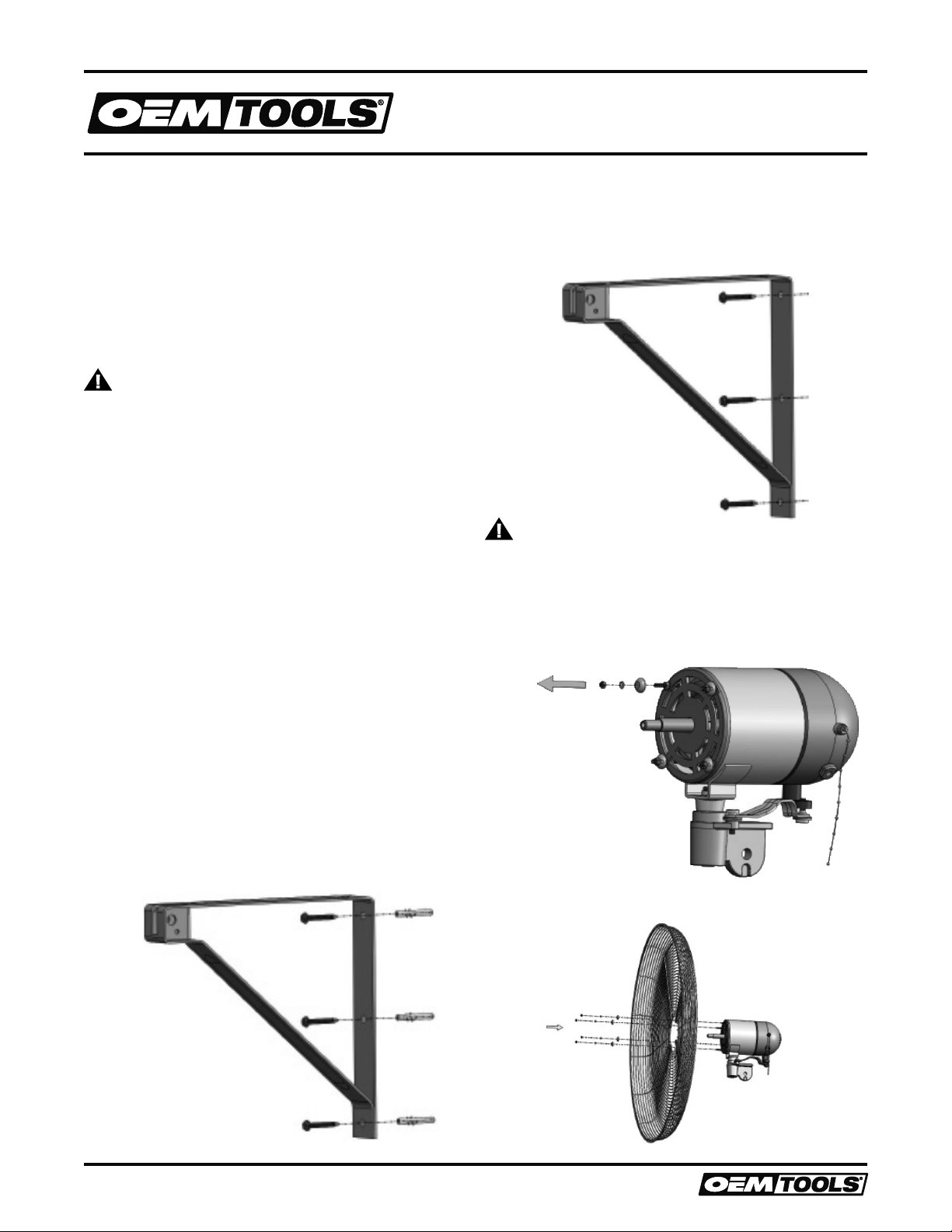

ASSEMBLY
STEP 1
NOTE: Use the mounting accessories shipped with the fan for wall
mounting.
CONCRETE WALL INSTALLATION (FIG. 1)
1. Mark the hole by using the bracket and then drill the holes.
2. After drilling, insert the wall anchors and tap them flush with
the wall.
3. Position the bracket and then tighten the three screws into the
anchors, securely attaching it to the wall.
FIG. 1
WALL STUD INSTALLATION (FIG. 2)
1. Mark the hole by using the bracket and then drill small pilot
holes.
2. After drilling the pilot holes, position the bracket and secure to
the wall with the three screws.
FIG. 2
CAUTION
This fan must be securely mounted for safe operation. It is the
user’s responsibility to ensure a safe mounting location and
surface.
STEP 2
Remove the four Hex Nuts and Washers from the Motor.
Save them for Step 3.
STEP 3
Set the Rear Guard in the proper position and attach it to the
Motor using the Hex Nuts and Washers from Step 2.
11/16
2016 OEMTOOLS
®
4
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN

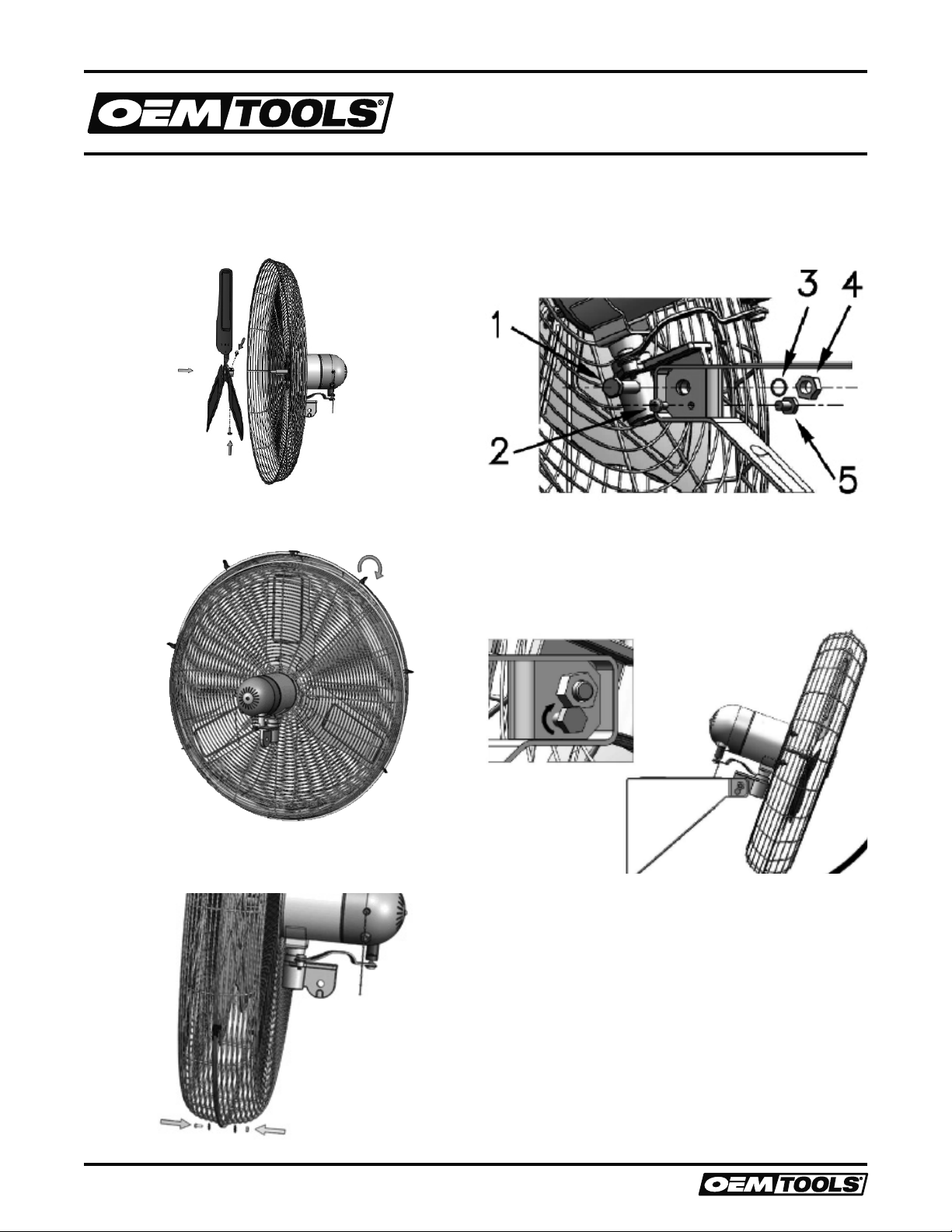

STEP 4
Assemble the Fan Blade onto the Motor Shaft by tightening the
two screws.
Make sure the screws are secured tightly.
STEP 5
Attach the Front Guard to the Rear Guard using the clips on the
rim of the Front Guard.
STEP 6
Secure the Front Guard and Rear Guard by tightening a Screw,
Washers and a Nut on the bottom.
STEP 7
Attach the Fan assembly to the Bracket using the M12 x 35 bolt,
Washer and Hex Nut M12.
Fasten M8 x 25 Screw for holding the Fan assembly vertically on
the Bracket.
STEP 8
Loosen the M8 x 25 bolt to adjust the desired tilt angle of the Fan
Assembly and then tighten once at the desired angle.
11/16
2016 OEMTOOLS
®
5
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
OPERATING INSTRUCTIONS
1. Adjust the desired speed by pulling the chain switch
(Stop – Low – Medium – High).
2. To adjust the airflow upward or downward, loosen the tilting
knobs on both sides of the fan head and tilt the fan head to the
desired angle. Tighten the knobs to lock in place.
NOTE: It is normal for the motor to feel warm to the touch during
operation. The motor is thermally protected and will automatically
shut off when it overheats. If this happens, immediately
disconnect the fan from the power outlet.

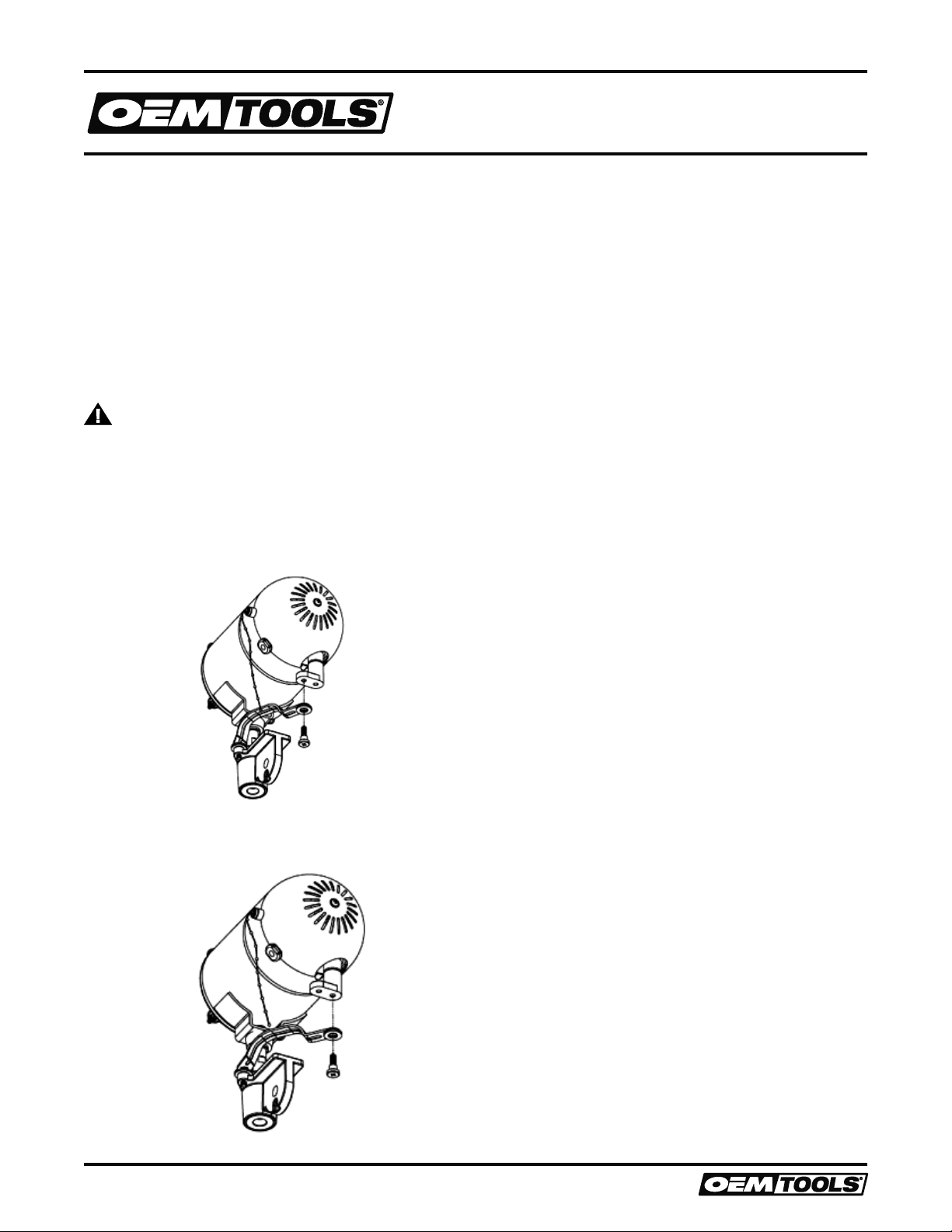

OSCILLATION INSTRUCTIONS
CAUTION
Turn the fan off before adjusting the fan oscillation.
NOTE: The screw is preset at position A at the factory.
To make the fan oscillate:
1. Loosen the screw and move it as shown in Figure A.
2. Tighten the screw back.
To stop oscillation:
1. Loosen the screw and move it as shown in Figure B.
2. Tighten the screw back.
Figure B
Figure A
11/16
2016 OEMTOOLS
®
6
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
1 2 3 4
5
Item Description Quantity
1
Front Guard 1
2 Fan Blade 1
3 Rear Guard 1
4 Motor 1
5 Bracket 1
Parts List Parts Diagram
Note: Not all components of the 24"/30" Oscillating Wall Fan are
replacement items, but are illustrated as a convenient reference
for location and position in the assembly sequence.
The manufacturer and/or its distributor have provided the parts
list and assembly diagram in this manual as a reference tool
only. Neither the manufacturer nor its distributor makes any
representation or warranty of any kind to the buyer that he or
she is qualified to make any repairs to the product, or that he or
she is qualified to replace any parts of the product. In fact, the
manufacturer and/or its distributor expressly states that all repairs
and parts replacements should be undertaken by certified and
licensed technicians, and not by the buyer. The buyer assumes
all risk and liability arising out of his or her repairs to the original
product or replacement parts thereto, or arising out of his or her
installation of replacement parts thereto.
11/16
2016 OEMTOOLS
®
7
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
11/16
2016 OEMTOOLS
®
8
Operating Instructions and Parts Manual 24883/24884
24"/30" OSCILLATING WALL FAN
11/16
2016 OEMTOOLS
®
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: 1-866-458-2472
www.oem-tools.com
OEMTOOLS
®
Six Month Limited Warranty
For six months from the original purchase of this product, OEMTOOLS
®
will warranty this item. If you find any defect in material or
workmanship, through normal usage, return it to the place of purchase or to OEMTOOLS
®
for repair or replacement at our discretion. In
order to obtain this service send your tool and proof of purchase, transportation pre-paid, to OEMTOOLS
®
Q.A. Dept., 3850 Raines Road
#3, Memphis, TN 38118. We will not be responsible for lost or damaged goods during transportation, please insure your package. If our
inspection verifies the defect, we will either repair or replace the product at our election, or we may elect to refund the purchase price if we
cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no
defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS
®
does not provide warranty for products labeled other than OEM
®
or OEMTOOLS
®
. OEMTOOLS
®
will not provide any warranty
for products subjected to abnormal use. Abnormal use includes, but is not limited to, abuse, accident, alteration, neglect, and unauthorized
or unreasonable use or repairs. This warranty does not cover bits, blades, files, batteries, or calibration. We recommend that you maintain
your tools and sharpen or replace blades, bits, files, and batteries as necessary. OEMTOOLS
®
reserves the right to makes any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS
®
makes every effort to assure that its products meet high quality and durability standards, and warrants to the original
purchaser that this product is free from defects in materials and workmanship for the period of six months from the date of purchase. This
warranty does not apply to damage due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our
facilities, criminal activity, improper installation, normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
Don’t forget to register your new OEMTOOLS
®
product at www.oem-tools.com.
