A30 Pro
Intelligent Diagnosis System
QUICK GUIDE
I
Trademarks
is a registered trademark of Shenzhen
Xtooltech Intelligent CO., LTD.
In countries that the trademarks, service marks, domain
names, logos and the name of the company are not
registered, Xtool claims that it still reserves the
ownership of the unregistered trademarks, service
marks, domain names, logo and the company name. All
other marks for the other products and the company’s
name mentioned in the manual still belong to the
original registered company.
You may not use the trademarks, service marks, domain
names, logo and company name of Xtool or other
companies mentioned without written permission from
the trademark holder.
Xtool reserves the right for the final interpretation of
this manual content.
QUICK GUIDE
II
Copyright
This manual is designed for A30 Pro Intelligent
Diagnosis System and only apply to it. Any company
or person can’t copy and backup this introduction book
in any form (Electronic, mechanical, photocopy, record
or other form) without written permission of Xtool.
This introduction book is via the product existing
configuration and function to compile, if the product
add new configuration and function, this introduction
book will be changed accordingly, without prior
notice. The right of final interpretation of this
introduction book is belong to Xtool.
QUICK GUIDE
IV
Disclaimer
This electronic control system diagnostic unit is
provided for vehicle repairing professionals, this
product has higher reliability, but not exclude the loss
and damage caused by customers technical matter,
vehicle problem or other reason, Xtool assume no
liability or responsibility for those.
To know more details, please visit official website：
http://www.xtooltech.com
Safety instruction
Keep ventilation：When the engine is
running, please keep repair zone good
ventilation or connect exhaust system of
engine and building carefully.
QUICK GUIDE
V
Caution
⚫ Always keep safe condition to diagnose vehicle
⚫ Wear the goggles accord with ANSI standard
⚫ Keep clothes, hair hand, tool, tester etc. away from
running or calorific engine
⚫ Before start engine, you should confirm parking
braking is working, put barrier in front wheels, and
put gear shift lever in neutral gear or park to avoid
hurting people on the spot when start engine,
vehicle speeds up suddenly
⚫ Be extremely careful when working around the
ignition coil, distributor cap, ignition circuit and
ignition plug. The voltage generated by these
components when the engine is running is very
dangerous
⚫ Equipped with special fire extinguishers for
gasoline, chemical, electrical fires in the working
QUICK GUIDE
VI
area
⚫ When the ignition switch is turned on or the
engine is running, don’t connect or disconnect the
diagnostic equipment
⚫ Keep the diagnostic device dry and clean, away
from gasoline, water and grease. If necessary, use
a clean cloth coated with a mild detergent to clean
the surface of the device
⚫ Don’t operate the diagnostic equipment while
driving the vehicle to avoid distractions and cause
accidents
⚫ Please refer to the repair manual when servicing
the vehicle and strictly follow the diagnostic
procedures and precautions. Otherwise, it may
cause personal injury or damage to the diagnostic
device
⚫ To avoid damaging the diagnostic device or
QUICK GUIDE
VII
generating incorrect data, please ensure that the
vehicle battery is sufficiently charged and the
connection of the vehicle diagnostic socket is
clean and safe
⚫ Don’t put the diagnostic device on the vehicle
distributor. Strong electromagnetic interference
will cause damage to the device
Aftersales-services
support1@xtooltech.com
support2@xtooltech.com
+86 755 21670995 / +86 755 86267858
Monday through Friday
09:00~18:30 [UTC/GMT+08:00]
www.xtooltech.com
*Please kindly provide your product S/N, VIN code and software
version when seeking technical support, which will help us
locate your problem.
QUICK GUIDE
i
Content
Trademarks ....................................................................................... I
Copyright ......................................................................................... II
Disclaimer...................................................................................... IV
Safety instruction ......................................................................... IV
Caution ............................................................................................ V
Aftersales-services ......................................................................... 7
Content .............................................................................................. i
1. Product Brief .......................................................................... 1
2. Product Specification ........................................................... 2
2.1. Appearance .................................................................... 2
2.2. Ports and Button ........................................................... 4
2.3. Parameter........................................................................ 6
2.4. Packing list ..................................................................... 7
2.5. Connection ..................................................................... 8
QUICK GUIDE
ii
3. Start Diagnosis ................................................................... 10
3.1. Activation .................................................................... 10
3.2. Main Interface ............................................................ 11
3.3. Diagnosis ..................................................................... 13
VIN Identification ............................................................. 14
Vehicle Selection ............................................................... 15
Demo .................................................................................... 16
Basic Function .................................................................... 18
3.4. Special functions ....................................................... 28
3.5. Update .......................................................................... 29
3.6. Settings ........................................................................ 30
3.7. Report ........................................................................... 40
3.8. Quick Guide ................................................................ 41
4. FAQs..................................................................................... 42
Shenzhen Xtooltech Intelligent Co., Ltd ............................ 45
QUICK GUIDE
1
1. Product Brief
A30 Pro intelligent diagnosis system is a professional
vehicle diagnosis device for Japanese automobile. It
supports the detection and bi-directional control test
for vehicle drive, chassis and body system. It has basic
diagnostic functions such as reading fault code,
clearing fault code, reading live data, freezing frame,
and etc. At the same time, user could experience the
complete OBD Ⅱ function and full system diagnosis. It
can help maintenance staff locate faults for vehicle and
improve work efficiency.
QUICK GUIDE
2
2. Product Specification
2.1. Appearance
A30 Pro series Intelligent Diagnosis System.
Front view
Back view
QUICK GUIDE
3
The design with blue and black color is simple and
terse; the body adopts a streamlined design and a large
curvature frame for better grip; the back of the product
adopts a protruding design that is more non-slip and
safer. A30 Pro products are equipped with VCI as
standard, and the host and VCI are connected via
Bluetooth, which is convenient for connection.
VCI Front view
QUICK GUIDE
4
2.2. Ports and Button
No.
Items
Description
1
Charge Lamp
Display status of charge
QUICK GUIDE
5
2
LCD display
Display function menu of
product
3
Back
Cancel selection (Or operation)
or return to previous menu
4
Direction key
Via direction key to move
choosing appoint menu
5
Vehicle
diagnosis
Open/switch vehicle diagnosis
function
6
DB15
connector
Only for charging
7
Speedy guide
Open/switch introduction book
8
OK
Confirm selection
9
USB interface
Connect device to PC to update
software or battery charging, a
Type-c
10
Power switch
Long press can power on/Power
off, short press can turn on/turn
off screen
QUICK GUIDE
6
2.3. Parameter
Note:
The working temperature and storage temperature are
verified in a laboratory environment, which are for reference only
Items
Description
System
Android
CPU
ARM Cortex A7 Quad-Core，Basic
frequency 1.2GHz
GPU
Mali-400 MP2 GPU
RAM
1GB
ROM
32GB
Display screen
4-inch 320x480 Color touch display screen
Working voltage
9~18V
Battery
3000mAh built-in lithium battery
Working temperature
-20℃-60℃
Storage temperature
-30℃-70℃
QUICK GUIDE
7
2.4. Packing list
Category
No.
Name
QTY
Test
connector
1
DB15 TO OBD16 Main Cable
1
Main Units
1
A30 Pro
1
2
iVCI
1
3
USB_TYPE-C
1
4
Charger for Tablet
1
5
Power Cable UK
1
6
Power Cable US
1
7
Power Cable EU
1
Accessories
1
Certificate of Quality
1
2
Packing List
1
3
Tool Case
1
4
Carton
1
QUICK GUIDE
8
2.5. Connection
Please connect your vehicle to A30 Pro follows below steps:
1. First open the A30 Pro host;
主测试线
Vehicle
VCI
A30Pro
Main test line
QUICK GUIDE
9
2. Connect the host and VCI via Bluetooth;
3. Connect the VCI to the car with the main test line;
4. Start the diagnosis.
*Note
The DB15 port on bottom only reserved for charging. Please do
not connect directly the A30Pro to vehicle by main test cable,
which could lead to a communication failure
QUICK GUIDE
10
3. Start Diagnosis
3.1. Activation
Please follow below steps to activate your device:
Step 1: Long press power button to boot up and connect
Wi-Fi,
Step 2: Input your email address in activation page to
activate you device.
*Note
1. If you do a factory reset of the device, then you need to
activate it again.
2. Software will be released new version for fixing bugs,
please upgrade it in time for a better user experience.
QUICK GUIDE
11
3.2. Main Interface
After booting, the main interface as shown below.
QUICK GUIDE
12
Item
Description
Click to start diagnosis function
Software that can be updated to the latest
version will be displayed here
You could change the Language, Units,
Date & Time, and so on.
View all historical reports here
Quick guide for A30 Pro
QUICK GUIDE
13
3.3. Diagnosis
This function is the core module of A30 Pro, which
support full system diagnosis for vehicles.
QUICK GUIDE
14
VIN Identification
According to practical requirement, user can choose to
automatic identification, or manual input the car VIN
code
QUICK GUIDE
15

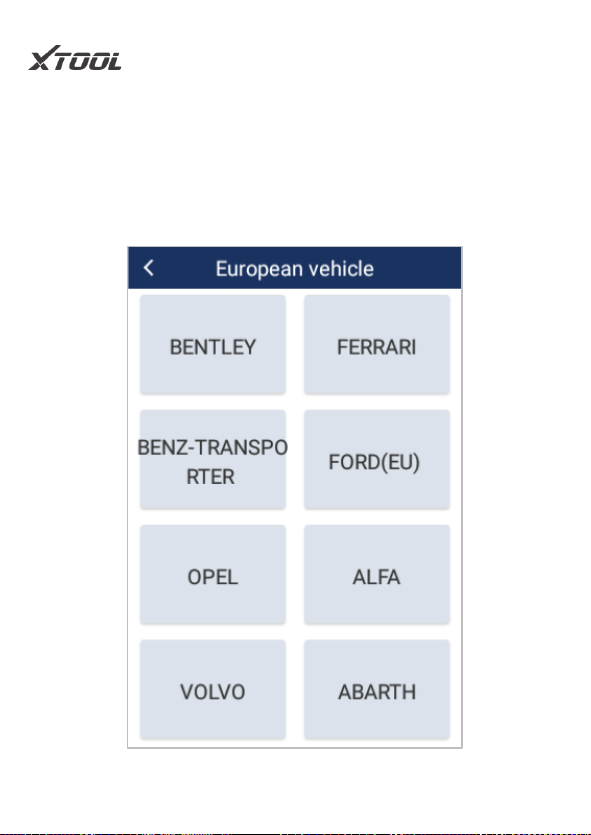

Vehicle Selection
A30 Pro supports 98% of the car on the market from
America, Europe, Asia, and China. User can choose
vehicle model for diagnosis according to their needs.
QUICK GUIDE
16
Demo
This function is used for demonstration. User can view
all of the functions in A30 Pro without changing any
settings.
QUICK GUIDE
17
⚫ Automatic Diagnosis
Support automatic scanning and diagnosis of the whole
vehicle system
⚫ System Diagnosis
Supports scanning and diagnosis of a single system
QUICK GUIDE
18
⚫ Quick Read Code
Support fast reading of fault codes
⚫ Quick Clear Code
Support fast clearing of fault codes
Basic Function
A30 Pro will enter diagnose function after confirming
vehicle model. The normal function includes reading
ECU version information, Read ECU code, read fault
code, read freeze frame, quick clear codes, read live data,
QUICK GUIDE
19
and Reset control unit. There will be some differences
among different vehicle models.
QUICK GUIDE
20
Read ECU Info
This function allows user to read ECU version
information. Some electronic control system
displays system identification or system information
menus, which have the same meaning, and read
information such as software, hardware version
numbers, part numbers, and etc.
QUICK GUIDE
21
Read Trouble Code
This function allows user to read the fault code stored in
the electronic control ECU. When the fault code is read,
the screen will display it and its definition.
QUICK GUIDE
22
Clear Trouble Code
This function allows user to clear current and historical
trouble codes memory in ECU.
QUICK GUIDE
23
The trouble codes cannot be erased without eliminating
the related fault. If a problem is not solved, the related
code will remain, and be stored in ECU, which leads to
it can be read by diagnostic.
Read Freeze Frame
This function allows user to read the trouble codes that
are stored in the ECU at the moment, when vehicle has
faults.
Notice
1. Save or print the currently stored fault codes before
clearing them in the case of an intermittent fault, or for
further main maintenance. If a problem is solved, the
related code will disappear.
2. Recommend to read the ECU code again to reconfirm
that previous fault codes have been cleaned
QUICK GUIDE
24
Read Live Data
This function allows user to read the parameters of the
system on operating condition, such as oil pressure,
temperature, engine speed, fuel oil temperature, coolant
temperature, intake air temperature, etc. By analyzing
these parameters, user can find out which part works
abnormally, and narrow maintenance scope.
Live Data is important function that can be used to help
experienced user to further diagnose a problem. This
function requires users to be familiarized with sensor
data of each system, control signals and control modes.
QUICK GUIDE
25
Function Select
QUICK GUIDE
26
Read live data
Reset Control Unit (Bi-directional Control)
This function allows user to figure out whether a
QUICK GUIDE
27
specific subsystem or component in the car works well
or not, and to make the tester outputs function.
(This picture is only for reference)
The vehicle engineers responsible for designing
computer control systems programmed them so a scan
tool could request information or command a module to
perform specific tests and functions. Some
manufacturers refer to bidirectional controls as
functional tests, actuator tests, inspection tests, system
tests or the like. Reinitialization and reprogramming
also can be included in the list of bidirectional controls.
This function allow device sends information to, and
receives information from, vehicle control modules. For
QUICK GUIDE
28
example, in the case of OBD II generic information
Mode 1 (which relates to data parameters), the scan tool
user initiates a request for information from the
powertrain control module (PCM), and the PCM
responds by sending the information back to the scan
tool for display. Most enhanced scan tools also have the
ability to actuate relays, injectors and coils, perform
system tests, etc. Users could check the individual part
to see what is working properly by actuation test.
3.4. Special functions
Special functions provide maintenance services for
different systems of the vehicle, and support users to
perform a various reset, re-learning, or matching
functions when replacing the component or
encountering failures.
Oil Light Reset
BMS Reset
Injector Coding
EPB
Throttle
Key Programmer
SAS
TPMS Reset
Gearbox Match
DPF
ABS Bleeding
Suspension
Headlight
Gear Learning
QUICK GUIDE
29
3.5. Update
The A30 Pro supports one-click upgrade to renew
software quickly to experience the latest function;
QUICK GUIDE
30
Notice: when a new software is released, an update notice will be
shown on screen, customer can choose to upgrade or not.
3.6. Settings
Select the "Settings" menu to open the setting interface.
You can set the language, unit and system-related
options on this interface. The following 8 options as
shown below:
QUICK GUIDE
31
◼ Language：Please select the language according to the
device configuration, otherwise the diagnosis interface
menu will not be displayed.
QUICK GUIDE
32
◼ Please follow the steps below to switch languages▼
Step 1: Contact your dealer and leave a message about the
language you need and the S/N of your device until they notify
QUICK GUIDE
33
you that the language change is complete
Step 2: Settings->Language->Choose language
Step 3: OS Settings->Language & input->Choose Language
Step 4: Back to Update
◼ Unit：Select the unit of measurement, users can select
Metric, Imperial or U.S. unit system.
◼ Wi-Fi：Choose a suitable wireless network connection
to perform data transmission and Internet access
QUICK GUIDE
34
◼ Display/Lightness：Users can adjust the brightness of
display and the time interval of the host's automatic
standby according to their own conditions to achieve
better experience.
QUICK GUIDE
35
◼ Bluetooth：You can select the Bluetooth to pair.
◼ Date/Time：User can set the date and time of the system
here
QUICK GUIDE
36
◼ Other settings：Users can clean up the system cache and
restore factory settings
QUICK GUIDE
37
Notice
Before clearing the cache and restoring the factory settings,
please confirm whether the required information has been
saved or backed up, if the losses caused by this, Xtooltech has
no liability or responsibility for that.
QUICK GUIDE
38
◼ About：Users can the information of the device.
QUICK GUIDE
39
◼ Tool tip
Pull down the top of the screen to call out the
notification bar, you can view the current system
time, power, Bluetooth and wireless connection
information, and quickly adjust the lightness of the
display
QUICK GUIDE
40
3.7. Report
QUICK GUIDE
41
Report function allows user to check and delete all
historical diagnostic reports here.
Click on , reports also can be sent and shared by
email, just need to enter the receiver’s email address.
3.8. Quick Guide
A30 Pro provides an online user manual, which could
be used to learning the product function at any time.
User can open Quick Guide by click the menu icon on
screen, or press button on the bottom right.
Notice: A catalogue has already been added in the
Quick Guide. By clicking the title, user can reach
corresponding contents directly and easily.
QUICK GUIDE
42
4. FAQs
Q1. “Wi-Fi connection timed out”
A1: This device does not currently support Wi-Fi 6 and
security protocol WPA3, please check the type of your
Wi-Fi and the security protocol, please change the
security protocol to WPA2, and enable maximum
compatibility.
If you still cannot connect to Wi-Fi, it is recommended
to try a mobile phone hotspot or other Wi-Fi.
Q2. Bluetooth connection failed
A2: Step 1: First, please check whether the status of
the indicator light of the lower computer is normal: the
red light above the Bluetooth box means the power is
normal, the blue light in the middle means the
Bluetooth connection is successful, and the green light
QUICK GUIDE
43
on the lower computer indicates that the device
successfully communicates with the car. If the light
indicator fails to light up normally, it means that the
hardware of the box is faulty
Step 2: If the Bluetooth box lights up normally, but the
Bluetooth connection with your device fails, please
make sure that you are within the effective
communication range of Bluetooth, and no obstacles
are blocking the communication signal (effective
Bluetooth communication distance: 10m)
Step 3: If you still cannot make the Bluetooth
communication between the device and the VCI box
successful, please contact XTOOL after-sales technical
support email: [email protected] or
Q3. "Activation failed" or "Registration failed"
QUICK GUIDE
44
Q3: Please make sure that your network is stable and
the network traffic from China is not blocked, and try
to activate the device at another period, or use a mobile
phone hotspot or other Wi-Fi to activate the device.
QUICK GUIDE
45
Shenzhen Xtooltech Intelligent Co., Ltd
Company address: 17&18/F, Building A2, Creativity City,
Liuxian Avenue, Nanshan District, Shenzhen, China
Factory address: 2/F, Building 12, Tangtou Third Industrial
Zone, Shiyan Street, Baoan District, Shenzhen, China
Service Hotline: 0086-755-21670995/86267858
Email: supporting@xtooltech.com
Fax: 0755-83461644
Website: www.xtooltech.com
