INSTALLATION INSTRUCTIONS FOR PART 95-5812
95-5812
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO DIN Head Unit Provision
A) Radio Housing (Double DIN and Stacked ISO DIN) • B) Double DIN Brackets • C) Spacers
• D) (4) Screws
KIT COMPONENTS
A
Cutting Tool • Panel Removal Tool • Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORA
TION
www.metr
aonline.com
TOOLS REQUIRED:
B
C
APPLICA TIONS
FORD
Edge 2007 / Expedition 2007
F-150 2004-07 / FreeStar 2004-07
Mustang 2005-07 / Five-Hundred 2005-07
Freestyle 2005-07 / Focus 2005-07 / Super Duty 2008
F Series 2005-07 / Fusion 2006-07 / Explorer 2006-07
Explorer Sport Trac 2006-07
Taurus 2008, Taurus X 2008
MERCURY
Monterey 2004-07 / Milan 2006-07
Montego 2005-07 / Mountaineer 2006-07
Sable 2008
LINCOLN
Lincoln Mark LT 2005-07
Factory Na
v Only: MKX 2007 / MKZ 2007 / Navigator 2007
Zephyr 2006
D
Dash Disassembly
Ford Edge 2007..............................................................................................................1
Ford F-150 2004-2006 / Expedition 2007 .....................................................................1
Lincoln Mark LT 2005-2007 ...........................................................................................1
Ford Mustang 2005-2007...............................................................................................2
Ford Five Hundred 2005-2007........................................................................................3
Mercury Sable 2008 ......................................................................................................3
Ford Taurus 2008 ...........................................................................................................3
Mercury Montego 2005-2007.........................................................................................3
Ford Fusion 2006-2007..................................................................................................4
Mercury Milan 2006-2007............................................................................................. 4
Ford Freestyle 2005-2007..............................................................................................5
Ford Taurus X 2008 .......................................................................................................5
Ford Freestar 2004-2007...............................................................................................6
Mercury Monterey 2004-2007 ...................................................................................... 6
Ford Focus 2005-2007...................................................................................................7
Ford Explorer 2006-07.................................................................................................. 8
Ford Explorer Sport Trac 2006-2007............................................................................. 8
Mercury Mountaineer 2006-2007.... ..............................................................................8
Ford F Series Super Duty 2005-2007.............................................................................9
Ford Super Duty 2008..................................................................................................10
Lincoln Navigator 2007................................................................................................11
Lincoln MKX 2007 .......................................................................................................12
Lincoln MKZ 2007. ..................................................................................................13,14
Lincoln Zephyr 2006 .............................................................................................. 13,14
Kit
Assembly
Double DIN Head Unit Provision...................................................................................15
Stacked ISO DIN Head Unit Provision...........................................................................16
Final
Assembly ............................................................................................................17
TABLE OF CONTENTS
95-5812
*Note: Refer also to the instructions included with the aftermarket radio.

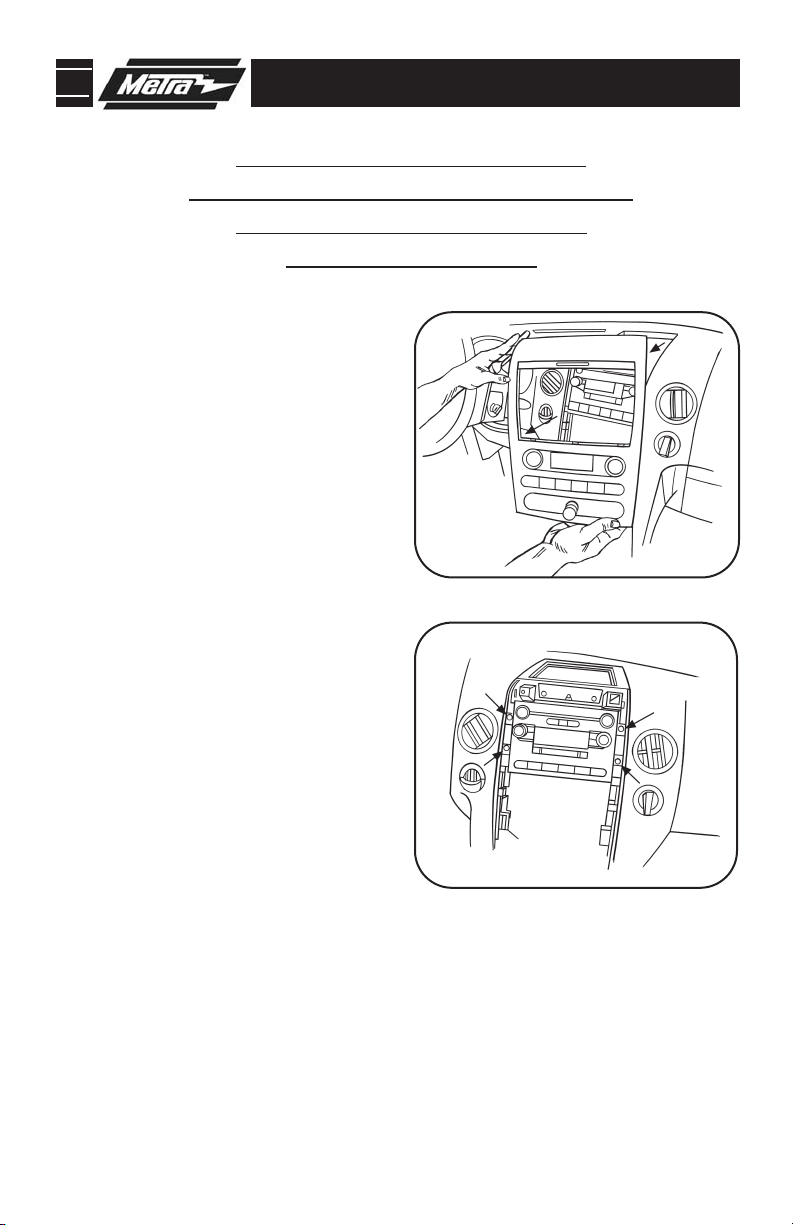

95-5812 DASH DISASSEMBLY
FORD F-150 2004-2007
LINC0LN MARK LT 2005-2006
FORD EXPEDITION 2007
FORD EDGE 2007
A
B
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unsnap and remove entire panel sur-
rounding the radio and climate con-
trols.
(Figure A)
2
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
3
Continue to kit assembly.
2
95-5812 DASH DISASSEMBLY
A
B
C
D
E

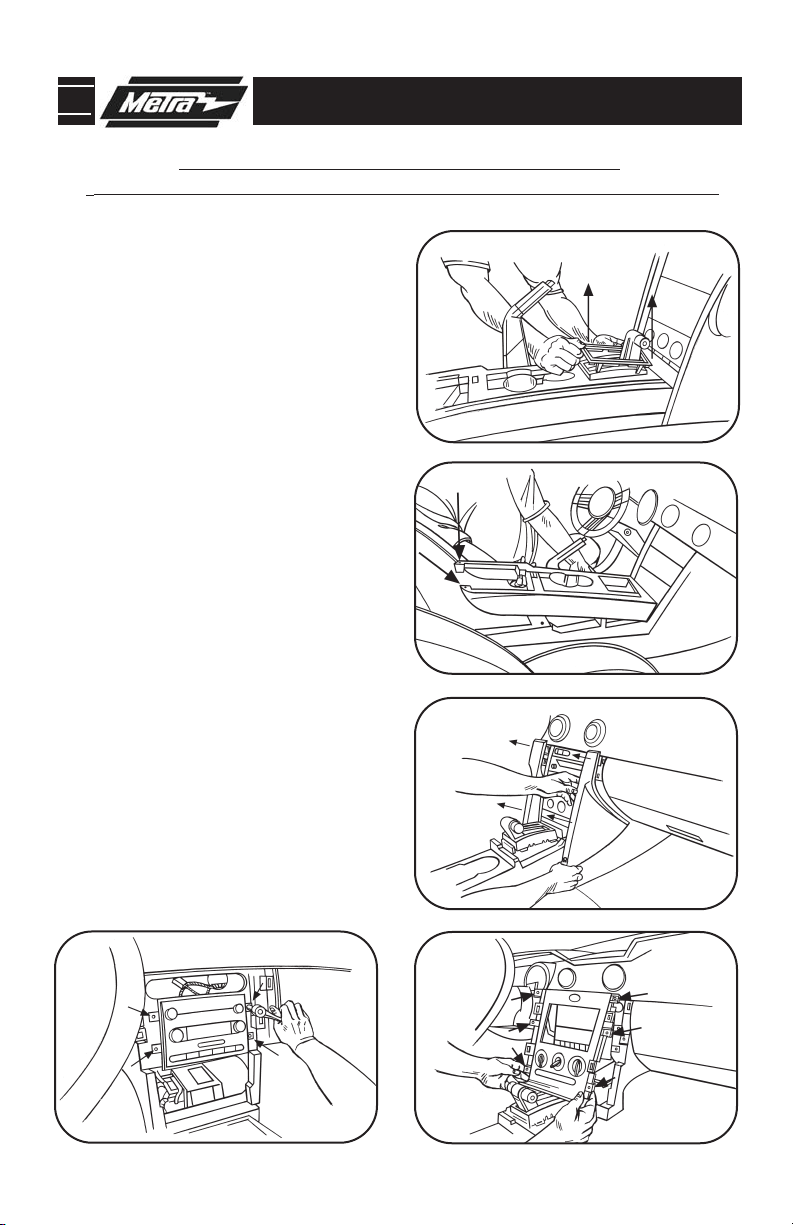

FORD MUSTANG 2005-2007
Remove the small rectangular shifter
lever trim panel if equipped.
(Figure A)
2
Remove (4) 9/32” screws from the
radio to remove.
(Figure E)
7
Remove (2) Phillips screws from under
the center armrest at the back of the
shifter trim panel (including cup
holders).
(Figure B)
3
Unclip and remove panel.
(Figure B)4
Unclip and remove the (2) center
stack trim panels from the left and
right side of the radio and climate
controls.
(Figure C)
5
Remove (6) 9/32” screws from cen-
ter trim panel surrounding the radio
and climate controls then unclip and
remove panel.
(Figure D)
6
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery termi-
nal to prevent an accidental short cir-
cuit.
1
3
95-5812 DASH DISASSEMBLY
A
B
C
D
E
FORD FIVE-HUNDRED 2005-2007/FORD TAURUS 2008
MERCURY MONTEGO 2005-2007, MERCURY SABLE 2008
Unclip and remove the small rectan-
gular trim around shift lever.
(Figure A)
2
Unclip and remove the entire panel
(including cup holders) surrounding the
shift lever.
(Figure B)
3
Remove (2) 9/32” screws at the bottom
of the center radio/climate control
panel.
(Figure C)
4
Remove (4) 9/32” screws from the
radio to remove.
(Figure E)
6
Unclip and remove the center panel.
(Figure D)
5
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery termi-
nal to prevent an accidental short cir-
cuit.
1

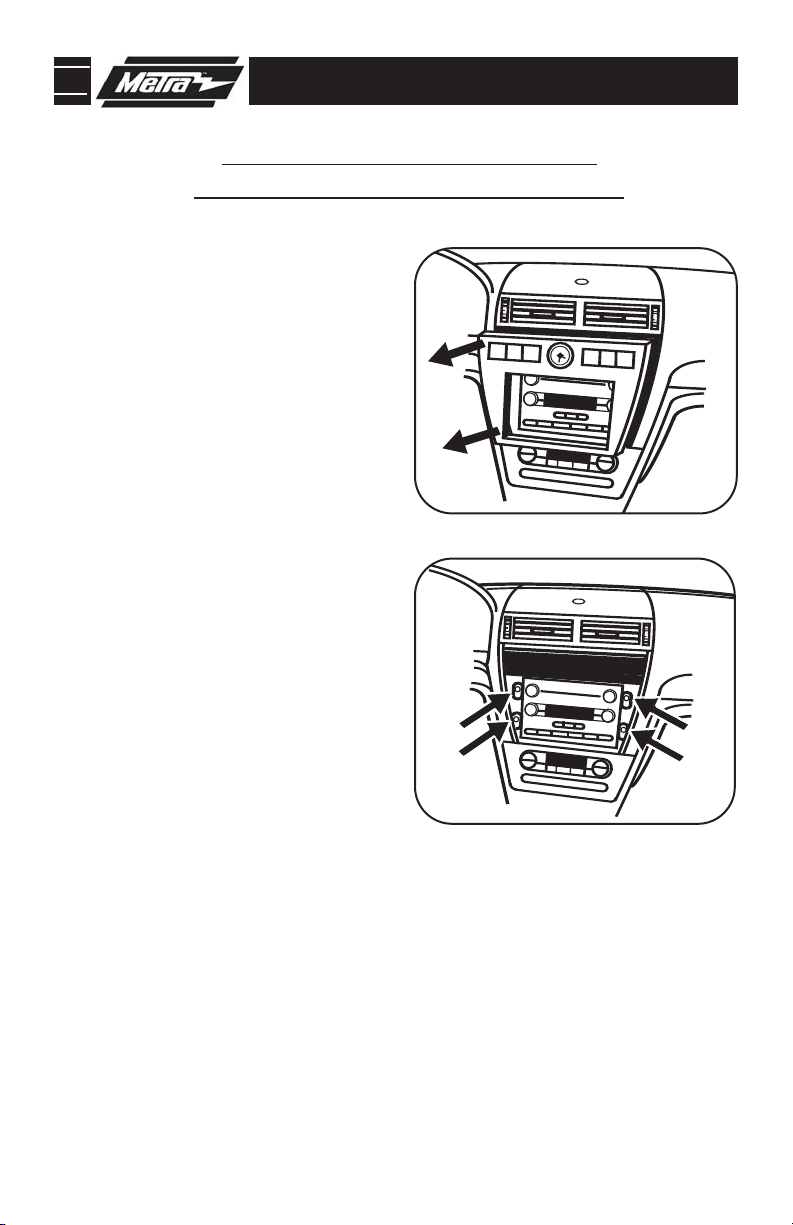

95-5812 DASH DISASSEMBLY
FORD FUSION 2006-2007
MERCURY MILAN 2006-2007
A
B
4
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unsnap and remove entire panel sur-
rounding the radio and climate con-
trols.
(Figure A)
2
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
3
Continue to kit assembly.
95-5812 DASH DISASSEMBLY
FORD FREESTYLE 2005-2007
FORD TAURUS X 2008
A
B
5
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove entire panel sur-
rounding the radio and a/c controls.
(Figure A)
2
Remove (4) 9/32” screws from radio
to remove.
(Figure B)
3
Continue to kit assembly.

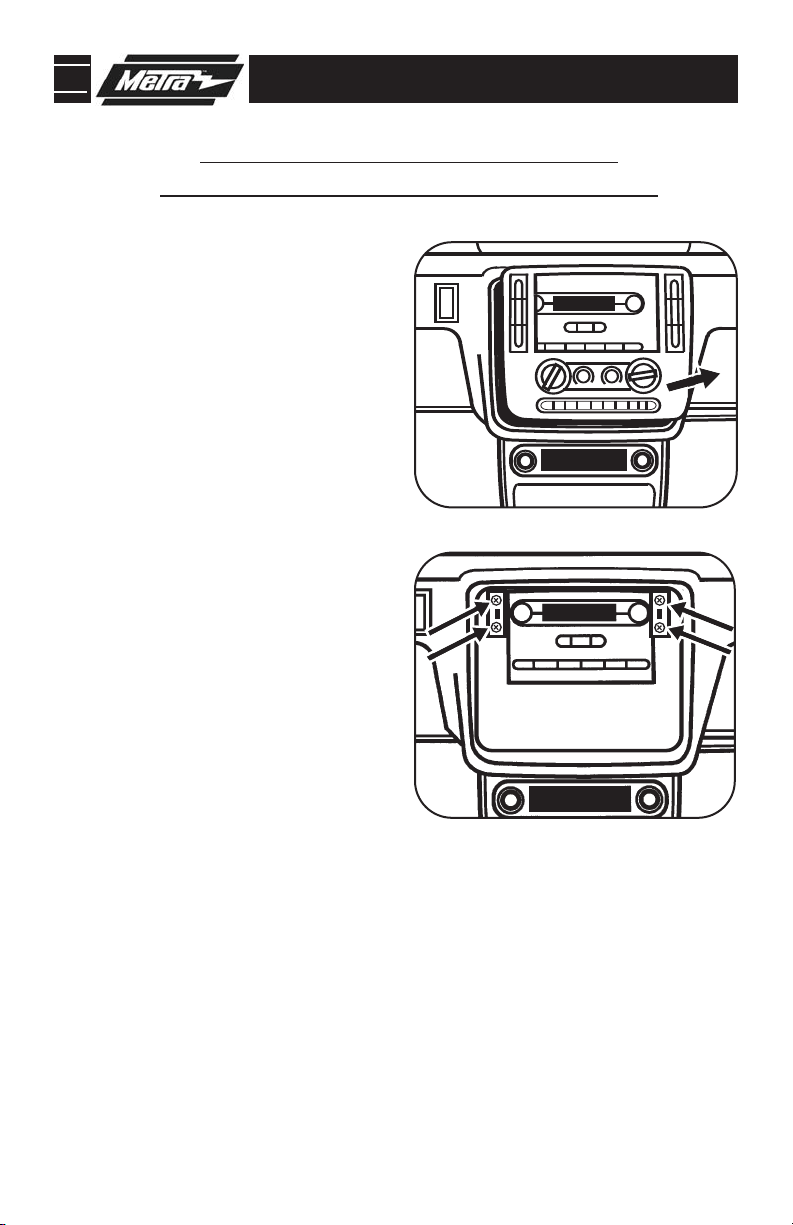

95-5812 DASH DISASSEMBLY
FORD FREESTAR 2004-2007
MERCURY MONTEREY 2004-2007
A
B
6
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unsnap and remove entire panel sur-
rounding the radio and climate con-
trols.
(Figure A)
2
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
3
Continue to kit assembly.
95-5812 DASH DISASSEMBLY
FORD FOCUS 2005-2007
A
B
7
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unsnap and remove entire panel sur-
rounding the radio and climate con-
trols.
(Figure A)
2
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
3
Continue to kit assembly.

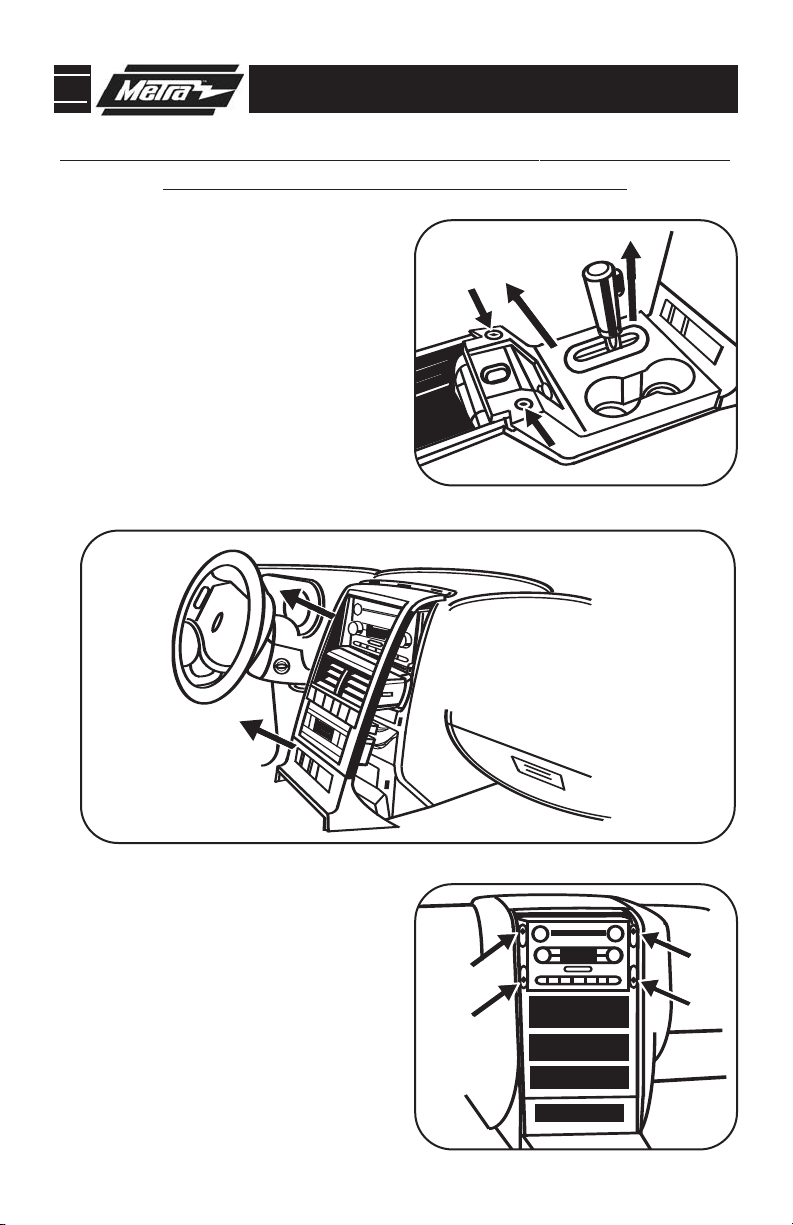

95-5812 DASH DISASSEMBLY
FORD EXPLORER/EXPLORER SPORT TRAC 2006-2007
MERCURY MOUNTAINEER 2006-2007
A
B
8
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Open center console and remove (2)
Phillips screws then unclip and
remove entire panel surrounding
shifter.
(Figure A)
2
Remove dash panel surrounding radio
to access the factory radio screws.
(Figure B)
3
Continue to kit assembly.
C
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
4

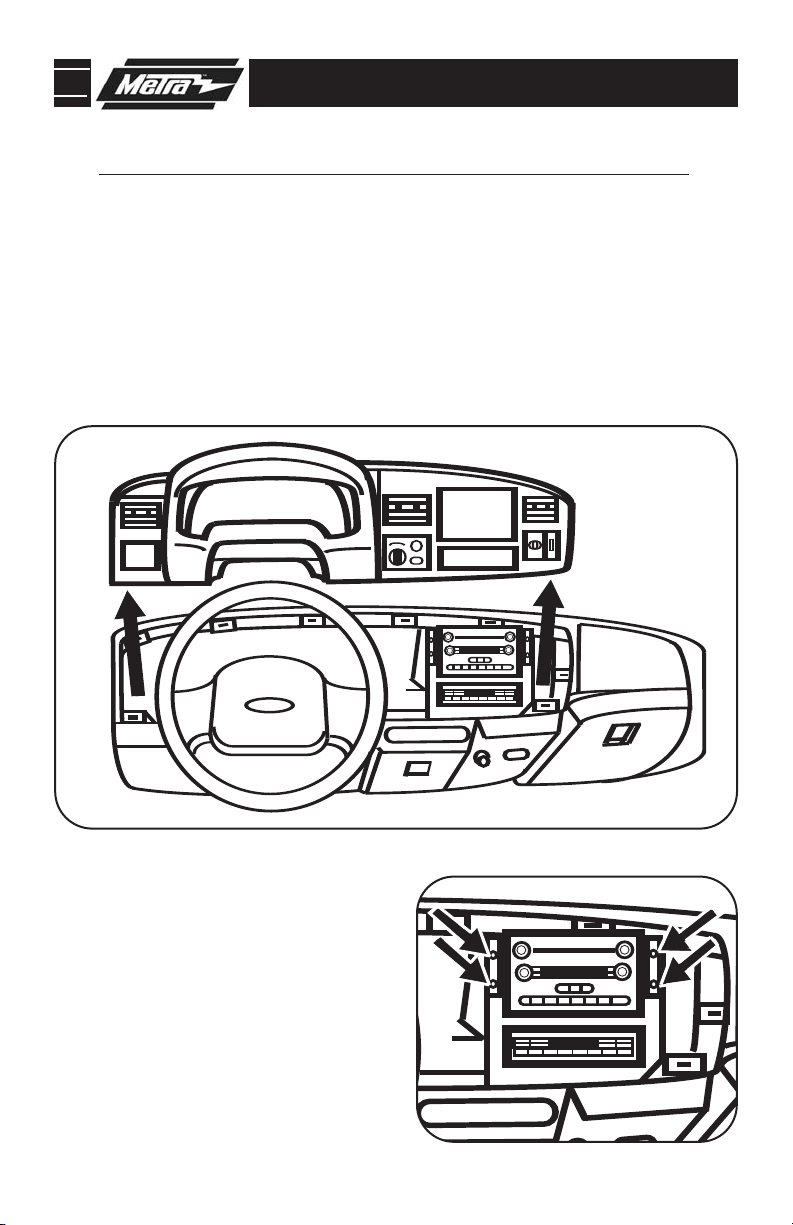

95-5812 DASH DISASSEMBLY
FORD F SERIES SUPER DUTY 2005-2007
A
B
9
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unsnap and remove entire panel
surrounding the radio and climate
controls.
(Figure A)
2
Remove (4) 9/32" screws to remove
the factory radio.
(Figure B)
3
Continue to kit assembly.
10
3
5
4
FORD SUPER DUTY 2008
A
95-5812 DASH DISASSEMBLY
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the power outlet
panel and the blank panel on the left
and right side of the radio trim panel.
(Figure A)
Remove the (2) 9/32” screws exposed
behind the two panels remove in
step 2.
Unclip and remove the entire radio
trim panel including the a/c control
and vents.
Remove (4) 9/32” screws securing
the radio.
Continue to kit assembly
2
95-5812 DASH DISASSEMBLY
LINCOLN NAVIGATOR 2007
A
B
1
Remove (2) 9/32” screws from the
bottom of the radio/climate control
trim panel. (
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip and remove the panel sur-
rounding the shifter. (
Figure A)
2
Unclip and remove the entire panel
surrounding the radio and including
the climate controls.
(Figure B)
4
Remove (4) 9/32” screws securing
the radio. Unplug and remove the
Radio.
5
Continue to kit assembly.
11
12
95-5812 DASH DISASSEMBLY
LINCOLN MKX 2007
A
B
C
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Open center console lid and unclip and
remove the center console trim panel
surrounding the shifter.
(Figure A)
2
3
Unclip and remove the upper and
lower center trim panel as one
assembly.
(Figure C)
4
Remove (4) 9/32” screws securing
the radio. Unplug and remove the
Radio.
5
Continue to kit assembly.
Remove (2) Phillips screws from the
storage bin then unclip and remove
the bin.
(Figure B)
13
95-5812 DASH DISASSEMBLY
LINCOLN MKZ 2007/LINCOLN ZEPHYR 2006
A
B
C
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the top of the
center console.
(Figure A)
2
3
Unclip and remove the climate control
and trim panel assembly starting at
the bottom edge.
(Figure B)
4
Open the climate control vents and
pull straight outward to remove.
(Figure C)
5
Continue on page 14.
Open ashtray door and remove ash-
tray then remove (1) Phillips screw
from inside ashtray cavity. Close ash-
tray door.
14
95-5812 DASH DISASSEMBLY
D
E
Remove (2) 9/32” from the bottom of
the radio trim panel assembly and (2)
9/32” screws from inside the vents.
(Figure D)
6
Unclip the radio trim panel/radio
assemmbly. Unplug and remove
assembly.
(Figure D)
7
8
Continue to kit assembly.
Remove (4) 9/32” screws securing the
radio to the trim panel and remove the
radio.
(Figure E)
LINCOLN MKZ 2007/LINCOLN ZEPHYR 2006
15
95-5812 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
Slide the Double DIN radio into the
radio housing/bracket assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure C)
4
*Note: Refer also to the instructions included with the aftermarket radio.
Attach the double DIN brackets to the radio housing. Note: The notch in the hous-
ing should be on top.
(Figure 3A,3B)
3
2
For the 2007 Ford Edge/Expedition,
2006-07 Explorer, 2006-07 Fusion,
2007 Mustang and the 2008 Super
Duty attach the included spacers to
the back of the radio housing mount-
ing tabs.
a. If your vehicle is not listed above
move to step 3.
(Figure A)
1
For the 2007 Ford Edge/Expedition, 2006-07 Explorer/Fusion/Mercury
Milan, 2004-07 F-150, 2005-07 Five Hundred/Freestyle/Mustang/
Mercury Montego, 2005-07 Lincoln Mark LT and the 2008 Super Duty,
cut and remove the rear mounting tabs from the Double DIN Brackets
a. If your vehicle is not listed above move to step 2.
3A
Continue to kit assembly.
A
3B
C
16
STACKED ISO UNITS PROVISION
95-5812 KIT ASSEMBLY
Attach the double DIN brackets to the
radio housing. Note: The notch in the
housing should be on top.
(Figure 3A,3B)
3
Slide the ISO mount units into the
radio housing/bracket assembly and
secure the units to the assembly using
the screws supplied with the units.
(Figure C)
4
*Note: Refer also to the instructions included with the aftermarket radio.
For the 2007 Ford Edge/Expedition,
2006-07 Ford Explorer, 2006-07
Ford Fusion, 2007 Mustang and
the 2008 Super Duty attach the
included spacers to the back of the
radio housing mounting tabs.
(Figure A)
a. If your vehicle is not listed above
move to step 3.
2
1
For the 2007 Ford Edge/Expedition,
2006-07 Explorer/Fusion/
Mercury Milan, 2004-07 F-150,
2005-07 Five Hundred/
Freestyle/Mustang/Mercury
Montego, 2005-07 Lincoln Mark LT
and the 2008 Ford Super Duty, cut
and remove the rear mounting tabs
from the Double DIN Brackets.
a. If your vehicle is not listed above
move to step 2.
Continue to kit assembly
.
A
3A
3B
C
17
95-5812 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp
T
urn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . .
Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+)
. . . . . . . . . . . .
Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+)
. . . . . . . . . . . . .
Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present,
ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
95-5812 INSTRUCTIONS
1-800-221-0932
REV. 08/20/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST95-5812
www.metraonline.com
