INSTALLATION INSTRUCTIONS FOR PART 95-6511
95-6511
APPLICATIONS
Chrysler Sebring 2007
Dodge Avenger 2007-2008
Dodge Nitro 2007
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Units Provision
A) Double DIN Brackets/Trim Plates
KIT COMPONENTS
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORA
TION
www.metr
aonline.com
Jeep Wrangler 2007
(Modifications To Radio Cavity Required)
Dash Disassembly
- Chrysler Sebring 2007 ............................................1
- Dodge Avenger 2007-2008 ........................................2
- Dodge Nitro 2007 ................................................3
- Jeep Wrangler 2007 (Modifications to radio cavcity required) . . . . . . . . . . .4
Kit Assembly
- Double DIN Radio Provision . . . . . .... ..............................5
- Stacked ISO Units Provision ........................................6
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
TABLE OF CONTENTS
95-6511
*Note:
Refer also to the instructions included with the aftermarket radio.
95-6511 DASH DISASSEMBLY

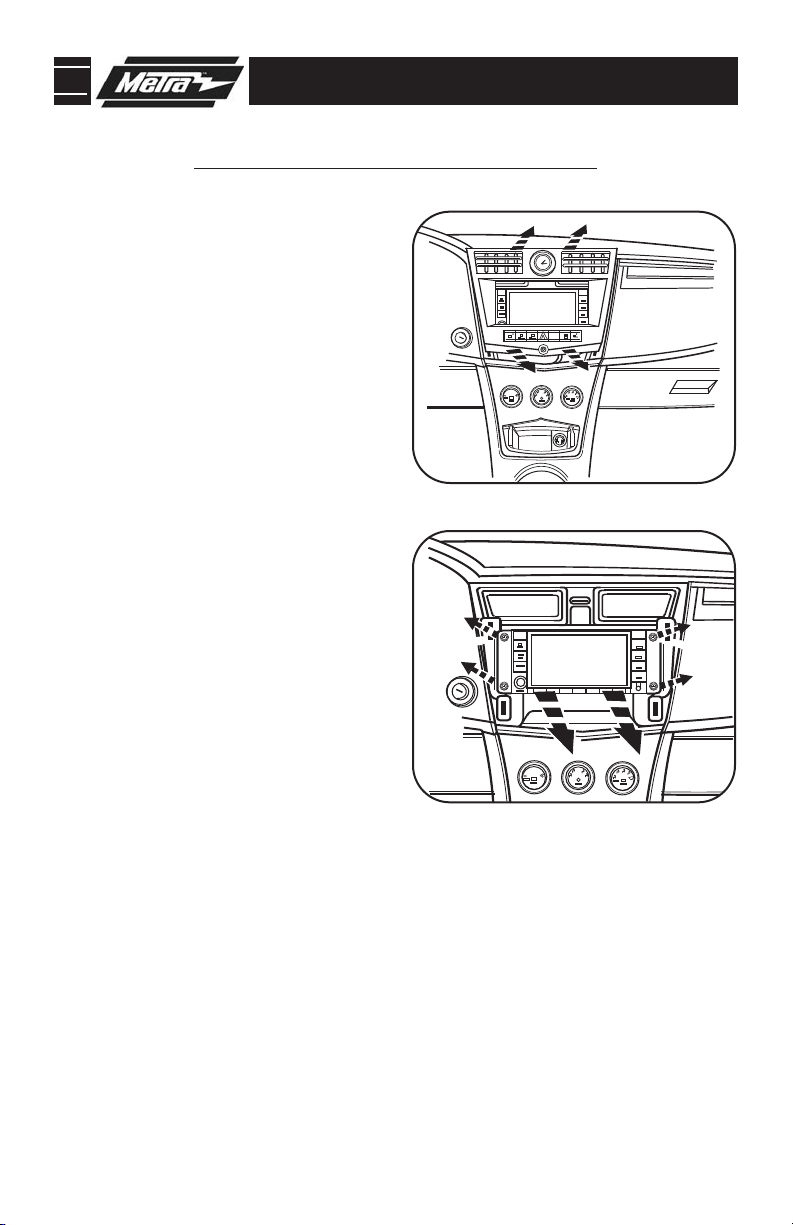

CHRYSLER SEBRING 2007
A
B
1
1
Remove (4) 7MM screws securing
radio. Unplug and remove radio.
(
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip entire panel surrounding radio
including a/c vents and clock. Unplug
and remove panel. (
Figure A)
2
Continue to kit assembly.
95-6511 DASH DISASSEMBLY

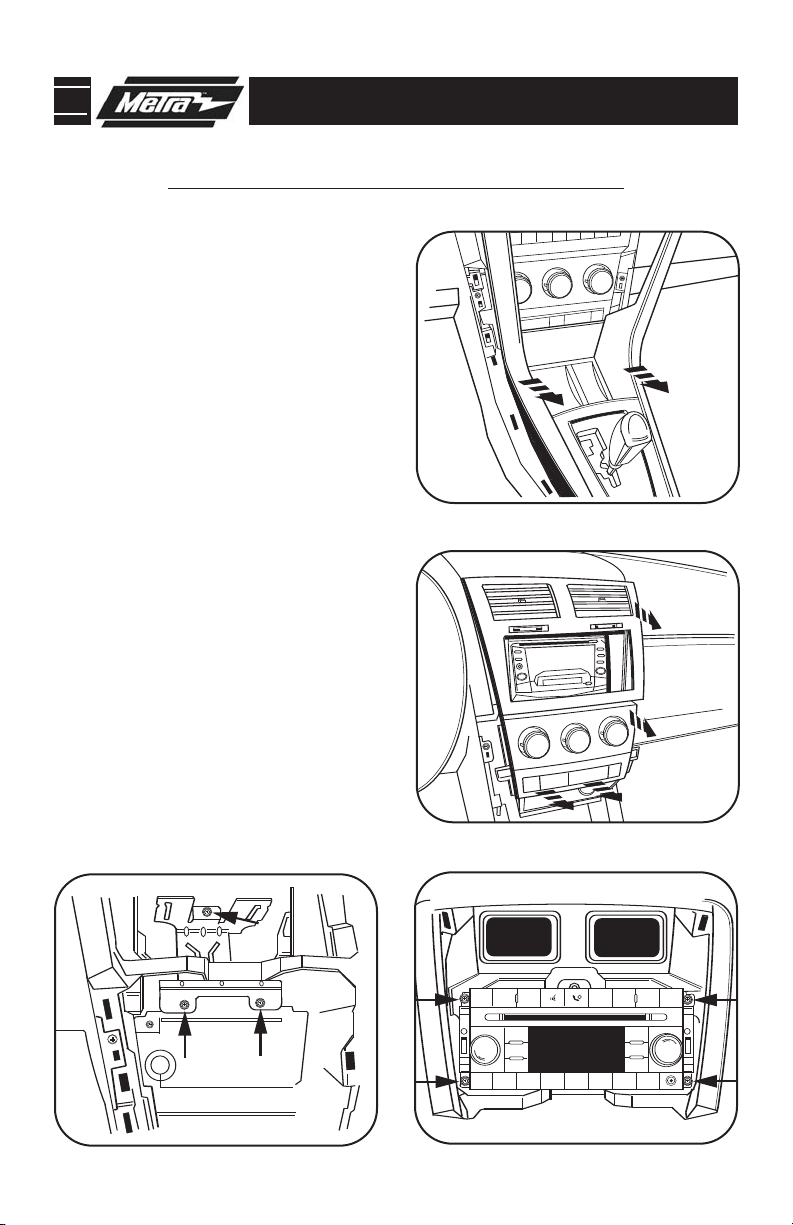

DODGE AVENGER 2007-2008
A
B
1
2
3
4
5
6
AUX
AUX
SET
VOLUME
PUSH ON
PUSH AUDIO/SELECT
AM
FM
DISC
LIST
MUSIC
TYPE
SEL;ECT
TUNE/SCROLL
SEEKSEEK
SCAN
TIME INFO RW FF
U
C
D
2
1
Unclip the center dash trim panel.
(
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Remove (4) screws securing the
radio. Disconnect and remove the
radio. (
Figure C)
Remove (3) screws securing the radio
rear support bracket and remove the
bracket. (
Figure D)
4
5
Unclip and remove the center console
trim panel. (
Figure A)
2
Continue to kit assembly.
95-6511 DASH DISASSEMBLY

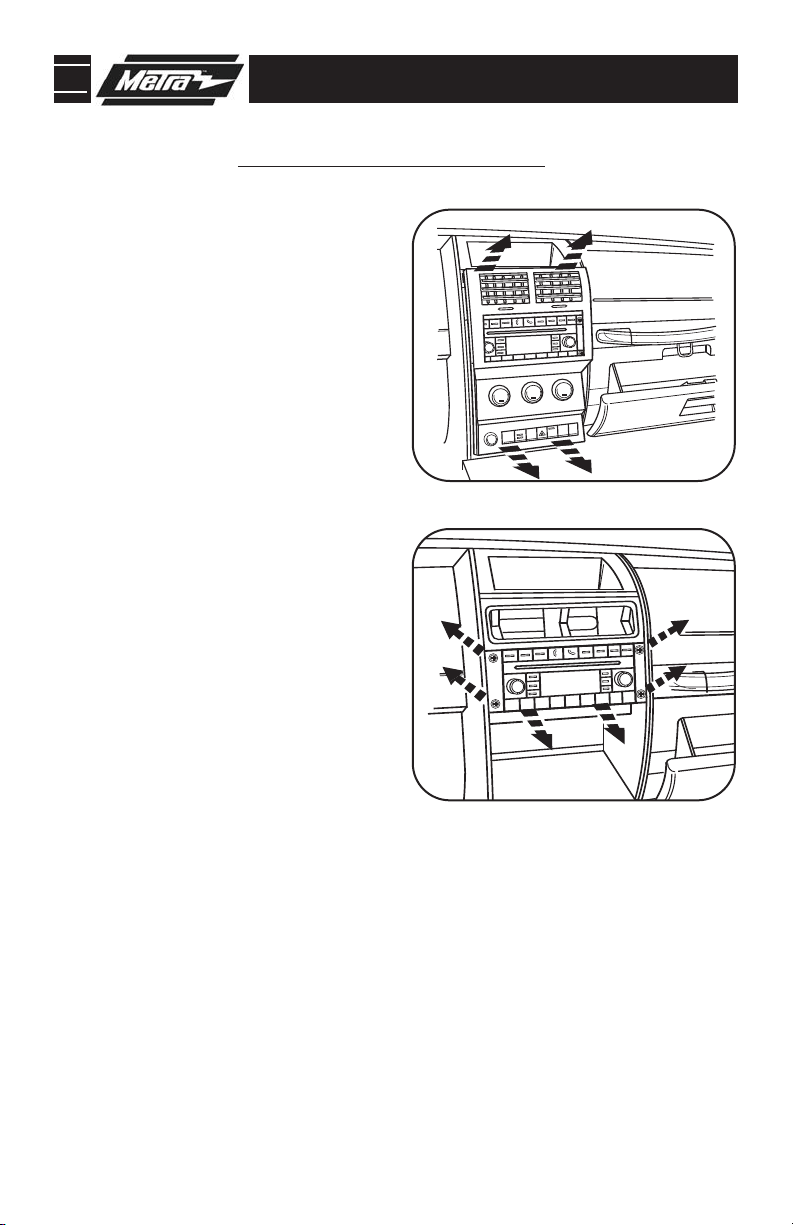

DODGE NITRO 2007
A
6
1
2
3
4
5
2
3
4
5
6
1
B
3
1
Remove (4) 7MM screws securing
radio. Unplug and remove radio.
(
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip entire panel surrounding radio
and climate controls, including a/c
vents. Unplug and remove panel.
2
Continue to kit assembly.
95-6511 DASH DISASSEMBLY

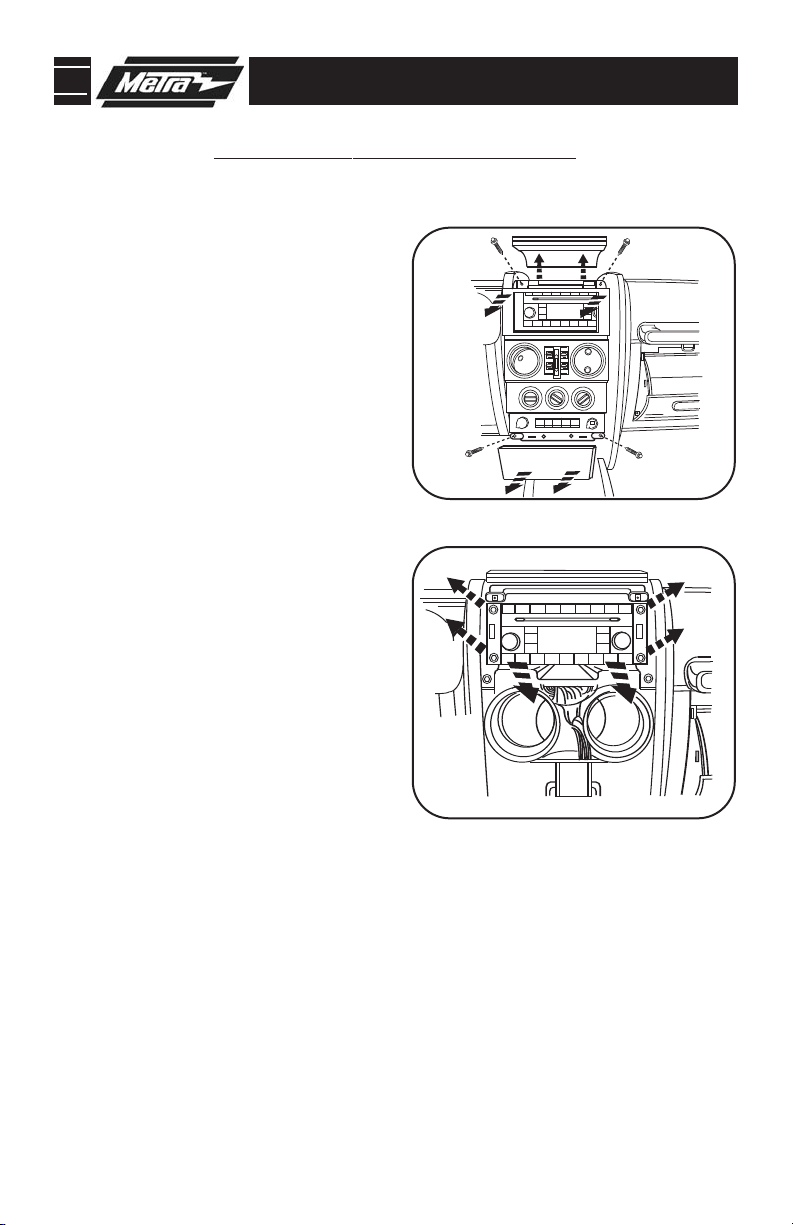

JEEP WRANGLER 2007
A
1
2
3
45
6
1
2
3
45
6
B
4
1
Remove (2) Phillips screws exposed
behind lower center panel. (
Figure A)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip and remove the lower center
trim below a/c controls. (
Figure A)
2
Remove (2) Phillips screws exposed
behind upper center panel. (
Figure A)
5
Unclip and remove entire panel sur-
rounding radio and climate controls,
including a/c vents.
6
Remove (4) 7MM screws securing
radio. Unplug and remove radio.
(
Figure B)
7
Unclip and remove the upper center
trim starting towards the rear of the
panel. (
Figure A)
4
Continue to kit assembly.
(Modifications To Radio Cavity Required)
95-6511 KIT ASSEMBLY
5
A

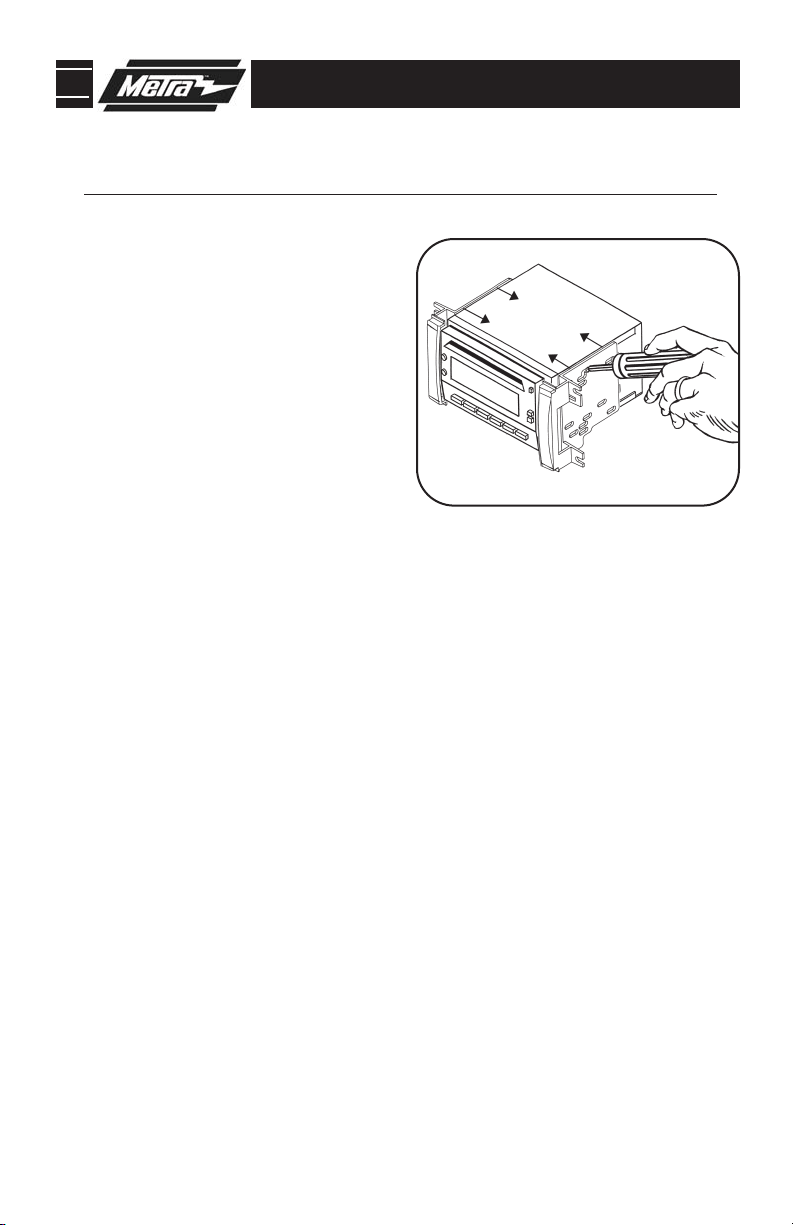

DOUBLE DIN RADIO PROVISION
Attach the Double DIN brackets/trim
plates to the Double DIN Radio using
the screws supplied with the Radio.
(Figure A)
1
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
95-6511 KIT ASSEMBLY
6
A

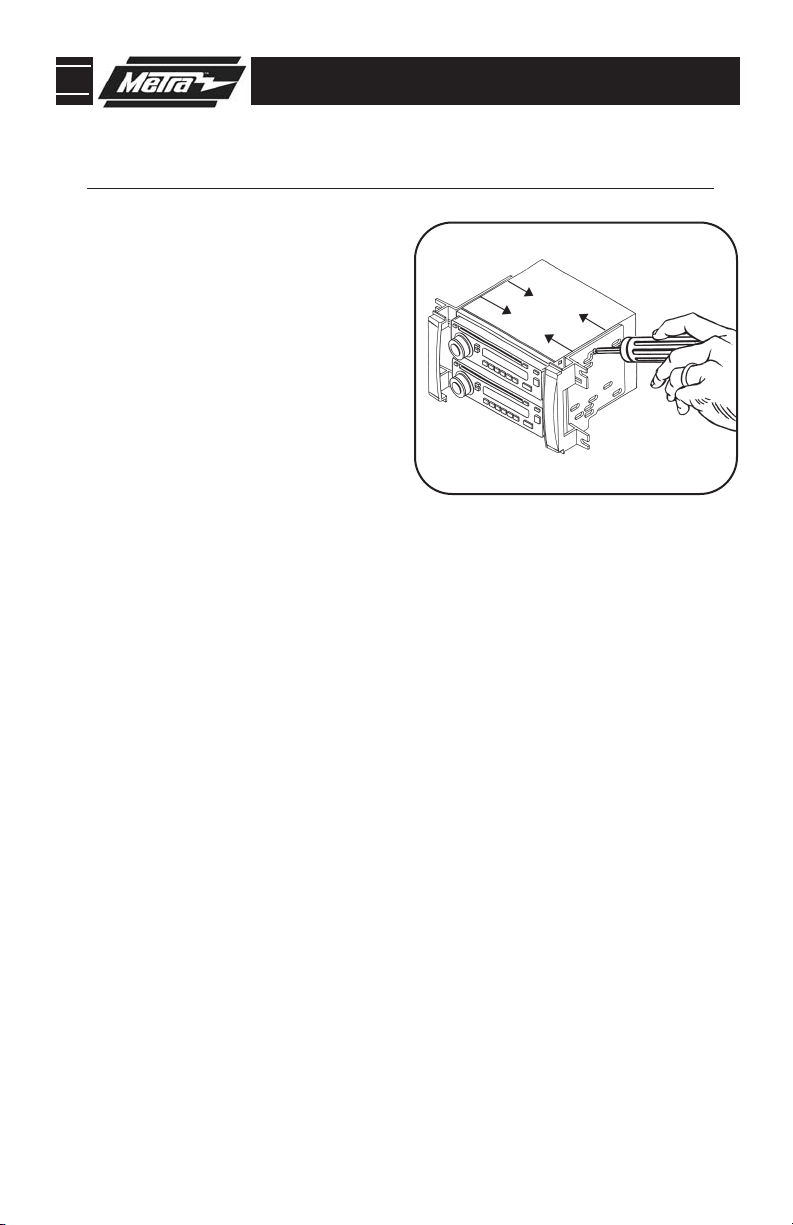

STACKED ISO UNITS PROVISION
Attach the Double DIN brackets/trim
plates to the stacked ISO units using
the screws supplied with the units.
(Figure A)
1
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
95-6511 FINAL ASSEMBLY
FINAL ASSEMBLY

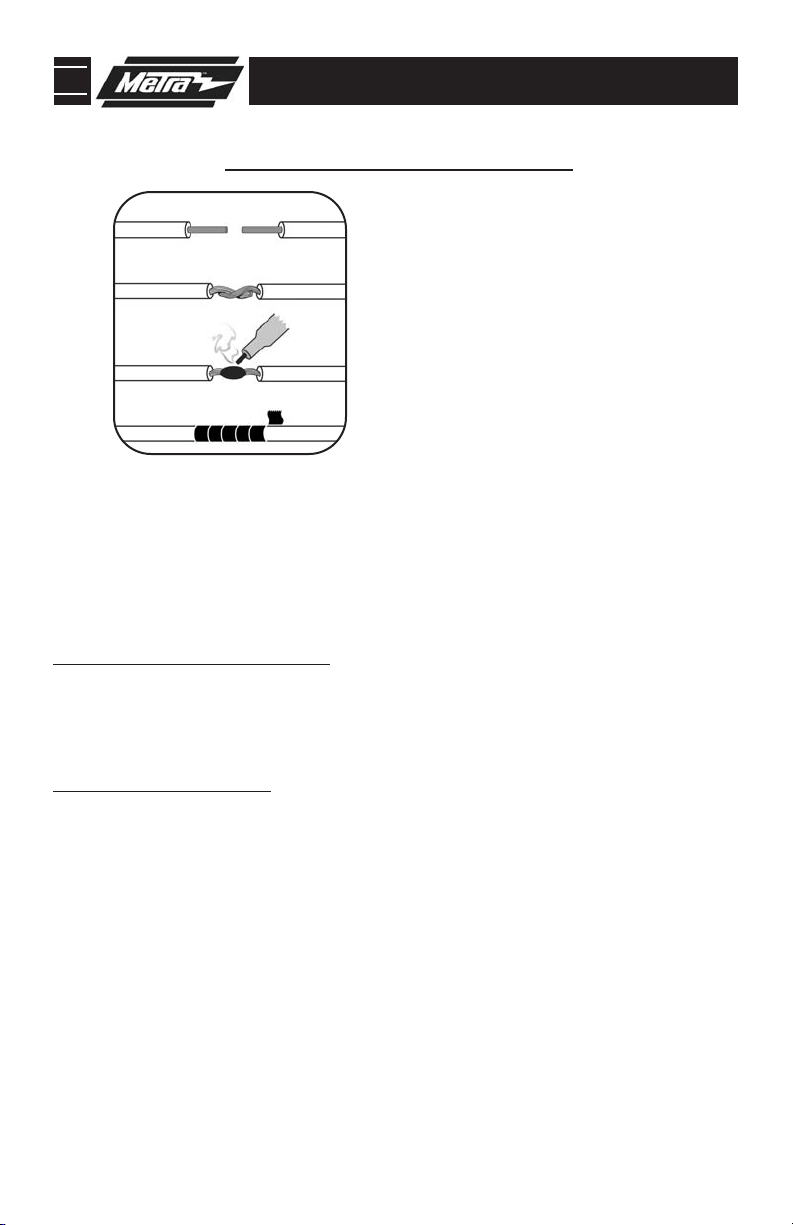

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange /
White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-)
. . . . . . . . . . . . . .
Green / Black
*NOTE: When a Black wire is not present,
ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
7
NOTES
8
95-6511
NOTES
