Easy Step
Safety Gate
OWNER’S MANUAL MODEL: 1166H, 1166B, 1166P
• READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF GATE.
• KEEP INSTRUCTIONS FOR FUTURE USE.
English 3
Before Using Product
Read and follow all instructions carefully to ensure that your gate and extensions are
properly installed. Improper installation could result in the gate becoming unstable or
dislodged from the doorway. Always make sure the extension is securely attached
to the gate before using. The safety of your child is your responsibility. Please keep
these instructions for your reference.
IMPORTANT
• Never use more than two extensions per side of gate.
• If hardware mounting to a surface other than drywall or wood,
please consult with a professional about installation.
English4
WARNING
• Install according to manufacturer’s instructions.
• Children have died or been seriously injured
when gates are not securely installed. ALWAYS
install and use gate as directed using all required
parts.
• STOP using when a child can climb over or
dislodge the gate.
• Use only with the locking/latching mechanism
securely engaged.
• To prevent falls, never use at top of stairs.
• NEVER use to keep child away from pool.
• Intended for use with children from 6 months
through 36 months.
• This product will not necessarily prevent all
accidents. Never leave child unattended.
• Always ensure the gate is resting against the floor
before beginning installation.
• Check the gate regularly to see if all the hardware
and mountings are tightened.
• Do not use if any component is missing or
damaged.
English 5

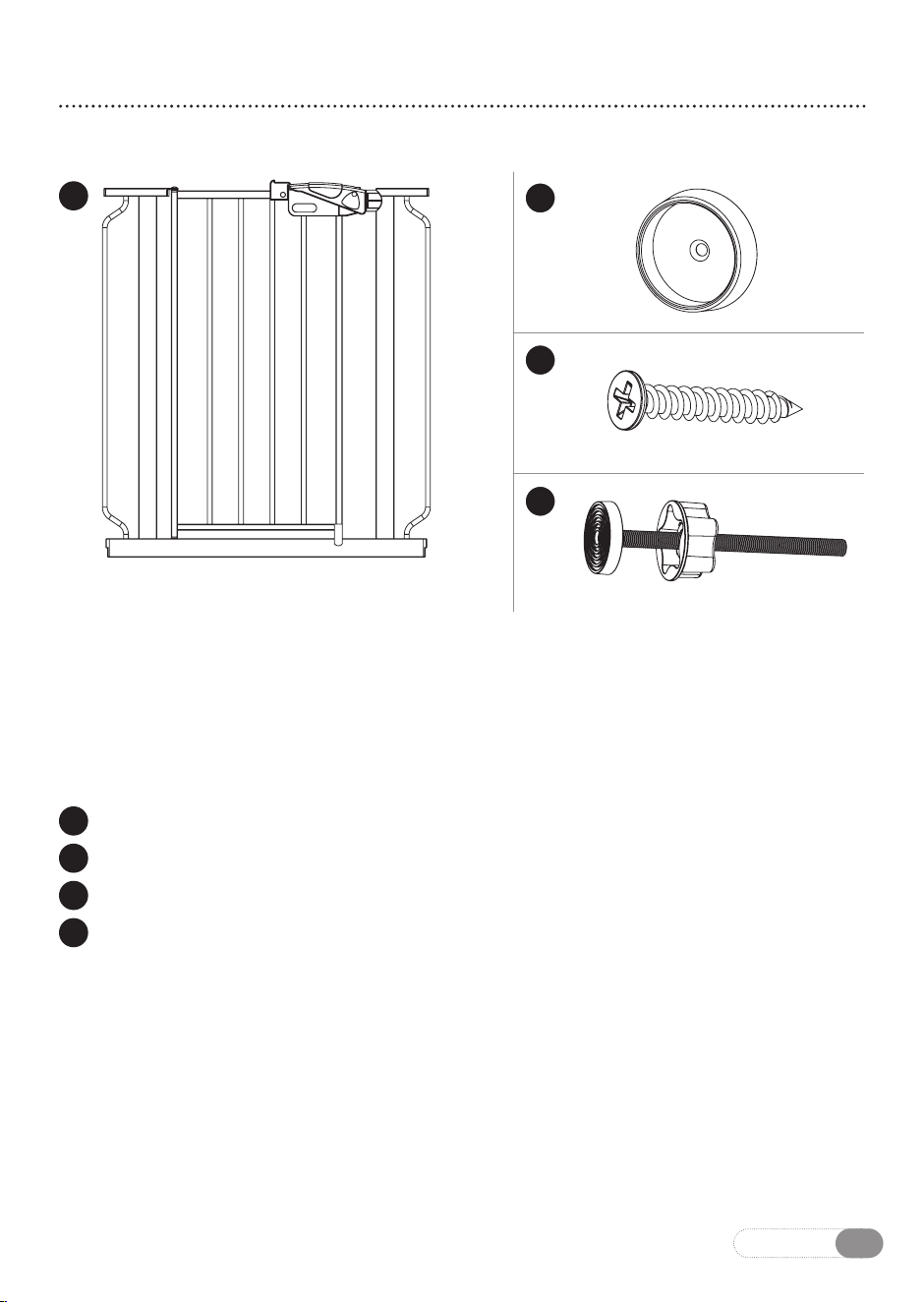

PLEASE CHECK TO MAKE SURE YOU HAVE THE FOLLOWING PARTS:
A Gate Frame (1)
B Wall Cups (4)
C Screws (4) (requires a Phillips/cross-head screwdriver)
D Threaded Spindle Rods (4)
Before Assembly
A
D
C
B
English6
MODEL NO. MAX SIZE
1166H
1166B
1166P
29 – 36.5 inches
Extensions List
NOTE
NOTE: When installing any gate at its maximum width, use wall cups to
ensure stability and safety.
4"
6"
12" 24"
WARNING: The gap between the gate and wall should not exceed
more than 2 inches.
English 7

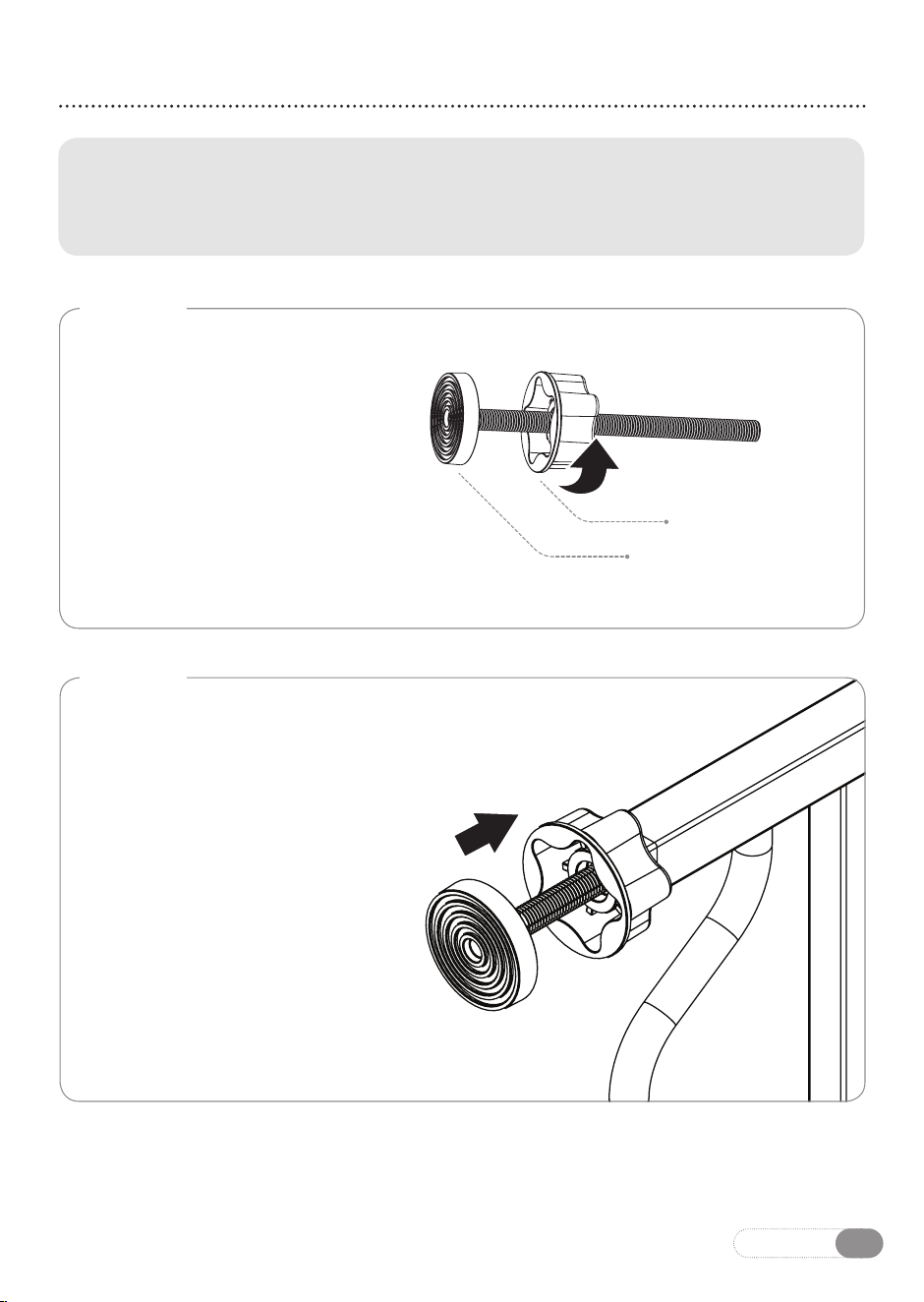

STEP 1
Locate the (4) threaded
spindle rods. Rotate the
adjustment wheels along
the threading, eliminating the
gap between the adjustment
wheel and the rubber foot.
Assembling and Installing Your Gate
STEP 2
Insert the (4) threaded
spindle rods into the holes
at each of the four corners
of the gate.
NOTE: You will notice a slight gap between the gate door latch and the
frame. This is not a defect. Your gate is a pressure mounted gate and this
gap will disappear once you tighten your gate in its opening.
RUBBER FOOT
ADJUSTMENT WHEEL
English8
NOTE: It may be necessary to hold the threaded spindle rods or rubber feet
while rotating the adjustment wheels to ensure the entire unit does not rotate.

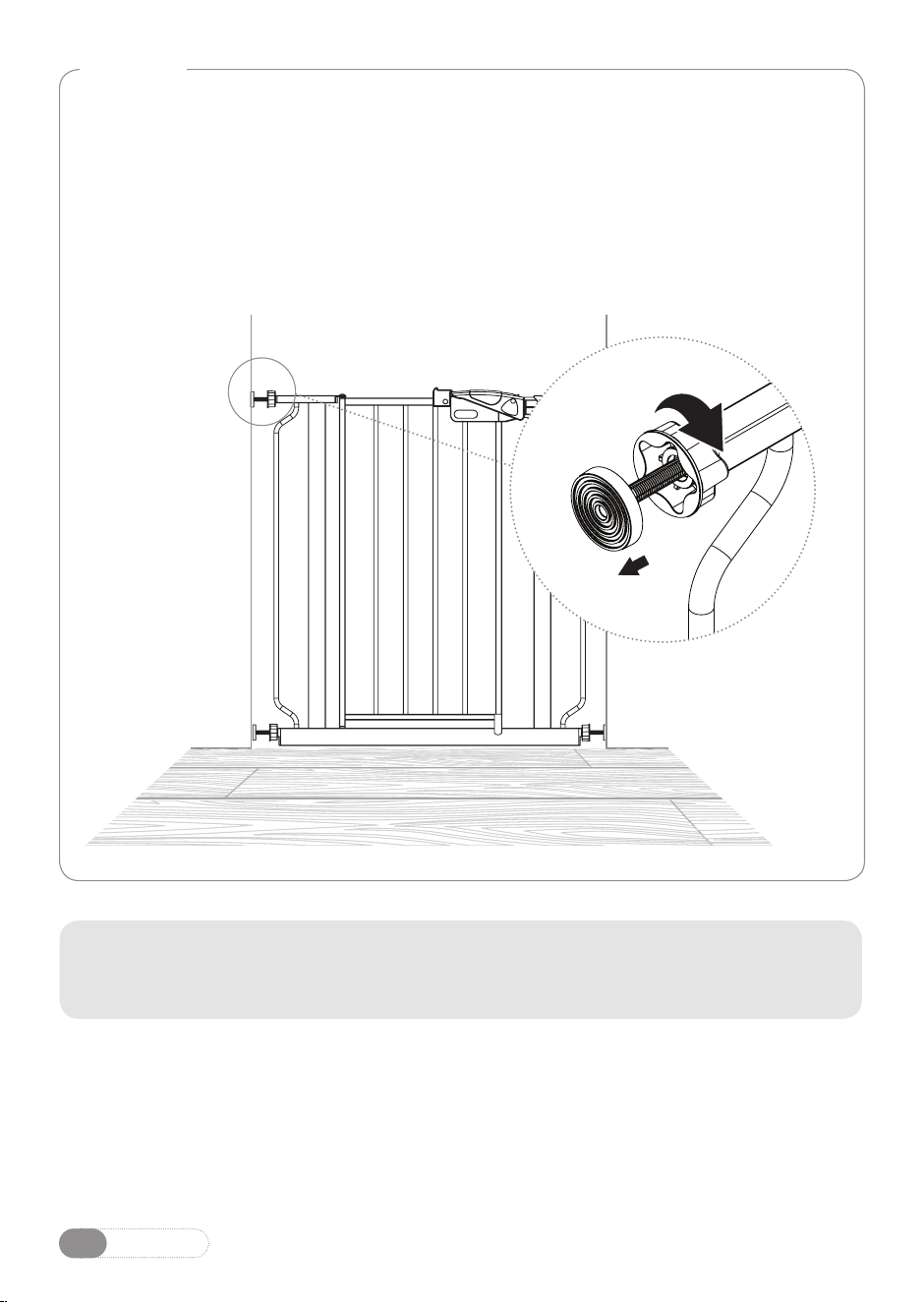

STEP 3
Position the gate so that it is level and centered within your doorway or
opening. Rotate the adjustment wheels on the threaded spindle rods in the
opposite direction as in STEP 1, expanding the gap between the rubber foot
and the adjustment wheel. Expand each of the (4) threaded spindle rods
until they make contact with the doorway or opening. Do not fully tighten the
threaded spindle rods yet.
English 9

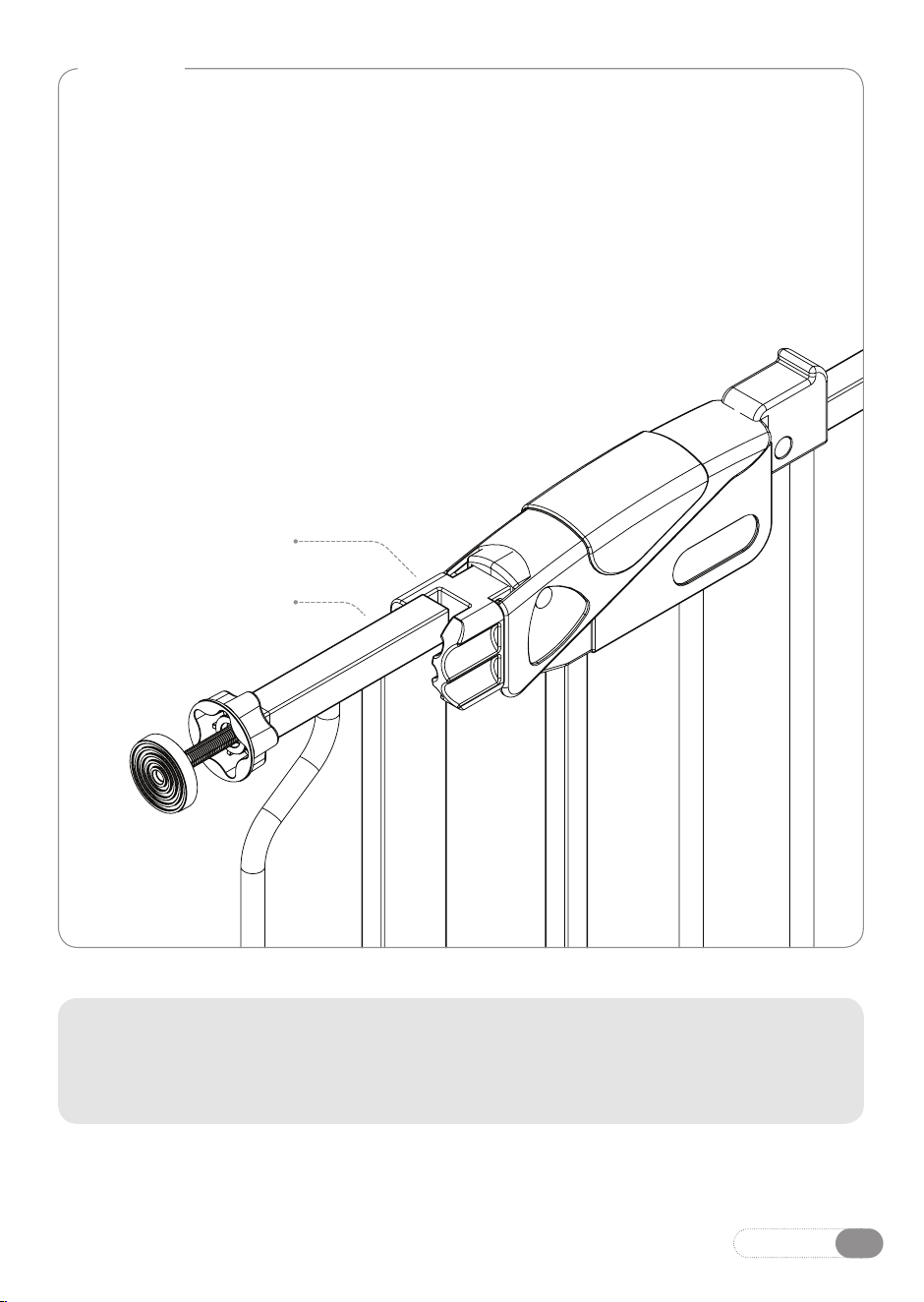

STEP 4
When you are satisfied with the general placement of your gate, fully
tighten the threaded spindle rods attached to the lower corners of the gate
by further rotating the adjustment wheels.
Continue by tightening the upper threaded spindle rods. As you tighten
the upper threaded spindle rods, you will notice the gap between the door
frame and the easy open latch begin to narrow.
In order for the gate to function properly, stop tightening the upper
threaded spindle rods just before the inner wall of the locking latch and
the gate frame touch.
LOCKING LATCH
GATE FRAME
NOTE: The gap between the gate and wall should not exceed more than 2
inches. Make the appropriate adjustment to ensure you have installed your
gate safely.
English10
Positioning and Attaching the Wall Cups
Using the wall cups will affix your gate more firmly in the doorway or opening.
This is the recommended way to use the gate.

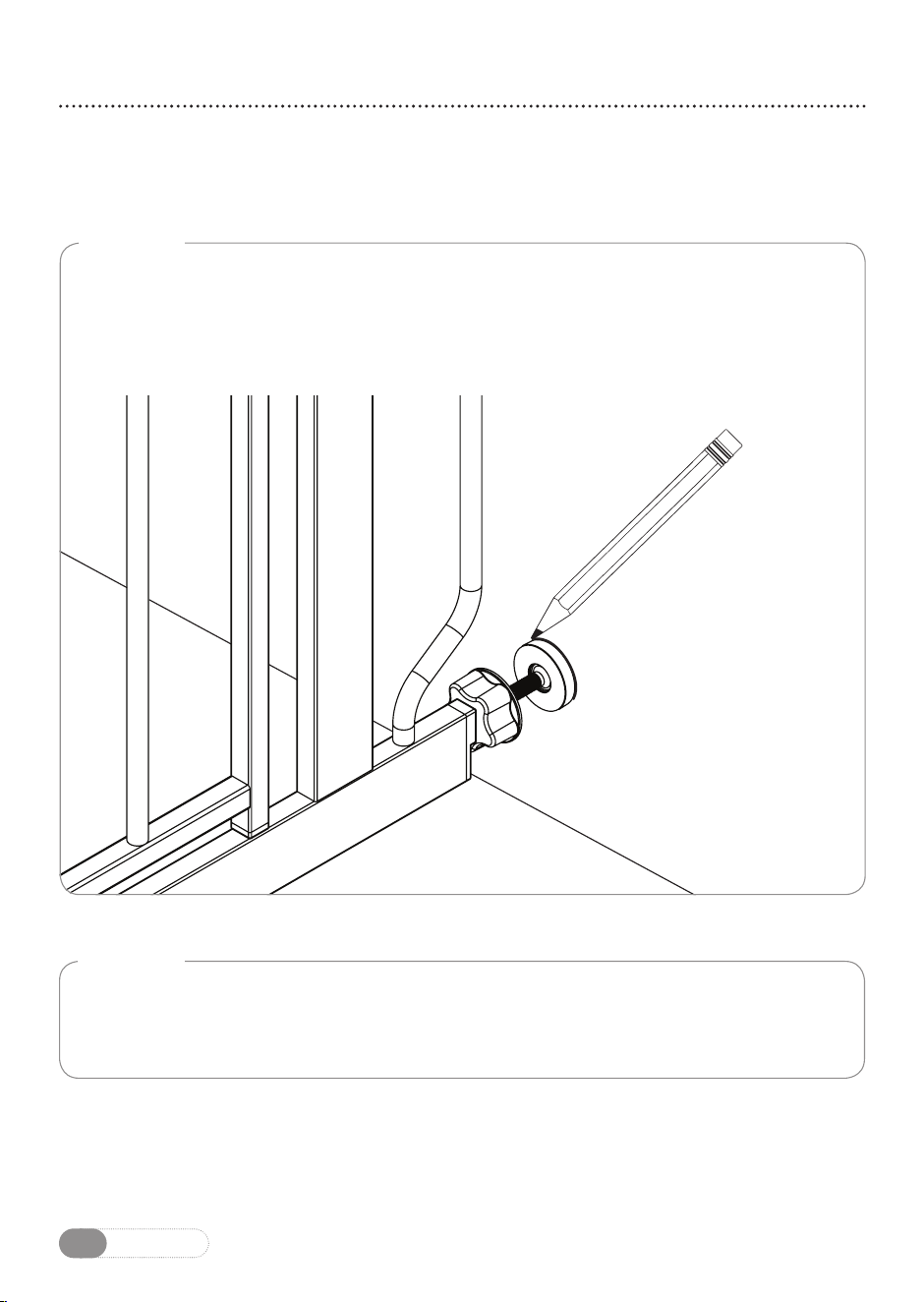

STEP 1
After you have mounted your gate, and you are satisfied with its positioning,
draw a circle on the surface of your doorway or opening around the perimeter
of the (4) rubber feet.
STEP 2
Next, completely remove the gate from the opening by loosening each of the
(4) threaded spindle rods to depressurize the gate.
English 11

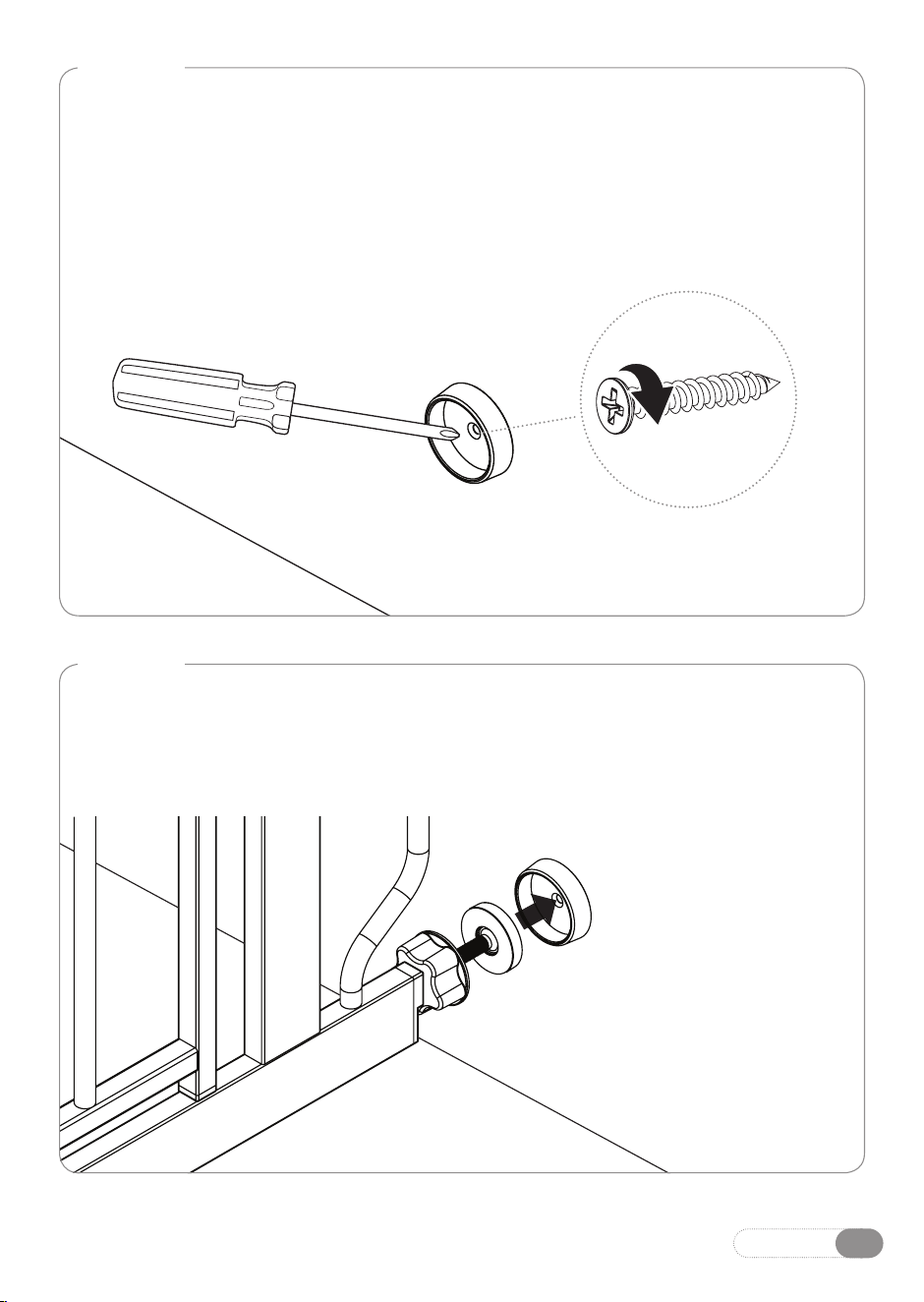

STEP 3
With the gate fully removed, you can now use the circles you marked during
STEP 1 as guides for screwing in your (4) wall cups.
Center each of the wall cups within the guide circles and use the provided
self-tapping screws to fasten them in place via the hole through the center of
each wall cup.
STEP 4
Reinstall your gate in the doorway or opening according to the instructions,
using the newly installed wall cups as anchoring points for the (4) threaded
spindle rods.
English12

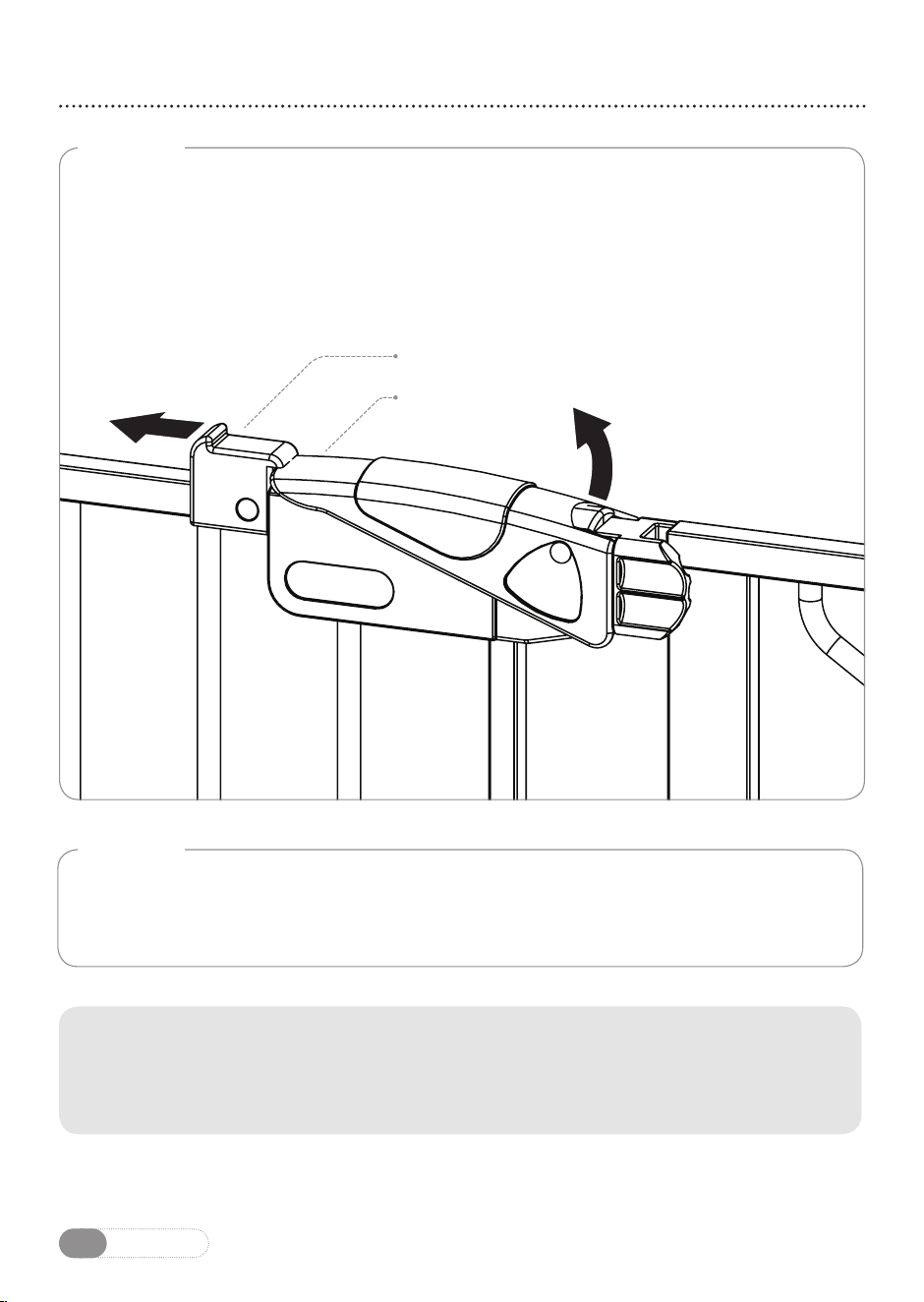

Operating the Door Latch
STEP 1
Pull the spring lock away from the easy open latch while simultaneously lifting
the lock lever upwards. This will release the locking latch from the gate frame
and allow the door to push or pull open.
STEP 2
To lock the door shut, close the door completely, then push down on the lock
lever to re-engage the spring lock.
NOTE: If your easy open latch is not properly engaging with the receiving
component, ensure that your gate is level, mounted properly, and that you
have not over-tightened the threaded spindle rods.
LOCK LEVER
SPRING LOCK
English 13
Adding a Gate Extension
STEP 1
Choose the side of the gate to be extended and remove the top and bottom
threaded spindle rods.
STEP 2
Assemble the gate and extension as illustrated. Reposition the gate and fit in
accordance with the gate fitting instructions.
NOTE: It is preferable to install any extensions on the hinge side of the gate.
If you have an application that requires additional extensions, please
contact the manufacturer.
English14
REMOVING YOUR GATE FROM THE WALL
To remove your gate from the wall, rotate the adjustment wheels on each of the
(4) threaded spindle rods to depressurize the gate from its doorway or opening.
Then, gently pull or push the gate free from its doorway or opening.
CARE AND MAINTENANCE
Periodically check the gate for signs of damage, wear, or missing components.
Do not use if any part is missing, worn or damaged. Check the gate regularly to
ensure all the hardware and mountings are tightened. Do not use abrasive
cleaners or bleach. Clean by sponging with warm water and a mild detergent.
90 DAYS LIMITED WARRANTY
If, during the first 90 days after consumer purchase of the item, under reasonable
and non-commercial use and conditions of maintenance, it fails while owned by
the original purchaser because of the quality of materials or workmanship of finish
and assembly, Regalo International, LLC, will replace or repair it at Regalo’s option.
PROOF OF PURCHASE REQUIRED.
English 15

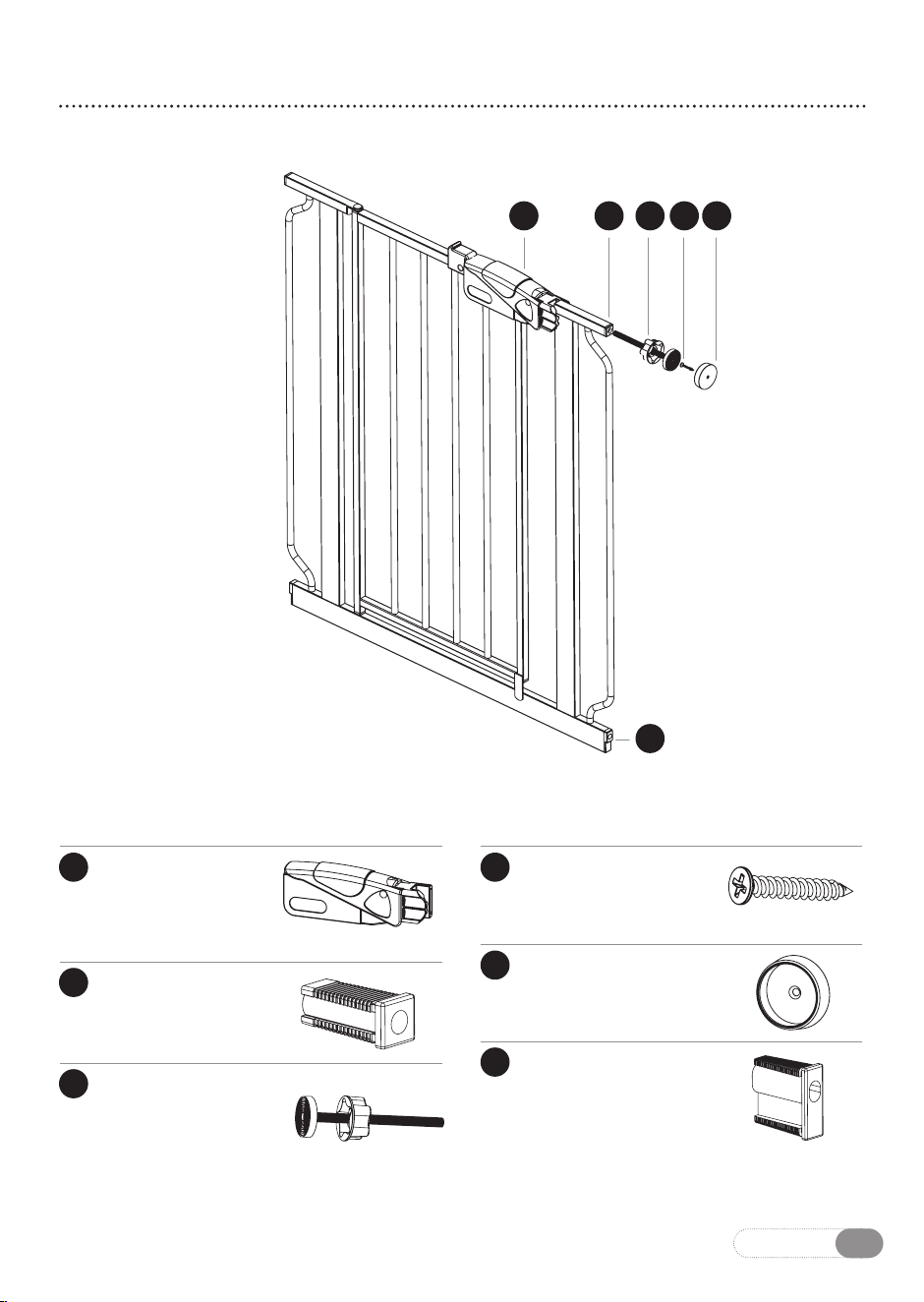

Replacement Parts
A Easy Open Latch
Gray = #14037
Black = #11037
White = #13037
B Top Plug Insert
Gray = #14020
Black = #11020
C Threaded Spindle Rods
w/Adjustment Wheel
Gray = #14016
Black = #11016
D 1" Wall Mount Screws
#10001
E Wall Cups
Gray = #14015
Black = #11015
F Bottom Plug Insert
Gray = #14019
Black = #11019
A
F
B C D E
