ENGLISH | 1

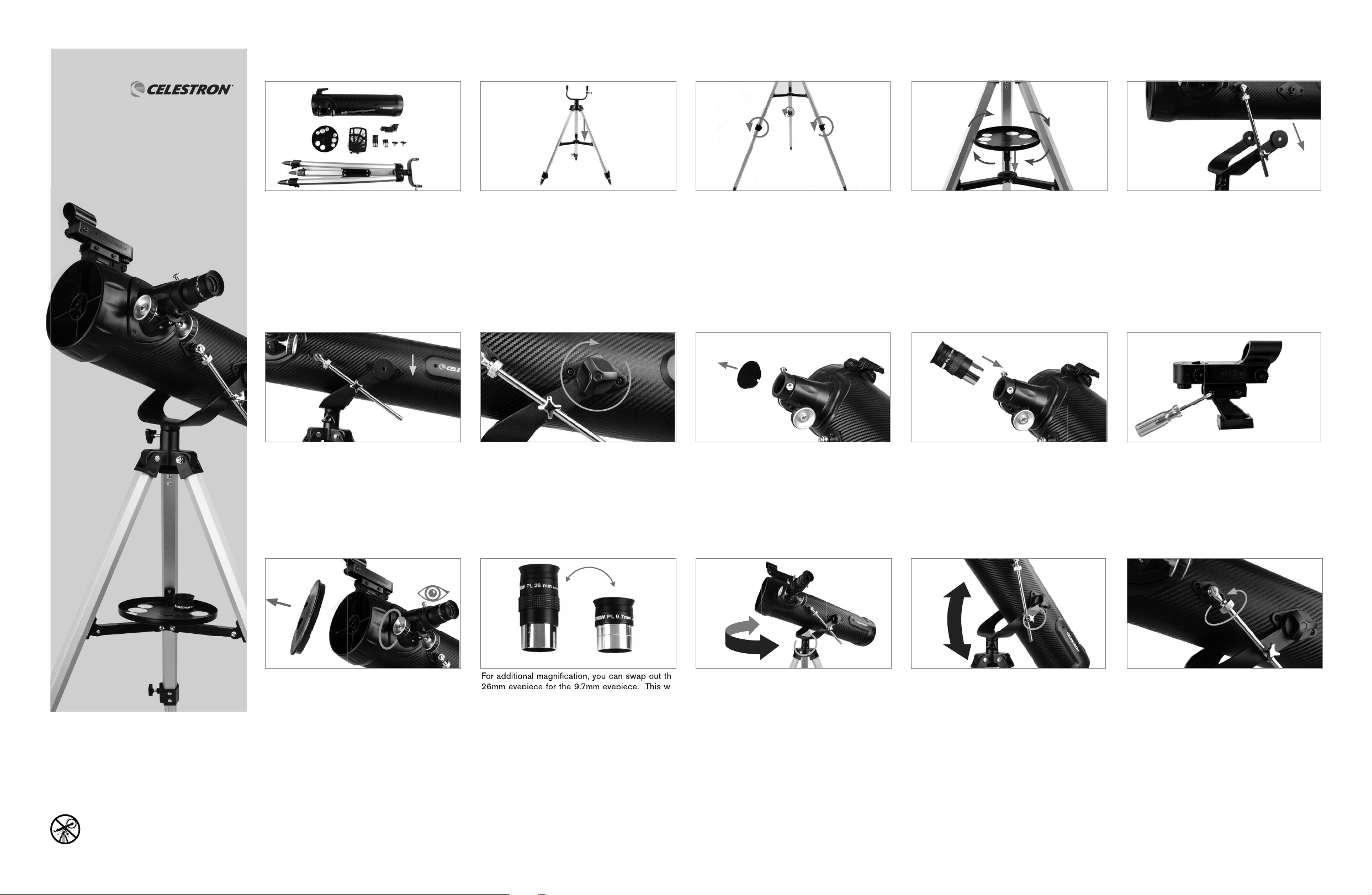

Unpack your telescope and verify that all parts
are present. Your 114AZ-SR Telescope includes:
a telescope tube, a tripod and mount head,
an accessory tray, two eyepieces, a red-dot
fi nderscope, and a smartphone adapter.
Attach the accessory tray by placing the threaded
post on the bottom of the tray into the threaded
hole in the center of the leg brace. Turn the entire
accessory tray clockwise until it is fully seated. If
necessary, you may rotate the tray counterclockwise
slightly so that the eyepieces holders in the tray are
not blocked by the leg brace arms.
While holding the telescope tube above the
altazimuth mount, insert the end of the long silver
altitude slow motion rod on the left side of the optical
tube into the rod guide on the left fork arm of the
mount.
Tighten the silver locking knob on the rod guide,
then thread the two telescope mounting hand bolts
through the fork arms and into the two altitude hubs
on the telescope tube. They need to be snug, but do
not overtighten.
To set up the tripod, spread the legs outward until
they are fully extended and push down center leg
brace.
ITEM #22410
To extend the legs of the tripod, turn the locking
knob on each leg section counterclockwise to
loosen. Then, pull the lower leg section all the
way out and retighten the locking knob to secure
the leg in place.
Lower the telescope tube until the two altitude hubs
on either side of the tube slide into the notches at
the top of the fork arms.
ENGLISH
Remove the cap from the focuser and make sure the
two thumbscrews do not protrude into the opening.
Insert the barrel of the 26mm eyepiece into the
focuser and tighten the setscrew to secure it in
place.
Locate the fi nderscope and loosen the two Phillips
head screws on the right side of the fi nderscope.
Slide the fi nderscope over the bracket on the
telescope tube and tighten the Phillips head screws
to secure the fi nderscope to the rail.
Remove the large lens cap from the front of the
telescope. To observe, look through the eyepiece
as shown above. Focus the image by turning the
focusing knobs below the focuser.
For additional magnifi cation, you can swap out the
26mm eyepiece for the 9.7mm eyepiece. This will
increase your magnifi cation from 23x to 62x.
To move the scope right and left, hold a tripod
leg with one hand while the other hand uses the
panning handle to move the scope as required. The
azimuth locking screw can be loosened or tightened
to adjust the tension to your preference.
To move the scope up and down over large
distances, loosen the silver locking knob on the
rod guide. Use one hand to manually move the
scope to the desired angle and secure it in place
by tightening the silver locking screw.
To move the scope up and down in fine
increments, keep the locking knob on the rod
guide tightened and simply rotate the silver
knurled knob on the altitude slow motion rod.
This allows for fine adjustment when centering
a target or when tracking a celestial target as it
appears to drift across the night sky.
NOTE: The slow motion rod has a limited range
of motion. If you hit one of the stops, you
can reset the rod by loosening the locking
knob on the rod guide and then turning the
slow motion knob until it is in the center
of its travel. Tighten the locking knob and
resume normal use.
Quick Setup Guide
CELESTRON 114AZSR
SMARTPHONE READY REFLECTOR TELESCOPE
For additional magnifi cation, you can swap out the
26mm eyepiece for the 9.7mm eyepiece. This will
SOLAR WARNING: Never attempt to view the sun
through any telescope without a proper solar fi lter.
NEED ASSISTANCE? Contact Celestron Technical Support
celestron.com/pages/technical-support
For more information on this product or to download
the instruction manual, please visit the respective
product page on celestron.com
1
6
1211
2
7
13
4
9
15
3
8
14
5
10
ENGLISH | 2

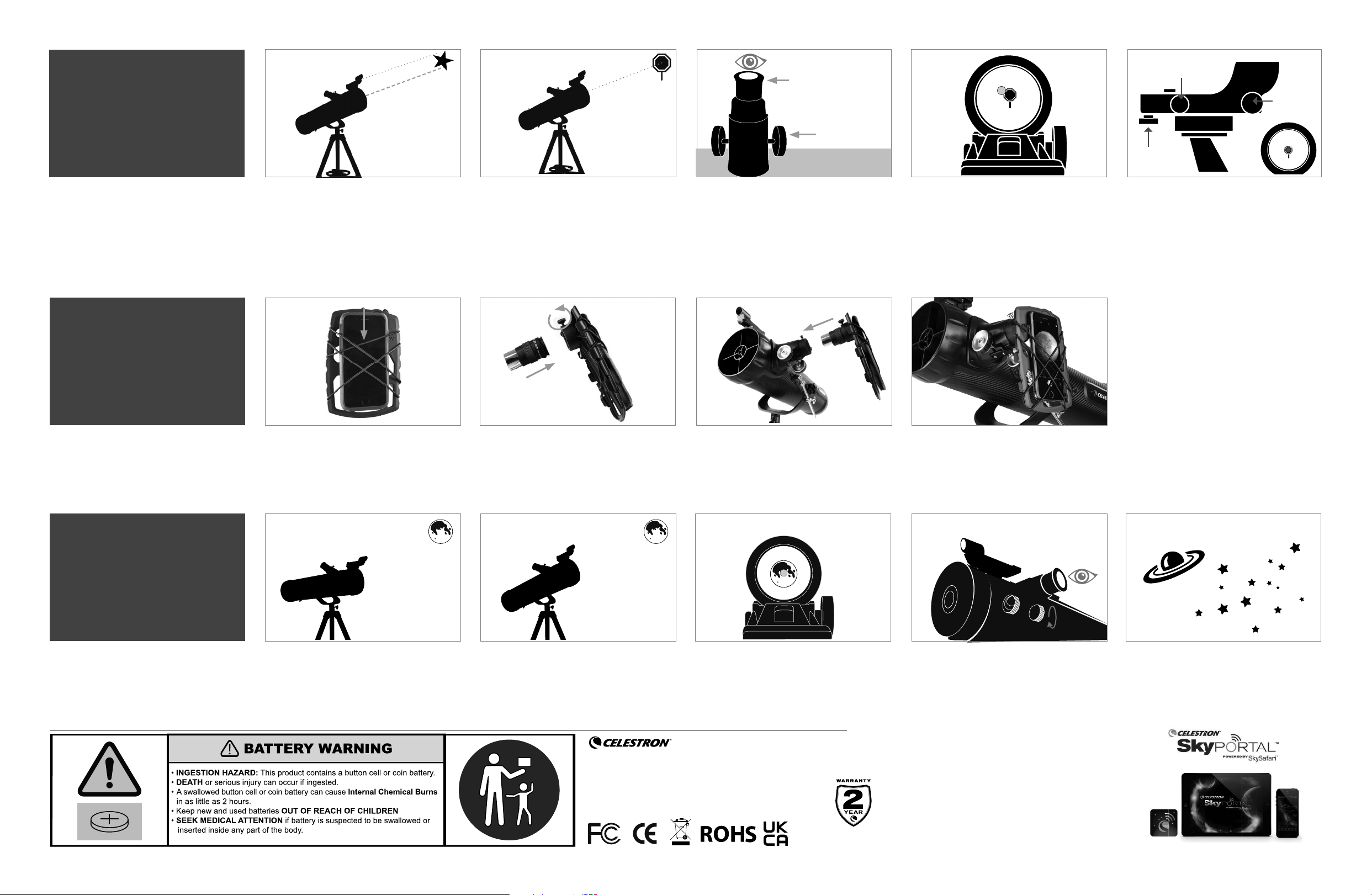

Lift the bungee straps and slide your smartphone
between the straps and the adapter body so that the
camera is looking through the camera opening. The
straps should provide plenty of tension to hold the
device securely against the adapter.
Now take the adapter with the phone and eyepiece
attached and insert the chrome barrel of the eyepiece
into the focuser of the telescope. Secure it in place
by tightening the setscrews on the focuser.
LOOK THROUGH FINDERSCOPE
Once the object is centered in your 26mm eyepiece,
look through the fi nderscope and locate the red dot
CHOOSE A TARGET
Take the telescope outside during the day and fi nd an
easily recognizable object, like a streetlight, license
plate or sign. The object should be as far away as
possible, but at least a quarter mile away.
Loosen the setscrews on the eyepiece holder on the
bottom side of the adapter. Place the black portion of
the eyepiece into the eyepiece holder and tighten the
screws to secure the eyepiece in place.
NOTE: You may have to remove the rubber eyecups
from the eyepiece.
Activate the camera app on your smartphone and
adjust the focus, just as you would with an eyepiece,
using the image that appears on your phone’s screen.
NOTE: Make sure you turn the phone’s fl ash is
turned off.
YOUR FINDERSCOPE IS NOW ALIGNED!
It should not require realignment unless it is bumped
or dropped.
CENTER THE TARGET IN THE EYEPIECE
Look through the telescope using your lower power
26mm eyepiece. Move the telescope until the object
you chose lies in the center of the view. If the image
is blurry, gently turn the focus knobs on either side of
the telescope until it comes into sharp focus.
2 4
3 5
Aligning the
Finderscope
Your First
Night Out
Using the
Smartphone
Adapter
The best and easiest target for you to view fi rst is
the Moon. Try observing the Moon at different points
in its phase cycle. The best time to view the Moon
is from two days after a New Moon up to a few days
before a Full Moon. During this period, you will be
able to see the most detail in the craters and lunar
mountain ranges.
With the Moon visible in the sky, set up your
telescope as described above with the 26mm
eyepiece installed.
Move the telescope so that it is roughly pointing
toward the Moon.
Look through the fi nderscope and locate the red
dot. Continue moving the telescope until the red dot
appears over the Moon.
Look through the telescope’s 26mm eyepiece.
Gently turn the focus knobs to adjust the sharpness
of the image.
CONGRATULATIONS! YOU HAVE NOW
OBSERVED YOUR FIRST CELESTIAL OBJECT!
To get a closer view of the Moon, loosen the
setscrews on the focuser and remove the 26mm
eyepiece. Replace it with your 9.7mm eyepiece
and tighten the setscrews to secure it in place. The
9.7mm eyepiece will give you signifi cantly more
magnifi cation, making the Moon appear much larger.
NOTE: You may need to adjust the focus knobs when
you change eyepieces, so make sure you are
getting the sharpest image possible.
You can view many other celestial objects, such as
planets, star clusters and nebulae using this same
technique if you know where to fi nd them in the night
sky. Celestron SkyPortal Powered by SkySafari™
(available for iOS and Android) can help you locate
and identify a wide array of celestial objects quickly
and easily.
The fi nder is one of the most important parts of your
telescope. It helps you locate objects and center
them in the eyepiece. The fi rst time you assemble
your telescope, you need to align the fi nder to the
telescope’s main optics. It’s best to do this during
the day*.
*SOLAR WARNING! Never attempt to view the
Sun through any telescope without a proper solar
fi lter!
FINDERSCOPE BATTERY ACTIVATION
Remove the small plastic tab under the battery cover
by pulling it straight out. For longer battery life, be
sure to turn off the fi nderscope when it is not in use.
Low Power Eyepiece
Focus Knobs
©2023 Celestron. Celestron and Symbol are trademarks of Celestron, LLC. All rights reserved.
Celestron.com • 2835 Columbia Street, Torrance, CA 90503 USA
(Products or instructions may change without notice or obligation.)
Designed and intended for those 14 years of age and older.
Made in China 06-23
ADJUST THE FINDERSCOPE
Without moving the telescope, use the two
adjustment knobs on the fi nderscope to move the
red dot appears over the object you are observing in
the telescope’s 26mm eyepiece.
TIP: Try adjusting one screw at a time. Loosen one
screw by half a turn and tighten another by
the same amount to ensure the fi nderscope is
securely held in place.
Power knob
Azimuth
adjustment knob
(side-to-side)
Altitude adjustment
knob (up-and-down)
