Manufactured by
Water Channel Partners
1890 Woodlane Drive
Woodbury, MN 55125
How to install, operate
and maintain your
Single Stage Drinking Water
Filtration System
Model BRDPFS
Installation and Operation Manual
System tested and certified by NSF International
against NSF/ANSI Standards 42 & 53.
See performance data on page 10 for details.
If you have any questions or concerns when
installing, operating or maintaining your water
filtration system, call our toll free number:
1-800-218-6172
or visit www.ecopurehome.com/brita
When you call, please be prepared to provide
the model number and date code of
your product, found inside the top cover.
PRODUCT AND WARRANTY
REGISTRATION
Register your product
online to validate and
extend your warranty.
See warranty page for
details.
warranty.ecopurehome.com/brita
7379612 (Rev. B 5/26/20)
2
TABLE OF CONTENTS
Page
B
efore You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications & Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts & Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Typical Undersink Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I
nstallation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Step A - Install Water Supply Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step B - Make Tubing Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Step C - Turn On Water, Check for Leaks and Rinse Carbon Fines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Filter Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Filter Cartridge Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Filter Cartridge Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
14-1/2"
4" 3-1/2"
1"
3
Before You Start
Specifications & Dimensions
q Read all steps and guides carefully before installing and using your Single Stage Drinking Water
Filtration System. Follow all steps exactly to correctly install. Reading this manual will also help you to
get all the benefits from the water filtration system.
q
Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system. This system is certified for cyst reduction and may be used on
disinfected waters that may contain filterable cysts.
q All plumbing should be done in accordance with local codes and requirements. In Massachusetts,
plumbing code 248 CMR 3.00 and 10.00 shall be adhered to. Consult with your licensed plumber.
q The Single Stage Drinking Water Filtration System works on water pressures of 30 psi (minimum)
to 100 psi (maximum). If your house water pressure is over the maximum, install a pressure reducing
valve in the water supply pipe to the filter system.
q Do not install the water filtration system outside, or in extreme hot or cold temperatures.
Temperature of the water supply to the filter system must be between 40°F and 100°F. Do not install on
hot water.
Supply Water Pressure Min. - Max. 30 - 100 psi (207 - 689 kPa)
Supply Water Temperature Min. - Max. 40 - 100 °F (4 - 38 °C)
Rated Service Flow 1.85 gallons per minute (7.0 liters per minute)
Inlet - Outlet 3/8" quick connect fittings and tubing included
4”
FIG. 1
14-1/2”
3-1/2”
1”
Questions? Call Toll Free 1-800-218-6172 or visit www.ecopurehome.com/brita
When you call, please be prepared to provide the model number and date code, found inside the top cover.
1"
4

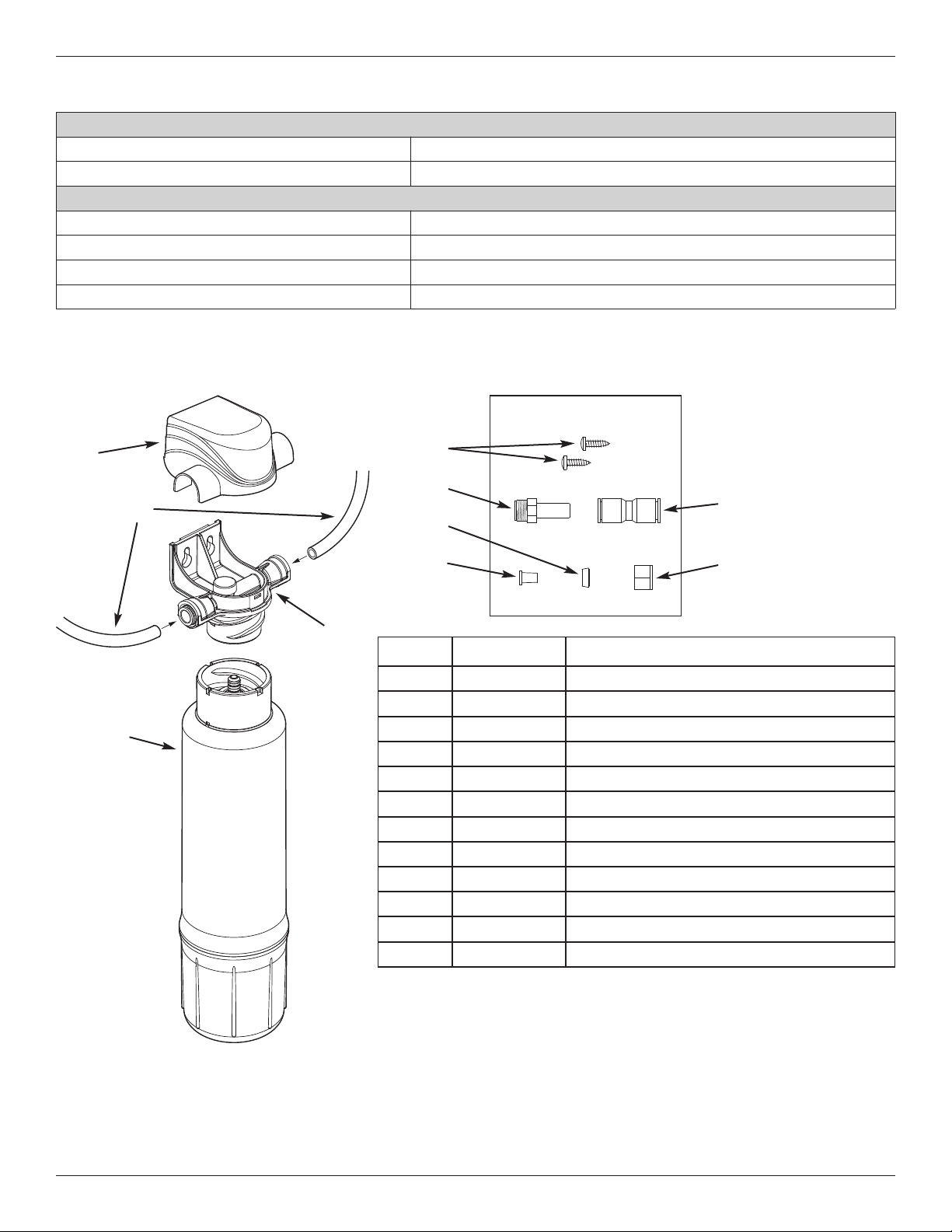

Parts & Tools
Typical Undersink Installation
Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold water. Refer to the following drawing.
= W
ater filter head / bracket
= Top cover
= Filter cartridge
= Tubing
= Bag containing installation parts and mounting screws
= Slotted and Phillips screwdrivers
= Pliers and adjustable jaw wrench
= Tubing cutter
= Electric drill
= Thread sealing tape
FIG. 2
NOTE: Be sure to allow a minimum space of 1-1/2” under the
water filter for removing the filter cartridge to change it.
1”
mounting
screws (2)
3/8” tubing
to faucet
OUTLET
blue collar on
push-in fitting
INLET
yellow collar on
push-in fitting
3/8” tubing
from cold
water supply
SINK
HOT COLD
shutoff valve
filtered water
faucet
OUTLET
INLET
Included:
Not Included:
5
Installation Instructions
Step B - Make Tubing Connections
1. Locate the piece of supplied 3/8" tubing not used previously. Route it between the union connector
and the water filter outlet (See Figures 2 & 3). Allowing some slack, measure and cut to length. Cut the
ends of the tubing square.
2. Insert tubing all the way into the union connector and water filter outlet. Pull on the tubing to be sure
that it's held firmly in the fittings.
3. Repeat steps 1 and 2 to connect the tube installed on the cold water shutoff to the water filter inlet.
Tubing Connection (all push-in fitting locations):
This system includes push-in fittings for quick tubing connections. When working with the fittings, do the
following.
continued on the next page
Step A - Install Water Supply Fittings
Check and comply with local plumbing codes as you plan, then install the fittings to connect the
S
ingle Stage Drinking Water Filtration System into the sink’s cold water supply line. Fittings (9/16-24
thread) and 3/8” O.D. tubing are included to provide connections to and from the water filter’s inlet and
outlet. A typical connection using the included water supply fittings is shown in Figure 3.
1. Close the sink’s water shut off valve(s), or another shut off valve upstream from where you will
install the water filter, and open faucets to relieve pressure from the sink’s cold water supply line.
2. Locate the line connecting the cold water shutoff to the sink faucet. Typically this line will be a flexible
hose. Disconnect the nut that connects this line to the cold water shutoff. Use a bucket to catch water
that drains from this line.
3. Locate one piece of the supplied 3/8” tubing, plus the supplied compression nut, ferrule and tubing
insert (See Fig. 3). Assemble the parts onto the tube, as shown in Figure 3, and thread the compres-
sion nut onto the cold water shutoff. Tighten to provide a leak-tight connection.
4. Locate the water supply adaptor (supplied) and install it into the nut on the supply line which you dis-
connected in Step 2. Refer to Figure 3.
5. Press the stem of the water supply adaptor into one end of the supplied union connector (See Figure
3). Be sure to push the stem all the way in.
insert
ferrule
compression
nut
3/8" tubing to
water filter
INLET
use thread
sealing tape
on threads
cold water shutoff
water filter assembly
cold water
shutoff
SINK
filtered water faucet
OUTLET
INLET
water supply
adaptor
flexible connection
to faucet
3/8" tubing from
water filter
OUTLET
union
connector
FIG. 3
6
Installation Instructions
To Disconnect Tubing:
1. Push the collet inward and hold with a finger while pulling the tubing out.
tubing
collet (depress to remove tubing)
c
ontinued from the previous page
Connect Tubing:
1
. Use a tube cutter to cut the end of tubing square.
2
. Inspect the end (about 1") of the tubing to be sure there are no nicks, scratches or other rough spots.
If needed cut the tubing again.
3. Push tubing through the collet and all the way into fitting. Full engagement is 3/4" length of tube into
the fitting.
FIG. 5
Step C - Turn On Water, Check for Leaks and Rinse Carbon Fines
1. Open the shutoff valve(s) that you closed at the beginning of this installation.
2. Open the filtered water faucet to purge air from the system. When the water runs smooth, with no
bubbles or spurting, close faucet and check installation for leaks.
3. Open the filtered water faucet and let water run for 20 minutes to rinse out carbon fines.
end of tubing round and smooth,
with no cuts, nicks or flat spots
correct full 3/4" engagement
Tubing correctly cut and connected
Incorrect partial engagement
FIG. 4
7
Register for reminders to change filters at
www.ecopurehome.com/brita
Filter Cartridges
Filter Cartridge Life
Filter Cartridges: A filter cartridge contains activated carbon. When new, open the filtered water faucet
a
nd allow fine, carbon particles to purge from the cartridge. Flush for 20 minutes. It is recommended to
replace filter cartridge every six months of use. There are several variables that determine how long
a cartridge will last. These include:
1. How much water you use, and
2. How much sediment, taste and/or odor, or other unwanted substance, is in the water.
Use the following information as a guide. However, no matter which type of cartridge you are using, you
will know it is time to replace them when you first notice the return of the unwanted sediment, taste
and/or odor in your water, or when the flow diminishes or stops.
Brita Single Stage Water Filtration System model BRDPFS with replacement element BRDPFF con-
forms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substantiated by test
data. The rated capacity for this system is 2000 gallons (7570 liters) at a rated service flow of 1.85 gal-
lons per minute (7.0 liters per minute).
Filter Cartridge Replacement
NOTE: There is no need to shut off the water supply when replacing the filter cartridge.
1. Turn filter cartridge to the left to remove cartridge from the filter head.
2. Dispose of the cartridge in a proper manner.
3. Install new cartridge. Turn cartridge to the right to re-attach to the filter head.
Filter Cartridges: Filter cartridges contain activated carbon, a black powder. When new, open the fil-
tered water faucet and allow fine, carbon particles to purge from the cartridge. Flush for 20 minutes.
FIG. 6
head
filter cartridge
Turn filter cartridge to the left
to remove from head
Turn filter cartridge to the right
to attach to head
Questions? Call Toll Free 1-800-218-6172 or visit www.ecopurehome.com/brita
When you call, please be prepared to provide the model number and date code, found inside the top cover.
8
10
To order repair parts visit www.ecopurehome.com/brita
Manufactured by
Water Channel Partners
1890 Woodlane Drive
Woodbury, MN 55125
1-800-218-6172
8
Troubleshooting the System
P
roblem: Taste and/or Odor.
Cause: Filter cartridge exhausted. Correction: Replace filter cartridge.
Cause: System contaminated. Correction: Sanitize system. Call 1-800-218-6172 for instructions.
Problem: Water leaks at push connect fittings.
Cause: Tubing not pushed in all the way. Correction: Push tubing in all the way into fittings.
Cause: Tubing not cut square. Correction: Cut tubing square.
Cause: Tubing nicked. Correction: Remove nicked portion, reinsert tubing into fitting.
Cause: Outer tubing surface not smooth. Correction: Remove rough portion, reinsert tubing into fitting.
Parts List
2
3
7
4
5
6
Parts Bag
Key No. Part No. Description
1 1042-45-HA Head Assembly with Quick Connect Fittings
– 1042-45-AC Parts Bag (includes Key Nos. 2-7)
2
á
Mounting Screws (2)
3
á
Water Supply Adaptor
4
á
Union Connector, 3/8” to 3/8”
5
á
Compression Nut, 3/8”
6
á
Ferrule, Plastic, 3/8”
7
á
Tubing Insert, 3/8”
8 BRDPFF
Repl. Filter Cartridge, Taste & Odor Ù
9 7168435 Tubing, 3/8” OD x 72” long, White
10 7380540 Top Cover
¢
7379612 Owner’s Manual
1
9
Ù Please purchase replacement cartridges from the e-commerce retailer where
you bought your water filtration system or www.ecopurehome.com/brita.
¢ Not illustrated.
9
WARRANTY
SINGLE STAGE DRINKING WATER FILTRATION SYSTEM - MODEL BRDPFS
(not including filter cartridges)
Warrantor: Water Channel Partners, 1890 Woodlane Drive, Woodbury, MN 55125
One Year Warranty:
Warrantor guarantees, to the original owner, that the Single Stage Drinking Water Filtration System (BRDPFS), when
installed and maintained in accordance with the instructions, will be free from defects in materials and workmanship for a
period of one (1) year from the date of purchase.
Lifetime Warranty:
Warrantor guarantees, to the original owner only, that the Single Stage Drinking Water Filtration System (BRDPFS) will be
free from defects in materials and workmanship for the lifetime of the owner, provided that:
● The system is installed and maintained in accordance with the instructions in the same home where it was originally
installed.
● The owner replaces the filter every six (6) months and saves their receipts, for proof of purchase of the Brita BRDPFF
filter cartridge, in case a warranty claim is made. Purchase of no more than two (2) BRDPFF filter cartridges in a 12
month period may be applied toward compliance with this warranty.
Failure to adhere to the above requirements from the date of purchase voids the lifetime warranty.
If, during such respective periods, a part proves, after inspection, to be defective, Warrantor will, at its sole option, either
replace or repair the part without charge except normal shipping and installation charges. Labor to maintain the equipment
is not part of the warranty. Filters, which are expendable, are not covered by the warranty.
TO OBTAIN WARRANTY PARTS, SIMPLY CALL 1-800-218-6172 for assistance. This warranty applies only while this
product is in use in the United States.
General Provisions
The above warranties are effective provided the Single Stage Drinking Water Filtration System is operated at water pres-
sures not exceeding 100 psi, and at water temperatures not exceeding 100°F; provided further that the Single Stage
Drinking Water Filtration System is not subject to abuse, misuse, alteration, neglect, freezing, accident or negligence; and
provided further that the Single Stage Drinking Water Filtration System is not damaged as the result of any unusual force
of nature such as, but not limited to, flood, hurricane, tornado or earthquake.
Warrantor is excused if failure to perform its warranty obligations is the result of strikes, government regulation, materials
shortages, or other circumstances beyond its control.
THERE ARE NO WARRANTIES ON THE SINGLE STAGE DRINKING WATER FILTRATION SYSTEM BEYOND THOSE
SPECIFICALLY DESCRIBED ABOVE. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE, ARE DISCLAIMED TO THE EXTENT THEY MIGHT
EXTEND BEYOND THE ABOVE PERIODS. THE SOLE OBLIGATION OF WARRANTOR UNDER THESE WAR-
RANTIES IS TO REPLACE OR REPAIR THE COMPONENT OR PART WHICH PROVES TO BE DEFECTIVE WITHIN
THE SPECIFIED TIME PERIOD, AND WARRANTOR IS NOT LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAM-
AGES. NO WARRANTOR DEALER, AGENT, REPRESENTATIVE, OR OTHER PERSON IS AUTHORIZED TO EXTEND
OR EXPAND THE WARRANTIES EXPRESSLY DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty lasts or exclusions or limitations of incidental or con-
sequential damage, so the limitations and exclusions in this warranty may not apply to you. This warranty gives you spe-
cific legal rights, and you may have other rights which vary from state to state. This warranty applies to consumer-owned
installations only.
EXTEND YOUR WARRANTY:
You can turn your water filtration system’s one year factory warranty into a lifetime warranty by registering the system
at warranty.ecopurehome.com/brita and saving your receipts for purchases of Brita replacement filter cartridges.
S
ee “Lifetime Warranty” below for details.
10
Performance Data
PERFORMANCE CLAIMS
Substance
NSF Required Influent
Challenge Level (mg/L)
1
NSF Max. Per missible Product
Water Concentration (mg/L)
1
Benzene 0.015 ±10% 0.005
Chlorine Taste & Odor 2.0 ±10% 1.0
Cyst ≥50,000 #/mL
2
99.95%
3
Lead @ pH 6.5 0.15 ±10% 0.010
Lead @ pH 8.5 0.15 ±10% 0.010
Mercury @ pH 6.5 0.006 ±10% 0.002
Mercury @ pH 8.5 0.006 ±10% 0.002
Particulate, Class I (0.5 to <1 micron) 10,000 #/mL
2
85%
3
1
Milligrams per liter, which is equivalent to parts per million (PPM).
2
Particles per milliliter.
3
NSF minimum percent reduction requirement. Acceptance level for this substance is based on percent
reduction, rather than maximum effluent concentration.
System tested and certified by NSF International against NSF/ANSI Standard
42 for the reduction of chlorine taste and odor and particulate reduction, and
NSF/ANSI Standard 53 for the reduction of benzene, cyst, lead and mercury.
General Information
This system has been tested according to NSF/ANSI 42 and 53 for reduction of substances listed above. The concen-
tration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53. The testing was performed using
spiked tap water at a flow rate of 1.85 gallons per minute (7.0 L/min.), pH of 7.5 ± 0.5, pressure of 60 psig, and tempera-
ture of 68 ± 5°F.
This product is protected by U.S. patent no’s: 6,866,704; 6872.311; 7,276,166; 7,296,691; 7,241,388; 7,287,650;
7,566,014; 8,056,733; applicable U.S. patent applications; foreign patents and foreign patent applications.
Installation Requirements
Pressure Range .....................................30-100 psig (207-689 kPa)
Temperature Range.............................................40-100°F (5-38°C)
Service Flow Rate............................................1.85 GPM (7.0 LPM)
Service Life..............................................2000 gallons (7570 Liters)
Maintenance
Filter cartridges should be replaced every 2000 gallons or six months, whichever comes first. Purchase replacement
cartridges from the e-commerce retailer where you bought your water filtration system or www.ecopurehome.com/brita.
Replacement filter prices will vary. Estimated cost of replacement filter cartridge BRDPFF ranges from $70 to $100.
Model BRDPFS Single Stage Drinking Water Filtration System
IMPORTANT NOTICE: Read this performance data and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water supply tested to
determine your actual water treatment needs. This filter system is designed to be used for the reduction of the perform-
ance claims listed below. Do not use where water is microbiologically unsafe or of unknown quality, without adequate
disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may
contain filterable cysts. While testing was performed under standard laboratory conditions, actual performance of this
system may vary based on local water conditions. Some or all of the contaminants reduced by this unit may not be in
your water supply. See elsewhere in this owner’s manual for further instructions on filter cartridge replacement, system
installation, operating procedures, and warranty. The maintenance instructions must be followed for the product to per-
form as indicated below.
11
FOR IOWA USE ONLY
All sales in Iowa require the following signature before consummation of sale. These signatures must be retained by
seller/renter for 2 years minimum.
Buyer/Renter __________________________________________________________ Date _________________
Seller ________________________________________________________________ Date _________________
Seller’s Address _______________________________________________________________________________
Seller’s Phone No. _____________________________________________________________________________
Product: Brita Model BRDPFS Single Stage Drinking Water Filtration System
– – – – – – – – – – – – – – – – – – – – – – – – –
"
