Manufactured by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
How to install, operate
and maintain your
Dual Stage Drinking Water
Filtration System
Model BRDTSS
Installation and Operation Manual
System tested and certified by NSF International
against NSF/ANSI Standard 42 for the reduction
of chlorine taste and odor, and Standard 53 for
the reduction of cysts, lead, MTBE and VOCs.
If you have any questions or concerns when
installing, operating or maintaining your water
filtration system, call our toll free number:
1-800-218-6172
or visit www.ecopurehome.com/brita
When you call, please be prepared to provide
the model number and date code of your
product, found on the rating decal on back.
7379581 (Rev. A 11/14/19)
PRODUCT AND WARRANTY
REGISTRATION
Register your product
online to validate and
extend your warranty.
See warranty page for
details.
warranty.ecopurehome.com/brita
2
TABLE OF CONTENTS
Page
S
pecifications & Performance Claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Before You Start / Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts of the System / Materials & Tools Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
F
ilter Cartridge Life & Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
P
arts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EXTEND YOUR WARRANTY:
You can turn your water filtration system’s one year factory warranty into a lifetime warranty by registering the system
at warranty.ecopurehome.com/brita and saving your receipts for purchases of Brita replacement filter cartridges.
See “Lifetime Warranty” below for details.
WARRANTY
DUAL STAGE DRINKING WATER FILTRATION SYSTEM - MODEL BRDTSS
(not including filter cartridges)
Warrantor: Ecodyne Water Systems, 1890 Woodlane Drive, Woodbury, MN 55125
One Year Warranty:
Warrantor guarantees, to the original owner, that the Dual Stage Drinking Water Filtration System (BRDTSS), when
installed and maintained in accordance with the instructions, will be free from defects in materials and workmanship for a
period of one (1) year from the date of purchase.
Lifetime Warranty:
Warrantor guarantees, to the original owner only, that the Dual Stage Drinking Water Filtration System (BDRTSS) will be
free from defects in materials and workmanship for the lifetime of the owner, provided that:
● The system is installed and maintained in accordance with the instructions in the same home where it was originally
installed.
● The owner replaces both the pre and post filters every six (6) months and saves their receipts, for proof of purchase of
the Brita BRDTSF filter cartridge set, in case a warranty claim is made. Purchase of no more than two (2) BRDTSF
filter sets in a 12 month period may be applied toward compliance with this warranty.
Failure to adhere to the above requirements from the date of purchase voids the lifetime warranty.
If, during such respective periods, a part proves, after inspection, to be defective, Warrantor will, at its sole option, either
replace or repair the part without charge except normal shipping and installation charges. Labor to maintain the equipment
is not part of the warranty. Filters, which are expendable, are not covered by the warranty.
TO OBTAIN WARRANTY PARTS, SIMPLY CALL 1-800-218-6172 for assistance. This warranty applies only while this
product is in use in the United States.
General Provisions
The above warranties are effective provided the Dual Stage Drinking Water Filtration System is operated at water pres-
sures not exceeding 100 psi, and at water temperatures not exceeding 100°F; provided further that the Dual Stage
Drinking Water Filtration System is not subject to abuse, misuse, alteration, neglect, freezing, accident or negligence; and
provided further that the Dual Stage Drinking Water Filtration System is not damaged as the result of any unusual force of
nature such as, but not limited to, flood, hurricane, tornado or earthquake.
Warrantor is excused if failure to perform its warranty obligations is the result of strikes, government regulation, materials
shortages, or other circumstances beyond its control.
THERE ARE NO WARRANTIES ON THE DUAL STAGE DRINKING WATER FILTRATION SYSTEM BEYOND THOSE
SPECIFICALLY DESCRIBED ABOVE. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE, ARE DISCLAIMED TO THE EXTENT THEY MIGHT
EXTEND BEYOND THE ABOVE PERIODS. THE SOLE OBLIGATION OF WARRANTOR UNDER THESE WAR-
RANTIES IS TO REPLACE OR REPAIR THE COMPONENT OR PART WHICH PROVES TO BE DEFECTIVE WITHIN
THE SPECIFIED TIME PERIOD, AND WARRANTOR IS NOT LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAM-
AGES. NO WARRANTOR DEALER, AGENT, REPRESENTATIVE, OR OTHER PERSON IS AUTHORIZED TO EXTEND
OR EXPAND THE WARRANTIES EXPRESSLY DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied warranty lasts or exclusions or limitations of incidental or con-
sequential damage, so the limitations and exclusions in this warranty may not apply to you. This warranty gives you spe-
cific legal rights, and you may have other rights which vary from state to state. This warranty applies to consumer-owned
installations only.
3
Specifications & Performance Claims
This system conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substantiated by
test data.
This filter improves the taste and odor and reduces many chemical contaminants in drinking water.
This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration less
than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53. The testing
was performed using spiked tap water at a flow rate of 0.5 GPM (1.89 L/min.), pH of 7.5 ±0.5, pressure of 60 PSIG,
and temperature of 68 ±5°F.
IMPORTANT NOTICE: Read this performance data and compare the capabilities of this unit with your actual water
treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water supply
tested to determine your actual water treatment needs. This filter system is designed to be used for the reduction of
the performance claims listed below. Do not use where water is microbiologically unsafe or of unknown quality, with-
out adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfec-
ted water that may contain filterable cysts. While testing was performed under standard laboratory conditions, actual
performance of the system may vary based on local water conditions. Some or all of the contaminants reduced by
this unit may not be in your water supply. See elsewhere in this manual for instructions on filter cartridge
replacement, system installation, operating procedures, and warranty. The maintenance instructions must
be followed for the product to perform as indicated below.
NOTE: See labels on the water treatment system for additional information.
SPECIFICATIONS
Supply Water Pressure Min. - Max. 30 - 100 psi (207 - 689 kPa)
Supply Water Temperature Min. - Max. 40 - 100 °F (4 - 38 °C)
Rated Service Flow 0.5 gallons per minute (1.89 liters per minute)
F
ilter Service Life
2
70 gallons (1,022 liters)
Inlet - Outlet 3/8" quick connect fittings
PERFORMANCE CLAIMS
Contaminant
Required
Influent
Level (mg/L)
k
NSF Max. Per -
missible Effl.
Level (mg/L)
k
Average
Influent
Level (mg/L)
k
Avg. / Max.
Effluent
Level (mg/L)
k
Avg. / Min.
Percent
Removal
EPA
j
Max.
Contaminant
Level (mg/L)
k
Cyst ≥50,000 #/mL
mn
99.95%
l
93,000 #/mL
m
<1 /<4 #/mL
m
99.99 / 99.99 None
o
Lead @ pH 6.5 0.15 ±10% 0.010 0.152 0.001 / 0.001 99.3 / 99.3 0.015
Lead @ pH 8.5 0.15 ±10% 0.010 0.150 0.001 / 0.001 99.3 / 99.3 0.015
Methyl tert-Butyl
Ether (MTBE)
0.015 ±20% 0.005 0.01467 0.0005 / 0.0005 96.2 / 96.2 None
o
Substance
Chlorine
Taste & Odor
2.0 ±10% 50%
l
2.0 0.05 / 0.08 97.5 / 96.2 None
o
VOC Reduction
p
Chloroform 0.30 ±10% 95%
l
0.320 0.0005 / 0.0005 99.8 / 99.8 0.080
j
Environmental Protection Agency maximum contaminant level as required under the Safe Drinking Water Act.
k
Milligrams per liter, which is equivalent to parts per million (PPM).
l
NSF minimum percent reduction requirement. Acceptance level for this substance is based on percent reduction,
rather than maximum effluent concentration.
m
Particles per milliliter.
n
Microspheres was used as a surrogate.
o
The EPA has not determined a maximum contaminant level for this chemical.
p
Chloroform was used as a surrogate for the reduction of chemicals specified in the Organic Chemicals Reduced
by Chloroform Surrogate Testing table (on the following page).
4
Performance Claims (continued)
Contaminant
A
verage
j
Influent
(µg/L)
k
M
aximum
Effluent
(µg/L)
k
Percent
Removal
E
PA
MCL
p
(µg/L)
k
Alachlor 50 1.0
l
>98 2.0
A
trazine 100 3.0
l
>
97 3.0
Benzene 81 1.0
l
99 5.0
Carbofuran 190 1.0
l
>99 40
Carbon Tetrachloride 78 1.8
m
98 5.0
Chlorobenzene 77 1.0
l
99 100
Chloropicrin 15 0.2
m
99 NA
2,4-D 110 1.7
m
98 70
Dibromochloropropane
(DBCP)
52 0.02
l
>99 0.2
o-Dichlorobenzene 80 1.0
l
99 600
p-Dichlorobenzene 40 1.0
l
98 75
1,2-Dichloroethane 88 4.8
n
95
n
5.0
1,1-Dichloroethylene 83 1.0
l
99 7.0
cis-1,2-
Dichloroethylene
170 0.5
l
>99 70
trans-1,2-
Dichloroethylene
86 1.0
l
99 100
1,2-Dichloropropane 80 1.0
l
99 5.0
cis-1,3-
Dichloropropylene
79 1.0
l
99 NA
Dinoseb 170 0.2
m
99 7.0
Endrin 53 0.59
m
99 2.0
Ethylbenzene 88 1.0
l
99 700
Ethylene Dibromide
(EDB)
44 0.02
l
>99 0.05
Haloacetonitriles (HAN):
Bromochloroacteonitrile
22 0.5
m
98 NA
Dibromoacetonitrile 24 0.6
m
98 NA
Dichloroacetonitrile 9.6 0.2
m
98 NA
Trichloroacetonitrile 15 0.3
m
98 NA
ORGANIC CHEMICALS REDUCED BY CHLOROFORM SURROGATE TESTING
Contaminant
A
verage
j
Influent
(µg/L)
k
M
aximum
Effluent
(µg/L)
k
Percent
Removal
E
PA
MCL
p
(µg/L)
k
Haloketones (HK):
1,1-Dichloro-2-
propanone
7.2 0.1
m
99 NA
1,1,1-Trichloro-2-
propanone
8.2
o
0.3
m
96 NA
Heptachlor 25 0.01
l
>99 0.4
Heptachlor Epoxide 10.7
o
0.2
o
98 0.2
Hexachlorobutadiene 44 1.0
l
98 NA
Hexachlorocyclopenta-
diene
60 0.002
l
>99 50
Lindane 55 0.01
l
>99 0.2
Methoxychlor 50 0.1
l
>99 40
Pentachlorophenol 96 1.0
l
99 1.0
Simazine 120 4.0
l
97 4.0
Styrene 150 0.5
l
>99 100
1,1,2,2-Tetrachloroethane
81 1.0
l
99 NA
Tetrachloroethylene 81 1.0
l
99 5.0
Toluene 78 1.0
l
99 1,000
2,4,5-TP (Silvex) 270 1.6
l
99 50
Tribromoacetic Acid 42 1.0
l
98 NA
1,2,4-Trichlorobenzene 160 0.5
l
>99 70
1,1,1-Trichloroethane 84 4.6
m
95 200
1,1,2-Trichloroethane 150 0.5
l
>99 5.0
Trichloroethylene 180 1.0
l
>99 5.0
Trihalomethanes (incl.):
300 15 95 80
Chloroform
(surrogate chemical)
Bromoform
Bromodichloromethane
Chlorodibromomethane
Xylenes (total) 70 1.0
l
99 10,000
j
Influent challenge levels are average influent concentrations determined in surrogate qualification testing.
k
Micrograms per liter, which is equivalent to parts per billion (PPB).
l
Maximum product water level was not observed, but set at the detection limit of the analysis.
m
Maximum product water level set at a value determined in surrogate qualification testing.
n
Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point,
as determined in surrogate qualification testing.
o
The surrogate test results for Heptachlor Epoxide demonstrated a 98% reduction. These data were used to cal-
culate an upper occurrence concentration, which would produce a maximum product water level at the MCL.
p
Environmental Protection Agency maximum contaminant level as required under the Safe Drinking Water Act.
6-1/4"
11-1/4" 3-1/2"
5
Before You Start
q Read all steps and guides carefully before installing and using your water filtration system. Follow all
steps exactly to correctly install. Reading this manual will also help you to get all the benefits from the
water filtration system.
q Do not use with water that is microbiologically unsafe or of unknown quality without adequate disin-
fection before or after the system. This system is certified for cyst reduction and may be used on dis-
infected waters that may contain filterable cysts.
q All plumbing should be done in accordance with local codes and requirements. In Massachusetts,
plumbing code 248 CMR 3.00 and 10.00 shall be adhered to. Consult with your licensed plumber.
q The water filtration system works on water pressures of 30 psi (minimum) to 100 psi (maximum). If
your house water pressure is over the maximum, install a pressure reducing valve in the water supply
pipe to the filter system.
q Do not install the water filtration system outside, or in extreme hot or cold temperatures. Temperature
of the water supply to the water filtration system must be between 40°F and 100°F. Do not install on
hot water.
Dimensions
FIG. 1
3-1/2”
11-1/4”
6-1/4”
Questions? Call Toll Free 1-800-218-6172 or visit www.ecopurehome.com/brita
When you call, please be prepared to provide the model, date code and serial number,
found on the rating decal on back.
6
Parts of the System
Materials and Tools Needed
Typical Undersink Installation
= F
ilter system assembly
= Water supply fitting
= F
iltered water faucet for sink or countertop mounting
= C
olor coded 3/8" tubing to make all needed connections
= F
ilter change drip tray
NOTE: Gather the required tools before starting installation. Read and
follow the instructions provided with any tools listed here.
= Slotted and Phillips screwdrivers
= Pliers and adjustable jaw wrench
= Tubing cutter
= Electric drill and 1-1/4" drill bit if mounting hole is needed for the faucet
IMPORTANT: To avoid damaging the sink, consult a qualified plumber or
installer for drilling procedures in porcelain or stainless steel.
Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold drinking water. Refer to the following drawing.
shutoff valve
filtered water
faucet
Yellow Tubing
WATER IN
water supply
fitting
SINK
HOT COLD
FIG. 2
Blue Tubing
WATER OUT
Blue Tubing
WATER OUT
IMPORTANT: Allow adequate open space
behind the water filtration
system to avoid sharp bends
or kinks in the tubing.
filter change
drip tray
7
Step A - Install Cold Water Supply Fitting
Installation Instructions
Step B - Make Hole For Filtered Water Faucet
IMPORTANT: To avoid damaging the sink, consult a qualified plumber or installer for drilling procedures
in porcelain, stainless steel or granite. Special drill bits are made for this.
1. Select one of the following places to install the faucet. Be sure there is room underneath so you can
make the needed connections.
= In an existing sink spray attachment hole.
= Drill a hole in the sink top.
= Drill a hole in the countertop next to the sink.
2. If drilling is needed make a 1-1/4" dia. (minimum) hole for the faucet.
A. Water supply connection
(using included water supply fitting)
B. Water supply typical connection
(using compression fitting)
- parts not provided -
cold water shutoff
3/8" compression fitting
insert
ferrule
cold water
pipe
3/8" tubing to
water filter inlet
cold water shutoff
cold water
shutoff
3/8" tubing to
water filter inlet
cold water
line
water supply
fitting
FIG. 3
Check and comply with local plumbing codes as you plan, then install a cold water supply fitting. The fit-
ting must provide a leak-tight connection to the water filter 3/8" tubing. A typical connection using the
included water supply fitting is shown in Figure 3A. An optional connection using standard plumbing fit-
tings (not included) is shown in Figure 3B.
Included Water Supply Fitting
1. Close the cold water shutoff valve (angle stop valve) that the water supply fitting will be installed on,
and open faucet(s) to relieve pressure.
2. Disconnect the existing cold water line from the water shutoff valve.
3. Make sure that the water supply fitting’s gasket is inside the female threaded portion of the fitting.
4. Install the water supply fitting onto the cold water shutoff valve, where the existing cold water line was
removed, and hand tighten. Be careful not to cross thread or overtighten.
5. Connect the existing cold water line to the male threaded portion of the water supply fitting and hand
tighten. Be careful not to cross thread or overtighten.
Optional Pipe Fittings (compression type shown)
NOTE: Be sure to turn off the water supply and open a faucet to drain the pipe.
Complying with plumbing codes, install a fitting on the cold water pipe to adapt 3/8" OD tubing. A typical
connection is shown in Figure 3B. If threaded fittings are used, be sure to use pipe joint compound or
thread sealing tape on outside threads.
gasket
8
Installation Instructions

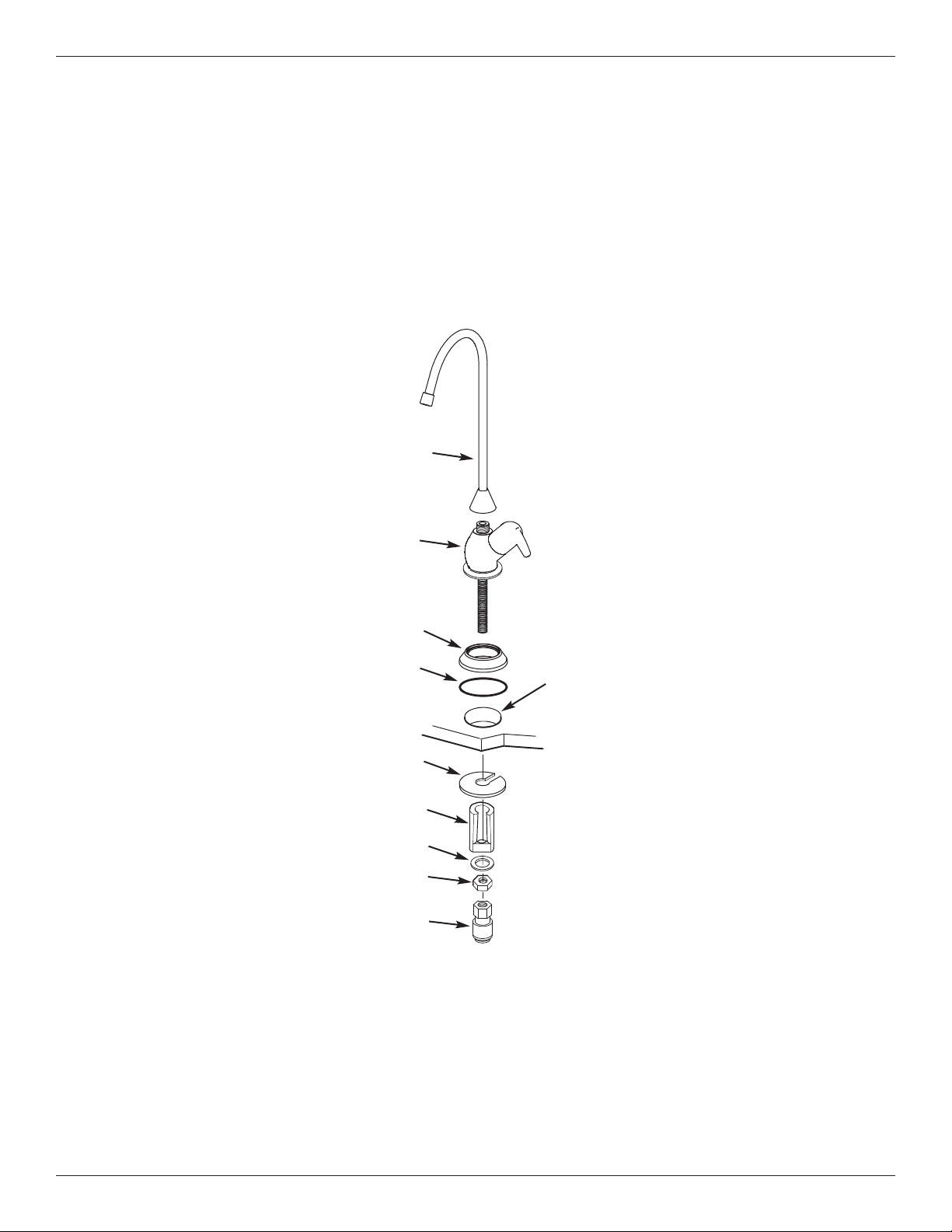

Step C - Install Faucet
1. Locate and organize your filtered water faucet install parts. Refer to Fig. 4.
2
. Assemble the stem onto the faucet body, and screw it firmly into place.
3. Snap the o-ring into the groove on the bottom of the base, and slide the base onto the faucet stud.
4. Feed the faucet stud down into the mounting hole.
5. On the underside of the sink or countertop, install the spacer, flat washer, and hex nut. Slide the large
steel washer into place between the countertop and spacer. Then, tighten the hex nut securely.
6. Thread the quick connect fitting onto the bottom of the faucet stud.
FIG. 4
Step D - Make Tubing Connections
1. Allowing some slack, measure and cut a length of 3/8" tubing to connect between the supply fitting
and the filter system inlet (See Figure 2). Cut the ends of the tubing square.
2. Insert tubing all the way into the supply fitting and inlet fitting. Pull on the tubing to be sure that it's
held firmly in the fittings.
3. Repeat steps 1 and 2 to connect tubing from the faucet to the filter system outlet (See Figure 2).
continued on the next page
Stem
O-ring
Spacer
Hex Nut
Washer
Base
Steel Washer
(large)
1-1/4” dia. Hole
in Sink or
Countertop
Faucet
Body
Quick Connect
Fitting
9
Installation Instructions
To Disconnect Tubing:
1. Push the collet inward and hold with a finger while pulling the tubing out.
tubing
collet (depress to remove tubing)
end of tubing round and smooth,
with no cuts, nicks or flat spots
correct full 3/4" engagement
Tubing correctly cut and connected
Incorrect partial engagement
c
ontinued from the previous page
This system has push-in (quick connect) fittings for all connection locations. When working with the fit-
tings, do the following.
C
onnect Tubing:
1. Use a sharp cutter or knife to cut the end of tubing square.
2. Inspect the end (about 1") of the tubing to be sure there are no nicks, scratches or other rough spots.
If needed cut the tubing again.
3. Push tubing through the collet and all the way into fitting. Full engagement is 3/4" length of tube into
the fitting.
If tubing other than supplied with the system is used, be sure it is of high quality, exact size and round-
ness with a smooth surface.
FIG. 5
FIG. 6
Step E - Turn On Water, Check for Leaks and Rinse Carbon Fines
1. Open the shutoff valve(s) that you closed at the beginning of this installation.
2. Open the sink faucet and filtered water faucet to purge air from the system. When the water runs
smooth, with no bubbles or spurting, close faucets and check installation for leaks.
3. Open the filtered water faucet and let water run for 10 minutes to rinse out carbon fines.
Questions? Call Toll Free 1-800-218-6172 or visit www.ecopurehome.com/brita
When you call, please be prepared to provide the model, date code and serial number,
found on the rating decal on back.
10
Filter Cartridges
Taste and Odor Cartridges: A taste and odor cartridge contains activated carbon, a black powder.
W
hen new, open the filtered water faucet and allow fine, carbon particles to purge from the cartridge.
Close the faucet when you no longer see the “fines” (carbon particulates) in the filtered water, or approx-
imately 10 minutes. It is recommended to replace the filter cartridges every six months of use. There are
several variables that determine how long a cartridge will last. These include:
1. How much water you use, and
2. How much sediment, taste and/or odor, or other unwanted substance, is in the water.
Use the following information as a guide. However, no matter which type of cartridge you are using, you
will know it is time to replace it when you first notice the return of the unwanted substance in your water.
Brita Dual Stage Drinking Water Filtration System model BRDTSS with replacement element pack
BRDTSF conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substan-
tiated by test data. The rated capacity for this system is 270 gallons (1022 liters) at a rated service flow
of 0.5 gallons per minute.

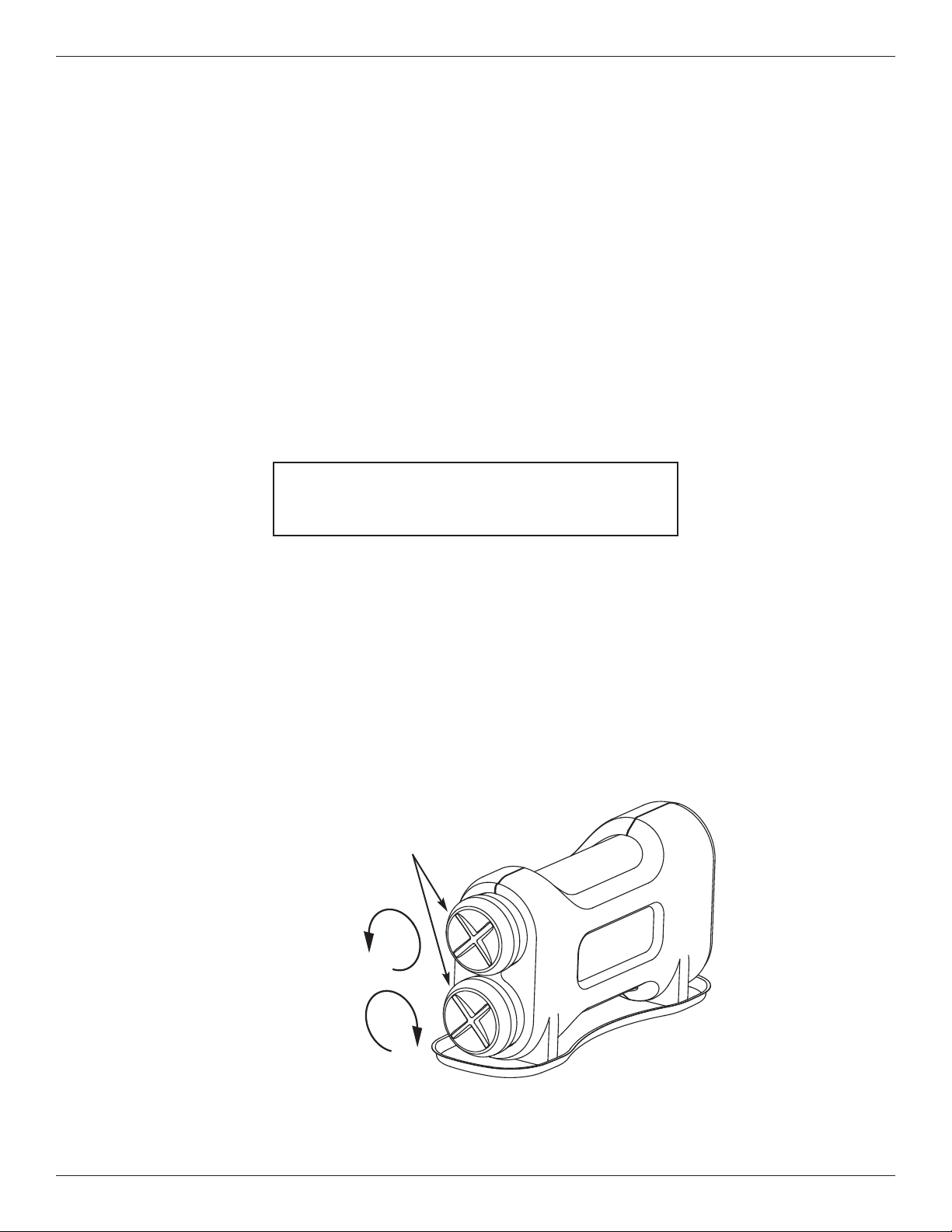

filter cartridges
Turn filter cartridges
counterclockwise
to remove from manifold
1. Turn filter cartridge counterclockwise to remove cartridges from the filter manifold.
Note: You may notice some water under the system during filter change.
2. Dispose of the cartridges in a proper manner.
3. Install new cartridges. Turn cartridges clockwise to re-attach to the filter manifold.
Taste and Odor Cartridges: A taste and odor cartridge contains activated carbon, a black powder.
When new, open the filtered water faucet and allow the fine carbon particles to purge from the cartridge.
Close the faucet when you no longer see the “fines” in the filtered water, or approximately 10 minutes.
Register for reminders to change filters at
www.ecopurehome.com/brita
Filter Cartridge Life
Filter Cartridge Replacement
FIG. 7
Turn filter cartridges
clockwise
to attach to manifold
11
Problem: Taste and/or Odor.
Cause: Pre & Post filter expended. Correction: Replace the filter cartridges.
Cause: System contaminated. Correction: Sanitize system. Call 1-800-218-6172 for instructions.
Problem: Water leaks at push connect fittings.
C
ause:
T
ubing not pushed in all the way.
C
orrection:
P
ush tubing in all the way into fittings.
Cause: Tubing not cut square. Correction: Cut tubing square.
Cause: Tubing nicked. Correction: Remove nicked portion, reinsert tubing into fitting.
Cause: Outer tubing surface not smooth. Correction: Remove rough portion, reinsert tubing into fitting.
Troubleshooting the System
Need help troubleshooting? Call Toll Free 1-800-218-6172 or visit www.ecopurehome.com/brita
12

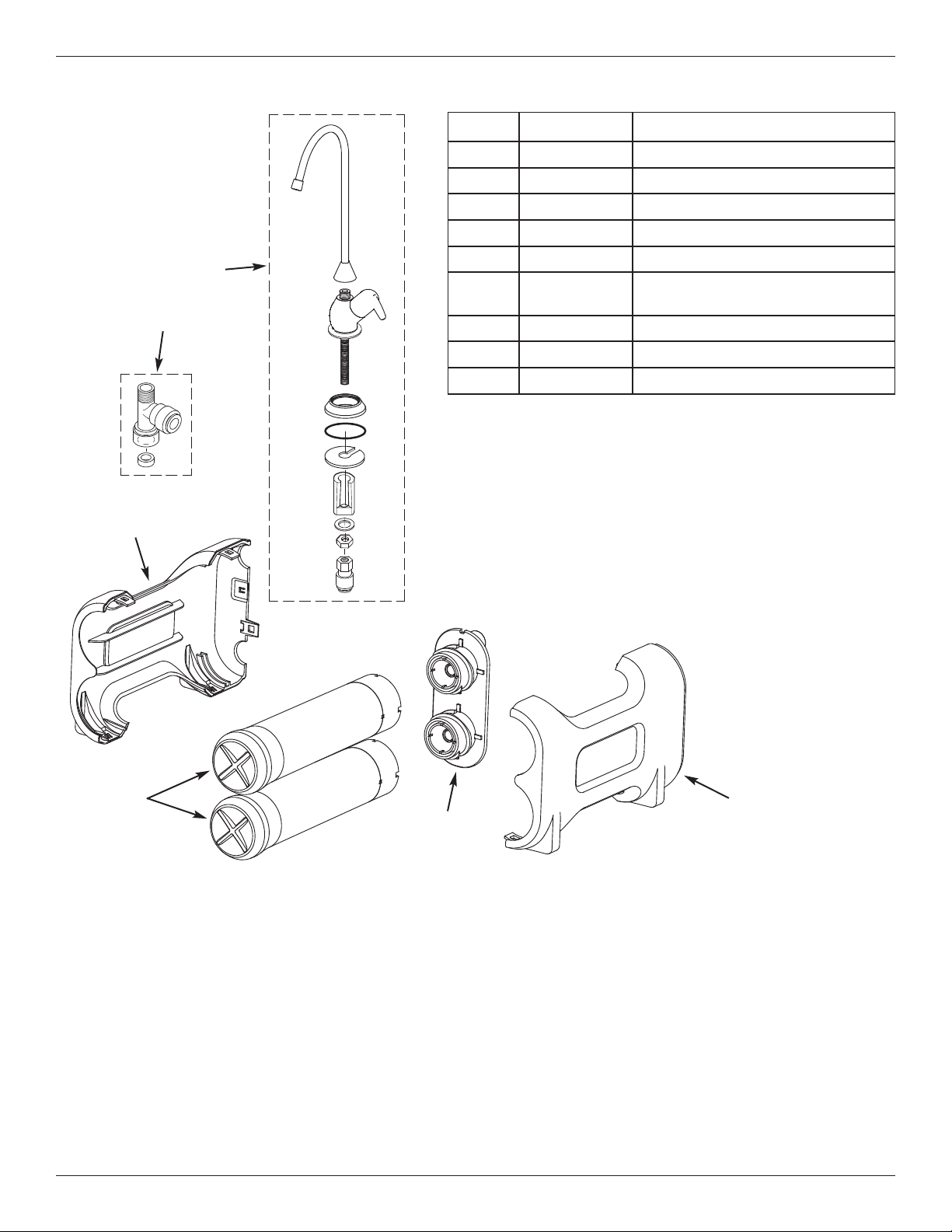

Parts List
Key No. Part No. Description
1 7379735 Faucet, Brushed Nickel
2 119-8600088 Water Supply Fitting, 3/8” Q.C.
– 7
383132
R
epl. Cabinet (incl. Key Nos. 3 & 4)
3
á
Cabinet, Left
4
á
Cabinet, Right
5 7383140
Manifold Assembly
(includes Key Nos. 3-5)
6 BRDTSF
Repl. Filter Cartridge (2 pack) Ù
¢
7168435 Tubing, 3/8” x 72” long, White
¢
7379581 Owner’s Manual
1
3
4
6
5
2
FOR IOWA USE ONLY
All sales in Iowa require the following signature before consummation of sale. These signatures must be retained by
seller/renter for 2 years minimum.
Buyer/Renter __________________________________________________________ Date _________________
Seller ________________________________________________________________ Date _________________
Seller’s Address _______________________________________________________________________________
Seller’s Phone No. _____________________________________________________________________________
Product: Brita Dual Stage Drinking Water Filtration System - Model BRDTSS
– – – – – – – – – – – – – – – – – – – – – – – – –
"
Ù Please purchase replacement cartridges from the e-commerce
retailer where you bought your water filtration system or
www.ecopurehome.com/brita.
¢ Not illustrated.
To order repair parts visit
www.ecopurehome.com/brita
Manufactured by
Ecodyne Water Systems
1890 Woodlane Drive
Woodbury, MN 55125
1-800-218-6172
