PLANNING GUIDE | 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Design Choices 3
Specification Guides Oven
Built-In Double Oven 6
Built-In Oven 8
Specification Guides Steam & Speed Ovens
Combination Steam Oven 10
Combination Steam Oven 12
Convection Speed Oven 1
Specification Guides Coee Maker
Built-In Coee Maker 15
Specification Guides Drawers
Warming Drawer 17
Vacuum Seal Drawer 19
CONTENTS
OB0DPPTX1 | OB0SPPTX1 | OS0SPTX1 | OS0NPTX1 |
OM0NPTX1 | EB0PSX1 | WB0SPEX1 | VB0SPEX1
DEVELOPED AND DETAILED DESIGN PAGE
Planning Guide information for Developed and Detailed
Design available in Q3 2024
i
i
i
CONTENTS
© FISHER & PAYKEL LIMITED 2023 PAGE 390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
DESIGN CHOICES
Design Choices
PAGE 4© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
DESIGN CHOICES | 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL
27 3/16"
48 1/2"
23 9/16"
18 1/2"
10 11/16"
PRODUCT OVERVIEW
1 OB30DPPTX1
Built-In Double Oven, 5" Touchscreen
2 OB30SPPTX1
Built-In Oven, 5" Touchscreen
3 OS30SPTX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 5" Touchscreen
4 OS30NPTX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 5" Touchscreen
5 OM30NPTX1 (AVAILABLE Q3, 2024)
Convection Speed Oven, 5" Touchscreen
6 EB30PSX1
Built-in Coee Maker, 4.3" Touchscreen
7 WB30SPEX1
Warming Drawer
8 VB30SPEX1
Vacuum Seal Drawer
NOTE: Consider height for side-by-side installation.
1
6
2
3 4 5
7 8
10 11/16"
18"
18"
<CONTENT
© FISHER & PAYKEL LIMITED 2023 PAGE 590003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
SPECIFICATION GUIDE
SERIES 9 & 11
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
Built-In Double Oven
SPECIFICATION GUIDE | BUILT-IN DOUBLE OVEN, 30"
OVERVIEW
Complete your Professional-style kitchen with this 30"
Double Oven. It matches perfectly with any of our
Professional kitchen appliances to deliver the feel of a
commercial kitchen in the home. Intuitive controls and the
performance to deliver perfect results make this double
oven beautiful to use.
PRODUCTS
OB30DPPTX1
Double Oven, 30", 17 Function, 4.1cu ft + 4.1cu ft,
Touchscreen, Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1 Designed to fit flush with cabinetry
2 Designed to match the rest of Fisher & Paykel's
Professional style family of appliances
3 Generous 4.1cu ft total capacity per oven
4 High-resolution, user-friendly touch display
5 Guided cooking and recipes
6 Perfect results from a variety of oven functions
7 Even heat distribution throughout with AeroTech™
technology
8 Self-cleaning
9 CoolTouch door
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB0DPPTX1
SPECIFICATION GUIDES OVEN
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 7© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023

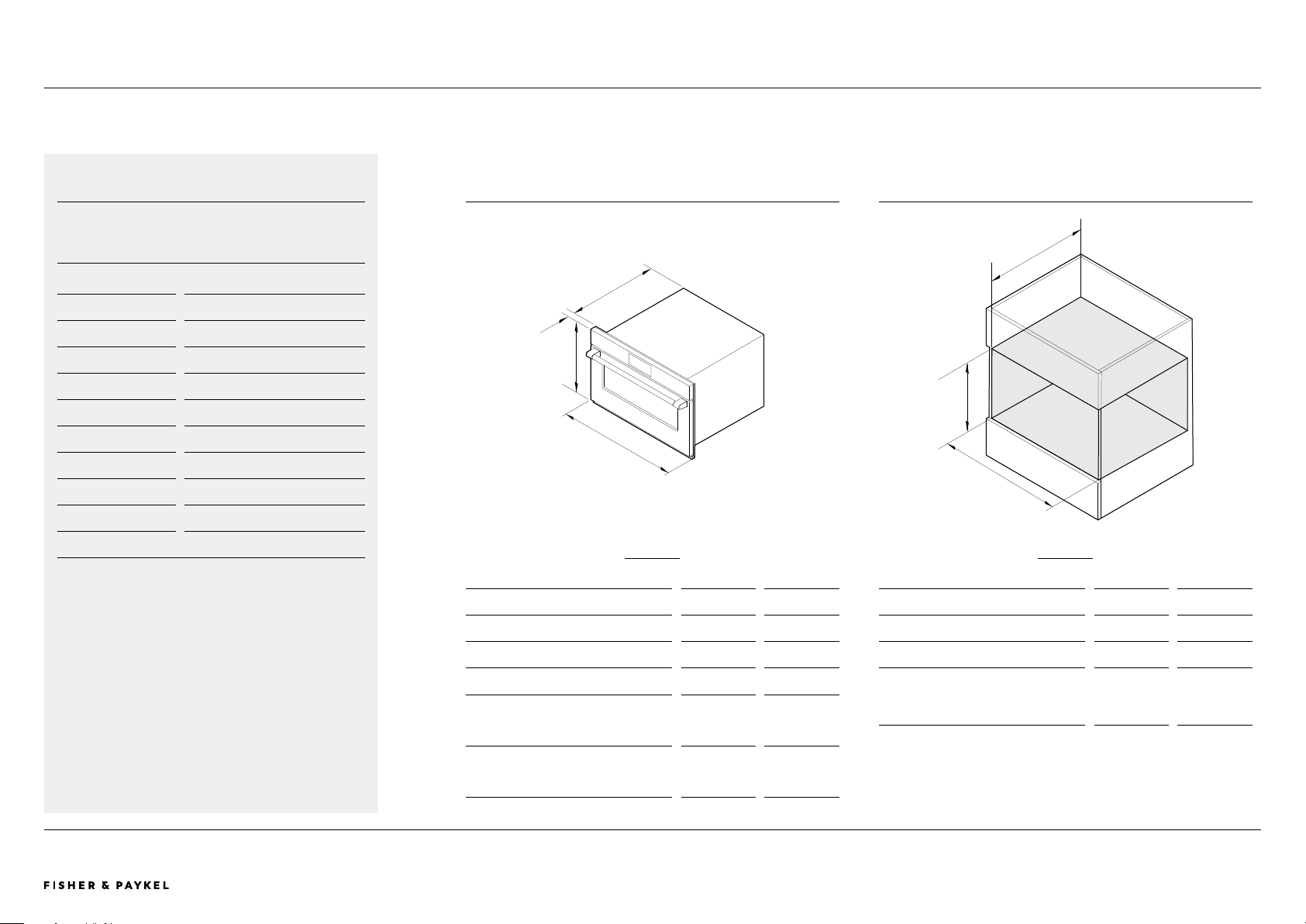

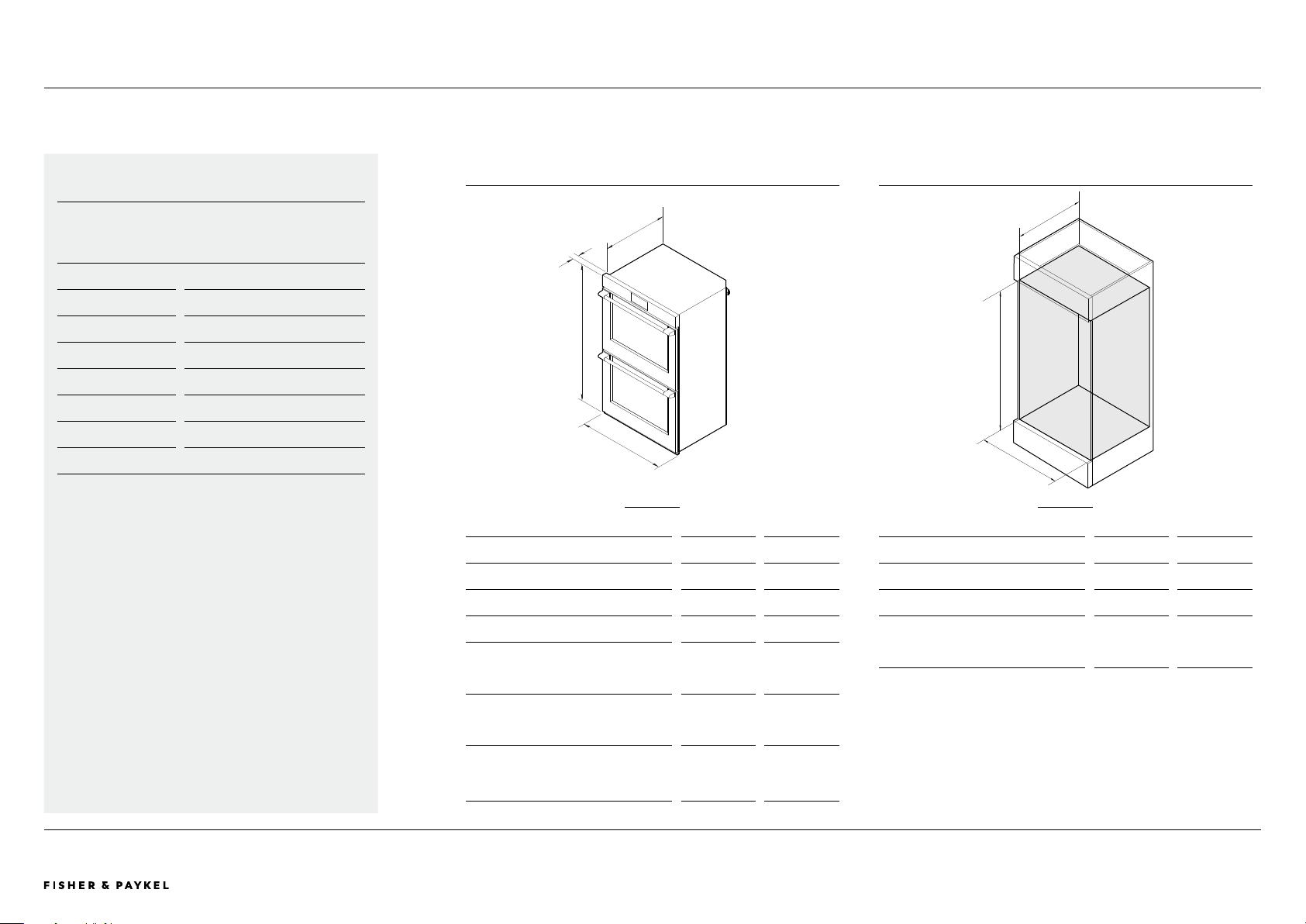

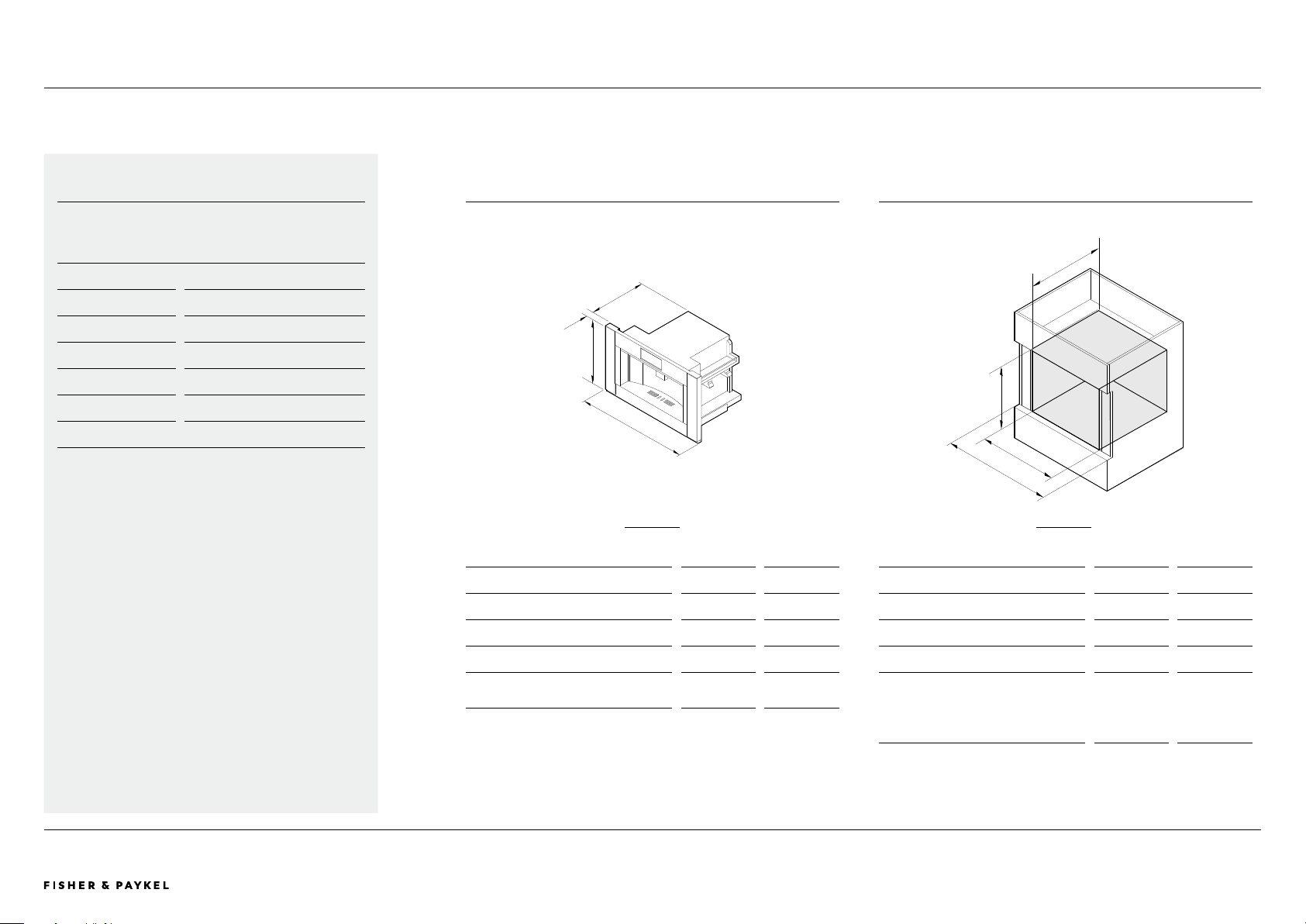

CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 48 /16 1224
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
22 5/8
24 /16
575
615
PRODUCT DIMENSIONS
inch mm
A Overall height 48 1/2 122
B Overall width 29 1/16 757
C Depth of chassis 22 7/16 569
D Thickness of oven front and
control panel (excl. handle and
dials)
1 9/16 40
Depth of upper door when fully
open (measured from front
of control panel)
21 11/16 550
Depth of lower door when fully
open (measured from front of
control panel)
20 7/8 50
NOTE: If installing with other professional products, consider trim front
thickness.
OB0DPPTX1
SPECIFICATION GUIDE | BUILT-IN DOUBLE OVEN, 30"
SPECIFICATIONS
Model No.
OB0DPPTX1
Dimensions
H 48 1/2" W 29 1/16" D 2 15/16"
Total Oven Capacity
4.1cu ft (115L) per oven
Weight
Packaged
405lb (184kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
40 A
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 8© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
Built-In Oven
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
OVERVIEW
Complete your Professional-style kitchen with this 30”
Oven. It matches perfectly with any of our Professional
kitchen appliances to deliver the feel of a commercial
kitchen in the home. With intuitive controls and the
performance to deliver perfect results, this oven is beautiful
to use.
PRODUCTS
OB30SPPTX1
Built-In Oven, 30", 17 Function, 4.1cu ft, Touchscreen,
Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1 Designed to match the rest of Fisher & Paykel's
Professional style family of appliances
2 Generous 4.1cu ft total capacity
3 High-resolution intuitive touch display
4 Guided cooking and recipes
5 Perfect results from a variety of oven functions
6 Even heat distribution throughout with AeroTech™
technology
7 Self-cleaning
8 CoolTouch door
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB0SPPTX1
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 26 1/16 681
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
22 11/16
24 /16
576
615
PRODUCT DIMENSIONS
inch mm
A Overall height 27 1/8 689
B Overall width 29 1/16 757
C Depth of chassis 22 7/16 569
D Thickness of oven front and
control panel (excl. handle and
dials)
1 9/16 40
Depth of door when fully
open (measured from front
of control panel)
21 11/16 550
NOTE: If installing with other professional products, consider trim front
thickness.
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
OB0SPPTX1
SPECIFICATIONS
Model No.
OB0SPPTX1
Dimensions
H 27 1/8" W 29 1/16" D 2 15/16"
Total Oven Capacity
4.1cu ft (115L)
Weight
Packaged
242lb (110kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS0SPTX1
OVERVIEW
With striking Professional styling, the Combination Steam
Oven fits seamlessly into any kitchen. As a companion
product, this Steam Oven is designed to install easily and fit
perfectly with other companion products. It features 23
functions, including steam-only, convection-only, or a
combination of both. Reduce the need for oils and fats with
six standalone steam functions, perfect for creating
flavorful and healthy restaurant-quality meals at home.
Beautiful to use, the large 5” touchscreen interface has
simple and intuitive guided cooking, helping to ensure
perfect results.
PRODUCTS
OS30SPTX1
Combination Steam Oven, 30", 23 Function
SERIES & STYLE
Series 11
Professional
FEATURES
1 Professional style for a bold statement
2 Generous 3cu ft total capacity with six shelf positions
3 Intuitive, large 5" touchscreen display
4 23 oven functions including six steam-only functions
5 "Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology"
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Water tank capacity of 50.7 fl oz
8 Wi-Fi/Connected capability through the SmartHQ™ app
9 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
"0
Soft open and close door
SPECIFICATION GUIDES STEAM & SPEED OVENS
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
5 Descale solution - 2 sachets, Part 580925
*Included with product
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 11© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 22 1/16 580
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
21 5/8
22 1/16
550
580
PRODUCT DIMENSIONS
inch mm
A Overall height 2 9/16 598
B Overall width 29 1/16 757
C Depth of chassis 21 7/16 545
D Thickness of oven front and
control panel (excl. handle and
dials)
1 /16 0
Depth of door when fully
open (measured from front
of control panel)
18 1/8 460
NOTE: If installing with other professional products, consider trim front
thickness.
OS0SPTX1
ISO VIEWISO VIEW
A
B
C
C
A
B
d
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
SPECIFICATIONS
Model No.
OS0SPTX1
Dimensions
H 2 9/16" W 29 1/16" D 22 5/8"
Total Oven Capacity
cu ft (85L)
Weight
Packaged
152lb (69kg)
Unpackaged
119lb (54kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 12© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS0NPTX1
OVERVIEW
With striking Professional styling, the Combination Steam
Oven fits seamlessly into any kitchen. As a companion
product, this Steam Oven is designed to install easily and fit
perfectly with other companion products. It features 23
functions, including steam-only, convection-only, or a
combination of both. Reduce the need for oils and fats with
six standalone steam functions, perfect for creating
flavorful and healthy restaurant-quality meals at home.
Beautiful to use, the large 5” touchscreen interface has
simple and intuitive guided cooking, helping to ensure
perfect results.
PRODUCTS
OS30NPTX1
Combination Steam Oven, 30", 23 Function
SERIES & STYLE
Series 9
Professional
FEATURES
1 Professional style for a bold statement
2 Generous 1.9cu ft total capacity with six shelf positions
3 Intuitive, large 5" touchscreen display
4 26 oven functions including six steam-only functions
5 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Water tank capacity of 50.7 fl oz
8 Wi-Fi/Connected capability through the SmartHQ™ app
9 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
"0
Soft open and close door
ACCESSORIES
1 Full-extension sliding shelves*
2 Step down wire shelf*
3 Roasting dish, tray and rack*
4 Wired temperature sensor*
5 Descale solution - 2 sachets, Part 580925
*Included with product
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 13© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
Convection Speed Oven
OM0NPTX1
SPECIFICATION GUIDE | CONVECTION SPEED OVEN, 30"
OVERVIEW
With striking Professional styling, the Convection Speed
Oven fits seamlessly into any kitchen. As a companion
product, this Speed Oven is designed to install easily and fit
perfectly with other companion products such as the
Combination Steam Oven, or Vacuum Seal Drawer. A
flexible appliance that pairs the speed of microwave
cooking with oven technology, which can crisp and brown
as it cooks. Featuring 22 cooking functions on an intuitive
touch display for easy programming of desired cooking
mode and duration.
PRODUCTS
OM30NPTX1
Convection Speed Oven, 30", 22 Function
SERIES & STYLE
Series 9
Professional
FEATURES
1 Professional style for a bold statement
2 With 1.7cu ft total capacity
3 Intuitive, large 5" touchscreen display
4 With 22 functions: four microwave, 14 oven and four
combination
5 A Wired Temperature Sensor precisely monitors cooking
in real time
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Soft open and close door
ACCESSORIES
1 Chromed shelf runners*
2 Glass tray*
3 Wire shelf*
4 Wired Temperature Sensor*
*Included with product
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 14© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 17 5/16 440
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
21 5/8
22 1/16
550
580
Note: Convection Speed Oven requires ventilation at the rear of the cavity.
PRODUCT DIMENSIONS
inch mm
A Overall height 18 458
B Overall width 29 1/16 757
C Depth of chassis 21 7/16 545
D Thickness of oven front and
control panel (excl. handle and
dials)
1 /16 0
Depth of door when fully
open (measured from front
of control panel)
12 5/8 20
NOTE: If installing with other professional products, consider trim front
thickness.
OS0NPTX1 | OM0NPTX1
C
A
B
d
SPECIFICATION GUIDE | COMBINATION STEAM OVEN AND CONVECTION SPEED OVEN, 30"
A
B
C
ISO VIEWISO VIEW
SPECIFICATIONS
Model No.
OS0NPTX1, Combination Steam Oven
OM0NPTX1, Convection Speed Oven
Dimensions
H 18" W 29 1/16" D 22 5/8"
Total Oven Capacity
OS30NPTX1
1.9cu ft (55L)
OM30NPTX1
1.7cu ft (49L)
Weight
Packaged
121lb (55kg)
Unpackaged
101lb (46kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 15© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER, 30"
OVERVIEW
Designed to complement our Professional style oven and
warming drawer, this built-in coee maker seamlessly
integrates into any kitchen design with a stylish stainless
steel finish. Beautiful to use, it has an intuitive touch display
with 13 dierent beverage options to suit individual taste and
selection – from Espresso to Latte. Pair with other
companion products to create a kitchen suite for every need.
PRODUCTS
EB30PSX1
Built-in Coee Maker, 4.3" Touchscreen, Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1 Part of our suite of companion products, designed to match
aesthetically for flexible configurations
2 Pairs perfectly with the Professional style 30" Oven and
Warming Drawer
3 Intuitive touch display for ease of use
4 13 beverage options to suit individual taste and selection –
from Americano to Latte
5 Favorite coffee can be memorized and set to start at the
same time each day
6 Stainless steel conical burr grinder with 13 grind coarseness
positions
7 Self-cleaning function, with a removable drip tray and
waste container
8 84.5 fl oz water tank capacity
9 15 bar pump pressure
"0
Adjustable coffee strength, temperature and coffee cup
sizes
ACCESSORIES
1 Thermal milk jug*
2 Extractable steam outlet*
3 Coffee spoon*
4 Descaling agent and water filter*
*Included with product
EB0PSX1
Built-In Coee Maker
SPECIFICATION GUIDES COFFEE MAKER
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 16© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Height of cavity** 18 /8 467
B Minimum inside width of cavity* 22 1/16 560
C Width needed to include trim 0 762
D Minimum inside depth of cavity
with trim
- Proud installation
- Flush installation
22 1/16
2 5/8
560
600
*Cabinetry requires additional vertical sidewalls to secure the product.
**A 5/8" (16mm) spacer must be installed in the base of the cavity, see
installation guide for details.
Note: Ventilation required at the rear of the cavity.
PRODUCT DIMENSIONS
inch mm
A Overall height 18 1/2 470
B Overall width 29 1/16 757
C Depth of chassis 17 1/2 445
D Thickness of front and control
panel
1 9/16 40
NOTE: If installing with other professional products, consider trim front
thickness.
SPECIFICATIONS
Model No.
EB0PSX1
Dimensions
H 18 1/2" W 29 1/16" D 19 1/16"
Weight
Packaged
68lb (0kg)
Electrical
Supply
120 V, 60 Hz
Service
10 A
ISO VIEW
A
B
A
ISO VIEW
c
b
d
d
EB0PSX1
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER, 30"
c
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 17© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023

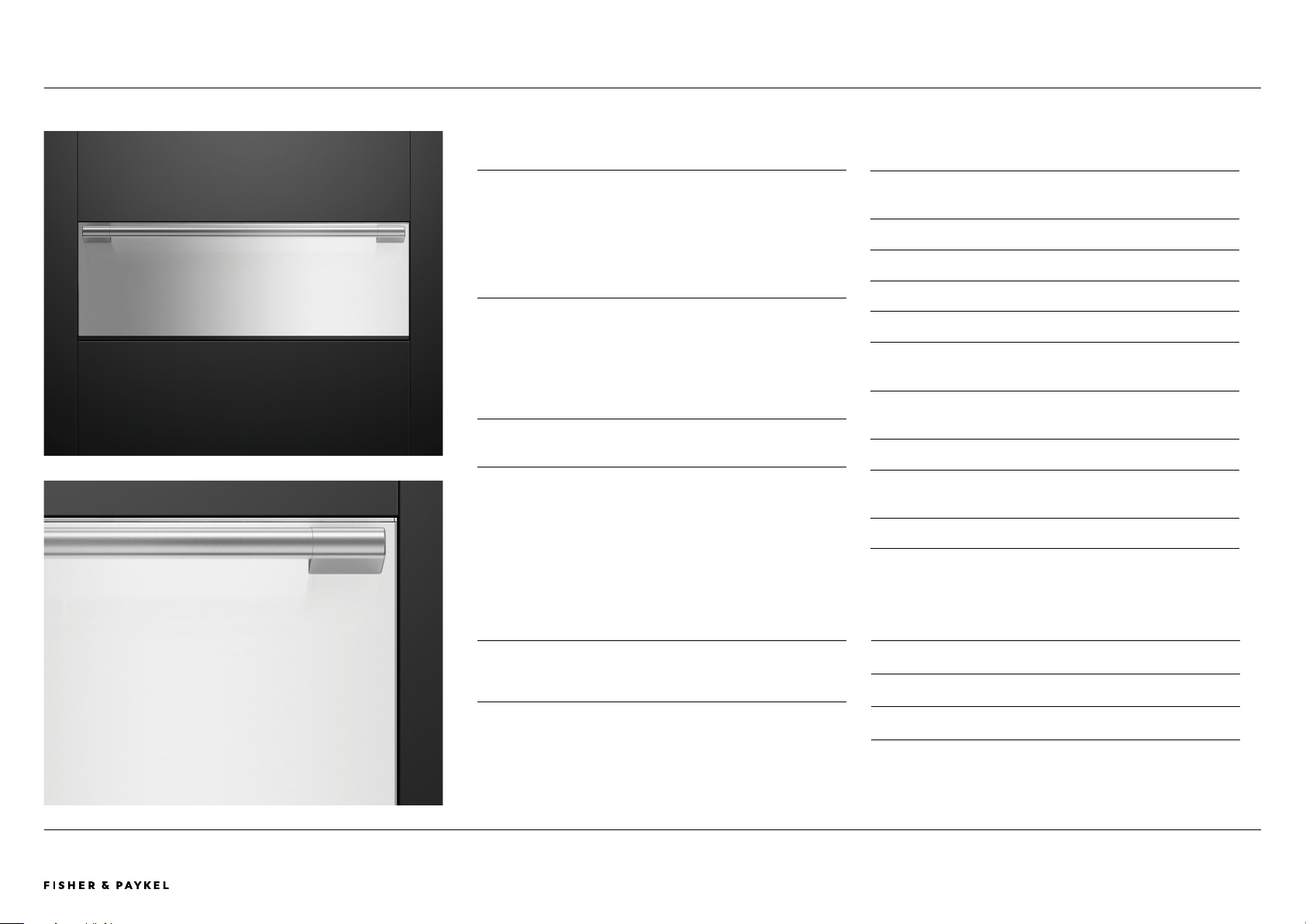

FEATURES
1 Styled to perfectly match our Professional kitchen
appliances
2 Seamless pairing with other companion products in
brushed stainless steel
3 Soft-close drawer
4 Easy-to-use capacitive touch controls
5 Automatic timing and switch-off functionality
6 Easy-to-clean, smooth-glass base
7 Room for 16 standard-sized place settings
8 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
ACCESSORIES
1 Accessory rack for optimiszing space*
*Included with product
SPECIFICATION GUIDE | WARMING DRAWER, 30"
WB0SPEX1
OVERVIEW
Designed to complement our Professional style kitchen
appliances, this warming drawer has a brushed stainless
steel handle, and is soft-close for a coherent, considered
look. Beautiful to use, with capacitive touch controls and six
tailored functions for warming, proofing, dehydrating and
slow cook. Pair with other companion products to create a
kitchen suite for every need.
PRODUCTS
WB30SPEX1
Warming Drawer, 30", Stainless Steel
SERIES & STYLE
Series 9
Professional
Warming Drawer
SPECIFICATION GUIDES DRAWERS
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 18© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height 10 /4 27
B Minimum inside width 28 /8 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
22 1/16
22 1/16
560
580
NOTE: The drawer can fully support 30inch Fisher & Paykel wall oven, without
adding shelf in between.
PRODUCT DIMENSIONS
inch mm
A Overall height 10 11/16 271
B Overall width 29 15/16 760
C Depth of chassis* 21 9/16 547
D Thickness of front panel 1/16 20
E Height of chassis 10 11/16 271
F Width of chassis 27 1/15 707
* Including power plug
NOTE: If installing with other professional products, consider trim front
thickness.
ISO VIEWISO VIEW
SPECIFICATIONS
Model No.
WB0SPEX1
Dimensions
H 10 11/16" W 29 15/16" D 22 /8"
Weight
Packaged
82lb (7kg)
Electrical
Supply
110 V, 60 Hz
Service
10 A
Connection
Flex cord
Power cord length
70 7/8" (1800mm)
A
B
C
A
C
b
D
e
f
SPECIFICATION GUIDE | WARMING DRAWER, 30"
WB0SPEX1
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 19© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
FEATURES
1 Styled to perfectly match our Professional kitchen
appliances
2 Soft-close drawer
3 Three levels of vacuum and heat sealing
4 Easy-to-use capacitive touch controls
5 Easy-to-clean stainless steel interior
6 Vacuum sealing for easy food portioning, marinating,
storage and extended food life
7 Sealing to capture and intensify flavors and retain
nutrients
8 Effortless preparation for sous vide cooking
9 External vacuuming to remove air from glass jars and
bottles
"0 Additional storage drawer
OVERVIEW
Designed to complement our Combination Steam Ovens,
these vacuum seal drawers are handle-free, and soft-close
for a coherent, considered look. Beautiful to use, with
capacitive touch controls and three levels of vacuuming
and sealing to deliver perfect results. Pair with other
companion products to create a kitchen suite for every
need.
PRODUCTS
VB30SPEX1
Vacuum Seal Drawer, 30", Stainless Steel
SERIES & STYLE
Series 9
Professional
Vacuum Seal Drawer
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 30"
VB0SPEX1
ACCESSORIES
1 Large vacuum bags - 50 Bags, Part 793034
2 Small vacuum bags - 50 Bags, Part 793033
3 Adapter accessory kit for external vacuuming*
*Included with product
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 20© FISHER & PAYKEL LIMITED 202390003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height 10 /4 27
B Minimum inside width 28 1/2 724
C Minimum inside depth of cavity
- Proud installation
- Flush installation
22 1/16
22 1/16 22
560
580
NOTE: The drawer can fully support 30inch Fisher & Paykel wall oven, without
adding shelf in between.
PRODUCT DIMENSIONS
inch mm
A Overall height 10 11/16 271
B Overall width 29 15/16 760
C Depth of chassis* 21 11/16 551
D Thickness of front panel 1/16 20
E Height of chassis 10 11/16 271
F Width of chassis** 28 /8 720
* Including power plug
**Including side brackets
NOTE: If installing with other professional products, consider trim front
thickness.
SPECIFICATIONS
Model No.
VB0SPEX1
Dimensions
H 10 11/16" W 29 15/16" D 22 1/2"
Weight
Packaged
118lb (5kg)
Electrical
Supply
110 V, 60 Hz
Service
10 A
Connection
Flex cord
Power cord length
70 7/8" (1800mm)
ISO VIEWISO VIEW
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 30"
VB0SPEX1
A
B
C
A
C
b
D
e
f
<CONTENT
© FISHER & PAYKEL LIMITED 2023 PAGE 2190003338A PLANNING GUIDE 30" BUILT-IN OVENS ANDCOMPANIONS, PROFESSIONAL - VERSION A - DECEMBER 2023
