Premium Levella PWC147MB Wine Cooler 14 Bottle

Use & Care Manual

For PWC147MB.

PDF File Manual, 13 pages, Read Online | Download pdf file

PWC147MB photo

Other documents for Premium Levella PWC147MB

The following documents are available:
User Manual Other Documents Specification
  • Product Data Sheet - (English) Download
Photos

Specifications

Use & Care Manual - Transcript

  • Page 1: WINE COOLER REFRIGERADOR DE VINO. | Model/Modelo: PWC147MB This product is for domestic use only Use & care manual important safeguards
  • Page 2 - English - : Safety Warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Indicates a hazardous situation which. if not avoided. ADANGER : nee will result in death or serious injury ACAuTION Indicates a hazardous situation which. if not avoided. could result in death or serious injury Indicates a hazardous situation which. if not avoided. AWARNING could result in minor or moderate injury. are forbidden. Non-compliance with the instructions may result in product damages or endangerment to the personal Prohibition symbols safety of users. 1 The symbol indicates prohibited matters. and behaviors that behaviors that must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endangerment Warning symbols to the personal safety of users. QO The symbol indicates matters that must be followed. and ) The symbol indicates matters to pay attention to. and behaviors that shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of Note symbols the product will be caused. Keep ventilation openings. in the appliance enclosure or in the built-in structure. clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process. other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance. unless they are of the type recommended by the manufacturer. Do not damage the refrigerant circuit. If the supply cord is damaged. it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Use two or more people to move wine cooler. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance If the supply cord or other components damaged. it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard. Do not use extension cords. Risk of child entrapment. Before you throw away your old wine cooler or freezer: Take off the door. Leave the shelves in place so that children may not easily climb inside.
  • Page 3 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Electricity related warnings ® Do not pull the power cord when unplugging the wine cooler. Please firmly grasp the plug and pull out it from the socket ® Do not damage the power cord under any condition so as to ensure safety use. do not use when the power cord is damaged or the plug is worn. @ The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line. e Please use a dedicated three-hole power socket which is 15A or more and never share the power socket with any other electrical appliances. ® The wine cooler adopts 115V/60Hz AC power; voltage fluctuations over the range of 115+10%V will cause malfunction or even damage. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the wine cooler or other electrical appliances considering that spark may cause a fire. ®@ To ensure safety. it is not recommended to place regulators. rice cookers. microwave ovens or other appliances at the top of the wine cooler. those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

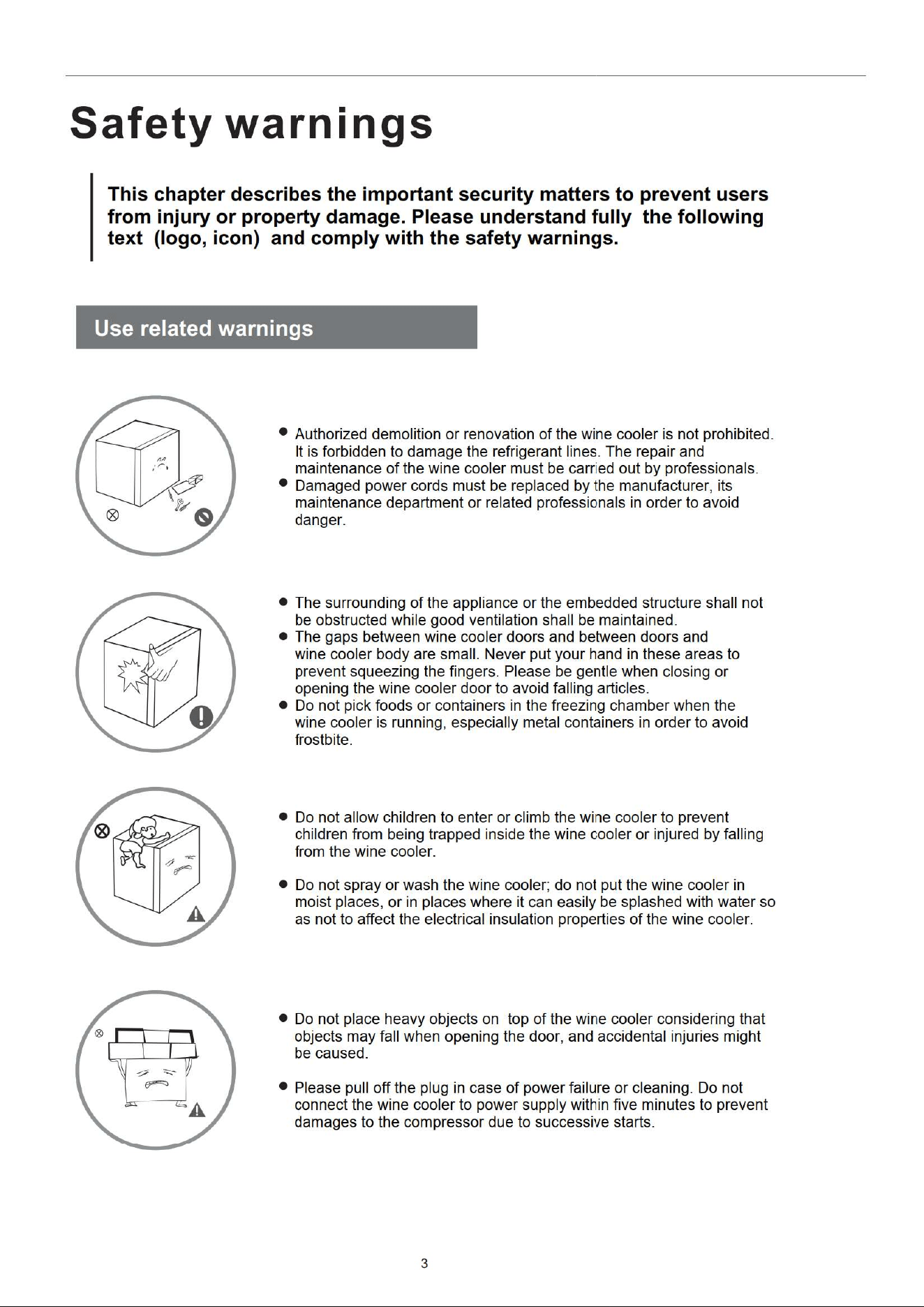

  • Page 4 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Use related warnings ® Authorized demolition or renovation of the wine cooler is not prohibited. It is forbidden to damage the refrigerant lines. The repair and maintenance of the wine cooler must be carried out by professionals. ® Damaged power cords must be replaced by the manufacturer. its maintenance department or related professionals in order to avoid @ The surrounding of the appliance or the embedded structure shall not be obstructed while good ventilation shall be maintained. @ The gaps between wine cooler doors and between doors and wine cooler body are small. Never put your hand in these areas to prevent squeezing the fingers. Please be gentle when closing or opening the wine cooler door to avoid falling articles. @ Do not pick foods or containers in the freezing chamber when the D wine cooler is running. especially metal containers in order to avoid frostbite. ®@ Do not allow children to enter or climb the wine cooler to prevent children from being trapped inside the wine cooler or injured by falling from the wine cooler. ®@ Do not spray or wash the wine cooler; do not put the wine cooler in moist places. or in places where it can easily be splashed with water so as not to affect the electrical insulation properties of the wine cooler. ® Do not place heavy objects on top of the wine cooler considering that objects may fall when opening the door. and accidental injuries might be caused. ®@ Please pull off the plug in case of power failure or cleaning. Do not connect the wine cooler to power supply within five minutes to prevent damages to the compressor due to successive starts.

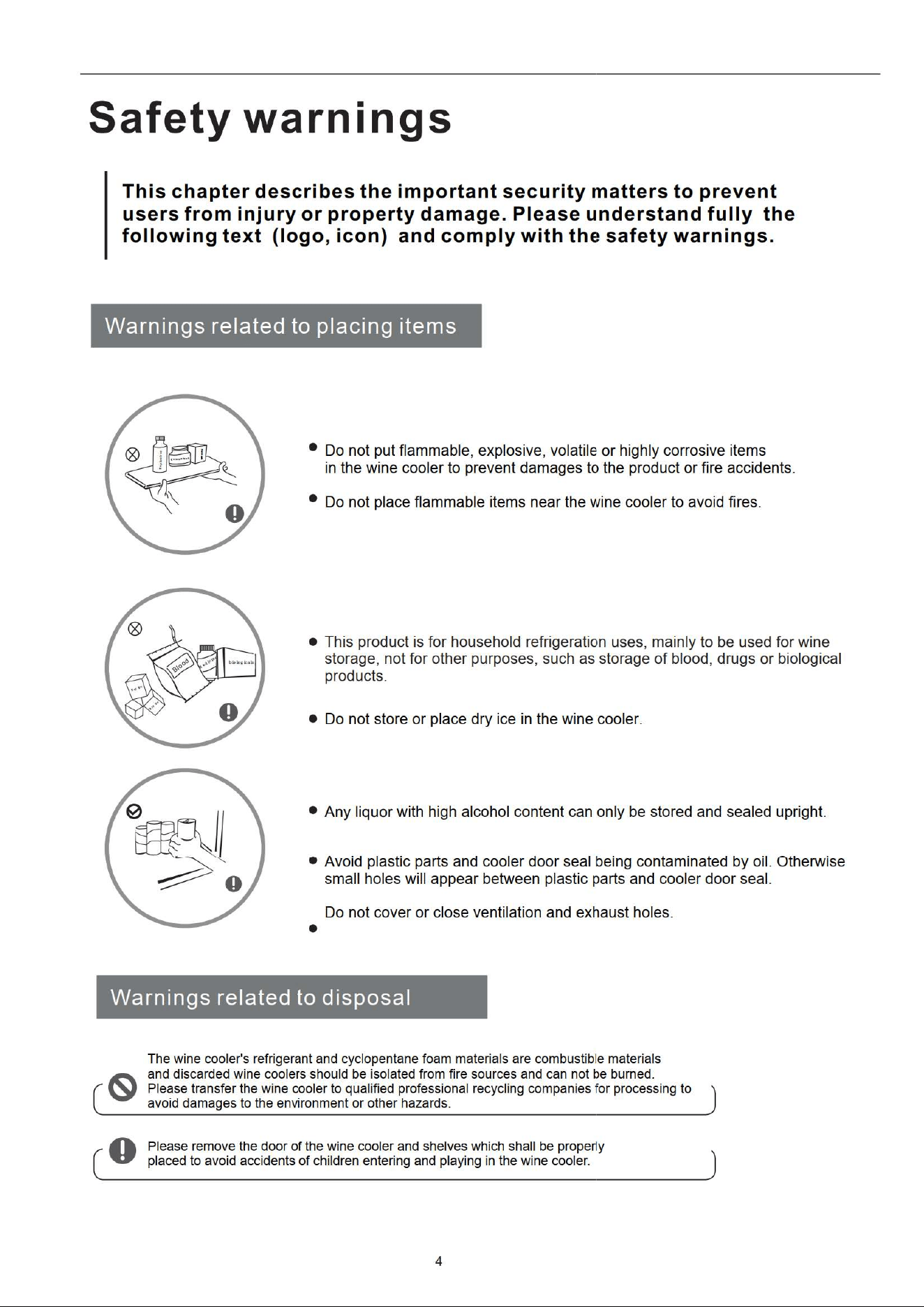

  • Page 5 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Warnings related to placing items ® Do not put flammable. explosive. volatile or highly corrosive items in the wine cooler to prevent damages to the product or fire accidents. ® Do not place flammable items near the wine cooler to avoid fires. @ This product is for household refrigeration uses. mainly to be used for wine storage. not for other purposes. such as storage of blood. drugs or biological @ Do not store or place dry ice in the wine cooler. @ Any liquor with high alcohol content can only be stored and sealed upright. ® Avoid plastic parts and cooler door seal being contaminated by oil. Otherwise small holes will appear between plastic parts and cooler door seal. Do not cover or close ventilation and exhaust holes. Warnings related to disposal The wine cooler's refrigerant and cyclopentane foam materials are combustible materials and discarded wine coolers should be isolated from fire sources and can not be burned. Please transfer the wine cooler to qualified professional recycling companies for processing to avoid damages to the environment or other hazards. Please remove the door of the wine cooler and shelves which shall be properly | placed to avoid accidents of children entering and playing in the wine cooler. |
  • Page 6 - English - : Installation Instructions ® Before using the wine cooler. remove all packaging materials including bottom cushions and foam pads and tapes inside the wine cooler. tear off the protective film on the door and the wine cooler body. elnstall the wine cooler in a well-ventilated indoor place; the ground shall be flat. and sturdy (rotate left or right to adjust the wheel for leveling if unstable). e Keep away from heat and avoid direct sunlight. Do not place the wine cooler in moist or watery places to prevent rust or reduction of the insulating effect. e The hot air from the side walls of the cooler shall be exhausted without restrictions. or the compressor's power will increase and further increase power consumption. Thus the distance between cooler and walls or neighboring furniture shall not be less than @4cm Wipe the wine cooler inside and outside with a warm moist rag (add a small amount of detergent in the warm water and wipe clean with clean water at the end). @Please leave enough space to ensure easy opening . @Dimensions shown are for reference only. e The wine cooler shall stay still for half an hour before connecting 115V/60Hz power when it is started for the first time. @The wine cooler shall run 2 to 3 hours before loading wine; the wine cooler shall run for more than 4 hours in summer in advance considering that the environmental temperature is high.

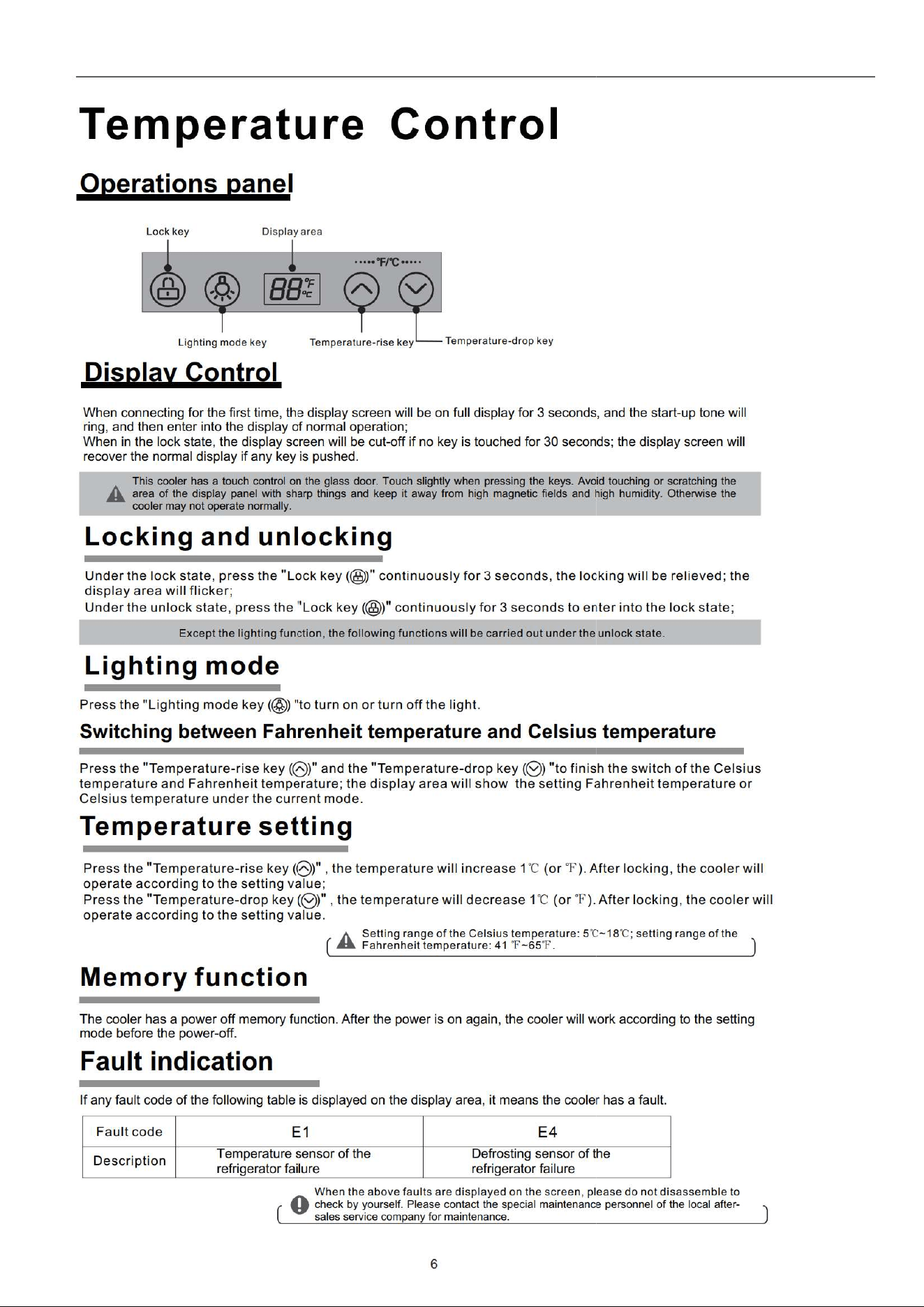

  • Page 7 - English - : Temperature Control Operations panel Lock key Display area Lighting mode key Temperature-rise key Temperature-drop key Displ ntrol When connecting for the first time. the display screen will be on full display for 3 seconds. and the start-up tone will ring. and then enter into the display of normal operation; When in the lock state. the display screen will be cut-off if no key is touched for 30 seconds; the display screen will recover the normal display if any key is pushed. This cooler has a touch control on the glass door. Touch slightly when pressing the keys. Avoid touching or scratching the A area of the display panel with sharp things and keep it away from high magnetic fields and high humidity. Otherwise the cooler may not operate normally. Locking and unlocking Under the lock state. press the "Lock key (@)" continuously for 3 seconds. the locking will be relieved; the display area will flicker; Under the unlock state. press the "Lock key (@)" continuously for 3 seconds to enter into the lock state; Except the lighting function. the following functions will be carried out under the unlock state. Lighting mode Press the "Lighting mode key @®) "to turn on or turn off the light. Switching between Fahrenheit temperature and Celsius temperature Press the "Temperature-rise key (@)" and the "Temperature-drop key () "to finish the switch of the Celsius temperature and Fahrenheit temperature; the display area will show the setting Fahrenheit temperature or Celsius temperature under the current mode. Temperature setting Press the "Temperature-rise key (®)". the temperature will increase 1°C (or TF’). After locking. the cooler will operate according to the setting value; Press the "Temperature-drop key (~©)". the temperature will decrease 1°C (or I’). After locking. the cooler will operate according to the setting value. A Setting range of the Celsius temperature: 5°C~18°C; setting range of the Fahrenheit temperature: 41 T~65T. Memory function The cooler has a power off memory function. After the power is on again. the cooler will work according to the setting mode before the power-off. Fault indication If any fault code of the following table is displayed on the display area. it means the cooler has a fault. Fault code Temperature sensor of the Defrosting sensor of the refrigerator failure refrigerator failure Description When the above faults are displayed on the screen. please do not disassemble to @ check by yourself. Please contact the special maintenance personnel of the local aftersales service company for maintenance.

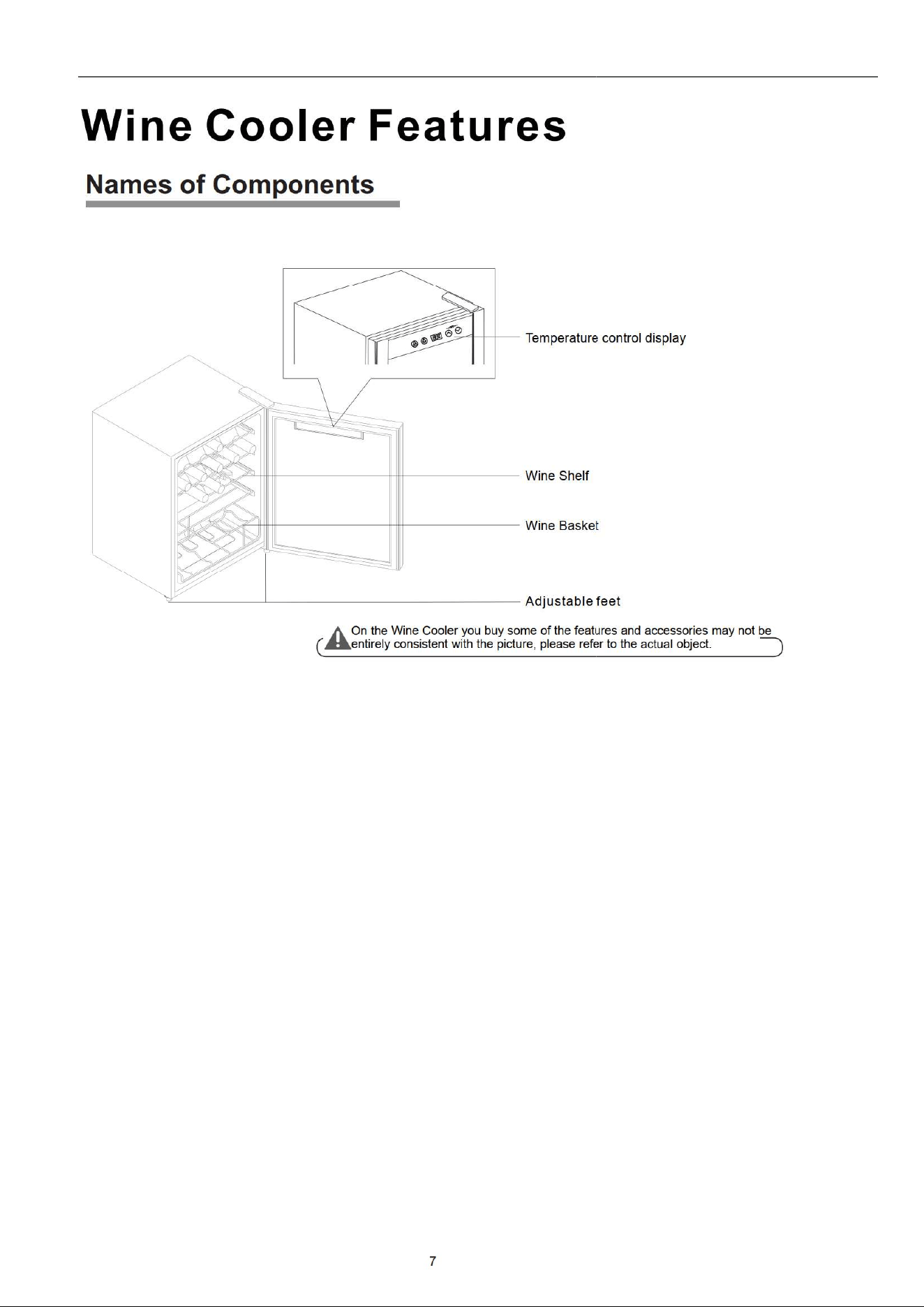

  • Page 8 - English - : Wine Cooler Features Names of Components Temperature control display Wine Shelf HH Hitt Wine Basket Adjustable feet On the Wine Cooler you buy some of the features and accessories may not be ( entirely consistent with the picture. please refer to the actual object. )

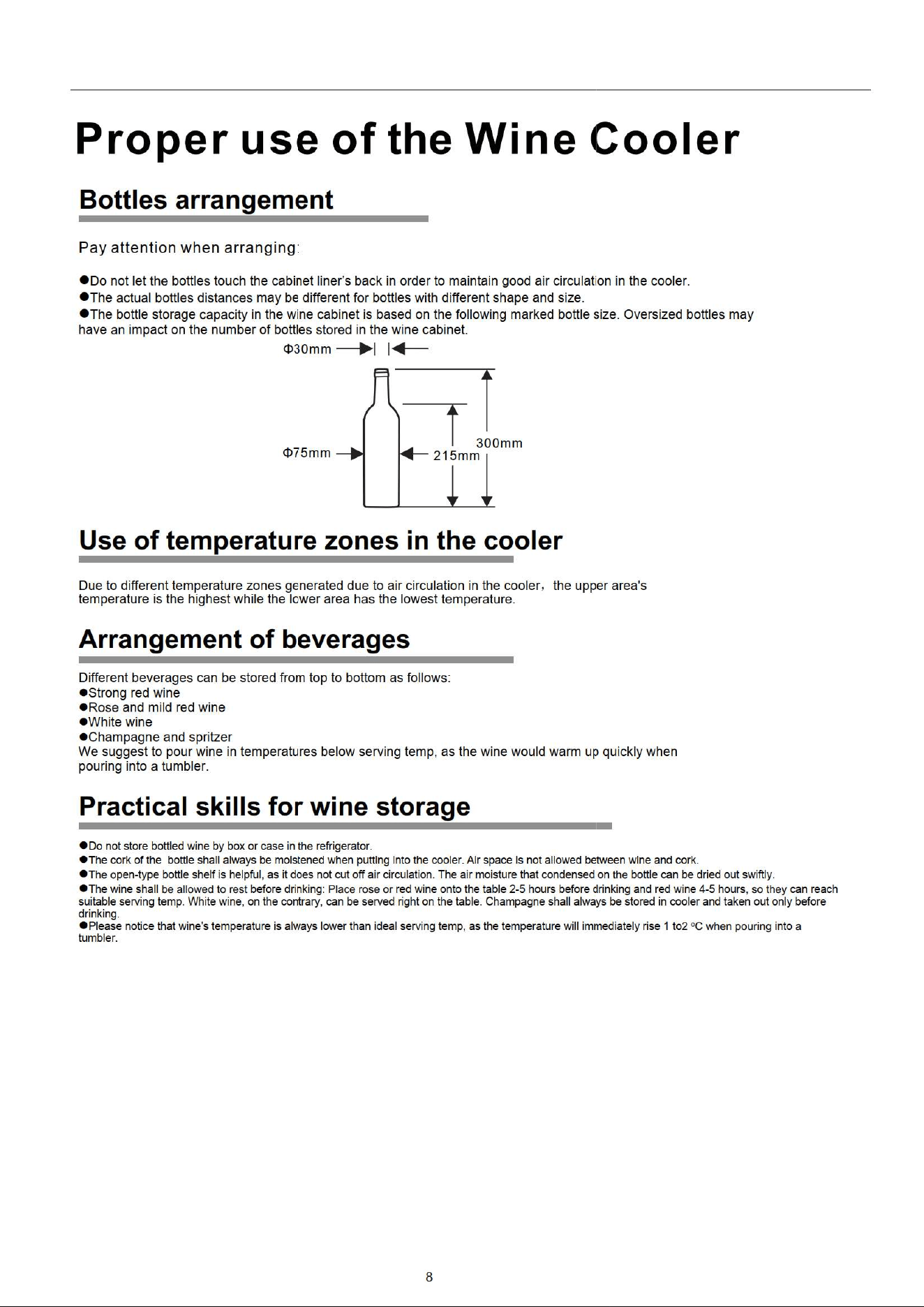

  • Page 9 - English - : Proper use of the Wine Cooler Bottles arrangement Pay attention when arranging: ®@Do not let the bottles touch the cabinet liners back in order to maintain good air circulation in the cooler. @The actual bottles distances may be different for bottles with different shape and size. @The bottle storage capacity in the wine cabinet is based on the following marked bottle size. Oversized bottles may have an impact on the number of bottles stored in the wine cabinet. ©30mm —>| |<— 75mm 215mm Use of temperature zones in the cooler Due to different temperature zones generated due to air circulation in the cooler. the upper area's temperature is the highest while the lower area has the lowest temperature. Arrangement of beverages Different beverages can be stored from top to bottom as follows: @Strong red wine @Rose and mild red wine @White wine @Champagne and spritzer We suggest to pour wine in temperatures below serving temp. as the wine would warm up quickly when pouring into a tumbler. Practical skills for wine storage ®Do not store bottled wine by box or case in the refrigerator. @The cork of the bottle shall always be moistened when putting into the cooler. Air space is not allowed between wine and cork. @The open-type bottle shelf is helpful. as it does not cut off air circulation. The air moisture that condensed on the bottle can be dried out swiftly. @The wine shall be allowed to rest before drinking: Place rose or red wine onto the table 2-5 hours before drinking and red wine 4-5 hours. so they can reach oo serving temp. White wine. on the contrary. can be served right on the table. Champagne shall always be stored in cooler and taken out only before oPiease notice that wine's temperature is always lower than ideal serving temp. as the temperature will immediately rise 1 to2 °C when pouring into a

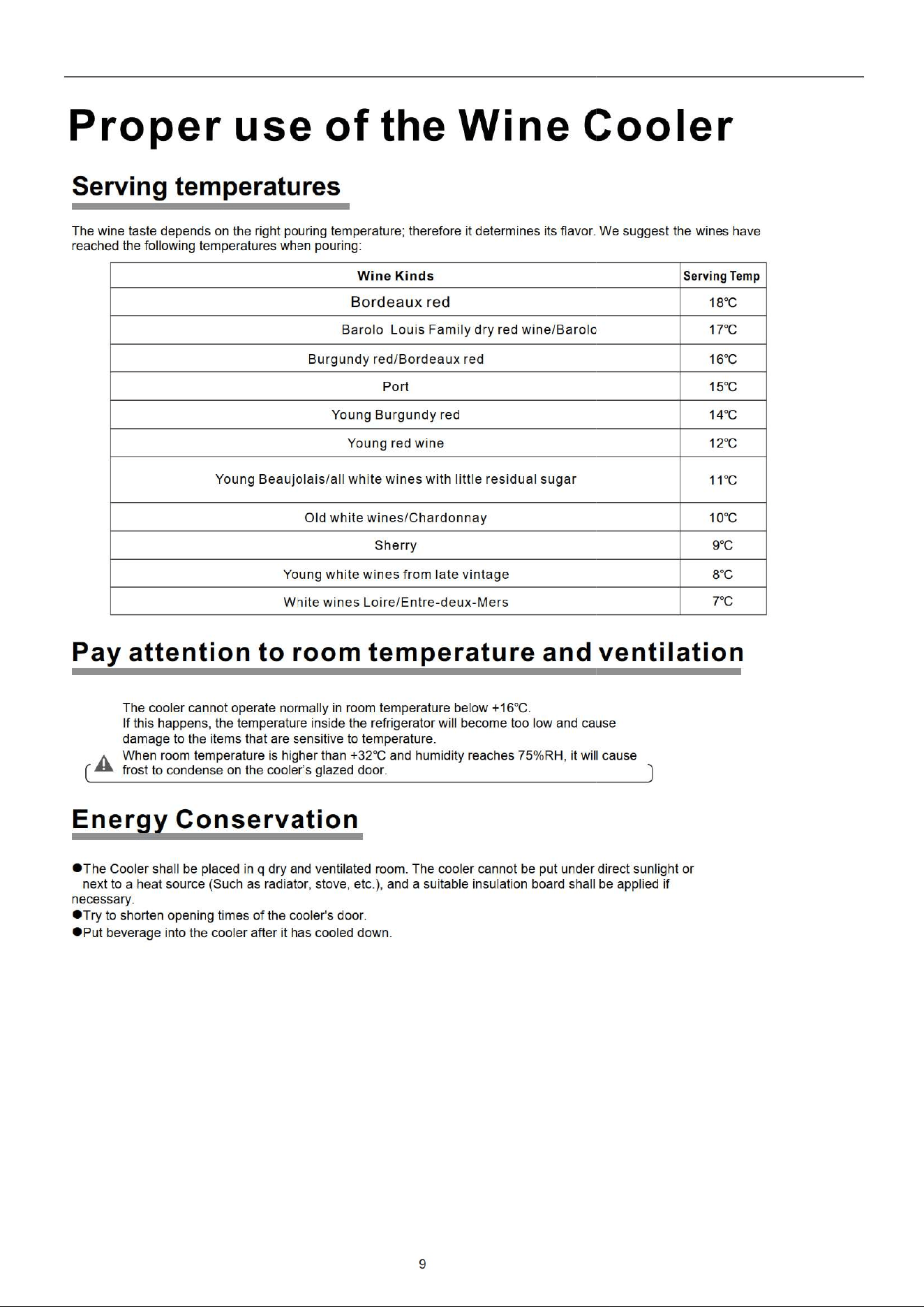

  • Page 10 - English - : Proper use of the Wine Cooler Serving temperatures The wine taste depends on the right pouring temperature; therefore it determines its flavor. We suggest the wines have reached the following temperatures when pouring: Wine Kinds Serving Temp Bordeaux red 18°C Barolo Louis Family dry red wine/Barolo 17°C Burgundy red/Bordeaux red 16°C Young Burgundy red 14°C Young red wine 12°C Young Beaujolais/all white wines with little residual sugar is Old white wines/Chardonnay 10°C Sherry 9°C Young white wines from late vintage 8°C Pay attention to room temperature and ventilation The cooler cannot operate normally in room temperature below +16°C. If this happens. the temperature inside the refrigerator will become too low and cause damage to the items that are sensitive to temperature. When room temperature is higher than +32°C and humidity reaches 75%RH. it will cause ( A frost to condense on the cooler’s glazed door. Energy Conservation @The Cooler shall be placed in q dry and ventilated room. The cooler cannot be put under direct sunlight or next to a heat source (Such as radiator. stove. etc.). and a suitable insulation board shall be applied if necessary. @Try to shorten opening times of the cooler's door. @Put beverage into the cooler after it has cooled down.
  • Page 11 - English - : Wine Cooler Maintenance Di nn h ler Unplug the power plug to disconnect the cooler. Stop using the cooler If the cooler is going to be left unused for a long time. please: 1.Unplug the cooler; 2.Clean the cooler; 3.Keep the cooler door open. Clean the cooler @ Dust behind the cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the cooler should be cleaned regularly to avoid odor. Cleaning procedure 1.Unplug power plug or disconnect cutoff; 2.Clean the door seal with only clear water and give it a thorough wipe; 3.Use slightly warm water and a little dish soap to clean the cooler. Do not let water spill onto operation control elements and panel on glazed door; 4.Reconnect and power cooler when cleaning is completed. ®@ Do not use hard brushes. clean steel sponges. wire brushes. abrasives such as toothpastes. organic solvents (such as alcohol. acetone. banana oil. etc.). hot water. acid or alkaline items to clean the cooler considering that this may damage the cooler surface and interior. @ Do not rinse with water so as not to affect the electrical insulation properties. Do not use detergents or solvents with sand or acid. The drain hole shall be cleaned regularly to ensure water can be drained. Clean the drain hole with a thin stick or something similar.
  • Page 12 - English - : Frequently asked questions The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled. Whether the cooler is plugged and connected to power; Low voltage; Inoperation Failure power or tripping circuit Odorous foods should be closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned. Whether the thermostat is over adjusted; Whether food containing water is put inside the glass partition. Foods in the refrigerating chamber are frozen It is normal that wine cooler operates for longer times in summer when the ambient temperature is higher; Long-term operation | Frequent opening of wine cooler door. of compressor Thick frost layer (defrost is needed) The wine cooler door | The door is stuck by food packages; can not be properly Too much food; closed. Tilt wine cooler. Whether the bottles are leveled. whether the wine Loud noises cooler is balanced; Whether the wine cooler parts are properly placed. @ The wine cooler enclosure may emit heat during operation specially in summer; this is caused by the radiation of the condenser. and it is a normal phenomenon. @ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the cooler when the ambient humidity is high; this is a normal phenomenon. and the condensation can be wiped away with a dry towel. @ Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal and does not affect the cooling effect. @ Buzz: Buzz will be generated by a running compressor specially when starting up or shutting @Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. @ The refrigerating chamber will periodically frost and defrost (water drops will be generated on the backside of the refrigerating chamber when defrosting) which are normal.
  • Page 13: Manual de uso y cuidado Precauciones importantes Este producto es para uso doméstico Unicamente
