Premium Levella PWC466MS Wine Cooler Built-in 46 Bottle

Use & Care Manual

For PWC466MS.

PDF File Manual, 15 pages, Read Online | Download pdf file

PWC466MS photo
background
0123566738
8398138683126
!"#$%&' (#" $#)*'& %* #+,-
.* / &0"* )0+%0,
1)!#"'0+' 0(*2%0"$
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...

Other documents for Premium Levella PWC466MS

The following documents are available:
User Manual Other Documents Specification
  • Product Data Sheet - (English) Download
Photos

Specifications

Use & Care Manual - Transcript

  • Page 1: WINE COOLER REFRIGERADOR DE VINO Model/Modelo: PWC466MS This-productis for domestic-use- only Use & care manual Important safeguards
  • Page 3 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. A DANGER Indicates a hazardous situation which. if not avoided. will result in death or serious injury ACAUTION Indicates a hazardous situation which. if not avoided. could result in death or serious injury Indicates a hazardous situation which. if not avoided. GNX could result in minor or moderate injury. The symbols indicate prohibited matters. and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger Prohibitionsymbols the personal safety of users. those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger Warning symbols the personal safety of users. Oo The symbols indicate matters that must be followed. and The symbols indicate matters to pay attention to. and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries Notesymbols OF damages of the product will be caused. — Keep ventilation openings. in the appliance enclosure or in the built-in structure. clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process. other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance. unless they are of the type recommended by the manufacturer. Do not damage the refrigerant circuit. If the supply cord is damaged. it must be replaced by the manufacturer. its service agent or similarly qualified persons in Order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellantin this appliance. Use two or more people to move wine cooler. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance If the supply cord or other components damaged. it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard. Do not use extension cords or ungrounded (two prong) adapters. Risk of child entrapment. Before you throw away your old wine cooler or freezer: Take off the door Leave the shelves in place so that children may not easily climb inside.
  • Page 4 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Electricity related warnings ® Do not pull the power cord when pulling the power plug of the wine cooler. Please firmly grasp the plug and pull out it from the socket directly. Do not damage the power cord under any condition so as to ensure safety use. do not use when the power cord is damaged or the plug is worn. maintenance stations. The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line. Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances. The wine cooler adopts 115V/60Hz AC power. voltage fluctuations over the range of 115+10%V will cause malfunction or even damage. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the wine cooler and other electrical appliances considering that spark may cause a fire. To ensure safety. it is not recommended that to place regulators. rice cookers. microwave ovens and other appliances at the top of the wine cooler. those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.
  • Page 5 - English - : Safety warnings This chapter describes the important security matters to prevent usersfrom injury or property damage. Please understand fully the followingtext (logo. icon) and comply with the safety warnings. Related warnings for use Authorized demolition or renovation of the wine cooler is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the wine cooler must be carried out by professionals. Damaged power cord must be replaced by the manufacturer. its maintenance department or related professionals in order to avoid The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained. The gaps between wine cooler doors and between doors and wine cooler body are small. be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the wine cooler door to avoid falling articles. Do not pick foods or containers in the freezing chamber when the wine cooler is running. especially metal containers in order to avoid frostbite. Do not allow children to enter or climb the wine cooler to prevent that children are sealed in the wine cooler or children are injured by the falling wine cooler. Do not spray or wash the wine cooler; do not put the wine cooler in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the wine cooler. Do not place heavy objects on the top of the wine cooler considering that objectives may fall when switching the door. and accidental injuries might be caused. Please pull of the plug in case of power failure or cleaning. Do not connect the wine cooler to power supply within five minutes to prevent damages to the compressor due to successive starts.

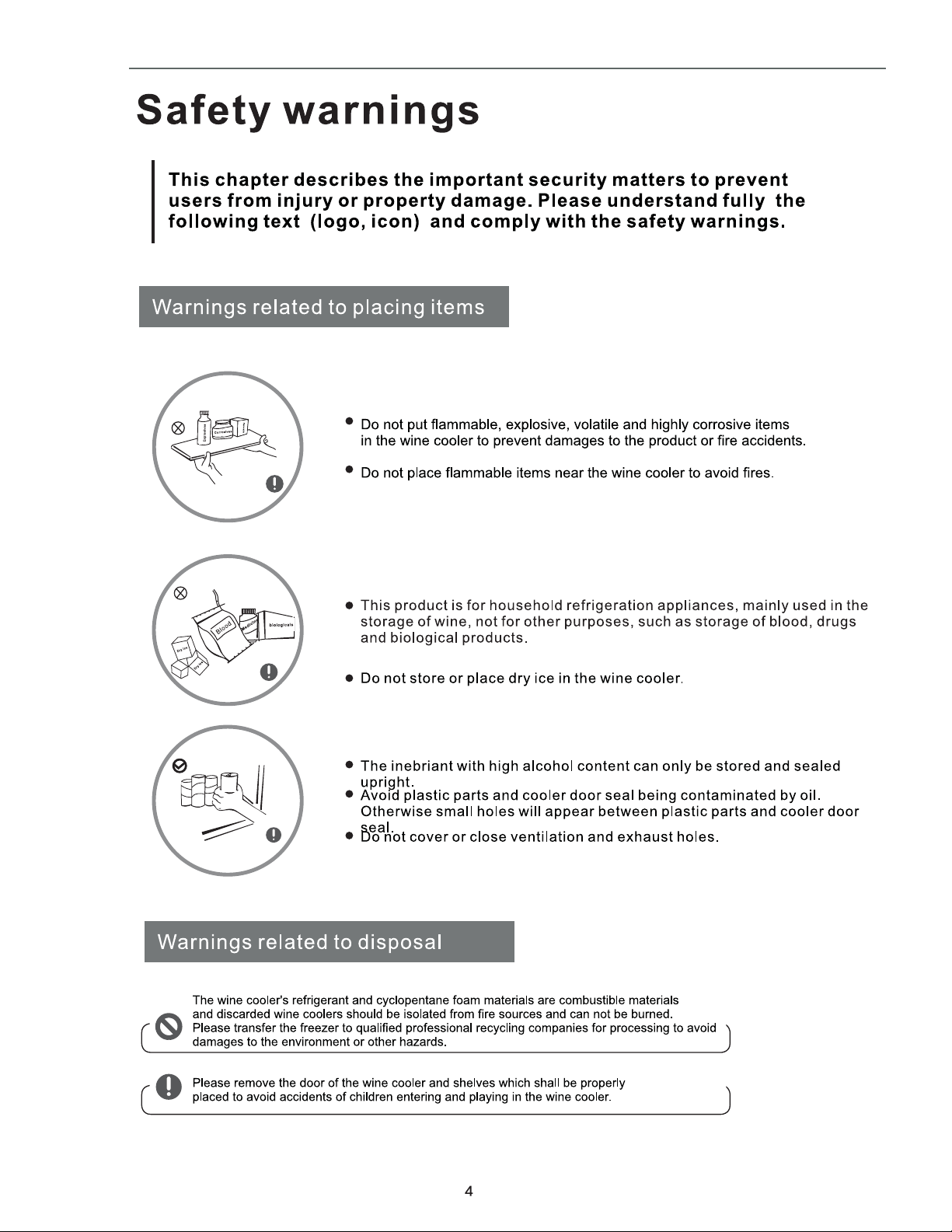

  • Page 6 - English - : Safety warnings This chapter describes the important security matters to prevent users from injury or property damage. Please understand fully the following text (logo. icon) and comply with the safety warnings. Warnings related to placing items ® Do not put flammable. explosive. volatile and highly corrosive items in the wine cooler to prevent damages to the product or fire accidents. ® Do not place flammable items near the wine cooler to avoid fires. @ This product is for household refrigeration appliances. mainly used in the storage of wine. not for other purposes. such as storage of blood. drugs and biological products. @ Do not store or place dry ice in the wine cooler. ® The inebriant with high alcohol content can only be stored and sealed e Avoid plastic parts and cooler door seal being contaminated by oil. Otherwise small holes will appear between plastic parts and cooler door e Bo not cover or close ventilation and exhaust holes. Warnings related to disposal The wine cooler's refrigerant and cyclopentane foam materials are combustible materials and discarded wine coolers should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards. Please remove the door of the wine cooler and shelves which shall be properly placed to avoid accidents of children entering and playing in the wine cooler. }
  • Page 7 - English - : Installtion Instruction Placement Start ® Before using the wine cooler. remove all packaging materials including bottom cushions and foam pads and tapes inside the wine cooler. tear off the protective film on the door and thewine cooler body. @ The wine cooler is placed in a well-ventilated indoor place; the ground shall be flat. and sturdy (rotate left or right to adjust the wheel for leveling if unstable). e Keep away from heat and avoiddirect sunlight. Do not place the wine cooler in moist or watery places to prevent rust or reduction of insulating effect. @Please leave enough space to ensure feasible opening . @Dimensions shown are for reference only. eThe wine cooler shall stay for half an hour before connecting 115V/60Hz power when itis firstly started. @®The wine cooler shall run 2 to 3 hours before loading wine; thewine cooler shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.
  • Page 8 - English - : Temperature Control Operation panel Power Lighting Temp.Up Display Window Temp.Down Lock / Unlock °C/°F Interchange POWER ON/OFF CONTROL @ When the appliance is plugged in to a power outlet. it powers on automatically. @ Touch the power mark @®)and hold for 10 seconds to turn off (or turn on) the appliance. @No matter it is under a locked or unlocked situation. you can turn off the appliance by touching the power mark and holding for 10 seconds. Warning:To avoid damaging the compressor. please do not turn on the appliance again within 5 minutes after you turn it off. UNLOCKING THE CONTROL PANEL @ To unlock the control panel. touch the power mark and lighting mark with ©) 2 fingers at the same time and hold for 3 seconds. When unlocked a buzz sound will be heard. @ The control panel will be automatically locked with a buzz sound heard after 10 seconds without being @ Under the locked situation. the control panel will not react to any touching order for. Lighting On/Off and Temperature Setting. INTERIOR LIGHTING ON/OFF CONTROL @ Under the unlocked situation. touch the lighting mark to turn on (or turn off) the interior cool LED lighting. @ The lighting will stay on unstil it is manually turned off .
  • Page 9 - English - : Temperature Control TEMPERATURE DISPLAY WINDOW @ The temperature is displayed in digital which is the best way to be read out. The digital is shown as the set temperature when you are setting the temperature. and it will change to be the real temperature of the inside cabinet after 10 seconds without being touched. @ When the temperature probe is out of order. the display window will show with “HH" or “LL” instead of a digital figure while continuous buzz sound will be heard. In case of this happens. this appliance is considerately designed to keep periodical running of compressor and fans which helps to keep the coldness of the inside cabinet to protect your stored wines. Warning: To avoid destroying your stored wines. it is strongly recommended to have the appliance repaired immediately. as the spare periodical running can not ensure the appliance to achieve the temperature you have set. TEMPERATURE SETTING @ The temperature setting range is 5-18°C(41-64°F). @ Directly touch the) or(—) mark to set the wine cooler temperature as you want. @ The first touch on oS) or (—)mark will recall the previous set temperature displayed. @ Touch the mark (+) to increase the set temperature by 1°C (or by 1°F). On the contrary. touch the mark 6) to decrease the set temperature by 1°C (or by 1°F). @ The digital will change to display the real temperature of the inside cabinet after 10 seconds without being For the first time to use the appliance or to restart the appliance after having been shut off for a long time. you may find a few degrees variance between the set temperature and the displayed temperature. It will be normal after a few hours running. SELECTING FAHRENHEIT(°F) & CELSIUS (°C) DISPLAY Touch the marks @) ©) with 2 fingers at the same time and hold for 5 seconds. you can interchange the Fahrenheit and Celsius display.
  • Page 10 - English - : wine cooler Features Names of components Outside Canbinet Long Shelf —Handle Control Panel Short Shelf ——— —— Front Louver Adjustable Height adjustable 8/70-890mmM Wine cooler you buy some of the features and accessories may be not entirely consistent with the legend. please refer to the object.
  • Page 11 - English - : Proper use of wine cooler The arrangement of bottle Pay attention when arranging: ®Do not let bottle touch the R's back in order to maintain good air circulation in the cooler. @The bottle number here may be different from bottles in different shape and size. @The capacity for bottle storage in the wine cabinet is based on the following marked bottle size. Oversized bottle may have impact on the number of bottle storage in the wine cabinet. ®30mm—| |< &75mm 215mm Usage of temperature zones inR Due to different temperature zones generated due to air circulation in the cooler. the upper area's temperature is the highest while the lower area the lowest. The arrangement of beverage Different beverage can be stored from top to bottom as following sequence: @Strong red wine @Pink and mild red wine @White wine @®Champagne and spritzer We suggest to pour wine in temperature below serving temp. as the wine would warming up quickly when pouring into tumbler. Practical skills for grape wine's storage ®@Do not store bottled wine by box or case in refrigerator. @The cork of the old bottle shall always be moistened when putting into R. Air space is not allowed between wine and cork. @Open-type bottle shelf is helpful. as it does not cut off air circulation. The air moisture that condensed on bottle can be dried out swiftly. @The wine shall undergo chambrieren before drinking: Such as put pink red wine onto the table 2-5 hours before drinking and red wine 4-5 hours. then can reach suitable serving temp. White wine. on the contrary. can be served right on the table. Champagne shall always be stored in cooler and taken out only before drinking. @Please notice that wine's temperature is always lower than ideal serving temp. as the temperature will immediately rise 1 to 2°C when pouring into tumbler. Humidification for Wine Cooler Add cold water to water utensil about once every 3-4 days if wine cabinet needs to be humidified.

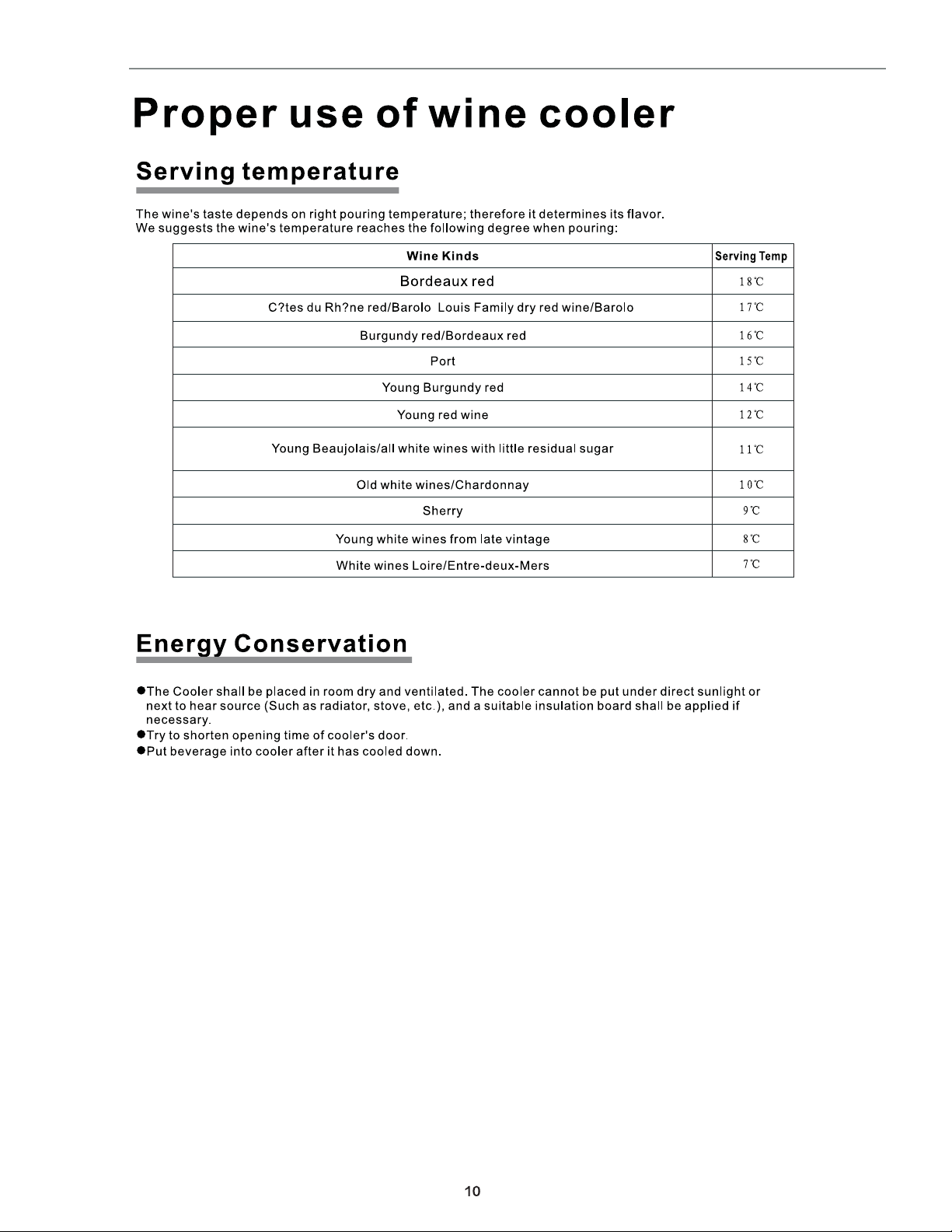

  • Page 12 - English - : Proper use of wine cooler Serving temperature The wine's taste depends on right pouring temperature; therefore it determines its flavor. We suggests the wine's temperature reaches the following degree when pouring: Wine Kinds Serving Temp Bordeaux red 18 C?tes du Rh?ne red/Barolo Louis Family dry red wine/Barolo 17° Burgundy red/Bordeaux red 16C Young Burgundy red 14 Young red wine 12 Young Beaujolais/all white wines with little residual sugar 11° Old white wines/Chardonnay 10 Young white wines from late vintage gC Energy Conservation @The Cooler shall be placed in room dry and ventilated. The cooler cannot be put under direct sunlight or next to hear source (Such as radiator. stove. etc.). and a suitable insulation board shall be applied if necessary. @Try to shorten opening time of cooler's door. @Put beverage into cooler after it has cooled down.
  • Page 13 - English - : Maintenance of wine coolers Disconnect the cooler Unplug power plug to disconnect the cooler. Stop to use the cooler If the cooler left unused for a long time. please: 1.Unplug the cooler; 2.Clean the cooler; 3.Keep the cooler door open. Clean the cooler ® Dusts behind the cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the cooler should be cleaned regularly to avoid odor. Cleaning procedure 1.Unplug power plug or disconnect cutoff; 2.Clean door seal with only clear water and give thorough wipe; 3.Use slightly warm water and a little dish soap to clean cooler. Do not let water spilt onto operation control elements and illuminator on glazed door; 4.Reconnect and power cooler when cleaning is completed. @ Do not use hard brushes. clean steel balls. wire brushes. abrasives. such as toothpastes. organic solvents (such as alcohol. acetone. banana oil. etc.). boiling water. acid or alkaline items clean the cooler considering that this may damage the cooler surface and interior. ® Do not rinse with water so as not to affect the electrical insulation properties. Do not use detergent and solvent with sand or acid. The drain hole shall be cleaned regularly to ensure water can be drained. Clean the drain hole with a thin stick or something similar.
  • Page 14 - English - : Frequently asked questions The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled. Whether the freezer is plugged and connected to power; Low voltage; Inoperation Failure power or tripping circuit Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned. Whether the thermostat is over adjusted; Whether foods containing water is put in inside the glass partition. Foods in the refrigerating chamber are frozen It is normal that wine cooler operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of wine cooler door. Thick frost layer (defrost is needed) Long-term operation of compressor The wine cooler door | The freezer door is stuck by food packages; can not be properly Too much food; closed. Tilt wine cooler. Whether the food is leveled. whether the wine cooler is Loud noises balanced; Whether the wine cooler parts are properly placed. Warm tips: @ The wine cooler enclosure may emit heat during operation specially in summer. this is caused by the radiation of the condenser. and it is a normal phenomenon. @ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large. this is a normal phenomenon. and the condensation can be wiped away with a dry towel. @ Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. @ Buzz: Buzz will be generated by running compressor specially when starting up or shutting down. @Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. @ The refrigerating chamber will periodically frost and defrost (water drops will be generated on the backside of the refrigerating chamber when defrosting) which are normal.
  • Page 15: Manual de uso y culdado Precauciones importantes Este producto es para uso doméstico Unicamente
