360° Surround
Fan Heater
PSH17PF2HDB
pelonis.com
OWNER’S MANUAL
EN
PSH17PF2HDB
Warning Notice: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 1-866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
Voltage: 120V~
Power: 1500W
Frequency: 60Hz
THANK YOU LETTER
01
CONTENTS
0 1
0 2
06
0 7
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT INSTALLATION
Thank you for choosing Pelonis! Before using your new Pelonis product, please read
this manual thoroughly in order to operate your new appliance properly and safely.
0 8
1 0
PRODUCT OPERATION
1 1
1 2
CLEANING AND MAINTENANCE
USER SERVICING INSTRUCTIONS
TROUBLESHOOTING
1 3
1 4
SERVICE AND SUPPORT
1 YEAR LIMITED WARRANTY
Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
02
03
●
●
●
●
●
●
PLEASE READ AND SAVE THESE
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances,basic precautions should
always be followed to reduce the risk of fire,electric
shock,and injury to persons,and hyperthermia, including
the following:
Read all instructions before using heater.
This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surface. If provided, always use
handles when moving this heater. Keep combustible
materials such as furniture, pillows, bedding, papers,
clothes and curtains at least 3 feet (0.9m) from the front
of the heater and keep them away from the sides and
rear.
Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the heater is
left operating and unattended.
Always unplug the heater when not in use.
Hyperthermia can resu
lt in death. Symptoms of
hyperthermiainclude high body temperature, headache,
nausea, vomiting, tiredness,dizziness, fainting, and rapid
pulse. If you begin to experience symptomsrelated to
attention.
To avoid excessive room temperatures which can
causehyperthermia: DO NOT leave product running
unattended in a confined spacearound infants, or
individuals with reduced physical, sensory, or
mentalcapabilities.
CAUTION
●
●
●
●
●
●
●
●
04
Do not operate any heater with a damaged cord or plug
or after the heater malfunctions, has been dropped or
damaged in any manner. Discard heater or return heater
to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
Do not use the heater outdoors.
This heater is not intended for use in bathroom, laundry
areas and similar moist indoor locations. Never locate
heater where it may fall into a bathtub or other
water container.
Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route
cord under furniture or appliances. Arrange cord away
CAUTION: This appliance has a polarized plug (one blade
is wider than the other). To reduce the risk of shock, this
plug is intended to fit only one way in a polarized outlet.
If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician. DO
NOT attempt to defeat this safety feature. To do so could
result in an electric shock hazard.
This heater draws 12.5 amps during operation. To prevent
overloading a circuit, do not plug the heater into a circuit
that already has other appliances working.
CAUTION: It is normal for the plug to feel warm to the
touch; however, a loose fit between the AC outlet
(receptacle) and plug may cause overheating and
distortion of the plug. Contact a qualified electrician to
replace loose or worn outlet.
WARNING
●
●
●
●
●
●
●
●
05
remove plug from outlet. Never pull by the cord.
Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surface, like a
bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. Do
not use it in the areas where gasoline, paint, or flammable
liquids are used or stored.
Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
CAUTION: Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or
reloadable power tap (outlet/power strip).
The output
of this heater may vary and its temperature
may become intense enough to burn exposed skin. Use
of this heater is not recommended for persons with
reduced sensitivity to heat or an inability to react to
avoid burns.
Disposal of oil contained within should be in accordance
with applicable regional, national, and local laws and
regulations.
“SAVE THESE INSTRUCTIONS”
06
SPECIFICATIONS
PSH17PF2HDBProduct Model
Voltage
Frequency
Power
120V~
60Hz
1500W
07
Component Name
PRODUCT INSTALLATION
NOTE
All the pictures in this manual are for explanation purpose only. Any discrepancy between
the real object and the illustration in the drawing shall be subject to the real subject.
Remove parts from the component before performing installation.
Temperature
control knob
Power selection knob
Safty grill
Pilot light
Check Before Turning On The Machine
PRODUCT OPERATION
• Check if the power wire is under good condition.
• The product requires a 120V 60Hz AC power supply, before use, please confirm if
the rated current of the power socket meets the local requirements with safe
grounding device, otherwise, please replace it with the qualified socket.
Put The Machine On The Flat Place
08
Uneven place may possibly cause the turnover switch at abnormal position, then the
heater can't work after turning on, therefore, please put the heater on the flat place,
at least the surface below the base of the heater must be flat.
•
Turn the Power selection knob to select between 3 functions: Fan only, Low 750W
(LOW), High 1500W(HIGH).
•
Insert the plug into the power socket, then turn the Temperature Control knob
clockwise, when hearing the “poop” sound (it means the temperature controller is
on), adjust the Temperature Control knob to the desired temperature level.
•
Temperature Control Knob
Power Switch Knob
Turn the Power Switch Knob to OFF position.
Turn the Temperature Control knob anticlockwise to the initial position.
Remove the power plug, store the heater after the entire machine has become cool.
•
•
•
Turn off the Heater
Safety Protection
Overheat protection: When the temperature in the heater is too high due to
abnormality in the use environment or improper use, the thermostat device can
automatically cut off the power and the heater stops working. After the whole
heater is cooling, the heater can return to the normal use after removing the
abnormality.
Inversion protection: When the whole heater is inverted, the safety system will
automatically cut off the power, and return to the work state before inversion after
the body is placed upright.
•
•
Additional Features
This heater has additional features:
• Check if the power wire is under good condition.
CLEANING AND MAINTENANCE
It is recommended that the heater be cleaned at least one time during the operating
season in order to provide the optimum level of performance.
ALWAYS TURN THE POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE
Turn the heater “OFF”, unplug it and wait for the heater to cool down.
Use a dry cloth to clean only external surfaces of the heater.
1.
2.
Do not use any cleaning agents or detergents.
Never immerse the heater in water.
3.
4.
Pack the heater in the original carton and store it in a cool and dry place.
5.
9
10
Solution
TROUBLESHOOTING
Cause SolutionProblem
●
●
If the product does not operate or does not operate properly, first check according to
the following list. If the reason the product does not operate or does not operate
properly is not included in the following list, the product may have failed. At this time, it
is recommended to send the product to the dealer or the Pelonis Service Center for
treatment.
After the power
is engaged, the
power indicator
light does not
illuminate and
the machine
does not work.
The machine
suddenly stops
during heating.
The plug may not be plugged
well.
Check whether the plug is
properly inserted into the
receptacle.
The temperature control
knob is not turned in place.
●
The temperature exceeds the
threshold of the thermal
Check whether the
temperature control knob
is turned to the ON position.
Turn the heater OFF, unplug
the heater and wait at least
10 minutes for it to cool.

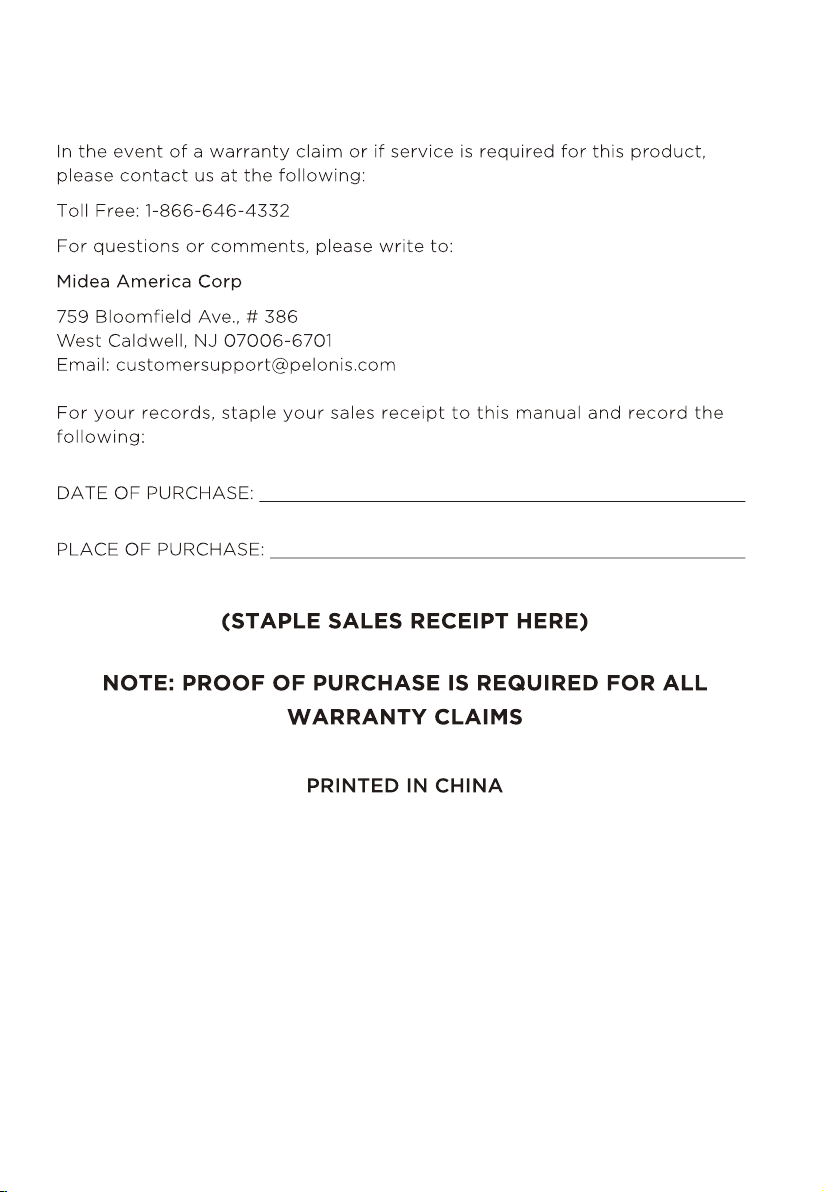

SERVICE AND SUPPORT
11

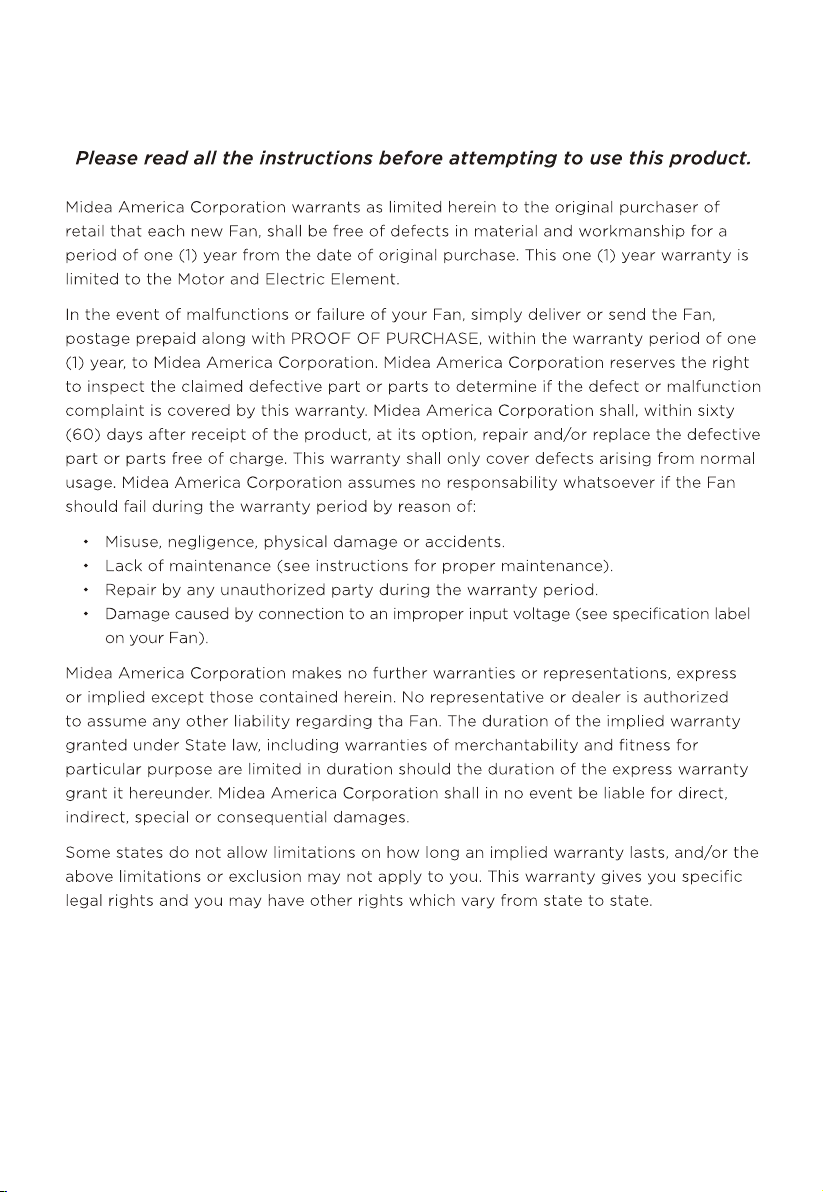

1 YEAR LIMITED WARRANTY
12
