S_ RS

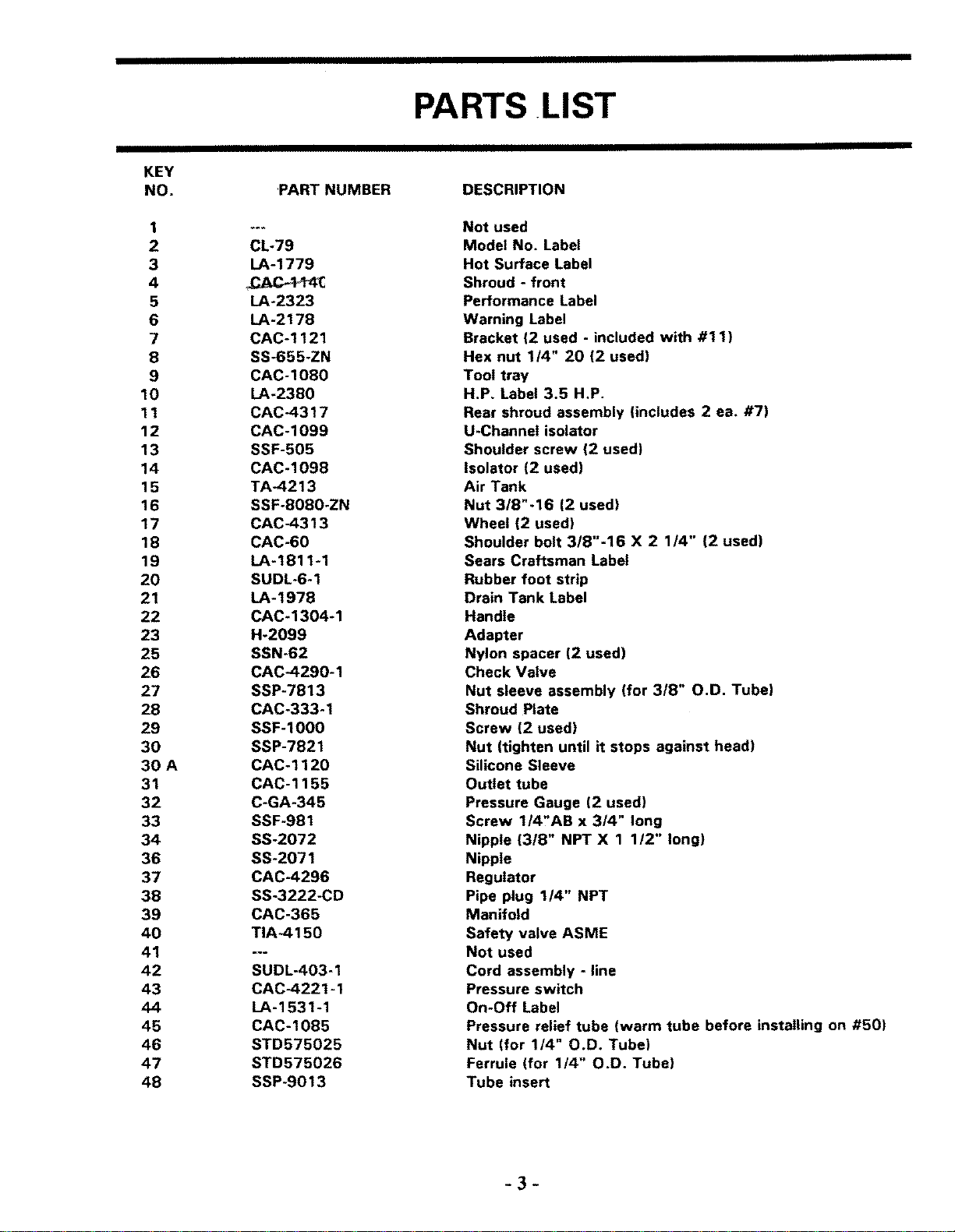

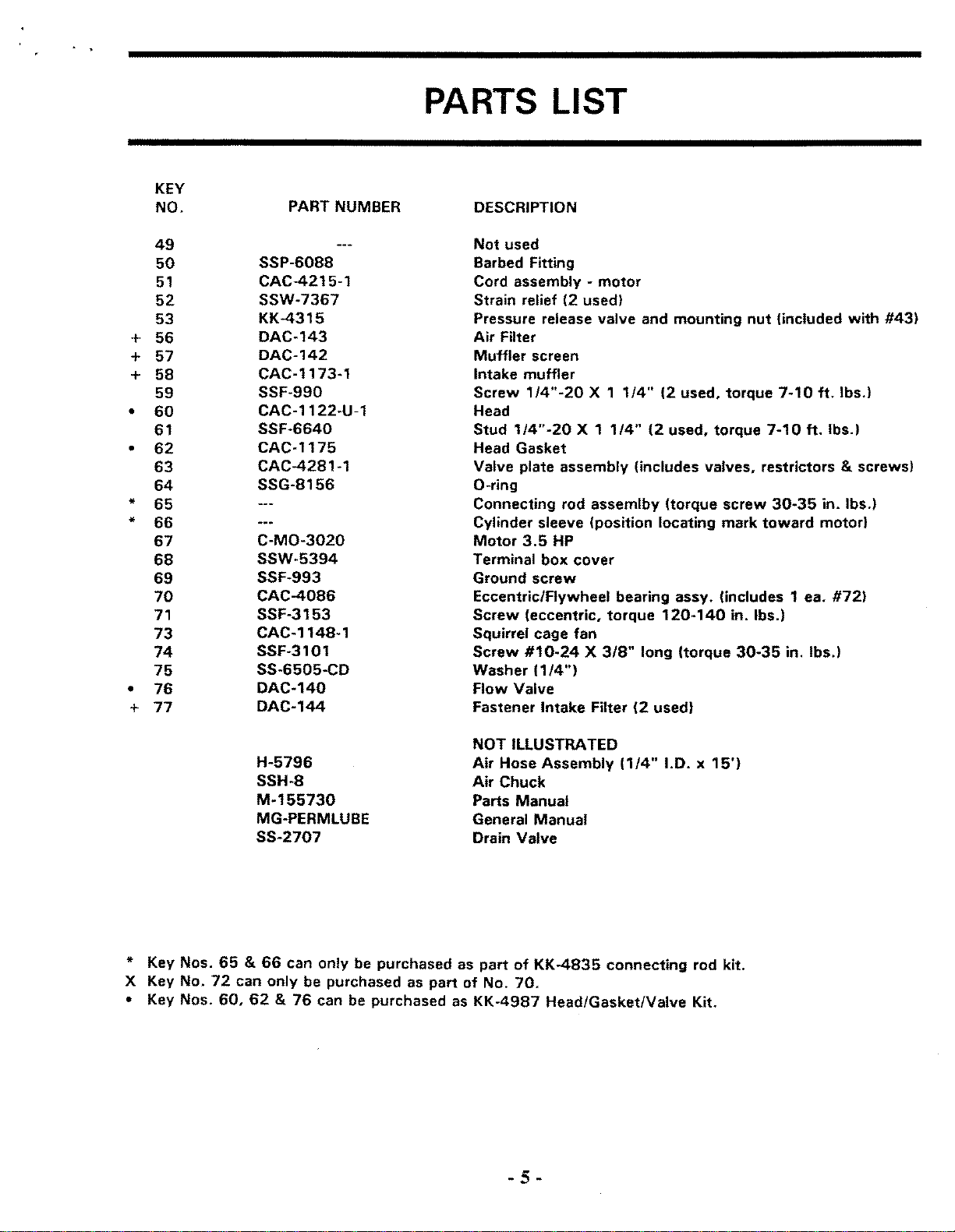

PARTS
MANUAL
MODEL NO.
919.155730
Important:
Before using this
equipment, read all
Safety Precautions
and both manuals.
Retain for future use.

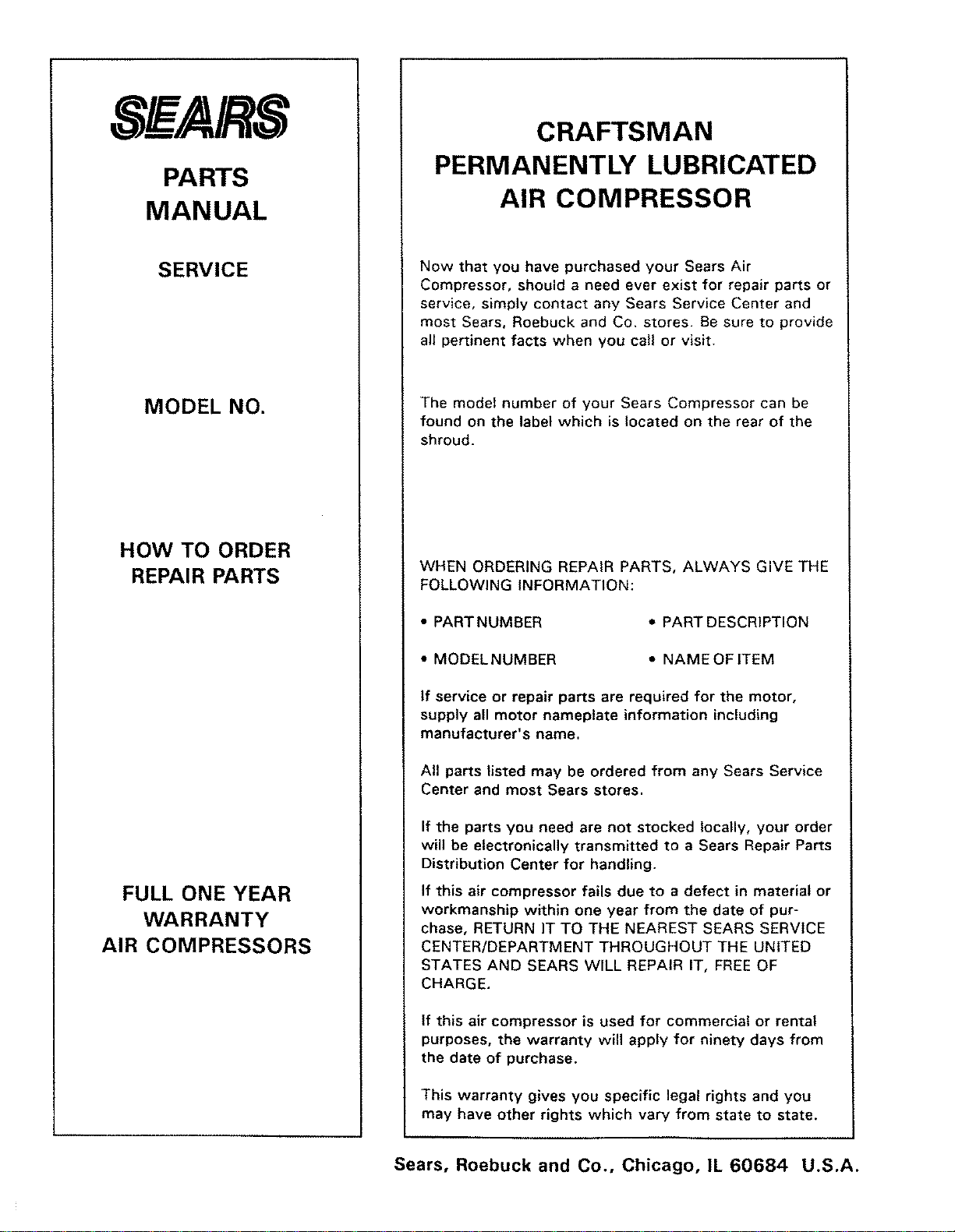

CRAFTSMAN
PERMANENTLY LUBRICATED
AIR COMPRESSOR
SPECIFICATION CHART
Model No,
Horsepower
DisplacementCFM
Bore
Stroke
Voltage-Single Phase
Minimum Branch Circuit Requirement
Fuse Type
Air Tank Capacity - GAL
Approximate Cut-in Pressure
Approximate Cut-out Pressure
SCFM @ 40 psig
SCFM @ 90 psig
UL Listed
919.155730
3 1/2
11.9
2 3/8"
1.35"
120/240
15 amps
"Fusetron"
Type T
25 gal. A.S.M.E.
100
125
8,5
6.8
Yes
Sears, Roebuck and Co., Chicago, IL 60684 U.S.A.
I M-155730 10/16/91 !
