User’s Manual
Fr
Manuel d’utilisation
Es
Manual del usuario
Sc
使用说明书
Pb
Manual do usuário
Kr
AF-S DX NIKKOR 16-80mm f/2.8-4E ED VR
wq e r t uy i o !0 !1 !2 !3
!6 !7!5!4
English
Before using this product, please carefully read both these instructions and
the camera manual.
Note: DX lenses are for use with DX-format digital single-lens refl ex cameras
such as the D7200 or D5500. The angle of view of a lens on a DX-format
camera is equivalent to that of a lens with a focal length about 1.5 × longer
mounted on a 35 mm format camera.
This lens does not support D2- or D1-series, D200, D100, D90, D80,
D70-series, D60, D50, D40-series, or D3000 digital SLR cameras or fi lm SLR
cameras.
For Your Safety
AWARNINGS
• Do not disassemble or mo dify. In the event of malfunction, the product should
be repaired only by a qualifi ed technician. Should the product break open
as the result of a fall or other accident, avoid touching exposed parts. Fail-
ure to observe these precautions could result in electric shock or other
injury.
• Turn the camera o immediately in the event of malfunction. Should you notice
smoke or an unusual smell coming from the equipment, immediately unplug
the AC adapter and remove the camera battery, taking care to avoid burns.
Continued operation could result in fi re or injury. After removing the battery,
take the equipment to a Nikon-authorized service center for inspection.
• Keep dry. Do not expose the product to water or handle with wet hands.
Failure to observe this precaution could result in fi re or electric shock.
• Do not use in the presence of ammable gas. Operating the equipment at fi lling
stations or in the presence of propane or other fl ammable gas or dust
could result in explosion or fi re.
• Do not look at the sun through the lens or th e camera view n der . Viewing the sun
or other bright light source through the lens or viewfi nder could cause
permanent visual impairment.
ACAUTIONS
• Keep out of reach of children. Failure to observe this precaution could result in
injury or product malfunction.
• Do not focus sunlight through the lens. Sunlight focused through the lens
could cause fi re. When shooting backlit subjects keep the sun well out of
the frame; if the lens will not be used for an extended period, replace the
lens caps and store out of direct sunlight.
• Do not overheat. Do not leave the product in locations exposed to extreme-
ly high temperatures, such as in an enclosed vehicle in direct sunlight,
or wrap the product in a towel or handkerchief or otherwise cover the
product while it is in use. Failure to observe these precautions could result
in fi re or product malfunction.
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
■

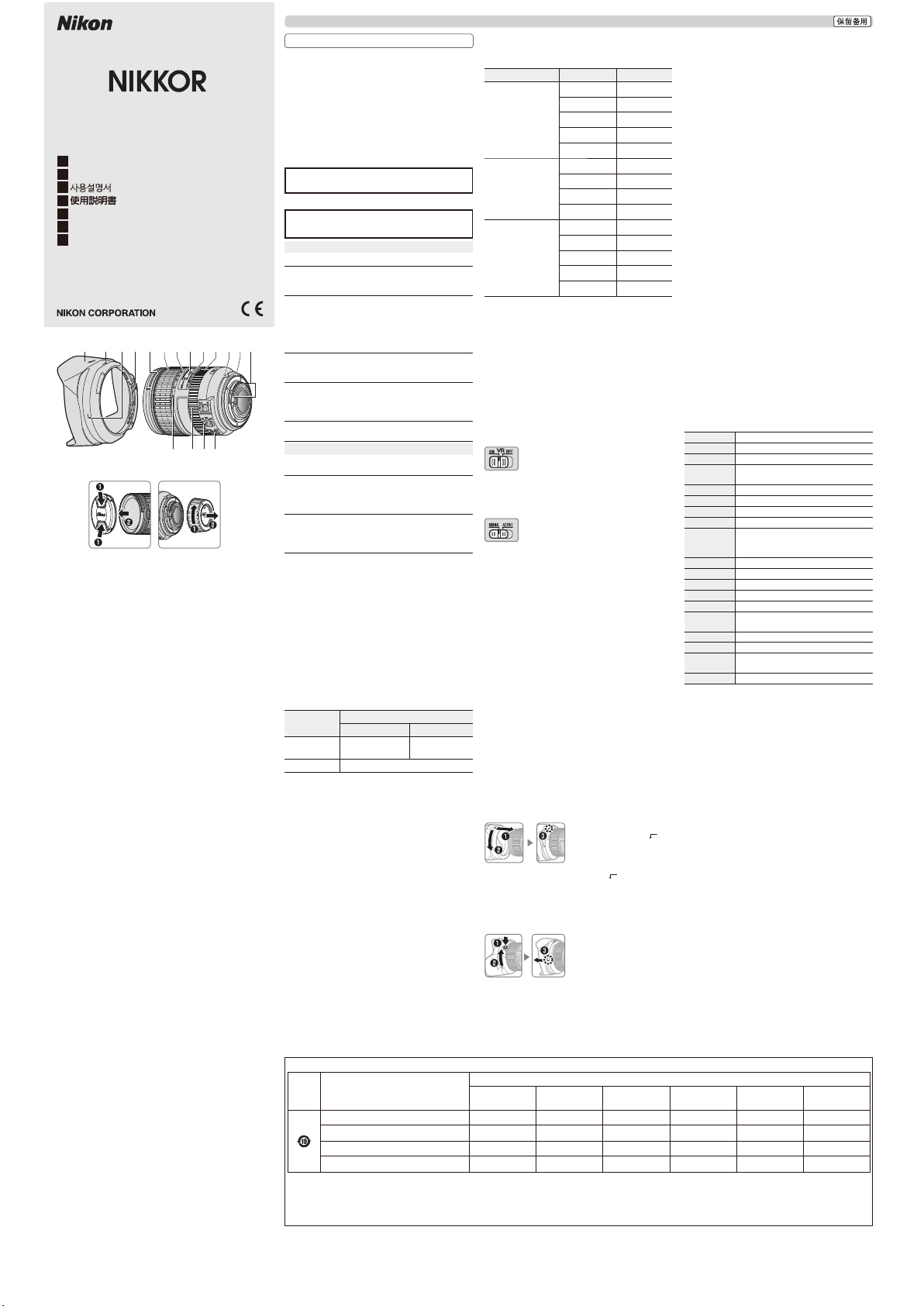

Parts of the Lens
q
Lens hood
w
Lens hood lock mark
e
Lens hood alignment mark
r
Lens hood lock release button
t
Lens hood mounting mark
y
Zoom ring
u
Focal length mark
i
Focus distance indicator
o
Focus distance mark
!0
Focus ring
!1
Lens mounting mark
!2
Rubber lens-mount gasket
!3
CPU contacts
!4
Focal length scale
!5
Focus-mode switch
!6
Vibration reduction switch
!7
Vibration reduction mode switch
■

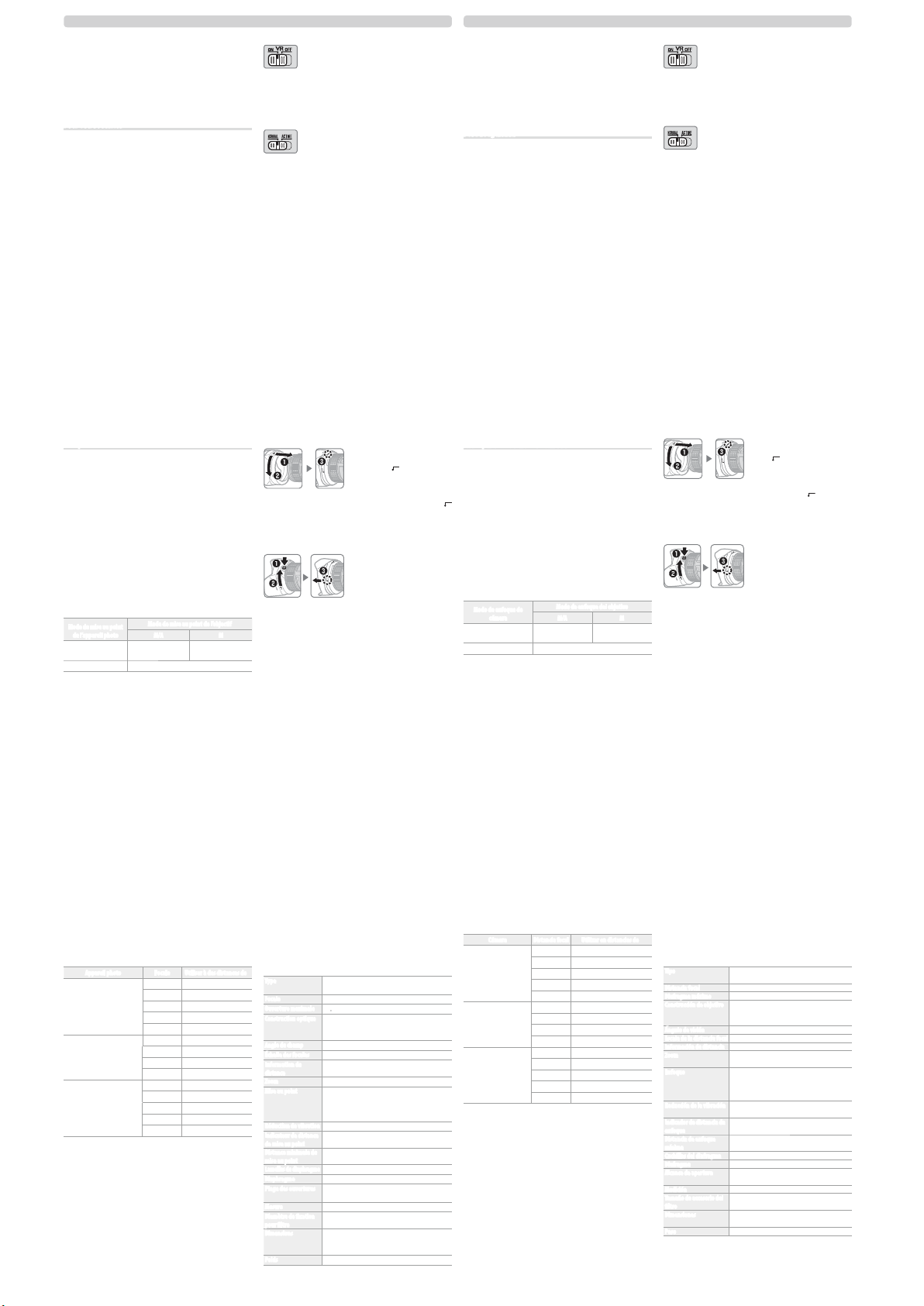

Focus
Supported focus modes are shown in the following table (for information
on camera focus modes, see the camera manual).
Camera focus mode
Lens focus mode
M/A M
AF
Autofocus with manual
override
Manual focus with
electronic rangefi nder
MF Manual focus with electronic rangefi nder
M/A (Autofocus with Manual Override)
To focus using autofocus with manual override (M/A):
z
Slide the lens focus-mode switch to M/A.
x
Focus.
If desired, autofocus can be over-ridden by rotating the lens
focus ring while the shutter-release button is pressed halfway
(or, if the camera is equipped with an AF-ON button, while the
AF-ON button is pressed). To refocus using autofocus, press the
shutter-release button halfway or press the AF-ON button again.
■
Zoom and Depth of Field
Before focusing, rotate the zoom ring to adjust the focal length and frame
the photograph. If the camera off ers depth-of-fi eld preview (stop down),
depth of fi eld can be previewed in the viewfi nder.
Note: Focal length decreases as the focus distance shortens.
Note that the focus distance indicator is intended only as a guide and may not
accurately show the distance to the subject and may, due to depth of fi eld or other
factors, not show ∞ when the camera is focused on a distant object.
■
Aperture
Aperture is adjusted using camera controls. The frame rate may drop at
some apertures.
Zoom and Maximum Aperture
Changes to zoom can alter the maximum aperture by up to 1EV.
■
Built-in Flash Units
The minimum focus distances at which the lens can be used with built-in cam-
era fl ash units without vignetting are given below.
Camera Focal length Use at ranges of *
D7200/D7100/D7000
18 mm 1.0 m/3 ft 4 in. or more
24 mm 0.6 m/2 ft or more
35 mm 0.6 m/2 ft or more
50 mm 0.6 m/2 ft or more
80 mm 0.6 m/2 ft or more
D5500/D5300/D5200/D5100/D5000/
D3300/D3200/D3100
24 mm 1.0 m/3 ft 4 in. or more
35 mm 0.6 m/2 ft or more
50 mm 0.6 m/2 ft or more
80 mm 0.6 m/2 ft or more
D300 series
18 mm 1.5 m/5 ft or more
24 mm 0.6 m/2 ft or more
35 mm 0.6 m/2 ft or more
50 mm 0.6 m/2 ft or more
80 mm 0.6 m/2 ft or more
* Lens hood not attached.
“Vignetting” refers to shadows created where the end of the lens obscures
the built-in fl ash. For the latest information on vignetting with this lens, see
the camera manual.
■
Vibration Reduction (VR)
Vibration reduction (VR) reduces blur caused by camera shake, allowing
shutter speeds up to 4.0 stops slower than would otherwise be the case,
increasing the range of shutter speeds available. The eff ects of VR on shutter
speed are measured in NORMAL mode according to Camera and Imaging
Products Association (CIPA) standards; FX-format lenses are measured us-
ing FX-format digital cameras, DX-format lenses using DX-format cameras.
Zoom lenses are measured at maximum zoom.
Using the Vibration Reduction Switch
• Select ON to enable vibration reduction. Vibration reduction
is activated when the shutter-release button is pressed
halfway, reducing the eff ects of camera shake for im-
proved framing and focus.
• Select OFF to turn vibration reduction off .
Using the Vibration Reduction Mode Switch
The vibration reduction mode switch is used to select the vibration reduc-
tion mode when vibration reduction is on.
• Select NORMAL for enhanced vibration reduction when pho-
tographing stationary subjects.
• Select ACTIVE to reduce the eff ects of vibration when
shooting from a moving vehicle, and in other situations
with active camera motion.
Using Vibration Reduction: Notes
• When using vibration reduction, press the shutter-release button halfway
and wait for the image in the viewfi nder to stabilize before pressing the
shutter-release button the rest of the way down.
• When vibration reduction is active, the image in the viewfi nder may be
blurred after the shutter is released. This does not indicate a malfunction.
• Slide the vibration reduction mode switch to NORMAL for panning shots.
When the camera is panned, vibration reduction applies only to motion
that is not part of the pan (if the camera is panned horizontally, for ex-
ample, vibration reduction will be applied only to vertical shake), making
it much easier to pan the camera smoothly in a wide arc.
• Do not turn the camera off or remove the lens while vibration reduction is
in eff ect. If power to the lens is cut while vibration reduction is on, the lens
may rattle when shaken. This is not a malfunction, and can be corrected
by reattaching the lens and turning the camera on.
• If the camera is equipped with a built-in fl ash, vibration reduction will be
disabled while the fl ash charges.
• ON is generally recommended when the camera is mounted on a mono-
pod or a tripod with an unsecured head, although OFF may be preferred
depending shooting conditions and the type of tripod.
■
The Lens Hood
The lens hoods protect the lens and block stray light that would otherwise
cause fl are or ghosting.
Attaching the Hood
Align the lens hood mounting mark (
●
)
with the lens hood alignment mark ( )
and then rotate the hood (
w
) until the
●
mark is aligned with the lens hood
lock mark (—
).
When attaching or removing the hood, hold it near the symbol on its
base and avoid gripping it too tightly. Vignetting may occur if the hood is
not correctly attached.
The hood can be reversed and mounted on the lens when not in use.
Detaching the Hood
Press the lens hood lock release button
(
q
), rotate the hood in the direction
shown by the arrow (
w
), and remove it
as shown (
e
).
■
Lens Care
• The lens returns to maximum aperture when removed from the camera.
To protect the interior of the lens, store it out of direct sunlight or replace
the lens caps.
• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immedi-
ately and take the lens to a Nikon-authorized service center for repair.
• Use a blower to remove dust and lint from the lens surfaces.
• The fl uorine-coated front and rear elements can be cleaned simply by
wiping them with a dry cloth. Smudges and fi ngerprints can be removed
using a soft, clean cotton cloth or lens cleaning tissue; clean from the
center outwards using a circular motion, taking care not to leave smears
or touch the glass surface with your fi ngers. To remove stubborn stains,
wipe gently using a soft cloth dampened with a small amount of distilled
water, ethanol, or lens cleaner. Drop-shaped stains on the water- and oil-
repellent fl uorine-coated elements can be removed with a dry cloth.
• Never use organic solvents such as paint thinner or benzene to clean the
lens.
• The lens hood or NC fi lters can be used to protect the front lens element.
• Attach the front and rear caps before placing the lens in its fl exible pouch.
• If the lens will not be used for an extended period, store it in a cool, dry
location to prevent mold and rust. Do not store in direct sunlight or with
naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irrepa-
rable damage.
• Leaving the lens in extremely hot locations could damage or warp parts
made from reinforced plastic.
■
Supplied Accessories
• 72 mm snap-on Front Lens Cap LC-72
• Rear Lens Cap LF-4
• Bayonet Hood HB-75
■
Compatible Accessories
• 72 mm screw-on fi lters
• Lens Case CL-1218
■
Specifi cations
Type Type E AF-S DX lens with built-in CPU and F mount
Focal length 16 – 80 mm
Maximum aperture f/2.8 – 4
Lens construction 17 elements in 13 groups (including 4 ED elements,
3 aspherical elements, and elements with Nano-Crystal or uo-
rine coatings)
Angle of view 83° – 20°
Focal length scale Graduated in millimeters (16, 24, 35, 50, 80)
Distance information Output to camera
Zoom Manual zoom using independent zoom ring
Focusing Nikon Internal Focusing (IF) System with autofo-
cus controlled by Silent Wave Motor and separate
focus ring for manual focus
Vibration reduction Lens shift using voice coil motors (VCMs)
Focus distance indicator 0.35 m – ∞
Minimum focus distance 0.35 m (1.15 ft) from focal plane
Diaphragm blades 7 (rounded diaphragm opening)
Diaphragm Automatic electronic aperture control
Aperture range • 16 mm focal length: f/2.8 – 22
• 80 mm focal length: f/4 – 32
Metering Full aperture
Filter-attachment size 72 mm (P = 0.75 mm)
Dimensions Approx. 80 mm maximum diameter × 85.5 mm
(distance from camera lens mount ange)
Weight Approx. 480 g (1 lb 1 oz)
Nikon reserves the right to change the specifi cations of the hardware described
in this manual at any time and without prior notice.
•
DX D7200 D5500
DX 35 mm 1.5
•
D2 D1 D200
D100 D90 D80 D70 D60 D50 D40 D3000
A
A
F
C
A
F
F
C
AC
F
F
F
A
C
C
F
q
w
e
r
t
y
u
i
o
!0
!1
!2
!33
CPU
!4
!5
!6
!7
•
M/A M
AF
MF
M/A
z
[M/A]
x
AF-ON AF
•
•
AF-ON AF
•
•
•
•
F
F 1
D7200/D7100/D7000
•
18 mm 1.0 m
•
24 mm 0.6 m
•
35 mm 0.6 m
•
50 mm 0.6 m
•
80 mm 0.6 m
D5500/D5300/D5200/
D5100/D5000/D3300/
D3200/D3100
•
24 mm 1.0 m
•
35 mm 0.6 m
•
50 mm 0.6 m
•
80 mm 0.6 m
D300
•
18 mm 1.5 m
•
24 mm 0.6 m
•
35 mm 0.6 m
•
50 mm 0.6 m
•
80 mm 0.6 m
•
•
4.0 NORMAL
CIPA FX FX
DX DX
ON
OFF
ON
NORMAL
ACTIVE
104-0061 7-10-1 1 2
10:30 18:30 2 1 8 2
163-1528 1-6-1 28
10:30 18:30 2 11 12 8 3
461-0005 1-13-3 NHK 2
10:30 18:30
530-0001 2-2-2 13
10:30 18:30 2 3 8 3
•
•
(03)6702-0577
•
•
•
NORMAL NORMAL
•
OFF
ON
•
•
ON
ON
OFF
•
q
w
e
•
•
•
•
q
w
e
•
•
•
CPU
•
•
•
•
•
NC
•
•
•
•
•
72 mm LC-72
•
LF-4
•
HB-75
•
72 mm
•
CL-1218
F CPU E AF-S DX
16 mm 80 mm
1 2.8 4
13 17 ED 4 3
83 20
16 24 35 50 80 mm
IF
VCM
0.35 m
0.35 m
7
•
16 mm f/2.8 22
•
80 mm f/4 32
72 mm P=0.75 mm
80 mm 85.5 mm
480 g
Printed in Thailand
7MA0277C-03
Loading ...
Loading ...
Loading ...
