USER MANUAL
Dishwasher
EN
DBI564I.S.U
DBI564T.S.U
DBI564TH.S.U
DBI564PH.S.U
3Your dishwasher ........................................
4Important safety instructions ...................
4General ........................................................
5Child safety ..................................................
5Child lock .....................................................
5Installation ....................................................
5Overflow guard function ..............................
5Winter storage/Transport .............................
5Packing material ..........................................
6Disposal .......................................................
6Symbols .......................................................
7Before washing for the first time ..............
7Water hardness ............................................
7Basic settings ..............................................
8Add rinse aid ...............................................
9Greener dishwashing ................................
9Save energy and water ................................
10Loading the dishwasher ............................
10Fragile dishes ..............................................
10Loading affects the results ..........................
11The dishwasher's baskets ...........................
11Top cutlery tray ............................................
12Upper basket ...............................................
13Lower basket ...............................................
15Cutlery basket ..............................................
16Typical load .................................................
17Using the dishwasher ................................
17Add detergent ..............................................
18On/Off ..........................................................
18Select program ............................................
19Select program mode ..................................
19Select option ................................................
20Start/Stop .....................................................
21Status light ...................................................
21If you want to load more dishes ...................
21Power failure ................................................
21Once the program has finished ...................
22The best drying results ................................
22Unloading the dishwasher ...........................
23Program chart ............................................
24Settings .......................................................
26Care and maintenance instructions .........
26Add rinse aid ...............................................
26Clean the filters ............................................
27Cleaning the spray arms ..............................
28Clean the outside of the dishwasher ...........
29Run Self-cleaning .........................................
29Remove blockages ......................................
30Troubleshooting .........................................
36Installation instructions ............................
36Important safety instructions ........................
37Transport protection for the door .................
37Trim kit .........................................................
38Placing the dishwasher ................................
38Fit the protective film ....................................
39
Adjust the height and slide the dishwasher
into place .....................................................
40Drain connection ..........................................
41Connection to water supply .........................
42Electrical connection ...................................
43Screwing the dishwasher into place ............
45Dishwasher toe kick .....................................
46Service and warranty .................................
46Limited Warranty – Residential Appliances ..
46Items excluded from warranty .....................
46Disclaimer ....................................................
47ASKO Customer Care ..................................
47Service after expiration of limited warranty ...
47Number of cycles ........................................
48Technical information ................................
48Technical data .............................................
Contents
Welcome to our growing ASKO family!
We are proud of our appliances. We hope that this appliance will be an appreciated and dependable
device for many years to come.
Please read the operating instructions before use. They include general tips, information about the
settings and adjustments you can make, and the best way to take care of your appliance.

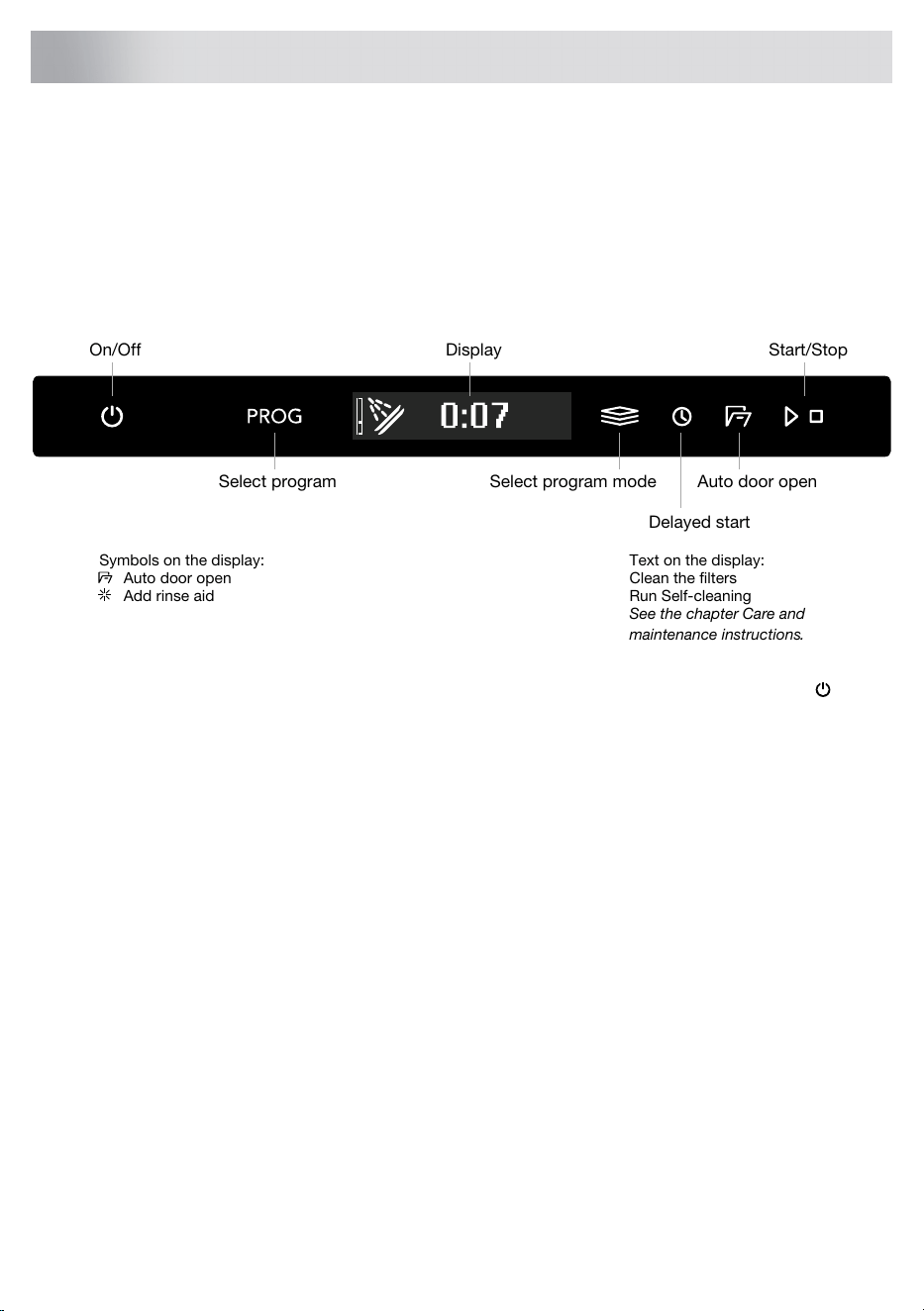

Display Start/Stop
Select program modeSelect program Auto door open
Delayed start
On/Off
Add rinse aid
Auto door open
Symbols on the display: Text on the display:
Clean the filters
Run Self-cleaning
See the chapter Care and
maintenance instructions.
Install the dishwasher; see the chapter Installation instructions. Then open the door and press .
"Welcome to your ASKO. First time setup." is shown on the display the first time the dishwasher
is switched on. It is important that you choose the right settings to ensure good dishwashing results.
See page 7.
3
Your dishwasher
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING!
When using your dishwasher, follow basic precautions, including the following:
• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended purpose.
• Use only detergents or rinse agents recommended for use in a dishwasher and keep them
out of the reach of children.
• When loading items to be washed:
– position sharp items so that they are not likely to damage the door seal, and
– load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For
plastic items not so marked, check the manufacturer’s recommendations.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for two weeks, before using the dishwasher turn on all hot water faucets
and let the water flow from each for several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Remove the door of the dishwasher when removing the dishwasher from service or discarding
it (so that children cannot become trapped inside).
• Read the grounding instructions in the installation instructions.
General
• Do not run the dishwasher while you are out of the home.
• Do not store or use combustible materials, gasoline, or other flammable vapors and liquids in
the vicinity of this or any other appliance.
• Disconnect electrical power to dishwasher before servicing.
• Repairs should be done by a qualified technician.
WARNING!
PROPOSITION 65 FOR CALIFORNIA RESIDENTS
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
4
Important safety instructions
Child safety
• Always keep small children away from the machine when it is open. There may be some detergent
residue left inside the machine.
• Always close the door and start the dishwasher as soon as you put in the detergent.
• If dishwasher detergent gets in someone’s eyes, rinse them with plenty of water for at least 15
minutes.
• Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e.,
one or two glasses of milk or water. Do not try to induce vomiting. Seek medical advice
immediately: Call the National Poison Control Center at 1-800-222-1222.
WARNING!
Dishwasher detergents and rinse aids are corrosive, so always keep them out of reach of children.
Child lock
You can activate the Automatic child lock setting to prevent children from starting the dishwasher.
See the chapter Settings. You can also temporarily activate and deactivate the Child lock function.
Press and hold and for three seconds.
Installation
See the chapter Installation instructions.
Overflow guard function
The overflow guard starts pumping out the machine and turns off the water supply if the water level
in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water supply valve and contact your nearest Customer Care
Center. (To avoid water leakage outside the dishwasher, do not remove the plug from the power
outlet until the water supply valve has been turned off!)
Winter storage/Transport
Store the dishwasher above freezing and avoid long transport distances in very cold weather.
Transport the dishwasher upright or laying on its back.
Before transporting a used dishwasher, or before prolonged storage, water must first be drained
from the machine.
Packing material
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling center. The packaging
is comprised of:
• Corrugated cardboard made from up to 100% recycled material.
• Expanded polystyrene (EPS) with no added chlorine or fluorine.
• Supports made from untreated wood.
• Protective plastic made from polyethylene (PE).
5
Important safety instructions
Disposal
The dishwasher is manufactured and labeled for recycling. When the machine has reached the end
of its service life and is to be disposed of, it should immediately be made unusable. Pull out the
power cord and cut it as short as possible.
Contact your municipality for information about where and how your dishwasher can be recycled
correctly.
Symbols
Explanation of symbols appearing on the appliance.
Read the user manual.
6
Important safety instructions
Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Contact the local water utility to check the water hardness in your area. This is important to determine
how much detergent and rinse aid to use.
In general, more rinse aid and detergent are needed for hard water.
Basic settings
Open the door. Press .
"Welcome to your ASKO. First time setup." is shown on the display. It is important that you choose
the right settings to ensure good dishwashing results.
Select setting with . Confirm selected setting with .
Settings
Select the language to be shown on the display.Language1.
Use rinse aid to improve wash and dry times. Also use rinse
aid to achieve clear and spotless results.
Set level of rinse aid
0/1/2/3/4/5
2.
The rinse aid dispenser can be adjusted between 0 (Off)
and 5 (High dosage).
Default: 4
Activate this setting when using an all-in-one detergent that
contains rinse aid.
TAB On/Off
Default: Off
3.
This setting reduces the rinse aid dosage.
To change the chosen setting, see the chapter Settings.
7
Before washing for the first time
Add rinse aid
Fill up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully fill up with rinse aid to the level marked MAX.
3. Wipe up any spilled rinse aid around the compartment.
4. Close the lid firmly.
8
Before washing for the first time
Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water
consumption. Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent and rinse aid can result in less effective dishwashing and lead to a greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the
Rinse and hold program to rinse the dishes if there are any unpleasant odors.
You can also use the Anti-odor program to prevent bad odors from dirty dishes left in the dishwasher.
Run programs at a lower temperature
If the dishes are only lightly soiled, you can select a program with a lower temperature.
Select dishwashing program – Eco
This program is the most effective in terms of energy consumption.
Select option – Auto door open
Better drying results are achieved if you use the Auto door open option, which automatically opens
the dishwasher door. Wait until the dishwasher indicates that the program has ended and the dishes
have cooled before unloading the dishwasher.
Connect to cold water
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity, or
gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 160 °F (70 °C)) if the building is heated using
an energy-efficient means such as district heating, solar power, or geothermal power. Choosing a
hot water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high temperatures. See Fragile dishes in the chapter Loading the dishwasher.
9
Greener dishwashing
Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high temperatures, others can be damaged by dishwasher detergent.
Use caution with, for example, handmade items, China, crystal/glassware, silver, copper, tin,
aluminum, wood, and plastic. Look for the "Dishwasher safe" marking.
China
Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a
dishwasher.
Crystal/Glass
Use rinse aid to improve wash and dry times. Also use rinse aid to achieve clear and spotless results.
Hand-painted glassware, as well as antique and very fragile items, should not be washed in a
dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the silver can become discolored.
In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver,
stainless steel, and aluminum.
Aluminum
Aluminum can lose its shine if washed in a dishwasher. However, good quality aluminum pans can
be washed in a dishwasher, even if some of the shine will be lost.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the handles may loosen.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible
energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces,
as well as to dry the dishes as thoroughly as possible.
• All dirty surfaces should face in and down.
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Place the upper basket in its highest position when dishwashing very large plates.
• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
NOTE!
Check that the spray arms can rotate freely.
10
Loading the dishwasher
The dishwasher's baskets
The dishwasher includes a top cutlery tray, an upper basket, and a lower basket with a cutlery basket.
The basket appearance may differ depending on the configuration.
Top cutlery tray
The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils.
Avoid placing tall objects in the top cutlery tray. They can block the top spray arm.
Raising the top cutlery tray
1. Pull out the top cutlery tray.
2. Pull the two locking handles forward on each side to raise the top cutlery tray.
Lowering the top cutlery tray
1. Pull out the top cutlery tray.
2. Slide the two locking handles down and back to lower the top cutlery tray.
11
Loading the dishwasher
Upper basket
Place glasses, cups, bowls, side plates, and saucers in the upper basket. Place all soiled surfaces
face down. Place wine glasses on the wine glass shelf. Place knives in the knife stand on the right.
Knife stand
Raising and lowering the upper basket
1. Pull out the upper basket. (The basket must be empty.)
2. Turn the basket catch at the end of both runners outward.
3. Grip the upper basket with both hands, pull it out, and move the upper basket to its other position.
4. Turn the basket catch at the end of both guides back in.
12
Loading the dishwasher
Lower basket
Place plates, side plates, serving dishes, pots, and cutlery (in the cutlery basket) in the lower basket.
Adjustable plate supports
The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by
pushing them inward before repositioning them. The plate supports can also be folded down to
make it easier to load pots and bowls.
13
Loading the dishwasher
Adaptable power zones
The dishwasher's two adaptable power zones can be opened in two different positions or turned
off.
For vases and slim
items
For pots and pans
For higher spray pressure in the
lower spray arm
Pre-selected at factory: Off
Leave the power zones open if you want an increased water flow where, for example, you have
placed pots and pans or vases and slim items. Turn the dishwasher's power zones off if you want
greater spray pressure in the lower spray arm.
Accessory
Buy a vase and bottle holder. This accessory is available where you bought the dishwasher.
Washing large plates
You can adjust the lower basket for plates with a diameter of 9 3/4-12" (25-31 cm) by moving the
adjustable plate supports and their fixtures to increase the distance between the tine rows.
14
Loading the dishwasher
Accessory
Buy a wine glass shelf with space for six tall
1)
wine glasses. The wine glass shelf is designed to
ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in
the rear section of the lower basket. This accessory is available where you bought the dishwasher.
Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the lower basket to best utilize
dishwashing performance from the unique spray zone intended for the cutlery basket.
WARNING!
Knives and other pointed items must be placed horizontally in the dishwasher's special cutlery
baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small items or small shafts (such as
electric whisk attachments).
1)
Height: max. 9 7/8" (25 cm), Diameter: max. 2 15/16" (7.5 cm)
15
Loading the dishwasher
Typical load
Recommended for daily, regular, or typical use.
Upper basket
Lower basket
16
Loading the dishwasher
Add detergent
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and lead to greater environmental
impact.
Detergent compartment
The detergent compartment must be dry when adding detergent.
If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the
compartment for prewash detergent.
Press to open Close the lid
Prewash detergent
Main wash detergent
NOTE!
Use only dishwasher detergent. Liquid hand-washing detergent must not be used as the foam
that forms prevents the dishwasher from operating effectively.
All-in-one detergent
There are many types of all-in-one detergents on the market. Read through the directions for these
products carefully.
Activate the TAB setting when using an all-in-one detergent that contains rinse aid.
Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder
or liquid dishwasher detergent instead.
NOTE!
Optimal washing and drying results are achieved by using normal dishwasher detergent together
with separately dispensed rinse aid.
Contact the detergent manufacturer if you have questions about the detergent.
17
Using the dishwasher
Start/Stop
Select program modeSelect program Select option
On/Off
On/Off
Open the door and press . Also turn on the water supply valve if it is turned off.
Select program
To select a program, press until the desired program is shown on the display.
Select a program to suit the type of dishes and how dirty they are.
Normal
This program is recommended for daily, regular, or typical use to completely wash a full load of
normally soiled dishes, such as plates, serving dishes, cups, and glasses.
Light
An effective program for slightly dried leftovers. (This program is not intended for burnt food, such
as on oven dishes.)
Intensive
A program with a high temperature for dissolving grease on heavily soiled dishes, such as pans,
casserole dishes, and oven dishes. If these dishes do not completely fill the dishwasher, you can
add plates and other dishes.
Quick
2)
A fast and effective program for slightly dried leftovers. (This program is not intended for burnt food,
such as on oven dishes.)
The Auto door open option is important for ensuring the best drying results.
Time
The program adapts to the specified running time or finish time. With this program, it is important to
choose a time suited to how dirty the dishes are.
Press to set the desired program time.
Lightly soiled dishes0:15-0:45
Normally soiled dishes1:00-1:30
Heavily soiled dishes2:00-2:30
2)
When combined with Speed, the program is shortened (60 minutes).
18
Using the dishwasher
Sanitize
This program is recommended for baby bottles and cutting boards when additional sanitation is
required. The temperature is high in the main wash and in the final rinse.
Rinse and hold
Use to rinse dishes while you wait for the dishwasher to become fully loaded.
Self-cleaning
Self-cleaning program for sanitizing the dishwasher tub, spray arms, and spray pipes.
This program should be run (with no dishes in the machine) using regular dishwasher detergent or
citric acid. Special dishwasher cleaners are also available in stores. For the removal of limescale
deposits, see Dishwasher tub in the chapter Care and maintenance instructions.
Anti-odor
3)
This program prevents bad odors from dirty dishes left in the dishwasher. Only the dishwasher's fan
is activated (at regular intervals over a period of 72 hours).
Select program mode
Press to scroll through the available program modes. The symbol is dimly lit in available program
modes and glows brighter when a program mode has been activated. (The program modes you
can select vary between programs.)
Speed
The program time is shortened, but the dishwasher uses more energy.
Night
Lower noise level during the dishwashing program. The program time is extended.
Heat boost
The higher temperature dissolves grease on very dirty dishes, but the dishwasher consumes more
energy and water. The program time is extended.
Select option
Available options are dimly lit. Select the options ( , ) to activate them. The options glow brighter
when activated. (The options you can select vary between programs.)
Auto door open
The dishwasher door opens automatically, which shortens the program time and improves the drying
results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled
before unloading the dishwasher.
The drying time of the Auto door open option varies (from 5 to 90 minutes) depending on the model,
program, and temperature of the final rinse.
The Auto door open option is pre-selected for some programs.
3)
Activate Odor control in the dishwasher's Settings menu. See the Settings chapter.
19
Using the dishwasher
NOTE!
For the best drying results, do not close the door before the drying phase has finished and the
machine has automatically switched off.
WARNING!
The dishwasher door must not be blocked or closed when opened automatically. Doing so may
damage the door lock mechanism. Wait at least 5 minutes before closing the door.
Delayed start
When you select Delayed start, the dishwasher will start 1-24 hours after you have pressed and
closed the door.
1.
Press once to activate Delayed start. Press several times, or hold it in, to set the desired
number of hours.
2.
Press and close the door. The timer counts down and the dishwasher starts after the selected
delay.
If you want to cancel the Delayed start option, open the door then press and hold for three
seconds.
Start/Stop
Press until the display shows "Program started, close door in 4 sec". This indicates that the
dishwasher is ready to start. Close the door properly within four seconds, otherwise the dishwasher
will not start.
If the dishwasher is not started or the door is not closed within 2 minutes of the last time the control
panel was pressed, the machine switches off.
Stopping or changing a program
If you want to change the program after starting the dishwasher, open the door then press and hold
for three seconds. Add more detergent if the lid of the detergent dispenser has opened. Then
choose a new program, press , and close the door within four seconds.
Time remaining
Once you have chosen a program, program mode, and options, the time the program took when
last used is displayed.
20
Using the dishwasher
Status light
The status light at the bottom on the dishwasher provides information by means of 3 different colors.
Status light
Blue - Load more
The program has started, but you can still load more dishes.
Red - Do not load
You should not load more dishes (can result in poor dishwashing).
A flashing light indicates that the door has been opened while a program is in progress. If it flashes
when the door is closed, an error has occurred. See the chapter Troubleshooting.
Green - Unload
The dishwashing program is finished. The status light stays on for 30 minutes.
If you want to load more dishes
4)
Open the door. The dishwasher stops automatically. Add the dishes. Press and close the door
within four seconds.
WARNING!
If the door is open, "Program paused" is shown on the display. If you want the dishwashing
program to continue, press and close the door immediately. If you want to cancel the
dishwashing program, press and hold for three seconds.
Power failure
If the dishwasher is turned off due to a power failure when a dishwashing program is running, the
program continues when power is restored. If the power is lost during drying, the program is
interrupted.
If the door is open for more than 2 minutes during drying, the program is interrupted.
Once the program has finished
The end of the program is indicated by one short signal from the buzzer. The chapter Settings
describes how to change this function.
Moreover, the end of the program is indicated by the status light turning green.
4)
You should not load more dishes if the status light is red.
21
Using the dishwasher
Once the dishwasher door is opened and the program has finished, "Program done" appears on the
display.
The dishwasher switches off automatically after the program ends.
To minimize the risk of leaks, we recommend that you turn off the water supply valve if away from
home for an extended period of time.
The best drying results
• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
• Fill up the rinse aid compartment or increase the rinse aid dosage setting.
• Activate the Auto door open option.
• Allow the dishes to cool before unloading the dishwasher.
Unloading the dishwasher
Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.
Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes
in the lower basket.
22
Using the dishwasher
Consumption values
1)
Final
rinse
Number
of rinses
Main washNumber
of prewashes
Program
mode / Op-
tion
Detergent
(ml)
Program
Water cons.
(gallon)
Hot water
3)
Cold water
2)
Energy
(approx.
kWh)
Dishwashing
time
(approx.
hrs:min)
Energy
(approx.
kWh)
Dishwashing
time
(approx.
hrs:min)
3.00.61:401.02:05
58 °C
136 °F2
55 °C
131 °F1
5)
25Normal
4)
3.30.81:351.22:55
60 °C
140 °F2
60 °C
140 °F1
5)
25Light
4.21.22:501.73:20
70 °C
158 °F2
70 °C
158 °F225Intensive
3.80.91:301.11:30
65 °C
149 °F3
65 °C
149 °F
5)
25Quick
2.6-4.40.1-0.90:15-2:300.2-1.40:15-2:30
<65 °C
<149 °F2
<65 °C
<149 °F0-225Time
2.81.01:101.41:20
70 °C
158 °F2
70 °C
158 °F25Sanitize
0.90.010:070.010:071Rinse and hold
2.60.91:101.31:20
70 °C
158 °F2
70 °C
158 °FSelf-cleaning
0.272:000.272:00Anti-odor
1)
Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions, and more.
2)
Connection to cold water, approx. 50 °F (10 °C). (A cold water supply is recommended.)
3)
Connection to hot water, approx. 120 °F (50 °C).
4)
The energy label performance figures are based on this program. Dishwasher connected to cold water, approx. 50 °F (10 °C). This program is recommended for daily, regular or typical use to completely wash a full load of
normally soiled dishes, such as plates, serving dishes, cups and glasses.
5)
Auto door open
23
Program chart
Open the door and press .
To open the dishwasher's Settings menu, press until Settings menu is shown on the display
and confirm your selection with .
To exit the dishwasher's Settings menu, select Exit and confirm your selection with .
Confirm current settingSelect setting
AlternativesSettings
You can choose the language used for the
display.
Language1.
You can activate the Automatic child lock
setting to prevent children from starting the
dishwasher.
On/OffAutomatic child lock2.
To temporarily deactivate or activate the
Automatic child lock setting, press and hold
and for three seconds.
Setting to hide the logo shown on the display.Logotype On/OffDisplay3.
For adjusting the contrast of the display.Contrast 1/2/3/4
You can select which information is shown
on the display.
Program Info screen T/S
T-Text (Text)
S-Symbol (Symbol)
A beep confirms that the control panel has
been pressed.
Feedback 0/1/2/3Sound4.
The buzzer indicates when a dishwashing
program has ended.
Notification 0/1/2/3
Error messages are always indicated by a
loud buzzer.
Setting for rinse aid dosage. The rinse aid
dispenser can be adjusted between 0 (Off)
and 5 (High dosage).
0/1/2/3/4/5Rinse aid5.
Increase the rinse aid dosage:
• If the dishes have water marks.
Reduce the rinse aid dosage:
24
Settings
AlternativesSettings
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Heavy foaming. If you have very soft
water, the rinse aid can be diluted 50:50
with water.
Activate this setting when using an all-in-one
detergent that contains rinse aid.
On/OffTAB6.
This setting reduces the rinse aid dosage.
The Super rinse function rinses the dishes an
extra two times.
On/OffSuper rinse7.
The program time is extended and the
dishwasher uses more energy and water.
Activated in the following programs:
Normal
Light
Intensive
Quick
Sanitize
When Odor control is activated, Anti-odor
can be selected from the program table.
On/OffOdor control8.
Any error messages.Failure readout9.
When contacting your Customer Care Center,
you may be asked to provide the most recent
error messages.
Restores all settings to the factory defaults.Factory reset10.
Select Factory reset and press .
To exit the dishwasher's Settings menu,
select Exit and press .
Exit11.
25
Settings
Add rinse aid
When the rinse aid needs filling up, the above symbol lights on the display.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully fill up with rinse aid to the level marked MAX.
3. Wipe up any spilled rinse aid around the compartment.
4. Close the lid firmly.
After filling up, it may take a while before the symbol goes out.
Clean the filters
Coarse filter
The coarse filter traps larger food particles, which cannot get past the drain pump. Empty the coarse
filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher
is used.
Coarse filter
1. Lift the coarse filter by the handle.
2. Empty the coarse filter.
3. Refit the coarse filter. Press it down until it clicks into place.
Fine filter
Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine
filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher
is used.
26
Care and maintenance instructions
Fine filter
1. Turn the lock ring counterclockwise and lift the fine filter straight up.
2. Clean the fine filter.
3. Refit the fine filter and turn the lock ring clockwise to its stop position. Check that the edges seal
properly.
Remember to refit the coarse filter!
NOTE!
Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The
dishwasher must not be used without the filters in place!
Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place.
Cleaning the spray arms
Holes and bearings can become blocked. Remove debris using a needle or similar item. The spray
arms have holes on the bottom.
Spray arms can be removed for cleaning. Remember to put them firmly back into place afterward.
27
Care and maintenance instructions
Top spray arm
• Pull out the top cutlery tray. Push up on the top spray arm while turning it counterclockwise to
release it.
Upper spray arm
• Pull out the upper basket.
• Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper
basket.
Lower spray arm
• Pull the lower spray arm straight up to release it.
Clean the outside of the dishwasher
Door and door seal
Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth.
Clean the door seal at the lower front edge of the dishwasher with a cleaning brush.
28
Care and maintenance instructions
Control panel
Keep the control panel clean. If necessary, wipe it with a dry or slightly damp cloth. Never use
cleaning products – they may scratch the surface.
Run Self-cleaning
Dishwasher tub
The dishwasher tub is made of stainless steel and is kept clean through normal use (when used
regularly).
If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the
Self-cleaning program with two tablespoons of citric acid in the detergent compartment (with no
dishes in the machine). Special dishwasher cleaners are also available in stores.
Never use anti-freeze, Draino
®
, CLR
®
, or other chemical cleaners.
Remove blockages
Unblocking the drain pump
If the dishwasher still contains water after the program has finished, something may be blocking the
drain pump, which results in the Water outlet fault error message.
1.
Turn off the machine using and remove the plug from the power outlet.
2. Remove the coarse filter and the fine filter.
3. Scoop out the water from the dishwasher tub.
4. In order to inspect the drain pump, remove the yellow drain pump stop on the right in the bottom
drain. (Use a pair of pliers if necessary.)
5. Turn the pump wheel located behind the drain pump stop by hand. Carefully remove any sharp
items, such as glass.
6. Reinstall the drain pump stop along with the fine and coarse filters.
7. Plug the machine in again.
Drain pump stop
NOTE!
Do not forget to reinstall the drain pump stop.
29
Care and maintenance instructions
ActionError messages
Unblocking the drain pump. See the chapter Care and
maintenance instructions. If the problem persists, contact your
nearest Customer Care Center.
Overfilling water 1F10
See "Water remains in the dishwasher above the filters" under
"Problem" in the table below. If the problem persists, contact your
nearest Customer Care Center.
Water outlet faultF11
Check that the water supply valve is on. If the problem persists,
contact your nearest Customer Care Center.
Water inlet fault 1F12
The water pressure should be 4.2-140 psi.
Turn off the water supply valve and contact your nearest Customer
Care Center.
Inlet valve leakageF40
Turn off the water supply valve. Remove the plug from the power
outlet and contact your nearest Customer Care Center.
Heater fault 1F41
Contact your nearest Customer Care Center.Diverter faultF45
Clean the coarse and fine filters. If the problem persists, contact
your nearest Customer Care Center.
Water level faultF52
Turn off the water supply valve and contact your nearest Customer
Care Center.
Overfilling water 2F54
To avoid water leakage outside the dishwasher, do not remove
the plug from the power outlet until the water supply valve has
been turned off!
Contact your nearest Customer Care Center.Circulation pump faultF56
Check that the water supply valve is on. If the problem persists,
contact your nearest Customer Care Center.
Water inlet fault 2F67
The water pressure should be 4.2-140 psi.
Contact your nearest Customer Care Center.BLDC drain pump faultF68
Press any button to clear the error message.
ActionPossible causesProblem
Wait a moment then try again.You have pressed the control
panel too soon after opening the
door.
The control panel does not react
when pressed.
See the chapter Important safety
instructions.
Child lock or Automatic child
lock is activated.
Open the door. The control
panel only reacts to use when
the door is open.
The door is closed.
Clean with a dry or slightly damp
cloth.
Dirt on the control panel.
30
Troubleshooting
ActionPossible causesProblem
Check that the baskets are
correctly positioned horizontally.
The baskets are not correctly
positioned.
Cannot close door.
Check that the dishes are not
blocking the baskets from
sliding properly into place.
Check the door lock. If it does
not click into place and lock,
open the door.
The door lock does not click into
place and lock.
Press and hold and
until the display starts flashing.
Wait until it stops flashing (60
seconds). Close the door.
Check that the door lock clicks
into place and locks.
Press until the display
shows "Program started, close
door in 4 sec".
has not been pressed.
The dishwasher does not start.
Close the door within four
seconds, otherwise the
dishwasher will not start.
The door is not closed properly
or was not closed immediately
after you pressed .
If you want the dishwashing
program to continue, press
and close the door within four
seconds.
You have opened the
dishwasher to add more dishes
while a program is in progress.
Check the door lock. If it has not
clicked into place and locked,
open the door.
The door lock has not clicked
into place and locked.
Press and hold and
until the display starts flashing.
Wait until it stops flashing (60
seconds). Close the door.
Check that the door lock clicks
into place and locks and that the
dishwasher starts.
Press and hold for three
seconds if you want to cancel
the Delayed start option.
Check whether the Delayed start
option has been selected.
Check.The plug is not plugged into the
power outlet.
Check.A fuse/circuit breaker has been
tripped.
31
Troubleshooting
ActionPossible causesProblem
Check that the dishes are not
blocking the spray arms.
The spray arms do not rotate.The dishes are not clean.
Clean the spray arms. See the
chapter Care and maintenance
instructions.
Spray arm holes or bearings
blocked.
Select a program with a high
temperature to dissolve grease
on heavily soiled dishes, such
as Intensive.
Unsuitable dishwashing
program.
Dose according to water
hardness. Far too much or far
too little detergent can result in
poor dishwashing results.
Incorrect detergent dosage.
Avoid large packages.Detergent is too old. Detergent
is a perishable product.
Do not cover porcelain with
large bowls or the like. Avoid
placing very tall glasses in the
corners of the baskets. See the
chapter Loading the
dishwasher.
Dishes loaded incorrectly.
Load the dishes securely.Glasses and cups have toppled
over during the program.
Clean the coarse and fine filters.The filters are clogged.
Check that the filters are fitted
correctly. See the chapter Care
and maintenance instructions.
The filters are not fitted correctly.
Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and
maintenance instructions.
Drain pump stop missing.
Rinse off these types of food if
not starting the dishwasher
immediately. Use the Rinse and
hold program.
Some types of food, such as
mustard, mayonnaise, lemon,
vinegar, salt, and dressings, can
cause spots on stainless steel if
left for too long.
Spots on stainless steel or silver.
In order to avoid marks and
tarnishing, separate dishes
made from different metals,
such as silver, stainless steel,
and aluminum.
All stainless steel can cause
spots on silver if they come into
contact during dishwashing.
Aluminum can also cause spots
on dishes.
32
Troubleshooting
ActionPossible causesProblem
See the chapter Settings.Incorrect rinse aid dosage
setting.
Spots or films on the dishes.
Switch all-in-one detergents or
deactivate the TAB setting and
fill up with separate rinse aid.
See Rinse aid in the chapter
Settings.
The TAB setting is activated and
all-in-one detergent with
insufficient drying effect is being
used.
Wash crystal at a low
temperature and with a
conservative amount of
detergent. Contact the detergent
manufacturer.
Too high temperature and/or too
much detergent can cause
etching on crystal.
Unfortunately, this cannot be
repaired, only prevented.
Reduce the dosage. See the
chapter Settings. If you have
very soft water, you may want to
dilute the rinse aid 50:50 with
water.
Rinse aid dosage setting too
high.
The dishes have a sticky
white/blue film.
Use a detergent with a
bleaching agent.
Lipstick and tea can be difficult
to wash off.
Spots left after washing.
The detergent compartment
must be dry when adding
detergent.
The detergent compartment was
damp when adding detergent.
Detergent residue in the
detergent compartment after
dishwashing.
Check that the dishes are not
preventing the detergent
compartment from opening.
The detergent compartment has
been blocked.
Check that the dishes are
placed securely. Spin the spray
arms to make sure they can
rotate.
The dishes are not correctly
placed or the spray arms are not
rotating.
Rattling sound when
dishwashing.
If you want the dishwashing
program to continue, press
and close the door within four
seconds.
The dishwasher door has been
opened while a program is in
progress.
"Program paused" is shown on
the display.
If you want to cancel the
dishwashing program, press
and hold for three seconds.
33
Troubleshooting
ActionPossible causesProblem
Clean the coarse and fine filters.The filters are clogged.Water remains in the dishwasher
above the filters.
Check that the filters are fitted
correctly. See the chapter Care
and maintenance instructions.
The filters are not fitted correctly.
Clean the drain pump. See the
chapter Care and maintenance
instructions.
Debris in the drain pump.
Check that the yellow drain
pump stop (on the right in the
bottom drain) is in place. See
the chapter Care and
maintenance instructions.
Drain pump stop missing.
Check that the hose is free from
kinks and sharp bends.
Kink in drain hose.
Loosen the drain hose from
where it terminates. Check that
no debris has clogged the hose.
Is the cone-shaped part of the
drain boot cut to the maximum
size of the fitting where it
attaches?
Blocked drain hose.
Clean with dish brush and low
foaming cleaner.
Dirt around the seals and in
corners.
Bad odor in dishwasher.
Run a program with a high
temperature once or twice a
month. Or run a self-cleaning
program. See Self-cleaning in
the chapter Using the
dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Cleaning the garbage disposer
connected to the dishwasher
can eliminate odors. Follow the
disposer manufacturer's
cleaning instructions.
The dishwasher is connected to
a garbage disposer.
Select a program with a high
temperature to dissolve grease
on heavily soiled dishes, such
as Intensive. Or run a
self-cleaning program once or
twice a month. See Self-cleaning
in the chapter Using the
dishwasher.
Low temperature programs have
been selected for a prolonged
period.
Grease deposits in the
dishwasher.
34
Troubleshooting
ActionPossible causesProblem
Activate the Auto door open
option.
The Auto door open option is not
activated.
The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully
loaded.
Fill up the rinse aid compartment
or increase the rinse aid dosage
setting.
Rinse aid needs filling up or
dosage is set too low.
Switch all-in-one detergents or
deactivate the TAB setting and
fill up with separate rinse aid.
See Rinse aid in the chapter
Settings.
The TAB setting is activated and
all-in-one detergent with
insufficient drying effect is being
used.
35
Troubleshooting
*Remove lock nuts for an installed height of 32 3/4'' (831 mm).
Nominal dimensions. Actual measurements may vary.
Inches (mm)
If a height of 32 1/4'' (819 mm) is required for ADA compliance, remove the upper trim kit. Also
lower the trim kit on the sides.
If European widths of 235/8'' (600 mm) is required, remove the trim kit.**
Important safety instructions
• Connections to electricity, water, and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage, and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse and hold
program. Check that the dishwasher fills with water and drains. Also check that none of the
connections leak.
WARNING!
The ventilation opening in the lower part of the door must not be blocked by a rug, carpet, or
similar furnishing.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the outlet turned off while installing the dishwasher!
36
Installation instructions
Transport protection for the door
Do not forget to remove the transport protection for the door when unpacking the dishwasher.
Trim kit
The dishwasher is equipped with a trim kit to fit the 24'' (609 mm) cutout standard. If a European
width of 23 5/8'' (600 mm) is required, remove the trim kit.
Adjust the trim kit
The trim kit can be adjusted backward to level the dishwasher tub.
ADA compliance
If a height of 32 1/4'' (819 mm) is required for ADA compliance, remove the upper trim kit. Also lower
the trim kit on the sides.
37
Installation instructions
Placing the dishwasher
The dishwasher is intended to be built in under a countertop. The built-in measurements are shown
in the illustration. Make sure that the cord and hose hole's edges are even and will not damage the
drain and inlet hoses or the power cord.
Inches (mm)
The electrical and
water supplies should
enter through the area
indicated by the
shading on the
illustration.
Remove the trim kit.
32.86''(835 mm):* >
NOTE!
Framed cabinets require additional finished filler material behind the face frame for a proper
installation. A minimum 3½” (89 mm) finished return is required on all sides of the opening.
Frameless
cabinetry
Filler
Framed
cabinetry
If the dishwasher is built-in, the surrounding furnishings must be resistant to any condensation from
the dishwasher.
Accessory
Buy an accessory kit for freestanding installation (two side panels, a countertop, and two anti-tip
brackets). If the dishwasher is placed so that one of the sides is visible, side panels must be fitted.
If the dishwasher is completely freestanding, both side panels, a countertop, and anti-tip brackets
must be fitted. Accessories can be purchased from where you bought the dishwasher.
Fit the protective film
Mount the protective film beneath the countertop and up around the edge. The function of the
protective film is to protect the countertop from moisture. (The protective film is in the enclosed
plastic bag.)
38
Installation instructions
NOTE!
The surface to which the protective film is fitted must be clean and dry.
Adjust the height and slide the dishwasher into place
1. Start by measuring the height from the floor to the bottom edge of the countertop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forward a little and adjust the rear foot with the screw at the front of the
dishwasher. Turn clockwise to lower or counterclockwise to raise.
4. Adjust the front feet by turning them clockwise to raise and counterclockwise to lower the
dishwasher.
1''
5/8''
5. Verify there is an air gap of at least 1/8'' between the underside of the countertop and the top
edge of the dishwasher.
6. Slide the dishwasher into place.
• Pull the supply and drain hoses and the power cord when sliding the dishwasher into place.
39
Installation instructions
• Check that the drain hose has no kinks or sharp bends. Also check that there is nothing that
can damage the hoses.
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
7. Make any final adjustments to the feet (the dishwasher may lean no more than 1/4'') and tighten
the lock nuts on the front feet.
Drain connection
This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height).
This means that the dishwasher can be placed so that the drain hose runs to a lower level than the
bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with
an integrated anti-siphon device to prevent the machine from being emptied of water during the
wash cycle.
min.
1/2''
(14mm)
40
Installation instructions
Max. 373/8'' (950 mm)
The drain hose can also be connected to a connection nipple on the sink unit's water trap. The
connection nipple must have an internal diameter of at least 1/2'' (14 mm).
The drain hose may be extended by a maximum of 87" (2.2 m) (the total length of the drain hose
must not exceed 177" (4.5 m)). Any joints and connecting pipes must have an internal diameter of
at least 1/2'' (14 mm). However, the drain hose should ideally be replaced with a new hose without
joints.
No part of the drain hose may be more than 37 3/8'' (950 mm) above the bottom of the dishwasher.
Attach the drain hose with a hose clamp. Ensure that the drain hose has no kinks.
Connection to water supply
Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.
The supply pipe must be fitted with a water supply valve. The water supply valve must be easily
accessible, so that the water can be shut off if the dishwasher has to be moved.
Once the installation is complete, turn on the water supply valve and allow the pressure to settle for
a while. Check that all connections are watertight.
Water supply
The machine can be connected to either a cold or a hot (max. 160 °F (70 °C)) water supply. The
water pressure should be 4.2-140 psi (0.03-1.0 MPa).
Connection to cold water supply
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity, or
gas.
41
Installation instructions
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 160 °F (70 °C)) if the building is heated using
an energy-efficient means such as district heating, solar power, or geothermal power. Choosing a
hot water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high temperatures. See Fragile dishes in the chapter Loading the dishwasher.
Electrical connection
Information about the electrical connection can be found on the serial number plate. This specification
must match the electricity supply.
The power outlet for the appliance shall be installed in a cabinet or on a wall adjacent to the
undercounter space in which the appliance is to be installed. Do not use an extension cord for this
appliance.
The access hole for the electrical supply must be round and smooth and no bigger than 1 1/2''
(38 mm) in diameter. If the partition is metal, it needs to be covered with an edge protector.
Use caution when the appliance is installed or removed to reduce the likelihood of damage to the
power cord.
Grounding instructions
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least resistance for electric current. This appliance
is equipped with a power cord fitted with an equipment grounding conductor and a grounding plug.
The plug must be plugged into an appropriate power outlet that is installed and grounded in
accordance with all local codes and ordinances.
WARNING!
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance. If it does
not fit the power outlet, have an appropriate power outlet installed by a qualified electrician.
42
Installation instructions
Screwing the dishwasher into place
Variant A:
Variant B:
43
Installation instructions
After fastening the machine, check that the front feet still touch the floor.
Screw into the countertop
Alternatively, the dishwasher can be screwed into the underside of the countertop.
44
Installation instructions
Dishwasher toe kick
The dishwasher is supplied with a toe kick.
Fit the sound insulation
(only certain models)
Fit the toe kick
Ensure the floor underneath the toe kick is at same
height as the floor underneath the dishwasher.
45
Installation instructions
Limited Warranty – Residential Appliances
This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service
must be provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This
Limited Warranty is valid only when the ASKO Product is used in the country in which it was
purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.
Residential ASKO Products Used Exclusively for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must
be filed with ASKO within two (2) years from date of purchase. Service will be provided during normal
business hours.
Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used
Commercially or used in Marine, Mobile or Aeronautical Applications:
One (1) Year limited Warranty – Any warranty service claims for ASKO Products not used exclusively
for household and personal use, or used commercially or used in marine, mobile, or aeronautical
applications must be filed with ASKO within one (1) year from date of purchase. Service will be
provided during normal business hours.
Items excluded from warranty
This limited warranty does not cover:
1. Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent
with published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of the ASKO Product, to instruct you on how to use the
ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing.
3. Consumable items and parts, such as filters.
4. Damage resulting from accident, alteration, misuse, abuse, negligence, fire, flood, natural
disasters, improper use, improper installation, installation not in accordance with electrical or
plumbing codes, or use of products not approved by ASKO, as well as any attempted repair by
other than authorized ASKO service companies.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of the ASKO
Product, unless such damage results from defects in materials or workmanship and is reported
to ASKO within 5 days from date of purchase.
6. Pickup and delivery. The ASKO Product is intended to be repaired in your home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the ASKO Product.
8. Expenses for travel and transportation for product service if the ASKO Product is located in a
remote area where service by an authorized ASKO service company is not available.
9. The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location
or is not installed in accordance with ASKO’s published installation instructions.
10. Replacement parts or repair labor on ASKO Products with original model/serial numbers that
have been removed, altered or cannot be easily determined.
Disclaimer
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding
warranty rights. This Limited Warranty gives you specific legal rights and you may have other rights
46
Service and warranty
that vary from jurisdiction to jurisdiction. Attempted repair by any person other than an authorized
ASKO service company will void this Limited Warranty.
Limitation of liability
IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS,
SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY,
PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND
THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER
THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID
FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the
exclusion or limitation of incidental, consequential or other damages, so these limitations and
exclusions may not apply to you. This Limited Warranty gives you specific legal rights. You also may
have other rights that vary from jurisdiction to jurisdiction.
ASKO Customer Care
Read the chapter Troubleshooting before contacting the Customer Care Center. If you have
encountered a problem that you cannot resolve, please contact your nearest dealer.
us.asko.com, +1-800-898-1879USA
When making contact, provide the details on the serial number plate. Include the model name (1),
the article number (2), and the serial number (3).
1
2
3
Service after expiration of limited warranty
For information about obtaining parts and labor after expiration of this Limited Warranty or arising
outside the scope of this Limited Warranty, please contact ASKO Customer Care.
To verify the ASKO warranty – please visit our local web page.
Number of cycles
Press and hold and for 3 seconds to show Number of cycles on the display.
47
Service and warranty
Technical data
32 3/4 - 34 4/5" (831- 885)
1)
Height:
24" (609 mm)
2)
Width:
21 4/5" (554 mm)Depth:
100 lb (45 kg)
3)
Weight:
4.2-140 psi (0.03-1.0 MPa)Water pressure:
See serial number plateElectrical connection:
See serial number plateRated power:
1)
If a height of 32 1/4'' (819 mm) is required for ADA compliance, remove the upper trim kit. Also lower the trim
kit on the sides.
2)
If European widths of 23 5/8'' (600 mm) is required, remove the trim kit.
3)
Weight can vary due to different specifications.
48
Technical information
876349
US.ASKO.COM • CA.ASKO.COM • ASKO.COM/MX
We reserve the right to make changes.
-a1
