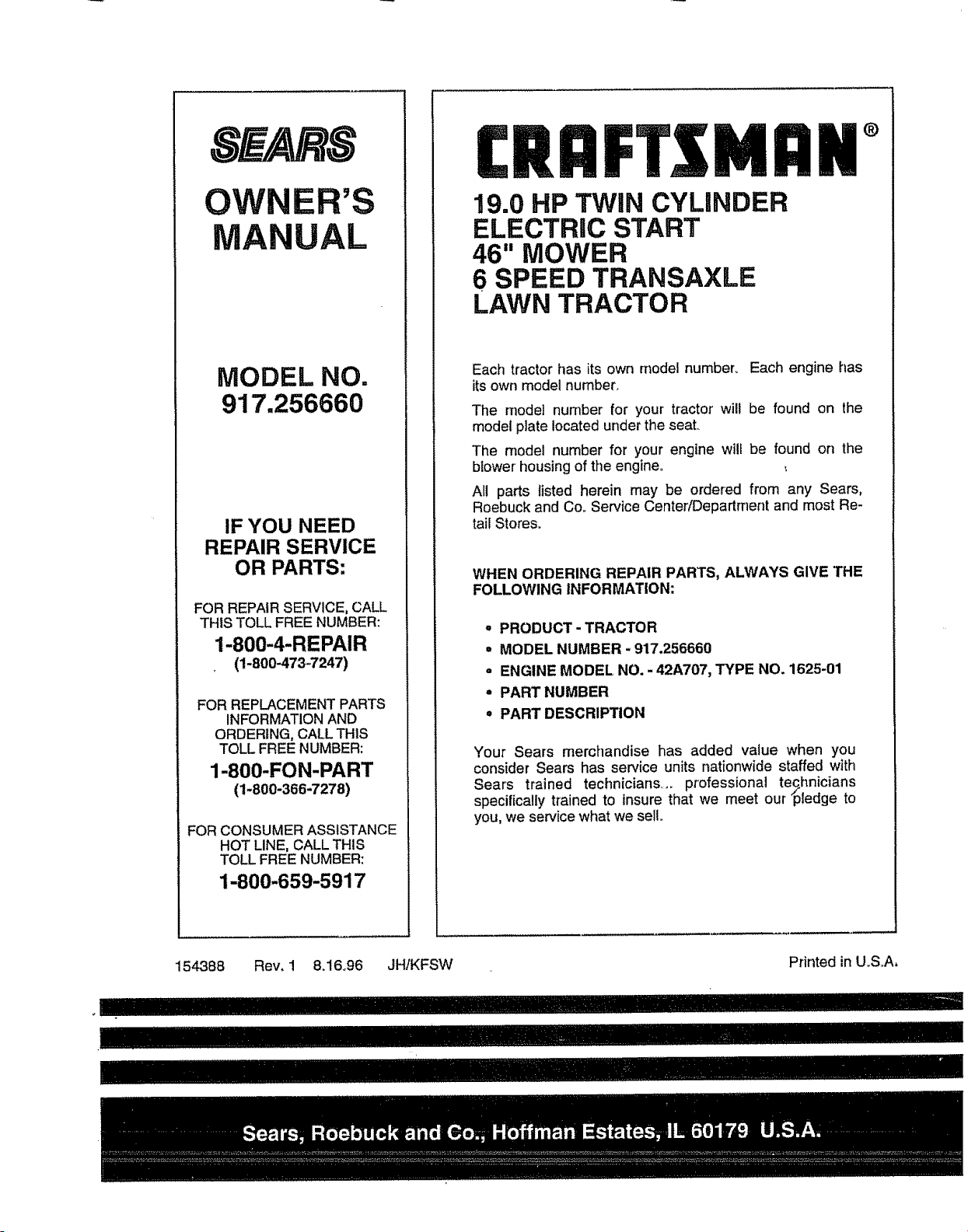

Craftsman 917256660 tractor User Manual

DEL NUMBER 917.256660

/:IN°

OWNER'S MANUAL

oAssembly

o Operation

o Customer Responsibilities

- Service and Adjustments

- Repair Parts

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

1/111111111111111II

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS..

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH_

GENERAL OPERATION

Read, understand, and follow all |nsl_Jctions [n the manual

and on the machine before starting,

Only allow responsible adults, who are familiar with the _

instructions, to operate the machine,

Clear the area of objects such as rocks, toys, wire. etc.

which could be picked up and thrown by the blade°

Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

Never carry passengers..

Do not mow in reverse unless absolutely necessary. Always

Jook down and behind before and while backing.

Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

Slow down before turning

Never reave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting_

Turn off blades when not mowing.

Stop engine before removing grass catcher or unclogging

chute

Mow only in daylight or good artificial lighL

Do not operate the machine while under the influence of

alcohol or drugs.

Watch for traffic when operating near or'crossing roadways..

Use extra care when loading or unloading the machine into

a trailer or truck._

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO"

• Mow up and down slopes, not across..

• Remove obstacles such as rocks, tree limbs, etc..

- Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine.. Tall grass can hide obstacles.

o Use slow speed Choose a low gear so that you wil! not have

to stop or shift while on the slope,

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other' attachments.

These can change the stability of the machine.

= Keep all movement on the slopes sfow and gradual Do not

make sudden changes in speed or direction,

• Avoid starting or stopping on a slope, if tires lose traction,

disengage the blades and proceed slowly straight down the

slope,

DO NOT:

" Do not turnon slopes unless necessary, and then, turnslowly

and gradually downhill, if possible.

• Do not mow near drop-oils, ditches or embankments.. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced {_:action could cause

sliding

• Do not try tostabilize the machine by putting yourfoot on the

ground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur' if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity., Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful

care of another responsible adult.

° Be alert and turn machine off if children enter the area,

• Before and when backing, look behind and down for small

chirdren

• Never carry children_ They may fall off and be seriously

injured or interfere with sale machine operation.

• Never allow children to operate the machine.

° Use extra care when approaching blind comers, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels They are

flammable and vapors are explosive.

Use only an approved container_

Never remove gas cap or add fuel with the engine

running_ Allow engine to cool before refueling, Do not

smoke

Never refuel the machine indoors°

Never store the machine or fuel container inside where

there is an open flame, such as a water heater

• Never run a machine inside a closed area.

= Keep nuts and bolts, especially blade attacht_, nt bolts, tight

and keep equipment in good condition.

• Never tamper wilh safety devices., Check their proper

operation regularly.

• Keep'machine free of grass, leaves, or other debris build-up_

Clean oil or fuel spillage. Allow machine to cooF before

storing.

. Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting

• Never make adjustments or repairs with the engine running

- Grass catcher components are subject to wear, damage, and

detedoration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

= Mower blades are sharp and can cut Wrap the blade(s) or

wear groves, and use extra caution when servicing them.

• Check brake operation frequently., Adjust and service as

required.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!I BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: Always disconnect spark plug

wireandplacewirewhereitcannotcontact

spark plug in order to prevent accidental

starttng when setting up, transporting,

adjusting or making repairs,

Uli,lU ....... ,llll kl ................

WARNING &

The engine exhaust from this product con.

tains chemicals known to the State of Califor

nia to cause cancer, birth defects, or other

reproductive harm.

J,l,: :.................

CONGRATULATIONS on your purchase of a Sears

Tractor,, It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmento We have competent, well-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual° The instructions wilt

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

MODEL

NUMBER 917.256660

SERIAL

NUMBER

DATE OF PURCHASE

TH EMODEL AN D SERIAL NUMBERS WILL BEFOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

ucto Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

o Read and observe the safety rules°

, Follow a regular schedule in maintaining, caring for and

using yourtractor.

, Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

PRODUCT SPECIFICATIONS

HORSEPOWER: 19..0

GASOLINE CAPACITY 3°5 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF!SG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 30 PINTS

SPARK PLUG: CHAMPfON RJ19LM

(GAP: .030") STD361458

VALVE CLEARANCE: INTAKE: .004" - _006"

EXHAUST: _007" - .009"

GROUND SPEED (MPH): FORWARD:

1st 11

2nd 1.5

3rd 2 3

4th 3 5

5th 4.4

6th 57

REVERSE: 17

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 5 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MiN CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT. LBS.

(if any). If a spark arrester is used, it should be maintained

in effective working order by the operator,

in the state of California the above is required by law

(Section 4442 of the California Public Resources Cede)

Other states may have similar laws, Federal lawsapply on

federal lands. A spark arrestor for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual)°

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructionsin the owner's manual, Sears will repair or replace, free of charge, any parts lound to be defective in material or

workmanship.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc

• Tire replacement or repair caused by punctures from outside objecls, such as nails, thorns, stumps, or glass,

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER. (1N-HOME WARRANTY ,_'ERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY..) TFIIS_WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights,and you may also have other rights which may vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

TABLE OF CONTENTS

SAFETY RULES ....................... ;.................................... 2

PRODUCT SPECIFICATIONS ...................................... 3

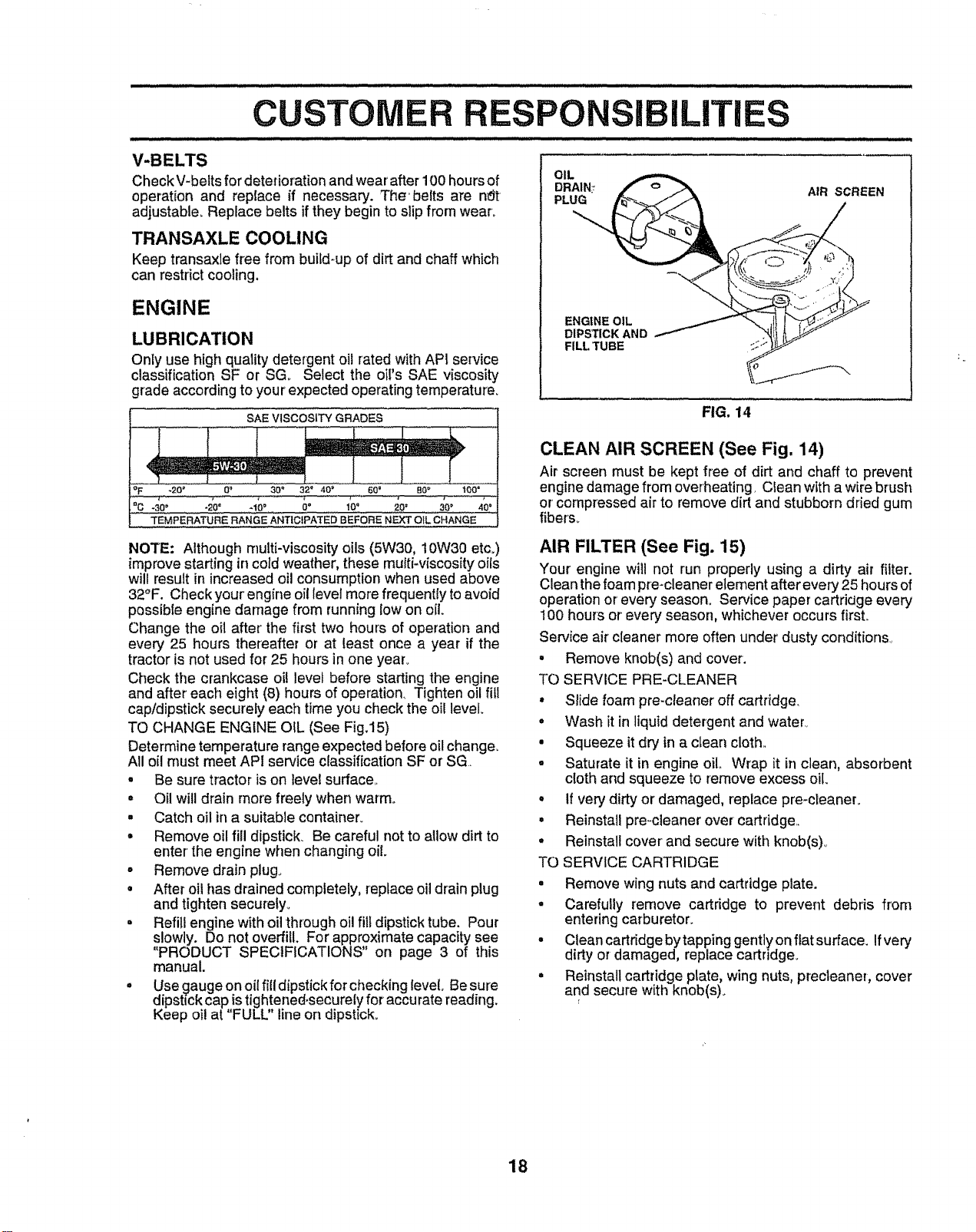

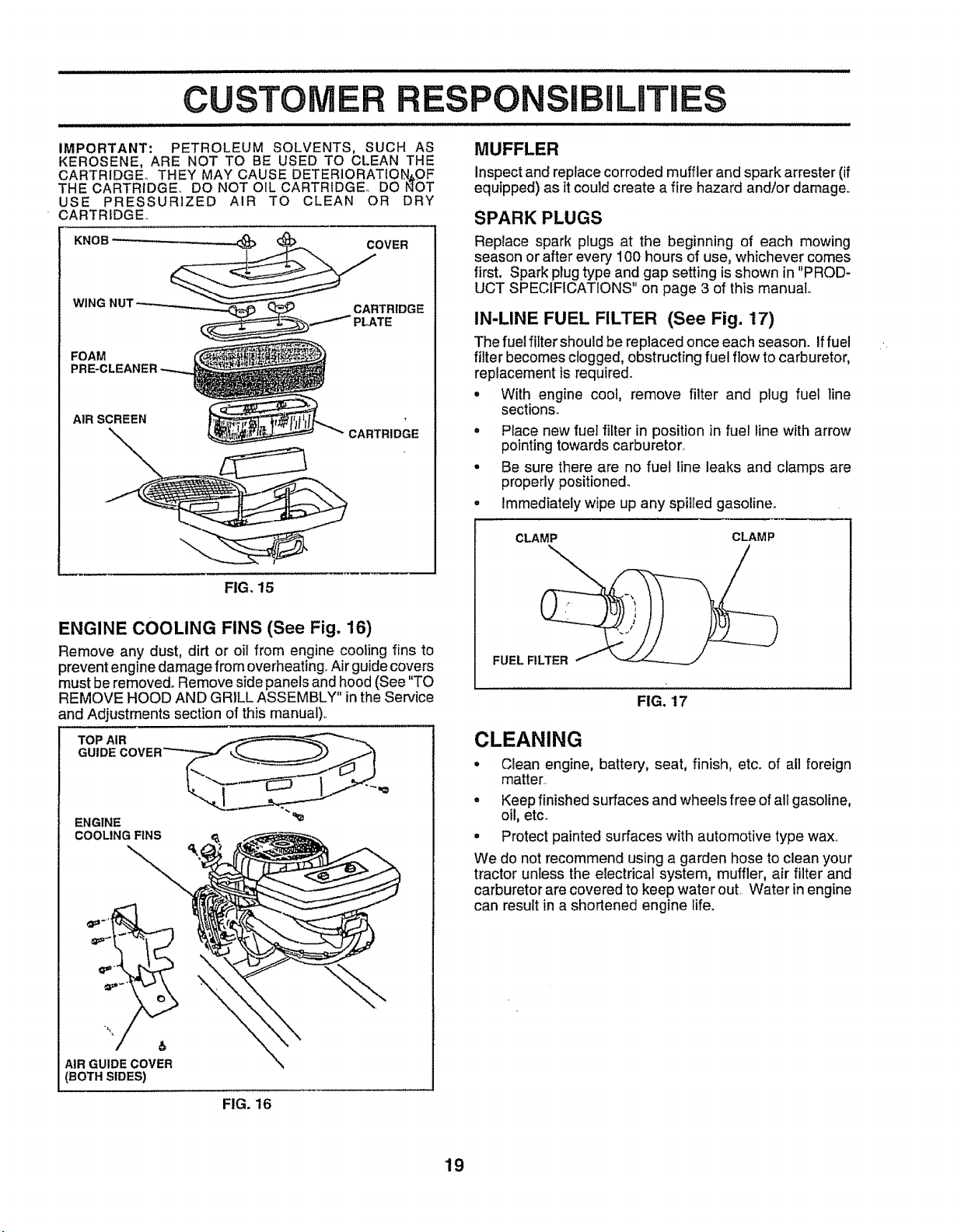

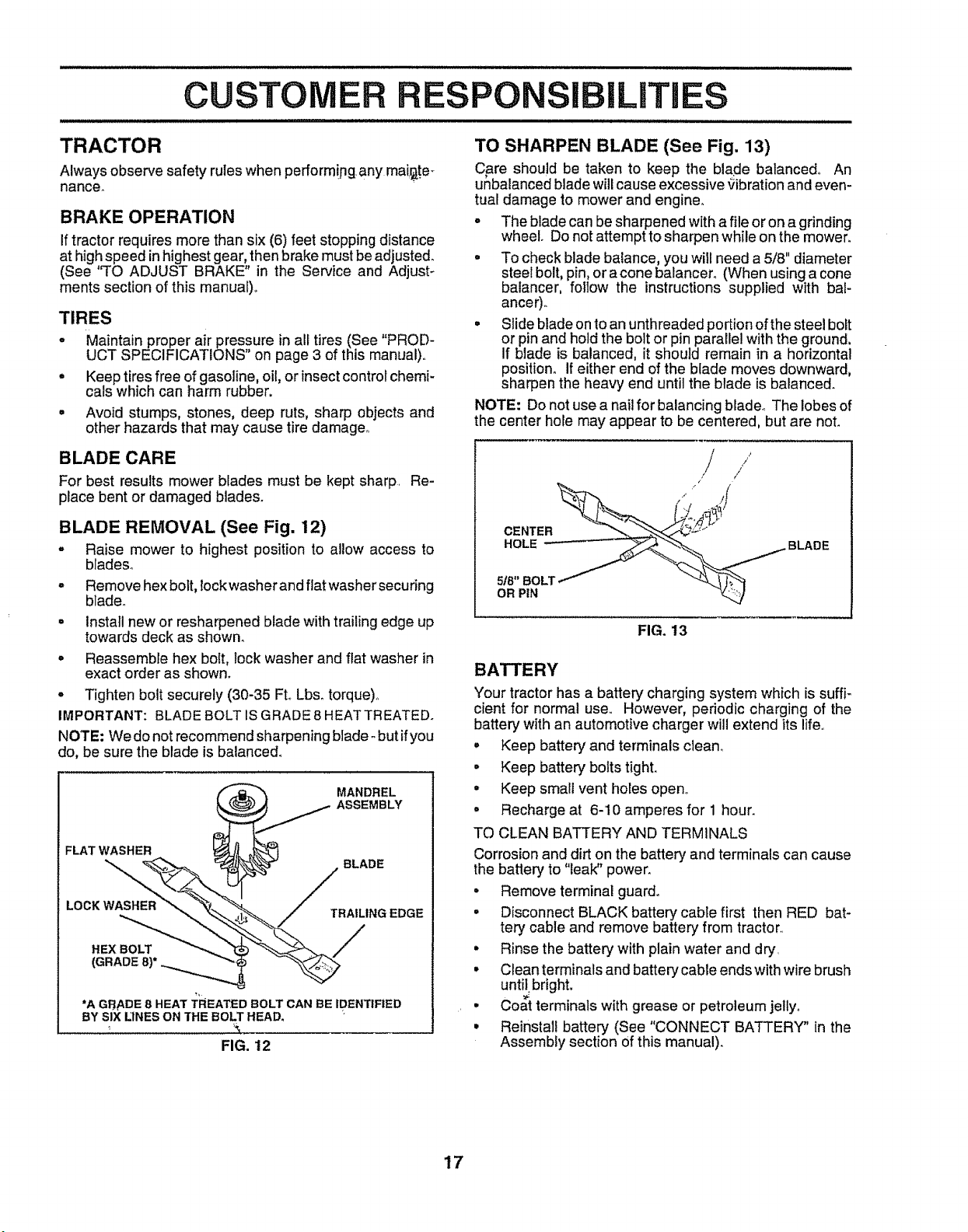

CUSTOMER RESPONSIBILITIES ..................... 3, 17-19

WARRANTY .................................................................. 3

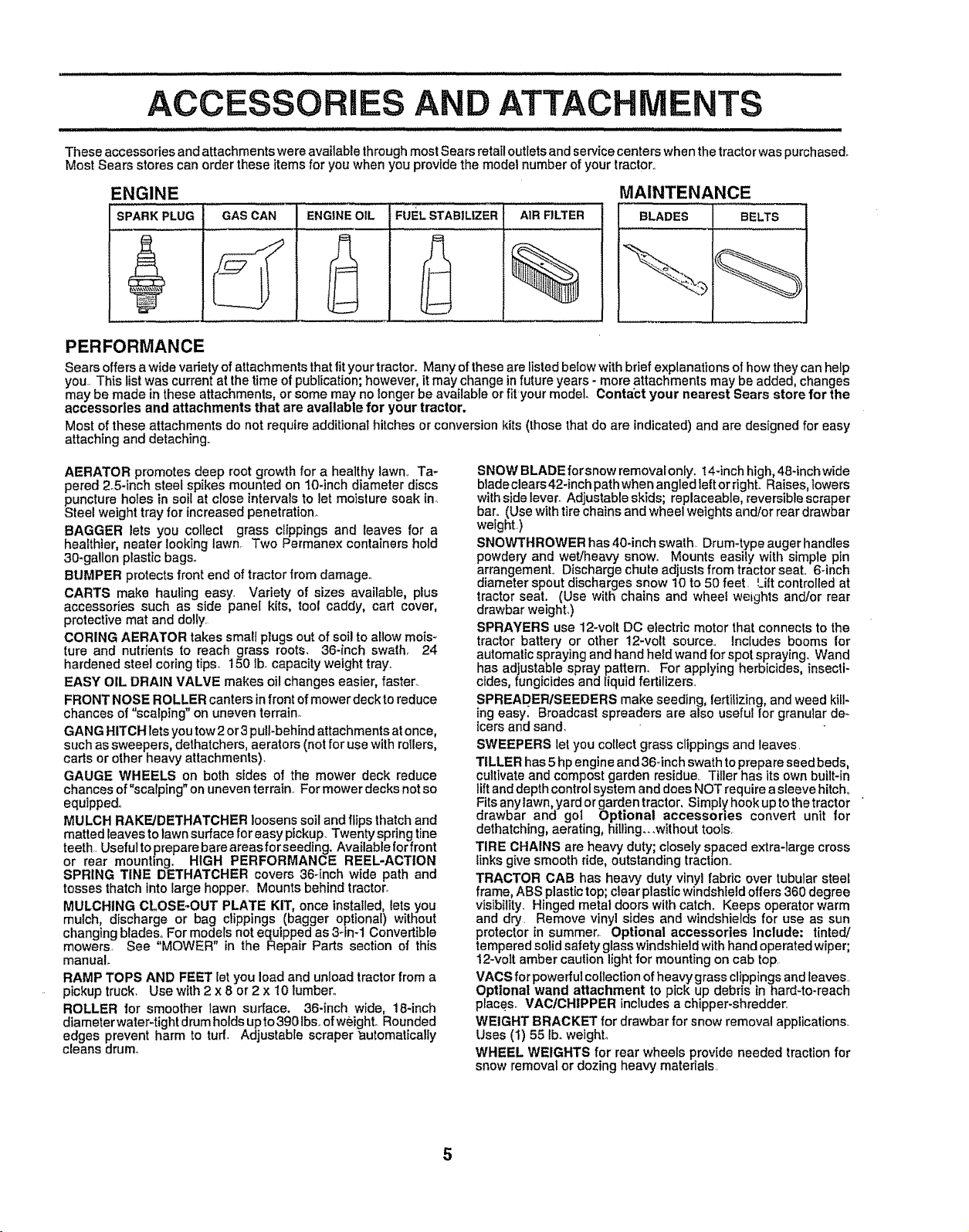

TRACTOR ACCESSORIES .......................................... 5

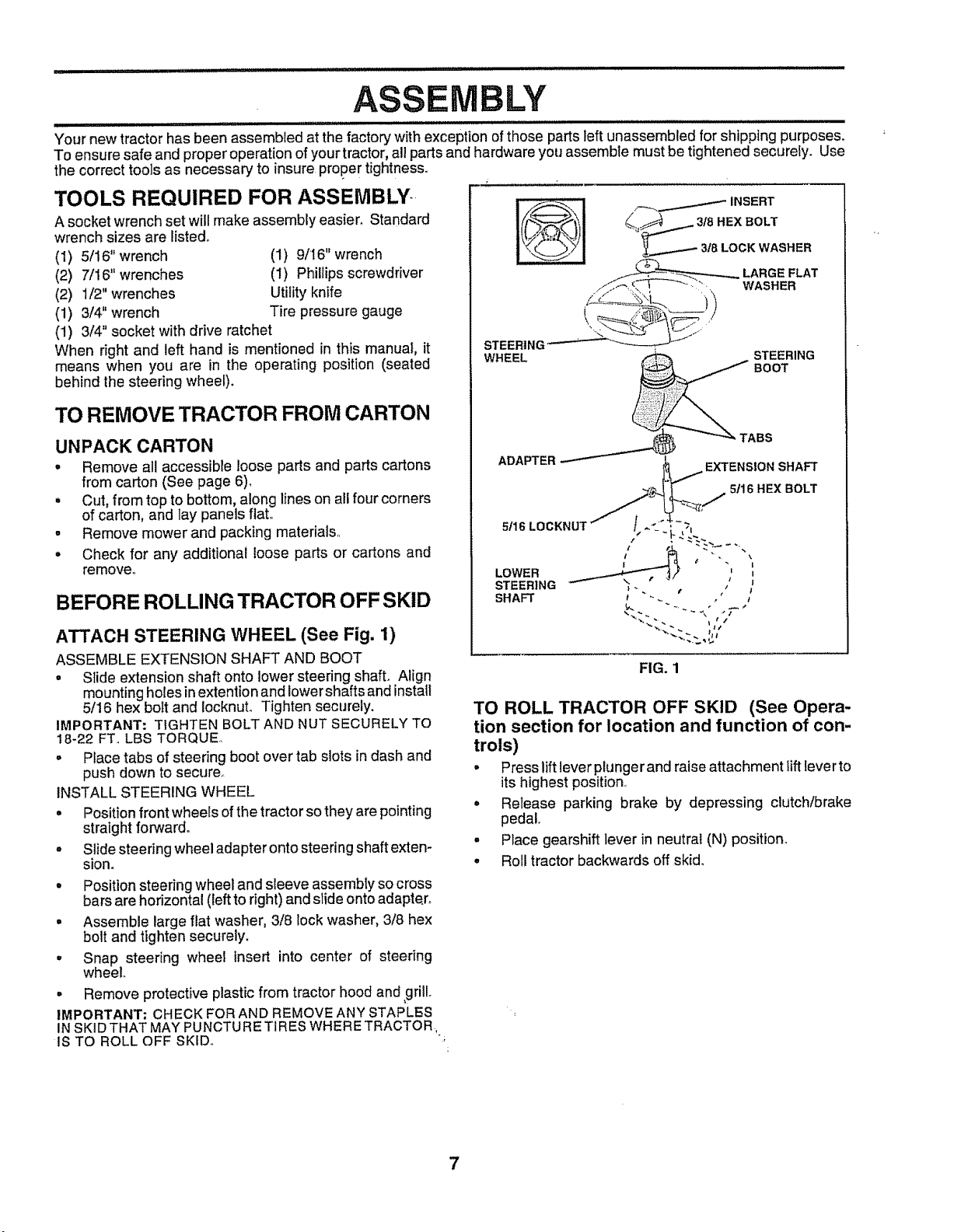

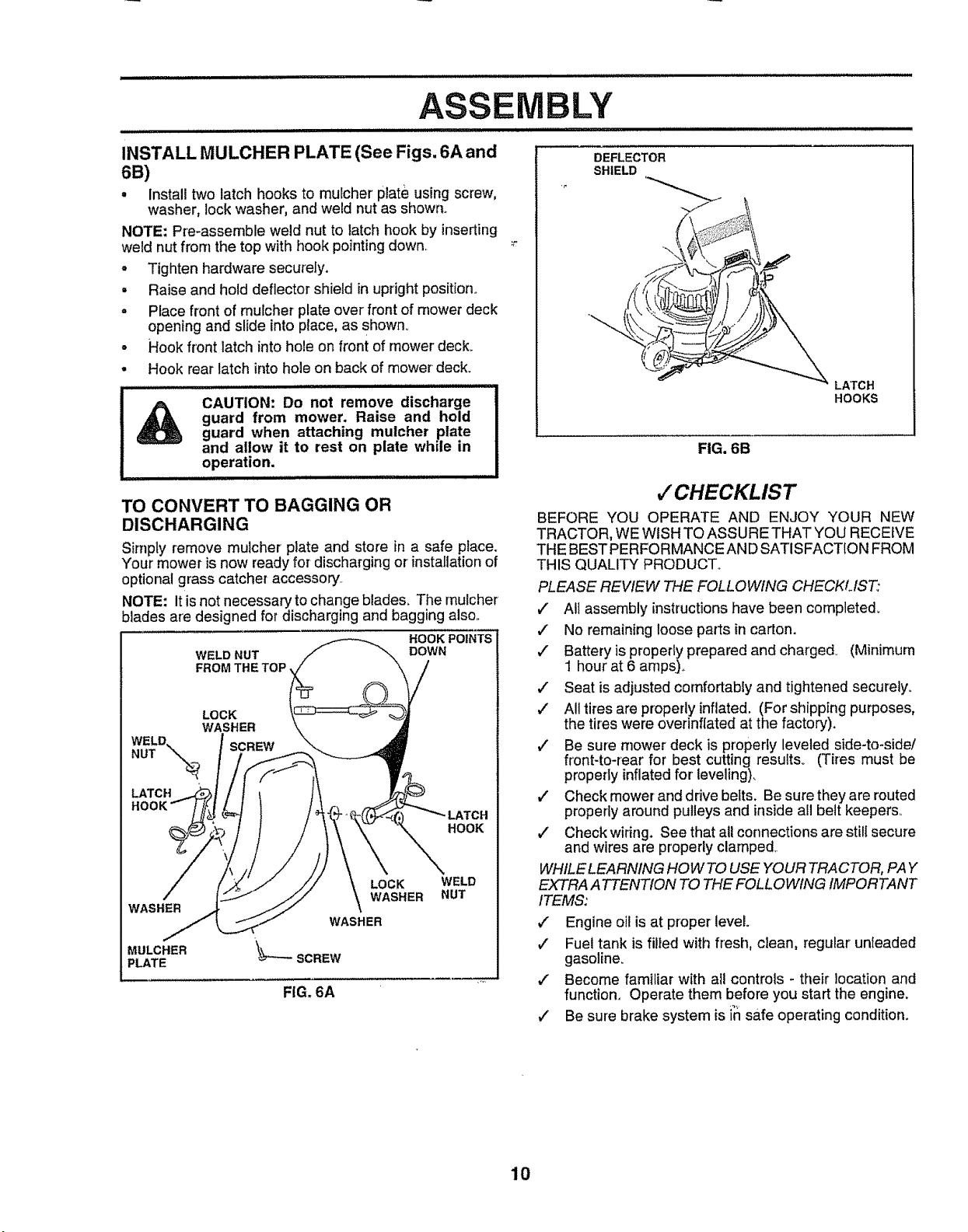

ASSEMBLY ................................................................ 7-9

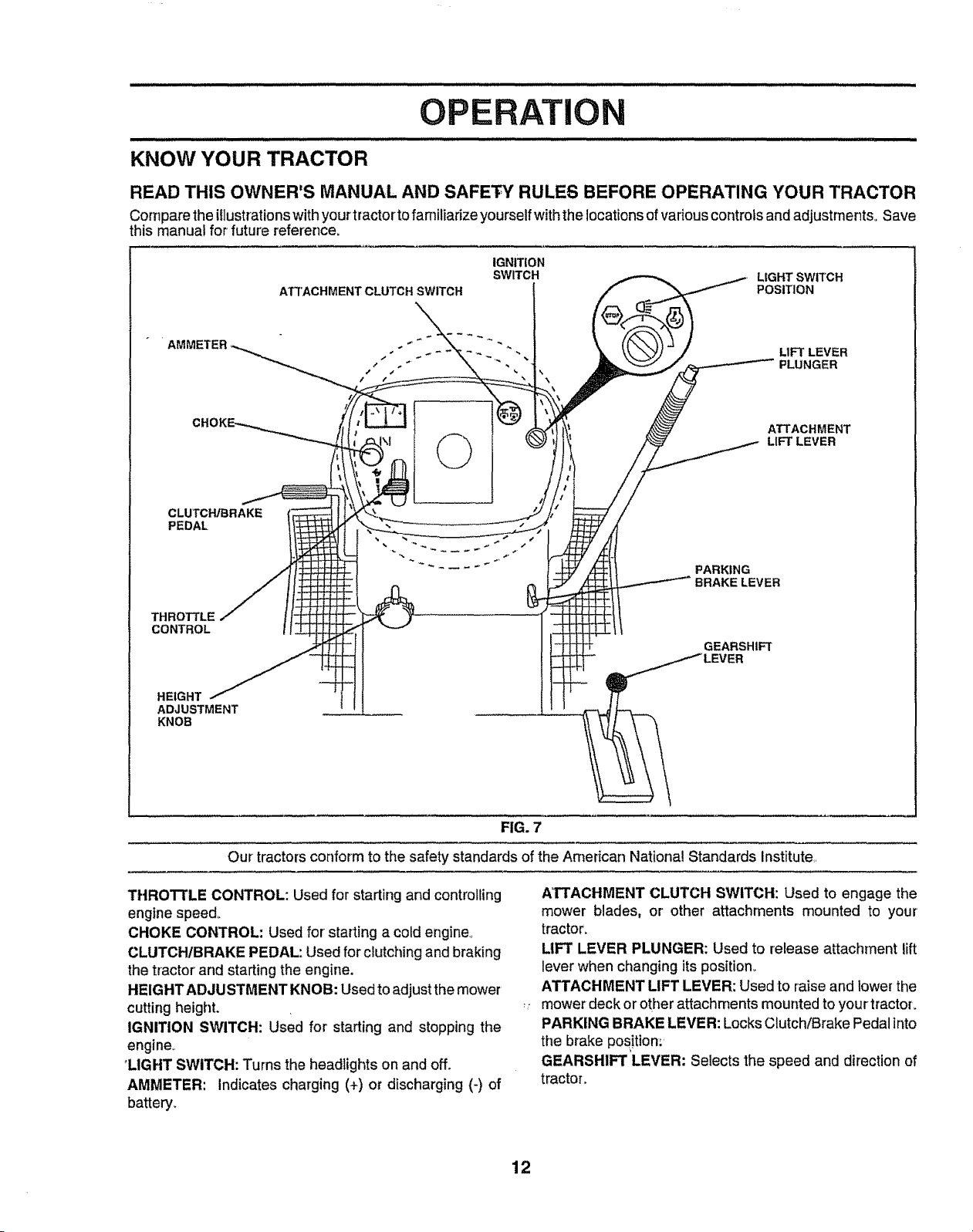

OPERATION ........................................................... 11-15

MAINTENANCE SCHEDULE ...................................... 16

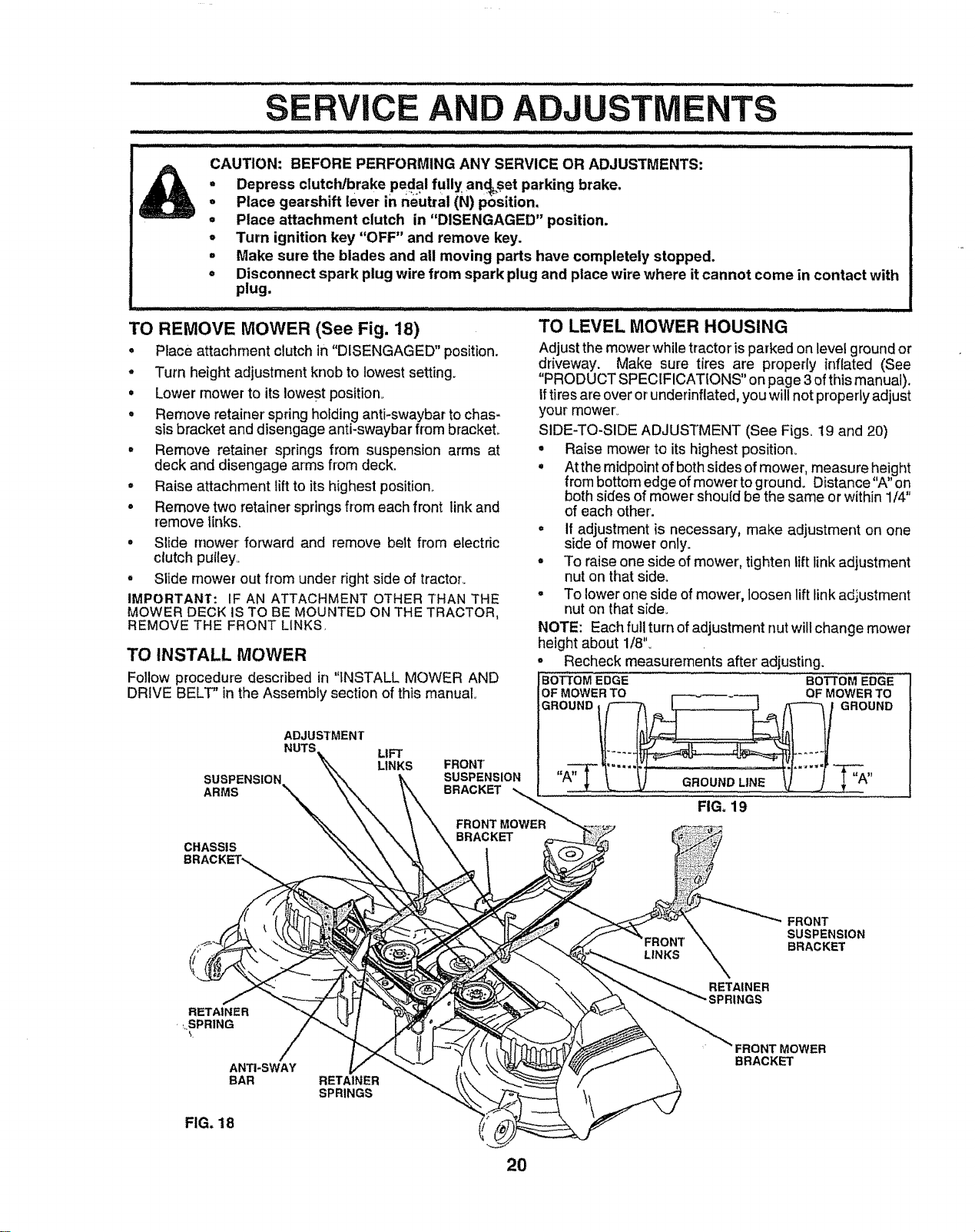

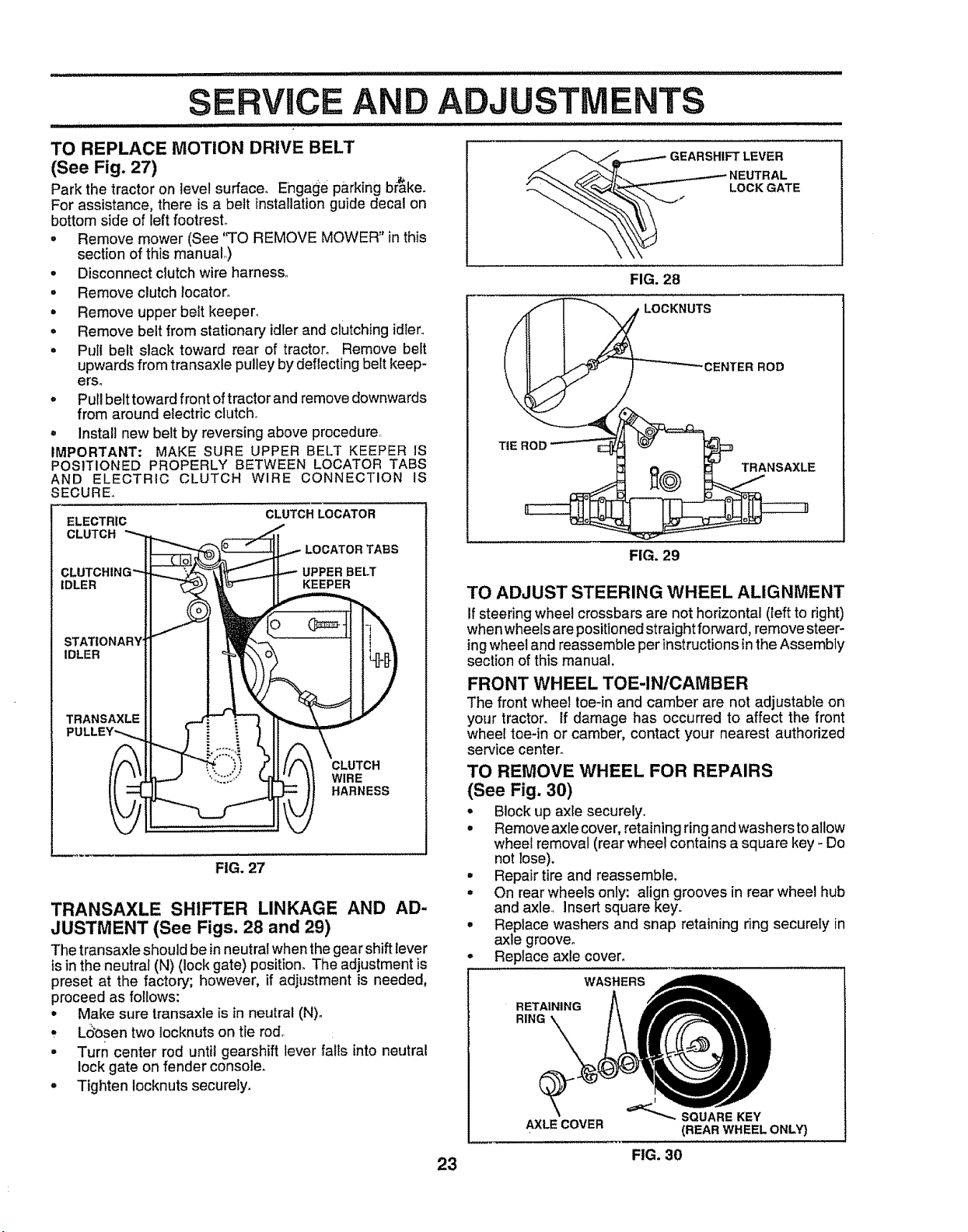

SERVICE AND ADJUSTMENTS ............................ 20-25

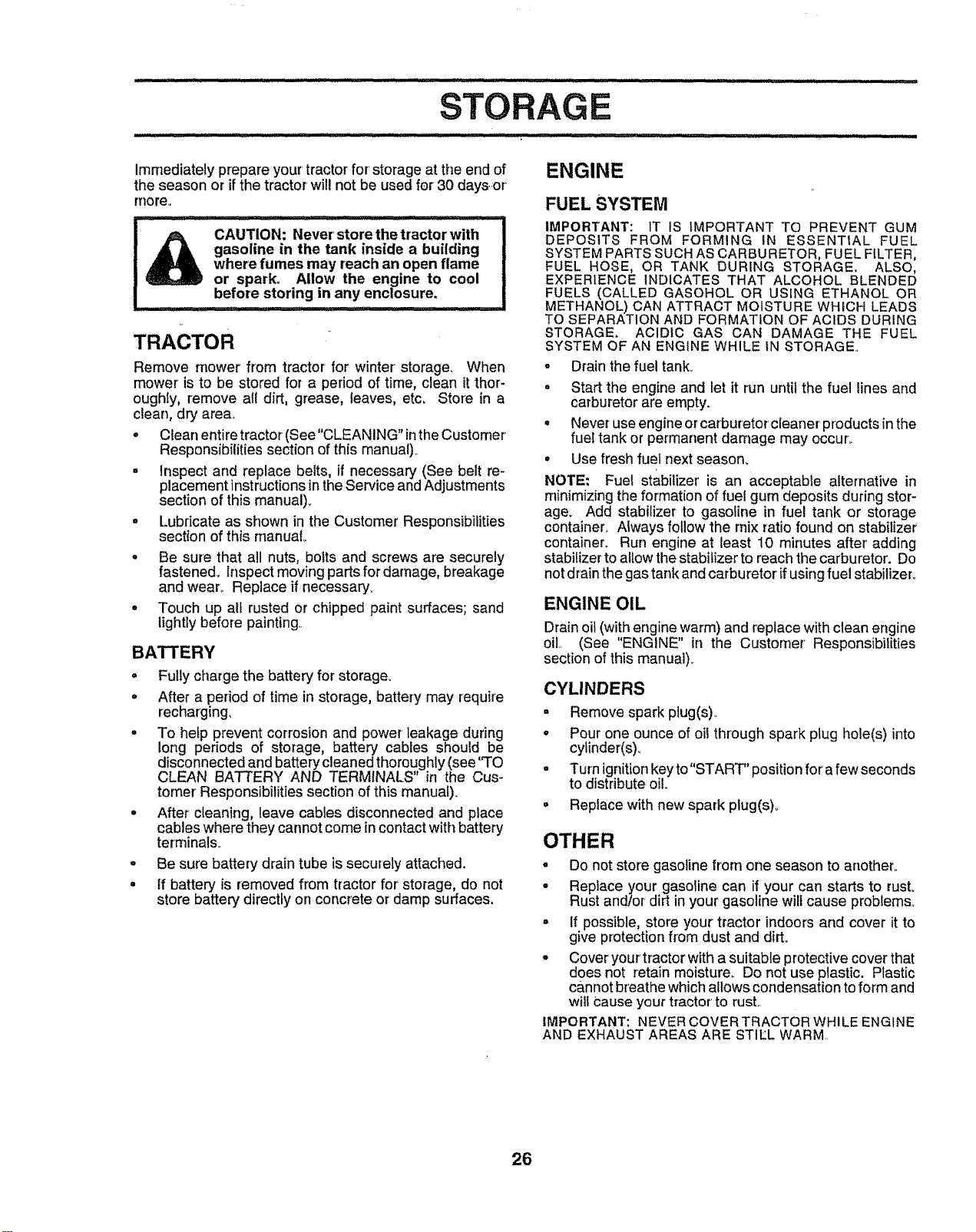

STORAGE ................................................................... 26

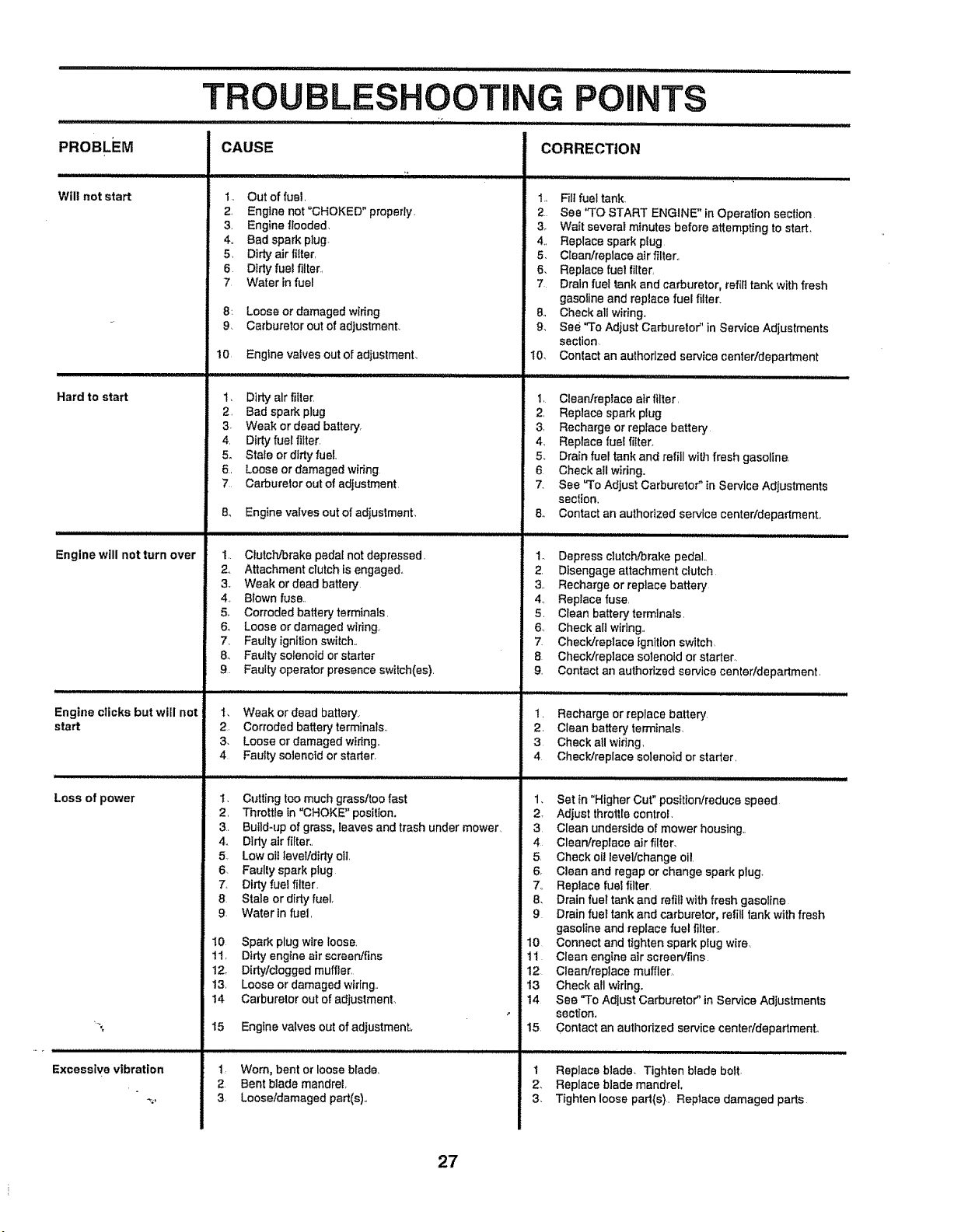

TROUBLESHOOTING ............................................ 27-28

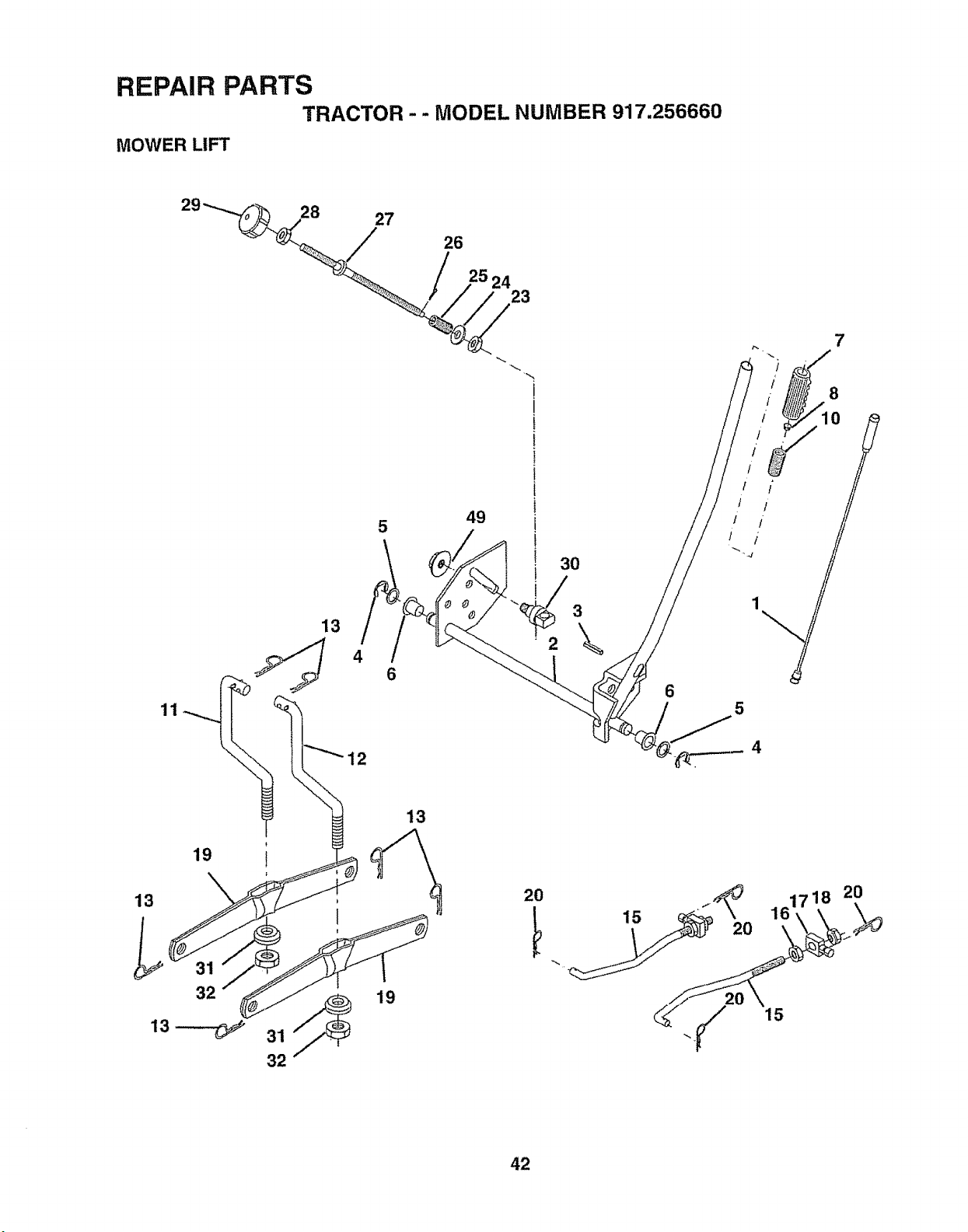

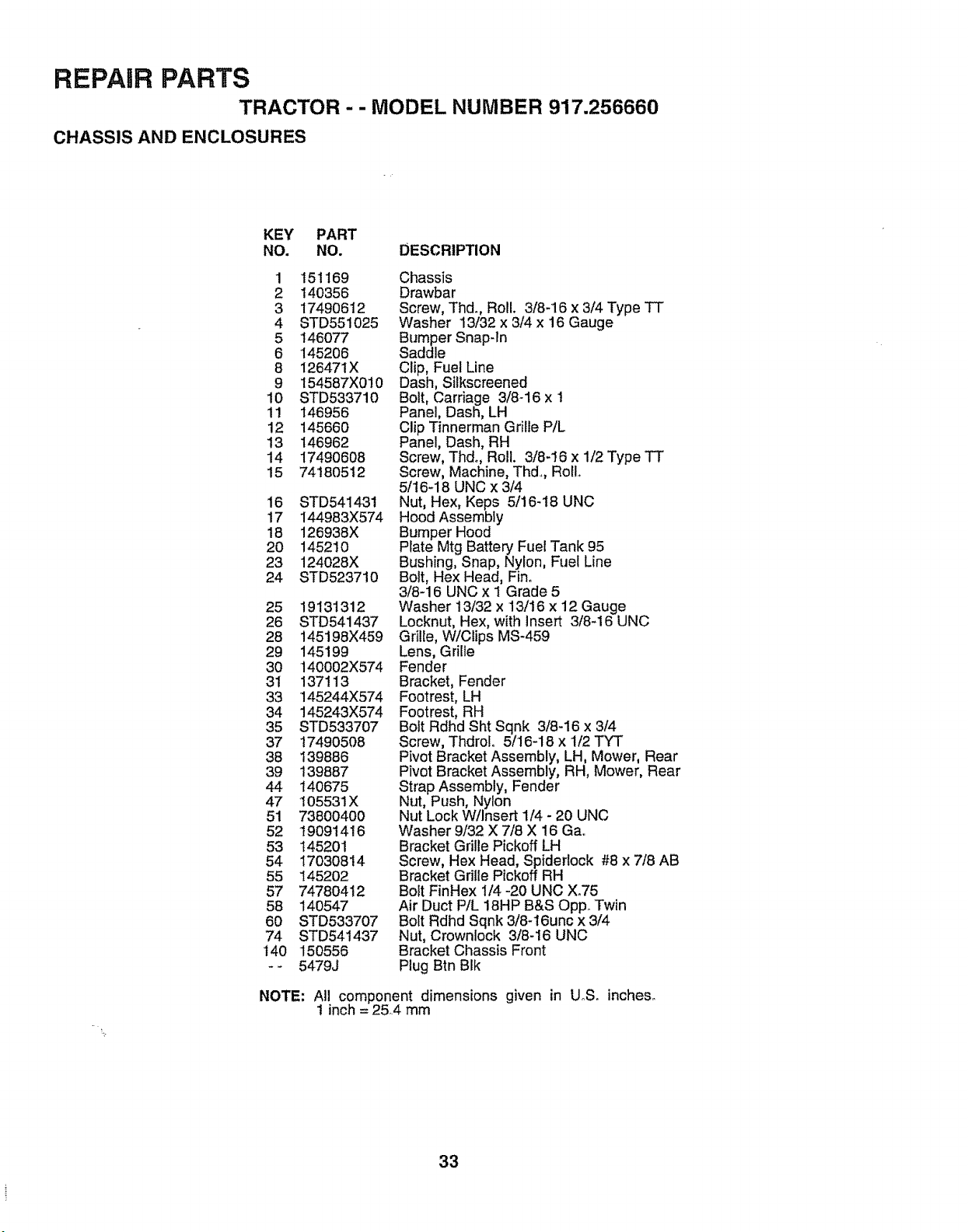

REPAIR PARTS - TRACTOR ................................. 30-47

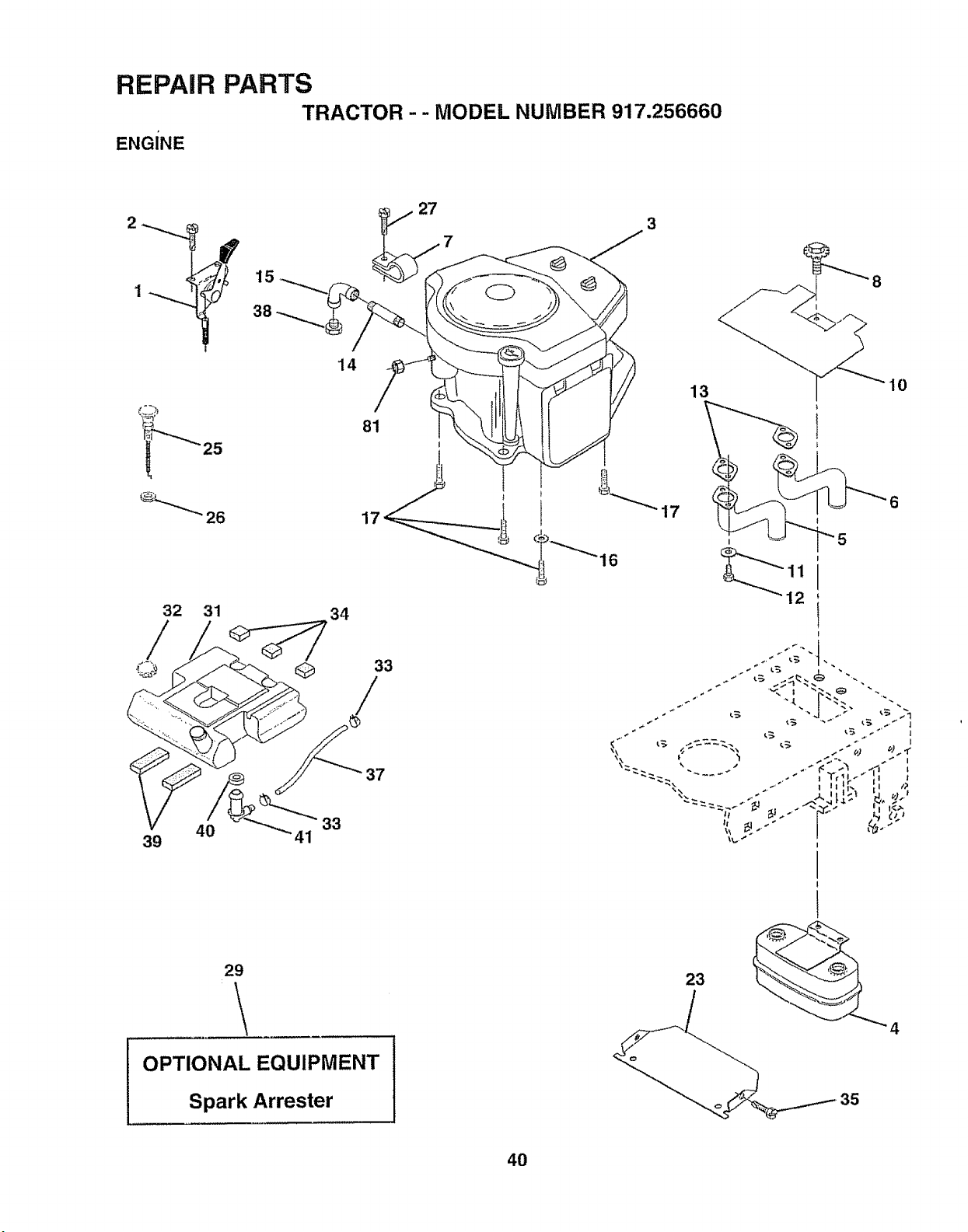

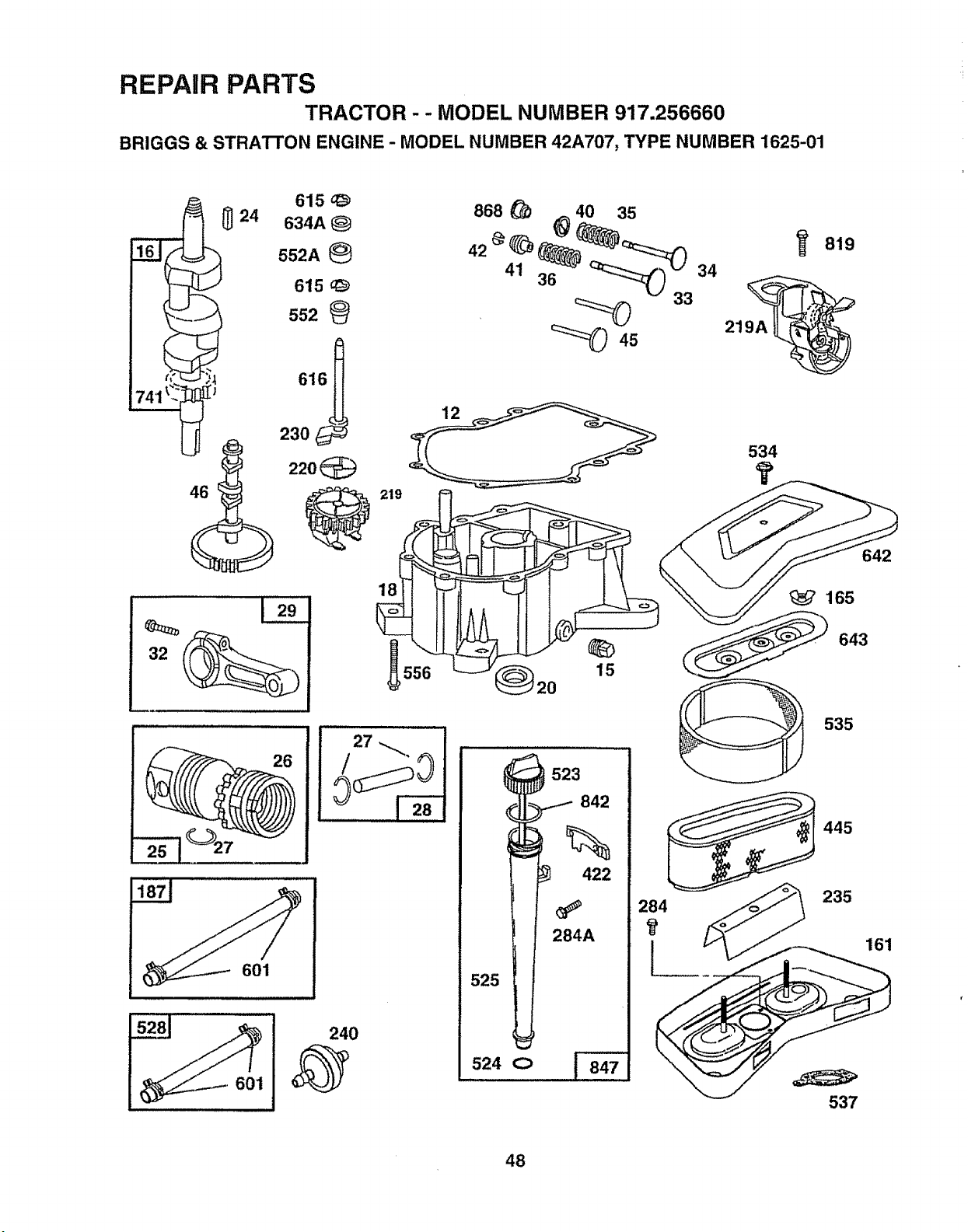

REPAIR PARTS - ENGINE .................................... 48-53

PARTS ORDERING/SERVICE ................ BACK COVER

iNDEX

Accessories .............................................................5

Adjustments:

Brake ...................................................22

Carburetor .................................................25

Mower

Front-To-Back ..............................2I

Side-To-Side ................................20

Throttle Control Cable ......................24

Air Fitter, Engine ..................................................t 8

Air Screen, Engine ......................................18

Assembly ...........................................................7-10

Batlery:

Charging ........................................................8

Cleaning .................................................17

Starting with Weak Battery .............24

Storage ........................................................26

Terminals ...........................................17

Belt:

Motion Drive

Removal/Replacement ..................23

Mower Blade(s)

Removal/Replacement ................22

Blade:

Sharpening .................................................17

Replacement ......................................17

Brake Adjustment .......................................22

Carburetor Adjustment ..............................25

Controls, Tractor ...........................................12

Customer Responsibilities ....................16-19

Engine:

Air Filter...................................................18

Air Screen, Engine ..........................18

Cooling Fins, Engine ............................19

Engine Oil ................................... t8

Fuel Filter ........................................19

Spark Plug(s) ..................................19

Tractor:

Battery .........................................................17

Blade .............................................17

Lubrication Chart ..........................!6

Maintenance Schedule ................16

Tire Care ................................8,17,23

Transaxle .....................................................18

Cutting Height, Mower .....................................13

Electrical:

Interlocks and Relays ........................24

Schematic .................................................29

Wiring Diagram .......................................30

Engine:

Air Filter ....................................................18

Air Screen .................................................18

Cooling Fins, Engine ........................19

Oil Change ....................................................18

Oil Level ............................................14,t8

Oil Type ................................................18

Preparation ..................................................14

Repair Pads .................................30-47

Stading .........................................................14-t5

Storage ..................................................26

Filter;

Air Filter .........................................................18

Fuel ....................................................19

Fuel;

Type ...........................................................14

Storage ..............................................26

Fuse .....................................................................24

Hood Removalllnstallation ......................24

Leveling Mower Deck ..................................20

Lubrication:

Chad .....................................................16

Maintenance Schedule ............................16

Mower:

Adjustment, Front4o-Back .................21

Adjustment, Side-to-Side ..................20

Blade Sharpening ........................................17

Blade Replacement ........................... 17

Cutting Height ............................................13

Installation ......................................................20

Operation ..................................................14

Removal ....................................................20

Mowing Tips ...........................................................15

Muffler ..........................................................19

Spark Attester ..................................3,40

,. O

011:

Cold Weather Conditions .:........14,18

Engine ............................................14,18

Storage ..................................................26

Operation .............................................................11-15

Operating Mower .........................................14

Options:

Accessories ............................................5

Spark Arrestor ...................................3,40

Parking Brake ............................................13

Pads Bag .................................................................6

Pads, Replacement]Repair ...................30-47

Product Specifications......................................3

Repair Pads ..........................................30_47

Safety Rules ..................................................2

Seat ..............................................................................8

Service and Adjustments ................ 20-25

Carburetor ......................................................25

Fuse ......................................................24

Hood Removaltlnstallation ..............24

Motion Drive Belt

RemovallReplacement ................23

Mower Belt(s)

RemovallReplacement .................21

Mower Adjustment

Front-to-Back ....................................21

Side-to-Side ...................................20

Mower Removal .......................................20

Tire Care ..................................8,17,23

Slope Guide Sheet .....................................55

Spark Plug(s) .............................................18

Specifications .......................................................3

Starting the Engine ................................14-15

Steering Wheel ........................................7,23

Stopping the Tractor .................................t3

Storage ..............................................................26

Throttle Control Cable Adjustment ..........24

Tires ..................................................................8,17,23

Trouble Shooting Chart .....................27-28

Transaxle .......................................................18

Warranty ............................................................3

Wiring Diagram ..............................................30

WMng Schematic .................................................29

ACCESSORIES AND ATTACH

ENTS

illllll,,, ...............

These accessories and attachments were available through most Sears retail outlets and service centers when the tractorwas purchased°

Most Sears stores can order these items for you when you provide the model number of your tractor_

ENGINE

SPARK PLUG

GASCAN

ENGINE OIL

FUELSTABILIZER AIR FALTER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachmentsthat fit yourtractor. Many ofthese are listed below with brief explanations of how theycan help

you.. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model Conta_ctyour nearest Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching°

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2o5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervats to let moisture soak inn

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, nearer looking lawn. Two Permanex containers hold

30-gallon plastic bags..

BUMPER protects front end of tractor from damage°

CARTS make hauling easy, Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and doily.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots, 36-inch swath_ 24

hardened steel coring tips. t50 lb. capacity weight tray..

EASY OIL DRAIN VALVE makes oil changes easier, faster_

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain°

GANG HITCH lets you tow 2 or 3pu!l-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with roIlers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of"scalping" on uneven terrain. For mower decks not so

equipped°

MULCH RAKEjDETHATGHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup.. Twentyspdng fine

teeth.. Useful to prepare bare areas forseeding. Available for front

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor°

MULCHING CLOSE-OUT PLATE KIT, once instaIled, lets you

mulch, d_scharge or bag clippings (bagger optional) without

changing blades° For models not equipped as 3oin-1 Convertible

mowers. See "MOWER in the Repair Parts section of this

manual.

RAMP TOPS AND FEET tat you load and unload tractor from a

pickup truck. Use with 2 x 8 or 2 x !0 lumber,,

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater-tight drum holds upto390 Ibs,.ofweighL Rounded

edges prevent harm to turf. Adjustable scraper'automatically

cleans drum°

SNOW BLADE forsnow removaEonly. 14-inch high, 48-inch wide

bladeclears42-inchpathwhenangledlettor righL Raises, lowers

with side lever. Adjustable skids; replaceable, reversible scraper

bar° (Use with tire chains and wheel weights and/or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow° Mounts easily with simple pin

arrangement.. Discharge chute adjusts from tractor seat.. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source., includes booms for

automatic spraying and hand he_dwand for spot spraying. Wand

has adjustable spray pattern° For applying herbicides, insecti-

cides, fungicides and liquid fertilizers_.

SPREADER/SEEDERS make seeding, fertifizing, and weed kiII.

ing easy_ Broadcast spreaders are also usefLd for granular de-

Icers and sand. '

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue, Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch.

Fits anylawn, yard or garden tractor, Simply hook up to the tractor

drawbar and go1 Optional accessories convert unit for

dethatching, aerating, hiLltng_.without tools.

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction..

TRACTOR CAB has heavy duty vinyl fabric over tubular stee_

frame, ABS plastEctop; clear plastic windshield offers 360 degree

visibility_ Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyl sides and windshields for use as sun

protector in summer_ Optional accessories Include: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves.

Optional wand attachment to pick up debris in hard-to-reach

places_ VAC/CHIPPER _ncludes a chipper-shredder,

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (1) 55 lb. weight.,

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

_ILLL I I Ill l Ill

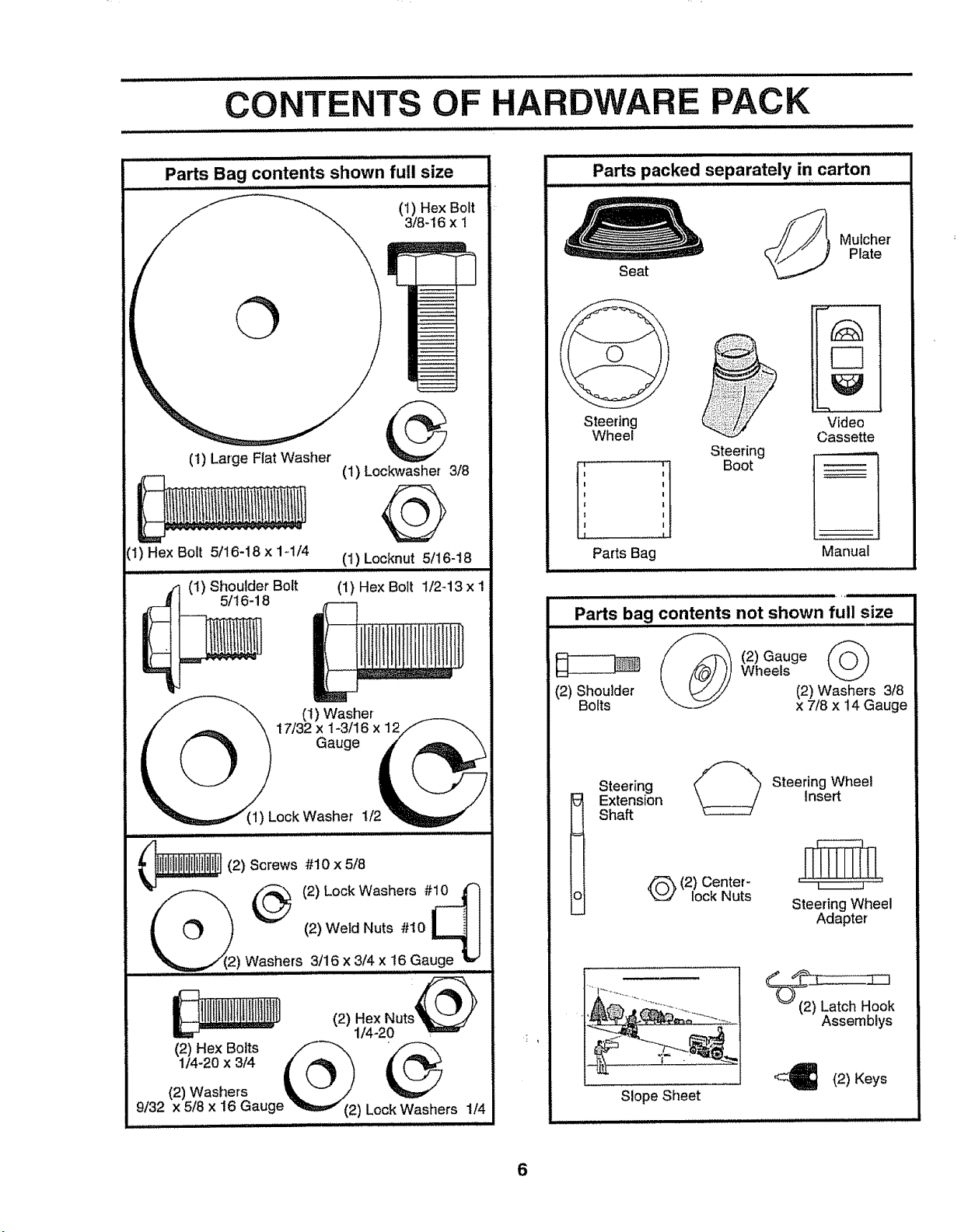

CONTENTS OF

iiH,,i

Parts Bag contents shown full size

(1) Large Flat Washer

(1) Hex Bolt 5116-18 x 1-114

(1) Shoulder Bolt

5/I 6-18

(1) Hex Bolt

3/8-16 x I

(1) Lockwasher 3/8

(t) Locknut 5116-18

(1) Hex Bolt 1/2-13 x I

(2) Hex Bolts /'_"_

1/4-20 x 3/4

(2) Washers

9/32 x 5/8 x 16 (2) Lock Washers 1/4

..................... ,, ,, ,,,,,

HARDWARE PACK

ii iJl

Parts packed separately in carton

Seat

_ Mulcher

Plate

Steering

Wheel

Parts Bag

Steering

Boot

Video

Cassette

Manual

Parts bag contents not shown full size

_z / (2) Gauge

Wheels

(2) Shoulder (2) Washers 3/8

Bolts x 7/8 x 14 Gauge

Steering _ _ Steering Wheel

Extension Insert

Shaft

2) Center-

lock Nuts

Steering Wheel

Adapter

Slope Sheet

_.L_ZZ3

(2) Latch Hook

Assembfys

(2) Keys

ASSEMBLY

i ii i,l,,i,,,ll ii

Your new tractor has been assembled at the factory with exception of those parts _eftunassembled for shipping purposes_

To ensure safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier_ Standard

wrench sizes are listed°

(1) 5/16"wrench (1) 9/16"wrench

(2) 7/16" wrenches (1) Phillips screwdriver

(2) 1/2" wrenches Utility knife

(1) 3/4" wrench Tire pressure gauge

(1) 3/4" socket with drive ratchet

When right and left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

. Remove all accessible loose parts and parts cartons

from carton (See page 6).

° Cut, from top to bottom, along lines on all four corners

of carton, and lay panels fiat,.

• Remove mower and packing materials,.

= Check for any additional loose parts or cartons and

remove°

BEFORE ROLLING TRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

o Slide extension shaft onto lower steering shaft. Align

mounting holes in extention and lower shafts and install

5/16 hex bott and locknuL Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT. LBS TORQUE_

= Place tabs of steering boot over tab slots in dash and

push down to securer

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing

straight forward.

o Slide steering wheel adapter onto steering shaft exten-

sion.

° Position steering wheel and sleeve assembty so cross

bars are horizontal (left to right) and slide onto adapter,,

° Assemble large flat washer, 3/8 lock washer, 3/8 hex

bolt and tighten securely.

° Snap steering wheel insert into center of steering

wheel.

• Remove protective plastic from tractor hood and,grill.

IMPORTANT; CHECK FOR AND REMOVE ANY STAPLE;S

IN SKIDTHAT MAY PUNCTURE TIRES WHERE TRACTOR,

IS TO ROLL OFF SKID..

STEERING

SHAFT

FIG. 1

TO ROLL TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

• Press lift lever plunger and raise attachment liftlever to

its highest position._

° Release parking brake by depressing clutch/brake

pedal.

o Place gearshift lever in neutral (N) position.

° Roll tractor backwards off skid_

CONNECTBATTERY (See Fig. 2)

........... , i,, i, =u=

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding. .....................

= Lift hood to raised position.

° Open terminal access doors, remove terminal protec-

tive caps and discard.

° if this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

= First connect RED battery cable to positive(+) battery

terminal with hex bolt, flat washer, lock washer and he

nut as shown° Tighten securely.

• Connect BLACK grounding cable to negative (-) bat-

tory terminal with remaining hex bolt, flat washer, lock

washer and hex nut, Tighten securely_

Close terminal access doors,,°

Use terminalaccess doors for:

= inspection for secure connections (to tighten hard-

ware)_

ILII

SEAT PAN SEAT

SHOULDER ',_,,\\.._ \ \ \ \\ \

BOLT T

sTMENT\ LOCKWAS.ER

FIG. 3

CHECK TIRE PRESSURE

The tires onyour tractorwere overinflated at the factory for

shipping purposes_ Correct tire pressure is importantfor

best cutting performance.

° Reduce tire pressure to PS1 shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual

CHECK DECK LEVELNESS

For best cutting results, mower' housing should be properly

Inspection for corrosion_

Testing battery.

Jumping (if required)_

Periodic charging.

DISCARD HEX NUT

TERMINAL

PROTECTIVE "_\

CAPS

TERMINAL .'"

ACCESS

DOOR .

LOCK WASHER FLAT

WASHER

)OSITIVE

HEX

BOLT

leveledo See "TO LEVEL MOWER HOUS!HG" in the

Service and Adjustments section of this manual

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

Assemble gauge wheels with tractoron a fiat level surface

° Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT' in the Operation

section of this manual).

° With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder boEt, 3/8 washer and 3/8-t6 locknut and

tighten securely.

• Repeat for opposite side instatling gauge wheel in

(RED) CABLE

NEGATIVE

(BLACK) CABLE

FIG. 2

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment boll

• Remove cardboard packing on seat pan

, Place seat on seat pan and assemble shoulder bolt.

° Assemble adjusthi_'nt bolt,lock washerand flat washer

loosely° Do nottighten

= Tighten shoulder bolt securely°

o Lower seat into operating positionand sit on seat.

° Slide seat untila comfortablepositionis reached which

allows you to press clutch/brake pedal all the way

down.

° Get off seat without moving its adjusted position.

. Raise seat and tighten adjustment bolt securely.

same adjustment hole_

GAUGE WHEEL

MOUNTING

BRACKET

LOCKNUT_

FIG. 4

BOLT

INSTALL MOWER AND DRIVE BELT (See

Figs. 5 and 7)

Be sure tractor is on level surface and mower suspension

arms are raised with attachment liftcontrol. Engage park-

ing brake,,

. Cut and remove ties securing anti-sway bar and belts.

Swing anti-sway bar to left side of mower deck,,

. Slide mower undertractorwith discharge guard to right

side of tractor.

IMPORTANT' CHECK BELT FOR PROPER ROUTING IN

ALL MOWER PULLEY GROOVES, INSTALL BELT iNTO

ELECTRIC CLUTCH PULLEY GROOVEr

BLY

Place the R.H_ suspension arm on outward pointing

deck pin. If necessary, rock and raise front of mower

to align deck pin with the hole in suspension arm,

Retain with double loop retainer spring with loops down

as shown,,

Connect anti-sway bar to chassis bracket under left

footrest and retain with double !oop retainer spring_

Turn height adjustment knob clockwise to remove

slack from mower suspension,

Raise mower to highest position,,

Assemble gauge wheels (See "TO ADJUST GAUGE

WHEELS" in the Operation section of this manual),,

• Install one front link in top hole of the R.H, front mower

bracket and RoH_front suspension bracket. Retain with

two single loop retainer springs as shown°

• Install secondfront linkin Loll front suspension bracket

only and retain with single loop retainer spring as

shown.

• Turn height adjustment knob counterclockwise until it

stops.,

• Lower mower linkage with attachment lift control.

o Place the LoHosuspension arm on outward pointing

deck pin., If necessary, rock and raise front of mower

to align deck pin with the hole in suspension arm.

Retain with double loop retainer spring with loops down

as shown,,

= Slide left side of mower back and installthe unattached

front link in top hole of the L°H_front mower bracket.

Retain with single loop retainer spring as shown..

CHECK MOWER LEVELNESS

For best cutting results, mower should be propedy leveled,

See "TO LEVEL MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion, mower

drive, and mower blade drive belts in the Service and

Adjustments section of this manual, Verify that the belts

are routed correctly_

ELECTRIC

CLUTCH

PULLEY,

FRONT

SUSPENSION

BRACKETS

DOUBLE LOOP

RETAINER SPRING

CHASSIS (outward pointing

BRACKET deck pins)

SUSPENSION

ARMS

FRONT

MOWER

BRACKET

FRONT

LINK

SHOULDER

BOLT

GAUGE

WHEEL

318WASHER

USE PLtERSFOR

RETAINER SPRINGS

3_16

CENTER

LOCKNUT

DOUBLE LOOP

RETAINER ANTI-SWAY

SPRING BAR

IDLER /

PULLEY

FIG. 5

SINGLE

LOOP

RETAINER

SPRINGS

DISCHARGE GUARD

iVlBLY

_,L i i illl ii i illll

INSTALL MULCHER PLATE (See Figs. 6A and

6B)

• Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown°

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

° Tighten hardware securely.

• Raise and hold deflector shield in upright position°

= Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

o Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge |

guard from mower. Raise and hold

guard when attaching muicher plate

and allow it to rest on plate while in

operation.

.............................. t t l l=llll= ,= =l ,=H

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your' mower is now ready for discharging or installation of

optional grass catcher accessory

NOTE: It is not necessary to change blades. The mulcher

blades are designed for discharging and bagging also..

WELD NUT

FROM THE TOP

HOOK POINTS

DOWN

LOCK

WASHER

WELD. SCREW

NUT -_'--_o_

LATCH

HOOK

WASHER

MULCHER

PLATE

LOCK

WASHER

FIG. 6A

WELD

NUT

DEFLECTOR

SHIELD

LATCH

HOOKS

FIG. 6B

,/CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSU RE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATISFACTION FROM

THIS QUALITY PRODUCT°

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose palts in carton.

,/ Battery is properly prepared and charged° (Minimum

1 hour at 6 ampSJo

,I Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/' Be sure mower deck is property leveled side-to-side/

front-to-rear for best cutting results.. (Tires must be

properly inflated forr leveling)_

,/' Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers_

v" Check widng. See that all connections are still secure

and wires are properly clamped,

WHILE LEARNIIVG HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level

v' Fuel tank is fil_ed with fresh, dean, regular unleaded

gasoline.

,I Become familiar with aUcontrols - their location and

function. Operate them before you start the engine.

J Be sure brake system is i_nsafe operating condition.

OPERATION

These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their meaning.

BATTERY CAUTION OR REVERSE

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE

FORWARD FAST SLOW

CLUTCH LIGHTS ON LIGHTS OFF

FUEL CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UHLOCKED

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH

LOW PARKING BRAKE

ATTACHMENT

CLUTCH DISENGAGED

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATIO

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself withthe locations of various controls and adjustments,, Save

this manual for future reference.

IGNITION

SWITCH LIGHT SWITCH

ATTACHMENT CLUTCH SWITCH t POSITION

22"-,

. - , LIFT LEVER

t . PLUNGER

ATTACHMENT

LIFT LEVER

CLUTCH/BRAKE

PEDAL

THROTTLE

CONTROL

PARKING

BRAKE LEVER

GEARSHIFT

LEVER

HEIGHT

ADJUSTMENT

KNOB

FIG. 7

Our tractorsconform to the safety standards of the American National Standards Institute,,

THROI'rLE CONTROL: Used for starting and controlling

engine speed°

CHOKE CONTROL: Used for starting a cold engine.,

CLUTCH/BRAKE PEDAL: Used for clutching and braking

the tractor and starting the engine.

HEIGHT ADJUSTMENT KNOB: Used to adjust the mower

cutting height.

IGNITION SWITCH: Used for' starting and stopping the

engine,,

'LIGHT SWITCH: Turns the headlights on and off°

AMMETER: Indicates charging (+) or discharging (-) of

battery.

ATTACHMENT CLUTCH SWITCH: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position_

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

PARKING BRAKE LEVER: Locks Clutch/Brake Pedal into

the brake position:,

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which I

can result in,severe eye damage. Always wear safety glasses or eye shields while

operating your tractor or performing any adjustments or repairs, We recommend a

wide vision safety mask over the spectacles or standard safety glasses.

illl,m#Hu,uut ._ iii i,,ulu,,i ,l,,,,,,uu,,,,,llll, ill,i i i

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor isequipped with an operator presencesensing

switch° When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

o Depress clutch/brake pedal into full "BRAKE" position

and hold.

. Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal Pedal should

remain in"BRAKE" position, Make sure parking brake

will hold tractor secure.

PUSH IN TO ATTACHMENT CLUTCH

"DISENGAGE" SWITCH PULL OUT TO

IGNITION KEY "ENGAGE"

PARKING

BRAKE

"ENGAGED"

POSITION

GEARSHIFT

LEVER

CHOKE

CONTROL

CLUTCH/BRAKE HEIGHT "DISENGAGED"

PEDAL"DRIVE" ADJUSTMENT POSITION

POSITION KNOB

FIG. 8

STOPPING (See Fig. 8)

MOWER BLADES -

• Move attachment clutch switch to "DISENGAGED"

position.,

GROUND DRIVE -

• Depress clutch/brake pedal intofull "BRAKE" position.

• Move gearshift lever to neutral (N) position.

ENGINE -

- Move throttle control to slow (,,=_) position_

NOTE: Failure to move throttle control to slow (,,g_)

position and allowing engine to idle before stopping may

cause engine to "backfire"°

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

° Never use choke to stop engine_

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass,, To eliminate this possibility,

always stop engine when stopping tractor on grass areas,,

CAUTION: Always stop tractor com-

pletely,as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle,

o Operating engine at less than full throttle reduces the

battery charging rate,

• Fullthrottleoffersthe best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine,,

Do not use to start a warm engine_

° To engage choke control, pull knob out, ;-lowly push

knob in to disengage,,

TO MOVE FORWARD AND BACKWARD

(See Fig, 8)

The direction and speed of movement is controlled by the

gearshift lever,,

• Start tractor with cFutch/brake pedal depressed and

gearshift lever in neutral (N) position,,

• Move gearshift lever to desired position.

• Slowly releaseclutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTFNG OR CHANGING GEARS, FAILURE

TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE,

TO ADJUST MOWER CU'I-FING HEIGHT

(See Fig. 8)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

= Turn knob clockwise (f'_l) to raise cutting heighL

° Turn knob counterclockwise (F'_)to lower cutting

heighL

The cutting height range is approximately 1-1/2" to 4"° The

heights are measured from the ground to the blade tip with

the engine not running_ These heights are approximate

and may vary depending upon soil conditions, height of

grass and,types of grass being mowed.

° The average tawnshould be cut to approximately2-1!2

inches during the coo! season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

° For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE MOWER (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

= Select desired height of cut.

° Lower mower with attachment lift control

• Start mower blades by engaging attachment clutch

control

• TO STOP MOWER BLADES - disengage attachment

clutch con{i'oL

ii iuiiii, iiii i , ill,i, ii i i, .... ii iiil,lln ill i iiinll,

cAuT.oN oono,o.e.hemowor

h, without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place,

ATrACHMENT CLUTCH SWITCH

PULL OUT TO ENGAGE

LIFT LEVER

"HIGHEST"

POSITION

LOWEST

POSITION

PUSH IN TO

"DISENGAGE"

_'_ DISCHARGE

GUARD

FIG. 9

TO OPERATE ON HILLS

i .................i

=1 CAUTION: Do not drive up or down

_)_ hills with slopes greater than 15° and

"i ................................do no..!drive across any slope.

Choose the slowest speed before starting up or down

hills.

Avoid stopping or changing speed on hills

If slowing is necessary, move throttle control lever to

slower position.

If stopping is absolutely necessary, push clutch!brake

pedal quickly to brake position and engage parking

brake°

Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to roll slightly as you restart

movemenL

To restart movement, slowly release parking brake and

clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

- ,Raise attachment lift to highest position with attach-

ment lift control.

• When pushing or towing your tractor, be sure gearshift

lever is in neutral (N) position.

° Do not push or'tow tractor at more than five (5) MPHo

NOTE: To protect hood from damage when transporting

your'tractor on a truck ora trailer, be sure hood isclosed and

secured to tractor_ Use an appropriate means of tying hood

to tractoi' (rope, cord, etc,.)..

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 15)

• The engine in your'tractorhas been shipped, from the

factory, already filled with summer' weight oil.

° Check engine oil with tractor on level ground,.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached.. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).,

• To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

• Fill fuel tank, Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline,

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP iNSURE GOOD COLD WEATHER

STARTING..

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storages. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for' additional information. Never use engine or

carburetor cleaner products in the fuel tank or-permanent

damage may occur.

.............................

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

, use,,,,gasoline near an open flame.

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.,

14 " Depress clutch/brake pedal and set parking brake.

OPERATION

• Place gear shift [ever in neutral (N) position.,

, Move attachment clutch to "DISENGAGED" position_•

. Move throttle control to fast (._) p_tio'ri '

= Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

Note: Before starting, read the warm and cold starting

procedures below,

....... RT"

° Insert key Into sgnttJonandtu m key cloc_seto STA

position and release key as soon as engine starts., Do

not run starter continuously for more than fifteen sec-

onds per minute.i If the engine does not start after

several attempts, push choke controI in, wait a few

minutes and try again. If engine still does not start, pull

the choke control out and retry°

WARM WEATHER STARTING (50: F and above)

- When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

° The attachments and ground drive can now be used° If

the engine does not accept the toad, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and below)

° When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the

choke control is fully in,, If the engine starts to run

roughly, pull the choke control out slightly for a few

seconds and then continue to push the control in

slowly. This may require an engine warm-up period

from several seconds to several minutes, depending

on the temperature_

. The attachments can be used during the enginewarm-

up period and may require the choke control be pulled

out slightly,,

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See 'q'O

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual

MOWING TIPS

• Tire chains cannot be used when the mower housing

is attached to tractor,,

• Mower should be properly leveled for best mowing

performance. See'q'o LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual°

° The left hand side of mower should be used for trim-

mingo

• Drive so that clippings are discharged onto' the area

that has been cu!. Have the cut area to the right of the

machine° This will result in a more even distrib'ution of

clippings and more uniform cutting,

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig,, 10 ).,

If grass is extremely tall, it should be mowed twice to

reduce toad and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height°

Do not mow grass when it is wet., Wet grass will plug

mower.and leave undesirable clumps. Allow grass to

dry before mowing.

Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as welt as the quality of cut desired.

When operating attachments, select a ground speed

that wilt suit the terrain and give best performance of

the attachment being used.

FIG. 10

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

• The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed, Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn,

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades,

° Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action°

The best time to mow your lawn is the early afternoon°

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 11). For extremely heavy mulching,

reduce your width of cut on each pass and mow slowly.

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

15 FIG. 11

CUSTOMER R ;IBILITIES

m m ,, ................

choc,E_gioeOilLevel V' _"

C'hange 'EngineOil _##

E CleanAir Filter ........ _#'2

N CleanAir Screen ............ V'2

G Inspect Muffler/SparkArrester

[ ReplaceOilFtlter(if equipped)

tie"" Engine€oo"ngFi.s i

RepiaceSparkPlug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

t - Change more often when operating under a heavy lead or in high ambient tempera{ures

2 - Service mote often when operating in dirty or dusty conditions

3 - tf equipped with oil fillet, change ottevery 50 hours

4 - Replace blades more often when mowing in sandy soR

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover-items that have

been subjected to operator-abuse or negligence. To

receive fuli value from the war ranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor,

All adjustments in the Service and Adjustments section of

this manual should be checked at Ieast once each season.

i ¸..... iv ...... i ...........

v'_

.......v' v'

v'2

Vw. i .........

5 - If equipped with,adjustable system

6 - Not requited if equipped with maintenance-tree battery

7. Tighlen f_'ontaxle pivot bolt to 35 Ii .-lbs maximum

Do net overtighten

LUBRICATION CHART

(_)SPINDLE ZERK (_)

(_) FRONT

BEARING ZERK

FRONT WHEEL(_

BEARING ZERK

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear° A new spark plug and clean air filter assure

proper air-fuel mixture and help you rengine run better

and last longer.

CLUTCH

PIVOT(S)

BEFORE EACH USE

- Check engine oil level.

, Check brake operation.

o Ch'eck tire pressure°

• Check for loose fasteners.

PIVOTS

'(_SAE 30 OR 10W30 MOTOR OIL

_GENERAL PURPOSE GREASE

(_)REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT; DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS, VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WiLL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, Pew-

1 6 DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSiBIL ES

TRACTOR

Always observe safety ruleswhen perform!pg any ma[_!e-

nance_

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjuste&

(See 'q'O ADJUST BRAKE" in the Service and Adjust-

ments section of this manual)°

TIRES

- Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual),,

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage,,

BLADE CARE

For best results mower blades must be kept sharp, Re-

place bent or damaged blade&

BLADE REMOVAL (See Fig. 12)

- Raise mower to highest position to allow access to

blades°

- Remove hex bolt, lock washer and flat washer securing

blade°

. install new or resharpened blade with trailing edge up

towards deck as shown.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

. Tighten bolt securely (30-35 Ft..Lb& torque)..

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED_

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced_

MANDREL

ASSEMBLY

FLAT WASHER

BLADE

LOCK WASHER

HEX BOLT

TRAILING EDGE

"A GI_IADE 8 HEAT TREATED BOLT CAN BE IDENTIFIED

BY SIX LINES ON THE BOLT HEAD,

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

Care should be taken to keep the blade balanced° An

unbalanced blade will cause excessive gibration and even-

tual damage to mower and engine,.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancero (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

• Slide blade onto an unthreaded portion of the steel bolt

or pin and hold the belt or pin parallel with the ground,

If blade is balanced, it should remain in a horizontal

position, If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade_ The lobes of

the center hole may appear to be centered, but are noL

BLADE

OR PIN

FIG. 13

BATTERY

Your tractor has a battery charging system which is suffF

cient for normal use,. However, pedodic charging of the

battery with an automotive charger will extend its life.

° Keep battery and terminals clean..

• Keep battery bolts tight.

• Keep small vent holes open.

o Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power_

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor_.

° Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until,bright,

° Coat terminals with grease or petroleum jelly°

° Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual).

CUSTOMER RESPONSIBI

V-BELTS

Check V-belts for deteriorationand wear after 100 hours of

operation and replace if necessary. The' belts are n_t

adjustable_ Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxtefree from build-up of dirt and chaff which

can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated withAPI service

classification SF or SG. Select the oil's SAE viscosity

grade according to your expected operatingtemperature_

SAE VISCOSITY GRADES

-30° -20= -I0 = 0 ° 10" 20= 30°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

DRA1N_ AIR SCREEN

PLUG "

ENGtNEO,L

DIPSTICK AND

FILL TUBE

FIG. 14

CLEAN AIR SCREEN (See Fig, 14)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

NOTE: Although rnulti-viscosity oils (5W30, 10W30 etc_)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Checkyour engine oil level more frequently to avoid

possible engine darT]agefrom running low on oil.

Change the oil after' the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level

TO CHANGE ENGINE OIL (See Fig.15)

Determine temperature range expected before oil change.

All oi! must meet API service classification SF or SG

• Be sure tractor is on level surface,.

• Oil wil! drain more freely when warm°

• Catch oil in a suitable container.

° Remove oil fill dipstick. Be careful not to aIlow dirt to

enter the engine when changing oil

o Remove drain plugo

• After oil has drained completely, replace oil drain plug

and tighten securely°

° Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfiU. For approximate capacity see

"PRODUCT SPECIFICATIONS on page 3 of this

manual.

° Use _auge on oil fill dipstick for checking level. Be sure

dipsbck cap is tigh!ened, securely for accu rate reading.

Keep oil at FULL' line on dipstick.

AIR FILTER (See Fig. 15)

Your engine will not run properly using a dirty air filter.

Clean thefoam pre-cleaner element after every 25 hoursof

operationor every season, Service paper cartridge every

100 hours or'every season, whichever occurs first.

Service air' cleaner more often under dusty conditions,

° Remove knob(s) and cover,

TO SERVICE PRE-CLEANER

° Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water,

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

° If very dirty or' damaged, replace pre-cleaner.

= Reinstall pre-cteaner over cartridge.

° Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

° Remove wing nuts and cartridge plate.

• Carefully remove cartridge to prevent debris from

entering carburetor.

° Clean cartridge by tapping gently on flat surface. If very

dirty or damaged, replace cartridge_

• Reinstall cartridge plate, wing nuts, precleaner, cover

and secure with knob(s).

, , ill/ i,l,i iJl/i iiJlJ l,/i Jl, i i,iilll ill II i

CUSTOMER RESPONSIBmLITmES

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION._QF

THE CARTRIDGE., DO NOT OIL CARTRIDGE° DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

" CARTRIDGE.

CARTRIDGE

FOAM

PRE-CLEANER..,.-.

AIR SCREEN

CARTRIDGE

FIG. 15

ENGINE COOLING FINS (See Fig. 16)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating. Air guide covers

must be removed. Remove side panels and hood (See "TO

REMOVE HOOD AND GRILL ASSEMBLY" in the Service

and Adjustments section of this manual),.

ENGINE

COOLING FINS

AIR GUIDE COVER

(BOTHSIDES)

FIG. 16

MUFFLER

Inspectand replace corrodedmuffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage,.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of use, whichever comes

first. Spark plug type and gap setting is shown in "PROD-

UCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fueI filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line

sections.

° Place new fuel filter in position in fuel line with arrow

pointing towards carburetor,.

° Be sure there are no fuel line leaks and clamps are

properly positioned.

o immediately wipe up any spilled gasoline.

FIG. 17

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter..

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax,.

We do not recommend using a garden hose to clean your

tractor unless the ebctrical system, muffler, air filter and

carburetor are covered to keep water out_ Water in engine

can result in a shortened engine life.

AND ADJUSTMENTS

it,i , IN UL ' ............... '

IIIIIIll I Illlllllll,lll ................................

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress clutcWbrake pedal fully and_set parking brake.. Place gearshift lever in neutral (N) position,

° Place attachment clutch in "DISENGAGED" position.

,, Turn ignition key "OFF" and remove key.

° Make sure the blades and atl moving parts have completely stopped.

° Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug.

i ill iiiii ill i ii .....................

TO REMOVE MOWER (See Fig. 18)

° Place attachment clutch in "DISENGAGED" position.

. Turn height adjustment knob to lowest setting.

= Lower mower to its lowest position.

° Remove retainer spring holding anti-swaybar to chas-

sis bracket and disengage anti-swaybar from brackeL

• Remove retainer springs from suspension arms at

deck and disengage arms from deck.

- Raise attachment lift to its highest position,,

. Remove two retainer springs from each front link and

remove l{nks.

. Slide mower forward and remove belt from electdc

clutch pulley,,

° Slide mower out from under right side of tractor,

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK lS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS,

TO INSTALL MOWER

Follow procedure described in "INSTALL MOWER AND

DRIVE BELT" in the Assembly section of this manual.

ADJUSTMENT

NUTS LIFT

LINKS FRONT

SUSPENSION SUSPENSION

ARMS BRACKET

,,,,,,,, ,, ...................

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPEC[FICATtONS" on page 3 of this manual).

If tires are over or' underinflated, you will not properly adjust

your mower,

SIDE-TO-SIDE ADJUSTMENT (See Figs, 19 and 20)

• Raise mower to its highest position.

° At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance "A" on

both sides of mower shou{d be the same or within 1/4

of each other'.

° If adjustment is necessary, make adjustment on one

side of mower only.

° To raise one side of mower, tighten lift link adjustment

nut on that side,

• To lower one side of mower, loosen lift link ad;ustment

nut on that side.

NOTE: Each fu!l turn of adjustment nut will change mower

height about 1/8".

Recheck measurements after' adjusting,

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

FIG. 19

CHASSIS

FRONT

SUSPENSION

BRACKET

RETAINER

. ,,SPRING

ANTI-SWAY

BAR

FIG. 18

RETAINER

SPRINGS

RETAINER

INGS

FRONT MOWER

BRACKET

ill,ll illll ,ll, U i i

SERV AN ADJUSTMENTS

LIFT LINK ADJUSTMENT NUT

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDEo IF

THE FOLLOWING FRONT*TO*BACK ADJUSTMENT tS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE,

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position

Check adjustment on right side of tractor. Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately i0-3/8",

• If links are not equal in length, adjust one fink to same

length as other link.

• To lower front of mower loosen nut "E" on both front

linksan equal number of turns.

• When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nuts "F" against trunnion on both front

links,

o To raise front of mower, loosen nut"F" from trunnion on

both front linksoTighten nut "E" on both front links an

equal number of turns.

- When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut"F" against trunnion on both front links.

= Recheck side*to-side adjustment,

MANDREL

FIG. 21

BOTHFRONT LINKSMUST BE EQUAL IN LENGTH

NUT "E"

NUT "F

LINKS

TRUNNION

FIG. 22

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL (See Fig, 23) -

• Park tractoron a level surface. Engage parking braker

° Remove four screws from LH mandrel cover and

remove cover.

° Roll belt over the top of L.Ho mandrel pulley.

° Remove belt from electric clutch pulley.

• Remove belt from idler pulleys,

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

° Check primary idler arm and two idlers to see that they

rotate freely°

• Be sure spring is securely hooked to primary idler arm

and bolt in mower housing.

MOWER DRIVE BELT INSTALLATION (See Fig. 23) -

• Install belt in both idlers° Make sure belt is in both belt

keepers at the idlers as shown.

. Install new belt onto electric clutch pulley.

= Roll bett into upper groove of L.H. mandrel pulley,

° Carefully check belt routing making sure belt is in the

grooves correctly and inside belt keeper&

° Reassemble L.H. mandrel cover.

L.H, SCREWS IDLER

MANDREL PULLEYS

COVER \

ELECTRIC

CLUTCH

PULLEY

MOWER

DRIVE

BELT

IDLER ARM

BELT

KEEPERS

21 FIG. 23

S RVICE AND ADJUSTMENTS

"_'_"-"_................... _' ..... ........................................... i'_" , , : :,

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 24)

Park the tractor on levet surface° Engage parking brake°

• Remove mower drive belt (See"TO REPLACE MOWER

DRIVE BELT' in this section of this manual)°

° Remove mower' (See "TO REMOVE MOWER" in this

section of this manual).

° Remove four screws from RH, mandrel cover and

remove cover,. Unhook spdng from bolt on mower

housing,

o Carefully roll belt off R.Homandrel pulley,

° Remove belt from center mandrel pulley, idler pulley,

and L,Homandrel pulley.

o Remove any dirt or' grass which may have accumu-

lated around mandrels and entire upper deck surface,

° Check secondary idler arm and idler'to see that they

rotate freely,

° Be sure spring is hooked in secondary idler arm and

sway-bar brackeL

• Install new belt in lower groove of LH, mandrel pulley,

idler pulley, and center mandrel pulley as shown°

° Roll belt over Roll, mandrel pulley Make sure belt is in

all grooves properly.

= Reconnect spring to bolt in mower housing and rein-

stall R,H_ mandrel cover.

° Reinstall mower to tractor' (See "INSTALL MOWER

AND DRIVE BELT" in the Assembly section of this

manual),

° Reassemble mower drive belt (See 'qO REPLACE

MOWER DRIVE BELT" in this section of this manual),

L,H, MOWER

MANDREL BLADE CENTER

DRIVE BELT MANDREL

IDLER

PULLEY

RoH.

MANDREL

COVER

SECONDARY

IDLER ARM

SPRING SWAY-BAR

BRACKET SCREW

FIG. 24

TO ADJUST ATTACHMENT CLUTCH (See

Fig. 25)

The electric clutch should provide years of service. The

clutch has a built-in brake that steps the pulley within 5

second¢,_ Eventually, the internal brake will wear which

may caus_ the mower blades to notengage, or, to notstop

as required..Adjustments shouldbe made by your nearest

authorized service centeddepartmenL

° Make sure attachment clutchand ignitionswitches are

in"OFF" position.

• Adjust the three nylon Iocknuts until space between

clutch plate and rotor measures .012" at all three slot

locations cut in the side of brake plate, ,

NOTE: After installing a new electric clutch, run tractor at

fuU throttle and engage and disengage electric clutch 10

cycles to wear' in clutch plate,,

ROTOR CLUTCH PLATE

SLOT(3) ....i

BRAKE PLATE

NYLON LOCKNUT {3)

FIG. 25

TO ADJUST BRAKE (See Fig. 26)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle,

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake,,

° Measure distance between brake operating arm and

nut "A" on brake rod_

if distance is other than 1-1/2", loosen jam nut and turn

nut "A" until distance becomes 1-1/2'L Retighten jam

nut against nut "A"_

Road test tractor for proper stopping distance as stated

above, Readjust if necessary, If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary, Contact your nearest

authorized service centeddepartment,.

WITH PARKING BRAKE "ENGAGED"

NUT "A"

M NUT

RATING

'ARM

FIG, 26

' ii1_111,II_'J"_I'_II'II'III'H' III

SERVICE AND ADJUSTMENTS

TO REPLACE MOTION DRIVE BELT

(See Fig. 27)

Park the tractor on ievel surfacer Engage parkingbr_.ke.

For assistance, there is a belt installation guide decal on

bottom side of left footrest°

• Remove mower (See 'q'O REMOVE MOWER" in this

section of this manuaL)

• Disconnect clutch wire harness_

• Remove clutch locatoro

° Remove upper belt keeper,

° Remove belt from stationary idler and clutching idler..

° Pull belt slack toward rear of tractor° Remove belt

upwardsfrom transaxle pulley by deflecting belt keep-

erso

° Pull belt toward front of tractor and remove downwards

from around electric clutch°

° Install new belt by reversing above procedure,

IMPORTANT; MAKE SURE UPPER BELT KEEPER JS

POSITIONED PROPERLY BETWEEN LOCATOR TABS

AND ELECTRIC CLUTCH WIRE CONNECTION IS

;ECURE.

ELECTRIC

CLUTCH

CLUTCHING _

IDLER

STATIONARY'

IDLER

TRANSAXLE

PU LLEY',_..,._

CLUTCH LOCATOR

_ OCATOR TABS

UPPER BELT

o (_ 7\

CLUTCH

WIRE

HARNESS

FIG. 27

TRANSAXLE SHIFTER LINKAGE AND AD-

JUSTMENT (See Figs. 28 and 29)

The transaxle should be in neutral when the gear shift lever

is in the neutral (N) (lock gate) position. The adjustment is

preset at the factory; however, if adjustment is needed,

proceed as follows:

° Make sure transaxle is in neutral (N)o

0 L6_osentwo Iocknuts on tie rod°

° Turn center rod until gearshift lever fails into neutral

lock gate on fender console°

- Tighten iocknuts securely.

GEARSHIFTLEVER

NEUTRAL

i LOCK GATE

FIG. 28

LOCKNUTS

"CENTER ROD

TIE ROD

TRANSAXLE

FIG. 29

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straightforward, remove steer-

ingwheel and reassemble per instructions in the Assembly

section of this manual,

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor° If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely,.

° Remove axle cover, retaining ring and washersto allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle., Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

- Replace axle cover.

WASHERS

RETAINING

RING _kk\\*

'_*_._SQUARE KEY

AXLE COVER (REAR WHEEL ONLY)

FIG. 30

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

!_ CAUTION: Lead=acid batteries goner'

ate explosive gases. Keep sparks, flame

and smoking materials away from bat-

terieso Always wear eye protection

when around batteries.

If your' battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR !S EQuiPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHtCLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.,

TO ATTACH JUMPER CABLES

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

° Connect one end of the BLACK cable to the NEGA_

TIVE (-) terminal of fully charged battery,.

° Connect the other end of the BLACK cable to good

CHASSIS G ROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

° BLACK cable first from chassis and then from the fulfy

charged battery,

° RED cable last from both batteries.

iJllllllll,lllli i II1_ II iJllllliiiiiiuii iiiiiii

FIG. 31

TO REPLACE HEADLIGHT BULB

o Raise hood.

° Pull bulb holder out of the hole in the backside of the

grill.

° Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill

= Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly,stop running,or prevent it from starting°

- Check wiflng_ See electrica! wiring diagram in Repair

Parts.section of this manual,

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash°

TO REMOVE HOOD AND GRILL (See Fig. 32)

= Raise hood.

• Unsnap headlight wire connector°

Stand in front of tractor. Grasp hood at sides, tilt

forward and lift off of tractoL

To reinstall, slide hood pivot brackets into slots in

frame.

Reconnect headlight wire connector and close hood.

_\'_ HEADLIGHT

/ \ _\_, WIRE

/ / _ _ "\ CONNECTOR

HOOD I _i_,__ /

FIG. 32

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttEecontrol has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

o With engine not running, move throttle control Iever to

fast (,_) position_

• Check that swivel is against side of quarter' circle. If it

is not, loosen cable clamp screw and pull cable back

until swivel is against quarter circle, Tighten cable

clamp screw securely.

CLAMP SCRE'_

QUARTER

CIRCLE

SWIVEL

FIG. 33

24-

TO ADJUST CHOKE CONTROL (See Fig, 34)

The choke control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before Eoosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move choke control(located

on dash panel) to full choke (1\1)position.

• Remove air cleaner cover',filter and cartridge plate to

expose carburetor choke (see "AIR FILTER" in the

Customer' Responsibilities section of this manual).

° Choke should be closed,, If it is not, loosen casing

clamp screw and move choke cable until choke is

completely closed_ Tighten casing clamp screw se-

curely_

Reassemble air cleaner,

i ii ii iiiii iiiiilUii 1111111111¸iiiiilUlllllllll

SERVICE A

D ADJUSTMENTS

_,:<+

CASING

CLAMP

SCREW _'_

CHOKE

LEVER

FIG. 34

TO ADJUST CARBURETOR

(See Figs. 35 and 36)

The carburetor has been preset at the factory and adjust+

merit should not be necessary+ However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load+ if the carburetor does need

adjustment, proceed as follows:

in general, turning the mixture screw in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the mixture screw out (counterclock-

wise) increases the supply of fuel to the engine giving a

richer fue!/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT°

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and the throttle

control cable and choke are adjusted properly (see

above)+

• With engine off turn idle mixture screw in (clockwise)

cTosing it finger tight and then turn out (counterclock-

wise) 1-1/4 to 1+1/2 turns.

FINAL SETTING -

- Start engine and allow towarm for five minutes° Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

• With throttle control lever in slow (,,oh) position, hold

throttle lever against idle speed screw and adjust idle

speed screw to obtain 1200 to 1400 RPM.

° While still holding throttle lever against idle speed

screw, turn idle mixture screw in (clockwise) until

engine begins to die and then turn out (counterc!ock-

wise) until engine runs rough,. Turn screw to a point

midway between those two positions+

• Continue to hold throttle lever against idle speed screw

and adjust idlespeed screwto obtain 900to 1200 RPMo

Release throttle lever.

ACCELERATION TEST +

° Move throttle control lever from slow (.€_.) to fast (.ee)

position° If engine hesitates or dies, turn idie mixture

screw out (counterclockwise) 1/8 turn. Repeat test

and continue to adjust, if necessary, until engine accel-

erates smoothly.

High speed stop is factory, adjusted+ Do not adjust -

damage may result,,

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED.. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS,, IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS+

IDLE SPEED

SCREW

IDLE MIXTURE

SCREW

THROTTLE

LEVER

FIG. 35

IDLE SPEED

SCREW

THROTTLE

LEVER

IDLE MIXTURE

SCREW

FIG. 36

STORAGE

ill i illlll,i, ii ,, ,i ii ii ..............

, illllll i i ,j L..........

Immediately prepare your +tractor for' storage at the end of

the season or if the tractor will not be used fer 30 days or

more°

CAUTION: Never' store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc_ Store in a

clean, dry area.

• Clean entire tractor (See"CLEANING" inthe Customer

Responsibilities section of this manual)..

= inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual)_

Lubricate as shown in the Customer Responsibilities

section of this manual

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear,, Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightlybefore painting.

BATTERY

= Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging,

° To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see'q'O

CLEAN BATTERY AND TERMINALS in the Cus-

tomer Responsibilities section of this manual).

° After cleaning, leave cables disconnected and place

cables where they cannot come incontact with battery

terminals_

Be sure battery drain tube is securely attached.

If battery is removed from tractor for' storage, do not

store battery directly or] concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: 1T IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE tN STORAGE..

° Drain the fuel tank_

• Start the engine and let it run until the fuel lines and

carburetor are empty.

° Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur_

° Use fresh fuel next season.

NOTE: Fuel stabilizer' is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

containe[, Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after' adding

stabilizer to allowthe stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer°

ENGINE OIL

Drain oil (withengine warm) and replace with clean engine

oil (See "ENGINE!' in the Customer Responsibilities

section of this manual)_

CYLINDERS

• Remove spark plug(s),

° Pour one ounce of oil through spark plug hole(s) into

cylinder(s)_

• Turn ignition key to "START" position for afew seconds

to distribute oil

= Replace with new spark plug(s),.

OTHER

• Do not store gasoline from one season to another.,

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.,

° If possible, store your tractor indoors and cover it to

give protection from dust and dirt°

° Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

wiUCause your tractor to rust,.

IMPORTANT: NEVER COVERTRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

PROBLEM

Wilt not start

Hard to start

Engine will not turn over

Engine ciicks but will not

start

Loss of power

Excessive vibration

I'1'11111 J IIIII1'11'11'11'11'111 II LLLI I rill ...........................

TROUBLESHOOTING POINTS

.................................................... :" ....................... JJJHJU=

CAUSE

1_ Outof fuel,

2, Engine not =CHOKED" properly.

3, Engine flooded,

4., Bad spark plug-

5, Dirty air filter`

6 Dirty fue_ filter.,

7 Water in fuel

8: Loose or damaged wiring

g Carburetor out of adjustment.

10 Engine valves out of adjustment,

t, Dirty air filter,

2, Bad spark plug

3- Weak or dead batter;/.

4, Dirty fuel filter,

5. Stale or dirty fuel,

6, Loose or damaged wiring

7 Carburetor out of adjustment.

8_ Engine valves out of adjustment,

1, Clutch/brake pedal not depressed.

2, Attachment clutch is engaged..

3, Weak or dead battery.

4, Blown fuse,

5. Corroded battery terminals,

6. Loose or damaged wiring._

7. Faulty ignition switch,,

8_ Faulty solenoid or starter

9. Fault,] operator presence switch(as).

1_ Weak or dead battery,

2. Corroded battery terminals,,

3, Loose or damaged wiring,,

4 Faulty solenoid or starter,

t. Cutting too much grass/too fast

2, Throttle in "CHOKE" positron.

3, Build-up of grass, leaves and trash under mower,

4_ Dirty air filter.,

5, Low oil level/didy oil

6 Faulty spark plug

7, Dirty fuel filter.

8 Stale or dirty fuel,

9, Waterln fuel,

I0 Spark plug wlre loose,

11. Dirty engine atr screen/fins

12. Dirty!clogged mufffer,

13, Loose or damaged wiring.,

14 Carburetor out of adjuslmenL

€5 Engine valves out of adjustment:

t, Worn, bent or loose blade,

2 Bent btademandrel,

3 Loose!damaged part(s),,

CORRECTION

1,, Fill fuel tank.

2 See "TO START ENGINE" in Operation section

3r Wart several minutes before attempting to start,

4,, Replace spark plug

5, Clean/replace air filler,,

6, Replace fuel filter,

7 Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuei filter,

8,, Check all wiring.

9, See "To Adjust Carburetor" in Service Adjustments

section

I0, Contact an authorized service center/department

1, Clean/replace air fitter,

2, Replace spark plug

3, Rechargeor repface battery

4, Replace fuel fitter.

5, Drain fuel tank and refill with fresh gasoline,

6 Check all wiring.

7, See "To Adjust Carburetor" in Service Adjustments

section,

8,, Contact an authorized service center/department,,

1. Depress clutch/brake pedal

2, Disengage attachment clutch

3, Recharge or replace batter;i

4., Replace fuse,

5, Cfean batterytermlnals,

6_ Check all wiring,,

7, Check/replace Fgnlfion switch

8 Check/replace solenoid or starter,

9. Contact an authorized service center/department.

1_ Recharge or replace battery

2. Clean battery terminals,

3 Check all wiring,

4 Check/replacesolenoid or starter,

1, Set in "Higher Cut" position/reduce speed

2 Adjust throttle control,

3 Clean underside of mower housing,,

4 Clean/replace air filter,

5. Check o11level/change oil.

6, Clean and regap or change spark plug.

7., Replace fuel filter

8, Drain fuer tank and reftlt with fresh gasoline

9 Drain fue_tank and carburetor, refill tank with fresh

gasoline and replace fuel fiiter

10 Connect and tighten spark plug wire,

11 Clean engine air screen/fins

12 Clean/replace muffler`,

13 Check all wiring.

14 See "To Adjust Carburetor" in Service Adjustments

section,

15, Contact an authorized service center/departmenL

1 Replace blade, Tighten blade bolt.

2, Replace bJade mandrel,

3, Tighten loose part(s), Replace damaged parts

,ll,i ,lln,ll

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s)notworking

(if so equipped)

_=_n_u,t_ i i ll=l,i ,,1,, i

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

TROUBLESHOOTING POINTS

......................... i = i ,= ill i,,l=lH==,,, iHi = illll

CAUSE CORRECTION

1,, Faulty operator-sali_ty presence cont_'ol system,

1, Worn, bent or loose blade.

2, Mower deck not leve_.

3 Buildup of grass, leaves, and trash under mower.

4, Bent blade mandrel,

5. Clogged mower deck vent betas from buildup of

grass, leaves, and trash around mandrels

1,, Obstruction in clutch mechanism

2 Womfdamaged mower drive bell

3, Frozen idler pulley

4, Frozen b_ade mandrel

1, Engine speed too slow.

2. Travel speed too fast..

3. Wet gras&

4_ Mower deck not level

5. Lowtuneven tire air pressure.

6, Worn, bent or toose blade

7, Buildup of grass, leaves and trash under mower,

8. Mower drive belt worn

9. Blades improperly installed

10, improper blades used.

11 Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels

1, Switch is "OFF",

2. Butb(s) burned out

3, Faulty light switch

4. Loose or damaged wiring,,

5, B!own fuse

1 Bad battery ceil(s),

2,. Poor cable connections,

3 Faulty regulator (if so equipped),

4 Faufty alternator.

1. Engine throttle control not set at "SLOW"

position for 30 seconds before slopping engine,

1 Check wiring, switches and connections if not

corrected, contact an authorized service center/

department,

1 Replace blade,, Tighten blade bolt

2, Level mower deck,

3. Clean underside of mower housing°

4 Replace blade mandrel.

5 Clean around mandrels to open vent holes,

1 Remove obstruelion,

2. Replace mowerddva belt

3 Replace idler pulley,

4 Replace blade mandrel

1 Place throttle control in "FAST" position,.

2 Shift to stower speed.

3 Allow grass to dry before mowing

4 Level mower deck,

5o Check tires for proper air pressure,

6 Replace/sharpen blade. Tighten blade bolt

7. Cleanunderslde of mower housing.

8, Replace mower dr_vebelt

9, Reinstall blades sharp edge down.

I0. Replace with blades listed in lhis manual.

11_ clean around mandrels to open vent holes

1 Tum switch "ON",.

2 Replace bulb(s),.

3 CheckJreplace light switch,.

4. Check wiring and connections,

5, Replace fuse,,

1 Replace battery,

2, ChecWclean all connections,.

3 Replace regulator,,

4,. Replace alternator.

1, Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.256660

AMMETER

RED

BATTERY

BLACK

FUSE 30 AMP.

;c G' ;---t .... '

,,_, W.itE'O' O'

| 1 t

WHITE

__L _ -RED BLACK

, ¢'_ t= STARTER

wHit__ _ °_,cKt

, (._.) ' |_.2_J._._._ ._-T-q SOLENOID

I F I ' ...... .- J_ 1 BLACK,_

= ' I CLUTCH I BRAKE ............................ I

,-., , t I (PEDAL UP) ELECTRIC CLUTCH

_.J ;("% . REO _ .... _L_f-',a_,_A.__.5_

I _ k,.j' , _,/ ",J '\ .)".. Jk. )_. A f, k_) I

I t ]= I [ l ..... '

I I _ I ] _ J

jA , r /

I t ' D I /r--- _

f t L ..... J / / SEAT SWITCH

f i ..... PZ° .... / / (NOTOCCUPIED)

l '/

............. -l-_---rr_--_;_-

t {

GROUNDING CONNECTOR

WHITE IGNITION

UNIT

CHARGING SYSTEM OUTPUT

5 AMP DO_,POS @ 3600 RPM

RED I ..I" "1 30 VOLTS AC MIN, @ 3600 RPM

---q_.4--_

DIODE _ L

ASSEMBLY [ I ALTERNATOR !

BROWN BLACK

@ ---O---

NON-REMOVABLEREMOVABLE

CONNECTIONS CONNECTIONS HEADLIGHTS

IGNITION SWITCH

POSITION CIRCUIT "MAKE" WIRING INSULATED CLIPS

...... NOTE: IF WIRINGINSULATED

OFF G + M + L NONE CLIPSWERE REMOVEDFOR

:RUN/LIGHT B + L A + Y SERVICINGOF UNIT,THEY

SHOULDBE REPLACEDTO

RUN "_ B + L NONE PROPERLYSECUREYOUR

START B + L + S NONE WIRING

GFC

1__ PARK _---4_

PLUGS _

PTO SWITCH

POSmOn i CIRCU,T

OFF I €+i9

ON IC+F,B+E,A+D

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

22 21

t t

50 ,

i I

. l I

(

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 146140

2 74760412

3 190910t6

4 10040400

6 73220400

7 7697J

8 7603J

9 109596X

10 145211

11 1452O9

12 145769

16 153664

19 10090400

20 73350400

21 147430

22 4t52J

24 4799J

25 146148

26 t08824X

28 145491

29 121305X

30 140301

31 12421iX

32 141226

33 109310X

40 151215

41 71110408

42 131563

43 145673

44 73640400

45 121433X

5O 154963

51 140405

52 141940

55 17490508

70 154728

Battery

Bolt, Hex 1/4-20 x 3/4

Washer 9/32 x 5/8 x 16 Gauge

Washer, Lock 1/4

Nut, Hex 1/4-20

Tube

Tray, Battery

Clamp, Hose

Bolt, Btr Front 1/4-20 x 7-1/2

Holddown Battery Dash Mount

Nut, Push Nylon Battery Front 1/4

Switch interlock Pushqn

Washer, Lock 1/4

Nut, Hex, ,Jam 1/4-20

Harness, Light Socket (wi4152J)

Light Bulb

Cable, Battery

Fuse

Cabte, Ground

Switch, Seat

Switch, Ignition 4 Position

Nut, Ignition

Cover, IgnitionSwitch

Key, Molded, Craftsman

Harness, Ignition

Bolt BIk Fin Hex 1/4-20 UNC x 1/2

Cover, Terminal

Solenoid

Nut Keps BIk Hex 1/4-20 UNC

Ammeter Rectangular 6 Amp

Switch PTP 3POT Red Delta 96

Ring Retainer PTO

Protection Wire Loop (Hour Meter)

Screw Thdrol 5/16-18 x 1/2

Harness, Engine Lt Private Label

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

3'1

REPAaR PARTS

TRACTOR - - MODEL NUMBER 917.256660

CHASSIS AND ENCLOSURES

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917,256660

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 151169

2 140356

3 17490612

4 STD551025

5 146077

6 145206

8 126471X

9 154587X010

10 STD533710

11 146956

12 145660

13 146962

14 17490608

15 74180512

16 STD541431

17 144983X574

18 126938X

20 145210

23 124028X

24 STD523710

25 19131312

26 STD541437

28 145198X459

29 145199

30 140002X574

31 137113

33 145244X574

34 i45243X574

35 STD533707

37 17490508

38 139886

39 139887

44 140675

47 105531X

51 73800400

52 19091416

53 145201

54 17030814

55 145202

57 74780412

58 140547

60 STD533707

74 STD541437

t40 150556

-+ 5479J

Chassis

Drawbar

Screw, Thd+, Roll. 3/8-'16 x 3/4 Type TT

Washer 13/32 x 3/4 x 16 Gauge

Bumper Snap-ln

Saddle

Clip, Fuel Line

Dash, Silkscreened

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH

Clip Tinnerman Grille P!L

Panel, Dash, RH

Screw, Thd°, Roll. 3/8-16 x 1/2 Type TT

Screw, Machine, Thd,, Roll.

5/16+18 UNC x 3/4

Nut, Hex, Keps 5/16-18 UNC

Hood Assembly

Bumper Hood

PIate Mtg Battery Fuel Tank 95

Bushing, Snap, Nylon, Fuel Line

Bolt, Hex Head, Fin°

3/8-16 UNC x I Grade 5

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with insert 3/8-16 UNC

Grilte, W/Clips MS+459

Lens, Grille

Fender

Bracket, Fender

Footrest, LH

Footrest, RH

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

Screw, Thdro!o 5/16-18 x 1/2 TYT

Pivot Bracket Assembly, LH, Mower, Rear

Pivot Bracket Assembly, RH, Mower, Rear

Strap Assembly, Fender

Nut, Push, Nylon

Nut Lock W/Insert 1/4 - 20 UNC

Washer 9/32 X 7/8 X I6 Ga,

Bracket Griile Pickoff LH

Screw, Hex Head, Spideriock #8 x 7/8 AB

Bracket Grille Pickoff RH

Bott FinHex 1/4 -20 UNC Xo75

Air Duct P/L 18HP B&S Opp° Twin

Bolt Rdhd Sqnk 3/8+16unc x 3/4

Nut, Crownlock 3/8-16 UNC

Bracket Chassis Front

Plug Btn BIk

NOTE: All component dimensions given in UoSoinches.+

t inch = 25,.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

DRIVE

110113

110

42_

40-----4

as-_

j39

REPAIR

DRIVE

PARTS

TRACTOR - - MODEL NUMBER 917.256660

KEY

NO.

PART

NO.

145602

146682

123666X

12000028

121520X

17490512

141002

137140

76020416

105701X

74550412

STD551125

74490544

126197X

STD541437

150280

106933X

1308O4

137141

STD541237

106888X

STD551037

STD561210

145204

124236X

130807

127275X

STD523107

72140506

151128

120183X

STD551062

STD5718t0

123674X

STD523727

4470J

153399

19131312

19111012

105706X

110812X

KEY PART

DESCRIPTION NO, NO. DESCRIPTION

Transaxle, Peerless, 6 Speed, 46 12000039

Model Number 930-057A 47 127783

Spring, Return, Brake 48 123789X

Pulley, Transaxle 49 123205X

Ring, Retainer 50 STD523715

Strap, Torque 51 STD541437

Screw, Thdo, Roll. 5/16-18 x 3/4 52 STD541431

Lever, Shift 53 105710X

Clutch Electric 55 105709X

Pin, Cotter 56 STD523712

Washer, Shift Plate 57 130801

Bolt t/4-28 UNF W/Patch Grade 8 58 127274X

Washer 59 140312

Bolt Hex Flghd 5/16-18 Gr 5 60 I05730X

Washer 61 17490612

Nut 62 8883R

Bolt Hex 7/16-20 x 4-I/4 63 140189

Knob 65 STD551143

Rod, Brake 68 121218X

Bracket Asm Mtg CI 74 137057

Nut 75 121749X

Spring, Brake Rod 76 STD581075

Washer 77 123583X

Pin 78 121748X

Rod, Parking Brake 79 2228M

Cap, Parking Brake, Red 80 145090

Bracket, Transaxle 81 145092

Keeper, Belt, L..H,, 82 !23782X

Bolt 83 19171216

Bolt Rdhd Sqnk 5/t6-18unc x 3/4 84 145643

Shaft Assembly, Foot Pedal 85 150360

Bearing, Nylon 86 71208

Washer 87 19212016

Roli Pin 88 12000008

Pulley, Idler, Flat 89 139991

Bolt 90 124346X

Spacer, Split °395 x .59 96 4497H

Keeper, Belt, Idler 1t0 74760612

Washer 13/32 x 13/16 x 12 Gauge 112 19091210

Washer 11/32 x 5/8 x !2 Gao t13 127285X

Bearing, Nylon

Washer, Hardened NOTE:

Ring, Klip

Pulley, Idler, V-Groove, Plastic

Bellcrank Assembly

Retainer, Belt

Bolt

Nut Crown Lock 3/8-16 UNC

Nut Crown Lock 5/16-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, R.H.

Keeper, Belt, Center Span

Keeper, Belt Engine

Screw, Thd., Roll. 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Washer

Keeper, Belt Engine LH

Spacer, Axle

Washer 25/32 x 1_I/4 x 16 Gauge

E-Ring

Key, Square 2_0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Gauge

Key Woodruff #9 3/16 x 3/4

Arm, Shift

Shaft Assembly

Spring, Torsion

Washer 17/32 x 3/4 x 16 Gauge

Tie Rod

Nut, Lock Center 1/4-28 FNTHD

Bushing, Pivot

Washer

E-Ring

Console, Shift, 6 Speed, N/Ignition

Nut, Self-Threading, Washer Hd 1/4

Retainer Spring 1" Zinc Cad

Bolt, Fin Hex 3/8-16 UNC x 3/4

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque LT

All component dimensions given in U.S. inches.

t inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256660

STEERING ASSEMBLY

"-_"_'-"_ 63

_39

t / t t 1

)

t I

' _42

16 32

_' 35

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 142033

3 135227

4 135228

5 6266H

6 12t748X

7 19272016

8 12000029

9 3366R

10 '130468

11 STD551137

13 1!0438X

t4 74O11056

15 73901000

t6 132624

17 14O176

t8 57079

19 124035X

20 t26684X

21 STD551t25

22 71100410

23 127501

24 109816X

25 !24036X

27 136874

29 17490612

32 130467

33 19111216

34 10040500

35 73810500

36 132196

37 152927

38 139769

39 19133808

40 7810H

41 100711L

42 145054

43 121749X

44 15372O

46 121232X

47 6855M

51 738OO5OO

54 74780520

62 149686

63 74780616

NOTE:

Wheel Steering Std Black

Axle Asm Front

Spindle Asm Lh

Spindle Asm Rh

Bearing Race Thrust Harden

Washer 25/32 X 1 5/8 X 16ga

Washer 27/32 X t 1/4 X '16 Ga

Ring Klip #t5304-75

Bearing Col Strg Blk

Link Drag Sol Ball Jt 20 064

Washer Lock Hvy Hlcl Spr 3/8

Spacer Bearing Axle Front

Bolt Hex 5/8-11 Unc X 3-1/2

Locknut Flange 5/8-11 Uric

Pin Axle 5/8 X 1 55/1 54 Lg

Shaft Asm Strg Private Label

Washer Thrust 515x 750x 033

Support Shaft

Washer Shim 1/4 X 5/8 X 062

Washer Lock Hvy Helical 1/4

Screw Cap Sckt Hd Phos & Oil

Shaft Asm Pittman

Nyliner Snap In

Bracket Steering

Gear Sector

Screw Thdrol 3/8-16x3/4 TTtt

Rod Tie Ball Jt Sol 19 75 Elec

Washer 11/32 x 3/4x 16 Ca.

Washer Lock Hvy H]c! Spr 5/16

Locknut 5/16-24unf 3847

Bushing Strg 5/8 ld Dash

Screw

Insert Cap Strg Wheel Std BIk

Washer 13/32 X 2-3/8 X 8 Ga

Nut Lock Center 3/8-24 Unf

Adaptor Wheel Strg 640/635id

Boot Shaft Steering

Washer 25/32 X 1 1/4X 16 Ga

Extension Shaft Steering LR/LT

Cap Spindle Fr Top Blk

Fitting Grease

Nut Lock Hex W/Ins 5/16 -18 UNC

Bolt Fin Hex 5/16 - 18 UNC X 1 -1/4

Kit, Sterring Assembly

Bolt, Fin Hex 3/8-16UNC x I

All component dimensions given in U.S. inches

1 inch = 25_4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

SEAT ASSEMBLY

KEY

NO.

PART

NO.

140123

140551

145006

STD541437

124181X

140552

121246X

121248X

72050411

t34300

121250X

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (blk)

Clip Push-In

Nut Lock Hex W/Ins 3/8 -16 UNC

Spring Seat Cprsn 2 250 Blk Zt

Pan Pnt Seat (bfk)

Bracket Pnt Mounting Switch

Bushing Snap Bik Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20xl-3/8

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 Blk Pnt

KEY PART

NO. NO. DESCRIPTION

17 123976X

2! 153236

22 STD541431

23 74780814

24 19171912

25 127018X

26 STD551150

27 17490608

28 150176

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc Blkz

Nut Lock Hex W/Ins 5/16-18

Bolt Fin Hex 1/2-13 X 7/8 Gr 5

Washer' 17/32 X 1-3/16 X 12 Ga

Bolt Shoulder 5/16-18 X 62

Washer' Lock Hvy Hlcl Spr 1/2

Screw Thdrot, 3/8-16 x 1/2

Bolt 5/16 -18 UNC X 3/4 W/Sems

NOTE: All component dimensions given in U,S, inches,.

1 inch = 25,4 mrn

REPAIR

DECALS

PARTS

TRACTOR-- MODEL NUMBER 917.256660

7 7

14 13 14

KEY PART

NOo NO.

1 140819

3 150683

4 150684

6 133644

7 150927

8 145245

9 128314

10 150333

1! 137537

t2 4900J

13 146046

14 154668

KEY PART

DESCRIPTION NO, NO.

Decal Dash InstructionOperat Eng 15

Decal Hood Rh Craftsman 17

Decal Hood Lh Craftsman 18

Decal Malnt Customer Sears Dom 19

Decat Panel Side B&S5 20

Pad, Footrest 22

Decal Fender Craftsman White - -

Decal, Cap CNSMR Help Line SRS - -

Decal Caution English/Spanish - -

Decal Clutch/brake English - -

Decal V-be_t Dr Sch Tractor E

Decal Chassis 6 Sp 46"

139346

151303

133179

138047

150955

149516

138311

145247

154388

154390

DESCRIPTION

Decal Mower Drive Schematic

Decar, Insert, Hood

Decai Mower Qc System

Decal, Battery Diehard Sears

Decal Deck Mower EZ3

Decal Battery

Decal Lift Handle

Fastener Pop-In Footrest

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS & TIRES

2 .... _ 5,8

4,10

KEY PART

NO. NO. DESCRIPTION

1 59'192

2 65139

3 106222X

4 59904

5 108732X427

6 278H

7 9040H

8 106108X427

9 122082X

10 7152J

11 104757X

-- 144334

Cap Value Tire

Stem Value

Tire F Ts 15 X 6 0 - 6 Service

Tube Inner Front #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing FFange

Rim Asm 8"rear White Service

Tire R Ts 20 x 10-8 Service

Tube Rear 9 5 X 8 Service

Cap Axle BIk I 50 X 1 00

Sealant, Tire (I0 oz, Tube)

NOTE: All component dimensions given in U.S, inches°

1 inch = 25.4 mm

REPAIR

ENGINE

PARTS

TRACTOR - -MODEL NUMBER 917.256660

•

'_iP''''_ 25

_'_"_ 26

32 31 34

39 40 41 33

OPTIONAL EQUIPMENT

Spark Arrester

1 35

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 151273

2 17720410

3 154546

4 149723

5 144069

6 144068

7 138129

8 150176

10 145552

11 STD551125

12 STD522507

13 272250

14 13280336

15 132OO3OO

16 STD551237

17 17490624

23 150554

25 145996

26 73920600

27 152927

29 137180

31 151346

32 152334

33 123487X

34 106082X

35 17490512

37 8543R

38 ---

39 109227X

40 3645J

41 139277

81 128861

NOTE:

Control Throt Paddle 32 22

Screw Hex Thd Cut 1/4-20x5/8 T

Engine B&s 19hp, Model No.

42A707, Type Nor 1625 -01

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

Clamp Tube Double Engine

Bolt 5/16 - 18 UNC X 3/4 W/Sems

Heat Shield Lt

Washer Lock Hvy, Helical 1/4

Bolt Fin Hex t/4-20 x 3/4

Gasket Muffler

Nipple Pipe 4-1/2"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-t6x1-1/2 Tytt

Shield Browning

Control Choke

Nut Hex 3/8-24 Unf

Screw

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Asm Fuel W/Guage

Clamp Hose Bik

Spacer Pad

Screw Thdro! 5/16-18 x 3/4

Line Fuel

Plug Oil Drain (Order From Engine

Manufacturer)

Pad idler 1.75 x .75 x ,06

Bushing

Stem Tank Fuel

Nut, Flange 1/4-20 Starter Nut

All component dimensions given in U.S.. inches.

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

MOWER LIFT

d °

161718

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 136973 Wire Assyo, inner, with Plunger

2 145117 Shaft Asm Lift

3 105767X Pin Groove

4 12000002 E Ring #5133-62

5 19211621 Washer 21/32xl x21 Ga..

6 120183X Bearing Nylon

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

10 t22512X Spring Cprsn

11 139865 Link Lift Lh Fixed Length

12 139866 Link Lift Rh Fixed Length

!3 4939M Retainer Spring

15 127218 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 130171 Trunnion BlkZinc

18 73800800 Nut Lock W/Wsh 1/2-13 Unc

19 139868 Arm Suspension Rear

23 110807X Nut Spring

24 19131016 Washer 13/32 x 5/8 x 16 Gao

25 2876H Spring 2-1/8"

26 76020308 Pin cotter 3/32 x 1/2

27 126971X Rod Adj_ Lift

28 73350600 Nut HexJam 3/8-!6

29 138057 Knob Inf. 3/8-16

30 150233 Trunnion Inf,, Hgt.

31 140302 Bearing, Pivot, Lift, Special

32 73540600 Nut, Crownlock 3/8-24

49 145212 Nut, Flange Lock

NOTE:

All component dimensions given in U. S. inches

1 inch = 25.4 mm

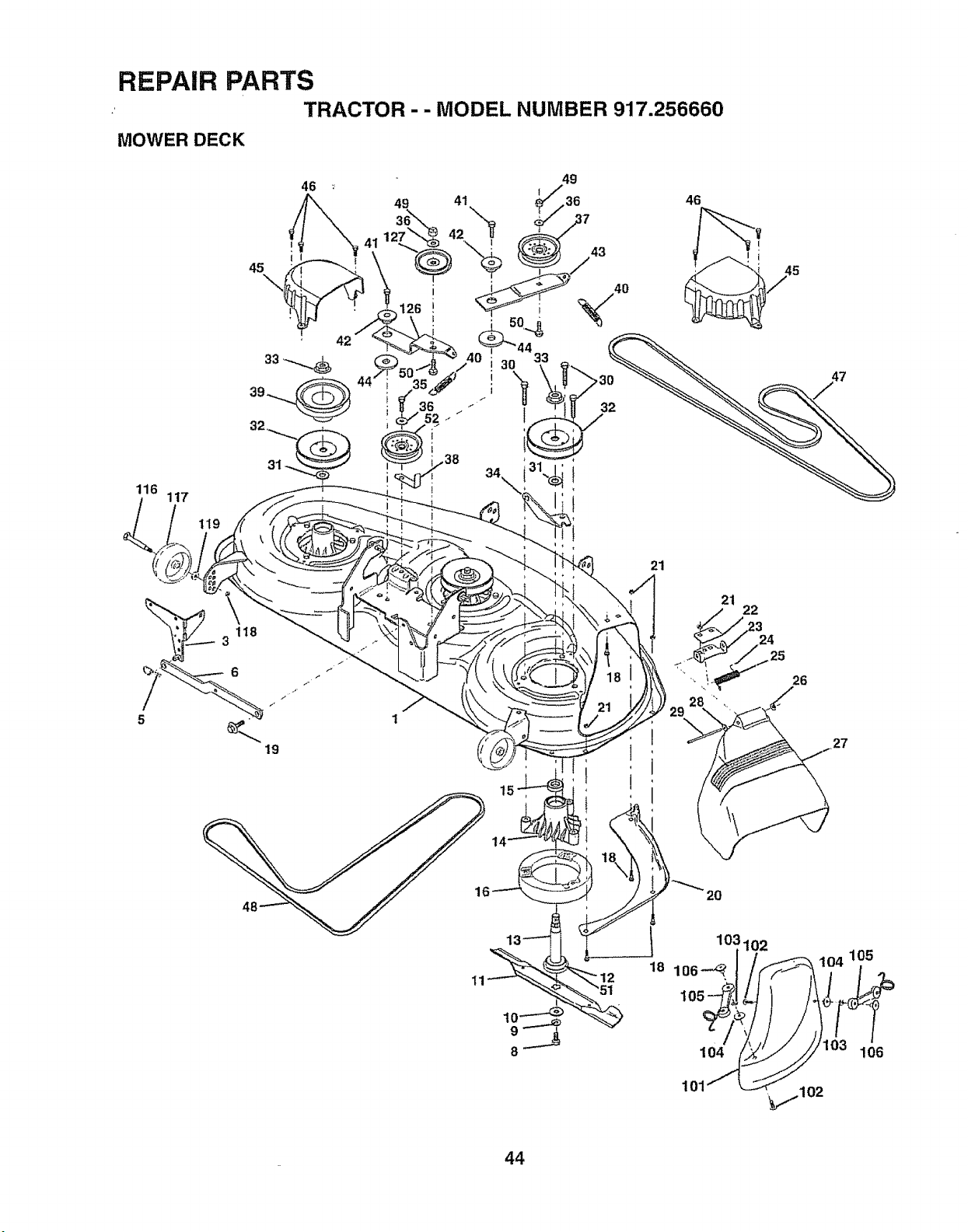

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

MOWER DECK

i i

103102 _______74

'°,oo_]/F

105

10_44/7_ / 10F3 106

101_ 102

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 153125

3 138457

5 STD624008

6 130832 ,

8 850857

9 STD551137

10 140296

11 152443

!2 129895

13 137553

'14 137152

15 110485X

t6 140329

18 STD533106

19 132827

20 145055

21 STD541431

22 134753

23 131267

24 105304X

25 t23713X

26 110452X

27 145325

28 19111016

29 131491

30 138776

31 129963

32 153531

33 137266

34 144945

35 17490628

36 STD551037

37 131494

Deck Asm., Mower 46" 38

Bracket Asm., Sway Bar 39

Retainer Spring 40

Arm, Suspension, Rear (Sway Bar) 41

Bolt, Patched 3/8-24 x 1-1/4 Gro8 42

Washer, Lock Hvyo, Unplated 3/8 43

Washer, Hard Blade, Mower 44

Vented 45

Blade, 46" Mower Deck 46

Bearing, Ball, Mandrel #6204 47

Shaft Asm. w/Lower Bearing 48

(Includes Key No. !2) 49

Housing, Mandrel 50

Bearing, Bal!, Mandrel 51

Stripper, Mower Round 52

Bolt, Carriage 5/16-18 x 5/8 101

Bolt, Hex Head, Shoulder 5/16-18 102

Baffle, Vodex Mower 46" 103

Nut, Crownlock 5/16-18 UNC 104

Sfiffiner, Bracket 105

Bracket, Deflector 106

Cap, Sleeve 116

Spring, Torsion, Deflector 117

Nut, Push 118

Shield, Deflector Mower 119

Washer 11/32 x 5/8 x 16 Ga. 126

Rod, Hinge 127

Screw, Hex Head, Thdroll - -

Washer, Spacer Mower Vented

Pulley, Mandrel --

Nut, Fig. Top Lock Cntr., 9/16

Anchor, Spring Deck 46'

Screw, Thdroll 3/8-16 x 1-3/4 Tytt

Washer 13/32 x 13/16 x 16 Ga. NOTE:

Pulley, Idler, Flat

137554

144917

137273

17490620

122052X

144949

133943

145059

137729

144959

148763

STD541437

72110612

153390

155191

145579

71161O1O

STD551110

19061216

130758

2029J

137644

133957

STD541437

STD551037

144948

146763

143651

151775

Keeper, Belt, Idler

Pulley, Idler, Driven

Spring, Secondary 44/46/50 Vent

Screw, Thdroll 3/8-'16 x 1-1/4 Tytt

Spacer, Retainer

Arm, Idler Secondary

Washer, Hardened

Cover, Mandrel Deck

Screw, ThdroE 1/4-20 x 5/8

V-Be_t, Mower, Secondary

V-Belt, Mower, Primary'

Nut, Crowntock 3/8-16 UNC

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

Felt Washer

Putley Idler Flat

Cover, Mulching

Screw

Washer, Lock #10

Washer

Latch Asmo Bagger

Nut, Weld

Bolt, Shoulder

Gauge Wheel, Wide

Nut, Centerlock 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Gao

Arm, Idler, Primary Deck 46"

Pulley, Idler, V-Groove Dim 4.25

Mandrel Asm (Includes Key nos.

8-I0, 12-15, 3i and 33)

Deck Complete (Stdo Deck-Order

separately mulcher plate and gauge

wheel components Key Nos. 101-

106 and 116-118)

All component dimensions given in U,S. inches

1 inch = 25.4 mm

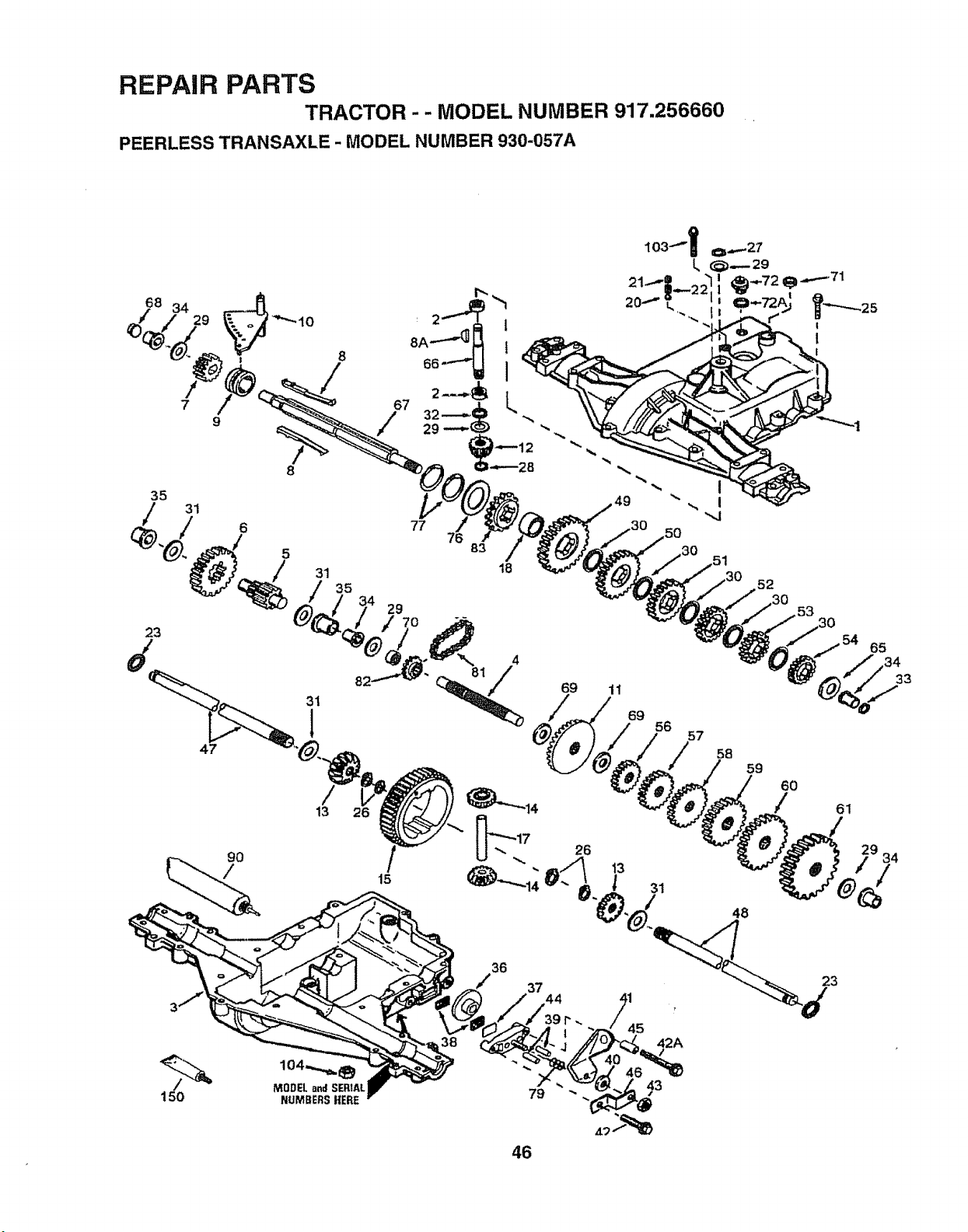

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256660

PEERLESS TRANSAXLE - MODEL NUMBER 930-057A

68 34

1o4......_®

MODEL n_ SERIAL:

NUMBERS XERE

69 11

42A

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

PEERLESS TRANSAXLE - MODEL NUMBER 930-057A

REF PART REF PART

NO. NO° DESCRIPTION NO. NO, DESCRIPTION

1 772108A Cover, Transaxle 43 792075

2 780086 Bearing, NeedIe 44 790025

3 770102A Case, Transaxle 45 786066

4 776260 Shaft, Counter 46 786086

5 776219B Shaft and Pinion Assembly, Output 47 774690

6 778139 Gear, Output, 35 Teeth 48 774691

7 778136 Gear, Spur, 15 Teeth, Steel 49 778215

8 792136A Key, Shift 50 778125

8A 792047 Key, Woodruff 51 778124A

9 784352 Collar, Shifter 52 778123A

10 784355 Rod and Fork Assembly, Shift 53 778122A

11 778229 Gear, Bevel, 42 Teeth 54 778273

12 778113A Bevel Pinion, Input 56 778230

13 778221 Gear, Bevel, 16 Teeth 57 778151

14 778068 Gear, Bevel Pinion 58 778126A

15 778260 Gear, Ring 59 778127A

t7 786139 Pin, Drive 60 778128A

18 786102 Spacer, Neutral 61 778163

20 792077 Ball, Steel 5/16" diameter 65 780109

21 792078 Set Screw 3/8-16 x 3/8 66 776135

22 792079 Spring 67 776315A

23 788061 Ring, Seal 68 786116A

25 792073 Screw, Flanged Hex Head, Thread 69 780051

Forming 1/4-20 x 1-1/4 70 7861t8

26 792125 Ring, Retainer 71 788069

(4 Required, Package of 2) 72 792165

27 792035 Ring, Retainer 72A 788091

28 788040 Ring, Retainer 76 780090

29 780072 Washer, Thrust 77 788078A

30 780108 Washer, Thrust

31 780001 Washer 79 792144

32 792001 "O" Ring 81 786081

33 788095 Seal, Square Cut

34 780105A Bushing, Flanged 82 786082

35 780t18A Bushing, Flanged 83 786123

36 790003 Disk, Brake 90 788067B

37 790007 Plate, Brake Pad 103 792166

38 799021 Pad, Brake (Package of 2) 104 792167

39 786026 Pin, Dowel 150 510334

40 792076A Washer, Flat

41 790079 Lever, Brake

42 792073 Screw, Flanged Hex Head, Thread

Forming 1/4-20 x t-1/4

42A 792085A Screw 1/4-20 x 2-1/4

Locknut 5/I6-24

Holder, Brake Pad

Spacer

Bracket Brake Lever

Axle 11-5/16" long

Axle 16-1/2" long

Gear Spur, 37 Teeth, Steel (1..)

Gear Spur, 35 Teeth (2-)

Gear Spur, 30 Teeth (3_)

Gear Spur, 25 Teeth (4)

Gear Spur, 22 Teeth (5_)

Gear Spur, 19 Teeth, Steel (6.)

Gear S )ur, 12 Teeth, Steel (1..)

Gear S)ur, t5 Teeth (2.)

Gear S )ur, 20 Teeth (3.)

Gear S _ur, 25 Teeth !_..t

Gear S Jur, 28 Teeth

Gear S 3ur, 3'1 Teeth

Washer Thrust

Shaft, in 3ut

Shaft, Brake, 4 Keyed

Plug

Washer, Th rust

Spacer

Square Cut Ring

Plug, Threaded 9/16-18

"O" Ring

Washer, Thrust

Ring, Retaining, Inverted

(Package of 2)

Spring, Brake

Chain, Roller

(Number 41 Chain, 24 Links)

Sprocket, 9 Teeth (Reverse)

Sprocket, 18 Teeth (Reverse)

Grease, Bentonite, 32 Ounce Bottle

Screw 1/4-20 x 2

Locknut 1/4-20

Gasket Eliminator (Loctite #515)

NOTE: All component dimensions given in UoS. inches

1 inch = 25..4 mm

Parts must be ordered from Tecumseh Products Co..

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256660

BRIGGS & STRA'i-I'ON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

_ 24

615

634A (_

552A _

615 q_

552

230

219

601

240

868 _ 40 35

42@_ _ 819

41 36 34

_:_ 45 21

523

.I 842

422

284A

284

534

642

'_ 165

643

535

445

235

161

537

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

1358 GASKET SET ]

1861puMPREPAIRK_

1i21 ............CARBURETOR'.....................KIT

1095 ALVE OVERHAU L

GASKET SET

859

394

104 103

434

468

392

..................

332

851

257

188

_117

334

482

1006

363

51A

_ 634

232

257

_ 52

356

877

1005

383

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

783

801

653

544

8O3

311

_:_ 229

592

209A

209

201

414

206

207

224

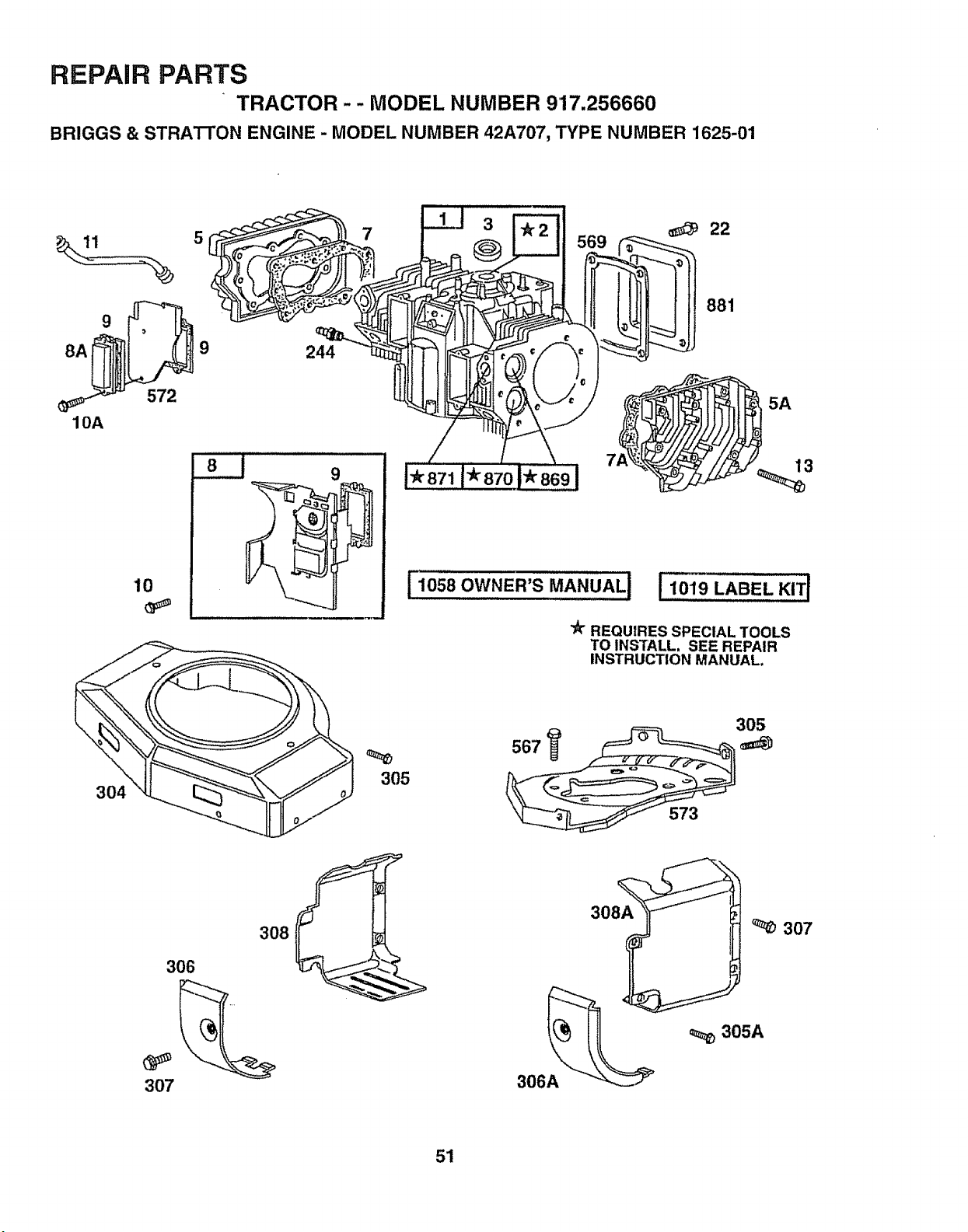

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256660

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

8A 9 244

10A

304

572

305

881

r1058 OWNER'S MANUAL!

"A"REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

3O5

573

307

3O8

306

307

305A

REPAIR PARTS

:'TRACTOR -- MODEL NUMBER 917.256660

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 497074

2 399265

3 391086

5 493457

5A 493458

7 271867

7A 271868

8 495754

8A 222892

10A

51A

27803

94382

9483O

280225

271703

271188

271189

94565

94239

394O28

94196

493304

291675

94724

491180

222698

498584

498585

498586

498587

394959

394960

394961

394962

263129

299691

391286

394306

397158

94671

390420

261528

65906

26828

221596

292260

494553

261368

213520

213290

271412

281411

270884

93970

Cylinder' Assembly 54

Bushing 75

* Seal, Oil 78

Head, Cylinder' #1 90

Head, Cylinder #2 91

,* Gasket, Cylinder Head #1 93

-* Gasket, Cylinder Head #2 , 94

Breather.Assembly #1 , 95

Cover', Breather Cylinder #2 96

(Used Only on Key #572, 97

Air Baffle with Holes for Mounting) 98

-* Gasket, Breather 99

Screw, Seres 102

Screw, Serns 103

Tube, Breather' 104

* Gasket, Crankcase, .015" Thick 105

* Gasket, Crankcase, .005" Thick 107

* Gasket, Crankcase, ..009"Thick 108

Screw, Cylinder' Head 109

Plug, Oil Drain 116

Crankshaft 117

Timing Gear Key

Sump, Engine

* Seal, Oil 119

Screw, Sems 121

Flywheel 127

Key, Flywheel 161

Piston Assembly, Standard Size 165

Piston Assembly, _.010"Oversize 187

Piston Assembly, .020" Oversize 188

Piston Assembly, .030" Oversize 201

Ring Set, Standard Size 202

Ring Set, .010" Oversize 203

Ring Set, .020" Oversize 205

Ring Set, .030" Oversize 206

Lock, Piston Pin 207

Pin, Piston, Standard Size 209

Pin, Piston, _005"Oversize 209A

Rod, Connecting, Standard Size 219

Rod, Connecting, .020" Undersize 219A

Screw, Connecting Rod 220

Valve, Exhaust 222

Valve, intake 224

Spring, Valve, intake 227

Spring, Valve, Exhaust 229

Retainer, Valve, intake

Retainer, Valve, Exhaust

Keeper, Valve

Tappet, Valve

Gear, Cam

Manifold, Intake

.... Gasket, Carburetor Mounting

Spacer, Carburetor

-" Gasket, intake Manifold Mounting

Screw, Hex Head, .,

Carburetor' to Manifol6_,'

94764

222511

94326

495181

495035

231209

491538

93499

221939

392672

91920

26157

271607

298514

230896

394683

491543

223534

392673

280474

231338

231333

94152

491539

223472

496599

94289

299146

94627

262683

262684

280997

93971

94298

262337

262352

261563

394348

393415

222773

491282

94297

491297

62199

Screw, Sems

Washer, Spring

Screw, Sems

Carburetor'

Body Assembly, Upper

Bushing, Throttle Shaft

Valve, Idle Adjust

Screw, Sems

Valve, Throttle

Shaft, Throttle

Screw, Fiilister Head

Spring, Throttle Adjust

Gasket, Carburetor Body

Float, Carburetor

Pin, Float Hinge

Valve, Needle

Body Assembly, Lower

Valve, Choke

Shaft, Choke

O-Ring

Jet, Needle Valve, Fixed

Jet, Needle Valve, Fixed,

High Altitude

Screw, Hex Head

Carburetor Kit

Plug, Welch

Base, Air Cleaner

Nut, Wing

Line, Fuel, 28" Long (Cut to Suit)

Screw

Link

Crank, Bell

Screw, Hex Head

Nut, Square

Spring, Control Rod

Spring, Governor

Spring, Governor idle

Gear, Governor

Oil Slinger

Washer, Thrust

Bracket, Control

Screw, Pan Head

Lever Assembly, Governor

Washer

* Included in Gasket Set (495868)

** Included in Carburetor Kit (491539)

*** Included in Carburetor Kit (491539),

and Pump Repair Kit (393397)

.... included in Gasket Set (495868),

and Carburetor Kit (491539)

, included in Valve Overhaul Gasket Set (498047)

NOTE: All component dimensions given in U.S.. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256660

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42A707, TYPE NUMBER 1625-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

230 223882 Washer, Governor Crank, Inside 569 272645 * Gasket, Base

232 262539 Spring, Link 572 224816 Baffle, Air, Cylinder #2

235 224995 Shield, Fuel Spray 573 491304 Plate, Back

240 394358 Filter, Fuel 592 92278 Nut, Hex.

244 230318 Connector, Fuel Line 601 93053 Clamp, Hose

257 93897 Screw, Sems 615 94296 Retainer, E-Ring

258 94623 Screw, Sems 615A 263080 Retainer

284 94674 Screw;.Hex Head : 6t6 491530 Crank, Governor

284A 94694 Screw, Hex Head 634 271013 ** Washer, Throttle Shaft

304 495587 Housing, Blower, Red 634A 491287 * Seal, Governor Shaft

305 94786 Screw, Seres 635 66538 Boot, Spark Plug

305A 93343 Screw, Sems 642. 225008 Cover, Air Cleaner

306 222846 Shield, Cylinder 643 496700 Plate, Air Cleaner

306A 223734 Shield, Cylinder 653 93585 Screw, Hex Head

307 94386 Screw, Self-Tapping 726 391362 Gear, Ring

308 224774 Cover, Air Guide (Includes Mounting Parts)

308A 224775 Cover, Air Guide 741 262989 Gear, Timing

309 497596 Motor, Starter 783 280104 Gear, Starter

310 94003 Bolt, Thru 801 394860 Cap, Drive

311 497608 Brush Set 802 497607 Cap, End

332 230674 Nut, Hex 803 497604 Housing, Starter

333 394891 Armature, Magneto 814 392606 Wire, Alternator

334 94731 Screw, Sems 819 94675 Screw, Hex Head

337 802592 Plug, Spark 842 270920 * Seal, Cap

356 494705 Wire, Stop 847 495715 Tube Assembly, Oil

358 491856 Gasket Set 851 493880 Terminal, Cable

363 19203 Flywheel Puller. 858 270989 *** Diaphragm, Carburetor

383 89838 Wrench, Spark Plug 859 271025 *** Gasket, Pump

387 280197 Body, Pump 860 261358 *** Spring, Diaphragm

392 261395 *** Spring, Diaphragm 86'1 393397 Repair Kit, Pump

394 270988 *** Diaphragm, Carburetor 868 497212 • Seal, Valve

414 220680 Washer 869 261463 Seat, Valve, Intake

422 222875 Bracket, Oil Fill 870 213316 Seat, Valve, Exhaust

432 221377 *** Cap, Spring 871 261961 Bushing, Guide (Exhaust Only)

434 223688 Cover, Diaphragm 231218 Bushing, Guide (intake, Brass)

435 93829 Screw, Diaphragm Cover 877 393537 Wire, Alternator

445 394019 Filter, Air 881 495901 Plate, Cover

468 497908 Screen, Rotating 955 397882 Plug and Seal, Solenoid

474 392595 Alternator, Dual Circuit 1005 28t053 Fan, Flywheel

482 93621 Screw, Sems 1006 224413 Retainer, Fan

510 497606 Drive, Starter 1019 496726 Label Kit

523 494947 Cap, Oil Fill 1058 272112 Owner's Manual

524 271157 * Seal, Fill Tube 1090 497605 Retainer, Brush

525 495348 Tube, Oil Fill (Includes Seals) 1095 498047 • Gasket Set, Valve Overhaul

528 3938!5 Line, Vacuum

534 94823 Screw, Air Cleaner RPM Settings: Low Speed: 1600-1800

535 2'72490 Filter, Air High Speed: 3200-3400

537 271411 .... Gasket, Air Cleaner

544 497603 Armature, Starter * Included in Gasket Set (495868)

552 262332 Lower Bushing, Governor

552A 262331 Upper Bushing, Governor ** Included in Carburetor Kit (491539)

556 93585 Screw, Hex Head

562 93853 Bolt, Governor Lever *** Included in Carburetor Kit (491539),

567 94811 Screw, Hex Head, and Pump Repair Kit (393397)

Back Plate to Cylinder

Included in Gasket Set (495868),

and Carburetor Kit (491539)

included in Valve Overhaul Gasket Set (498047)

NOTE: All component dimensions given in U.Soinches

1 inch = 25°4 mm

RVICE NOTES

SUGGESTED GUIDE FOR SiGHTiNG SLOPES FOR SAFE_OPERATION

SIGHTING

GUll

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE,

15 ° MAX.

ii ii iilllll

_J /% Operate your Tractor up and down the face of slopes (not

_! AA greater than 15 ), never across the face. Make turns gradu-

alsO ally to prevent tipping or loss of control. Exercise extreme

_! caution when changing direction on slopes.

_!! II HI _ ttttttttttltt

OWNER'S

MANUAL

MODEL NO.

917.256660

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

I:RR MRN°

19.0 HP TWiN CYLINDER

ELECTRIC START

46" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Each tractor has its own model number° Each engine has

its own model number,

The model number for "your tractor will be found on the

model plate located under the seat.

The model number for your engine will be found on the

blower housing of the engine°

All parts listed herein may be ordered from any Sears,

Roebuck and Coo Service Center/Department and most Re-

tail Stores_

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

, PRODUCT- TRACTOR

° MODEL NUMBER - 917.256660

• ENGINE MODEL NO. - 42A707, TYPE NO. 1625-01

° PART NUMBER

,, PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians., professional te/chnicians

specifically t_"ainedto insure that we meet our pledge to

you, we service what we sell..

154388 Rev, 1 8.16.96 JH/KFSW Printed in U.S.A,

Craftsman 917256660 tractor

Product's Documents

User Manual

Specifications

Craftsman 917256660 Questions and Answers
