EN User Manual
Microwave combi-oven
KM8403101M
CONTENTS
1. SAFETY INFORMATION.............................................................................................3
2. CONDITIONS OF USE................................................................................................5
3. SAFETY INSTRUCTIONS.............................................................................................5
4. PRODUCT DESCRIPTION...........................................................................................8
5. CONTROL PANEL....................................................................................................... 8
6. BEFORE FIRST USE................................................................................................... 10
7. DAILY USE..................................................................................................................11
8. MICROWAVE MODE................................................................................................ 14
9. CLOCK FUNCTIONS.................................................................................................19
10. AUTOMATIC PROGRAMMES................................................................................20
11. USING THE ACCESSORIES....................................................................................20
12. ADDITIONAL FUNCTIONS.................................................................................... 21
13. HINTS AND TIPS..................................................................................................... 23
14. CARE AND CLEANING.......................................................................................... 41
15. TROUBLESHOOTING.............................................................................................42

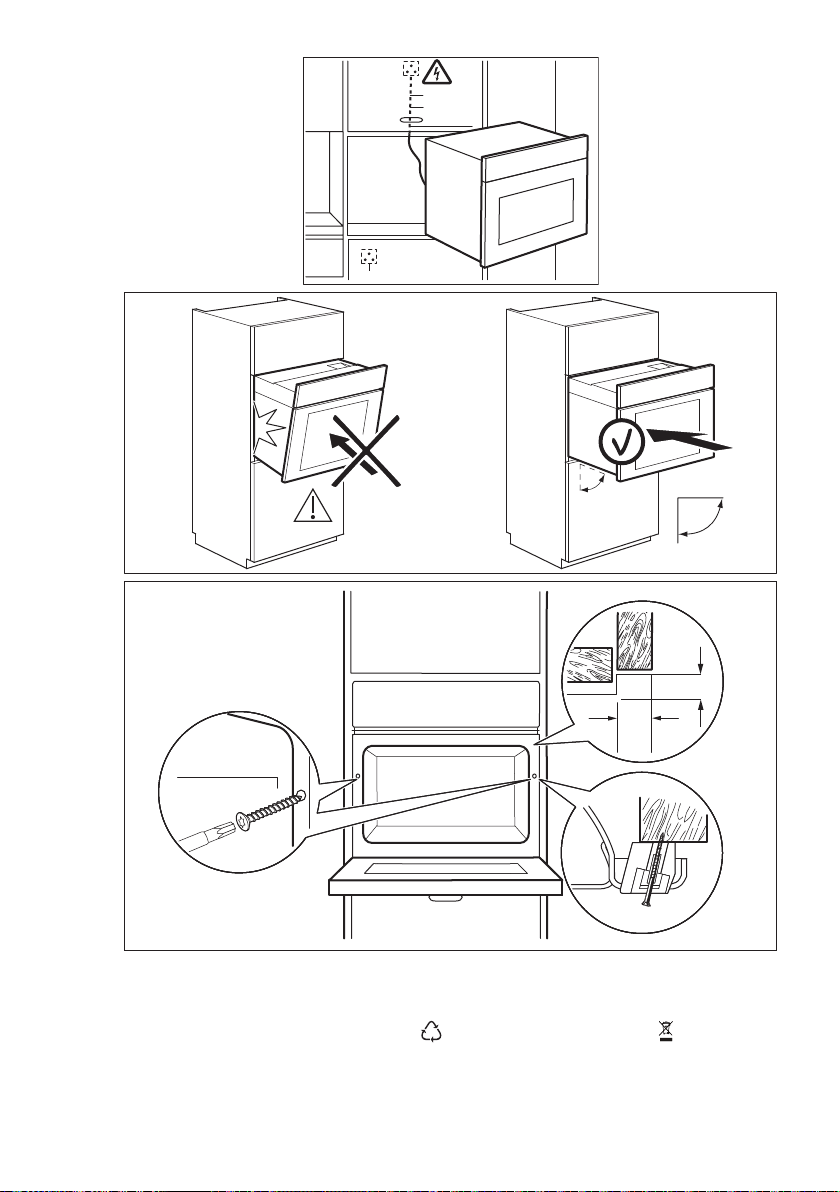

16. INSTALLATION........................................................................................................43
17. WARRANTY .............................................................................................................46
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2
1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should
be activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2
General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
ENGLISH
3
• Always use oven gloves to remove or put in
accessories or ovenware.
• Before maintenance cut the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Do not activate the appliance when it is empty. Metal
parts inside the cavity can create electric arcing.
• Metallic containers for food and beverages are not
allowed during microwave cooking. This requirement
is not applicable if the manufacturer specifies size and
shape of metallic containers suitable for microwave
cooking.
• If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
qualified person.
• Only a qualified person can carry out any service or
repair operation that involves the removal of a cover
which gives protection against exposure to microwave
energy.
• Do not heat liquids and other foods in sealed
containers. They are liable to explode.
• Only use utensils that are suitable for use in
microwave ovens.
• When heating food in plastic or paper containers,
keep an eye on the appliance due to the possibility of
ignition.
• The appliance is intended for heating food and
beverages. Drying of food or clothing and heating of
www.aeg.com
4
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
• If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling
the container.
• The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should
not be heated in the appliance since they may
explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any
food deposits removed.
• Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
2. CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• Farm houses
• By clients in serviced apartments,
holiday apartments and other
residential type environments.
3. SAFETY INSTRUCTIONS
3.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
3.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
ENGLISH
5
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need
to be replaced, this must be carried
out by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
3.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of
this appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with
wet hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration
to the enamel:
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
www.aeg.com
6
moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
3.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Make sure the cavity and the door are
wiped dry after each use. Steam
produced during the operation of the
appliance condensates on cavity walls
and can cause corrosion.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Fat and food remaining in the
appliance can cause fire and electric
arcing when the microwave function
operates.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of
detergent.
3.5 Internal light
• The type of light bulb or halogen
lamp used for this appliance is only
for household appliances. Do not use
it for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
3.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
ENGLISH
7
4. PRODUCT DESCRIPTION
4.1 General overview
1 2
8
4
3
1
2
3
6
4
5
7
1
Control panel
2
Electronic programmer
3
Heating element
4
Microwave generator
5
Lamp
6
Fan
7
Shelf support, removable
8
Shelf positions
4.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
5. CONTROL PANEL
5.1 Electronic programmer
21 3 4 5 76 8 9 10 11
www.aeg.com8
Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1
- Display Shows the current settings of the appliance.
2
ON / OFF To activate and deactivate the appliance.
3
Heating Functions
or Recipes
Touch the sensor field once to choose a heating
function or the menu: Recipes. Touch the sensor
field again to switch between the menus: Heating
Functions, Recipes. To activate or deactivate the
light, touch the field for 3 seconds.
4
Microwave func-
tion
To activate the Microwave function. You can use it
when the appliance is deactivated. When you use
the Microwave function with the function: Duration
for more than 7 minutes and in Combi mode, the
Microwave power cannot be more than 600 W.
5
Temperature se-
lection
To set the temperature or show the current tem-
perature in the appliance. Touch the field for 3
seconds to activate or deactivate the function:
Fast Heat Up.
6
Down key To move down in the menu.
7
Up key To move up in the menu.
8
OK / Microwave
Quick Start
To confirm the selection or settings. To activate
the Microwave function. You can use it when the
appliance is deactivated.
9
Back key To go back one level in the menu. To show the
main menu, touch the field for 3 seconds.
10
Time and addi-
tional functions
To set different functions. When a heating func-
tion operates, touch the sensor field to set the
timer or the functions: Function Lock, Favourites,
Heat + Hold, Set + Go.
11
Minute Minder To set the function: Minute Minder.
ENGLISH 9
5.2 Display
A
DE
B C
A. Heating function or Microwave
function
B. Time of day
C. Heat-up indicator
D. Temperature or power of the
microwave
E. Duration time or end time of a
function
Other indicators of the display:
Symbol Function
Minute Minder The function operates.
Time of day The display shows the current time.
Duration The display shows the necessary time
for cooking.
End Time The display shows when the cooking
time is complete.
Temperature The display shows the temperature.
Time Indication The display shows how long the heat-
ing function operates. Press and
at the same time to reset the time.
Heat-up Indicator The display shows the temperature in
the appliance.
Fast Heat Up Indicator The function is active. It decreases the
heat up time.
Weight Automatic The display shows that the automatic
weight system is active or that weight
can be changed.
Heat + Hold The function is active.
6. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
6.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and
cleaning" chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
6.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
www.aeg.com10
set the language, the display contrast,
the display brightness and the time of
the day.
1. Press or to set the value.
2. Press to confirm.
7. DAILY USE
WARNING!
Refer to Safety chapters.
7.1 Navigating the menus
1. Activate the appliance.
2. Press or to select the menu
option.
3. Press to move to the submenu or
accept the setting.
At each point you can go
back to the main menu with
.
7.2 The menus in overview
Main menu
Sym-
bol
Menu item Application
Heating Functions Contains a list of heating functions.
Recipes Contains a list of automatic programmes.
Basic Settings Used to set other settings.
Favourites Contains a list of favourite cooking programmes
created by the user.
Submenu for: Basic Settings
Sym-
bol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the display shows the current time
when you deactivate the appliance.
Set + Go To set a function and activate it later with a press
of any symbol on the control panel.
Heat + Hold Keeps the prepared food warm for 30 minutes af-
ter a cooking cycle finished.
Time Extension Activates and deactivates the time extension
function.
Display Contrast Adjusts the display contrast by degrees.
Display Brightness Adjusts the display brightness by degrees.
ENGLISH 11
Sym-
bol
Submenu Description
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of press-tones and signals by
degrees.
Key Tones Activates and deactivates the tone of the touch
fields. It is not possible to deactivate the tone of
the ON / OFF touch field.
Alarm/Error Tones Activates and deactivates the alarm tones.
Service Shows the software version and configuration.
Factory Settings Resets all settings to factory settings.
7.3 Heating Functions
Heating function Application
True Fan Cooking To bake on up to two shelf positions at the same
time and to dry food. Set the temperature 20 - 40
°C lower than for the function: Conventional
Cooking.
Pizza Setting To bake food on one shelf position for a more in-
tensive browning and a crispy bottom. Set the
temperature 20 - 40 °C lower than for the func-
tion: Conventional Cooking.
Slow Cooking To prepare tender, succulent roasts.
Conventional Cooking To bake and roast food on one shelf position.
Frozen Foods To make convenience food like e.g. french fries,
potato wedges or spring rolls crispy.
Turbo Grilling To roast larger meat joints or poultry with bones
on one shelf position. Also to make gratins and to
brown.
Fast Grilling To grill flat food in large quantities and to toast
bread.
Grilling To grill flat food and to toast bread.
www.aeg.com12
Heating function Application
Keep Warm To keep food warm.
Defrost This function can be used for defrosting frozen
foods, such as vegetables and fruits. The defrost-
ing time depends on the amount and size of the
frozen food.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Dough Proving For controlled rising of yeast dough before bak-
ing.
Bread Baking To bake bread.
Au Gratin For dishes such as lasagna or potato gratin. Also
to gratinate and brown.
Preserving To make vegetable preserves such as pickles.
Drying To dry sliced fruit (e.g. apples, plums, peaches)
and vegetables (e.g. tomatoes, zucchini, mush-
rooms).
Plate Warming To preheat plates for serving.
ECO Roasting When you use this function during cooking, it al-
lows you to optimize the energy consumption. To
get more information about the recommended
settings, refer to the cooking tables with the
equivalent function (Turbo Grilling).
The lamp may automatically
deactivate at a temperature
below 60 °C during some
oven functions.
7.4 Activating a heating
function
1. Activate the appliance.
2. Select the menu: Heating Functions.
3. Press to confirm.
4. Select a heating function.
5. Press to confirm.
6. Set the temperature.
7. Press to confirm.
7.5 Heat-up indicator
When you activate a heating function,
the bar on the display comes on. The bar
shows that the temperature increases.
When temperature is reached the buzzer
sounds 3 times and the bar flashes and
then disappears.
7.6 Fast Heat Up Indicator
This function decreases the heat-up time.
ENGLISH 13
Do not put food in the oven
when the Fast heat up
function operates.
To activate the function, hold for 3
seconds. The heat-up indicator
alternates.
7.7 Residual heat
When you deactivate the appliance, the
display shows the residual heat. You can
use the heat to keep the food warm.
7.8 Energy saving
The appliance contains
features which help you save
energy during everyday
cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates
and keep it closed as much as possible
during the cooking.
Use metal dishes to improve energy
saving, but only when you use a non-
microwave function.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum 3 - 10 minutes
before the end of the cooking time,
depending on the duration of the
cooking. The residual heat inside the
oven will continue to cook.
Use the residual heat to warm up other
dishes.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements deactivate
automatically 10% faster in some oven
functions.
The fan and lamp continue to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm. The display shows the
residual heat indicator or temperature.
Cooking with the lamp off
Deactivate the lamp during cooking and
activate only when you need it.
8.
MICROWAVE MODE
8.1 Microwave
General:
CAUTION!
Do not let the appliance
operate when there is no
food in it.
• After you deactivate the appliance, let
the food stand for some minutes.
Refer to the microwave cooking
tables: standing time.
• Remove the aluminium foil packaging,
metal containers, etc. before you
prepare the food.
• It is not recommended to use more
than one level when using the
microwave mode.
• Put the food on a plate on the bottom
of the cavity if not specified
differently.
• If possible, always stir the food before
serving.
Cooking:
• If possible, cook food covered with
material suitable for use in the
microwave. Only cook food without a
cover if you want to keep a crust.
• Do not overcook the dishes by setting
the power and time too high. The
food can dry out, burn or catch fire in
some places.
• Do not use the appliance to cook
eggs in their shells and snails,
because they can burst. With fried
eggs, pierce the yolks first.
• Pierce skin or peel of potatoes,
tomatoes, sausages and similar types
of food with a fork several times
www.aeg.com
14
before cooking so that the food does
not burst.
• For chilled or frozen food, set a
longer cooking time.
• Dishes which contain sauce must be
stirred from time to time.
• Turn larger pieces of food after half
the cooking time.
• If possible, cut vegetables into similar-
sized pieces.
• Use flat, wide dishes.
• Do not use cookware made of
porcelain, ceramic or earthenware
with unglazed bottoms or small holes,
e.g. on handles . Moisture going into
the holes can cause the cookware to
crack when it is heated.
Defrosting meat, poultry, fish:
• Put the frozen, unwrapped food on a
small upturned plate with a container
below it, or on a defrosting rack or
plastic sieve so that the defrosting
liquid can run off.
• Turn the food after half the defrosting
time. If possible, divide and then
remove the pieces that have started
to defrost.
Defrosting butter, portions of gateau,
quark:
• Do not fully defrost in the appliance,
but let them defrost completely at a
room temperature. This gives a more
even result. Remove all metal or
aluminium packaging or parts before
defrosting.
Defrosting fruit, vegetables:
• If fruit and vegetables should remain
raw, do not defrost them fully in the
appliance but let them defrost
completely at a room temperature.
• To cook fruit and vegetables without
defrosting them first, you can use a
higher microwave power.
Ready meals:
• Ready meals in metal packaging or
plastic trays with metal covers can
only be defrosted or heated in the
microwave if they are expressively
designated as suitable for use in the
microwave.
• You must follow the manufacturer's
instructions printed on the packaging
(e.g. remove the metal cover and
pierce the plastic film).
8.2 Suitable cookware and materials
Cookware / Material Microwave Grilling
Defrost-
ing
Heating Cooking
Ovenproof glass and porcelain with
no metal components, e.g. Pyrex,
heat-proof glass
Non-ovenproof glass and porcelain
1)
X X X
Grill shelf, glass and glass ceramic
made of ovenproof / frost-proof ma-
terial e.g. Arcoflam
Ceramic
2)
, earthenware
2)
X
Heat-resistant plastic up to 200 °C
3)
X
Cardboard, paper X X X
Clingfilm X X X
ENGLISH 15
Cookware / Material Microwave Grilling
Defrost-
ing
Heating Cooking
Roasting film with microwave safe clo-
sure
3)
X
Roasting dishes made of metal, e.g.
enamel, cast iron
X X X
Baking tins, black lacquer or silicon-
coated
3)
X X X
Baking tray X X X
Wire shelf X X X
Browning cookware, e.g. crisp pan or
crunch plate
X X
Ready meals in packaging
3)
1)
With no silver, gold, platinum or metal plating / decorations.
2)
Without quartz or metal components, or glazes which contain metals
3)
You must follow the manufacturer’s instructions about the maximum temperatures.
8.3 Tips for the microwave
Result Remedy
You cannot find details for the amount
of food prepared.
Find details for similar type of food. Increase or
shorten the length of the cooking time according
to the following rule: double the amount - almost
double the time, half the amount - half the time.
The food after cooking is too dry. Set shorter cooking time or select lower micro-
wave power and cover with material suitable for
use in the microwave.
The food is still not defrosted, hot or
cooked after the end of cooking time .
Set longer cooking time or select higher micro-
wave power. Note that taller dishes generally
need longer cooking time. Stir or turn food dur-
ing cooking.
After the end of cooking time the food
is overheated at the edges but is still
not ready in the middle.
Next time select a lower power and a longer
time. Stir liquids, such as soup, halfway through.
Other things to think about…
• Food items have different shapes and
qualities. They are prepared in
different quantities. Because of this,
the necessary time and power for
defrosting, heating or cooking can
vary. As a rough guide: double the
quantity - almost double the time.
• The microwave creates the heat
directly in the food. Because of this,
all places cannot be heated at the
same time. You must stir or turn the
www.aeg.com16
heated dishes, especially when
preparing larger quantities of food.
• The standing time is given in the
tables. Let the food stand, in the
appliance or outside it, so that the
heat is distributed more evenly.
• Adjust the power level according to
food quantity. Using high power level
with small amount of food can burn
the food or generate arcing when you
use the accessories.
• You get better results for rice if you
use flat, wide dishes.
8.4 Microwave functions
Functions Description
Microwave Creates the heat directly in the food. Use it to heat pre-prepared
meals and drinks, to defrost meat or fruit, and to cook vegetables
and fish.
Combi Use it to operate the heating function and the microwave mode to-
gether. Use it to cook food in a shorter time and brown it simultane-
ously.
The maximum power for this function is 600 W
Quick Start Use it to activate the Microwave function with one touch of the sym-
bol with the maximum microwave power. Operating time: 30 sec-
onds.
8.5 Setting the Microwave
function
1. Activate the appliance.
2. Touch to activate the Microwave
function.
3. Touch . The function: Duration is
set to 30 seconds and the
microwaves starts to operate.
Each touch of adds 30
seconds to the time of the
function: Duration.
If you do not touch , the
appliance deactivates after
20 seconds.
4. Touch to set the function:
Duration. Refer to "Setting the clock
functions".
When the time of the
function: Duration is longer
than 7 minutes the
Microwave power is
decreased to 600 W.
The maximum setting of the
time for the function:
Duration is 90 minutes.
You can change the
microwave power (touch
and then or ) and the
function: Duration any
time when the Microwave
function operates.
5. When the set time ends, an acoustic
signal sounds for 2 minutes. The
Microwave function deactivates
automatically. Touch any symbol to
stop the acoustic signal.
To deactivate the Microwave
function, touch .
If you touch or open the
door, the function stops. To
start it again, touch .
8.6 Setting the Combi function
1. Activate a heating function. Refer to
"Activating a heating function".
ENGLISH
17
2. Touch and do the same steps as
when you set the Microwave
function.
For some functions the
microwave will start as soon
as the set temperature is
reached.
Functions not available for the Combi
function: Favourites, End Time, Set + Go,
Heat + Hold.
8.7 Setting the Quick Start
function
1. If necessary, touch to deactivate
the appliance.
2. Touch
to activate the Quick Start
function.
Each touch of adds 30 seconds to the
Duration time.
You can change the
microwave power (refer to
"Setting the Microwave
function").
3. Touch to set the time for the
function: Duration. Refer to "Setting
the clock functions".
8.8 Examples of cooking
applications for power settings
The data in the table is for guidance
only.
Power setting Use
• 1000 Watt
• 900 Watt
• 800 Watt
• 700 Watt
Heating liquids
Searing at the start of the cooking process
Cooking vegetables
Melting gelatine and butter
• 600 Watt
• 500 Watt
Defrosting and heating frozen meals
Heating one-plate meals
Simmering stews
Cooking egg dishes
• 400 Watt
• 300 Watt
• 200 Watt
Continuing to cook meals
Cooking delicate food
Heating baby food
Simmering rice
Heating delicate food
Melting cheese
• 100 Watt Defrosting meat, fish, bread
Defrosting cheese, cream, butter
Defrosting fruit and cakes (gateaux)
Raising yeast dough
Heating up cold dishes and drinks
www.aeg.com18
9. CLOCK FUNCTIONS
9.1 Clock functions table
Clock function Application
Minute Minder To set a countdown (max. 2 h 30 min). This
function has no effect on the operation of the
appliance. You can also activate it when the
appliance is deactivated.
Use to activate the function. Press or
to set the minutes and to start.
Duration To set the length of an operation (max. 23 h
59 min).
End Time To set the switch-off time for a heating func-
tion (max. 23 h 59 min).
If you set the time for a clock function,
the time starts to count down after 5
seconds.
If you use the clock
functions: Duration, End
Time, the appliance
deactivates the heating
elements after 90 % of the
set time. The appliance uses
the residual heat to continue
the cooking process until the
time ends (3 - 20 minutes).
9.2 Setting the clock functions
Before you use the
functions: Duration, End
Time, you must set a heating
function and temperature
first. The appliance
deactivates automatically.
You can use the functions:
Duration and End Time at
the same time if you want to
automatically activate and
deactivate the appliance on
a given time later.
1. Set a heating function.
2. Press
again and again until the
display shows the necessary clock
function and the related symbol.
3. Press or to set the necessary
time.
4. Press to confirm.
When the time ends, an acoustic signal
sounds. The appliance deactivates. The
display shows a message.
5. Press any symbol to stop the signal.
9.3 Heat + Hold
Conditions for the function:
• The set temperature is more than 80
°C.
• The function: Duration is set.
The function: Heat + Hold keeps
prepared food warm at 80 °C for 30
minutes. It activates after the baking or
roasting procedure ends.
You can activate or deactivate the
function in the menu: Basic Settings.
1. Activate the appliance.
2. Select the heating function.
3. Set the temperature above 80 °C.
4. Press
again and again until the
display shows: Heat + Hold.
5.
Press to confirm.
When the function ends, an acoustic
signal sounds.
The function stays on if you change the
heating functions.
ENGLISH
19
9.4 Time Extension
The function: Time Extension makes the
heating function continue after the end
of Duration.
Applicable to all heating
functions with Duration or
Weight Automatic.
1. When the cooking time ends, an
acoustic signal sounds. Press any
symbol.
The display shows the message.
2. Press to activate or to
cancel.
3. Set the length of the function.
4. Press .
10. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
10.1 Recipes online
You can find the recipes for
the automatic programmes
specified for this appliance
on our website. To find the
proper Recipe Book check
the PNC number on the
rating plate on the front
frame of the appliance
cavity.
10.2 Recipes with Recipe
Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
1. Activate the appliance.
2. Select the menu: Recipes. Press
to
confirm.
3. Select the category and dish. Press
to confirm.
4. Select a recipe. Press to confirm.
When you use the function:
Manual, the appliance uses
the automatic settings. You
can change them as with
other functions.
10.3 Recipes with Weight
Automatic
This function automatically calculates the
roasting time. To use it, it is necessary to
input the food weight.
1. Activate the appliance.
2. Select the menu: Recipes. Press to
confirm.
3. Select the category and dish. Press
to confirm.
4. Touch or to set the food
weight. Press to confirm.
The automatic programme starts.
5. You can change the weight at any
time. Press
or to change the
weight.
6. When the time ends, an acoustic
signal sounds. Press any symbol to
deactivate the signal.
With some programmes turn
over the food after 30
minutes. The display shows a
reminder.
11. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
11.1 Inserting the accessories
Use only suitable cookware and material.
www.aeg.com20
WARNING!
Refer to "Microwave mode"
chapter.
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray:
Push the baking tray between the guide
bars of the shelf support.
Wire shelf and baking tray together:
Push the baking tray between the guide
bars of the shelf support and the wire
shelf on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim
around the shelf prevents
cookware from slipping of
the shelf.
12. ADDITIONAL FUNCTIONS
12.1 Favourites
You can save your favourite settings,
such as duration, temperature or heating
function. They are available in the menu:
Favourites. You can save 20
programmes.
You cannot save Microwave
and microwave combi
functions as favourite
programmes.
Saving a programme
1. Activate the appliance.
2. Set a heating function or an
automatic programme.
3. Touch again and again until the
display shows: SAVE.
4. Press to confirm.
The display shows the first free memory
position.
5. Press to confirm.
6. Enter the name of the programme.
The first letter flashes.
7. Touch or to change the
letter.
8. Press .
The next letter flashes.
9. Do step 7 again as necessary.
10.
Press and hold to save.
ENGLISH
21
You can overwrite a memory position.
When the display shows the first free
memory position, touch or and
press to overwrite an existing
programme.
You can change the name of a
programme in the menu: Edit
Programme Name.
Activating the programme
1. Activate the appliance.
2. Select the menu: Favourites.
3.
Press to confirm.
4. Select your favourite programme
name.
5.
Press
to confirm.
12.2 Using the Child Lock
When the Child Lock is on, the appliance
cannot be activated accidentally.
1. Touch
to activate the display.
2. Touch
and at the same time
until the display shows a message.
To deactivate the Child Lock function
repeat step 2.
12.3 Function Lock
This function prevents an accidental
change of the heating function. You can
activate it only when the appliance
operates.
1. Activate the appliance.
2. Set a heating function or setting.
3. Press again and again until the
display shows: Function Lock.
4. Press to confirm.
To deactivate the function, press
. The
display shows a message. Press again
and then to confirm.
When you deactivate the
appliance, the function also
deactivates.
12.4 Set + Go
The function lets you set a heating
function (or a programme) and use it
later with one press of any symbol.
1. Activate the appliance.
2. Set a heating function.
3. Press again and again until the
display shows: Duration.
4. Set the time.
5. Press again and again until the
display shows: Set + Go.
6. Press to confirm.
Press any symbol (except for
) to start
the function: Set + Go. The set heating
function starts.
When the heating function ends, an
acoustic signal sounds.
• Function Lock is on when
the heating function
operates.
• The menu: Basic Settings
lets you activate and
deactivate the function:
Set + Go.
12.5 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some
time if a heating function operates and
you do not change any settings.
Temperature (°C) Switch-off time (h)
30 - 115 12.5
120 - 195 8.5
200 - 230 5.5
The Automatic switch-off
does not work with the
functions: Light, End Time,
Duration.
12.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
www.aeg.com
22
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a symbol during the
night brightness (apart from ON /
OFF), the display goes back to
the day brightness mode for the
next 10 seconds.
– if the appliance is deactivated and
you set the function: Minute
Minder. When the function ends,
the display goes back to the night
brightness.
12.7 Cooling fan
When the appliance operates, the
cooling fan activates automatically to
keep the surfaces of the appliance cool.
If you deactivate the appliance, the
cooling fan can continue to operate until
the appliance cools down.
13. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
13.1 Advice for special heating
functions of the oven
Keep Warm
Use this function if you want to keep
food warm.
The temperature regulates itself
automatically to 80 °C.
Plate Warming
For warming plates and dishes.
Distribute plates and dishes evenly on
the wire shelf. Move stacks around after
half of the warming time (swap top and
bottom).
The automatic temperature is 70 °C.
Recommended shelf position: 3.
Dough Proving
You can use this automatic function with
any recipe for yeast dough you like. It
gives you a good atmosphere for rising.
Put the dough into a dish that is big
enough for rising and cover it with a wet
towel or plastic foil. Insert a wire shelf on
the first shelf position and put the dish in.
Close the door and set the function:
Dough Proving. Set the necessary time.
13.2 Baking
• Your oven may bake or roast
differently to the appliance you had
before. Adapt your usual settings
(temperature, cooking times) and
shelf positions to the values in the
tables.
• The manufacturer recommends that
you use the lower temperature the
first time.
• If you cannot find the settings for a
special recipe, look for the one that is
almost the same.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one shelf position.
• Cakes and pastries at different
heights do not always brown equally
at first. If this occurs, do not change
the temperature setting. The
differences equalize during the
baking procedure.
• With longer baking times, you can
deactivate the oven approximately 10
minutes before the end of the baking
time and then use the residual heat.
When you cook frozen food, the trays in
the oven can twist during baking. When
the trays become cold again, the
distortions are gone.
ENGLISH
23
13.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incor-
rect.
Put the cake on a lower
shelf.
The cake sinks and becomes
soggy, lumpy or streaky.
The oven temperature is too
high.
The next time you bake, set
a slightly lower oven temper-
ature.
The cake sinks and becomes
soggy, lumpy or streaky.
The baking time is too short. Set a longer baking time.
You cannot decrease bak-
ing times by setting higher
temperatures.
The cake sinks and becomes
soggy, lumpy or streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, especially
if you use a mixing machine.
The cake is too dry. The oven temperature is too
low.
The next time you bake, set
a higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set
a shorter baking time.
The cake browns unevenly. The oven temperature is too
high and the baking time is
too short.
Set a lower oven tempera-
ture and a longer baking
time.
The cake browns unevenly. The mixture is unevenly dis-
tributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in the
baking time given.
The oven temperature is too
low.
The next time you bake, set
a slightly higher oven tem-
perature.
13.4 Baking on one oven level
Baking in tins
Food Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Ring cake or brioche True Fan Cook-
ing
150 - 160 50 - 70 2
Madeira cake / Fruit
cakes
True Fan Cook-
ing
140 - 160 70 - 90 2
Sponge cake / Sponge
cake
True Fan Cook-
ing
140 - 150 35 - 50 2
Sponge cake / Sponge
cake
Conventional
Cooking
160 35 - 50 2
www.aeg.com24
Food Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Flan base - short pas-
try
1)
True Fan Cook-
ing
170 - 180 10 - 25 2
Flan base - sponge mix-
ture
True Fan Cook-
ing
150 - 170 20 - 25 2
Apple pie / Apple pie (2
tins Ø 20 cm, diagonally
off set)
True Fan Cook-
ing
160 70 - 90 2
Apple pie / Apple pie (2
tins Ø 20 cm, diagonally
off set)
Conventional
Cooking
180 70 - 90 1
Cheesecake, tray
2)
Conventional
Cooking
160 - 170 60 - 90 1
1)
Preheat the oven.
2)
Use a deep pan.
Cakes / pastries / breads on baking trays
Food Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Plaited bread / bread
crown
Conventional
Cooking
170 - 190 30 - 40 2
Christmas stollen
1)
Conventional
Cooking
160 - 180 50 - 70 2
Bread (rye bread)
1)
Conventional
Cooking
2
first 230 20
then 160 - 180 30 - 60
Cream puffs / Eclairs
1)
Conventional
Cooking
190 - 210 20 - 35 2
Swiss Roll
1)
Conventional
Cooking
180 - 200 10 - 20 2
Cake with crumble top-
ping (dry)
True Fan Cook-
ing
150 - 160 20 - 40 3
Buttered almond cake /
sugar cakes
1)
Conventional
Cooking
190 - 210 20 - 30 2
Fruit flans (made with
yeast dough / sponge
mixture)
2)
True Fan Cook-
ing
150 - 160 35 - 55 3
ENGLISH 25
Food Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Fruit flans (made with
yeast dough / sponge
mixture)
2)
Conventional
Cooking
170 35 - 55 1
Fruit flans made with
short pastry
True Fan Cook-
ing
160 - 170 40 - 80 3
Yeast cakes with deli-
cate toppings (e.g.
quark, cream, custard)
1)
Conventional
Cooking
160 - 180 40 - 80 2
1)
Preheat the oven.
2)
Use a deep pan.
Biscuits
Food Function Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Short pastry biscuits True Fan Cook-
ing
150 - 160 10 - 20 3
Short bread / Short
bread / Pastry Stripes
True Fan Cook-
ing
140 20 - 35 3
Short bread / Short
bread / Pastry Stripes
1)
Conventional
Cooking
160 20 - 30 2
Biscuits made with
sponge mixture
True Fan Cook-
ing
150 - 160 15 - 20 2
Pastries made with egg
white, meringues
True Fan Cook-
ing
80 - 100 120 - 150 1
Macaroons True Fan Cook-
ing
100 - 120 30 - 50 3
Biscuits made with yeast
dough
True Fan Cook-
ing
150 - 160 20 - 40 3
Puff pastries
1)
True Fan Cook-
ing
170 - 180 20 - 30 3
Rolls
1)
Conventional
Cooking
190 - 210 10 - 25 2
Small cakes / Small
cakes
1)
True Fan Cook-
ing
160 20 - 35 3
Small cakes / Small
cakes
1)
Conventional
Cooking
170 20 - 35 2
1)
Preheat the oven.
www.aeg.com26
13.5 Bakes and gratins
Food Function Temperature
(°C)
Time (min) Shelf position
Pasta bake Conventional
Cooking
180 - 200 45 - 60 1
Lasagne Conventional
Cooking
180 - 200 25 - 40 1
Vegetables au
gratin
1)
Turbo Grilling 210 - 230 10 - 20 1
Baguettes top-
ped with melted
cheese
True Fan Cook-
ing
160 - 170 15 - 30 1
Sweet bakes Conventional
Cooking
180 - 200 40 - 60 1
Fish bakes Conventional
Cooking
180 - 200 30 - 60 1
Stuffed vegeta-
bles
True Fan Cook-
ing
160 - 170 30 - 60 1
1)
Preheat the oven.
13.6 Multilevel baking
Use the function: True Fan Cooking.
Cakes / pastries / breads on baking trays
Food Temperature (°C) Time (min) Shelf posi-
tion
Cream puffs / Eclairs
1)
160 - 180 25 - 45 1 / 3
Dry streusel cake 150 - 160 30 - 45 1 / 3
1)
Preheat the oven.
Biscuits / small cakes / pastries / rolls
Food Temperature (°C) Time (min) Shelf posi-
tion
Short pastry biscuits 150 - 160 20 - 40 1 / 3
Short bread / Short
bread / Pastry Stripes
140 25 - 45 1 / 3
Biscuits made with
sponge mixture
160 - 170 25 - 40 1 / 3
ENGLISH 27
Food Temperature (°C) Time (min) Shelf posi-
tion
Pastries made with egg
white, meringues
80 - 100 130 - 170 1 / 3
Macaroons 100 - 120 40 - 80 1 / 3
Biscuits made with
yeast dough
160 - 170 30 - 60 1 / 3
13.7 Slow Cooking
Use this function to prepare lean, tender
pieces of meat and fish. This function is
not applicable to such recipes as pot
roast or fatty roast pork.
In the first 10 minutes you can set an
oven temperature between 80 °C and
150 °C. The default is 90 °C. After the
temperature is set, the oven continues to
cook at 80 °C. Do not use this function
for poultry.
Always cook without a lid
when you use this function.
1. Sear the meat in a pan on the hob on
a very high setting for 1 - 2 minutes
on each side.
2. Put the meat together with the hot
roasting pan on the wire shelf in the
oven.
3. Select the function: Slow Cooking.
Food Quantity (kg) Temperature
(°C)
Time (min) Shelf posi-
tion
Roast beef 1 - 1.5 150 120 - 150 1
Fillet of beef 1 - 1.5 150 90 - 110 1
Roast veal 1 - 1.5 150 120 - 150 1
Steak 0.2 - 0.3 120 20 - 40 1
13.8 Pizza Setting
Food Temperature (°C) Time (min) Shelf position
Pizza (thin crust)
1)
200 - 230 15 - 20 3
Pizza (with a lot of top-
ping)
2)
180 - 200 20 - 30 3
Tarts 180 - 200 40 - 55 3
Spinach flan 160 - 180 45 - 60 3
Quiche Lorraine (Savoury
flan)
170 - 190 45 - 55 3
Swiss Flan 170 - 190 45 - 55 3
Cheesecake 140 - 160 60 - 90 3
www.aeg.com28
Food Temperature (°C) Time (min) Shelf position
Apple cake, covered 150 - 170 50 - 60 3
Vegetable pie 160 - 180 50 - 60 3
Unleavened bread
1)
230 10 - 20 3
Puff pastry flan
1)
160 - 180 45 - 55 3
Flammekuchen
1)
230 12 - 20 3
Piroggen (Russian ver-
sion of calzone)
1)
180 - 200 15 - 25 3
1)
Preheat the oven.
2)
Use a deep pan.
13.9 Roasting
• Use heat-resistant ovenware to roast
(refer to the instructions of the
manufacturer).
• You can roast large roasting joints
directly in the deep pan (if present) or
on the wire shelf above the deep pan.
• Roast lean meats in the roasting tin
with the lid. This keeps the meat more
succulent.
• All types of meat that can be browned
or have crackling can be roasted in
the roasting tin without the lid.
• We recommend that you cook meat
and fish weighing 1 kg and above in
the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid
into the deep pan.
• If necessary, turn the roast (after 1/2 -
2/3 of the cooking time).
• Baste large roasts and poultry with
their juices several times during
roasting. This gives better roasting
results.
• You can deactivate the appliance
approximately 10 minutes before the
end of the roasting time, and use the
residual heat.
13.10 Roasting tables
Beef
Food Function Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf posi-
tion
Pot roast Conven-
tional
Cooking
1 - 1.5 200 230 60 - 80 1
Pork
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Shoulder,
neck, ham
joint
Turbo
Grilling
1 - 1.5 200 160 - 180 50 - 70 1
ENGLISH 29
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Meat loaf Turbo
Grilling
0.75 - 1 200 160 - 170 35 - 50 1
Pork
knuckle
(pre-
cooked)
Turbo
Grilling
0.75 - 1 200 150 - 170 60 - 75 1
Veal
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Roast veal Turbo
Grilling
1 200 160 - 180 50 - 70 1
Knuckle of
veal
Turbo
Grilling
1.5 - 2 200 160 - 180 75 - 100 1
Lamb
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Leg of
lamb, roast
lamb
Turbo
Grilling
1 - 1.5 200 150 - 170 50 - 70 1
Poultry
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Poultry
portions
Turbo
Grilling
0.2 - 0.25
each
200 200 - 220 20 - 35 1
Chicken
half
Turbo
Grilling
0.4 - 0.5
each
200 190 - 210 25 - 40 1
Chicken
poulard
Turbo
Grilling
1 - 1.5 200 190 - 210 30 - 45 1
Duck Turbo
Grilling
1.5 - 2 200 180 - 200 45 - 65 1
www.aeg.com30
Fish (steamed)
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Whole fish Con-
vention-
al
Cook-
ing
1 - 1.5 200 210 - 220 30 - 45 1
Dishes
Food Func-
tion
Quantity
(kg)
Power
(Watts)
Tempera-
ture (°C)
Time (min) Shelf po-
sition
Dishes
sweet
True
Fan
Cook-
ing
- 200 160 - 180 20 - 35 1
Savoury
dishes with
cooked in-
gredients
(noodles,
vegetables)
True
Fan
Cook-
ing
- 400 - 600 160 - 180 20 - 45 1
Savoury
dishes with
raw ingre-
dients (po-
tatoes,
vegetables)
True
Fan
Cook-
ing
- 400 - 600 160 - 180 30 - 45 2
13.11 Grilling
• Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the pan to collect the fat
into the first shelf position.
• Grill only flat pieces of meat or fish.
• Always preheat the empty oven with
the grill functions for 5 minutes.
CAUTION!
Always grill with the oven
door closed.
Grilling
Food Temperature
(°C)
Time (min) Shelf position
1st side 2nd side
Roast beef, me-
dium
210 - 230 30 - 40 30 - 40 1
Filet of beef,
medium
230 20 - 30 20 - 30 1
Back of pork 210 - 230 30 - 40 30 - 40 1
ENGLISH 31
Food Temperature
(°C)
Time (min) Shelf position
1st side 2nd side
Back of veal 210 - 230 30 - 40 30 - 40 1
Back of lamb 210 - 230 25 - 35 20 - 35 1
Whole Fish, 500
- 1000 g
210 - 230 15 - 30 15 - 30 1
Fast Grilling
Food Time (min) Shelf position
1st side 2nd side
Burgers / Burgers 9 - 13 8 - 10 3
Pork fillet 10 - 12 6 - 10 2
Sausages 10 - 12 6 - 8 3
Fillet steaks / veal
steaks
7 - 10 6 - 8 3
Toast / Toast 1 - 3 1 - 3 3
Toast with topping 6 - 8 - 2
13.12 Frozen foods
• Remove the food packaging. Put the
food on a plate.
• Do not cover it with a bowl or a plate.
This can extend the defrost time.
Food Temperature (°C) Time (min) Shelf position
Pizza, frozen 200 - 220 15 - 25 3
Pizza American, frozen 190 - 210 20 - 25 3
Pizza, chilled 210 - 230 13 - 25 3
Pizza Snacks, frozen 180 - 200 15 - 30 3
French Fries, thin
1)
210 - 230 20 - 30 3
French Fries, thick
1)
210 - 230 25 - 35 3
Wedges / Cro-
quettes
1)
210 - 230 20 - 35 3
Hash Browns 210 - 230 20 - 30 3
Lasagne / Cannelloni,
fresh
170 - 190 35 - 45 2
www.aeg.com32
Food Temperature (°C) Time (min) Shelf position
Lasagne / Cannelloni,
frozen
160 - 180 40 - 60 2
Chicken Wings 190 - 210 20 - 30 3
1)
Turn 2 or 3 times during roasting.
Frozen Ready Meals Table
Food Function Tempera-
ture (°C)
Time (min) Shelf position
Frozen pizza
1)
Conventional
Cooking
as per man-
ufacturer's
instructions
as per manufac-
turer's instruc-
tions
2
Chips
2)
(300 -
600 g)
Conventional
Cooking or Turbo
Grilling
200 - 220 as per manufac-
turer's instruc-
tions
2
Baguettes
3)
Conventional
Cooking
as per man-
ufacturer's
instructions
as per manufac-
turer's instruc-
tions
2
Fruit cake Conventional
Cooking
as per man-
ufacturer's
instructions
as per manufac-
turer's instruc-
tions
2
1)
Preheat the oven.
2)
Turn 2 or 3 times during cooking.
3)
Preheat the oven.
13.13 Defrost
• Remove the food packaging and put
the food on a plate.
• Use the first shelf position from the
bottom.
• Do not cover the food with a bowl or
a plate, as this can extend the defrost
time.
Food Quantity Defrosting
time (min)
Further de-
frosting time
(min)
Comments
Chicken 1 kg 100 - 140 20 - 30 Put the chicken on an upturned
saucer in a big plate. Turn halfway
through.
Meat 1 kg 100 - 140 20 - 30 Turn halfway through.
Meat 500 g 90 - 120 20 - 30 Turn halfway through.
Trout 150 g 25 - 35 10 - 15 -
ENGLISH 33
Food Quantity Defrosting
time (min)
Further de-
frosting time
(min)
Comments
Strawber-
ries
300 g 30 - 40 10 - 20 -
Butter 250 g 30 - 40 10 - 15 -
Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly
frozen in places.
Gateau 1.4 kg 60 60 -
13.14 Preserving
• Use only preserve jars of the same
dimensions available on the market.
• Do not use jars with twist-off and
bayonet type lids or metal tins.
• Use the first shelf from the bottom for
this function.
• Put no more than six one-litre
preserve jars on the baking tray.
• Fill the jars equally and close with a
clamp.
• The jars cannot touch each other.
• Put approximately 1/2 litre of water
into the baking tray to give sufficient
moisture in the oven.
• When the liquid in the jars starts to
simmer (after approximately 35 - 60
minutes with one-litre jars), stop the
oven or decrease the temperature to
100 °C (see the table).
Soft fruit
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook at
100 °C (min)
Strawberries / Blue-
berries / Raspber-
ries / Ripe gooseber-
ries
160 - 170 35 - 45 -
Stone fruit
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook at
100 °C (min)
Pears / Quinces /
Plums
160 - 170 35 - 45 10 - 15
Vegetables
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook at
100 °C (min)
Carrots
1)
160 - 170 50 - 60 5 - 10
Cucumbers 160 - 170 50 - 60 -
Mixed pickles 160 - 170 50 - 60 5 - 10
www.aeg.com34
Food Temperature (°C) Cooking time until
simmering (min)
Continue to cook at
100 °C (min)
Kohlrabi / Peas / As-
paragus
160 - 170 50 - 60 15 - 20
1)
Leave standing in the oven after it is deactivated.
13.15 Drying
Food Temperature (°C) Time (h) Shelf position
Beans 60 - 70 6 - 8 3
Peppers 60 - 70 5 - 6 3
Vegetables for soup 60 - 70 5 - 6 3
Mushrooms 50 - 60 6 - 8 3
Herbs 40 - 50 2 - 3 3
Plums 60 - 70 8 - 10 3
Apricots 60 - 70 8 - 10 3
Apple slices 60 - 70 6 - 8 3
Pears 60 - 70 6 - 9 3
13.16 Bread Baking
Preheating is not recommended.
Food Temperature (°C) Time (min) Shelf position
White Bread 180 - 200 40 - 60 2
Baguette 200 - 220 35 - 45 2
Brioche 160 - 180 40 - 60 2
Ciabatta 200 - 220 35 - 45 2
Rye Bread 180 - 200 50 - 70 2
Dark Bread 180 - 200 50 - 70 2
All Grain bread 170 - 190 60 - 90 2
13.17 Microwave cooking
tables
Place your food on the plate
or in a container on the
cavity bottom if not
specified differently.
ENGLISH 35
Defrosting meat
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Whole cuts
of meat
200 0.5 10 - 12 10 - 15 Turn halfway
through.
Steak 200 0.2 3 - 5 5 - 10 Turn halfway
through, re-
move defros-
ted parts.
Mixed
minced meat
200 0.5 10 - 15 10 - 15 Turn halfway
through, re-
move defros-
ted parts.
Goulash 200 0.5 10 - 15 10 - 15 Turn halfway
through, re-
move defros-
ted parts.
Defrosting poultry
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Chicken 200 1 25 - 30 10 - 20 Turn halfway
through, cov-
er defrosted
parts with
aluminium
foil.
Chicken
breast
200 0.1 - 0.2 3 - 5 10 - 15 Turn halfway
through, cov-
er defrosted
parts with
aluminium
foil.
Chicken
thighs
200 0.1 - 0.2 3 - 5 10 - 15 Turn halfway
through, cov-
er defrosted
parts with
aluminium
foil.
Duck 200 2 45 - 60 20 - 30 Turn halfway
through, cov-
er defrosted
parts with
aluminium
foil.
www.aeg.com36
Defrosting fish
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Whole Fish 100 0.5 10 - 15 15 - 20 Turn halfway
through.
Fish fillets 100 0.5 10 - 12 15 - 20 Turn halfway
through.
Defrosting sausage
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Sliced saus-
age
100 0.1 2 - 4 20 - 40 Turn halfway
through.
Defrosting dairy products
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Quark 100 0.25 10 - 15 25 - 30 Remove alu-
minium parts,
turn halfway
through.
Butter 100 0.25 3 - 5 15 - 20 Remove alu-
minium parts,
turn halfway
through.
Cheese 100 0.25 3 - 5 30 - 60 Remove alu-
minium parts,
turn halfway
through.
Cream 100 0.2 7 - 12 20 - 30 Remove alu-
minium top,
stir halfway
through.
Defrosting cakes / pastries
Food Power
(Watts)
Quantity Time (min) Standing
time (min)
Comments
Yeast dough 100 1 piece 2 - 3 15 - 20 Turn plate
halfway
through.
Cheesecake 100 1 piece 2 - 4 15 - 20 Turn plate
halfway
through.
ENGLISH 37
Food Power
(Watts)
Quantity Time (min) Standing
time (min)
Comments
Cake (ga-
teau)
100 1 piece 1 - 2 15 - 20 Turn plate
halfway
through.
Dry cake (e.
g. Pound
cake)
100 1 piece 2 - 4 15 - 20 Turn plate
halfway
through.
Fruit cake 100 1 piece 1 - 2 15 - 20 Turn plate
halfway
through.
Bread 100 1 kg 15 - 20 10 - 15 Turn halfway
through.
Sliced bread 100 0.5 kg 8 - 12 10 - 15 Turn halfway
through.
Bread rolls 100 4 rolls 5 - 8 5 - 10 Turn halfway
through.
Defrosting fruit
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Strawberries 100 0.3 8 - 12 10 - 15 Defrost cov-
ered, stir
halfway
through.
Plums, cher-
ries, raspber-
ries, black-
currants,
apricots
100 0.25 8 - 10 10 - 15 Defrost cov-
ered, stir
halfway
through.
Cooking / melting
Food Power
(Watts)
Quantity
(kg)
Time (min) Standing
time (min)
Comments
Chocolate /
Chocolate
coating
600 0.15 2 - 3 - Stir halfway
through.
Butter 200 0.1 2 - 4 - Stir halfway
through.
www.aeg.com38
Defrosting heating
Food Power
(Watts)
Quantity Time (min) Standing
time (min)
Comments
Baby food in
jars
300 0.2 kg 2 - 3 - Stir halfway
through,
check tem-
perature.
Baby milk
(bottle, 180
ml)
1000 0.2 kg 0:20 - 0:40 - Put spoon in-
to bottle, stir
and check
temperature.
Convenience
food
600 0.4 - 0.5 kg 14 - 20 5 Remove any
aluminium
lids, turn half-
way through.
Frozen ready
meals
400 0.4 - 0.5 kg 4 - 6 5 Remove any
aluminium
lids, turn half-
way through.
Milk 1000 1 cup ap-
prox. 200 ml
1:15 - 1:45 - Put spoon in
the contain-
er.
Water 1000 1 cup ap-
prox. 200 ml
1:30 - 2 - Put spoon in
the contain-
er.
Sauce 600 200 ml 1 - 2 - Stir halfway
through.
Soup 600 300 ml 2 - 4 - Stir halfway
through.
Cooking table
Food Power
(Watts)
Quantity Time (min) Standing
time (min)
Comments
Whole fish 500 0.5 kg 8 - 10 - Cook cov-
ered, turn
container
several times
during cook-
ing.
ENGLISH 39
Food Power
(Watts)
Quantity Time (min) Standing
time (min)
Comments
Fish fillets 500 0.5 kg 6 - 8 - Cook cov-
ered, turn
container
several times
during cook-
ing.
Vegetables,
short cooking
time, fresh
1)
600 0.5 kg 12 - 16 - Add approx.
50 ml water,
cook cov-
ered, stir
halfway
through.
Vegetables,
short cooking
time, frozen
1)
600 0.5 kg 14 - 18 - Add approx.
50 ml water,
cook cov-
ered, stir
halfway
through.
Vegetables,
long cooking
time, fresh
1)
600 0.5 kg 14 - 20 - Add approx.
50 ml water,
cook cov-
ered, stir
halfway
through.
Vegetables,
long cooking
time, frozen
1)
600 0.5 kg 18 - 24 - Add approx.
50 ml water,
cook cov-
ered, stir
halfway
through.
Potatoes in
their jacket
1000 0.8 kg + 600
ml
5 - 7 300 W / 15 -
20
Cook cov-
ered, stir
halfway
through.
Rice 1000 0.3 kg + 600
ml
4 - 6 - Cook cov-
ered, stir
halfway
through.
Popcorn 1000 - 3 - 4 - Put the pop-
corn on a
plate on the
bottom level.
1)
Cook all vegetables with a cover on the container.
www.aeg.com40
Combi-function table
• For selected models only.
• Use the functions: Grilling and
Microwave.
Food Ovenware Pow-
er
(Watt
s)
Tem-
pera-
ture
(°C)
Time
(min)
Shelf
posi-
tion
Comments
2 chicken
halves (2 x 0.6
kg)
Glass dish with strainer 300 220 40 2 Turn after 20
min, standing
time 5 min.
au gratin po-
tatoes (1 kg)
Gratin dish 300 200 40 2 10 min stand-
ing time.
Roast pork
neck (1.1 kg)
Glass dish with strainer 300 200 70 1 Turn in be-
tween, 10 min
standing time.
14. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
14.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after
each use. Fat accumulation or other
food remains may result in a fire.
• Clean the cavity roof carefully from
food residuals and fat.
• Clean stubborn dirt with a special
oven cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
• Dry the oven when the cavity is wet
after usage.
14.2 Removing the shelf
supports
Before maintenance, make sure that the
appliance is cool. There is a risk of burns.
To clean the appliance, remove the shelf
supports.
1. Pull carefully the supports up and out
of the front catch.
2
3
1
2. Pull the front end of the shelf support
away from the side wall.
3. Pull the supports out of the rear
catch.
Install the shelf supports in the opposite
sequence.
14.3 Replacing the lamp
Put a cloth on the bottom of the interior
of the appliance. It prevents damage to
the lamp glass cover and the cavity.
ENGLISH
41
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
CAUTION!
Always hold the halogen
lamp with a cloth to prevent
grease residue from burning
on the lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
15. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
15.1 What to do if...
Problem Possible cause Remedy
You cannot activate or oper-
ate the oven.
The oven is not connected
to an electrical supply or it is
connected incorrectly.
Check if the oven is correctly
connected to the electrical
supply (refer to the connec-
tion diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switch-
off".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat up. The door is not closed cor-
rectly.
Fully close the door.
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction.
If the fuse is blown again
and again, contact a quali-
fied electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
www.aeg.com42
Problem Possible cause Remedy
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact
the Customer Care De-
partment.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 -
20 minutes after the cooking
process ends.
15.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is
on the front frame of the appliance
cavity. Do not remove the rating plate
from the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
16. INSTALLATION
WARNING!
Refer to Safety chapters.
16.1 Building in
The built-in unit must meet
the stability requirements of
DIN 68930.
ENGLISH 43
440mm
548mm
546mm
594mm
455mm
21mm
450mm
min.
550mm
min.
20mm
min.
560mm
15mm
114
mm
450mm
440mm
546mm
594mm
455mm
450mm
455mm
450mm
450mm
548mm
min.
550mm
450mm
min.
560mm
21mm
114
mm
15mm
min. 20mm
www.aeg.com44
440mm
450mm
450mm
450mm
455mm
450mm
450mm
450mm
455mm
455mm
546mm
594mm
548mm
21mm
min.
550mm
min.
560mm
min.
20mm
114
mm
15mm
440 mm
440mm
440mm
579mm
546mm
594mm
455mm
450mm
594mm
589mm
450mm
548mm
min.
550mm
590mm
21mm
114
mm
114
mm
15mm
min. 20mm
min.
560mm
ENGLISH 45
alternativ
H05VV-F
H05RR-F
min.1,60 m
90°
13mm
20
mm
2x3,5x25
www.aeg.com46
18. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol
with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
FOR SERVICE
or to find the address of your nearest state service centre in Australia
PLEASE CALL 1300 363 664
OR EMAIL [email protected]
For the cost of a local call (Australia only)
FOR SPARE PARTS
or to find the address of your nearest state spare parts centre in Australia
PLEASE CALL 13 13 50
OR EMAIL [email protected]
For the cost of a local call (Australia only)
AEG SERVICE NEW ZEALAND
www.aeg.co.nz
FOR SERVICE
or to find the address of your nearest authorised service centre in New Zealand
FREE CALL 0800 10 66 10
OR EMAIL [email protected]
(New Zealand only)
FOR SPARE PARTS
or to find the address of your nearest state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
OR EMAIL [email protected]
(New Zealand only)
*
ENGLISH 49
This document sets out the terms and conditions of the product
warranties for AEG Appliances. It is an important document. Please
keep it with your proof of purchase documents in a safe place for
future reference should you require service for your Appliance.
1. In this warranty:
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has
the same meaning referred to in the ACL;
(b)
‘ACL’ means Schedule 2 to the Competition and Consumer
Act 2010;
(c) ‘Appliance’ means any AEG product purchased by you and
accompanied by this document;
(d) ‘ASC’ means AEG authorised service centres;
(e) AEG is the brand controlled by Electrolux Home Products Pty Ltd
of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341
in respect of Appliances purchased in Australia and Electrolux (NZ)
Limited (collectively ‘Electrolux’) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the
same meaning referred to in the ACL and includes a situation when
an Appliance cannot be repaired or it is uneconomic for Electrolux,
at its discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means the Appliance is warranted against
manufacturing defects in Australia and New Zealand for
60 months, following the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia
or New Zealand in normal domestic applications and is in addition to
(and does not exclude, restrict, or modify in any way) any non-excludable
statutory warranties in Australia or New Zealand.
3. During the Warranty Period Electrolux or its ASC will, at no extra
charge if your Appliance is readily accessible for service, without special
equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux or its ASC may
use remanufactured parts to repair your Appliance. You agree that any
replaced Appliances or parts become the property of Electrolux. This
warranty does not apply to light globes, batteries, lters or similar
perishable parts.
4. Parts and Appliances not supplied by Electrolux are not covered by
this warranty.
5
. To the extent permitted by law, you will bear the cost of transportation,
travel and delivery of the Appliance to and from Electrolux or its ASC. If
you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Electrolux
or its ASC.
In all instances, unless the Appliance is transported by Electrolux or
an AEG authorised representative, the Appliance is transported at the
owner’s cost and risk while in transit to and from Electrolux or its ASC.
6. Proof of purchase is required before you can make a claim under
this warranty.
7
. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Electrolux is
not liable in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or
service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with
the Appliance;
(b) the Appliance is modied without authority from Electrolux in
writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Electrolux, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship between
you and Electrolux are governed by the law applicable where the Appliance
was purchased. Where the Appliance was purchased in New Zealand for
commercial purposes the Consumer Guarantee Act does not apply.
9. To the extent permitted by law and subject to your non-excludable
statutory rights and warranties, AEG excludes all warranties and
liabilities (other than as contained in this document) including liability
for any loss or damage whether direct or indirect arising from your
purchase, use or non use of the Appliance.
10. For AEG Appliances and services in Australia, the Appliances come
with a guarantee that cannot be excluded under the ACL. You
are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and the failure does not
amount to a major failure. The benets to you given by this warranty are
in addition to your other rights and remedies under a law in relation to
the Appliances or services to which the warranty relates.
11. At all times during the Warranty Period, Electrolux shall, at its discretion,
determine whether repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. For Appliances and services provided in New Zealand, the Appliances
come with a guarantee pursuant to the provisions of the Consumer
Guarantees Act, the Sale of Goods Act and the Fair Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, Electrolux and its ASC
may exchange information in relation to you to enable Electrolux to
meet its obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 13 above have been followed.
FOR SERVICE
or to nd the address of your nearest
state service centre in Australia
PLEASE CALL 1300 363 664
OR EMAIL customercar[email protected]
For the cost of a local call (Australia only)
SERVICE AUSTRALIA
aeg.com/au
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in Australia
PLEASE CALL 13 13 50
OR EMAIL customercar[email protected]
For the cost of a local call (Australia only)
FOR SERVICE
or to nd the address of your nearest
authorised service centre in New Zealand
FREE CALL 0800 10 66 10
OR EMAIL customercar[email protected]
(New Zealand only)
SERVICE NEW ZEALAND
aeg.co.nz
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
OR EMAIL customercar[email protected]
(New Zealand only)
AEG_Warr_Oct15
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
ALL AEG BRANDED APPLIANCES
www.aeg.com/au
867316620-C-362016
