Craftsman 917270630 tractor User Manual

Owner's Manual

1&0 HP

ELEOTRmO START

42" MOWER

6 SPEED TRANSAXLE

LAW TRACTOR

Model No.

917.270($30

o Safety

o Assembly

o Operation

o Maintenance

o Repair Parts

CAUTION:

Read and follow all

Safety Rules and, Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800.-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates. IL 60179

Warranty .................................................. 2

Safety Rules ........................................... 2

Product Specifications ............................ 5

Assembly ..................................................... 8

Operation ................................................. 11

Maintenance Schedule .......................... 17

Maintenance .......................................... 17

Service and Adjustments ...................... 21

Storage ................................................... 27

Troubleshooting ....................................... 28

Repair Parts ........................................... 32

Parts Ordering ........................ Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is mair

tained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace, free of charge, any parts found to be defective in material o

workmanship°

This Warranty does not cover:

o Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained i

the owner's nlanual.

o Riding equipment used for commercial or rental purposes_

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge. In-home warrant

service on your Craftsman riding equipment is available at no charge for 30 days from

the date of purchase. Plaase contact your nearest service center. After 30 days from th

date of purchase, warranty service is available by taking your Craftsman riding equip-

ment to your nearest Sears Service Center. (In-home warranty service will still be avail.

able after 30 days from the date of purchase but a standard trip charge will apply). This

warranty applies only while this product is in the United States. This Warranty gives yo[

specific legal rights, and you may also have other rights which may vary from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

GENERAL OPERATION

o Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

o Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

o Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by'the blade.

, Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

o Never carry passengers.

o Do not mow in reverse unless absolute

ly necessary. Always look down and

behind before and while backing.

° Be aware of the mower discharge dire_

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard ir

place.

o Slow down before turning.

° Never leave a running machine unat-

tended. Always turn off blades, set par

ing brake, stop engine, and remove

keys before dismounting=

,, Turn off blades when not mowing.

o Stop engine before removing grass

catcher or unclogging chute.

o Mow only in daylight or good artificial

light.

o Do not operate the machine while under

the influence of atcohol or drugs°

o Watch for traffic when operating near or

crossing roadways.

o Use extra care when loading or unload-

ing the machine into a trailer or truck.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death, All

slopes require extra caution° if you cannot

back up the slope or if you feet uneasy on

it, do not mow it

DO:

o Mow up and down slopes, not across.

o Remove obstacles such as rocks, tree

limbs, etc.,

o Watch for holes, ruts, or bumps, Uneven

terrain could overturn the machine° Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope°

o Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability,

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction,

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

sloper

DO NOT:

o Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments° The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in,

o Do not mow on wet grass° Reduced

traction could cause sliding

o Do not try to stabilize the machine by

putting your foot on the ground°

o Do not use grass catcher on steep

slopes°

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children,,

Children are often attracted to the

machine and the mowing activity° Never

assume that children will remain where

you last saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small chitdren.

o Never carry children° They may fall off

and be seriously injured or interfere with

safe machine operation.,

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision°

SERVlCE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

- Never refuelthe machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater,

° Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip°

ment in good condition.

° Never tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage° Allow machine to cool before

storing,

° Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting,

Never make adjustments or repairs wi|h

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

o Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

o Never carry passengers.

o Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

o Never carry children° They may fall off

and be seriously injured or interfere with

safe machine operation.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

° Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

,_kLook for this symbol to point out impor-

tant safety precautions. It means CAU-

TIONH! BECOME AWARE!!! YOUR SAFE-

"Pt'IS INVOLVED.

,_CAUTION; In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cuL

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently,

Adjust and service as required.

Q Mow up and down slopes (15 ° Max), not

across.

o Remove obstacles such as rocks, tree

limbs, etc.

o Watch for holes, ruts, or bumps_ Uneven

terrain could overturn the machine. Tall

grass can hide obstac/es.

° Use slow speed. Choose a low gear so

that you witl not have to stop or shift

while on the slope.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed stowly straight down the

slope.

o Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE 1.25 GALLONS

CAPACITY UNLEADED

&ND TYPE: REGULAR

OIL TYPE SAE 30 (above 32°F)

IAPI-SF/SG/SH): SAE 5W-30

(below 32°F)

OIL CAPACITY: 3°0 PINTS

SPARK PLUG: Champion RC12YC

GAP: .030")

GROUND SPEED

MPH):

FORWARD:

I sT 1.0

2 ND 1.3

3RD 2.1

4 TM 3ol

5TM 4,0

6TM 51

REVERSE: 1.6

IRE PRESSURE: FRONT: 14 PSI

REAR: t2 PSI

CHARGING 3AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MINo CCA: 190

CASE SIZE: U1R

BLADE BOLT 27-35 FT LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependability

and performance°

Should you experience any problem you

cannot easily, remedy, please contact your

nearest Sears Authorized Service Center°

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor_

Please read and retain this manual, The

instructions will enable you to assemble

and maintain your tractor properly° Always

observe the "SAFETY RULES"°

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product, Contact your nearest

Sears store for details,

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

o Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator_

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws,, Federal laws

apply on federal lands° A spark arrester for

the muffler is available through your near-

est Sears Authorized Service Center (See

REPAIR PARTS section of this manual).

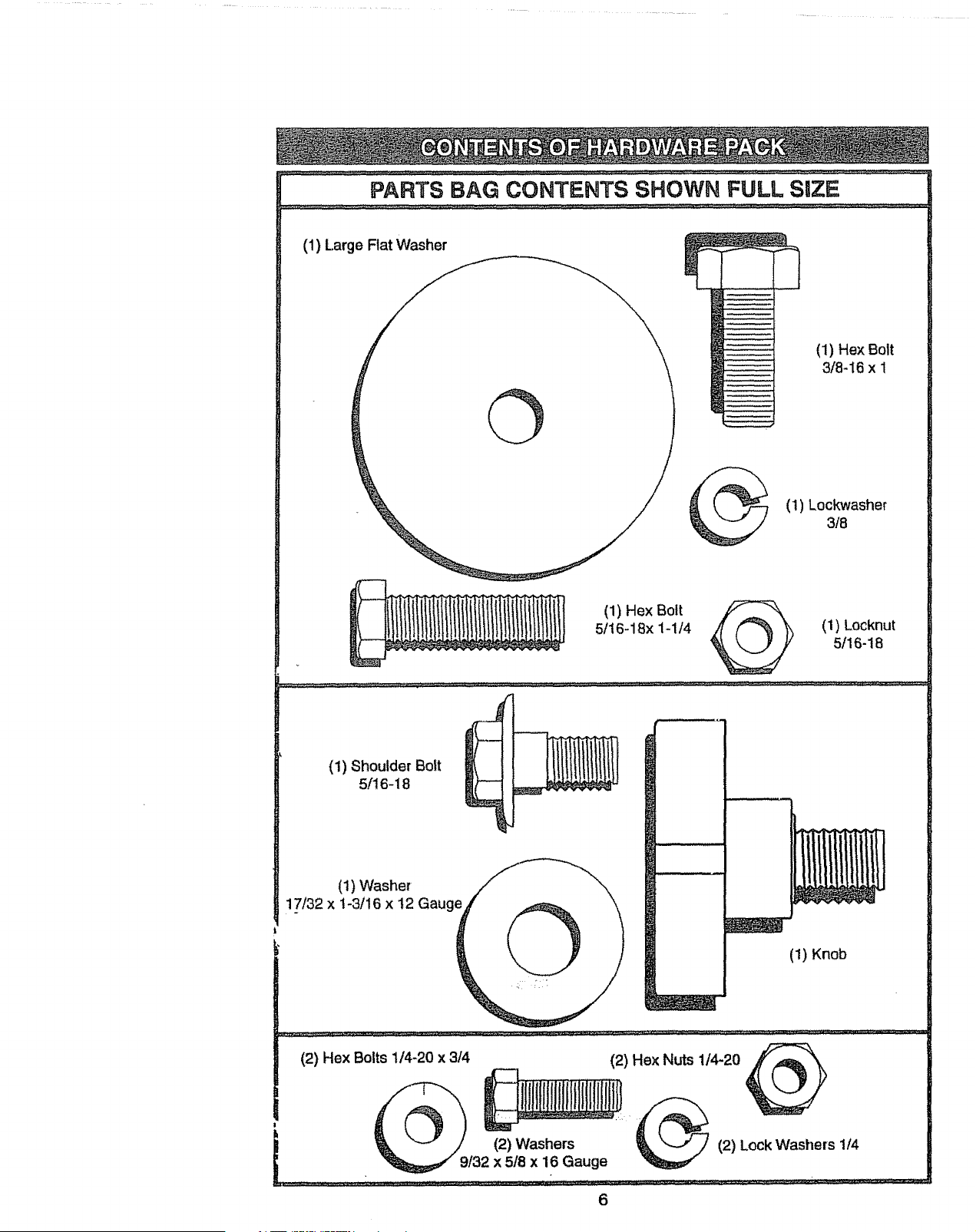

(1)LargeFlat Washer

(1) Hex Bolt

3/8-I6 x 1

(1) Lockwasher

3/8

(1) Hex Bolt

5/16-18x 1-1/4 _ (1) Locknut

5/16-18

(1) Shoulder Bolt

5/16-18

(t) Washer

17/32 x I-3/16 x 12 Gauge

(1) Knob

(2) Hex Bolts 114-20 x 3/4 (2) Hex Nuts 1t4-20

O 2 Washers _ hers 1/4

( ) _ ",--/J (2) LockWas

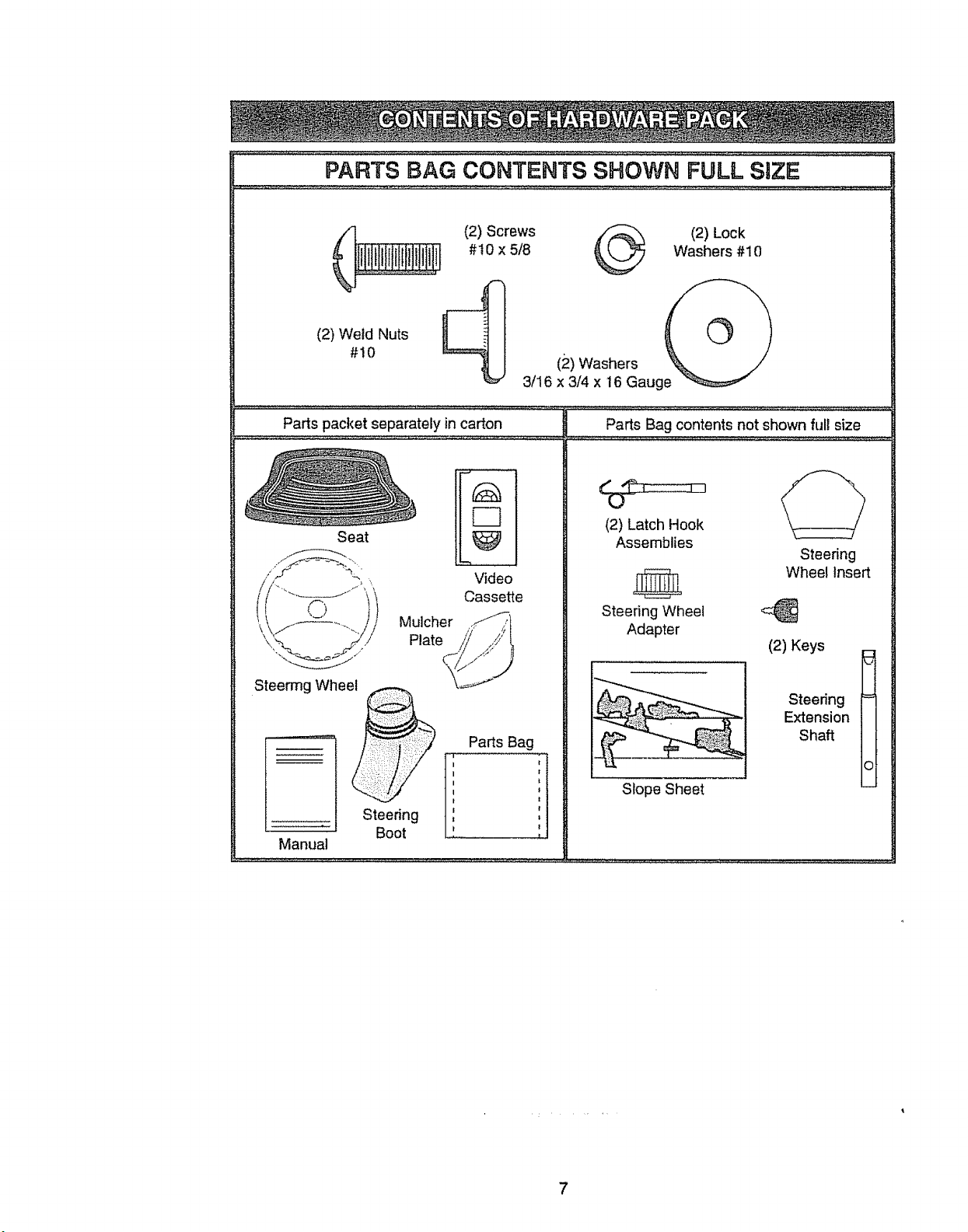

PARTS BAG CONTENTS SHOWN FULL SIZE

(2) Screws (2) Lock

#t 0 x 5/8 Washers #10

(2)WeldNuts

#10

Parts packet separately in carton

Seat

-,, Video

'_,) Cassette

Mulcher

Plate

Steering Whe_ Parts Bag ,_

Steering

Boot

Manual

(2) Washers

3/16 x 3/4 x 16 Gauge "_=_,_

Parts Bag contents not shown full size

(2) Latch Hook

Assemblies

Steering Wheet

Adapter

Steering

Wheel Insert

(2) Keys

Slope Sheet

Steering

Extension

Shaft

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set wilt make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench

(2) 1/2" wrench

(1) Pliers

(1) Utility knife

(2) 7/16" wrenches

(1) Phillips Screw-

driver

(1) Tire pressure

gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

= Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten securely°

o Snap steering wheel insert into center

of steering wheet.

o Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Insert

3/8 Hex Bolt

Lockwasher

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

° Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flato

o Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKiD

Wheel _Boot

/_/ Adapter

Extension __,

Shaft5/16L_5/t6B°lt Hex

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

° Slide extension shaft onto lower steer-

ing shaft° Align mounting holes in exten-

sion and lower shafts and install 5/16

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut secure-

ty to 18-22 ft. Ibs. torque.

o Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

o Position front wheels of the tractor so

they are pointing straight forward.

° Slide steering wheel adapter onto steer-

ing shaft extension.

o Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

° Press lift lever plunger and raise attach-

ment lift lever to its highest position.

• Release parking brake by depressing

clutch!brake pedal.

• Place gearshift lever in neutral (N) posi..

tion.

o Roll tractor forward off skid.

= Remove banding holding discharge

guard up against tractor:

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY

,_kCAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time° Before connecting battery, re-

move metal bracelets, wristwatch bands,

rings, etco Positive terminal must be con-

nected first to prevent sparking from acci-

dental grounding°

o Remove cardboard packing from seat

pan and lift seat pan to raised position,

o Open battery box door and remove pro-

tective plastic.

o Remove terminal protective caps and

discard°

o If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps.

o First connect RED battery cable to posi-

tive (+) terminal with hex bolt, flat wash-

er, lock washer and hex nut as shown°

Tighten securely..

o Connect BLACK grounding cable to

negative (-) terminal with remaining hex

bolt, flat washer, lock washer and hex

nut. Tighten securely°

o Close battery box door, Open battery

box door for:

,, Inspection for secure connections

(to tighten hardware).

o Inspection for corrosion.

o Testing battery°

o ,Jumping (if required)_.

o Periodic charging_

Positive

(Red) Cable

Discard Terminal

Proctective Caps

Lock Washer

Flat Washer

Hex He× Bolt

Negative

(Black)

Seat Pan

Battery

Door

INSTALL SEAT

Adjust seat before tightening adjustment

knob°

• Remove cardboard packing on seat pan,

= Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely, Do not tighten.

• Lower seat into operating position and

sit on seat,

o Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way downs

o Get off seat without moving its adjusted

position_

o Raise seat and tighten adjustment knob

securely..

Seat

Seat Pan _

Shoulder

Bolt

Flat 'Washer

Adjustment Knob

INSTALL MULCHER PLATE

o Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

• Tighten hardware securely_

• Raise and hold deflector shield in up-

right position°

, Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

, Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

,_jkmower deck,

CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mutcher plate and allow it

to rest on plate while in operation°

Weld Nut From

The Top

Lock

Weld Washer

Hook Points

Down

Latch

Washer

Mulcher

Plate

Deflector

Shield

Screw

Latch

Hook

Nut

Lock Washer

Washer

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance_

o Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" on

page 5 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts in

the Service and Adjustments sectoin of

this manual Verify that the belts are rout-

ed correctly°

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See %0 ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

/ CHECKLIST

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

v" All assembly instructions have been

completed.

,/ No remaining loose parts in carton°

,/ Battery is properly prepared and

charged° (Minimum 1 hour at 6 arnps).

v_ Seat is adjusted comfortably and

tightened securely.

,X All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

/ Be sure mower deck is propedy levele_

side-to-side/front-to-rear for best

cutting results. (Tires must be propedy

inflated for leveling).

,X Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•," Check wiring. See that all connections

are still secure and wires are properly

clamped.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRA ATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

/ Engine oil is at proper level.

/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

#' Become familiar with all controls _ their

location and function. Operate them

before you start the engine.

,/ Be sure brake system is in safe

operating condition.

Thesesymbolsmayappearon yourtractoror in literaturesuppliedwiththe product,

Learnandunderstandtheirmeaning,

BATTERY

ENGINE ON

FUEL

CAUTION OR

WARNING

ENGINE OFF

CHOKE

REVERSE FORWARD FAST SLOW

OIL PRESSURE LIGHTS ON OVER TEMP _"

LIGHT

MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

ATTACHMENT

CLUTCH ENGAGED

REVERSE NEUTRAL

N L

HIGH LOW PARKING BRAKE

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFE'( RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of

various controls and adjustments, Save this manual for future reference.

Attacilment

Clutch Lever

Light

Switch

Ignition

Switch

Lift Lever

" "__ Plunger

Attachment Lift

Lever

Height

Adjustment

Indicator

PARKING BRAKE

Motion Control

Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor:

LIGHT SWITCH: Turns the headlights on

and off°

THROTTLE/CHOKE CONTROL: Used

for starting and controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

MOTION CONTROL LEVER: Selects the

speed and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your, tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine°

AMMETER: Indicates battery charging (+)

or discharging (.).

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glass-

es or eye shields while operating your tractor or performing any adjust-

ments or repairs,. We recommend a wide vision safety mask over the

spectacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parldng brake will shut off the engine..

TO SET PARKING BRAKE

o Depress clutch/brake pedal into full

"BRAKE" position and hold.

o Place parking brake lever in

"ENGAGED" position and release pres-

sure from clutch/brake pedal Pedal

should remain in "BRAKE" position_

Make sure parldng brake will hold trac-

tor secure. Attachment Clutch Lever

"Engaged" Position

Throttle/Choke

Control lever

"Disengaged"

Position

Pedal "Drive", Parking

Position

/ "Engaged"

Position

Motion

"Disengagq Contorl

Position Position

Lever

STOPPING

MOWER BLADES -

o To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position,.

GROUND DRIVE -

o To stop ground drive, depress

clutch/brake pedal into full "BRAKE"

position.

, Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

o Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

o Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

o Never use choke to stop engine°

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

pping tractor On grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position; to empty grass

catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

o Operating engine at less than full throt-

tle reduces the battery' charging rate,

o Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever,

o Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position°

o Move gearshift lever to desired posi-

tion.,

= Slowly release clutch/brake pedal to

start movemenL

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears_

Failure to do so wilt shorten the useful tile

of your transaxte

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting heighL

° Grasp lift lever.

o Press plunger with thumb and move

lever to desired position°

The cutting height range is approximately

1di2 to 4'L The heights are measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

o The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months° For healthier and better

looking lawns, mow often and after

moderate growth.

= Forbest cuttingperformance, grass

over 6 inches in height should be

mowed twice. Make the first cut relative-

ly high; the second to desired height.

TO OPERATE MOWER

"-(ourtractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

o Select desired height of cut.

= Start mower blades by engaging attach-

ment clutch control.

o TO STOP MOWER BLADES - disen-

,_cage attachment clutch control.

AUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

Attachment Lift Lever Attachment Lift Lever

High Position .._ f:_.. High Position

"Disengaged"_/i lJ ) ,:_..._ Low

_ OPERATE ON HILLS

CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. A slope guide

at the back of your manual is provided for

your use.

o Choose the slowest speed before start-

ing up or down hills.

o Avoid stopping or changing speed on

hills°

= If slowing is necessary, move throttle

control lever to slower position.

° If stopping is absolutely necessary,

push clutcfVbrake pedal quickly to brake

position and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

= To restart movement, slowly release

parking brake and clutch/brake pedal.

o Make all turns slowly_ ......

TO TRANSPORT

o Raise attachment lift to highest position

with attachment lift control.

o When pushing or towing your tractor, be

sure gearshift lever is in neutral (N)

position_

° Do not push or tow tractor at more than

five (5) MPH,

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer; be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

BEFORE STARTnNG THE ENGINE

CHECK ENGINE OIL LEVEL

° The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

o Check engine oil with tractor on level

ground.

o Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oi! level. If necessary,

add oil until "FULL" mark on dipstick is

reached. Do not ovedill.

For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainten-

ance section of this manual).

o To change engine oil, see the Maintem

ance section in this manual.

ADD GASOLINE

= Fill fuel tank. Use fresh, clean, regular'

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve iife)o Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

,_dwAWeatherstarting.

RNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. "1oavoid engine

problems, the fuel system should be emp-

tied before storage of 30 days or longer.

.Drain the gas tank, start the engine and

let it run until the fuel lines and carburetor

are empty. Use fresh fuel next season.

See Storage Instructions for additional

information° Never use engine or carbure-

tor cleaner products in the fuel tank or per-

nent damage may occur.,

CAUTION: Fill to bottom of gas tank

filler neck,. Do not overfill Wipe off any

spilled oil or fuel Do not store, spill or use

gasoline near an open flame,.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

o Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

o Place gear shift lever in neutral (N) posi-

tion.

o Move attachment clutch to "DISEN-

GAGED" position°

o Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

o Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts..

Do not run starter continuously for more

than fifteen seconds per minute,. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again,. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F

AND ABOVE)

o When engine starts, move the throttle

control to the fast position.

o The attachments and ground drive can

now be used,. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F AND

BELOW)

o When engine starts, allow engine to run

with the throttle control in the choke

position until the engine runs roughly,

then move throttle control to fast posi-

tion_ This may require an engine warm-

up period from several seconds to sev-

eral minutes, depending on the temper-

ature.

o The attachments can also be used dur-

ing the engine warm-up period°

NOTE: if at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to be

adjusted for best engine performance°

See 'q'O ADJUST CARBURETOR" in the

Service and Adjustments section of this

.manual,

MOWIING TIIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

o Mower should be properly leveled for

best mowing performance° See 'qO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

o The left hand side of mower should be

used for trimming°

o Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the machine°

This will result in a more even distribu-

tion of clippings and more uniform cut-

ting,

o When mowing large areas, start by turn-,

ing to the right so that clippings will dis-

charge away from shrubs, fences, drive-

ways, etco After one or two rounds,

mow in the opposite direction making

left hand turns until finished

o tf grass is extremely tall, it should be

mowed twice to reduce load and possi-

ble fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height°

o Do not mow grass when it is wet. Wet

grass will plug mower and leave unde-

sirable clumps. Allow grass to dry

before mowing_

o Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material, Regulate ground speed by se-

lecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

o When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used_

MULCHINGMOWINGTIPS

IMPORTANT; For best perfomlance,

keep mower housing free of built-up grass

and trash. Clean after each use.

o The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blade&

• Avoid cutting your lawn when it is wet°

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

aftemoono At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

o For best results, adjust the mower cut-

ting height so that the mower cuts off

only the top one-third of the grass

blades° For' extremely heavy mulching,

reduce your width of cut on each pass

and mow stowly.

Max 1/3

o Certain types of grass and grass condi-

tions may require that an area be

mulched a second time to completely

hide the clippings, When doing a sec-

ond cut, mow across or perpendicular to

the first cut path.

o Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawno

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

SERVICE

Check Brake Operation 6_ 6##

Check Tire Pressure _#P 64#

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners _/

cA ..........

i Sharpen/Replace Mower Btades 6#44

T ' Lubri_ti0n C'ha_ e/ J ...........

0 Check Battery Level _ ..................................

R Clean Battery and Terminals/Recharge _ _#"

Check Transaxle Cooling _#'

Adjust Blade Be!t{s ) Tension ....... e/_ ....................

Adjust Mort[on Drive Belt(s) Tension 6fs

Check Engine Ofl Level Q_'

Change Engine Oi_ _.2._

E Clean A_r Filter _ ,

N Clean Air Screen _,_

I_ inspect Muffler/Spark Arresler

RoplaceOi,F;;i r("eqUtppee) I I IH 1..............l iiillI

, Replace Spark Plug ........................... _ , _ ......................

Replace Air Filter Paper Car_ridge 64#2

. Replace Fuel Filter ,

I - Change more ottor_ whorl opotat_r_g under a he_v'f load or in high _mb{ont tornporaluro_ 5 - If equipped wi_ adJust,'_t_lo system.

:_ _ Service more ot_.orl whorl opoi'atl_g _rl dirty or dusty ¢ondiUoP._

3 _ tf equipped w_th oll filter, chnngo o_ every SO hout_.

4 _ Replace _n_o_ more often when mowlr_g lrl _nndy _oil

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence,, To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual. Some Wheel

adjustments will need to be made periodi- Bearing

cally to properly maintain your tractor. Zerk

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

o Once a year you should replace the

spark plug, clean or replace air filter, and @Attach

ment

check blades and belts for wear., A new Clutch

spark plug and clean air filter assure Pivot(s)

proper air-fuel mixture and help your

engine run better and last Ionger.

BEFORE EACH USE

o Check engine oil level.

° Check brake operation,

o Check tire pressure,,

° Check operator presence and interlock

systems for proper operation.

= Check for loose fasteners,,

Wheel

Bearing

Zerk

gine

OGear

shift

Pivots

@SAE 30 or 10W30 Motor Oil

General Purpose Grease

Refer to Customer Responsibilities "ENGINE"

Section

IMPORTANT: Do not oil or grease the pivot points

which have special nylon bearings Viscous lubri-

cants will attract dust and dirt that will shorten the

life of the self-lubricating beadngso If you feel they

must be lubricated, use only a dry, powdered

graphite type lubricantsparingly,

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual)°

TIRES

o Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

on page 5 of this manual).

= Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

= Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

° Raise mower to highest positionto allow

access to blades.

o Remove hex bolt, lock washer and flat

washer securing blade.

° Install new or resharpened blade with

trailing edge up towards deck as shown.

o Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

° Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated°

Bladher___ Mandrel

Assembly

Flat Was Trailing

Edge Up

Lock Washer._ _

Hex Bolt 8)_,.._ "<_,-_

(Grade

*A Grade 8 heat treated bolt can be

identified by six lines on the bolt head°

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade, but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

° The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

o To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with bal-

ancer).

• Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal positiorL If either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

NOTE" Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Center Hole

5/8 =Bolt

or Pin

Blade

BATTERY

Your' tractor has a battery charging system

which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend its

life.

° Keep battery and terminals clean.

o Keep battery bolts tight.

,, Keep small vent holes open,

o Recharge at 6-10 amperes for 1 hour,

NOTE: The original equipment battery on

your tractor is maintenance free° Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and ter-

minals can cause the battery to "leak"

power.

• Open battery box door.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

o Rinse the battery with plain water and

dry,

o Clean terminals and battery cable ends

with wire brush until bright.

o Coat terminals with grease or petroleum

jelly.

o Reinstall battery (See "CONNECT BAT-

TERY" in the Assembly section of this

manual)°

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary,, The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOMNG

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling,,

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG or

SH, Select the oil's SAE viscosity grade

according to your expected operating tem-

perature.

SAE VISCOSITY GRADES

_F _o_ o" _- _- _. _- loo"

I {: -3o" _" -1o" o" zo- _- _ 4o-

ITEMPE_RE RANGE,/LNTICiPATED BEFoR_ _ 0iL _GE

NOTE: Although multi-viscosity oils

(5W30, ! 0W30 etco) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°R Check your engine oil

level more frequently to avoid possible

engine damage from running low on oiL

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year,,

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation° Tighten oil fill cap/dip-

stick securely each time you check the oil

level,

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change, All oil must meet API

service classification SF, SG or SH;

• Be sure tractor is on level surface,

Oil will drain more freely when warm.

° Catch oil in a suitable container°

o Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing Clio

• Remove drain ptugo

o After oil has drained completely, replace

oil drain plug and tighten securely.

o Refill engine with oil through oil fill dip-

stick tube, Pour slowly. Do not overfill.,

For approximate capacity see "PROD-

UCT SPECIFICATIONS" on page 5 of

this manual°

o Use gauge on oil fill cap/dipstick for

checking level Be sure dipstick cap is

tightened securely for accurate reading.

Keep oil at "FULL" line on dipstick.

Oil Fill

"--CaptDipstick

,.,,,.

Oil Drain

/" Plug

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first,,

Service air cleaner more often under dusty

conditions.

° Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

° Slide foam pre-cleaner off cartridge.

o Wash it in liquid detergent and water_

° Squeeze it dry in a clean cloth.

o Saturate it in engine oil. Wrap it in clean,

absorbent cloth and squeeze to remove

excess oil

o If very dirty or damaged, replace pre-

cleaner,

o Reinstall pre-cleaner over cartridge_

o Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

= Remove cartridge nut.

- Carefully remove cartridge to prevent

debris from entering carburetor. Clean

base carefully to prevent debris from

entering carburetor_

= Clean cartridge by tapping gently on flat

surface_ If very dirty or damaged,

replace cartridge.

o Reinstallcartridge, nut, precleaner,

cover and secure with knob(s).

IMPORTANT =Petroleum solvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry car-

tddgeo

Cover

Knob

C _ Cartridge

Foam _ Paper

Pre-Cleaner_ Cartgdge

_"-Base

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from over-

heating. Clean with a wire brush or corn-

pressed air to remove dirt and stubborn

dried gum fibers,.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

,, Remove screws from blower housing

and lift housing and dipstick tube

assembly off engine°

• Cover oil fill opening to prevent entry of

dirt.

e Use compressed air or stiff bristle brush

to thoroughly clean engine cooling fins.

° To reassemble, reverse above proce-

dure.

Screws

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

on page 5 of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

o With engine cool, remove filter and plug

fuel line sections.

= Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

o Be sure there are no fuel line leaks and

clam.

_uei Filter

CLEANING

o Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the elec-

trical system, muffler, air filter and carbure-

tor are covered to keep water out. Water

in engine can result in a shortened engine

life.

air screen

Assembly _,___

Engine Cooling Fins

•_kCAUTION: Before performing any service or adjustments:

o Depress clutch/brake pedal fully and set parking brake.

o Place gearshift lever in neutral (N) position..

o Place attachment clutch in "DISENGAGED" position,

o Turn ignition key "OFF' and remove key,

o Make sure the blades and all moving parts have completely stopped.

o Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug.

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor,

o Place attachment clutch in "DISEN-

GAGED" position,,

o Move attachment lift lever forward to

lower mower to its lowest position.

o Roll belt off engine pulley,

o Disconnect clutch rod from clutch lever

by removing retainer spring.

o Disconnect anti_swaybar from chassis

bracket by removing retainer spring.

° Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

o Disconnect front links from deck by

removing retainer springs,

o Raise lift lever to raise suspension

arms, Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

• Raise attachment lift lever to its highest

position.,

° Slide mower under tractor with dis-

charge guard to right side of tractor.

= Lower tift lever to its lowest position,

° Install mower in reverse order of

removal instructions°

Clutch

Clutch Rod

Retainer

Spring

Suspension

Arms

Pulley

Front

Link

Retainer

Spring

Anti-Swaybar

Retainer Springs

(Both Sides)

Retainer Springs

(Both Sides)

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or ddveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" on page 5 of this

manual)° If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

o Raise mower to its highest position.

,, Measure height from bottom of deck

curl to ground level at front corners of

mower. Distance ".4,"on both sides of

mower should be the same.

= If adjustment is necessary, make adjust-

ment on one side of mower only.

o To raise one side of mower, tighten lift

link adjustment nut on that side.

o To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each half turn of adjustment nut

will change mower height about 3/16".

o Recheck measurements after adjusting.

Bottom r--_--_--_ Bottom

o, °°"

_ine"_'ilJ -"_

Suspension

Arm

Lift LinkAdjt Nut

FRONT-TO-BACK ADJUSTMENT

iMPORTANT." Deck must be level:side-to-

side. tf the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower wilt stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so the

front is approximately 1/8" to 1/2" lower

than the rear when the mower is in its

highest position°

Check adjustment on right side of tractor:

Measure distance "F" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

o Before making any necessary adjust-

ments, check that both front links are

equal in length.

° If links are not equal in length, adjust

one link to same length as other link.

= To lower front of mower housing, ioosen

nut "(3" on both front links an equal

number of turns.

When distance "F" is 1/8" to 1/2" lower

at front than rear; tighten nut "H" against

trunnion on both front links.

o To raise front of mower housing, loosen

nut "H" from trunnion on both front links.

Tighten nut =G" on both front links an

equal number of turns.

o When distance "F" is 1/8" to 1/2" lower

at front than rear; tighten nut "H"

against trunnion on both front links.

NOTE: Each full turn of nut "G" will

change dim. "i=" by approximately 3/8".

° Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

TO REPLACE MOWER BLADE DRIVE

BELT (See Illustration Next Page)

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

o Remove mower frown tractor (See "TO

REMOVE MOWER" in this section of

this manual).

o Work belt off both mandrel pulleys and

idler pulleys.

= Pull belt away from mower°

BELT INSTALLATION -

o Install new belt in reverse order of

removal.

Mandrel

Pulley

- Make sure belt is in all pulley grooves

and inside all belt guide&

o Install mower in reverse order of

removal instructions.

Idler

Pulleys

Mandrel

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

tf tractor requires more than six (6) feet

stopping distance at high speed in high-

est gear, then brake must be adjusted°

o Depress clutch/brake pedal and engage

parking brake.

o Measure distance between brake oper-

ating arm and nut "A" on brake rod.

o if distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-t/2"o Retighten jam nut

against nut "A".

o Road test tractor for proper stopping

distance as stated above. Readjust if

necessary, if stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact your nearest authorized ser-

vice center.

With Parking Brake "Engaged"

"1"OREPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake, For assistance, there is a

belt installation guide decal on bottom side

of left footrest,.

° Remove mower (See "TO REMOVE

MOWER" in this section of this manual,,)

° Remove upper belt keeper,

o Remove belt from stationary idler and

clutching idler.

o Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

o Pull belt toward front of tractor and

remove downwards from around engine

pulley°

o install new belt by reversing above pro-

cedureo

IMPORTANT: Make sure upper belt keep-

er is positioned properly between Iocator

tab.

Engine

Pulley _ Locator Tab

Clutching .J_-_ _"-,.Jt

Idler _._ [ _... Upper BeltKeeper

Transaxle

Pulley ....

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not hod-

zontal (left to right) when wheels are posi-

tioned straight forward, remove steering

wheel and reassemble per instructions in

the Assembly section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toein and camber are not

adjustable on your tractor, if damage has

occurred to affect the front wheel toe-in or

camber, contact your nearest authorized

service center

TO REMOVE WHEEL FOR REPAIRS

• Block up axle securely.

o Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose)

o Repair tire and reassemble.

o On rearwheets only: align grooves in

rear wheel hub and axle. Insert square

key.

= Replace washers and snap retaining

ring securely in axle groove.

° Replace axle cover:

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be pumhased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

= Connect each end of the RED cable to

the POSITIVE (+) terminal of each bat-

tery, taking care not to short against

chassis.

o Connect one end of the BLACK cable to

the NEGATIVE (-) terminal of fully

charged battery.

o Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery°

TO REMOVE CABLES, REVERSE

ORDER -

• Remove BLACK cable first from chassis

and then from the fully charged battery.

o Remove RED cable last from both bat°

terieso

Positive Terminal Negative Terminal

Cables

Retaining

Ring

Axle Cover

'_ Square Key

(Rear Wheel Only)

TO START EN_.._ItE Ti_AT tH._6 A ql_.A_

BATTERY

,ACAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from batter-

ies. Always wear eye protection when

around batteries°

if your battery is too weak to start the

engine, it should be recharged, tf "jumper

cables" are used for emergency starting,

follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

Positive Terminal

Charged

Battery

Negative Terminal

TO REPLACE HEADLIGHT BULB

o Raise hood.

o Pull bulb holder out of the hole in the

backside of the grill.

,, Replace bulb in holder and push bulb

holder securely back into the hole in the

backside of the grill

o Close hood,

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or pre-

vent it from starting

o Check wiring_ See electrical wiring dia-

gram in the Repair Parts section of this

manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash,

TO REMOVE HOOD AND GRILL

ASSEMBLY

o Raise hood°

o Unsnap headlight wire connector°

o Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor

o To replace, reverse above procedures.

Hood

Headlight

Wire

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or indi-

vidual. Warranty repairs must be per-

formed by an authorized engine manufac-

turer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essaryo Check adjustment as described

below before loosening cable. If adjust-

ment is necessary', proceed as follows:

o With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position,

o Check that holes "A" in governor control

lever and hole in governor plate line-up_

If holes "A ° are not aligned, loosen

clamp screw and move throttle cable

until holes are aligned° Tighten clamp

screw securely_

Governor Governor

Control Lever Control Plate

Holes "A"

Clamp

Screw

Throttle

Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission, it is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap° The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the fac-

tory and adjustment should not be neces-

san/. However, minor adjustment may be

required to compensate for differences in

fuel, temperature, altitude or toad. if the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Turning the idle mixture valve out

(counterclockwise) increases the supply of

fuet to the engine giving a richer'fuel/air

mixture.

IMPORTANT: Damage to the needle valve

and the seat in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

o Air cleaner assembly must be assem-

bled to the carburetor when making car-

buretor adjustments.

= Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

o Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

o Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn idle

speed screw to attain 1750 RPM.

• While still holding throttle lever against

idle speed screw, turn idle mixture valve

full travel clockwise then counterclock-

wise until engine runs rough. Turn valve

to a point midway between those two

positions. Release throttle lever'.ACCEL-

ERATION TEST-

• Move throttle control lever from stow to

fast position. If engine hesitates or dies,

turn idle mixture valve out (counter-

clockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust--damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed, overspeeding the

engine above the factory high speed set-

ting can be dangerous, if you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center, which has proper equip-

ment to make any necessary adjustments.

Idle Speed Throttle

Screw Lever

',J' vr

Limiter

Immediatelyprepareyour tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

,_kOAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before stor-

ing in any enclosure_

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it thor-

oughty. Remove all dirt, grease, leaves,

etco Store in a clean, dry area.

• Clean entire tractor (See "CLEANING" in

the Maintenance section of this manual).

o Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual)°

o Lubricate as shown in the Maintenance

section of this manual.

° Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

° Touch up all rusted or chipped paint sur-

faces; sand lightly before painting°

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging_

° To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

,, After cleaning, leave cables disconnect-

ed and place cables where they cannot

come in contact with battery terminals.

o If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: tt is important to prevent

gum deposits from forming in essential fuel

system parts such as carburetor, fuel filter,

fuel hose, or tank during storage. Also,

experience indicates that alcohol blended

fuels (called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of acids

during storage. Acidic gas can damage the

fuel system of an engine while in storage.

o Drain the fuel tank.

° Start the engine and let it run until the

fuel lines and carburetor are empty.

° Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

° Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add sta-

bilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not drain the gas tank and carbure-

tor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDERS

o Remove spark plug(s).

o Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

o Turn ignition key to "START" position for

a few seconds to distribute oil.

° Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another°

• Replace your gasoline can if it starts to

rusL Rust and/or dirt in your gasoline

will cause problems.

o If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

° Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust.

fMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Will not start o Out of fuel,

Hard to start

propedy.

° Engine flooded°

Engine not "CHOKED"

• Bad spark plug.

• Dirty air filter.

• Dirty fuel filter.

o Water in fuel.

° Loose or damaged wiring.

• Carburetor out of adjust-

ment,

° Engine valves out of

adjustment.

CORRECTION

Fill fuel tank.

U"JULUL II"l I I , ,ll

Engine will not turn

over

Engine clicks but

will not start

- Dirty air filter.

• Bad spark plug.

° Weak or dead batter,/.

• Dirty fuel filter.

o Stale or dirty fuel.

° Loose or damaged wiring,

° Carburetor out of adjust-

ment.

° Engine valves out of

adjustment.

° Clutch/brake pedal not

depressed.

• Attachment clutch is

engaged.

° Weak or dead battery°

° Blown fuse.

° Corroded battery termi-

nals.

° Loose or damaged widng.

° Faulty ignition switch,

Faulty solenoid or starter.

Faulty operator presence

switch(°s).

Weak or dead batter,/.

Corroded battery termi-

nats.

,,, , ,,,,,,

° See "TO START ENGINE" in

Operation section.

= Wait several minutes before

attempting to start.

° Replace spark plug.

° Clean/replace air filter.

, Replace fuel filter.

° Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel fil-

ter.

o Check all wiring,

• See "To Adjust Carburetor"

in Service and Adjustments

section,

o Contact an authorized ser-

vice center.

° Clean/replace air filter.

° Replace spark plug.

° Recharge or replace battery.

o Replace fuel filter°

o Drain fuel tank and refill with

fresh gasoline.

o Check all wiring.

° See "To Adjust Carburetor"

in Service and Adjustments

section.

o Contact an authorized ser-

vice center.

• Depress clutch/brake pedal.

° Disengage attachment

clutch.

o Recharge or replace battery.

° Replace fuse.

= Clean battery terminals.

o Check all widng.

o Check/replace ignition

switch.

,, Check/replace solenoid or

starter.

° Contact an authorized ser-

vice center.

° Recharge or replace battery.

° Clean battery terminals.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Engine clicks but

wilt not start

(cont'd)

Loss of power

,, Loose or damaged wiring_

o Faulty solenoid or starter.

o Cutting too much

grass/too fasL

• Throttle in "CHOKE" posi-

tion_

o Build-up of grass, leaves

and trash under mower.

CORRECTION

° Check all wiring.

o Check/replace solenoid or

starter.

• Set in "Higher Cut" posi-

tion/reduce speed.

o Adjust throttle control

o Clean underside of mower

housing°

= Dirty air filter.

° Low oil level/dirty oil,

o Faulty spark plug.

o Dirty fuel filter.

= Stale or dirty fuel

Water in fuel.

° Spark plug wire loose,,

o Dirty engine air

screen/fins.

o Dirty/clogged muffler.

o Clean/replace air filter,

o Check oil level/change oil.

o Clean and regap or change

spark plug.

° Replace fuel filter.

o Drain fuel tank and refill with

fresh gasoline.

= Drain fuel tank and carbure_

tor, refill tank with fresh gaso-

line and replace fuel filter.

• Connect and tighten spark

plug wire.

o Clean engine air screen/fins,

o Clean/replace muffler.

Excessive vibration

Engine continues to

run when opera-

tor leaves seat

with attachment

clutch engaged

Poor cut - uneven

° Loose or damaged wiring.

o Carburetor out of adjust-

mento

o Engine valves out of

adjustment°

° Worn, bent or loose blade.

o Bent blade mandrel°

o Loose/damaged part(s).

° Faulty operator-safety

presence control system°

Worn, bent or loose blade.

= Mower deck not level.

° Buildup of grass, leaves,

and trash under mower.

o Bent blade mandrel

o Clogged mower deck vent

holes from buildup of

o Check all wiring.

° See "To Adjust Carburetor" in

Service and Adjustments

section.

o Contact an authorized ser-

vice center,.

= Replace blade. Tighten blade

bolt.

o Replace blade mandrel°

o Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections, If not

corrected, contact an autho-

rized service center°

o Replace blade. Tighten blade

bolt.

o Level mower deck.

,, Clean underside of mower

housing.

• Replace blade mandrel_

o Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor cut - uneven grass, leaves, and trash

(cont'd) around mandrels,

o Remove obstruction.Mower blades will

not rotate

Poor grass dis*

charge

Headlight(s) not

working (if so

equipped)

Battery will not

charge

L,I ii i_l ii, i

Engine "backfires"

when turning

engine "OFF"

Obstruction in clutch

mechanism.

° Worn/damaged mower

drive belt.

° Frozen idler pulley_

o Frozen blade mandrel

i, ,,i ,,,m,,,,, i i ,,i ,, llJ,,lll

o Engine speed too stow,,

o Travel speed too fast.

• Wet grass.

o Mower deck not level.

o Lowtuneven tire air pres-

sure,,

° Worn, bent or loose blade.

o Buildup of grass, leaves

and trash under mower:

o Mower' drive belt worn.

o Blades improperly

installed.

o Improper blades used.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

° Switch is "OFF'.

° Bulb(s) burned out.

o Faulty light switch.

• Loose or damaged wiring.

- Blown fuse.

° Bad battery cell(s).

° Poor cable connections.

o Faulty regulator (if so

equipped),,

° Faulty alternator.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

Replace mower drive belt.

o Replace idler pulley.

° Replace blade mandrel.

i,l_,.m,,i

o Place throttle control in

"FAST" position°

• Shift to slower speed.

o Allow grass to dry before

mowing°

° Level mower deck_

° Check tires for proper air

pressure.

° Replace/sharpen blade,

Tighten blade bolt.

o Clean underside of mower

housing.

o Replace mower drive bell

° Reinstall blades sharp edge

down,

° Replace with blades listed in

this manual.

. Clean around mandrels to

open vent holes.

- Turn switch "ON".

° Replace bulb(s).

o Check/replace light switch.

• Check wiring and connections,

o Replace fuse.

• Replace battery.

• Check!clean all connections.

° Replace regulator.

Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.270630

BATTERY

FUEL SHUI'-OFF . _ _~ :- : -: "_

u_Hgn9sYSrea___ DIODE , ALTERNATOR { ',

YOUR TRACTOR IS |

EQUIPPED WITH A SPECIAL /

ALTERNATOR SYSTEM l _"_ _ _c¥___f_E_

THE LIGHTS ARE NOT _ _ J _"J "

CONNECTED TO THE j .._ {

BATTERY, BUT HAVE THBR L__J

OWN ELECTRICAL SOURCE

BECAUSE OF THIS, THE HEADLIGHTS

BRIGHTNESS OF THE UGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS _). O

IGNITION SWITCH WiLL DIM. AS THE ENGINE }S NON-REMOVABLE REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS CONNECTIONS

WILL BECOME THEIR BRIGHTEST

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLtPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING,

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.270630

t /J

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.270630

KEY

NO.

NOTE:

PART

NOo DESCRIPTION

144925

74760412

STD551025

STD551125

STD54 ! 025

156417

153664

STD551125

73350400

147430

4t52J

4799J

146147

108824X

4207J

121305X

140301

124211X

141226

109310X

156442

711t 0408

131563

145673

73640400

121433X

141940

140422

Battery 12 VOLT 25AMP

Bolt Hex Hd 1/4-20unc x 3/4

Washer 9/32 x 5/8 x 16 Ga

Washer Lock Hvy Helical 1/4

Nut Fin Hex 1/4-20 Unc

Case Batten]

Switch, tntedock Push-In

Washer Lock 1/4

Nut Jam Hex 1/4-20 Unc

Harness Asm Ught W/4152j

Bulb Light #1156

Cable Battery 6 Ga 11" red

Cable Battery 6 Ga w116wire red

Fuse 30 AMP Auto Green

Cable Ground 6 Ga 12" black

Switch Plunger Nc Gray

Switch lgn 4 Pos

Nut Ignition

Cover Sw Key BIk 1 25 Text SLT

Key Ign Molded Craftsman

Harness lgn Man Cl Am Hm 97

Bolt BIk, Fin Hex 1/4-20 Unc x 1/2

Cover Terminal Red

Solenoid

Nut Keps Btk Hex 1/4-20 Unc

Ammeter Rectangular 6 Amp

Protection Wire Loop

Harness Engine B&S 14 OHV

Allcomponent dimensions give in U S, inches

1 inch = 25_4mm

TRACTOR-., MODEL NUMBER 917.270630

CHASSIS AND ENCLOSURES

TRACTOR -- MODEL NUMBER 917.270630

CHASSIS AND ENCLOSURES

KEY PART

NO NO, DESCRIPTION

1 160392

2 140356

3 17490612

4 STD551025

5 155272

9 161917X0t3

10 STD5337 t 0

11 155927

12 145660

13 155934)(010

14 17490608

17 144983X558

! 8 126938X

25 19131312

26 STD541437

28 145198X558

29 155217

30 151287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD522507

60 STD533707

64 154798

74 STD541437

140 158418

142 156095

143 154966

144 154207

145 156524

- - 5479J

Chassis

Drawbar

Screw, Thd RoE 3/8-16 x 3/4

Washer 13/32 x 3/4 x t6 Gauge

Bumper Hood/Dash

Dash,

Bolt, Carnage 3/8-16 x 3/4

Panel, Dash, LH,,

Clip Tinnerman Grille P/L

Panel, Asm,,SLKSCR Dash RH,

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper _Hood

Washer 13/32 x 13116x 12 Gauge

Nut, Lock Hex Wtlns,,3t8-16 UNC

Grille wtClips MS-558

Lens, Grille

Fender

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2 TYT

PivotBracket Assembly, L,H,_

Pivot Bracket Assembly, R .H

Nut Lock w/Insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga,.

Bracket Gdlle Pickoff LH

Screw Hex WSHD 8q8 x 7/8

Bracket Gdlle Ptckoff RH

Boll, Fin Hex 1/4-20 UNC x 35

Bolt Rdhd Sqnk 3/8-t6 UNC

Dash Lower STLT

Nut, Cmwnlock 318-16 UNC

Bracket Front Suspension

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Plug, Button

NOTE: All component dimensions given in U.,S inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270630

GROUND DRIVE

• 48

15(

151

TRACTOR - - MODEL NUMBER 917.270830

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

2 146682

3 123666X

4 12000028

5 121520X

6 17490512

8 154792

10 STD561210

11 t05701X

13 74550412

t4 STD551125

t5 74490544

18 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 106888X

26 STD551037

27 STD561210

28 145204

29 I24236X

30 130807

31 127275X

32 STD523107

34 155071

35 120183X

36 STD551062

37 STD571810

38 123674X

39 STD523727

40 4470J

41 154777

42 19131312

47 127783

48 154407

49 123205X

50 STD523715

51 STD541437

Transaxle (See Breakdown) 52

Dana Model 4360-113 53

Spring Return Brake T/a Zinc 55

PulleyTransaxle 18/20" tires 56

Ring Retainer # 5100_62 57

Strap Torque 30 Degrees 58

Screw Thdrol 5/16-18 x 3/4 I-'(T 59

Rod Shifter Fender STLT 61

Pin Cotter 1/8 x 1 Cad 62

Washer Plate Shf 388 Sq Hole 63

Bolt 1/4-28unf Gr8 W/Patch

Washer Lock Hvy Helical 1/4 64

Bolt Hex FLGHD 5/16-18G[5 65

Bott Fin Hex 66

Nut Lock Hex W/Ins 3/8-16 70

Unc 72

Knob Rd 1/2-13 Ptstc Thds Blk 74

Rod Brake BIk Zinc 26 840 75

Nut Hex Jam 3/8-16 Unc 76

Spdng Rod Brake 2 00 Zinc 77

Washer 13/32 x 13/t6 x 16 Ga 78

Pin Cotter 1/8 x 3/4 Cad 80

Rod Brake ParkingLt/Yt 81

Cap Brake Parking Red 82

Bracket Mtg Transaxle 83

Keeper Belt LH LT t4 Ga 84

Bolt Hex Hd 5/!6q 8unc x 3/4 85

Shaft Asm Pedal Foot 86

Beating Nylon Blk 629 ld 87

Washer 21/32 x 1 x 16 Ga 88

Pin Rof! 3/16 x 1" 89

Pulley Idler Flat 90

Bolt Fin Hex 3/8-16unc x 2-3/4

Spacer Split 395 x 59 Bzp 112

Keeper Belt Idler 116

Washer 13/32 x 13116x 12 Ga

Pulley Idler V Groove Plastic 148

BeEIcrankClutch Gmd Drv STL 149

Retainer Belt Style Spring I50

Bolt Hex Hd 3/8-16unc x 1-1/2 151

Nut CrownJock 3f8-16 UNC NOTE:

DESCRIPTION

STD541431 Nut Crown Lock 5/16-18

105710X Link Clutch 7 66

105709X Spring Retum Clutch 6 75

STD523712 Bolt Fin Hex 3/8-16 unc x 1-1/4

130801 V-Belt Gd Drive 95 25

127274X Keeper Belt RH LT Pnt/zinc 16g

140312 Keeper Belt Centerspan

17490612 Screw Thdrol 3/8-16 x 3/4 Ty-tt

8883R Cover PedaJ Blk Round

140186 Pulley Eng CI Mech 38deg

LT/YT

71170764 Bolt He× 7/16-20 x 4 Gr 5

STD551143 Washer Lock Hvy Hid Spr 7/16

t54778 Keeper Belt Engine

134683 Guide Belt Mower Drive RH

19132012 Washer 13/32 x 1-1/4 x 12 Ga

I09502X Spacer Axle

121749X Washer 25/32 x 1 1/4 x 16 Ga

STD581075 E-ring #5133-75

t23583X Key Square 2 0 x 1845/1865

121748X Washer 25/32 x 1-5/8 x 16ga

131488 Arm, Shift

161076 Shaft Assembty

t23782X Spring, Torsion

19171216 Washer 17/32 x 3/4 x 16 Gauge

132182 "l]eRod

150360 Nut, Nylock

154780 Bushing

19212016 Washer

12000008 E_Ring

158391 Console, Shift, STLT

t24346X Nut, Self-Threading, Washer Hd

1/4

19091210 Washer 9/32 x 3/4 x 10 Ga

72110610 Bolt Rdhd Sq Neck 3/8_16x

1,,25

t 59103 Spacer

122052X Spacer, Retainer PM Mower

150935 Bushing Nylon CoIlered

19133210 Washer 13/32 x 2 x 10 Ga,,

NI component dimensions given in U S. inches

t inch = 25.,4mm

TRACTOR- - MODEL NUMBER 917.270630

STEERING ASSEMBLY

._-_31

TRACTOR - - MODEL NUMBER 917.270630

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 192720t6

8 12000029

9 3386R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

18 57079

19 124035X

20 126684X

22 71200410

23 127501

25 154406

26 126847X

27 136874

28 19131416

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD541537

41 100711L

42 145054

43 121749X

44 153720

46 t2!232X

47 6855M

51 STD541431

54 74780520

62 156594

63 SSTD523710

65 154780

66 154404

67 74781044

68 154429

NOTE:

Steering Wheet

Front Axle Assembly

Spindle Assembly, L-H.

Spindle Assembly, Roll.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steenng Column

Link, Drag

Washer, Lock

Spacer, Bearing, Front Axle

Nut, Lock, Flange 5/8-11 UNC

Shaft Assembly, Steering

Washer,Thrust r 515 X' 750 X _033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Screw Hex Socket 1/4-20 x 5/8

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd.., Rolto3/8-16 x 3/4

Rod, 33e

Bushing, Steering

Screw TT #10--32x 5 x 3/8 Flange

Cap Wheel Steer OPP BIk

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Dash P/L Mtl BIk

Washer 25/32 x 1-1/4 x t6 Gauge

Extension Steering Non-Adjust

Cap, Spindle

F]tting,Grease

Nut Lock Hx W/Ins 5/16-18 UNC

Bolt Fin Hex 5/16q8 UNC x 1-1/4

Kit, Steedng Assembly, Service

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5

Spacer Axle

Beadng Arm Pittman

Bolt Fin Hex 5/8-11unc x 2-3/4

Brace Axte

AI_component dimensions given _nUS inches

t inch = 25..4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.270630

44 38 78

OPTIONAL EQUIPMENT

Spark Arrester

ENGINE

TRACTOR - - MODEL NUMBER 9+17.270630

KEY

NO.

NOTE:

PART

NO. DESCRIPTION

162157

1772O410

137352

272293

13280324

13200300

STD55!237

159880

137180

109202X

158990

123487X

17490512

137040

124028X

17490412

19091416

STD551131

71070512

17490620

128861

Control Throttle/Choke

Screw Hex Thd Cut I14+20x5/8 T

Engine (See Breakdown) B&S Mode!28U707-1174+E1

Muffler Exhaust B&S U

Gasket 1 313 tdTin Plated

Nipple Pipe 3/8 Npt X 3"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Ext Tooth 3/8

Shield BRN/DBR Guard

Arrestor Spark

Tank Fue! 1 25 Fr

Cap Asm Fuel Wlsym Vented

Clamp Hose BIk

Screw, Thdrol 5/16+18 x 3/4 Tyt

Line Fuet 20"

Plug Oil Drain (Order From Engine Manufacturer)

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh T'ndrol 1/4-20x3/4

Washer 9/32 X 7/8 X 16ga

Washer Lock Hvy Hicl Spr 5/16

Screw Hexhd Cap 5/16+18x3/4

Screw Thdrol 3/8-16xl -1/4 Tytt

Nut Flange t/4-20 Starter Nut

All component dimensions given in U+S inches

1 inch = 25 4 mm

TRACTOR - - MODEL NUMBER 917.270630

SEAT ASSEMBLY

KEY

NO.

PART

NO.

140122

140551

STD523710

19131610

145006

STD541437

124181X

17490616

19131614

155925

120068X

121246)(

KEY

DESCRIPTION NO,

Seat 3350 Blk/bIk Craftsman 13

Bracket Pnt Pivot Seat (b(k) 14

Bolt Fin Hex 3/8-16unc X 1 15

Washer 13/32 X 3/4 X !0 Ga 16

ClipPush In Hinged 17

Nut Hex Lockw/Ins 3/8-16 Unc 21

Spdng Seat Cprsn 2 250 Btk Zi 22

Screw Thdml 3/8-t6 X 1 Ty-tt 24

Washer 13/32 X 1 X 14 Ga 25

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

PART

NO.

121248X

72050412

134300

121250X

123976X

153236

STD54143I

19171912

127018X

DESCRIPTION

Bushing Snap BIk Nyl 50 id

BoltRdhd Sht Nk 1t4-20x1-1

Spacer Spilt 28 X 96 Zinc

Spdng Cprsn 1 27 BIk Pnt

Nut Lock 114Lge Rg Gr 5 Zi

BoR Shoulder 5/16-18 Unc-_,

Nut Hex Lock w/Ins 5f16-1B

Washer 17/32 X 1-3/16 X 12

Bolt Shoulder 5/16-18 X 62

NOTE: AIr component dimensions given in U,S. inc

esl Inch = 25A mm

DECALS

TRACTOR - - MODEL NUMBER 917,270630

13 6 3 4

KEY PART

NO. NO.

1 156368

3 163200

4 163202

5 273832

6 133644

8 163203

9 163204

10 156439

11 163207

DESCRIPTION

Decal, Oper,,Instr,,

Decal, Hood Rh

Deca!, Hood Lh

Decal, Fender

Decal, Maint Customer Sears

Dora

Decal, DeckMower EZ Mulch

Decal, Fender Craftsman

Decal, Fender Danger

Decal, Fender

KEY PART

NO. NO. DESCRIPTION

12 146046 Decal, V-belt Dr Sch

13 163252 Decal, Dash

14 160396 Decal, V..belt Schematic

20 149516 Decal, Battery Dngr!Psn Eng

- - 138311 Decal, Uft Handle

- - 154515 Pad, Footrest LH STLT

- - 154516 Pad, Footrest RH STLT

-- 163323 Manual, Owner's (English)

- * I63324 Manual, Owner's (Spanish)

WHEELS & TIRES

5,8

4,10

KEY

NO.

11 7

NOTE:

PART

NO. DESCRIPTION

59192 Cap ValueT_re

65139 Stem Value

106222X Tire FTs 15 X 6 0- 6 Service

59904 Tube Inner Front #35060

I06732X427 Rim Asm 6"lront White Se_ce

278H Ft_ng Grease

9040H Bearing Range

106108)(427 Rim Asm 8"rear White Sen4ce

106268X Tire R Ts 18x9 5-8 Service

7152J Tube Rear 9 5 X 8 Service

104757X Cap Axle Blk t 50 X 1 00

144334 Sealant, Tire (t0 oz, tube)

All component dimensions given in U,S inches

1 inch= 25,4 mm

TRACTOR- - MODEL NUMBER 917.27063(}

LIFT ASSEMBLY

/ /

/ i

i /

TRACTOR - - MODEL NUMBER 917.270630

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Washer Asm Inner Spring W/Plunger

2 159471 ShaftAsm, Lift RH

3 105767X Pin Groove

4 12000002 E Ring #5133-62

5 19211621 Washer 21/32 x 1 x 21 Ga

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Asm Lift LH,,

12 139866 Link Asm Lift RH,,

13 STD624008 Retainer Spring

15 127218 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 130171 Trunnion Blk Zinc

18 73800800 Nut Lock WiWsh 1/2-I3 Unc

19 t39868 Arm Suspension Mower

20 STD624008 Retainer Spring

31 140302 Beadng, PvL Lift, Spherical

32 73540600 Nut Crownlock 3/8-24

NOTE: All componentdimensions given in U,S,,inches

1 inch = 25,4 mm

TRACTOR - - MODEL NUMBER 917.270630

MOWER DECK

"'_104

lO5

106 "

105

106

TRACTOR-- MODEL NUMBER 917.270630

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

I 144393 Mower Housing 51 STD541410

2 STD533t07 Bolt 52 139888

3 138017 Bracket Assembly, Sway Bar, 53 131845X900

Front 54 133943

4 138440 Bracket Assembly, Sway Bar 55 155046

5 STD624008 Retainer Spring 56 122052X

6 130832 Arm, Suspension, Rear 58 140086

8 850857 Bolt, Hex 318-24 x 1,,25Grade 8 59 141043

9 STD551137 Washer, Lock 67 162113

10 140296 Washer, Hardened 68 144200

11 134t49 Blade, Mulching 71 142427

12 129895 Bearing, Ball 72 131870

13 137645 Shaft Assembly, Mandrel, 73 127847

Vented (Includes Key Number 74 121748X

14 128774 Housing, Mandrel, Vented 75 12000029

15 t10485X Bearing, Bali, Mandrel 76 128903

t6 140329 Stripper, Vented Mower Deck

I7 72110610 Bolt, Carriage 3/8-16 x2-1/4 77 127845

18 STD533106 Bolt, Carriage 5/16-18 x 5/8 78 160570

19 132827 Bolt, Shoulder 79 127498

20 159770 Baftle, Vortex 80 153701

21 STD541431 Nut, Crownlock 5/16-18 UNC 81 73350600

22 134753 Stiffener Bracket 82 142028

23 131267 Bracket, Deflector 83 120956X

24 105304X Cap, Sleeve 84 156084

25 123713X Spring,Torsion, Deflector 85 72140618

26 110452X Nut, Push 92 STD541437

27 130968 Shield, Deflector

28 19111016 Washer 11/32 x 5/8 x 16 Gauge 101 136420

29 131491 Rod, Hinge 102 71161010

30 157722 Screw Thdrot Rolling Washer

Head t03 19061216

31 129963 Washer, Spacer 104 STD551110

32 153535 Pulley, Mandrel 105 160793

33 137266 Nut, Toplock, Flanged 106 2029J

34 STD533717 Bolt 128 153390

35 133835 Fastner, Christmas Tree 129 19131312

36 131494 Pulley, Idler, Flat 130 STD523710

37 STD551037 Washer 13/32 x 13/!6 x 16 Ga.

40 STD541437 Nut, Crownlock 3/8-16 UNC 131 STD533710

4t 133551 Rod, Pivot, with Nibs 132 19132203

43 140083 Rod, Clutch, Secondary, with 141 6266H

Nibs - - 130794

44 140088 Guard, Mandrel, LH

45 STD624003 Retainer

46 137729 Screw,Thd.. Roll 1/4-20 x 5/8 - - 145411

48 133944 Washer, Hardened

49 155066 Roller Assembly, Cam Follower

50 131340 Bolt, Shoulder #10-24 Grade 5

DESCRIPTION

Lock,nut

Bolt, Shoulder 5/16+18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes 42"

Guard, Tuv Idler (94)

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Retum

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x t6

Gauge

Ring, Klip

Bolt, Shoulder 3/8.16 UNC x

144

Keeper, Spring

Arm, Clutch, Primary

Bushing, Large, Brass

Spring, Mower Clutch

Nut, HexJam 3/8-16 UNC

Trunnion Adj_94

Washer Sintered

Keeper Belt Idler

Bolt Carriage 3/8+16 x 2-1/4

Locknut, Hex W/Wsh 3/8-16

UNC

Cover Mulching 42" Black

Screw Truss Head Phi! 10-24 x

5/8

Washer #10

Washer Lock #10

Latch Asm Bagger

Nut Weld

Washer Felt

Washer 13t32 x 13116x 12 Ga.

Bolt, Fin Hex 3/8-t6 UNC x 1

Gr 5

Bolt, Rdhd Sqnk 3/8-16 UNC x 1

Washer 13/32 x 1-3t8 x 3 Ga

WasherThrust 75 x 1230

Mandrel Assembly (Includes

Key Numbers 8+10, 12-15, 31

and 32)

Mower Deck, Complete (Std

deck - order separately mulcher

plate components key nos. 101-

t06)

NOTE: All component dimensions given in U.Sinches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.270630

DANA TRANSAXLE - - MODEL NUMBER 4360-113

11o

4.1

4546

TRACTOR -- MODEL NUMBER 917.270630

DANA TRANSAXLE - - MODEL NUMBER 4360-113

KEY PART KEY PART

NO. NO., DESCRIPTION NO. NOo DESCRIPTION

160939 Housing, Upper 40 120472X

2274J Screw, Tapping, 1/4-20 X .734 4t 105928X

134400 Ball, Detent 42 110084X

105904X Spring, Detent 43 134394

160940 Screw, Tapping, No. 10-24 X

.482 44 t20473X

138235 Assy, Shifter 45 142678

108727X "v-Ring 46 143697

148266 Bearing, Flange 47 124641X

148269 Seal, Oil 48 106589X

2225J Ring, Retaining 49 120408X

134793 " Assy, Kit, Shim, 625 50 105937X

Shaft 51 2226J

148268 Bearing, Flange

120415X Washer, Plain, 632 X 138 X 52 134401

.,046 53 2264J

142674 Key, Woodruff, No. 9

138234 Assy, Kit, Input Shaft 54 160946

t10078X Pinion, Bevel, 14T 55 110081X

105909X Ring, Retaining 56 160948

1059t0X Chain, 24 Pitches 57 110071X

160942 Cover, Detent 58 120952X

160943 Gear, Spur, 12T 59 1t0082X

148267 Collar, Clutch 60 t60950

138236 Assy, Kit, Clutch Keys 61 t42680

73810500 Nul, Lock, 5/16-24 62 t20961X

142676 Shaft, Intermediate 63 7294J

2244J Key, VVoodruff,No. 61 54 108989X

t05916X Ring, Retaining 65 160952

t20470)( Sprocket, 18T 66 120954X

t10070X Spacer, 1,.131X 1,45 X A94 67 160953

142677 Gear, Spur, 37T 68 138244

142681 Gear, Spur, 35T 69 108996X

124644X Gear, Spur, 30T

108980X Gear, Spur, 25T 70 160954

120A06X Gear, Spur,22T 71 120951X

134796 Gear, Spur 19T 72 1204t6X

105925X Washer, Plain, .640 X 1,37 X

_.061 NOTE:

2228J Washer, Plain, 632 X 1 00 X

.046

2231J Washer, Plain, .632 X 1.,00X

O31

160944 Assy, Gear, Comb., 12T & 3OT

124639X Shaft, idler

Spacer, 633 X ..87X ..755

Sprocket, 9T

Gear, Bevel, 42T

" Assy, Kit, Shim, .750

Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 15T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Washer, Plain, .632 X 1..00X

.060

Washer, Neoprene

Washer, Plain, .758X 1.25X

.031

Axle, LH

Gear, Miter, 15T

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 15T

Axle, RH

Housing, Lower

Puck, Friction

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X 235

Lever, Actuating

Washer, Plain, ,.321X 1..00X

_055

Bracket, Anti-Rotation

Puck, Friction

Grease

All component dimensions given in U.S. inches

1 inch = 25 4 mm

TRACTOR - - MODEL HUMBER 917.917.270630

BRIGGS & STRATTON ENGINE-I_iODEL NUMBER 28U707, TYPE NUMBER 1174-E1

718

337

230

b614

23O

1_"REQUIRES SPECIAL TOOLS

TO iNSTALL SEE REPAIR

INSTRUCTIONMANUAL

166

1029

1034

1026

305 10_

TRACTOR - - MODEL HUMBER 917.270630

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

127 138 106 987

137

105 104

51 142

121 CARBURETOR OVERHAUL KIT

27_,

REQUIRES SPECtAL TOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL+

1033 VALVE OVERHAUL KiT

I_5 22

TRACTOR - - MODEL NUMBER 917.917.270630

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

_523

3 20 634A 842 524 868 8_A

358 GASKET SET

137

138

977 CARBURETOR GASKET SET

171 _ 535

726i ,, ,

TRACTOR - - MODEL NUMBER 917.917.270630

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

209

728

663

265

201

482

1019 LABEL KIT]

Ito58ow._.'s-A."ALI

615

783

801

803

5O3

601

802

TRACTOR - - MODEL NUMBER 917.917.270630

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

KEY PART KEY PART

NO. NO. DESCRiPTiON NO, NO, DESCRIPTION

t 496412 CylinderAssernbly 104 231789 ** Pin, Float Hinge

2 399265 Beadng,Cylinder 105 231855 " Valve Roar

3 391086 " Seal, Oil 106 231854 ** Seat, inletValve

4 494238 Base, Engine 108 224558 Valve, Choke (Lint 153)

5 495858 Head, Cylinder t08A 224540 Valve, Choke (Lint 154)

7 273280 **" Gasket, Cylinder Head 111 262715 SpringChoke (Lint 155)

B 495735 BreatherAssernbly 117 232118 "* Jet, Needle Valve (Std)

9 27803 " Gasket, Valve Cover 232119 Jet, Needle Valve (HI-Alto)

10 94621 Screw, Sems 121 499233 CarburetorOverhaul Kit

11 281246 Tube, Breather 123 94913 Screw, Elbow Mounting

12 271916 * Gasket, Crankcase Cover, o015" 125 499153 CarburetorAssembiy

271997 * Gasket, Crankcase Cover, _005" 127 - * - ** Plug, Welch (Sold in Kit Only)

271996 " Gasket, Crankcase Cover, .009" 130 224539 Valve, Throttle

13 94728 Screw, Cylinder Head 131 494379 Shaft and Lever, Throttle

!5 94239 Plug, Oil Drain 133 494381 Float, Carburetor

16 498971 Crankshaft 137 281165 .... Gasket, Float Bowl

94196 TimingGear Key 138 281164 .... Washer, Bowl

20 291675 * Seal, Oil 141 495097 Choke, Shaft Kit (Choke-A-

22 94624 Screw, Sems, Base Mounting Matic)

23 492326 Rywheel and Ring Gear 141A 495931 Choke, Shaft Kit (Choke*A-

Assembly, Magneto Matic)

24 222698 Key, Rywheet 142 232117 ** Nozzle, Carburetor

25 495860 PistonAssernbly,Standard Size 146 94196 Key, TimingGear

495977 PistonAssernbly,.010" Oversize 164 214047 Elbow,Carburetor

495978 PistonAssembly, ..020"Oversize 166 94555 Stud, RockerAnn

495979 PistonAssembly, .030" Oversize 171 281051 Nut, Air Cleaner Mounting

26 495854 Ring Set, Piston, Standard Size t86 493496 Connector,Hose

495852 Ring Set, Piston,_010"Oversize 187 298099 Line, Fuel (Cut to Suit)

495851 Ring Set, Piston, .020" Oversize 188 94627 Screw, Seres

495855 Ring Set, Piston, ,.030=Oversize t92 492160 ScrewAssernbly,RockerArm

27 263129 Lock, Piston Pin 201 262767 Link, Govemor

28 498319 Pin Assy_,Piston, Standard Size 209 260695 Spring,Govemor

498320 PinAssy, Piston,.005" Oversize 216 262766 Link, Choke

29 494504 Rod Assembly, Connecting 219 490815 Gear, Govemor

495490 Rod Assembly, Connecting, 222 495611 Plate, Governor Control

_020"Undersize Crankpin Bore 224 94905 Screw, Sems, Air Cleaner

32 94695 Screw, Hex Washer Head, 225 495157 Crank, Governor

1_57/64 227 493935 Lever Assembly, Governor

32A 94648 Screw, Hex Washer Head, t-5/8 230 94742 Washer, Governor Crank

33 495856 Valve, Exhaust 232 262785 Spring,Governor Link

34 495857 Valve, intake 238 262836 Cap, Valve

35 262811 Spring, Valve 240 394358 Filter,Fuel (In Fuel Line)

37 224502 Guard, Flywheel 265 221535 Clamp, Casing

40 224641 Retainer,Valve Spring 264 94704 Screw, Hex Head

45 262411 Tappet, Valve

46 496884 Gear, Cam * Includedin Gasket Set (495993)

51 272465 .... Gasket, Carburetor "* includedinCarburetorKit (499233)

(Carburetor to Elbow) *** Included in both GasketSet (495993) and

52 272569 *** Gasket, Carburetor ValveOverhaul Kit(495992)

(Elbow to Cylinder) **** Included in Gasket Set (495993), Carburetor

53 94637 Stud,CarburetorMounting Kit (499233) and Carburetor Gasket Set

75 225136 Washer,Spring (494385)

78 94632 Screw, Pan Head

NOTE: All componentdimensionsgiven in U.S. inches

87 491323 * Seal, Governor Shaft i inch = 25.4 mm

93 281346 Bushing,Throttle Shaft

94 498030 Valve, Needle

95 94098 ** Screw, Throttle

98 495800 Screw, Idle Speed

,54 ....

TRACTOR - ,, MODEL NUMBER 917.917.270630

BRtGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

294 610068 Screw, Set 757 213998 Link, Counterweight

304 496280 }-lousing, Biower 758 399891 Counterweight Assembly

305 94786 Screw, Hex, Head, 759 298909 Pin, Counterweight

Blower Housing Mounting 761 94593 Screw, Counterweight

306 225020 Shield, Cylinder 783 280104 Gear, Starter

307 94930 Screw, Cylinder Shield 801 394856 Cap, Drive

309 497595 Motor, Starter 802 497605 Cap, End

310 497602 Bolt, Thru 803 497604 Housing, Starter

311 497608 Brush Set 842 270920 " Seal, Oil Filler Cap

333 495859 Armature, Magneto 847 496415 Fill Group, Oil

334 94731 Screw, Sems, Armature 851 224110 Terminal Ignition Cable

Mounting 868 494435 **" Sea! Assembly, Valve

337 491055 Plug, Spark 868A 272610 "** Gasket, Valve

346 93705 Screw, Hex Head 871 262835 Bushing, Guide (Intake &

356 497708 Wire Assembly Exhaust)

358 495993 Gasket Set 872 281361 Cover, Air Cleaner

363 19203 Puller,Flywheel 875 495862 Body, Air Cleaner

383 89838 Wrench, Spark Plug 877 393456 Diode and Connector Assembly

423 94903 Screw, Sems 947 497672 Solenoid

445 493909 Cartridge, Air C_eane_ 965 94010 Nut, Hex

467 493903 Knob, Air Cleaner 975 495933 Bowl Assembly, Carburetor

468 494439 Screen, Flush Rotating 977 494385 Carburetor Gasket Set

474 393474 Stator, ALternator 987 281166 *" Seal, Throttle Shaft

482 93621 Screw, Sems 1005 281400 Fan, Flywheel

503 806000 Strap, Starter 1006 224413 Retainer, Fan

510 497606 Drive, Starter 1019496758 Label Kit

523 495230 Cap and Dipstick, Oil Filter 1022 272475 *** Gasket, Cover

524 281370 = Seal, FillerTube 1023 224552 Cover, RockerArm

525 496113 Tube, Oil Fiiler 1026 494432 Rod, Push, Intake

535 272403 Element, Filter 495136 Rod, Push, Exhaust

537 281106 * O-Ring, AirCleaner 1029 224554 Arm, Rocker

544 497603 Armature, Starter 1033 495992 Vaive Overhaul Kit

552 491986 Bushing, Govemor Crank 1034 495248 Guide Assembly, Push Red

562 94907 Bolt, Carriage 1036 499364 Label Kit, Emissions

592 231978 Nut, Hex 1044 94673 Screv_,Hex Head

601 93053 CIamp, Fue) Pipe 1054 270723 Tie, Cable

614 93306 Pin, Cotter 1058 272623 Manuaf, Owner's

615 263080 Retainer 1090 497607 Retainer, Brush

618 262803 Spring, Choke Return 1091 281364 Cap, Umiter

634 494453 ** Seal, Spdng Assy 2500 28N707-t026 RepLacement Engine

634A 494455 ** Seal, Spring Assy _-- 496050 Replacement Shortbfock

635 280872 Boot, Spark Plug

646 224546 Brace, AirCteaner RPM Settings: Low: 1650-1850, High: 3200-3400

657 94906 Screw, Sems * Included in Gasket Set (495993)

663 94620 Screw, Self-Tapping ** Included in Carburetor Kit (499233)

718 230t92 Pin, Dowet *** Included inboth Gasket Set (495993) and

726 399676 Gear, Ring Valve Overhaul Kit (495992) ,

(Includes Mounting Hardware) .... Included in Gasket Set (495993), Carburetor

727 490324 Cover, Starter Kit (499233) and Carburetor Gasket Set

728 94951 Screw, Torx_ (494385)

729 281390 Clip, Wire

729A 225170 Retainer, Wire NOTE: Atl component dimensions given inU+S_inches

741 262932 Gear, Timing 1 inch = 25+4mm

n,,

ILL

¢0

tt_

"1"

For the repair or replacement parts you need

delivered directly to your home

Call 7 am - 7 pro, 7 days a week

1..SO0=366=PART

(1-800-366-7278)

Para ordenar piezas COn entrega a

domicilio - 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1=SG0=4-REPAHR

(1-800-473-7274)

Para pedir servicio de reparaci6n a

domicilio - !-800-676-5811

For' the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7 days a week

1=8G0=488=1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday-Saturday

1=80G.,827-.6655

When requesting service or ordering

parts, always provide the following

information:

o Product Type ,, Part Number

= Model Number ° Part Description

• i , ++ ,•

America s Repalr Speciallsts

1R_3 Rev. 1 2.4.98 TR Printed in U.S.A.

Craftsman 917270630 tractor

Product's Documents

User Manual

Specifications

Craftsman 917270630 Questions and Answers
