AUTO INCLINE TREADMILL
SF-T7951
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used
properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings
and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it
and 2 feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 pounds (120 KG).
10. This equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 8 for instructions on how
to properly apply lubricant.
2
EXPLODED DIAGRAM
3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
35
Right Outer Handlebar
Cover
1
2
Incline Bracket
1
36
Right Inner Handlebar
Cover
1
3
Left Upright Tube
1
37
Computer Top Cover
1
4
Right Upright Tube
1
38
Computer Bottom Cover
1
5
DC Motor
1
39
Rotary Knob Top Cover
2
6
Left Handlebar
1
40
Rotary Knob Bottom Cover
2
7
Right Handlebar
1
41
Computer Bottom Wire
1
8
Computer Bracket
1
42
Computer Top Wire
1
9
Front Roller
1
43
Screw Nut
M10
2
10
Back Roller
1
44
Magnetic Ring
1
11
Overload Protector
1
45
Blue Single Wire
1
12
Allen Wrench
S5
1
46
Ring Protector Plug
1
13
Safety Key
1
47
Strengthen Tube Cushion
6
14
Power Wire
1
48
Isolated Nylon Pad
12
15
Running Board
1
49
Handlebar Cap
2
16
Adjustment Wheel
2
50
Wheel Cover
2
17
Motor Top Cover
1
51
Cushion
2
18
Motor Bottom Cover
1
52
Brown Single Wire
1
19
Switch
1
53
Grounding Wire
1
20
Power Socket
1
54
Single Wire
1
21
Left Side Rail Fixed
Plate
1
55
Tablet Bracket Base
1
22
Right Side Rail Fixed
Plate
1
56
Rubber Pad
1
23
Oil Plug
1
57
Tablet Bracket
1
24
Left Front Side Rail
1
58
Tablet Bracket Back Cover
1
25
Right Front Side Rail
1
59
Mobile Cover
1
26
Top Side Rail
2
60
Single Wire 1
1
27
Left Rear Side Rail
1
61
AC Single Wire
1
28
Right Rear Side Rail
1
62
Hex Nut
2
29
Left Back End Cap
1
63
Foot Pad
4
30
Right Back End Cap
1
64
Rubber Band
1
31
Left Upright Tube
Cover
1
65
Rubber Pad
2
32
Right Upright Tube
Cover
1
66
Motor Belt
1
33
Left Outer Handlebar
Cover
1
67
Side Rail Buckle
16
34
Left Inner Handlebar
Cover
1
68
Running Belt
1
4
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
69
Control Board
1
94
Bolt
4.2*25
4
70
Incline Motor
1
95
Bolt
4.2*6.5
4
71
Rotary Knob
2
96
Bolt
4.2*30
2
72
Fixed Tuning Plate
2
97
Bolt
4.2*28
2
73
Spring
1
98
Bolt
ST4.2*13
22
74
D Shape Pad
2
99
Bolt
2.9*9.5
4
75
Strengthen Tube
2
100
Bolt
2.6*6 (front is 5）
5
76
Bolt
M10*42
1
101
Lock Washer
10
2
77
Bolt
M10*55
1
102
Flat Washer
8
2
78
Bolt
M10*45
2
103
Spring Washer
8
2
79
Bolt
M8*40
4
104
Lock Washer
6
3
80
Bolt
M8*16
4
105
Spring Washer
5
2
81
Bolt
M6*35
6
106
Lock Washer
5
2
82
Bolt
M6*25
2
107
Silicone Oil
1
83
Screw Nut
M8
4
108
Transportation Wheel
2
84
Screw Nut
M6
8
109
Fixing Axle
2
85
Bolt
M8*2
4
110
Oil Guide Plate
Assembly
1
86
Bolt
M6*65
1
111
Handrail Nylon Gasket
2
87
Bolt
M6*60
2
112
Reverse Hook Buffer
Pad
2
88
Bolt
M5*8
3
113
Strengthen Tube 1
1
89
Bolt
4.2*19
16
114
Bolt
4.8*19
5
90
Bolt
4.2*12
5
115
Bolt
M8*25
2
91
Bolt
4.2*12
18
116
Rubber Pad
2
92
Bolt
4.2*9.5
2
117
Foot Pad
2
93
Fixed Base Plate
2
ASSEMBLY CONTENTS
When you open the carton, you will find the below parts inside.
5
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near
the front of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
STEP 1:
Open the carton and remove all
contents. Place the Main Frame (No.
1) on level ground and ensure that you
have a clean, adequate workspace.
STEP 2:
Hold up the Computer Frame
Insert the 2 Rotary Knobs (No. 71)
to the Left & Right Upright Tubes
(No. 3 & No. 4) and screw in tightly.
NOTE: If the Rotary Knob (No. 71)
can not be screwed in, you can try to
shake the Left & Right Upright
Tubes (No. 3 & No. 4) forward or
backward a little.
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY (877-
907-8669).
STEP 3:
Spin up the Left & Right Handlebar
(No. 6 & No. 7) to the horizontal
position as shown on the left.
STEP 4:
Insert the Tablet Bracket (No. 57)
into the computer as shown on the
left.
Attach the Safety Key (No. 13) onto
the computer.
Insert the Power Wire (No. 14) to the
Main Frame (No. 1).
IMPORTANT NOTE: The running
belt must be lubricated before the
first use! Please see Page 8 for
instructions on how to properly
apply lubricant.
The assembly is complete
！
8
LUBRICATING THE TREADMILL
IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use!
RUNNING BELTS & TREADMILL LUBRICANT:
Lubricating the Running Belt (No. 68) and Running Board (No. 15) is essential as the friction
affects the life span and operation of the treadmill. Inspect the Running Belt (No. 68) regularly. If
you find any wear on the Running Board (No.15), please contact us at
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating,
or repairing the unit.
When lubricating, pull up the part A of the oil plug and turn the oil plug at 90° as shown in the picture
below. Do not remove the oil plug. Then insert the oil bottle into the oil port to fill in the oil. After
lubricating, start the treadmill and place it at the lowest speed setting about 15 minutes to allow the
oil to spread over the running board. It’s suggested to fill in 15ML of oil each time. Do not apply
lubricant over the Running Belt (No. 68). Any excess lubricant should be wiped off.
The following timetable is recommended:
➢ Light user (less than 3 hours/ week) every 2 months
➢ Medium user (3-5 hours/ week) every 45 days
➢ Heavy user (more than 5 hours/ week) every month
NOTE:
To better maintain the treadmill and prolong its life, it is suggested that the treadmill be powered off
for 10 minutes every 2 hours and fully powered off whenever not in use.
DO NOT LOOSEN OR MAKE ANY ADJUSTMENTS TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. 68) will result in the runner sliding off when in use. If the
Running Belt (No. 68) is too tight, it will decrease the motors performance and create more friction
between the roller and the Running Belt (No. 68). The best tightness for the Running Belt (No. 68)
is pulled out 50-75 mm from the Running Board (No. 15).
A
9
MAINTENANCE GUIDE
General cleaning will help prolong the life and improve the performance of your treadmill. Keep the
unit clean and maintained by dusting the component on a regular basis. Cleaning the two exposed
sides of the Running Belt (No. 68) will prevent dust from accumulating underneath. Keep your
running shoes clean so that dirt from the shoes does not wear the Running Belt (No. 68) and
Running Board (No. 15). Clean the surface of the Running Belt (No. 68) by using a clean damp
cloth. Keep liquids away from electrical parts and Running Belt (No. 68).
ADJUSTING THE RUNNING BELT
Place the treadmill on level ground and set it at 3.5-5 MPH to check and see if the Running Belt
(No. 68) drifts from the center. Adjust the Running Belt (No. 68) according to instructions below
with Allen Wrench (No. 12).
If the Running Belt (No. 68) drifts to the
right, remove the Safety Key (No. 13), turn
the adjusting bolt on the right side 1/4 turn
clockwise, then start running until the
Running Belt (No. 68) is centered. Refer
to image A.
If the Running Belt (No. 68) drifts to the
left, remove the Safety Key (No. 13), turn
the adjusting bolt on the left side 1/4 turn
clockwise, then start running until the
Running Belt (No. 68) is centered. Refer
to image B.
Over time, the Running Belt (No. 68) will
loosen. To tighten the Running Belt (No.
68), remove the Safety Key (No. 13), turn
both the left & right side adjusting bolts 1/4
turn clockwise, then re-start running the
belt. Check the tension of the Running
Belt (No. 68). Continue this process until
the Running Belt (No. 68) is at the correct
tension. Make sure to adjust both sides
equally to ensure even alignment. Refer to
image C.
10
FOLDING AND UNFOLDING INSTRUCTIONS
Folding：
1. Adjust the incline to the highest level, then remove the Safety Key (No. 13) or turn off the power.
2. Spin up the Left & Right Handlebars (No. 6 & No. 7) as shown in picture A-A.
3. Loosen the Rotary Knob (No. 71) about 20 circles until pull out the Rotary Knob (No. 71). Put
down the upright tubes as shown in picture A-C. Then re-insert and tighten the Rotary Knob
(No. 71).
4. Pull up the treadmill as shown in picture A-D. For your safety, please adjust this to the highest
incline so that treadmill doesn’t fall down.
The folding is complete！
NOTE: Put the treadmill close to the wall. Do not let children to climb on treadmill.
Unfolding:
1. Slowly put down treadmill until fully down as shown in picture A-B.
2. Loosen the Rotary Knob (No. 71) until it is pulled out completely. Pull up the upright tubes as
shown in picture A-C. Then re-insert and tighten the Rotary Knob (No. 71).
3. Spin up the Left & Right Handlebars (No. 6 & No. 7) into position as shown in picture A-D.
The unfolding is complete！
11

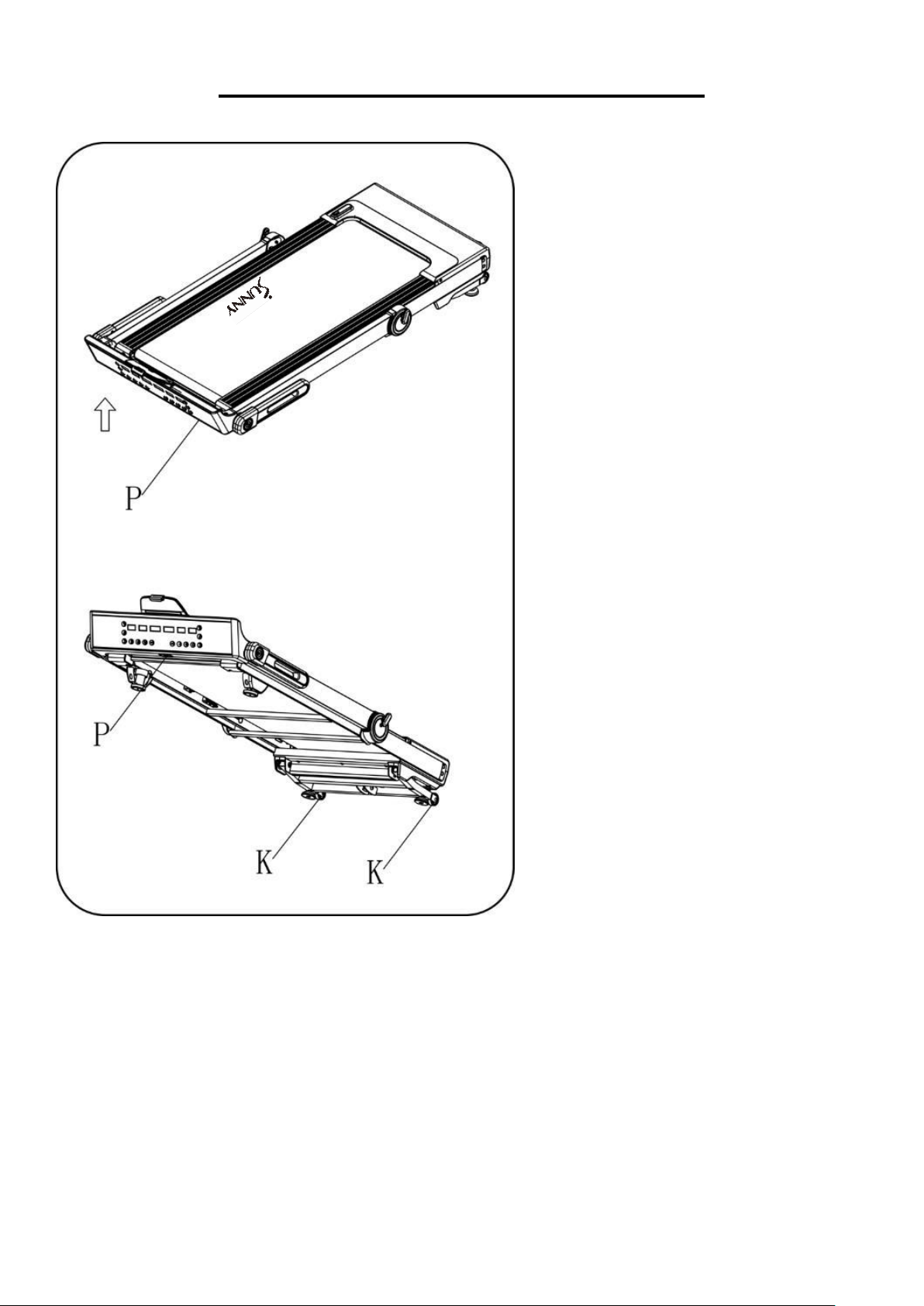

HOW TO MOVE THE TREADMILL
Before attempting to move the
treadmill, make sure that it has been
properly folded. Then unplug the
power cord.
To tilt, start by placing one hand at
position “P” to support the top end of
the treadmill. Next, place one foot at
position “K” to hold the bottom end of
the treadmill steady. With your foot at
“K”, slowly tilt the top of the treadmill
downward towards the ground. Once
the main frame “P” reaches a low
enough point, the wheels of the
treadmill will touch the ground.
To transport, hold the treadmill from
position “P” and tilt until the wheel’s
“K” are able to move on the ground.
12
IMPORTANT ELECTRICAL INFORMATION
IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly operate.
For your safety as well as the safety of others, please verify that the power source is correct before
powering the equipment. Any power supply source above or below this level could cause significant
damage to the equipment and/or user.

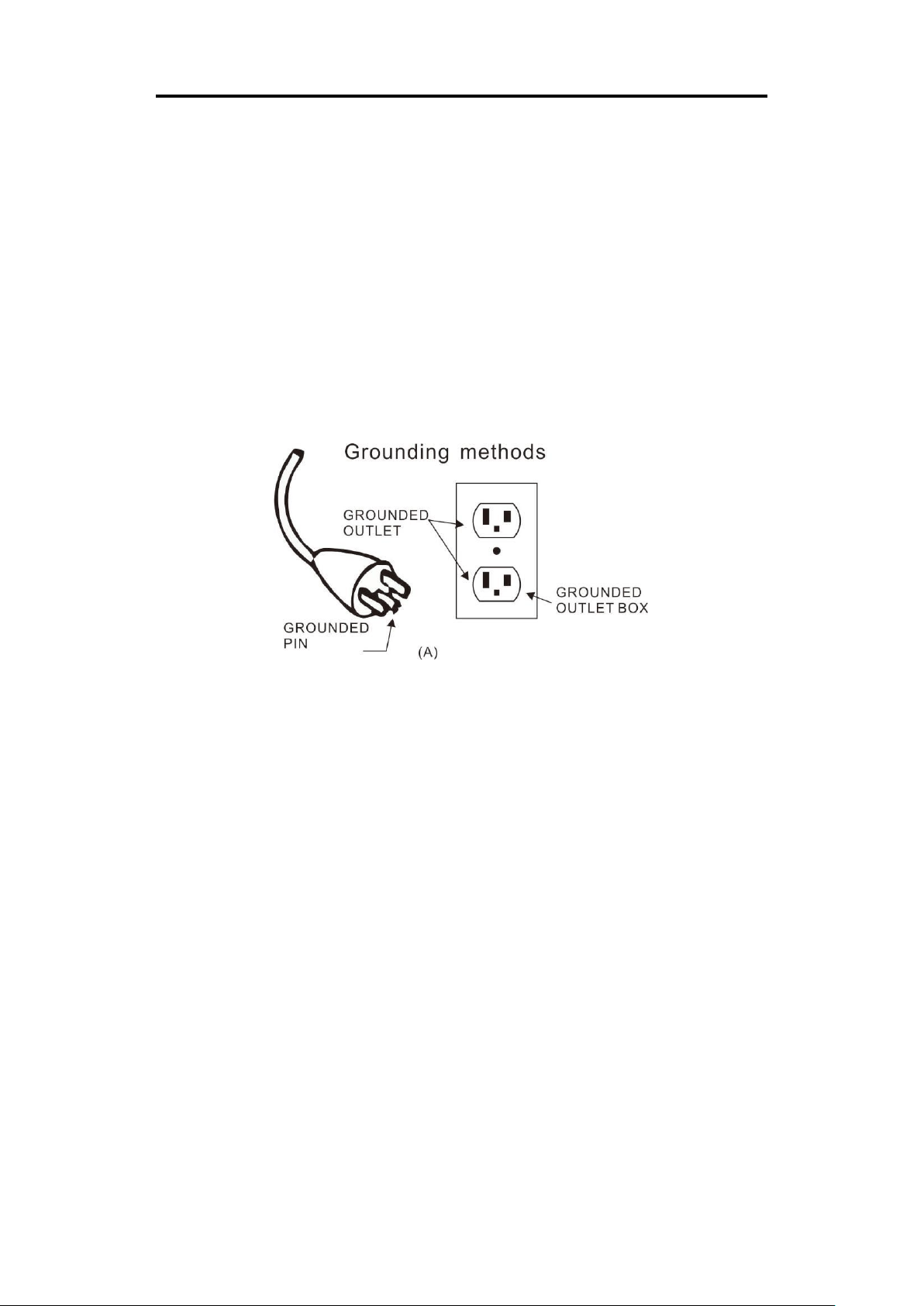

GROUNDING METHODS:
This product must be grounded. Should the treadmill malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a plug that has an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a qualified
electrician or serviceman if you are unsure whether the product has been properly grounded. Do
not modify the plug provided with this product. If it will not fit the outlet, have a proper outlet installed
by a qualified electrician. Ensure that the product is connected to an outlet with the same
configuration as the plug. Do not use an adaptor for this product.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) outlet with this treadmill. Route the power
cord away from all moving parts of the treadmill, including the Air Pressure Cylinder and
transportation wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover on this treadmill without first disconnecting the power cord.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for outdoor use
or use in any high humidity environment
13

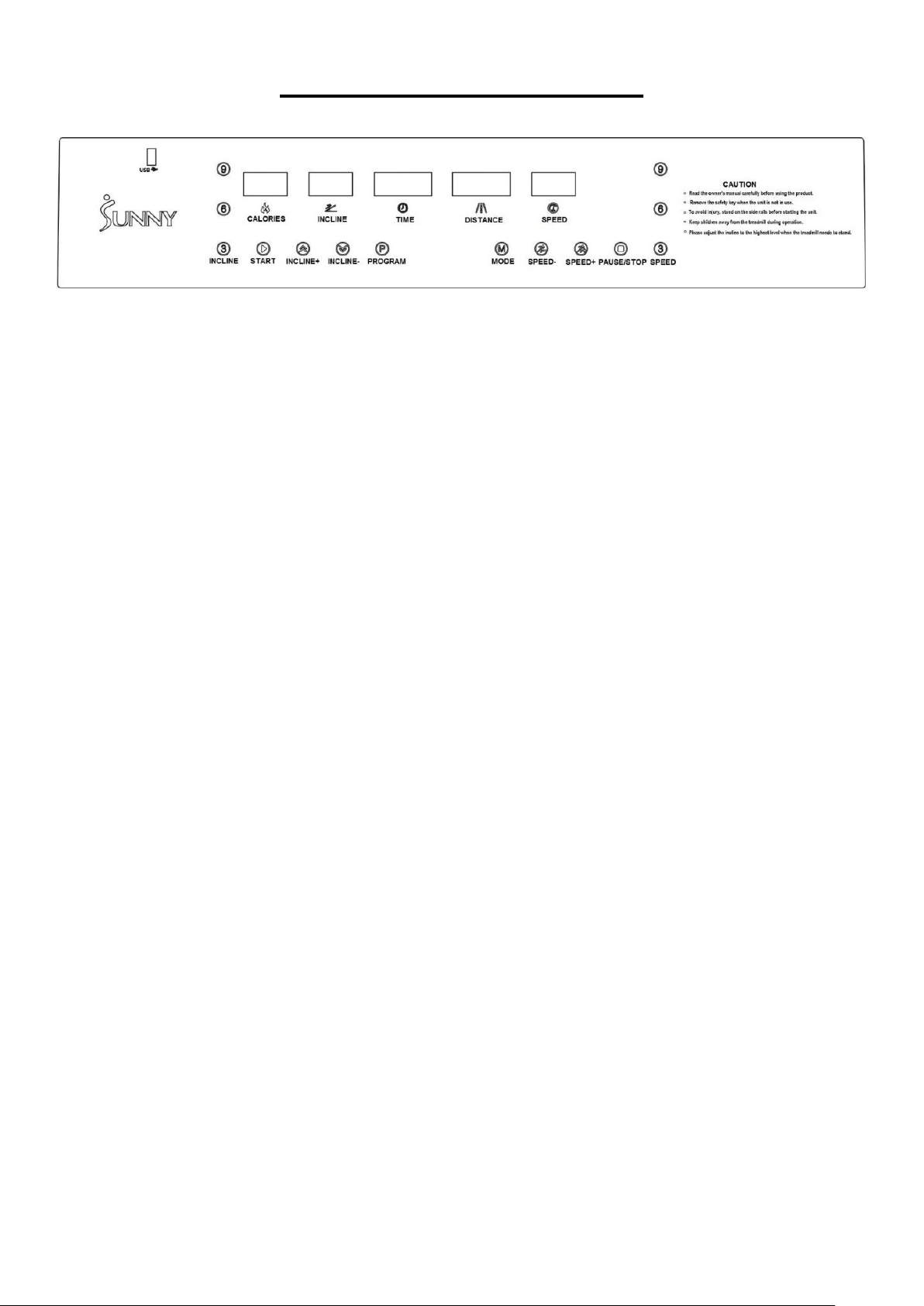

THE DISPLAY CONSOLE
LCD WINDOW DISPLAY DETAILS:
SPEED: Displays the current speed.
CALORIES: Displays total calories burned.
TIME: Displays the elapsed running time.
DISTANCE: Displays the total distance traveled.
INCLINE: Displays the number of incline segments.
BUTTON FUNCTION
“START” BUTTON: Press this button to start the treadmill. The treadmill will run at the lowest speed
or at the speed of default program after a 3 second countdown.
“PAUSE/STOP” BUTTON: Press this button to stop the treadmill. The treadmill will slow the speed
until the treadmill stops.
*IMPORTANT NOTE: Pressing PAUSE/STOP button once will pause the treadmill. Current workout
data is retained. You can press START to continue the workout or press PAUSE/STOP button again
to clear current workout data.
“PROGRAM” BUTTON: Press this button to choose program from manual mode—P01-P15.
“MODE” BUTTON: When treadmill is in standby state, press this button to choose any of the
following: Manual Mode, Time Countdown Mode, Distance Countdown Mode, Calories Countdown
Mode.
SPEED +/- KEYS: During use, press these +/- keys to increase or decrease your speed.
SPEED（3/6/9） (QUICK SPEED KEYS): During use, use these quick speed keys to instantly bring
the running belt to the desired speed of 3MPH, 6MPH or 9MPH.
INCLINE +/- KEYS: During use, press these +/- Keys to increase or decrease the incline.
INCLINE（3/6/9） (QUICK INCLINE KEYS): During use, press these quick incline keys to instantly
bring the treadmill to an incline of 3%, 6%, 9%.
START-UP QUICKLY (MANUAL):
Get through power by inserting the Safety Key (No. 13). After a 3 second countdown, the treadmill
will start running at the lowest speed. Increase or decrease your speed by pressing SPEED +/- keys.
Press the PAUSE/STOP button or remove the Safety Key (No. 13) directly to stop.
14
COUNTDOWN MODE:
Press MODE to select Time Countdown Mode, Distance Countdown Mode, and Calories
Countdown Mode. The window will then show the default data. At the same time, press SPEED +/-
keys or INCLINE +/- keys to set the data. Press START button and the treadmill will run at the lowest
speed. Press SPEED +/- keys to change the speed and press INCLINE +/- keys to change the
incline. When it counts down to 0, the treadmill will stop smoothly. You can press the PAUSE/STOP
button or remove the Safety Key (No. 13) from the computer to stop the treadmill.
PRESET PROGRAM:
Press PROGRAM to choose any of the pre-programmed exercises from P01-P15. Once the
program is set, the time window displays the default value of TIME and will flash. Press SPEED +/-
keys or INCLINE +/- keys to set the running time. Each program has been divided into 20 sections,
each exercise time=the setting time/20. Press START button and the treadmill will run at the first
section speed and incline. When the section is over, it will enter the next section automatically. The
speed, incline and next section will change. When finishing the program, the treadmill will stop
smoothly, and incline will return to 0. While running, you can change the speed and incline by the
SPEED +/- keys and INCLINE +/- keys anytime. When the program enters the next section, the
running belt will come back to the default speed and incline of the section. You can press
PAUSE/STOP button or remove the Safety Key (No. 13) to stop the treadmill anytime.
SLEEP FUNCTION:
If the treadmill is stopped for more than 10 minutes without operation, the system will go into sleep
mode. Press any key to start the treadmill.
USB FUNCTION:
After the power is turned on, the treadmill can recharge a device by connecting to a mobile phone
or iPad. Interface output voltage for dc5v.
Note: Due to the phone or iPad specifications, charging requirements are inconsistent. The treadmill
cannot support all devices. There may be parts of the phone or iPad that cannot be charged.
BLUETOOTH FUNCTION:
Search for music matching bluetooth module (module name SF-T7951) using the bluetooth function
of your mobile phone. After the connection is successful, the music played on the phone is emitted
through the treadmill speakers.
15
RUNNING DATA DISPLAY AND SETTING RANGE
DATE TABLE:
Time
Program
To set time / 20 time = running time of each time period
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
SPEED
2
3
3
4
5
3
4
5
5
3
4
5
4
4
4
2
3
3
5
3
INCLINE
1
1
2
2
2
3
3
3
2
2
1
2
2
1
1
3
3
2
2
2
P02
SPEED
2
4
4
5
6
4
6
6
6
4
5
6
4
4
4
2
2
5
4
2
INCLINE
1
2
2
2
2
3
3
2
2
2
2
2
3
3
3
4
4
3
2
2
P03
SPEED
2
4
4
6
6
4
5
6
5
4
3
3
4
4
4
2
4
5
3
2
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P04
SPEED
3
5
5
6
5
4
5
3
3
2
4
5
6
5
5
6
6
4
4
3
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P05
SPEED
2
4
4
5
6
5
6
5
6
4
3
2
5
4
3
3
6
5
4
2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P06
SPEED
2
4
4
4
5
6
3
4
6
3
2
3
6
4
4
2
5
4
3
2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P07
SPEED
2
3
3
3
4
5
3
4
5
3
4
5
3
3
3
6
6
5
3
3
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P08
SPEED
2
3
3
6
5
4
4
6
2
4
6
5
4
4
4
2
3
4
4
2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P09
SPEED
2
4
4
3
5
4
3
2
4
5
6
6
4
4
4
5
6
3
3
2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P10
SPEED
2
4
5
6
3
5
4
6
3
3
6
6
5
4
4
2
4
4
3
3
INCLINE
5
6
6
6
7
5
8
8
4
4
4
5
5
8
8
10
10
8
6
3
P11
SPEED
2
5
4
3
4
5
6
6
4
5
6
6
5
5
6
3
5
5
4
3
INCLINE
4
5
3
2
6
6
2
2
2
2
2
4
5
6
3
2
5
5
2
0
P12
SPEED
3
4
5
6
5
4
5
2
5
6
4
5
5
3
6
5
5
2
6
3
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
P13
SPEED
3
6
2
5
5
6
6
5
5
3
3
5
2
5
6
5
6
5
4
3
INCLINE
3
3
5
6
5
3
3
7
5
3
2
0
0
5
5
3
2
3
2
1
P14
SPEED
2
2
4
5
6
5
4
3
2
1
2
3
4
5
6
5
4
3
2
1
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P15
SPEED
2
4
6
3
6
6
4
4
2
2
2
4
6
5
6
6
4
4
2
2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
Show range
Mode Default
Program Default
Setting Range
Speed
0.6MPH-10MPH
--------
--------
--------
Incline
15%
0-15%
Time
0:00-99:59
30:00
30:00
5:00-99:00
Distance
0.00MILE -99.9MILE
1.0MILE
--------
0.5MILE -99.9MILE
Calories
0Kcl-999Kcl
50Kcl
--------
10Kcl-990Kcl
16
EXERCISE INSTRUCTIONS
GETTING STARTED
Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can
damage your health. Stop exercising immediately if you experience any of the following symptoms:
pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, lightheadedness,
dizziness, or feelings of nausea.
Turn on the power switch located next to the power cord. Before attempting to use the treadmill,
familiarize yourself with the controls. Once you feel comfortable to get on, you can stand with your
feet on the foot rails and balance yourself by putting your hands on the handrails.
Next, attach the clip end of the Safety Key (No. 13) to your clothing and insert the magnetic end of
the key into the computer. Press the START button to start the treadmill. The treadmill will start at
the default speed of 0.5MPH (Miles per hour). Once you feel comfortable, you may slowly increase
the speed. When you are finished with your exercise, press the PAUSE/STOP button or remove the
magnetic end of Safety Key (No. 13) to stop the treadmill.
SAFETY LOCK
Remove the Safety Key (No. 13) from the computer to stop the treadmill immediately. Once the
treadmill reaches a full stop, the window display on the computer will show “---” and the treadmill
will beep. To start the treadmill again, insert the magnetic end of Safety Key (No. 13) into the
computer and press START.
POWER OFF
Power to the treadmill can be turned off at any time without risk during or after an exercise.
CAUTION
1. We recommend that you maintain a slow speed at the beginning of a session and hold the
handrails until you become comfortable and familiar with the treadmill.
2. Insert the magnetic end of the Safety Key (No. 13) into the computer and attach the opposite
end with the safety clip to your clothing before beginning your workout. To end your workout,
press the PAUSE/STOP button or remove the Safety Key (No. 13). The treadmill will stop
immediately.
17
TROUBLESHOOTING
Fault Code
Main Reason
Solution
E01
The wire from computer to
bottom control board did
not connect well.
1. Check if the connection wire between
computer and control board were well
connected.
2. Make sure the IC on the control board was
well inserted. If not, re-insert.
3. Abnormal power supply in control board.
Please change to a new control board.
E02
Burst Clash Protection
1. Bad contact with the motor’s open circuit.
Please change the motor or check the
connector.
2. Power tube was punctured. Please change to
a new power tube or control board.
E03
No sensor signal
1. If the speed sensor does not find signal, check
if the sensor signal light is shining or not. If it
is burned out, change the signal light
2. Check if the speed sensor plug is connected
well or if there is damage to the magnet
sensor. Connect or change the magnet sensor
E04
Incline failure
1. Check if incline motor VR wire is connected
well. Re-connect it
2. Check if incline motor AC wire connected
correctly. AC wire on incline motor should
match the mark on control board.
3. Check if connect wire on motor is damaged.
Open the circuit, change the wire or incline
bracket.
After checking all the above, press the key on
incline motor.
E05
Overload protection
1. Treadmill is overloaded.
2. Running board has heavy resistance. Needs
to be oiled.
3. Damage to the motor. Replace the motor.
Version：1.2
18
