Model# GEWWD22S3SV125
ExpressWave User Manual
Thank you for purchasing a Galanz product. Please read this manual carefully for correct usage and safety,
and keep for future reference. For service, support and warranty information, call 1-800-562-0738.
©
2022 Galanz Americas Limited Company
i
i
n
n
g
g a
a
g
g
G
G
G
a
a
a
l
l
a
a
n
n
p
p
r
r
o
o
dd
c
t
P
l
e
a
s
e
r
e
a
d
t
h
i
s
m
a
n
a
l
c
a
a
r
r
r
e
e
e
e
e
e
f
f
f
f
f
f
l
l
l
l
l
l
l
l
f
f
f
f
f
f
f
f
f
f
f
f
f
f
f
f
o
o
o
r
r
c
c
o
o
o
r
r
r
r
e
e
c
c
c
t
t
Important Safety Instructions .................................................................................................. 1
Precautions to Avoid Possible Exposure to Excessive Microwave Energy .......................... 1
California Proposition 65 Warning ........................................................................................ 1
General Warning ................................................................................................................... 1
Grounding Instructions ......................................................................................................... 3
Installation Guide .................................................................................................................. 4
Cooking Utensils Guide ........................................................................................................ 5
Product Diagram ....................................................................................................................... 6

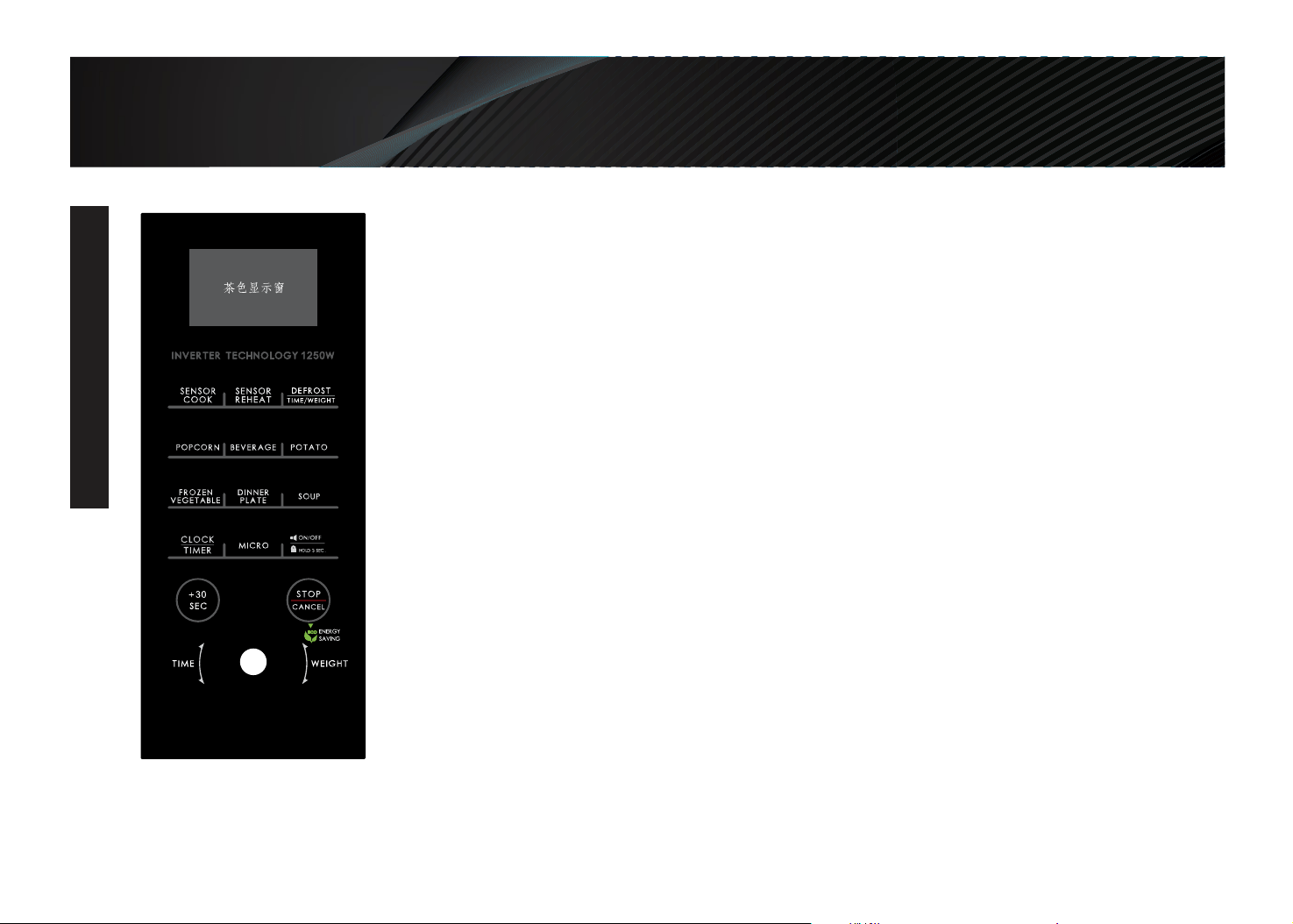

Control Panel ............................................................................................................................. 7
First Time Use............................................................................................................................ 8
Product Specifications.......................................................................................................... 8
Operation Instructions .............................................................................................................. 9
Setting the Clock .................................................................................................................. 9
Timer..................................................................................................................................... 10
Quick Start Microwave.......................................................................................................... 10
Microwave Cooking .............................................................................................................. 11
Weight Defrost ...................................................................................................................... 12
Time Defrost.......................................................................................................................... 13
Sensor Cook ......................................................................................................................... 14
Sensor Reheat ...................................................................................................................... 15
Popcorn ................................................................................................................................ 16
Beverage ............................................................................................................................... 16
Potato ................................................................................................................................... 17
Frozen Vegetable .................................................................................................................. 17
Dinner Plate........................................................................................................................... 18
Soup...................................................................................................................................... 18
+30 Sec Function.................................................................................................................. 19
Child Lock............................................................................................................................. 19
Sound On/Off Function......................................................................................................... 20
Energy Saving Mode............................................................................................................. 20
Troubleshooting......................................................................................................................... 21
Cleaning And Care .................................................................................................................... 22
Product Warranty ...................................................................................................................... 23
CONTENTS
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Do not attempt to operate this oven with the door open since
open-door operation can result in harmful exposure to microwave
technology. It is important not to tamper with the safety interlocks.
Do not place any object between the oven front face and the door
or allow soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is very important that
the oven door closes properly and that there is no damage to the
a) Door (including any dents),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except
qualified service personnel.
Cancer and Reproductive Harm-WWW.P65Warnings.ca.gov.
Read all instructions before using the appliance.
Read and follow the specific "PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on
page 1.
This appliance must be grounded. Connect only to properly
grounded outlet. See "GROUNDING INSTRUCTIONS " on page 3.
Do not operate the oven when empty.
Install or locate this appliance only in accordance with the
provided installation instructions.
Some products such as whole eggs and sealed containers -for
example, closed glass jars- are able to explode and should not be
heated in this oven.
Use this appliance only for its intended use as described in this
manual. Do not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat, cook,
or dry food. It is not designed for industrial or laboratory use.
As with any appliance, close supervision is necessary when used
by children.
To reduce the risk of fire in the oven cavity:
Do not overcook food. Carefully attend appliance when paper,
plastic, or other combustible materials are placed inside the oven
to facilitate cooking.
Remove wire twist-ties from paper or plastic bags before placing
bag in oven.
If materials inside the oven should ignite, keep oven door closed,
turn oven off using the circuit breaker panel, and call
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
CALIFORNIA PROPOSITION 65 WARNING
SAVE THESE INSTRUCTIONS
WARNING
GENERAL WARNING
To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave technology:
—
—
—
1
emergency services.
Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils or food in the cavity when not in use.
Liquids, such as water, coffee, or tea are able to be overheated beyond
the boiling point without appearing to be boiling due to surface tension
of the liquid. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. This could
result in very hot liquids suddenly boiling over when a spoon or
other utensil is inserted into the liquid.
To reduce the risk of injury to person:
Do not overheat the liquid.
Stir the liquid both before and halfway through heating it.
Do not use straight-sided containers with narrow necks.
After heating, allow the container to stand in the microwave oven for a
short time before removing the container.
Use extreme care when inserting a spoon or other utensil into the
container.
Do not heat oil or fat for deep-frying. It is difficult to control the
temperature of oil in microwave oven.
Do not cover or block any openings on the appliance.
Do not operate this appliance if it has a damaged cord or a plug, if it
is not working properly or if it has been damaged or dropped.
Do not immerse cord or plug in water. Keep cord away from heated
surface. Do not let cord hang over edge of table or counter.
This appliance should be serviced only by qualified service person-
nel, contact nearest authorized service facility for
examination,
repair, or adjustment.
When cleaning surfaces of door and oven that comes together
on closing the door, use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft cloth.
Oversized food or oversized metal utensils should not be
inserted in a microwave/toaster oven as they may create a
fire or risk of electric shock.
Do not store or use this appliance outdoors. Do not use this
product near water, for example, near a kitchen sink, in a
wet basement, near a swimming pool, or similar locations.
Do not clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving a risk of electric
shock.
Do not use paper products when appliance is operated in
the toaster mode.
Do not store any materials, other than manufacturer’s
recommended accessories, in this oven when not in use.
Do not cover turntables, pans or any other part of the oven
with metal foil. This will cause overheating of the oven.
This equipment has been tested and found to comply with
Part 18 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate the product.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee
that interference will not occur in a particular
—
—
—
—
—
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with
a cord having a grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded, and if it is necessary to
use an extension cord, use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the extension cord shall
be equal to or greater than the electrical rating of the appliance.
SAVE THESE INSTRUCTIONS
—
—
—
—
3-
Pr
ong
e
d P
lu
g
G
ro
un
d P
lu
g
3-
Pr
on
g R
ec
ep
ta
cle
GROUNDING INSTRUCTIONS
3
SAVE THESE INSTRUCTIONS
—
—
—
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It
is recommended that a separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong grounding plug. It
must be plugged into a wall outlet properly installed and ground.
Power Cord
A short power supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be
used if care is exercised in their use.
If long cord or extension cord is used:
a) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and
The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or
tripped over accidentally.
Make sure that all the packing materials are removed from the
inside of the door.
This microwave oven must be placed on a flat, stable surface.
For correct operation, the oven must have sufficient airflow. Allow
minimum 8 inch (20.32cm) of free space necessary above the top
surface of the oven and 2 inch (5.08cm) at both sides. Do not
cover or block any openings on the appliance. Do not remove feet.
The appliance shall be only used on a countertop over 3 feet
(91.6cm) above the floor.
Do not place the oven where heat, moisture, or high humidity are
generated, or near combustible materials.
Make sure that the power cord is undamaged and does not run
under the oven or over any hot or sharp surface.
The socket must be readily accessible so the microwave oven can
be easily unplugged in an emergency.
INSTALLATION GUIDE
8 inch
2 inch
2 inch
4
SAVE THESE INSTRUCTIONS
RECOMMENDED
Microwave browning dish — Use to brown the exterior of small
items such as steaks, chops, or pancakes. Follow the directions
provided with your browning dish.
Microwaveable plastic wrap — Use to retain steam. Leave a small
opening for some steam to escape and avoid placing it directly on
the food.
Paper towels and napkins — Use for short-term heating and
covering; these absorb excess moisture and prevent spattering. Do
not use recycled paper towels, which may contain metal and could
ignite.
Glass and glass-ceramic bowls and dishes — Use for heating or
cooking.
Paper plates and cups — Use for short-term heating at low
temperatures. Do not use recycled paper, which contain metal and
could ignite.
Wax paper — Use as a cover to prevent spattering.
Thermometers — Use only those labeled "Microwave Safe" and
follow all directions. Check the food in several places. Conventional
thermometers may be used on microwave food once the food has
been removed from the oven.
LIMITED USE
Aluminum foil — Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful. You should keep distance of 1 inch (2.54cm) between
aluminum foil and cavity.
Ceramic, porcelain, and stoneware — Use these if they are
labeled "Microwave Safe". If they are not labeled, test them to make
sure they can be used safely.
Plastic — Use only if labeled "Microwave Safe". Other plastics can
melt.
NOT RECOMMENDED
Glass jars and bottles — Regular glass is too thin to be used in a
microwave. It can shatter and cause damage and injury.
Paper bags — These are a fire hazard, except for popcorn bags
due on food.
Styrofoam plates and cups — These can melt and leave an
unhealthy residue on food.
Plastic storage and food containers — Containers such as
margarine tubs can melt in the microwave.
Metal utensils — These can damage your oven. Remove all metal
before cooking.
Note:
Should you wish to check if a dish is safe for microwaving, place the
empty dish in the oven and microwave at high power level for 30
seconds. A dish which becomes very hot should not be used.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
COOKING UTENSILS GUIDE
This section lists which utensils can be used in this
microwave, which have limited use for short periods,
and which should not be used in this microwave.
5
6
PRODUCT DIAGRAM
PRODUCT DIAGRAM
1. Control Panel
2. Display Screen
3. Menu / Time / Portion / Level Selector Knob
4. Oven Window
6. Glass Turntable
5. Push Button
7. Roller Ring
8. Shaft
9. Wave Guide (Please do not remove the
mica plate covering the wave guide)
10. Door Safety Lock System
2
1
3
4
6
9
10
8
7
5
7
CONTROL PANEL
CONTROL PANEL
SENSOR COOK
Use to set the automatic sensor cook programs (See
Page 14).
SENSOR REHEAT
Use to set the automatic sensor reheat programs
(See Page 15).
TIME / WEIGHT DEFORST
Press once to set defrost program based on time
(See Page 13).
Press twice to set defrost program based on weight
(See Page 12).
POPCORN
Use to set popcorn program (See Page 16).
BEVERAGE
Used to make hot drinks (See Page 16).
POTATO
Used to make potatoes (See Page 17).
FROZEN VEGETABLE
Used to heat up frozen vegetables (See Page 17).
DINNER PLATE
Used to heat up a dinner plate (See Page 18).
SOUP
Used to make soup (See Page 18).
CLOCK /TIMER
Press and hold to set the clock time (See Page 9).
Press to set the timer function (See Page 10).
MICRO
Use to microwave food with selected power level
(See Page 11).
LOCK/MUTE (ON/OFF/HOLD 3 SEC)
Press once to set sound on/off (See Page 20).
Press and hold to set child lock (See Page 19).
+30 SEC
Press to add time during the cooking program (See
Page 19).
STOP / CANCEL / ENERGY SAVING
Press once to pause current cooking program or
press twice to cancel the program.
Press and hold to set energy saving mode.
Menu / Time / Weight / Level Selector Knob
Turn to select cooking menus, time, food weight,
portion or power level.
8
FIRST TIME USE
FIRST TIME USE
If you are using your ExpressWave microwave oven for the first time, please be sure to:
Clean the glass turntable with hot water, a small amount of dishwashing liquid and a nonabrasive cleaning pad.
Do not immerse the body of the unit in water.
When you plug in the unit, the display will show "12:00".
While you are in the process of any setting, the oven will return to standby mode after 30 seconds without any operation.
During cooking, if press STOP/CANCEL once or open the door, the program will be paused. Press the dial to resume cooking, but if you
press STOP/CANCEL twice, the program will be canceled.
When the cooking completes, the screen will display “End” with sound every two minutes until you press STOP/CANCEL or open the door.
Power Supply
Power Consumption (Microwave)
Rated Microwave Power Output
Operating Frequency
Outside Dimensions (W x H x D)
Oven Capacity
Net Weight
120V/60Hz
1500W
1250W
2450MHz
inch
2.2 Cu.Ft.
Approx. 31.6 lbs
Product Specifications
x x
9
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
9
3
NOTE: While in the process of setting the clock, you can cancel
the settings by pressing the STOP/CANCEL.
The CLOCK cannot be set while the TIMER is running.
Press the dial or CLOCK/TIMER to
confirm the hour.
4
Turn the dial until the correct minute is
displayed.
5
Press the dial or CLOCK/TIMER to
confirm the minute and finish setting.
1
Example: How to set a 12-hour clock at 11:58.
In standby mode, press and hold
CLOCK/TIMER for 3 seconds to
select 12-hour clock (press the pad
again to select 24-hour clock).
2
Turn the dial until the correct hour is
displayed.
Setting the Clock
You can set the clock in 12-hour or 24-hour by pressing
CLOCK/TIMER in standby mode.
or
or
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
This feature allows you to start the oven quickly at maximum
microwave power. The longest cooking time is 95 minutes.
Quick Start Microwave
10
1
2
You can use the timer feature to count down a specific amount of
time whether it’s for cooking or for anything else.
Example: How to set the timer for 3 minutes and 50
seconds.
In standby mode, press
CLOCK/TIMER once.
Turn the dial to enter the time. The
maximum time you can set is 95
minutes.
3
Press the dial or CLOCK/TIMER to
confirm.
Timer
NOTE: Timer countdown can be seen for 5 seconds by touching
CLOCK/TIMER, if press STOP/CANCEL during these 5 seconds,
the timer will be canceled.
1
Example: How to quick start microwave for 3 minutes and
30 seconds.
In standby mode, turn the dial to select
cooking time. The maximum time you
can set is 95 minutes.
2
Press the dial to confirm and start
cooking.
or
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
This feature allows you to choose the power level and cooking
time of microwave function. The longest cooking time is 95
minutes.
Microwave Cooking
11
1
2
Example: Cook at 30% power level for 3 minutes and
50 seconds.
Press MICRO pad once, the default
power level is 100%(maximum power).
Turn the dial to select the 30% power
level.
3
Press the dial once to confirm the power
level.
4
Turn the dial again to enter cooking time.
Power Level Chart:
5
press the dial to confirm and start
cooking.
NOTE:
If you want to set 100% power level, you can turn the dial to enter
cooking time directly and then press the dial to start.
Power Level
Display
100% P100
90% P-90
80% P-80
70% P-70
60% P-60
Power Level
Display
50%
P-50
40% P-40
30% P-30
20% P-20
10% P-10
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
The defrosting time and power level are automatically set once
the food category and the weight are selected.
Weight Defrost
12
2
Turn the dial to select food code ‘dEF3’
(Seafood).
Example: How to defrost 8oz seafood.
1
In standby mode, press the
TIME/WEIGHT DEFROST twice.
3
Press the dial once to confirm the food
type.
X
2
Maximum WeightFoodCode
dEF1 Meat
96oz
dEF2 Poultry
96oz
dEF3 Seafood 32oz
Weight Defrost Food Chart:
NOTE:
During the defrosting program, the system will pause and alert the
user to turn the food over when 1/2 of the defrosting time remains.
After turning food over, close the door and press the dial to resume
the defrosting.
4
Turn the dial to select the food weight.
5
Press the dial to confirm and start
defrosting.
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
Weight must be in pounds and ounces. If label gives weight in
pounds only, change the fraction of a pound to ounces using the
following chart.
Converting fractions of a pound to ounces:
9
10
11
12
13
14
15
16
.54 to .59
.60 to .65
.66 to .71
.72 to .78
.79 to .84
.85 to .90
.91 to .97
.97 to .99
.35 to
OuncesFractions of a pound
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.40 6
.41 to .46 7
.47 to .53 8
OuncesFractions of a pound
13
The defrosting power is adjusted automatically once the cooking
time is programmed.
Time Defrost
Example: How to defrost food for 3 minutes and 50
seconds.
1
In standby mode, press the
TIME/WEIGHT DEFROST once.
NOTE:
During the defrosting program, the system will pause and alert the
user to turn the food over when 1/3 of the defrosting time remains.
After turning food over, close the door and press the dial to resume
the defrosting.
2
Turn the dial to select the defrosting
time.
3
Press the dial to confirm and start
defrosting.
14
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
Auto Program: How to Cook 8oz fresh vegetable with
sensor.
For sensor cook function, you can select the type of food you
want to cook from the programs listed on the cooking label
located on the interior panel of the appliance..
Sensor Cook
3
Press the dial once to confirm and start
sensing and cooking.
2
Turn the dial to select food code ‘SC-2’
(Fresh Vegetable).
1
In standby mode, press the SENSOR
COOK once.
4
The appliance with automatically
suggest a cooking time and start
countdown.
Sensor Cook Food Chart (Auto Program)
NOTE:
After cooking for a period of time, the system will detect
whether there is error, if there is error, for example, the sensor
short circuit or open circuit, the system will stop automatically
with the display showing "Er60", beeps sound until press
STOP/CANCEL pad.
If there is no error, the system will judge corresponding cooking
time based on the steam generated by the food, after cooking
for a period of time, the countdown will display on the screen.
During sensor cooking program, if press STOP/CANCEL pad
once or open the door, the system will turn back to standby
mode.
If during the longest sensor time the oven cannot judge the
cooking time according the steam produced by food in the
cavity, the cooking will auto-end.
Code Food Weight Range
SC-2
SC-3
SC-4
SC-1
Fresh Vegetable
Oatmeal
7-21oz
Fish
Ground Meat
7-21oz
5-24oz
5-16oz
15
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
4
The appliance with automatically
suggest a cooking time and start
countdown.
For sensor reheat function, you can select the type of food you
want to cook from the programs listed on the cooking label
located on the interior panel of the appliance.
Sensor Reheat
Auto Program: How to Reheat frozen pizza with sensor.
3
Press the dial once and start sensing
and cooking.
2
Turn the dial to select food code ‘SH-3’
(Frozen Pizza).
1
In standby mode, press the SENSOR
REHEAT once.
NOTE:
After cooking for a period of time, the system will detect
whether there is error, if there is error, for example, the sensor
short circuit or open circuit, the system will stop automatically
with the display showing "Er60", beeps sound until press
STOP/CANCEL pad.
If there is no error, the system will judge corresponding cooking
time based on the steam generated by the food, after cooking
for a period of time, the countdown will display on the screen.
During sensor cooking program, if press STOP/CANCEL pad
once or open the door, the system will turn back to standby
mode.
If during the longest sensor time the oven cannot judge the
cooking time according the steam produced by food in the
cavity, the cooking will auto-end.
Sensor Reheat Food Chart (Auto Program)
Code Food Weight Range
SH-2
SH-3
SH-4
SH-5
SH-6
SH-7
SH-1 5-24oz
5-24oz
Chili
Pasta
5-28ozRice
5-24oz
5-24oz
Mac and Cheese
Mashed Potatoes
5-16oz
7-24ozFrozen Entrée
Frozen Pizza
TimeWeightDisplay
8 8 oz
1:10
10 10 oz
1:30
12 12 oz 1:50
14 14 oz 2:10
Weight and Time Chart:
16
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
Popcorn
Example: How to cook popcorn for 1 minutes and 50
seconds.
NOTE:
The default time is 1 minutes and 30 seconds. For default time,
you can skip step 2, directly press the dial to start if you prefer.
The maximum cooking time is 5 minutes.
2
Turn the dial to select the cooking time.
1
In standby mode, press the POPCORN.
The default time is 1 minutes and 30
seconds (For one bag around 3.5 oz).
3
Press the dial once to confirm and start
cooking.
Beverage
Example: How to heat up a cup of 10 oz beverage.
2
Turn the dial to select the weight.
Display shows 8, 10, 12, 14 (oz).
1
In standby mode, press the BEVERAGE.
3
Press the dial once to confirm and start
cooking.
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
17
Potato Frozen Vegetable
Example: How to cook 16 oz frozen vegetable.
2
Turn the dial to select the weight.
Display shows 8, 12, 16, 20, 24 (oz).
1
In standby mode, press the
FROZEN VEGETABLE.
3
Press the dial once to confirm and start
cooking.
TimeWeightDisplay
8 8 oz
4:20
12 12 oz
5:20
16 16 oz
6:20
Weight and Time Chart:
TimeWeightDisplay
20 20 oz
7:20
24 24 oz
8:20
Example: How to cook a potato of 20 oz.
TimeWeightDisplay
8 8 oz
3:30
12 12 oz
5:00
16 16 oz 6:30
TimeWeightDisplay
20 20 oz
8:30
24 24 oz
11:00
28 28 oz 13:30
Weight and Time Chart:
2
1
In standby mode, press the POTATO.
3
Press the dial once to confirm and start
cooking.
Turn the dial to select the weight.
Display shows 8, 12, 16, 20, 24, 28 (oz).
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
18
Dinner Plate Soup
Example: How to cook 16 oz of soup.
1
In standby mode, press the SOUP.
2
Turn the dial to select the weight.
Display shows 4, 8, 12, 16, 20, 24, 28
(oz).
3
Press the dial once to confirm and start
cooking.
TimeWeightDisplay
20 20 oz
3:00
24 24 oz
3:30
28 28 oz 4:00
TimeWeightDisplay
8 8 oz
1:30
4 4 oz 1:00
12 12 oz 2:00
16 16 oz 2:30
Weight and Time Chart:
Example: How to cook a dinner plate 20 oz.
TimeWeightDisplay
20 20 oz 4:20
24 24 oz
5:20
28 28 oz 6:20
TimeWeightDisplay
8 8 oz
1:20
12 12 oz
2:20
16 16 oz 3:20
Weight and Time Chart:
2
1
In standby mode, press the
DINNER PLATE
3
Press the dial once to confirm and start
cooking.
Turn the dial to select the weight.
Display shows 8, 12, 16, 20, 24, 28 (oz).
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
19
Example: During microwave cooking, add the cooking time
by 2 minutes by utilizing the +30 SEC button.
In standby mode, you can press +30 SEC pad to start the
microwave oven immediately.
During cooking, you can add cooking time by touching +30 SEC
pad repeatedly. The longest cooking time is 95 minutes.
NOTE:
Below programs cannot use +30 SEC during cooking.
SENSOR COOK
SENSOR REHEAT
POPCORN
BEVERAGE
POTATO
FROZEN VEGETABLE
DINNER PLATE
SOUP
TIME / WEIGHT DEFROST
+30 Sec Function
—
—
—
—
—
—
—
—
—
1
During cooking, suppose the display is
showing 3:50.
2
Press the +30 SEC 4 times.
X
4
The child proof lock prevents unsupervised operation by children.
Child Lock
Example1: How to set/cancel the Child Lock.
1
In standby mode, suppose the display is
showing 11:58.
2
Press and hold the
ON/OFF/HOLD 3 SEC. for 3 seconds,
then ‘LOCK’ appears.
ON/OFF
HOLD 3 SEC.
ON/OFF
HOLD 3 SEC.
Press and hold
for 3 seconds.
Press and hold
for 3 seconds.
3
Press and hold the
ON/OFF/HOLD 3 SEC. for 3 seconds,
then ‘LOCK’ disappears.
20
OPERATION INSTRUCTIONS
The Sound ON/OFF function can be used to mute the microwave.
In standby mode (except on child lock setting), press the
ON/OFF/HOLD 3 SEC. and the screen will display
‘OFF’ for 3 seconds after which the microwave will be muted.
This includes the end of cooking alert and all pad noises. To turn
sound back on, press the ON/OFF/HOLD
3 SEC..
You will hear a beep when this is complete.
In standby mode, press and hold on
STOP/CANCEL/ENERGY SAVING pad to enter the ECO mode.
Screen will stop showing a display. Above operation is the only
way to start the ECO mode.
The Energy Saving mode can work under child lock function too.
Example: How to set Sound ON/OFF .
Example: How to set Energy Saving mode.
NOTE:
For default mode, the buzzer sounds is open.
OPERATION INSTRUCTIONS
Sound ON/OFF Function Energy Saving Mode
1
In standby mode, press the
ON/OFF/HOLD 3 SEC.. Display will
show ‘OFF’, after which sound is
disabled.
2
To turn sound back on, press the
ON/OFF/HOLD
3 SEC. pad again. A
beep will sound and display will show
‘ON,’ after which sound is re-enabled.
ON/OFF
HOLD 3 SEC.
ON/OFF
HOLD 3 SEC.
STOP
ENERGY SAVING
CANCEL
Press and hold
for 3 seconds.
Press and hold
for 3 seconds.
3
1
In standby mode, press and hold the
STOP/CANCEL/ENERGY SAVING pad
and enter the ECO mode. Screen will stop
showing a display
2
Press any pad to activate the screen.
ECO mode will still be activated; the
screen will turn off after 10 seconds
without operation.
Press and hold the
STOP/CANCEL/ENERGY SAVING
pad for another 3 seconds to exit the
ECO mode .
STOP
ENERGY SAVING
CANCEL
21
TROUBLESHOOTING
Troubleshooting
TROUBLESHOOTING
ActionFailure
Error Code
Er30
Inverter
Malfunction
Try opening and closing the
door and then repeat the
operation. If the error reoccurs,
contact the call center
1-800-562-0738 - service is
required
Try to repeat sensor cook
operation. If the error reoccurs,
allow the oven to cool with the
door open to help steam to dry
and then try again after 30
miutes. If the error still occurs,
contact the call center
1-800-562-0738 - service is
required.
Er60
Humidity Sensor
Malfunction
Er61
CLEANING AND CARE
CLEANING AND CARE
Turn off the oven and unplug the power cord from the wall when
cleaning.
Keep the inside of the oven clean. When food splatters or spilled
liquids adhere to oven walls, wipe with a damp cloth. Mild
detergents may be used if the oven gets very dirty. Avoid using
spray or other harsh cleaners. They may stain, streak or dull the
door surface.
The outside of the oven should be cleaned with a damp cloth. To
prevent damage to the operating parts inside the oven, water
should not be allowed to seep into the ventilation openings.
Wipe the door and window on both sides, the door seals and
adjacent parts frequently with a damp cloth to remove any spills or
spatters. Do not use abrasive cleaner.
Do not allow the control panel to become wet. Clean with a soft,
damp cloth. When cleaning the control panel, leave oven door
open to prevent oven from accidentally turning on.
If steam accumulates inside or around the outside of the oven
door, wipe with a soft cloth. This may occur when the microwave
oven is operated under high humidity condition. And it is normal.
It is occasionally necessary to remove the glass turntable, baking
and roasting pan, air fry kit for cleaning. Wash them in warm sudsy
water.
The oven should be cleaned regularly and any food deposits
should be removed. Failure to maintain the oven in a clean
condition could lead to deterioration of surface that could adversely
affect the life of the unit and could possibly result in a hazardous
situation.
Please do not dispose of this appliance into the domestic rubbish
bin; it should be disposed to the particular disposal center
provided by the municipalities.
CLEANING AND CARE
22
OPERATION INSTRUCTIONS
CLEANING AND CARE
PRODUCT WARRANTY
This warranty applies to products sold by Galanz Americas in the
U.S. This warranty is in lieu of any other warranty and expressly
applies to the individual product only.
Galanz product is warrantied for one year following purchase for
defects in material and workmanship. Please save your receipt as
proof of purchase is required to make a warranty claim. During
this period, we will provide the replacement cost of this product, a
replacement or the equivalent, or repair per our discretion.
The warranty can not be transferred through resale, including the
resale through a 3rd party unauthorized retailer and is only bestowed
up on the original consumer purchaser upon purchase from an
authorized retailer.
Consumer misuse
Abuse
Neglect including the failure to clean and/or provide adequate
regular maintenance as outlined in the user manual
Commercial use
Subjecting the product to any voltage outside the specified range
Loss of parts
The affixing of any attachments not provided with the product
Accident
Use in a manner not intended and outlined in the user manual.
Any subsequent damages caused by the above listed exclusions
will not be covered and any claims determined to meet the above
exclusions will be denied. All liability is limited to the purchase price
and does not include any:
Retail offered extended warranties
Tax
Other charges(including postage to send required materials)
Incidental and/or consequential damages associated with the
product in question.
Every implied warranty, including any statutory warranty of merchant-
ability or fitness for a particular purpose is disclaimed except to the
extent prohibited by law, in which case such warranty is limited to
the duration of this written warranty. This warranty gives you specific
legal rights. You may have other legal rights that vary depending on
where you live. Some states do not allow limitations on implied
warranties or special, incidental, or consequential damaged, so the
above limitations may not apply to you.
If you have a claim under this warranty, please call our Customer
Service number: 1-800-562-0738.
For faster service, please have the model number, serial number, and
receipt ready for the operator to assist you.
PRODUCT WARRANTY
23
PRODUCT WARRANTY
24
WARRANTY REGISTRATION
WARRANTY REGISTRATION
Please mail this warranty card to the address below within 30 days of purchase.
Or you can register your product online by going to www.galanz.com\us.
Galanz Americas, 55 Challenger Road, Suite 503, Ridgefield Park, NJ 07660.
Name
Address
City State ZIP
Phone Email
Model Number Serial Number
Purchase Location
PLEASE PRINT CLEARLY.
You must attach a copy of your purchase receipt to validate your registration.
©2022 Galanz Americas Limited Company
