Professional USB Podcast
Microphone Kit
High-Res. Mic with USB Cable, Pop Filter,
Mic Stand, Shock Mount
PDMIKT140
5
1
6
4
3
2
7
www.PyleUSA.com
2
INSTRUCTION
Thoroughly read the instruction manual before assembly.
Retain the instruction manual for future reference.
PARTS LIST
1. Condenser Microphone
2. Adjustable Suspension Scissor Arm
3. Desk Mount Clamp
4. Shock Mount
5. Pop Filter
6. Ball-type Foam Cap
7. USB cable
www.PyleUSA.com
3
INSTALLATION
1. Unpack the microphone set and ensure all the parts and accessories are present.
2. Fix the Desk Mount Clamp on the edge of a desk.
Note: The desktop must be less than 1.85 inches in thickness.
www.PyleUSA.com
4
3. Insert the foot base (black) of the Adjustable Arm
Stand into the Desk Mounting Clamp and tighten
the screw.
4. Screw the Shock Mount onto the threaded end of
the Adjustable Arm Stand.
www.PyleUSA.com
5
5. Insert the Condenser Microphone into the Shock
Mount.
6. Fix the Pop Filter on the Adjustable Arm Stand to
complete the assembly.
www.PyleUSA.com
6
Front
Back

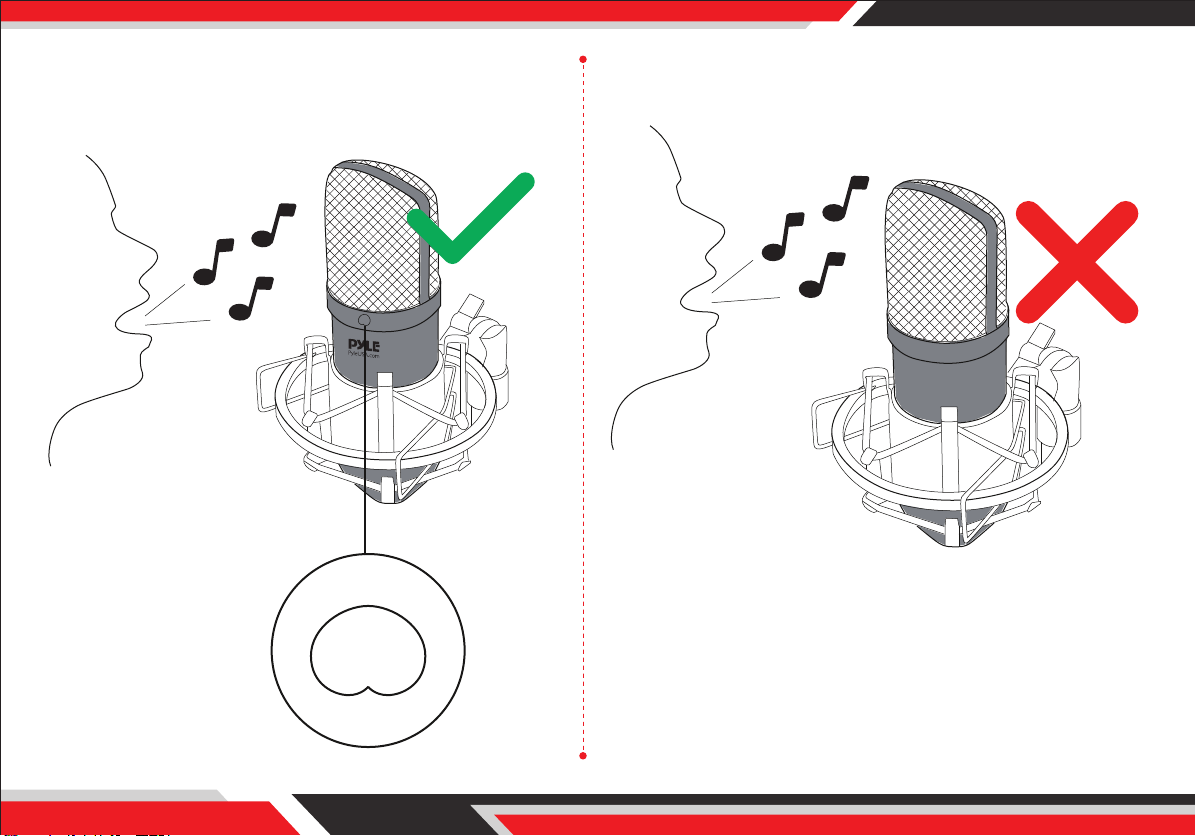

7. Microphone Direction
Option 1 Option 2
www.PyleUSA.com
7
8. Microphone Level
www.PyleUSA.com
8
9. Setup
www.PyleUSA.com
9
10. Windows 10/8/7
Pyle USB Microphone
Windows 8 Start here: Windows 10/8/7
Pyle USB Microphone
www.PyleUSA.com
10
11. Microphone Level
www.PyleUSA.com
11
Features:
• Pro Audio Broadcasting Desktop Microphone
• Simple USB ‘Plug-and-Play’ Operation
• Connects to Your Computer for Hassle-Free Sound
Control
• Lab Tested for Stage & Studio-Quality Performance
• Designed with Professional Chipset
• Portable and Stable Design
• High Output and Low Self-noise Function
• Includes Good Cardioid Polar Pickup Pattern
• Dia. 16mm Condenser Microphone Capsules
• Eliminate the Background Noise
• Eciently Reduce the Plosive, Wind, Interference, Saliva
Spraying
• Adjustable Height
• Easy to Connect with Computer, No Need Extra Driver
Software
• Perfect Use for Studios, Recording, Broadcasting,
Podcasts, Game Streaming, Vocal Performances,
Voice-overs & Instruments
• Universal Computer Compatibility: Works with PC, Mac,
Linux
• For Home, Oce & Business Use
Technical Specs:
• Connection Interface: USB Mini 2.0
• Microphone Type: Back Electret Condenser
• Microphone-core: Dia. 0.63'' (16mm) Condenser
• USB Cable length: 4.9 ft. (150mm)
• Polar Pattern: Cardioid
• Frequency Response: 50-20kHz
• Sensitivity: -43dB+/-3dB (0dB=1V/Pa at 1kHz)
• S/N Ratio: 66dB
• Max SPL: 120dB
• Mic Gain: −16dB (45dB Max)
• Bit Depth: 16 bit
• Sampling Rate: up to 48KHz
• Computer Operating System Support:
Works with PC, Mac
• Mic Construction Material: Engineered Metal Alloy,
Metal Iron
• Power Output: USB Powered, 500 mAh
• Boom Arm Dimension: 13.8’’ -inches, Max. 31.5’’ -inches
• Microphone Dimensions (L x W x H):
1.9‘‘ x 1.9‘‘ x 6.1‘‘-inches
