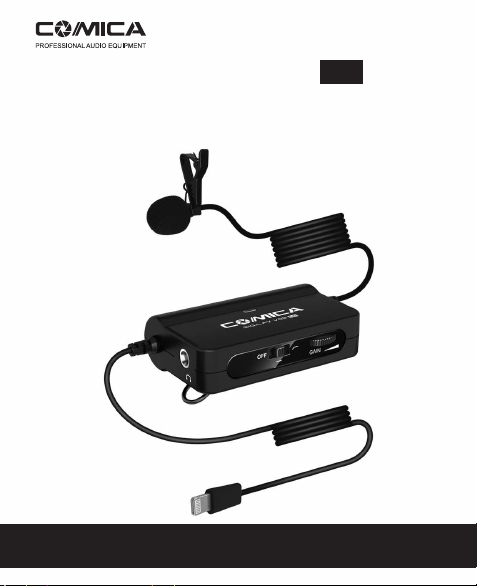

User Manual
SIG.LAV V05 MI
Multi-functional Single Lavalier Microphone
(For Iphone with Lightning Interface, MFI Certified)
Foreword
Thanks for purchasing Comica SIG.LAV V05 MI multi-function
single lavalier microphone .
This product can be equipped with smartphone and camera for
audio recording. It is designed with functions of supporting
adjustable sensitivity, smartphone and camera switch, real-time
monitoring, work indicator light, CR2032 3V battery power supply,
flexible back clip, which can bring you better experience and
sound quality effect and without any concern!
Please carefully read this instruction manual before use. The
product has been precisely calibrated at the factory, and please
do not assemble and disassemble the parts by yourself, or the
warranty will be invalid!
Notice
While the product is used for IOS system phones, it supports both
Iphone original audio recording mode and video recording mode.
While used for smartphone, please set the smartphone to fly mode
to avoid any interference.
Please stay away from heat source or interference source when
using.
Please avoid falling, collision or impact when using.
Please do not use in rain or humidity, or there will be a risk of shot
circuit.
1
Main Functions
. Design for Iphone with Lightning Interface
. Stepless Gain Control
. Real-time Monitor
. Super-shield and Low Noise Mic
. LED Working Indicator

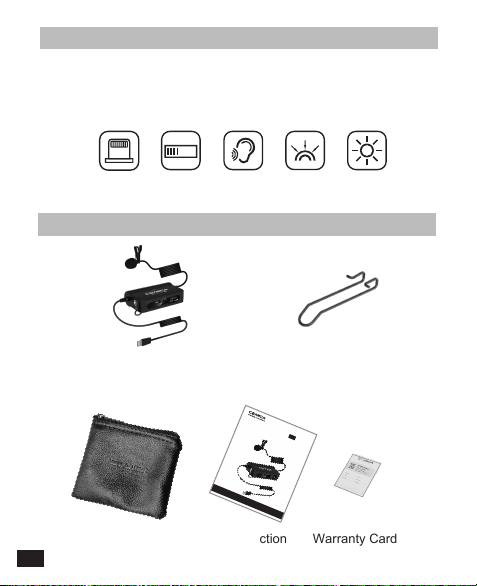

Package List
Body of Microphone Back Clip
Carrying Case Instruction Warranty Card
User Manual
SIG.LAV V05
MI
Multi-functional Single Lavalier Microphone
(For Iphone with Lightning Interface, MFI Certified)
2
Design for Iphone
with Lightning Interface
Stepless Gain
Adjustment
Real-time
Audio Monitor
Super-shield
and Low Noise Mic
Working Indicator

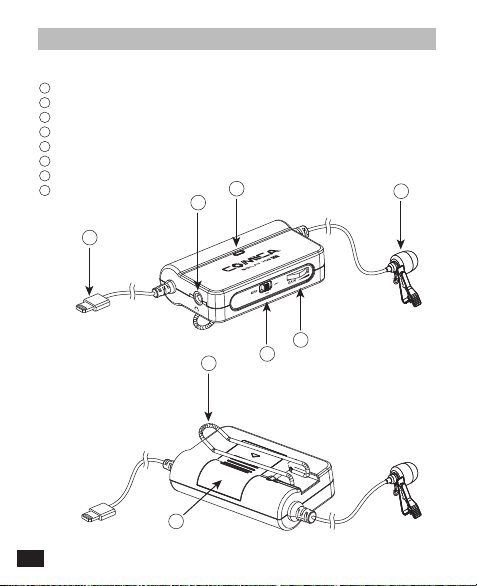

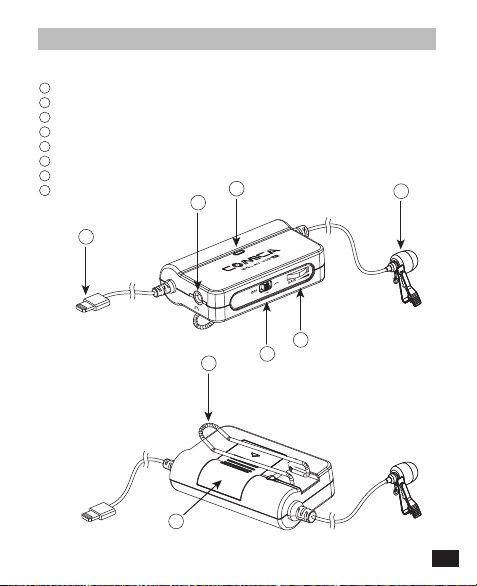

Components
Microphone
Lightning Interface audio output line
Monitoring jack
Work indicator light
Mic
Gain control wheel
Power / Record / Low Cut Off function switch
Back clip
Battery holder
1
2
3
4
5
6
7
8
1
3
7
8
2
6
5
4
3

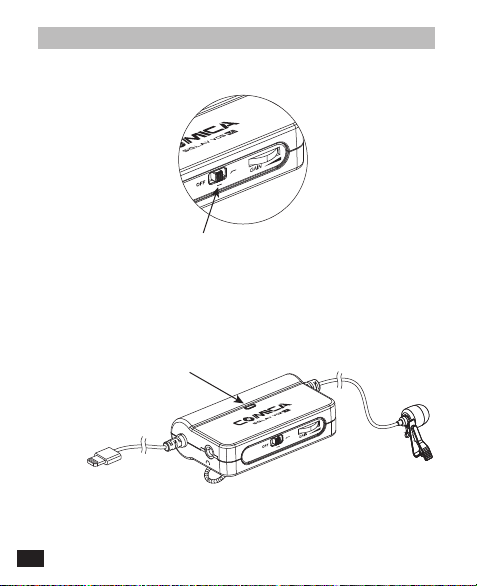

Installation and Use

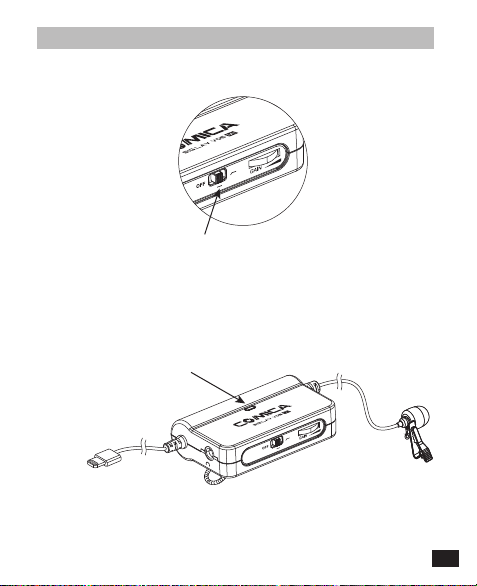

1. Move to Record / Low Cut Off function switch , the indicator light
turns green
Move to Record / Low Cut Off function switch
the indicator light turns green
4

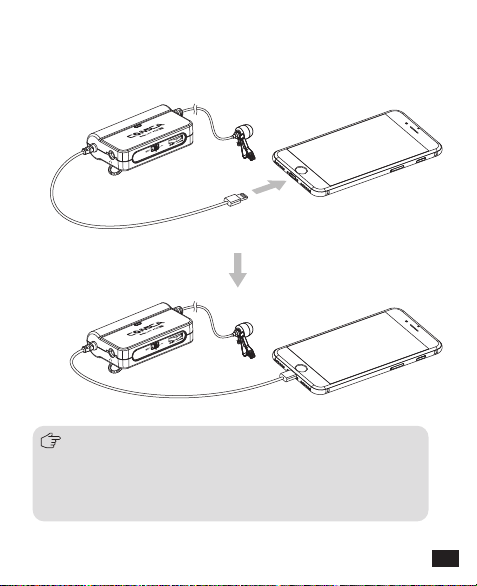

2. Insert the Lightning Interface output connector into the Lightning
Interface input interface of the smartphone and used with the
recording system of smartphone for recording
a.While the product is used for IOS system phones, it supports
both Iphone original audio recording mode and video
recording mode.
b.While used for smartphone, please set the smartphone to
fly mode to avoid any interference.
5
Function Description

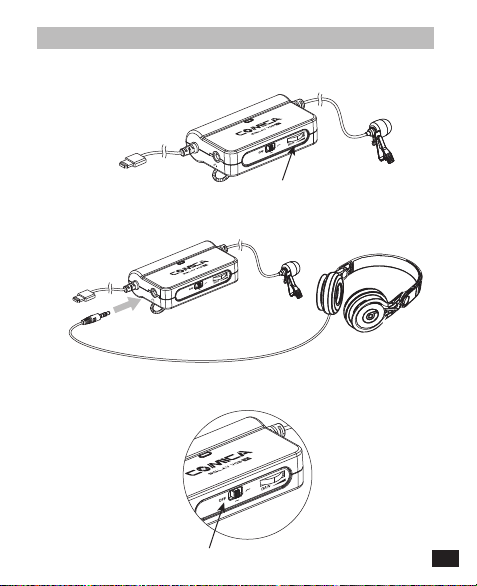

1. Gain Control Wheel
During the usage, the gain control wheel can adjust the output
sensitivity of microphone

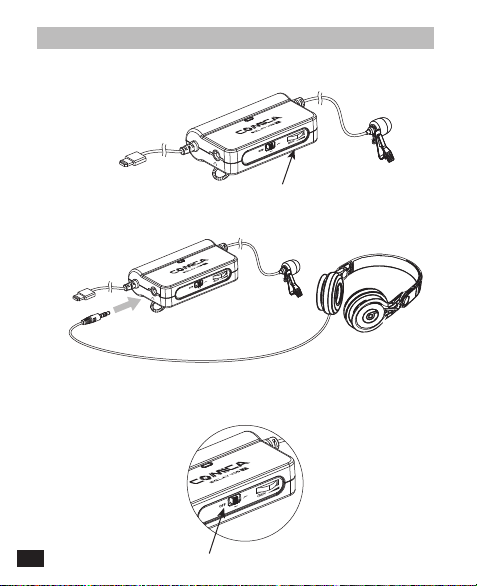

2. 3.5mm monitoring jack
You can monitor the recording situation through the 3.5mm
monitoring jack
3. On and off function switch
When the power of the battery is low, the indicator light turns red,
and the battery should be replaced. When not in use, please move
the switch to OFF, turn off the machine.
Move to power switch on the left side
Gain Control Wheel
6
dB re 1 V/Pa
20
10
0
-10
-20
-30
20Hz100100010 00020 000
-2.0
-20.0
-10.0
0.0
-2.0
-4.0
-6.0
-8.0
-10.0
-12.0
-14.0
-16.0
-18.0
-20.0
-22.0
-24.0
-25.0
dB rel. 1V/Pa
+5.0
Frequency:
500 Hz :
1000 Hz :
4000 Hz :

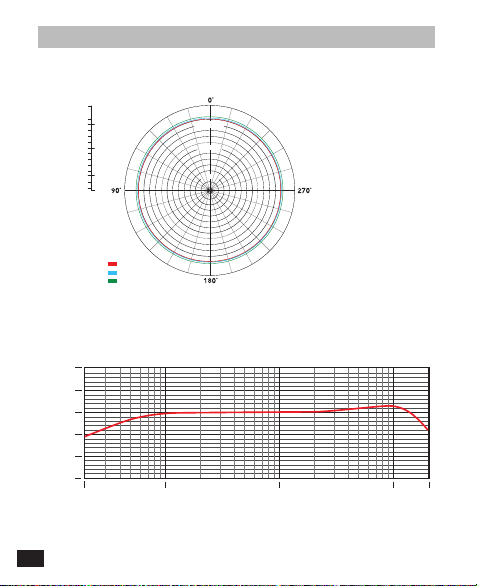

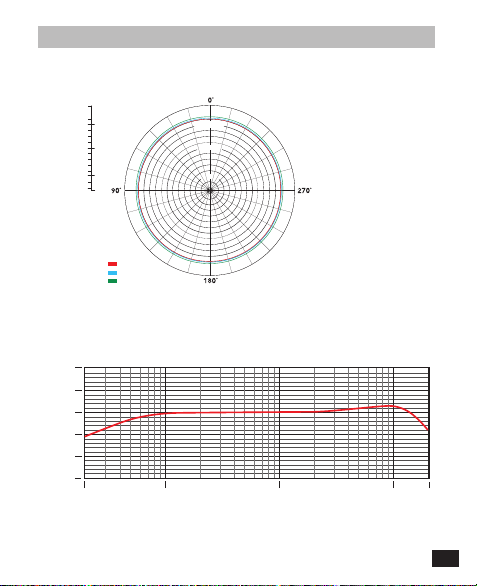

Polar Pattern
Frequency Response
Specification
7
Product Features
Polar Pattern
Sensitivity
Gain Range
Frequency Response
S/N
Max SPL
Battery
Working Temperature
Storage Temperature
Omni-directional
-35dB ±2dB
Maximum increase +10dB
60Hz - 18kHz
>65dB
100dB
CR2032 3V
0
℃
~ +50
℃
-20
℃
~ +60
℃
8
SIG.LAV V05 MI
用户使用手册
多功能单领夹式麦克风
（Iphone Lightning 接口专用,MFI 认证）
前 言
感谢您购买科唛
SIG.LAV V05 MI
多功能单领夹式麦克风（
Iphone
Lightning 接口专用,MFI 认证）。
此产品可搭配手机、相机进行音频录制。它设计有支持增益调
节、手机/相机切换开关、实时监听、工作指示灯、CR2032 3V电池
供电、灵活的背夹等功能，能带给您更好的体验及音质效果。无
所顾虑！
使用前请认真阅读此使用说明书，本产品在出厂时已进行精密校
准，请勿自行组装拆卸零部件，否则不予保修！
注意事项
该麦克风配合IOS系统（IPHONE）的手机使用时，在录音及视频录
模式下均可正常工作
当用于手机时，请将手机设置为飞行模式，以避免信号干扰
使用时请远离热源或干扰源
使用时请避免掉落，碰撞或重击
请勿在下雨或潮湿环境环境中使用，否则会有短路的危险
1

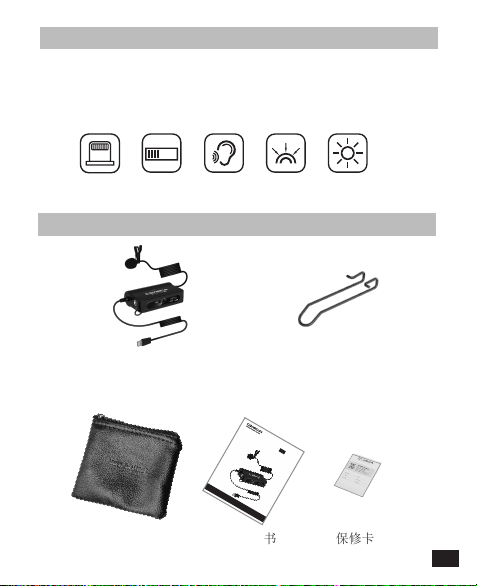

产品主要功能
. Iphone Lightning接口专用
. 无级增益可调
. 实时监听
. 超强屏蔽、抗噪咪头
. LED工作指示灯
包装清单
麦克风主体 背夹
手提袋 说明书 保修卡
Iphone Lightning
接口专用
无级
增益可调
实时监听 超强屏蔽
抗噪咪头
LED工作指示灯
2
SIG.LAV V05
MI
用户使用手册
多功能单领夹式麦克风
（Iphone Lightning 接口专用,MFI 认证）
部件介绍及说明
麦克风
Iphone Lightning音频输出线
监听孔
工作指示灯
咪头
增益调节拨盘
电源/录音/低切转换开关
背夹
电池仓
1
2
3
4
5
6
7
8
1
3
7
8
2
6
5
4
3
安装与使用
1.将开关拨至录音或低切，指示灯亮绿灯
拨至录音或低切
指示灯亮绿灯
4

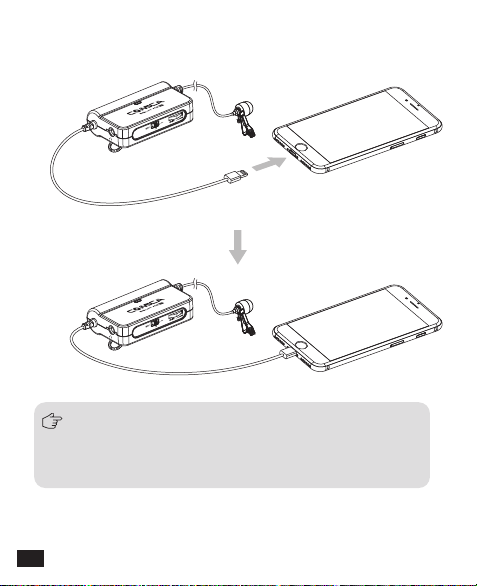

２.把Iphone Lightning输出接头插入到手机的Iphone Lightning 输入
