Foreword
Main Features
Thanks for purchasing the COMICA WM100 UHF wireless microphone.
WM100 utilizes UHF wireless technology and LCD lattice screen, it comes with
totally 48 channels and 16-levels adjustable volume, built-in with ‘Adjustable RF
Strength’, ‘Local Audio Testing’, ‘Real-time Audio Monitor’ functions,etc., which
takes you more professional and convenient recording;
To ensure the security of the product, please carefully read the user
manual ,correctly install and operate the item.
. 48 Channels for Multiple Devices Work Together;
. Working Distance Up to 100m; (100m in Open Area, 60m in Barrier Area)
. Local Audio Test in Transmitter End;
. Real-time Audio Status Monitor in Receiver End;
. Real-time Audio Monitor;
. 16-levels Adjustable Volume;
. RF Signal Strength Adjusted in Transmitter End;
. Muting Mode;
. Lattice LCD Display, High Resolution;
Muting Mode48 Channels 16-levels Adjustable
Audio Volume
100m Working
Distance
Lattice LCDReal-time
Monitor
Wireless Audio
Monitor
Local Audio
Testing
2
Notice
The antenna will affect working distance, be sure to protect it and avoid any
man-made damage;
Working distance will be affected by surround environment, make sure the
background is open with no interference, and turn off the device’s WIFI during
usage;
RF strength is advised to set to ‘Low’ for short working-distance request, which
can help decrease power dissipation and increase power duration;
While working with smartphone, one must purchase the TRS-TRRS audio cable
adapter separately;
Take notice of the batteries’ ‘positive and negative poles’ to avoid reverse,
otherwise the product maybe damaged;
Keep the product in dry environment;
Don’t expose the product or work with it in Rain to avoid short-circuit;
3
Main Body

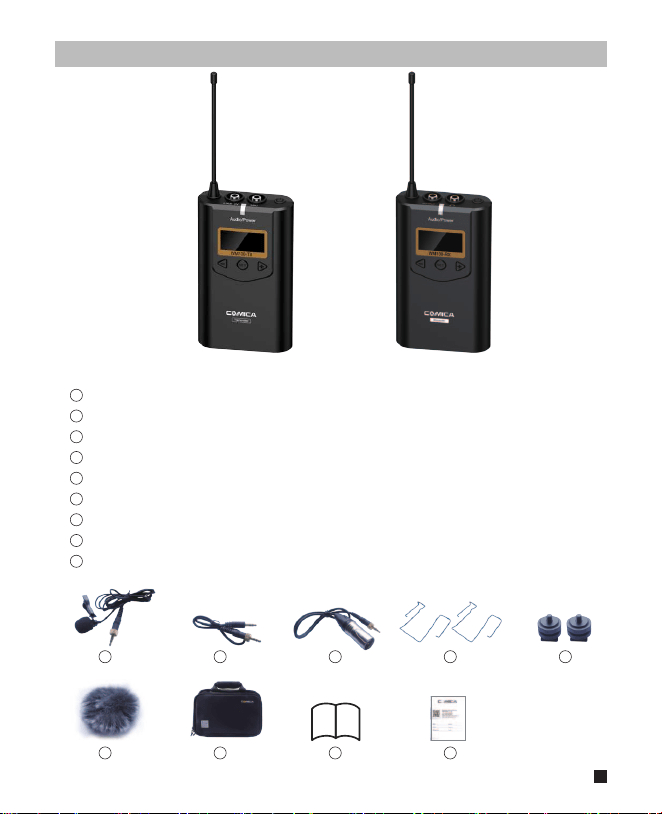

Accessories
In Packing List
Transmitter
3.5mm Audio Mic
3.5mm-3.5mm Audio Output Cable
3.5mm-XLR Audio Output Cable
Waist Belt Clip x 2pcs
Camera Mount x 2pcs
Wind Muff
Portable Case
User Manual
Warranty Card
Receiver
1
1
6
2
7
3
8
4
9
5
2
3
4
5
6
7
8
9
4
Components and Instruction
Components

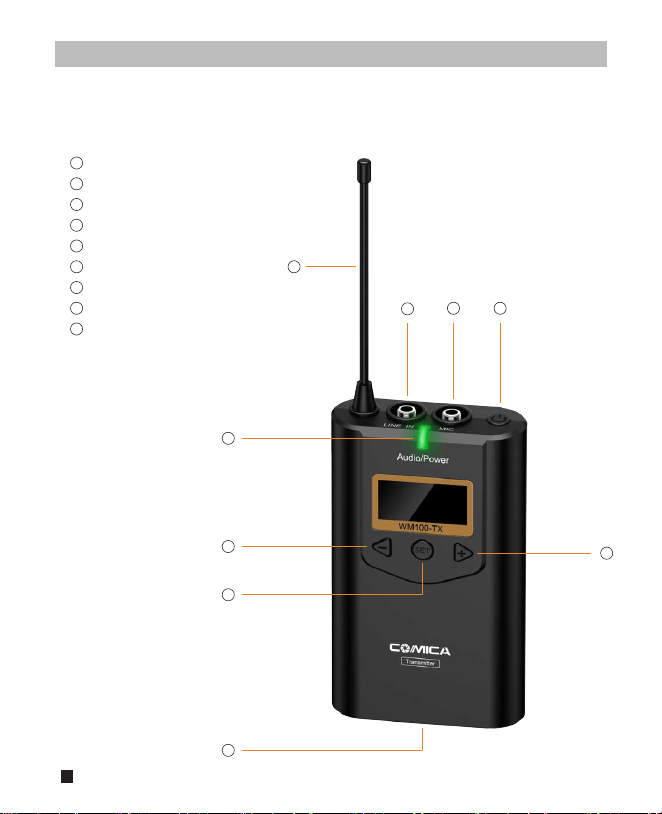

Transmitter
Antenna
LINE IN Input
MIC Input
Power/Muting Button
Working Indication Light
Function Selection Button -
Function Setting Button
Function Selection Button +
AA Battery Holder
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
5

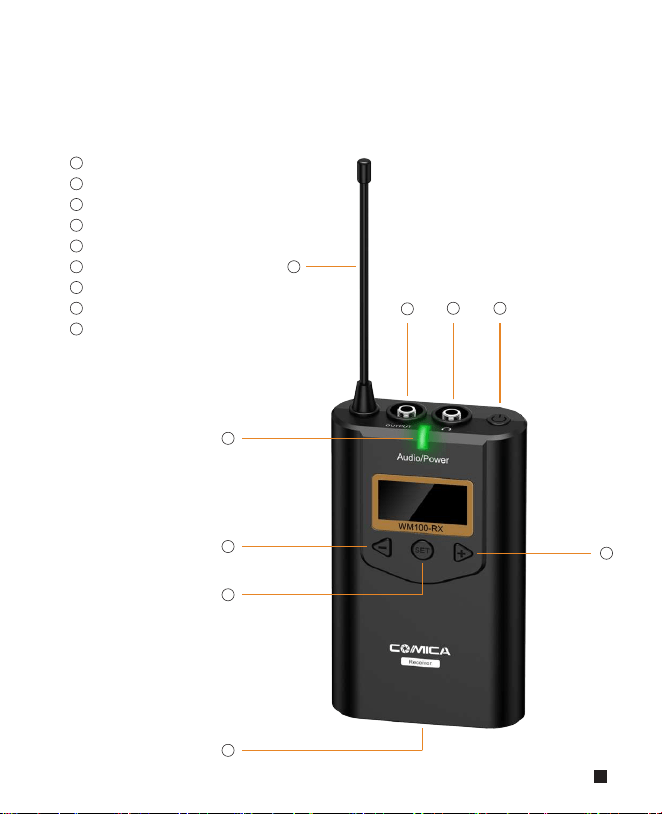

Receiver
Antenna
3.5mm Audio Output
3.5mm Audio Monitor Output
Power Button
Working Indication Light
Function Selection Button -
Function Setting Button
Function Selection Button +
AA Battery Holder
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
6
Screen Display Instruction
Transmitter
RF Transmitting Strength High Icon
：
RF Transmitting Strength Low Icon
：
Channel Channel
Frequency
Locking/Unlocking Icon Audio Status Indication Bar
Normal Audio Mode Icon:
Muting Mode Icon
：
Power Indication
CH
AF
MHz
00
520. 000
H
7
Receiver
Channel Channel
Frequency
Locking/Unlocking Icon Audio Status Indication Bar
Volume IndicationRF Receiving Strength
Power Indication
CH
AF
MHz
00
520. 000
VOL 15
8
Function Button Instruction
Long Press
Short Press
Short Press
Short Press
Short Press
Long Press
Power/Muting Button
Set Button
+ Button
- Button
Power On/Off
Muting
（
Unlocking Mode
）
Function Selection
（
Unlocking Mode
）
Function Selection
Function Selection
Locking/Unlocking
Function Setting
（
Unlocking Mode
）
Indication Light Instruction
Work Normally
Muting Mode
Low-power
Channels Not Match
Green Light Keeps On
Green Light Flicker
Red Light Keeps On
Red Light Flicker
（
Only for Receiver
）
9
Installation and Usage
Transmitter

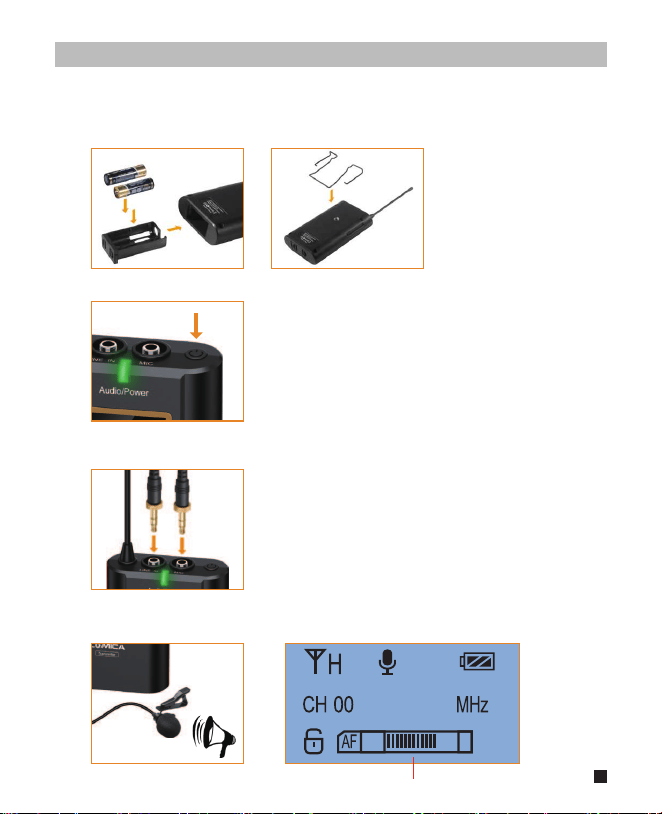

Install Batteries into Battery Holder by following the ‘+’ and ‘-’ Icon, and clip
the waist holder onto back of transmitter ;
Long-press the power button to open the transmitter;
According to your own requirement, to choose to connect the Mic cable
onto ‘Line in’ or ‘Mic’ Input ;
Record with the Mic , and pay attention to the ‘Audio Status Indication Bar’
to check if the transmitter works ;
Step 1:
Step 2:
Step 3:
Step 4:
Volume dynamic display bar
520. 000
10
Refer to the Function Button Instruction to set the relative functions,
for example: CH Adjustment, RF Strength Adjustment;
Step 5:
Lock
A.Unlock
：
Long press SET button
Unlock
520. 000
520. 000
11

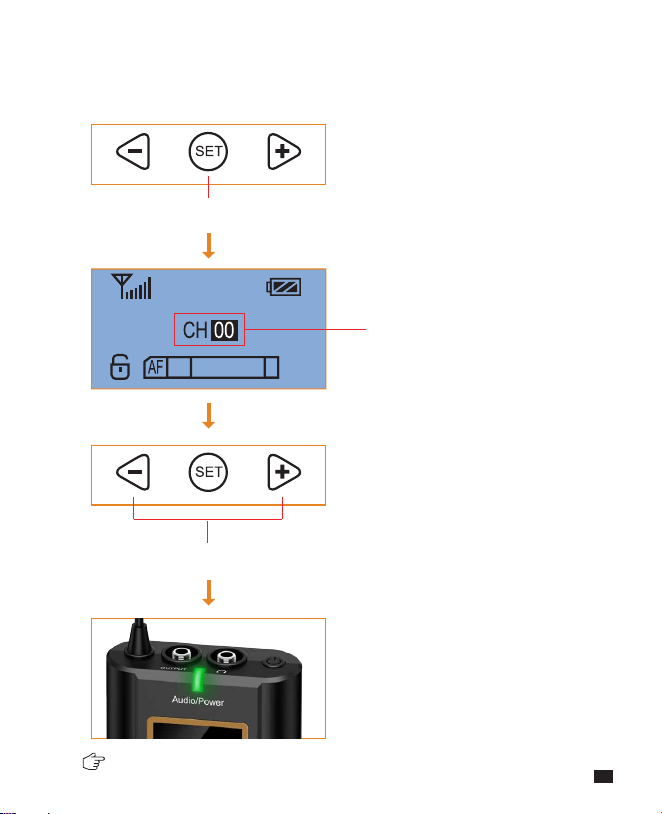

B.CH Adjustment
：
Short press SET button
Adjust the CH channel by - + button
Adjust CH channel
12
C.RF Strength Adjustment
：
Short press SET button
Adjust the RF signal strength by - + button
Adjust RF
13
Receiver

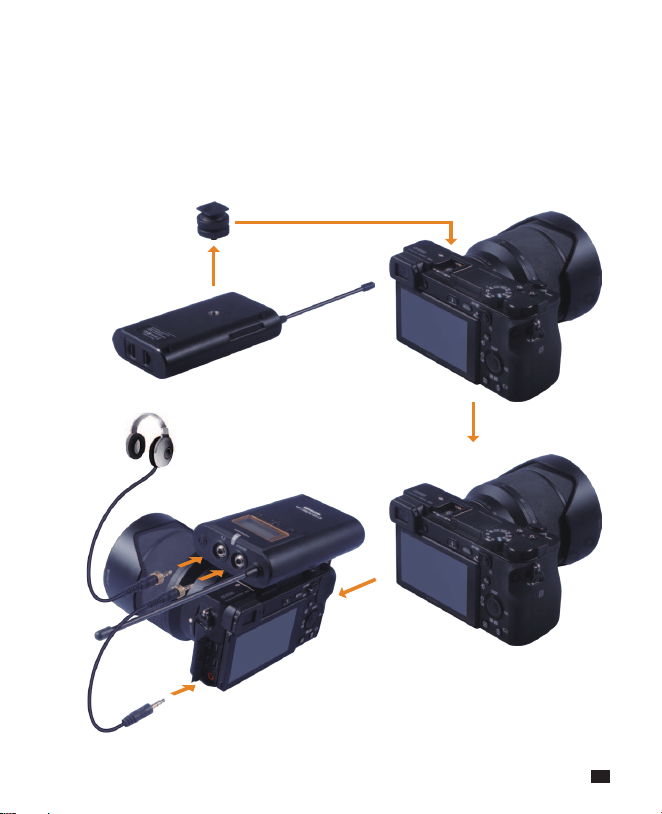

Install the Receiver onto the device via cold-shoe, and connect one end
of the audio cable into Output socket, connect another end of the audio
cable into device’s audio input socket; And plug your earphone into the
audio monitor’s socket for audio monitor if you need;
Mount the Receiver onto
cold-shoe
Mount the cold shoe onto camera
The receiver is mounted on the device
Connect one end of the audio cable into Output socket,
Connect another end of the audio cable into device’s
audio input socket
Plug your earphone into the
audio monitor’s socket
Step 1:
14
Set CH to match the channels, and adjust VOL to set the volume until you’re
satisfied;
Lock
A.Unlock
：
Long press SET button
Unlock
VOL 11
VOL 11
Step 2:
520. 000
520. 000
15
B.Set CH to match the channels
:
Short press SET button
Adjust CH by - + to match the Transmitter
The Green Light will keep on after channel matched.
Adjust CH channel
VOL 11
16
C.Set the volume until you’re satisfied
:
Go for the normal audio recording.
Short press SET button
Adjust volume by - + button
Adjust VOL
VOL 11
VOL 11
Step 3:
17
Specification
Transmitter TX
48
520.000MHz~534.100MHz
＞
65dB
1/4 Wavelength Antenna
10dBm / 15dBm
＜
-60dBc
＜
20ms
＜
0.5%
3.5mm Socket
AA Batteries x 2pcs
111.5 x 65 x 25.3mm
0
℃
~ +50
℃
-20
℃
~ +60
℃
Channels
Wireless Frequency
Signal / Noise
Antenna
Transmitting Power
Stray Radiation
Sound Delay
Audio Distortion
Audio Input Socket
Batteries
Size
Working Temperature
Storage Temperature
18
Receiver RX
48
520.000MHz~534.100MHz
＞
65dB
1/4 Wavelength Antenna
95dBm
＜
20ms
＜
0.5%
20Hz ~ 18KHz
3.5mm Port
AA Batteries x 2pcs
111.5 x 65 x 25.3mm
0
℃
~ +50
℃
-20
℃
~ +60
℃
Channels
Wireless Frequency
Signal / Noise
Antenna
Receiving Sensitivity
Sound Delay
Audio Distortion
Frequency Range
Audio Output
Batteries
Size
Working Temperature
Storage Temperature
