KENYON
!
!
!
!
!
!
!
!
!
!
for!
!
!"#$%&''(&
)%*"+"%&,-".$&
/0,1)22) 1/3 0&4 &
5,678,&95/:6
Revision 08.09.01
\Mrpserver\KENYON ENGINEERING\MANUALS\NP Alcohol\113 MANUAL
KENYON
®
P.O. Box 925
#8 Heritage Park Road
Clinton, CT 06413 USA
Phone: (860) 664-4906
Fax: (860) 664-4907
2
INTRODUCTION
Thank you for purchasing a KENYON
®
Alcohol stove. The operation instructions that follow are for the
model 113 single burner alcohol stove. These units feature counter-top mounting, self-priming / self
pressurized alcohol burners. KENYON
®
marine stoves have been engineered exclusively for the marine
environment. Design considerations and materials were dictated by the requirement for safety, reliability,
long life, low maintenance, and operation in a salt atmosphere.
UNPACKING YOUR KENYON
®
STOVE
Carefully unpack your KENYON
®
Stove from its shipping container. Do not discard the shipping carton or
protective foam. It may be useful if your unit ever needs to be serviced.
Verify and Identify Package Contents. The following items should be included in the carton:
1- Alcohol Stove
1- Fill Bottle
2- Warning Labels (only applies to stoves without Glass Lid)
1- Installation and User’s Guide
If any of these items are missing, please contact KENYON
®
Customer Service at (860) 664-4906 or via
e-mail: [email protected]
INSTALLATION INSTRUCTIONS
IMPORTANT :
PLEASE READ THESE INSTRUCTIONS COMPLETELY
BEFORE INSTALLATION AND OPERATION OF THE APPLIANCE
DO NOT DISCARD THIS MANUAL. KEEP THIS MANUAL AND
INSTRUCTIONS FOR FUTURE REFERENCE
NOTE: Installation should comply with ABYC standard A-3, “Recommended Practices and Standards
Covering Galley Stoves,” and/or the “Fire Protection Standards for Motorcraft” NFPA #302.
MOUNTING THE ALCOHOL COOKTOP
LOCATING THE COOK TOP AWAY FROM FLAMMABLE MATERIALS
Before you cut your countertop: Make certain the Cook Top will be far enough from flammable
materials!
! CAUTION
Do not cut the opening in your countertop until you ensure that there will be adequate horizontal and
vertical clearances from the Cook Top to the nearest flammable materials- fabric, plastic, wood- (except
the countertop itself).
Minimum Distances are:
40cm (16”) Horizontally 1M (39”) Vertically
!
3
It is the installer’s and/or purchaser’s responsibility to ensure that the Alcohol
Cook Top is installed in a location such that a fire hazard is not created.
IN EUROPE:
Contact the authorities appointed by the government in each separate country
IN USA:
Contact ABYC, 3069 Solomons Island Road, Edgewater Maryland 21037-1416
tel (410) 956 1050 fax (410) 956 2737 internet abycinc@aol.com
LOCATION & COUNTER-TOP PREPARATION
The stove must be located in an area with adequate ventilation for occupants’ safety and efficient stove
operation. It should be installed with adequate clearances between the stove top and all surrounding
surfaces (i.e. curtains, cabinets, etc) in order to minimize heat transfer to these surfaces. Also fire
resistant materials should be attached to any surrounding surfaces, especially overhead.
Once a location for the stove has been chosen, it is important to check clearances underneath the
counter for the bottom portion of the stove and its moving parts. The stove extends about 6 inches (152
mm) below the countertop. If drawers or cabinets are located under the stove, a rigid barrier must be
installed to prevent combustible items, (i.e. rags, paper, etc.) from coming in contact with the hot stove.
The barrier must be ventilated.
Adequate ventilation of the space below the stove must be provided to ensure proper operation of the
stove. Heat transferred from the cook top bottom pan during operation will overheat an improperly
ventilated area.
FAILURE TO PROVIDE PROPER CLEARANCES AND VENTILATION MAY RESULT IN A FIRE
HAZARD.

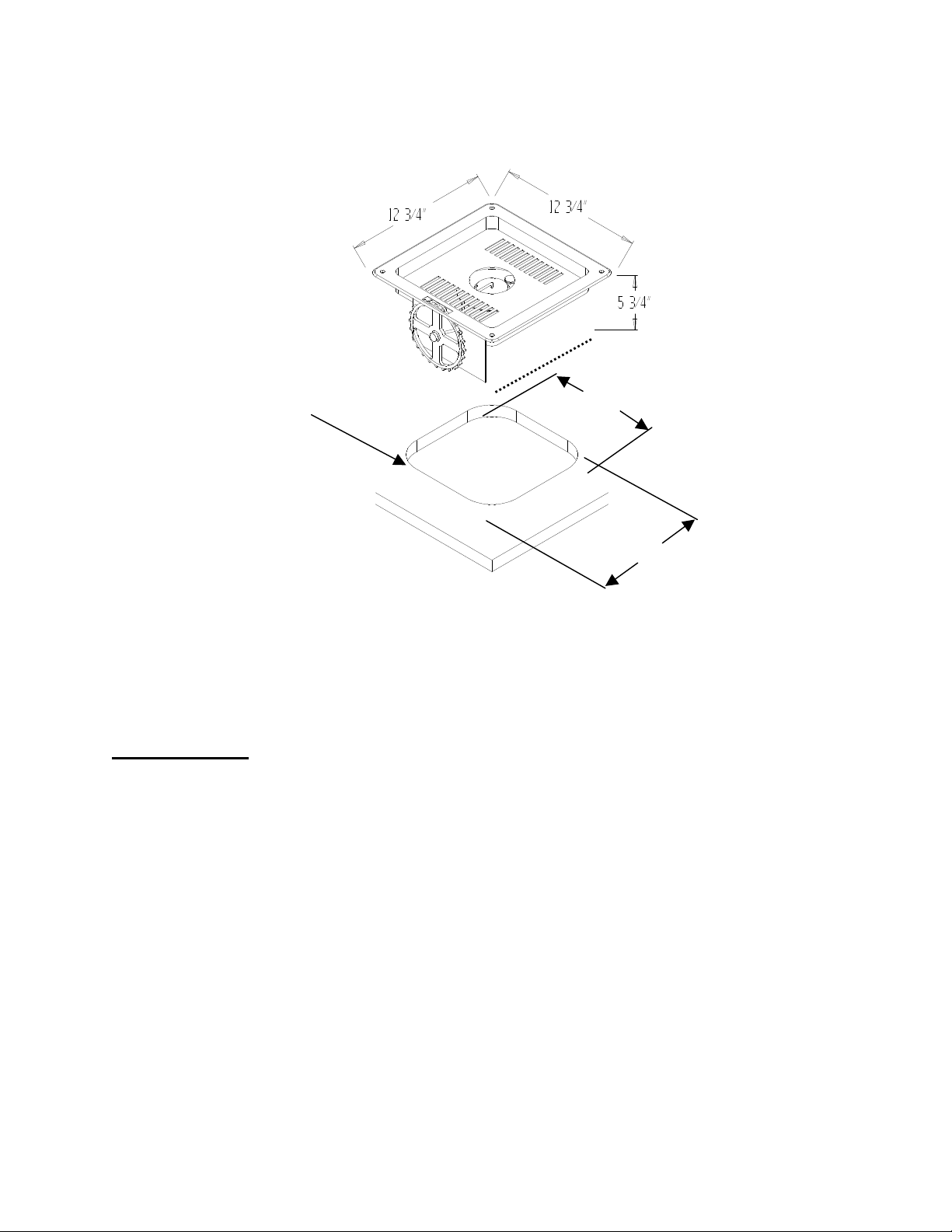

General dimensions for model 113 stove are shown on the following page:
4
Note: A 3" radius is required
INSTALLATION
Once the cutout has been prepared as shown above, pre-fit the stove into the cutout to mark drill
locations. Tilt and insert the front portion of the stove first. Care should be exercised so as not to
damage or bend any moving parts. Next, lower the stove into the cut out. Using a pencil mark the
location of mounting holes onto the counter. Carefully remove the stove from the cutout. Using a 1/8"
drill and the pencil marks as a guide, drill four (4) mounting holes. Replace the stove into the counter.
Mount the stove in place by using (4) #8 x 5/8" oval head stainless steel wood screws.
Affixing the Safety Warning Signs(Applies only for stoves without glass lids)
These signs are part of your stove installation. In other words: without the warning signs mounted
permanently per these instructions, the installation of the appliance is INCOMPLETE, DANGEROUS, and
ILLEGAL.
Select the location for the signs where they will be easily readable AT ALL TIMES, BY ALL
OPERATORS of this appliance. DO NOT conceal it behind a locker door, etc for reasons of “aesthetics”.
Clean the surface(s) with a mild solvent or abrasive cleaner; dry thoroughly. Peel the backing off these
signs and apply to surface. Press the signs in place.
3" Radius
typical
Model 113
12 ¼”
12 ¼”
5
USER INSTRUCTION
Safety
This section must be read before operating your KENYON
®
cook top. This safety instruction
section covers all KENYON
®
electric cook tops and stoves.
• Proper Installation- Be sure your appliance is properly installed and grounded by a qualified
technician.
• Never use your appliance for warming or heating the room.
• Do Not Leave Children Alone-children should not be left alone or unattended in area where
appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• CAUTION: Do not store items of interest to children in cabinets above the stove- children climbing on
the range/counter to reach items could be seriously injured.
• Wear Proper Apparel- Loose-fitting or hanging garments should never be worn while using the
appliance.
• User Servicing- Do not repair or replace any part of the appliance unless specifically recommended
in the manual. All other servicing should be referred to a qualified technician or KENYON
®
Customer
Service: (860) 664-4906.
• Storage in or on Appliance- Flammable materials should not be stored near surface elements.
• Do Not Store Plastic Utensils In Storage Drawer below the stove- if a storage drawer is located
directly below the stove, plastic or other utensils with low melting temperatures should not be stored
in the storage drawer.
• Do Not Use Water on Grease Fires- Smother fire or flame or use dry chemical or foam-type
extinguisher.
• Use Only Dry Potholders- Moist or damp potholders on hot surfaces may result in burns from
steam. Do not let potholders touch heating elements. Do not use a towel or other bulky cloth.
• DO NOT TOUCH HEATING ELEMENTS - Heating element areas may be hot even though they are
dark in color. These areas may be hot enough to cause burns. During and after use, do not touch, or
let clothing or other flammable materials contact heating element areas until heating elements have
had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns.
• Servicing- Do not attempt to repair or replace any part of your KENYON
®
stove. If service should be
necessary, contact your local servicing dealer or KENYON
®
Customer Service at (860) 664-4906. If
the stove must be removed for servicing, turn the power off to the appliance before attempting to
remove the unit
PLEASE READ THIS ENTIRE MANUAL THOROUGHLY
BEFORE OPERATING YOUR KENYON
®
STOVE
This stove, like all appliances, has the potential to create safety
problems through careless or improper use.
Please observe all of the following safety precautions.
6
Do Not Throw Away These Instructions!
WARNING
OPEN FLAME COOKING APPLIANCES CONSUME OXYGEN AND PRODUCE
CARBON MONOXIDE.
TO AVOID ASPHYXIATION OR INJURY OR DEATH FROM EXPOSURE TO
CARBON MONOXIDE, MAINTAIN OPEN VENTILATION WHEN USING THIS
APPLIANCE.
!
WARNING
IMPROPER STOVE FUELING PRACTICES CAN RESULT IN FIRE AND/OR
EXPLOSION.
TO AVOID SEVERE INJURY OR DEATH FROM FIRE OR EXPLOSION, FOLLOW
THE MANUFACTURER’S REFUELING INSTRUCTIONS THAT ARE PRINTED IN
YOUR MANUAL AS WELL AS ON THE STOVE.
!
7
ALCOHOL BURNER OPERATING INSTRUCTIONS
Before attempting to operate the stove, please read the theory and operating instructions carefully and
become thoroughly familiar with the various parts of the stove and how they operate. An internal parts
diagram has been provided below to illustrate burner functions and characteristics under normal
operating conditions.
Theory
This patented burner system incorporates an internal tank in the burner assembly that does not require
any external pressurization. This burner system uses ethyl alcohol. The “center chimney” contains a
fiber wick, which is lit to start the burner. The flame from the wick, vaporizing and pressurizing the alcohol
inside rapidly heats a separate surrounding chamber, within the burner. A ring of holes (burner jets) in
the top of this vaporization chamber allows the escape of the alcohol vapor which is ignited by the central
flame. The central flame then diminishes and the burner functions in the normal manner.

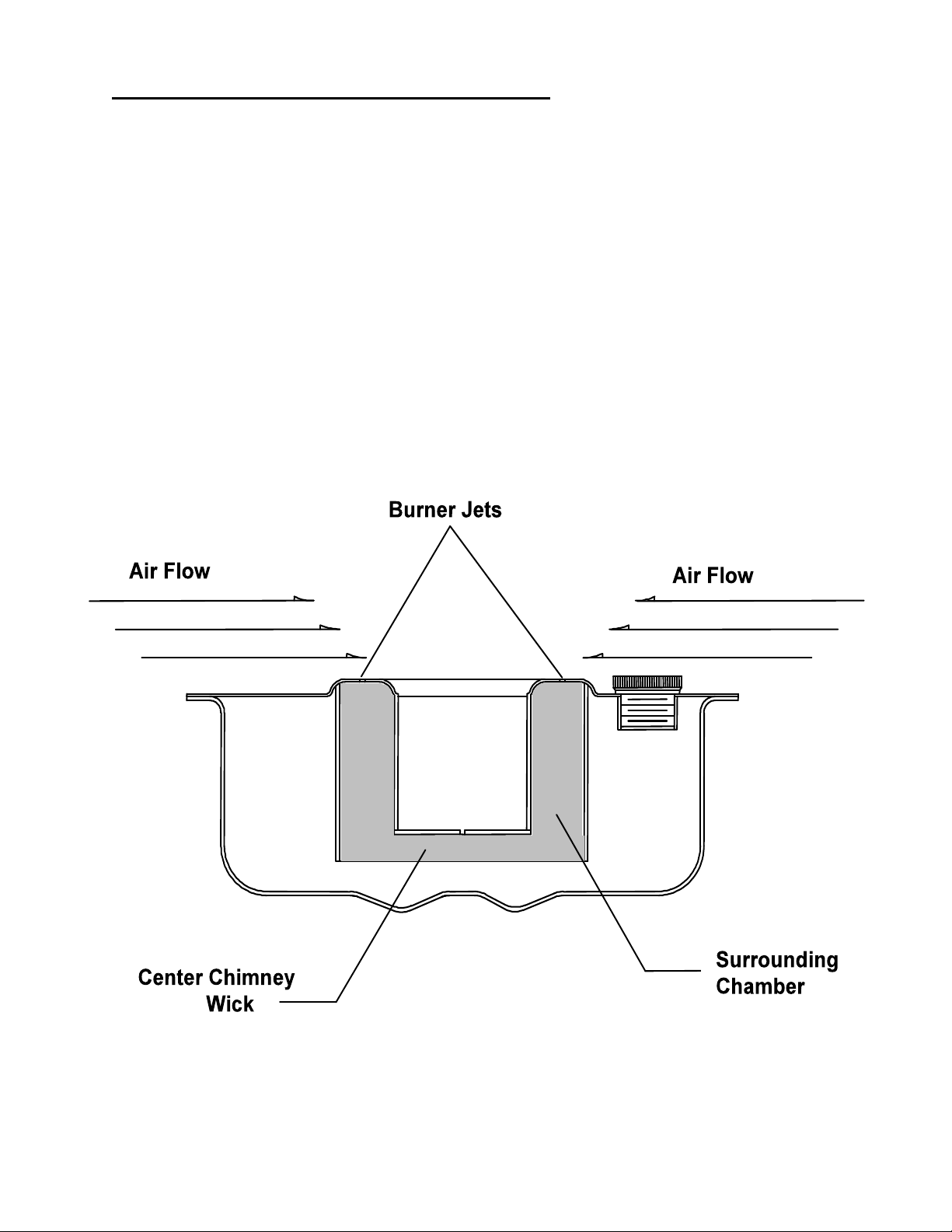

SELF-PRIMING / SELF PRESSURIZED BURNER
Cross Sectional View
8
Operating Components
A Fill Cap is located on each burner with a rubber washer (gasket) underneath each fill cap. Be sure the
washer is in place and the fill cap is reasonably tight when operating the stove. If either are lost or
damaged replace at once. DO NOT ATTEMPT TO OPERATE THE BURNER WITHOUT A CAP OR
WITH ANY NON COMPATIBLE REPLACEMENT. The alcohol burner control wheel(s) are located in the
front flange of the stove. The purpose of the control wheel is to regulate the burner flame. With the
control wheel positioned to the extreme right, the flame control cap (snuffer) will completely cover the
burner ports (jets). With the control wheel positioned to the extreme left, the burner ports will be
completely exposed. Other variations of the control wheel position will allow for flame adjustment
between maximum and minimum heat output.
Alcohol Burner Fueling Instructions
1. The burners are designed exclusively for denatured ethyl alcohol which is readily available as
"alcohol stove fuel" at marine stores. DO NOT SUBSTITUTE ANY OTHER FUEL AS FIRE OR
EXPLOSION COULD RESULT. A Denatured ethyl alcohol fire is readily extinguished by water, or by
smothering it with a non-combustible material.
2. Before attempting to fuel the stove, be sure that the burners are not in operation and that all flame
and other sources of ignition in the galley area are extinguished. Make sure the stove is cool before
fueling.
3. The alcohol control wheel(s) located in the front of the appliance must be in the off position (rotate
completely to the right) which places the flame control cap completely over the burner ports. The air
deflector assembly is equipped with an interlock. If the control cap is not over the burner ports, the
deflector can not be removed to access the fill cap.
4. Carefully rotate electric element assembly up and remove the air deflector assembly to access the fill
cap. If the electric element was operated recently, DO NOT PROCEED UNTIL THE ELEMENT HAS
COOLED. Failure to do so could result in severe burns or injury.
5. Be aware that an alcohol flame is invisible in sunlight. If the stove has been operated recently, be
particularly careful to make sure that all burner flames are extinguished and the burner is cool. DO
NOT PROCEED UNTIL FLAMES ARE EXTINGUISHED AND THE BURNER HAS COOLED.
6. Remove the fill cap and fill the burner(s) slowly with denatured ethyl alcohol, six (6) ounces only. The
burner fuel storage tank is designed to readily accept the proper amount of fuel and discourage
overfilling. Do not attempt to fill with more fuel that can be readily poured in. Six (6) ounces will be
enough to moisten the primary wick and provide the ideal conditions for proper function of the alcohol
burner. More than six ounces may cause the chimney to flood. A flooded chimney will cool the
surrounding chamber and the burner will not operate as intended. (Refer to theory of Operation)
With this stove, a six ounce fill bottle is supplied. Using the supplied fill bottle each time will prevent
overfilling since the fill bottle's volume is the same size as burner's storage tank.
7. Replace the fill cap, making sure the rubber washer (gasket) is in place and that the fill cap is
securely tightened.
8. Wipe any alcohol spills and replace the air deflector assembly into the pan and return the electric
element back into place. Note that the electric element serves as a grate when using the alcohol
burner to cook.
9
To disengage lid from the lock position, fully extend
(rotate lid back) lid back and gently lift “lid-stay” up
as shown to disengage from the lock position.
Once the “lid-stay” is in the unlock position, the lid
can be lowered to the close position.
Alcohol Burner Operating Instructions
1. Completely open the flame control cap by rotating the control wheel to the left.
2. Ignite the small fiber wick located in the center chimney. A match may be used or a Bar-B-Que grill-
igniting wand is ideal. Do not leave matches in the center chimney; they will inhibit the efficiency of
the burner.
3. Allow for approximately two to five minutes for flames to appear in the burner jets (see theory of
operation) Cooking may be initiated immediately after ignition of the center chimney. This will not
effect the preheating of the main burner and automatic switch over to normal full operation.
CLOSING THE GLASS LID
If your KENYON
®
stove is equipped with a glass lid, care should be followed when lowering the lid onto
the stove. NEVER CLOSE THE LID ON AN OPEN FLAME OR AN ELECTRIC ELEMENT THAT IS
HOT OR TURNED “ON”. Make sure that the appliance is cool before lowering the glass lid onto the
frame.
When the lid is in an open position, the “lid-stay” arm that is attached to the glass “locks” onto the large
lock screw. In order to lower the glass lid onto the stove frame, the “lid-stay” must be unlocked from the
mounting screw. DO NOT TRY TO LOWER THE LID WITH THE “LID-STAY” IN THE LOCK
POSITION. FAILURE TO UNLOCK THE “LID-STAY” WHEN ATTEMPTING TO LOWER THE GLASS
LID CAN CAUSE DAMAGE TO THE APPLIANCE WHICH IS NOT COVERED UNDER WARRANTY.
Gently lift “lid-stay” up as shown to
disengage “lid-stay” from lock position.
Carefully lower the glass lid once “lid-stay”
is disengaged from the lock position.
“LID-STAY”
Lock Screw
10
Warranty
Kenyon International, Inc (the "Company") warrants its products in normal usage to be
free of defects in materials and workmanship subject to the conditions and limitation
below.
Any part which proves to be defective in normal usage during the warranty
period will be repaired or replaced by the Company.
This warranty is subject to the following conditions and limitations:
1. The Company's liability shall be limited to repair or replacement (choice of remedy at Company's
option) of goods or parts as may be defective in materials or workmanship. This liability is limited
to one year for labor and two years for parts.
2. Determination of suitability of the product for the use contemplated by the buyer is the sole
responsibility of the buyer and the Company shall have no responsibility in connection with such
suitability.
3. The Company shall not be liable for any damage resulting from:
• failures due to use of the products in applications for which they are not intended
• failures due to corrosion, wear and tear, abuse or improper installation or maintenance
4. The Company shall be responsible for ground shipping charges to the location of the appliance
(home) within the contiguous United States, and Alaska. Any other or express or special shipping
charges are at the expense of the buyer.
5. Service by anyone other than authorized Company representatives shall void this warranty unless
such service accords with the Company's guidelines and standards of workmanship.
THERE ARE NO OTHER WARRANTIES OF MERCHANTIBILITY, FITNESS FOR PURPOSE OR ANY
OTHER KIND, EXPRESSED OR IMPLIED AND NONE SHALL BE IMPLIED BY LAW. The duration of
any such warranties that are nevertheless implied by law for the benefit of a consumer, shall be limited to
a period of two years from original purchase by the user. Some countries do not allow limitations on how
long an implied warranty lasts, so this limitation may not apply to you.
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES TO HOMES,
EQUIPMENT OR OTHER PROPERTY OR PERSONS DUE TO ANY FAILURE OF KENYON
PRODUCTS. Some countries do not allow exclusion or limitation of coincidental damages so this
limitation or exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER
LEGAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUNTRY.
KENYON
®
P.O. Box 925 • 8 Heritage Park Road • Clinton, CT USA
Phone (860) 664-4906 FAX: (860) 664-4907
