Operating and Installation Instructions
Rangetops
To prevent accidents and damage to the range, you must read all in-
structions supplied before installing or using the appliance.
en-US, CA M.-Nr. 10 944 230
IMPORTANT SAFETY INSTRUCTIONS
2
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or death.
– Do not use or store gasoline or other combustible liquids or vapors in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electric switches.
– Do not use any phones inside your building.
– Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
– If you are unable to reach your gas provider, call the fire department.
– Installation and service must be performed by a qualified installer, qualified ser-
vice agency or your gas provider.
(In Massachusetts, installation must be performed by a licensed installer / gas
fitter.)
– Note to the installer:
Please give these installation instructions to the consumer for the local electri-
cal/gas inspector.
®
®
Contents
3
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 5
Guide to the Rangetop........................................................................................ 16
KMR 1124.............................................................................................................. 16
KMR 1134-1 .......................................................................................................... 17
KMR 1135-1 .......................................................................................................... 18
KMR 1136-1 .......................................................................................................... 19
KMR 1354-1 .......................................................................................................... 20
KMR 1355-1 .......................................................................................................... 21
KMR 1356-1 .......................................................................................................... 22
Operation tips ...................................................................................................... 23
Automatic re-ignition ............................................................................................. 23
Before first use .................................................................................................... 24
Cleaning the rangetop for the first time................................................................. 24
Seasoning the griddle plate................................................................................... 24
Operation of the burners .................................................................................... 25
Turning on.............................................................................................................. 25
Adjusting the flame................................................................................................ 26
Visual characteristics gas flames ..................................................................... 26
Turning off.............................................................................................................. 26
Cookware ............................................................................................................. 27
Energy saving tips .............................................................................................. 28
Operation of the grill ........................................................................................... 29
Assembling the grill ............................................................................................... 29
Turning on the grill................................................................................................. 30
Tips for grilling....................................................................................................... 30
Operation of the griddle...................................................................................... 31
Turning on the griddle............................................................................................ 31
Settings ................................................................................................................. 32
Tips for frying ........................................................................................................ 32
Cleaning and care ............................................................................................... 33
Rangetop............................................................................................................... 34
Dishwasher-safe grates.................................................................................... 34
Burner control knobs with stainless steel finish ............................................... 34
Simmer burner / Power burners ...................................................................... 34
Cleaning the dishwasher-safe grilling grate .......................................................... 35
Contents
4
Cleaning the griddle plate ..................................................................................... 35
Frequently Asked Questions .............................................................................. 36
Notes on installation ........................................................................................... 38
Distance to the range hood................................................................................... 38
RBGDF Backguard................................................................................................ 38
Weights.................................................................................................................. 39
Dimensional drawings......................................................................................... 40
Rangetops KMR 1124, KMR 113x-1, KMR 135x-1............................................... 41
Electrical connection .......................................................................................... 46
Gas connection.................................................................................................... 47
Burner ratings ...................................................................................................... 49
Burner ratings KMR 1124...................................................................................... 49
Burner ratings KMR 1134-1 .................................................................................. 50
Burner ratings KMR 1135-1 .................................................................................. 51
Burner ratings KMR 1136-1 .................................................................................. 52
Burner ratings KMR 1354-1 .................................................................................. 53
Burner ratings KMR 1355-1 .................................................................................. 54
Burner ratings KMR 1356-1 .................................................................................. 55
Technical Service................................................................................................. 56
Contact in case of fault ......................................................................................... 56
Warranty ................................................................................................................ 56
Data plate .............................................................................................................. 56
MieleCare ............................................................................................................. 57
Caring for the environment ................................................................................ 58
IMPORTANT SAFETY INSTRUCTIONS
5
When using the appliance, follow basic safety precautions, including the fol-
lowing:
Read all instructions before installation and use of the rangetop to prevent
accidents and machine damage.
This appliance conforms to current safety requirements. Inappro-
priate use can, however, lead to personal injury and damage to
property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installing or using it
for the first time. They contain important notes on installation,
safety, use and maintenance.
Miele cannot be held responsible for damage caused by the non-
observance of these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
IMPORTANT SAFETY INSTRUCTIONS
6
Appropriate use
This rangetop is intended for residential use and use in other simi-
lar environments.
This appliance is not intended for outdoor use.
The rangetop is intended for residential use only to prepare food
and keep it warm. Any other use occurs at the owner's own risk and
may be dangerous.
Persons who are unable to safely operate the range due to limited
physical, sensory or mental capabilities, or because of a lack of ex-
perience or knowledge, may only use the appliance if they are super-
vised while doing so. These persons may only use the appliance
without supervision if they have been shown how to use it in a safe
manner, and if they are able to recognize and understand the poten-
tial risks of improper use.
IMPORTANT SAFETY INSTRUCTIONS
7
Safety with children
Do not leave children unattended: Children should not be alone or
unsupervised in the area where the rangetop is installed. Do not al-
low them to sit or stand on the appliance.
All children must be kept away from the rangetop.
Please supervise any children in the vicinity of the rangetop and
do not let them play with the appliance.
The rangetop gets hot when in use and remains hot for some time
after being turned off. Keep children away from the appliance until it
has cooled down and is no longer a burn hazard.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Burn hazard!
Keep the spaces above and behind the rangetop clear of any items
that could draw the attention of children. Otherwise, they can be
tempted into climbing onto the appliance.
Risk of burning or scalding.
Turn pot and pan handles inward, so children cannot pull them down
and be burned.
IMPORTANT SAFETY INSTRUCTIONS
8
Technical safety
Failure to observe the information contained in the installation in-
structions can lead to serious or fatal injuries for children and adults.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re-
pairs must only be carried out by a Miele authorized technician.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work may only be performed by a qualified technician.
A damaged rangetop can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
Reliable and safe operation of the rangetop can only be guaran-
teed if it is connected to the public power supply.
The electrical safety of the rangetop can only be guaranteed when
it is properly grounded. Compliance with this essential safety re-
quirement is absolutely mandatory. If in any doubt, please have the
building's wiring system inspected by a qualified electrician.
Proper installation: Make sure that your appliance has been in-
stalled correctly and that it has been grounded by a qualified techni-
cian.
Do not operate the appliance until it has been properly installed.
To avoid damaging the rangetop, make sure that the information
(voltage and frequency) on the data plate correspond to the build-
ing's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
Installation and maintenance of the gas connection must be per-
formed by qualified installers, service agencies or gas providers.
Do not use a power strip or extension cord to connect the range-
top to electricity (risk of fire).
IMPORTANT SAFETY INSTRUCTIONS
9
This appliance must not be installed and operated in non-station-
ary locations (e.g., on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the rangetop will endanger your safety
and may lead to appliance malfunctions.
Do not open the appliance housing under any circumstances.
Any repairs not performed by a Miele authorized service techni-
cian will void the warranty.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
During installation, maintenance, and repair work, the rangetop
must be completely disconnected from the household electricity
supply. The gas supply must be shut off. Ensure that this is the case
by:
– removing the fuse,
– “tripping” the circuit breaker, or
– unplugging the unit. Pull the plug not the cord.
– Shut off the gas supply and disconnect the rangetop from the gas
supply. Installation and maintenance of the gas connection must
be performed by qualified installers, service agencies or gas
providers.
Risk of electric shock!
If the rangetop is defective, immediately turn the appliance off and
discontinue use. Disconnect the range from the gas and power sup-
ply and call Miele Service.
If the rangetop is installed behind a cabinet door, do not close the
door while the range is in operation. Heat and moisture can build up
behind the closed door and cause damage to the range, cabinetry,
and flooring. Do not close the door until the range has completely
cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Reaching over a hot stovetop to access the cabinets can result in
burns. You can reduce the risk of burns by installing a range hood
that extends at least 4³/₄" (12 cm) past the bottom of the cabinets.
IMPORTANT SAFETY INSTRUCTIONS
11
Correct use
Do not leave the rangetop unattended when cooking on high
power. Spilled food will begin to smoke and cause grease splatter,
which can ignite on the range.
Oil and fat can catch fire if overheated. Never leave the appliance
unattended when cooking with oil and fat. If the oil or fat catches
fire, do not attempt to put the flames out with water.
Turn off the rangetop and smother the flames using a lid or a suitable
fire blanket.
Smother the fire or flames, or use a dry chemical extinguishing
agent or foam fire extinguisher.
Storage in or on the appliance: Flammable materials should not be
stored in an oven or in the vicinity of the rangetop.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a ventilation hood.
Never heat empty cookware.
Do not heat up food in closed containers, as pressure will build up
in the container, causing them to explode. Do not use the rangetop
to boil or heat up cans.
If the rangetop is covered, there is a risk that the material of the
cover will ignite, explode or if the range is still hot or if turned on in-
advertently. Never cover the range with a board, cloth, or protective
sheet.
When using an electrical appliance, e.g., a hand mixer, near the
rangetop, make sure that the power cable does not come into con-
tact with the hot range. The cable's insulation could become dam-
aged.
Cookware made of plastic or aluminum foil will melt at high tem-
peratures. Do not use any plastic or aluminum foil cookware.
IMPORTANT SAFETY INSTRUCTIONS
12
The rangetop gets hot when in use and remains hot for some time
after being turned off. Do not touch the appliance if there is a possi-
bility that it could still be hot.
You can burn yourself on a hot rangetop. When cooking on the
appliance, protect your hands by using heat-resistant pot holders or
oven mitts. Only use dry pot holders or gloves. Wet or damp textiles
conduct heat more effectively and produce steam, which poses a
burn hazard. Be sure to keep all textiles away from the gas flames.
Do not use oversized cloths, dish towels or other similar materials.
If the rangetop is accidentally turned on or is still hot, metal ob-
jects on the appliance can heat up. Other items may melt or catch
fire. Do not place unused items on the range for storage!
A range hood installed above the range can become damaged or
catch fire as a result of intense heat. Do not use the gas burners
without cookware.
The high temperatures radiated could cause objects near the
rangetop to catch fire.
Do not use the range to heat the room.
Only light the gas burners after all burner parts have been properly
assembled.
If the cookware is too small, it will not sit properly on the burner. If
the cookware is too large, heat emitted from the bottom of the cook-
ware may damage the counter, walls with poor heat resistance (e.g.,
paneled walls), or portions of the rangetop.
Make sure that the burner flames do not extend beyond the bot-
tom of the cookware and rise up its sides.
Only use cookware with a thick enough bottom. Failure to do so
may result in damage to the rangetop.
Always use the burner grates supplied with the cooktop. Never
place cookware directly on the burner.
IMPORTANT SAFETY INSTRUCTIONS
13
Install the burner grates in an upright position to avoid scratching
the cooktop.
Remove all grease splatters and other flammable (food) residues
on the rangetop. They are a fire hazard.
Do not use pots or pans that are large enough to cover several
burners. The resulting heat buildup can damage the appliance.
If the rangetop has not been used for a long period of time, be
sure to thoroughly clean it and have it inspected by an authorized
technician before using it again.
The use of the rangetop creates heat, moisture and combustion
products in the room where it is installed. Make sure that the appli-
ance is installed in location with sufficient ventilation. Natural ventila-
tion openings should not be blocked. Alternatively, a mechanical
ventilation device (e.g. a range hood) can be installed.
Prolonged intensive use of the appliance may require additional
ventilation of the room, e.g., by opening a window, or by turning the
range hood to a higher setting.
Ask your installer to show you the location of your gas shutoff
valve and fuses or circuit breaker panel in your apartment or home.
Be sure that you know how and where to disconnect the gas and
power supply to your rangetop.
Ensure that the igniters are clean and dry to allow the burners to
ignite and burn properly.
Fire hazard! Loose-fitting or hanging garments can catch fire. Be
sure to wear appropriately fitting clothing when cooking. Never allow
loose clothing or flammable materials to come into contact with the
burners while the burners are in use.
When you have finished cooking, make sure that the burners are
turned off by checking the position of the knobs.
IMPORTANT SAFETY INSTRUCTIONS
14
The grates, burner cap, bottom parts of the burner, and any other
parts located near the burner flame, can still be very hot after cook-
ing and cause burns. Do not touch these components when using
the rangetop.
Wind can blow curtains over the rangetop, causing them to catch
fire. If the range is installed near a window, do not use long curtains.
Only certain types of glass, ceramic or other enamel cookware
can be used on a gas rangetop without breaking as a result of sud-
den temperature changes.
Do not use cooking utensils on the grill.
Wet sponges or clothes can cause burns due to hot steam if they
are used to wipe spilled food off a hot burner. Some cleansers can
emit hazardous vapors if they are applied to a hot surface. Be careful
when cleaning the cooktop.
IMPORTANT SAFETY INSTRUCTIONS
15
Cleaning and maintenance
Do not use a steam cleaner to clean this appliance.
Steam could penetrate electrical components and cause a short cir-
cuit.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Guide to the Rangetop
16
KMR 1124
a
Burner control knob for rear left
burner
b
Burner control knob for front left
burner
c
Burner control knob for front right
burner
d
Burner control knob for rear right
burner
e
Power burner
f
Grates
g
Simmer burner
Guide to the Rangetop
17
KMR 1134-1
a
Burner control knob for rear left
burner
b
Burner control knob for front left
burner
c
Burner control knob for front center
burner
d
Burner control knob for rear center
burner
e
Burner control knob for front right
burner
f
Burner control knob for rear right
burner
g
Power burner, front
h
Power burner, rear
i
Simmer burner
j
Grates
Guide to the Rangetop
18
KMR 1135-1
a
Burner control knob for rear left
burner
b
Burner control knob for front left
burner
c
Control knob for grill
d
Burner control knob for front right
burner
e
Burner control knob for rear right
burner
f
Power burner, front
g
Power burner, rear
h
Thermostatically controlled ceramic
burner
i
Grill
j
Grates
k
Simmer burner
Guide to the Rangetop
19
KMR 1136-1
a
Burner control knob for rear left
burner
b
Burner control knob for front left
burner
c
Control knob for griddle plate
d
Burner control knob for front right
burner
e
Burner control knob for rear right
burner
f
Power burner, front
g
Power burner, rear
h
Griddle plate
i
Thermostatically controlled ceramic
burner
j
Grease drip tray
k
Grates
l
Simmer burner
Guide to the Rangetop
20
KMR 1354-1
a
Backlit burner control knob for rear
left burner
b
Backlit burner control knob for front
left burner
c
Backlit burner control knob for rear
left center burner
d
Backlit burner control knob for front
left center burner
e
Backlit burner control knob for front
right center burner
f
Backlit burner control knob for rear
right center burner
g
Backlit burner control knob for front
right burner
h
Backlit burner control knob for rear
right burner
i
Power burner, front
j
Simmer burner
k
Power burner, rear
l
Grates
Guide to the Rangetop
21

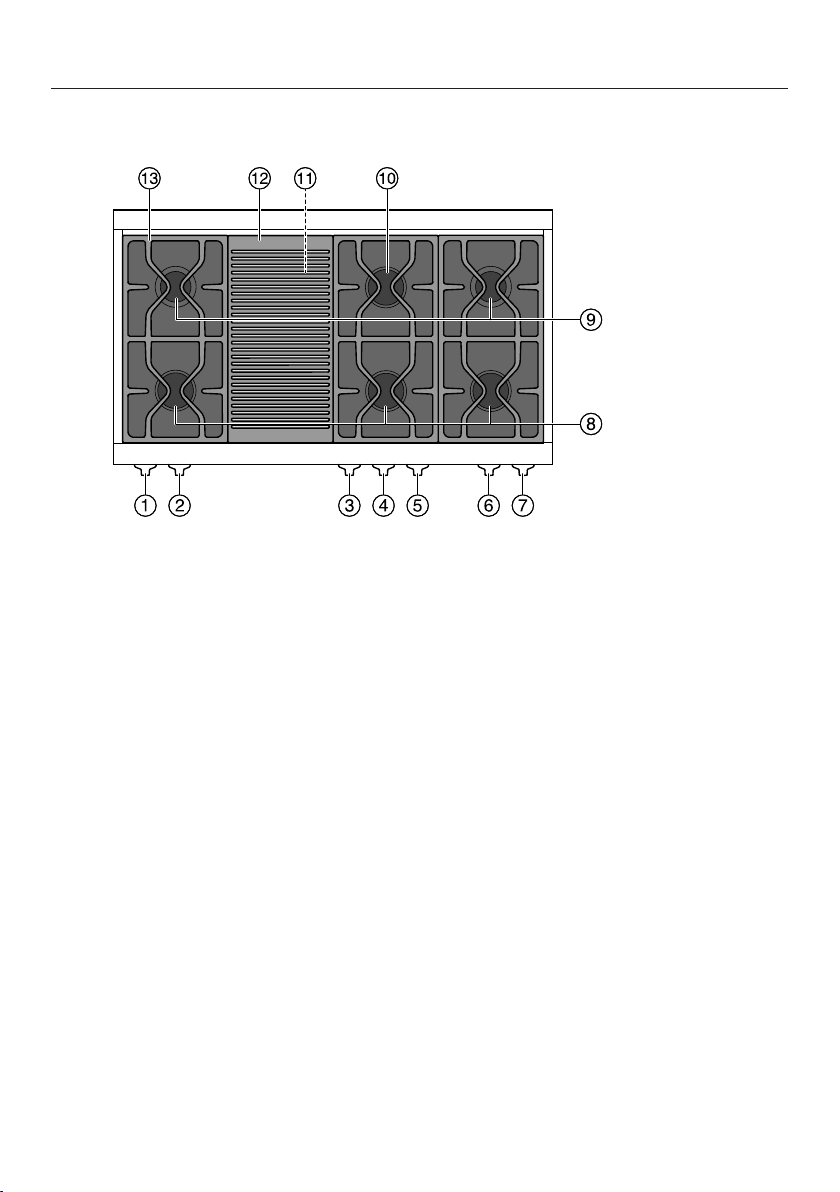

KMR 1355-1
a
Backlit burner control knob for rear
left burner
b
Backlit burner control knob for front
left burner
c
Backlit control knob for grill
d
Backlit burner control knob for front
center burner
e
Backlit burner control knob for rear
center burner
f
Backlit burner control knob for front
right burner
g
Backlit burner control knob for rear
right burner
h
Power burner, front
i
Simmer burner
j
Power burner, rear
k
Thermostatically controlled ceramic
burner
l
Grill
m
Grates
Guide to the Rangetop
22
KMR 1356-1
a
Backlit burner control knob for rear
left burner
b
Backlit burner control knob for front
left burner
c
Backlit control knob for griddle plate
d
Backlit burner control knob for front
center burner
e
Backlit burner control knob for rear
center burner
f
Backlit burner control knob for front
right burner
g
Backlit burner control knob for rear
right burner
h
Power burner, front
i
Simmer burner
j
Power burner, rear
k
Griddle plate
l
Thermostatically controlled ceramic
burner
m
Grease drip tray
n
Grates
Operation tips
23
Fire hazard due to overheated
food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Do not turn the control knobs to the
right beyond “Off”.
A spark may be generated on all burn-
ers when a control knob is turned on.
This is normal and does not indicate
an appliance defect.
A brief reignition may occur during ac-
tivation (clicking 1–2 x), e.g., in case of
a draft.
Automatic re-ignition
Your rangetop is equipped with an auto-
matic re-ignition function. If the flame
goes out, e.g. because food has
cooked over or there has been an air
draft, the flame is automatically re-ig-
nited.
If there has been a power failure,
the automatic re-ignition feature will
not work properly.
Operate the cooktop only under su-
pervision. If the burner has not ig-
nited or the flame goes out, turn off
the burner knob.
Before first use
24
Cleaning the rangetop for the
first time
Remove any protective foil and stick-
ers.
Using a soft sponge, clean all remov-
able burner parts with a solution of
warm water and a small amount of
liquid dish soap. Dry the parts thor-
oughly after cleaning and reassemble
the burners (see “Cleaning and
care”).
Remove the grilling grate and, using a
soft sponge, clean it with a solution
of warm water and a small amount of
dishwashing liquid. Dry it thoroughly
after cleaning.
The griddle plate is oiled for protec-
tion against corrosion. Clean the grid-
dle plate with a soft sponge, a small
amount of dishwashing liquid, and
warm water, and dry it.
Before first use, wipe down the appli-
ance with a damp cloth and dry it.
Metal components are protected by a
conditioning agent. Smells and vapor
may occur when the appliance is used
for the first time.
The smell and any vapors do not indi-
cate a faulty connection or a defective
appliance and are not harmful to your
health.
Seasoning the griddle plate
You must season the griddle plate be-
fore cooking food on it the first time.
This process prevents food from stick-
ing and protects the surface from
moisture.
Set the griddle plate on “High” for
30minutes.
Turn off the griddle plate after 30min-
utes and let it cool down.
During heating, the griddle plate con-
stantly changes color. The discol-
oration may become more intensive
over time. The properties of the grid-
dle plate, however, are not impaired in
this manner.
Pour 1teaspoon of vegetable oil that
can be heated to a high temperature
in the middle of the cooled griddle
plate and distribute it with a paper
towel, leaving out the corners of the
plate.
Do not use too much oil. Excess oil
leaves a rubbery substance on the
plate that has to be removed.
Remove any excess oil with a paper
towel.
Heat the griddle plate on “High” until
it starts to smoke.
Turn off the griddle plate.
When the griddle plate has cooled
down to a safe temperature, wash off
the excess oil.
Repeat the process once the griddle
plate has cooled down completely.
Operation of the burners
25
Turning on
To ignite a burner, push the appropri-
ate control knob and turn it counter-
clockwise to the “High” position. The
ignitor “clicks” and ignites the gas.
If the burner fails to light, turn the
control knob to the “Off” position. Air
the room or wait at least 1 minute be-
fore trying again.
If the second attempt also fails to
light the burner, turn the control knob
to the “Off” position and refer to the
“Frequently asked questions” section.
Control Knob
Off Gas supply is off:
Burner off
High Strongest flame setting:
Maximum power of upper
and lower flame rings
Simmer Weakest flame setting:
Upper flame ring off
Minimum power of lower
flame ring
Turning on during a power outage
In case of a power failure, the flame
can be ignited manually.
Press in the burner knob and turn it
counterclockwise to “High.”
Light the emerging gas/air mixture
with a match.
Operation of the burners
26
Adjusting the flame
The burners can be variably adjusted
between the lowest and highest flame
settings.
Because the edges of the flame are
much hotter than its center, the flame
tips should stay beneath the bottom of
the cookware. Flame tips which ex-
tend beyond the sides of the cook-
ware emit unnecessary heat into the
room and can also damage cookware
handles, which increases the risk of
injury.
Adjust the flame so that it never ex-
tends up the sides of the cookware.
Visual characteristics gas flames
Yellow flames
Contact the Miele
Service Depart-
ment.
Yellow tips on
outer cones
Normal for
propane gas
Soft blue flames
yellow colour is
only allowed at
the tip of the inner
cone
Normal for natural
gas
Turning off
Do not turn the control knob clockwise
past the “Off” position.
Turn the control knob to the right until
it reaches the “Off” position.
This stops the flow of gas, and the
flame goes out.
Cookware
27
– Select cookware that fits the size of
the burner:
Large diameter = large burner
Small diameter = small burner
– Using cookware that is too large can
cause the flames to spread out and
damage the surrounding countertop
or other appliances. Choosing the
right cookware size improves effi-
ciency.
– Any cookware that has a diameter
smaller than the burner grate or
which does not rest in a stable posi-
tion on the grate (without wobbling) is
dangerous and should not be used.
– Unlike cookware that is used on an
electric cooktop, the bottom of cook-
ware used on a rangetop does not
have to be flat to deliver effective
cooking performance.
– When purchasing pots and pans,
keep in mind that the diameter indi-
cated is typically the top diameter,
not the bottom diameter.
– All heat-resistant cookware is suitable
for use.
– Cookware with a thick bottom is
preferable, as it distributes heat more
evenly. Cookware with a thin bottom
may cause food to overheat in certain
spots. To avoid this, stir the food fre-
quently.
– Always place cookware on the burner
grate supplied with the rangetop.
Never place it directly on the burner.
– Position the cookware on the burner
grate so that it cannot tip. There is al-
ways a possibility of a slight tilt, de-
spite the proper position.
– Do not use pots or pans that have
bottoms with pronounced edges.
Energy saving tips
28
– Whenever possible, keep pots and
pans covered while cooking. Doing
so will prevent unnecessary heat loss.
– Wide, shallow cookware heats up
faster and is therefore preferable to
tall, narrow cookware.
– Cook with as little water as possible.
– Reduce the power setting once the
water has come to a boil or the oil/fat
is hot enough for frying.
– Use a pressure cooker to reduce the
cooking time.
Operation of the grill
29
The grill has a ceramic burner that
transfers intense heat to food, searing
the outside to seal the juices. Full flexi-
bility, depending on the food, from
“Low” to “High” as power settings.
Assembling the grill
Burn hazard!
The burners must be turned off and
allowed to cool completely.
Risk of injury!
The cast-iron grill is heavy.
Carry the grill carefully and place it
securely on a soft base so that it lies
flat.
a
Grill
b
Radiant plate
c
Frame
Using a soft sponge, clean radiant
plate with a solution of warm water
and a small amount of liquid dish
soap. Dry the parts thoroughly after
cleaning.

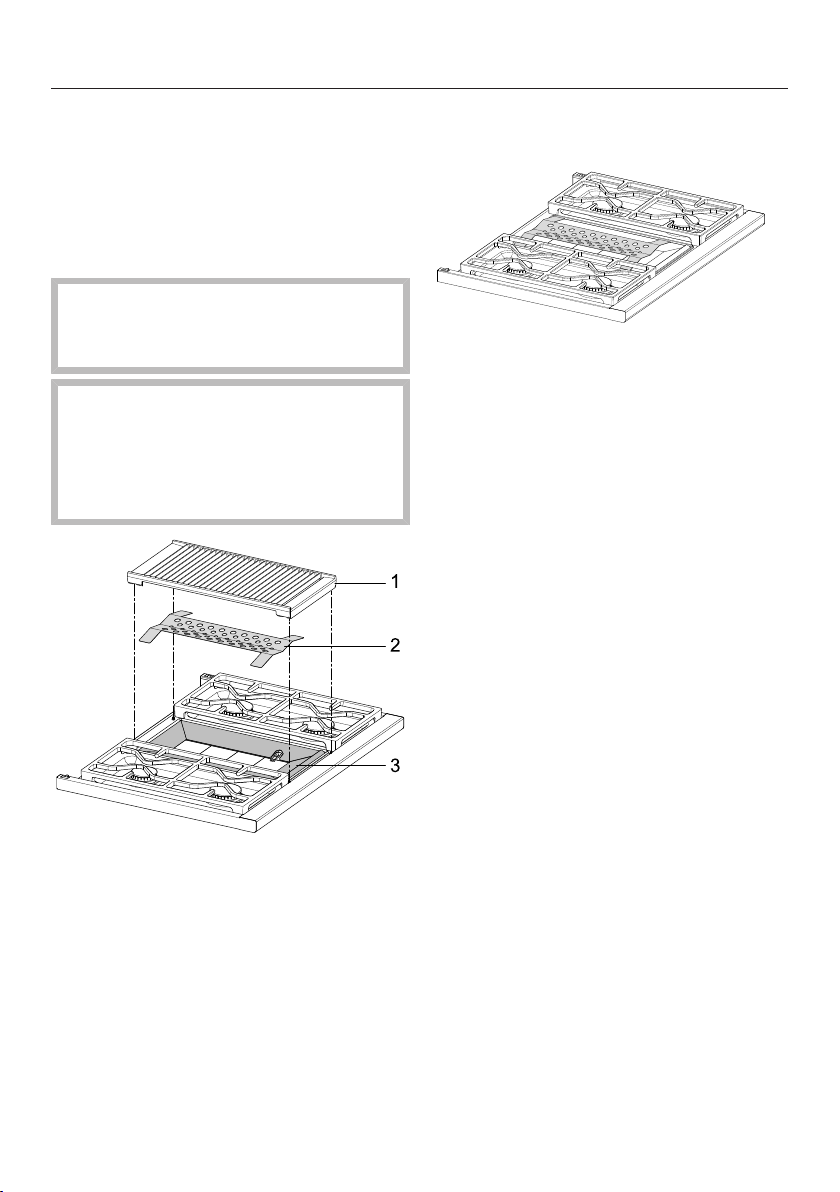

Remove the grill from the gas
cooktop.
Place the radiant plate on top of
the frame .
Place the grill into position.
Cleaning and care
Tip: All parts can be disassembled in
the reverse order. You can also remove
the frame for cleaning.
Operation of the grill
30
Do not use cooking utensils on the
grill.
Turning on the grill
Always follow USDA guidelines on
food safety.
Press the control knob of the grill and
turn it counterclockwise to “High.”
If the burner fails to light, turn the
control knob to the “Off” position. Air
the room or wait at least 1minute be-
fore trying again.
If the second attempt also fails to
light the burner, turn the control knob
to the “Off” position and refer to the
“Frequently asked questions” section.
Pre-heat the grill with the grate in
place for approx. 20minutes.
Set the desired power level.
Control knob
Off Gas supply is off:
Grill off
High Maximum power
Low Minimum power
Turning on during a power outage
Danger of injury due to the man-
ual ignition of the flat burner during a
power failure!
Never operate the grill during a
power failure.
Turn off the grill control knob.
Tips for grilling
Fire hazard!
Do not leave the appliance unat-
tended while cooking!
– Pat down wet food items with paper
towel to prevent splatters during
grilling.
– Do not salt meat until after grilling, or
it will be too dry.
– Select lean mean or cut off fat before
grilling. Dripping fat can catch on fire.
– If dripping fat catches on fire, use
grilling tongs to move the meat to an-
other spot or remove it entirely.
– Remove chicken skin to prevent
sparking.
– Halfway through cooking, brush mari-
nade onto the food.
– Leave the grill on for another 10min-
utes after you have finished grilling.
This makes cleaning easier after
cooking.
Operation of the griddle
31
The griddle is thermostatically con-
trolled to maintain a consistent temper-
ature. To prevent food from sticking, it is
necessary to “season” the griddle prior
to use (see “Before using for the first
time”). Full flexibility, depending on the
food, from “Low”, “Medium” and “High”
as power settings.
Turning on the griddle
Always observe USDA food safety
guidelines.
Press the control knob of the griddle
and turn it counterclockwise to
“Low.”
If the burner fails to light, turn the
control knob to the “Off” position. Air
the room or wait at least 1 minute be-
fore trying again.
If the second attempt also fails to
light the burner, turn the control knob
to the “Off” position and refer to the
“Frequently asked questions” section.
Preheat the griddle plate for about 20
minutes.
Set the desired power level.
Control knob
Off Gas supply is off:
Griddle off
Low Minimum power
Medium Medium power
High Maximum power
Operation of the griddle
32
Turning on during a power outage
The griddle plate cannot be operated
in case of a power failure.
Turn off the control knob for the grid-
dle plate.
Settings
Settings Food
Low Simmering Sauce
Holding food tem-
perature
Medium Eggs
Bacon
French Toast
Medium–High Fish
Pancakes
Sausage
Hash Browns
Vegetables
High Burgers
Steaks
Stir-fry
Tips for frying
Before each use, wipe the griddle
with a damp cloth to remove dust or
other residue.
– Pre-heat the griddle plate thoroughly
for 8–10 minutes at the power level
that you are going to be using for
cooking.
– Pat down wet food items with paper
towel to prevent splatters during
grilling.
– Do not salt meat until after grilling, or
it will be too dry.
– For cooking with the griddle plate,
you need only a little fat or none in
the case of marinated food. If you use
cooking fat, do not put it on the grid-
dle plate until it is hot.
– Only use fats/oils that can tolerate
high temperatures.
– Marinating often improves the flavor
of food to be cooked.
Cleaning and care
33
Danger of burns!
The burners must be turned off and
the rangetop must be cooled.
Danger of injury!
The steam from a steam cleaner
could reach electrical components
and cause a short circuit.
Do not use a steam cleaner to clean
the rangetop.
All rangetop surfaces can become
discolored or damaged if unsuitable
cleaning agents are used.
All surfaces are susceptible to
scratching.
Remove any cleaning agent residues
immediately.
Always clean the rangetop after each
use. Allow it to cool down before clean-
ing.
To better maintain your appliance avoid
the following:
– cleaners containing soda, ammonia,
thinners, or chlorides
– descaling agents
– Stain or rust removers
– Abrasive cleaning agents (e.g., pow-
der or cream cleansers, pumice
stones)
– solvent-based cleaners
– dishwasher detergent
– grill and oven sprays
– glass cleaning agents
– hard, abrasive brushes or sponges
(e.g. pot scrubbers or scrub sponges,
sponges which have previously been
used with abrasive cleaning agents)
– sharp objects
(these could damage the seals be-
tween the ceramic and the frame or
between the frame and the counter-
top).
Cleaning and care
34
Rangetop
The surfaces of the burner compo-
nents and grates will slightly lose their
luster over time. This is completely
normal and does not indicate damage
to the material.
Clean the entire rangetop after each
use with a soft sponge, warm water
and a small amount of liquid dish
soap.
Pre-soak any stubborn dirt or grime
before cleaning.
Dry the rangetop after using water to
clean it. This helps prevent lime de-
posits.
Tip: Food that has cooked over onto a
hot rangetop can cause the burner
components to become discolored. Im-
mediately remove all spilled food and all
salt or sugar splatters!
Dishwasher-safe grates
Remove the burner grates.
Clean the grates in the dishwasher or
using a soft sponge with warm water
and a small amount of liquid dish
soap.
If necessary, the rough side of a
kitchen sponge can be used.
Burner control knobs with stainless
steel finish
The burner control knobs may be-
come discolored if they are not
cleaned regularly.
Do not clean the burner control
knobs in a dishwasher or with a
stainless steel cleaner.
Clean the knobs with a soft sponge,
warm water and a small amount of
liquid dish soap.
Simmer burner / Power burners
The burner cap is not dishwasher-
safe.
Make sure that the flame holes are
completely dry after cleaning.
Remove the burner cap.
Clean the burner cap using a soft
sponge, warm water and a small
amount of liquid dish soap.
All parts of the burner which cannot
be removed should be wiped down
with a damp cloth.
Ignitor
Do not allow the ignitor to become
wet. If it is wet, it will not spark.
Gently wipe down the ignitor clean
using a damp cloth.
Cleaning and care
35
Cleaning the dishwasher-safe
grilling grate
Clean the grilling grate in the dish-
washer or with warm water and liquid
dish soap. When the grilling rack is
strongly soiled, soak it and then re-
move the soiling with a brush. After
that, let the rack dry thoroughly.
Cleaning the griddle plate
Burn hazard!
Allow the griddle plate to cool down
sufficiently before cleaning it.
Fire hazard!
Clean the grease catch pan after ev-
ery use of the griddle plate.
Loosen coarse soiling immediately
with a spatula and scratch grease
and residue into the grease catch
pan.
Remove any excess grease with a
paper towel.
Then let the griddle plate cool until it
is safe to the touch, add some hot,
soapy dishwater, and let the grime
soak.
Remove any soiling and water with a
sponge.
You can clean stubborn soiling off the
griddle plate with the rough side of a
dish sponge and a few drops of Miele
ceramic and stainless steel cleaner
(see “Optional accessories”).
Remove the grease catch pan and
empty it.
Clean the grease catch pan with a
soft sponge, dishwashing liquid, and
warm water. Dry it thoroughly after
cleaning.
Wipe off the griddle plate with clean
water and dry it with a clean, dry
cloth.
Rub some vegetable oil into the grid-
dle plate after every cleaning.
Put the grease catch pan back into
place.
Frequently Asked Questions
36
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
Problem Possible cause and solution
The burners do not ig-
nite when the cooktop
is being used for the
first time or after it has
been out of use for a
longer period.
There may be air in the gas line.
Try to light the burner again, making several at-
tempts if necessary.
The burner does not
light after several at-
tempts.
The burner is not properly assembled.
Assemble the burner correctly.
The gas shutoff valve is closed.
Open the gas shut-off valve.
The burner is wet and/or dirty.
Clean and dry the burner.
The flame holes are clogged and/or wet.
Clean and dry the flame holes.
The gas flame goes out
after being lit.
The burner parts are not in the proper position.
Position the burner parts correctly.
The ignitor is dirty.
Remove any dirt or grime.
The shape/color of the
gas flame changes.
The burner parts are not in the proper position.
Position the burner parts correctly.
The burner cap itself or the holes in the burner cap
are dirty.
Remove any dirt or grime.
The gas flame goes out
during use.
The burner parts are not in the proper position.
Position the burner parts correctly.
Frequently Asked Questions
37
Problem Possible cause and solution
The ignitor does not
function properly.
The fuse in the building's wiring system was tripped.
If necessary, contact a qualified electrician or Cus-
tomer Service for assistance.
There is food debris stuck between the ignitor and the
burner cap.
Remove the debris. (See “Cleaning and care” for
more information.)
Notes on installation
38
Distance to the range hood
The minimum clearance between the
appliance and a range hood above will
be listed by the hood manufacturer.
If there is more than one appliance in-
stalled below the range hood, each with
a different safety clearance, the largest
clearance must be used.
RBGDF Backguard
Depending on the model, you can ex-
change the existing island trim of your
appliance for a larger range backguard.
The backguard is available in the fol-
lowing heights: 12“ (305 mm) and
20” (508 mm).
Installing the backguard
The rear of the rangetop must be ac-
cessible.
Install the backguard before connect-
ing the rangetop.
Loosen the screws of the island trim.
Pull back the island trim slightly until
it can be removed.
The backguard can be installed in re-
verse order.
Notes on installation
39
Weights
The net weight of the rangetop with accessories is as follows:
Model Width Net weight including
grates and burner caps
KMR 1124 29¹⁵/₁₆" (762mm) approx. 100lbs / 45kg
KMR 1134-1
KMR 1135-1
KMR 1136-1
35¹⁵/₁₆" (915mm)
approx. 120lbs / 55kg
approx. 130lbs / 60kg
approx. 151lbs / 68.5kg
KMR 1354-1
KMR 1355-1
KMR 1356-1
47¹⁵/₁₆" (1220mm)
approx. 150lbs / 68kg
approx. 160lbs / 73kg
approx. 170lbs / 78kg
Dimensional drawings
40
a
Side view
b
Front views
c
Rear view
d
Gas connection
e
Electrical connection
Dimensional drawings
41
Rangetops KMR 1124, KMR 113x-1, KMR 135x-1
Position Dimensions Description
13" (330mm) Maximum depth of top cabinet
18" (457mm) Minimum distance to bottom edge of
top cabinet
7¹/₂" (190.5mm) Distance between the top edge of the
countertop and the top edge of the
support base
10" (254mm) Minimum distance to combustible sur-
faces
Support base
1)
1) The support base must have a minimum thickness of ³/₄" (19.05mm).
At the rear right of the support base, a cut-out of 51/8"x71/8"(130mmx80mm) must be
provided (gas connection) and, at the rear left, a cut-out of
46/8"x19/16"(120mmx40mm) (electrical connection).
Dimensional drawings
42
KMR 1124
Position Dimensions Description
min. 30"
(762mm)
Niche width
37" (940mm) Minimum distance between the top
of the cooking area and the bottom
of an unprotected combustible sur-
face.
30" (762mm) Minimum distance between the top
of the cooking area and the bottom
of the Miele Range Hood (DAR
model with DRxB XL blower).
For all other hoods please consult the manufacturer's specifications
for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For
zero clearance installation the Miele Backguards will satisfy the required distance to com-
bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm)
heights.
Dimensional drawings
43
KMR 1134-1
Position Dimensions Description
min. 36"
(915mm)
Niche width
37" (940mm) Minimum distance between the top
of the cooking area and the bottom
of an unprotected combustible sur-
face.
36" (915mm) Minimum distance between the top
of the cooking area and the bottom
of the Miele Range Hood (DAR
model with DRxB XL blower).
30" (762mm) Minimum distance between the top
of the cooking area and the bottom
of the Miele Range Hood (DAR
model with DRxB XXL blower).
Refer to the Installation instructions for the Miele ventilation hood,
Appliance dimensions (Distance between cooktop and ventilation
hood (S)).
For all other hoods please consult the manufacturer's specifications
for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For
zero clearance installation the Miele Backguards will satisfy the required distance to com-
bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm)
heights.
Dimensional drawings
44
KMR 1135-1, KMR 1136-1
Position Dimensions Description
min. 36"
(915mm)
Niche width
37" (940mm) Minimum distance between the top
of the cooking area and the bottom
of an unprotected combustible sur-
face.
30" (762mm) Minimum distance between the top
of the cooking area and the bottom
of the Miele range hood (DAR
model with DRxB XL blower or
DRxB XXL blower).
Refer to the Installation instructions for the Miele ventilation hood,
Appliance dimensions (Distance between cooktop and ventilation
hood (S)).
For all other hoods please consult the manufacturer's specifications
for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For
zero clearance installation the Miele Backguards will satisfy the required distance to com-
bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm)
heights.
Dimensional drawings
45
KMR 1354-1, KMR 1355-1, KMR 1356-1
Position Dimensions Description
min. 48"
(1220mm)
Niche width
37" (940mm) Minimum distance between the top
of the cooking area and the bottom
of an unprotected combustible sur-
face.
30" (762mm) Minimum distance between the top
of the cooking area and the bottom
of the Miele Range Hood (DAR
model with DRxB XXL blower).
Refer to the Installation instructions for the Miele ventilation hood,
Appliance dimensions (Distance between cooktop and ventilation
hood (S)).
For all other hoods please consult the manufacturer's specifications
for required distances.
Please observe safe distances to rear combustible surfaces of 12" (305mm) clearance. For
zero clearance installation the Miele Backguards will satisfy the required distance to com-
bustible surfaces. The Miele Backguard is available in 12" (305mm) or 20" (508mm)
heights.
Electrical connection
46
ATTENTION:
During installation, maintenance and
repair work, the rangetop must be
disconnected from the electricity
supply. It is only completely isolated
from the electricity supply if the plug
fuses have been fully unscrewed
(where applicable), the main circuit
breaker has been tripped or the
power cable has been unplugged
from the wall outlet.
Do not cut off the plug on the power
cord. If the plug does not fit in the
outlet, have an electrician install an
appropriate outlet.
The socket must be easily accessible
after the rangetop has been installed.
Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician.
Work by unqualified persons can
cause considerable danger to users.
Miele cannot be held liable for any
damage arising as a result of such
work.
To avoid damaging the rangetop,
make sure that the information (volt-
age and frequency) on the data plate
correspond to the building's power
supply before connecting the appli-
ance.
When in doubt, consult a qualified
electrician.
The plug must be inserted into a suit-
able outlet that has been installed
and grounded in compliance with all
applicable local regulations.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installer: Please pass these instruc-
tions on to the customer.
Electrical connection
The rangetop is equipped with an ap-
prox. 4 ft. long power cord with a plug
for connection to the electrical supply
with:
– 120V, 15A, 60Hz
SAVE THESE INSTRUCTIONS FOR
THE ELECTRICAL INSPECTOR'S
USE.
This appliance must be grounded in
compliance with all applicable local
and national regulations.
Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician
in compliance with local regulations
and the ANSI National Electrical
Code / NFPA 70 in the United States
or the Canadian Electrical Code, Part
I in Canada (CSA standard C22.1).
Gas connection
47
Connection to the gas supply
may only be performed by a duly au-
thorized technician. This technician is
responsible for proper function at the
installation site.
In Massachusetts, the gas connec-
tion may be performed only by a cer-
tified gas installer.
The rangetop must be connected
with its own shut-off valve.
The shut-off valve must be accessi-
ble and visible, after the opening of a
cabinet door, if necessary.
The gas connection of the rangetop
can be to natural gas or propane gas
according to the model.
Ask your gas company what kind of
gas is used and compare it with the
specifications on the data plate.
The rangetop is not connected to an
exhaust vent.
During the setup and connection of
the rangetop, observe the applicable
installation conditions, especially
suitable ventilation measures.
The gas connections must be ar-
ranged in such a way that they are
not heated and damaged by the op-
eration of the range.
In particular, make sure that the gas
hose lines and connection fittings on
the rangetop do not come into con-
tact with hot exhaust gases.
The gas hose and power cord could
be damaged by hot spots on the
rangetop.
Make sure that the gas hose and
power cord do not come into contact
with hot spots on the rangetop.
Flexible connection lines can be
damaged by incorrect routing.
Attach flexible connecting lines in
such a way so that they do not come
into contact with any moving kitchen
parts (e.g., a drawer) and are not ex-
posed to mechanical stress.
The rangetop and the shut-off valve
must be disconnected from the gas
supply during gas pressure tests.
Disconnect the rangetop and the
shut-off valve from the gas supply
before performing a gas pressure
test at a pressure of more than
1/2psi (3.5kPA). Close the shut-off
valve of the gas supply before per-
forming a gas pressure test at a
pressure of less than or equal to
1/2psi (3.5kPA).
Incorrectly sealed gas lines can lead
to a gas leak and thus to an explo-
sion.
Seal all gas lines with a suitable
thread sealant.
Seal tightness tests on the rangetop
must be performed according to
manufacturer specifications.
Gas connection
48
The gas connection must be made in
accordance with local codes or, in
the absence of local codes, with:
National Fuel Gas Code
ANSIZ223.1 / NFPA No. 54 for the
United States or the current Can /
CGAB149.1 and 2 Installation
Codes of Gas Appliances for
Canada.
The gas pressure may not under-
shoot or exceed certain values.
Make sure that the maximum gas
pressure upstream of the gas pres-
sure controller does not amount to
more than 1/2psi (3.5kPA) for natu-
ral and propane gas.
Make sure that the minimum gas
pressure amounts to a 6“ water head
in the case of natural gas and a
11” (279.4 mm) water head in the
case of propane gas.
Burner ratings
49
Burner ratings KMR 1124
Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner 19,500 5.7
Total cooktop output 71,000 20.8
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner 19,500 5.7
Total cooktop output 71,000 20.8
Burner ratings
50
Burner ratings KMR 1134-1
Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Total cooktop output 98,200 28.8
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Total cooktop output 97,000 28.4
Burner ratings
51
Burner ratings KMR 1135-1
Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Grill 19,000 5.6
Total cooktop output 84,100 24.6
Burner ratings
52
Burner ratings KMR 1136-1
Natural gas NG Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Griddle 13,000 3.8
Total cooktop output 78,100 22.9
Liquid propane LP Btu/hr kW
Simmer burner 12,500 3.7
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Griddle 14,300 4.2
Total cooktop output 78,800 23.1
Burner ratings
53
Burner ratings KMR 1354-1
Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Total cooktop output 125.200 36.7
Liquid propane LP Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Total cooktop output 124,000 36.3
Burner ratings
54
Burner ratings KMR 1355-1
Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Grill 19,000 5.6
Total cooktop output 111,100 32.6
Burner ratings
55
Burner ratings KMR 1356-1
Natural gas NG Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,600 4.0
Power burner, front 19,500 5.7
Griddle 13,000 3.8
Total cooktop output 105,100 30.8
Liquid propane LP Btu/hr kW
Simmer burner 10.000 2.9
Power burner, rear 13,000 3.8
Power burner, front 19,500 5.7
Griddle 14,300 4.2
Total cooktop output 105,800 31.0
Technical Service
56
Contact in case of fault
In the event of a fault which you cannot remedy yourself, please contact your
Miele dealer or Miele Technical Service.
Contact information for Miele Technical Service can be found at the end of this
document.
Please quote the model and serial number of your appliance when contacting
Miele. Both pieces of information can be found on the data plate.
Warranty
For further information, please refer to your warranty booklet.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of this
document.
MieleCare
57
This service is available in USA only.
MieleCare, our Extended Service Con-
tract program, gives you the assurance
of knowing that your appliance invest-
ment is covered by 5years of worry free
ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can guar-
antee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly ap-
proved in writing by Miele’s Service de-
partment, Extended Service Contracts
offered by other providers for Miele
products will not be recognized by
Miele. Our goal is to prevent unautho-
rized (and untrained) service personnel
from working on your Miele products,
possibly doing further damage to them,
you and/or your home.
To learn more about MieleCare Ex-
tended Service Contracts, please con-
tact your appliance dealer or visit us
online at:
www.mieleusa.com
Caring for the environment
58
Disposal of the packing mate-
rial
The cardboard box and packing materi-
als protect the appliance during ship-
ping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Dan-
ger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 944 230 / 03
en-US, CA
KMR 1124, KMR1134-1, KMR1135-1, KMR1136-1,
KMR1354-1, KMR1355-1, KMR1356-1
