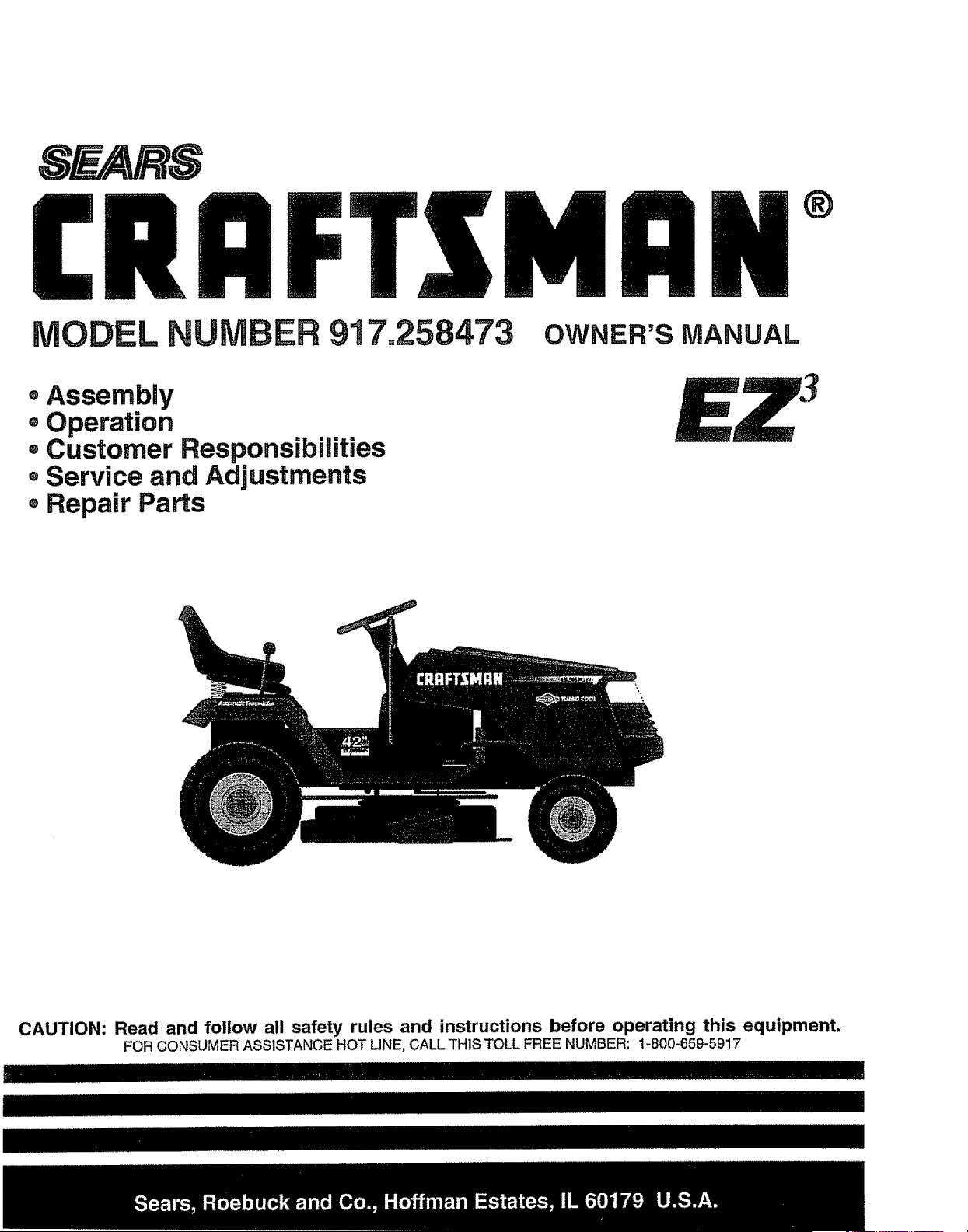

Craftsman 917258473 tractor User Manual

NUMB

917o258473

OWNER'S MANUAL

• Assembly

o Operation

®Customer Responsibilities

®Service and Adjustments

, Repair Parts

CAUTION: Read and follow all safety rules and instructions before operating this equipment,

FOR CONSUMER ASSISTANCE HOT LINE, CALLTHIS TOLL FREE NUMBER: 1-800-659-5917

II1'11'1111111111111111IIIIHII III II IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII I IIIIIIIIII

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATli"_G HANDS AND FEET AND THROWING OBJECTS..

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

* Read, understand, and follow all instructions in the manual

and on the machine before stading_

. Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

. Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

, Be sure the area is clear of other peoplebefere mowing. Stop

machine if anyone enters the area.

. Never carp/passengers.

- Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

. Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place,

* Slow down before tumingo

• Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when not mowing_

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only tn daylight or good adificiaI light

• Do not operate the machine while under the influence of

alcohol or drugs_

. Watch for traffic when operating near or crossing roadways

. Use extra care when loading or unloading the machine into

a trailer or truck..

I1o SLOPE OPERATION

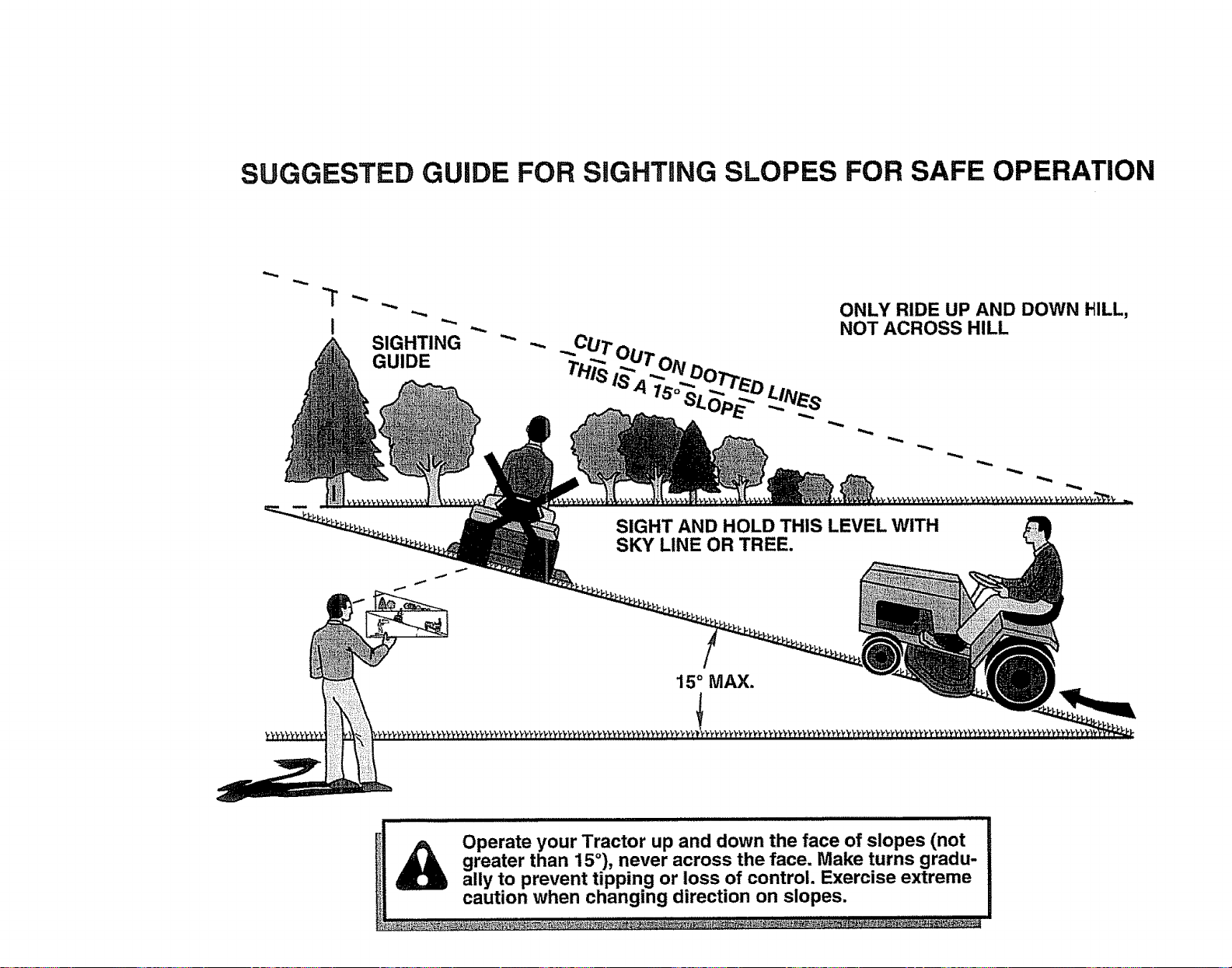

Slopes are a major factor related to !oss-of-controi and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution, if you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, rats, or bumps. Uneven terrain could

overturn the machine_ Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope_

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments

These can change the stability of the machine.

• Keep a!l movement on the slopes slow and gradual Do not

make sudden changes in speed or direction_

• Avoid starting or stopping on a slope, If tires lose traction,

disengage the blades and proceed slowly straight down the

slope,,

DO NOT:

• Do not turn on slopes untessnecessary, and then, turnslowly

and gradually downhill, if pessible_

• Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in..

• Do not mow on wet grass. Reduced traction could cause

sliding..

• Do not try to stabilize the machine by putting your foot on the

ground.,

• Do not use grass catcher on steep slopes.

lU. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity.. Never' assume that

children will remain where you last saw them,

• Keep children out of the mowing area and under the watchful

care of another responsible adult,

• Be alert and turn machine off if children enter the area_

• Before and when backing, look behind and down for small

children.

, Never carry children. They may fall off and be seriously

iniured or interfere with safe machine operation..

• Never allow children to operate the machine

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

° Use extra care in handlinggasoline and ether'fuels. They ere

flammable and vapors are explosive_

Use only an approved container.

Never remove gas cap or add luel with the engine

running, Allow engine to cool before refuefing. Do not

smoke

Never refuel the machine indoors..

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

,, Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition°

,, Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage.. Atlow machine to cool before

stodng.

,, Stop and inspect the equipment it you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running

• Grass catcher components aresubject towear, damage and

deterioration, which could expose moving parts or altow

objects to be thrown. Frequently check components and

replace with manufacturer s recommended parts, when nec-

essary_

,, Mower blades are sharp and can cut Wrap the blade(s) or

wear gloves, and use extra caution when servicing them

• Check brake operation frequently. Adjust and service as

required,

I .... A Look for this symbol to point out' im- J

• • portant safety precautions. It means

CAUTION!!! BECOME ALERT.t!! YOUR

SAFETY IS INVOLVEDt

CAUTION: Always disconnect spark plug

wire and placewlre where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or' making repairs,

iii iiiii iil&lllll WARNING'IIIIII'IIII'IIIIIIIIIIH" i _ iii

The engine exhaust from this product con-

ins cnemicals Known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

H=II i 'tJllll

CONGRATULATIONS on your purchase of a Sears

Tractor. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmento We have competent, well-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your unit propertyo

Always observe the "SAFETY RULES"°

MODEL

NUMBER 917258473

SERIAL

NUMBER

DATEOF PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUN D

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

ucto Contact your nearest Sears store for details,

CUSTOMER RESPONSIBILITIES

,, Read and observe the safety rules_

. Followa regularschedulein maintaining, caringforand

using your tractor.

. FoIlow the instructions under"Customer Responsibili-

ties" and "Storage" sections of this owner's manual°

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

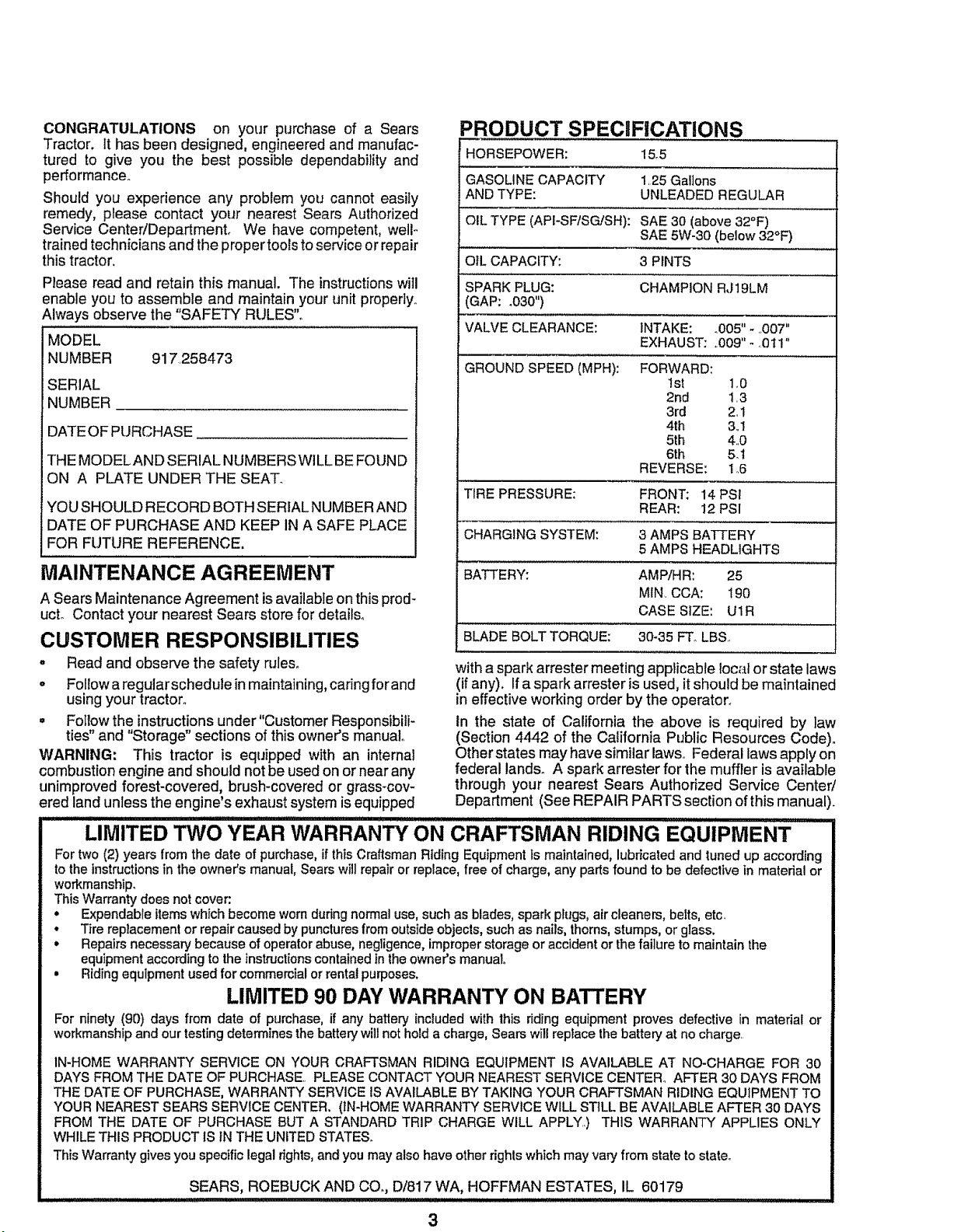

PRODUCT SPECIFICATIONS

HORSEPOWER: 15o5

GASOLINE CAPACITY 1,25 Gallons

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG/SH): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: .030")

VALVE CLEARANCE: INTAKE: .005" -,007"

EXHAU ST: ,.009" - ,0 t 1"

GROUND SPEED (MPH): FORWARD:

1st 1,0

2nd 1,3

3rd 2,1

4th 3,,I

5lh 4.,0

6th 5-1

REVERSE: 1,.6

TIRE PRESSURE: FRONT: 14 PSi

REAR: 12 PSI

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MIN CCA: 190

CASE SIZE: UIR

BLADE BOLT TORQUE: 30-35 FToLBS,,

with a spark arrester meeting applicable local or state laws

(if any). Ifa spark arrester is used, it should be maintained

in effective working order by the operator_

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws.,Federal laws apply on

federal lands_ A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual).

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment ls maintained, lubricated and tuned up according

to the instructionsin the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship,

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc,

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained tn the owner's manual.

• Riding equipment used for commemial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, it any battery included with this dding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE,, PLEASE CONTACT YOUR NEAREST SERVICE CENTER,, AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE 1SAVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER. (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY,) THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS iN THE UNITED STATES.

This Warranty gives you specific legal rights,and you may also have other rights which may vary from state to state°

SEARS, ROEBUCK AND CO_,D/817 WA, HOFFMAN ESTATES, IL 60179

:: ...... .......... ii U III .................... [,iiiiiii]iiiiiiiiiiiiii [ J III II L IIII I IIIIIIIIII :

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES .... .,,............... 3, 17-20

WARRANTY .................................................................. 3

TRACTOR ACCESSORIES ................ :::;;,,;.................. 5

ASSEMBLY .............................................................. 7-10

OPERATION ........................................................... 11-14

MAINTENANCE SCHEDULE ...................................... 17

SERVICE AND ADJUSTMENTS ............................ 21-26

STORAGE ................................................................... 27

TROUBLESHOOTING ............................................ 28-29

REPAIR PARTS - TRACTOR ................................. 32-47

REPAIR PARTS - ENGINE .................................... 48-55

PARTS ORDERING/SERVICE ................ BACK COVER

INDEX

Accessories ....................................................5

Adjustments:

Brake ..........................................................23

Carburetor .............................................26

Mower

Front-To-Back ............................22

Side-To-Side ...................................22

Throttle Control Cable .......................26

Air Filter, Engine ....................................19-20

Air Screen, Engine ............................... 20

Assembly ............................................. 7-10

Battery:

Charging ...............................................8

Cleaning ..................................................18

Installation ................................................8

Levels ..............................................9,18

Preparation ..................................................8

Starting with Weak Battery .......... 24

Storage .............................................27

Terminals ..................................................18

Belt:

Motion Drive

RemovaVReplacement ..............23

Mower Belt(s)

RemovaVReplacement ..............23

Blade:

Sharpening .......................................18

Replacement ........................................18

Brake Adjustment .........................................23

Carburetor Adjustment ..............................26

Controls, Tractor ..........................................12

Customer Responsibilities ...............17-20

Engine:

Air Filter. ...................................... 19

Air Screen .....................................20

Cooling Fins ............................. 20

Engine Oil .......................................14,i9

Fuel Filter _........................................20

Spark Plug(s) ............................ 20

Tractor.

Battery ..............................................18

Blade ................................................18

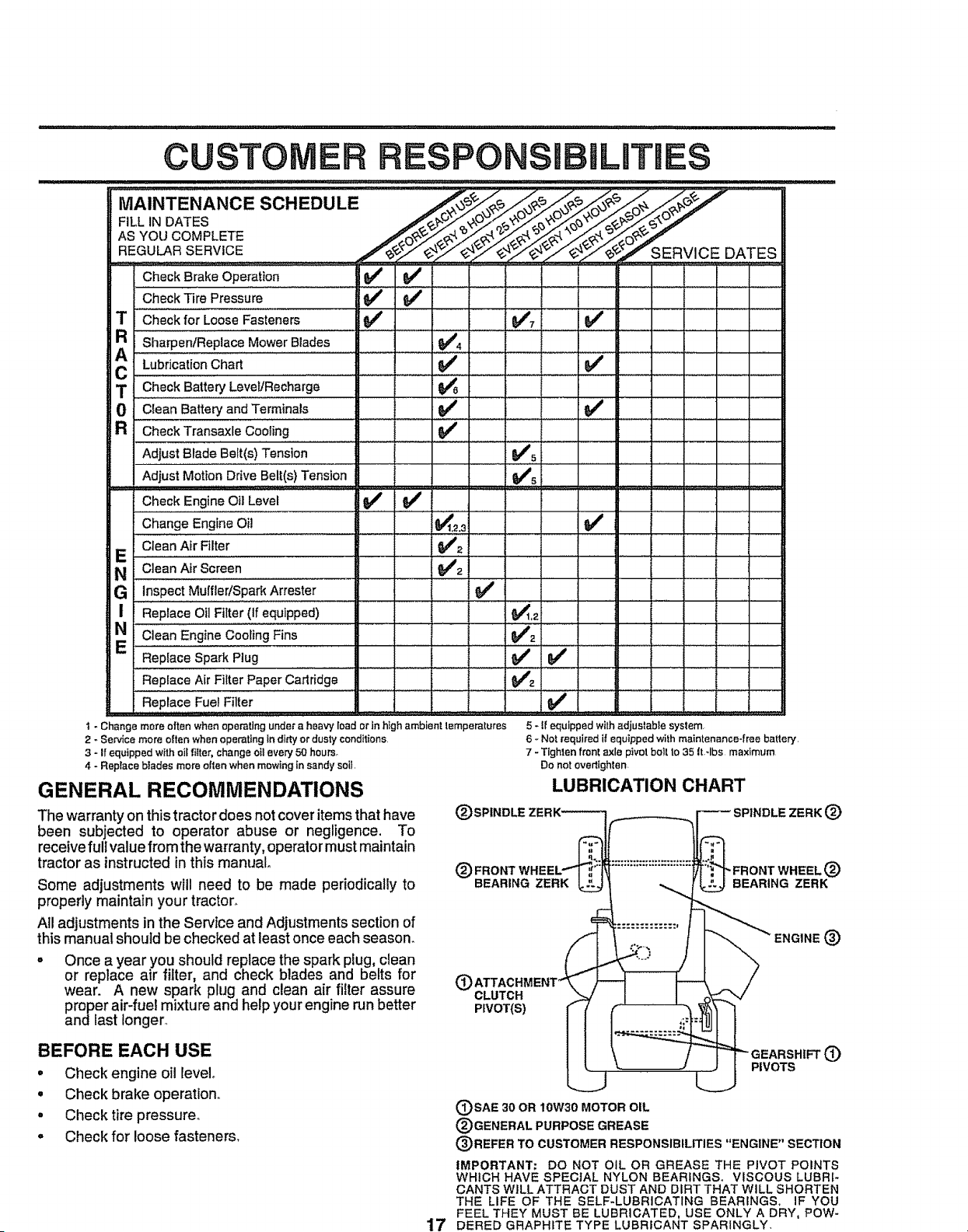

Lubrication Chart ..........................17

Maintenance Schedule ............. 17

Tire Care .......................................10,18, 24

Transaxle .........................................19

Cutting Height, Mower .............................13

Electrical:

Interlocks and Relays ......................25

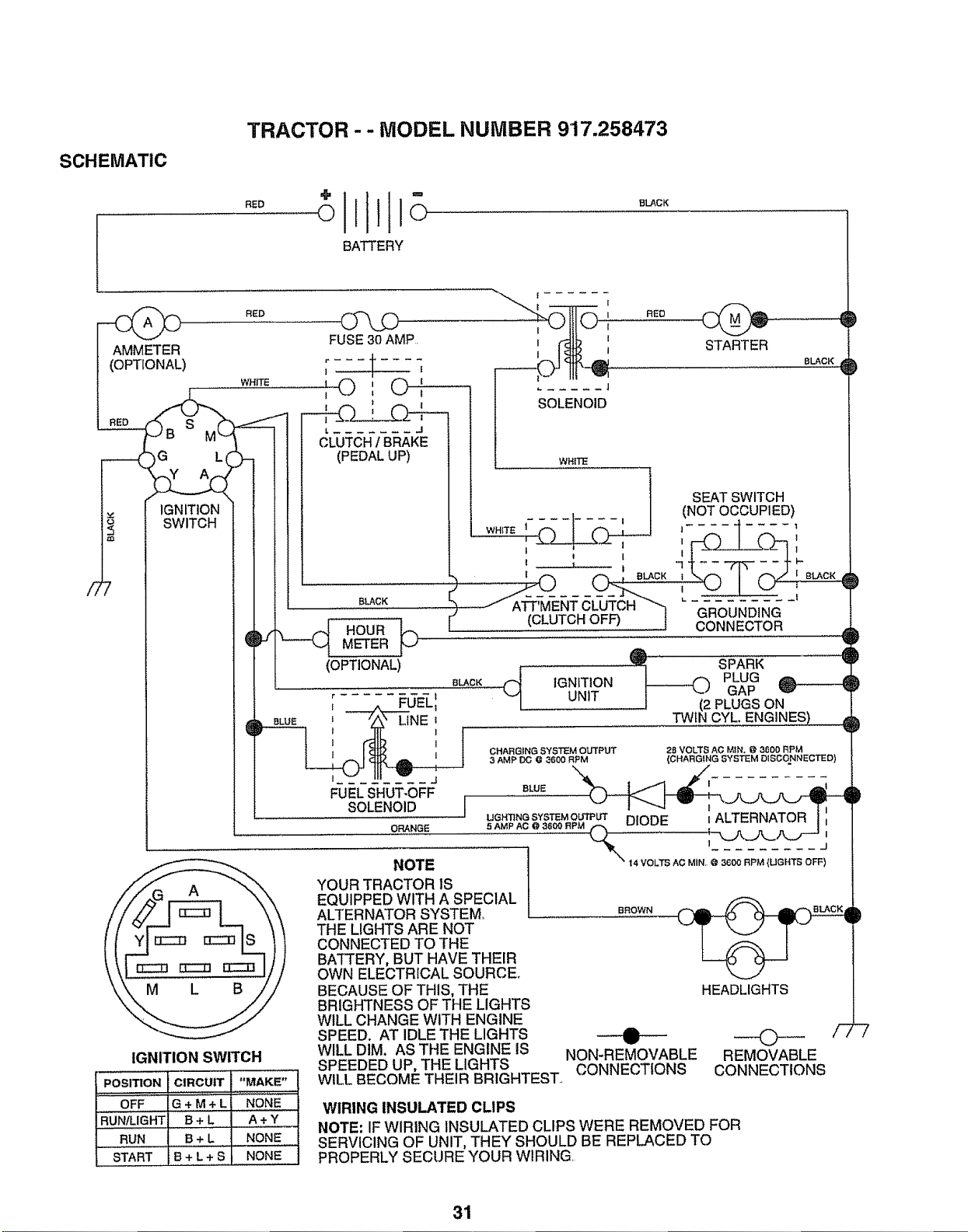

Schematic ............................................31

Wiring Diagram .................................32

Engine:

Air Filter ..................................... 19-20

Air Screen .................................................20

Cooling Fins .........................................20

Oil Change .....................................................19

Oil Level .......................................... 14

Oil Type .................................... 14, 19

Preparation ......................................13

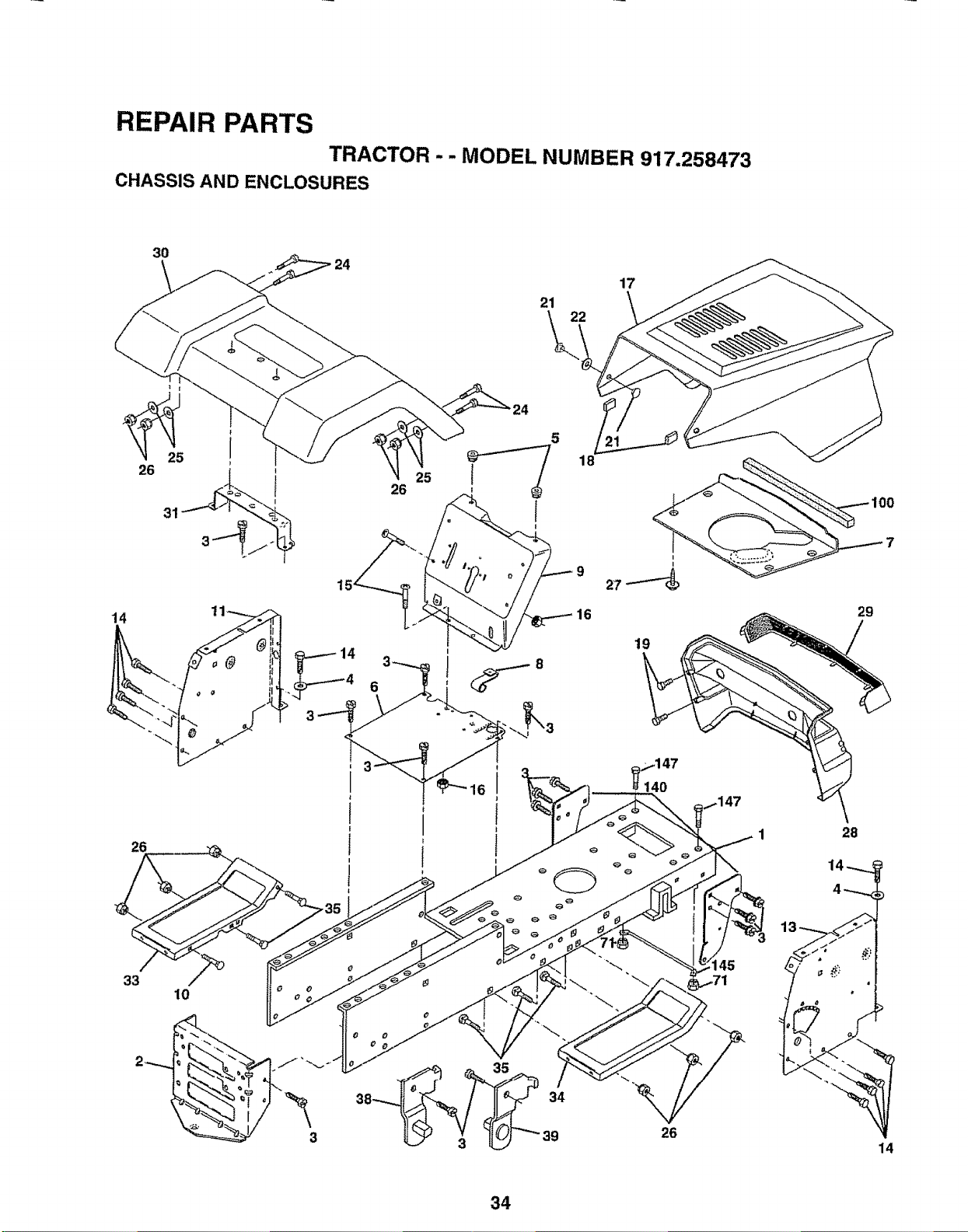

Repair Pads .................................32-49

Starling .........................................................15

Storage .............................................27

Filter:

Air Filter'.............................................19

Fuel ................................................................20

Fuel:

Type .......................................................15

Storage ..................................................27

Fuse ...........................................................25

Hood RemovaVInstaltation ....................25

Leveling Mower Deck ...............................22

Lubrication:

Chart .........................................................17

Engine .....................................................19

Maintenance Schedule ..........................22

Mower:

Adjustment, Front-to-Back .............22

Adjustment, Side-to-Side .............. 22

Blade Replacement ...........................18

Blade Sharpening .......................... 18

Cutting Height ...........................................13

Installation ..........................................21

Operation ..........................................14

Removal ...............................................21

Mowing Tips ........................................................15

Muffler _..........................................................20

Spark Arrestor ...................................3,42

Oil:

Cold Weather Conditions ...........15,19

Engine .........................................................19

Storage ...................................................27

Operation ................................................10-14

Operating Mower ........................................13

Options:

Accessories ..........................................5

Spark Arrester. .....................................3

Parking Brake .................................... t2,13

Parts Bag ...............................................................6

Pads, Replacement/Repair .................32-49

Product Specifications .............................. 3

Repair Parts ..............................................32-49

Safety Rules .......................................................2

Seat ................................................................8

Service and Adjustments ....................21-26

Carburetor .........................................26

Fuse ...........................................................25

Hood Removal/Installation ..............25

Motion Drive Belt

RemovaVReplacement ..............23

Mower Belt(s)

Removal/Replacement .............23

Mower Adjustment

Front-to.Back .................................22

Side-to-Side ........................................22

Mower Removal/Installation ......... 2t

Tire Care ......................................10,18,24

Slope Guide Sheet ........................................57

Spark Plug(s) ........................................................20

Specifications........................................... 3

Starting the Engine ......................... 14-15

Steering Wheel ................................................7, 24

Stopping the Tractor .....................................13

Storage .........................................................27

Throttle Control Cable Adjustment ...... 26

Tires ........................................ 10, 18, 24

Trouble Shooting Chad .......................28-29

Transaxle ............................................................19

Warranty ............:.......................................................3

Wiring Diagram ........................................32

Wiring Schematic ......................................31

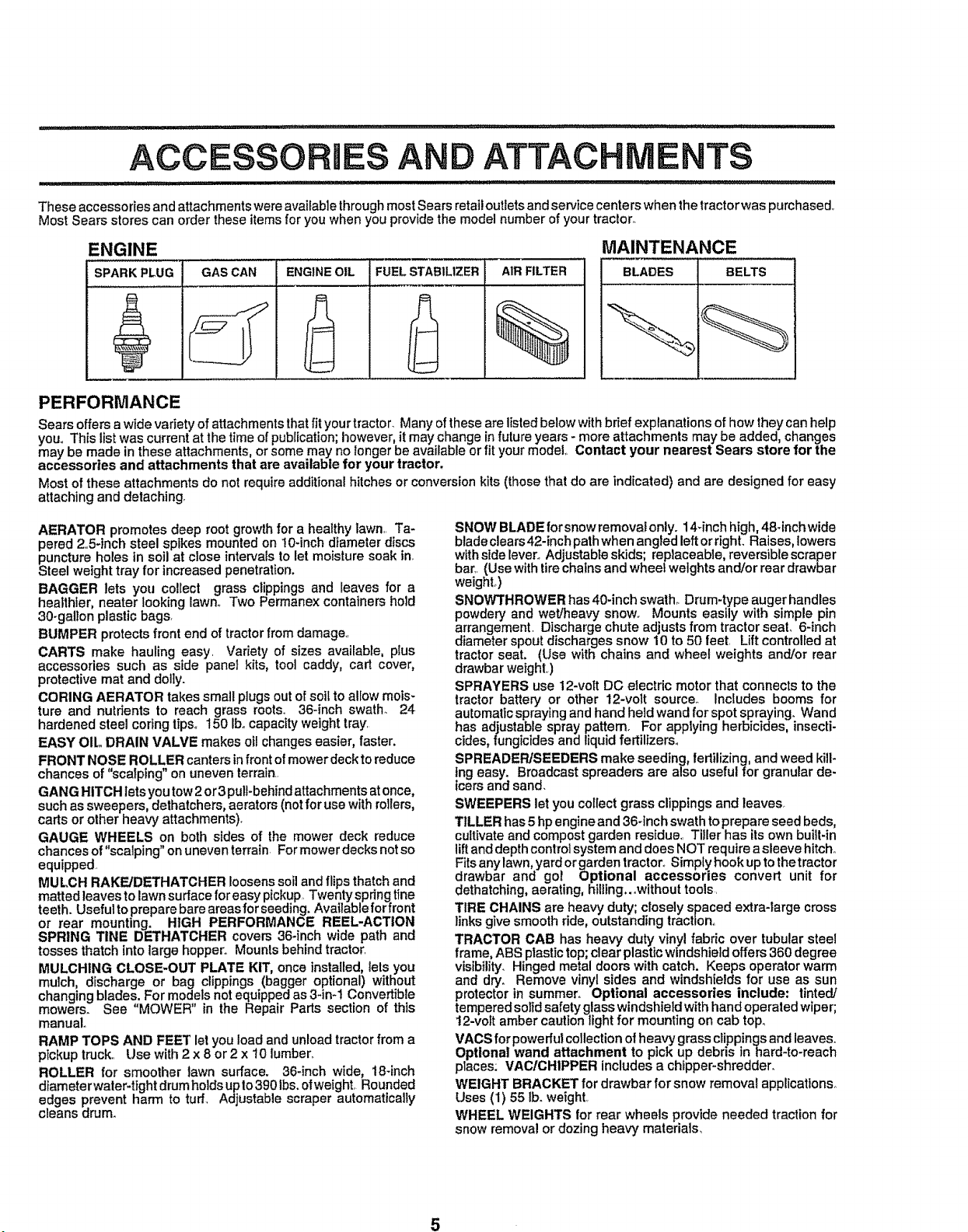

ACCESSOBI

AND ATTACHMENTS

These accessories and attachments were avaifable through most Sears retail outlets and service centers when the tractor was purchased,.

Most Sears stores can order these items for you when you provide the model number of your tracton

ENGINE MAINTENANCE

SPARK PLUG GAS CAN AIR FILTER BLADES BELTSENGINEOIL FUEL STABILIZER

PERFORMANCE

Sears offersa wide variety of attachments that fityour tractor. Many ofthese are listed below with brief explanations of how they can help

you,. This listwas current at the time of publication;however, it may change infuture years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model Contact your nearest Sears store for the

accessories and attachments that are available for your tractor,

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching,

AERATOR promotes deep root growth for a healthy lawn,. Ta_

pered 2.5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in,

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, neater looking lawn_ Two Permanex containers hold

30-gallon plastic bags.

BUMPER protects front end of tractor from damage..

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and dolty.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots.. 36-inch swath_ 24

hardened steel coring tipso 150 lb. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters infront of mower deck to reduce

chances of "scalping" on uneven terrain..

GANG HITCH lets you tow 2 or3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain. Formower decks notso

equipped,

MULCH RAKE/DETHATCHER loosens soil and flips thatch and

matted leaves to lawn surfacefor easy pickup Twentyspdng line

teeth. Useful toprepare bare areasfor seeding. Available forfront

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor

MULCHING CLOSE-OUT PLATE KIT, once installed, Iels you

mulch, discharge or bag clippings (bagger optional) without

changing blades. For models not equipped as 3-ira1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup track. Use with 2 x 8 or 2 x 10 lumber,

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater-tight drum holdsup to390 ibs. ofweight Rounded

edges prevent harm to turf. Adjustable scraper automaticalty

cleans drum.

SNOW BLADE for snow removal only. 14_inch high, 48-inch wide

bladeclears42-inchpathwhen angled left orrighL Raises, lowers

with side lever° Adjustabte skids; replaceable, reversible scraper

bar.. (Use with tire chains and wheel weights and/or rear drawbar

weighL)

SNOWTHROWER has 40-inch swath_ Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat, 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-voIt DC etectric motor that connects to the

tractor battery or other 12-volt source_ Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattem. For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADEPJSEEDERS make seeding, fertilizing, and weed kill-

tng easy. Broadcast spreaders are also useful for granular de-

Icers and sand.

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-Inch swath toprepare seed beds,

cultivate and compost garden residue,, Tiller has its own built-in

liftand depth controlsystem and does NOT require a sleeve hitch°

Fitsany lawn, yard or garden tractor° Simply hook up to thetractor

drawbar and gol Optional accessories convert unit for

dethatching, aerating, hiliing,.owithout tools

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction,

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastictop;clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry° Remove vinyl sides and windshields for use as sun

protector in summer° Optional accessories include: tinted/

tempered solid safety glass windshield with hand operated wiper;

t2-vott amber caution light for mounting on cab top_

VACS for powerfulcollectionof heavy grass clippings and leaves.

Optional wand attachment to pick up debris in hard-to-reach

places: VACICHIPPER includes a chIpper-shredder_

WEIGHT BRACKET for drawbar for snow removal applications°

Uses (1) 55 ib. weight

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials_

..... :: I tttttl i IIIIIIIgll ....... _::: ......................... .......... m!t ....................................

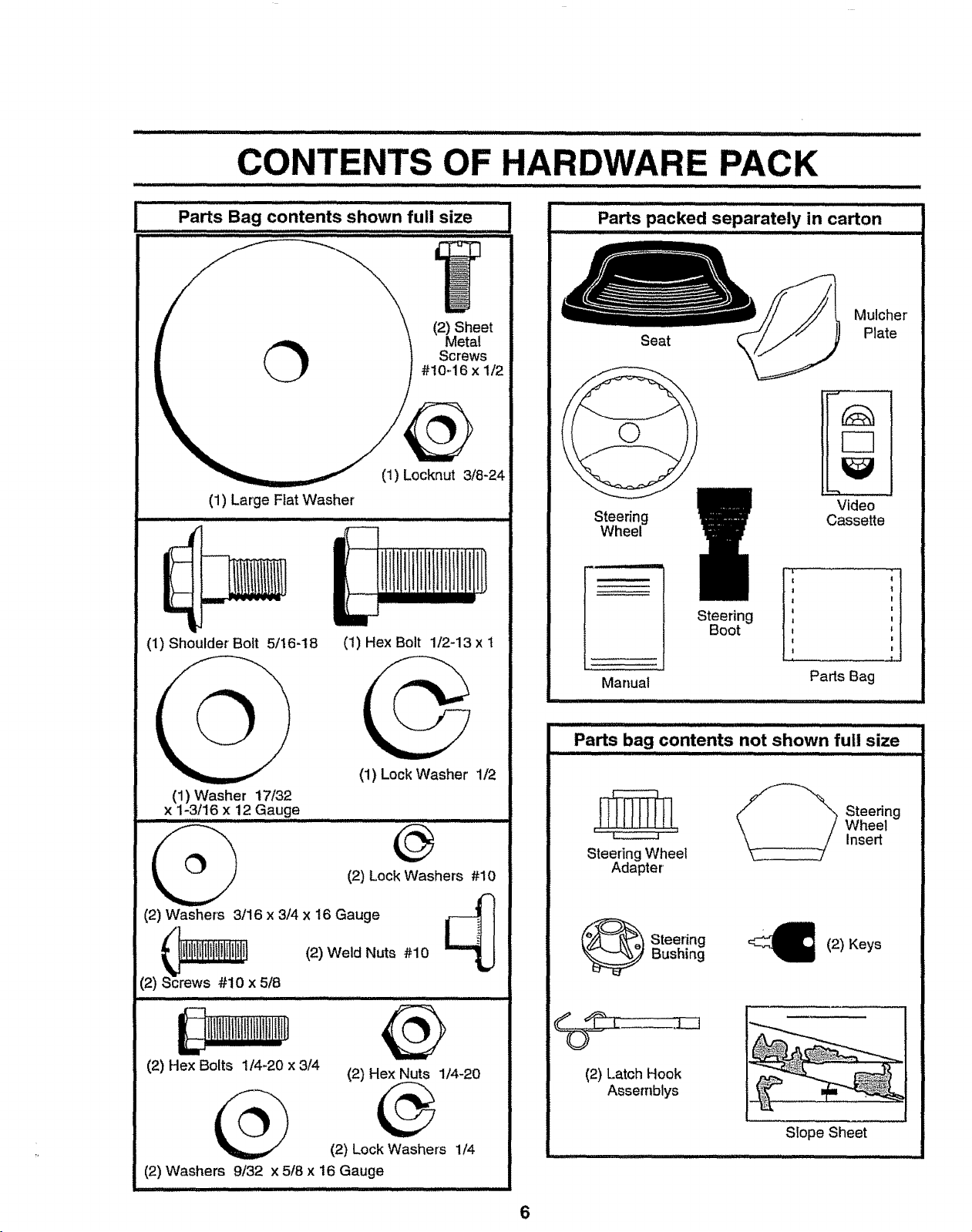

CONTENTS OF HARDWARE PACK

,llll S illlllll j illJllllllllllllll

Parts ag contents shown full size

"k_\\/) (2) Sheet

(_ Metal

Screws

#10-16 x 1/2

(1) Locknut 3/8-24

(1) Large Flat Washer

(1) Shoulder Bolt 5116-18

(1) Hex Bolt 1/2-13 x t

(1) Lock Washer 1/2

(2) Lock Washers #10

(2) Weld Nuts #10 _ 1

(2) Hex Nuts 1/4-20

(1) Washer 17/32

x 1-3/16 x 12 Gauge ..............

(2) Washers 3/16 x 3/4 x 16 Gauge

Screws #10 x 5/8

i L[itlli!lltllllUllllllll

(2) Hex Bolts 1/4-20 x 3/4

(2) Lock Washers 1/4

(2) Washers 9/32 x 5/8 x 16 Gauge

................... ,i i i/llllJlllUllll,,ll ii ill ii Hj

Parts packed separately in carton

............................. ,,,,,,,,,,,

Seat

Steering

Boot

Mulcher

Plate

Steering

Wheel

Manual

Video

Cassette

........ ,J

Parts Bag

........ i iii i illl ,ml i ii ,i ,i

Parts bag contents not shown full size

, _,,,i

Steering Wheel

Adapter'

Steering

Wheel

Insert

_=_ teering

Bushing

(2) Keys

(2) Latch Hook

Assernblys

Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes,,

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely° Use

the correct tools as necessary to insure proper tightness_

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set wilt make assembly easier, Standard

wrench sizes are listed.

(1) 5/t6" wrench

(2) 7/16" wrenches

(t) 1/2" wrench

(1) 9/16" wrench

(1) 3/4" wrench

Tire pressure gauge

Utility knife

(1) phillips screwdriver

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton (See page 6).

= Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

o Check for any additional loose parts or cartons and

remove°

BEFORE ROLLING TRACTOR OFFSKID

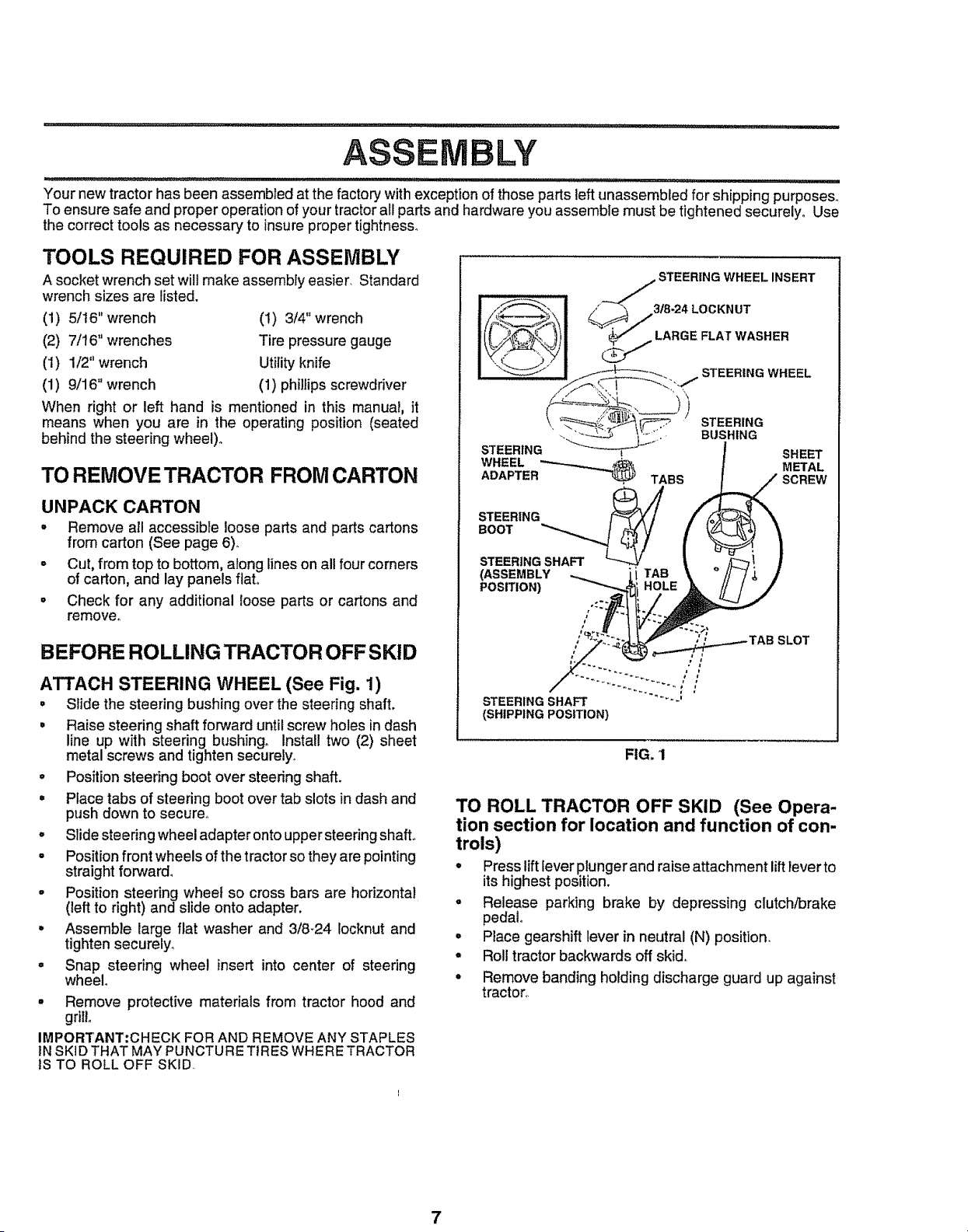

ATTACH STEERING WHEEL (See Fig. 1)

° Slide the steering bushing over the steering shaft.

° Raise steering shaft forward untilscrew holes in dash

line up with steering bushing° Install two (2) sheet

metal screws and tighten securely_

o Positionsteering boot over steenng shaft,

° Place tabs of steering boot over tab slots in dash and

push down to secure,

° Slide steering wheel adapter ontoupper steering shaff,

• Positionfront wheels ofthe tractor so they are pointing

straight forward°

• Position steering wheel so cross bars are horizontal

(left to right)and slide onto adapter.

° Assemble large flat washer and 3/8_24 Iocknut and

tighten securely°

° Snap steering wheel insert into center of steering

wheel.

• Remove protective materials from tractor hood and

gri&

IMPORTANT:CHECK FOR AND REMOVE ANY STAPLES

tN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID

WHEEL ""-------.......___

ADAPTER , TABS

STEERING /_

(ASSEMBLY

POSITION)

,,:::

STEERING SHAFT

(SHIPPING POSITION)

FIG, 1

SHEET

METAL

SLOT

TO ROLL TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

• Press lift lever plunger and raise attachment lift lever to

its highest position.

° Release parking brake by depressing clutch/brake

pedal°

° Place gearshift lever in neutral (N) position.

° Roll tractor backwards off skid,

• Remove banding holding discharge guard up against

tractor,.

_u_/iJ/i , ii i,i, ill , ,u, ii illl ii illlUllllll Jllnll IlUllll ........ iilllllllullull

ASSEMBLY

HOW TO SET UP YOUR TRACTOR

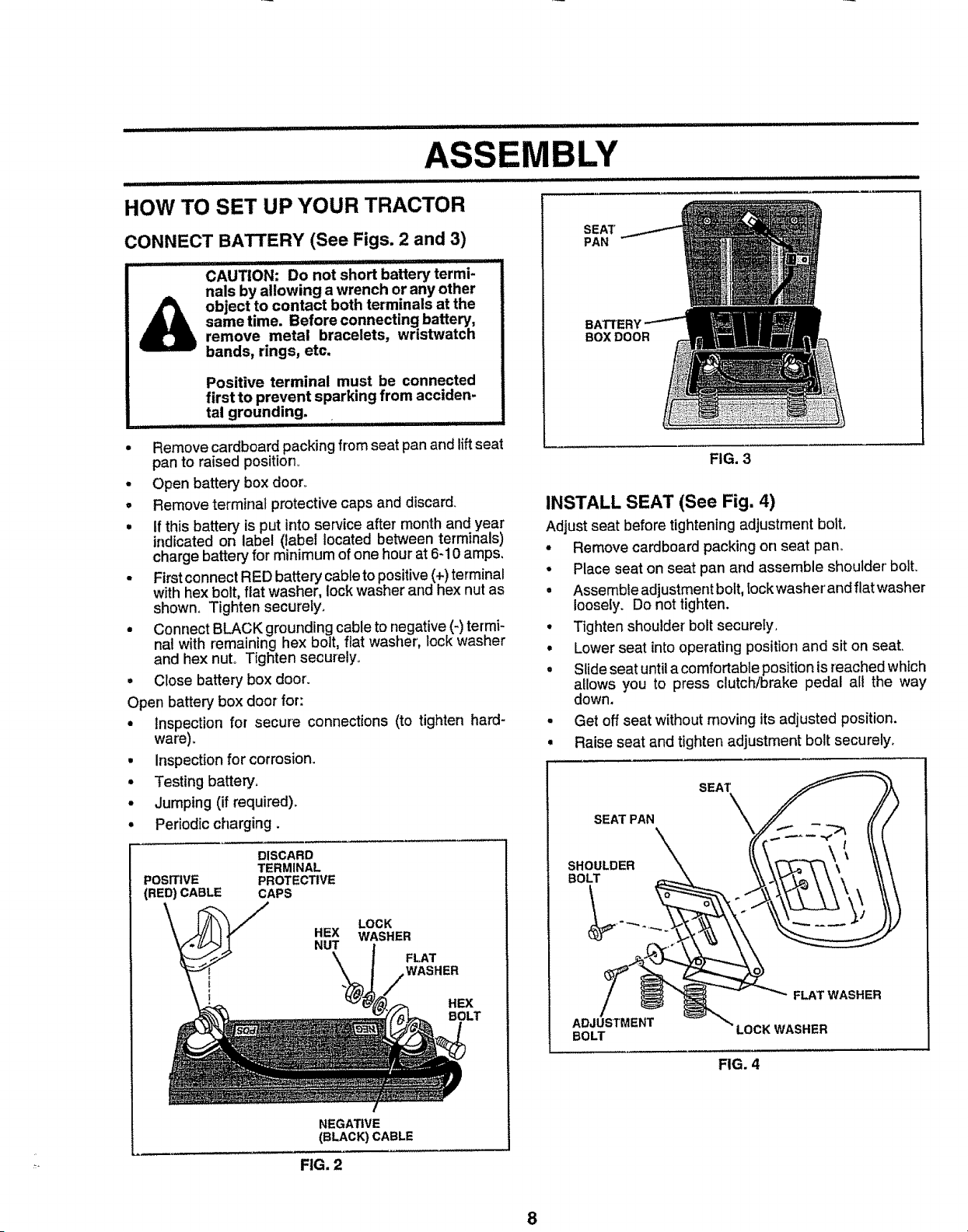

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

t!! gr°unding; ..... ...........

• Remove cardboard packing from seat pan and lift seat

pan to raised position.

° Open battery box door°

• Remove terminal protective caps and discard.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amp&

• First connect RED batter,] cable to positive (+) terminal

with hex bolt, fiat washer, lock washer and hex nut as

shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) termi-

nal with remaining hex bolt, fiat washer, lock washer

and hex nut° Tighten securely°

° Close battery box door.

Open battery box door for:

° Inspection for secure connections (to tighten hard-

ware),

° Inspection for corrosion.

• Testing batter,].

° Jumping (if required).

• Periodic charging.

DISCARD

TERMINAL

PROTECTIVE

HEX

NUT

LOCK

WASHER

FLAT

WASHER

HEX

BOLT

NEGATIVE

(BLACK) CABLE

POSITIVE

(RED) CABLE CAPS

SEAT

PAN

BOX DOOR

FIG. 3

INSTALL SEAT (See Fig. 4)

Adjust seat before tightening adjustment bolt.

• Remove cardboard packing on seat pan_

• Place seat on seat pan and assemble shoulder bolt.

• Assemble adjustment bolt, lockwasherandflatwasher

Ioosefy. Do not tighten.

° Tighten shoulder bolt securely.

° Lower seat into operating position and sit on seat.

= Slide seat until a comfortable position is reached which

aUows you to press clutch/brake pedal all the way

down.

, Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

SHOULDER

BOLT

FLAT WASHER

ADJUSTMENT WASHER

BOLT

FIG. 4

FIG. 2

ASSE BLY

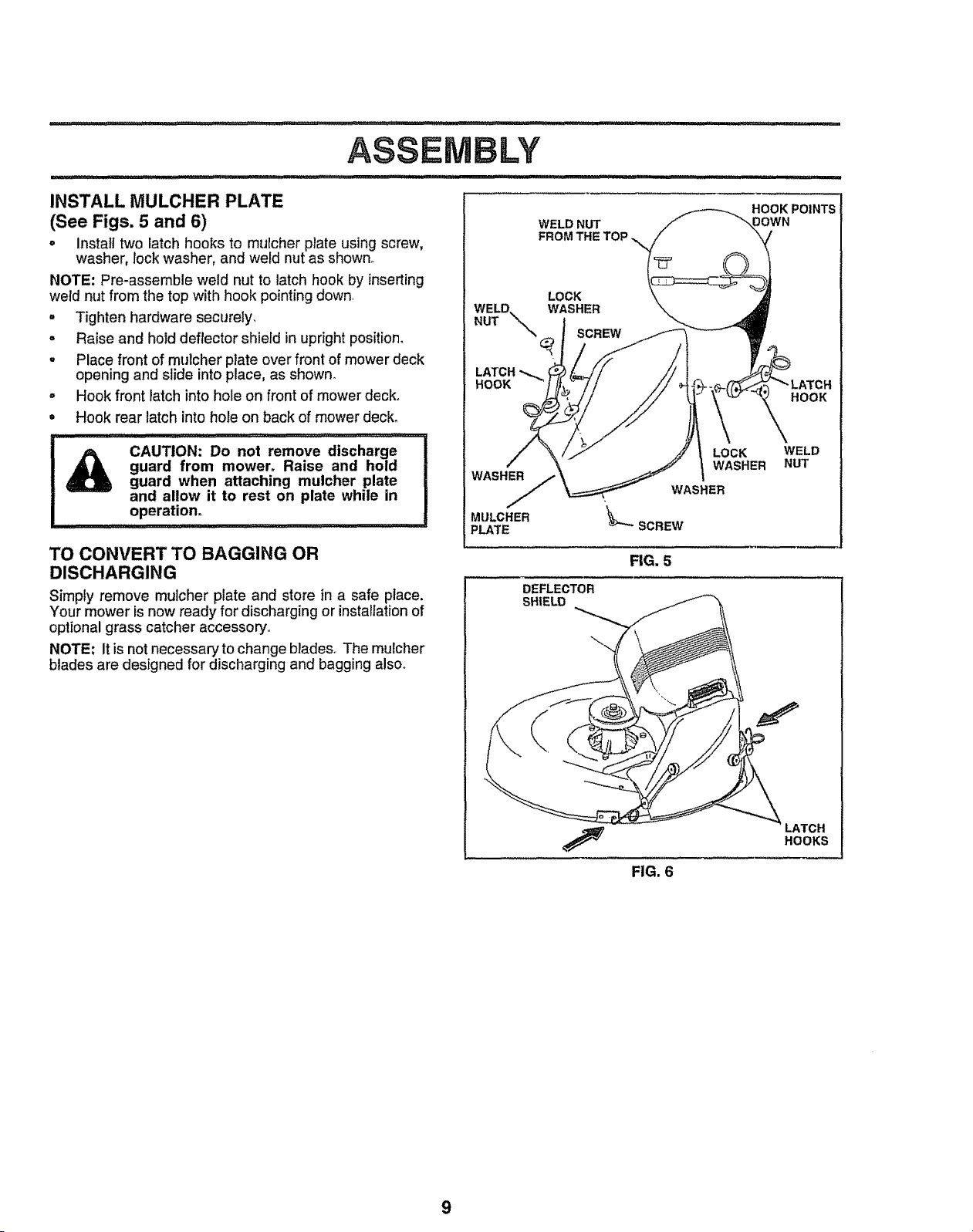

INSTALL MULCHER PLATE

(See Figs. 5 and 6)

o Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown,

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down,

• Tighten hardware securely.

° Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown_

° Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

ii i ....: ...............................

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

iii I I'1/ i,i iiiii i,ii, II i

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory,

NOTE: It is not necessaryto change blades. The mulcher

blades are designed for discharging and bagging alsoo

WELD NUT

FROM THE TOP

HOOK POINTS

DOWN

LOCK

WELD. WASHER

.UT \

"_ _ SCREW

LATCH

HOOK

WASHER

MULCHER

PLATE

LOCK

WASHER

_SCREW

DEFLECTOR

SHIELD

FIG. 5

WELD

NUT

LATCH

HOOKS

FIG. 6

ASSEMBLY

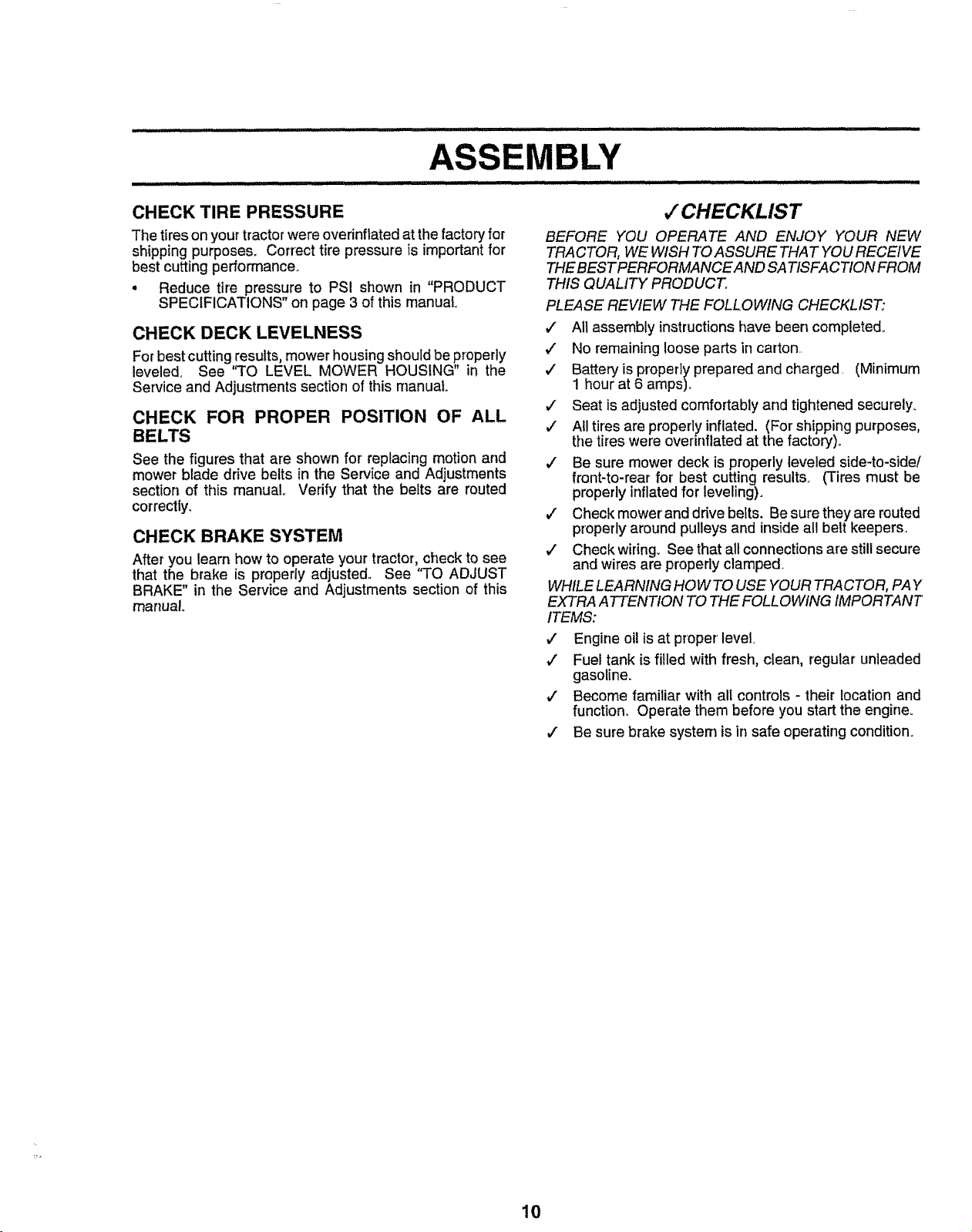

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance_

° Reduce tire pressure to PSi shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See 'q'O LEVEL MOWER HOUSING" in the

Service and Adjustments section of this rnanual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for' replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual° Verify that the belts are routed

correctly,

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted_ See '_TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual

,/CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATfSFA CTION FROM

THIS QUALITY PRODUCT,

PLEASE REVIEW THE FOLLOWING CHECKLIST:

/ All assembly instructionshave been completed°

,/ No remaining loose parts in carton.

v" Batteryis properly prepared and charged. (Minimum

1 hour at 6 amps)o

,/ Seat is adjusted comfortably and tightened securely.

v" All tires are properly inflated. (For shipping purposes,

the tires were overmflated at the factory).

/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

V" Check mower'and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring_ See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA A TTENTION TO THE FOLLOWING IMPORTANT'

ITEMS:

/ Engine oil is at proper' level,

v' Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function, Operate them before you start the engine_

/ Be sure brake system is in safe operating condition.

OPERATION

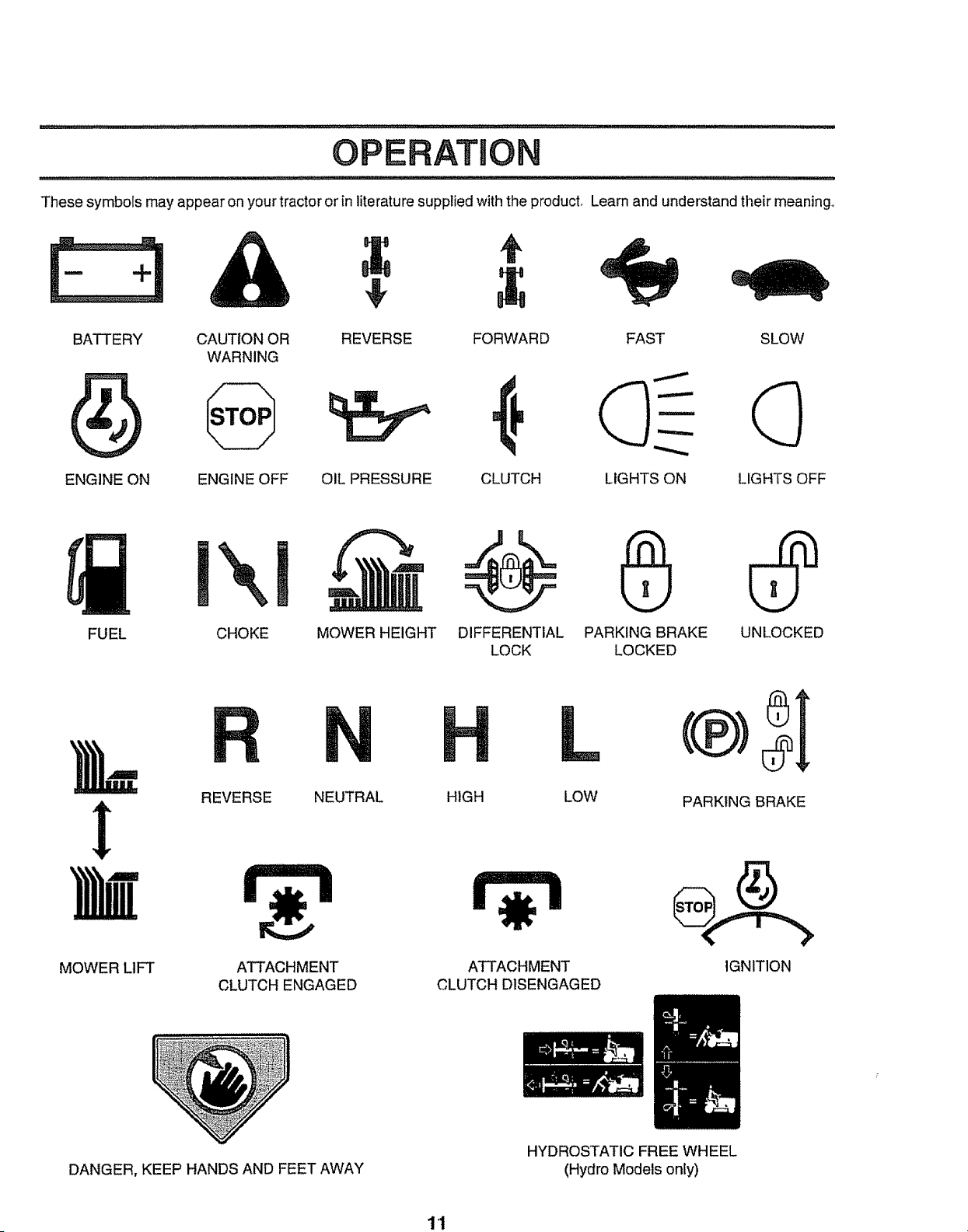

These symbols may appear on your tractor or in literature supplied with the product_ Learn and understand their meaning°

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON L_GHTS OFF

FUEL CHOKE MOWER HEIGHT

DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH

LOW

ATTACHMENT

CLUTCH DISENGAGED

PARKING BRAKE

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

111

iii iiiilu

OPERATION

..................................................... iiii i i iiiiiiiiii ii _1i i1,, ii iii., i IIIIIH,I

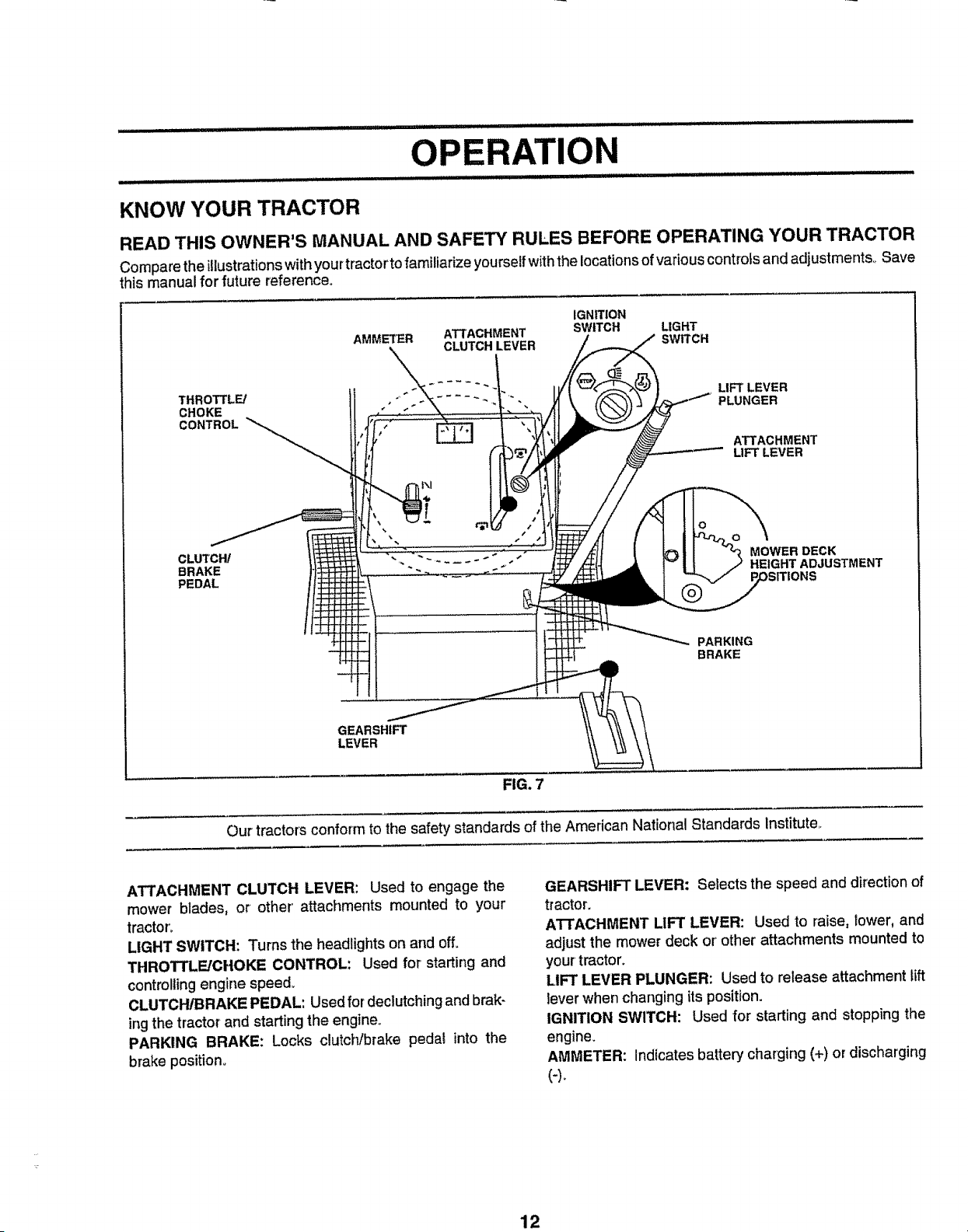

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswith your tractorto familiarize yourselfwith the locations of various controls and adiustmentso Save

this manual for future reference.

IGNITION

AMMETER ATTACHMENT SWITCH LIGHT

CLUTCH LEVER SWITCH

THROTTLE/

CHOKE

CONTROL

CLUTCW

BRAKE

PEDAL

LIFTLEVER

PLUNGER

ATTACHMENT

L]FT LEVER

MOWER DECK

HEIGHT ADJUSTMENT

PARKING

BRAKE

GEARSHIFT

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other' attachments mounted to your

tractor_

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE/CHOKE CONTROL: Used for starting and

controllingengine speed,

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine°

PARKING BRAKE: Locks clutch/brake pedal into the

brake position°

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

ATTACHMENT LIFT LEVER: Used to raise, lower, and

adjust the mower deck or other attachments mounted to

your tractor.

LIFT LEVER PLUNGER: Used to release attachment tilt

lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the

engine.

AMMETER: Indicates battery charging (+) or discharging

(-)

illl.................

OPERATI

m,,ll,ll,lll,l,lll ,, ill i i ill , ,ill, i

The operation of any tractor can result in foreign objects thrown into the eyes, which

can result in severe eye damage. Always wear safety glasses or eye shields while

operating your tractor or performing anyadjustments or repairs. We recommend awide

vision safety mask over the spectacles or standard safety glasses.

i,i ii,ll,,llll ,i _ll i

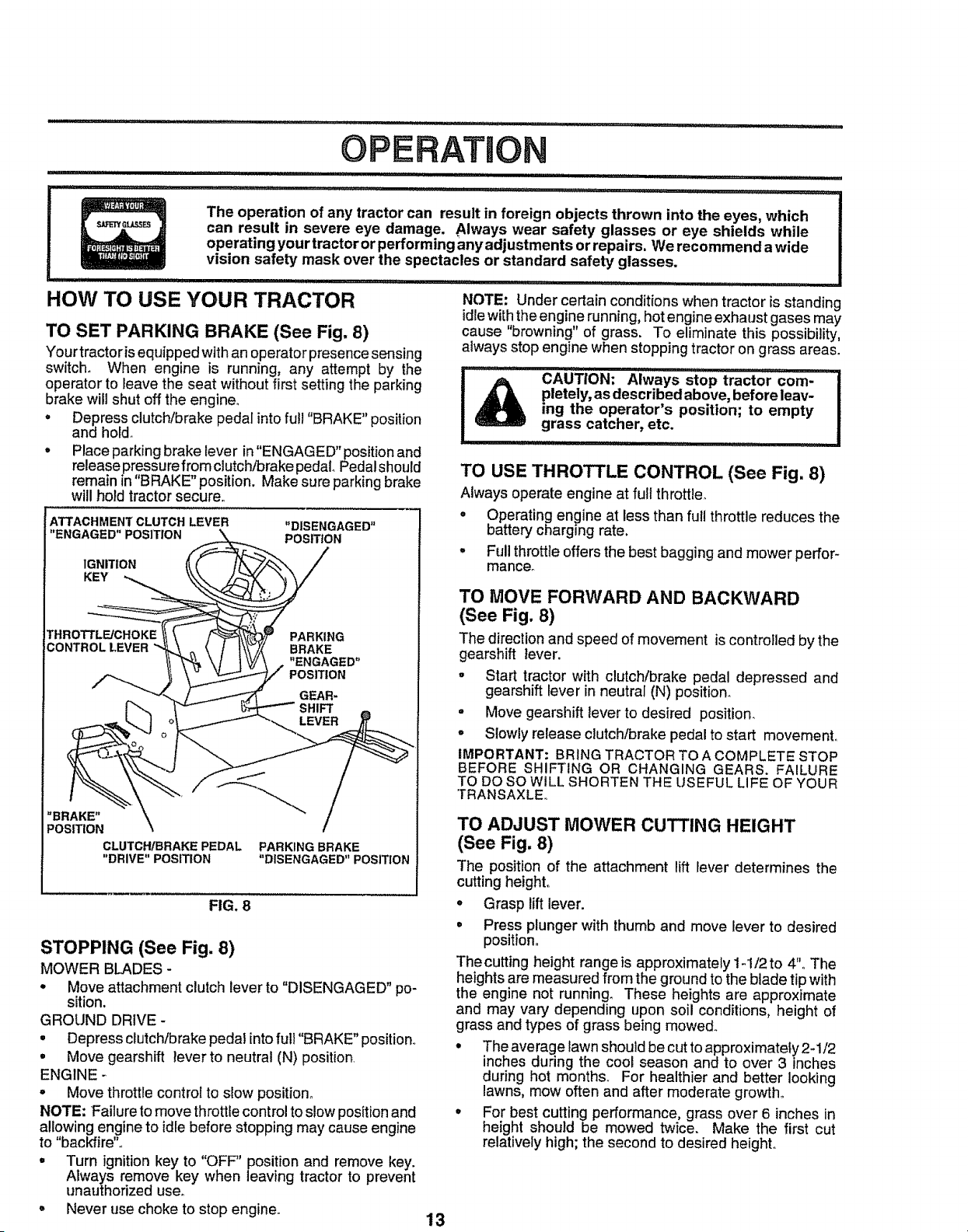

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine°

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

. Place parking brake lever in"ENGAGED" position and

release pressure from clutch/brake pedal Pedal should

remain in"BRAKE" position. Make sure parking brake

will hold tractor secure,.

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITRON

"DISENGAGED"

POSITION

IGNITION

KEY

THROTTLE/CHOKE PARKING

CONTROL LEVER BRAKE

"ENGAGED"

POSITION

GEAR-

SHIFT

LEVER

"BRAKE"

POSITION

CLUTCH/BRAKE PEDAL

"DRIVE" POSITION

PARKING BRAKE

"DISENGAGED" POSITION

FIG, 8

STOPPING (See Fig. 8)

MOWER BLADES -

° Move attachment clutch lever to "DISENGAGED" po-

sition.

GROUND DRIVE -

• Depress clutch/brake pedal into fult "BRAKE" position..

• Move gearshift lever to neutral (N) position

ENGINE -

• Move throttle control to slow position°

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine

to "backfire",.

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

° Never use choke to stop engine.

_1 I'l'M'l'll'llll II 'l' ll'lll'_' L ill

NOTE: Under certain conditions when tractor is standing

idlewith the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

iA ...........................

CAUTION: Always stop tractor com-

pletely, as described above, before leav- I

ing the operator's position; to empty I

grass catcher, etc. I

I1'1!1'1' IU' !IL' II IIII II !!1 '11 !1,11 ,i I

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle,

• Operating engine at less than full throttle reduces the

battery charging rate.

° Full throttle offers the best bagging and mower perfor-

manceo

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

gearshift lever.

° Start tractor with clutch/brake pedal depressed and

gearshift lever in neutral (N) position.

• Move gearshift lever to desired position.

o Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE

TO DO SO WELLSHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The position of the attachment lift lever determines the

cutting height°

• Grasp lift lever.

° Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2 to 4",.The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed_

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth°

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height°

i illlll iilll ............................... .... :

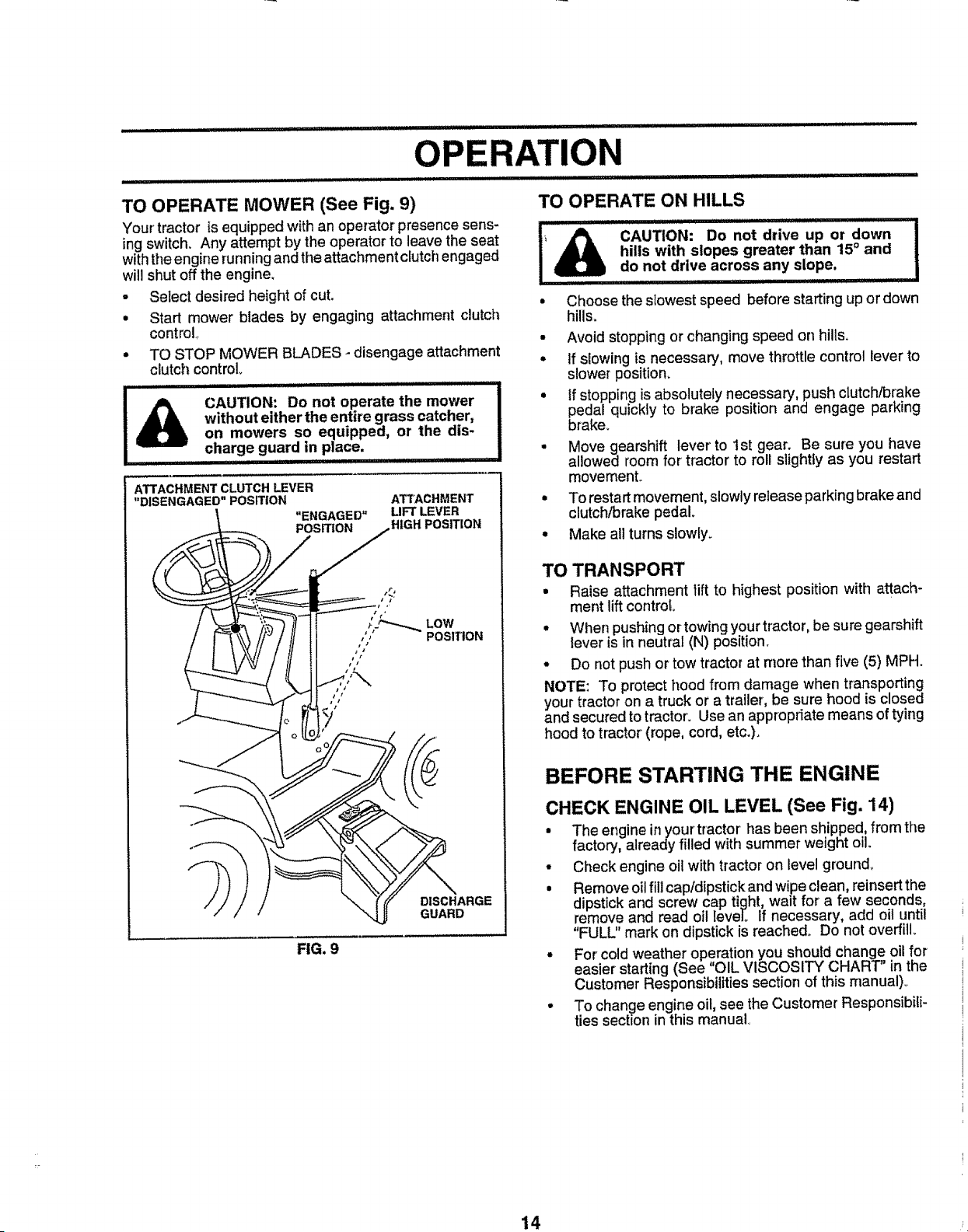

TO OPERATE MOWER (See Fig. 9) TO OPERATE ON HILLS

Your tractor is equipped with an operator presence sens-

ing switch Any attempt by the operator to leave the seat

with the engine running andthe attachment clutcit engaged

will shut off the engine.

- Select desired height of cut

• Start mower blades by engaging attachment clutch

control

• TO STOP MOWER BLADES - disengage attachment

clutch control "

!_ CAUTION: Do not operate the mower !

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSITION

"ENGAGED"

POSITION

ATTACHMENT

LIFT LEVER

HIGH POSITION

DISCHARGE

GUARD

FIG. 9

,_ ..................CAUTION: Do not drive up or down {

hills with slopes greater than 15° and

O do not drive across any slope

I i Ill ttll , i Jl,Jl,i, I ,, ,i ........... l It tl t t,

Choose the slowest speed before starting up or down

hills

Avoid stopping or changing speed on hills

If slowing ts necessary, move throttle control lever to

slower position

tf stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake

Move gearshift lever to 1st gear Be sure you have

aIJowed room for tractor to rol_slightly as you restart

movement.

To restart movement, slowly release parkingbrake and

clutch/brake pedal

Make all turns slowly

TO TRANSPORT

• Raise attachment lift to highest position with attach_

ment lift control

• When pushing or towing your tractor, be sure gearshift

lever is in neutral (N) position

• Do not push or tow tractor at more than five (5) MPH

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor Use an appropriate means of tying

hood to tractor (rope, cord, etc)

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 14)

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil,

• Check engine oil with tractor on level ground

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level If necessary, add oil until

"FULL' mark on dipstick is reached. Do not overfill

• For' cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilitiessection of this manual)°

• To change engine oil, see the Customer Responsibili-

ties section inthis manual

ADD GASOLINE

OPEBATION

° Fill fuel tank, Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane, (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage° Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer, Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

° Sit on seat in operating position, depress clutch_rake

pedal and set parking brake,

. Place gear shift lever in neutral (N) position,

° Move attachment clutch to "DISENGAGED" position.

• Move throttle control to choke position.

Note: Before starting, read the warm and cold starting

procedures below.,

• Insert keyinto ignition and turn key clockwise to"START"

position and release key as soon as engine starts° Do

not run starter continuously for more than fifteen sec-

onds per minute. If the engine does not start after

several attempts, move throttle control to fast position,

wait a few minutes and try again. Ifengine still does not

start, move the throttle control back to the choke

position and retry.

WARM WEATHER STARTING (50° F and above)

° When engine starts, move the throttle control to the fast

position.

° The attachments and ground drive can now be used, If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above°

COLD WEATHER STARTING ( 50° F and below)

° When engine starts, allowengine to run with the throttle

control in the choke position until the engine runs

roughly, then move throttle control to fast position. This

may require an engine warm-up period from several

seconds to severalminutes, depending on the tem-

perature.

° The attachments can also be used during the engine

warm-up period,

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See '%0

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual_

MOWING TIPS

• Tire chainscannot be used when the mower housingis

attached to tractor°

° Mower should be properly leveled for best mowing

performance. See'TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

° The left hand side of mower should be used for trim-

mingo

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

o When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etch After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 10)_

o If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried ctip-

dpingsoMake first cut relatively high; the second to the

esired height.

• Do not mow grass when it is wet° Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing°

° Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

° When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

(

FIG. 10

.. illlll .... iilllll illlllllll iilll iii .....................................................

OPERATION

/!llllll i ................. ....... ........... lUlt III1' IL // I'll I .................

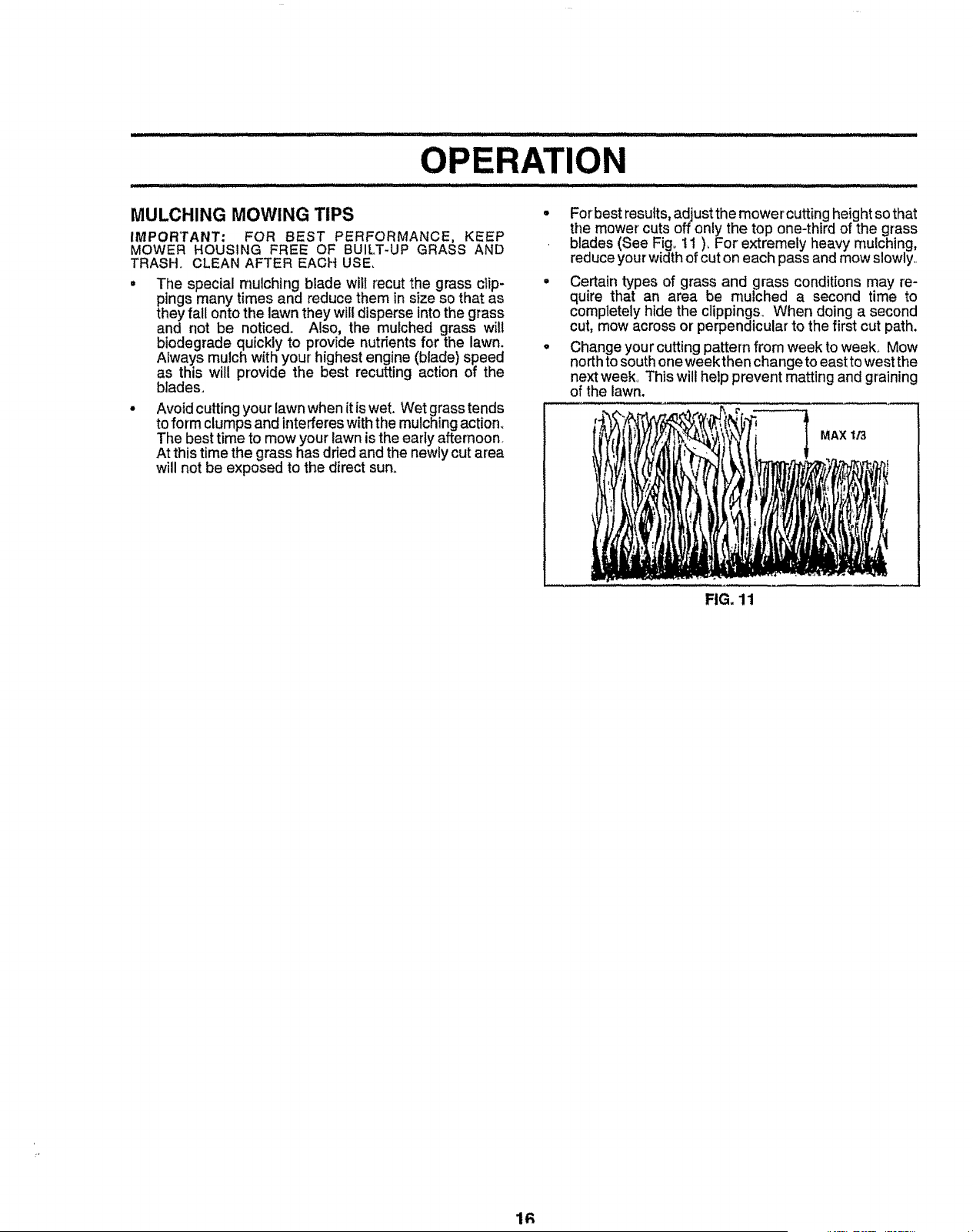

MULCHING MOWING TIPS • Forbestresutts,adjustthemowercuttingheightsothat

the mower cuts off only the top one-thirdof the grass

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND blades (See Figo!1 )_For extremely heavy mulching,

TRASH_ CLEAN AFTER EACH USE_ reduceyourwidthof cuton each pass and mow slowly,,

• The special mulching blade will recut the grass clip-

pings many times and reduce them in size sOthat as

they fall onto the lawn they will disperse into the grass

and not be noticed° Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your' highest engine (blade) speed

as this will provide the best recutting action of the

blades.

Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action_

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to

completely hide the clippings. When doing a second

cut, mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week., This will help prevent matting and graining

of the lawn.

FIG_ 11

MAX I/3

CUSTOMER RESPO BILUTIES

CheckBrakeOporat on . . , , , _ . 1

Check Tire Pressure _

Check for LooseFasteners _' !_'7 I_ ' ' ' ' '

c i -ii il{ Lv' ii[ii_

T Check BatteryLevel/Recharge

0 Clean Battery and Terminals _

R checkfrans_le cooling _ , _/

AdjustBlade Belt(s)Tension _/S ................

AdjustMotion Drive Belt(s)Tension Ks

CheckEngineOil Level IV #' _ ........

Change EngineOi' i_ .......... $/_'1_'.3..... 1_'

CleanAir Filter

U CleanAir Screen ..... _2 .......

G inspectMuffler!SparkArrester

I Replace OilFilter(if equipped) " ' ' ' ...... ' _.2 '"

N Fins " ' :_/2' ' ' -- i" 'i "

ReplaceSparkPlug _#' _1'

ReplaceAir Filter PaperCartridge .... _4'2 ' ' " ' "

ReplaceFue!Filter .

i - Change

2 - Service more often when operating indirtyor dusty conditions

3 - If equipped with oilf_ter, change olievery 50 hours_

4 - Replace blades more often when mowing in sandy soil.

more often when operating under a heavy load or in high ambient temperatures

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your tractor,

All adjustments in the Service and Adjustments section of

this manual shouid be checked at least once each season.

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer,,

BEFORE EACH USE

• Check engine oil level

• Check brake operation,,

° Check tire pressure,

. Checkfor loose fasteners,

5 - {f equipped with adjustab{e system

6 - Not required it equipped with maintenance-free battery.

7 - Tighten front axle pivot bolt to 35 it .Ibs maximum

Do not overtighten.

LUBRICATION CHART

(_SPINDLE ZERK_ SPINDLE ZERK (_)

(_ FRONT WHEEL"_._'_:I ==========================

BEARING ZERK _ ._

(_ATTACHMENT_ ::::::::::::::'

(_)SAE 30 OR I0W30 MOTOR OIL

(_)GENERAL PURPOSE GREASE

_ RONT WHEEL (_)

BEARING ZERK

_ ENG,NE®

_GEARSH'_O

PIVOTS

(_)REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS° VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS, IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

R BILITIES

.....,,,,..... ill, ,, i i, i,,,,,, ,i i

TRACTOR

Always observe safety rules when performingany mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See 'q'O ADJUST BRAKE" in the Service and Adjust-

ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS on page 3 of this manual).

= Keep tires free ef gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage°

lllllll : ill ii = i

TO SHARPEN BLADE (See Fig. 13)

Care shoufd be taken to keep the blade balanced. An

unbalancedblade will cause excessive vibration and even-

tual damage to mower and engine_

° The blade can be sharpened with a file or on a grinding

wheel Do not attempt to sharpen while on the mower,

° To check blade balance, you wilt need a 5/8" diameter

steel bolt, pin, or a cone balancer,, (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

° Slide blade onto an unthreaded portionof the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position,.If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced,.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer_ Tire sealant also prevents tire dry rot and

corrosion.

BLADE CARE

For' best results mower' btades must be kept sharp_ Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 12)

° Raise mower to highest position to allow access to

blades.

. Remove hex bolt, lock washer and flat washer secur-

ing blade.

. Installnew or resharpened blade with trailingedge up

towards deck as shown.

• Reassemble hex bolt, lockwasher and flat washer in

CENTER HOLE / /

5/8" BOLT BLADE

OR PiN J

FIG. 13

BATTERY

exact order as shown.

. Tighten bolt securely (30-35 Ft. Lbs, torque).

IMPORTANT: BLADE BOLT 1SGRADE 8 HEATTREATED,,

NOTE: We do not recommend sharpening blade - but if

,ou do, be sure the blade is balanced.

BLADE

MANDREL

ASSEMBLY

TRAILING

EDGE UP

LOCK WASHER

',HEX BOLT (GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

° Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

° Recharge at 6-10 amperes for1 houL

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

= Open battery box door.

• Disconnect BLACK battery cable first then RED bat-

tory cable and remove battery from tractor,

° Rinse the battery with plain water and dry,

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly,

° Reinstatl battery (See "CONNECT BATTERY" in the

Assembly section of this manual).

FIG. 12

CUSTOIVlE

V-BELTS

Check V_beltsfor deterioration and wear after 100 hours of

operation and replace if necessary The belts are not

adjustable Replace belts if they begin to slip from wear

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which

can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with AP1 service

classification SF, SG, or SH Select the oil's SAE viscosity

grade according to your expected operating temperature

SAE ViSCOSiTY GRADES

_f.,1=Ilk _.

OF .20_ O= 30" 32= 40° 60" 80" 100°

TEMPERATURE RANGE ANTtGIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi viscosity oils (5W30, 10W30 etch)

improvestarting in cold weather, these muftiwiscosity oils

wilt result in increased oil consumption when used above

32°F Check your engine oil leve! more frequently to avoid

possible engine damage from running low on oil

Change the oil after every 25 hours of operation or at least

once ayearif the tractoris not used for25 hours in oneyear

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation° Tighten oil fill

cap/dipstick securely each time you check the oil level

TO CHANGE ENGINE OIL (See Fig 14)

Determine temperature range expected before oil change°

All oil must meet API service classification SF, SG or SHo

• Be sure tractor is on Ievel surface

• Oil will drain more freely when warm

• Catch oil ina suitable container

• Remove oil fill cap/dipstick Be careful not to allow dirt

to enter the engine when changing oil

. Remove drain plugo

° After oil has drained completely, replace oil drain plug

and tighten securely

• Refill engine with oil through oil fil! dipstick tube Pour

sIowly Do not overfill For approximate capacity see

PRODUCT SPECIFICATIONS on page 3 of this

manual°

° Use gauge on oil fill cap/dipstick for checking level Be

sure dipstick cap is tightened securely for accurate

reading° Keep oil at 'FULL line on dipstick

FIG. 14

OIL FILL

CAP/DIPSTICK

OIL DRAIN

PLUG

AIR FILTER (See Fig. 15)

Your engine will not run properly using a dirty air filter,

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whicheveroccursfirsL

Service air cleaner more often under dusty conditions_

. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

° Slide foam pre-cleaner off cartridge

o Wash it in liquid detergent and water

= Squeeze it dry in a clean cloth°

° Saturate it in engine oil Wrap it in cEean, absorbent

cloth and squeeze to remove excess oil

o If very dirty or damaged, replace pre-cieanero

° Reinstall pre cleaner over cartridge

= Reinstaif cover and secure with knob(s)

TO SERVICE CARTRIDGE

= Remove cartridge nut

° Carefully remove cartridge to prevent debris from

entering carburetor Clean base carefully to prevent

debris from entering carburetor

= Clean cartridge bytapping gentlyon flat surface If very

dirb/or damaged, replace cartridge

o Reinstall cartridge, nut, precleaner, cover and secure

with knob(s)

IMPORTANT: PETROLEUM SOLVENTS SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRLDGEo DO NOT OIL CARTRIDGE DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE°

KNOB

COVER

CARTRIDGE

NUT

FOAM

_BASE

PAPER

CARTRIDGE

19 FIG. 15

,,i I IIIIII JIIIII I Jill .... .....

CLEAN AIR SCREEN (See Fig. 16)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating, Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers_

NSIBILITIES

ENGINE COOLING FINS (See Fig. 16)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating.

• Remove screws from blower housing and lift housing

and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt.

• Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required°

• With engine cool, remove _ter and plug fuel line

sections.

• Place new fuel filter in position in fue! line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline,,

CLAMP

___D CLAMP

To reassemble, reverse above procedure.

SCREWS

BLOWER HOUSING

SCREWS

OIL FILL

TUBE

ASSEMBLY

AIR SCREEN

ENGINE COOLING FINS

SPARK

PLUG

FIG, 16

FUEL

RLTER

FIG. 17

CLEANING

• Cfean engine, battery, seat, finish, etc, of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor uniess the electrical system, muffler', air lifter and

carburetor are covered to keep water out. Water' in engine

can result in a shortened engine life.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage_

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or' after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 ofthis manual.

SERVICE AND ADJUSTMENTS

i i, i rllllll.......

CAUTION:

BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug,

TO REMOVE MOWER (See Fig. 18)

Mower willbe easier to remove from the rightside of tractor

o Place attachment clutch in "DISENGAGED" position°

• Move attachment liftlever forward to lowermower to its

lowest position.

° Roll belt off engine pulley_

° Disconnect clutch rod from clutch lever by removing

retainer spring_

o Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

° Disconnect suspension arms from rear deck brackets

by removing retainer springsr

° Disconnect front links from deck by removing retainer

springs°

• Raise lift lever to raise suspension arms° Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR,

REMOVE THE FRONT LINKS_

TO INSTALL MOWER (See Fig. 18)

• Raise attachment lift lever to its highest position..

• Slide mower undertractorwith discharge guard to right

side of tractor,

° Lower lift lever to its lowest position.

° Install mower in reverse order of removal instructions_

CLUTCH LEVER

RETAINER

SUSPENSION ENGINE

ARMS PULLEY

_i\ RETAINER

SPRINGS

(BOTH SIDES)

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 18

AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual).

Iftires are over or' underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

o Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

" " "on

from bottom edge of mower to ground_ D_stance A

' " " 1 4"

both stdes of mower should be the same or within /

of each other

- If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side°

NOTE: Each full turn of adjustment nut will change mower

height about 1/8'L

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LINE

FIG. 19

LIFT LINK

ADJUSTMENT NUT

SUSPENSION

ARM

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs., 2t and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE.TO-SIDE. 1F

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT tS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/8" to

1/2" lower than the rear when the mower' is in its highest

position,

Check adjustment on right side of tractor, Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjustments, check that

both front links are equal in length., Both links should

be approximately 10-3/8'L

- If links are not equal in length, adjust one link to same

length as other link.

• To lower front of mower loosen nut "E" on both front

links an equal number of turns.

• When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

• To raise front of mower, loosen nut"F' from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nut"F" against trunnion on both front links,

• Recheck side-to-side adjustment.

oo, "', MANDREL

FIG. 21

BOTH FRONTLINKS MUST BE EQUAL IN LENGTH

NUT

NUT "F" __:___"

FRONT LINKS TRUNNION

FIG, 22

mrl'"m i _ i,,,,,,,iuul..... _,

AND ADJUSTMENTS

'' i ,,,i,u_u ,,11 i ................... ii, t ......... i,, i

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 23)

The mower blade drive belt may be replaced without tools°

Park the tractor on level surface° Engage parking brake°

BELT REMOVAL -

o Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual),,

• Work belt off both mandret pulleys and idler pulleys_

. Pult belt away from mower.

BELT INSTALLATION

° Install new belt in reverse order of removal

= Make sure belt is inall pulley grooves and insideall belt

guides,

° install mower inreverse order of removal instructions°

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

OPERATING

ARM

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 23

TO ADJUST BRAKE (See Fig, 24)

Your tractor is equipped withan adjustable brake system

which is mounted on the right side of the transaxleo

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjuste&

• Depress clutch/brake pedal and engage parking brake,

• Measure distance between brake operating arm and

nut 'W' on brake ro&

If distance is other than 1-1/2", loosen jam nut and turn

nut "A" until distance becomes 1-1/2", Retighten jam

nut against nut "A"o

Road test tractor for proper stopping distance as stated

above° Readjust if necessary, If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center!department.

FIG. 24

TO REPLACE MOTION DRIVE BELT

(See Fig. 25)

Park the tractor on level surface_ Engage parking brake.,

For assistance, there is a belt installation guide decal on

bottom side of left footresL

• Remove mower (See "TO REMOVE MOWER" in this

section of this manuaL)

= Remove upper belt keeper,

° Remove belt from stationary idler and clutching idler.

° Pull belt slack toward rear of tractor. Remove belt

upwards from transaxle pulley by deflecting belt keep-

ers.

• Pull belt toward front of tractor and remove downwards

from around engine pulley°

° Install new belt by reversing above procedure.

IMPORTANT; MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOOATOR TABS,

PULLEY

CLUTCHING

IDLER

TABS

UPPER BELT

KEEPER

IDLER

PULLEY

FIG. 25

...... ljljlljjllllll J IlL [ I Jl' llJ lllllllJllJlllllll l Jll IIILIILILIL

AND ADJUSTM

TRANSAXLE SHIFTER LINKAGE AND AD-

JUSTMENT (See Figs. 26 and 27)

The transaxte should be in neutral whenthe gear shift lever

is in the neutral (N) (lock gate) position. The adjustment is

preset at the factory; however, if adjustment is needed,

proceed as follows:

• Make sure transaxle is in neutral (N).

° Loosen two Iocknuts on tie rod.

° Turn center rod until gearshift lever falls into neutral

lock gate on fender console_

° Tighten locknuts securely,

GEARSHIFT' LEVER

FIG. 26

CENTER ROD

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 28)

• Block up axle securely.

• Remove axle cover, retainingringand washersto allow

wheel removal (rear wheel contains a square key - Do

not Iose),_

• Repair tire and reassemble.

• On rear wheels only: atign grooves in rear' wheel hub

and axle. Insert square key.

, Replace washers and snap retaining ring securely in

axle groove.

° Replace axle cover,

NOTE: To seal tire punctures and prevent fiat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion

WASHERS

RETAINING

RING

TIE ROD

TRANSAXLE

FIG. 27

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbarsare not horizontal(left to right)

whenwheels are positionedstraight forward, removesteer-

ingwheel and reassemble per instructionsinthe Assembly

section of this manual

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your'tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center!department.

AXLE COVER

_SQUARE KEY

(REAR WHEELONL_

FIG. 28

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 29)

...................... ,,,,,,,,,,,,,,,,,,, i iiiii

i& AUTION: Lead-acid batteries gener-

ateexplosivegases. Keepsparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

........................ II

tf your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for' emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM, THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEH[CLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

• Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery_

° Connect the other' end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery'°

ViCE AN ADJU

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery°

• RED cable last from both batteries:

POSITIVE TERMINAL NEGATIVE TERMINAL

CABLES

CHARGED

BATTERY

POSITIVETERMINAL NEGATIVETERMINAL

FIG. 29

TO REPLACE HEADLIGHT BULB

• Raise hood.

° Pull bulb holder out of the hole in the backside of the

grill

o Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

° Close hood.

ENTS

,,lll,,ll,,i _1Ul i i, i. ...............................

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting,

° Check wiring,. See electrical wiring diagram in the

Repair Parts section of this manual

TO REPLACE FUSE

Replace with 30 amp automotive_type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 30)

o Raise hood,

° Unsnap headlight wire connector.

o Stand in front of tractor. Grasp hood at sides, tilttoward

engine and lift off of tractor.

• To replace, reverse above procedures,.

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 30

SERVICE AND ADJUSTM

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 31)

The throttle contro! has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable° tf adjustment is

necessary, proceed as follows:

• With engine not running, move throttle control lever

from slow to choke position, Slowly move lever from

choke to fast position°

• Check that holes"A" in governor control leverand hole

in governor' plate line-up. If holes "A"are not aligned,

loosen clamp screw and movethrottle cable until holes

are aligne& Tighten clamp screw securely°

GOVERNOR

CONTROL LEVER

GOVERNOR

CONTROL PLATE

HOLES *'A" CLAMP

SCREW

THROTTLE

CABLE

FIG. 31

TO ADJUST CARBURETOR (See Fig. 32)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be requiredtocompensate for differencesinfuel,

temperature, altitude or load. if the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply offuel tothe enginegivinga leaner rue!/

air mixture. Turning the idle mixture valve out (counter-

clockwise)increases the supply of fuel to the engine giving

a richer fuel!air mixture_

IMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEAT IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

• Air cleaner assembly must be assembled to the carbu-

retor when making carburetor adjustments_

• Be sure the throttle control cable is adjusted propedy

(see above),

o With engine off turn idle mixture valve in (clockwise)

closing it finger tight and then turn out (counterclock_

wise) 1 full tum.

FINAL SETTING -

.o Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

* Move throttle control leverto stow position. With finger,

rotate and ho[d throttle lever against idlespeed screwy

Turn idle speed screw to attain 1750 RPM

° While still holding throttle lever' against idle speed

screw, turn idle mixture vaive in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough. Turn valve to a point midway

between those two positions, Release throttle lever,

ACCELERATION TEST -

• Move throttle control lever from slow to fast position. If

engine hesitates or dies, turn idle mixture valve out

(counterclockwise) 1/8 turn. Repeat test and continue

to adjust, if necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do not adjust -

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTtNG CAN BE

DANGEROUS., IFYOU THINKTHE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS_

THROTTLE IDLE SPEED

LEVER SCREW

IDLE MIXTURE

VALVE

FIG. 32

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more_

,srl_lll,

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

, i!!11 i!rrl I

TRACTOR

Remove mower from tractor for winter storage, When

mower is to be stored for a period of time, ctean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See"CLEANING" in the Customer

Responsibilities section of this manual).

° Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

° Lubricate as shown in the Customer Responsibilities

section of this manual

- Be sure that all nuts, bolts and screws are securely

fastened° Inspect moving parts for damage, breakage

and wear. Replace if necessary.

. Touch up all rusted or chipped paint surfaces; sand

lightlybefore painting_

BATTERY

° Fulty charge the battery for storage°

. After a period of time in storage, battery may require

recharging_

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly(see'_FO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

° After cleaning, leave cables disconnected and place

cables where they cannot come in contactwith battery

terminals.

° Be sure battery drain tube is securely attached°

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE°

° Drain the fuei tank,

o Start the engine and let it run until the fuel lines and

carburetor are empty.

° Neveruse engineorcarburetorcleanerproductsin the

fuel tank or permanent damage may occur.

° Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age, Add stabilizer to gasoline in fuet tank or storage

container. Always foltow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor, Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with enginewarm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

o Remove spark plug(s)o

° Pour one ounce of oil through spark plug hole(s) into

cylinder(s)_

° Turn ignition key to"START" position for a few seconds

to distribute oil

• Replace with new spark plug(s).

OTHER

° Do not store gasoline from one season to another,

° Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• if possible, store your tractor indoors and cover it to

give protection from dust and dirt,

° Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHFLEENGINE

AND EXHAUST AREAS ARE STILL WARM,

iiimll ...............

PROBLEM

Wtl! not start

Hard to start

........................ , , ,,,,,,,,,,,

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

TROUBLESHOOTING POINTS

CAUSE

1. Outoffuet+

2. Engine not "CHOKED" properly+

3 Englne flooded

4, Bad spark plug,.

5, Dirty air tilter,

6. Dirty fuel fi[tet

7 Water in fuef

8 Loose or damaged widng

9, Carburetor out of adjustment

10. Engine valves out of adjustment.

1_ Dirty air filter+

2, Bad spark plug.

3 Weak or dead battery.

4 Dirty fuel fitter+

5 Stale or dirty fuel.

6 Loose or damaged wiring

7, Carburetor out of adjustment

8+ Engine valves out of adjustment+

t. Clutch!brake pedal not depressed

2 Attachment clutch tt engaged.

3 Weak or dead battery+

4+ Blown fuse,

5. Corroded battery terminals

6+ Loose or damaged wiring,

7+ Fautty ignition switch,

8+ Faulty solenoid or starter

9. Fautty operator presence switch(as).

.................. ,,, , ,,, ,,,,,,

t. Weak or dead battery+

2. Corroded battery terminals,

3, Loose or damaged widng.

4. Faulty solenoid or starter.

1, Cutting too much grassttoo fast.

2. Throttte in "CHOKE" position.

3. Build*up of grass, leaves end trash under mower.

4, Dirty air filter+

5. Low oil level/dirty oil

6+ Faulty spark plug,

7. Dirty fuel filter,

8, Stale or dirt,] fuel

9, Water in fuel+

10, Spark plug wire loose,

11, Ditty engine air screen!fins

12,, Dtrtytclogged muffler,+

13, Loose or damaged wiring

14. Carburetor out of adjustment

15, Engine valves out of adjustment

......... ,,, ,,,,,,,,,,, i i i j ii iiii

1+ Worn, bent or loose btade+

2 Bent blade mandrel.

3 Looseldamaged part(s).,

CORRECTION

1_ FlUfuel tank

2. See "TO START ENGINE" in Operation section,

3, Wait several minutes before attempting to start,

4, Replace spark plug.

5,, Clean/replace air filter_

6 Replace fuei filter

7 Drain fuel tank and carburetor, refi!l tank with fresh

gasoline and replace fuel filter

8, Check all wiring.

9 See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service centeddepartment.

1 Clean/replace air filter.

2, Replace spark plug

3, Recharge or replace battery,

4, Replace fuel filter:.

5+ Drain fuel tank and refill with fresh gasoline,

6 Check all widng,

7, See "To Adjust Carburetor" in Service Adjustments

section.

B+ Contact an authorized sergce center/department.

1+ Depress clutch/brake pedal.

2 Disengage attachment clutch

3 Recharge or replace battery,

4 Replace fuse,

5+ Clean battery terminals,

6, Check air wiring

7 Check/replace ignition switch.

8 Check/replace solenoid or starter,

9. Contact an authorized service centeddepartment.

1, Recharge or replace battery

2 Ctean battery termtnais,

3 Check all wiring

4. Check/replace soleno!d or starter., .................

1. Set in"Higher cur posifientreduce speed

2 Adjust throttle control

3 Clean underside of mower housing,.

4, Clean/replace air filter

5 Check oi_leveVchange oK

6 Clean and regap or change spark plug.

7. Replace fuel filter,

8 Drain fuel tank and refifl with fresh gasoline.

9, Drain fuel tank and carburetor, refilFtank with fresh

gasoElne and replace fuel filter,

10, Connect and tighten spark plug wire.

11, Clean engine air screen/fins

12 Cleankeplace muffler,

13 Check all wiring.

14, See "To Adjust Carburetor" in Service Adjustments

section.

15, Contact an authorized service centerldepartment,

1. Replace blade+ Tighten blade bott

2. Replace blade mandrel.

3 Tighten loose part(s) RepFace damaged parts

TROUBLESHOOTING POnNTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut- uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s)not working

(if so equipped)

Battery will not charge

! i

Engine "backfires"

when turning engine

"OFF"

CAUSE

I Faulty operator-safety presence control system

1, Worn, bent or loose b_ade

2, Mower deck not level,

3o Bulldup of grass, leaves, and trash under mower.

4, Bent blade mandrel,

5. Clogged mower deck vent holes from buifdup of

grass, leaves, and trash around mandrels,

I, Obstruction In clutch mechanism.

2, Worn/damaged mower drive belt

3. Frozen idler pulley

4. Frozen blade mandrel.

t. Engine speed too slow.

2, Travel speed too fast

3 Wet grass_

4, Mower deck not level,

5. Low/uneven tire air pressure°

6,, Worn, bent or loose blade.,

7, Buildup of grass, leaves and trash under mower_

8 Mower drive belt worn

9. Blades improperly _nstailed.

10, improper blades used,

1I_ Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

CORRECTION

1, Check wiring, switches and connections If not

corrected, contact an authorized service canted

department

1 Replace blade. Tighten bfade bolt

2. Level mower deck,

3 Clean underside of mower housing,

4, Replace blade mandrel

5_ Clean around mandrels to open vent ho_es,

1 Remove obstnJction

2. Replace mower drive belt,

3 Replace idler pulley,

4 Replace blade mandrel

1, Ptace throttle control in "FAST" position,

2. Shift to slower speed.

3. Allow grass to dry before mowing

4. Level mower deck.

5, Check tires for proper air pressure,

6, Replacefsharpen blade Tighten blade bolt,

7_ Clean underside o! mower housing

8_ Replace mower drive belt,

9. Reinstall blades sharp edge down,

t0., Replace with blades listed In this manual,

1t. Clean around mandrels to open vent holes,

1. Switch Is "OFF",

2o BuIb(s) burned out.

3, Faulty Eightswitch.

4, Loose or damaged widng,

5. Blown fuse..

t, Bad battery cell(s),.

2_ Poor cable connections,

3_ Faulty regulator (if so equtpped)_

4. Faulty alternator.

1, Turn switch "ON"

2, Replace bulb(s).

3 Check/replace light switch,

4, Check w_ring and connections,

5o Replace fuse,

t,, Replacebattery,,

2. Check/cleanall connections,

3. Replaceregulator,

4, RepEaceaitemator_

,lllllll iiil,ii i iii i , , i

1. Move throttle control to "SLOW" posit}on and allow

to idle tot 30 seconds before stopping engine

Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.258473

1tl-

oi11o B oK

BATTERY

AMMETER

(OPTIONAL)

RED I RED

SOLENOID

WHITE

RE___E.__O

IGNITION

SWITCH

IGNITION SWITCH

POSITION

oFF

RUNtLIGHT

RUN

START

CIRCUIT

G+M+L

B+L

B+L+S

"MAKE"

NONE

A+Y

NONE

FUSE3OAMP.

_ J

CLUTCH/ BRAKE

{PEDALUP)

BLACK

WHITE

"L___ HOURMETER

(OPTIONAL) O

BLACK

IGNITION

_UEL= L UNIT

BLUE I _'/_\ LINE =I

I I CHARGING SYSTEM OUTPUT

3 AMP DC O 3660 RPM

FUELSHUT-OFF BLUE

SOLENOID I

ORANGE

STARTER

BLACK

SEAT SWITCH

(NOT OCCUPIED)

WHITE I _.,..(,__1 _

| .... 1

i I I

I _ 1 I !

7 I-

t t - t I BLACK j

_ _ F_...r BLACK i

NTC '- " ' -=

r (CLUTCHOFF) I GROUNDING

CONNECTOR

SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL

26 VOLTS AC MIN. @ 3660 RPM

(CHARGING SYSTEM DISCONNECTED)

UGH11NG SYSTEM OUTPUT DIODE i ALTERNATOR

5 AMP AO @ 3660 RPM

t4 VOLTS AO MIN, @ 3600 RPM (UGHTS OFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM,. BROWN

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE,

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE tS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST..

HEADLIGHTS

---O---

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

\ I

I I

REPAIR PARTS

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.258473

KEY PART

NO, NO. DESCRIPTION

1 144925

2 74760412

3 STD551025

4 STD551125

6 STD541025

7 109238X

8 156417

9 109596X

15 '147688

16 153664

19 STD55! 125

20 73350400

21 136850

22 4152J

24 4799J

25 146!47

26 108824X

28 4207J

29 121305X

3O 140301

31 124211X

32 14'1226

33 109310X

40 156442

41 71110408

42 13'1563

43 145673

44 73640400

45 121433X

52 141940

7O 140422

Battery 12 VOLT 25 AMP

Bolt Hex Hd t/4-20unc x 3/4

Washer 9/32 x 5/8 x 16 Ga

Washer Lock Hvy Helical 1/4

Nut Fin Hex !/4-20 Unc

Tube Plastic 12"

Case Battery

Clamp Hose Olive

Fastener Snap-tn

Switch, Interlock Push-In

Washer Lock 1/4

Nut Jam Hex 1/4-20 Unc

Harness Asm Light W/4152j

Buib Light #1 t56

Cable Battery 6 Ga 11" red

Cable Battery 6 Ga w/I6 wire red

Fuse 30 AMP Auto Green

Cable Ground 6 Ga 12" black

Switch Plunger Nc Gray

Switch Ign 4 Pos

Nut Ignition

Cover Sw Key Bik I 25 Text SLT

Key ign Molded Craftsman

Harness tgn Man CI Am Hm 97

Bolt Blk. Fin Hex 1/4-20 Unc x 1/2

Cover Termina{ Red

Solenoid

Nut Keps Blk Hex 1/4-20 Unc

Ammeter Rectangular 6 Amp

Protection Wire Loop

Harness Engine B&S 14 OHV

NOTE: All component dimensions give in U.S_ inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

CHASSIS AND ENCLOSURES

16 29

145

14_...._

4..._.._

13 "_

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 159530

2 140356

3 17490612

4 STD551025

5 155272

6 155923

7 126842X

8 155138

9 156275X0t0

10 STD533710

11 155927

13 155934X010

14 17490608

15 74180512

16 STD541431

17 154988X574

18 126938X

19 17521312

21 122933X

22 124479X

24 STD523710

25 19131312

26 STD541437

27 17O3O814

28 '140137

29 124029X

30 140001X574

31 136619

33 145244X574

34 145243X574

35 STD533707

38 139886

39 139887

71 73680400

100 I05037X

140 158418

145 156524

147 74760412

-- 5479J

Chassis Weldment

Drawbar Stretch

Screw Thdrol 3/8-16 x 3/4 Ty-tt

Washer !3/32 x 3/4 x 16 Ga,

Bumper Hood/Dash

Saddle LT Fiat Fender Shift

Shield Ht Hood Kohl/Dia Engine

Clip Retainer Slide On

Dash Silkscreened 1-Pc MoW/Amm

Bolt Carriage 3/8-!6 x 1

Panel Pnt Dash Lh

Panel Slkscr Dash Rh Weldment

Screw Thdrol 318_16x 1/2 Ty*tt

Screw Mach Trhd 5/16-18uncx3/4

Nut Keps 5/16-18 Unc

Hood Asm Pnt Weld MS-574

Bumper Hood

Screw Sltd Hex Hd w/Pl Washer

Rivet Ratchet Nylon

Washer Nylon BIk 28 x 75 x 19

Bolt Fin Hex 3/8-16unc x 1

Washer 13/32 x 13/32 x 12 Ga

Nut Lock 3/B-16 Unc

Screw Lock Spider #8 x 7/8

Grille Black Ms-428

Lens Headlight Bar Clear

Fender Pnt

Bracket Pnt Fender

Footrest Pnt Lh Lt/Y't!Gt 574

Footrest Pnt Rh Lt!Yt/Gt 574

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

Bracket, Asm. Pivot, Loll., Mower Rear

Bracket, Asm. Pivot, R.H., Mower Rear

Nut Crowniock 1/4-20unc

Strip Foam 18"

Bracket, Suspension Front 7 Ga.

Rod Pivot Chassis/Hood

Bolt Hex Hd 1/4-20unc x 3/4

Plug Button Blk 359 Dia

NOTE: AUcomponent dimensionsgiven inU 3o inches

1 inch = 25.4 mm

REPAIR PARTS

DRIVE

TRACTOR - - MODEL NUMBER 917.258473

87 18

52 6

42-,...,.

42-...

39 _..

121

)i 48

118

REPAIR PARTS

DRIVE

TRACTOR - - MODEL NUMBER 917.258473

KEY

NO.

PART

NO.

146682

123666X

12000028

12! 520X

17490512

141O03

76020416

t05701X

19151216

74550412

STD551125

74490544

7478O616

STD541437

106933X

130804

STD541237

106888X

STD551037

STD561210

145204

124236X

130807

127275X

STD 523107

155071

120183X

STD551 O62

STD571810

123674X

STD523727

4-470J

•154777

19131312

127783

154604

123205X

DESCRIPTION

Transaxle, (See Breakdown) Dana,

Model 4360-113

Spring, Extension, Brake

Pulley, Transaxle

Ring, Retainer

Strap, Torque

Screw, Thd, Roll. 5/16-18 x 3/4

Rod, Shift

Pin, Cotter

Washer, Shift Plate

Washer 15/32 x 3/4 x 't6 Ga.

Bolt 1/4_28 UNF Grade 8 W/Patch

Washer

Bolt Hex Flghd 5/16 - 18 Gr. 5

Bolt Fin Hex 3/8-16unc x I Gr. 5

Nut Lock Hex W/Ins 3/8-16 UNC

Knob

Rod, Brake

Nut

Spring, Brake Rod

Washer

Rod, Parking Brake

Cap, Parking Brake, Red

Bracket, Transaxle

Keeper, Belt, L°H.

Bolt

Shaft Assembly, Foot Pedal

Bearing, Nylon

Washer

Rol! Pin

Pu}ley, Idler, Flat

Bolt

Spacer, Split .395 x °59

Keeper, Belt, Idler

Washer 13/32 x 13/16 x 12 Gauge

Pulley, Idler, V-Groove, Plastic

Bellcrank Assembly

Retainer, Belt

KEY PART

NO, NO. DESCRIPTION

50 STD5237t5

51 STD541437

52 STD541431

53 t05710X

55 105709X

56 STD523712

57 13O801

58 127274X

59 t40312

6I 17490612

62 8883R

63 14O186

64 71170764

65 STD551143

66 154778

70 134683

72 19132012

74 109502X

75 121749X

76 STD581075

77 123583X

78 t21748X

80 131488

81 156043

82 123782X

83 19171216

84 132182

85 150360

86 71208

87 19212016

88 12000008

89 139964

9O 124346X

116 7211O610

118 154774

121 154419

Belt

Nut

Nut, Crownlock 5/16-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt, Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, R.H.

Keeper, Belt, Center Span

Screw, Thd., Roll 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Gr_5

Washer

Keeper, Belt, Engine

Guide, Mower Drive Belt, R.H,

Washer 13/32 x 1-1/4 x 12 Gauge

Spacer, Axle

Washer 25/32 x 1-i/4 x 16 Gauge

E-Ring

ey, Square 2.0 x .1845/.1865

Washer 25/32 x t-5/8 x 16 Gauge

Arm, Shift

Shaft Assembly

Spring, Torsion

Washer 17/32 x 3/4 x 16 Gauge

Tie Rod

Nut, Lock Center 1/4 - 28 FNTHD

Bushing, Pivot

Washer

E-Ring

Console, Shift, 6 Speed, N/Ignition

Nut, Self-Threading, Washer Hd 1/4

Bolt Rdhd Sq Neck 3/8-16 x 125

Spacer Bellcrank

Nyliner Clutching STL

NOTE: All component dimensions given in U.So inches

1 inch = 25°4 mm

REPAIR PARTS

STEERING ASSEMBLY

TRACTOR - - MODEL NUMBER 917.258473

-'7_-'_38

(fo_ _...,._

!__b,

3_----_._3

REPAIR PARTS

STEERING ASSEMBLY

TRACTOR -- MODEL NUMBER 917.258473

KEY PART

NO, NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

•1t STD551137

13 '154779

15 739O1OOO

17 156545

18 57O79

19 124035X

20 126684X

22 712O0410

23 127501

25 1544O6

26 126847X

27 136874

28 19131416

29 17490812

3O STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD541537

41 104820X

42 124417X

43 121749X

46 121232X

47 6855M

53 73680600

62 156593

65 154780

66 154404

67 74781044

68 154429

69 160367

70 74780636

Wheel Steering Std Black

Axle Asm Stamped Drooped Stl

Spindle Asm Lh

Spindle Asm Rh

Bearing Race Thrust Harden

Washer 25/32 x I 5/8 x 16 Ga

Washer 27132x 1 1/4 x 16 Ga

Ring Klip #t5304-75

Bearing Cot Strg Bik

Link Drag Extended Stamped

Washer Lock Hvy Hlcl Spr 3/8

Bearing Axle STLT/GT

Locknut Flange 518-11 Unc

Shaft Asm Strg 5/8 x 15 19 Lt

Washer Thrust 515 x 750 x 033

Support Shaft

Washer Shim 1/4 x 5/8 x 062

Screw Hex Socket 1-4-20 x 5/8

Shaft Asm Pittman

Bracket Steering

Bushing Rod Tie BIk Lt

Gear Sector

Washer 13/32 x 7/8 x 16ga

Screw Thdrol 3/8-16x3/4 Ty-tt

Pin Cotter 1/8 x 3/4 Cad

Rod Tie Wire Form I9 75 Mech

Bushing Strg 5/8 Id Dash

Screw TT #10-32 5 3/8 Flange

Insert Cap Strg Wheel Std Blk

Washer 13132x 2-3/8 x 8 Ga

Nut Lock Center 3/8-24unf

Adaptor Wheel Strg 640/635id

Boot Shaft Steering

Washer 25/32 x I 1/4 x 16 Ga

Cap Spindle Fr Top BIk

Fitting Grease

Nut Crowntock 3/8-16unc

Kit Steering Assembly

Spacer Axle

Bearing Arm Pittman

Bolt Fin Hex 5/8-1 lunc x 2-3/4

Brace Axle

Spacer Brace Axle

Belt Fin Hex 3/8-16unc x 2-1/4

NOTE: Al! component dimensions given in UoS. inches

1 inch = 25.4 mm

REPAIR PARTS

SEAT ASSEMBLY

TRACTOR -- MODEL NUMBER 917.258473

'!1

KEY

NO.

PART

NO,

140122

140551

STD523710

19131610

145006

£,TD541437

124181X

1749O616

19131614

155925

121246X

121248X

KEY PART

DESCRIP_ON NO. NO. DESCRIPTION

Seat 3350 Blkiblk Craftsman

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3/4 X 10 Ga

Clip Push In Hinged :

Nut H_.x Lnck w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 Blk Zi

Screw Thdrol 3/8-16 X 1 Ty-tt

Washer 13/32 X 1 X 14 Ga

Pan Pnt Seat (blk)

Bracket Pnt Mounting Switch

Bushing Snap Bik Nyl 50 Id

14 72050412

15 134300

16 121250X

17 123976X

21 153236

22 STD541431

23 74780814

24 19171912

25 127018X

26 STD551150

NOTE:

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Bolt Fin Hex 1/2-13 X 7/8 Gr 5

Washer 17/32 X 1-3/16 X 12 Ga

Bolt Shoulder 5/16-18 X 62

Washer Lock HW Hlcl Spr 1/2

All component dimensions given in UoS_inches.

1 inch = 25_4 mm

REPAIR PARTS

DECALS

TRACTOR - - MODEL NUMBER 917.258473

3 7 7 4 14 16

21 5

KEY PART

NO. NO.

1 156834

3 160304

4 160305

5 150680

6 133644

7 151799

9 128314

10 149516

11 156439

12 4900J

13 146046

14 150678

DESCRIPTION

Decal, Instruction Operat Eng

Decal, Hood Slope Rh Craftsman

Decal, Hood Slope Lh Craftsman

Decal, Grille Craftsman Sip LT Dov

Decal, Maint Customer Sears Dom

Decal, Panel Side

Decal, Fender Craftsman White

Decal, Btry DngdPsn Eng

Decal, Fender Danger Sears FJS

Decal, Clutch/brake Eng

Decal, V-belt Dr Sch Tractor

Decal, Chassis 42" 6sp

KEY

NO.

PART

NO.

160396

14O837

150333

156787

131265

138311

145246

145247

161083

161O84

DESCRIPTION

Decal, Mower Drive Schematic

Decal, Saddle Brake Parking

Decal, Cap Cnsmr Help Line Srs.

Decal, Mower EZ3 Mulching Sears

Decal, Lightbox

Decal, Lift Handle

Pad, Footrest Rbr Sq Generic 95

Fastner Pop In Footrest

Manual, Owner s (English)

Manual, Owner's (Spanish)

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 106222X

4 599O4

5 I06732X427

6 278H

7 9040H

8 106108)(427

9 106268X

10 7152J

!1 104757X

_- *144334

Cap Value Tire

Stem Value

Tire F Ts t5 X 6 0 - 6 Service

Tube inner Front #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing Flange

Rim Asm 8"rear White Service

Tire R Ts 18x9 5_8 Service

Tube Rear 9 5 X 8 Service

Cap Axle Blk i 50 X 1 00

Sealant, Tire (10 oz. tube)

NOTE: All component dimensions given in UoSoinches.

1 inch = 25.4 mm

REPAIR PARTS

ENGINE

TRACTOR - - MODEL NUMBER 917.258473

78 i__

38 78

y¢ .... ,%..

OPTIONAL EQUIPMENT

Spark Arrester

REPAIR PARTS

ENGINE

TRACTOR -- MODEL NUMBER 917.258473

KEY PART

NO. NO. DESCRIPTION

132759

17720410

4 137352

13 272293

14 13280324

15 132O0300

16 STD551237

23 156123

29 137180

31 109202X

32 123549X

33 123487)(

35 17490512

37 137040

38 ......

40 124028X

44 17490412

46 19091416

62 STD551131

72 71O70512

78 17490620

81 128861

Control Throt Rh Blk Pd115 t0

Screw Hex Thd Cut 1!4-20x5/8 T

Engine (See Breakdown) B&S Model

28N707-0173-01

Muffler Exhaust B&S Lt

Gasket I 313 ld Tin Plated

Nipple Pipe 3/8 Npt X 3"

Elbow Std 90 Degree 3/8d 8 Npt

Washer Lock Ext Tooth 3/8

Shield Browning

Arrestor Spark

Tank Fuel I 25 Fr

Cap Asm Fuel Wlsym Vented

Clamp Hose BIk

Screw, Thdrol 5/16-18 x 3!4 Tyt

Line Fuel 20"

Plug Oil Drain (Order From Engine

Manufacturer)

Bushing Snap NyI BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20x3/4

Washer 9/32 X 7/8 X 16ga

Washer Lock Hvy Hlcl Spr 5/16

Screw Hexhd Cap 5116-18x3/4

Screw Thdrol 3/8-16xl -1/4 Tytt

Nut Flange 1/4-20 Starter Nut

NOTE: All component dimensions given in U,Soinches

1 inch = 25.4 mm

REPAIR PARTS

LIFT

TRACTOR -- MODEL NUMBER 917.258473

13 _---0_

161718 20

REPAIR PARTS

LIFT

TRACTOR -- MODEL NUMBER 917.258473

KEY PART

NO. NO. DESCRIPTION

1 159460

2 159474

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

t2 139866

13 STD624008

15 127218

16 73350600

17 130171

18 73800800

19 139868

20 STD624008

31 140302

32 73540600

Washer Asm Inner Spring W/

Plunger

Shaft Asm. Lift

Pin Groove

E Ring #5133-62

Washer 21/32 x I x 21 Ga_

Bearing Nylong

Grip Handle Fluted

Button Plunger Read

Link Asm Lift LH,,

Link Asm Lift Roll.

Retainer Spring

Link Front

Nut Jam Hex 112-13 Unc

Trunnion BIk Zinc

Nut Lock W!VVsh 1/2-13 Unc

Arm Suspension Mower

Retainer Spring

Bearing, Pvt. Lift. Spherical

Nut Crownlock 3/8-24

NOTE: Ali component dimensions given in UoSoinches

1 inch = 25,_4mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

MOWER

76 77

""4O

-_-132

105

103 •

,18

REPAIR

MOWER

PARTS

TRACTOR - - MODEL NUMBER 917.258473

KEY PART

NO. NO.

1 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

'12 129895

13 137645

14 128774

15 t10485X

16 140329

17 7211O610

18 72140505

t9 132827

20 136888

21 STD541431

22 134753

23 131267

24 105304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 STD55t037

40 STD541437

41 133551

43 140083

44 140088

45 STD624003

46 137729

48 133944

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Housing 49

Bolt 50

Bracket Assembly,Sway Bar, Front 51

Bracket Assembly, Sway Bar 52

Retainer Spring 53

Arm, Suspension, Rear 54

Bolt, Hex 3/8-24 x 1.25 Grade 8 55

Washer, Lock 56

Washer, Hardened 58

Blade, Mulching 59

Bearing, Ball 67

Shaft Assembly, Mandrel, Vented 68

(Includes Key Number 6) 71

Housing, Mandrel, Vented 72

Bearing, Ball, Mandrel 73

Stripper, Vented Mower Deck 74

Bolt, Carriage 3/8-16 x 2-1/4 75

Bolt, Carriage 5/16-18 x 5/8 76

Bolt, Shoulder 77

Baffle, Vortex 78

Nut, Crownlock 5/!6-18 UNC 79

Stiffener Bracket 80

Bracket, Deflector 81

Cap, Sleeve 82

Spring, Torsion, Deflector 83

Nut, Push 84

Shield, Deflector 85

Washer 11/32 x 5/8 x 16 Gauge 92

Rod, Hinge 101

Screw Thdrol Rolling Washer Head 102

Washer, Spacer 103

Pulley, Mandrel 104

Nut, Toplock, Flanged 105

Bolt 106

Fastner, Christmas Tree 128

Pulley, Idler, Flat 132

Washer 13/32 x 13/16 x !6 Ga. - -

Nut, Crownlock 3/8-16 UNC

Rod, Pivot, with Nibs - -

Rod, Clutch, Secondary, with Nibs

Guard, Mandrel, Loll.

Retainer

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

155066

13134O

STD541410

139888

131845X900

133943

155O46

122052X

140086

141043

149846

144200

142427

131870

127847

121748X

120O0029

1289O3

127845

154810

127498

153701

73350600

142O28

120958X

156084

72140618

STD541437

136420

71161010

19O61216

10O71OO0

160793

2029J

153390

19132203

130794

145411

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes 42"

Guard, Tuv Idler (94)

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1_5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/84 6 UNC x 1o44

Keeper, Spring

Arm, Clutch, Primary

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 UNC

Trunnion Adj_94

Washer Sintered

Keeper Belt Idler

Bolt Carriage 3/8q6 x 2-1/4

Locknut, Hex W/Wsh 3/8-16 UNC

Cover Mulching 42" Biack

Screw Truss Head Phil 10-24 x 5/8

Washer #10

Washer Lock #10

Latch Asm Bagger

Nut Weld

Washer Felt

Washer 13/32 x t-3/8 x 3 Ga.

Mandrel Assembly (includes Key

Numbers 840, 12-15, 31 and 32)

Mower Deck, Complete (Std deck -

order separately mulcher plate

components key nos. t01-106)

NOTE: All component dimensions given in UoS, inches

1 inch = 25°4 ram.

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.258473

DANA TRANSAXLE- MODEL NUMBER 4360-113

11.

REPAIIR PARTS

TRACTOR-- MODEL NUMBER 917.258473

DANA TRANSAXLE - MODEL NUMBER 4360-113

KEY PART KEY PART

NO. NO, DESCRIPTION NO, NO. DESCRIPTION

1 160939

2 2274J

3 134400

4 105904X

5 160940

6 138235

7 108727X

8 "148266

9 148269

10 2225J

11 134793

12 148268

13 120415X

14 142674

15 138234

t6 110078X

17 105909X

18 105910X

19 '160942

20 160943

21 148267

22 138236

23 73810500

24 142676

25 2244J

26 105916X

27 120470X

28 110070X

29 142677

3O 142681

31 124644X

32 108980X

33 120406X

34 134796

35 t05925X

36 2228J

37 223tj

38 160944

39 124639X

Housing, Upper 40 120472X

Screw, Tapping, 1/4-20 X .734 4! 105928X

Ball, Detent 42 110084X

Spring, Detent 43 134394

Screw, Tapping, No. 10-24 X .482 44 120473X

Assy, Shifter 45 142678

V-Ring 46 143697

Bearing, Flange 47 124641X

Seal, Oil 48 106589X

Ring, Retaining 49 120408X

* Assy, Kit, Shim, .625 Shaft 50 105937X

Bearing, Flange 51 2226J

Washer, Plain, .632 X 1.38 X .046 52 134401

Key, Woodruff, No. 9 53 2264J

Assy, Kit, Input Shaft 54 160946

Pinion, Bevel, 14T 55 110081X

Ring, Retaining 56 160948

Chain, 24 Pitches 57 t10071X

Cover, Detent 58 t20952X

Gear, Spur, 12T 59 110082X

Collar, ChJtch 60 160950

Assy, Kit, Clutch Keys 61 142680

Nut, Lock, 5/16-24 62 120961X

Shaft, Intermediate 63 7294J

Key, Woodruff, Noo61 64 108989X

Ring, Retaining 65 160952

Sprocket, 18T 66 120954X

Spacer, 1.131 X I_45 X A94 67 160953

Gear, Spur, 37T 68 138244

Gear, Spur, 35T 69 108996X

Gear, Spur, 30T 70 160954

Gear, Spur, 25T 71 120951X

Gear, Spur, 22"1" 72 120416X

Gear, Spur I9T

Washer, Plain, .640 X 1.37 X _061

Washer, Plain, .632 X 1o00X .046

Washer, Plain, °632 X 1.00 X .031

Assy, Gear, Comb., 12T & 30T

Shaft, Idler

Spacer, .633 X .87 X .755

Sprocket, 9T

Gear, Bevel, 42T

* Assy, Kit, Shim, .750 Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 15T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Washer, Plain, _632X 1.00 X .060

Washer, Neoprene

Washer, Plain, o758X 1.25X .031

Axle, LH

Gear, Miter, 15T

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 15T

Axle, RH

Housing, Lower

Puck, Friction

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X 2.35

Lever, Actuating

Washer, P_atn,o321X 1o00X .055

Bracket, Anti-Rotation

Puck, Friction

Grease

NOTE: All component dimensions given in U.Soinches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

230

_614

230 @_

634A

868

635 337

ao7

"JrREQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

1022

166

1029

294_ i,ii,,,ii!....... _102_6

_13

305

1023

022

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

......1'27 138 106-987 95 117 634 634B

i_ 104

5 _ 142

137 147

121 CARBURETOR OVERHAUL KIT

............. i i ii ii ilJli,

iiH i i i

27c-_

_, 1022 _

1033 VALV E OVERHAUL KIT

I IlL I L I1 iii1111111 I1

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

13i ....... ' ...................... o _ . ] 125

___ 611 127 !

ii ii

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

523

284A

3 20 634A 842 524 868 868A

_9 2

.......................... 358 GASKET SET

_524

363

_i I O 138

137

_77CARBUR_ORGAS,KET

SET

668

304

305_ 468

1006

455

467

171

224

334

535

445

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

209

783

801

311

544

8O3

601

1090

REPAIR PARTS

TRACTOR -.. MODEL NUMBER 917,258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

1 496412

2 399265

3 391086

5 495858

7 272614

8 495735

9 27803

10 94621

tl 281246

12 271916

271997

271996

13 94728

15 94239

16 495162

94196

18 494238

20 291675

22 94624

23 492326

32A

222698

49586O

495977

495978

495979

495854

495852

495851

495855

260924

299691

391286

494504

495490

94695

94648

495856

495857

262811

224502

224641

262411

496884

272465

272569

94637

224061

94832

Cylinder Assembly 95

Bearing, Cylinder 98

* Seal, Oil 104

Head, Cytinder 105

*** Gasket, Cylinder' Head 106

Breather Assembly 108

* Gasket, Valve Cover 117

Screw, Sems 118

Tube, Breather 121

* Gasket, Crankcase Cover, ..015" 123

* Gasket, Crankcase Cover, .005" 125

* Gasket, Crankcase Cover, .009" 127

Screw, Cylinder Head 130

Plug, Oil Drain 131

Crankshaft 133

Timing Gear Key 137

Base, Engine 138

* Seal, Oil 141

Screw, Seres, Base Mounting 142

Flywheel and Ring Gear' Assembly, 147

Magneto 164

Key, Flywheel 166

Piston Assembly, Standard Size 171

Piston Assembly, .010" Oversize 187

Piston Assembly, ..020"Oversize 188

Piston Assembly, .030" Oversize 192

Ring Set, Piston, Standard Size 201

Ring Set, Piston, .010" Oversize 209

Ring Set, Piston, .020" Oversize 216

Ring Set, Piston, ,030" Oversize 2t9

Lock, Piston Pin 222

Pin Assy.., Piston, Standard Size 224

Pin Assy., Piston, .005" Oversize 225

Rod Assembly, Connecting 227

Rod Assembly, Connecting, 230

.020" Undersize Crankpin Bore 232

Screw, Hex Washer Head, 1-57/64 238

Screw, Hex Washer Head, 1-5/8 240

Valve, Exhaust 265

Valve, Intake 284

Spring, Valve

Guard, Flywheel

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

**** Gasket, Carburetor (Carburetor to

Elbow) (Also Included in Gasket

Set, Part Number 495993)

*** Gasket, Carburetor

Elbow to Cylinder) '

ud, Carburetor Mounting

Washer, Spring

Screw, Pan Head

94098

495800

231789

231855

231854

22454O

231858

495932

498116

94616

498051

224539

494379

494381

281165

281164

495931

231859

497472

214047

94555

281051

393815

94627

492160

262767

260695

262766

490815

495611

94729

495157

493935

94742

262785

262836

394358

221535

94704

** Screw, Throttle

Screw, Idle Speed

** Pin, Float Hinge

** Valve Float

** Seat, Inlet Valve

Valve, Choke

** Jet, Needle Valve

Valve, Needle

Carburetor Overhaul Kit

Screw, Elbow Mounting

Carburetor Assembly

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft and Lever, Throttle

Float, Carburetor

**** Gasket, Float Bowl

**** Washer, Bowl

Shaft and Lever; Choke

** Nozzle, Carburetor

** Pilot, Jet

Elbow, Carburetor

Stud, Rocker Arm

Nut, Air Cleaner Mounting

Line, Fuel (11" Long, Cut to Suit)

Screw, Seres

Screw Assembly, Rocker Arm

Link, Governor

Spring, Governor

Link, Choke

Gear, Governor'

Plate, Governor Control

Screw, Sems, Air Cleaner

Crank, Governor

Lever Assembly, Governor

Washer, Govemor Crank

Spring, Governor Link

Cap, Valve

Filter, Fuel (In Fuel Line)

Clamp, Casing

Screw, Hex Head

* Included in Gasket Set (495993)

NOTE:

** Included in Carburetor Kit (497535)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

**** Included in Gasket Set (495993), Carburetor' Kit

(497535) and Carburetor Gasket Set (494385)

All component dimensions given in U.S inches

1 inch = 25_4mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917,258473

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

284A 94073 Screw, Hex Head 729A 225170

294 810068 Screw, Set 741 262932

304 496280 Housing, Blower 757 213998

305 94786 Screw, Hex, Head, 758 399891

Blower Housing Mounting 759 298909

306 225020 Shield, Cylinder 761 94593

307 94386 Screw, Cylinder Shield 783 280104

309 497595 Motor, Starter 801 394856

3'10 497602 Bott, Thru 802 497605

311 497608 Brush Set 803 497604

333 495859 Armature, Magneto 842 270920

334 93381 Screw, Seres, Armature Mounting 847 496415

337 491055 Plug, Spark 85t 224110

346 93705 Screw, Hex Head 868 494435

356 497708 Wire Assembly 868A 272610

358 495993 Gasket Set 871 262835

363 19203 Puller, Flywheel 872 281361

383 89838 Wrench, Spark Plug 875 495862

423 94073 Screw, Sems 877 393456

445 493909 Cartridge, Air Cleaner 947 497157

455 222561 Cup, Screen Mounting 965 94010

467 493903 Knob, Air Cleaner 975 495933

468 494439 Screen, Flush Rotating 977 494385

474 393474 Stator, Alternator 987 281166

482 93621 Screw, Sems t005 281400

510 497606 Drive, Starter 1006 224413

523 495230 Cap and Dipstick, Oil Filler 1019 496758

524 68838 * Seal, FillerTube 1022 272475

525 4961!3 Tube, Oil Filler 1023 224552

535 272403 Element, Filter 1026 494432

537 281106 * O-Ring, Air Cleaner 495I36

544 497603 Armature. Starter 1029 224554

552 231597 Bushing, Governor Crank 1033 495992

562 92613 Bolt, Carriage 1034 495248

592 231082 Nut, Hex 1044 94673

60! 93053 Clamp, Fuel Pipe 1054 270723

611 493496 Elbow, Fuel Pipe 1058 272623

614 93306 Pin, Cotter t090 497607

618 262803 Spring, Choke Return

634 281168 ** Seal, Choke Shaft

634A 491323 * Seal, Governor

634B 281167 ** Washer, Throttle Shaft

635 280872 Boot, Spark Plug

646 224546 Brace, Air Cleaner

657 93496 Screw, Sems

663 94620 Screw, Self-Tapping

668 280848 Spacer

718 230192 Pin, Dowel

726 392134 Gear, Ring

[Includes Mountinq Hardware)

727 490324 Cover, Starter

728 94627 Screw, Hex Head

729 281390 Clip, Wire

Retainer, Wire

Gear. Timing

Link, Counterweight

Counterweight Assembly

Pin, Counterweight

Screw, Counterweight

Gear, Starter

Cap, Drive

Cap, End

. Housing, Starter

Seal, Oil Filler Cap

Fill Group, Oil

Terminal, Ignition Cable

*** Seal Assembly, Valve

*** Gasket, Valve

Bushing, Guide (Intake & Exhaust)

Cover, Air Cleaner

Body, Air Cleaner

Diode and Connector Assembly

Solenoid

Nut, Hex

Bowl Assembly, Carburetor

Carburetor Gasket Set

** Seal. Throttle Shaft

Fan, Flywheel

Retainer, Fan

Label Kit

*** Gasket, Cover

Cover, Rocker Arm

Rod, Push, Intake

Rod, Push, Exhaust

Arm, Rocker

Valve Overhaul Kit

Guide Assembly, Push Rod

Screw, Hex Head

Tie, Cable

Manual, Owner's

Retainer, Brush

RPM Settings: Low: 1650-1850, High: 3200-3400

* Included in Gasket Set (495993)

** included in Carburetor Kit (497535)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

.... included in Gasket Set (495993), Carburetor Kit

(497535) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in US. inches

1 inch = 25_4 mm

ViCE NOTES

IJILIii iiiiiii iii,i,i

SEI

NOTES

LI LI UIIIIIII lJllll{lll II:IIII I

/ 58

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING "'......CUT

GUIDE TH'_

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15 ° MAX.

OWNER'S

MANUAL

MODEL NO.

917.258473

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

£RAFTIMAN ®

15.5 HP IC

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Each tractor has its own model number, Each engine has

its own model number'.,

The modet number for your tractor witt be found on the

model plate located under the seat.

The model number for your engine will be found on the

blower housing of the engine_

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tai{ Stores,

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

- PRODUCT - TRACTOR

° MODEL NUMBER - 917.258473

,, ENGINE MODEL NO, - 28N707, TYPE NO. 0173-01

• PART NUMBER

• PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians .... professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

161083 6_12.97

II I IIIIIIII

JH Pdnted in UoS.A,,

II IIIlUUlIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIHill

Craftsman 917258473 tractor

Product's Documents

User Manual

Specifications

Craftsman 917258473 Questions and Answers
