Craftsman 917259830 tractor User Manual

DEL

917.25983(}

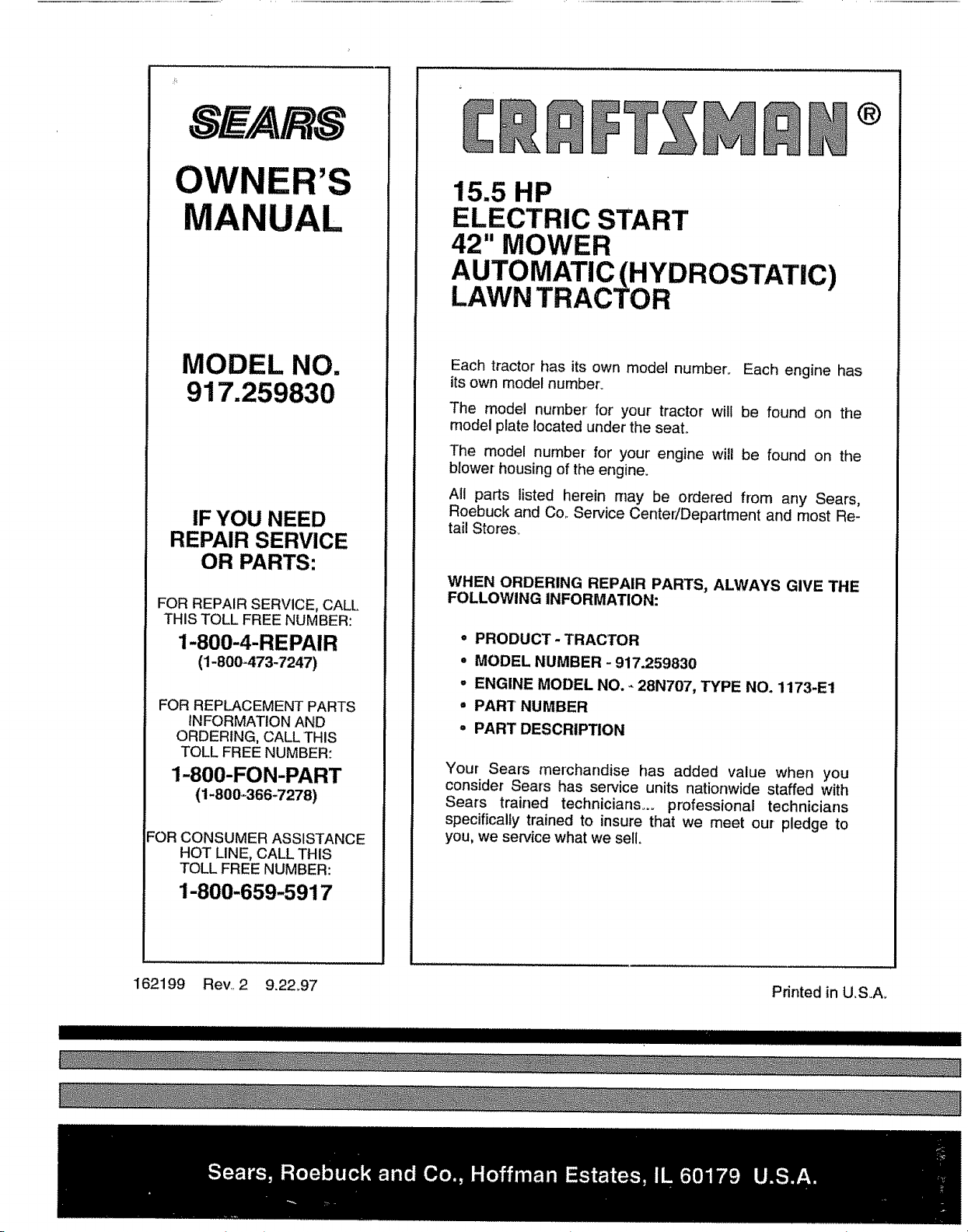

OWNER'S MANUAL

° Assembly

° Operation

Customer Responsibilities

° Service and Adjustments

Repair Parts

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Hetp Line

5 am - 5 pm, Mon- Sat

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800_659-5917

........ ml ......................................................................................I'1 ...........................................................................

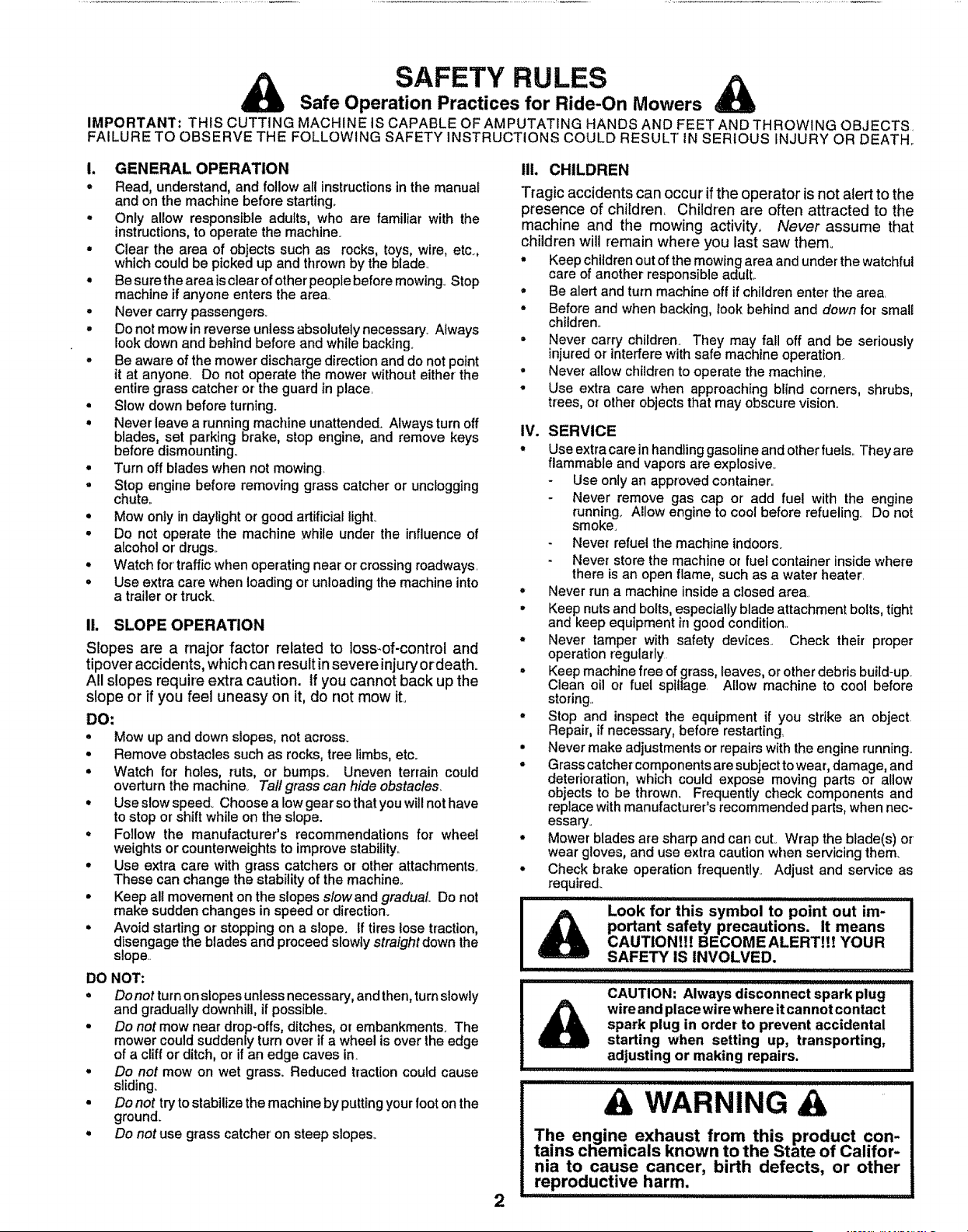

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH,.

!. GENERAL OPERATION

o Read, understand,and follow all instructionsinthe manuai

and onthe machine before starting°

• Only allow responsibleadults, who are familiar with the

instructions,to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc..,

whichcouldbe pickedupand thrownby the blade.

° Besure theareaisclearofotherpeoplebefore mowing..Stop

machineif anyone entersthe area.

° Nevercarrypassengers.

• Do notmowinreverseunlessabsolutelynecessary_Always

look down and behind before and while backing.

o Be awareof the mower discharge direction and do notpoint

it at anyone. Do not operate the mower withouteitherthe

entiregrass catcheror the guardin place,

• Slowdown before turning.

° Neverleave a runningmachine unattended.Always turnoff

blades, set parking brake, stop engine, and remove keys

beforedismounting°

• Turnoff bladeswhennotmowing.

• Stop engine before removing grass catcher or unclogging

chute°

• Mow only indaylightor good artificial lighL

• Do not operate the machine while under the influenceof

alcoholor'drugs..

• Watchfor trafficwhenoperatingnear or'crossingroadways.

° Use extra care when loading or unloading the machineinto

a trailerortruck.

U. SLOPE OPERATION

Slopes are a major factor related to Ioss-of-control and

tipover accidents, which carl result in severe injuryordeatho

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow ito

DO:

° Mow up and downslopes, not across.

• Removeobstaclessuchas rocks,tree limbs, etc.

• Watch for holes, ruts, or bumps, Uneven terrain could

overturnthe machine. Ta// grass can hide obstac/es,

• Useslowspeed_Choosea lowgear so thatyouwillnothave

to stop or shift whiteon the slope.

• Follow the manufacturer's recommendations for wheel

weightsor counterweightsto improvestability..

• Use extra care with grass catchersor other attachments.

These can change the stability of the machine°

° Keepall movementonthe slopess/owand graduaL.Do not

make suddenchanges in speed or direction.

• Avoid starting or stopping on a slope. If tireslose traction,

disengagethe blades and proceedslowlystraight down the

slope,.

DO NOT:

° Do not turnonslopesunless necessary, and then,turnslowly

and gradually downhill, if possible.

° Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over ifa wheel is over the edge

of a cliff or ditch, or if an edge caves in_

° Do not mow on wet grass. Reduced traction could cause

sliding.

• Do not try to stabilize the machine by putting your foot on the

ground.

° Do not use grass catcher'on steep slopes.

IlL CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity, Never assume that

children will remain where you last saw them,.

° Keep children out of the mowing area and under the watchful

care of another responsible adult..

° Be alert and turn machine off if children enter the area

° Before and when backing, took behind and down for smaU

children,.

• Never carry children. They may fall off and be seriously

injured or' interfere with safe machine operation.

° Never allow children to operate the machine,

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

° Use extra care in handling gasoline and other fuels,, They are

flammable and vapors are explosive_

Use only an approved container,,

Never remove gas cap or' add fuel with the engine

running, Allow engine to cool before refueling,, Do not

smoke,

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater,

° Never run a machine inside a closed area,,

• Keep nuts and bolts, especiaUy blade attachment bolts, tight

and keep equipment in good condition.

• Never tamper with safety devices° Check their proper

operation regularly

° Keep machine free of grass, leaves, or other debris build-up

Clean oil or fuel spillage, AHow machine to cool before

storing..

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting

• Never make adjustments or repairs with the engine running_

° Grasscatcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown, Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

° Mower blades are sharp and can cuL Wrap the blade(s) or

wear gloves, and use extra caution when servicing them,

• Check brake operation frequently, Adjust and service as

required.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTIONH! BECOME ALERTHt YOUR

SAFETY IS INVOLVED.

cAuTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs,

UlttitllL I' II

A WARNING A

The engine exhaust from this product con-

tains cl'iemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

CONGRATULATIONS on your purchase of a Sears

Tractor,, It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service Center/Department. We have competent, well-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual.. The instructions will

enable you to assemble and maintain your tractor properly

Always observe the "SAFETY RULES".

MODEL

NUMBER 917.259830

SERIAL

NUMBER

DATEOFPURCHASE

THE MODELAND SERIAL NUMBERSWILL BE FOUND

ON A PLATE UNDER THE SEAT,

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE_

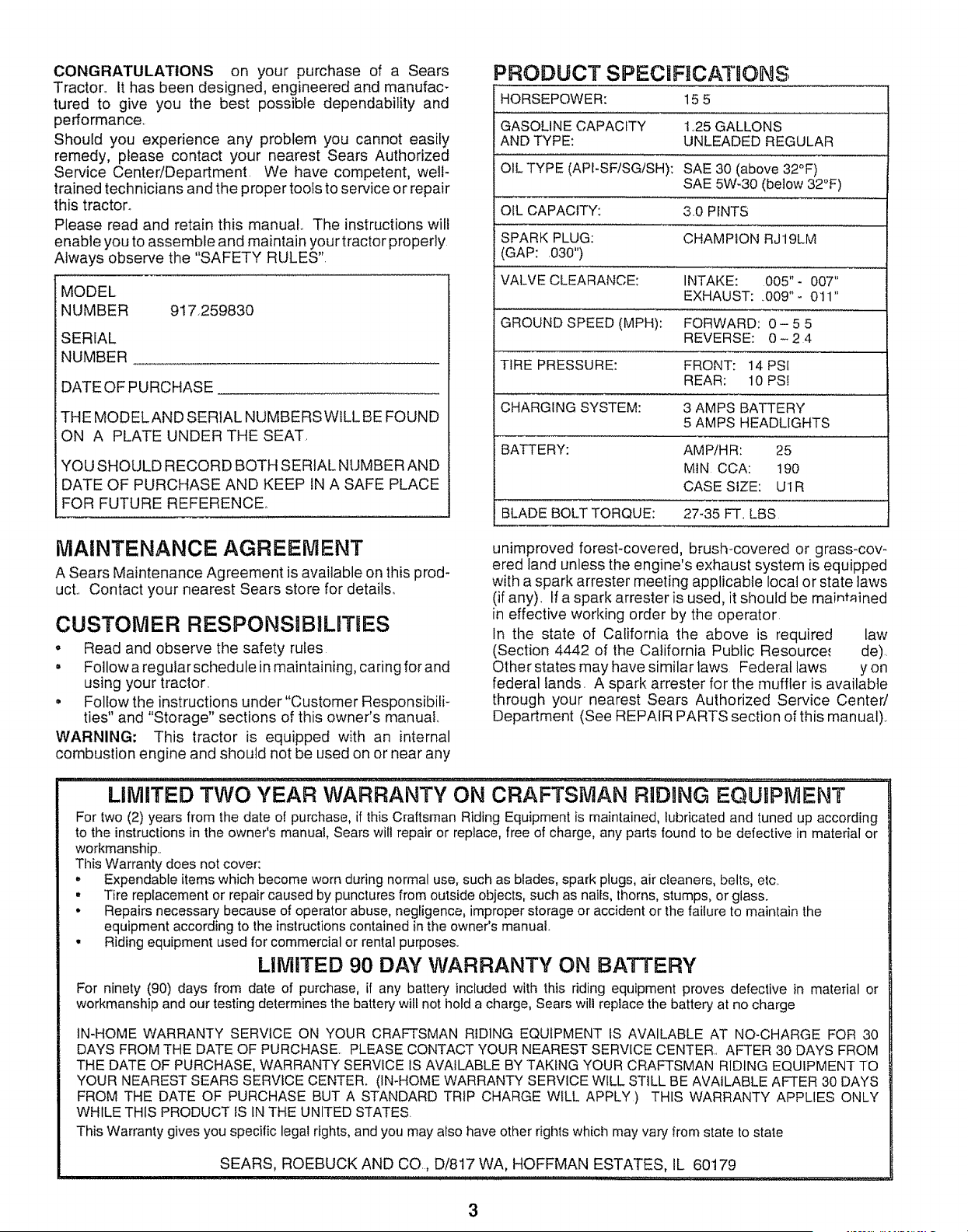

PRODUCT SPECIFICATIONS

HORSEPOWER:

GASOLINE CAPACITY

AND TYPE:

OIL TYPE (API-SF/SG/SH):

155

1,,25 GALLONS

UNLEADED REGULAR

SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3,,0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: ,030"}

VALVE CLEARANCE: INTAKE: 005" - 007"

EXHAUST: ,009"- 011"

GROUND SPEED (MPH): FORWARD: 0 - 5 5

REVERSE: 0-24

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PS!

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMPiHR: 25

MIN CCA: t90

CASE SIZE: UIR

BLADE BOLT TORQUE: 27-35 FT, LBS

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct. Contact your nearest Sears store for details_

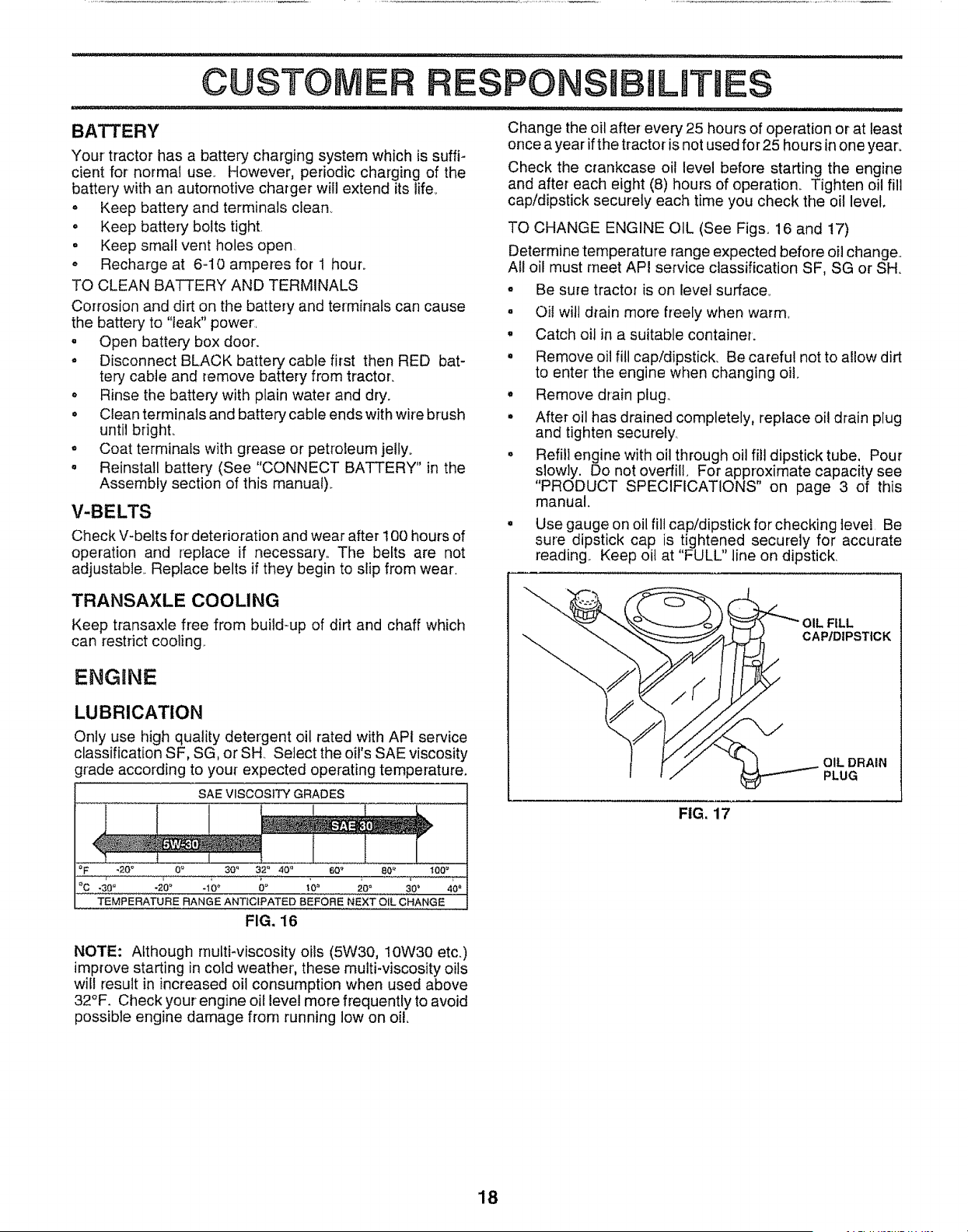

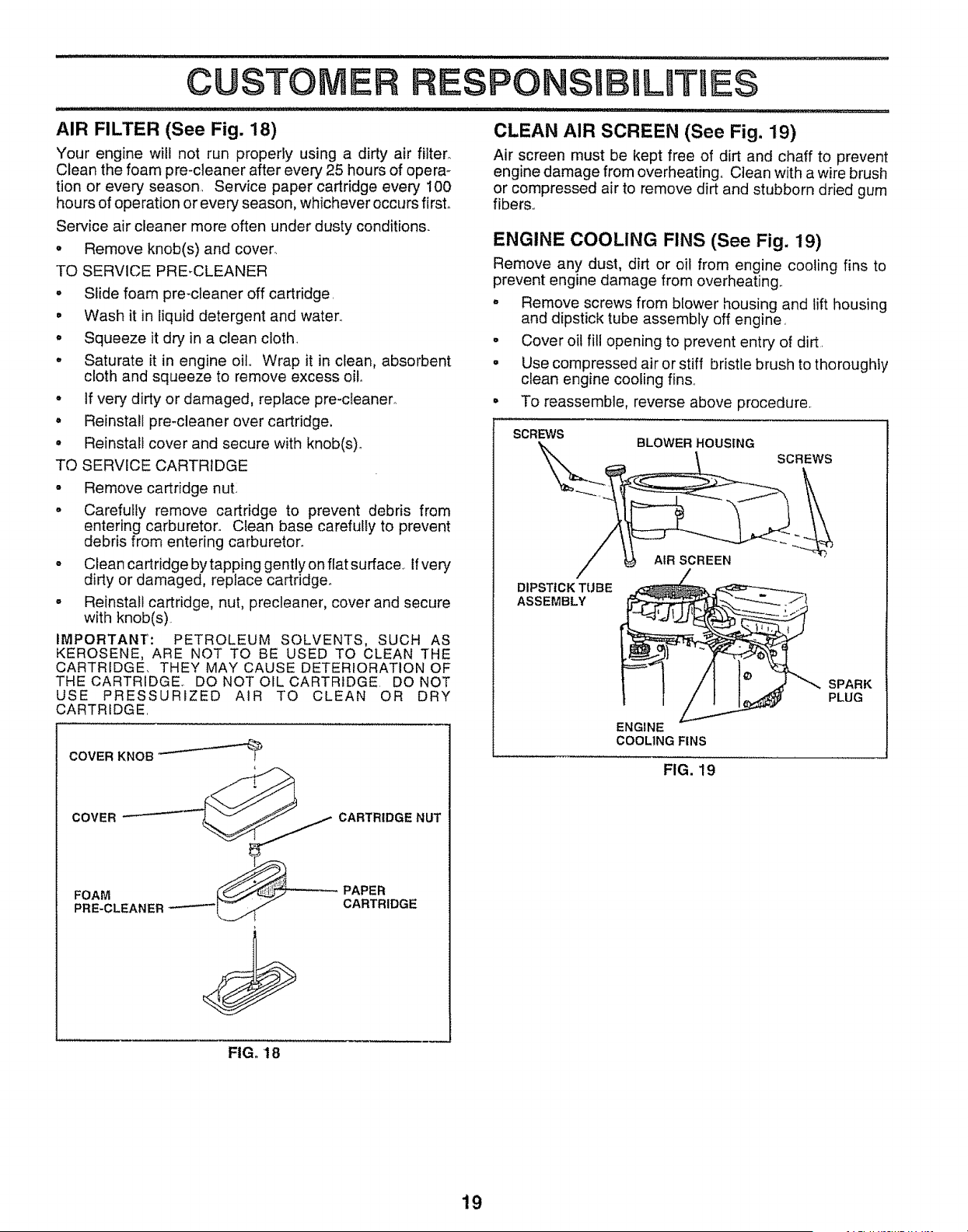

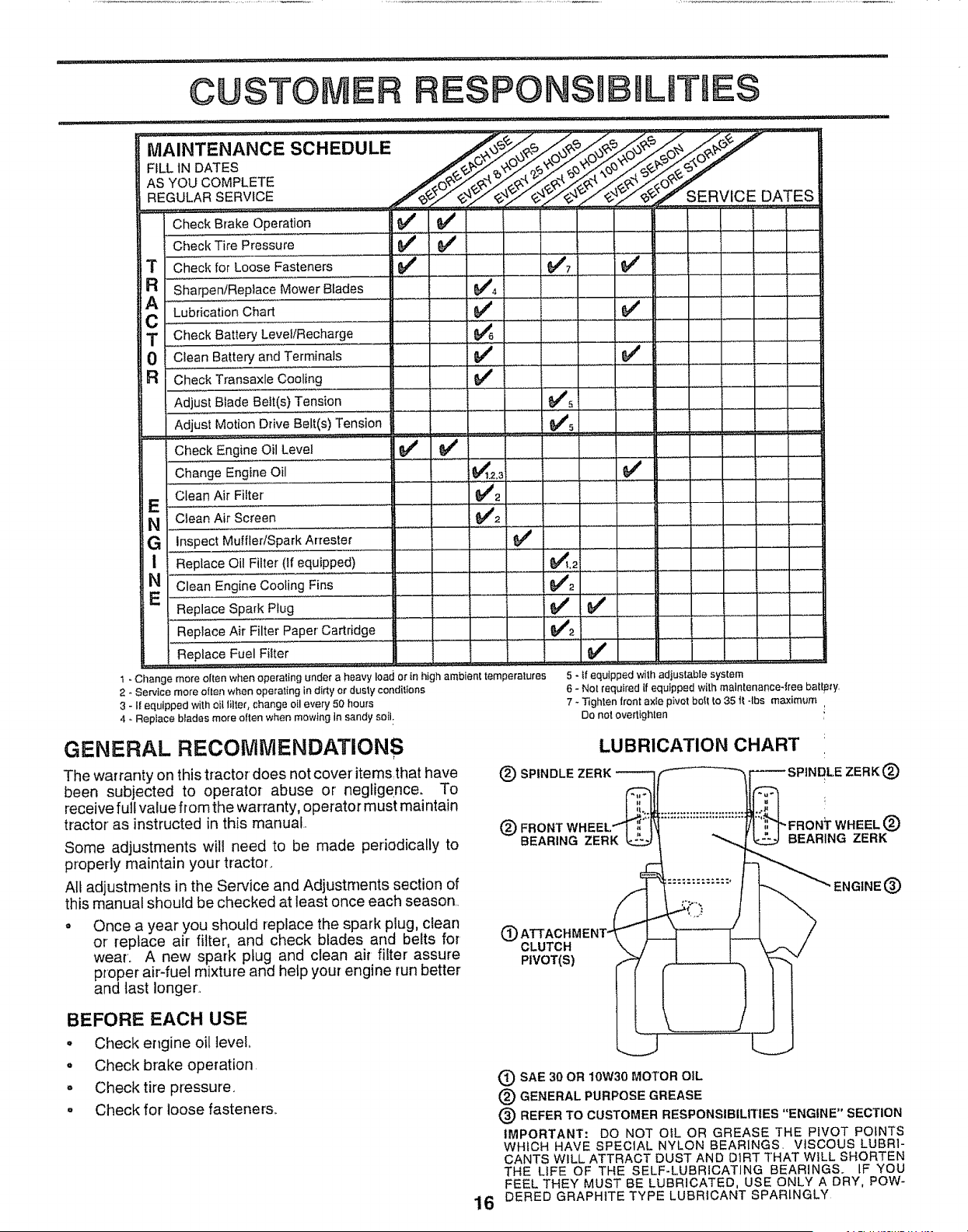

CUSTOMER RESPONS BIUTRES

', Read and observe the safety rules

• Follow a regular schedule in maintaining, caring for and

using your tractor

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual°

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any)., tf a spark arrester is used, it should be maintained

in effective working order by the operator

In the state of California the above is required law

(Section 4442 of the California Public Resource,, de).

Other states may have similar laws Federal laws y on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual)_.

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDaNG EQUUPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship

This Warranty does not cover:

, Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual.

° Riding equipment used for commercial or rental purpose&

LiMiTED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery wilt not hold a charge, Sears will replace the battery at no charge

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT iS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER,, AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER. (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY) THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT tS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

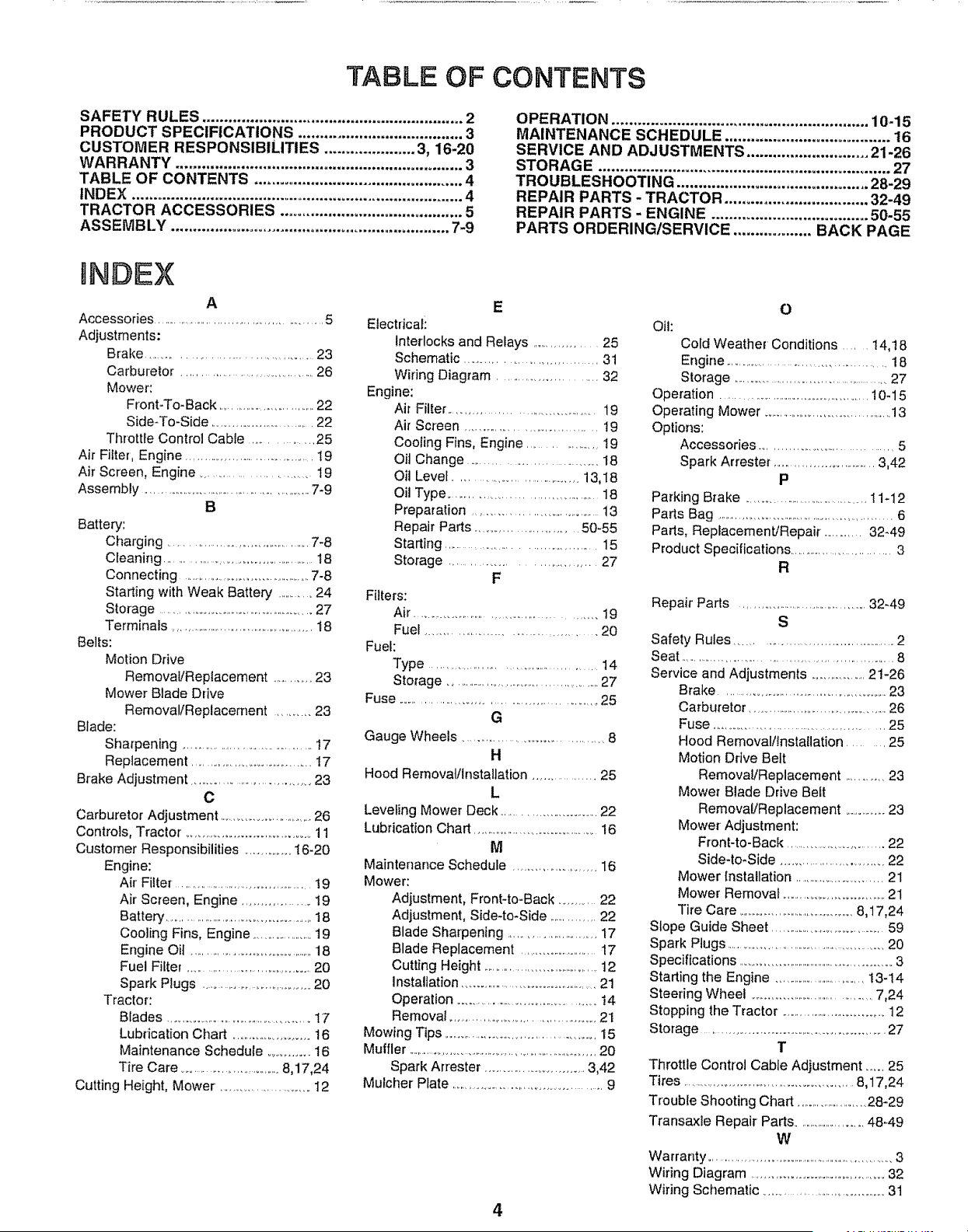

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 16-20

WARRANTY .................................................................. 3

TABLE OF CONTENTS ................................................ 4

INDEX ............................................................................4

TRACTOR ACCESSORIES .......................................... 5

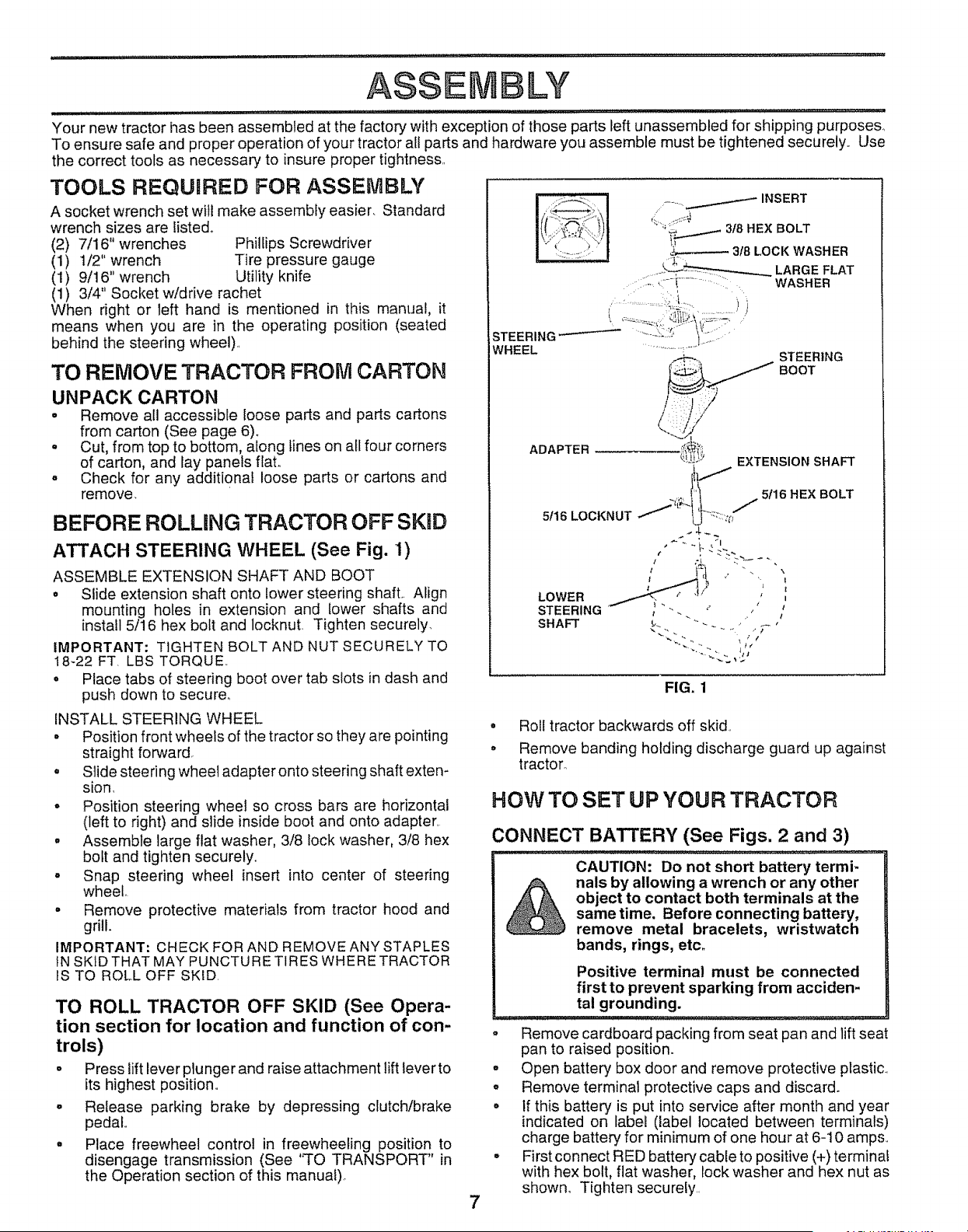

ASSEMBLY ................................................................ 7-9

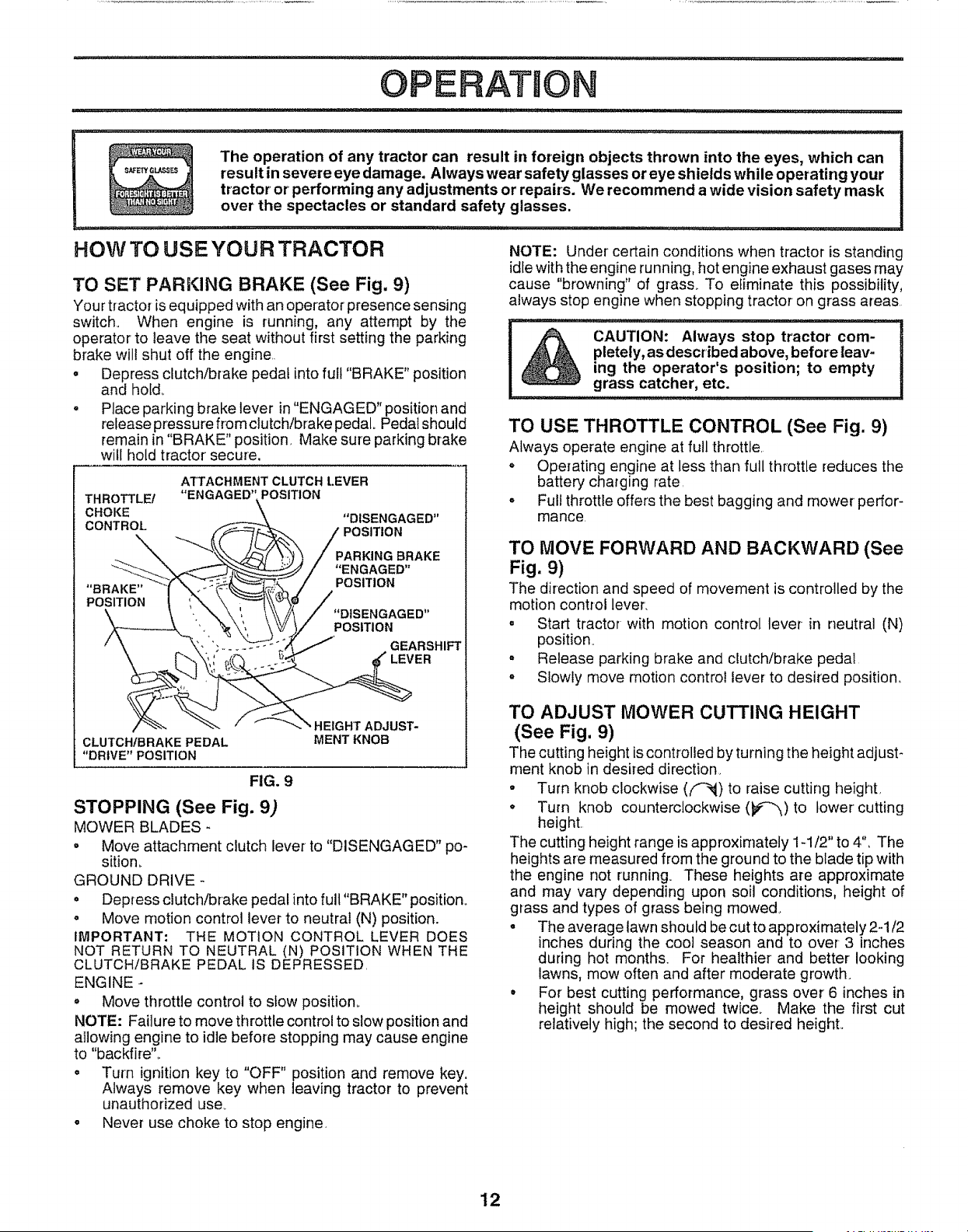

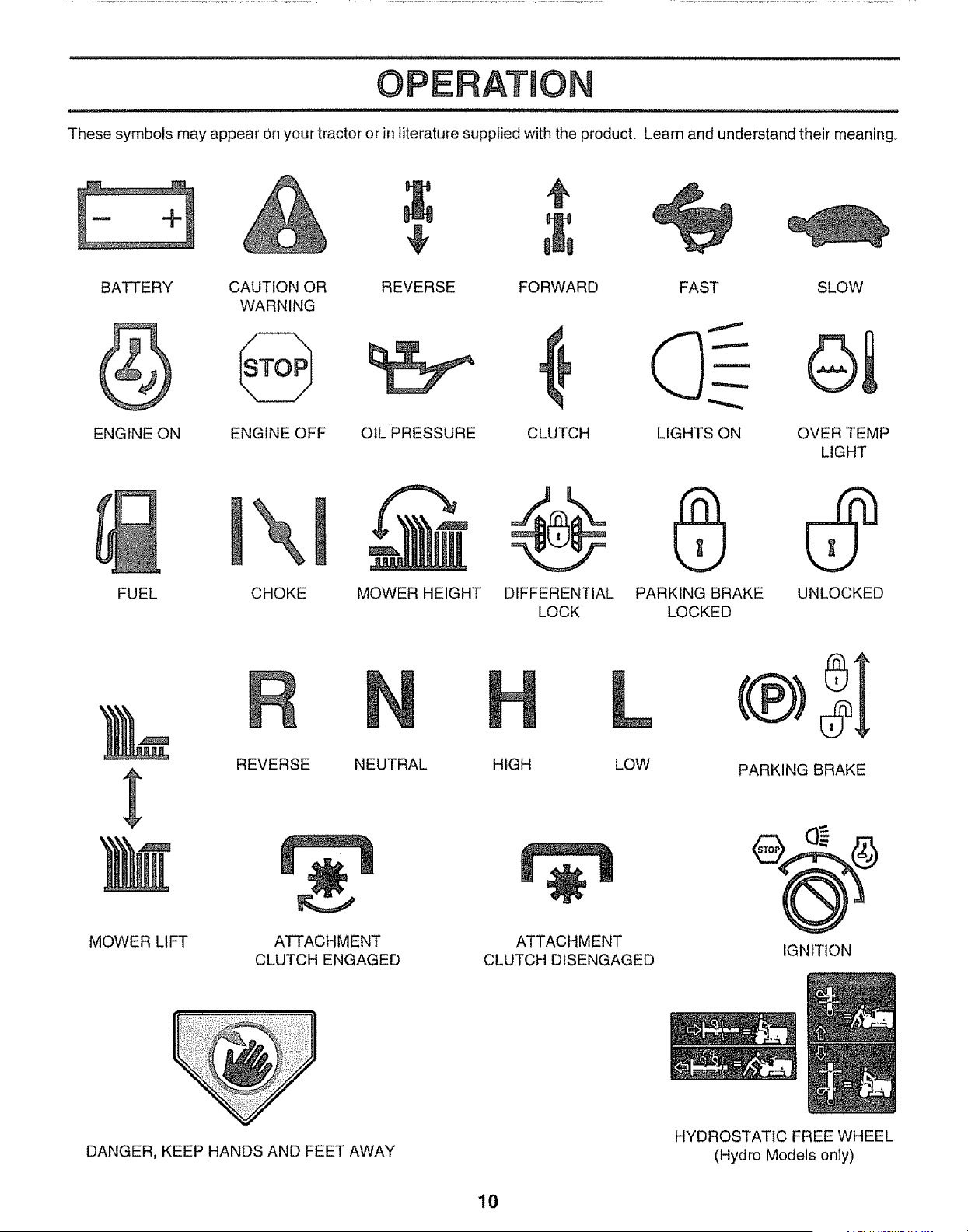

OPERATION ........................................................... 10-15

MAINTENANCE SCHEDULE ...................................... 16

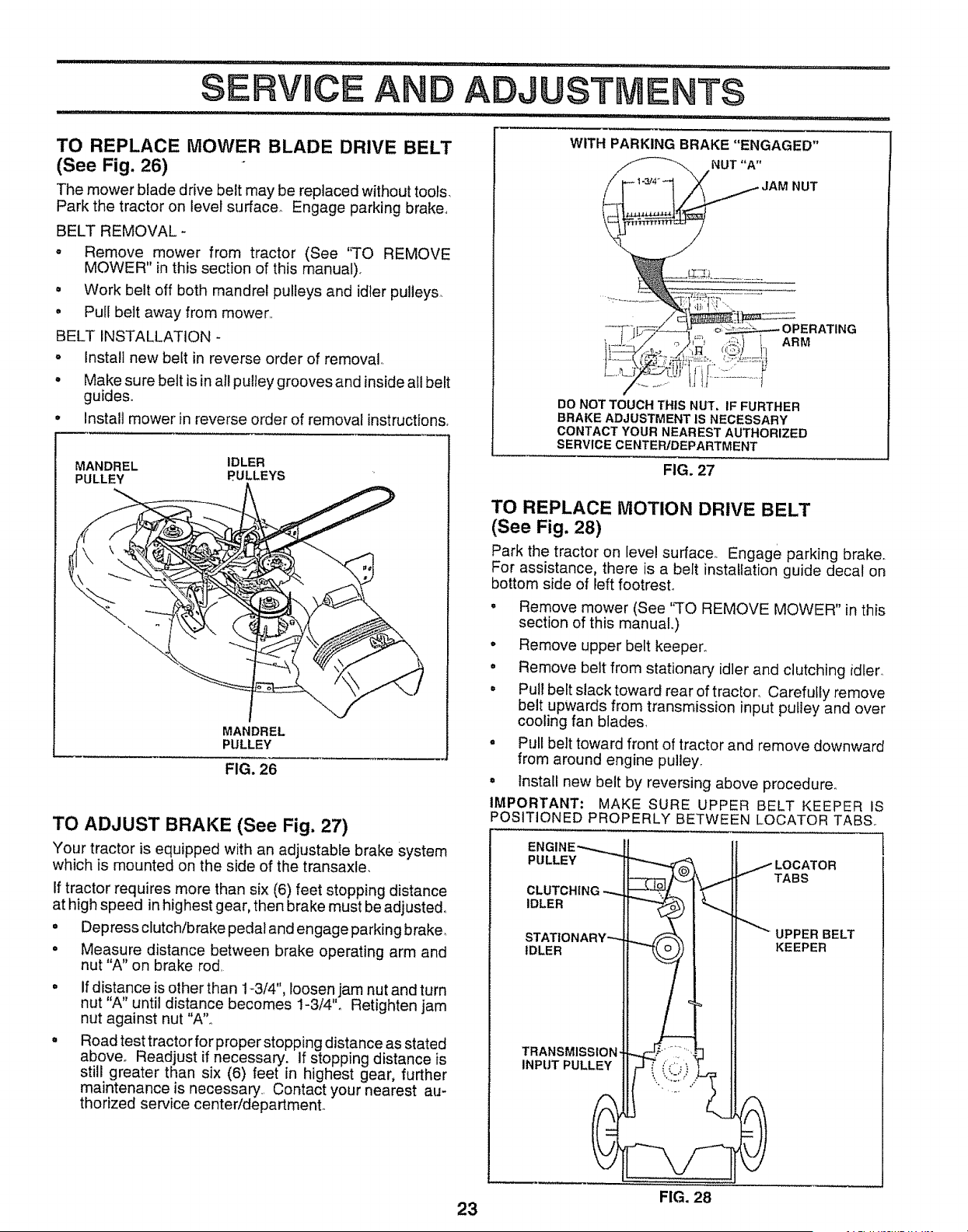

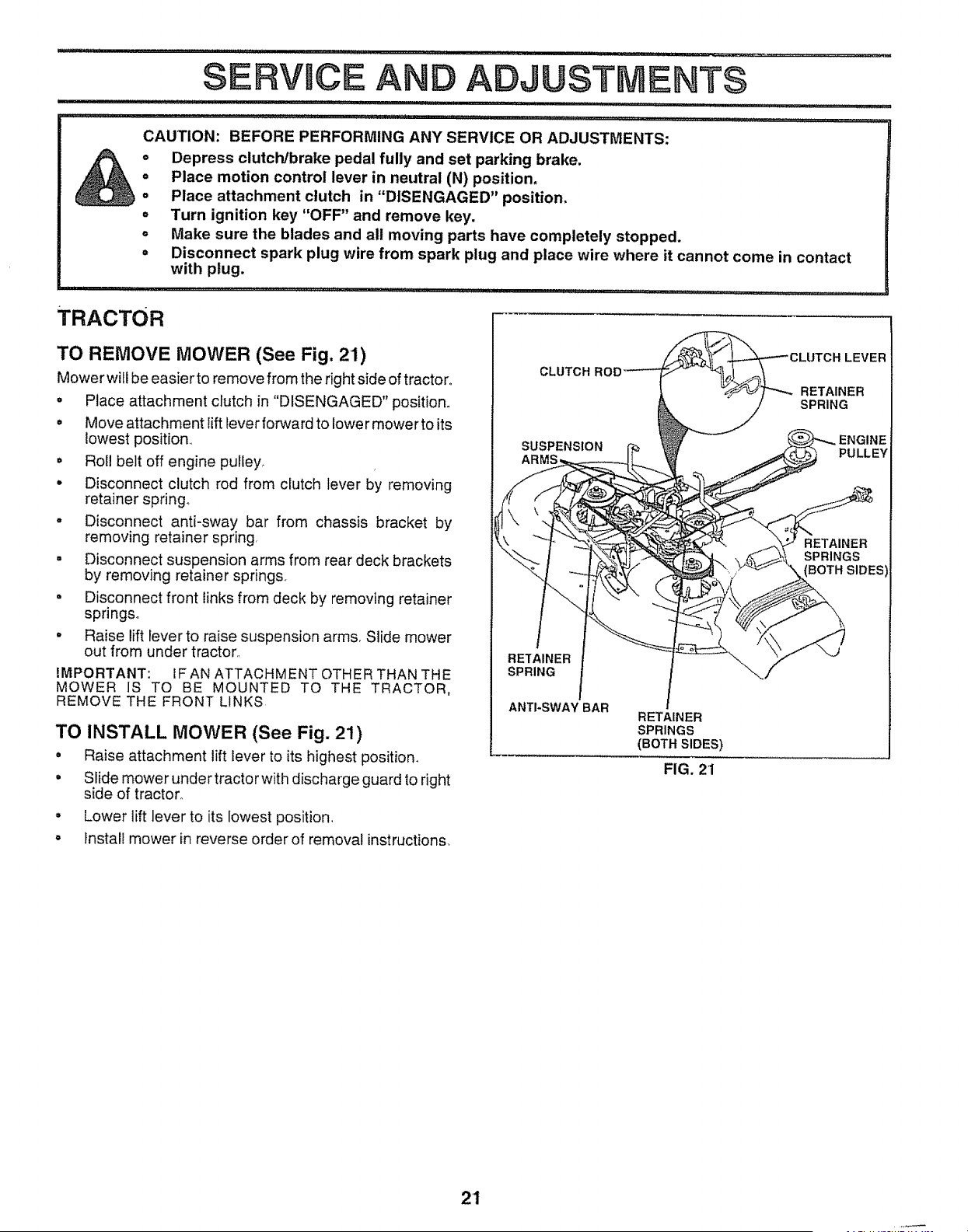

SERVICE AND ADJUSTMENTS ............................ 21-26

STORAGE ................................................................... 27

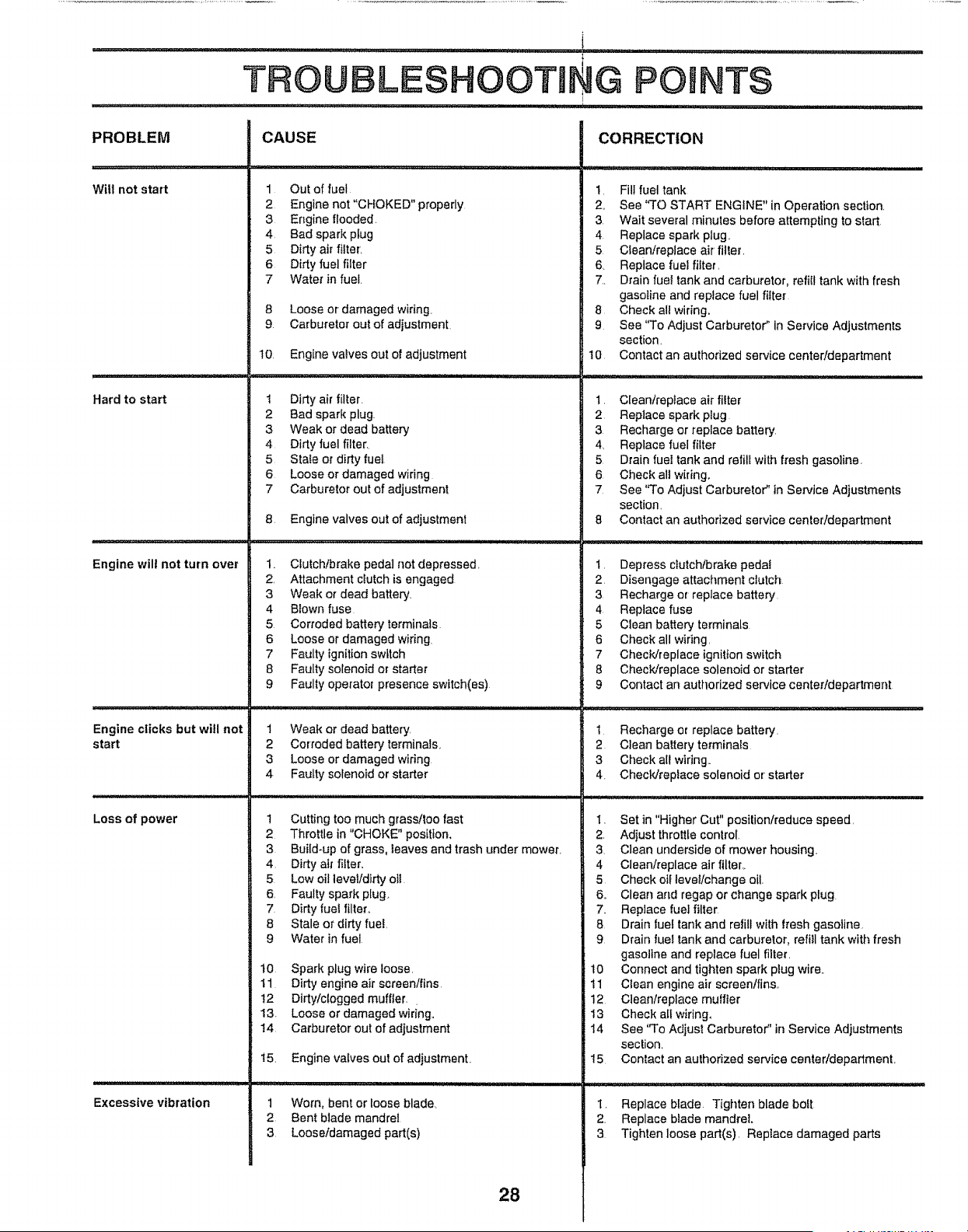

TROUBLESHOOTING ............................................ 28-29

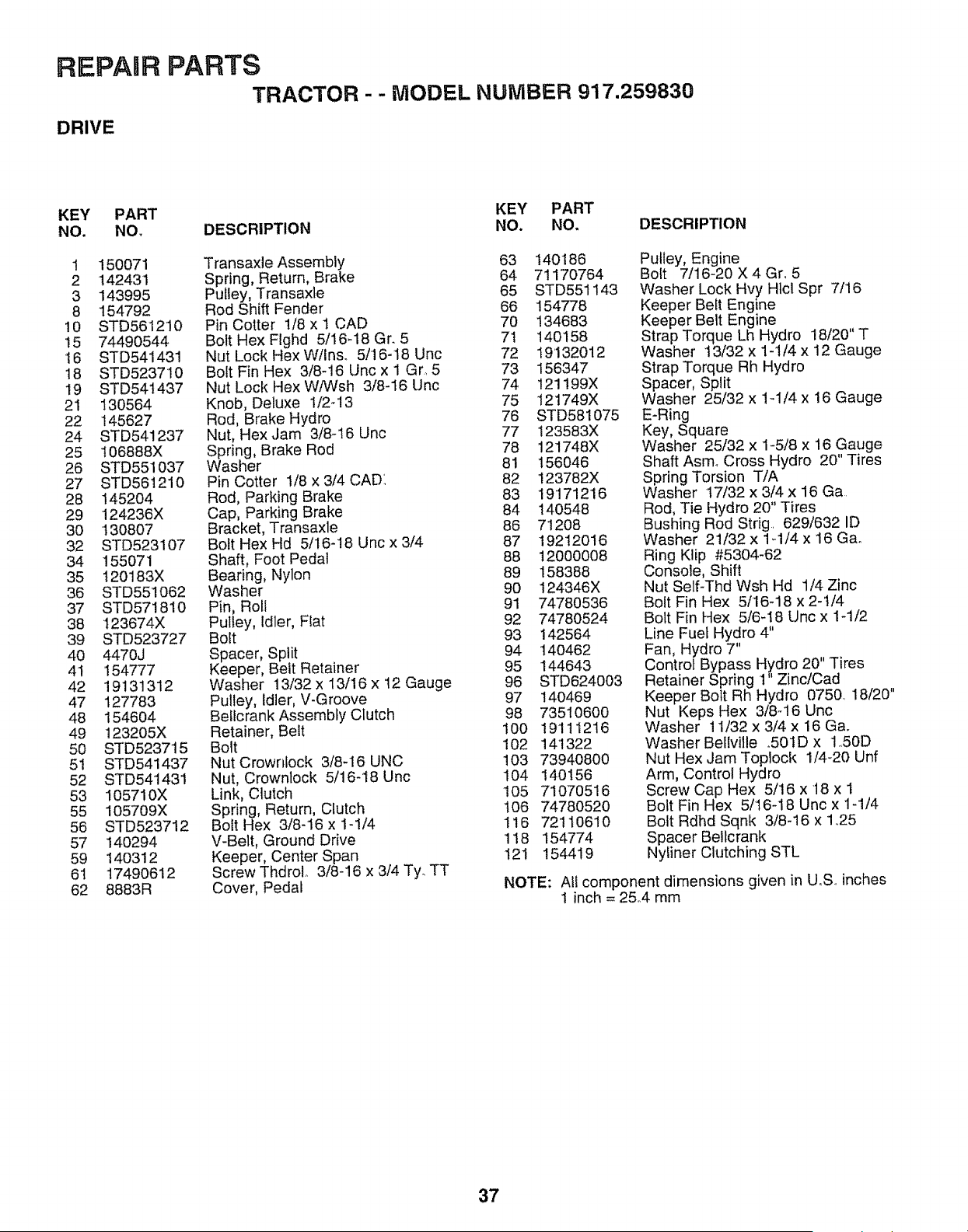

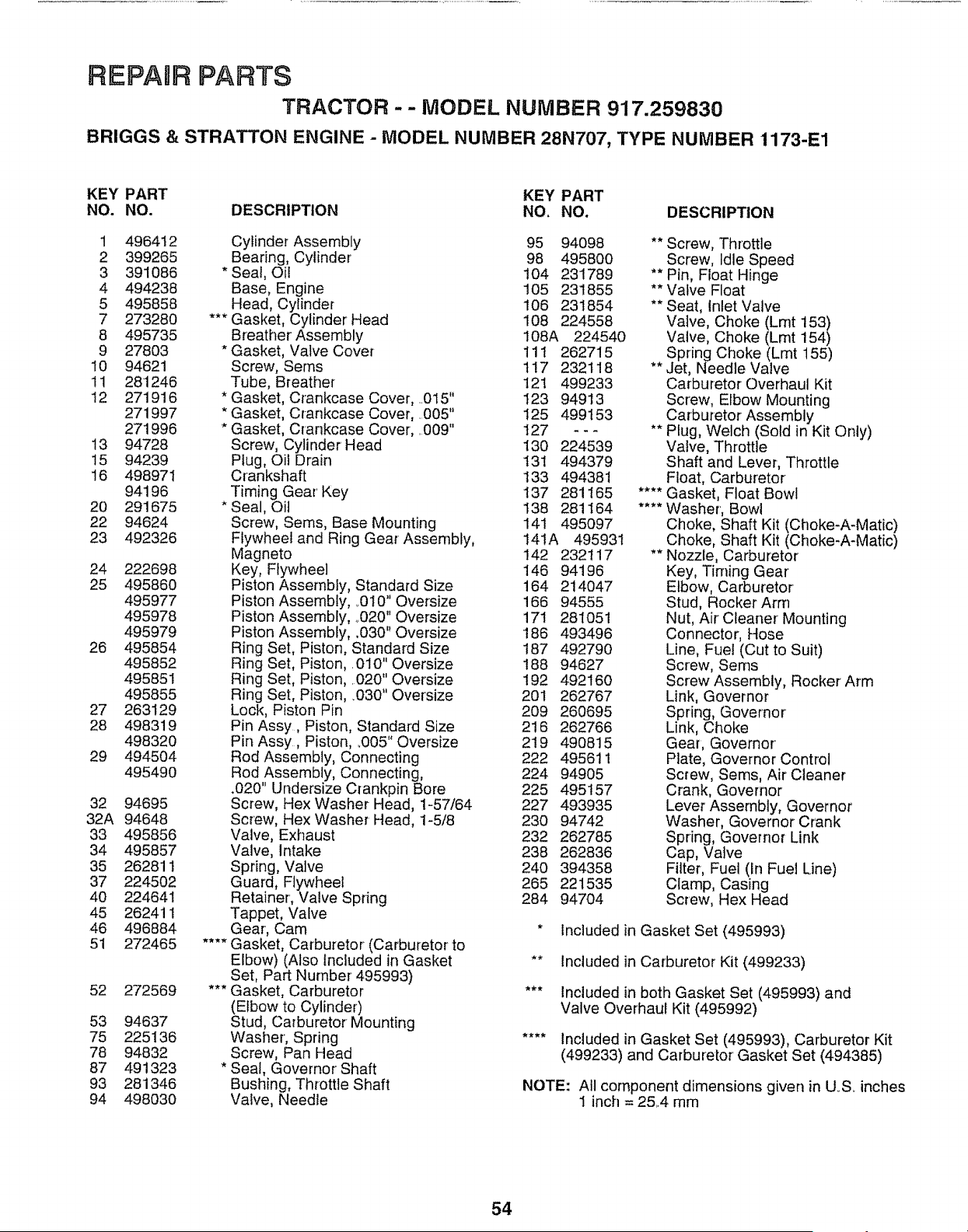

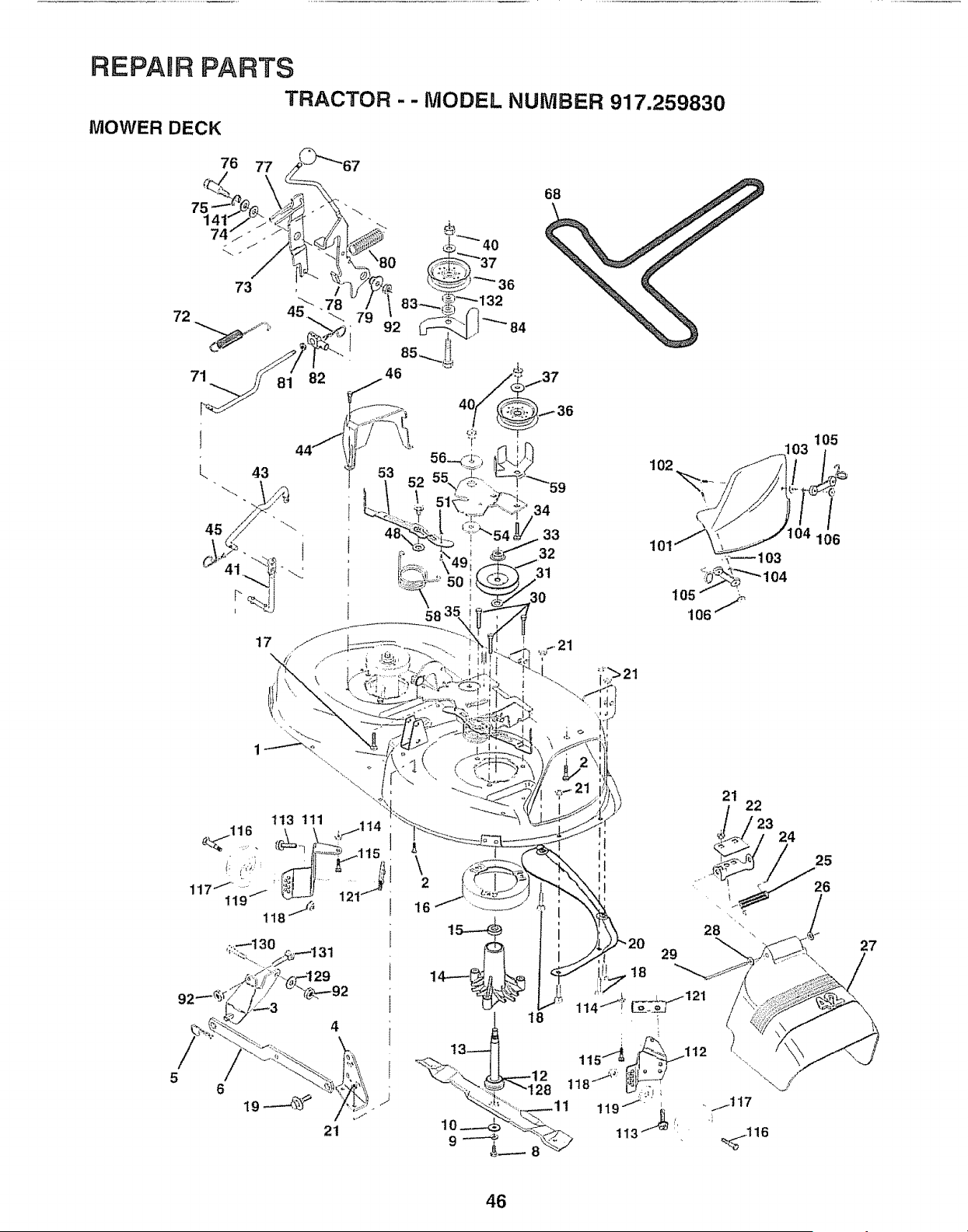

REPAIR PARTS - TRACTOR ................................. 32-49

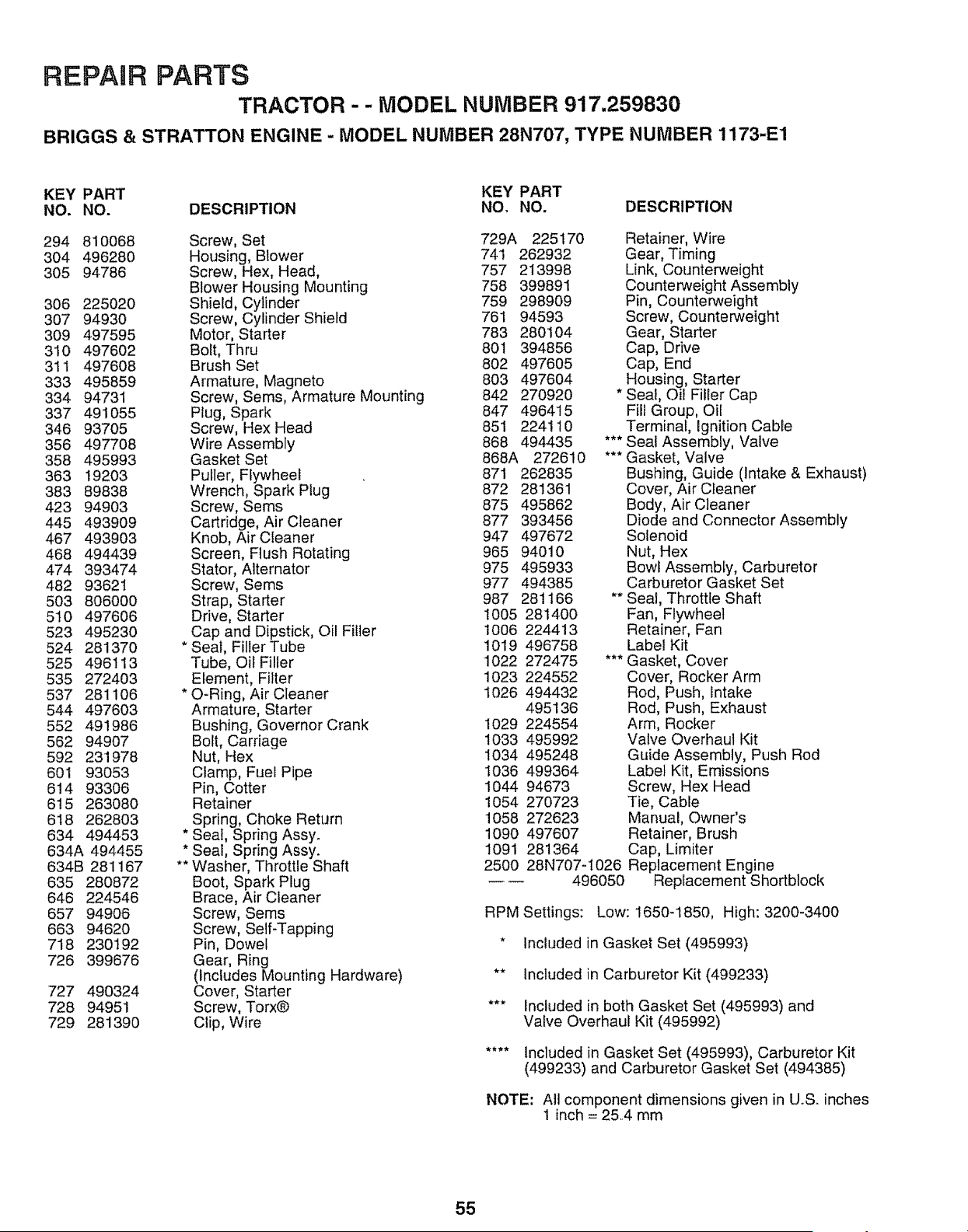

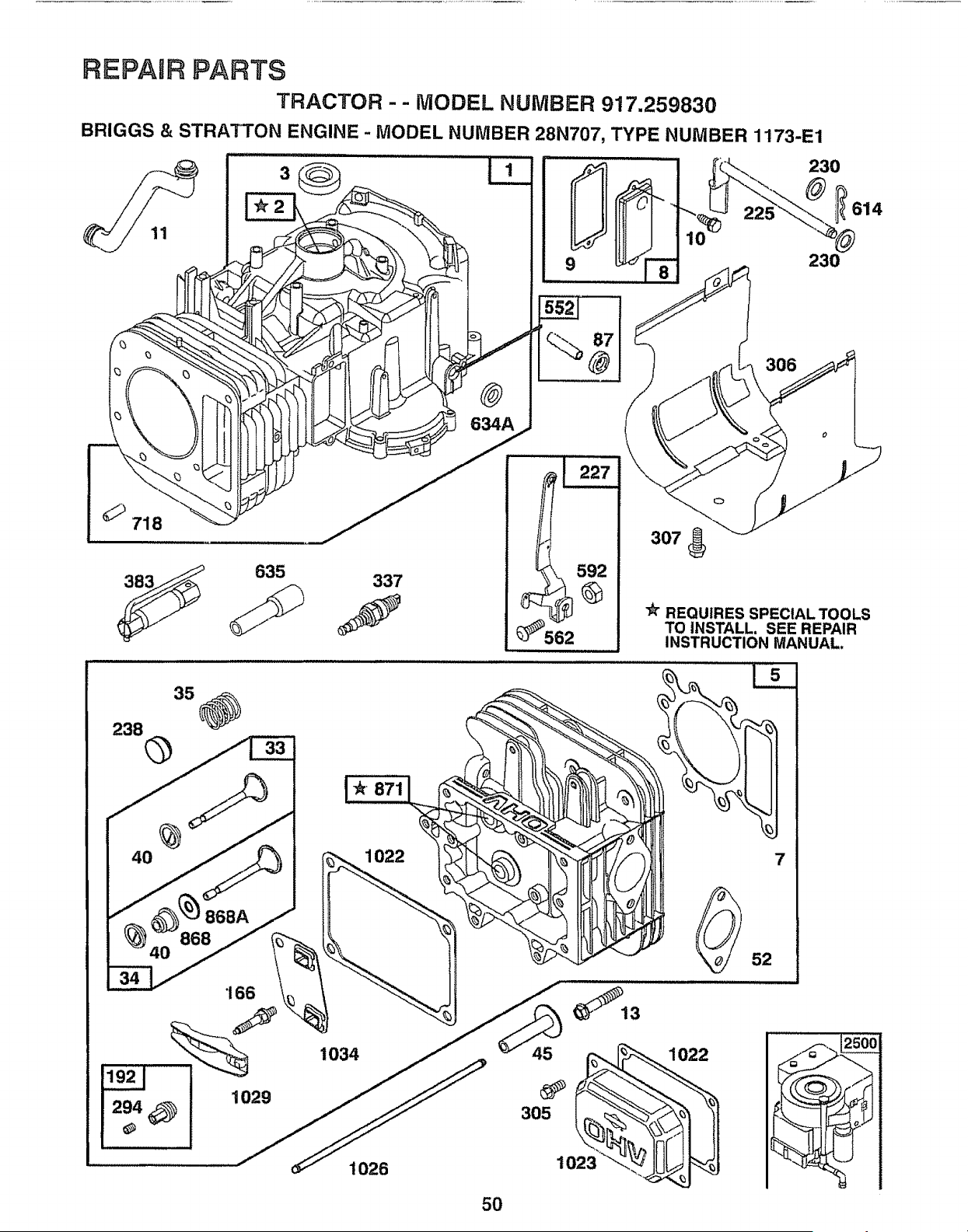

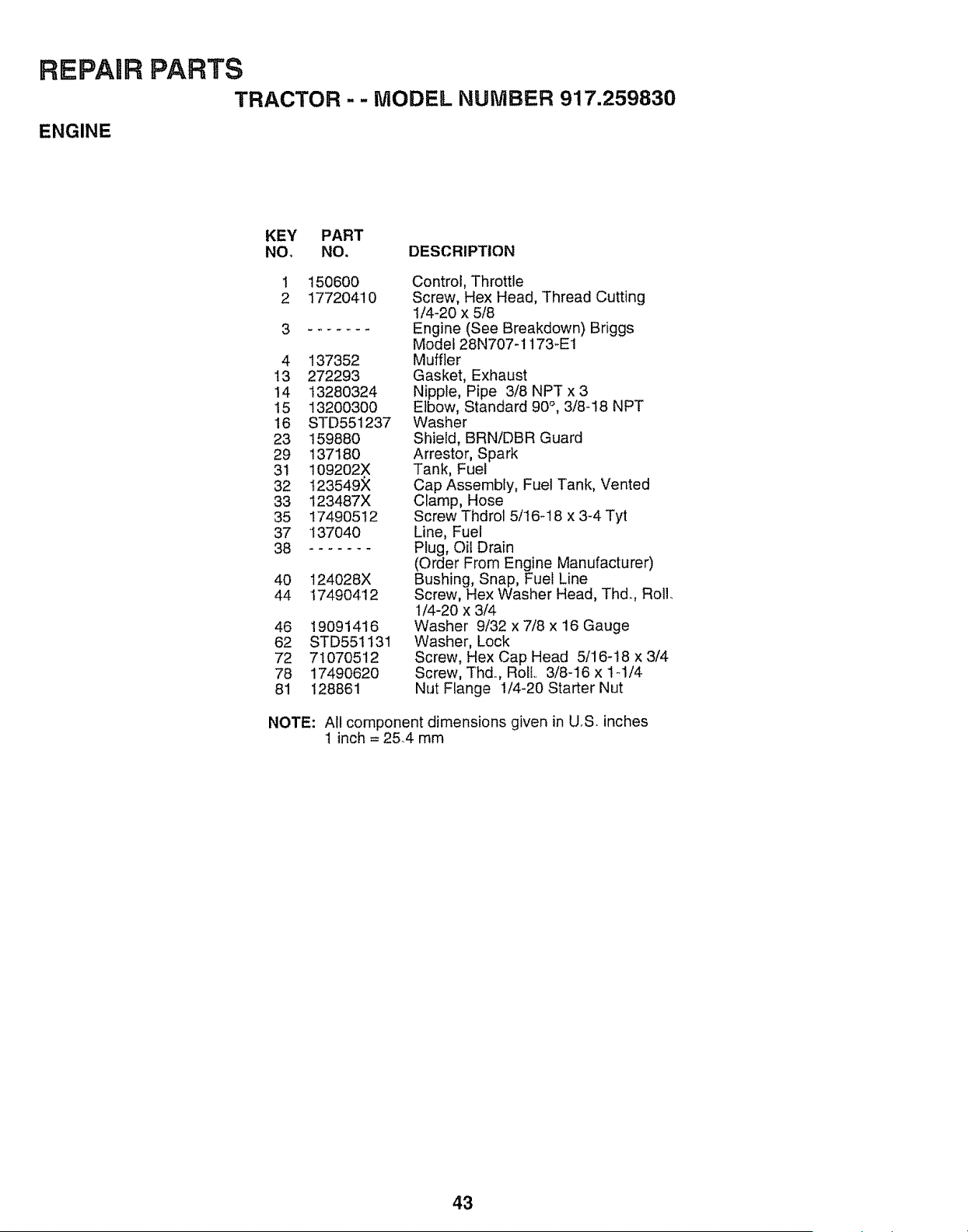

REPAIR PARTS - ENGINE .................................... 50-55

PARTS ORDERING/SERVICE .................. BACK PAGE

UNDEX

Accessories ...................................................5

Adjustments:

Brake ............................................... 23

Carburetor .......................................26

Mower:

Front-To-Back ................................22

Side-To-Side .................................22

Throttle Control Cable ............... 25

Air Filter, Engine ..........................................19

Air Screen, Engine ........................... 19

Assembly .........................................................7-9

Battery:

Charging ..........................................7-8

Cleaning ...............................................t8

Connecting ...........................................7-8

Starting with Weak Battery ...........24

Storage ...................................................27

Terminals ...................................................t8

Belts:

Motion Drive

Removal!Replacement .............23

Mower Blade Drive

Removal/Replacement ......... 23

Blade:

Sharpening ..........................................17

Replacement .........................................I7

Brake Adjustment ................................... 23

Carburetor Adjustment ...............................26

Controls, Tractor _......................................11

Customer Responsibilities ...............16-20

Engine:

Air Filter .............................................19

Air Screen, Engine ................... t9

Battery ....................................................18

Cooling Fins, Engine .....................19

Engine Oil ............................................18

Fuel Filter .................................. 20

Spark Plugs ..................................20

Tractor:

Blades ......................................................17

Lubrication Chart ........................16

Maintenance Schedule ........... 16

Tire Care ................................8,17,24

Cutting Height, Mower ........................... I2

Electricali

interlocks and Relays .................. 25

Schematic .................................... 31

WMng Diagram ........................... 32

Engine:

Air Filter ...................................... 19

Air Screen ..................................... 19

Cooling Fins, Engine ..................... t9

Oil Change ................................... t8

Oil Level ................................. 13,I8

Oil Type ........................................ 18

Preparation ..................................... 13

Repair Parts .......................... 50-55

Starting ...................................... 15

Storage ............................... 27

Filters:

Air .........................................................19

Fuel ............................................. 20

Fuel:

Type ................................................ 14

Storage ...............................................27

Fuse ..................................................... 25

Gauge Wheels ....................................... 8

Hood RemovattlnstaUation ................. 25

Leveling Mower Deck .............................22

Lubrication Chart .........................................16

Maintenance Schedule ...................... 16

Mower:

Adjustment, Front-to-Back ....... 22

Adjustment, Side-to*Side ............. 22

Blade Sharpening .......................... 17

Blade Replacement .........................17

Cutting Height ......................................t 2

Installation .................................................21

Operation ........................................ t4

Removal ......................................... 21

Mowing Tips ...............................................15

Muffler ...................................................................20

Spark Arrester ..............................3,42

Mulcher Plate ...............................................9

Oil:

Cold Weather Conditions ...... !4, ! 8

Engine ............................................ 18

Storage ..................................................27

Operation ....................................................10-15

Operating Mower ..........................................13

Options:

Accessories ....................................... 5

Spark Attester ..................................3,42

Parking Brake .........................................11-12

Parts Bag .............................................................6

Parts, ReplacemenVRepair, .............32-49

Product Specifications ................................3

Repair Parts ............................................32-49

Safety Rules .............................................. 2

Seat ............................................................ 8

Service and Adjustments ......................21-26

Brake ........................................................23

Carburetor ...............................................26

Fuse .................................................. 25

Hood Removal/Installation ...... 25

Motion Drive Belt

Removal/Replacement ..............23

Mower Blade Drive Belt

Removal/Replacement ................23

Mower Adjustment:

Front-to-Back .............................22

Side-to-Side .................................22

Mower Installation .............................21

Mower Removal ......................................21

Tire Care ...........................................8,17,24

Slope Guide Sheet .......................................59

Spark Plugs .....................................................20

Specifications ..........................................................3

Starting the Engine ...................................13-14

Steering Wheel .........................................7,24

Stopping the Tractor ......................................12

Storage ...........................................................27

Throttle Control Cable Adjustment .......25

Tires .........................................................8,17,24

Trouble Shooting Chart .........................28-29

Transaxte Repair Parts ..........................48-49

Warranty ...................................................................3

Widng Diagram ............................................32

Wiring Schematic ........................................3t

ACCESSORIES A

D ATTACHMENTS

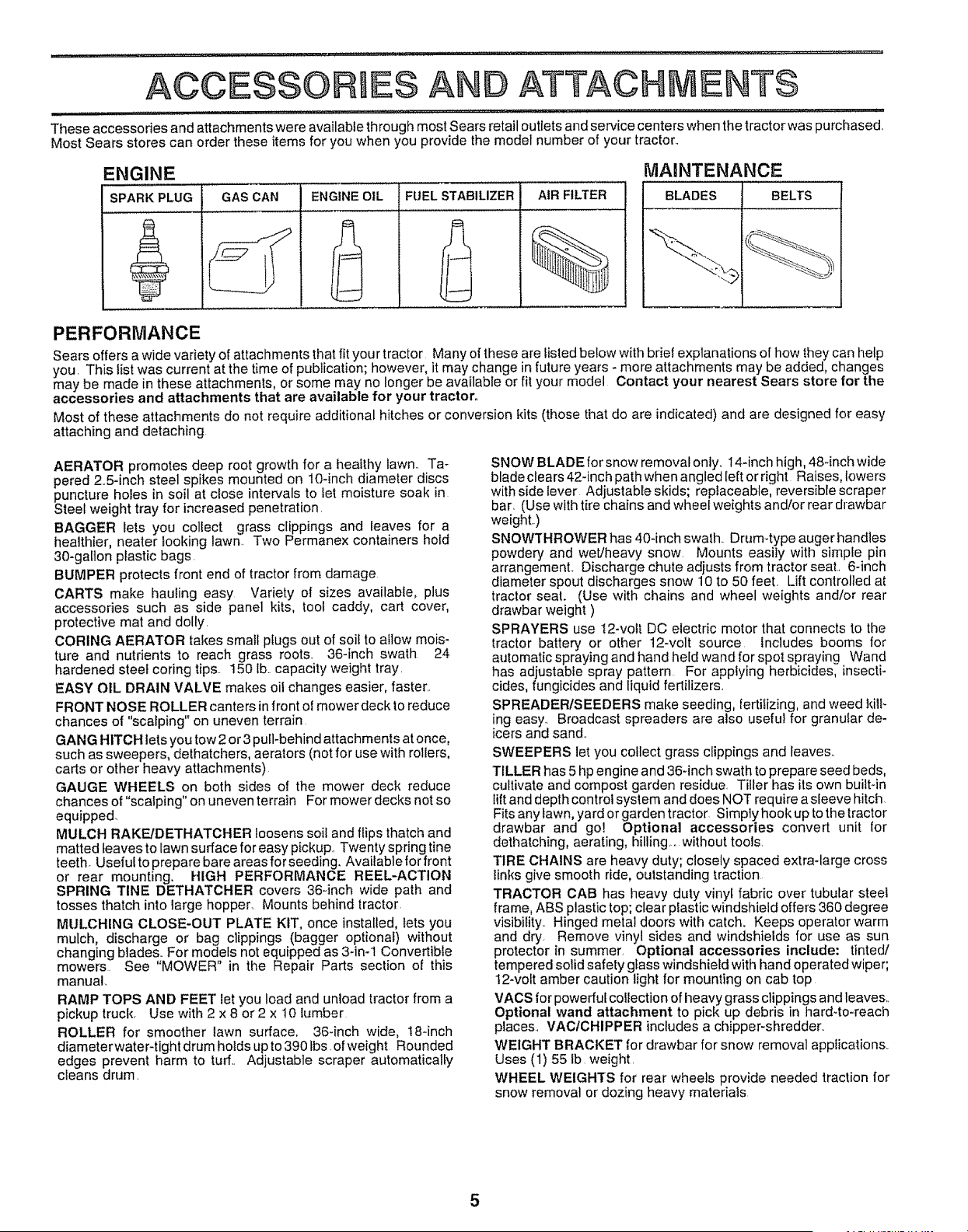

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased..

Most Sears stores can order these items for you when you provide the model number of your tractor..

ENGINE

SPARK PLUG GAS CAN

ENGINE OIL FUEL STABILIZER

AIR FILTER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor Many of these are listed below with brief explanations of how they can help

you. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model Contact your nearest Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching

AERATOR promotes deep root growth for a healthy lawn.. Ta-

pered 2.5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, heater looking lawn. Two Permanex containers hold

30-gallon plastic bags.

BUMPER protects front end of tractor from damage

CARTS make hauling easy Variety of sizes available, plus

accessories such as side panel kits, toot caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots. 36-inch swath 24

hardened steel coring tips., t50 lb.. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster..

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain

GANG HITCH lets you tow 2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments)

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain For mower decks not so

equipped,

MULCH RAKEJDETHATCHER loosens soil and flips thatch and

matted leaves to fawn surface for easy pickup.. Twenty spring tine

teethe Usefulto preparebareareasforseeding, Availableforfrent

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper, Mounts behind tractor

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades.. For models not equipped as 3-in-1 Convertible

mowers See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck_ Use with 2 x 8 or 2 x t0 lumber

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater4ight drum holds up to 390 tbs. of weight Rounded

edges prevent harm to turf.. Adjustable scraper automatically

cleans drum.

SNOW BLADE for snow removal only. 14-inch high, 484nch wide

blade clears 42-inch path when angled [eft or right Raises, lowers

with side lever Adjustable skids; replaceable, reversible scraper

bar, (Use with tire chains and wheel weights and!or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath, Drum4ype auger handles

powdery and wet/heavy snow Mounts easily with simple pin

arrangement.. Discharge chute adjusts from tractor seat.. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight )

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source includes booms for

automatic spraying and hand held wand for spot spraying Wand

has adjustable spray pattern For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADER/SEEDERS make seeding, fertilizing, and weed kilt-

ing easy.. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves..

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built4n

lift and depth control system and does NOT require a sleeve hitch

Fits any lawn, yard or garden tractor Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hilling,, without tools.

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, oulstanding traction

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility.. Hinged metal doors with catch. Keeps operator warm

and dry Remove vinyl sides and windshields for use as sun

protector in summer, Optional accessories include: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top

VACS for powerful collection of heavy grass clippings and leaves,.

Optional wand attachment to pick up debris in hard4o-reach

places. VAC/CHIPPER includes a chipper-shredder..

WEIGHT BRACKET for drawbar for snow removal applications,

Uses (1) 55 Ib weight.

WHEEL WEIGH'ItS for rear wheels provide needed traction for

snow removal or dozing heavy materials

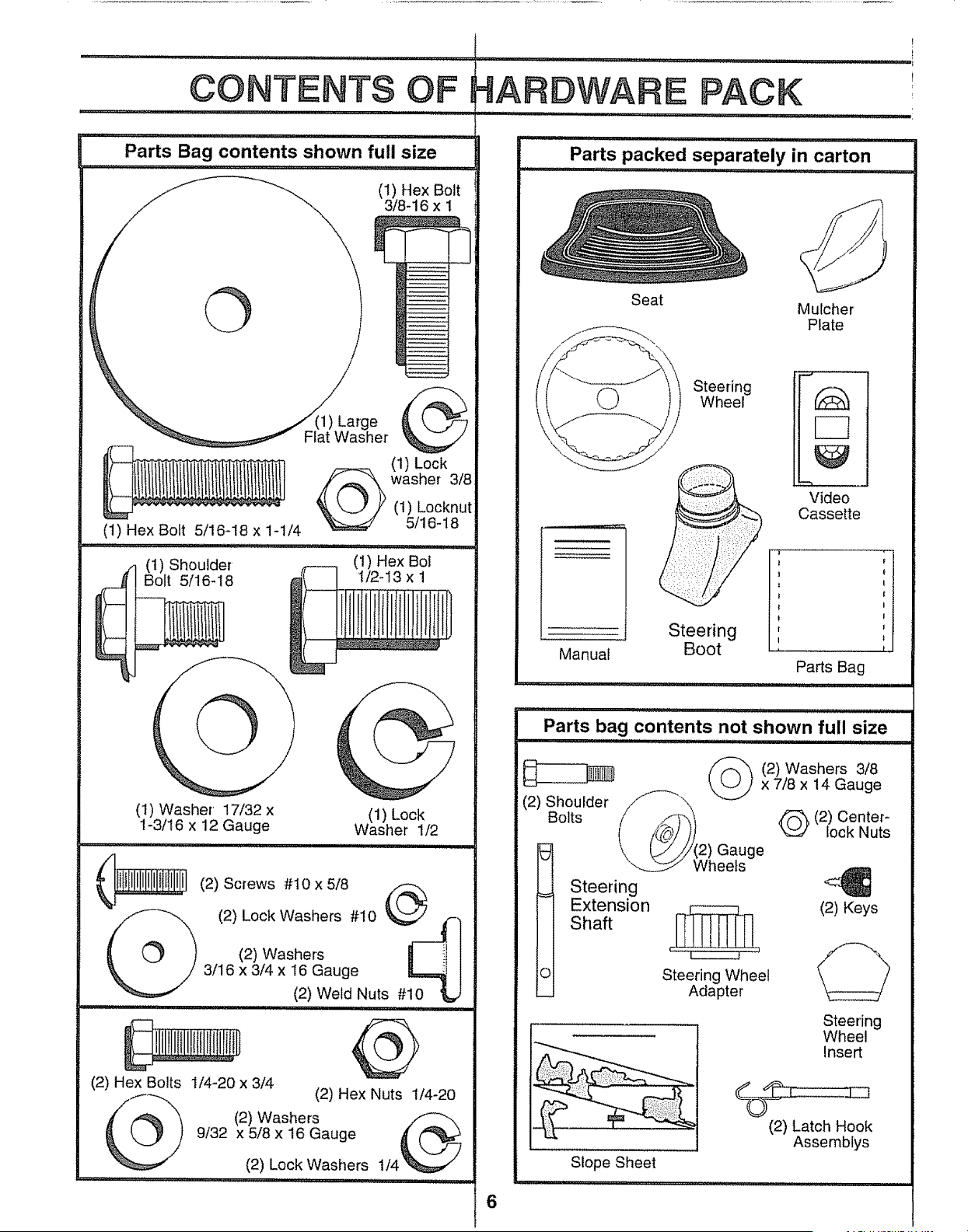

CONTENTS OF

(1) Hex Bolt

3/8-16 x 1

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Shoulder

Bolt 5/16-!8

) Large

Flat Washer

i@(1) Lock

washer 3/81

(1) Locknut!:

5/16-18

(1) Hex Bol

1/2-13 x 1

(1) Washer' 17/32 x

1-3/16 x 12 Gauge

(1) Lock

Washer 1/2

(2) Screws #10 x 5/8 _z--_,z'_'_ 1

(2) Lock Washers #10

(2) Washers _ ii 1

3/16 x 3/4 x 16 Gauge _ 1

(2) Weld Nuts #10

........... i/1/iJ

tI[rllll

(2) Hex Bolts !/4-20 x 3/4

(2) Washers

9/32 x 5/8 x 16 Gauge

(2) Lock Washers t/4

,i i,, i .....................

ARDWARE PACK

Parts packed separately in carton

Seat

Mulcher

Plate

Steering

Wheel

Video

Cassette

Manual

Steering

Boot

I JILt

Parts Bag

Parts bag contents not shown full size

(2) Shoulder

Bolts

Steering

Extension

Shaft

(2) Keys

Steering Wheel

Adapter

Steering

Wheel

Insert

Slope Sheet

(2) Latch Hook

Assemblys

ASSEMBLY

,,i ,,,,,i,,,,,ii ,i,l,i,

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes..

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely.. Use

the correct tools as necessary to insure proper tightness..

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier, Standard

wrench sizes are listed°

(2) 7/16" wrenches Philfips Screwdriver

(1) 1/2" wrench Tire pressure gauge

(1) 9/16" wrench Utility knife

(1) 3/4" Socket w/drive rachet

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel)..

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton (See page 6).

° Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat..

,, Check for any additionai loose parts or cartons and

remove.

BEFORE ROLUNG TRACTOR OFF SKLD

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

= Slide extension shaft onto lower steering shaft.. Align

mounting holes in extension and lower shafts and

install 5/16 hex bolt and locknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

t8_22 FT. LBS TORQUE.

• Place tabs of steering boot over tab slots in dash and

push down to secure,.

.......----INSERT

,, 3f8HExBOLT

IL--------318LOCKWAS,ER

STEERING

WHEEL STEERING

ADAPTER _'_i_

_!,-_-_:_ EXTENSION SHAFT

LOWER _:!/ '_ I

STEERING ' /

SHAFT _ _ ....

FIG. 1

INSTALL STEERING WHEEL

= Position front wheels of the tractor so they are pointing

straight forward

o Slide steering wheel adapter onto steering shaft exten-

sion_

° Position steering wheel so cross bars are horizontal

(left to right) and slide inside boot and onto adapter.

• Assemble large flat washer, 318 Iock washer, 3t8 hex

bolt and tighten securely..

° Snap steering wheel insert into center of steering

wheel,

• Remove protective materials from tractor hood and

grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SK1DTHAT MAY PUNCTURE TIRES WHERE TRACTOR

iS TO ROLL OFF SKID.

TO ROLL TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

o Press lift lever plunger and raise attachment lift lever to

its highest position,.

o Release parking brake by depressing clutch/brake

pedal,.

° Place freewheel control in freewheeling position to

disengage transmission (See 'q'O TRANSPORT" in

the Operation section of this manual).

• Roll tractor backwards off skid..

° Remove banding holding discharge guard up against

tractor°

HOW TO SET UP YOUR TRACTOR

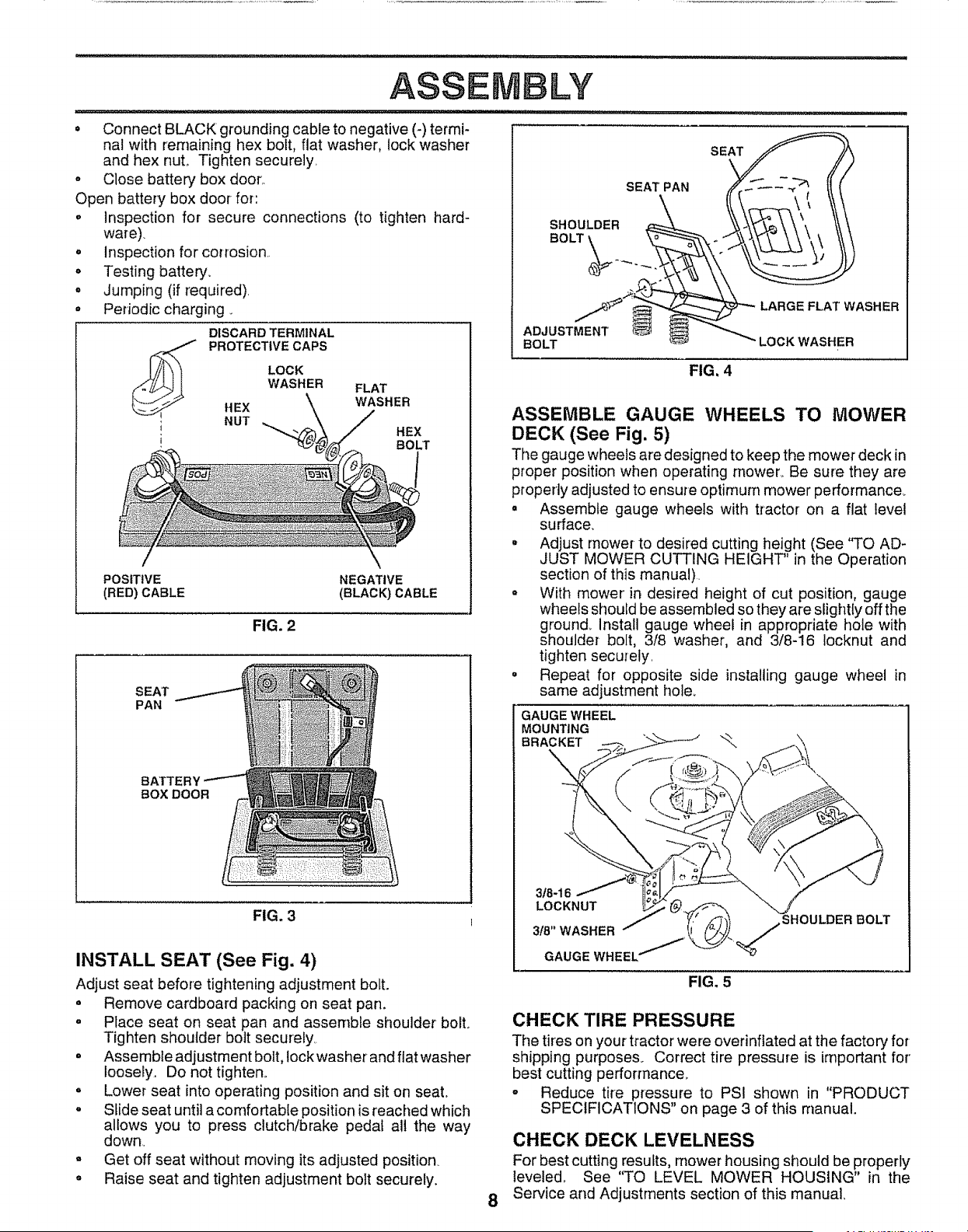

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

• Remove cardboard packing from seat pan and lift seat

pan to raised position.

= Open battery box door and remove protective plastic..

o Remove terminal protective caps and discard.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

o First connect RED battery cable to positive (+) terminal

with hex bolt, flat washer, lock washer and hex nut as

shown° Tighten securely..

o ConnectBLACKgroundingcabletonegative(-)termi-

nalwithremaininghexbolt,flatwasher,lockwasher

andhexnuL Tightensecurely.

o Closebatteryboxdoor..

Openbatteryboxdoorfor:

° Inspectionfor secureconnections(to tightenhard-

SHOULDER

SEAT PAN

SEAT

ware),

Inspection for corrosion.

Testing battery,

Jumping (if required),

Periodic charging

DISCARD TERMINAL

PROTECTIVE CAPS

LOCK

WASHER

HEX

NUT

FLAT

WASHER

HEX

BOLT

POSITIVE NEGATIVE

(RED) CABLE (BLACK) CABLE

FIG. 2

SEAT

PAN

BATTERY

BOX DOOR

FIG, 3

INSTALL SEAT (See Fig. 4)

Adjust seat before tightening adjustment bolt.

° Remove cardboard packing on seat pan.

BOLT \\\

ADJUSTMENT

BOLT

FIG. 4

LARGE FLAT WASHER

LOCK WASHER

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5)

The gauge wheels are designed to keep the mower deck in

proper position when operating mower_ Be sure they are

properly adjusted to ensure optimum mower performance_

• Assemble gauge wheels with tractor on a flat level

surface,

o Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

o With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground_ install gauge wheel in appropriate hole with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknut and

tighten securely.

o Repeat for opposite side installing gauge wheel in

same adjustment hole_

GAUGE WHEEL

MOUNTING

BRACKET

FIG. 5

= Place seat on seat pan and assemble shoulder bolt.

Tighten shoulder bolt securely.

° Assemble adjustment bolt, lock washer and flat washer

loosely, Do not tighten.,

o Lower seat into operating position and sit on seat.,

• Slide seat until a comfortable position is reached which

allows you to press clutchtbrake pedal all the way

down..

° Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment bolt securely.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for'

best cutting performance.

° Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

levele& See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual,

CHECK FOR PROPER POSITION OF ALL

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual., Verify that the belts are routed

correctly,,

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual

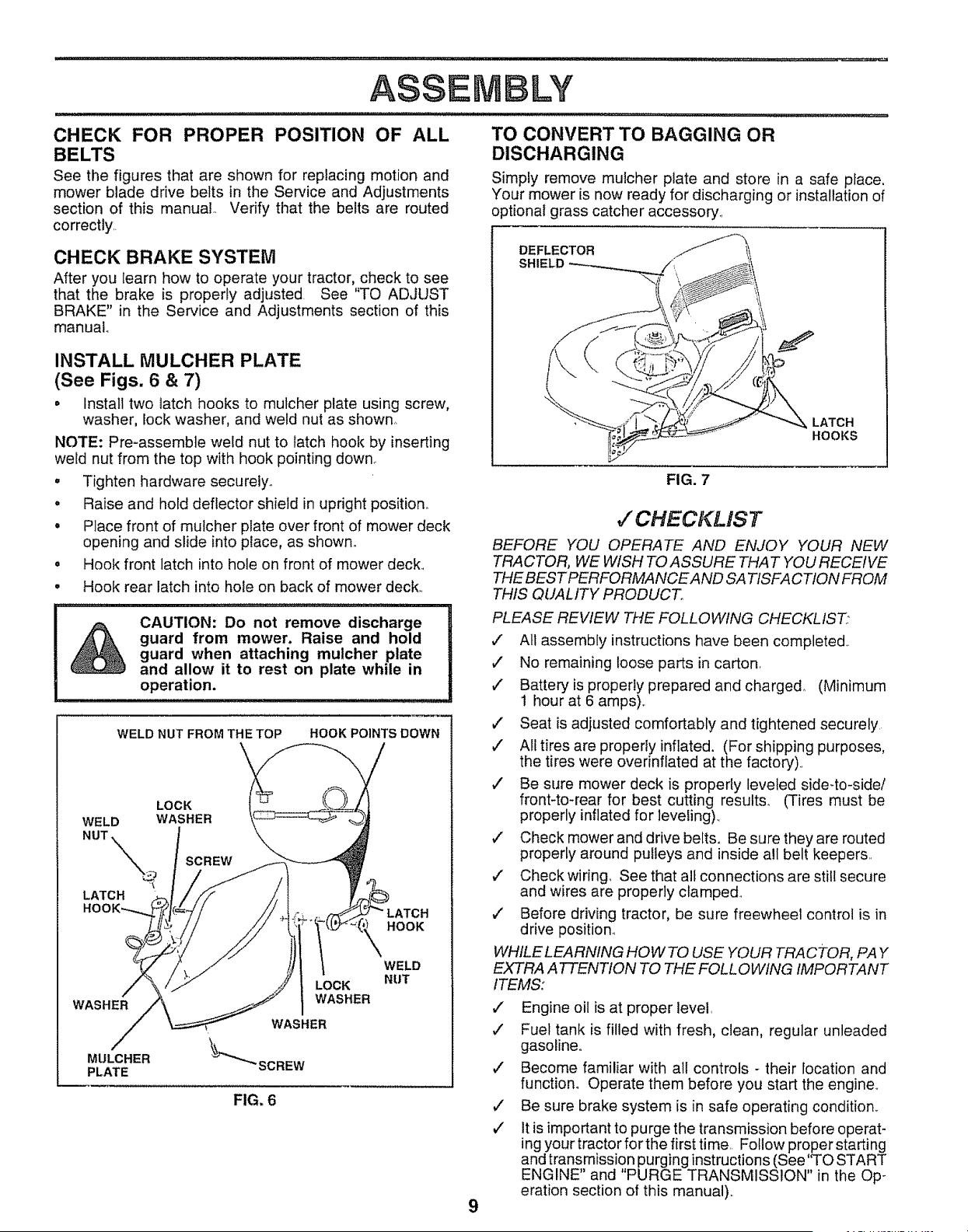

INSTALL MULCHER PLATE

(See Figs. 6 & 7)

= Install two latch hooks to mutcher plate using screw,

washer, lock washer, and weld nut as shown,

NOTE: Pre-assembte weld nut to latch hook by inserting

weld nut from the top with hook pointing down_

° Tighten hardware securely.

. Raise and hold deflector shield in upright position_

. Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck..

• Hook rear latch into hole on back of mower deck..

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

WELD NUT FROM THE TOP HOOK POINTS DOWN

LOCK

WELD WASHER

NUT.\\\%_ SCREW

LATCH

WASHER

MULCHER

PLATE

LOCK

WASHER

HOOK

WELD

NUT

FIG, 6

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optionaI grass catcher accessory,.

DEFLECTOR

SHIELD_.._,,

LATCH

HOOKS

FIG. 7

CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANOEAND SATISFACTION FROM

THIS QUALITY PRODUCT_

PLEASE REVIEW THE FOLLOWING CHECKLIST:

V" All assembly instructions have been completed.

v" No remaining loose parts in carton,

,," Battery is properly prepared and charged, (Minimum

1 hour at 6 amps),.

v" Seat is adjusted comfortably and tightened securely

v" All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory)..

¢ Be sure mower deck is properly leveled side4o-side/

front-to-rear for best cutting results,. (Tires must be

properly inflated for leveling)..

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside a!l belt keepers..

v" Check wiring, See that all connections are still secure

and wires are properly clamped..

v" Before driving tractor, be sure freewheel control is in

drive position_

WHILELEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA A TTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline°

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

¢" Be sure brake system is in safe operating condition,.

¢" It is important to purge the transmission before operat-

ing your tractor for the first time, Follow proper starting

and transmission purging instructions (See "TO START

ENGINE" and "PURGE TRANSMISSION" in the Op-

eration section of this manual),.

OPERATION

These symbols may appear' Onyour tractor or in literature supplied with the product. Learn and understand their meaning.

REVERSE

BATTERY CAUTION OR FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON

OVER TEMP

LIGHT

FUEL UNLOCKED

CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL HIGH

ATTACHMENT

CLUTCH ENGAGED

LOW

ATTACHMENT

CLUTCH DISENGAGED

PARKING BRAKE

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATION

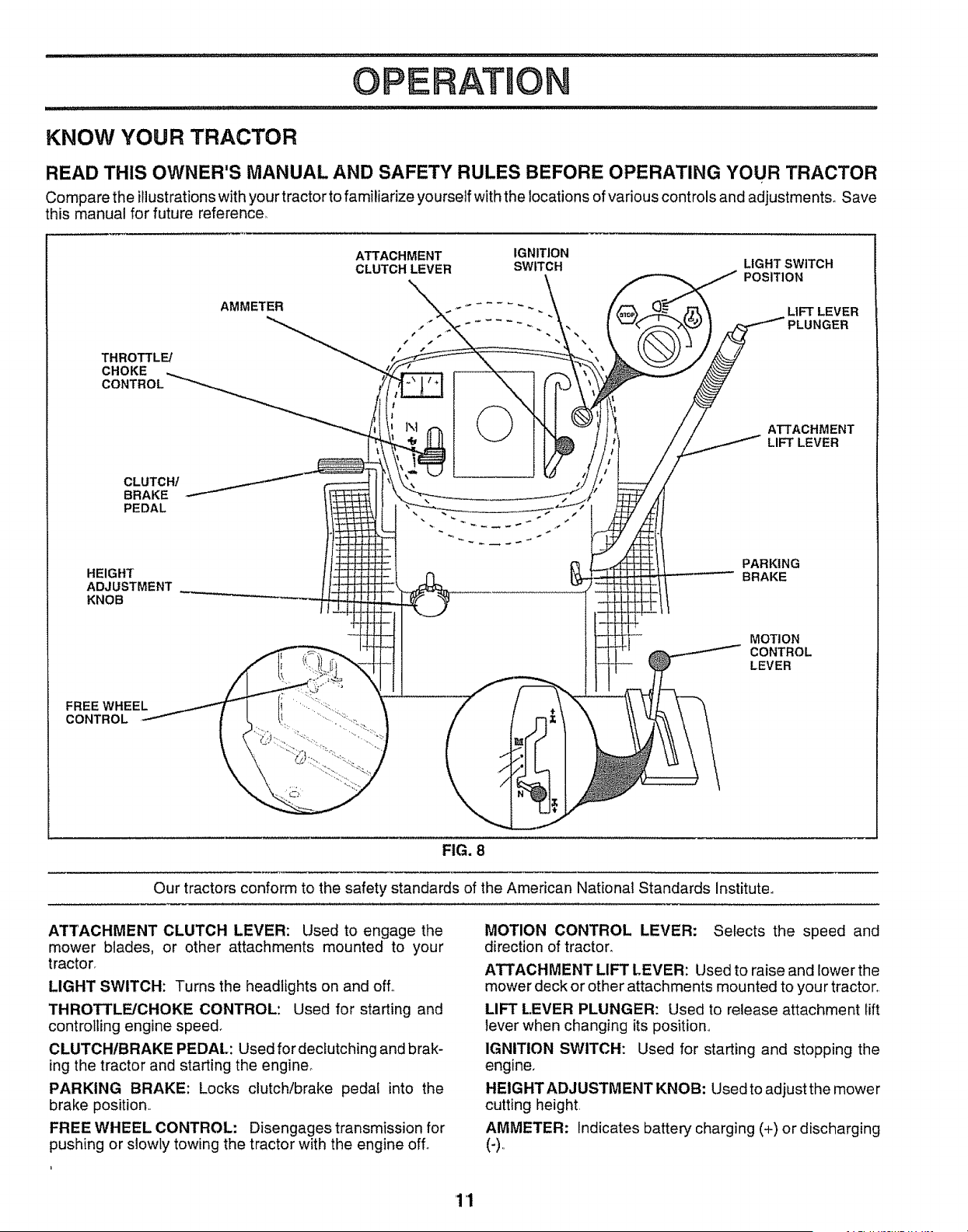

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments_ Save

this manual for future reference,

THROTTLE/

CHOKE

AMMETER

ATTACHMENT IGNITION

CLUTCH LEVER SWITCH

LIGHT SWITCH

POSITION

LIFT LEVER

ATTACHMENT

LIFT LEVER

CLUTCH/

BRAKE

PEDAL

HEIGHT

ADJUSTMENT

KNOB

FREE WHEEL

CONTROL

PARKING

BRAKE

MOTION

CONTROL

LEVER

FIG. 8

Our tractors conform to the safety standards of the American National Standards Institute,

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor_

LIGHT SWITCH: Turns the headlights on and off+,

THROTTLE/CHOKE CONTROL: Used for starting and

controlling engine speed+

CLUTCHtBRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine+

PARKING BRAKE: Locks clutch/brake pedal into the

brake position,,

FREE WHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off+

MOTION CONTROL LEVER: Selects the speed and

direction of tractor+

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor,,

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position_+

IGNITION SWITCH: Used for starting and stopping the

engine,

HEIGHTADJUSTMENT KNOB: Used to adjust the mower

cutting height,

AMMETER: Indicates battery charging (+) or discharging

(+),,

'1'I

OPERATIO

HOW TO USE YOUR TRACTOR

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating your

tractor or performing any adjustments or repairs. We recommend a wide vision safety mask

over the spectacles or standard safety glasses.

TO SET PARK.ING BRAKE (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch, When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake wil! shut off the engine,,

• Depress clutch/brake peda! into full "BRAKE" position

and hold,,

o Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal, Pedal should

remain in "BRAKE" position Make sure parking brake

will hold tractor secure.

ATTACHMENT CLUTCH LEVER

THROTTLE/ "ENGAGED' POSITION

CHOKE "DISENGAGED"

CONTROL POSITION

PARKING BRAKE

"ENGAGED"

POSITION

"DISENGAGED"

POSITION

GEARSHIFt

"BRAKE"

POSITION

HEIGHT ADJUST-

MENT KNOB

FIG. 9

CLUTCH!BRAKE PEDAL

"DRIVE" POSITION

STOPPING (See Fig. 9)

MOWER BLADES -

o Move attachment clutch lever to "DISENGAGED" po-

sition_

GROUND DRIVE -

• Depress clutch/brake pedal into full "BRAKE" position,

o Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH!BRAKE PEDAL IS DEPRESSED,

ENGINE -

o Move throttle control to stow position,

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine

to "backfire",,

. Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use,,

° Never use choke to stop engine,

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas

,_ CAUTION: Always stop tractor corn- I

Z_,Jk pletely, as described above, beforeleav-

ing the operator's position; to empty

gras s catcher , etc.

TO USE THROTTLE CONTROL (See Fig. 9)

Always operate engine at full throttle,

o Operating engine at less than full throttle reduces the

battery charging rate,

° Ful! throttle offers the best bagging and mower perfor-

mance,

TO MOVE FORWARD AND BACKWARD (See

Fig, 9)

The direction and speed of movement is controlled by the

motion control lever,

, Start tractor with motion control lever-in neutral (N)

position.

. Release parking brake and clutch/brake pedal

o Slowly move motion control lever to desired position,,

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 9)

The cutting height is controlled by turning the height adjust*

rnent knob in desired direction,

° Turn knob clockwise (f"_) to raise cutting height,

, Turn knob counterclockwise (_#-_)to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4", The

heights are measured from the ground to the blade tip with

the engine not running These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed_

o The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

° For best cutting performance, grass over 6 inches in

height should be mowed twice, Make the first cut

relatively high; the second to desired height,,

ii1,,

OPERAON

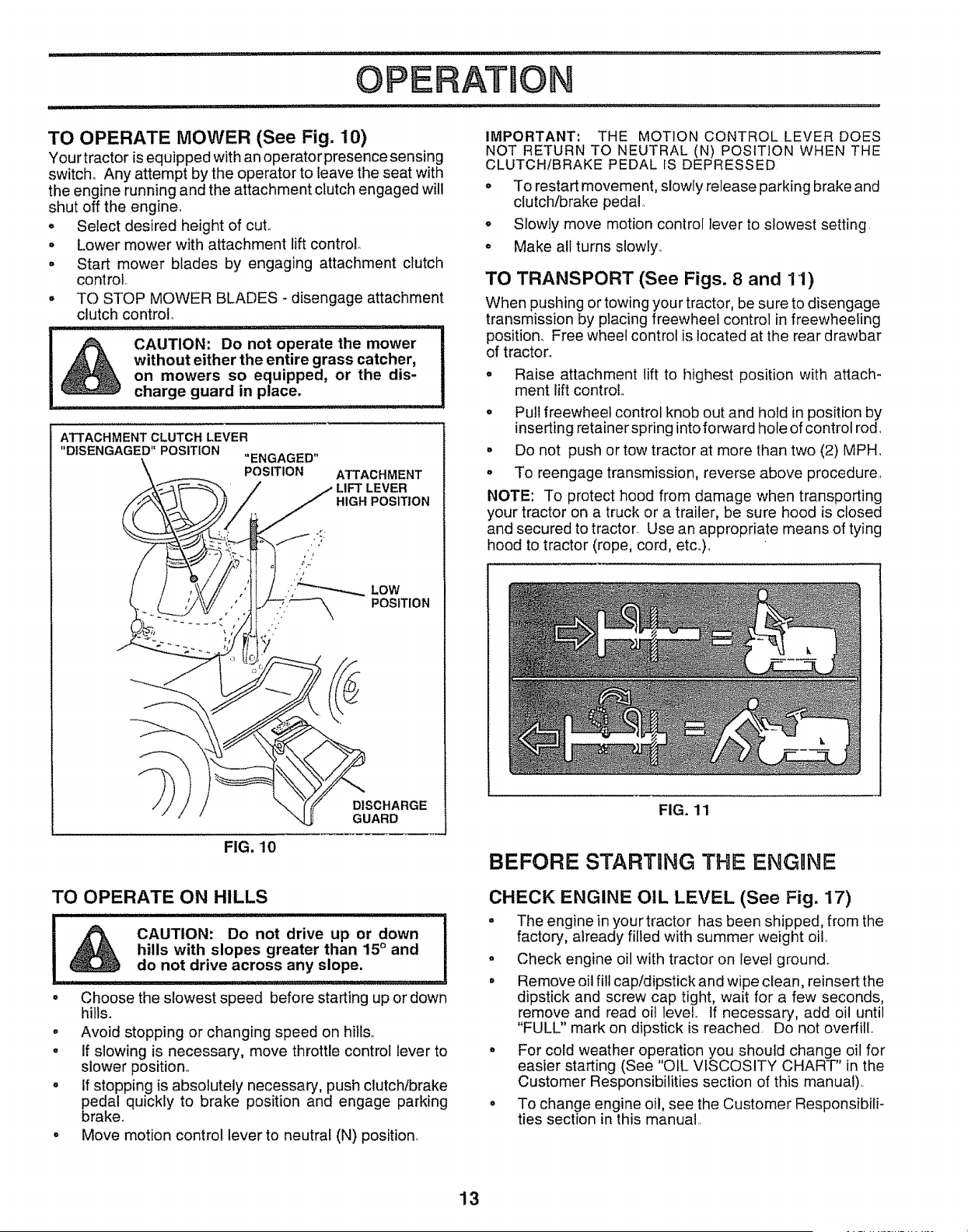

TO OPERATE MOWER (See Fig. 10)

Your tractor is equipped with an operator presence sensing

switch° Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

o Select desired height of cut.,

• Lower mower with attachment lift control

° Start mower blades by engaging attachment clutch

control.

° TO STOP MOWER BLADES - disengage attachment

clutch control.,

............................ I1' ii, i'111 '

!_ CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place,

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSITION

"ENGAGED"

POSITION ATTACHMENT

/ ,_ LIFT LEVER

/ H,GHPOSmON

)

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED

° To restart movement, slowly release parking brake and

clutch!brake pedal,

° Slowly move motion control lever to slowest setting

o Make all turns slowly,

TO TRANSPORT (See Figs. 8 and 1'1)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

o Raise attachment lift to highest position with attach-

merit lift control

° Pull freewheel control knob out and hold [n position by

insertingretainer spring into forward hole of control rod.

° Do not push or tow tractor at more than two (2) MPH,

° To reengage transmission, reverse above procedure,

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etco)_

FIG. 11

FIG. 10

BEFORE STARTING THE ENGUNE

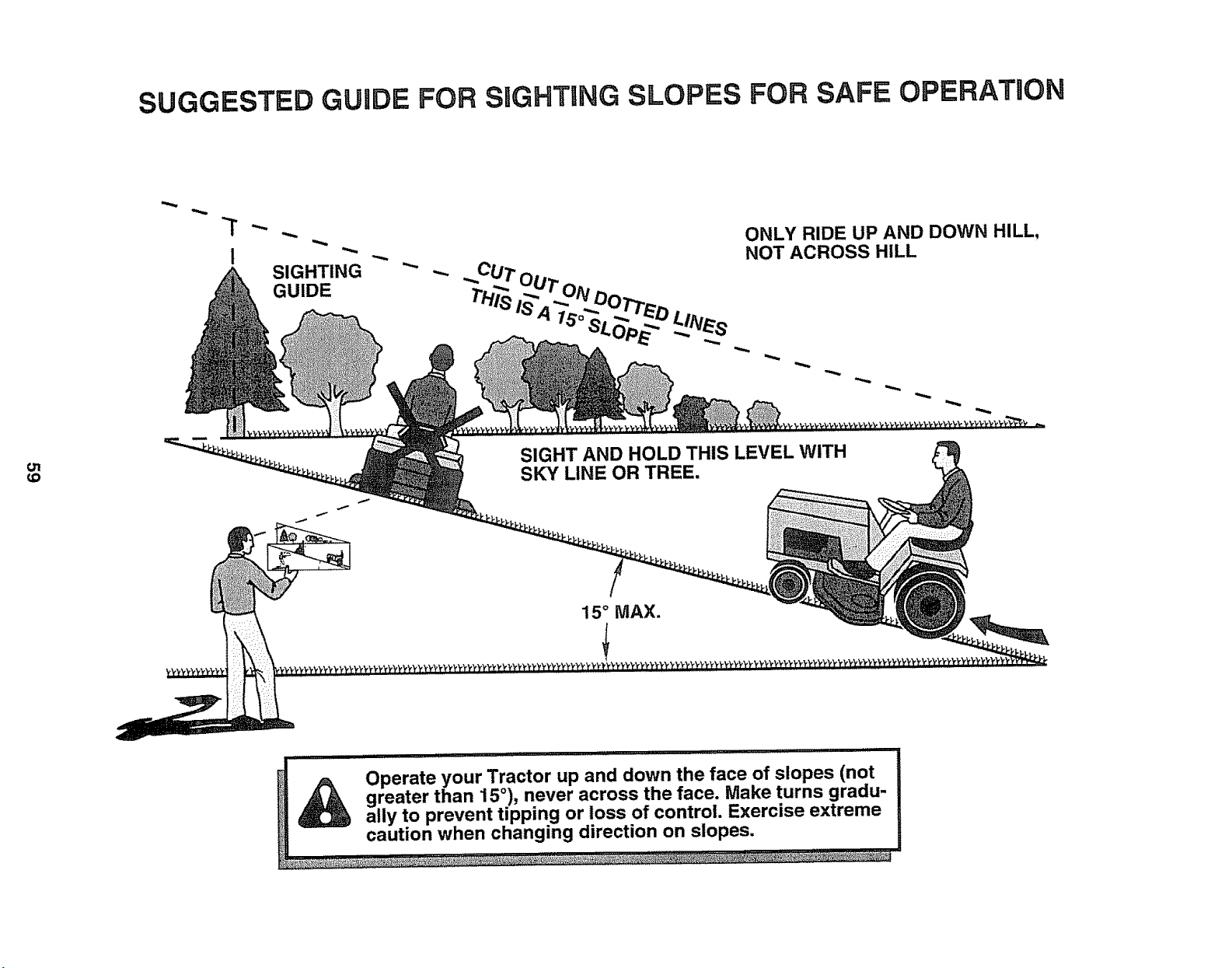

TO OPERATE ON HILLS

i cAoT,oNoono'dr'veuPordown

hills with slopes greater than 15° and

do not drive across any slope.

° Choose the slowest speed before starting up or down

hills.

o Avoid stopping or changing speed on hills,.

• if slowing is necessary, move throttle control lever to

slower position.

° If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position,

CHECK ENGINE OIL LEVEL (See Fig, 17)

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil_

° Check engine oil with tractor on level ground,.

° Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level,, if necessary, add oil until

"FULL" mark on dipstick is reached Do not overfill..

° For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual),.

° To change engine oil, see the Customer Responsibili-

ties section in this manual.

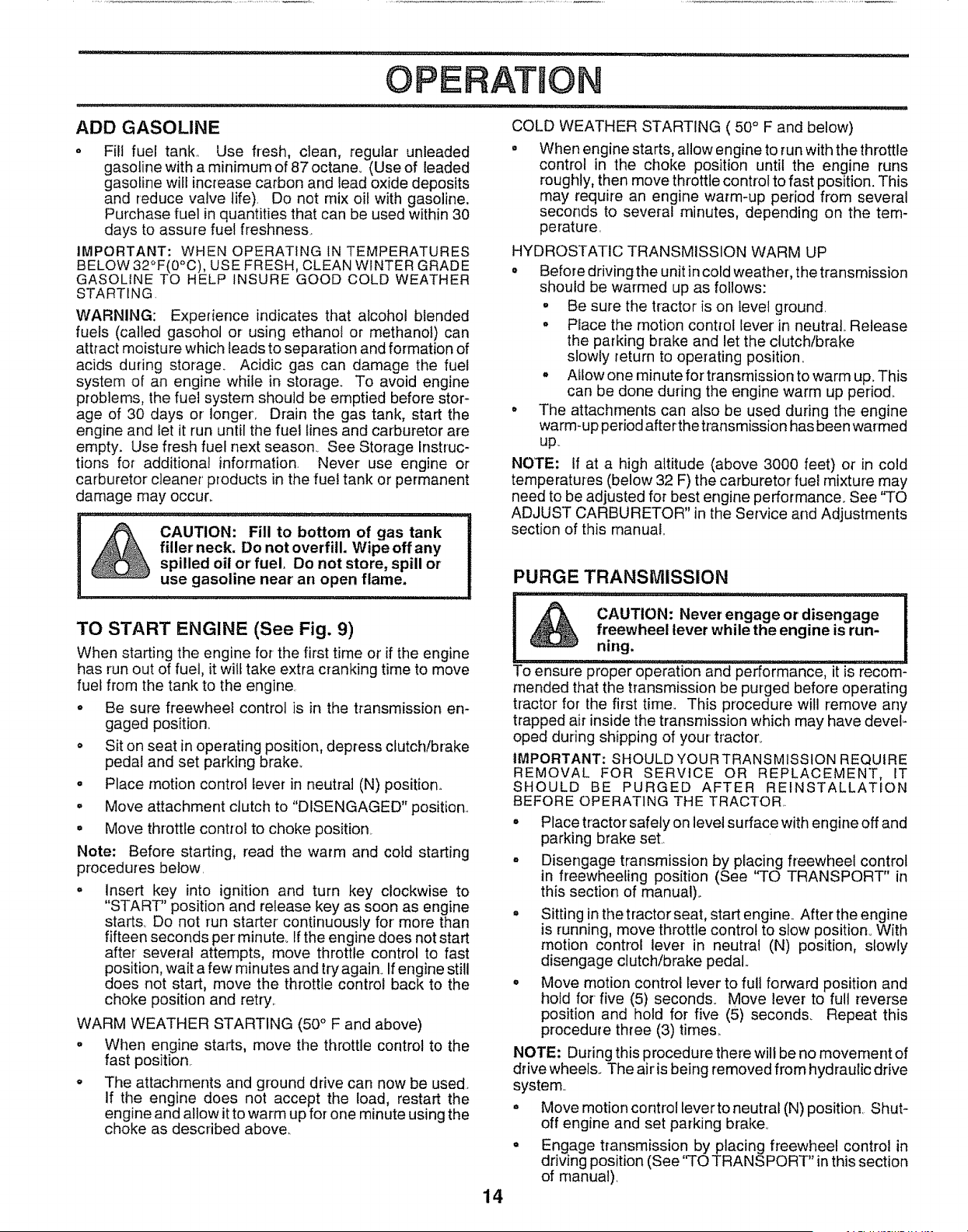

OPERATION

ADD GASOLINE

• Fill fuel tank., Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane° (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING,

WARNING: Experience indicates that alcohot blended

fuels (called gasohol or using ethanot or methanol) can

attract moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer, Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season_ See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner' products in the fue! tank or permanent

damage may occur,.

COLD WEATHER STARTING ( 50° F and below)

• When engine starts, allow engine to run with the throttle

control in the choke position until the engine runs

roughly, then move throttle control to fast position. This

may require an engine warm-up period from several

seconds to several minutes, depending on the tem-

perature,

HYDROSTATIC TRANSMISSION WARM UP

* Before driving the unit in cold weather, the transmission

should be warmed up as follows:

° Be sure the tractor is on level ground

° Place the motion control lever' in neutral Release

the parking brake and let the clutch/brake

slowly return to operating position,

° Atlow one minute for transmission to warm up. This

can be done during the engine warm up period.

. The attachments can also be used during the engine

warm-up period after the transmission has been warmed

up.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

TO START ENGINE (See Fig. 9)

When starting the engine for the first time or' if the engine

has run out of fuel, it wilt take extra cranking time to move

fuel from the tank to the engine

* Be sure freewheel control is in the transmission en-

gaged position,.

* Sit on seat in operating position, depress clutch/brake

pedal and set parking brake_

. Place motion control lever in neutral (N) position.,

° Move attachment clutch to "DISENGAGED" position..

* Move throttle control to choke position

Note: Before starting, read the warm and cold starting

procedures below,

. Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts,. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, move throttle control to fast

position, wait a few minutes and try again_ Ifengine still

does not start, move the throttle control back to the

choke position and retry,.

WARM WEATHER STARTING (50 ° F and above)

° When engine starts, move the throttle control to the

fast position,

° The attachments and ground drive can now be used

If the engine does not accept the load, restart the

engine and allow it to warm up for one minute using the

choke as described above.

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is reCom-

mended that the transmission be purged before operating

tractor for the first time.. This procedure will remove any

trapped air inside the transmission which may have deveF

oped during shipping of your-tractor_

IMPORTANT.' SHOULD YOURTRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR,.

• Place tractor safely on level surface with engine off and

parking brake seL

° Disengage transmission by placing freewheel control

in freewheeling position (See "TO TRANSPORT" in

this section of manual)_

° Sitting in the tractor seat, start engine., After the engine

is running, move throttle control to slow position° With

motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal..

• Move motion control lever to full forward position and

hold for five (5) second& Move lever to full reverse

position and hold for five (5) second& Repeat this

procedure three (3) times,.

NOTE: During this procedure there will be no movement of

drive wheels.. The air is being removed from hyd raulic drive

system.,

= Move motion control lever to neutral (N) position, Shut-

off engine and set parking brake°

° Engage transmission by placing freewheel control in

driving position (See 'q'o TRANSPORT" in this section

of manual),

:r,,lll,i; ,,, ,ll ............. i

'llrlr i ii i ............ u'"'" i ' iiii i, ,i ..............

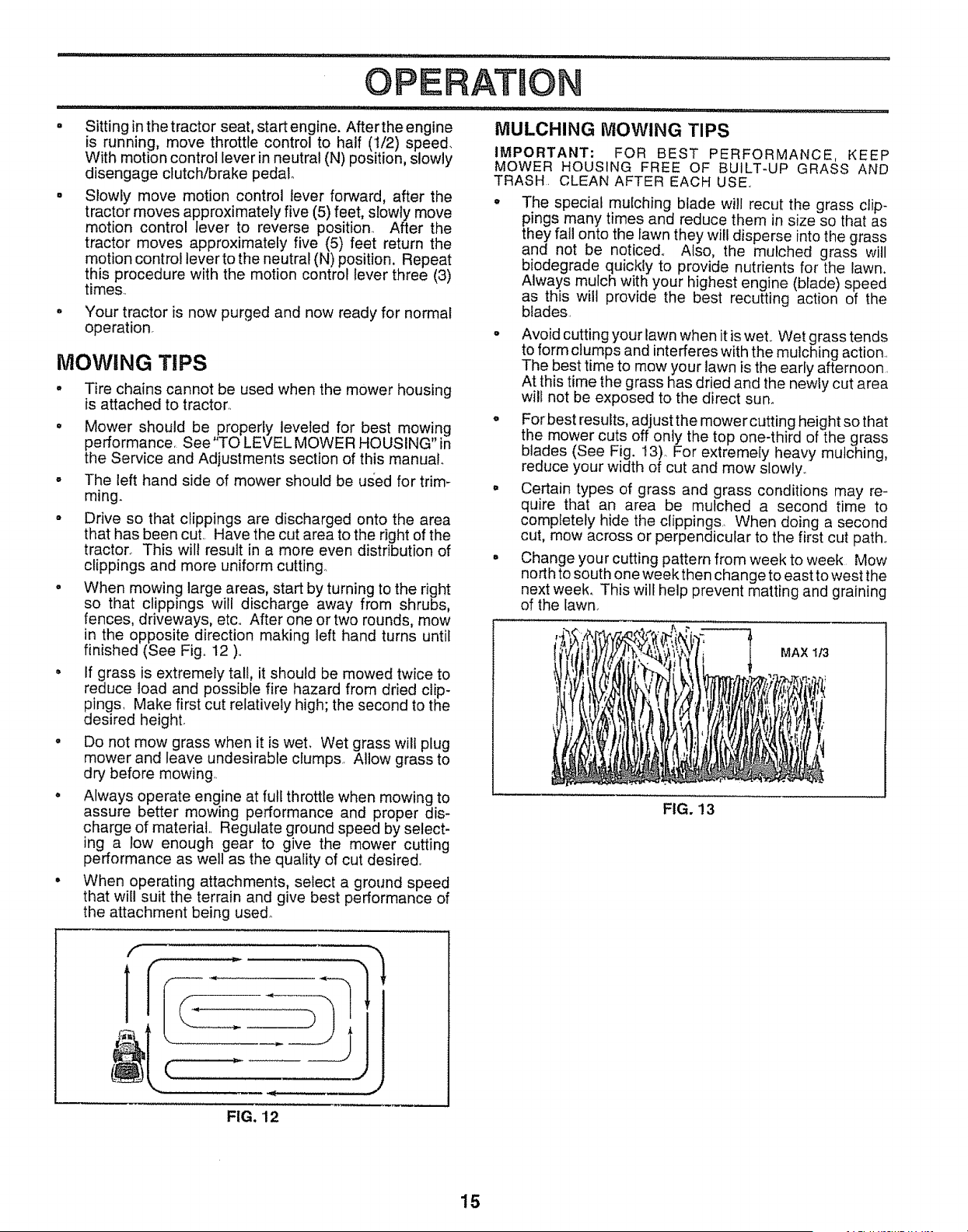

OPERAON

Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

With motion control lever in neutral (N) position, slowly

disengage clutch!brake pedal

Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position_ After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position, Repeat

this procedure with the motion control lever three (3)

times..

Your tractor is now purged and now ready for normal

operation.

MOWING TiPS

Tire chains cannot be used when the mower housing

is attached to tractor,.

• Mower should be properly levefed for best mowing

performance_ See"TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual

- The left hand side of mower should be used for trim-

ming.

o Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

tractor_ This will result in a more even distribution of

clippings and more uniform cutting,.

. When mowing large areas, start by turning to the right

so that clippings wilt discharge away from shrubs,

fences, driveways, etc.. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig° 12 )..

• if grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

° Do not mow grass when it is wet, Wet grass wilt plug

mower and leave undesirable clumps Allow grass to

dry before mowing,.

° Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material.. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

° When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used_

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE..

° The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fail onto the fawn they will disperse into the grass

and not be noticed° Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutfing action of the

blades.

- Avoid cutting your lawn when it is wet,, Wet grass tends

to form clumps and interferes with the mulching action.,

The best time to mow your lawn is the early afternoon,

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun_

o Forbest results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 13)_ For extremely heavy mulching,

reduce your width of cut and mow slowly.,

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to

completely hide the clippings. When doing a second

cut, mow across or perpendicular to the first cut path.,

° Change your cutting pattern from week to week Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the fawn,,

MAX 1t3

FIG. 13

FIG, 12

CUSTOMER

ESPONSHBILIT ES

u................. ',,,, , i i, i/iJnJl ,i 'lnlu.... ii ii ...........................................

MA,.TE.A"CESCHEOU'E

AS YOU COMPLETE /_4' "/,_,_._._OkX_"

EG ULARSERVICE....... /* ZS'ERVlCE DATES

I CheckBrake Operation _ _'

check Tire Pressure 64_ 6## ...................

iT Check for Loose Fasteners .............. 6## _4'7: _ ........

iR SharpeniReplace"M°we,rBfades ............. 6##4 _,L ,

.....LubricationCha ..... V' ...... .................

T Check..Battery Level/Recharge

0 Clean Batter':/andTerminals _ 6##

R cllec k TransaxleCooling .............. _#' ...........

Adjust BladeBelt(s)Tension 6#_'_ __

...... I

AdjustMotionDriveBelt(s)Tension 64#5

Check EngineOilLevel $#e _ ..........

Change EngineOil ..................... _ _1.2,3

Clean Air Filter' 6##2 .g

N Clean Air sc[ee..n...................................... ,64_'2 .........................

G Inspect Muifler/SparkArrester , _ ..................

! ReplaceOil Filter (if equipped) _,2 _

N Clean Engine Cooling Fins ................. 6##2

E RepiaceSpark Plug................. _41 6## ..................

Repiace AiiFilter Paper' Cartridge .............

Replace Fuel Filter

1 • Change more olten when operating under a heavy load or in high ambient temperatures

2 - Service more often when operating in dirty or dusty conditions

3 - if equipped with oil tiHef, change oil every 50 hours

4 * Replace bIades more often when mowing in sandy soil:

5 - if equipped with adjustable system

6 - Not required if equipped with maintenance-gee batl_ry,

7 - Tighten tront axle pivot boil to 35 tt -Ibs maximum

Do not overtighten

GENERAL RECOMIVIENDATIONS

The warranty on this tractor does not cover itemsthat have

been subjected to operator abuse or negligence. To

receive full valueflomthe warranty, operator must maintain

tractor' as instructed in this manual..

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season..

,, Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear° A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

LUBRICATION CHART

® SP NOLEZEBK ' NDLEZERK®

(_ FR _r WHEEL ®

BEARING ZERK BEARING ZERK

ENGINE ®

CLUTCH

PIVOT(S)

BEFORE EACH USE

• Check ertgine oil tevel_

• Check brake operation.

o Check tire pressure,

o Check for loose fastener&

(_ SAE 30 OR 10W30 MOTOR OIL

® GENERAL PURPOSE GREASE

(3) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OiL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS, VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WiLL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

16 DERED GRAPHITE TYPE LUBRICANT SPAR[NGLY

CUS'rO RESPO

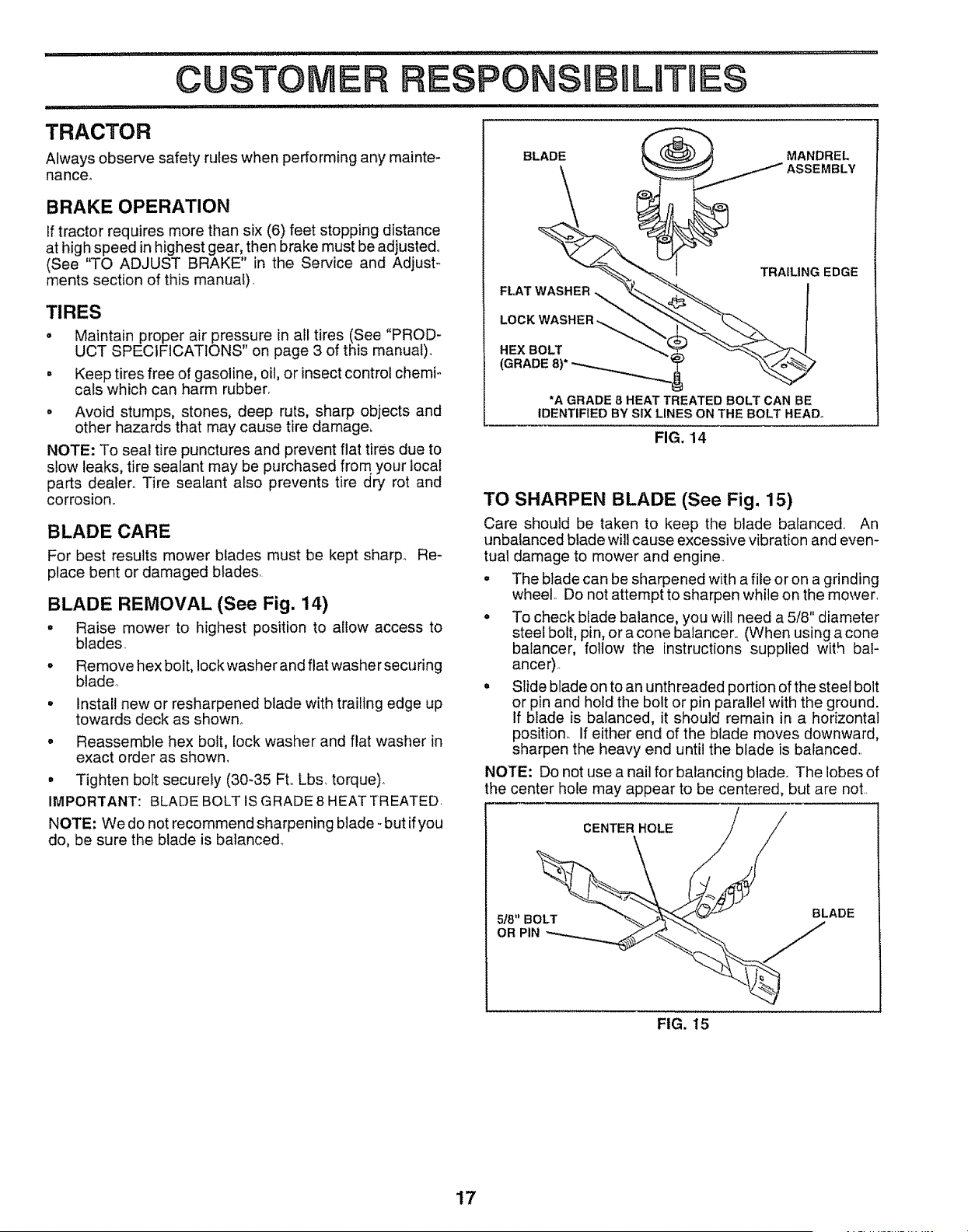

TRACTOR

Always observe safety rules when performing any mainte-

nance_

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted°

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manua0_

TIRES

• Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual),

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber,

° Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage,

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer° Tire sealant also prevents tire dry rot and

corrosion,.

BLADE CARE

For best results mower blades must be kept sharp.. Re-

place bent or damaged blades,

BLADE REMOVAL (See Fig. 14)

o Raise mower to highest position to allow access to

blades.

, Remove hex bolt, lock washer and flat washer securing

blade°

• Install new or resharpened blade with trailing edge up

towards deck as shown,.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown°

• Tighten bolt securely (30_35 FL Lbs, torque)_

IMPORTANT: BLADE BOLT IS GRADE8 HEATTREATED,

NOTE: We do not recommend sharpening blade - but if you

do, be sure the blade is balanced,

BLADE

FLAT

LOCK

HEX BOLT

(GRADE 8)*

MANDREL

ASSEMBLY

TRAILING EDGE

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 14

TO SHARPEN BLADE (See Fig. 15)

Care should be taken to keep the blade balanced,. An

unbalanced blade wil! cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel Do not attempt to sharpen while on the mower1

° To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer.. (When using a cone

balancer, follow the instructions supplied with bal-

ancer)..

° Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced,.

NOTE: Do not use a nail for balancing blade_ The lobes of

the center hole may appear to be centered, but are not..

CENTER HOLE

518" BOLT BLADE

OR PIN

FIG. 15

CUSTO

ESPON$ L E$

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use.. However, periodic charging of the

battery with an automotive charger will extend its life+

= Keep battery and terminals clean.

= Keep battery bolts tight.

= Keep smait vent holes open.

,, Recharge at 6+10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

o Open battery box door.

= Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

,, Rinse the battery with plain water and dry+

o Clean terminals and battery cable ends with wire brush

until bright,.

- Coat terminals with grease or petroleum jelly°

. Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual),.

V-BELTS

Check V-belts for deterioration and wear after t 00 hours of

operation and replace if necessary., The belts are not

adjustable.. Replace belts if they begin to slip from wear.

Change the oil after every 25 hours of operation or at least

once a year ifthe tractor is not used for 25 hours in one year,

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation° Tighten oil fill

cap/dipstick securely each time you check the oil level,

TO CHANGE ENGINE OIL (See Figs. 16 and !7)

Determine temperature range expected before oil change..

All oil must meet API service classification SF, SG or SH.

o Be sure tractor is on level surface+

Oil will drain more freely when warm°

Catch oil in a suitable container.

Remove oil fill cap/dipstick, Be careful not to allow dirt

to enter the engine when changing oil,

Remove drain plug.,

After oil has drained completely, replace oil drain plug

and tighten securely.

Refil! engine with oil through oil fill dipstick tube, Pour

slowly. Do not overfill, For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual°

Use gauge on oil fill cap/dipstick for checking level Be

sure dipstick cap is tightened securely for accurate

"FULL"

reading,. Keep oil at line on dipstick,

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which

can restrict cooling..

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF, SG, or SH Select the oil's SAE viscosity

grade according to your expected operating temperature.

SAE VISCOSITY GRADES

30" 32" 40 +' 60 + 80 + 100"

'_C +30" -20_ +I0_' 0* t'05 20+ 304 40°

TEMPERATURE RANGE ANTiCiPATED BEFORE NEXT OIL CHANGE

FIG. 16

CAP/DIPSTICK

OIL DRAIN

PLUG

FIG. 17

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil leve! more frequently to avoid

possible engine damage from running low on oil,

..................i,,lllUlU,lll,llUUllUllU,ll,tUu ,i ii i i i i i

C STOM

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cteaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first°

Service air cleaner more often under dusty conditions.

o Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

° Slide foam pre-cteaner off cartridge.

= Wash it in liquid detergent and water..

o Squeeze it dry in a clean cloth.

- Saturate it in engine oil,, Wrap it in clean, absorbent

cloth and squeeze to remove excess oil

• If very dirty or damaged, replace pre-cleanero

• Reinstall pre-cleaner over cartridge,

° Reinstall cover and secure with knob(s)o

TO SERVICE CARTRIDGE

• Remove cartridge nutl

o CarefuIfy remove cartridge to prevent debris from

entering carburetor° Clean base carefully to prevent

debris from entering carburetor.

- Clean cartridge bytapping gently on flat surface.. If very

dirty or damaged, replace cartridge.

- Reinstall cartridge, nut, precleaner, cover and secure

with knob(s).

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

COVER KNOB"-'--

COVER

FOAM

PRE-CLEANER

CARTRIDGE NUT

PAPER

CARTRIDGE

lUIIIH III ........................I"111 I ...............

ESPONSIBILITIES

CLEAN AIR SCREEN (See Fig. 19)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating_ Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.,

ENGINE COOLING FINS (See Fig. 19)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating,.

• Remove screws from blower housing and lift housing

and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt.

• Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

• To reassemble, reverse above procedure.

SCREWS

BLOWER HOUSING

SCREWS

AIR SCREEN

DIPSTICK TUBE

ASSEMBLY _, "_ .

SPARK

PLUG

ENGINE

COOLING FENS

FIG. 19

FIG. 18

CUSTOME ESPONSI ILHTIE$

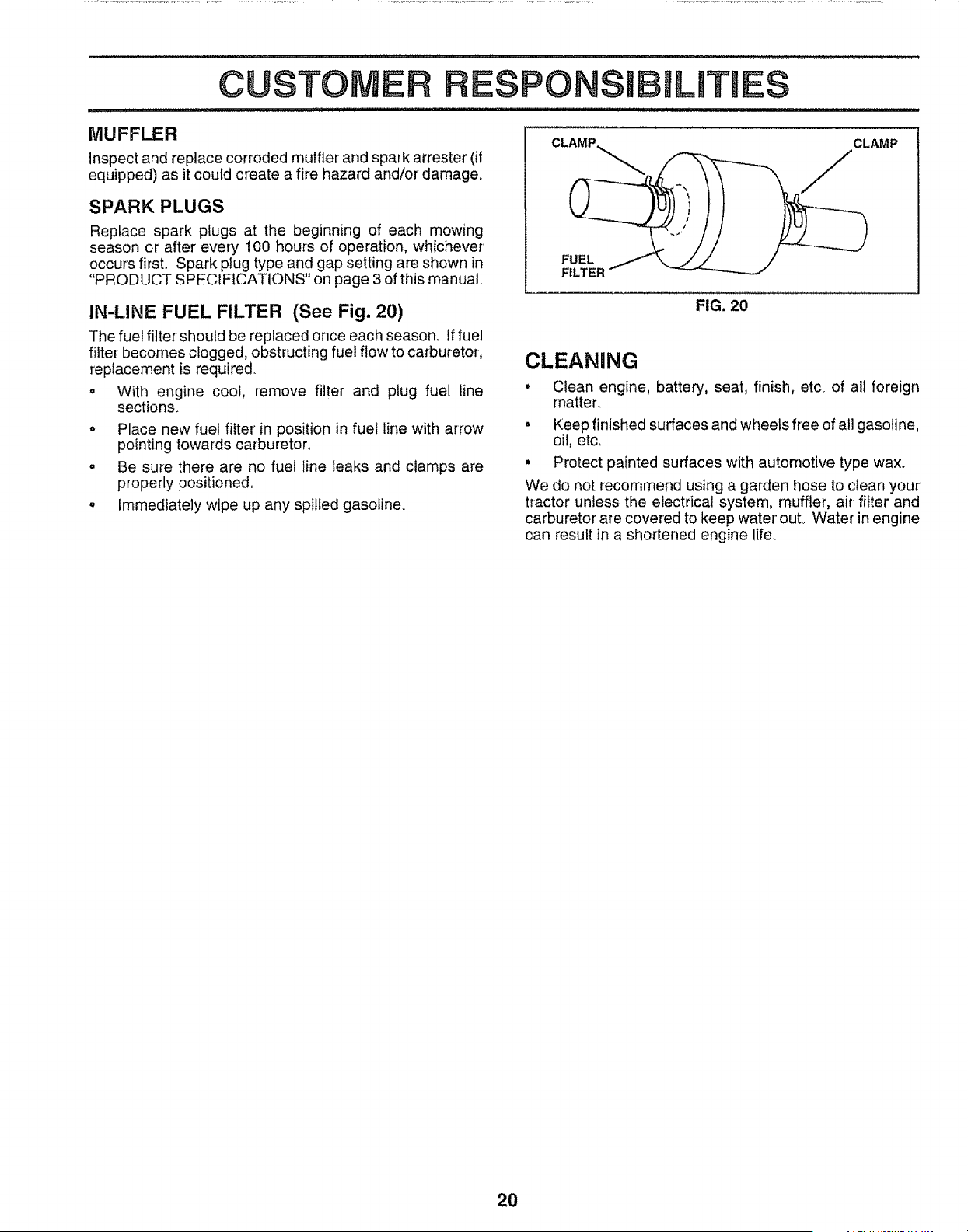

MUFFLER

inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage_

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after' every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual

IN-LINE FUEL FILTER (See Fig. 20)

The fuel filter-should be replaced once each season_ if fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine coot, remove filter and plug fuel line

sections.

o Place new fuel filter in position in fuel line with arrow

pointing towards carburetor_

. Be sure there are no fuel line leaks and clamps are

properly positioned_

. Immediately wipe up any spilled gasoline.

CLAMP, CLAMP

FUEL

FILTER

FIG. 20

CLEANHNG

° Clean engine, battery, seat, finish, etc. of all foreign

matter_

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water' out_ Water' in engine

can result in a shortened engine life_

ii_ ,i,,iiiIL,,II _

STMENT$

,,,_ ,, ,,,,,,,,, ..............

: : IIIIIIIIM 'L'' II

VICE A

q,l,l iii1 ii _11= ................................ 11,I, ,_ ........................... i111111111_!ILl!!' I

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position,

Place attachment clutch in "DISENGAGED" position,

Turn ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

,i,N,_,_l,]_,,ii ii, i i_l± _1, ,, ii " _"1,i ii _IIII_,L_,_ ,i,,,Hi,illlll,=l, _l,'r.........................

TRACTOR

TO REMOVE MOWER (See Fig. 2'I)

Mower will be easier to remove from the right side of tractor°

o Place attachment crutch in "DISENGAGED" position.

• Move attachment lift lever forward to lower mower to its

lowest position.,

• Roll belt off engine pulley,

° Disconnect clutch rod from clutch lever by removing

retainer spring°

- Disconnect anti-sway bar from chassis bracket by

removing retainer spring,

= Disconnect suspension arms from rear deck brackets

by removing retainer springs,

° Disconnect front links from deck by removing retainer

springs°

• Raise lift lever to raise suspension arms, Slide mower

out from under tractor_,

IMPORTANT: tF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR.

REMOVE THE FRONT LINKS

TO INSTALL MOWER (See Fig. 21)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor,,

, Lower lift lever to its lowest position,

° Install mower in reverse order of removal instructions,

CLUTCH

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTHSIDES)

FIG. 2'1

RETAINER

2'1

i,,111111Will ii1,111,,1111,, i!

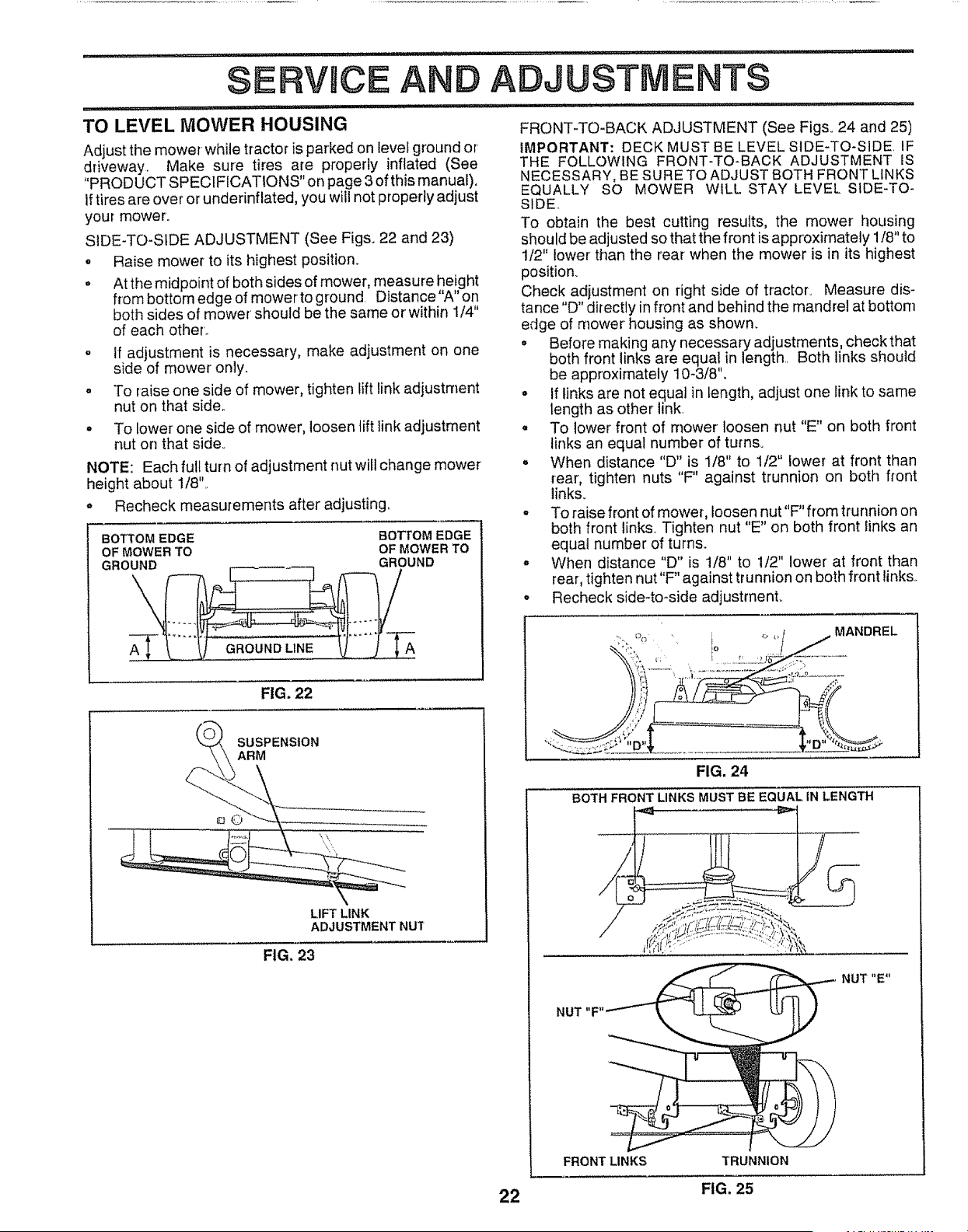

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway, Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual),

If tires are over or underinflated, you will not properly adjust

your mower°

SIDE-TO-SIDE ADJUSTMENT (See Figs. 22 and 23)

o Raise mower to its highest position.

° At the midpoint of both sides of mower, measure heig ht

from bottom edge of mowerto ground Distance "A" on

both sides of mower should be the same or within 1/4"

of each other'..

o If adjustment is necessary, make adjustment on one

side of mower only.

o To raise one side of mower, tighten lift Iink adjustment

nut on that side..

• To lower one side of mower, loosen lift link adjustment

nut on that side..

NOTE: Each full turn of adjustment nut will change mower

height about 1/8"..

- Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

FIG. 22

SUSPENSION

ARM

FIG. 23

LIFT LINK

ADJUSTMENT NUT

FRONT-TO-BACK ADJUSTMENT (See Figs. 24 and 25)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT iS

NECESSARY, BE SURETO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE..

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/8" to

1/2" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance"D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjustments, check that

both front links are equal in length., Both links should

be approximately 10-3/8".

• If links are not equal in length, adjust one link to same

length as other link

° To lower front of mower loosen nut "E" on both front

links an equal number of tums_

• When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

° To raise front of mower, loosen nut"F" from trunnion on

both front links° Tighten nut "E" on both front links an

equal number of turns.

- When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nut"F" against trunnion on both front links..

° Recheck side-to-side adjustmenL

MANDREL

FIG, 24

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "E"

NUT "F"

FRONT LINKS TRUNNION

22 FIG. 25

i i ............................. "........................... ii i 1,1,1.... i , ir ............................

$ERVmCE A ADJ STMENTS

........................ .................... ll,ii i i _ ,IM,I_ ......

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 26)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surfacer Engage parking brake.

BELT REMOVAL -

o Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

= Work belt off both mandrel pulleys and idler pulleys_

• Pull belt away from mower..

BELT INSTALLATION -

= Install new belt in reverse order of removal..

° Make sure belt is in all pulley grooves and inside all belt

guides°

° install mower in reverse order of removal instructions.

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 26

TO ADJUST BRAKE (See Fig. 27)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxle,

If tractor requires more than six (6) feet stopping distance

at high speed inhighest gear, then brake must be adjusted°

° Depress clutch/brake pedal and engage parking braker

• Measure distance between brake operating arm and

nut "A" on brake rod.

if distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4'L Retighten jam

nut against nut "A".

Road test tractor for proper stopping distance as stated

above° Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary.. Contact your nearest au-

thorized service center/departmento

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

!/ ARM

DO NOTTOUCH THIS NUT, IF FURTHER

BRAKE ADJUSTMENTIS NECESSARY

CONTACTYOUR NEAREST AUTHORIZED

SERVICE CENTEWDEPARTMENT

FIG. 27

TO REPLACE MOTION DRIVE BELT

(See Fig. 28)

Park the tractor on level surface_ Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest°

• Remove mower (See "TO REMOVE MOWER" in this

section of this manual..)

, Remove upper belt keeper_

° Remove belt from stationary idler and clutching idter_

° Pull belt slack toward rear of tractor_ Carefufly remove

belt upwards from transmission input pulley and over

cooling fan blades.

° Pull belt toward front of tractor and remove downward

from around engine pulley.

° Install new belt by reversing above procedure°

IMPORTANT: MAKE SURE UPPER BELT KEEPER iS

POSITIONED PROPERLY BETWEEN LOCATOR TABS..

ENGINE_! t

PULLEY _\ / LOCATOR

_ _ / _- TABS

CLUTCHING ---... _-_Y,./._. I

_ _ UPPER BELT

STATIONARY U .F..._._..t

IDLER I___ KEEPER

TRANSMISSION _,._?_ . -_ I

INPUT PULLEY 1_'._::,_ ,_, I

FIG. 28

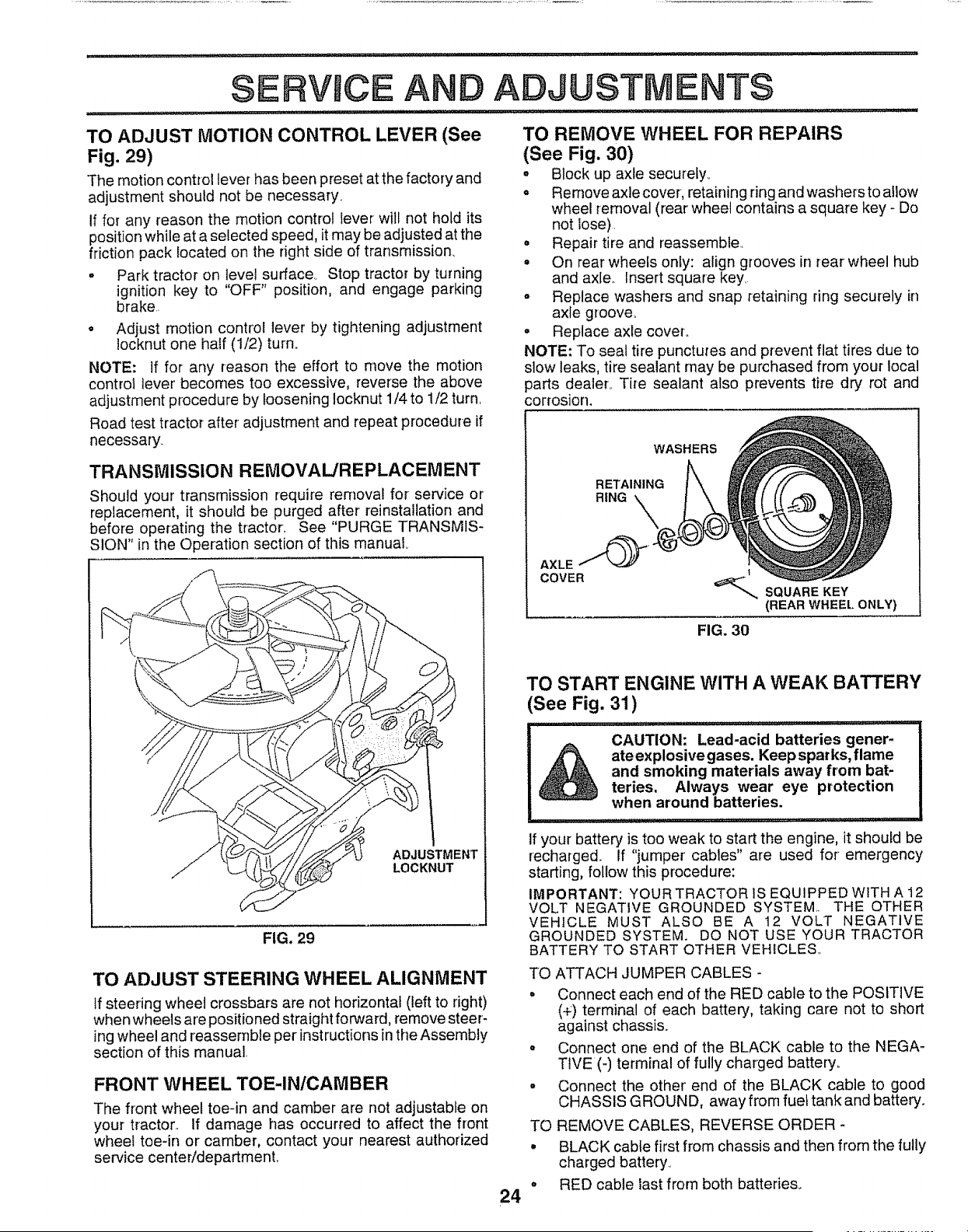

TO ADJUST MOTION CONTROL LEVER (See

Fig. 29)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission.

o Park tractor on level surface. Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake.

• Adjust motion control lever by tightening adjustment

locknut one half (1/2) turn.

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening Iocknut 1/4 to !/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for' service or

replacement, it should be purged after' reinsta!lation and

before operating the tractor, See "PURGE TRANSMIS-

SION" in the Operation section of this manual

FIG. 29

ADJUSTMENT

LOCKNUT

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight fop._Jard,remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely_

. Remove axle cover, retaining ring and washersto allow

wheel removal (rear wheel contains a square key - Do

not lose).

= Repair tire and reassemble,,

• On rear wheels only: align grooves in rear wheel hub

and axle,, insert square key,

° Replace washers and snap retaining ring securely in

axle groove,

• Replace axle cover,.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer,. Tire sealant also prevents tire dry rot and

corrosion.

The front wheel toe-in and camber are not adjustable on

your tractor.. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service centeridepartmenL

AXLE

COVER

WASHERS

RETAINING

RING \

_SQUARE KEY

(REAR WHEELONLY)

FIG. 30

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

i & CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame |

and smoking materials away from bat- |

teries. Always wear eye protection |

when around batteries.

if your battery is too weak to start the engine, it should be

recharged,, if "jumper' cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM,. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES,,

TO ATTACH JUMPER CABLES -

= Connect each end of the RED cable to the POSITIVE

(4:) terminal of each battery, taking care not to short

against chassis.

• Connect one end of the BLACK cable to the NEGA-

TIVE(-) terminal of fully charged battery_

Connect the other' end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery°

RED cable last from both batteries.

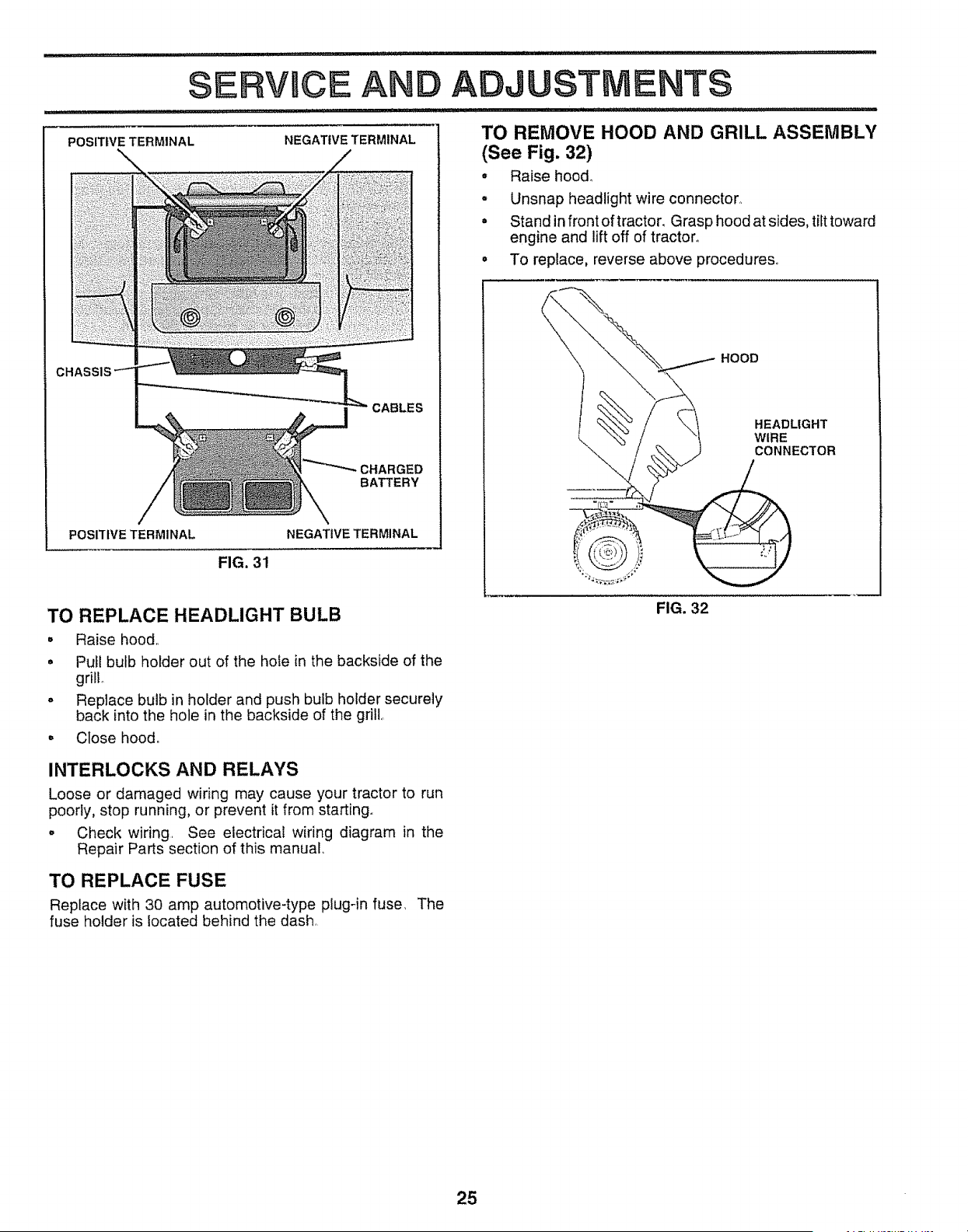

,,ll,l,i i ,i,ii_,l i ii, ,i,,ll,,ll,,i,, i i iil_,_l , i ........... _'_'LI_Lllu"

POSITIVE TERMINAL NEGATIVE TERMINAL

ERVmCE A ADJUSTMENTS

CABLES

BATTERY

POSITIVE TERMINAL NEGATIVE TERMINAL

FIG. 31

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

• Raise hood_

° Unsnap headlight wire connector.

o Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor°

• To replace, reverse above procedures°

HOOD

HEADLIGHT

WIRE

CONNECTOR

TO REPLACE HEADLIGHT BULB

• Raise hood,,

• Pull bulb holder out of the hofe in the backside of the

grill.

o Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grilL,

• Close hood,

FIG. 32

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring, See electrical wiring diagram in the

Repair Parts section of this manual

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse, The

fuse holder is located behind the dash,

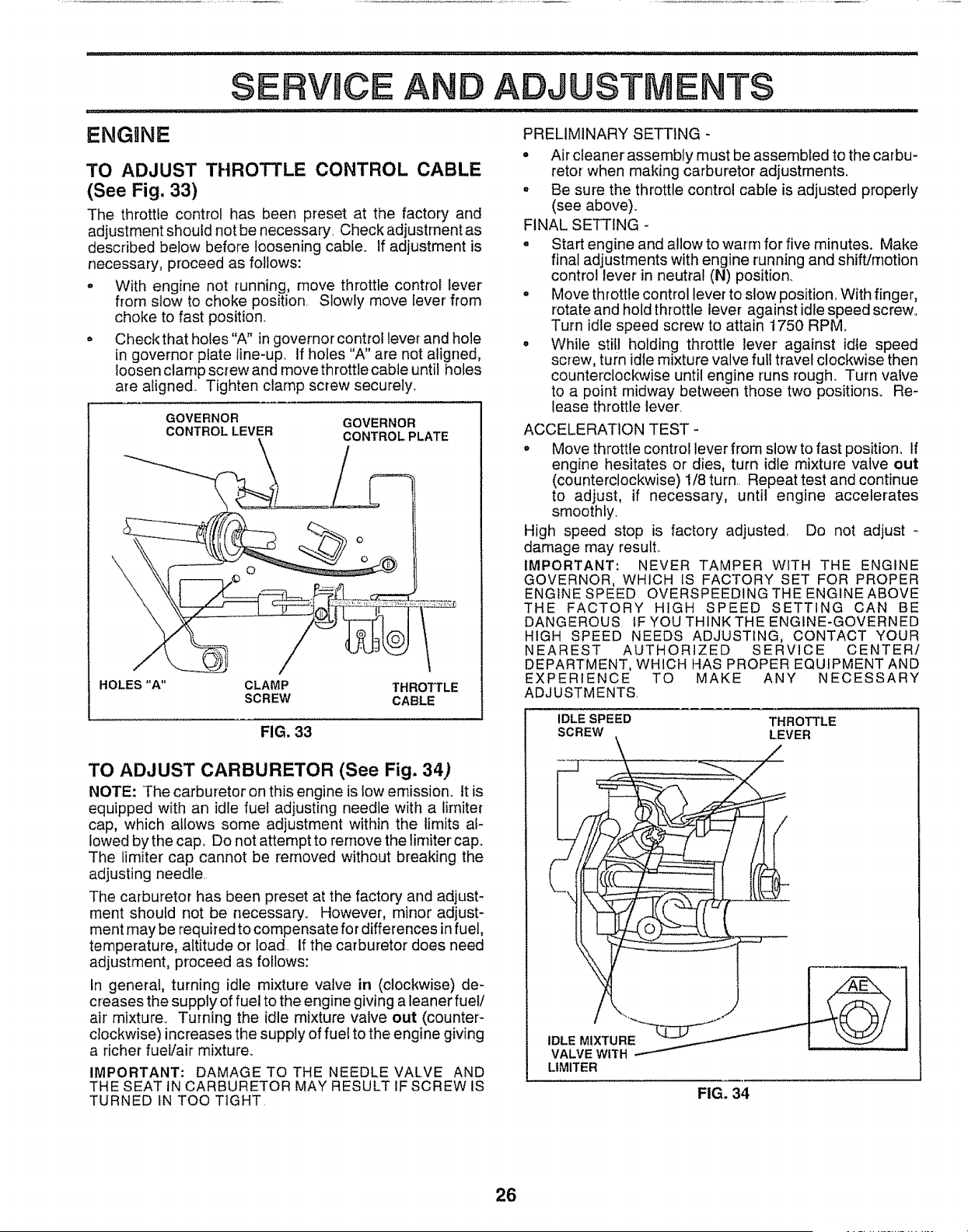

SERVICE AND ADJUST ENTS

ENGgNE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig, 33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

o With engine not running, move throttle control lever

from slow to choke position Slowly move lever from

choke to fast position.

= Check that holes "A" in governor control lever and hole

in governor plate line-up_ If holes "A" are not aligned,

loosen clamp screw and move throttle cable until holes

are aligned_ Tighten clamp screw securely.

GOVERNOR GOVERNOR

CONTROL LEVER CONTROL PLATE

HOLES "A" CLAMP THROTTLE

SCREW CABLE

FIG. 33

TO ADJUST CARBURETOR (See Fig. 34)

NOTE: The carburetor on this engine is low emission, it is

equipped with an idle fuel adjusting needle with a limiter

cap, which allows some adjustment within the limits at-

lowed by the cap_ Do not attempt to remove the firnitercap_

The limiter cap cannot be removed without breaking the

adjusting needle

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air' mixture, Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel!air mixture_

IMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEAT iN CARBURETOR MAY RESULT iFSCREW lS

TURNED iN TOO TIGHT

PRELIMINARY SETTING -

• Air cleaner assembly must be assembled to the car bu-

retor when making carburetor adjustments=

o Be sure the throttle control cable is adjusted properly

(see above).

FINAL SETTING -

. Start engine and allow to warrn for five minutes. Make

final adjustments with engine running and shift/motion

control lever' in neutral (N) position.

• Move throttle control lever to slow position_ With finger,

rotate and hold throttle lever against idle speed screw.,

Turn idle speed screw to attain 1750 RPM.

° While stitl holding throttle lever' against idle speed

screw, turn idle mixture valve full travel clockwise then

counterclockwise until engine runs rough. Turn valve

to a point midway between those two positions. Re-

lease throttle lever

ACCELERATION TEST -

= Move throttle control lever from slow to fast position. If

engine hesitates or dies, turn idle mixture valve out

(counterclockwise) t/8 turn. Repeat test and continue

to adjust, if necessary, until engine accelerates

smoothlyv

High speed stop is factory adjusted, Do not adjust -

damage may result..

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

IDLE SPEED THROTTLE

SCREW LEVER

IDLE MIXTURE

VALVE WITH

LIMITER

FIG. 34

....... i,

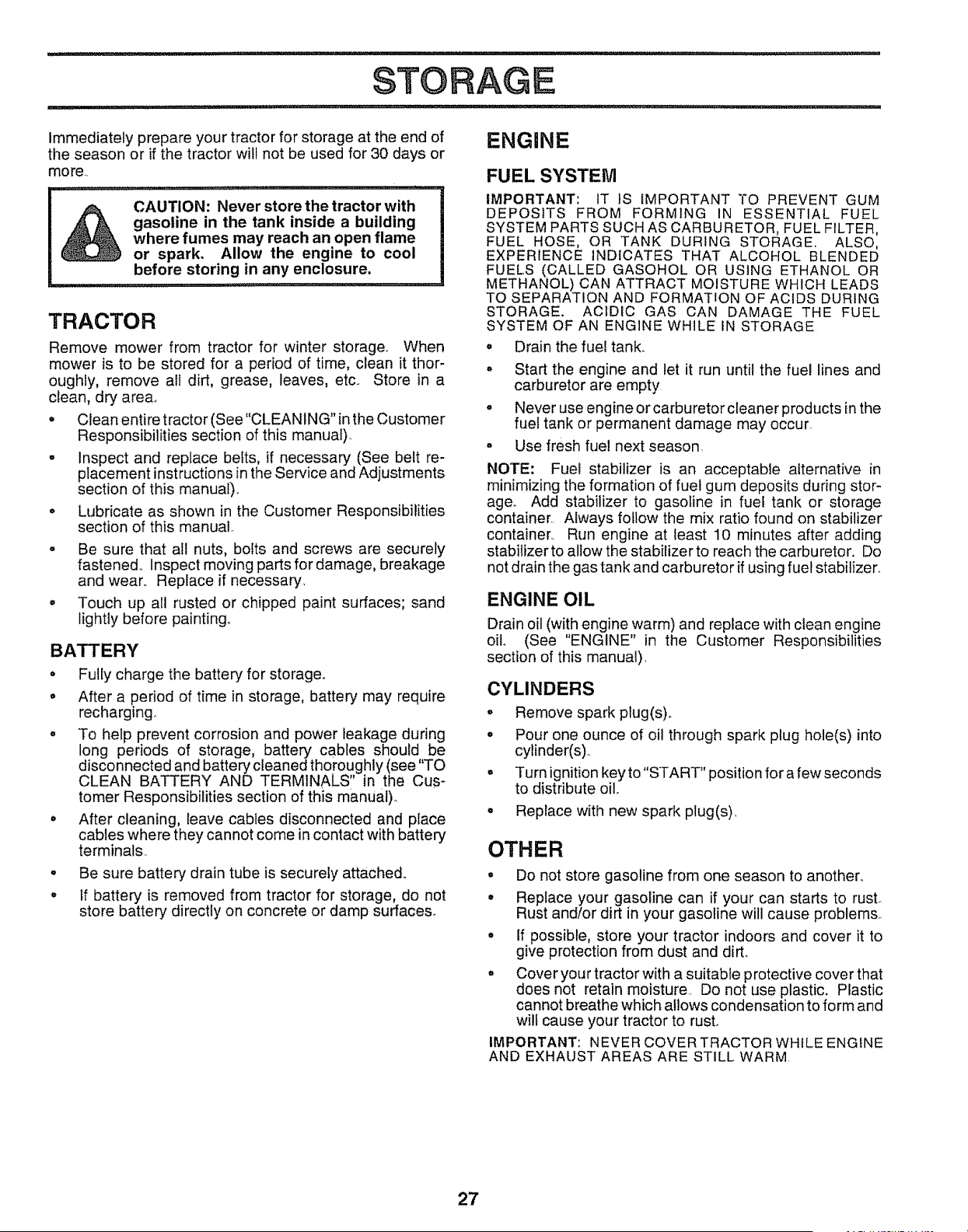

STORAGE

Immediately prepare your tractor for storage at the end of

the season or if the tractor wilt not be used for 30 days or

more..

A CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove ait dirt, grease, leaves, etc.. Store in a

clean, dry area..

• Clean entire tractor (See "CLEANING" in the Customer

Responsibilities section of this manuai)_

. inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual),.

• Lubricate as shown in the Customer Responsibilities

section of this manual°

• Be sure that all nuts, bolts and screws are securely

fastened.. Inspect moving parts for damage, breakage

and wear.. Replace if necessary..

° Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

= Fully charge the battery for storage°

= After a period of time in storage, battery may require

recharging°

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus o

tomer Responsibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

° Be sure battery drain tube is securely attached,.

- If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT tS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE iNDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE

° Drain the fuel tank..

o Start the engine and let it run until the fuel lines and

carburetor are empty

° Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur

,, Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age_ Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container.. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizen

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

° Remove spark plug(s).

° Pour one ounce of oil through spark plug hole(s) into

cylinder(s),.

= Turn ignitionkey to "START" position for a few seconds

to distribute oil.

° Replace with new spark plug(s)_

OTHER

= Do not store gasoline from one season to another°

• Replace your gasoline can if your can starts to rusL

Rust and/or dirt in your gasoline will cause problems_

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt,.

° Coveryour tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAL1ST AREAS ARE STILL WARM.

TROUBLESHOOTmHG

POINTS

PROBLEM

Willnotstart

Hard to start

Engine wilt not turn over

nll,,i ,i i_ 'llln

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1 Out of fuel

2 Engine not "CHOKED" properly

3 Engine flooded.

4, Bad spark plug

5 Dirty air filter,

6 Dirty fuel filter

7 Water in fuel.

8 Loose or damaged wiring.

9 Carburetor out of adjustment

10 Engine valves out of adjustment

t Dirty air filter.

2 Bad spark plug.

3 Weaker dead battery

4 Dirty fuel filter.

5 Stale or dirty fuel

6 Looseor damaged wiring

7 Carburetor out of adjustment

8. Engine valves out of adjustment

1. Clutchtbrake pedal not depressed,

2, Attachment clutch is engaged

3 Weak or dead battery,

4 Blown fuse

5 Corroded battery terminals

6 Loose or damaged wiring.

7 Faulty ignition switch

8 Faulty solenoid or starter

9 Faulty operator presence switch(es)

1 Weak or dead battery,

2 Corroded battery terminals,

3 Loose or damagedwtring

4 Fault,/solenoid or starter

t Cutting too much grass/too fast

2 Throttle in "CHOKE" position,

3 Build-up of grass, leaves and trash under mower

4 Dirty air filter,

5 Low oil levelldtrty o_l

6, Faulty spark pfug_

7 Dirty fuet filler,.

8 Stale or dirty fue!,

9 Water in fuel

t0 Spark plug wire loose,

t 1 Dirty engine air screen/fins

t2 Dirty/clogged muffler.

t3. Loose or damaged wiring°

14 Carburetor out of adjustment

t5, Engine valves out of adjustment.

1 Worn, bent or Ioose blade,

2 Bent blade mandrel

3 Loose/damaged part(s)

CORRECTION

1 Fill fuel tank

2, See "TO START ENGINE" in Operation section,

3 Wait several minutes before attempting to start

4 Replace spark plug,

5 Clean/replace air filter.

6 Replace fuel filter,

7,_ Drain fuel tank and carburetor, refilt tank with fresh

gasoline and replace fuel fitter

8 Check all wiring,

9 See "To Adjust Carburetor" in Service Adjustments

section,

t0 Contact an authorized service center/department

1, Clean/replace air filter

2 Replace spark plug

3 Recharge or replace battery,

4, Replace fuel filter

5 Drain fuel tank and refill with fresh gasoline.

6 CheckalJ wiring,

7 See "To Adjust Carburetor" In Service Adjustments

section,

8 Contact an authorized service center/department

t, Depress clutch/brake pedal

2 Disengage attachment clutch

3 Recharge or replace battery

4 Replace fuse

5 Clean battery terminals

6 Check all wiring,

7 Check/replace ignition switch

8 Check/replace solenoid or starter

9 Contact an authorized service center/department

1 Recharge or replace battery,

2 Clean battery terminals

3 Check all wiring..

4. Check/replace solenoid or' starter

t. Set in "Higher Cut" posRion/reduce speed,

2, Adjust thrortte control,

3. Clean underside of mower housing,

4 Clean/replace air filter.

5 Check ofl level/change oil,

6,. Clean and regap or change spark plug.

7,, Replace fuel filter

8 Drain tue! tank and refill with fresh gasoline

9 Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter,

10 Connect and tighten spark plug wire,,

11 Clean engine air screen/fins,.

12 Clean/replace muffler

13 Check all wiring,

14 See '`To Adjust Carburetor" in Service Adjustments

section.

15 Contact an aulhorized service centerldepartment,

lll'tl II jlj U,II,I,II i!,,i i iii, IJIU LL: ! I ± !:±I! IIII t_± I tll

t. Replace blade Tighten blade beet

2. Replace blade mandrel

3 Tighten loose part(s), Reptace damaged parts

.......... i i!l[Ui l!JU Jl!JIL!LI'"I'I!I'III!"'I'I L

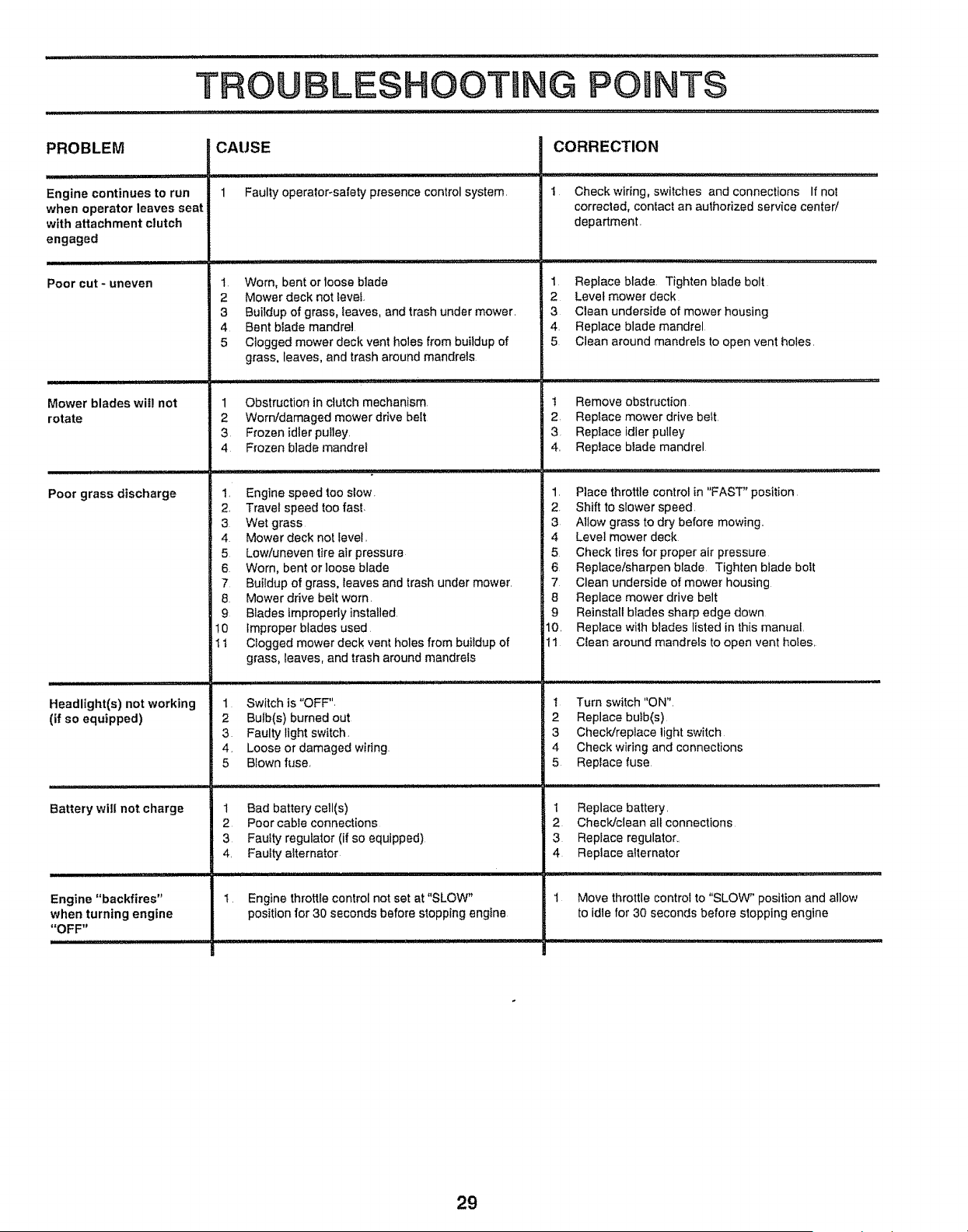

TROUBLESHOO NG POmNTS

iltli ,,i ....................i., _r:j HIIHH. ':

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor CUt - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

CAUSE

1 Faulty operator-safety presence control system,

1 Worn, bent or loose blade

2 Mower deck not tevei,

3 Buildup of grass, leaves, and trash under mower,

4 Bent blade mandrN

5 Clogged mower deck vent holes from buildup of

CORRECTION

1 Check wiring, switches and connections If not

corrected, contact an authorized service center/

department.

grass, leaves, and trash around mandrels

,jj i ll,,iHll ::

1 Obstruction in clutch mechanism,

2 Worn/damaged mower ddve belt

3 Frozen idler pulley,

4 Frozen blade mandrei

1, Engine speed too slow.

2, Travel speed too fasL

3 Wet grass

4 Mower deck notlevel,

5 Low/uneven ttre air pressure

6 Worn, bentorloose blade

1 Replace blade Tighten blade bolt

2 Level mower deck

3 Clean underside of mower housing

4 Replace blade mandrel

5 Clean around mandrels to open vent holes,

t Remove obstruction

2, Replace mower drive be_t

3, Replace idler pulley

4,, ReNace blade mandrel

7 Buildup of grass, leaves and trash under mower,

8 Mower drive belt worn.

9 Bladeslmproperfyinstalted,

10 Improper blades used.

1 t Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels

1 Switch is "OFF".

2 Bulb(s) burned out

3 Faulty light switch,

4, Loose or damaged wiring.

5 Blown fuse,

1 Bad battery cell(s)

2 Poor cable connections

3 Faulty regulator (if so equipped)

4, Faulty alternator

1 Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine

1, Place throttle control in "FAST" position,

2, Shift to slower speed

3 Allow grass to dry before mowing,,

4 Level mower deck

5 Check tires for proper air pressure,

6 Replace/sharpen blade Tighten blade bolt

7 Clean underside of mower housing

8 Replace mower drive belt

9 Reinstall blades sharp edge down

10, Replace with blades listed in this manual,

1 Clean around mandrels to open vent holes,

I Turn switch "ON",

2 Replace butb(s)

3 Check/replace light switch

4 Check wiring and connections

5 ReNace fuse

1 Replace battery,

2 Check/clean altconnections

3 Replace regulator,,

4 Replace alternator

i_: ii ,, ,i ,i,ll ,iHi

Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine

i, iiiiiiii iii III II ii _ :_ L

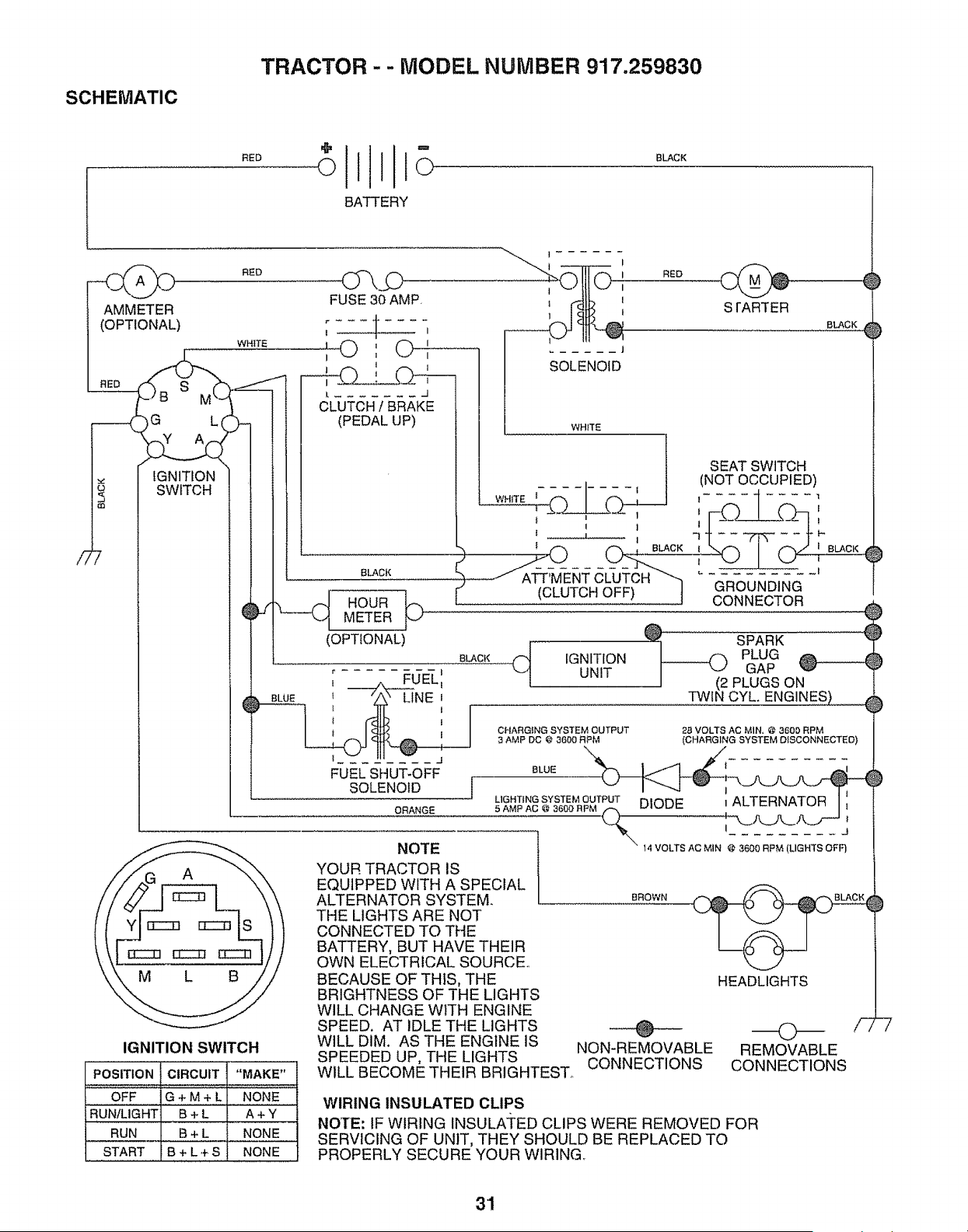

$ERVmCE OTE

SCHEMATIC

TRACTOR-- MODEL NUMBER 917.259830

RED

BATTERY

BLACK

AMMETER

(OPTIONAL)

RED

IGNITION

SWITCH

IGNITION SWITCH

O Zb

FUSE 30 AMP,

POSITION CIRCUIT "MAKE"

OFF G + M + L NONE

RUN/LIGHT B + L A + Y

RUN B + L NONE

START B + L + S NONE

NOTE

CHARGING SYSTEM OUTPUT

3 AMP DO @ 3600 RPM

BLUE

SFARTER

RED

BLACK

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

_(2 SPARK _

PLUG

GAP _ m_

PLUGS ON

a CYL. ENGINES) _)

28 VOLTS AC MIN, @ 360D RPM

(CHARGING SYSTEM DISCONNECTEO)

LIGHTING SYSTEM OUTPUT DIODE ALTERNATOR

5 AMP AC @ 3600 RPM q I

14 VOLTS AC MIN @ 3600 RPM (LIGHTS OFF)

BROWN

HEADLIGHTS

® 0 /-;

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING

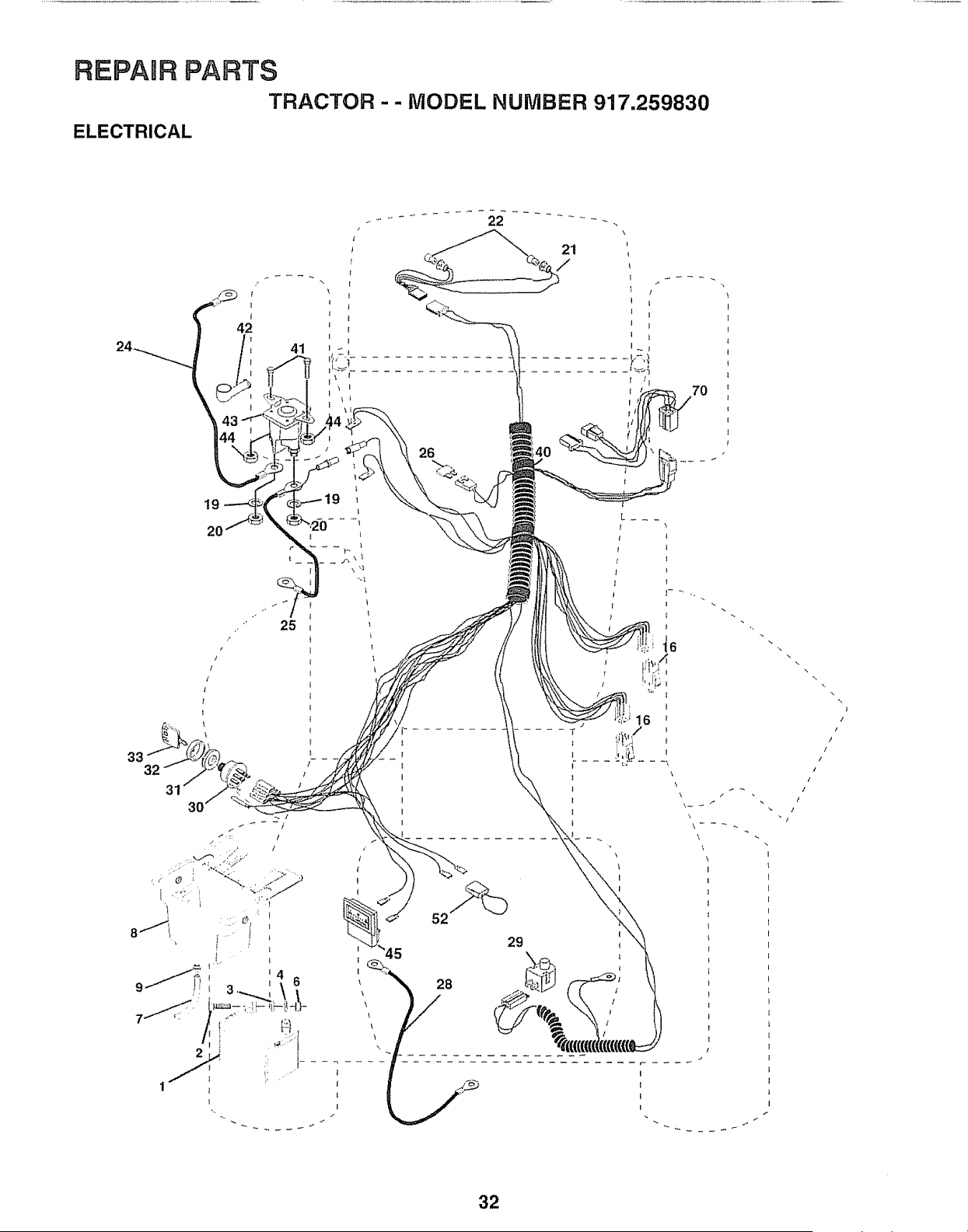

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.259830

ELECTRICAL

19 II

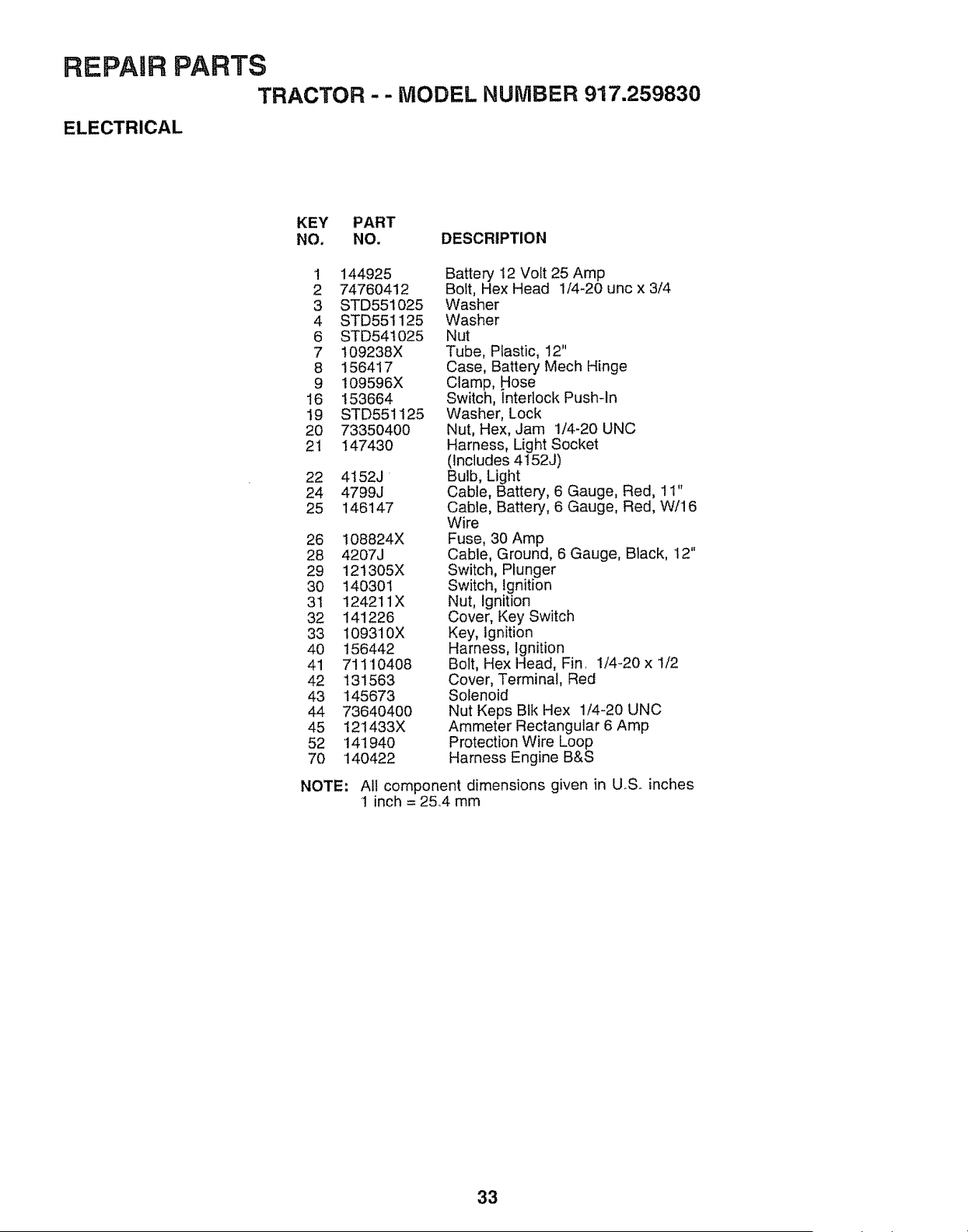

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.259830

ELECTRICAL

KEY PART

NO, NO. DESCRIPTION

1 144925 Battery 12 Volt 25 Amp

2 74760412 Bolt, Hex Head 1/4-20 unc x 3/4

3 STD551025 Washer

4 STD551125 Washer

6 STD541025 Nut

7 !09238X Tube, Plastic, 12"

8 156417 Case, Battery Mech Hinge

9 !09596X Clamp, Hose

t6 153664 Switch, Interlock Push-In

19 STD551125 Washer, Lock

20 73350400 Nut, Hex, Jam 1/4-20 UNC

2t 147430 Harness, Light Socket

(Includes 4!52J)

22 4152J Bulb, Light

24 4799J Cable, Battery, 6 Gauge, Red, 11"

25 146147 Cable, Battery, 6 Gauge, Red, W/16

Wire

26 108824X Fuse, 30 Amp

28 4207J Cable, Ground, 6 Gauge, Black, 12"

29 121305X Switch, Plunger

30 140301 Switch, Ignition

31 124211X Nut, ignition

32 141226 Cover, Key Switch

33 t09310X Key, Ignition

40 156442 Harness, Ignition

41 71110408 Bolt, Hex Head, Fin_ 1/4-20 x 1/2

42 131563 Cover, Terminal, Red

43 145673 Solenoid

44 73640400 Nut Keps Bik Hex 1/4-20 UNC

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

70 140422 Harness Engine B&S

NOTE: All component dimensions given in U,,S_ inches

1 inch = 25,4 mm

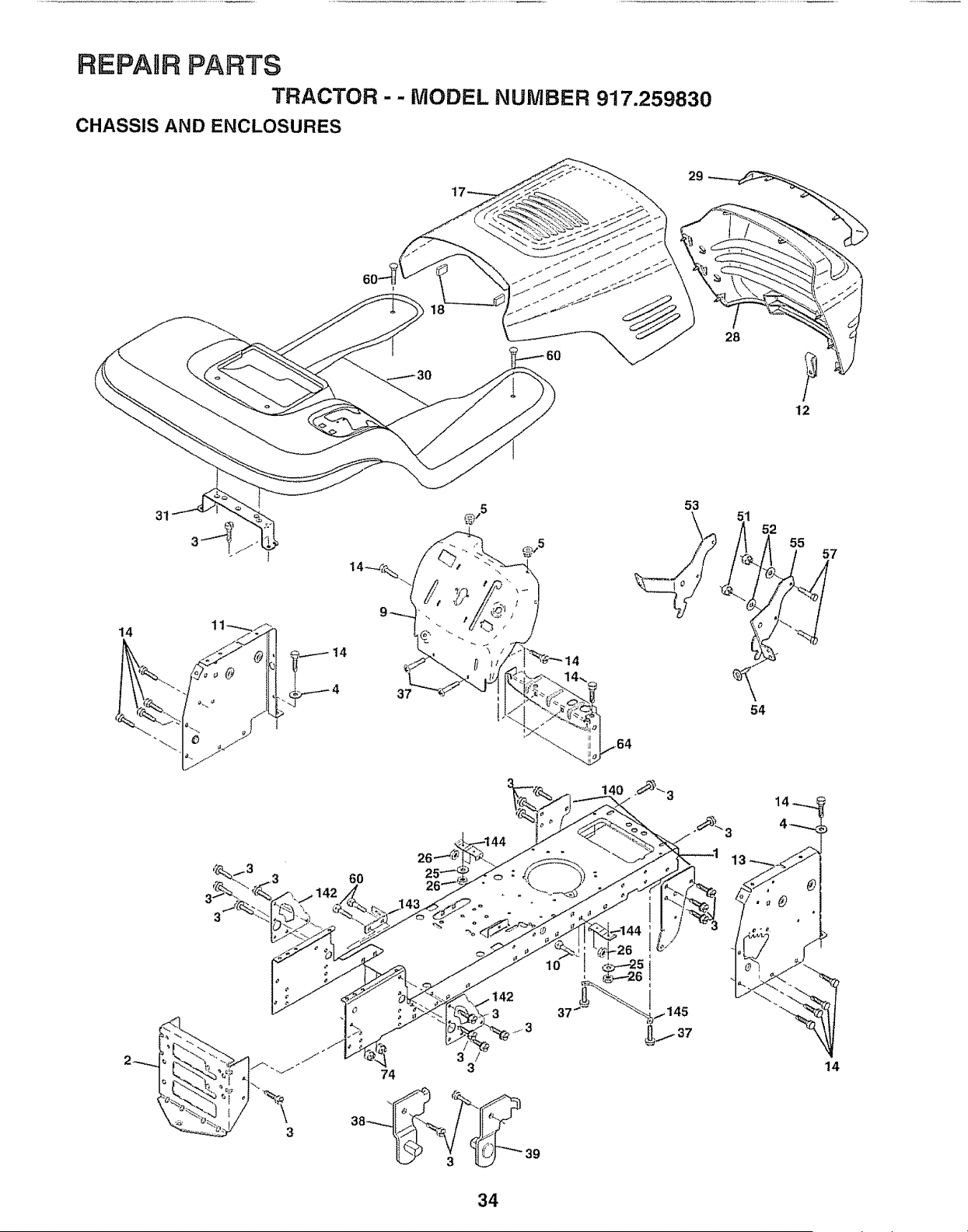

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

CHASSIS AND ENCLOSURES

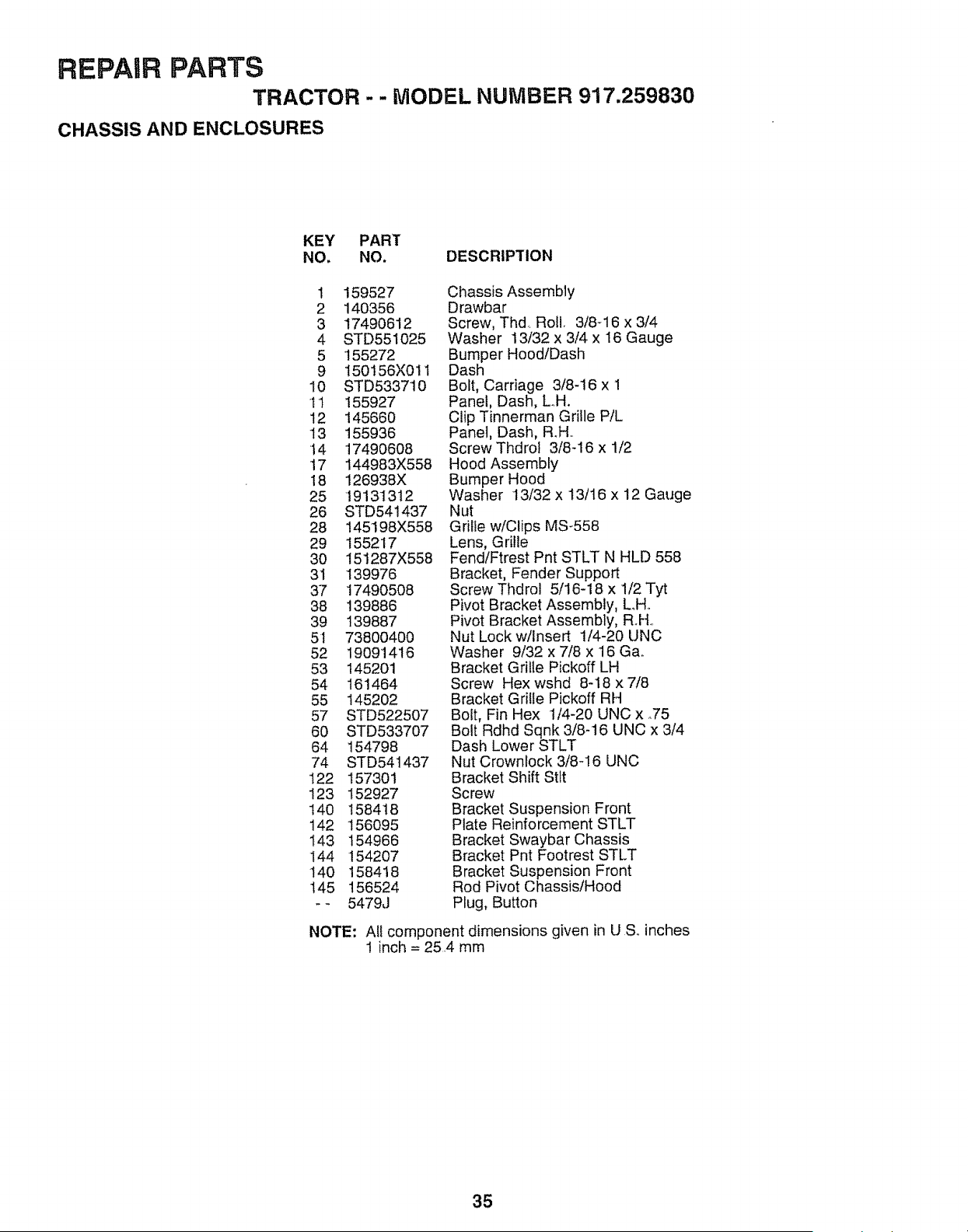

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

DESCRIPTION

1 159527

2 140356

3 17490612

4 STD551025

5 '155272

9 150156X011

10 STD533710

1t 155927

12 145660

13 155936

'14 17490608

17 144983X558

18 126938X

25 19131312

26 STD541437

28 145198X558

29 155217

30 151287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19O91416

53 145201

54 161464

55 145202

57 STD522507

60 STD533707

64 154798

74 STD541437

t22 157301

123 152927

140 158418

142 156095

143 154966

144 154207

140 158418

t45 156524

-- 5479J

Chassis Assembly

Drawbar

Screw, Thd, Roll. 3/8-16 x 3/4

Washer 13/32 x 3/4 x 16 Gauge

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Clip Tinnerman Grille P/L

Panel, Dash, R.H..

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Washer 13/32 x 13/16 x 12 Gauge

Nut

Grille w/Clips MS-558

Lens, Grille

Fend/Ftrest Pnt STLT N HLD 558

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2 Tyt

Pivot Bracket Assembly, LH..

Pivot Bracket Assembly, Roll.

Nut Lock w/insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga..

Bracket Grille Pickoff LH

Screw Hex wshd 8-18 x 7/8

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/4-20 UNC x ,.75

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 UNC

Bracket Shift Stlt

Screw

Bracket Suspension Front

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Bracket Suspension Front

Rod Pivot Chassis/Hood

Plug, Button

NOTE: All component dimensions given in U S.. inches

1 inch = 25.4 mm

i_6

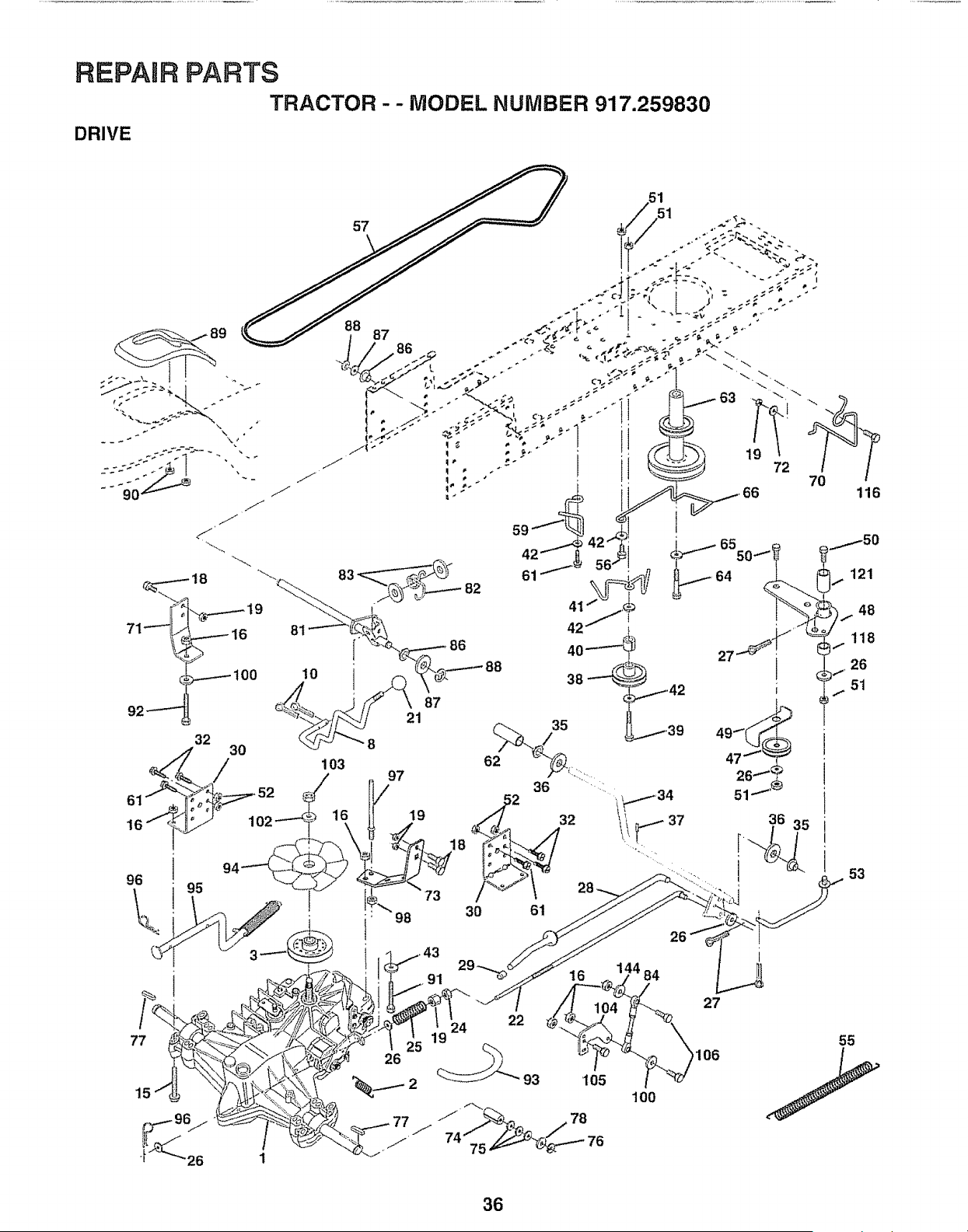

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,259830

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 150071 TransaxleAssembly 63 140186

2 142431 Spring, Return, Brake 64 71170764

3 143995 Puliey, Transaxle 65 STD551143

8 154792 Rod Shift Fender 66 154778

!0 STD561210 Pin Cotter 1/8 x t CAD 70 134683

15 74490544 Bolt Hex Flghd 5/16_18 Gr. 5 7t 140158

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 Unc 72 19'132012

18 STD523710 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 73 156347

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 Unc 74 121199X

21 130564 Knob, Deluxe 1/2-13 75 121749X

22 145627 Rod, Brake Hydro 76 STD581075

24 STD541237 Nut, HexJam 3/8-16 Unc 77 123583X

25 106888X Spring, Brake Rod 78 121748X

26 STD551037 Washer 81 156046

27 STD561210 Pin Cotter 1/8 x 3/4 CAD'_ 82 123782X

28 145204 Rod, Parking Brake 83 19171216

29 124236X Cap, Parking Brake 84 140548

30 130807 Bracket, Transaxle 86 71208

32 STD523107 Bolt Hex Hd 5/16-18 Unc x 3/4 87 19212016

34 155071 Shaft, Foot Pedal 88 12000008

35 t20183X Bearing, Nylon 89 158388

36 STD551062 Washer 90 124346X

37 STD571810 Pin, Rol! 91 74780536

38 123674X Pulley, Idler, Flat 92 74780524

39 STD523727 Bolt 93 142564

40 4470J Spacer, Split 94 140462

41 154777 Keeper, Bett Retainer 95 144643

42 19131312 Washer 13/32 x 13/16x 12 Gauge 96 STD624003

47 127783 Pulley, Idler, V-Groove 97 140469

48 154604 BetfcrankAssembly Clutch 98 735!0600

49 123205X Retainer, Belt 100 19'1112t6

50 STD523715 Bolt 102 141322

51 STD541437 Nut Crowr_iock 3/8-16 UNC 103 73940800

52 STD541431 Nut, Crownlock 5/16-18 Unc 104 140156

53 I05710X Link, Clutch 105 71070516

55 105709X Spring, Return, Clutch t06 74780520

56 STD523712 Bolt Hex 3/8-16 x 1-1/4 116 72110610

57 140294 V-Belt, Ground Drive 118 154774

59 140312 Keeper, Center Span I2! 154419

6! 17490612 Screw Thdrolo 3/8-16 x 3/4 Ty. TT

62 8883R Cover, Pedal

Pulley, Engine

Bolt 7/16-20 X 4 Gr_ 5

Washer Lock Hvy Hlcl Spr 7/16

Keeper Belt Engine

Keeper Belt Engine ,,

Strap Torque Lh Hydro 18/20 T

Washer t3/32 x 1-1t4 x 12 Gauge

Strap Torque Rh Hydro

Spacer, Split

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm_ Cross Hydro 20" Tires

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga

Rod, Tie Hydro 20" Tires

Bushing Rod Strig. 629/632 ID

Washer 21/32 x 1-1/4 x 16 Ga_

Ring Klip #5304-62

Console, Shift

Nut Self-Thd Wsh Hd 1/4 Zinc

Bolt Fin Hex 5/16-18 x 2-1/4

Bolt Fin Hex 5/6-I8 Unc x 1-1/2

Line Fuel Hydro 4"

Fan, Hydro 7"

Control Bypass Hydro 20" Tires

Retainer Spring 1" Zinc/Cad

Keeper Bolt Rh Hydro 0750. 18/20"

Nut Keps Hex 3/8-16 Unc

Washer 11/32 x 3/4 x 16 Ga.

Washer Bel!ville o501D x 1_.50D

Nut Hex Jam Toplock 1/4-20 Unf

Arm, Control Hydro

Screw Cap Hex 5/16 x 18 x 1

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Rdhd Sqnk 3/8d 6 x 1,25

Spacer Be!lcrank

Nyliner Clutching STL

NOTE: All component dimensions given in UoS,.inches

1 inch = 25.4 mm

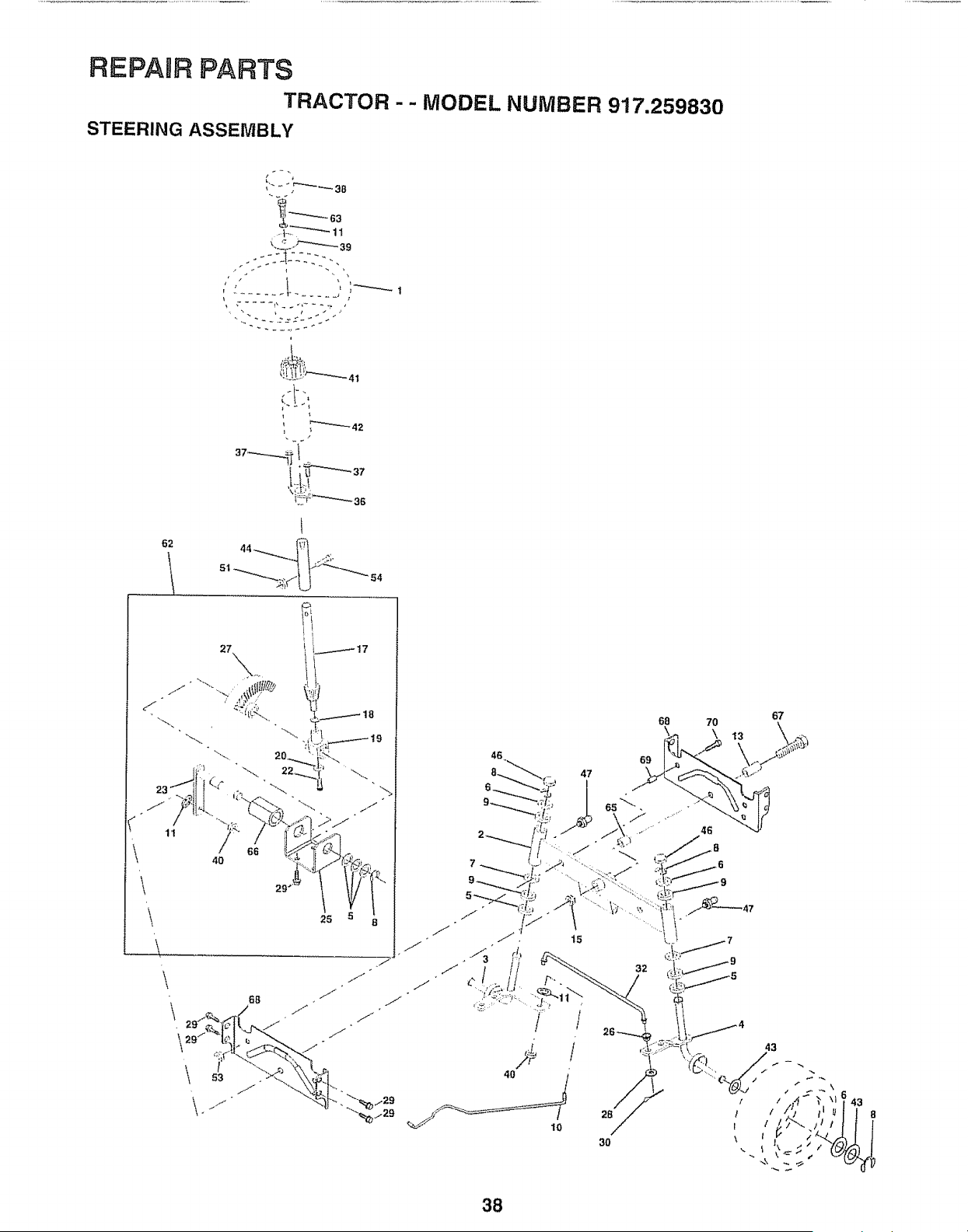

REPABtRPARTS

TRACTOR - - MODEL NUMBER 917.259830

STEERING ASSEMBLY

_-'_ 63

_'_"-,?'-_--_11

, T'---_42

r2h

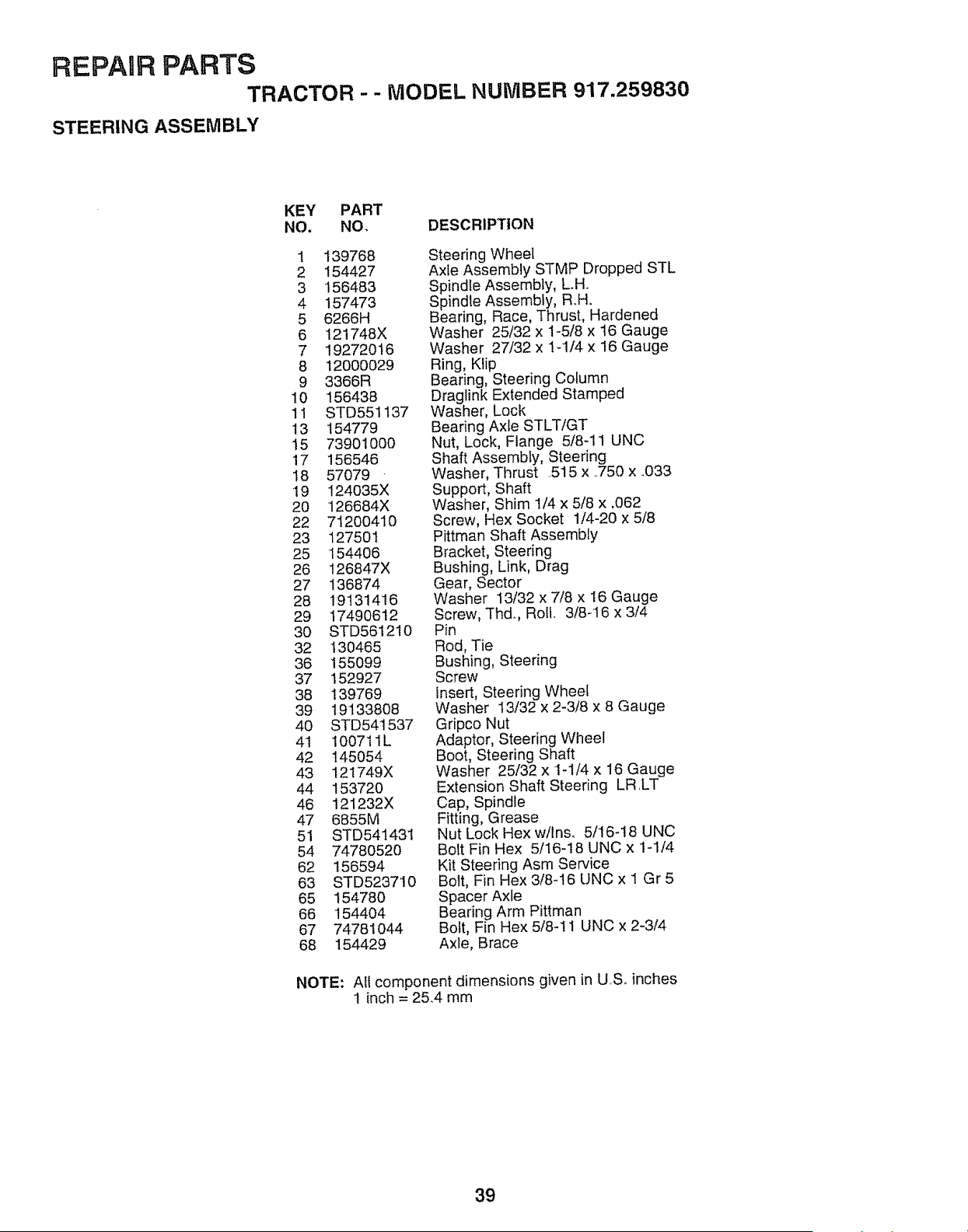

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

STEERING ASSEMBLY

KEY PART

NO, NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

18 57079

19 124035X

20 126684X

22 71200410

23 127501

25 154406

26 126847X

27 136874

28 19131416

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD541537

41 100711L

42 t45054

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 74780520

62 156594

63 STD523710

65 154780

66 154404

67 74781044

68 154429

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H,.

Spindle Assembly, Roll.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink Extended Stamped

Washer, Lock

Bearing Axle STLT/GT

Nut, Lock, Flange 5/8-11 UNC

Shaft Assembly, Steering

Washer, Thrust 515 x .750 x 4033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Screw, Hex Socket 1/4-20 x 5/8

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd. Roll. 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/ins. 5/16-18 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Kit Steering Asm Service

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt, Fin Hex 5/8-11 UNC x 2-3/4

Axle, Brace

NOTE: All component dimensions given in U,,S. inches

1 inch = 2&4 mm

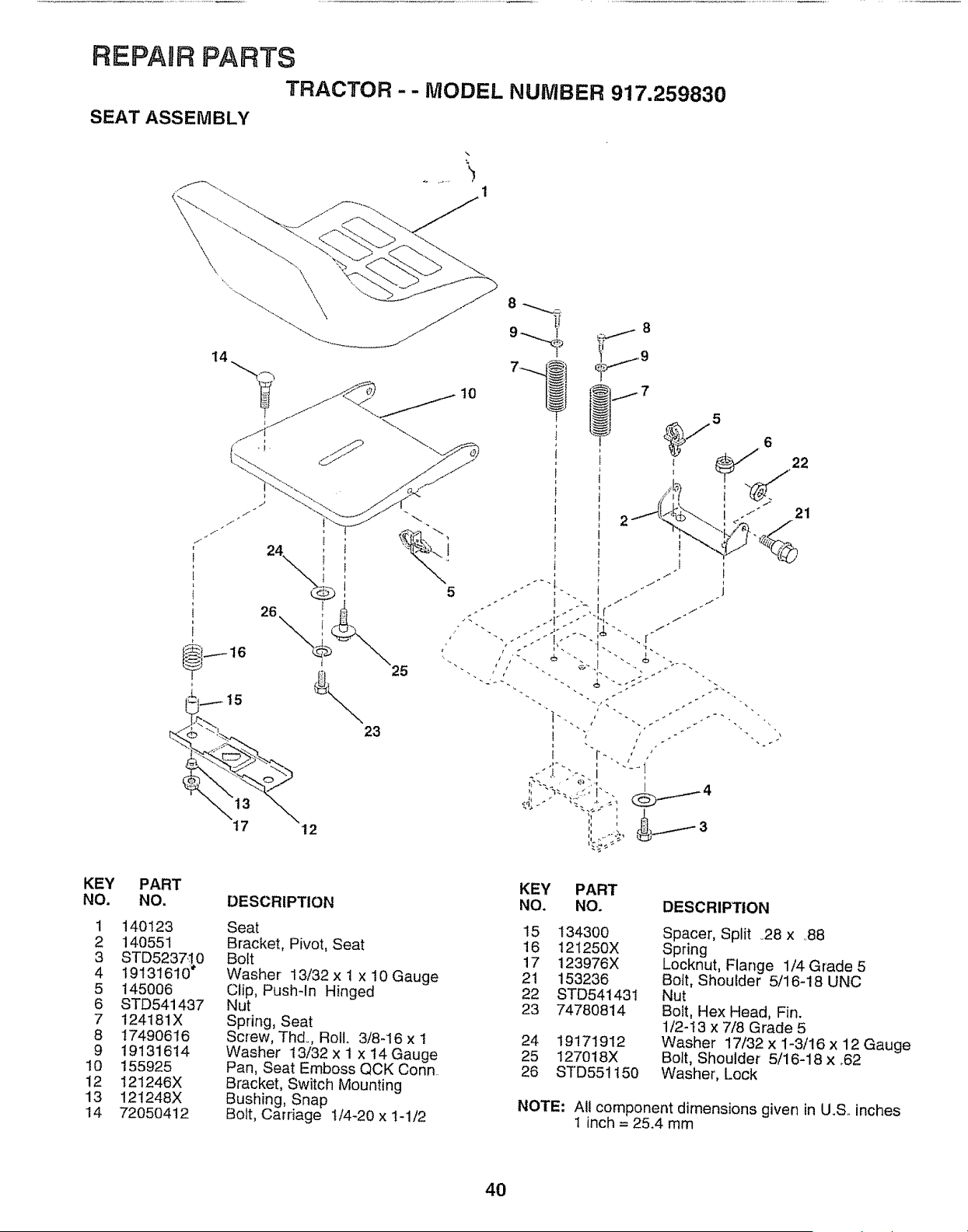

REPAUR PARTS

TRACTOR - - MODEL NUIVIBER 917.259830

SEAT ASSEMBLY

116

t7 12

9 i!

KEY

NO.

PART

NO.

140123

140551

STD5237,!.0

19131610

1450O6

STD541437

124181X

17490616

19131614

155925

121246X

121248X

72O50412

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring, Seat

Screw, Thd. Roll. 3/8-16 x 1

Washer 13/32 x 1 x 14 Gauge

Pan, Seat Emboss QCK Conn.•

Bracket, Switch Mounting

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

KEY PART

NO. NO. DESCRIPTION

15 134300

16 121250X

17 123976X

2! 153236

22 STD541431

23 74780814

24 19171912

25 127018X

26 STD551150

Spacer, Split ,28 x 88

Spring

Locknut, Flange 1/4 Grade 5

Bolt, Shoulder 5/16-18 UNC

Nut

Bolt, Hex Head, Fin.

1/2-t3 x 7/8 Grade 5

Washer 17/32 x 1-3/16 x 12 Gauge

Bolt, Shoulder 5/16-18 x .62

Washer, Lock

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

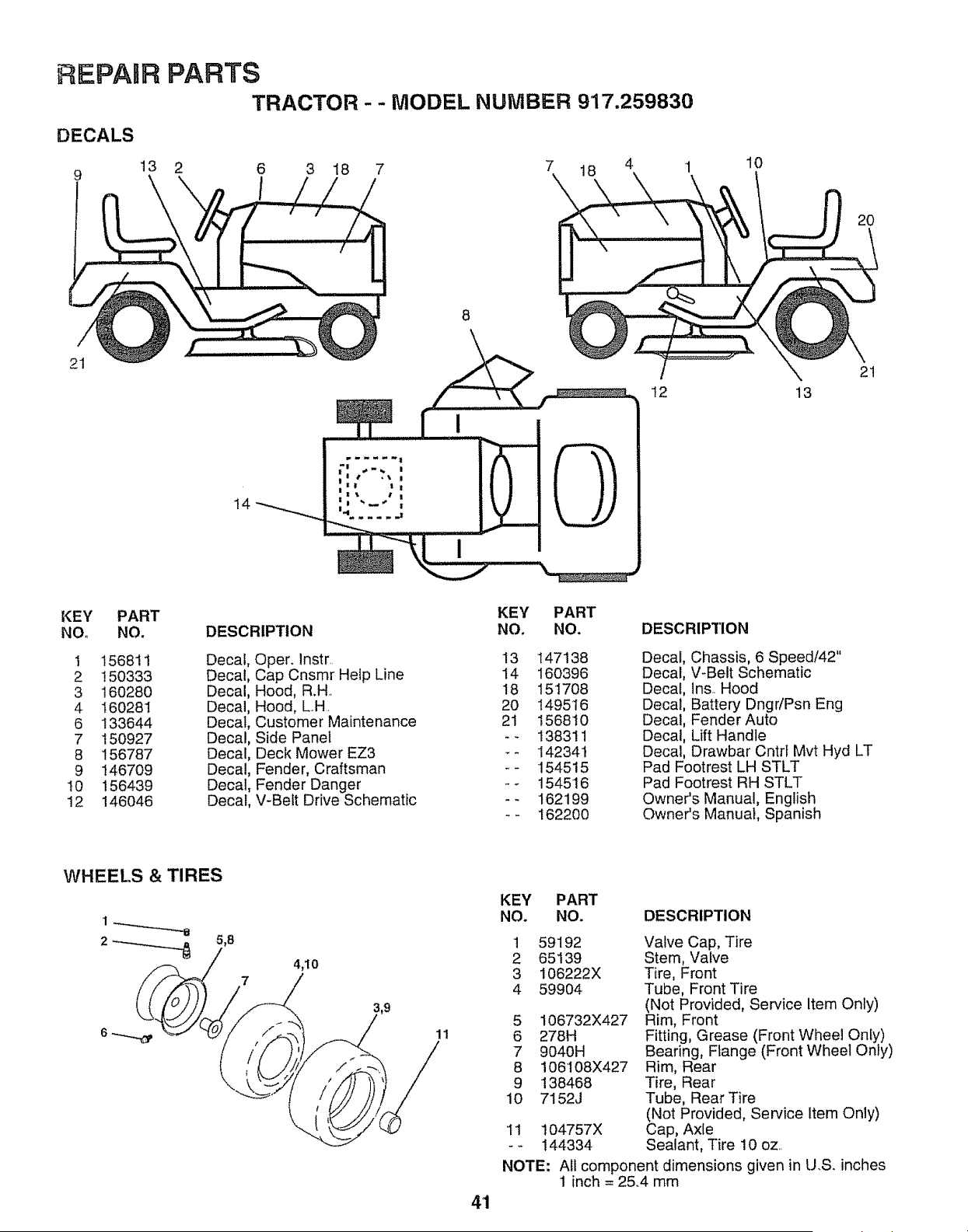

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.259830

DECALS

13 2 6 3 18 7 7 18

12 13

KEY

NO.

PART

NO.

1 156811

2 150333

3 160280

4 160281

6 133644

7 150927

8 156787

9 146709

10 156439

12 146046

DESCRIPTION

Decal, Oper. Instr.

Decal, Cap Cnsmr Help Line

Decal, Hood, R.H_

Decal, Hood, LH.

Decal, Customer Maintenance

Decal, Side Panel

Decal, Deck Mower EZ3

Decal, Fender, Craftsman

Decal, Fender Danger

Decal, V-Beft Drive Schematic

KEY PART

NO, NO.

13 147138

14 160396

18 1517O8

20 149516

21 156810

-- 138311

-* 14234'1

-- 154515

-_ 154516

-- 162199

-- 162200

DESCRIPTION

Decal

Chassis, 6 Speed/42"

V-Belt Schematic

Ins. Hood

Battery Dngr/Psn Eng

Fender Auto

Lift Handle

Drawbar Cntd Mvt Hyd LT

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual Spanish

WHEELS & TIRES

4,10

!,9

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 138468

10 7152J

11 104757X

-- 144334

NOTE:

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire 10 oz..

All component dimensions given in U.S. inches

1 inch = 25..4 mm

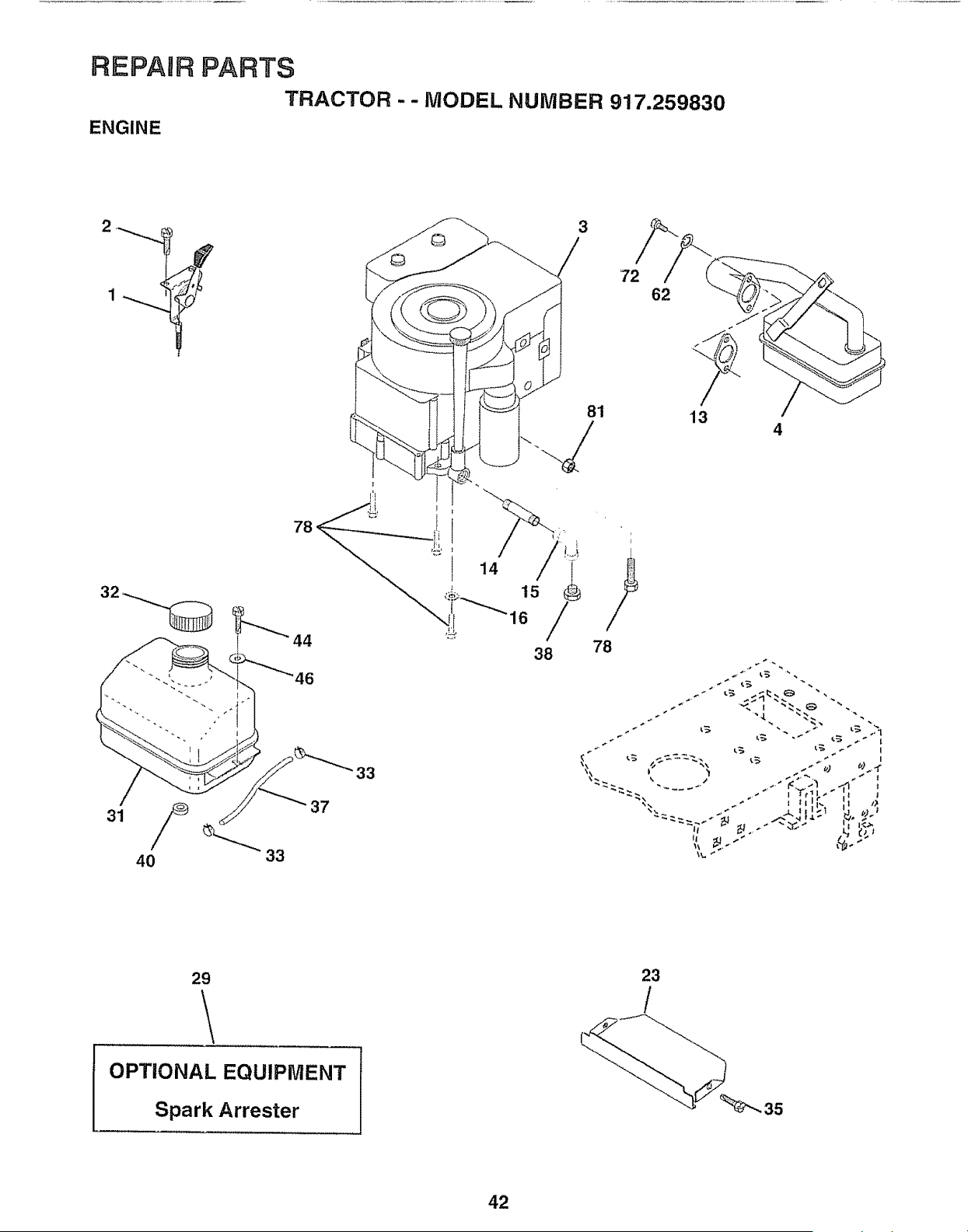

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

ENGINE

40 33

OPTIONAL EQUIPMENT

Spark Arrester

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

ENGINE

KEY PART

NO, NO. DESCRIPTION

150600

17720410

4 137352

13 272293

14 13280324

15 13200300

16 STD551237

23 159880

29 137180

31 109202X

32 123549X

33 123487X

35 17490512

37 137040

38 .......

40 124028X

44 17490412

46 19091416

62 STD551131

72 71070512

78 1749062O

81 128861

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5/8

Engine (See Breakdown) Briggs

Model 28N707-1173-E1

Muffler

Gasket, Exhaust

Nipple, Pipe 3/8 NPT x 3

Elbow, Standard 90°, 3/8-18 NPT

Washer

Shield, BRN/DBR Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Tank, Vented

Clamp, Hose

Screw Thdrol 5/1648 x 3-4 Tyt

Line, Fuel

Plug, Oil Drain

(Order From Engine Manufacturer)

Bushing, Snap, Fuef Line

Screw, Hex Washer Head, Thd. Roll.

1/4-20 x 3/4

Washer 9/32 x 7/8 x 16 Gauge

Washer, Lock

Screw, Hex Cap Head 5/16-18 x 3/4

Screw, Thd.., Roll.. 3/8-16 x 14/4

Nut Flange 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

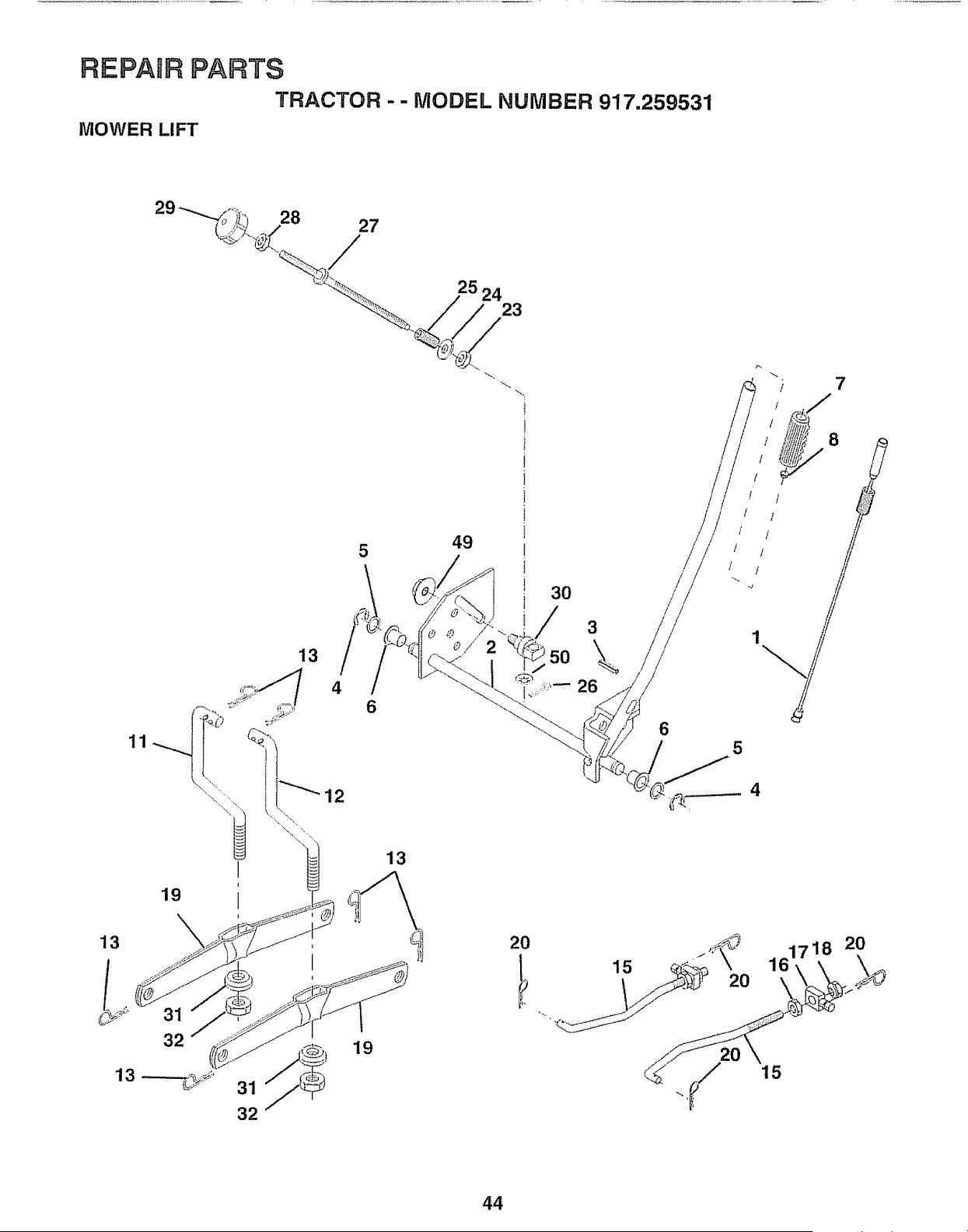

REPAHR PARTS

TRACTOR -- MODEL NUMBER 917.259531

MOWER LIFT

5 49

718 20

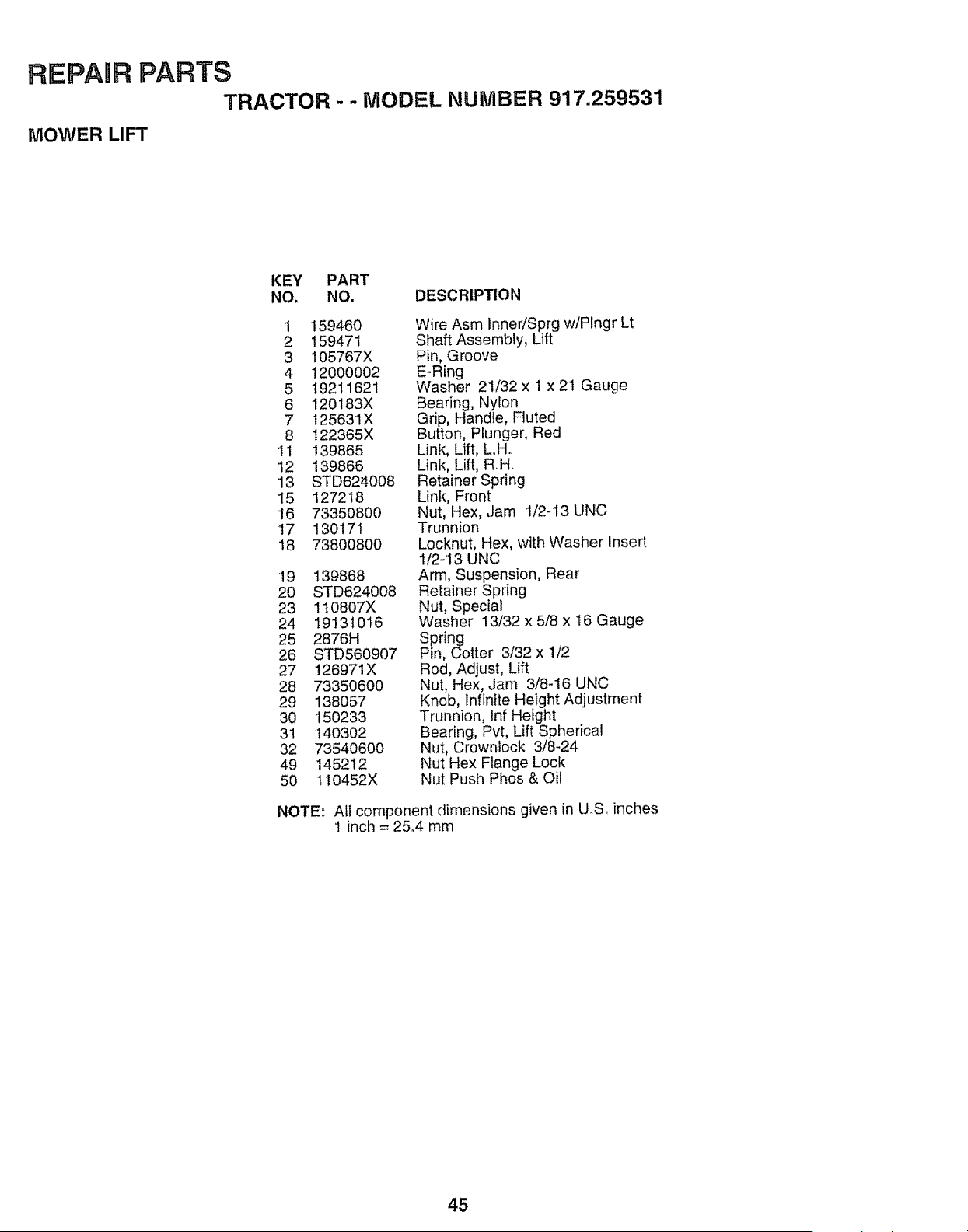

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.259531

MOWER LIFT

KEY PART

NO. NO, DESCRIPTION

1 159460

2 159471

3 I05767X

4 12000002

5 19211621

6 120!83X

7 125631X

8 122365X

11 139865

12 139866

13 STD624008

15 127218

16 73350800

17 130171

18 73800800

19 139868

20 STD624008

23 110807X

24 19131016

25 2876H

26 STD560907

27 126971X

28 73350600

29 138057

30 150233

31 140302

32 7354O6OO

49 145212

50 110452X

Wire Asm Inner/Sprg w/Plngr Lt

Shaft Assembly, Lift

Pin, Groove

E-Ring

Washer 21/32 x 1 x 21 Gauge

Bearing, Nylon

Grip, Handle, Fluted

Button, Plunger, Red

Link, Lift, Loll..

Link, Lift, R_H.

Retainer Spring

Link, Front

Nut, Hex, ,Jam 1/2-13 UNC

Trunnion

Locknut, Hex, with Washer Insert

1/2-13 UNC

Arm, Suspension, Rear

Retainer Spring

Nut, Special

Washer 13/32 x 5/8 x 16 Gauge

Spring

Pin, Cotter 3/32 x 1/2

Rod, Adjust, Lift

Nut, Hex, Jam 3/8-16 UNC

Knob, Infinite Height Adjustment

Trunnion, Inf Height

Bearing, Pvt, Lift Spherical

Nut, Crowniock 3/8-24

Nut Hex Flange Lock

Nut Push Phos & Oil

NOTE: All component dimensions given in US. inches

1 inch = 25°4 mm

REPARR PARTS

TRACTOR - - MODEL NUMBER 917.259830

MOWER DECK

76 77

102

""_ 104

105 '

105

106

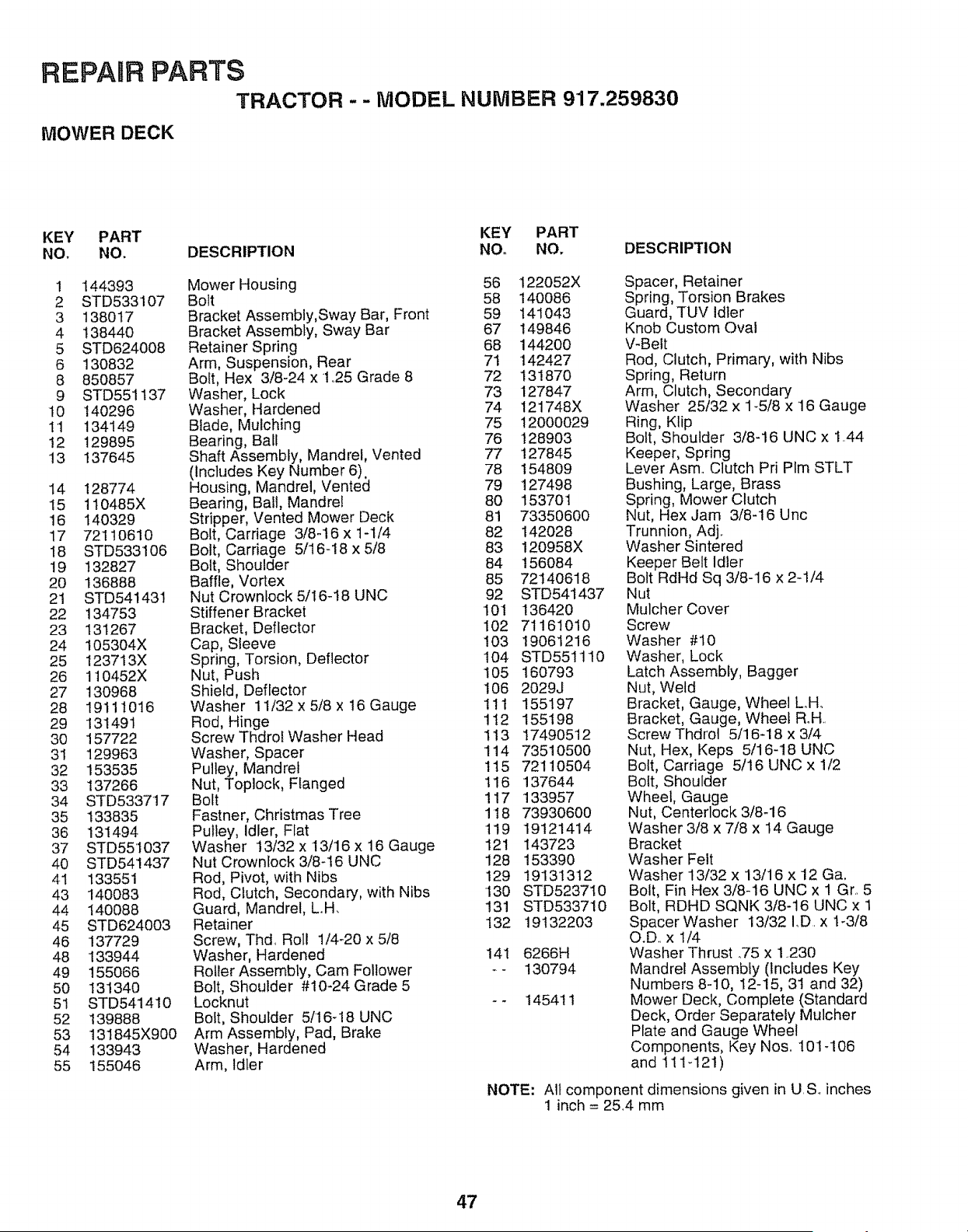

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

MOWER DECK

KEY PART KEY PART

NO, NO, DESCRIPTION NO. NO. DESCRIPTION

1 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551t37

10 140296

It 134149

!2 129895

!3 137645

14 128774

15 110485X

16 140329

17 7211O610

I8 STD533!06

19 132827

2O 136888

21 STD54143!

22 134753

23 131267

24 105304X

25 123713X

26 1t0452X

27 130968

28 19111O16

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 STD551037

40 STD541437

41 133551

43 140O83

44 140088

45 STD624003

46 137729

48 133944

49 155066

50 131340

51 STD541410

52 139888

53 131845X900

54 133943

55 155046

Mower Housing 56

Bolt 58

Bracket Assembly,Sway Bar, Front 59

Bracket Assembly, Sway Bar 67

Retainer Spring 68

Arm, Suspension, Rear 71

Bolt, Hex 3/8-24 x 1.25 Grade 8 72

Washer, Lock 73

Washer, Hardened 74

Blade, Mulching 75

Bearing, Ball 76

Shaft Assembly, Mandrel, Vented 77

(Includes Key Number 6), 78

Housing, Mandrel, Vented 79

Bearing, Ball, Mandrel 80

Stripper, Vented Mower Deck 81

Bolt, Carriage 3/8-16 x 1-1/4 82

Bolt, Carriage 5/16-18 x 5/8 83

Bolt, Shoulder 84

Baffle, Vortex 85

Nut Crownlock 5/16-I8 UNC 92

Stiffener Bracket 101

Bracket, Deflector 102

Cap, Sleeve 103

Spring, Torsion, Deflector 104

Nut, Push 105

Shield, Deflector 106

Washer 11/32 x 5/8 x 16 Gauge 111

Rod, Hinge 112

Screw Thdrol Washer Head 113

Washer, Spacer 114

Pulley, Mandrel 115

Nut, Toplock, Flanged 116

Bolt 117

Fastner, Christmas Tree 118

Pulley, Idler, Flat 119

Washer 13/32 x 13/16 x 16 Gauge 121

Nut Crownleck 3/8-t6 UNC 128

Rod, Pivot, with Nibs 129

Rod, Clutch, Secondary, with Nibs 130

Guard, Mandrel, L.H. 131

Retainer 132

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened 141

Roller Assembly, Cam Follower - -

Bolt, Shoulder #10-24 Grade 5

Locknut - -

Bolt, Shoulder 5/16-!8 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

NOTE:

122052X

140086

141043

149846

144200

142427

131870

127847

121748X

12000029

128903

127845

154809

'127498

153701

73350600

142028

120958X

156084

72140618

STD541437

136420

71161010

19061216

STD551110

160793

2029J

155197

155198

17490512

73510500

72110504

137644

133957

73930600

19121414

143723

153390

19131312

STD523710

STD533710

19132203

6266H

130794

145411

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV Idler

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/8-16 UNC x 1.44

Keeper, Spring

Lever Asm.. Clutch Pri PIm STLT

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj.

Washer Sintered

Keeper Belt Idler

Bolt RdHd Sq 318-16 x 2-114

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel Loll.

Bracket, Gauge, Wheel R_H

Screw Thdrot 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5!16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1 Gr, 5

Bolt, RDHD SQNK 3/8-16 UNC x 1

Spacer Washer 13/32 I_D x 1_3t8

O.D x 1/4

Washer Thrust .75 x 1230

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 3t and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and 111-121)

Alt component dimensions given in U S inches

1 inch = 25.4 mm

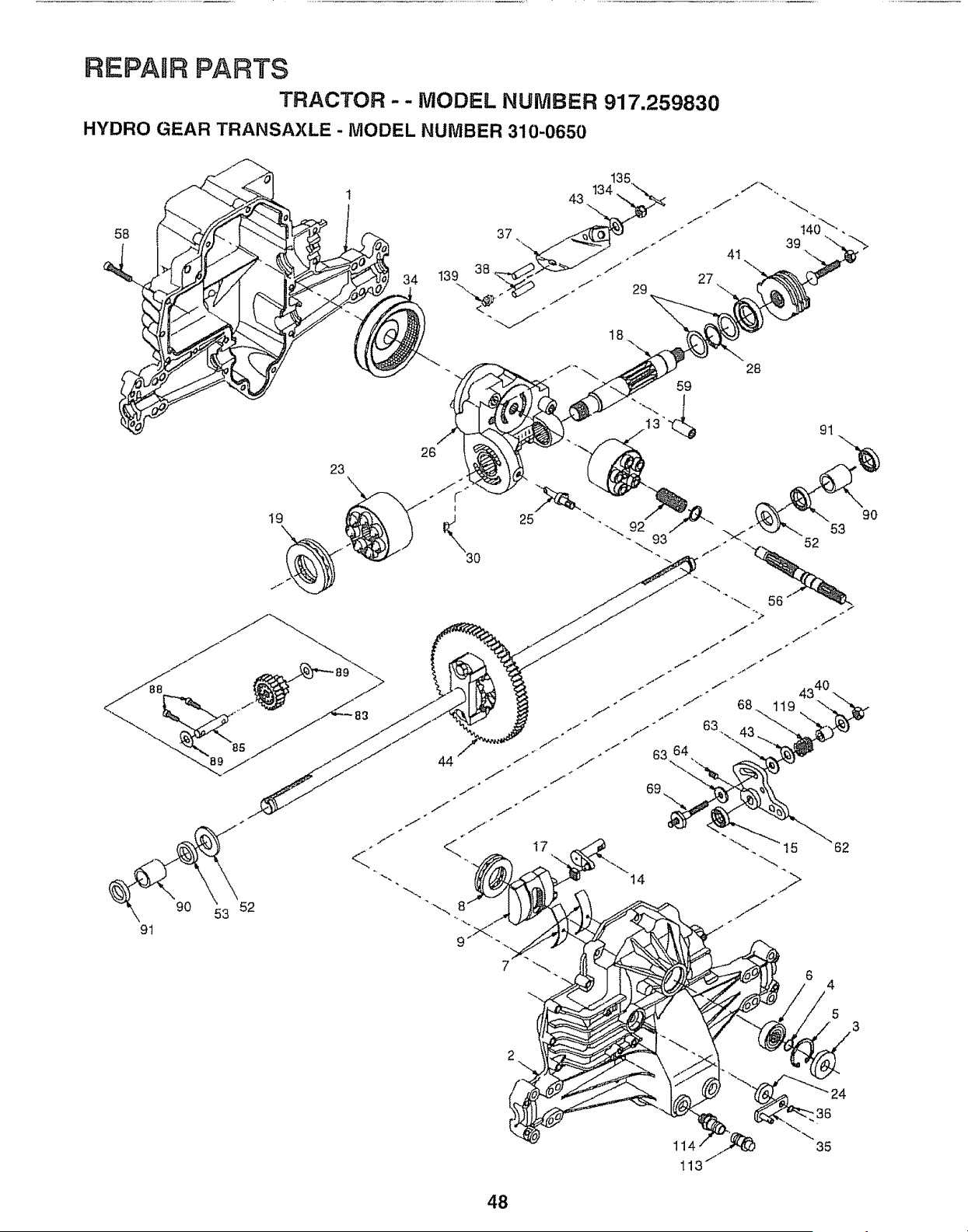

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

114

113

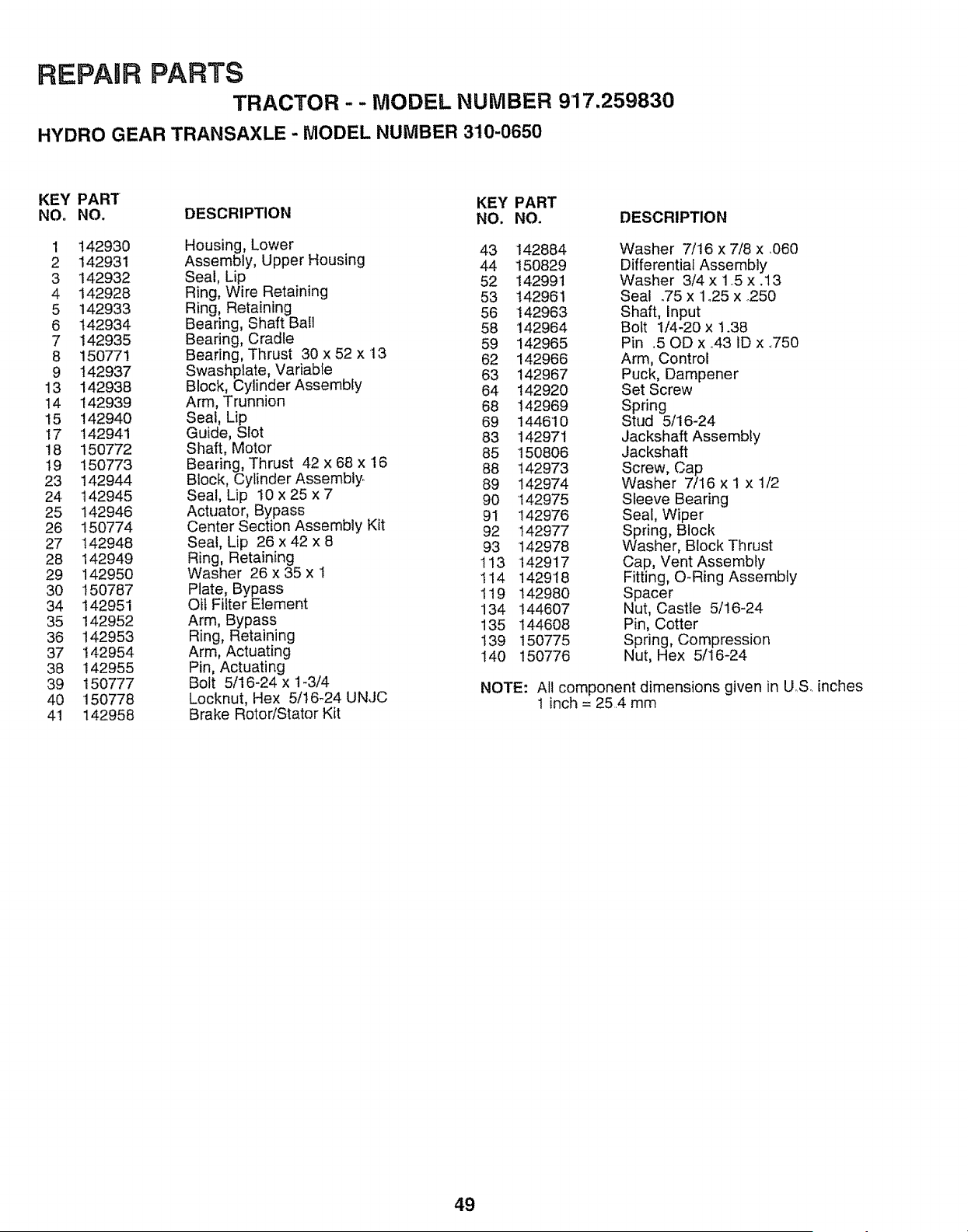

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917,259830

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

KEY PART KEY PART

NOo NO. DESCRIPTION NO. NO, DESCRIPTION

1 142930 Housing, Lower 43 142884 Washer 7/16 x 7/8 x .060

2 142931 Assembly, Upper Housing 44 150829 Differential Assembly

3 142932 Seal, Lip 52 142991 Washer 3/4 x 1,.5x.13

4 142928 Ring, Wire Retaining 53 142961 Seal .75 x '1.25 x .250

5 142933 Ring, Retaining 56 142963 Shaft, Input

6 142934 Bearing, Shaft Ball 58 142964 Bolt 1/4-20 x t.38

7 142935 Bearing, Cradle 59 142965 Pin ,50D x..43 ID x 4750

8 150771 Bearing, Thrust 30 x 52 x 13 62 142966 Arm, Control

9 142937 Swashplate, Variable 63 142967 Puck, Dampener

13 142938 Block, Cylinder Assembly 64 142920 Set Screw

t4 142939 Arm, Trunnion 68 !42969 Spring

15 142940 Seal, Lip 69 1446'10 Stud 5/16-24

17 142941 Guide, Slot 83 142971 Jackshaft Assembly

18 150772 Shaft, Motor 85 150806 Jackshaft

t9 150773 Bearing, Thrust 42 x 68 x 16 88 142973 Screw, Cap

23 142944 Block, Cylinder Assembly,. 89 142974 Washer 7/16 x 1 x t/2

24 142945 Seal, Lip 10 x 25 x 7 90 '142975 Sleeve Bearing

25 142946 Actuator, Bypass 91 142976 Seal, Wiper

26 150774 Center Section Assembly Kit 92 142977 Spring, Block

27 142948 Seal, Lip 26 x 42 x 8 93 142978 Washer, BIockThrust

28 142949 Ring, Retaining 113 142917 Cap, Vent Assembly

29 142950 Washer 26 x 35 x 1 114 142918 Fitting, O-Ring Assembly

30 150787 Plate, Bypass 119 142980 Spacer

34 142951 Oil Filter Element 134 144607 Nut, Castle 5/16-24

35 142952 Arm, Bypass 135 144608 Pin, Cotter

36 142953 Ring, Retaining 139 150775 Spring, Compression

37 142954 Arm, Actuating 140 150776 Nut, Hex 5/16-24

38 142955 Pin, Actuating

39 150777 Bolt 5/16-24 x 1_3/4 NOTE: All component dimensions given in U_S. inches

40 150778 Locknut, Hex 5/16-24 UNJC 1 inch = 25.4 mm

4! 142958 Brake RotoriStator Kit

REPAURPARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRA1TON ENGINE -MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

3 L

634A

230

718

3°@

238

635

337

868

294_ !_ 10 9

1034

1026

562

307

-A-REQUIRES SPECIAL TOOLS

TO INSTALL, SEE REPAIR

INSTRUCTION MANUAL.

1022

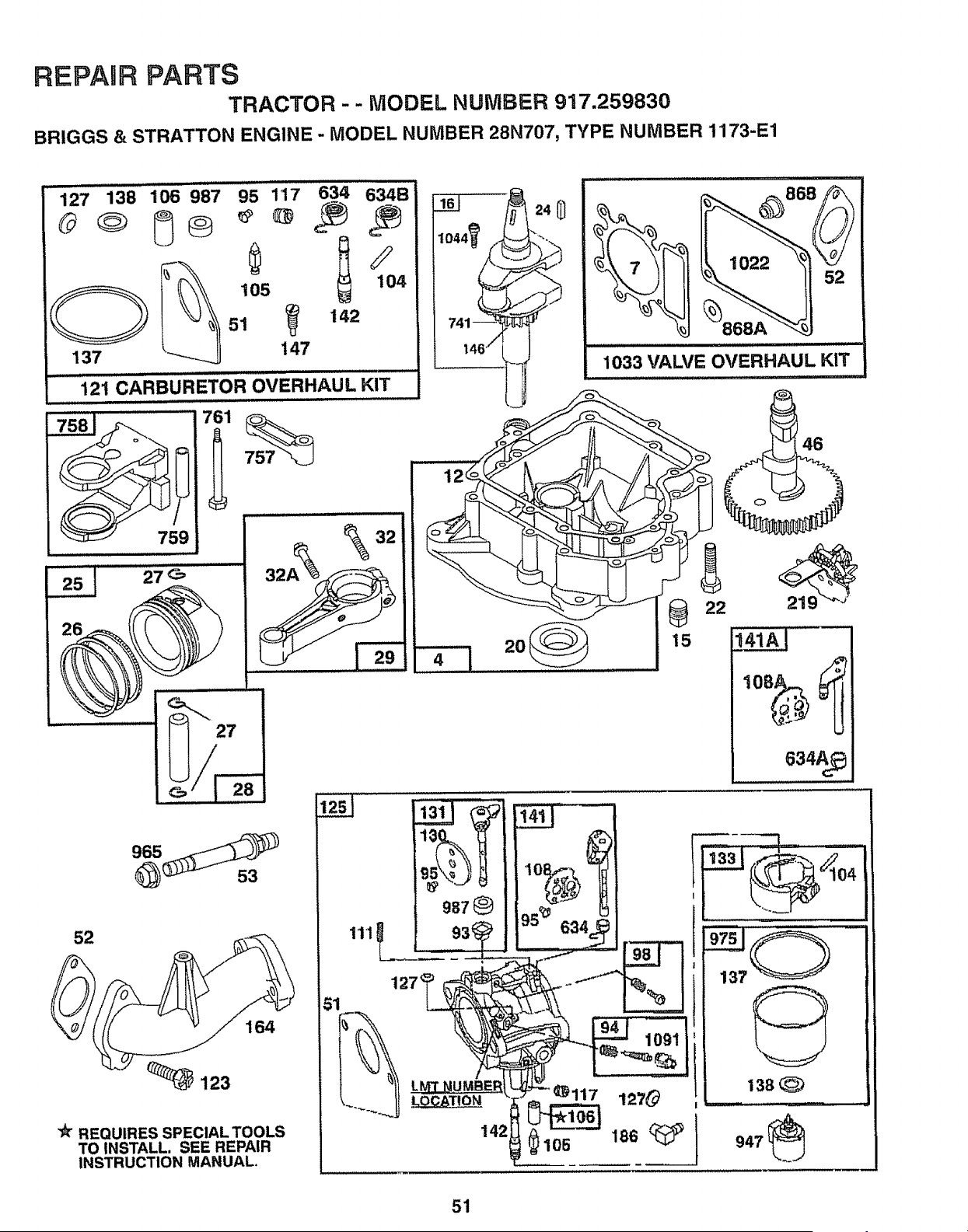

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

127 138 106 987

137

121 CARBURETOR OVERHAUL KIT

95 117 634 634B 8_

___, 105 104 52

147 |146_ _( 1033 VALVE OvERHAuL K!T.......

, J ll_lIllll:......

634_

75,_j_"_.,,_ 1

27 _'

_123

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

111 _

95'_ 634

138

947

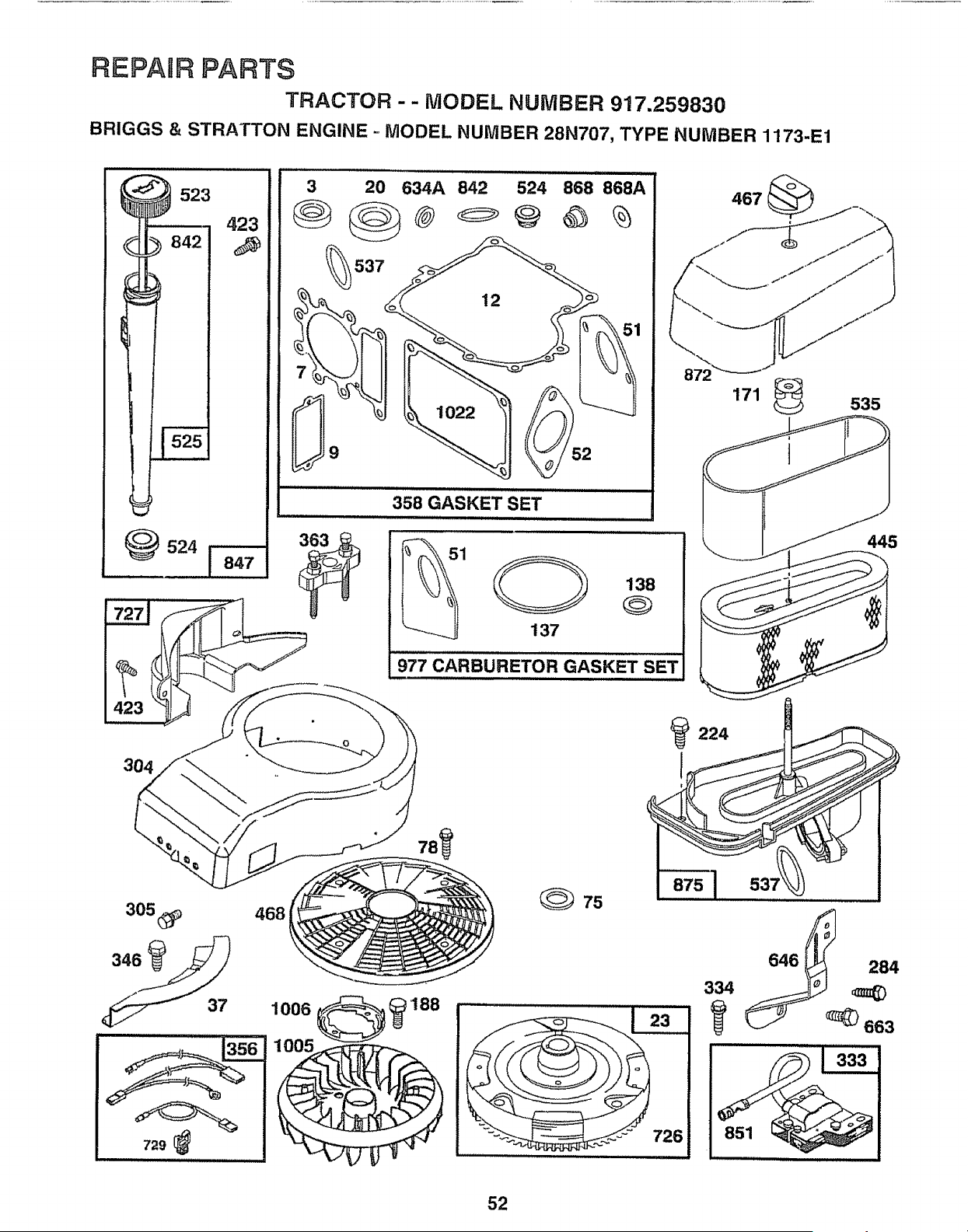

REPAtR PARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRATTON ENGINE = MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

523

423

304

305_

346

468

729 [_

20 634A 842 524 868 868A

358 GASKET SET

137

138

977 CARBURETOR GASKET SET

467

171 _ 535

1006

_224

334

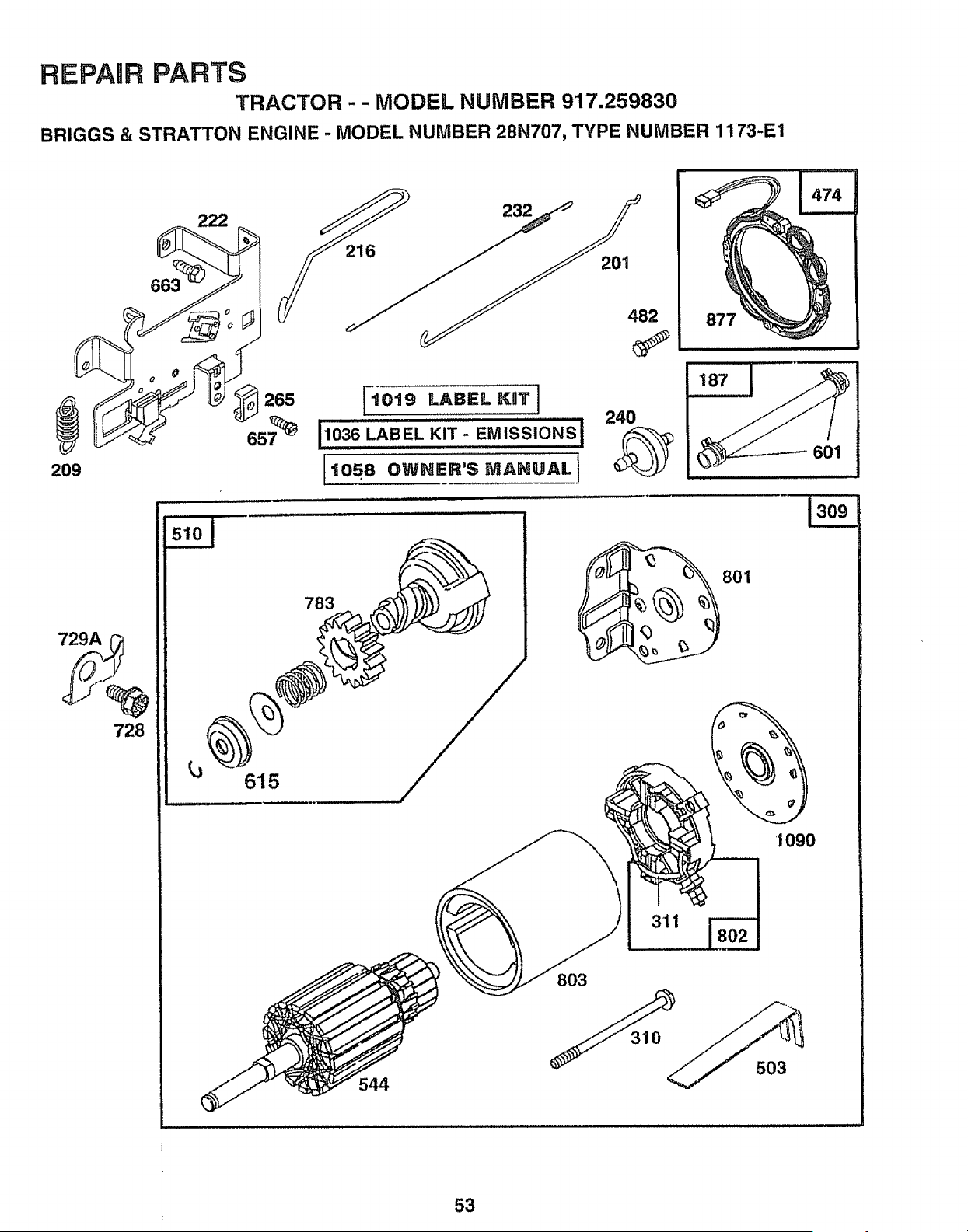

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

209

729A

728

222 232

663_ 216 201

4_ 877

_' "657 "_ I1036LABEL KIT, EMISSIONS i

601

801

1090

311

544

803

_ 503

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

1 496412

2 399265

3 391086

4 494238

5 495858

7 27328O

8 495735

9 27803

10 94621

11 281246

12 271916

271997

271996

13 94728

15 94239

16 498971

94196

20 291675

22 94624

23 492326

32A

222698

495860

495977

495978

495979

495854

495852

495851

495855

263129

498319

498320

494504

495490

94695

94648

495856

495857

262811

224502

224641

262411

496884

272465

272569

94637

225136

94832

491323

281346

498030

Cylinder Assembly 95 94098

Bearing, Cylinder 98 495800

* Seal, Oi! 104 231789

Base, Engine 105 231855

Head, Cylinder 106 231854

*** Gasket, Cylinder' Head 108 224558

Breather Assembly 108A 224540

* Gasket, Valve Cover 111 262715

Screw, Seres 117 232118

Tube, Breather 121 499233

* Gasket, Crankcase Cover, ..015" 123 94913

* Gasket, Crankcase Cover, .005" 125 499153

* Gasket, Crankcase Cover, ,009" 127 * - -

Screw, Cylinder Head 130 224539

Plug, Oil Drain 131 494379

Crankshaft 133 494381

Timing Gear Key 137 281165

* Seal, Oil 138 281164

Screw, Seres, Base Mounting 141 495097

Flywheel and Ring Gear Assembly, 141A 495931

Magneto 142 232117

Key, Flywheel 146 94196

Piston Assembly, Standard Size 164 214047

Piston Assembly, o010" Oversize 166 94555

Piston Assembly, .,020" Oversize 171 281051

Piston Assembly, .030" Oversize 186 493496

Ring Set, Piston, Standard Size 187 492790

Ring Set, Piston, .010" Oversize 188 94627

Ring Set, Piston, .020" Oversize 192 492160

Ring Set, Piston, .030" Oversize 201 262767

Lock, Piston Pin 209 260695

Pin Assy, Piston, Standard Size 216 262766

Pin Assy, Piston, °005" Oversize 219 490815

Rod Assembly, Connecting 222 495611

Rod Assembly, Connecting, 224 94905

.020" Undersize Crankpin Bore 225 495157

Screw, Hex Washer Head, 1-57/64 227 493935

Screw, Hex Washer Head, 1-5/8 230 94742

Valve, Exhaust 232 262785

Valve, Intake 238 262836

Spring, Valve 240 394358

Guard, Flywheel 265 221535

Retainer', Valve Spring 284 94704

Tappet, Valve

Gear, Cam

.... Gasket, Carburetor (Carburetor to

Elbow) (Also Included in Gasket

Set, Part Number 495993)

*** Gasket, Carburetor

(Elbow to Cylinder)

Stud, Carburetor Mounting

Washer, Spring

Screw, Pan Head

* Seal, Governor Shaft

Bushing, Throttle Shaft

Valve, Needle

Screw, Throttle

Screw, Idle Speed

Pin, Float Hinge

Valve Float

Seat, Inlet Valve

Valve, Choke (Lrnt 153)

Valve, Choke (Lrnt 154)

Spring Choke (Lint 155)

Jet, Needle Valve

Carburetor Overhaul Kit

Screw, Elbow Mounting

Carburetor Assembly

Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft and Lever, Throttle

Float, Carburetor

Gasket, Float Bowl

Washer, Bowl

Choke, Shaft Kit (Choke-A-Matic)

Nozzle, Carburetor

Key, Timing Gear'

Elbow, Carburetor

Stud, Rocker Arm

Nut, Air Cleaner Mounting

Connector, Hose

Line, Fuel (Cut to Suit)

Screw, Seres

Screw Assembly, Rocker Arm

Link, Governor

Spring, Governor

Link, Choke

Gear, Governor

Plate, Governor Control

Screw, Seres, Air Cleaner

Crank, Governor

Lever Assembly, Governor

Washer, Governor Crank

Spring, Governor Link

Cap, Vaive

Filter, Fuel (In Fuet Line)

Clamp, Casing

Screw, Hex Head

* Included in Gasket Set (495993)

** Included in Carburetor Kit (499233)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

.... Included in Gasket Set (495993), Carburetor Kit

(499233) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in U.S.. inches

1 inch = 25,.4 mm

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.259830

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 1173-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO, DESCRIPTION

294 810068 Screw, Set 729A 225170

304 496280 Housing, Blower 741 262932

305 94786 Screw, Hex, Head, 757 213998

Blower Housing Mounting 758 399891

306 225020 Shield, Cylinder 759 298909

307 94930 Screw, Cylinder Shield 761 94593

309 497595 Motor, Starter 783 280104

310 497602 Bolt, Thru 801 394856

31 1 497608 Brush Set 802 497605

333 495859 Armature, Magneto 803 497604

334 94731 Screw, Sems, Armature Mounting 842 270920

337 491055 Plug, Spark 847 496415

346 93705 Screw, Hex Head 851 224110

356 497708 Wire Assembly 868 494435

358 495993 Gasket Set 868A 272610

363 19203 Puller, Flywheel 871 262835

383 89838 Wrench, Spark Ptug 872 281361

423 94903 Screw, Seres 875 495862

445 493909 Cartridge, Air Cleaner 877 393456

467 493903 Knob, Air Cleaner 947 497672

466 494439 Screen, Flush Rotating 965 94010

474 393474 Stator, Alternator 975 495933

482 93621 Screw, Sems 977 494385

503 806000 Strap, Starter 987 281166

510 497606 Drive, Starter 1005 281400

523 495230 Cap and Dipstick, Oil Filler 1006 224413

524 281370 * Seal, Filler Tube 1019 496758

525 496113 Tube, Oil Filler 1022 272475

535 272403 Element, Filter 1023 224552

537 281106 * O-Ring, Air Cleaner 1026 494432

544 497603 Armature, Starter 495136

552 491986 Bushing, Governor Crank 1029 224554

562 94907 Bolt, Carriage 1033 495992

592 231978 Nut, Hex 1034 495248

601 93053 Clamp, Fuel Pipe 1036 499364

614 93306 Pin, Cotter 1044 94673

615 263080 Retainer 1054 270723

618 262803 Spring, Choke Return 1058 272623

634 494453 * Seat, Spring Assyo 1090 497607

634A 494455 * Seal, Spring Assy. 1091 281364

634B 281167 ** Washer, Throttle Shaft 2500

635 280872 Boot, Spark Plug

646 224546 Brace, Air Cleaner

657 94906 Screw, Sems

663 94620 Screw, Self-Tapping

718 230192 Pin, Dowel

726 399676 Gear, Ring

(Includes Mounting Hardware)

727 490324 Cover, Starter

728 94951 Screw, Torx®

729 281390 Clip, Wire

Retainer, Wire

Gear, Timing

Link, Counterweight

Counterweight Assembly

Pin, Counterweight

Screw, Counterweight

Gear, Starter

Cap, Drive

Cap, End

Housing, Starter

* Seal, Oil Filler Cap

Fill Group, Oil

Terminal, Ignition Cable

*** Seal Assembly, Valve

*** Gasket, Valve

Bushing, Guide (intake & Exhaust)

Cover, Air Cleaner

Body, Air Cleaner

Diode and Connector Assembly

Solenoid

Nut, Hex

Bowl Assembly, Carburetor

Carburetor Gasket Set

** Seal, Throttle Shaft

Fan, Flywheel

Retainer, Fan

Label Kit

*** Gasket, Cover

Cover, Rocker Arm

Rod, Push, intake

Rod, Push, Exhaust

Arm, Rocker

Valve Overhaul Kit

Guide Assembly, Push Rod

Label Kit, Emissions

Screw, Hex Head

Tie, Cable

Manual, Owner's

Retainer, Brush

Cap, Limiter

28N707-1026 Replacement Engine

496050 Replacement Shortblock

RPM Settings: Low: 1650-1850, High: 3200-3400

* Included in Gasket Set (495993)

** Included in Carburetor Kit (499233)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

.... Included in Gasket Set (495993), Carburetor Kit

(499233) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in UoS. inches

1 inch = 25..4 mm

ii iiii,i,,, i

SERVNCE NOTES

SUGGESTED GUaDE FOR SRGHTUNGSLOPES FOR SAFE OPERATION

SIGHTING

PlDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15° MAX.

llll ill llul ill llll ii,i ii1_1 ill

A Operate your Tractor up and down the face of slopes (not

,AA greater than 15°), never across the face. Make turns gradu-

_| _ ally to prevent tipping or toss of control. Exercise extreme

_I caution when changing direction on slopes.

OWNER'S

MANUAL

MODEL NO.

917.259830

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

15.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC (HYDROSTATIC)

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model number.

The model number for your tractor will be found on the

model plate located under the seat..

The model number for your engine will be found on the

blower housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co,. Service Center/Department and most Re-

tail Stores_

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

° PRODUCT- TRACTOR

° MODEL NUMBER - 917.259830

° ENGINE MODEL NO. , 28N707, TYPE NO. 1173-E1

= PART NUMBER

- PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians_, professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

162199 Rev.. 2 9.22_97 Printed in U.S.A.

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII Ill .............................................

Craftsman 917259830 tractor

Product's Documents

User Manual

Specifications

Craftsman 917259830 Questions and Answers

Related Products

Craftsman 917273631 tractor

Craftsman 917258661 tractor

Craftsman 917252714 Tractor

Craftsman 247273270 tractor

Craftsman 917255981 Tractor

Craftsman 917256710 Tractor
