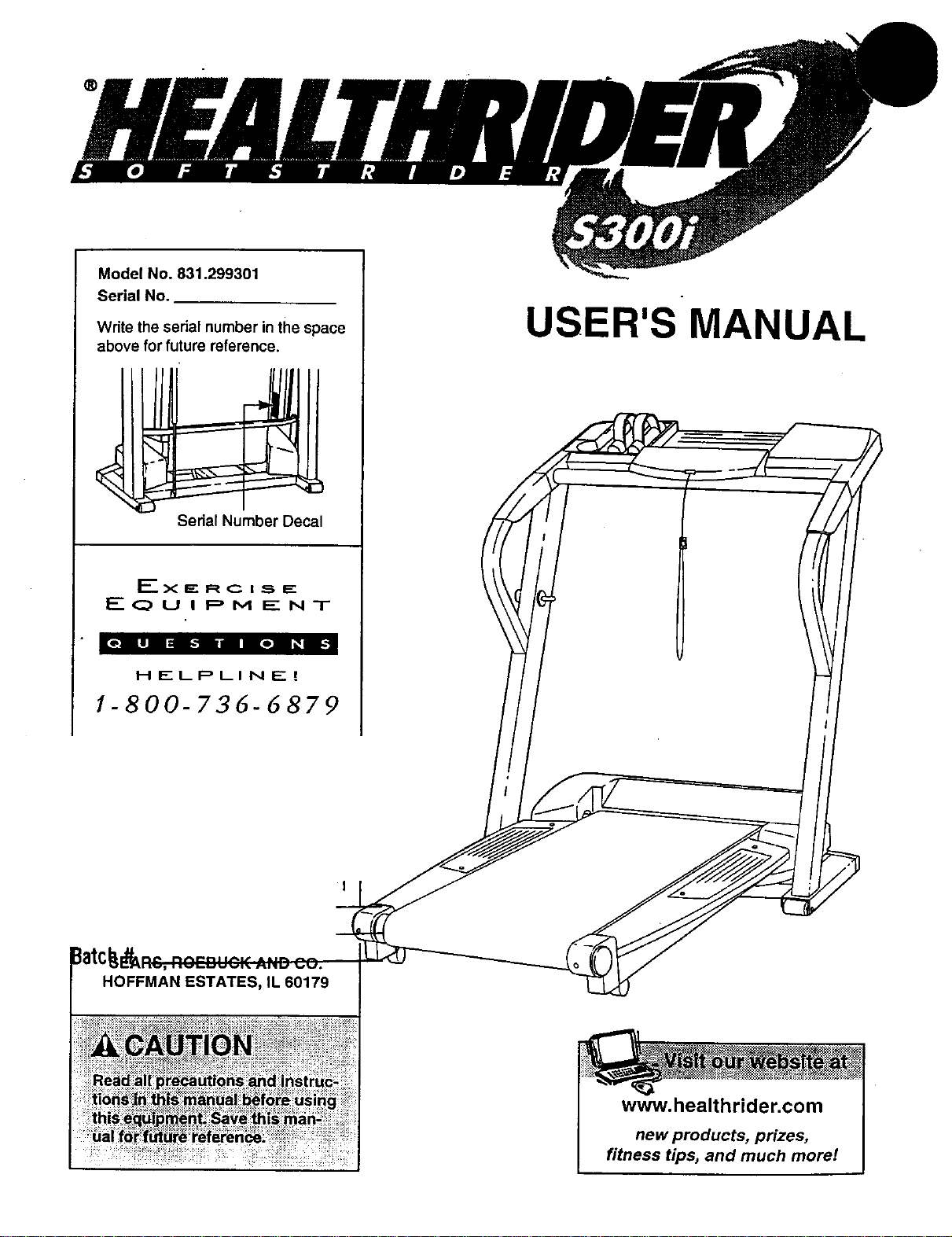

Model No. 831.299301
Serial No.
Write the serial number in the space
above for future reference.
S
Sedal Number Decal
HELPLINE!
1-800-736-6879
USER'S MANUAL
I
HOFFMAN ESTATES, IL 60179
www.healthrider.com
new products, prizes,
fitness tips, and much morel
®

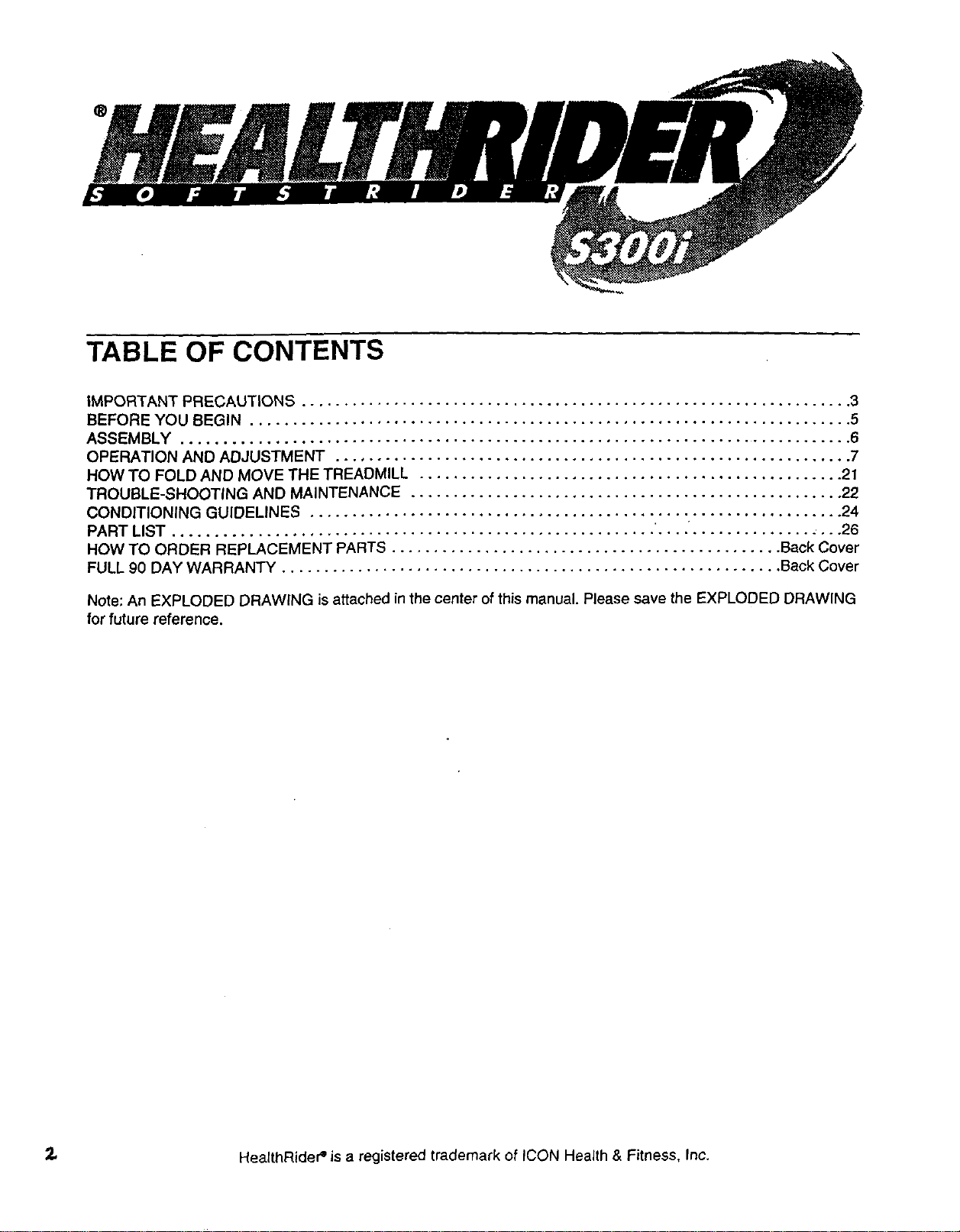

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................. 7
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 21

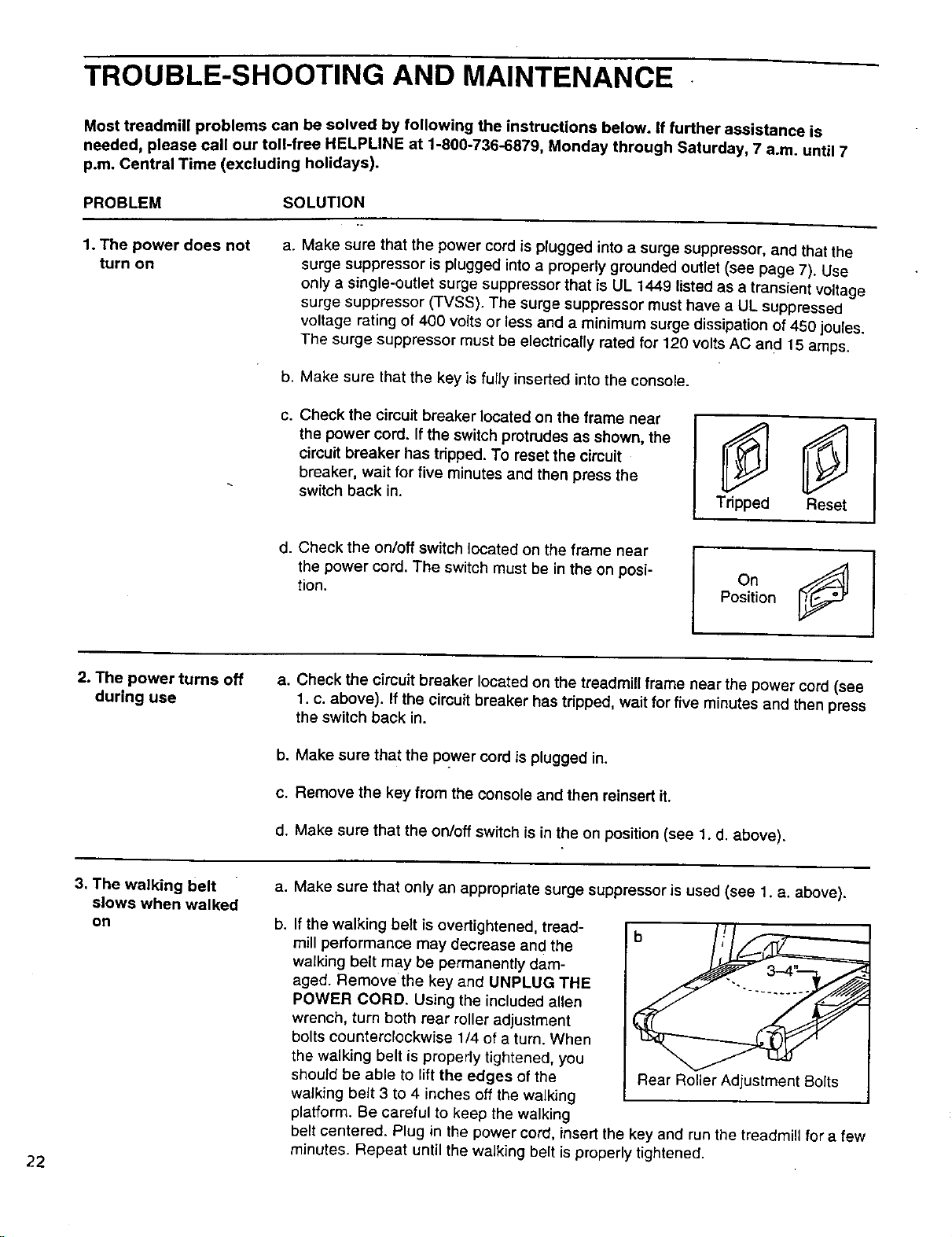

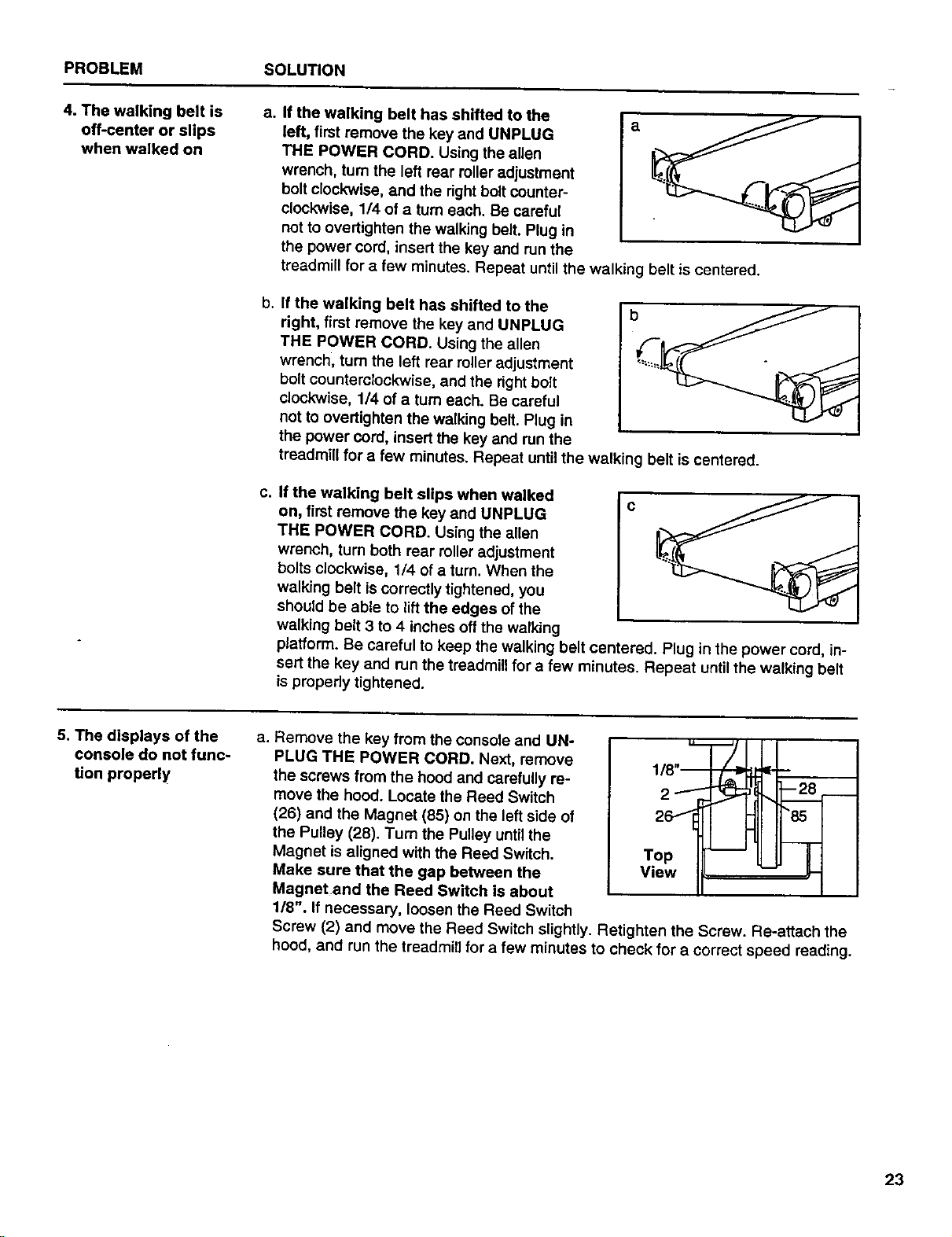

TROUBLE-SHOOTING AND MAINTENANCE ................................................... 22

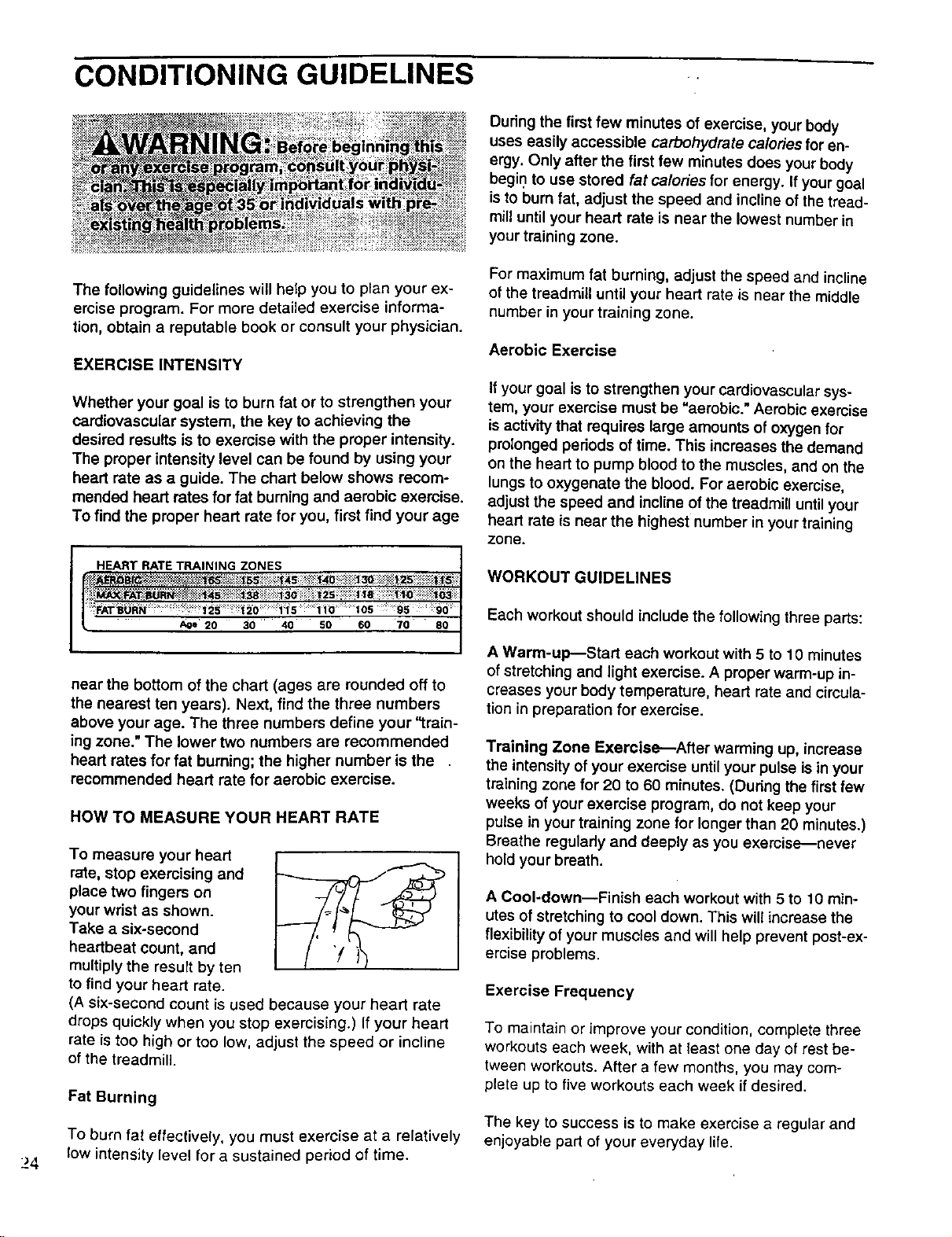

CONDITIONING GUIDELINES ............................................................... 24

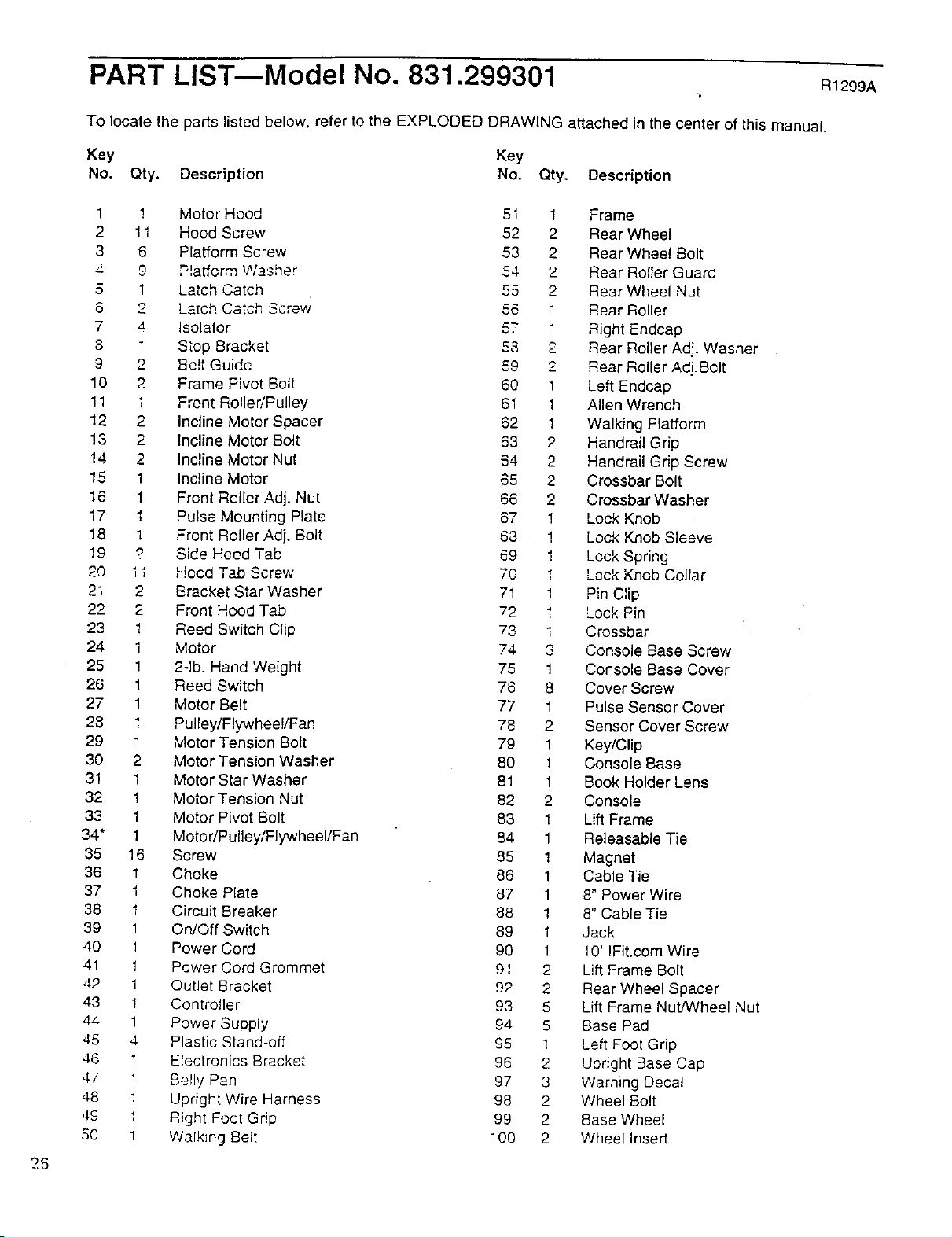

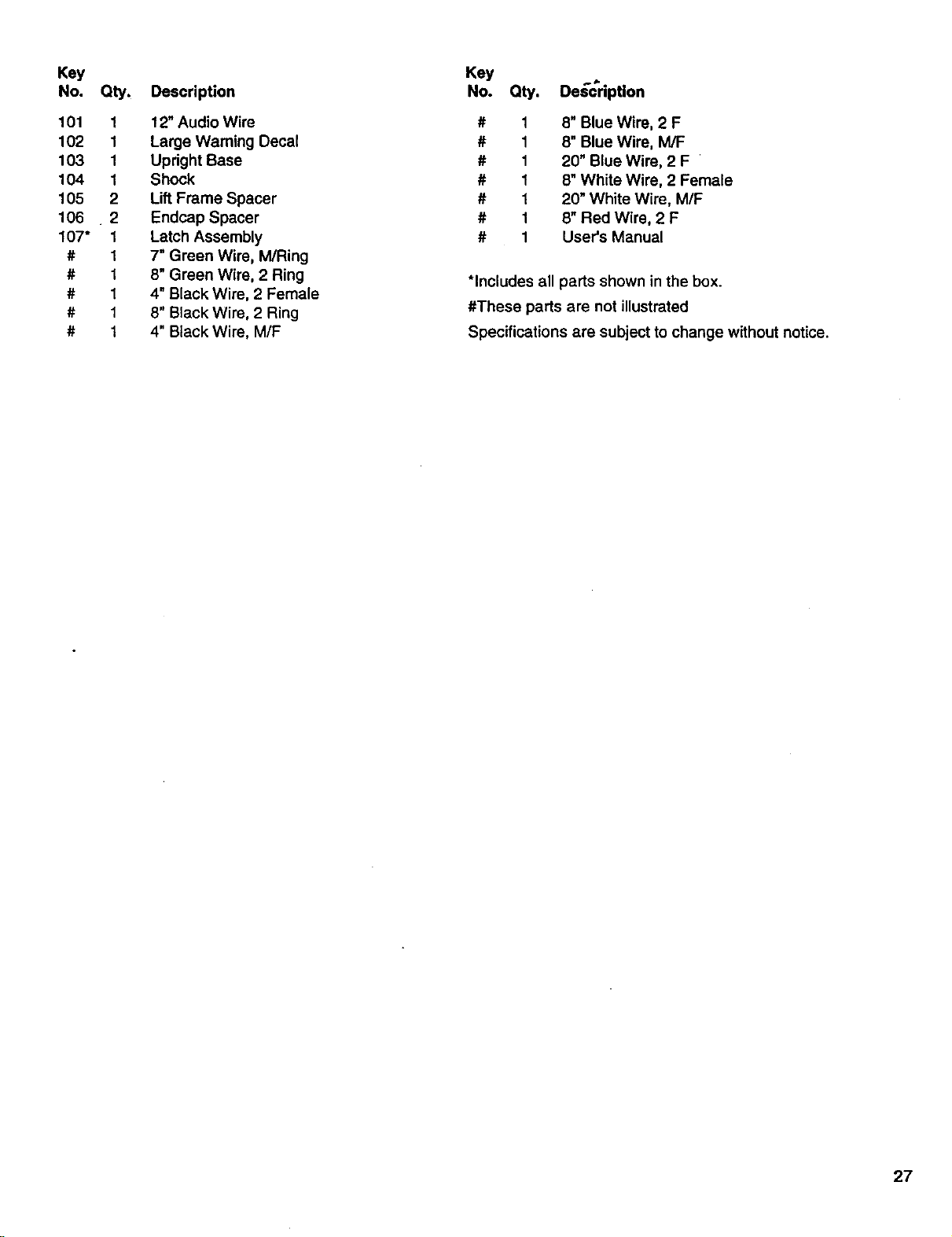

PART LIST ......................................................... .... .................. 26

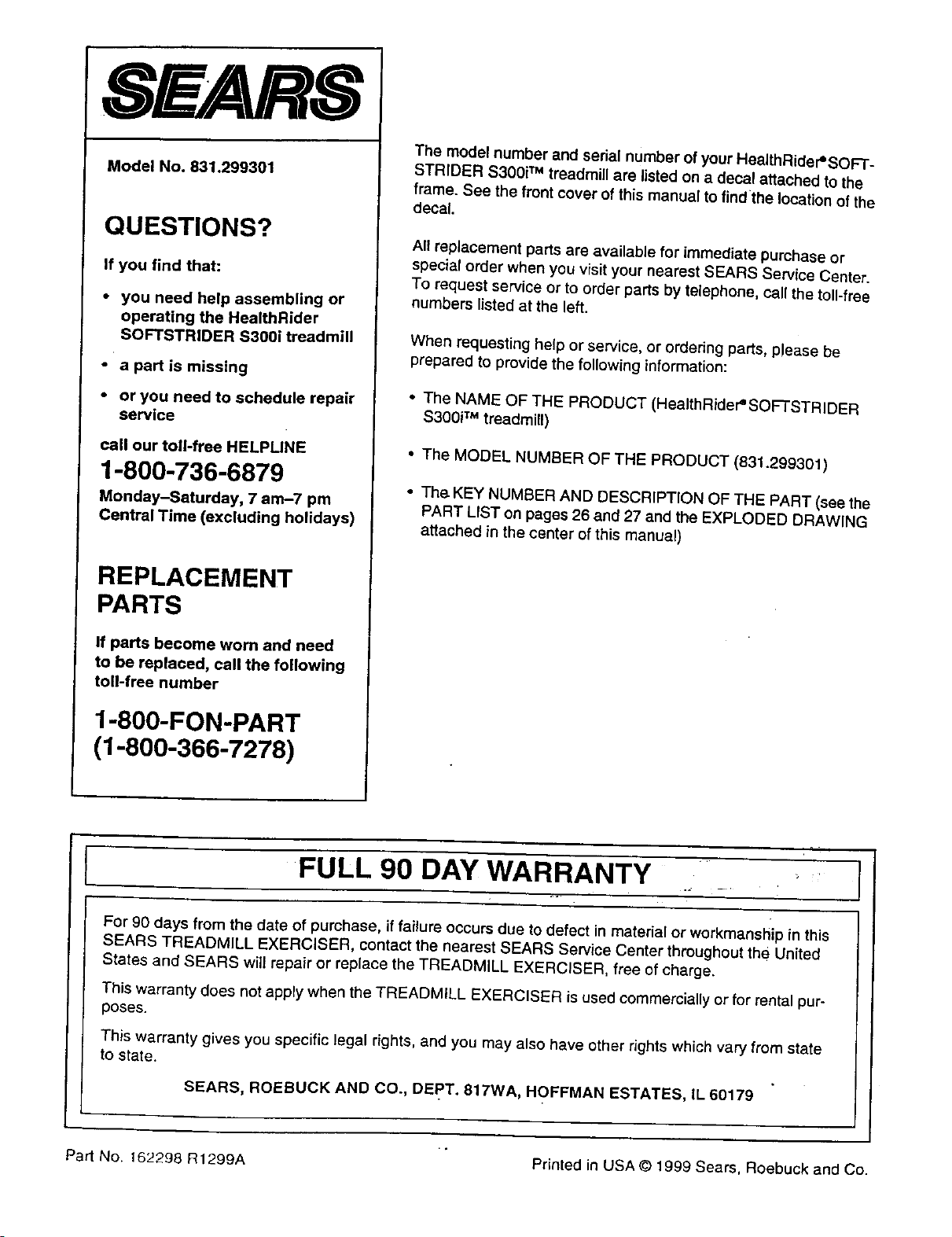

HOW TO ORDER REPLACEMENT PARTS .............................................. Back Cover
FULL 90 DAY WARRANTY ........................................................... Back Cover

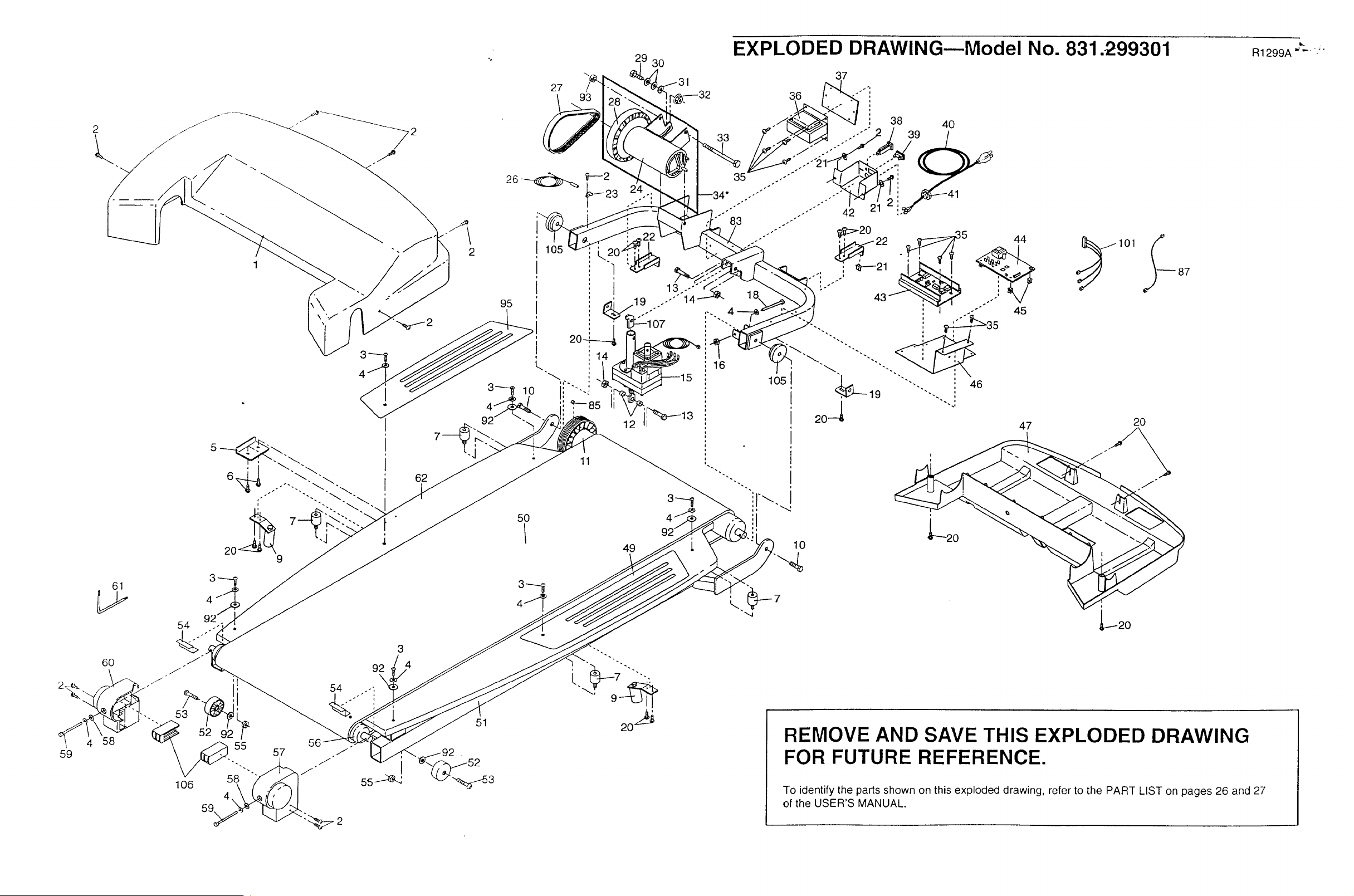

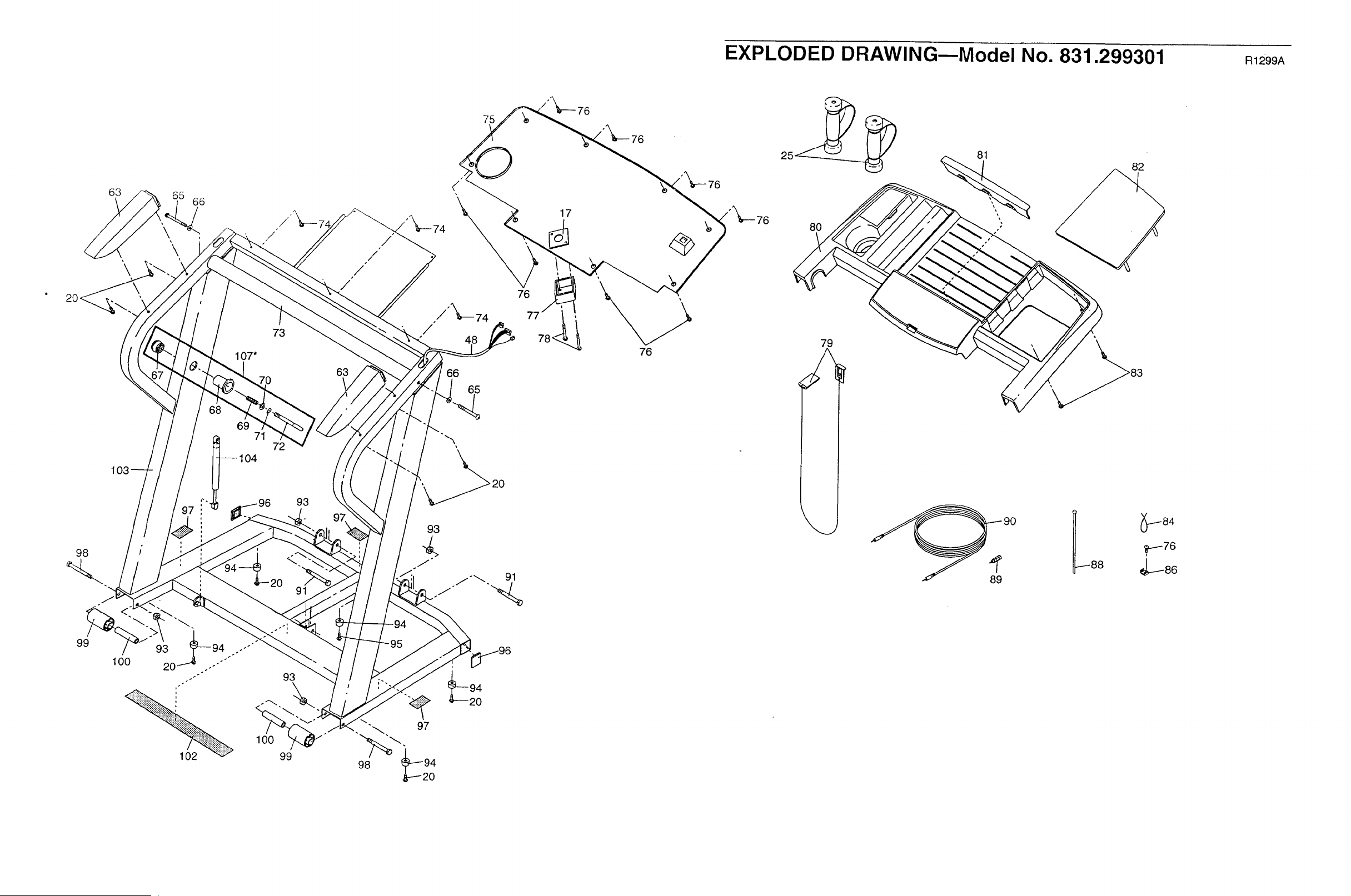

Note: An EXPLODED DRAWING isattached inthe center of this manual. Please save the EXPLODED DRAWING
for future reference.
2 HealthRider e is a registered trademark of ICON Health & Fitness, Inc.

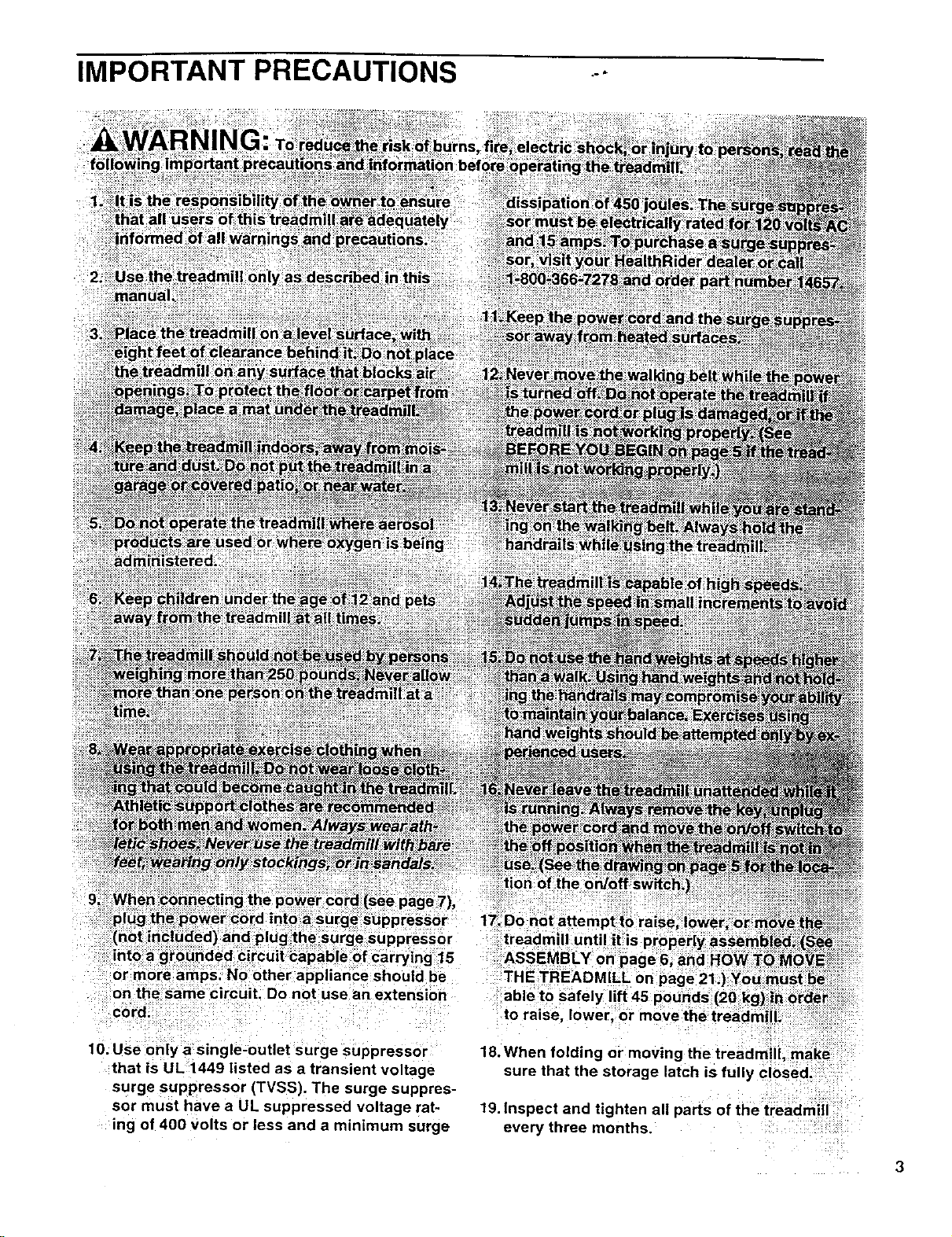

IMPORTANT PRECAUTIONS
9.:When connecting the power cord (see page7),
plug the:i_oWer cord intoasurge suppressor
(not included) and plug the surge suppressor
into a gi'0unded circuit _apable Of Carrying 15
or more amps; No other appliance should be
on the same circuit. Do not use an extension
cord.
10. Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rat-
ing of 400 volts or less and a minimum surge
17. Do not attempt to rai
treadmill until it is
THE TREADMILL on page 21.);You must be
able to safely lift 45 pounds (20 kg):in order
to raise, lower, or move the treadmill.
18. When folding or moving the treadmill, make
sure that the storage latch is fully closed,
19. Inspect and tighten all parts of the treadmill
every three months.
3

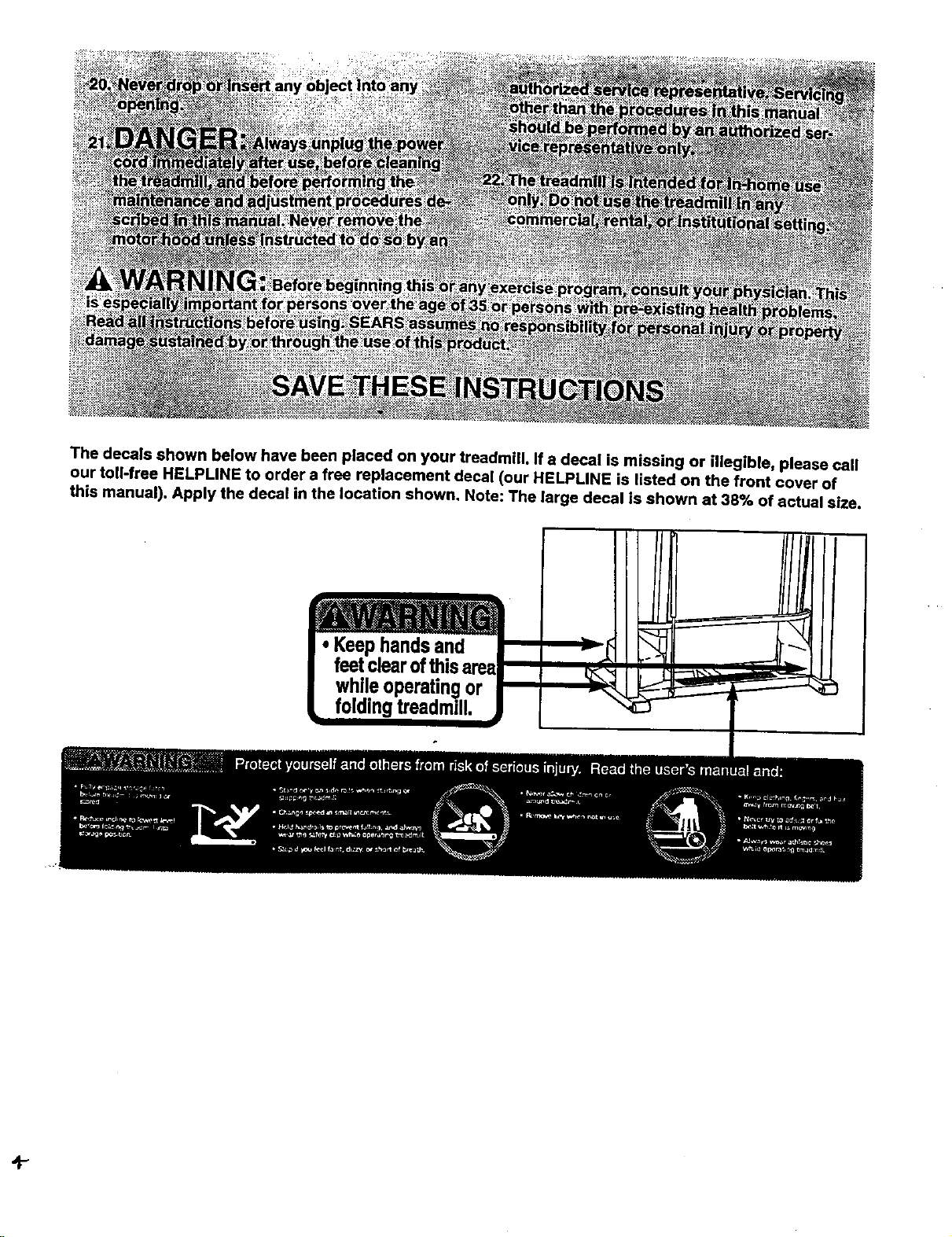

The decals shown below have been placed on your treadmill. If a decal is missing or illegible, please call
our toll-free HELPLINE to order a free replacement decal (our HELPLINE is listed on the front cover of
this manual). Apply the decal in the location shown, Note: The large decal is shown at 38% of actual size.
I whileoperatingor | __

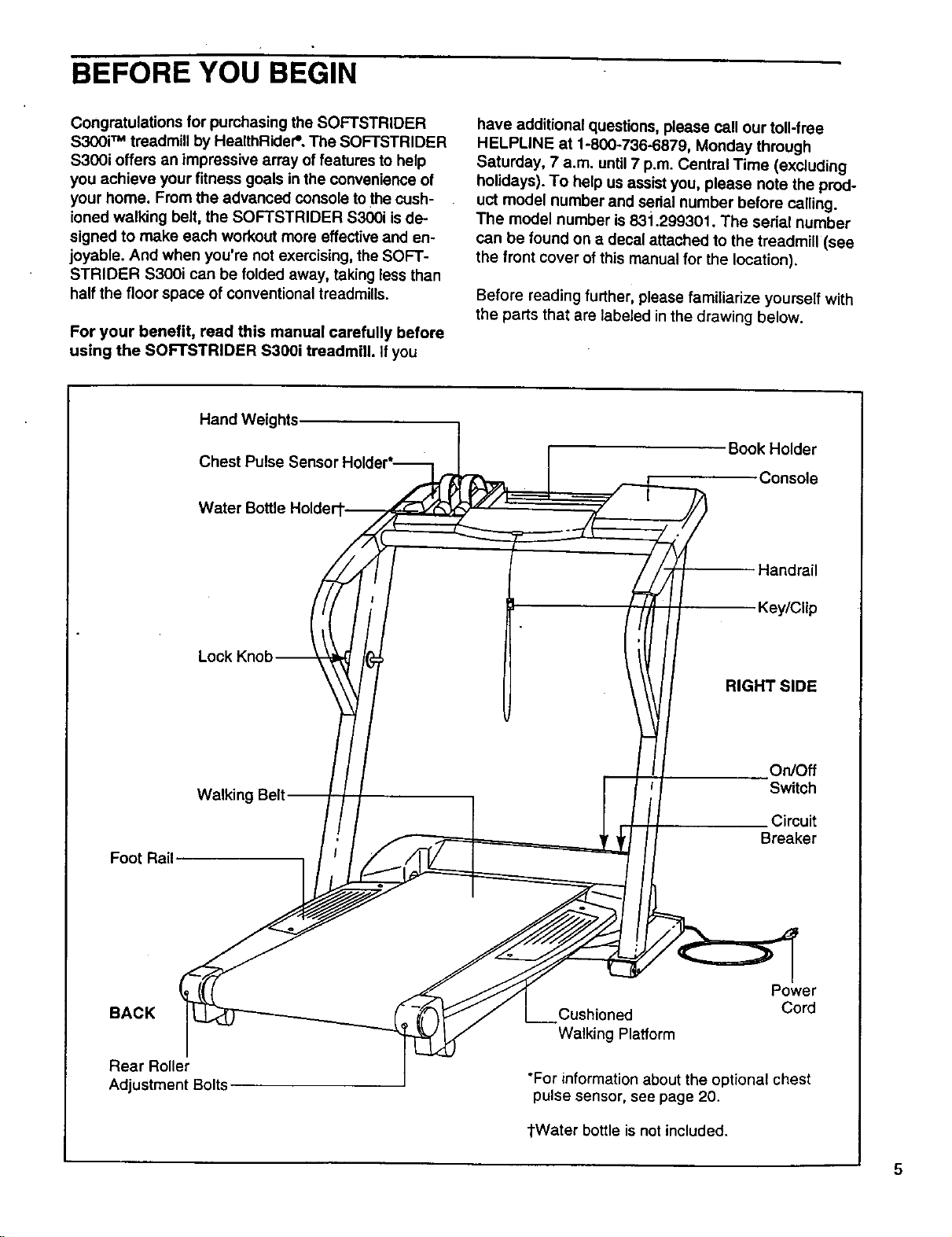

BEFORE YOU BEGIN
Congratulations for purchasing the SOFTSTRIDER
S300iTM treadmill by HealthRideP. The SOFTSTRIDER
S300i offers an impressive array of features to help
you achieve your fitness goals inthe convenience of
your home. From the advanced console tothe cush-
ioned walking belt, the SOFTSTRIDER S300i isde-
signed to make each workout more effective and en-
joyable. And when you're not exercising, the SOFT-
STRIDER S300i can be folded away, taking less than
half the floor space of conventional treadmills.
For your benefit, read this manual carefully before
using the SOFTSTRIDER S300i treadmill, if you
have additional questions, please call our toll-free
HELPMNE at 1-800-736-6879, Monday through
Saturday, 7 a.m. until 7 p.m. Central Time (excluding
holidays)• To help us assist you, please note the prod-
uct model number and serial number before calling.
The model number is 83"i.299301. The serial number
can be found on a decal attached to the treadmill (see
the front cover of this manual for the location).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Hand Weights
Chest Pulse Sensor H
Water Bottle
Book Holder
Console
--. Handrail
•Key/Clip
RIGHT SIDE
Foot Rail,
Walking
On/Off
Switch
Circuit
Breaker
BACK
Rear Roller
Adjustment Bolts
Cushioned
Walking Platform
Power
Cord
*For informationabout the optional chest
pulse sensor, see page 20.
tWater bottle is not included.
5

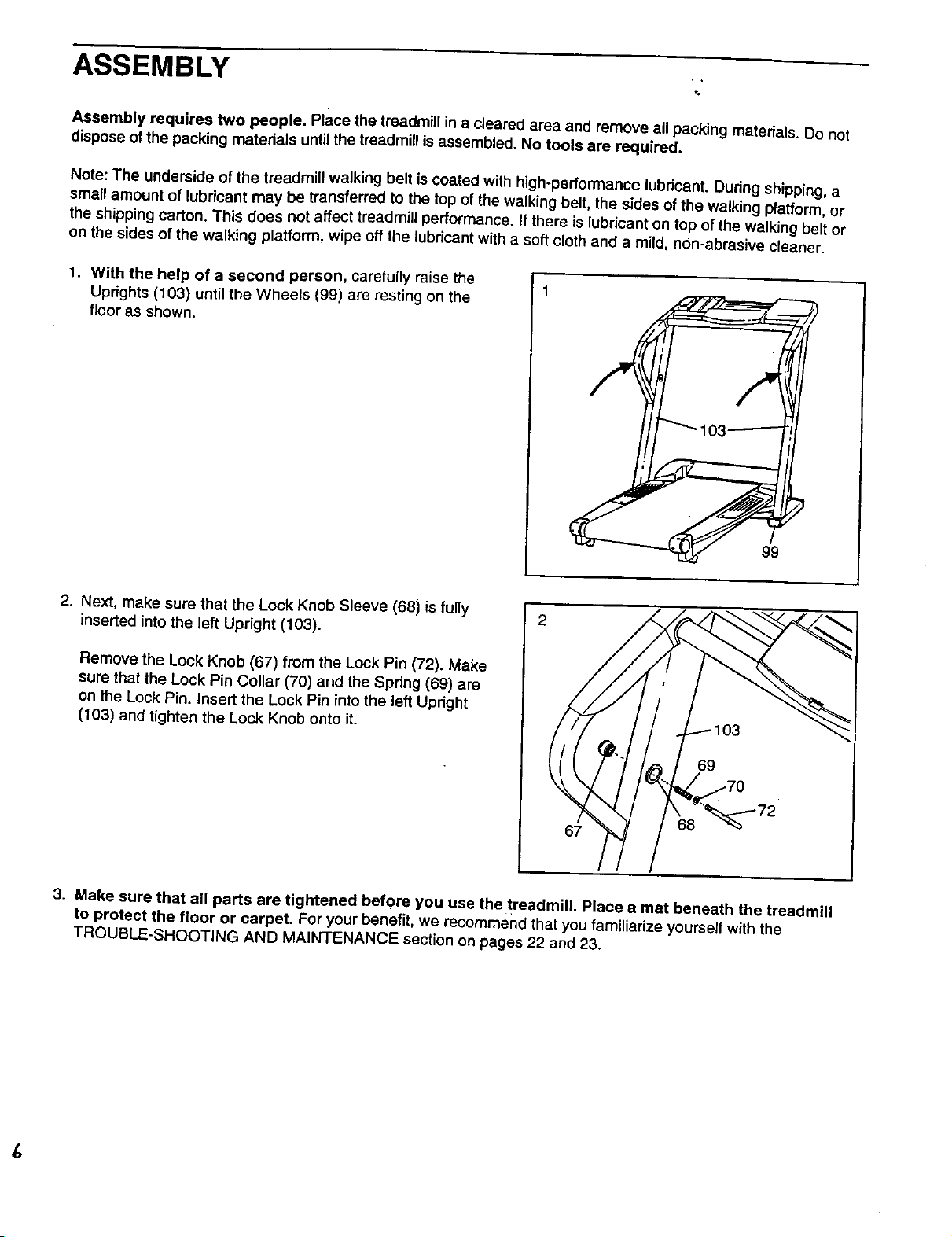

ASSEMBLY
Assembly requires two people. Place the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until the treadmill is assembled. No tools are required.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or
the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or
on the sides of the walking platform, wipe off the lubricant with a soft clothand a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (103) until the Wheels (99) are resting on the
floor as shown.
99
2. Next, make sure that the Lock Knob Sleeve (68) is fully
inserted into the left Upright (103).
Remove the Lock Knob (67) from the Lock Pin (72), Make
sure that the Lock Pin Collar (70) and the Spdng (69) are
on the Lock Pin. Insert the Lock Pin into the left Upright
(103) and tighten the Lock Knob onto it.
2
67
3. Make sure that all parts are tightened before you use the treadmill. Place a mat beneath the treadmill
to protect the floor or carpet. For your benefit, we recommend that you familiarize yourself with the
TROUBLE-SHOOTING AND MAINTENANCE section on pages 22 and 23.

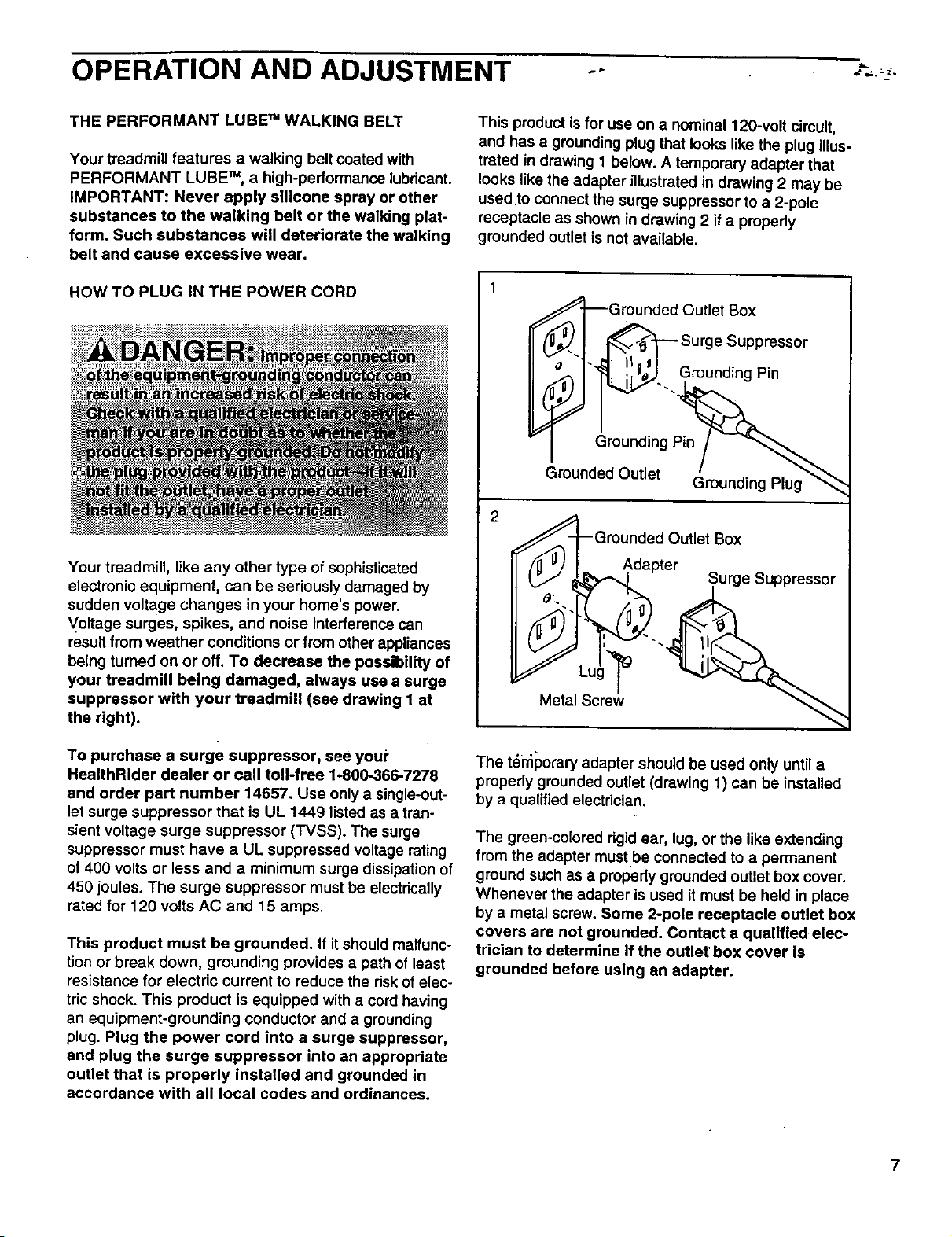

OPERATION AND ADJUSTMENT
THE PERFORMANT LUBE" WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
resultfrom weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
To purchase a surge suppressor, see your
HealthRider dealer or call toll-free 1-800-366-7278
and order part number 14657. Use only a single-out-
let surge suppressor that is UL 1449 listed as a tran-
sient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipationof
450 joules. The surge suppressor must be electdcally
rated for 120 volts AC and 15 amps.
This product must be grounded. If itshould malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the riskof elec-
tric shock. This product is equipped with a cordhaving
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
This product isfor use on a nominal 120-volt circuit,
and has a groundingplug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
i sBu°pXpressor
loS- _.. Grounding Pin
Grounding P_
Grounded Outlet (3rounding Plug_"_
__ cipGroundedOutlet Box
__"_ter Surge Suppressor
Metal Screw
The t_rfiporary adapter should be used only until a
propedy grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2opole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet'box cover is
grounded before using an adapter.
7

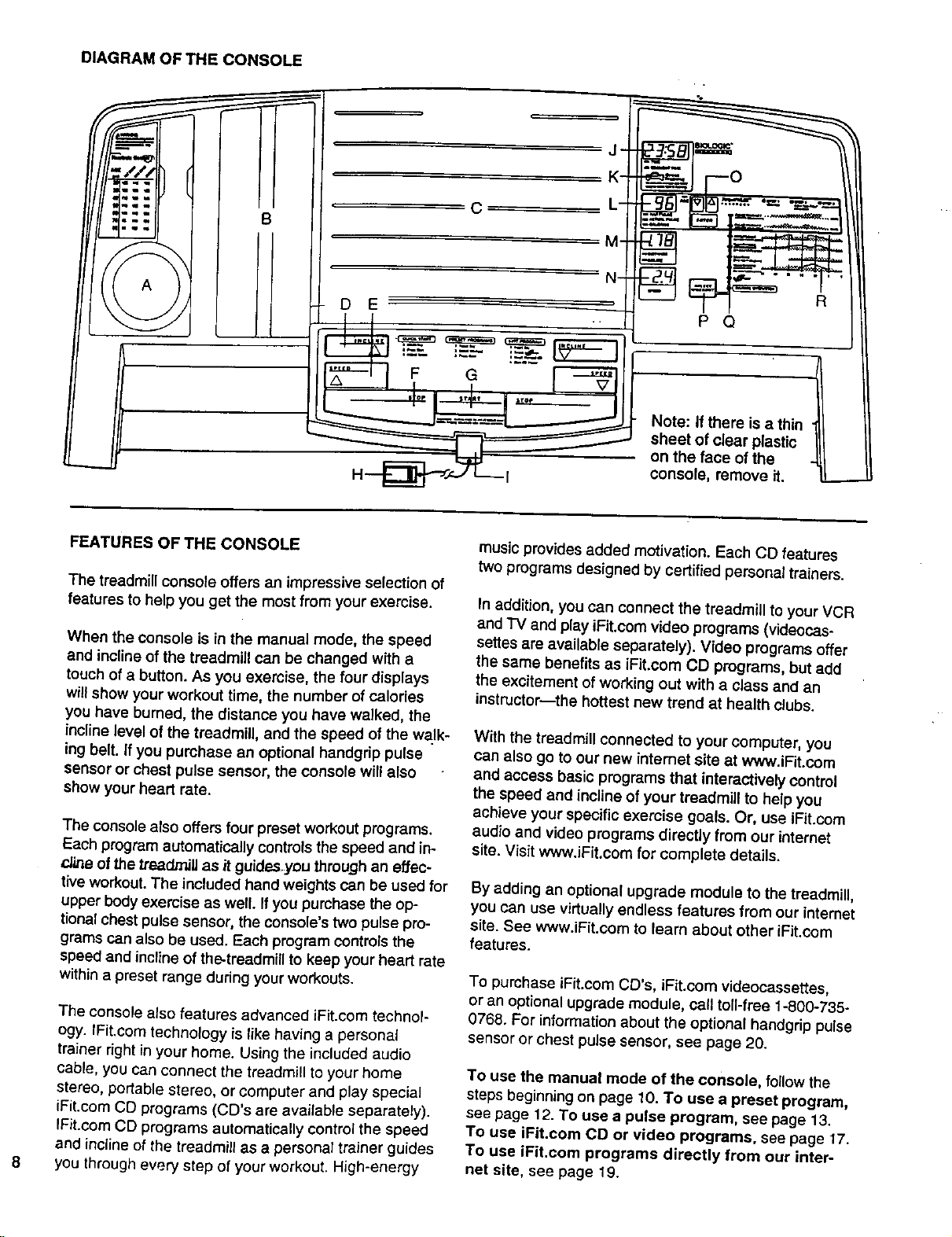

DIAGRAM OF THE CONSOLE
B
Ai
• C
D
E
F G
P Q
Note: If there is a thin
sheet of clear plastic
on the face of the
console, remove it.
R
FEATURES OF THE CONSOLE
The treadmill console offers an impressive selection of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a
touch of a button. As you exercise, the four displays
willshow your workout time, the number of calories
you have burned, the distance you have walked, the
incline level of the treadmill, and the speed ofthe wa.lk-
ing belt. If you pumhase an optional handgdp pulse
sensor or chest pulse sensor, the console willalso
show your heart rate.
The console also offers four preset workout programs.
Each program automatically controls the speed and in-
dine ofthe traadJ_Uas it guides.you through an effec-
tive workout.The included hand weights can be used for
upper body exercise as well. Ifyou purchase the op-
tionalchest pulse sensor, the console's two pulse pro-
grams can also be used. Each program controlsthe
speed and inclineof the.treadmill to keep your heart rate
withina preset range during your workouts.
The console also features advanced iFit.com technol-
ogy. IFit.com technology is like having a personal
trainer nght in your home, Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, or computer and play special
iFit.com CD programs (CD's are available separately)•
IFit.com CD programs automatically control the speed
and inclineof the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. Each CD features
two programs designed by certified personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFit.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iFit.com CD programs, but add
the excitement of working out with a class and an
instructor--the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our new intemet site at www.iFit.com
and access basic programs that interactively control
the speed and incline of your treadmill to help you
achieve your specific exercise goals. Or, use iFit.com
audio and video programs directly from our internet
site. Visit www.iFit.com for complete details.
By adding an optional upgrade module to the treadmill,
you can use virtually endless features from our lnternet
site. See www.iFit.com to learn about other iFit.com
features,
To purchase iFit.com CD's, iFit.com videocassettes,
or an optional upgrade module, call toll-free 1-800-735-
0768. For informationabout the optional handgrip pulse
sensor or chest pulse sensor, see page 20.
To use the manual mode of the console, follow the
steps beginning on page 10. To use a preset program,
see page 12. To use a pulse program, see page 13.
To use iFit.com CD or video programs, see page 17.
To use iFit.com programs directly from our inter-
net site, see page 19.

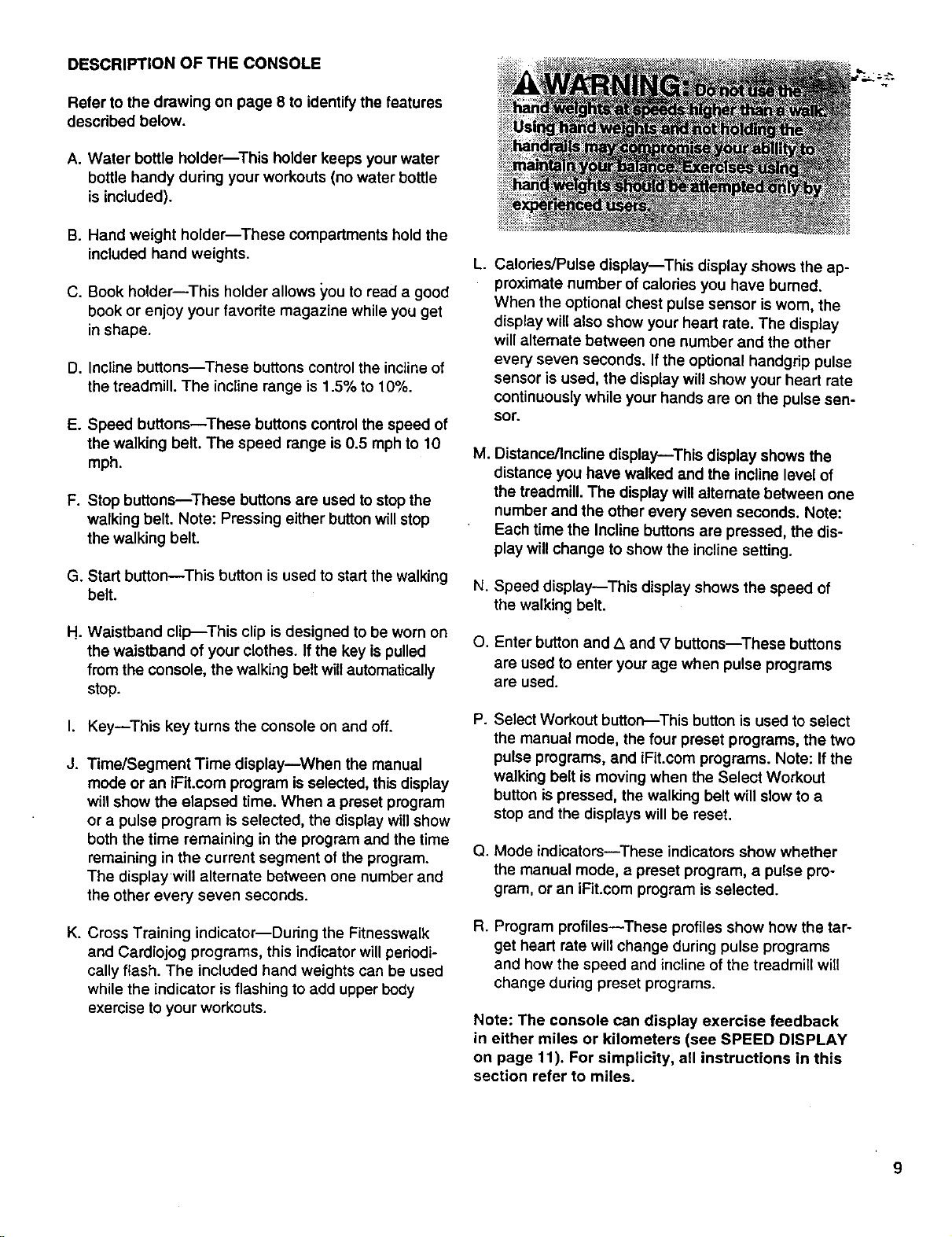

DESCRIPTIONOFTHECONSOLE
Referto the drawing on page 8 to identify the features
described below.
A. Water bottle holder--This holder keeps your water
bottle handy during your workouts (no water bottle
is included).
B. Hand weight holder--These compartments hold the
included hand weights.
C. Book holder--This holder allows _/outo read a good
book or enjoy your favorite magazine while you get
in shape.
D. Incline buttons--These buttons control the inclineof
the treadmill. The incline range is 1.5% to 10%.
E. Speed buttons--These buttons control the speed of
the walking belt. The speed range is0.5 mph to 10
mph.
F. Stop buttons--These buttons are used to stop the
walking belt. Note: Pressing either button willstop
the walking belt.
G. Start button--This button is used to start the walking
belt.
H. Waistband clip_This clip isdesigned to be worn on
the waistband of your clothes. If the key is pulled
from the console, the walking belt willautomatically
stop.
I. Key--This key turns the console on and off.
J. Time/Segment Time display--When the manual
mode or an iFit.com program isselected, this display
will show the elapsed time. When a preset program
or a pulse program is selected, the display willshow
both the time remaining in the program and the time
remaining in the current segment of the program.
The display will alternate between one number and
the other every seven seconds.
K. Cross Training indicator--Dudng the Fitnesswalk
and Cardiojog programs, this indicator will periodi-
cally flash. The included hand weights can be used
while the indicator is flashing to add upper body
exercise to your workouts.
L.
i.
N.
O.
P.
e.
Calories/Pulse display--This display shows the ap-
proximate number of calories you have burned.
When the optional chest pulse sensor is wom, the
display will also show your heart rate. The display
will alternate between one number and the other
every seven seconds. If the optional handgdp pulse
sensor is used, the display will show your heart rate
continuously while your hands are on the pulse sen-
sor.
Distance/Incline display--This display shows the
distance you have walked and the incline level of
the treadmill. The display willalternate between one
number and the other every seven seconds. Note:
Each time the Incline buttons are pressed, the dis-
play will change to show the incline setting.
Speed display--This display shows the speed of
the walking belt.
Enter button and Z_and V buttons--These buttons
are used to enter your age when pulse programs
are used.
Select Workout button--This button is used to select
the manual mode, the four preset programs, the two
pulse programs, and iFit.com programs. Note: Ifthe
walking belt is moving when the Select Workout
button is pressed, the walking belt will slow to a
stop and the displays willbe reset.
Mode indicators--These indicators show whether
the manual mode, a preset program, a pulse pro-
gram, or an iFit.com program is selected.
R.
Program profiles--These profiles show how the tar-
get heart rate will change during pulse programs
and how the speed and incline of the treadmill will
change during preset programs.
Note: The console can display exercise feedback
in either miles or kilometers (see SPEED DISPLAY
on page 11). For simplicity, all instructions in this
section refer to miles.
l0

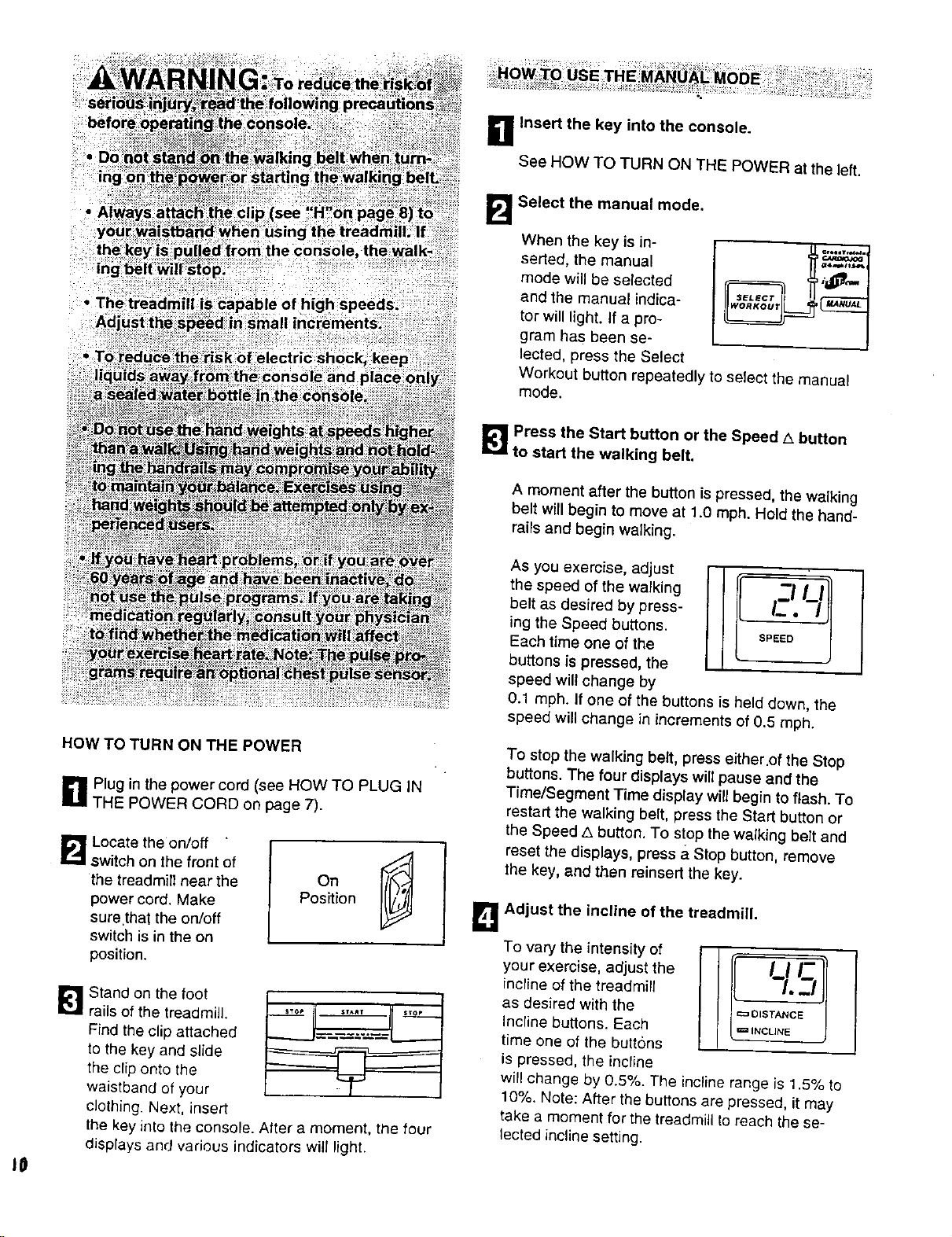

HOW TO TURN ON THE POWER
a Plug in the power cord (see HOW TO PLUG IN
THE POWER CORD on page 7).
_'_ Locate the on/off
switch on the front of
the treadmill near the
power cord. Make
sure that the on/off
switch is in the on
position.
Position
[_ Stand on the foot
rails of the treadmill.
Find the clip attached
to the key and slide
the dip onto the
waistband of your
clothing. Next, insert
the key into the console. After a moment, the four
displays and various indicators will light.
Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
Select the manual mode.
When the key is in-
serled, the manual
mode will be selected
and the manual indica-
tor willlight. If a pro-
gram has been se-
lected, press the Select
IN
'0-
Workout button repeatedly to select the manual
mode.
_'1 Press the Start button or the Speed z3button
to start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move at 1.0 mph. Hold the hand-
rails and begin walking.
As you exercise, adjust
the speed of the walking
belt as desired by press-
ing the Speed buttons.
Each time one of the
buttons is pressed, the
speed will change by
I _-i
'-"'JL
SPEED J
0.1 mph. If one of the buttons is held down, the
speed will change in increments of 0.5 mph.
To stop the walking belt, press either.of the Stop
buttons. The four displays will pause and the
Time/Segment Time display will begin to flash. To
restart the walking belt, press the Start button or
the Speed z_button. To step the walking belt and
reset the displays, press a stop button, remove
the key, and then reinsert the key.
El
Adjust the incline of the treadmill.
To vary the intensity of
your exercise, adjust the
incline of the treadmill
as desired with the
Incline buttons. Each
time one of the buttons
is pressed, the incline
will change by 0.5%. The incline range is 1.5% to
10%. Note: After the buttons are pressed, it may
take a moment for the treadmill to reach the se-
lected incline setting.

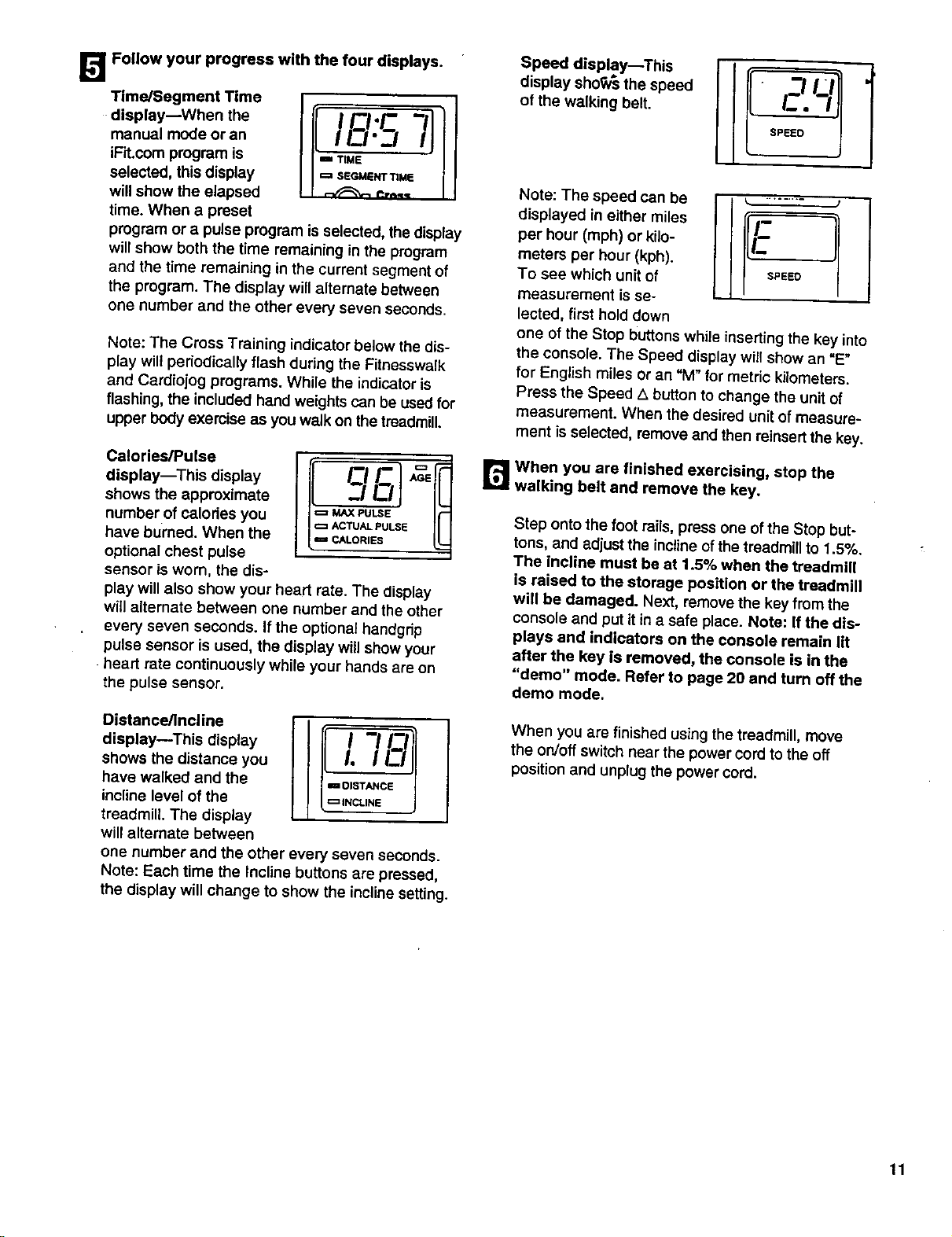

Time/Segment Time
display--When the
manual mode or an
iFit.com program is
selected, this display
will show the elapsed
time. When a preset
Follow your progress with the four displays.
I1Ic!"-I II
program or a pulse program isselected, the display
will show both the time remaining in the program
and the time remaining in the current segment of
the program. The display will alternate between
one number and the other every seven seconds.
Note: The Cross Training indicator below the dis-
play will periodically flash during the Fitnesswalk
and Cardiojog programs. While the indicatoris
flashing, the included hand weights can be usedfor
upper body exercise as you walk on the treadmill.
Calories/Pulse
display--This display
shows the approximate
number of ealodes you
have burned. When the
optional chest pulse
sensor is worn, the dis-
/l== CALORIES L_
play will also show your heart rate. The display
will alternate between one number and the other
every seven seconds. If the optional handgdp
pulse sensor is used, the display will show your
heart rate continuously while your hands are on
the pulse sensor.
Distance/Incline
display--This display
shows the distance you
have walked and the
incline level of the
treadmill. The display
will alternate between
I_.irq
:,°'L";'J
one number and the other every seven seconds.
Note: Each time the Incline buttons are pressed,
the display will change to show the incline setting.
Speed displayiThis
display sho_v,_the speed
of the walking belt.
Note: The speed can be
displayed in either miles
per hour (mph) or Idlo-
meters per hour (kph).
To see which unitof
measurement is se-
lected, first hold down
o....71
one of the Stop buttons while inserting the key into
the console. The Speed display will show an "E"
for English miles or an "M" for metric kilometers.
Press the Speed & button to change the unit of
measurement. When the desired unit of measure-
ment is selected, remove and then reinsertthe key.
r,_ When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, press one of the Stop but-
tons, and adjust the inclineofthe treadmill to 1.5%,
The incline must be at 1.5% when the treadmill
is raised to the storage position or the treadmill
will be damaged. Next, remove the key from the
console and put itin a safe place. Note: If the dis-
plays and indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode. Refer to page 20 and turn off the
demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
11

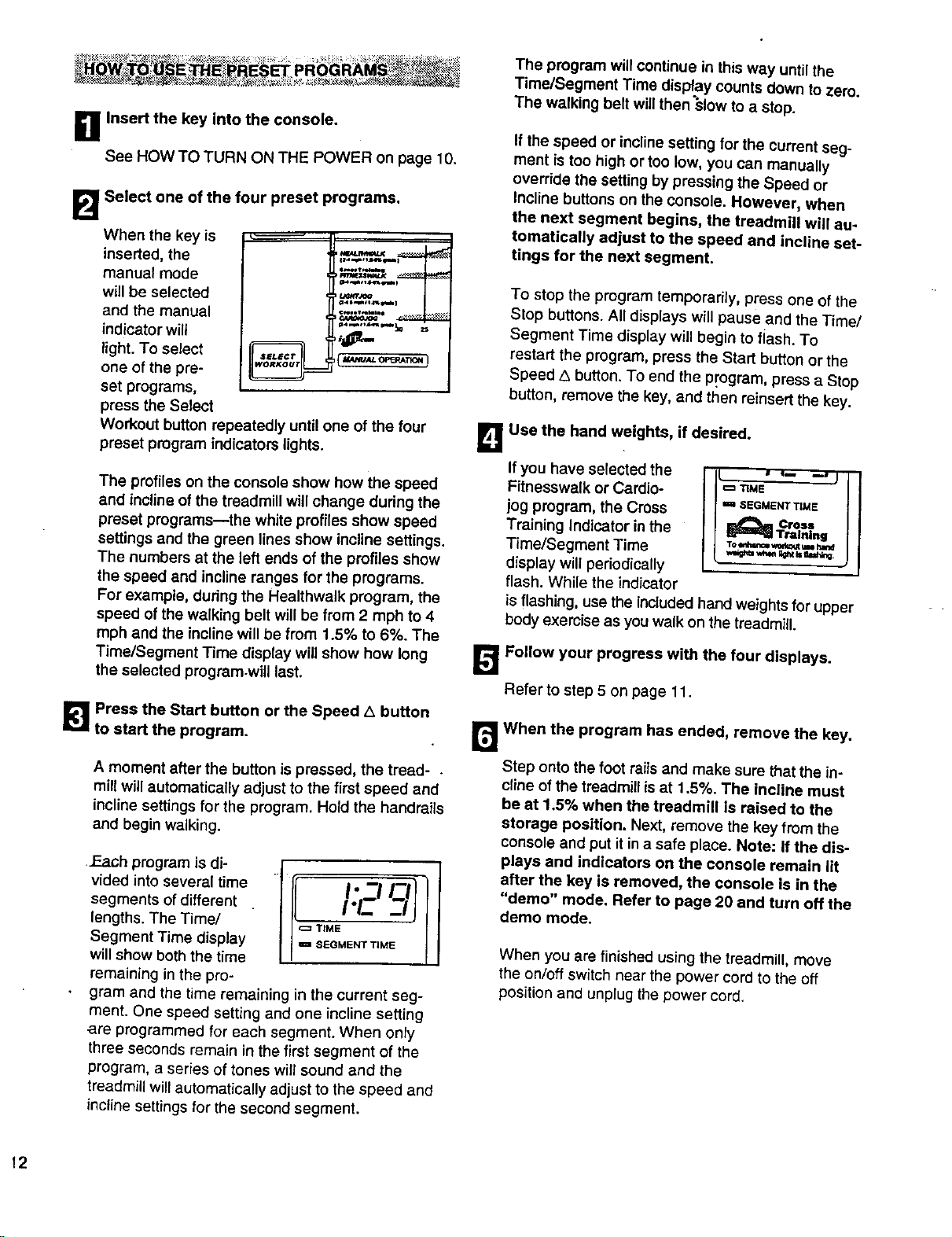

B Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
B Select one of the four preset programs.
When the key is
inserted, the
manual mode
will be selected
and the manual
indicator will
light. To select
one of the pre-
set programs,
press the Select
Workout button repeatedly until one ofthe four
preset program indicators lights.
The profiles on the console show how the speed
and incline of the treadmill will change during the
preset programs--the white profiles show speed
settings and the green lines show incline settings.
The numbers at the left ends of the profiles show
the speed and incline ranges for the programs.
For example, during the Healthwalk program, the
speed of the walking belt will be from 2 mph to 4
mph and the incline will be from 1.5% to 6%. The
Time/Segment Time display will show how long
the selected program-will last.
_1 Press the Start button or the Speed Z_button
to start the program.
A moment after the button is pressed, the tread- .
mill willautomatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
..Each program is di-
vided intoseveral time
segments of different
lengths. The Time/
Segment Time display
will show both the time
remaining in the pro-
gram and the time remaining in the current seg-
ment. One speed setting and one incline setting
are programmed for each segment. When only
three seconds remain in the first segment of the
program, a series of tones will sound and the
treadmill will automatically adjust to the speed and
inclinesettings for the second segment.
The program will continue in this way until the
Time/Segment Time display counts down to zero.
The walking belt will then'_low to a stop.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons on the console. However, when
the next segment begins, the treadmill will au-
tomatically adjust to the speed end incline set-
tings for the next segment.
To stop the program temporarily, press one of the
Stop buttons. All displays will pause and the Time/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed A button. To end the program, press a Stop
button, remove the key, and then reinsert the key.
L_lUse the hand weights, if desired.
If you have selected the
Fitnesswalk or Cardio-
jog program, the Cross
Training Indicator in the
Time/Segment Time
display will pedodicany
flash. While the indicator
-°oo o
is flashing, use the included hand weights for upper
body exercise as you wa(k on the treadmill
_'.'_ Follow your progress with the four displays.
Refer to step 5 on page 11.
r_When the program has ended, remove the key.
Step onto the foot railsand make sure that the in-
cline of the treadmill is at 1.5%. The Incline must
be at 1.5% when the treadmill is raised to the
storage position. Next, remove the key from the
console and put itin a safe place. Note: If the dis-
plays and indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode, Refer to page 20 and turn off the
demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.

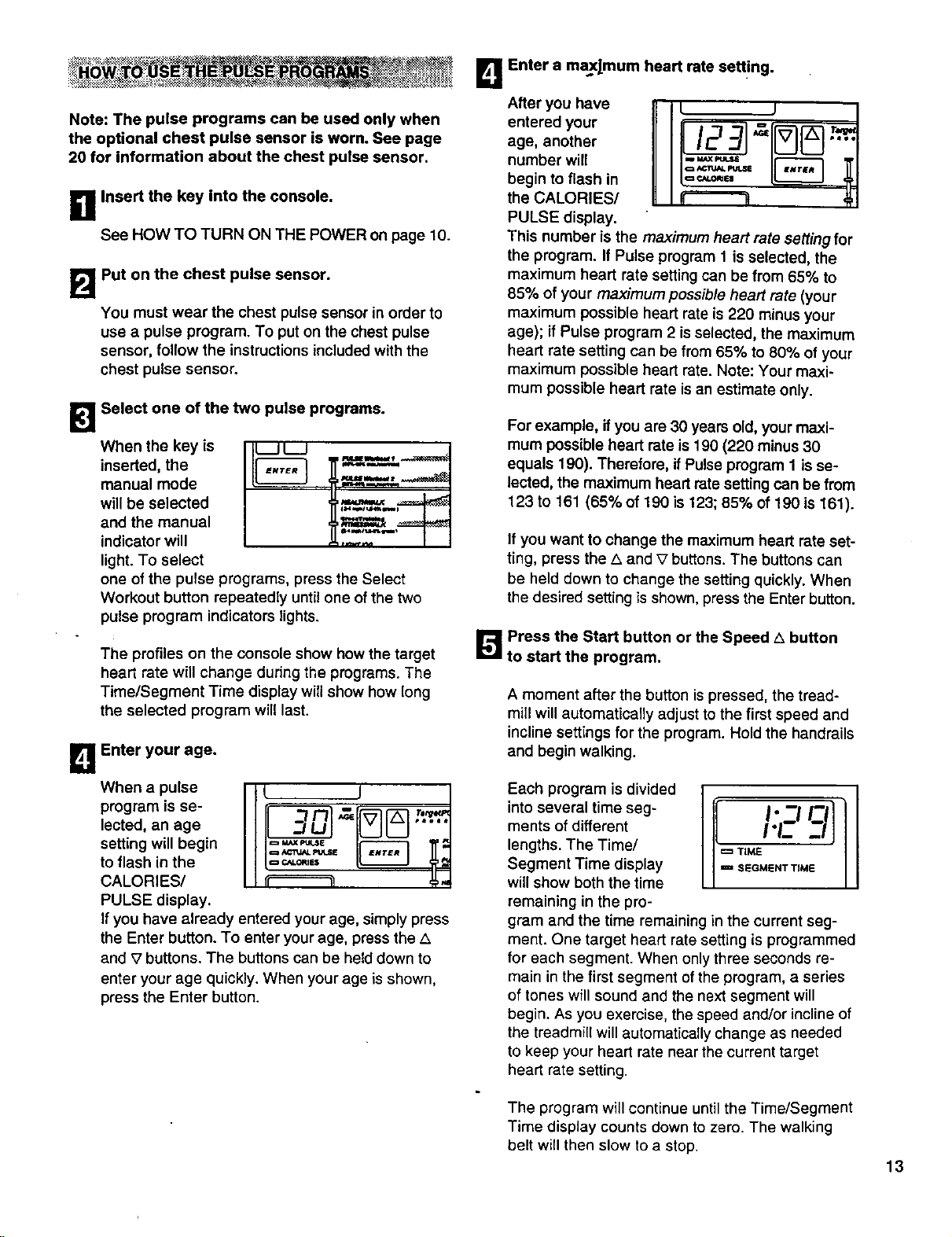

Note: The pulse programs can be used only when
the optional chest pulse sensor is worn. See page
20 for information about the chest pulse sensor.
B Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
B
Put on the chest pulse sensor.
You must wear the chest pulse sensor in order to
use a pulse program. To put on the chest pulse
sensor, follow the instructionsincludedwith the
chest pulse sensor.
kl
Select one of the two pulse programs.
When the key is L_I I_.J
inserted, the _ _--_'_
manual mode
will be selected ,_,,,,,,,,-= ,,==
and the manual _ .===
indicator will ,_-
light.To select
one of the pulse programs, press the Select
Workout button repeatedly until one ofthe two
pulse program indicators lights.
The profiles on the console show how the target
heart rate will change during the programs. The
Time/Segment Time display will show how long
the selected program will last.
Enter your age.
Enter a maximum heart rate sett!ng.
After you have j
entered your
age, another 1_'3 :_J '7_ [_8 r_
number will - _'-_"=_
begin to flash in =_t,
the CALORIES/
PULSE display.
This number is the maximum heart rate settingfor
the program. If Pulse program 1 is selected, the
maximum heart rate setting can be from 65% to
85% of your maximum possible heart rate (your
maximum possible heart rate is220 minus your
age); if Pulse program 2 isselected, the maximum
heart rate setting can be from 65% to 80% of your
maximum possible heart rate. Note: Your maxi-
mum possible heart rate isan estimate only.
For example, ifyou are 30 years old, your maxi-
mum possible heart rate is 190 (220 minus 30
equals 190). Therefore, ifPulse program 1 is se-
lected, the maximum heart rate settingcan be from
123 to 161 (65% of 190 is 123; 85% of 190 is 161).
If you want to change the maximum heart rate set-
ting, press the Z_and _7buttons. The buttons can
be held down to change the setting quickly. When
the desired setting is shown, press the Enter button.
B Press the Start button or the Speed Z_button
to start the program.
A moment after the button ispressed, the tread-
mill will automatically adjustto the first speed and
incline settings for the program. Hold the handrails
and begin walking.
When a pulse
program is se-
lected, an age
setting will begin
to flash in the
CALORIES/
PULSE display.
Ibsd
If you have already entered your age, simply press
the Enter button. To enter your age, press the/',
and _7buttons. The buttons can be held down to
enter your age quickly. When your age is shown,
press the Enter button.
Each program is divided
into several time seg-
ments of different
lengths. The Time/
Segment Time display
witl show both the time
remaining in the pro-
I[ C!1/
= _lJ
=1 $1_GMENT TIME
gram and the time remaining in the current seg-
ment. One target heart rate setting is programmed
for each segment. When only three seconds re-
main in the first segment of the program, a series
of tones will sound and the next segment will
begin. As you exercise, the speed and/or incline of
the treadmill will automatically change as needed
to keep your heart rate near the current target
heart rate setting.
The program will continue until the Time/Segment
Time display counts down to zero. The walking
belt will then slow to a stop.
13

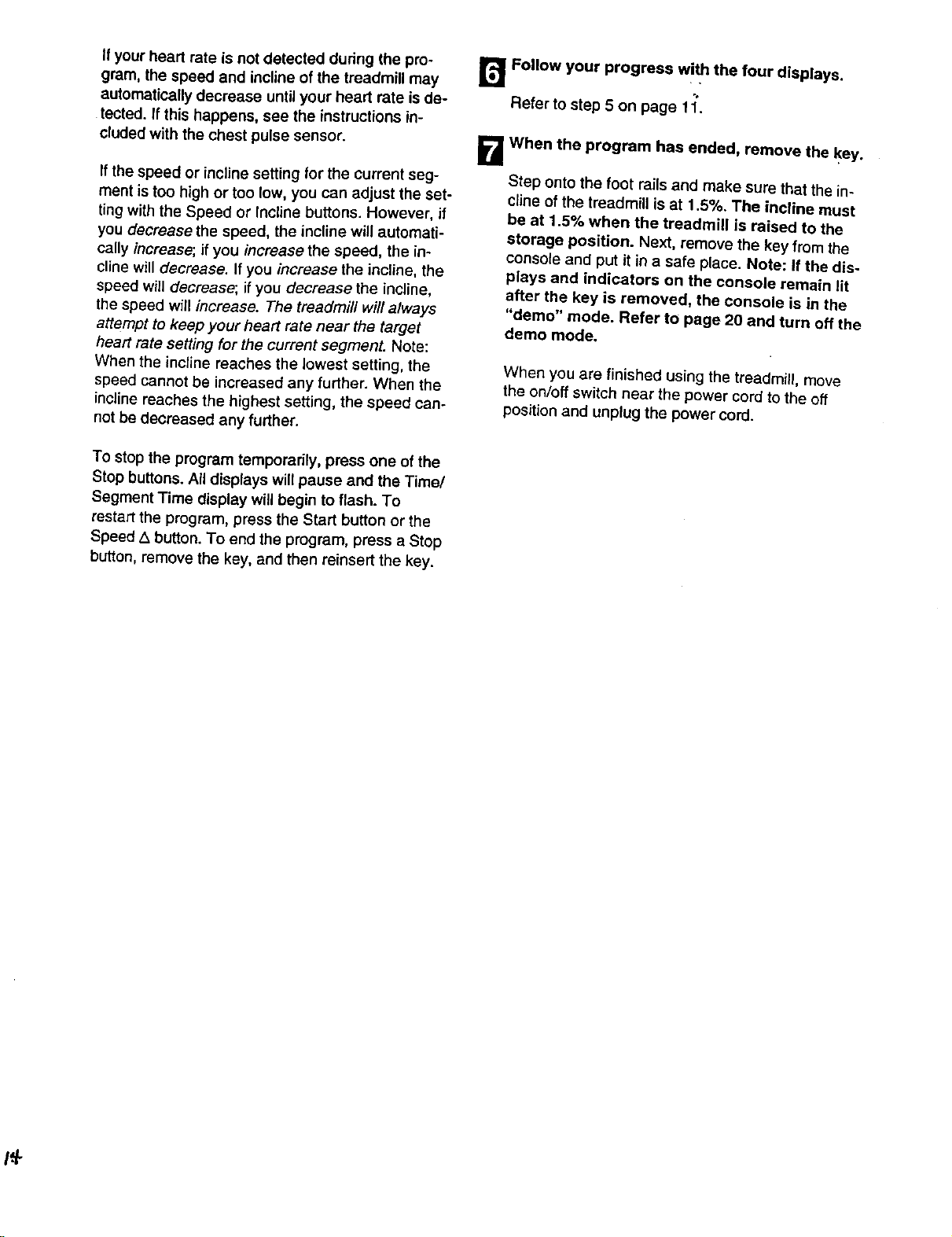

Ifyour heart rate is not detected during the pro-
gram, the speed and incline of the treadmill may
automatically decrease untilyour heart rate is de-
tected. If this happens, see the instructions in-
cluded with the chest pulse sensor.
If the speed or incline setting for the current seg-
ment is too high or too low, you can adjust the set-
ting with the Speed or Incline buttons. However, if
you decrease the speed, the incline will automati-
cally increase; if you increase the speed, the in-
cline will decrease. If you increase the incline, the
speed will decrease; if you decrease the incline,
the speed will increase. The treadmill will always
attempt to keep your heart rate near the target
heart rate setting for the current segment. Note:
When the incline reaches the lowest setting, the
speed cannot be increased any further. When the
incline reaches the highest setting, the speed can-
not be decreased any further.
To stop the program temporarily, press one of the
Stop buttons. All displays will pause and the Time/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed Z_button. To end the program, press a Stop
button, remove the key, and then reinsert the key.
r,_ Follow your progress wit_ the four displays.
Refer to step 5 on page 1"_.
B When the program has ended, remove the
key.
Step onto the foot railsand make sure that the in-
cline of the treadmill is at 1.5%. The incline must
be at 1.5% when the treadmill is raised to the
storage position. Next, remove the key from the
console and put it in a safe place. Note: If the dis-
plays and indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode. Refer to page 20 and turn off the
demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.

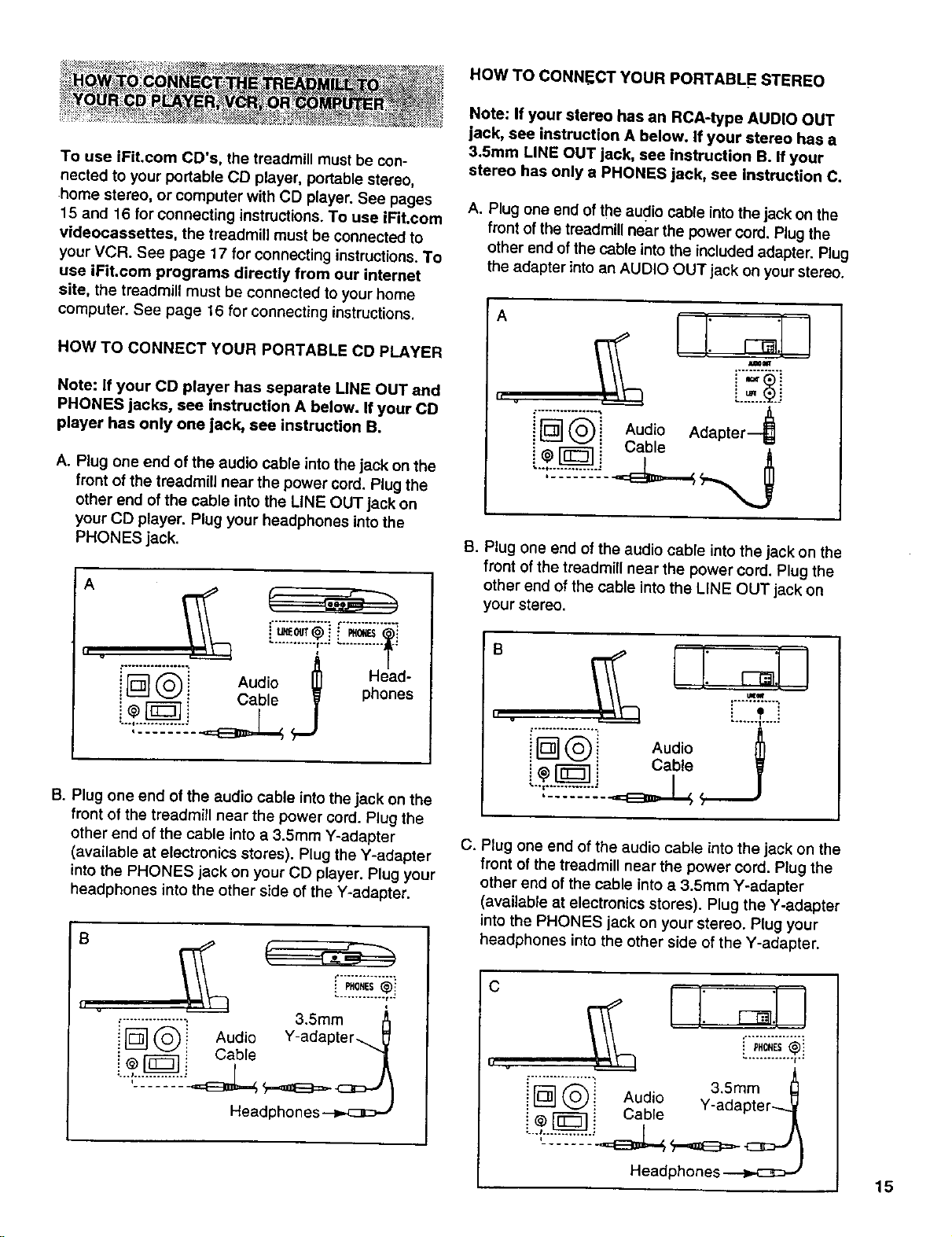

HOW TO CONNECT YOUR PORTABLE STEREO
To use iFit.com CD's, the treadmill must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
15 and 16 for connecting instructions. To use iFiLcom
videocassettes, the treadmill must be connected to
your VCR. See page 17 for connecting instructions. To
use iFit.com programs directly from our internet
site, the treadmil{ must be connected to your home
computer. See page 16 for connecting instructions,
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
j
B. Plug one end of the audio cable intothe jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.Smm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
B
! P,0_s@i
............. t..
................. -= 3.5mm
[] _i Audio Y-adapter.
...@.._.. Cable
Headphones
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5ram LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord, Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
A
h
! Cable A
8. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
II v
Audio
i _ [-_ ! Cable
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
c
i p,_Es@i
[................] 3.5mm _]
: Audio
-4
i [] Q! Cable Y-adapter
Headphones
15

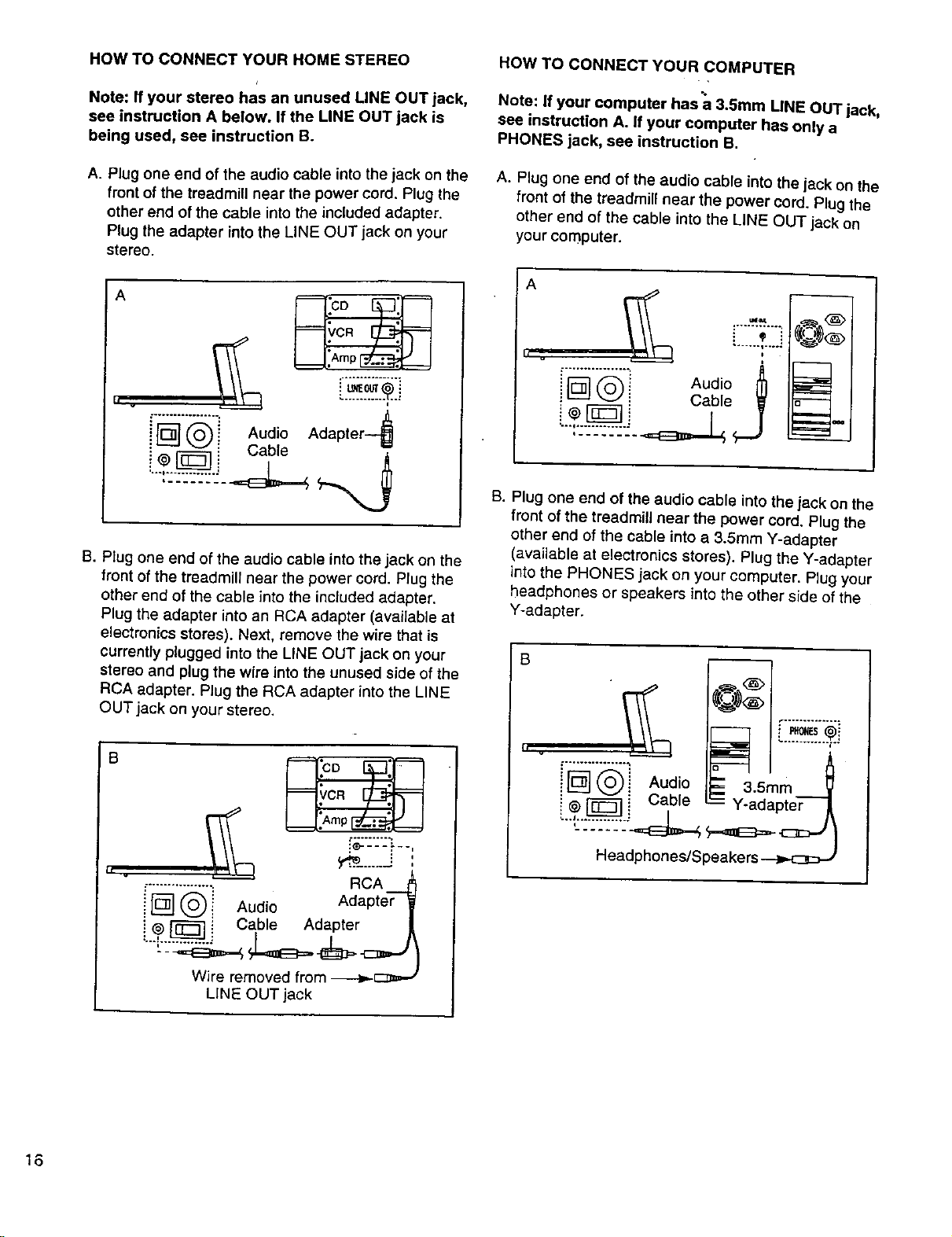

NOW TO CONNECT YOUR HOME STEREO
Note: if your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
A
h
i t._lEouf_ !L........... :
i'rL_"]'_'_ Audio Adapter---_
-'_-",----_-,_i Cable _'
....-_.-_--S..._-_.__
B.
Plug one end of the audio cable into the jack on the
front ofthe treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA adapter (available at
electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA adapter. Plug the RCA adapter into the LINE
OUT jack on your stereo.
B
:_-.--_-.,
.................: RCA
![] @i Audio AdapteT
@_ _ Cable Adapter
IL_----J
Wire removed from ------_-c:_=--_
LINE OUT jack
HOW TO CONNECT YOUR COMPUTER
Note: If your computer hasa 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
A
i
__'_'_ Audio
i _ i Cable "_'
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B
t ........... __.o..
i[] A.d o= ,mm
i @_ i Cable = Y-adapter'--
_"_.............__,=_,--_ y...,_E3==- .c_::_
Headphones/Speakers
16

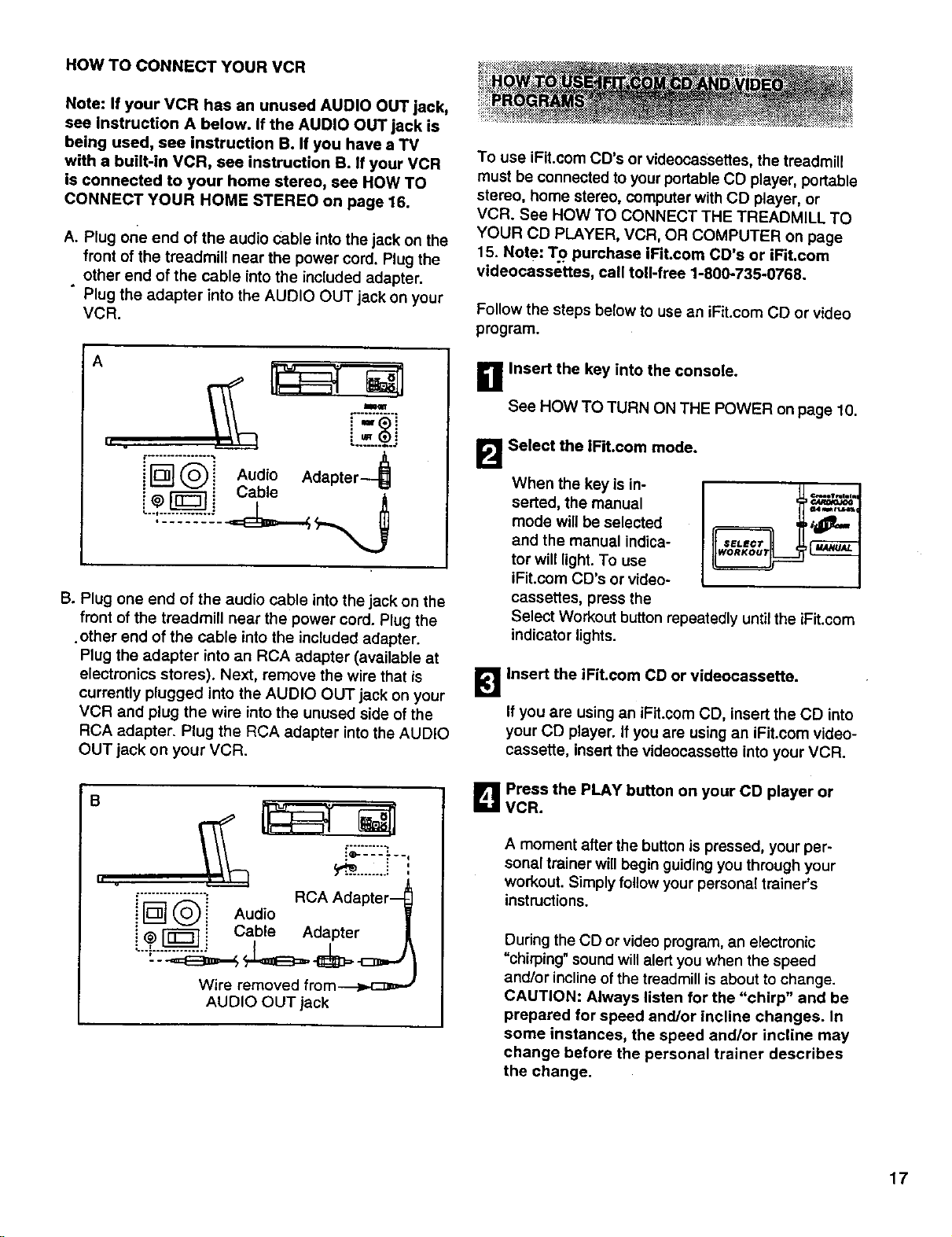

HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, sea instruction B. If your VCR
is connected to your home stereo, see ROW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
• Plug the adapter into the AUDIO OUT jack on your
VCR.
A
i[ ;
FF__ Audio Adapter----_
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
.other end of the cable into the included adapter.
Plug the adapter into an RCA adapter (available at
electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA adapter. Plug the RCA adapter into the AUDIO
OUT jack on your VCR.
B
h
,,_ _::-':':'--'
,"................ RCA Adapter--
ir ©i Audio
i @ [_ i Cable Adapter
Wire removed from----_,,.c:_=_
AUDIO OUT jack
To use iFit.com CD's or videocassettes, the treadmill
must be connected toyour portable CD prayer, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
15. Note: 1.o purchase iFit.com CD's or iFit,com
videocassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFit.com CD or video
program.
D Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
B Select the iFit.com mode.
When the key is in-
serted, the manual
mode will be selected
and the manual indica-
tor will light.To use
iFit.com CD's or video-
cassettes, press the
Select Workout button repeatedly until the iFit.com
indicator lights.
insert the iFit.com CD or videocassette.
If you are using an iFit.com CO, insert the CD into
your CD player. If you are using an iFit.com video-
cassette, insert the videocassette into your VCR.
B Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer willbegin guiding you through your
workout. Simply follow your personal trainer's
instructions.
Dudng the CD or video program, an electronic
"chirping"sound willalert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
17

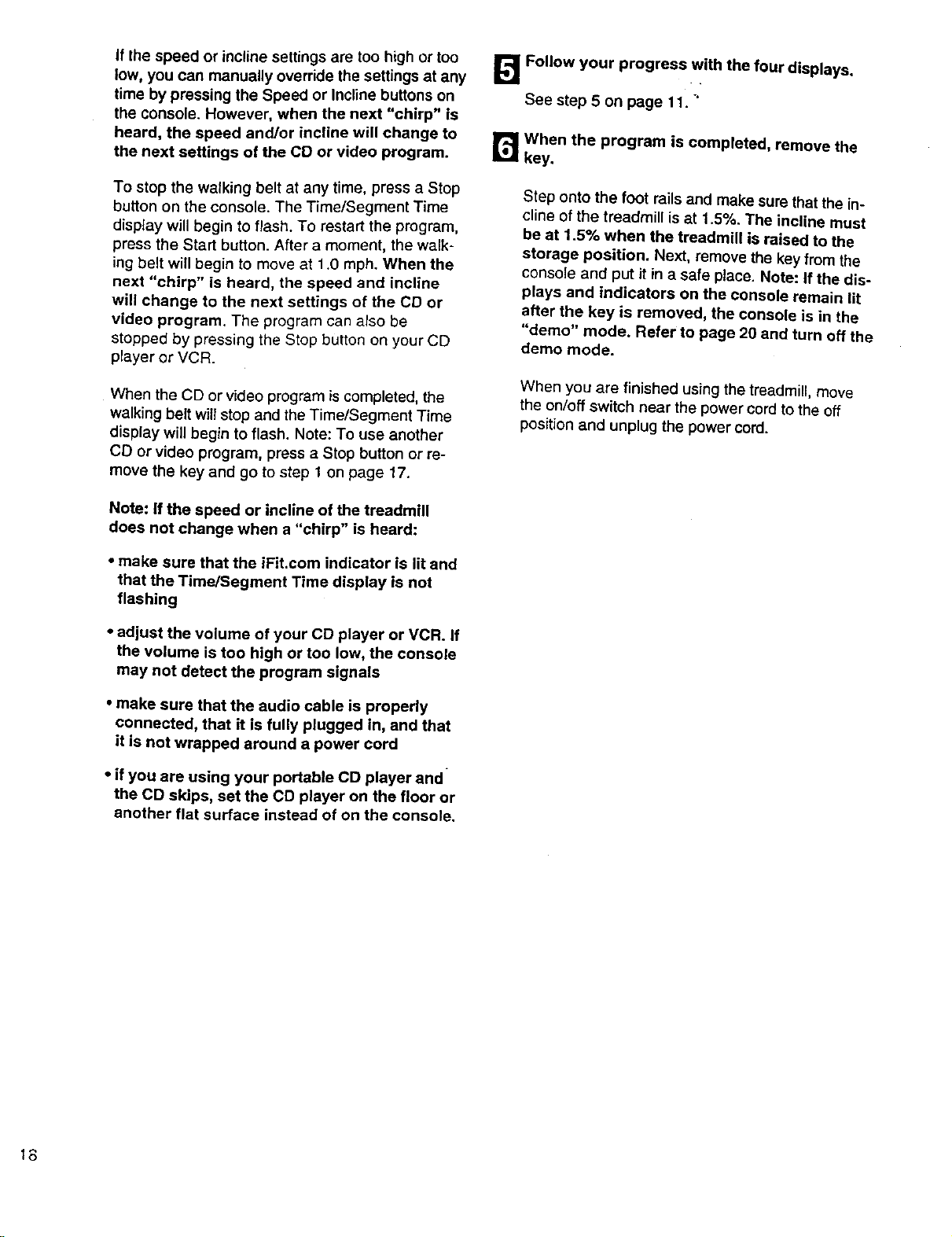

If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press a Stop
button on the console. The Time/Segment Time
display will begin to flash. To restart the program,
press the Start button. After a moment, the walk-
ing belt will begin to move at 1.0 mph. When the
next "chirp" is heard, the speed and incline
will change to the next settings of the CD or
video program. The program can also be
stopped by pressing the Stop button on your CD
player or VCR.
When the CD or video program is completed, the
walking belt willstop and the Time/Segment Time
display will begin to flash. Note: To use another
CD or video program, press a Stop button or re-
move the key and go to step 1 on page 17.
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard:
• make sure that the iFit.com indicator is lit and
that the Time/Segment Time display is not
flashing
• adjust the volume of your CD player or VCR. If
the volume is too high or too low, the console
may not detect the program signals
• make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord
• if you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
[]Follow your progress the four
displays.
See step 5 on page 11. "
r_When the program is completed, remove the
key.
Step onto the foot rails and make sure that the in-
cline of the treadmill isat 1.5%. The incline must
be at 1.5% when the treadmill is raised to the
storage position. Next, remove the key from the
console and put it in a safe place. Note: If the dis-
plays and indicators on the console remain lit
after the key is removed, the console is in the
"demo" mode. Refer to page 20 and turn off the
demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
Is
........... ................................._...................:':':::_:_:::_ _:_....................... _ Return to th_e.treadmiUand stand on the foot

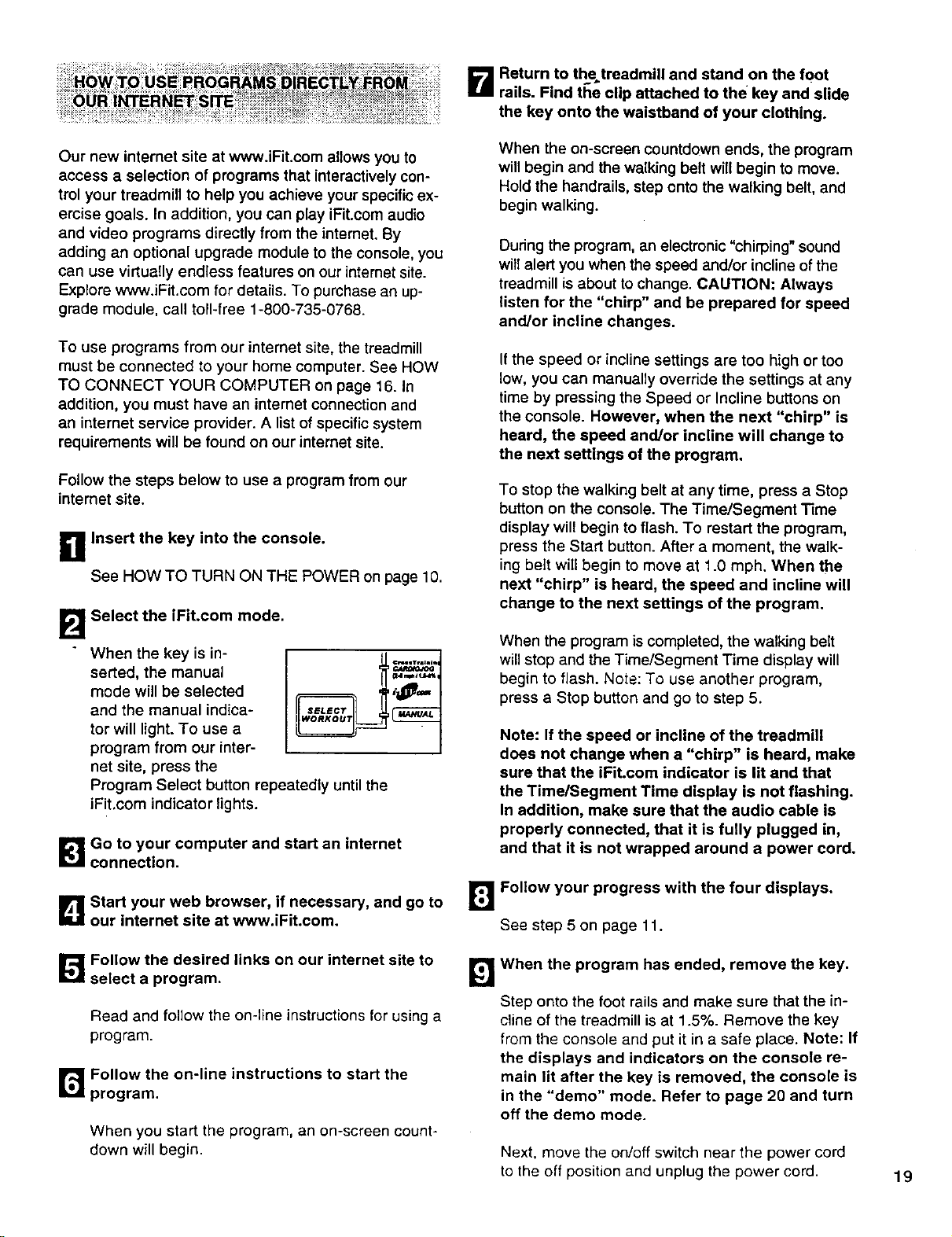

E_iHO_3"O USE PROGRAMS DIRECTLY FROM _i :
'_,,_:':::'_'_'::_":_:.................:':':':::. __:_.._...._ i_:........:_ _:: _,_,._,__;_._:_:_::_. IMI rails. Find the clip attached to the key and slide
....OUR !_ERN_ SITE ..................................•.............
-_:_:_-._:.: the key onto the waistband of your clothing.
Our new internet site at www.iFit.com allowsyou to
access a selection of programs that interactively con-
trol your treadmill to help you achieve your specific ex-
ercise goals. In addition, you can play iFit.com audio
and video programs directly from the internet. By
adding an optional upgrade module to the console, you
can use virtually endless features on our internet site.
Explore www.iFit.com for details. To purchase an up-
grade module, call toll-free 1-800-735-0768.
To use programs from our internet site, the treadmill
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 16. In
addition, you must have an internet connection and
an intemet service provider. A list of specific system
requirements will be found on our intemet site.
Follow the steps below to use a program from our
internet site.
B Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFit.com mode.
When the key is in-
serted, the manual
mode will be selected
and the manual indica-
tor will light. To use a
program from our inter-
net site, press the
Program Select button repeatedly untilthe
iFit.com indicator lights.
l_lGo to your computer and start an internet
connection.
B Start your web browser, if necessary, and go to
our internet site at www.iFit.com.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking.
Dudng the program, an electronic "chirping" sound
witlalert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always
listen for the "chirp" and be prepared for speed
and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press a Stop
button on the console. The Time/Segment Time
display will begin to flash. To restart the program,
press the Start button. After a moment, the walk-
ing belt will begin to move at 1.0 mph. When the
next "chirp" is heard, the speed end incline will
change to the next settings of the program.
When the program is completed, the walking belt
will stop and the Time/Segment Time display will
begin to flash. Note: To use another program,
press a Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the iFit.com indicator is lit and that
the Time/Segment Time display is not flashing.
In addition, make sure that the audio cable is
properly connected, that it is fully plugged in,
and that it is not wrapped around a power cord.
_ Follow your progress with the four displays.
See step 5 on page 11.
_ Follow the desired links on our internet site to
select a program.
Read and follow the on-line instructions for using a
program.
r_ Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
_When the program has ended, remove the key.
Step onto the foot rails and make sure that the in-
cline of the treadmill is at 1.5%. Remove the key
from the console and put it in a safe place. Note: If
the displays and indicators on the console re-
main lit after the key is removed, the console is
in the "demo" mode. Refer to page 20 and turn
off the demo mode.
Next, move the on/off switch near the power cord
to the off position and unplug the power cord.
19

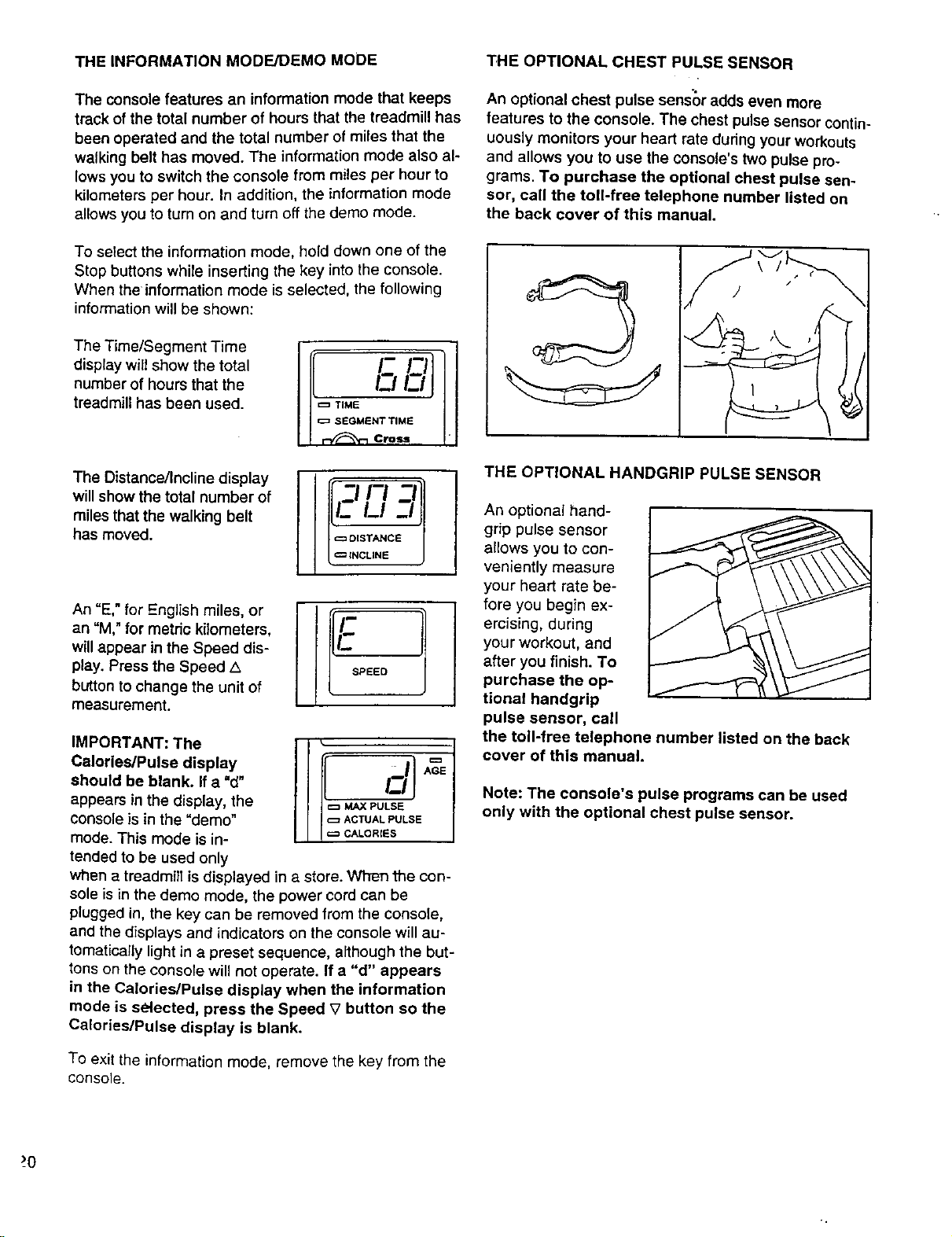

THE INFORMATION MODF_JDEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also al-
lows you to switch the console from miles per hour to
kilometers per hour. In addition, the information mode
altowsyou to turn on and turn offthe demo mode.
To select the information mode, hold down one of the
Stop buttons while inserting the key into the console.
When the information mode is selected, the following
information will be shown:
The Time/Segment Time
display will show the total
number of hours that the
treadmill has been used.
m mj
=:_ TIME
c:= SEGMENT TIME
Cross
The Distanca/Incline display
will show the total number of
miles that the walking belt
has moved.
An "E," for English miles, or
an =M,"for metric kilometers,
will appear in the Speed dis-
play. Press the Speed A
button to change the unit of
measurement.
I_PEED
iMPORTANT: The
Calories/Pulse display
should be blank. Ifa =d"
appears in the display, the
console is in the "demo"
mode. This mode is in-
tended to be used only
F
! _ ACTUAL PULSE
CALORIES
when a treadmill is displayed in a store. When the con-
sole is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the displays and indicators on the console will au-
tomatically light in a preset sequence, although the but-
tons on the console will not operate. If a "d" appears
in the Calories/Pulse display when the information
mode is selected, press the Speed _7button so the
Calories/Pulse display is blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor contin-
uously monitors your heart rate during your workouts
and allows you to use the console's two pulse pro-
grams. To purchase the optional chest pulse sen-
sor, call the toll-free telephone number listed on
the back cover of this manual.
THE OPTIONAL HANDGRIP PULSE SENSOR
An optional hand-
grip pulse sensor
allows you to con-
veniently measure
your heart rate be-
fore you begin ex-
ercising, during
your workout, and
after you finish. To
purchase the op-
tional handgrip
pulse sensor, call
the toll-free telephone number listed on the back
cover of this manual.
Note: The console's pulse programs can be used
only with the optional chest pulse sensor.
_-0

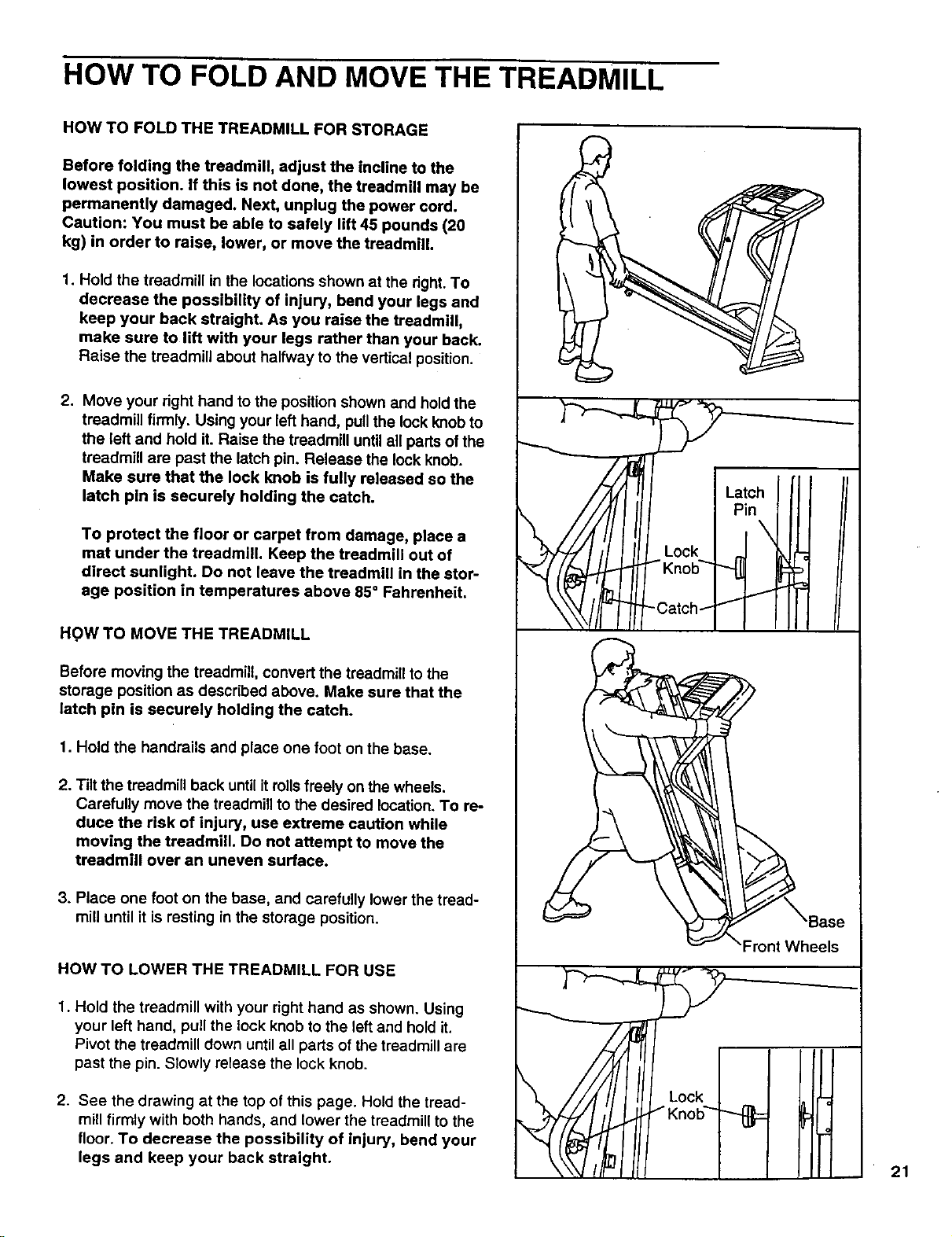

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
Caution: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right.To
decrease the possibility of injury, bend your legs and
keep your back straight. As you raise the treadmill,
make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the lock knob to
the left and hold it. Raise the treadmill until all parts of the
treadmill are past the latch pin. Release the lock knob.
Make sure that the lock knob is fully released so the
latch pin is securely holding the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
latch pin is securely holding the catch.
1. Hold the handrails and place one foot on the base.
2. Tilt the treadmill back untilit roilsfreely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill with your right hand as shown. Using
your left hand, pull the lock knob to the left and hold it.
Pivot the treadmill down until all parts of the treadmill are
past the pin. Slowly release the lock knob.
2. See the drawing at the top of this page. Hold the tread-
mill firmly with both hands, and lower the treadmill to the
floor. To decrease the possibility of injury, bend your
legs and keep your back straight.
Lock
_'Knob "_
-Catch _-
Latch
Pin
i
_ Base
"Front Wheels
21
TROUBLE-SHOOTING AND MAINTENANCE
Most treadmill problems can be solved by following the instructions below, if further assistance is
needed, please call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7
p.m. Central Time (excluding holidays).
PROBLEM SOLUTION
1. The power does not
turn on
a. Make sure that the power cord is plugged into a surge suppressor, and that the
surge suppressor is plugged into a properly grounded outlet (see page 7). Use
only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
b. Make sure that the key is fully inserted into the console.
C, Check the circuit breaker located on the frame near
the power cord. If the switch protrudes as shown, the
circuit breaker has tripped. To reset the circuit
breaker, wait for five minutes and then press the
switch back in.
Tripped Reset
d. Check the on/off switch located on the frame near
the power cord. The switch must be in the on posi-
tion.
I On
Position
2. The power turns off
during use
a. Check the cimuit breaker located on the treadmill frame near the power cord (see
1. c. above). If the circuit breaker has tripped, wait for five minutes and then press
the switch back in.
b. Make sure that the p(_wercord is plugged in.
c. Remove the key from the console and then reinsert it.
d. Make sure that the on/off switch is in the on position (see 1. d. above).
22
3. The walking belt
slows when walked
on
a. Make sure that only an appropriate surge suppressor is used (see 1. a. above).
b.
If the walking belt is overtightened, tread-
mill performance may decrease and the
walking belt may be permanently dam-
aged. Remove the key and UNPLUG THE
POWER CORD. Using the included allen
wrench, turn both rear roller adjustment
bolts counterclockwise 1/4 of a turn. When
the walking belt is properly tightened, you
should be able to liftthe edges of the
walking belt 3 to 4 inches off the walking
platform. Be careful to keep the walking
Rear Roller Adjustment Bolts
belt centered. Plug in the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
PROBLEM SOLUTION
4. The walking belt is
off-center or slips
when walked on
a,
b.
c.
If the walking belt has shifted to the a
left, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn the left rear roller adjustment
bolt clockwise, and the rightbolt counter-
clockwise, 1/4 of a turn each. Be careful
not to ovartighten the walking belt. Plug in
the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
If the walking belt has shifted to the
right, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn the left roar roller adjustment
bolt counterclockwise, and the fight bolt
clockwise, 1/4 of a turn each. Be careful
not to overtighten the walking belt. Plug in
the power cord, insert the key and run the
treadmill for a few minutes. Repeat untilthe walking belt is centered.
If the walking belt slips when walked
on, first remove the key and UNPLUG
THE POWER CORD. Using the allen
wrench, turn both rear rolleradjustment
bolts clockwise, 1/4 of a turn. When the
walking belt is correctly tightened, you
shouid be able to lift the edges of the
walking belt 3 to 4 inches off the walking
C
platform. Be careful to keep the walking belt centered. Plug in the power cord, in-
sert the key and run t_e treadmill for a few minutes. Repeat until the walking belt
is propedy tightened.
5. The displays of the
console do not func-
tion properly
a.
Remove the key from the console and UN-
PLUG THE POWER CORD. Next, remove
the screws from the hood and carefully re-
move the hood. Locate the Reed Switch
(26) and the Magnet (85) on the left side of
the Pulley (28). Turn the Pulley until the
Magnet is aligned with the Reed Switch.
Make sure that the gap between the
Magnet and the Reed Switch is about
1/8". If necessary, loosen the Reed Switch
1/8"-- "-"-4' II" -
Ih-- LFT1
v,ew
Screw (2) and move the Reed Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check for e correct speed reading.
23
CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
HEART RATE TRAINING ZONES
H
Age 20 30 40 50 60 70 80
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your "train-
ing zone." The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, stop exercising and
place two fingers on
your wrist as shown.
Take a six-second
heartbeat count, and
multiplythe result by ten
to find your heart rate.
(A six-second count is used because your heart rate
drops quickly when you stop exercising.) Ifyour heart
rate is too high or too low, adjust the speed or incline
of the treadmill.
Fat Burning
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calodee for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity ofyour exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
A Cool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
Exercise Frequency
Te maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired.
The key to success is to make exercise a regular and
To burn fat effectively, you must exercise at a relatively enjoyable part of your everyday life.
low intensity level for a sustained period of time.
24

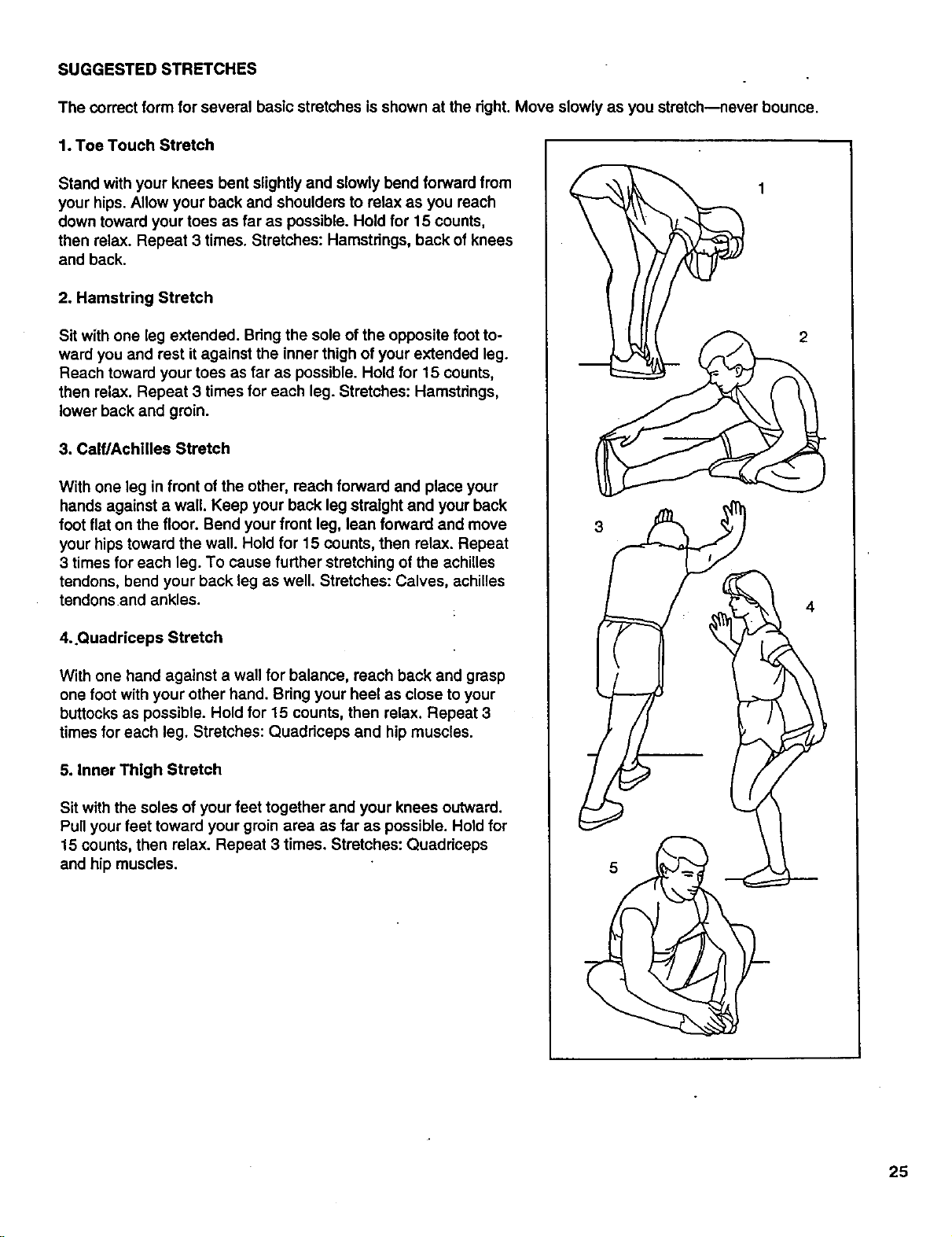

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch-never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to-
ward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hipstoward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4..Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quaddceps
and hip muscles.
5
2
4
25
PART LISTmModel No. 831.299301
R1299A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key Key
No. Qty. Description No. Qty. Description
25
1 ! Motor Hood 51 1 Frame
2 11 Hood Screw 52 2 Rear Wheel
3 6 Platform Screw 53 2 Rear Wheel Bolt
4 9 Platfcrm Washer 54 2 Rear Roller Guard
5 1 Latch Catch 55 2 Rear Wheel Nut
6 2 Latch Catch Screw 56 ! Rear Roller
7 4 Isolator 57 i Right Endcap
8 ; Stop Bracket 58 2 Rear Roller Adj. Washer
9 2 Be!t Guide 59 2 Rear Roller Adj.Bolt
10 2 Frame Pivot Bolt 60 ! Left Endcap
11 1 Front Roller/Pulley 61 1 Allen Wrench
12 2 Incline Motor Spacer 62 1 Walking Platform
13 2 Incline Motor Bolt 63 2 Handrail Grip
14 2 Incline Motor Nut 64 2 Handrail Grip Screw
15 1 Incline Motor 65 2 Crossbar Bolt
16 1 Front Roller Adj. Nut 66 2 Crossbar Washer
17 I Pulse Mounting Plate 67 ! Lock Knob
18 1 Front Roller Adj. Bolt 88 ! Lock Knob Sleeve
19 2 Side Hood Tab 69 1 Lock Spdng
20 11 Hood Tab q
_crew 70 I Lock Knob Collar
21 2 Bracket Star Washer 71 1 Pin Clip
22 2 Front Hood Tab 72 I Lock Pin
23 1 Reed Switch Clip 73 i Crossbar :
24 1 Motor 74 3 Console Base Screw
25 ! 2-lb. Hand Weight 75 1 Console Base Cover
26 1 Reed Switch 76 8 Cover Screw
27 1 Motor Belt 77 1 Pulse Sensor Cover
28 1 Pulley/Flywheel/Fan 78 2 Sensor Cover Screw
29 1 Motor Tension Bolt 79 1 Key/Clip
30 2 Motor Tension Washer 80 1 Console Base
31 1 Motor Star Washer 81 1 Book Holder Lens
32 1 Motor Tension Nut 82 2 Console
33 1 Motor Pivot Bolt 83 1 Lift Frame
34* 1 Motor/Pulley/Flywheel/Fan 84 1 Releasable Tie
35 16 Screw 85 1 Magnet
36 1 Choke 86 1 Cable Tie
37 1 Choke Plate 87 1 8" Power Wire
38 t Circuit Breaker 88 1 8" Cable Tie
39 1 On/Off Switch 89 1 Jack
40 1 Power Cord 90 1 t0' IFit.com Wire
41 1 Power Cord Grommet 91 2 Lift Frame Bolt
42 i Outlet Bracket 92 2 Rear Wheel Spacer
43 1 Controller 93 5 Lift Frame Nut/Wheel Nut
44 1 Power Supply 94 5 Base Pad
45 4 Plastic Stand-off 95 1 Left Foot Grip
46 t Electronics Bracket 96 2 Upright Base Cap
47 1 Belly Pan 97 3 Warning Decal
48 1 Upright Wire Harness 98 2 Wheel Bolt
,19 I Right Foot Grip 99 2 Base Wheel
50 1 VValking Belt 100 2 Wheel Insert
Key
No.
101
102
103
104
105
106
107"
#
#
#
#
#
Qty.
1
1
1
1
2
2
1
1
1
1
1
1
Description
12" Audio Wire
Large Waming Decal
Updght Base
Shock
Lift Frame Spacer
Endcap Spacer
Latch Assembly
7" Green Wire, M/Ring
8" Green Wire, 2 Ring
4" Black Wire, 2 Female
8" Black Wire, 2 Ring
4" Btack Wire, M/F
Key
No.
#
#
#
#
#
#
#
City.
1
1
1
1
1
1
1
De_c*riptlon
8" Blue Wire, 2 F
8" Blue Wire, M/F"
20" Blue Wire, 2 F
8" White Wire, 2 Female
20" White Wire, M/F
8" Red Wire, 2 F
User's Manual
*Includes all parts shown in the box.
#These parts are not illustrated
Specifications are subject to change without notice.
27
EXPLODED DRAWING--Model No. 831.299301 m299AL,-
27
29 3O
12
49
37
36
16
10
L20
47
101 /_87
2O
61
54
4
92"
3
4
51
REMOVE AND SAVE THIS EXPLODED DRAWING
FOR FUTURE REFERENCE.
To identify the parts shown on this exploded drawing, refer to the PART LIST on pages 26 and 27
of the USER'S MANUAL.
EXPLODED DRAWING--Model No. 831.299301 R1299A
98
99
63
\
;r5 66
/
107"
70
73
72
93
91
/
63
/
/
75
/
66
65
94
20
76
81
82
SF=/AVR8
Model No. 831.299301
QUESTIONS?
If you find that:
• you need help assembling or
operating the HealthRider
SOFTSTRIDER S300i treadmill
• a part is missing
• or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday-Saturday, 7 am-7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need
to be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
The model number and serial number of your HealthRider=SOFT_
STRIDER S300iTM treadmill are listed on a decal attached to the
frame. See the front cover of this manual to find the location of the
decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The NAME OF THE PRODUCT (HealthRide_'SOFTSTRIDER
S300F Mtreadmill)
• The MODEL NUMBER OF THE PRODUCT (831.299301)
• The KEY NUMBER AND DESCRIPTION OF THE PART (see the
PART LIST on pages 26 and 27 and the EXPLODED DRAWING
attached in the center of this manual)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.
This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-
poses.
Thiswarranty gives you specific legal rights, and you may also have other rightswhich vary fromstate
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
Part No. 152298 R1299A Printed in USA© 1999 Sears, Roebuck and Co.
