i
Trademarks
Autel
®
, MaxiIM
®
, MaxiSys
®
, MaxiDAS
®
, MaxiScan
®
, MaxiTPMS
®
, MaxiRecorder
®
, and
MaxiCheck
®
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted, in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise
without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While information of
this manual has been carefully checked for accuracy, no guarantee is given for the
completeness and correctness of the contents, including but not limited to the product
specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or any
economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying extra
attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587 (North America)
+86 (0755) 8614-7779 (China)
For technical assistance in all other markets, please contact your local selling agent.
ii
Safety Information
For your own safety and the safety of others, and to prevent damage to the device and
vehicles upon which it is used, it is important that the safety instructions presented
throughout this manual be read and understood by all persons operating or coming into
contact with the device.
There are various procedures, techniques, tools, and parts for servicing vehicles, as well
as in the skill of the person doing the work. Because of the vast number of test
applications and variations in the products that can be tested with this equipment, we
cannot possibly anticipate or provide advice or safety messages to cover every
circumstance. It is the automotive technician’s responsibility to be knowledgeable of the
system being tested. It is crucial to use proper service methods and test procedures. It
is essential to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being used, or the
vehicle being tested.
Before using the device, always refer to and follow the safety messages and applicable
test procedures provided by the manufacturer of the vehicle or equipment being tested.
Use the device only as described in this manual. Read, understand, and follow all safety
messages and instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment damage.
All safety messages are introduced by a signal word indicating the hazard level.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury to the operator or to bystanders.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury to the operator or to bystanders.
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot know,
evaluate or advise you as to all of the possible hazards. You must be certain that any
condition or service procedure encountered does not jeopardize your personal safety.
DANGER
When an engine is operating, keep the service area WELL VENTILATED or attach a
building exhaust removal system to the engine exhaust system. Engines produce carbon
monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to
serious personal injury or loss of life.
iii
SAFETY WARNINGS
⚫ Always perform automotive testing in a safe environment.
⚫ Wear safety eye protection that meets ANSI standards.
⚫ Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot
engine parts.
⚫ Operate the vehicle in a well-ventilated work area, for exhaust gases are poisonous.
⚫ Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual
transmission) and make sure the parking brake is engaged.
⚫ Put blocks in front of the drive wheels and never leave the vehicle unattended while
testing.
⚫ Be extra cautious when working around the ignition coil, distributor cap, ignition wires
and spark plugs. These components create hazardous voltages when the engine is
running.
⚫ Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires nearby.
⚫ Do not connect or disconnect any test equipment while the ignition is on or the
engine is running.
⚫ Keep the test equipment dry, clean, free from oil, water or grease. Use a mild
detergent on a clean cloth to clean the outside of the equipment as necessary.
⚫ Do not drive the vehicle and operate the test equipment at the same time. Any
distraction may cause an accident.
⚫ Refer to the service manual for the vehicle being serviced and adhere to all
diagnostic procedures and precautions. Failure to do so may result in personal injury
or damage to the test equipment.
⚫ To avoid damaging the test equipment or generating false data, make sure the
vehicle battery is fully charged and the connection to the vehicle DLC is clean and
secure.
⚫ Do not place the test equipment on the distributor of the vehicle. Strong electro-
magnetic interference can damage the equipment.
iv
CONTENTS
1 USING THIS MANUAL ................................................................................................... 1
1.1 CONVENTIONS ...................................................................................................................... 1
1.1.1 Bold Text ...................................................................................................... 1
1.1.2 Notes and Important Messages .................................................................... 1
1.1.3 Hyperlink ....................................................................................................... 2
1.1.4 Illustrations ................................................................................................... 2
1.1.5 Procedures ................................................................................................... 2
2 GENERAL INTRODUCTION .......................................................................................... 3
2.1 MAXIIM IM508S TABLET................................................................................................... 3
2.1.1 Function Description ..................................................................................... 3
2.1.2 Power Sources ............................................................................................. 5
2.1.3 Technical Specifications ............................................................................... 6

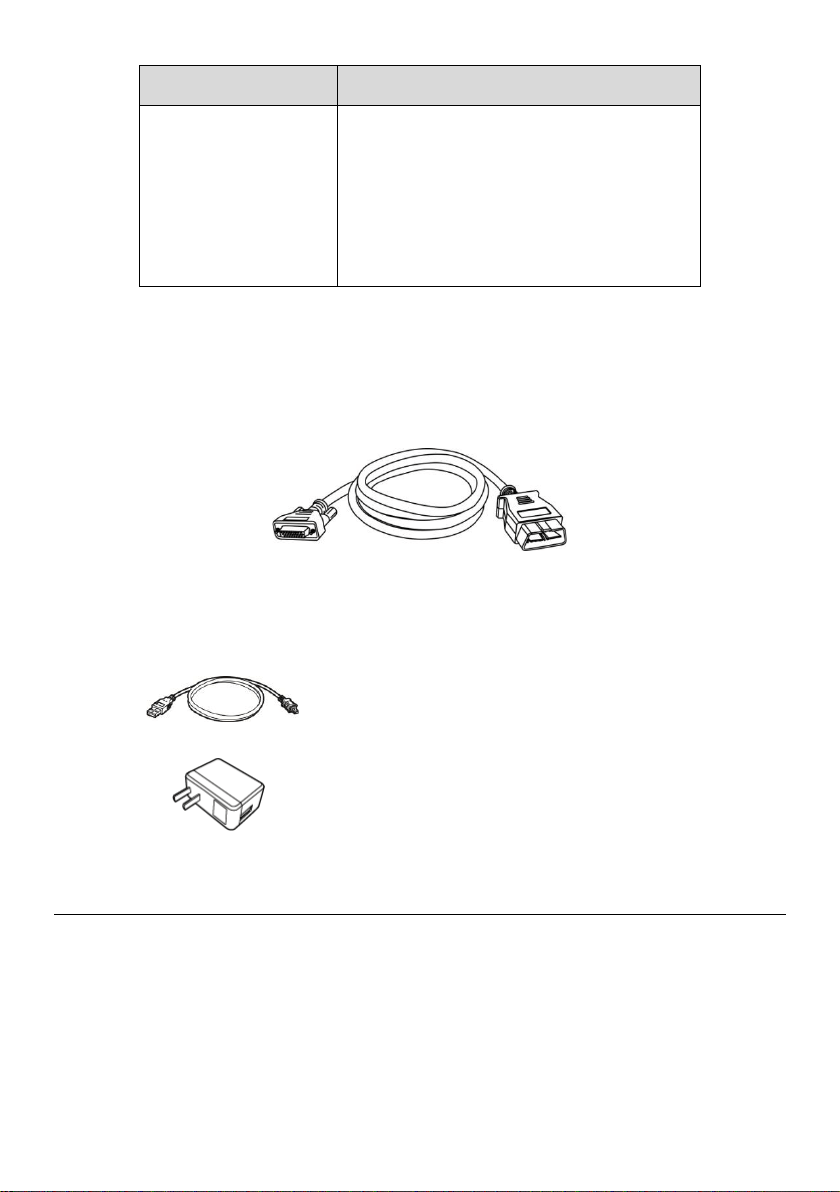

2.1.4 Accessory Kit ................................................................................................ 7
2.2 XP200 KEY PROGRAMMER ................................................................................................. 7

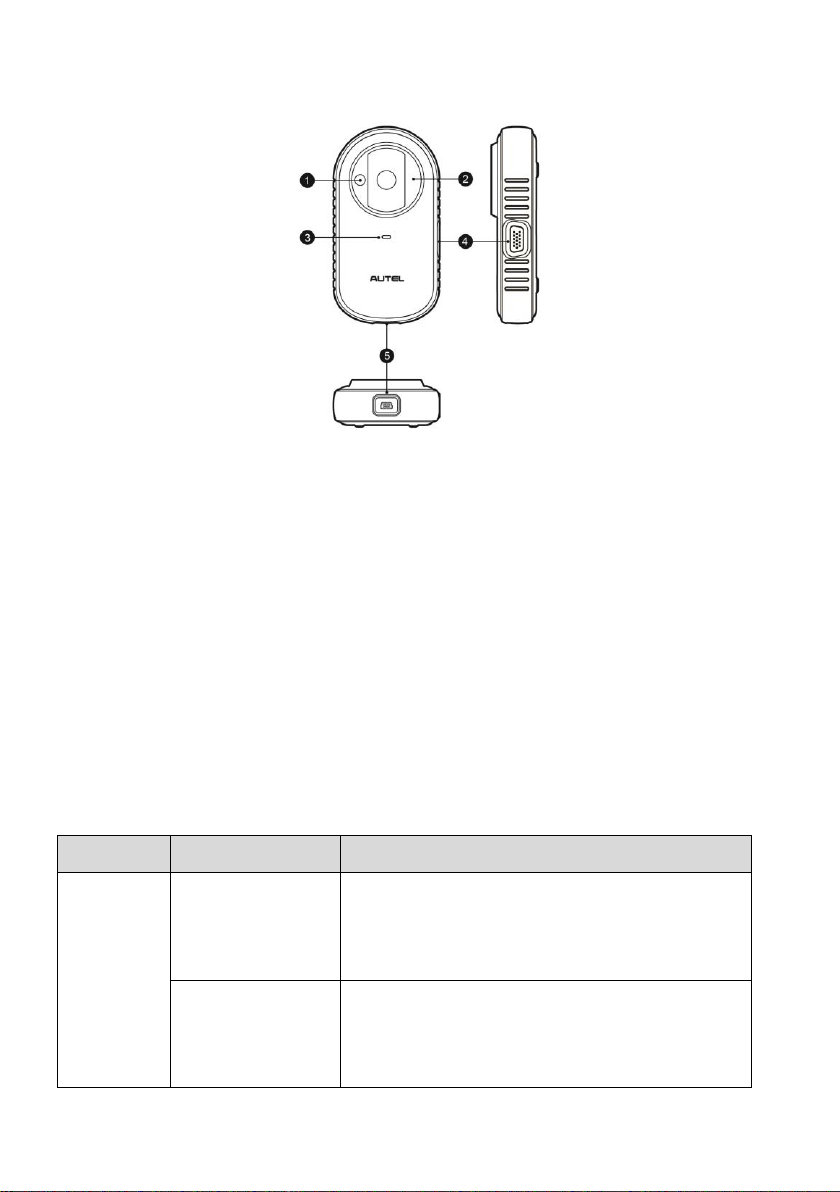

2.2.1 Components and Ports ................................................................................. 8
2.2.2 Specifications ............................................................................................. 11

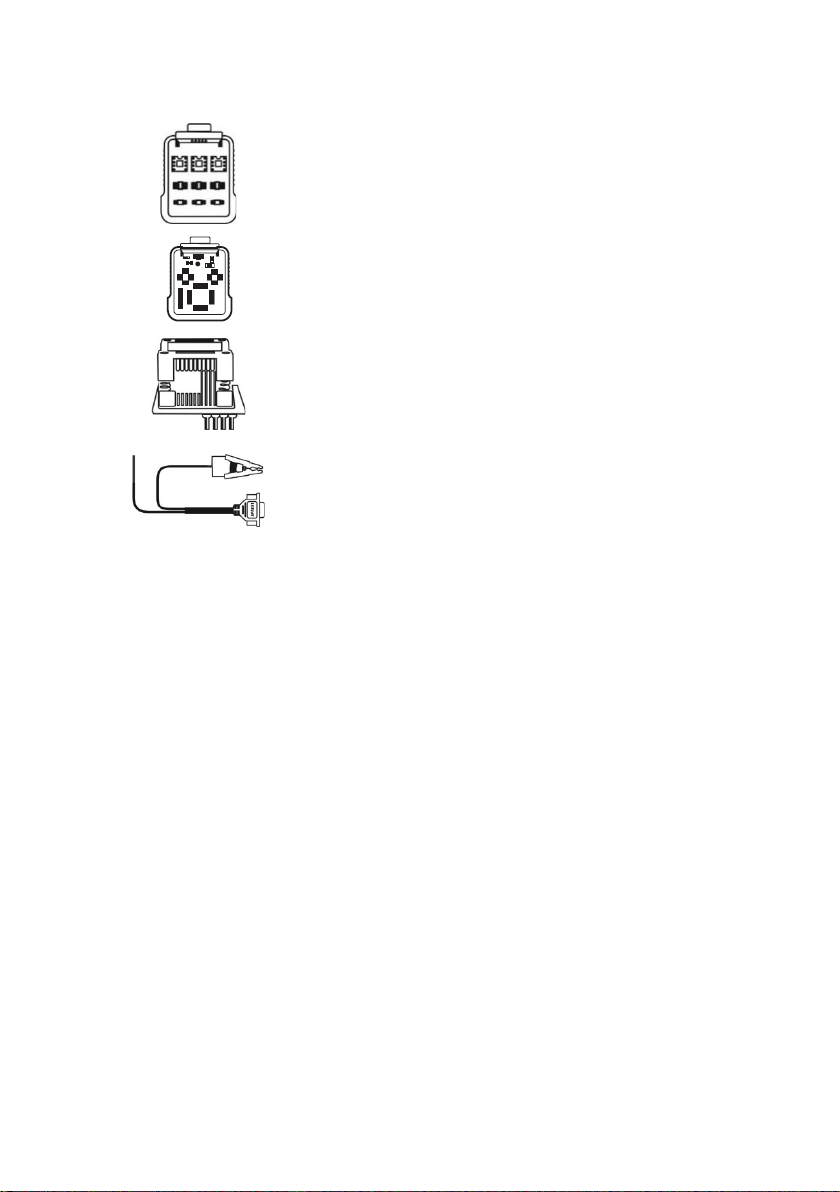

2.2.3 Accessories Included .................................................................................. 12
3 GETTING STARTED .................................................................................................... 13

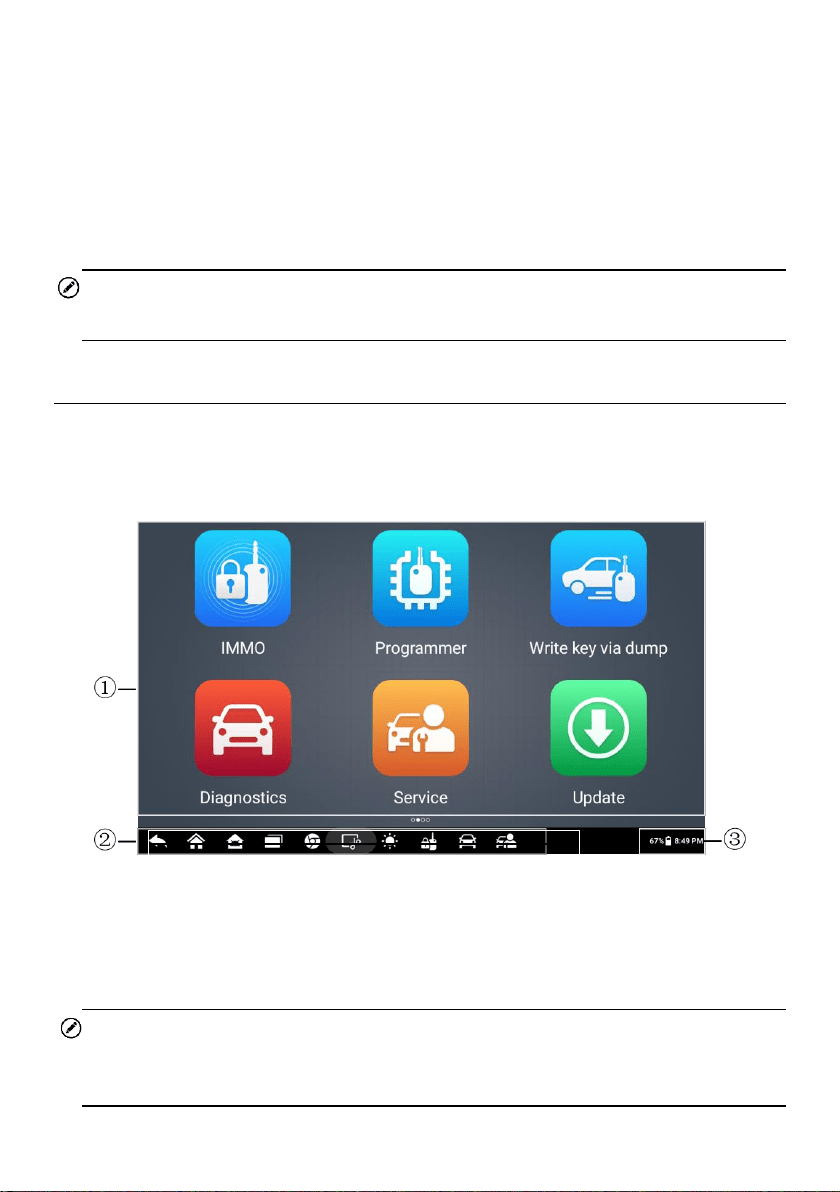

3.1 POWERING UP ....................................................................................................................13

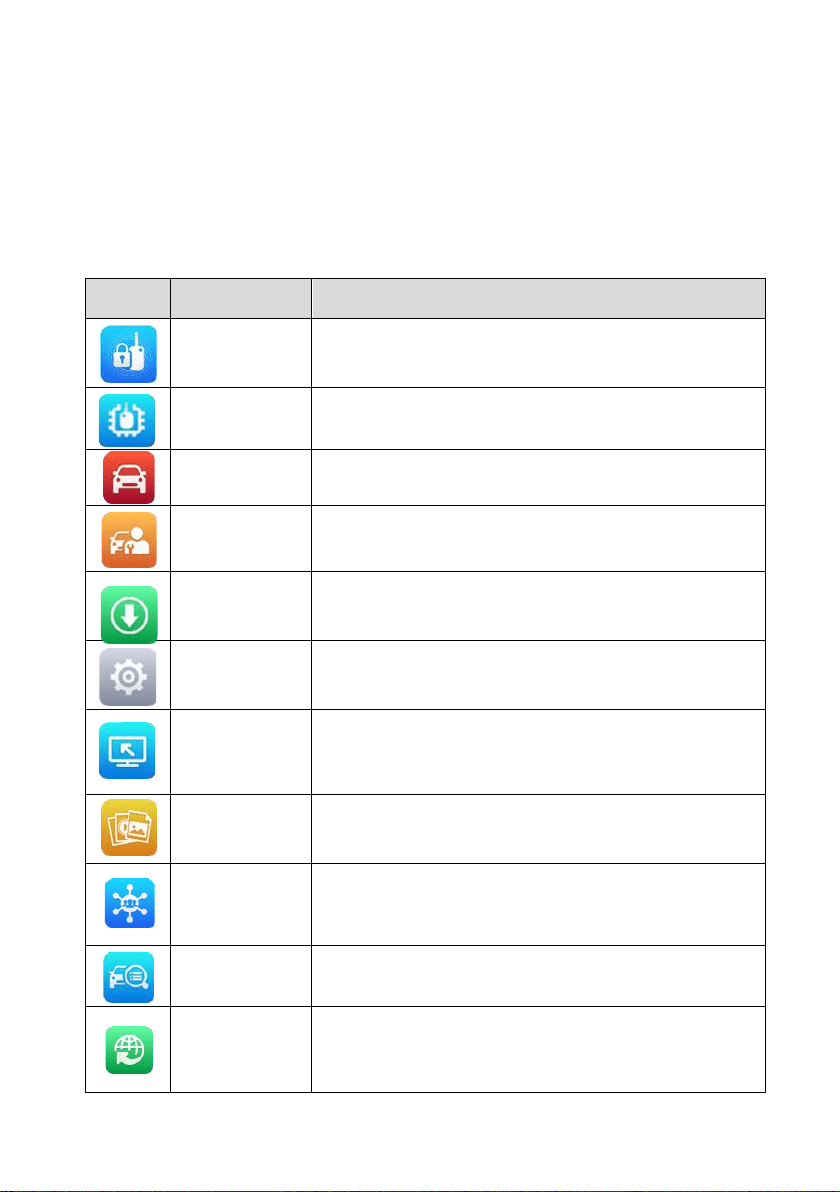

3.1.1 Application Buttons ..................................................................................... 14
3.1.2 Locator and Navigation Buttons .................................................................. 15
3.1.3 System Status Icons ................................................................................... 16
3.2 POWERING DOWN .............................................................................................................16
3.2.1 Reboot System ........................................................................................... 17
4 IMMO ............................................................................................................................ 18
4.1 GETTING STARTED ..............................................................................................................18

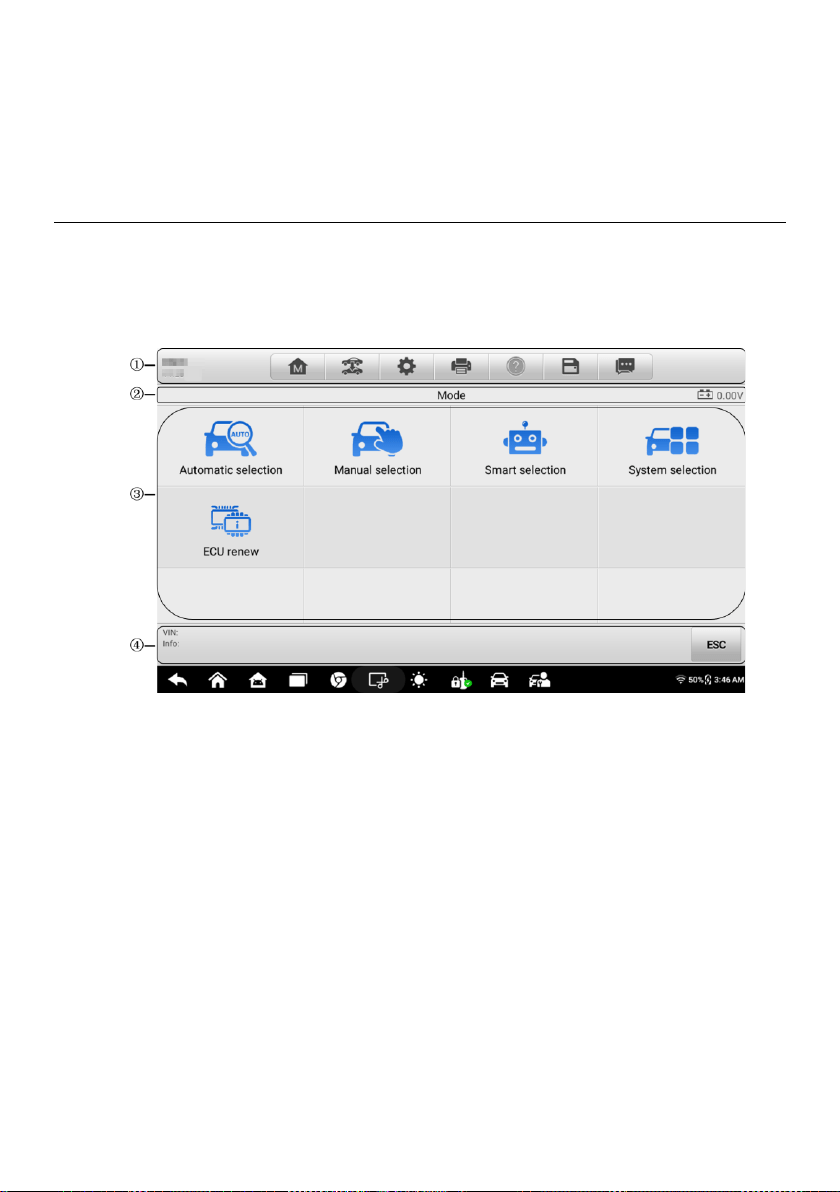

4.1.1 Vehicle Menu Layout .................................................................................. 18

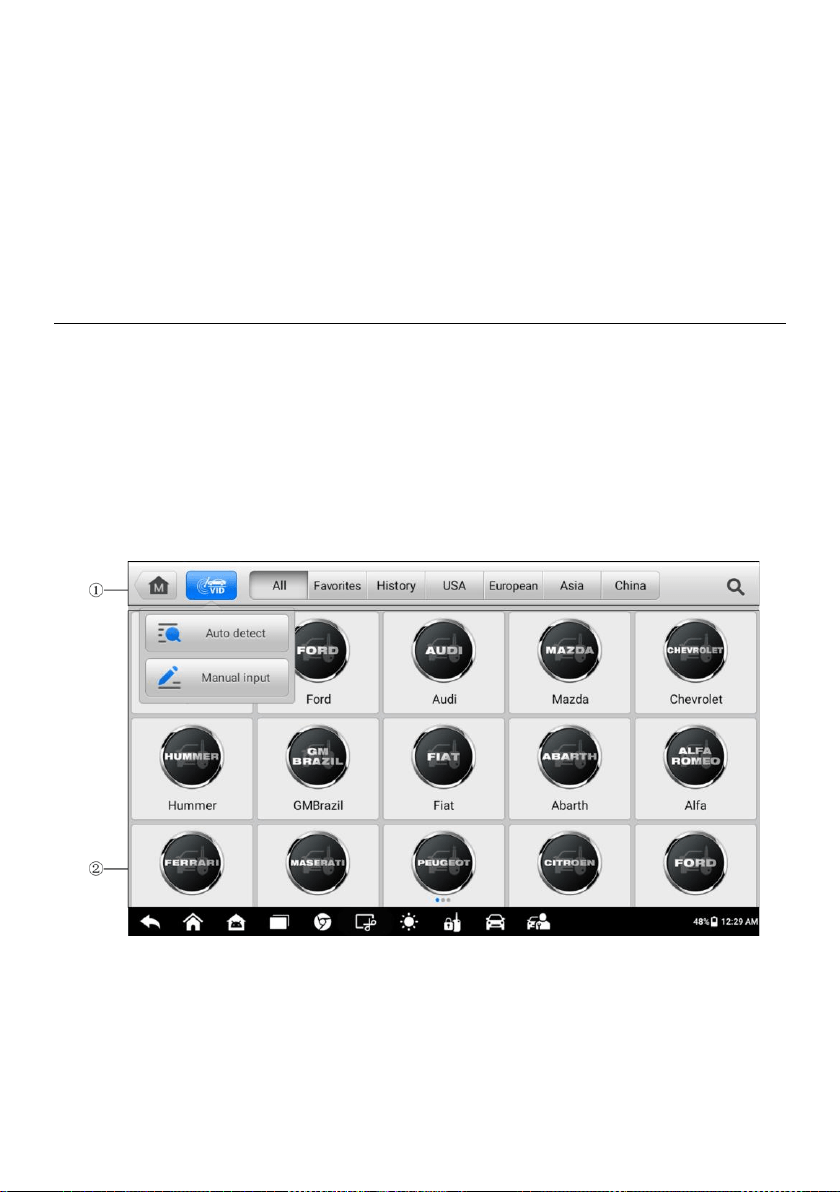

4.2 VEHICLE IDENTIFICATION ...................................................................................................19
4.2.1 Auto VIN Scan ............................................................................................ 20
4.2.2 Manual VIN Input ........................................................................................ 20
4.2.3 Automatic Selection .................................................................................... 21
4.2.4 Manual Selection ........................................................................................ 21
4.3 NAVIGATION .......................................................................................................................22
v

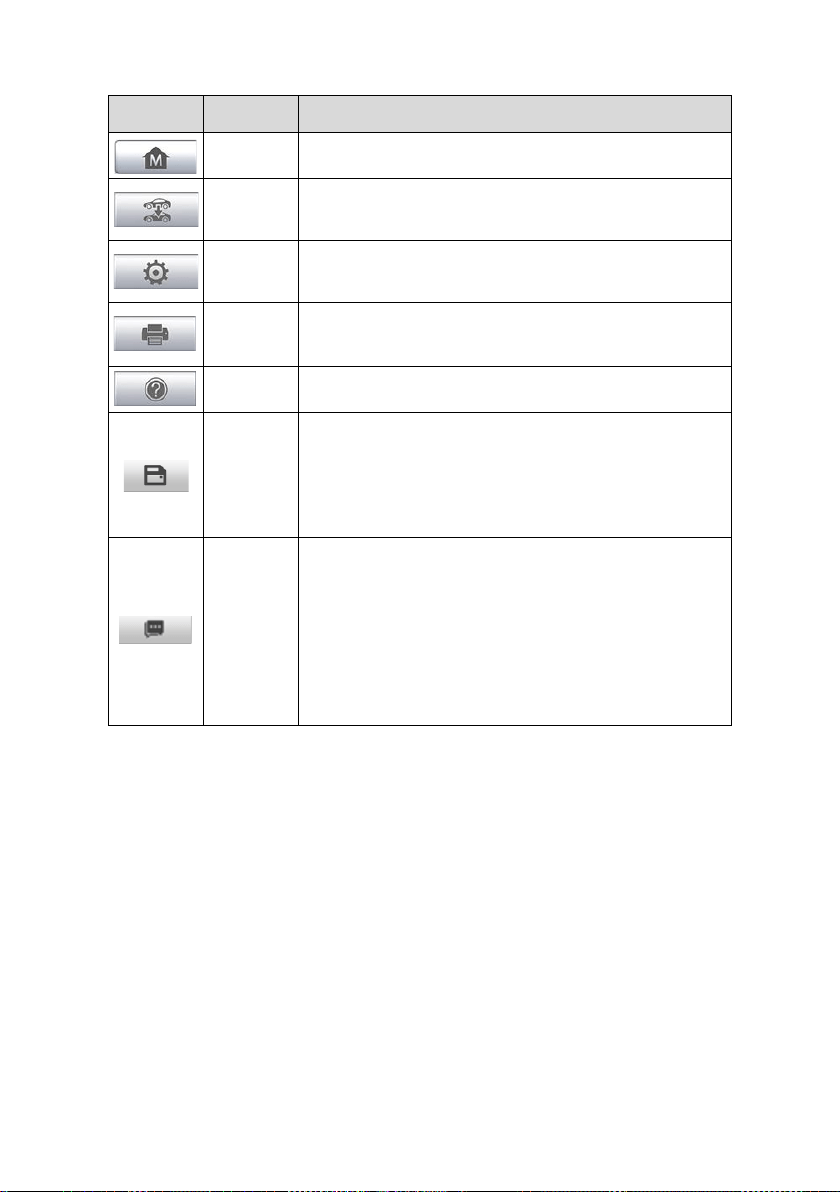

4.3.1 IMMO Screen Layout .................................................................................. 22
4.3.2 Screen Messages ....................................................................................... 24
4.3.3 Making Selections ...................................................................................... 25

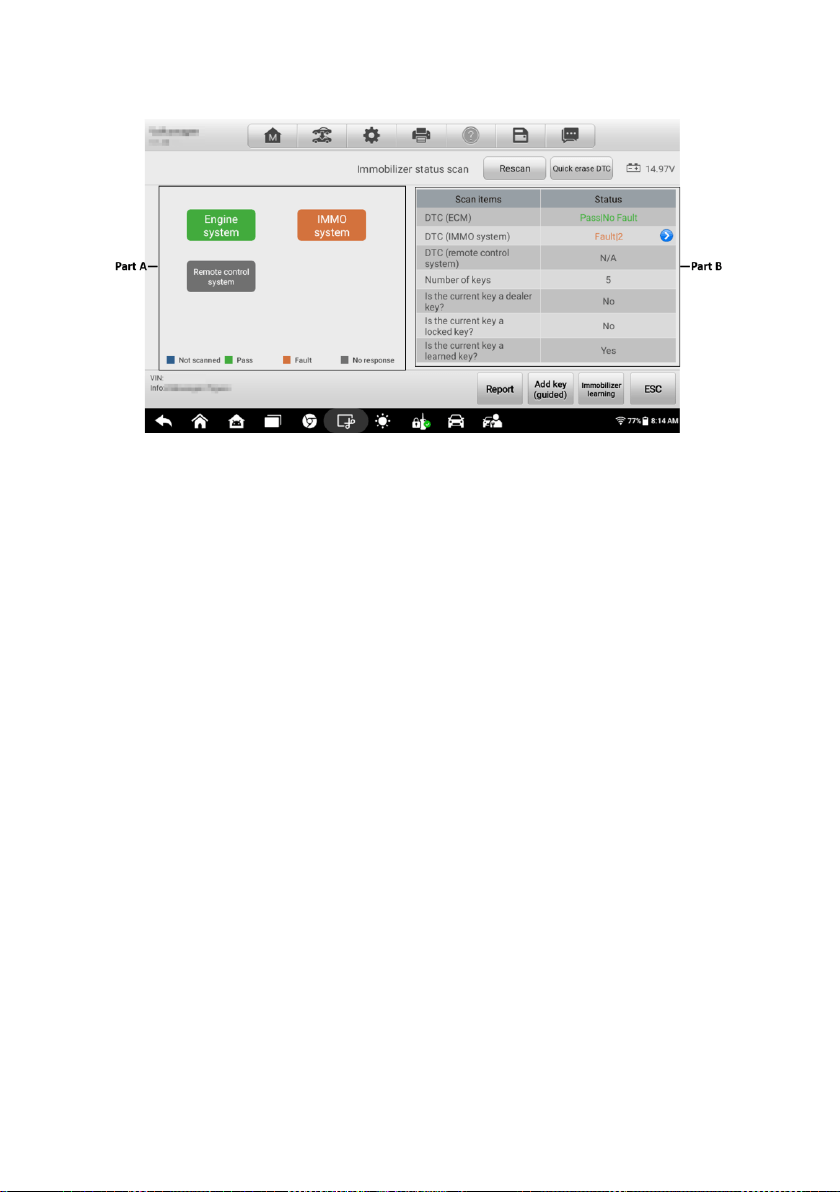

4.4 IMMO ...............................................................................................................................25
4.4.1 Automatic Selection .................................................................................... 25
4.4.2 Manual Selection ........................................................................................ 33

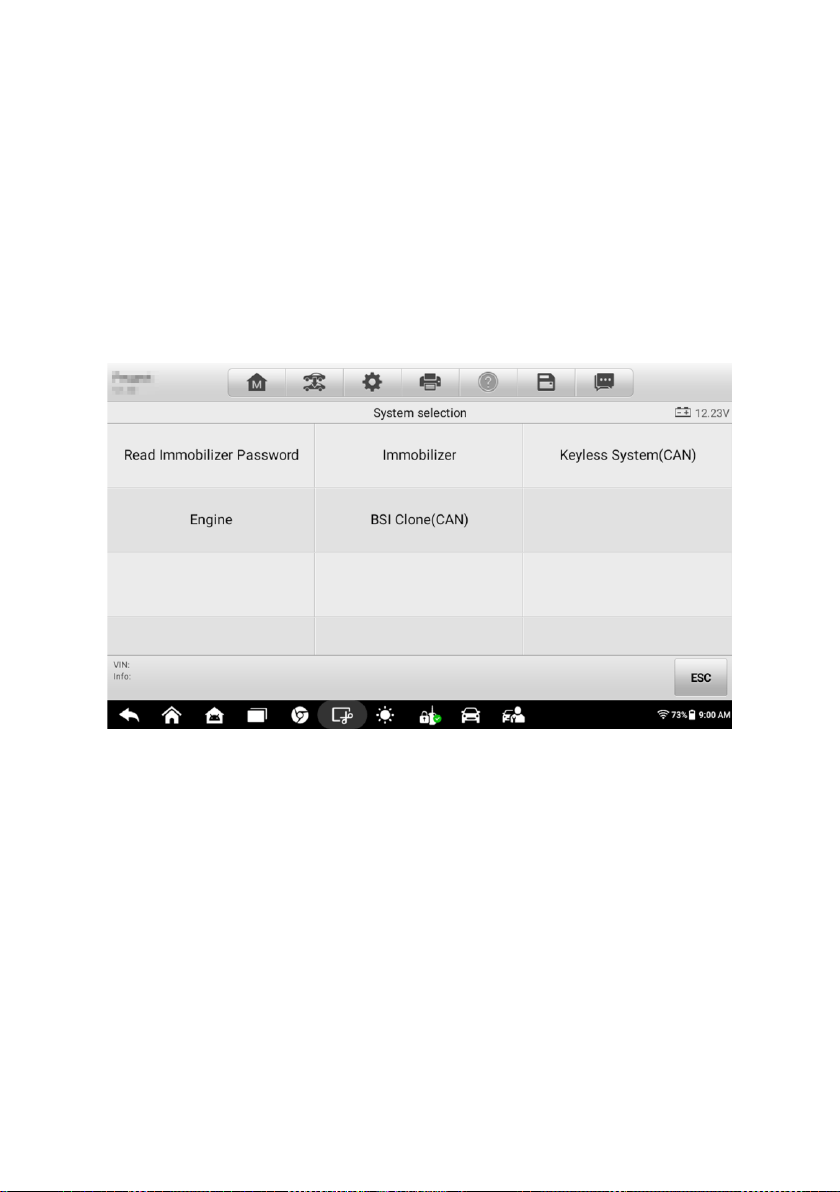

4.4.3 System Selection ........................................................................................ 33

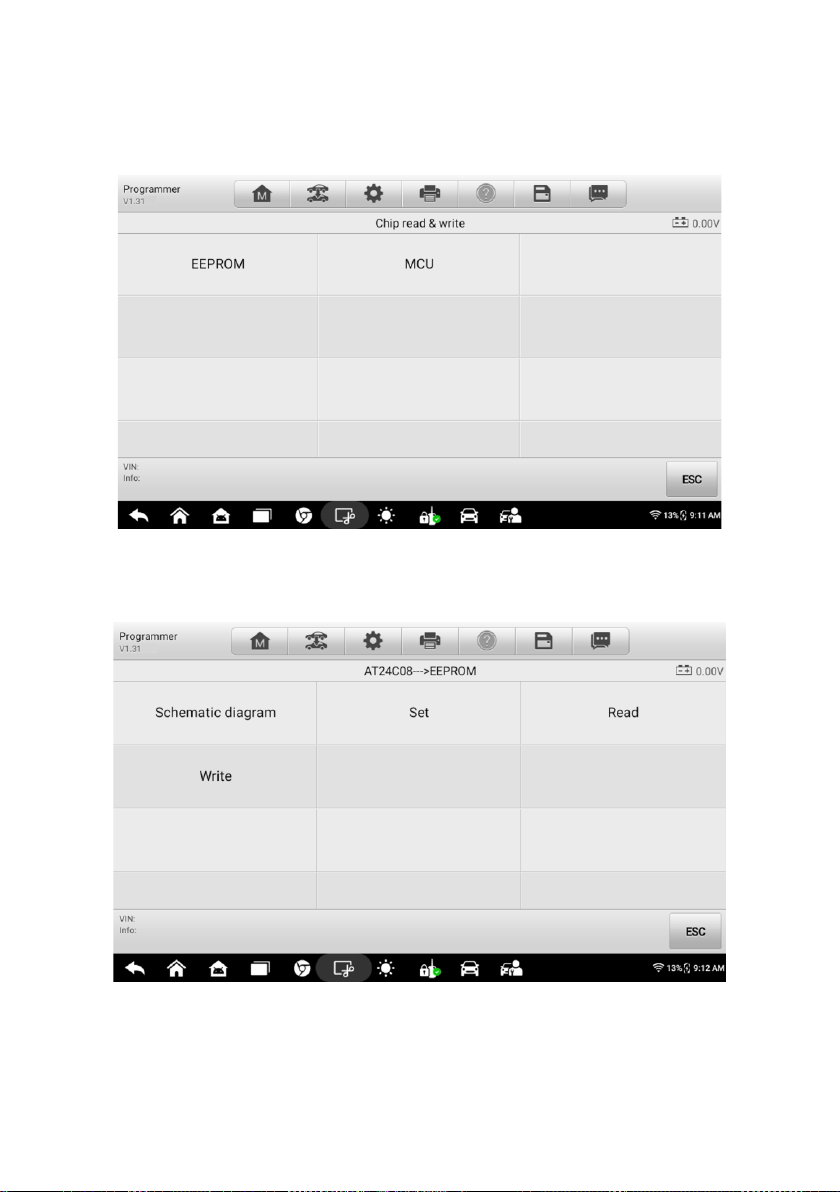

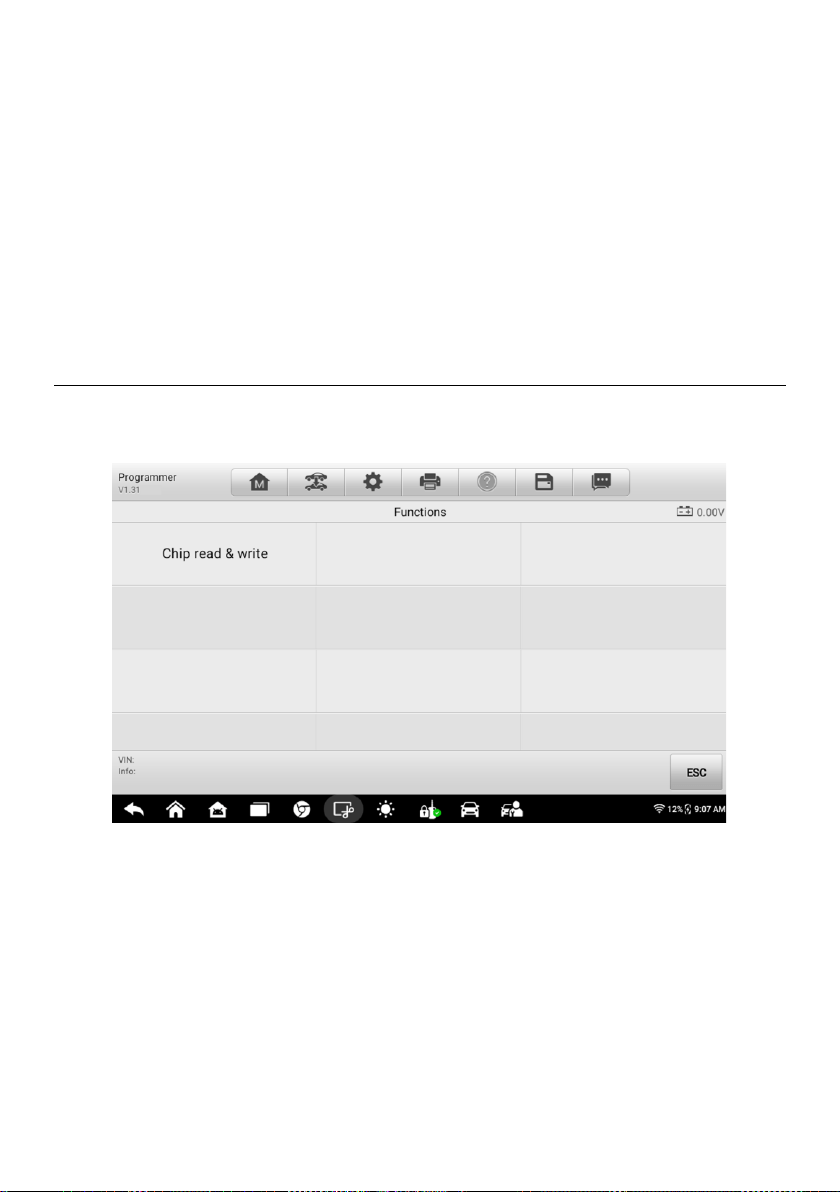

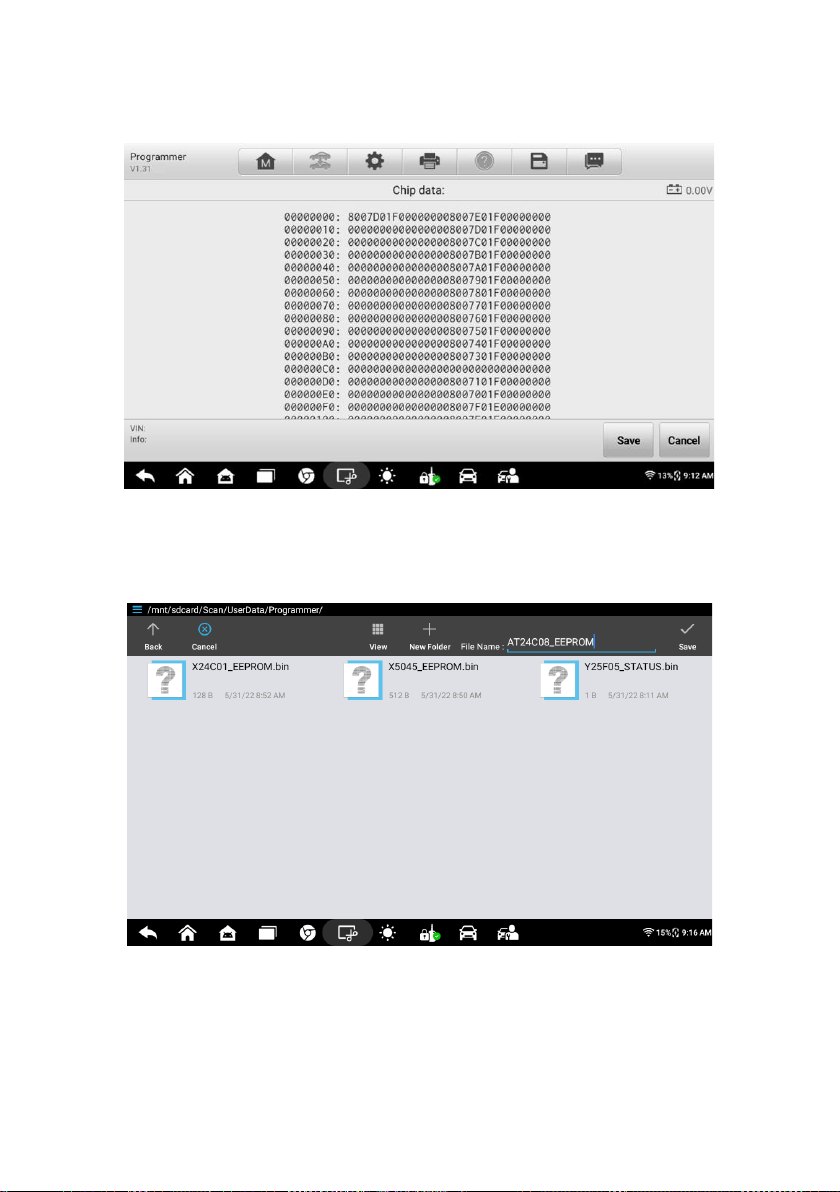

5 PROGRAMMER ........................................................................................................... 34
5.1 OPERATIONS .......................................................................................................................34
6 DIAGNOSTICS ............................................................................................................. 38
6.1 DIAGNOSIS .........................................................................................................................38
6.1.1 Auto Scan ................................................................................................... 39
6.1.2 Control Unit ................................................................................................. 40
6.2 GENERIC OBDII OPERATIONS ...........................................................................................52
6.2.1 General Procedure ..................................................................................... 53
6.2.2 Function Descriptions ................................................................................. 54
6.3 EXITING DIAGNOSTICS .......................................................................................................56
7 SERVICE ...................................................................................................................... 58
7.1 OIL RESET ...........................................................................................................................58
7.2 ELECTRONIC PARKING BRAKE (EPB) .................................................................................59
7.2.1 EPB Safety ................................................................................................. 59
7.3 BMS ...................................................................................................................................59
7.4 STEERING ANGLE SENSOR (SAS) ......................................................................................60
7.5 TIRE PRESSURE MONITOR SYSTEM (TPMS) ....................................................................61
7.6 IMMO KEYS ......................................................................................................................61

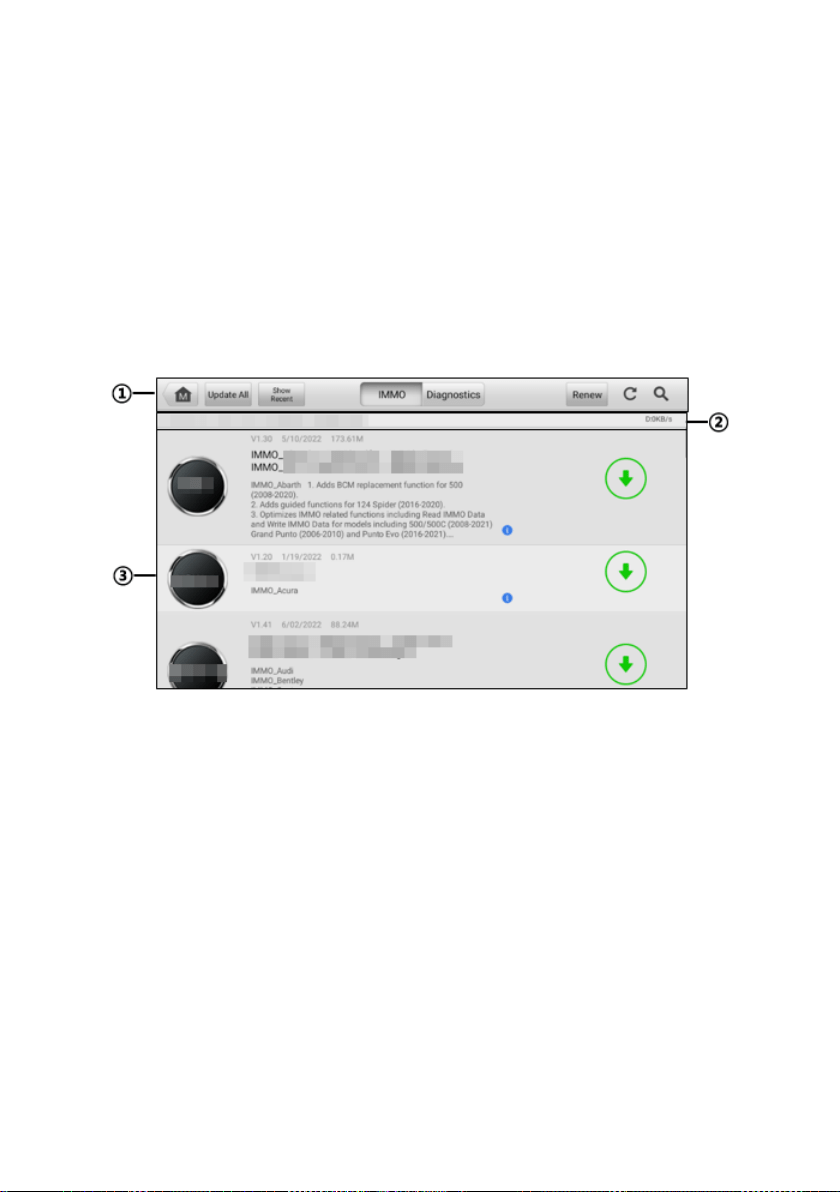

8 UPDATE ....................................................................................................................... 62
9 SETTINGS .................................................................................................................... 64
9.1 UNIT ....................................................................................................................................64
9.2 LANGUAGE ..........................................................................................................................64
9.3 PRINTING SETTINGS ...........................................................................................................65
9.4 REPORT SETTINGS ..............................................................................................................66
9.5 FIRMWARE UPGRADE .........................................................................................................66
9.6 AUTO UPDATE ....................................................................................................................67
9.7 VEHICLE LIST .......................................................................................................................67
9.8 SYSTEM SETTINGS ..............................................................................................................68
vi
9.9 ABOUT ................................................................................................................................68
10 REMOTE DESKTOP .................................................................................................... 69

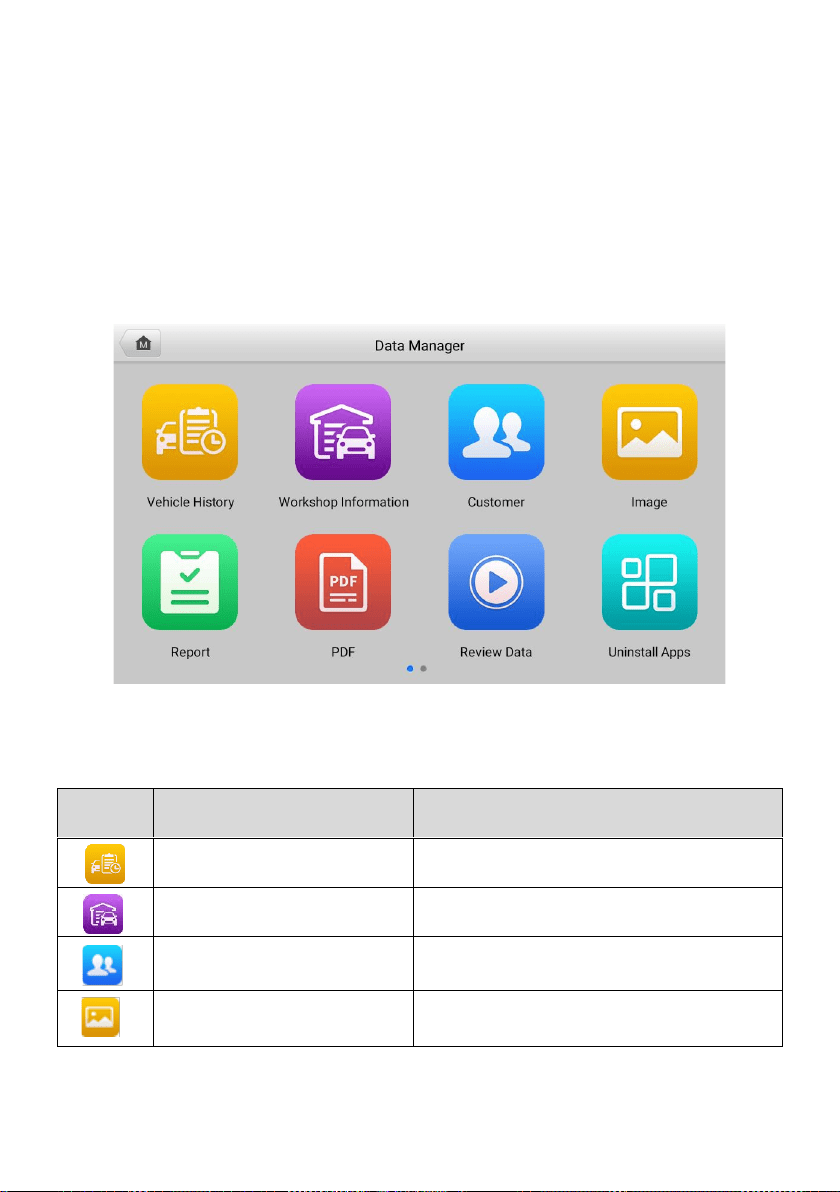

11 DATA MANAGER ........................................................................................................ 71
11.1 VEHICLE HISTORY ...............................................................................................................72
11.1.1 Historical Test ............................................................................................. 73

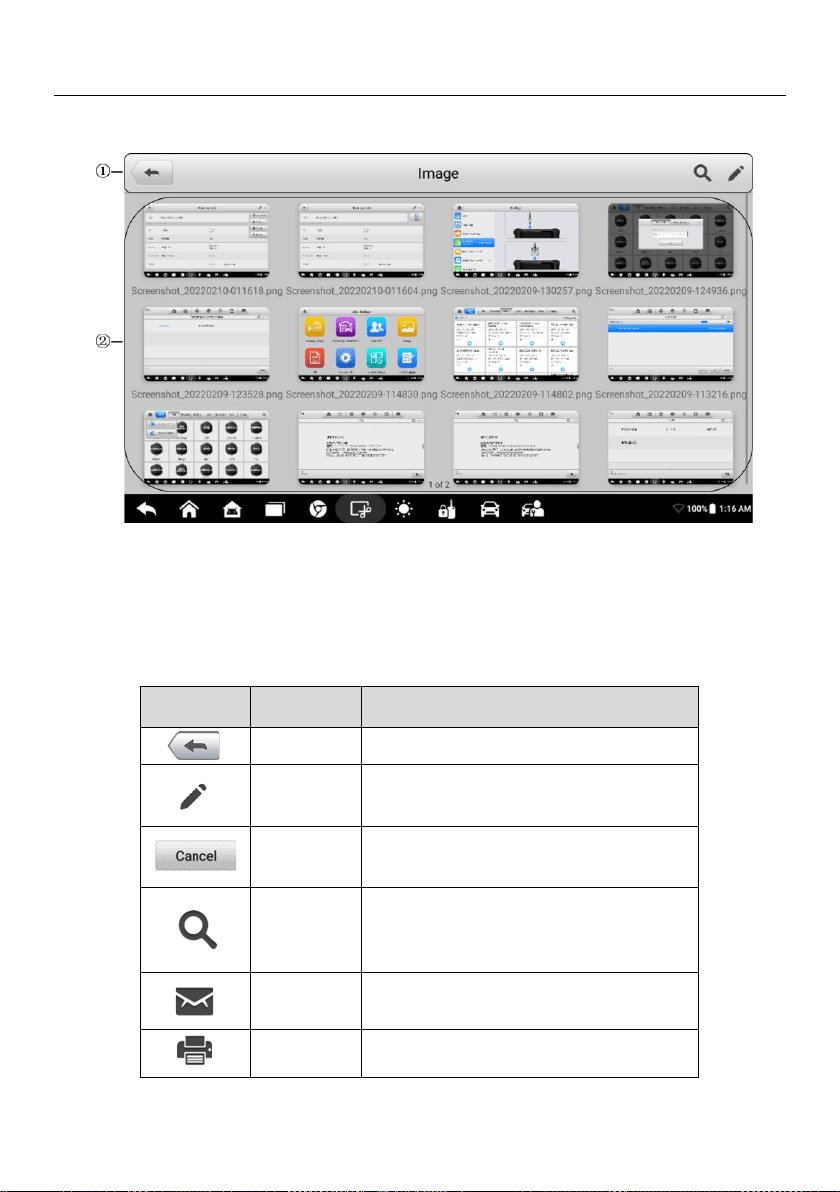

11.2 IMAGE FILES ........................................................................................................................74
11.3 PDF FILES ...........................................................................................................................75

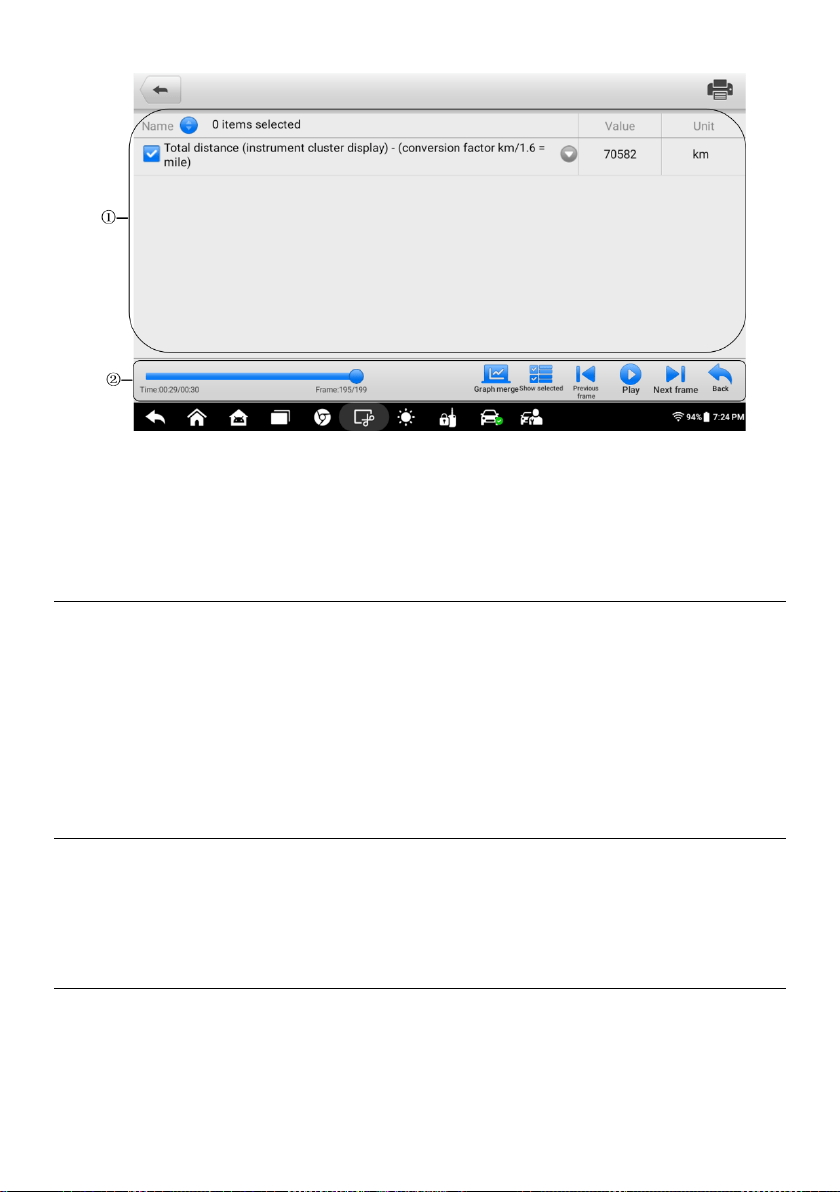

11.4 REVIEW DATA .....................................................................................................................75
11.5 UNINSTALL APPS ................................................................................................................76
11.6 DATA LOGGING ..................................................................................................................76
11.7 WORKSHOP INFORMATION ...............................................................................................76
11.8 CUSTOMER..........................................................................................................................77
11.9 REPORT ...............................................................................................................................79
12 MAXIVIEWER ............................................................................................................... 80
13 SUPPORT .................................................................................................................... 81
13.1 PRODUCT REGISTRATION ...................................................................................................81
13.2 SUPPORT SCREEN LAYOUT .................................................................................................82

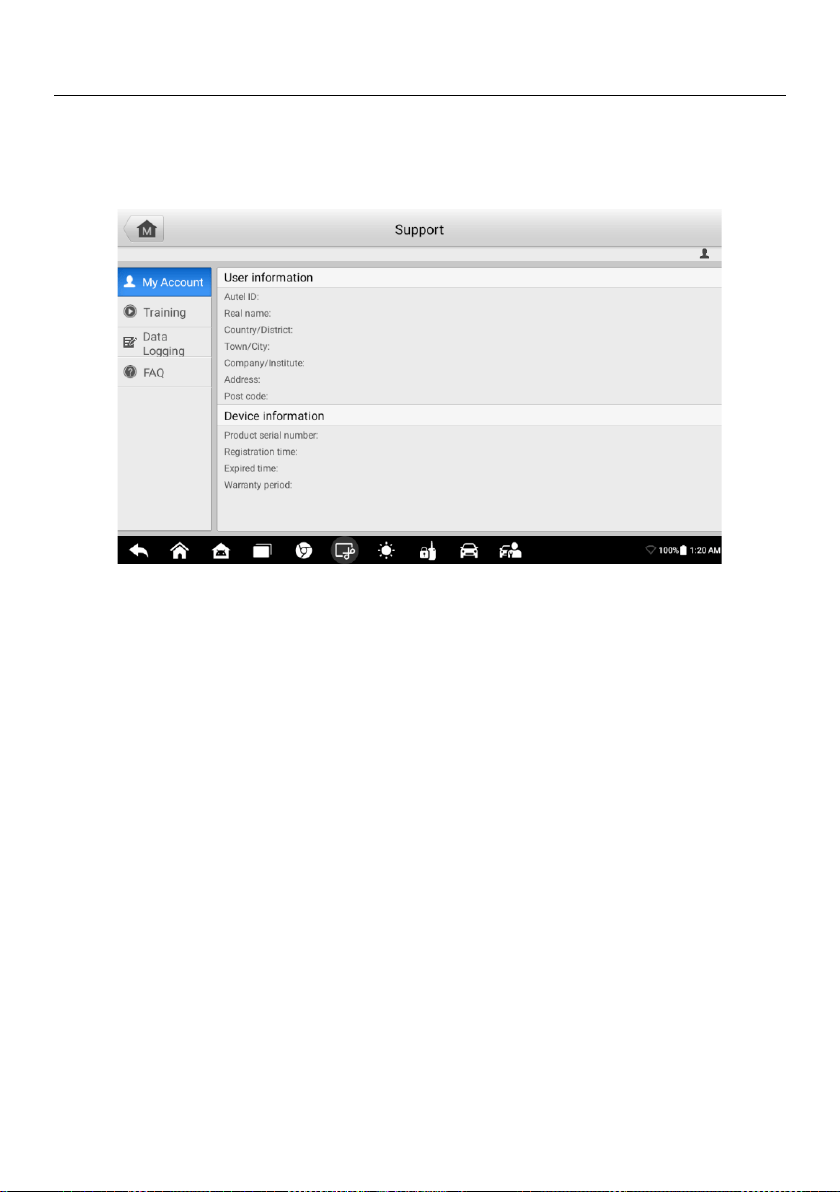

13.2.1 My Account ................................................................................................. 82
13.2.2 Data Logging .............................................................................................. 82
13.2.3 Training ....................................................................................................... 83
13.2.4 FAQ ............................................................................................................ 83

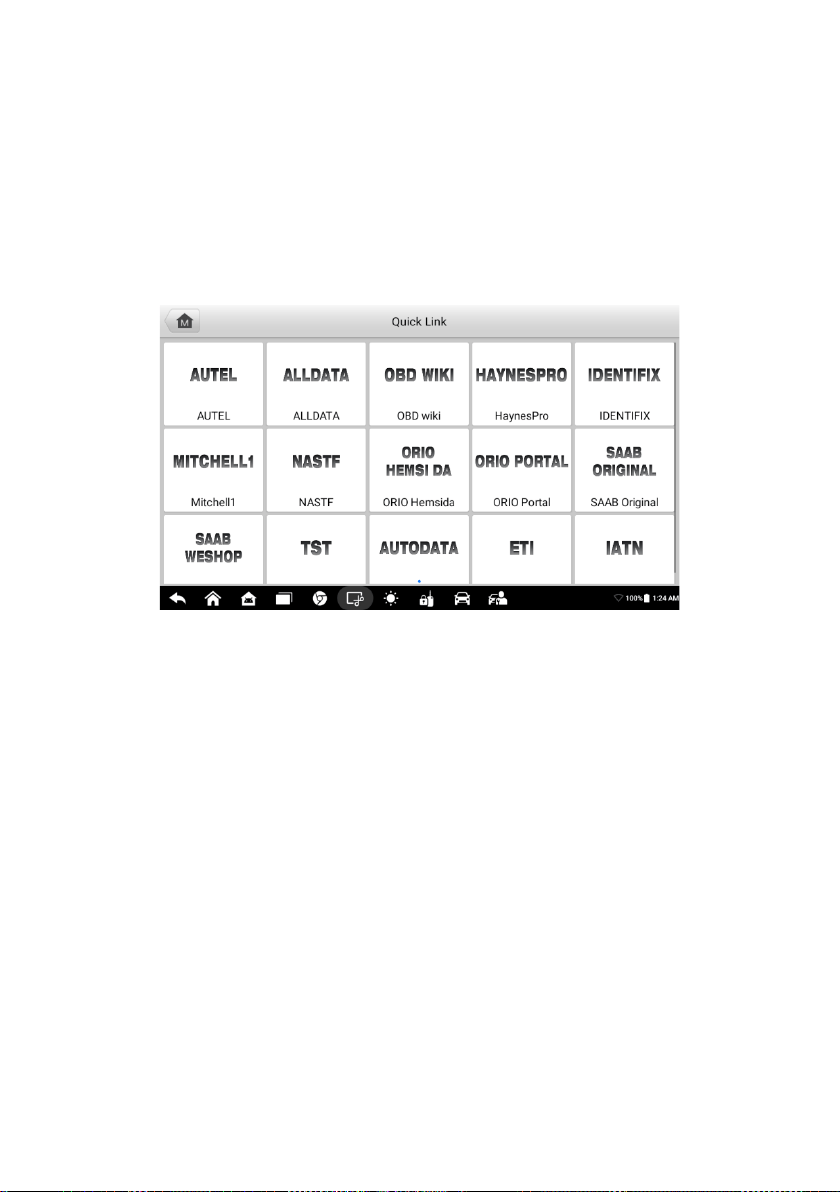

14 QUICK LINK ................................................................................................................. 84
15 MAINTENANCE AND SERVICE .................................................................................. 85
15.1 MAINTENANCE INSTRUCTIONS ..........................................................................................85
15.2 TROUBLESHOOTING CHECKLIST .........................................................................................85
15.3 ABOUT BATTERY USAGE ....................................................................................................86
16 COMPLIANCE INFORMATION ................................................................................... 88
17 WARRANTY ................................................................................................................. 90
1
1 Using this Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional equipment
that are not included in your system.
1.1 Conventions
The following conventions are used.
1.1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
⚫ Tap OK.
1.1.2 Notes and Important Messages
Notes
A NOTE provides helpful information such as additional explanations, tips, and
comments.
Example:
NOTE
The images and illustrations depicted in this manual may differ from the actual ones.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the
tablet or vehicle.
Example:
IMPORTANT
Always reset the engine oil life to 100% after every oil change.
2
1.1.3 Hyperlink
Hyperlinks, or links, that take you to other related articles, procedures, and illustrations
are available in electronic documents. Blue italic text indicates a selectable hyperlink and
blue underlined text indicates a website link or an email address link.
1.1.4 Illustrations
Illustrations used in this manual are samples, the actual testing screen may vary for each
vehicle being tested. Observe the menu titles and on-screen instructions to make correct
option selection.
1.1.5 Procedures
An arrow icon indicates a procedure. For example:
➢ To perform Manual Selection
1. Tap IMMO application button on the MaxiIM Job Menu.
2. Select the manufacturer icon of the test vehicle.
3. Tap Manual Selection and select the test vehicle information such as model,
year, key type, etc. Select OK to confirm the vehicle information. Follow the on-
screen instructions to display the function screen.
3
2 General Introduction
When it comes to ultra-portability, MaxiIM IM508S is your perfect companion. Installed
with a fast quad-core processor, IM508S offers maximum convenience and swift
diagnosis. The intuitive user screen makes using the device effortless through a 7-inch
LCD touchscreen that displays at 1024 x 600 quality. Together with the ability to quickly
read and clear DTCs for all available modules of the majority of the makes and models
on the market, IM508S provides you with superior special functions, including Oil Reset,
EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery
Management System), DPF (Diesel Particulate Filter), IMMO, and TPMS (Tire Pressure
Monitoring System). With the key programmer XP200, IM508S is capable of providing
extraordinary functions for the immobilizer system.
This manual describes the construction and operation of the tools and how they work
together to deliver diagnostics solutions.
2.1 MaxiIM IM508S Tablet
2.1.1 Function Description
Figure 2-1 MaxiIM Tablet, Front View
1. 7.0” LCD Capacitive Touchscreen
2. Ambient Light Sensor — detects ambient brightness.
3. Power LED — indicates battery level & charging or system status.
4. Vehicle Communication LED — flashes green when the Tablet is
communicating/linking with the vehicle’s system.
4
The power LED displays green, yellow or red depending on the power level and operating
status.
A. Green
⚫ Illuminates green when the Tablet is charging and the battery level is above
90%.
⚫ Illuminates green when the Tablet is powered on and the battery level is above
15%.
B. Yellow
⚫ Illuminates yellow when the Tablet is charging and the battery level is below
90%.
C. Red
⚫ Illuminates red when the Tablet is powered on and the battery level is below
15%.
Figure 2-2 MaxiIM Tablet, Back View
5. Collapsible Stand — extends from the back to allow hands-free viewing of the Tablet.
6. Heat Sink
7. Built-in Battery
5
Figure 2-3 MaxiIM Tablet, Top View
8. Mini USB Port
9. Micro SD Card Slot — holds the micro SD card.
10. DB15-Pin Port — connects the main cable.
11. USB Port
12. Power/Lock Button — turns the device on & off with long press, or locks the screen
with short press.
2.1.2 Power Sources
The Tablet can receive power from any of the following sources:
⚫ Internal Battery Pack
⚫ External Power Supply
2.1.2.1 Internal Battery Pack
The Tablet can be powered with the internal rechargeable battery, which if fully charged
can provide sufficient power for about 7 hours of continuous operation.
2.1.2.2 External Power Supply
The Tablet can be powered from a wall socket using the mini USB cable and USB
external power adapter. The external power supply also charges the internal battery pack.
6
2.1.3 Technical Specifications
Table 2-1 Technical Specifications
Item
Description
Recommended Use
Indoor
Operating System
Android
TM
11
Processor
Cortex
®
-A55 processor (1.8 GHz)
Memory
64 GB
Display
7-inch LCD capacitive touchscreen with
1024 x 600 resolution
Connectivity
⚫ Mini USB
⚫ USB 2.0
⚫ Wi-Fi
⚫ Micro SD card (supports up to 32 GB)
Sensors
Ambient light sensor
Audio Input/Output
⚫ Input: N/A
⚫ Output: buzzer
Power and Battery
⚫ 3.7 V/5000 mAh lithium-polymer battery
⚫ Charges via 5 VDC power supply
Tested Battery Life
Around 7 hours of continuous use
Battery Charging
Input
5 V/1.5 A
Power Consumption
500 mA (LCD on with default brightness,
Wi-Fi on) @3.7 V
Operating Temp.
0 to 50 °C (32 to 122 °F)
Storage Temp.
-20 to 60 °C (-4 to 140 °F)
Operating Humidity
5 % - 95 % non-condensing
Dimensions
(W x H x D)
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5
mm (1.4”)
Net Weight
788 g (2.42 lbs.)
7
Item
Description
Supported
Automotive Protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-
Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898(Highspeed,
Middlespeed, Lowspeed and Singlewire
CAN,fault-tolerant CAN), SAE J2610,GM
UART,UART Echo Byte Protocol, Honda
Diag-H Protocol, TP2.0, TP1.6
2.1.4 Accessory Kit
2.1.4.1 Main Cable
The Main Cable connects the Tablet to the vehicle’s data link connector (DLC).
Figure 2-4 Main Cable
2.1.4.2 Other Accessories
Mini USB Cable
Connects the Tablet to the PC or DC external
power adapter.
Power Adapter
Together with the mini USB cable, connects the
Tablet to the external DC power port for power
supply.
2.2 XP200 Key Programmer
The XP200 Key Programmer is specially designed to read vehicle key chip data, clone
and generate exclusive keys, read/write on-board EEPROM data, and read/write
Freescale 9S12 MCUs. By working with the Tablet and PC that are both loaded with
programmer software, the XP200 Key Programmer can read/write key chip data quickly
and accurately.
8
2.2.1 Components and Ports
Figure 2-5 XP200 Views
1. Vehicle Key Chip Slot — holds the vehicle key chip to read and write vehicle key
chip information.
2. Vehicle Key Slot — holds the vehicle key to read and write vehicle key information.
3. Status LED Light — indicates the current operating status.
4. Connection Port — connects the EEPROM Adapter and the EEPROM Clamp
Integrated MC9S12 Cable.
5. Mini USB Port — provides data communication and power supply.
2.2.1.1 Status LED Light
The status LED of the XP200 Key Programmer indicates the operating status of the
device. See the following table for detailed descriptions.
Table 2-2 Status LED Light
LED
Color
Description
Status LED
Red
• Lights red when the firmware is upgrading
or an error has occurred.
• Lights red briefly when the device is
powered on and performing self-check.
Green
• Flashes green when communicating via
USB cable.
• Lights green when the device is ready for
use.
9
2.2.1.2 Connection Port
There are two accessories that can be paired with the connection port: EEPROM Clamp
Integrated MC9S12 Cable and EEPROM Adapter.

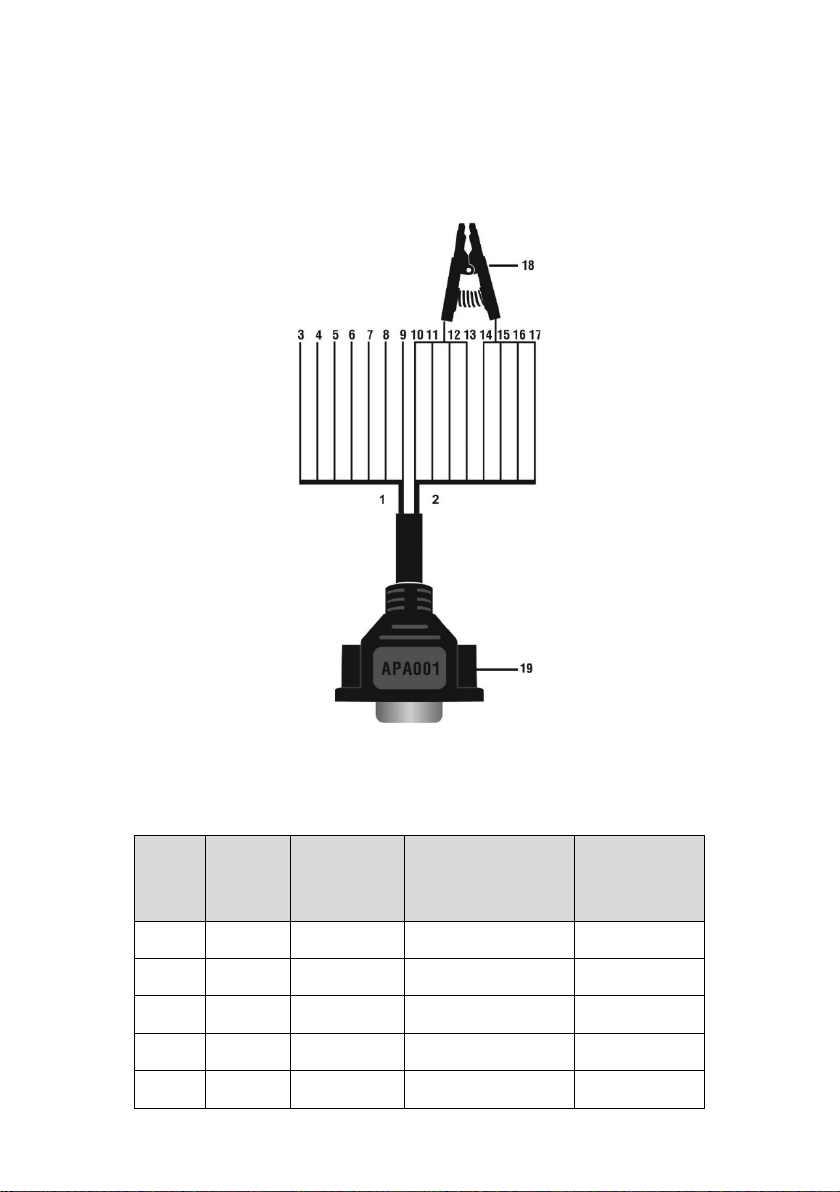

EEPROM Clamp Integrated MC9S12 Cable
Figure 2-6 EEPROM Clamp Integrated MC9S12 Cable
1. MC9S12 Cable
Table 2-3 Definitions of MC9S12 Cable
No.
Color
Definition
Pin
corresponding to
DB15
Note
3
Green
TXCLKS
1
N/A
4
Black
GND
2
Shielded line
5
White
TOSC
6
Shielded line
6
Blue
TSW
7
N/A
7
Brown
GND
8
N/A
10
No.
Color
Definition
Pin
corresponding to
DB15
Note
8
Yellow
TRESET
11
N/A
9
Red
VDD
12
N/A
2. EEPROM Clamp Cable
Table 2-4 Definitions of EEPROM Clamp Cable
No.
Color
Definition
Pin
correspondi
ng to DB15
Note
10
White and Red
P1
5
Pin 1 is
red
11
White and Purple
P2
15
N/A
12
White and Blue
P3
10
N/A
13
Grey
P4
4
N/A
14
White and Brown
P5
14
N/A
15
White and Green
P6
9
N/A
16
White and Orange
P7
3
N/A
17
White and Black
P8
13
Pin 8 is
black
Here are the possible causes for EEPROM read/write failure and data error when
connecting the clamp to the test board for EEPROM read/write:
A. EEPROM read/write operations are affected by the circuit of the connected test
board;
B. EEPROM read/write operations of the test board are affected by the read/write
operations of the clamp;
C. The signal is damaged by large resistance. A large resistance will be generated
when connecting the clamp to a fast communicating EEPROM or using a long cable
for connection.
Therefore, it is recommended to dismantle the chip on the EEPROM, weld the EEPROM
to the EEPROM Adapter or place in the EEPROM socket, and then insert it in the
EEPROM Adapter.
11
18. EEPROM Clamp
19. DB15 VGA Port
EEPROM Adapter
The EEPROM Adapter is compatible with three 8-pin packaging TSSOP, SOP, DIP
connections, and each packaging reserves three same ports, so the device will function
properly when one port is damaged. For SOP8 packaging, the EEPROM Adapter can
also work with the EEPROM socket. To do this, place the pins of the SOP8 EEPROM
into the EEPROM accordingly and then insert them into the EEPROM Adapter.
2.2.1.3 MC9S12 Read/Write Supported Types
Table 2-5 MC9S12 Read/Write Supported Types
Chip Type
Name
FREESCALE
MC9S12DG128
2.2.2 Specifications
Table 2-6 Specifications
Item
Description
Operating Temperature
-10 to 50 °C (14 to 122 °F )
Storage Temperature
-20 to 60 °C (-4 to 140 °F )
Port
Mini USB, VGA_DB15
Input Voltage
5 VDC
Operating Current
< 250 mA
Maximum Consumption
1 W
Device Dimensions (L x W x H)
130 mm (5.1”) x 68 mm (2.7”)
x 28 mm (1.1”)
Package Dimensions (L x W x H)
201 mm (7.9”) x 167 mm
(6.6”) x 75 mm (3”)
Net Weight
466 g (1.03 lbs.)
12
2.2.3 Accessories Included
APB001 — EEPROM Adapter
APB002 — 68HC908 Adapter
APA002 — EEPROM Socket
APA001 — EEPROM Clamp Integrated
MC9S12 Cable
13
3 Getting Started
Ensure the tablet is sufficiently charged or is connected to the external power supply (see
Power Sources).
NOTE
The images and illustrations depicted in this manual may differ from the actual ones.
3.1 Powering Up
Long press the Power/Lock button on the top-right of the tablet to power on the unit. The
power LED will illuminate green. The system boots up and displays the Lock screen.
Swipe up to unlock the screen.
Figure 3-1 Job Menu
1. Application Buttons
2. Locator and Navigation Buttons
3. System Status Icons
NOTE
The tablet screen is locked by default after powered on. It is recommended to lock the
screen to protect the information in the system and reduce the power consumption.
14
The touch screen navigation is menu-driven, which enables quick access to the functions
by tapping on the application buttons and answering dialog windows. Detailed
descriptions of the menu structures can be found in the application chapters.
3.1.1 Application Buttons
Descriptions of the tool applications are displayed in the table below.
Table 3-1 Applications
Button
Name
Description
IMMO
Accesses the IMMO functions menu. See IMMO for
details.
Programmer
Accesses the Programming functions menu. See
Programmer for details.
Diagnostics
Accesses the diagnostics functions menu. See
Diagnostics for details.
Service
Accesses the special functions menu. See Service for
details.
Update
Checks and downloads the latest updates available for
the MaxiIM system. See Update for details.
Settings
Accesses MaxiIM system settings menu. See Settings
for details.
Remote
Desktop
Configures the unit to receive remote support using the
TeamViewer application program. See Remote
Desktop for details.
Data Manager
Accesses the organization system for saved data. See
Data Manager for details.
Support
Synchronizes Autel’s online service database with the
MaxiIM tablet. See Support for details.
MaxiViewer
Provides a quick search for supported functions and/or
vehicles. See MaxiViewer for details.
Quick Link
Provides associated website bookmarks to allow quick
access to product update, service, support, and other
information. See Quick Link for details.
15
3.1.2 Locator and Navigation Buttons
Operations of the Navigation buttons at the bottom of the screen are described in the
table below:
Table 3-2 Locator and Navigation Buttons
Button
Name
Description
Locator
Indicates the location of the screen. Swipe the screen left
or right to view the previous or next screen.
Back
Returns the previous screen.
MaxiIM
Home
Enters MaxiIM job menu.
Android
Home
Enters Android System’s home screen.
Recent
Apps
Displays a list of applications that are currently in use.
Tap an app icon to launch. To remove an app, swipe it to
the top or bottom.
Chrome
Launches the Android built-in browser.
Screenshot
Saves the displayed screen as an image.
Brightness
Adjusts brightness of screen.
IMMO
Shortcut
Enters the IMMO screen.
Diagnostic
Shortcut
Enters the Diagnostics screen.
Service
Shortcut
Enters the Service screen.
16
3.1.3 System Status Icons
As the Tablet is working with the Android operating system, you may refer to Android
documents for more information.
By sliding down from the top of the screen or tapping on the bottom right corner of the
screen, a Shortcut Panel will be displayed, on which you are allowed to set various
system settings of the tablet. Operations of each button on the panel are described in the
table below:
NOTE
The shortcut buttons will be highlighted when enabled and turn dimmed when disabled.
Table 3-3 Shortcut Panel Buttons
Button
Name
Description
Wi-Fi
Enables/disables Wi-Fi when pressed.
Do Not Disturb
Enables/disables Do-Not-Disturb mode.
Battery
Displays battery status.
Airplane Mode
Enables/disables Airplane Mode when pressed.
Location
Enables/disables location recording function.
Logger
Accesses Log Collection screen.
System Settings
Launches the Android System Settings screen when
pressed.
3.2 Powering Down
All vehicle communications must be terminated before shutting down the Tablet. A
warning message displays if you attempt to shut down the Tablet when it is
communicating with the vehicle. Forcing a shut-down while communicating may lead to
ECM problems on some vehicles. Please exit the Diagnostics application before
powering down.
➢ To power down the tablet
1. Long press the Lock/Power Button.
2. Tap Power off option and the tablet will turn off in a few seconds.
17
3.2.1 Reboot System
In case of a system crash, long press the Power/Lock button and tap Restart option to
restart the system.
18
4 IMMO
The IMMO application provides Automatic Selection, Manual Selection, and System
Selection to guide technicians to perform IMMO-related functions, including Key Learning,
Remote Control Learning, Remote Control Add, etc.
4.1 Getting Started
Ensure a communication link is established between the test vehicle and the tablet via
the main cable, and the XP200 is connected to the tablet with the supplied USB cable.
4.1.1 Vehicle Menu Layout
When the tablet is properly connected to the vehicle, the platform is ready to start vehicle
diagnosis. Tap on the IMMO application button on the MaxiIM IM508S Job Menu to
access the Vehicle Menu.
Figure 4-1 Vehicle Menu
1. Top Toolbar Buttons
2. Manufacturer Icons
19
4.1.1.1 Top Toolbar Buttons
The operations of the toolbar buttons at the top of the screen are listed and described in
the table below:
Table 4-1 Top Toolbar Buttons
Button
Name
Description
Home
Returns to the MaxiIM Job Menu.
VID
Displays a dropdown list; tap Auto Detect for auto
VIN detection; tap Manual Input to enter VIN
manually.
All
Displays all the vehicle makes in the vehicle
menu.
Favorites
Displays user-selected favorite vehicle makes.
History
Displays stored test vehicle records.
USA
Displays the USA vehicles menu.
European
Displays the European vehicles menu.
Asia
Displays the Asian vehicles menu.
China
Displays the Chinese vehicles menu.
Search
Displays a virtual keyboard to manually enter a
specific vehicle make required.
Cancel
Exits the search screen or cancels an operation.
4.1.1.2 Manufacturer Icons
Manufacturer Icons display a list of available vehicle brands for testing. Select a
corresponding vehicle manufacturer to enter the IMMO program.
4.2 Vehicle Identification
The MaxiIM IMMO system generally supports four methods for Vehicle Identification.
1. Auto VIN Scan
2. Manual VIN Input
20
3. Automatic Selection
4. Manual Selection
4.2.1 Auto VIN Scan
The MaxiIM IMMO system features the latest VIN-based Auto VIN Scan function to
identify vehicles, which is applied to IMMO, Programmer, Diagnostic and Service
applications.
➢ To perform Auto VIN Scan
1. Tap the IMMO application button on the MaxiIM Job Menu. The Vehicle
Menu displays.
2. Tap the VID button on the top toolbar to open a dropdown list.

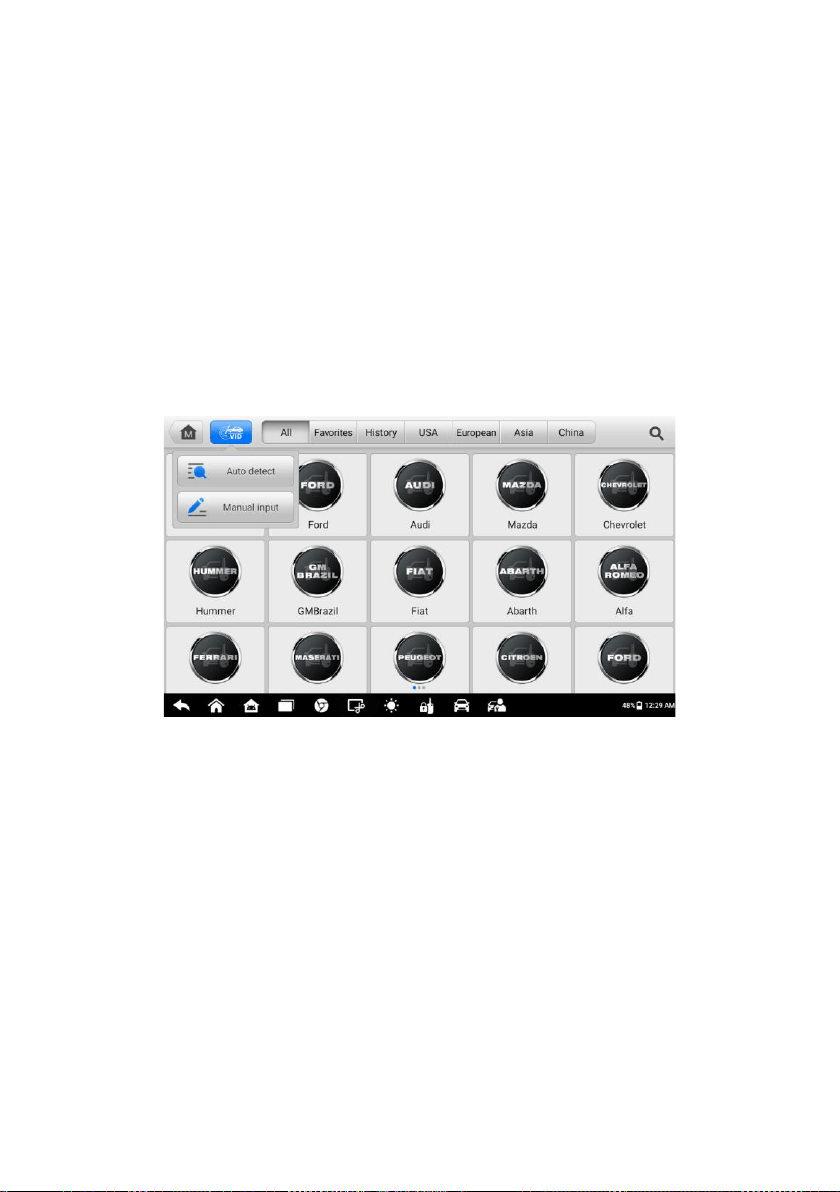

Figure 4-2 Auto VIN Screen
3. Select Auto Detect. Once the test vehicle is successfully identified, the
screen will display the vehicle profile. Tap OK at the bottom right to confirm
the vehicle profile.
4. Tap Yes to confirm the vehicle profile or No if the information is not correct.
5. The tablet establishes communication with the vehicle and reads the IMMO
control unit information.
4.2.2 Manual VIN Input
For vehicles that not supporting the Auto VIN Scan function, you may manually enter the
vehicle VIN.
21
➢ To perform Manual VIN Input
1. Tap the IMMO application button on the MaxiIM Job Menu. The Vehicle
Menu displays.
2. Tap the VID button on the top toolbar.
3. Select Manual Input.

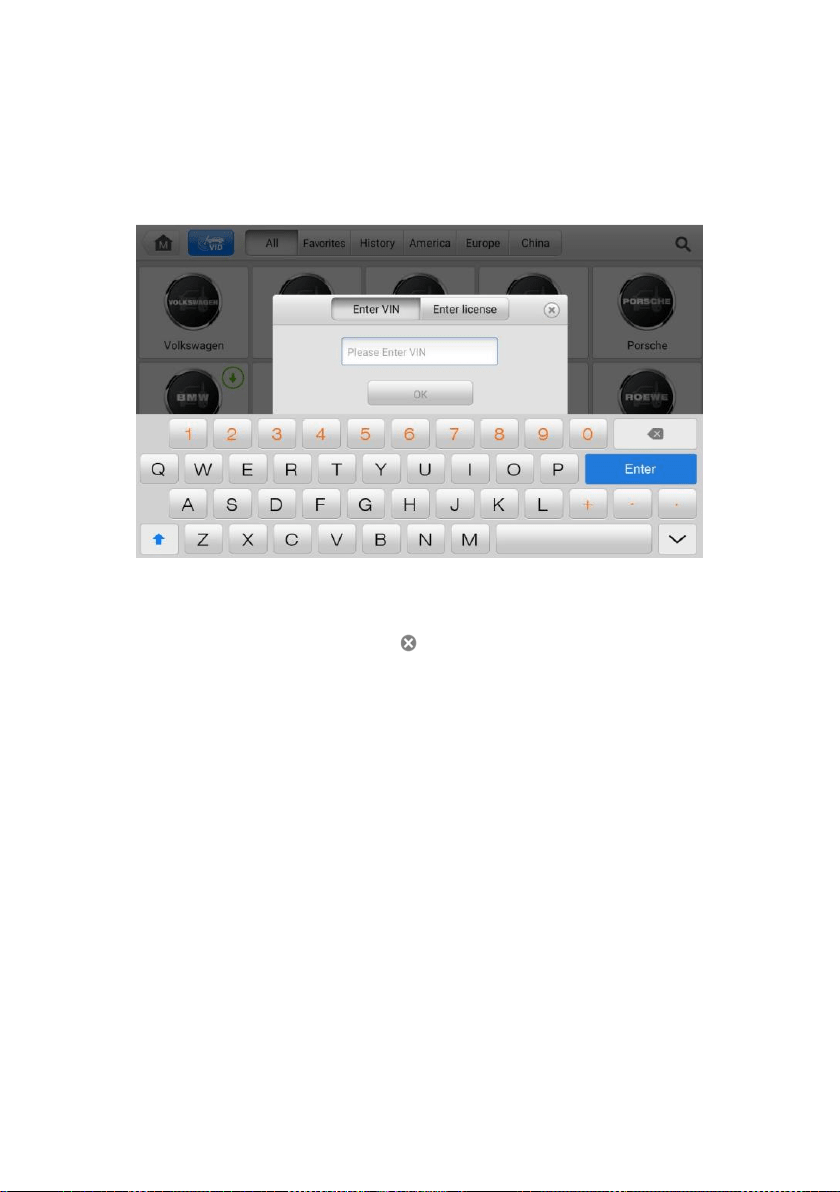

Figure 4-3 Enter VIN Screen
4. Tap the input box and enter the correct VIN.
5. Tap OK to complete or tap at the upper-right corner of the pop-up to exit
Manual Input.
4.2.3 Automatic Selection
The Automatic Selection can be selected after selecting the test vehicle manufacturer.
➢ To perform Automatic Selection
1. Tap the IMMO application button on the MaxiIM Job Menu. The Vehicle Menu
displays.
2. Tap the manufacturer button of the test vehicle.
3. Tap Automatic Selection and the VIN information will be automatically
acquired. Follow the on-screen instruction to display the function screen.
4.2.4 Manual Selection
When the vehicle’s VIN is not automatically retrievable through the vehicle's ECU, or the
specific VIN is unknown, the vehicle can be manually selected.
22
This mode of vehicle selection is menu driven, repeat the first two steps from the
automatic selection operation and tap Manual Selection. Through a series of on-screen
prompts and selections, the test vehicle is chosen. Press the ESC button at the bottom-
right corner of the screen to return to the previous screen if needed.
4.3 Navigation
Navigating the IMMO interface and selecting test are described in this section.
4.3.1 IMMO Screen Layout

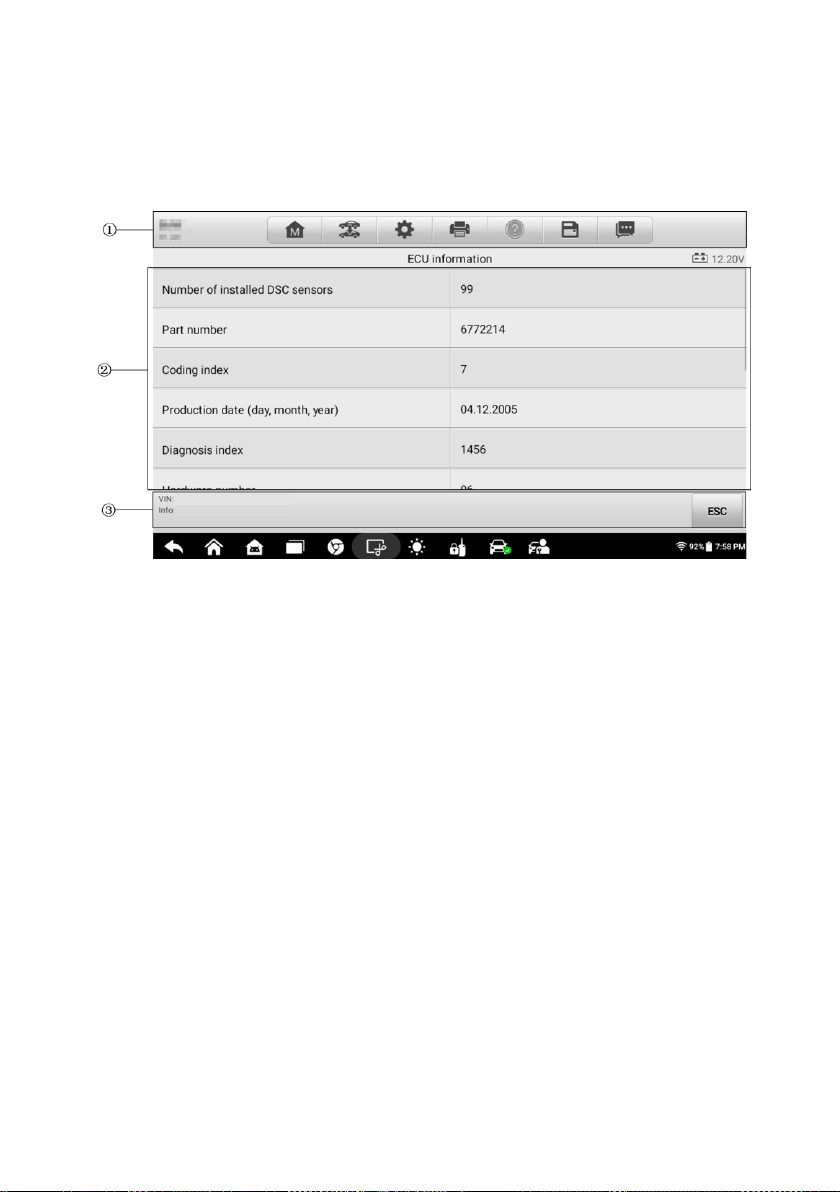

Figure 4-4 IMMO Screen Layout
The IMMO screens typically include four sections:
1. Operation Toolbar
2. Status Information Bar
3. Main Section
4. Function Buttons
4.3.1.1 Operation Toolbar
The Operation Toolbar contains a number of buttons such as print and save. The table
below provides a brief description of the operations.
23
Table 4-2 Operation Toolbar Buttons
Button
Name
Description
Home
Returns to the MaxiIM Job Menu.
Vehicle
Swap
Exits the diagnostic session of the currently
identified test vehicle and returns to the vehicle
menu screen.
Settings
Opens the settings screen. See Settings.
Print
Prints a copy of the displayed data. See Printing
Settings for additional information.
Help
Displays operational instructions or tips.
Save
Tap to open a sub menu, then tap Take a
Screenshot to save this screen.
All saved data is stored in the Data Manager
application for later review. See Data Manager.
Data
Logging
Records the communication data and ECU
information of the test vehicle. The saved data can
be reported and sent to the technical center via the
Internet.
You can go to the Support application to follow up
the processing progress, see Data Logging for
detailed information.
➢ To print data
1. Tap the IMMO application button from the MaxiIM Job Menu.
2. Tap Print. A drop-down menu displays. The Print button on the toolbar is
available throughout the IMMO operations.
3. Tap Print This Page to print a screenshot of the current screen.
4. A temporary file will be created and sent to the connected computer for
printing.
5. When the file is transferred successfully, a confirmation message displays.
➢ To submit Data Logging reports
1. Tap the IMMO application button on the MaxiIM Job Menu.
2. Tap the Data Logging button to display the error options. The Data Logging
button on the toolbar is available throughout the IMMO operations.
24
3. Select a specific error and tap OK. A submission form will display to let you
fill in the report information.
4. Tap Send to submit the report form via the Internet. A confirmation message
displays when sent successful.
4.3.1.2 Status Information Bar
The Status Information Bar at the top of the Main Section displays the following items:
1. Menu Title — displays the menu heading of the Main Section.
2. Voltage Icon — displays the vehicle’s voltage status.
4.3.1.3 Main Section
The Main Section of the screen varies depending on the stage of operations and vehicle
brands. The Main Section can display vehicle identification selections, the main menu,
test data, messages, instructions, and other information.
4.3.1.4 Function Buttons
The displayed Function Buttons vary depending on the stage of operations. They can be
used to navigate menus, save or clear data, exit scanning, and perform a number of other
control functions. The use of these buttons will be introduced in details in the following
sections of the corresponding test operations.
4.3.2 Screen Messages
Screen messages appear when additional input is needed before proceeding. There are
three main types of on-screen messages: Confirmation, Warning, and Error.
4.3.2.1 Confirmation Messages
This type of messages usually displays as an “Information” screen to inform the user that
a selected action cannot be reversed or when an action has been initiated and
confirmation is needed to continue.
When a user-response is not required to continue, the message displays briefly.
4.3.2.2 Warning Messages
This type of messages displays a warning that a selected action may result in an
irreversible change or loss of data. An example of this type of message is the “Erase
Codes” message.
4.3.2.3 Error Messages
Error messages display when a system or procedural error has occurred. Examples of
possible errors include a disconnection or communication interruption.
25
4.3.3 Making Selections
The IMMO application is a menu driven program that presents a series of choices. As a
selection is made, the next menu in the series displays. Each selection narrows the focus
and leads to the desired test. Tap the screen to make menu selections.
4.4 IMMO
The IMMO application requires a data link to the IMMO electronic control system of the
test vehicle for diagnosis via OBDII connection. The application retrieves vehicle IMMO
information and performs IMMO-related functions, including Key Learning, Remote
Control Learning, and Remote Control Add. There are three available modes when
accessing the IMMO section:
1. Automatic Selection
2. Manual Selection
3. System Selection
Figure 4-5 IMMO Modes Screen
The available modes displayed on the screen may vary between different vehicle brands.
4.4.1 Automatic Selection
The Automatic Selection provides guided functions with step-by-step instructions. Once
the VIN is acquired, a vehicle profile will appear and select Yes to continue. There are
four main options available when accessing the Automatic Selection:
1. IMMO Status Scan
2. Control Unit
26
3. Hot Function
4. Vehicle IMMO Information
4.4.1.1 IMMO Status Scan
The IMMO Status Scan function performs a comprehensive scanning over all the
systems on the vehicle’s IMMO ECU in order to locate fault systems and retrieve DTCs.
The sample operation interface of the IMMO Status Scan displays as below.
Figure 4-6 IMMO Status Scan Screen
1. Navigation Bar
2. Main Section
3. Function Buttons
Navigation Bar
The Navigation Bar shows the heading of the screen and vehicle’s voltage status. There
are two options available:
• Rescan — tap to scan the IMMO system for DTCs again.
• Quick erase DTC — tap to erase the fault codes.
27
Main Section
Figure 4-7 Main Section of IMMO Status Scan
Part A displays the scanned systems highlighted in different colors. Each color
represents varied status, which you can check on the screen.
Part B displays scan results with the left column showing scan items and the right
displaying the diagnostic marks, which indicate different conditions of the test result.
• -!-: indicates that the scanned system may not support the code reading function, or
there is a communication error between the tablet and the control system.
• -?-: indicates that the vehicle control system has been detected, but the tablet cannot
accurately locate it.
• Fault | #: Indicates there is/are detected fault code(s) present; “#” indicates the
number of the detected faults.
• Pass | No Fault: Indicates the system has passed the scanning process and no fault
has been detected.
• Unknown Status: Indicates the system has not been scanned.
• Not Responded: Indicates the system has not received a response.
• N/A: The system is not selected.
• Unselected System: The system is not selected for testing.
• Selected: The system is selected for testing.
• Not Scanned: Indicates the system has not been scanned.
• No Response: Indicates the system has not received a response.
28
Function Buttons
Table 4-3 Function Buttons
Button
Description
Report
Displays the diagnostic data in the report
form.
Add Key (guided)
Enters the guided function of the Add Key.
Immobilizer Learning
Enters the Immobilizer Learning function.
ESC
Returns to the previous screen or exits the
IMMO Status Scan.
4.4.1.2 Control Unit
This option allows you to manually locate a required IMMO control system for testing
through a series of choices. Simply follow the menu-driven procedure and make proper
selection each time. The program will guide you to the IMMO function menu after a few
choices you have made.
The control unit menu options vary from different vehicles. The function menu may
include:
• Immobilizer
• Remote System
• Engine
• IMMO Adaptation
Follow the on-screen instructions to select the correct IMMO part.
29
Take Add Key as an example.
1. Choose Immobilizer on the Control Unit screen.

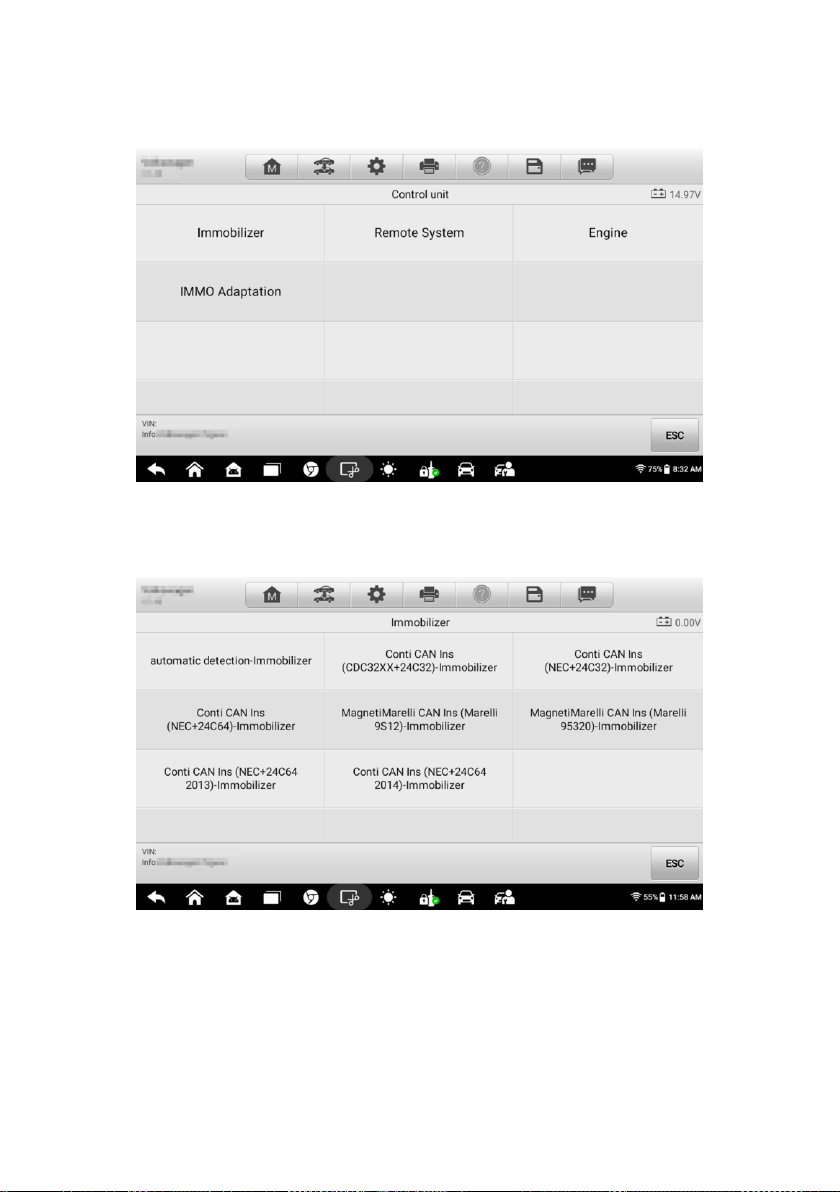

Figure 4-8 Control Unit Screen
2. Tap Conti CAN Ins (NEC+24C64) - Immobilizer.
Figure 4-9 Immobilizer Screen
3. Tap Add Key on the Instrument Cluster.
30

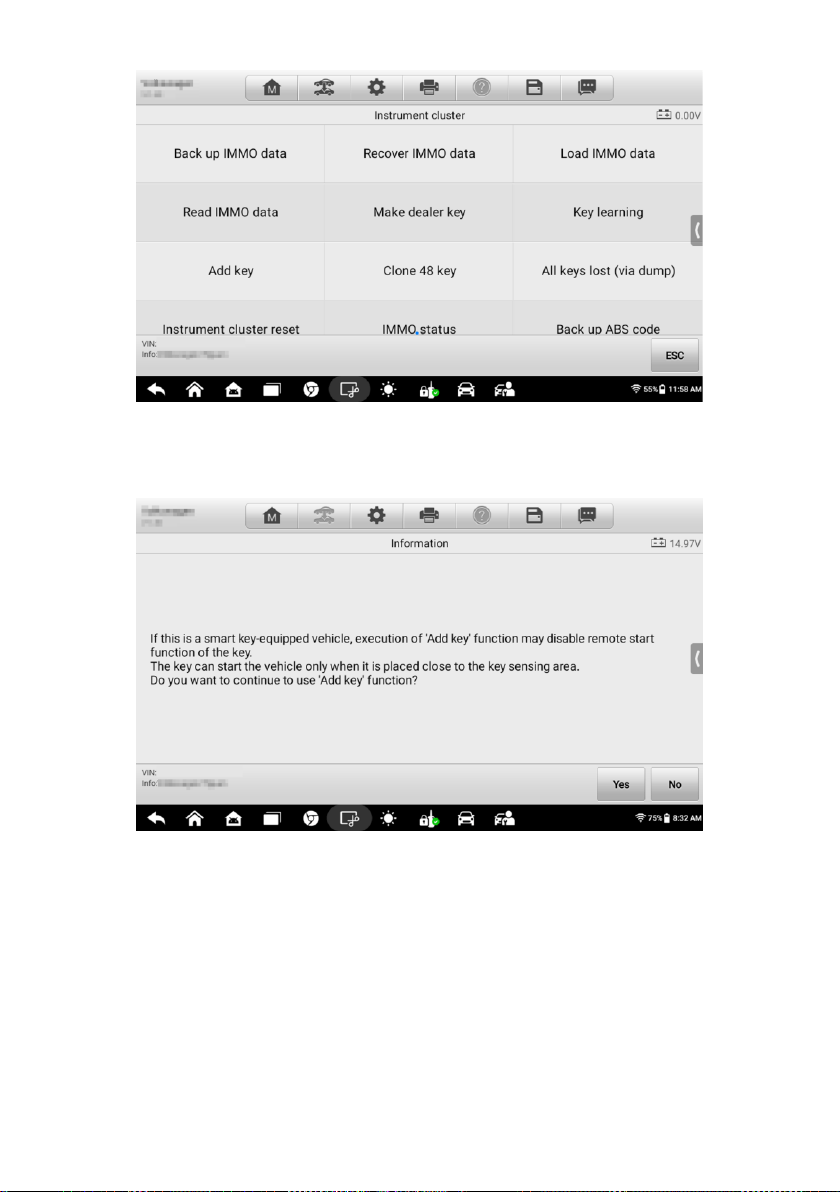

Figure 4-10 Instrument Cluster Screen
4. The following Information screen will display. Tap Yes to go on.
Figure 4-11 Information Screen 1
31

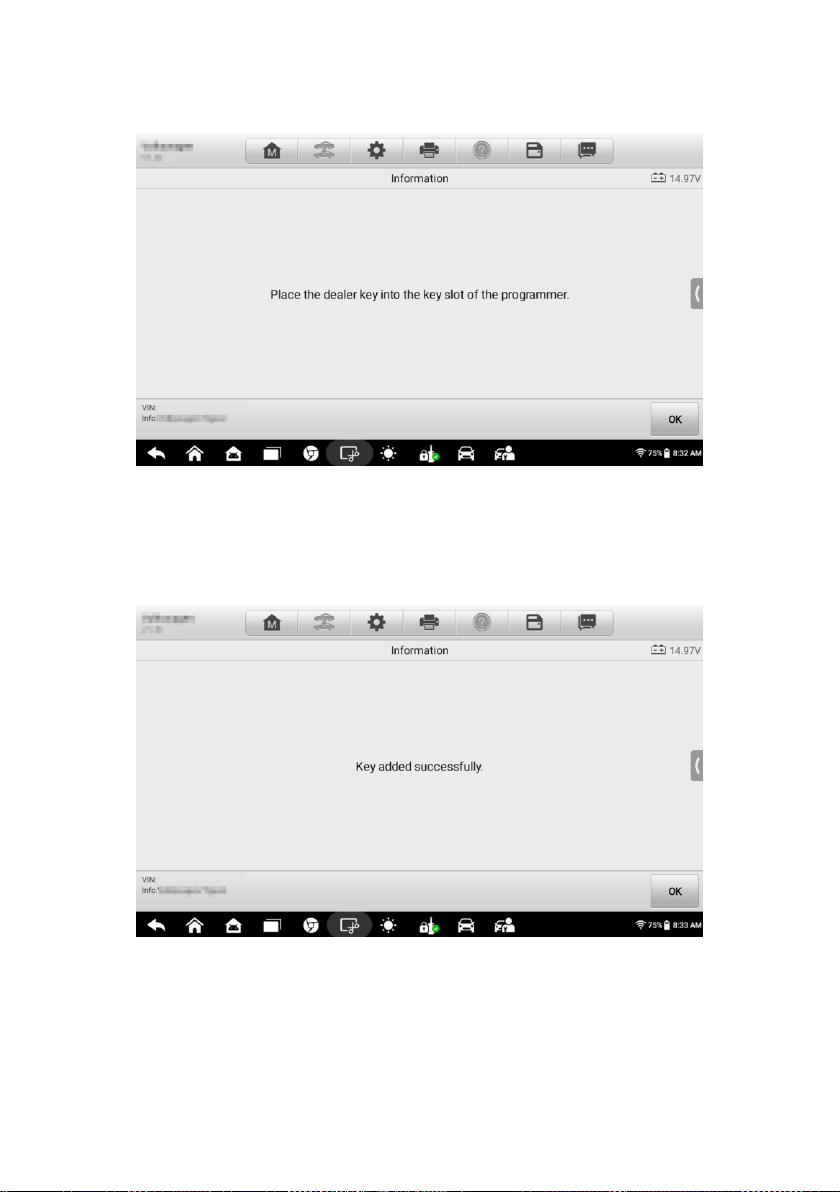

5. A message will appear, reminding you to place the dealer key into the key slot of the
programmer. Tap OK after the key is placed.
Figure 4-12 Information Screen 2
6. The screen will display that “Key added successfully”. Tap OK to complete the
operation.
Figure 4-13 Information Screen 3
32
4.4.1.3 Hot Function
Hot function consists of guided functions with step-by-step instructions. The available
functions may vary depending on the test vehicle. The function may include Add Key
(guided). Follow the corresponding on-screen instructions to complete the operation.

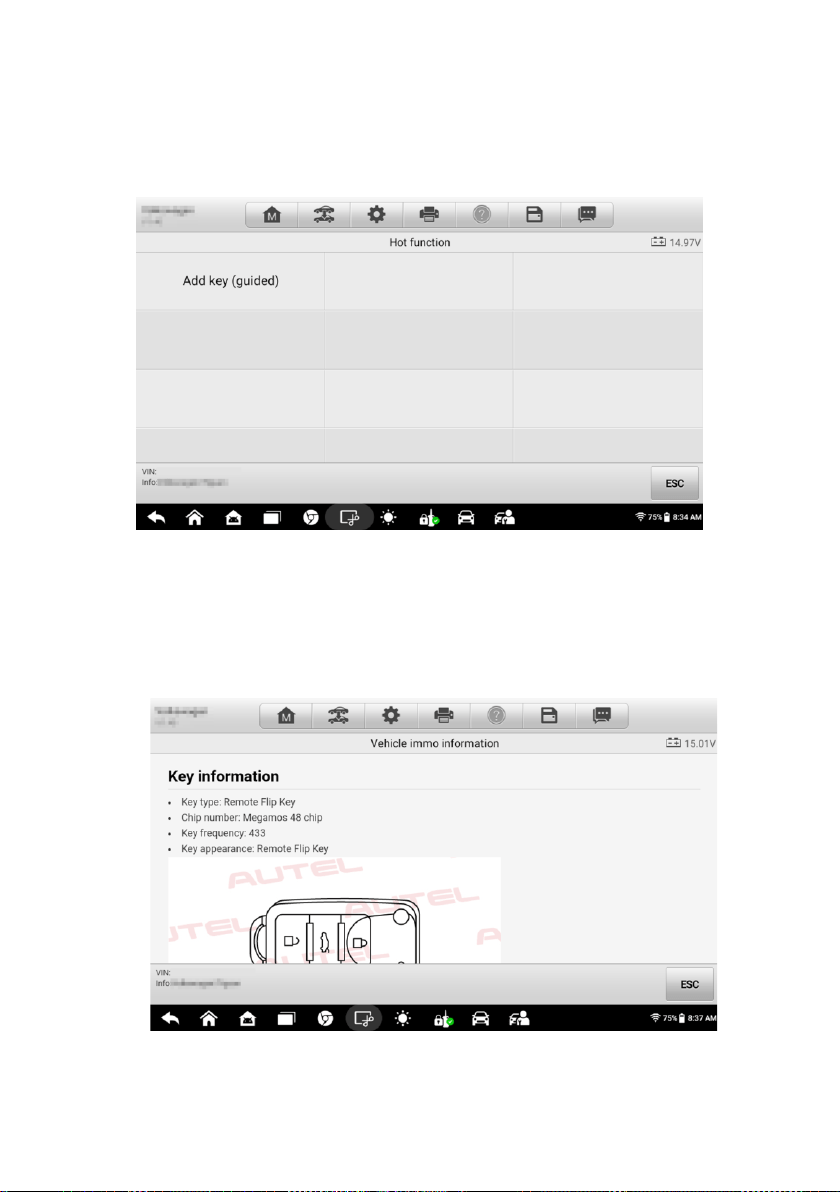

Figure 4-14 Hot Function Screen
4.4.1.4 Vehicle IMMO Information
This function displays the specific information of the tested vehicle, including key
programming information, key information, and OBD position.
Figure 4-15 Vehicle IMMO Information
33
4.4.2 Manual Selection
The Manual Selection operation has been described in the Section 4.2.4. After the
vehicle information is confirmed, the screen will appear containing IMMO Status Scan,
Control Unit, Hot Function, and Vehicle IMMO Information. Click the above links for
further details.
4.4.3 System Selection
The System Selection provides direct access to the vehicles’ immobilizer systems. The
selections may include Immobilizer, Engine, and BSI Clone. Follow the on-screen
instructions to complete the operation.
Figure 4-16 System Selection Screen
34
5 Programmer
The Programmer application requires connection between the tablet and the XP200, and
no vehicle connection is required. This application can read, retrieve, and write key
information, as well as other key related functions after accessing the key chip.
5.1 Operations
Select the vehicle manufacturer in the vehicle menu, and then follow the on-screen
instructions to select the instrument information to display the function menu.
Figure 5-1 Programmer Function Menu
35
Take Chip Read & Write as an example.
1. Select Chip Read & Write from the menu.
2. Select the chip type if needed. In this case, EEPROM has been selected.
Figure 5-2 Chip Read & Write Screen
3. Select Read on the next menu.
Figure 5-3 Operations Menu
36
4. The Chip Data screen displays. Select Save to save the data, or select Cancel to
exit.
Figure 5-4 Read Operation Screen
5. Enter the file name and select Save and the chip data will be saved on the tablet.
And a “File saved successfully.” Message displays.
Figure 5-5 Save Data Screen
6. Select Write from the operations menu. The tablet will open the default folder, then
select the saved data and click OK to write it into a black chip.
37
Figure 5-6 Write Operation Screen
38
6 Diagnostics
The Diagnostics application can retrieve electronic control unit (ECU) information, read
& erase DTCs, and view live data. The Diagnostics application can access the electronic
control unit (ECU) for various vehicle control systems, including engine, transmission,
antilock brake system (ABS), and airbag system (SRS).
6.1 Diagnosis
The Diagnostics application enables a data link to the electronic control system of the
test vehicle for vehicle diagnosis via OBDII connection. The application performs function
tests, and retrieves vehicle diagnostic information such as trouble and event codes and
live data for various vehicle control systems.
There are two options available when accessing the Diagnosis section:
1. Auto Scan — starts auto scanning for all the available systems on the vehicle.
2. Control Unit — displays a selection menu of all the available control units of the test
vehicle.
After a section is made and the tablet establishes communication with the vehicle, the
corresponding function menu or selection menu displays.
39
6.1.1 Auto Scan
The Auto Scan function performs a comprehensive scanning over all the ECUs in the
vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan
interface is pictured below:

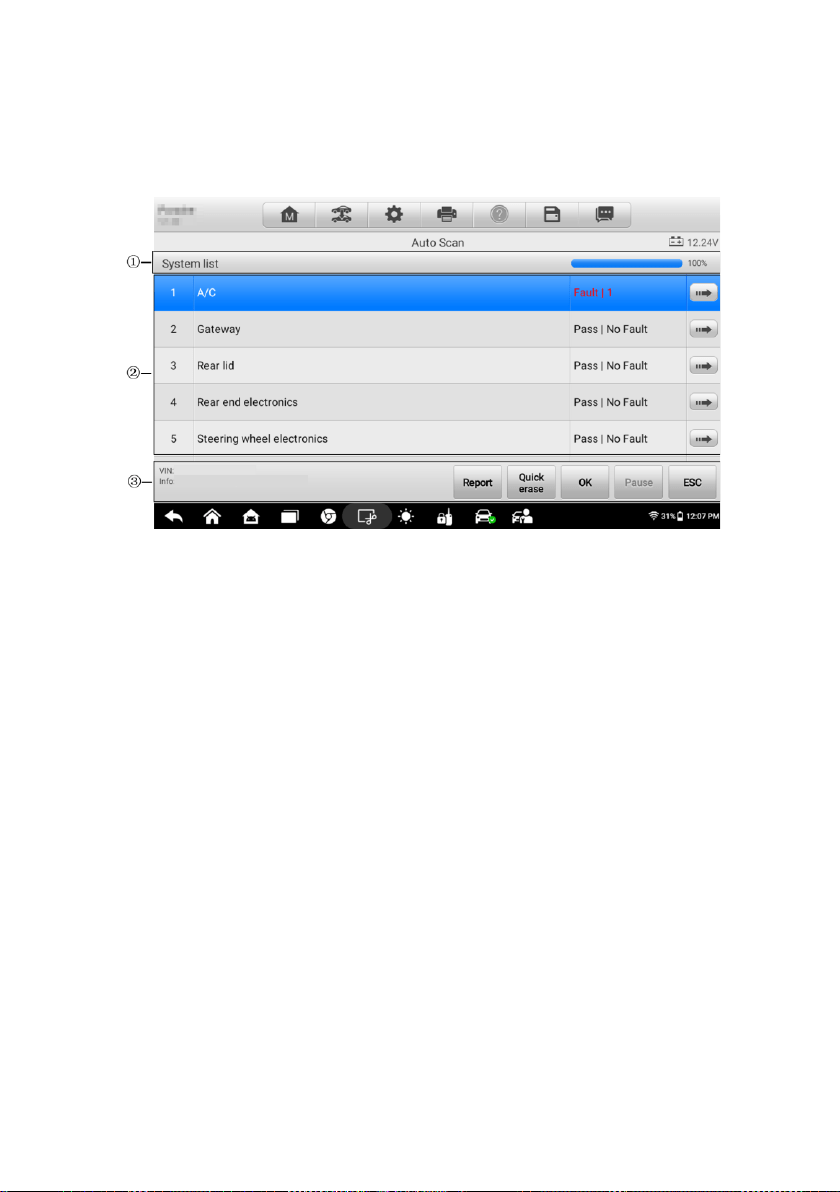

Figure 6-1 Sample Auto Scan Operation Screen
1. Status Bar
2. Main Section
3. Function Buttons
6.1.1.1 Status Bar
List Tab — displays the scanned data in list format.
Progress Bar — indicates the scanning progress.
6.1.1.2 Main Section
Column 1 — displays the sequence numbers.
Column 2 — displays the scanned systems.
Column 3 — displays the diagnostic indicators describing test results.
These indicators are defined as follows:
-!-: Indicates that the scanned system may not support the code reading function,
or there is a communication error between the Tablet and the control system.
-?-: Indicates that the vehicle control system has been detected, but the Tablet
cannot accurately locate it.
Fault(s) | #: Fault(s) indicates there is/are detected fault code(s) present; “#”
40
indicates the number of the detected faults.
Pass | No Fault: Indicates the system has passed the scanning process and no fault
has been detected.
Column 4 — to perform further diagnosis or testing on a specific system item, tap the
button to the right of that item. A Function Menu screen will display.
6.1.1.3 Function Buttons
A brief description of the operations of the Auto Scan’s Function Buttons are displayed
in the table below.
Table 6-1 Function Buttons in Auto Scan
Name
Description
Report
Displays the diagnostic data in the report form.
Quick
Erase
Deletes codes. A warning message will display to inform
you of possible data loss when this function is selected.
OK
Confirms the test result. Continue the system diagnosis
after the required system is selected by tapping the item
in the Main Section.
Pause
Suspends scanning and will change to Continue button
after tapping.
ESC
Returns to the previous screen or exits Auto Scan.
6.1.2 Control Unit
Manually locate a required control system for testing through a series of choices. Follow
the menu driven procedures and make proper selection; the application guides the user
to the proper diagnostic function menu based on selections.
41
Figure 6-2 Function Menu
The Function Menu options vary slightly from different vehicles. The function menu may
include:
⚫ ECU Information — provides the retrieved ECU information in detail. An information
screen opens upon selection.
⚫ Read Codes — displays detailed information of DTC records retrieved from the test
vehicle’s ECU.
⚫ Erase Codes — erases DTC records and other data from the test vehicle’s ECU.

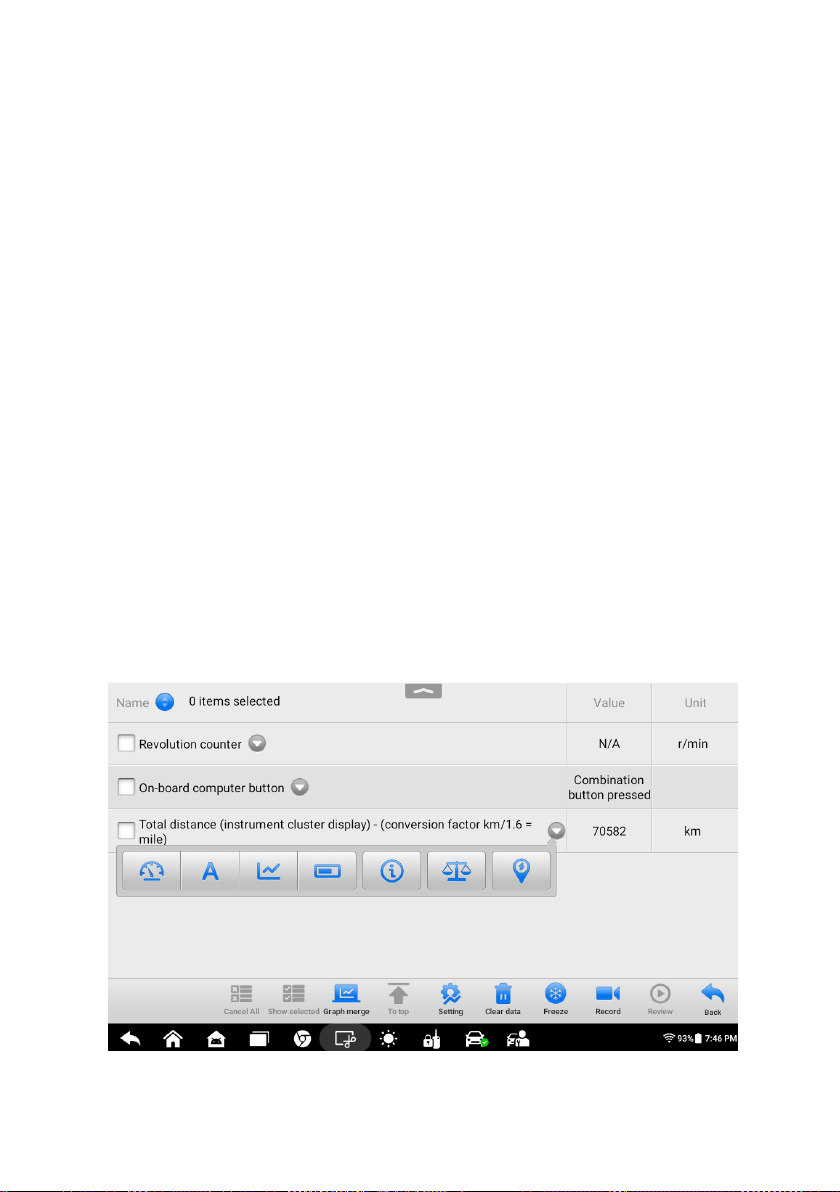

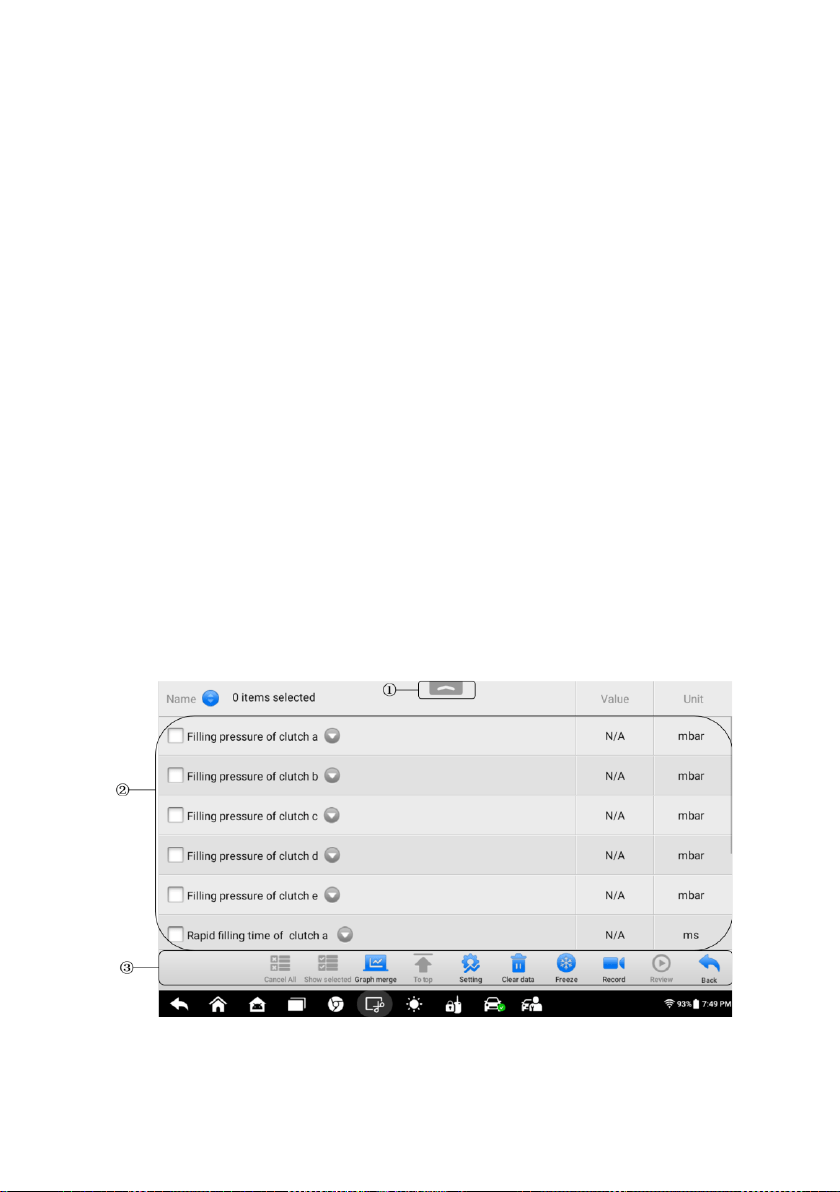

⚫ Live Data — retrieves and displays live data and parameters from the test vehicle’s
ECU.

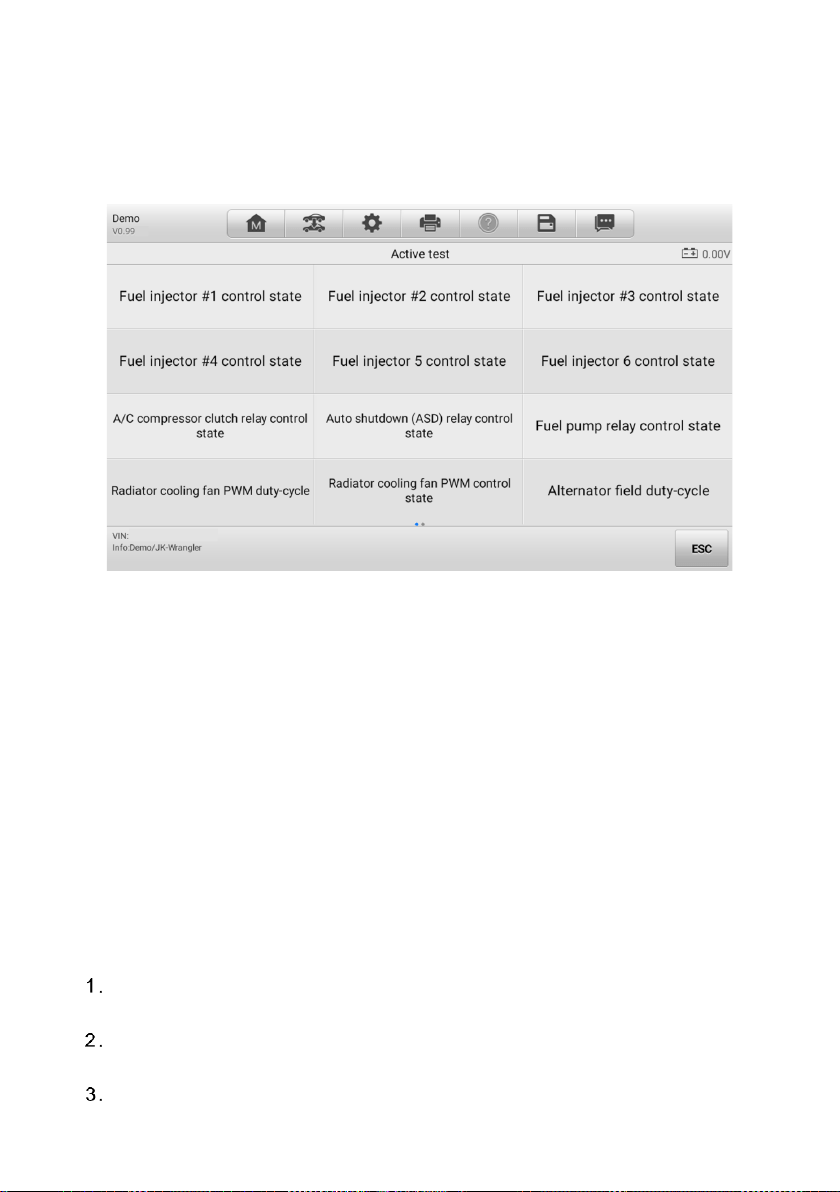

⚫ Active Test — accesses specific subsystem and components tests of vehicles.

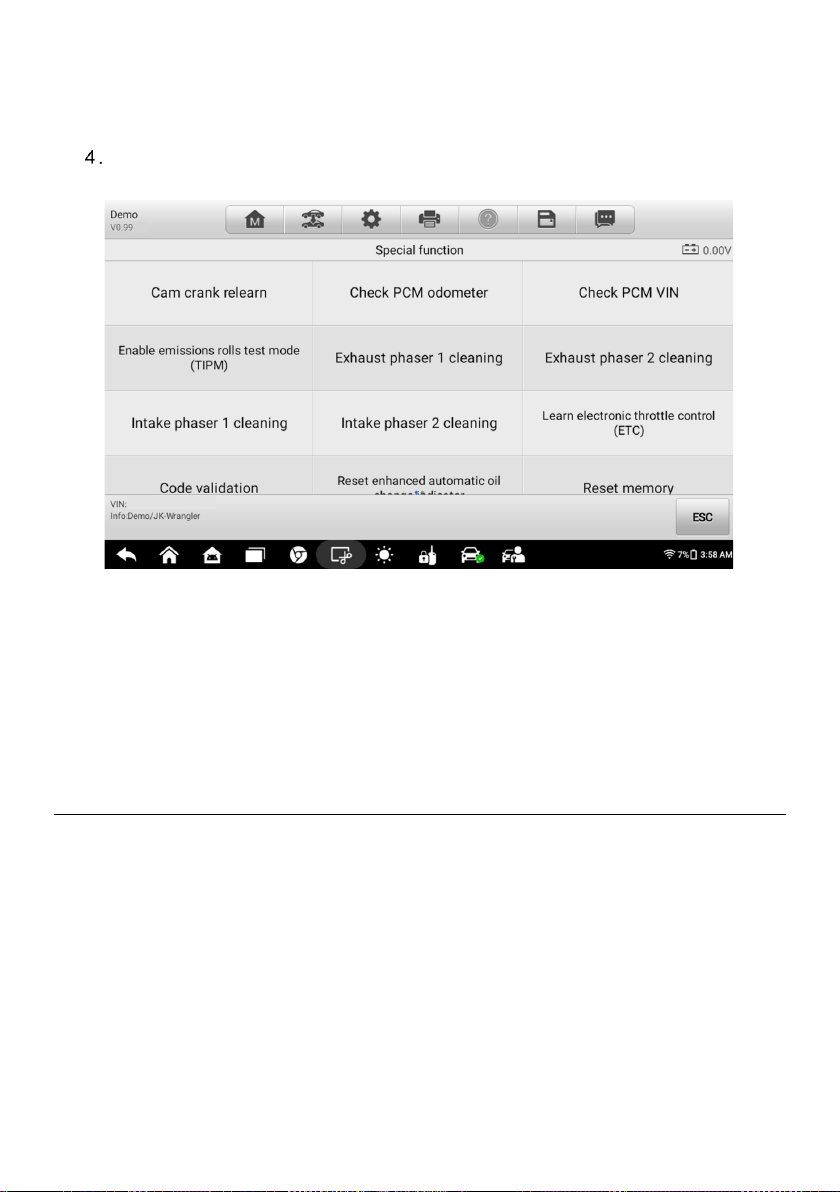

⚫ Special Function — performs various component adaptations.
NOTE
Toolbar functions such as saving and printing of test results can be performed throughout
diagnostic testing. Data logging and access to help information are also available.
➢ To perform a diagnostic function
1. Establish communication with the test vehicle.
2. Identify the test vehicle by selecting from the menu options.
3. Select the Diagnosis section.
4. Locate the required system for testing by Auto Scan or through menu driven
selections on Control Unit screen.
5. Select the desired diagnostic function on the Function Menu screen.
42
6.1.2.1 ECU Information
This function retrieves and displays the specific information for the tested control unit,
including unit type, version numbers, and other specifications.
The sample ECU Information screen displays as below:
Figure 6-3 ECU Information Screen
1. Diagnostics Toolbar Buttons — see Table 4-2 Operation Toolbar Buttons for detailed
descriptions of the operations for each button.
2. Main Section — the left column displays the item names; the right column displays
the specifications or descriptions.
3. Function Button — ESC (or Back) button is available; tap it to exit after viewing.
43
6.1.2.2 Read Codes
This function retrieves and displays the DTCs from the vehicle’s control system. The
Read Codes screen varies from each vehicle being tested. On some vehicles, freeze
frame data can also be retrieved for viewing. The sample Read Codes screen displays
as below:
Figure 6-4 Read Codes Screen
1. Diagnostics Toolbar Buttons — see Table 4-2 Operation Toolbar Buttons for detailed
descriptions of the operations for each button.
2. Main Section
⚫ Code Column — displays the retrieved codes from the vehicle.
⚫ Status Column — indicates the status of the retrieved codes.
⚫ Description Column — detailed descriptions for the retrieved codes.
⚫ Snowflake Icon — only displays when freeze frame data is available for viewing;
selecting this icon will display a data screen, which looks and behaves similar
to the Read Codes screen.
3. Function Button
⚫ Service manual — tap it to view fault code information, including fault
description, condition for fault identification, and driver information.
⚫ Freeze frame — tap it to view the freeze frame data of the selected DTC.
⚫ Search — tap it to search related fault code information on the Internet.
⚫ ESC — tap it to return to the previous screen or exit the function.
44
6.1.2.3 Erase Codes
After reading the retrieved codes and making appropriate vehicle repairs, use this
function to erase vehicle codes.
➢ To erase codes
1. Tap Erase Codes on the Function Menu.
2. A warning message displays to advice of data loss if this function is completed.
a) Tap Yes to continue. A confirmation screen displays when the operation is
successfully done.
b) Tap No to exit.
3. Tap ESC on the confirming screen to exit Erase Codes.
4. Perform the Read Codes function again to check if codes have been erased
successfully.
6.1.2.4 Live Data
When this function is selected, the screen displays the data list for the selected module.
The data available for any control module varies from one vehicle to another. The
parameters display in the order that they are transmitted by the ECM, so expect variation
among vehicles.
Gesture scrolling allows for quick movement through the data list. Touch the screen and
drag your finger up or down to reposition the parameters being displayed if the data
populates more than one screen. The figure below displays a typical Live Data screen.
Figure 6-5 Live Data Screen
45
1. Diagnostics Toolbar Buttons — tap the drop-down button at the top center of the
screen and the toolbar buttons will display. See Table 4-2 Operation Toolbar Buttons
for detailed descriptions of the operations for each button.
2. Main Section
⚫ Name Column — displays the parameter names.
a) Check Box — tap the check box on the left side of a parameter to make
item selection. Tap the check box again to deselect the item.
b) Drop-down Button — tap to open a sub menu.
⚫ Value Column — displays the values of the parameters.
⚫ Range Column — displays the ranges of the parameters.
⚫ Unit Column — displays the units for the parameters.
➢ To change the unit mode, tap the Setting button on the top toolbar and
select a required mode. See Unit for more information.
Display Mode
There are four types of display modes available for data viewing. Select the proper mode
for the diagnostic purpose.
Tap the drop-down button on the right side of a parameter to open a sub menu. A total
of 7 buttons will be displayed: The 4 buttons on the left represent different data display
modes, plus one Information button, highlighted when additional information is available,
and one Unit Change button, for switching the unit of displayed data, and one Trigger
button, which opens the "trigger settings" window when tapping.
Figure 6-6 Display Mode Screen
46
Each parameter displays the selected mode independently. The left four buttons are
described in sequence below:
1) Analog Gauge Mode — displays the parameters in form of an analog meter graph.
2) Text Mode — the default mode which displays the parameters in texts and shows in
list format.
NOTE
Status parameters, such as a switch reading, can primarily be viewed in text form such
as ON, OFF, ACTIVE, and ABORT. Whereas, value parameters, such as a sensor
reading, can be displayed in text mode and graph modes.
3) Waveform Graph Mode — displays the parameters in waveform graphs.
When this mode is selected, five control buttons display on the right side of the parameter,
allowing you to manipulate the display status.
Figure 6-7 Waveform Graph Mode Screen
⚫ Settings Button (SetY) — sets the minimum and maximum value of the Y axis.
⚫ Scale Button — changes the scale values that are displayed below the waveform
graph. There are four scales available: x1, x2, x4 and x8.
⚫ Edit Button — edits the waveform color and the line thickness.
⚫ Zoom-in Button — tap once to display the selected data graph in full screen.
⚫ Exit Button — tap to exit the waveform graph mode.
47
Full Screen Display — this option is only available in the waveform graph mode, and
primarily used in Graph Merge status for data comparison. There are four control buttons
available on the top-right side of the screen under this mode.
Scale Button — tap to change the scale values, which are displayed below the
waveform graph. There are four scales available: x1, x2, x4 and x8.
Edit Button — tap to open an edit window, in which you can set the waveform color
and the line thickness displayed for the selected parameter item.
Zoom-out Button — tap to exit full screen display.
Exit Button — tap to exit the waveform graph mode.
➢ To edit the waveform color and line thickness in a data graph
1. Select parameters to display in Waveform Graph mode.
2. Tap the Edit Button and an edit window opens.
3. The parameter item is selected automatically in the left column.
4. Select a color from the middle column.
5. Select a line thickness from the right column.
6. Tap Done to save the settings and exit, or tap Cancel to exit without saving.
4) Digital Gauge Mode — displays the parameters in form of a digital gauge graph.
Trigger Settings
On the trigger setting screen, you can set a standard range by filling in a minimum value
and a maximum value. When exceeding this range, the trigger function will be executed
and the device will automatically record and save the generated data. You can check the
saved live data by tapping the Review button at the bottom of the screen.
Tap the drop-down button on the right side of a parameter to open a submenu. The
Trigger button is the last one in the submenu. Tap to display the “Trigger Settings”
window.
48

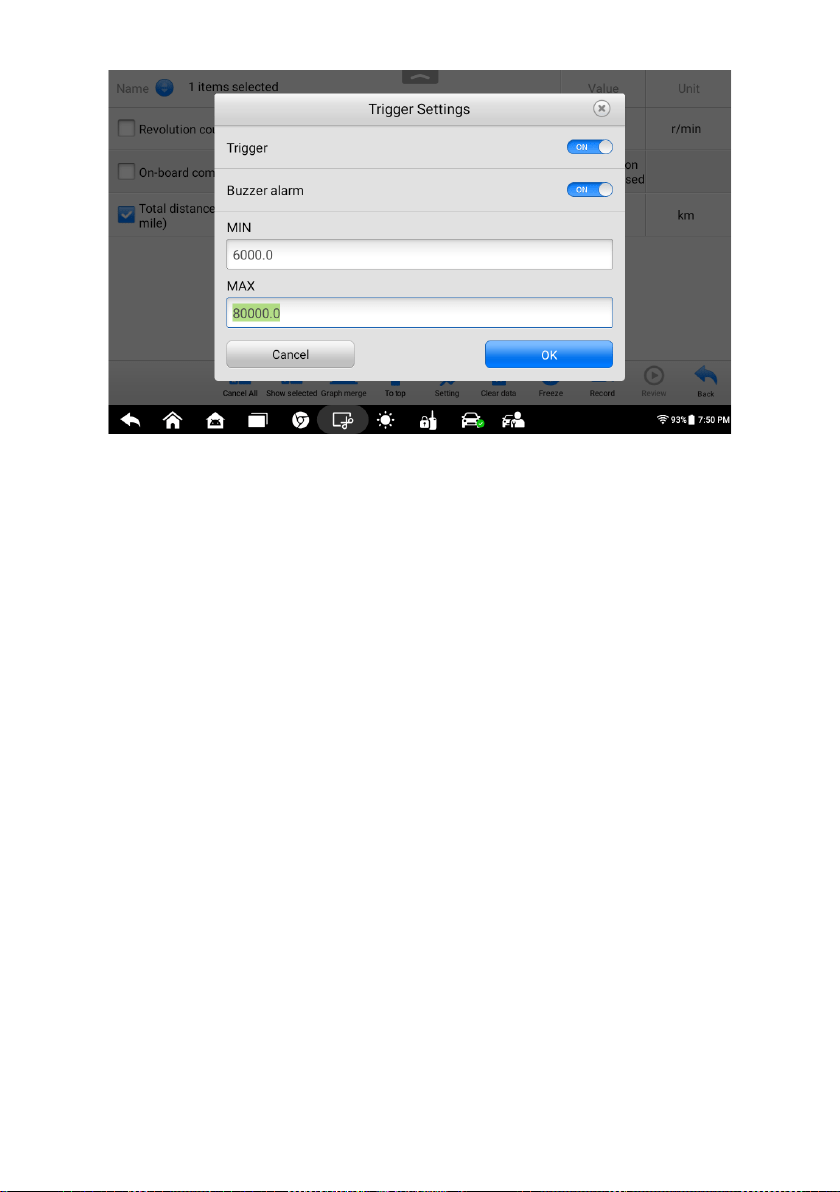

Figure 6-8 Trigger Settings Screen
Two buttons and two input boxes are available in the Trigger Setting window.
a) Trigger — switches the trigger on and off. The trigger is On by default.
b) Buzzer Alarm — switches the alarm on and off. The alarm function makes a beep
sound as an alert when the data reading reaches the preset minimum or maximum point.
The buzzer alarm will only sound at the first trigger.
c) MIN — tap this input box to display a virtual keyboard to enter the required lower limit
value.
d) MAX — tap this input box to display a virtual keyboard to enter the required upper limit
value.
When the trigger is successfully set, a trigger mark displays in front of the parameter.
The mark disappears when it is not triggered, and displays when triggered. Moreover,
two horizontal lines display on each of the data graphs (when Waveform Graph Mode is
applied) to indicate the alarm point. The limit lines are shown in different colors to
differentiate them from the parameter waveforms.
3. Function Buttons
The operations of available function buttons on the Live Data screen are described below:
Cancel All — tap this button to cancel all selected parameter items. Up to 50 parameters
can be selected at one time.
Show Selected/Show All — tap this button to switch between the two options; one
displays the selected parameters, the other displays all the available items.
49

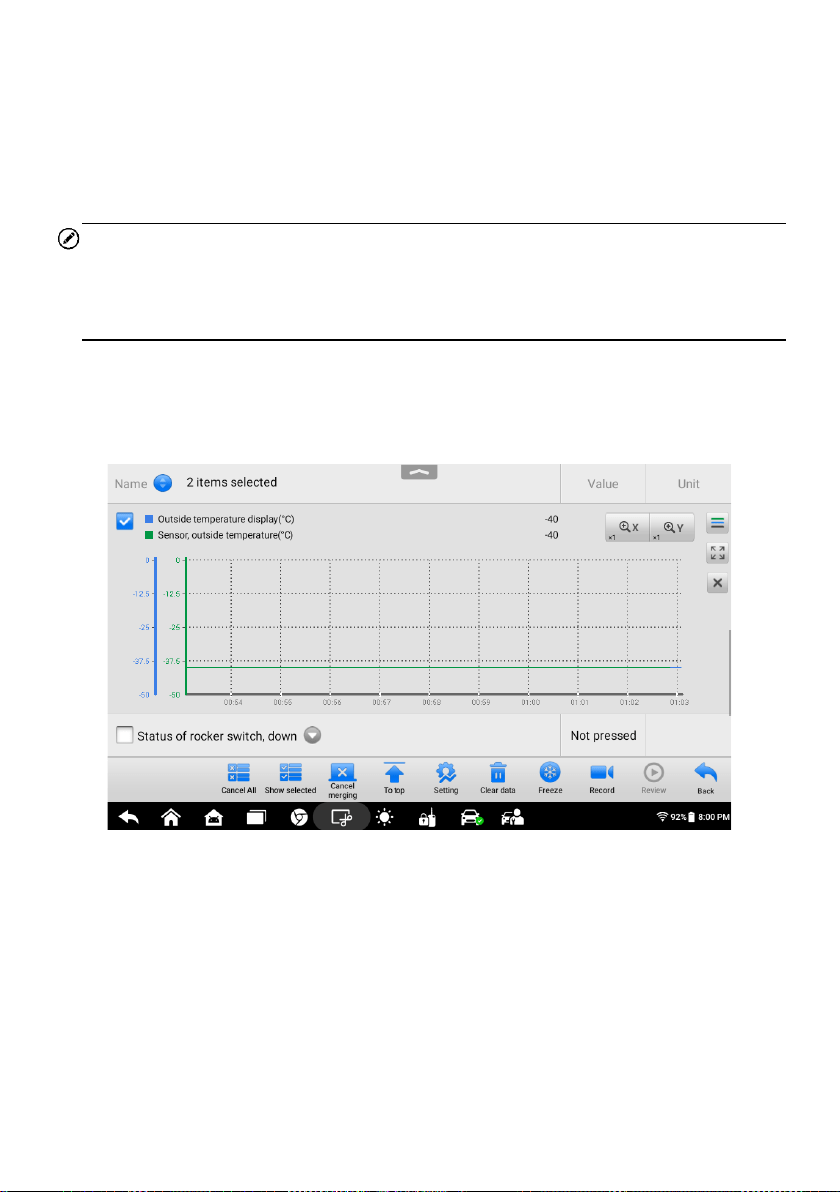

Graph Merge — tap this button to merge selected data graphs (for Waveform Graph
Mode only). This function is useful when comparing between different parameters.
NOTE
In this mode, Graph Merge supports 2 to 5 parameters when merging.
➢ To merge selected data graphs
1) Select parameters to be merged.
2) Tap the Graph Merge button at the bottom of the Live Data Screen.
a) This mode only supports parameters that can be represented digitally. If
non-digital parameters are selected, a message will display advising the
user that the selected parameters are not supported in this mode and to
select 2 to 5 digital parameters. Tap the Got It button to return to the
previous screen and select supported parameters.
b) If parameters are selected that are not supported in this mode, a message
will display advising the user to select parameters that are supported. A
message will also display if more than 5 parameters have been selected.
Please select 2 to 5 of the supported parameters and tap the OK button to
merge.
3) Tap the Cancel Merging button at the bottom of the Live Data screen to cancel
merging.
To Top — moves a selected data item to the top of the list.
Setting — tap button to set recording duration. Eleven options are available: 5 seconds,
15 seconds, 30 seconds, 60 seconds, 90 seconds, 3 minutes, 5 minutes, 10 minutes, 20
minutes, 30 minutes, and 60 minutes.
➢ To set live data recording duration
1. Tap the Setting button at the bottom of the Live Data screen.
2. Tap the > button to the right of Recording time after trigger bar and select a
time length.
3. Tap OK to save the setting and return to the Live Data Setting screen, or tap
the X button at the upper-right corner to exit without saving.
4. Tap Done at the upper-right corner of the Live Data Setting screen to confirm
and save the setting, and return to the Live Data screen, or tap Cancel to exit
without saving.
Clear Data — tap this button to clear all cached live data.
Freeze — displays the retrieved data in freeze mode.
⚫ Previous Frame — moves to the previous frame of frozen data.
50
⚫ Next Frame — moves to the next frame of frozen data.
⚫ Play/Pause — tap to play/pause the frozen data.
⚫ Resume — tap to exit the freeze data mode and return to normal data display.
Record —starts recording the live data of the selected data items. Tap the Record button
at the bottom of the Live Data screen. A message will display prompting user to select
parameters to record. Tap Got It button to confirm. Scroll down and select data to record.
Tap the Record button to start recording. Tap Resume button to stop recording. The
recorded live data can be viewed in the Review section at the bottom of the Live Data
screen. The recorded data can also be reviewed in the Data Manager application.
⚫ Resume — tap to stop data recording and to return to normal data display.
⚫ Flag — displays when the Record function is applied. Tap this button to set flags to
note points of interest when recording data. Notes can be added during playback in
Review or Data Manager. Select the preset flag to open a popup window and display
a virtual keyboard to input notes.
Review — reviews the recorded data. Tap the Review button to display a recording list
and select one item to review.
NOTE
Only the data recorded during the current operation can be reviewed on the Live Data
screen. All the historical recorded data can be reviewed in "Review Data" in the Data
Manager application.
⚫ Previous Frame — switches to the previous frame of recorded data.
⚫ Next Frame — switches to the next frame of recorded data.
⚫ Play/Pause — tap to play/pause the recorded data.
⚫ Show Selected — displays the selected parameters.
⚫ Graph Merge — merges selected data graphs.
⚫ Back — exits the review, and return to the Live Data screen.
Back — returns to previous screen or exits the function.
6.1.2.5 Active Test
The Active Test function is used to access vehicle-specific subsystem and component
tests. Available tests vary depending on the manufacturer, year, and model, and only the
available tests display in the menu.
During an active test, the tester outputs commands to the ECU in order to drive the
actuators. This test determines the integrity of the system or parts by reading the engine
ECU data, or by monitoring the operation of the actuators, such as switching a solenoid,
relay, or switch, between two operating states.
51
Selecting Active Test opens a menu of test options that varies by make and model.
Selecting a menu option activates the test. Follow all screen instructions while performing
tests. The content and pattern of the on-screen information vary according to the type of
test being performed. Some toggle and variable control tests display Active Test Controls
at the top of the screen with data stream information below, or vice versa.
Figure 6-9 Active Test Screen
The function buttons at the lower right corner of the Active Test screen manipulate the
test signals. The operational instructions are displayed on the main section of the test
screen. Simply follow the on-screen instructions and make appropriate selections to
complete the tests. Each time when an operation is successfully executed, message
such as “Command Finished”, “Activation Successful”, or something similar displays.
Tap the ESC function button to exit the test when finished.
6.1.2.6 Special Function
These functions perform various component adaptations, allowing you to recalibrate or
configure certain components after making repairs or replacement.
The main section of the Adaptation Operation screen displays a list of operational and
vehicle status information, which mainly consists of four parts:
The first part in the top line shows the description of the operation being performed,
and the execution status is displayed on the right, such as Completed, Activated, etc.
The second part shows the preconditions or requirements for executing the
operation being selected.
The third part displays the current conditions of the vehicle control module being
52
learned for comparison to the preconditions suggested by the second part. If the
current condition of the control module is out of the suggested limit value, you must
adjust the vehicle condition to meet the requirement.
The last part displays the instruction of how to use the function button at the lower
right corner of the screen to manipulate the teach-in operations.
Figure 6-10 Special Function Screen
Read the information carefully and check the vehicle condition accordingly, when you are
sure that the vehicle is ready to perform the adaptation, simply follow the instruction
provided to make appropriate selections. When the operation is done, an execution
status message such as Completed, Finished or Successful, displays.
Tap the ESC button to exit the function.
6.2 Generic OBDII Operations
A fast-access option for OBDII/EOBD vehicle diagnosis is available on the Vehicle Menu
screen. This option presents a quick way to check for DTCs, isolate the cause of an
illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions
certification testing, verify repairs, and perform a number of other emissions-related
services. The OBD direct access option is also used for testing OBDII/EOBD compliant
vehicles that are not included in the Diagnostics database.
Functions of the diagnostics toolbar buttons at the top of the screen are the same as
those available for specific vehicle diagnostics. See Table 4-2 Operation Toolbar Buttons
for details.
53
6.2.1 General Procedure
➢ To access the OBDII/EOBD diagnostics functions
1. Tap the Diagnostics application button on the MaxiIM Job Menu. The Vehicle
Menu displays.
2. Tap the EOBD button. There are two options to establish communication with
the vehicle.
⚫ Auto Scan — when this option is selected, the diagnostic tool attempts to
establish communication using each protocol in order to determine which
one the vehicle is broadcasting on.
⚫ Protocols — when this option is selected, the screen opens a submenu of
various protocols. A communication protocol is a standardized way of data
communication between an ECM and a diagnostic tool. Global OBD may
use several different communication protocols.
3. Select a specific protocol under the Protocols option. Wait for the OBDII
Diagnostics Menu to appear.

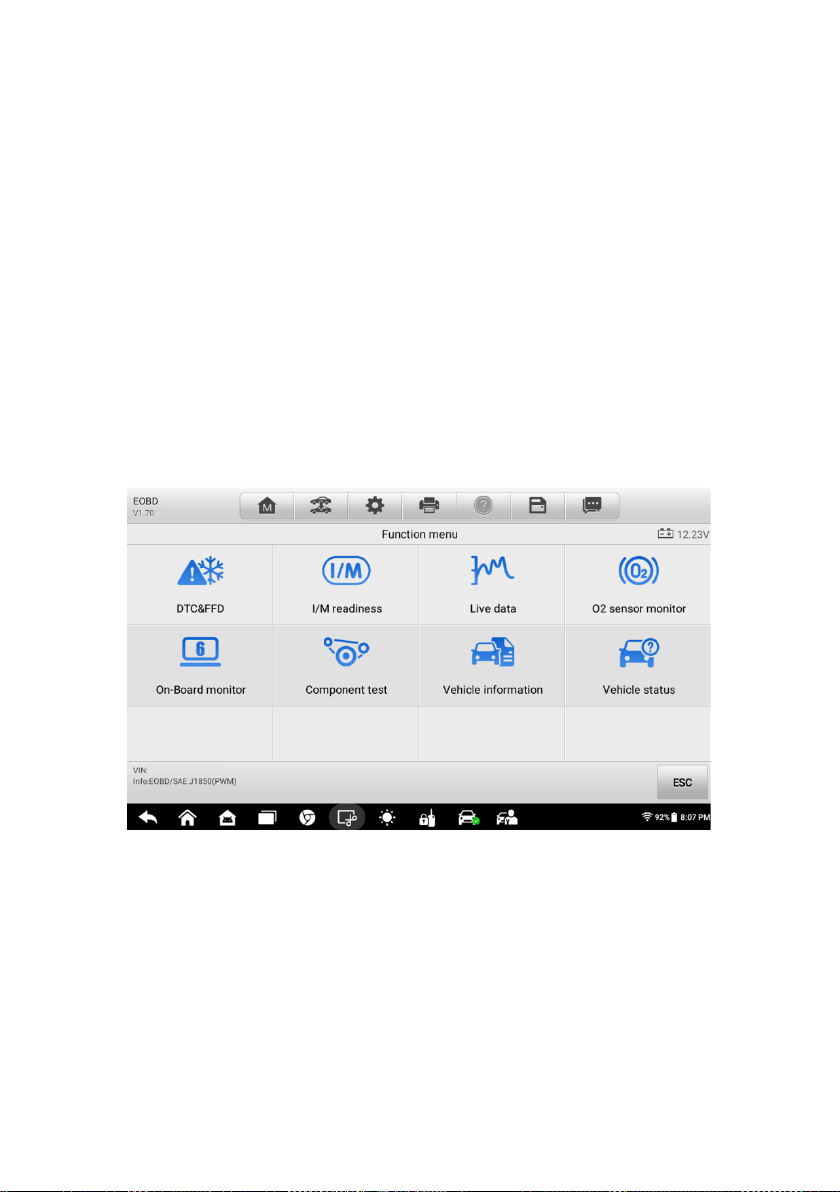

Figure 6-11 OBDII Diagnostics Menu Screen
4. Select a function option to continue.
⚫ DTC & FFD
⚫ I/M Readiness
⚫ Live Data
⚫ O
2
Sensor Monitor
⚫ On-Board Monitor
⚫ Component Test
⚫ Vehicle Information
54
⚫ Vehicle Status
NOTE
Some functions are supported only on certain vehicles.
6.2.2 Function Descriptions
This section describes the various functions of each diagnostic option:
6.2.2.1 DTC & FFD
When this function is selected, the screen displays a list of Stored Codes and Pending
Codes. When the Freeze Frame data of certain DTCs are available for viewing, a
snowflake button will display on the right side of the DTC item.
Figure 6-12 DTC & FFD Screen
The Erase codes and Read codes function can be applied by tapping the function buttons
at the bottom of the screen.
⚫ Stored Codes
Stored codes are the current emissions-related DTCs from the ECM of the vehicle.
OBDII/EOBD Codes have a priority according to their emission severity, with higher
priority codes overwriting lower priority codes. The priority of the code determines
the illumination of the Malfunction Indicator Light (MIL) and the codes erase
procedure. Manufacturers rank codes differently, so expect to see differences
between vehicles.
55
⚫ Pending Codes
These are codes whose setting conditions were met during the last drive cycle, but
need to be met on two or more consecutive drive cycles before the DTC actually
sets. The intended use of this service is to assist the service technician after a
vehicle repair and after clearing diagnostics information, by reporting test results
after a driving cycle.
a) If a test fails during the driving cycle, the DTC associated is reported. If the
pending fault does not occur again within 40 to 80 warm-up cycles, the fault is
automatically cleared from memory.
b) Test results reported by this service do not necessarily indicate a faulty
component or system. If test results indicate another failure after additional
driving, then a DTC is set to indicate a faulty component or system, and the MIL
is illuminated.
⚫ Freeze Frame
In most cases the stored frame is the last DTC reported. Certain DTCs, which have
a greater impact on vehicle emission, have a higher priority. In these cases, the top
prioritized DTC is the one for which the freeze frame records are retained. Freeze
frame data includes a “snapshot” of critical parameter values at the time the DTC is
set.
⚫ Erase Codes
This option is used to clear all emissions-related diagnostics data such as DTCs,
freeze frame data, and specific manufacturer-enhanced data from the vehicle’s ECM.
A confirmation screen displays when the clear codes option is selected to prevent
accidental loss of data. Select Yes on the confirmation screen to continue or No to
exit.
6.2.2.2 I/M Readiness
This function is used to check the readiness of the monitoring system. It is an excellent
function to use prior to having a vehicle inspected for compliance to a state emissions
program. Selecting I/M Readiness opens a submenu with two choices:
⚫ Since DTCs Cleared — displays the status of monitors since the last time the DTCs
are erased.
⚫ This Driving Cycle — displays the status of monitors since the beginning of the
current drive cycle.
6.2.2.3 Live Data
This function displays the real time PID data from ECU. Displayed data includes analog
inputs and outputs, digital inputs and outputs, and system status information broadcast
on the vehicle data stream.
56
Live data can be displayed in various modes. See Live Data for detailed information.
6.2.2.4 O
2
Sensor Monitor
This option allows retrieval and viewing of O
2
sensor monitor test results for the most
recently performed tests from the vehicle’s on-board computer.
The O
2
Sensor Monitor test function is not supported by vehicles that communicate using
a controller area network (CAN). For O
2
Sensor Monitor tests results of CAN-equipped
vehicles, refer to On-Board Monitor.
6.2.2.5 On-Board Monitor
This option allows you to view the results of On-Board Monitor tests. The tests are useful
after the service when a vehicle’s control module memory is already erased.
6.2.2.6 Component Test
This service enables bi-directional control of the ECM so that the diagnostics tool is able
to transmit control commands to operate the vehicle systems. This function is useful in
determining whether the ECM responds to a command well.
6.2.2.7 Vehicle Information
The option displays the vehicle identification number (VIN), the calibration identification,
and the calibration verification number (CVN), and other information of the test vehicle.
6.2.2.8 Vehicle Status
This item is used to check the current condition of the vehicle, including communication
protocols of OBDII modules, retrieved codes amount, status of the Malfunction Indicator
Light (MIL), and other additional information.
6.3 Exiting Diagnostics
The Diagnostics application remains open as long as there is an active communication
with the vehicle. You must exit the diagnostics operation to stop all communications with
the vehicle before closing the Diagnostics application.
NOTE
Damage to the vehicle electronic control module (ECM) may occur if communication is
disrupted. Make sure all connections, such as USB cable and wireless connection, are
properly connected at all times during testing. Exit all tests before disconnecting the test
cable or powering down the tablet.
57
➢ To exit the Diagnostics application
1. On an active diagnostics screen, tap the Back or ESC button to exit a
diagnostics session step-by-step.
2. Or tap the Vehicle Swap button on the diagnostics toolbar to return to the
Vehicle Menu screen.
3. On the Vehicle Menu screen, tap the Home button on the top toolbar; or tap the
Back button on the navigation bar at the bottom of the screen.
4. Or tap the Home button on the diagnostics toolbar to exit the application directly
and go back to the MaxiIM Job Menu.
Now, the Diagnostics application is no longer communicating with the vehicle and it is
safe to open other MaxiIM applications, or exit the MaxiIM Diagnostics System and return
to the Android System’s Home screen.
58
7 Service
The Service section is specially designed to provide you with quick access to the vehicle
systems for various scheduled service and maintenance performances. The typical
service operation screen is a series of menu driven executive commands. By following
the on-screen instructions to select appropriate execution options, enter correct values
or data, and perform necessary actions, the system will guide you through the complete
performance for various service operations.
The most commonly performed service functions include:
⚫ Oil Reset Service
⚫ EPB Service
⚫ BMS Service
⚫ SAS Service
⚫ DPF Service
⚫ TPMS Service
After entering each special function, the displayed screen consists of two applications:
Diagnosis and Hot Functions. The Diagnosis is for you to read/clear data since this is
necessary after some special functions. Hot Functions consists of sub functions of the
selected special function.
7.1 Oil Reset
This function allows you to perform reset for the Engine Oil Life system, which calculates
an optimal oil life change interval depending on the vehicle driving conditions and climate.
The Oil Life Reminder must be reset every time the oil is changed, so the system can
calculate when the next oil change is required.
IMPORTANT
Always reset the engine oil life to 100% after every oil change.
NOTE
1. All required work must be carried out before the service indicators are reset. Failure
to do so may result in incorrect service values and cause DTCs to be stored by the
relevant control module.
2. For some vehicles, the scan tool can perform added functionality to reset additional
59
service lights (maintenance cycle, service interval). Taking BMW as an example, its
service reset function includes engine oil, spark plugs, front/rear brakes, coolant, particle
filter, brake fluid, micro filter, vehicle inspection, exhaust emission inspection and vehicle
check.
7.2 Electronic Parking Brake (EPB)
This function has a multitude of usages to maintain the electronic braking system safely
and effectively. The applications include deactivating and activating the brake control
system, assisting with brake fluid control, opening and closing brake pads, and setting
brakes after disc or pad replacement, etc.
7.2.1 EPB Safety
It may be dangerous to perform Electronic Parking Brake (EPB) system maintenance, so
before you begin the service work, please keep these rules in mind.
✓ Ensure that you are fully familiar with the braking system and its operation before
commencing any work.
✓ The EPB control system may be required to be deactivated before carrying out any
maintenance/diagnostic work on the brake system. This can be done from the tool
menu.
✓ Only carry out maintenance work when the vehicle is stationary and on level ground.
✓ Ensure that the EPB control system is reactivated after the maintenance work has
been completed.
NOTE
Autel accepts no responsibility for any accident or injury arising from the maintenance of
the Electronic Parking Brake system.
7.3 BMS
The BMS (Battery Management System) allows the scan tool to evaluate the battery
charge state, monitor the close-circuit current, register the battery replacement, and
activate the rest state of the vehicle.
NOTE
1. This function is not supported by all vehicles.
2. The sub functions and actual test screens of the BMS may vary for different test
vehicles, please follow the on-screen instructions to make correct option selection.
60
The vehicle may use either a sealed lead-acid battery or an AGM (Absorbed Glass Mat)
battery. Lead acid battery contains liquid sulphuric acid and can spill when overturned.
AGM battery (known as VRLA battery, valve regulated lead acid) also contains sulphuric
acid, but the acid is contained in glass mats between terminal plates.
It is recommended that the replacement aftermarket battery has the same specifications,
such as capacity and type, with the battery used in the vehicle. If the original battery is
replaced with a different type of battery (e.g. a lead-acid battery is replaced with an AGM
battery) or a battery with a different capacity (mAh), the vehicle may require
reprogramming the new battery type in addition to performing the battery reset. Consult
the vehicle manual for additional vehicle-specific information.
7.4 Steering Angle Sensor (SAS)
Steering Angle Sensor Calibration permanently stores the current steering wheel position
as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front
wheels and the steering wheel must be set exactly to the straight-ahead position before
calibration. In addition, the vehicle identification number is also read from the instrument
cluster and stored permanently in the steering angle sensor EEPROM. On successful
completion of calibration, the steering angle sensor fault memory is automatically cleared.
Calibration must always be carried out after the following operations:
⚫ Steering wheel replacement
⚫ Steering angle sensor replacement
⚫ Any maintenance that involves opening the connector hub from the steering angle
sensor to the column
⚫ Any maintenance or repair work on the steering linkage, steering gear or other
related mechanism
⚫ Wheel alignment or wheel track adjustment
⚫ Accident repairs where damage to the steering angle sensor or assembly, or any
part of the steering system may have occurred
NOTE
1. Autel accepts no responsibility for any accident or injury arising from servicing the
SAS system. When interpreting DTCs retrieved from the vehicle, always follow the
manufacturer’s recommendation for repair.
2. All software screens shown in this manual are examples, actual test screens may
vary for each vehicle being tested. Observe the menu titles and on-screen instructions to
make correct option selections.
61
3. Before starting the procedure, make sure the vehicle has an ESC button. Look for the
button on dash.
7.5 Tire Pressure Monitor System (TPMS)
This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as
well as to perform TPMS replacement and reset procedures after tire sensors are
replaced.
7.6 IMMO Keys
An immobilizer is an anti-theft mechanism that prevents an automobile’s engine from
starting unless the correct ignition key or other device is present. This device prevents
thieves from starting the car by a method known as hot wiring. Most new vehicles have
an immobilizer as standard equipment. An important advantage of this system is that it
doesn't require the car owner to activate it. It operates automatically. An immobilizer is
considered as providing much more effective anti-theft protection than an audible alarm
alone. Many auto insurance companies offer lower rates for vehicles that are equipped
with an immobilizer.
As an anti-theft device, an immobilizer disables one of the systems needed to start a
car's engine, usually the fuel supply or the ignition. This is accomplished by radio
frequency identification between a transponder in the ignition key and a device called a
radio frequency reader in the steering column. When the key is placed in the ignition, the
transponder sends a signal with a unique identification code to the reader, which relays
it to a receiver in the vehicle's computer control module. If the code is correct, the
computer allows the fuel supply and ignition systems to operate and start the car. If the
code is incorrect or absent, the computer disables the system, and the car will be unable
to start until the correct key is placed in the ignition.
The IMMO Keys service can disable a lost vehicle key and program the replacement key
fob. One or more replacement key fobs can be programmed.
62
8 Update
The Update application allows you to download the latest released software. The updates
can improve the MaxiIM applications’ capabilities, typically by adding new tests, new
models or enhanced applications to the database.
The Tablet automatically searches for available updates for all of the MaxiIM software
when it is connected to the Internet. Any updates that are found can be downloaded and
installed on the device. This section describes installing an update to the MaxiIM System.
Figure 8-1 Update Screen
1. Navigation and Controls
⚫ Home Button — returns the MaxiIM Job Menu.
⚫ Update All — updates all available update packages.
⚫ Show Recent — shows the recent updates.
⚫ IMMO Tab — displays all the available IMMO software for vehicles.
⚫ Diagnostics Tab — displays all the available vehicle diagnostic software.
⚫ Renew Button — displays expire date of the software. Tap on the Renew Button
to extend subscription.
⚫ Refresh Button — refreshes the available update list.
⚫ Search Button — search a specific update item by inputting the file name such
as a specific vehicle manufacturer.
63
2. Status Bar
⚫ Left Side — displays user account, MaxiIM device model information, and serial
number.
⚫ Right Side — displays the real-time Internet speed amid downloading.
3. Main Section
⚫ Left Column — displays vehicle logos.
⚫ Middle Column — displays a brief introduction about the new changes to the
software operation or capabilities. Tap the button to display an information
screen to view more details, and tap the dim area around to close the window.
⚫ Right Column — according to the operation status of each software item, the
button displays differently.
a) Tap Update to update the selected item.
b) Tap Pause to suspend the updating procedure.
c) Tap Continue to continue updating the suspended update.
➢ To update the diagnostic software
1. Make sure the Tablet is connected to a power source with stable access to the
Internet.
2. Tap the Update application button from the MaxiIM Job Menu, or tap the update
notification message when received one, or tap the Update icon on Vehicle
Menu in Diagnostics application. The Update application screen displays.
3. Check all available updates:
⚫ If you decide to update all the items of IMMO software, select IMMO Tab
and then tap the Update All button; if you want to update all items of
diagnostics software, select Diagnostics Tab and then tap the Update All
button.
⚫ If you only want to update one or some of the item(s), tap the Update button
on the right of the specific item(s).
4. Tap the Pause button to suspend the updating process. Tap Continue to
resume the update and the process will continue from the pause point.
5. When the updating process is completed, the software will be installed
automatically. The new version will replace the older version.
64
9 Settings
Selecting Settings application opens a setup screen, on which you can adjust default
settings and view information about the MaxiIM system. There are nine options available
for the MaxiIM system settings:
⚫ Unit
⚫ Language
⚫ Printing Settings
⚫ Report Settings

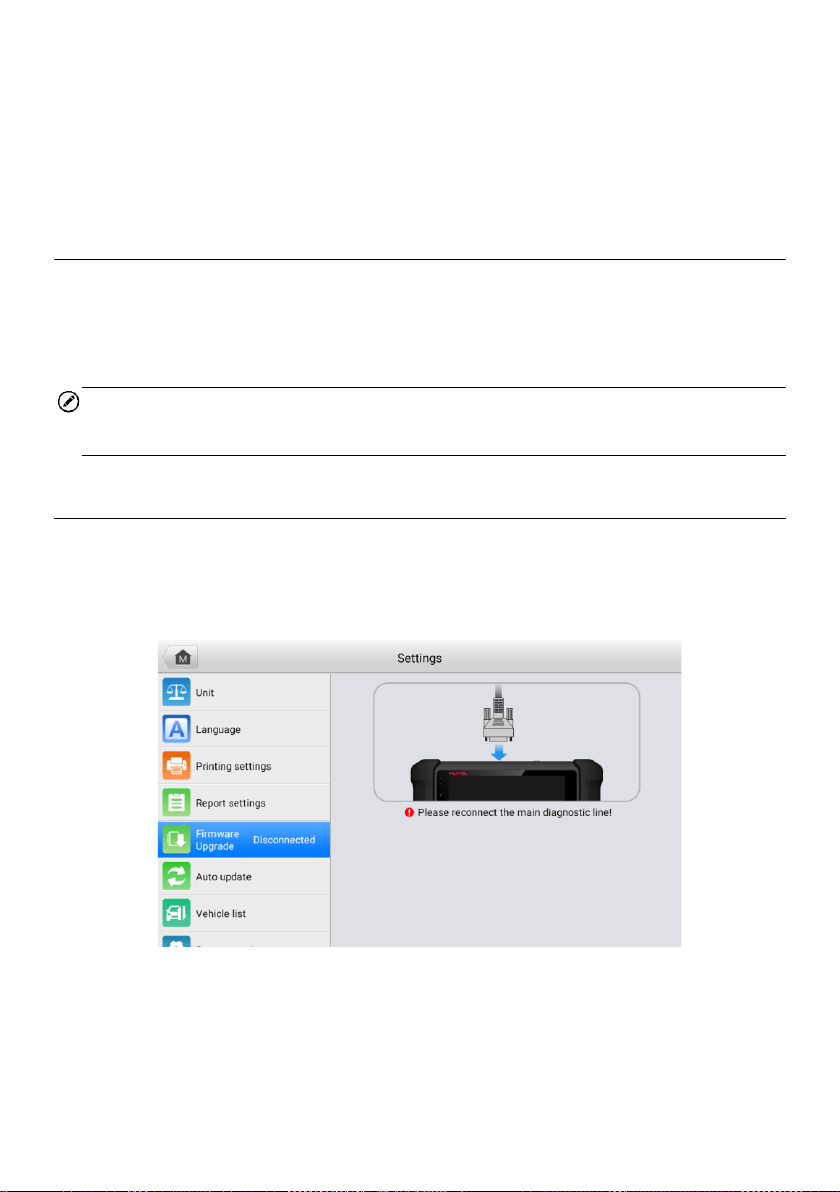

⚫ Firmware Upgrade
⚫ Auto Update
⚫ Vehicle List
⚫ System Settings
⚫ About
This section describes the operation procedures for the settings.
9.1 Unit
This option allows you to adjust the measurement unit for the diagnostics system.
➢ To adjust the unit setting
1. Tap the Settings application on the MaxiIM Job Menu.
2. Tap the Unit option on the left column.
3. Select the required measurement unit, Metric or English. A check mark will
display to the right of the selected unit.
4. Tap the Home button on the top-left corner to return to the MaxiIM Job Menu,
or select another setting option for system setup.
9.2 Language
This option allows you to adjust the display language for the MaxiIM system.
➢ To adjust the language setting
1. Tap the Settings application on the MaxiIM Job Menu.
2. Tap the Language option on the left column.
65
3. Select the required language. A check mark will display to the right of the
selected language.
4. Tap the Home button on the top-left corner to return to the MaxiIM Job Menu,
or select another setting option for system setup.
9.3 Printing Settings
Printing Setting
This option allows you to print any data or information via a PC.
➢ To set up the printer connection
1. Tap the Settings application on the MaxiIM Job Menu.
2. Tap the Printing Settings option on the left column.
3. Tap the Print via PC-Link item to activate the printing function, which enables
the device to send files to the printer through the PC via Wi-Fi connection.
4. Tap the Home button on the top-left corner to return to the MaxiIM Job Menu.
Or select another setting option for system setup.
Printing Operations
➢ To install the MaxiSys Printer driver program
1. Download Maxi PC Suite on www.autel.com > Support > Downloads > Autel
Update Tools. Select Maxi PC Suite and click Download here to install the
printer to your PC.
2. Double click the setup.exe file.
3. Select the installation language and the wizard will load momentarily.
4. Follow the instructions on the screen and click Next to continue.
5. Click install. The printer driver program will be installed onto the PC.
6. Click Finish to complete the installation.
NOTE
