ECAM20.11X - 21.11X - 22.11X
BEAN TO CUP ESPRESSO
AND CAPPUCCINO
MACHINE
Instruction for use
2
EN
page 6
B2
B3
B4
B7
B8
B9
B5
B6
B
C
B1
C1 C2 C3
3
PUSH
A
A12
A1
A2
A3
A5
A6
A4
A7
A8
A19
A18
A14
A13
A15
A17
A16
A10
A9
A11
4
3 4
5 6 7 8
10 11 12
13 14 15 16
1A
1B
2
0,5 L
9
5
17 18 19 20
21 22 23 24
25 26 27 28
29 30 31
PUSH
PUSH
B
A
A B
32
6
CONTENTS
INTRODUCTION ................................................7
Symbols used in these instructions .................................. 7
Letters in brackets ............................................................ 7
Troubleshooting and repairs ............................................ 7
SAFETY ............................................................7
Fundamental safety warnings.......................................... 7
Designated use ................................................................ 7
Instruction for Use............................................................ 8
DESCRIPTION ...................................................8
Description of the appliance ............................................ 8
Description of the control panel ....................................... 8
Description of the accessories .......................................... 8
Description of lights ......................................................... 8
BEFORE USE .....................................................9
Checking the appliance .................................................... 9
Installing the appliance ................................................... 9
Setting up the appliance .................................................. 9
Using the appliance for the rst time ...............................9
TURNING THE APPLIANCE ON ............................9
TURNING THE APPLIANCE OFF ......................... 10
AUTO-OFF ....................................................... 10
ENERGY SAVING .............................................. 10
WATER SOFTENER FILTER
(SOME MODELS ONLY) ... 10
Installing the lter ......................................................... 10
Removing and replacing the lter ................................. 11
MAKING COFFEE ............................................. 11
Selecting the coee taste ............................................... 11
Selecting the quantity of coee in the cup .................... 11
Adjusting the coee mill ................................................ 11
Setting the temperature ................................................ 11
Tips for a hotter coee ................................................... 11
Making coee using coee beans .................................. 12
Making coee using pre-ground coee ......................... 12
MAKING CAPUCCINO ...................................... 12
Cleaning the cappuccino maker after use .......................13
HEATING WATER ............................................. 13
CLEANING ...................................................... 13
Cleaning the drip tray and condensate tray ....................13
Cleaning the inside of the coee maker ......................... 14
Cleaning the water tank ................................................. 14
Cleaning the coee spouts ............................................. 14
Cleaning the pre-ground coee funnel .......................... 14
Cleaning the infuser ....................................................... 14
DESCALING ..................................................... 14
SETTING WATER HARDNESS ............................. 15
Measuring water hardness ............................................. 15
Set water hardness ........................................................ 15
TECHNICAL DATA............................................. 15
EXPLANATION OF LIGHTS ................................ 16
DISPOSAL ....................................................... 16
TROUBLESHOOTING ........................................ 17
ELECTRICAL CONNECTION (UK ONLY) ................ 19
7
INTRODUCTION
Thank you for choosing this automatic espresso and cappuccino
machine.
We hope you enjoy using your new appliance.
Take a few minutes to read this Instruction for Use.
This will avoid all risks and damage to the appliance.
Symbols used in these instructions
Important warnings are identied by these symbols. It is vital to
respect these warnings.
Danger!
Failure to observe the warning may result in life threatening
injury by electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in burns or scalding.
Please note:
This symbol identies important advice or information for the
user.
Letters in brackets
The letters in brackets refer to the legend in the Description of
the Appliance on pages 2 and 3.
Troubleshooting and repairs
In the event of problems, rst try and resolve them following
the information given in the sections “Explanation of lights” on
page 16 and “Troubleshooting” on page 17.
If this does not resolve the problem or you require further in-
formation, you should consult Customer Services by calling the
number given on the annexed “Customer Service” sheet.
If your country is not among those listed on the sheet, call the
number given in the guarantee. If repairs are required, contact
De’Longhi Customer Services only. The addresses are given in
the guarantee certicate provided with the machine.
SAFETY
Fundamental safety warnings
Danger!
This is an electrical appliance and may cause electric shock.
You should therefore follow these safety warnings:
• Never touch the appliance with damp hands or feet.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessible at all times,
enabling the appliance to be unplugged when necessary.
• Unplug directly from the plug only. Never pull the power
cable as you could damage it.
• To disconnect the appliance completely, unplug it from the
mains socket.
• If the appliance is faulty, do not attempt to repair.
Turn it o, unplug from the mains socket and contact Cus-
tomer Services.
If the plug or power cable is damaged, it
must be replaced by De’Longhi Customer
Services only to avoid all risk.
Never immerse the appliance in water when
cleaning. It is an electrical appliance.
• Before cleaning the outside of the appliance, turn it o,
unplug from the mains socket and allow to cool.
Important:
Keep all packaging (plastic bags, polystyrene foam) away from
children.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge
if they
have been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Danger of burns!
This appliance produces hot water and steam may form while
it is in operation.
Avoid contact with splashes of water or hot steam.
When the appliance is in operation, do not touch the cup shelf,
as it is hot.
Surfaces marked with this symbol
become hot during use (the symbol
is present on certain models only).
Designated use
This appliance is designed and made to prepare coee and heat
drinks.
8
This is a household appliance only.
It is not intended to be used in:
• sta kitchen areas in shops, oces and
other working environments;
• farm houses;
• by clients in hotels, motels and other
residential type environments;
• bed and breakfast type environments.
Any other use is considered improper and thus dangerous.
The manufacturer is not liable for damage deriving from im-
proper use of the appliance.
Instruction for Use
Read these instructions carefully before using the appliance.
Failure to respect these instructions may result in burns or dam-
age to the appliance.
The manufacturer is not liable for damage deriving from failure
to respect this Instruction for Use.
Please note:
Keep this Instruction for Use.
If the appliance is passed to other persons, they must also be
provided with this Instruction for Use.
DESCRIPTION
Description of the appliance
(page 3 - A )
A1. Control panel
A2. Grinding adjustment dial
A3. Cup shelf
A4. Beans container lid
A5. Pre-ground coee funnel lid
A6. Pre-ground coee funnel
A7. Beans container
A8. Main switch
A9. Water tank
A10. Infuser door
A11. Infuser
A12. Coee spout (adjustable height)
A13. Coee grounds container
A14. Condensate tray
A15. Cup tray
A16. Drip tray water level indicator
A17. Drip tray
A18. Cappuccino maker
A19. Steam/hot water dial
Description of the control panel
(page 2 - B )
B1. Lights
B2.
button: turns the appliance on and o.
B3.
button: to make 1 cup of espresso coee
B4.
button: to make 2 cups of espresso coee
B5.
button: to rinse or descale the appliance
B6. Selection dial: turn to select the required quantity of coee
or use pre-ground coee
B7.
button: to deliver steam to make hot drinks with
milk.
B8.
button: to make 1 cup of espresso coee
B9.
button: to make 2 cups of espresso coee
Description of the accessories
(pag. 2 - C )
C1. Measure
C2. Descaler bottle
C3. Water softener lter (some models only)
Description of lights
Light ashing: the machine is heating up or a
rinse cycle is underway.
The appliance is delivering one or two cups of
espresso coee.
The appliance is delivering one or two cups of
long coee.
Light on steadily: the “steam” function has been
selected;
Light ashing: you must turn the steam dial.
An alarm is displayed on the control panel (see
the section: “Explanation of lights” on page 16).
Light on steadily: the grounds container is miss-
ing and must be inserted in the appliance;
Light ashing: the grounds container is full and
must be emptied.
Light on steadily: the water tank is missing;
Light ashing: there is not enough water in the
tank.
9
Light ashing: the appliance must be descaled
(see the section “Descaling”).
Light on steadily: the appliance is performing a
descaling cycle.
ECO ECO “Energy Saving” mode is active.
BEFORE USE
Checking the appliance
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present. Do
not use the appliance if it is visibly damaged. Contact De’Longhi
Customer Services.
Installing the appliance
Important!
When you install the appliance, you should respect the follow-
ing safety warnings:
• The appliance gives o heat. After positioning the appli-
ance on the worktop, leave a space of at least 3 cm be-
tween the surfaces of the appliance and the side and rear
walls and at least 15 cm above the coee machine.
• Water penetrating the appliance could cause damage. Do
not place the appliance near taps or sinks.
• The appliance could be damaged if the water it contains
freezes. Do not install the appliance in a room where the
temperature could drop below freezing point.
• Arrange the power cable in such a way that it cannot be
damaged by sharp edges or contact with hot surfaces (e.g.
electric hot plates).
Setting up the appliance
Important!
Check that the mains power supply voltage corresponds to
the value indicated on the rating plate on the bottom of the
appliance.
Connect the appliance to an eciently earthed and correctly
installed socket with a minimum current rating of 10A only.
If the power socket does not match the plug on the appliance,
have the socket replaced with a suitable type by a qualied
professional.
Using the appliance for the rst time
Please note!
• Coee has been used to factory test the appliance and it is
therefore completely normal for there to be traces of cof-
fee in the mill. The machine is, however, guaranteed to be
new.
• You should customise water hardness as soon as possible
following the Instruction for use in the section “Setting
water hardness (page 15).
Follow the instructions:

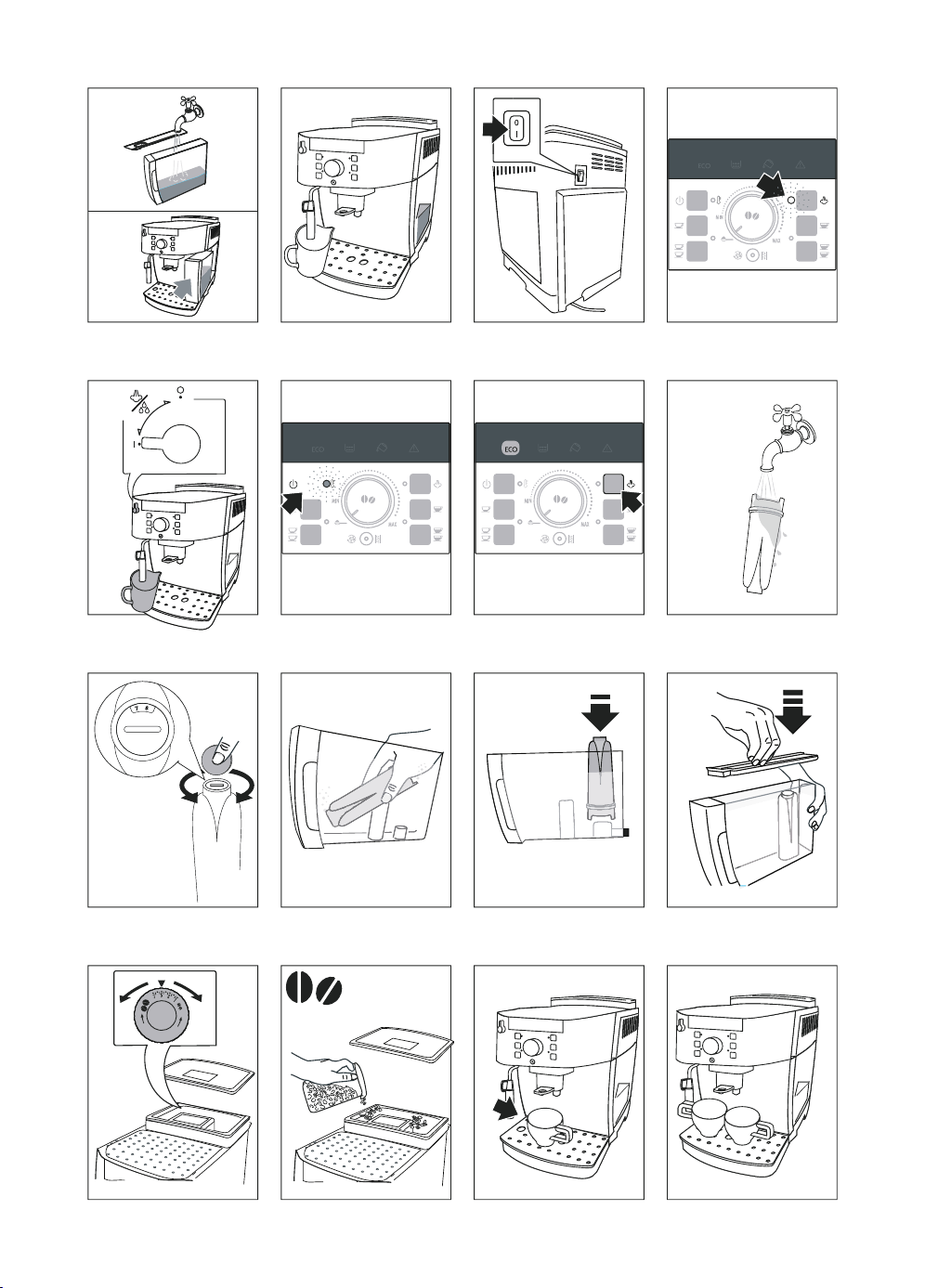

1. Remove the water tank, ll to the MAX line with fresh
water (g. 1A) then put back in the appliance (g. 1B).
2. Place a container with a minimum capacity of 100 ml
under the cappuccino maker (g. 2).
3. Plug the appliance into the mains socket and place the
main switch on the back of the appliance in the I position
(g. 3).
4. The light ashes on the control panel (g. 4).
5. 5. Turn the steam dial to the “I” position (g. 5). The appli-
ance delivers water from the cappuccino maker then goes
o.
6. Turn the steam dial to the “0” position.
The coee maker is now ready for normal use.
Please note!
• When using the appliance for the rst time, you need to
make 4-5 cups of coee or 4-5 cappuccinos before it starts
to give satisfactory results.
• To enjoy your coee even more and improve the perfor-
mance of your appliance, we recommend installing a water
softener lter as described in the section “ WATER SOFTEN-
ER FILTER “ (page 10). If your model is not provided with
a lter, you can request one from De’Longhi Customer
Services.
TURNING THE APPLIANCE ON
Please note!
Before turning the appliance on, make sure the main switch is
pressed (g. 2).
Each time the appliance is turned on, it performs an automatic
preheat and rinse cycle which cannot be interrupted.
The appliance is ready for use only after completion of this cycle.
Danger of burns!
During rinsing, a little hot water comes out of the coee spouts
and is collected in the drip tray underneath.
Avoid contact with splashes of water.
• To turn the appliance on, press the
(g. 6): The corre-
sponding
light ashes while the appliance is heating
up and performing an automatic rinse cycle (by circulating
hot water, the appliance heats both the boiler and the in-
ternal circuits).
The appliance is at temperature when the
light goes o and
the lights corresponding to the coee buttons come on.
10
TURNING THE APPLIANCE OFF
Whenever the coee machine is turned o after being used to
make coee, it performs an automatic rinse cycle.
Danger of burns!
During rinsing, a little hot water ows from the coee spouts.
Avoid contact with splashes of water.
To turn the appliance o, press the
button (g. 6).if fea-
tured, the appliance completes a rinse cycle and then goes o
(standby).
Please note!
If the appliance is not used for an extended period, also place
the main switch in the 0 position (g. 3).
Important!
To avoid damaging the appliance, do not place the main switch
(g. 3) in the 0 position until the appliance has been turned o
using the
button.
AUTO-OFF
The auto-o time can be changed so that the appliance switch-
es o after 15 or 30 minutes, or after 1, 2 or 3 hours.
The set the auto-o, proceed as follows:
1. With the machine o and the main switch in I position
(g. 3), press the
button and keep it pressed until the
lights on the control panel come on.
2. Press the button (on the left side of the dial) until
until the lights corresponding to the number of hours be-
fore the appliance goes o automatically come on:
15 minutes ECO
30 minutes ECO
1 hour ECO
2 hours ECO
3 hours ECO
3. Press the button (on the left side of the dial) to con-
rm; the lights switch o.
ENERGY SAVING
Use this function to enable or disable energy saving mode.
When enabled, the function reduces energy consumption in
compliance with European regulations.
Energy saving mode is active when the green ECO light is on (g.
7).
1. With the appliance o and the main switch in the I position
(g. 3), press the
button and hold it down until the
ECO light comes on (g. 7).
2. To disable the mode, press the button (on the left of
the dial). The ECO light ashes.
3. To re-enable the mode, press the ECO button (on the left of
the dial) again. The ECO light comes on steadily.
4. Press the button (on the right of the dial) to conrm
the selection. The ECO light goes o.
Please note :
A few seconds may elapse between energy saving mode and
delivery of the rst coee as the appliance must heat up again.
WATER SOFTENER FILTER (SOME MODELS ONLY)
Certain models are tted with a water softener lter. If this is not
the case with your model, you are recommended to purchase
one from De’Longhi Customer Services.
Important:
• Keep in a cool dry place out of direct sunlight.
• After opening the pac,, use the lter at once.
• Remove the lte before descaling the machine.
To use the lter correctly, follow the instructions below.
Installing the lter
1. Remove the lter from packaging and rinse the lter with
about half a litre of tap water (g. 8).
2. Rotate the calendar disk so that the next two months are
displayed (g. 9).
Please note:
The lter lasts about two months if the appliance is used nor-
mally. If the coee maker is left unused with the lter installed,
it will last a maximum of three weeks.
3. Remove the tank from the appliance and ll with water
(g. 1A).
4. Insert the lter in the water tank and immerse it complete-
ly, sloping it to enable the air bubbles to escape (g. 10).
5. Insert the lter in the lter housing and press as far as it
will go (g. 11).
6. Close the tank with the lid (g. 12), then replace the tank
in the machine.
7. Place a container (min. capacity: 100 ml) under the cap-
puccino maker.
8. Turn the steam dial in position I to deliver hot water.
9. Let the appliance to deliver hot water for a few seconds, til
the delivery ows regulary, then turn the dial in position 0.
Please note:
It may happen that a single hot water is not sucient to install
the lter: the lghts
come on.
In this case, repeat the installing operation from step 8.
The new lter is active and you can now use the coee maker.
11
Removing and replacing the lter
After two months (see date indicator) or when the appliance
has not been used for 3 weeks, you should remove the lter and
replace with a new one, proceeding as described at the previous
paragraph.
MAKING COFFEE
Selecting the coee taste
Turn the coee taste selection dial (B6) to set the required taste.
Turning it clockwise increases the quantity of coee beans the
appliance will grind and therefore the strength of the coee
obtained.
Turn the dial to MIN for an extra mild coee and to MAX for an
extra strong coee.
Please note :
• The rst time you use the appliance, you will need to make
a number of coees to identify the correct dial position
through trial and error.
• Do not turn the dial too far towards MAX, otherwise the
coee may be delivered too slowly (a drop at a time), par-
ticularly when making two cups of coee at the same time.
Selecting the quantity of coee in the cup
The appliance is set by default to automatically make the fol-
lowing quantities of coee:
- espresso coee, when the button is pressed (≃40ml);
- long coee when the button (≃120ml) is pressed;
- two espresso coees, when the
button is pressed;
- two long coees, when the button is pressed.
To change the quantity of coee the appliance delivers auto-
matically into the cup, proceed as described below:
- press the button corresponding to the quantity to be mod-
ied and hold it down until the light ashes and the appli-
ance starts delivering coee. Release the button;
- when the coee in the cup reaches the required level, press
the same button again to memorise the new amount.
The quantity of coee in the cup has now been programmed.
Adjusting the coee mill
The coee mill is set by default to prepare coee correctly and
should not require regulating initially.
However, if after making the rst few coees you nd that the
coee is either too weak and not creamy enough or delivery is
too slow (a drop at a time), this can be corrected by adjusting
the grinding adjustment dial (g. 13).
Please note!
The grinding adjustment dial must only be turned when the
coee mill is in operation.
If the coee is delivered too slowly
or not at all, turn one click clockwise
towards “7”.
For fuller bodied creamier coee,
turn one click anticlockwise towards
“1” (do not turn more than one click
at a time otherwise the coee could
be delivered a drop at a time). These adjustments will only be
evident after at least 2 cups of coee have been delivered. If this
adjustment does not obtain the desired result, turn the dial an-
other click.
Setting the temperature
To modify the temperature of the water used to make the coee,
proceed as follows:
1. With the appliance o and the main switch in the I position
(g. 3), press the
button and hold it down until
the lights on the control panel come on.
2. Press the
button to select the required
temperature:
LOW HIGH
3. Press the button to conrm the selection. The
lights go o.
Tips for a hotter coee
For a hotter coee, before delivery you are recommended to:
• rinse the appliance through by pressing the but-
ton. Hot water ows out of the coee spouts and heats the
internal circuit of the machine so that the coee delivered
will be hotter.
• warm the cups with hot water (using the hot water
function);
• set a hotter coee temperature (see section “Setting the
temperature”).
12
Making coee using coee beans
Important!
Do not use caramelised or candied coee beans as they could
stick to the coee mill and make it unusable.
1. Fill the container with coee beans (g. 9).
2. Place under the coee spouts:
- 1 cup if you want one coee (g. 10);
- 2 cups if you want 2 coees (g. 11).
3. Lower the spouts as near as possible to the cup. This makes
a creamier coee (g. 12).
4. Press the button corresponding to the number of coees
required
5. Preparation begins and the light corresponding to the se-
lected button ashes on the control panel.
Once the coee has been made, the appliance is ready for use
again.
Please note:
• While the coee maker is making coee, delivery can be
interrupted at any moment by pressing one of the coee
buttons.
• At the end of delivery, to increase the quantity of coee
in the cup, just press (within 3 seconds) one of the coee
buttons.
Please note :
For hotter coee, see the section “Tips for a hotter coee”.
Important!
• If the coee is delivered a drop at a time, too thin and
not creamy enough or too cold, read the tips in the
“Troubleshooting” section on page 17.
• Lights may be displayed on the control panel during use.
Their meaning is given in the section “Explanation of the
lights” on page 16.
Making coee using pre-ground coee
Important!
• Never add pre-ground coee
when the machine is o or it
could spread through the inside
of the machine and dirty it. This
could damage the appliance.
• Never use more than one level
measure or it could dirty the inside of the machine or block
the funnel.
Please note!
If you use pre-ground coee, you can only make one cup of cof-
fee at a time.
1. Make sure the appliance is on.
2. Turn the coee taste selection dial anticlockwise as far as it
will go to the position (g. 18).
3. Make sure the funnel is not blocked, then add one level
measure of pre-ground coee (g. 19).
4. Place a cup under the coee spouts.
5. Press the 1 cup coee button ( or ).
6. Preparation begins.
MAKING CAPUCCINO
Danger of burns!
During preparation, steam is given o. Take care to avoid scalds.
1. When making cappuccino, prepare the coee in a large
cup;
2. Fill a container (preferably with a handle to avoid burns)
with about 100 ml of milk for each cappuccino to be made.
In choosing the size of the container, bear in mind that the
milk doubles or triples in volume.
Please note :
For a richer denser froth, use skimmed or partially skimmed
milk at refrigerator temperature (about 5°C).
To avoid milk with poor froth or large bubbles, always clean
the cappuccino maker as described in the section “Cleaning
the cappuccino maker after use”.
3. Press the
button. The light ashes.
4. Immerse the cappuccino maker in the milk container (g.
20).
5. After a few seconds, when the light ashes, turn the
steam dial to the I position (g. 5). Steam is delivered from
the cappuccino maker, giving the milk a creamy frothy ap-
pearance and making it more voluminous.
1 espresso 1 long coee
2 long coees2 espresso
13
6. To obtain a creamier froth, rotate the container with slow
upward movements. You should not deliver steam for more
than 3 minutes at a time.
7. When you have obtained the required froth, stop steam
delivery by turning the steam dial back to the 0 position.
Danger of burns!
Stop steam delivery before removing the container with the
frothed milk to avoid burns caused by splashes of boiling milk.
8. Add the milk froth to the coee prepared previously.
The cappuccino is ready. Sweeten to taste and, if desired,
sprinkle the froth with a little cocoa powder.
Cleaning the cappuccino maker after use
Clean the cappuccino maker after use to avoid the build-up of
milk residues or blockages.
1. Place a container under the cappuccino maker and deliver
a little water for a few seconds by rotating the steam dial
to the I position (g. 5).
Then turn the steam dial to the 0 position to stop the ow
of hot water.
2. Wait a few minutes for the cappuccino maker to cool down.
Grip the handle of the cappuccino maker tube rmly in one
hand and with the other rotate the cappuccino maker anti-
clockwise (g. 16), then remove by pulling downwards.
3. Also remove the steam nozzle by pulling it downwards (g.
17).
4. Make sure the two holes shown by the arrow in g. 18 are
not blocked. If necessary, clean with a toothpick.
5. Wash all parts of the cappuccino maker thoroughly with a
sponge and warm water.
6. Replace the nozzle and put the cappuccino maker back
on the nozzle, pushing it and turning it upwards until it is
attached.
HEATING WATER
Danger of burns!
Never leave the machine unsupervised while delivering hot
water. Stop delivery of hot water as described below when
the cup is full. The hot water spout becomes hot while water is
being delivered and must be handled by the handle only.
1. Possible to avoid splashes.
2. Turn the steam dial to the I position. Delivery begins.
3. Stop by turning the steam dial to the 0 position.
Please note :
If “Energy Saving” mode is active, you may have to wait a few
seconds before the hot water is delivered.
CLEANING
Important!
• Do not use solvents, abrasive detergents or alcohol to clean
the appliance. With De’Longhi superautomatic coee ma-
chines, you need not use chemical products to clean the
machine.
• Do not use metal objects to remove encrustations or coee
deposits as they could scratch metal or plastic surfaces.
Cleaning the coee grounds container
When the
light ashes, the coee grounds container must
be emptied and cleaned.
Unless you clean the grounds container, the light will continue
to ash and the appliance cannot be used to make coee.
To clean (with the machine on):

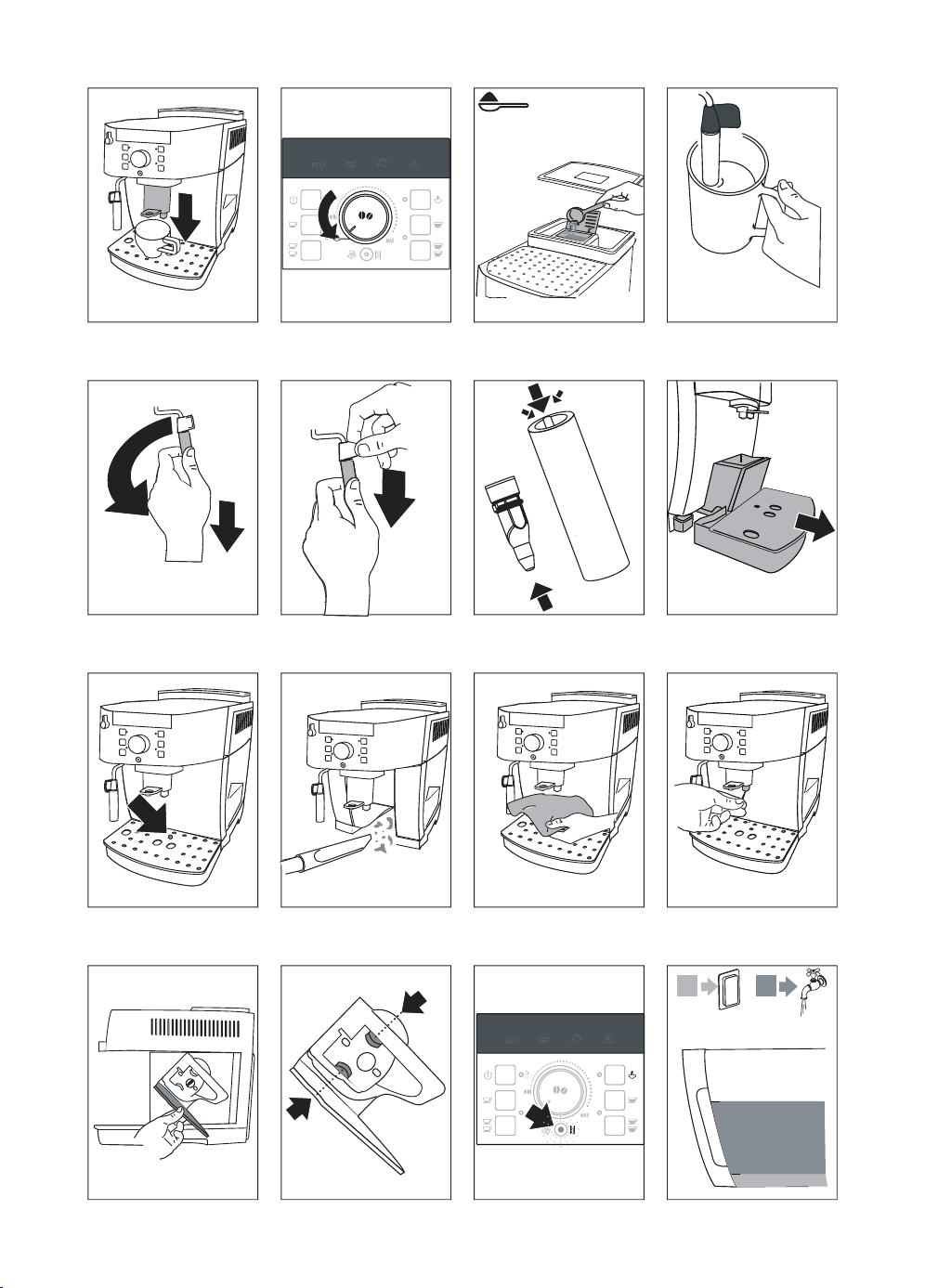

• Remove the drip tray (g. 24), empty and clean.
• Empty the grounds container and clean thoroughly to re-
move all residues left on the bottom.
• Also check the condensate tray (red) and empty if
necessary.
Important!
When removing the drip tray, the grounds container must be
emptied, even if it contains few grounds.
If this is not done, when you make the next coees, the grounds
container may ll up more than expected and clog the machine.
Cleaning the drip tray and condensate tray
Important!
If the drip tray is not emptied regularly, the water could over-
ow from the edge and seep inside or around the coee maker.
This could damage the machine, the surface it rests on or the
surrounding area.
The drip tray is tted with a level indicator (red) showing the
level of water it contains (g. 25).
Before the indicator protrudes from the cup tray, the drip tray
must be emptied and cleaned.
To remove the drip tray:
1. Remove the drip tray and the grounds container (g. 24);
2. Empty the drip tray and grounds container and wash them;
3. Check the condensate tray and empty if necessary.
4. Replace the drip tray and grounds container.
14
Cleaning the inside of the coee maker
Danger of electric shock!
Before cleaning internal parts, the machine must be turned o
(see “Turning o”) and unplugged from the mains power sup-
ply. Never immerse the coee maker in water.
1. Check regularly (about once a month) that the inside of the
appliance (accessible after removing the drip tray) is not
dirty. If necessary, remove coee deposits with a sponge.
2. Remove the residues with a vacuum cleaner (g. 26).
Cleaning the water tank
1.
Clean the water tank (A9) regularly (about once a month and
whenever you replace the water softener lter (if present)
with a damp cloth and a little mild washing up liquid.
2. Remove the lter (if present) and rinse with running water.
3. Replace the lter (if present), ll the tank with fresh water
and replace the tank.
Cleaning the coee spouts
1. Clean the coee spouts regularly with a sponge or cloth
(g. 27).
2. Check the holes in the coee spout are not blocked. If nec-
essary, remove coee deposits with a toothpick (g. 28).
Cleaning the pre-ground coee funnel
Check regularly (about once a month ) that the pre-ground cof-
fee funnel is not blocked. If necessary, remove coee deposits.
Cleaning the infuser
The infuser (A11) must be cleaned at least once a month.
Important!
The infuser may not be extracted when the machine is on.
1. Make sure the machine is correctly turned o (see “Turning
the appliance o” on page 9).
2. Remove the water tank.
3. Open the infuser door (g. 29) on the right side.
4. Press the two red release buttons inwards and at the same
time pull the infuser outwards (g. 30).
Important!
Clean the infuser without using washing up liquid as it
could be damaged.
5. Soak the infuser in water for about 5 minutes, then rinse
under the tap.
6. Clean coee residues from the support where the infuser
rests.
7. After cleaning, replace the infuser by sliding it onto the
internal support (g. 33), then push the PUSH symbol fully
in until it clicks into place.
33
Please note!
If the infuser is dicult to insert, before insertion, adapt it to the
right size by pressing the two levers shown in g. 34.
34
8. Once inserted, make sure the two red buttons have
snapped out (g. 35).
35
PUSH
9. Close the infuser door.
10. Replace the water tank.
DESCALING
Descale the appliance when the light on the control
panel ashes (g. 31).
Important!
• Descaler contains acids which may irritate the skin and
eyes. It is vital to respect the manufacturer’s safety warn-
ings given on the descaler pack and the warnings relating
to the procedure to follow in the event of contact with the
skin and eyes.
• You should use De’Longhi descaler only. Using unsuitable
descaler and/or performing descaling incorrectly may re-
sult in faults not covered by the manufacturer’s guarantee.
1. Turn the appliance on and wait until it is ready for use.
Infuser support
Small lever
Large lever
15
2. Empty the water tank (A12) and remove the softener lter,
if present.
3. Pour the descaler into the tank up to the level A (corre-
sponding to a 100 ml pack) marked on the back of the tank
(g. 32A), then add water (1l) up to level B (g. 32B).
Place an empty container with a minimum capacity of 1.5
litres under the cappuccino maker .
4. Wait for the coee lights to come on steadily.
Important! Danger of burns
Hot water containing acid ows from the cappuccino maker.
Avoid contact with splashes of water.
5. Press the button and hold it down for at least 5
seconds to conrm that you have added the solution and
begin the descaling procedure. The light in the button
remains on steadily to indicate that the descaling pro-
gramme has begun. The
light ashes telling you to
turn the steam dial to the l position.
6. Turn the steam dial a half turn anticlockwise to the I po-
sition. The descaler solution ows out of the cappuccino
maker into the underlying container.
The descale programme automatically performs a series of
rinses and pauses to remove the limescale.
It is normal for several minutes of inactivity to elapse be-
tween rinses.
After about 30 minutes, the water tank is empty and the
and
lights ash. Turn the steam dial clockwise as far as it
will go to the 0 position.
The appliance is now ready for rinsing through with clean water.
7. Empty the container used to collect the descaler solution
and replace it empty under the cappuccino maker.
8. Remove the water tank, empty, rinse under running water,
ll with clean water and replace. The
light ashes.
9. Turn the steam dial anticlockwise to the I position (g. 5).
Hot water comes out of the spout.
10. When the water tank is completely empty, the
light
ashes.
11. Turn the dial to the 0 position. The
light goes o.
Fill the water tank again and the machine is ready for use.
SETTING WATER HARDNESS
Descaling is necessary after a period of operation established
according to the water hardness set.
The machine is factory set for a hardness value of 4.
The machine can also be programmed according to the hardness
of the mains water in the various regions so that the machine
needs to be descaled less often.
Measuring water hardness
1. Remove the “TOTAL HARDNESS TEST” indicator paper from
its pack (attached to the English instructions).
2. Immerse the paper completely in a glass of water for one
second.
3. Remove the paper from the water and shake lightly. After
about a minute, 1, 2, 3, or 4 red squares form, depending
on the hardness of the water. Each square corresponds to
one level.
Set water hardness
1. Make sure the appliance is o (but connected to the
mains electricity supply and with the main switch in the
I position);
2. Press the button and hold it down for at least
6 seconds. The
and lights come on
together;
3. Press the button (on the left of the dial) to set the ac-
tual water hardness as measured by the indicator paper.
Level Level Level Level
1 234
4. Press the button (on the right of the dial) to
conrm the selection.
The machine is now reprogrammed with the new water hard-
ness setting.
TECHNICAL DATA
Voltage: 220-240 V~ 50/60 Hz max. 10A
Absorbed power: 1450W
Pressure: 15 bars
Water tank capacity: 1.8 litres max.
Size LxHxD: 238x340x430 mm
Cable length: 1.15 m
Weight: 9.1 kg
Coee beans container capacity: 250 g max.
Level 1
Level 2
Level 3
Level 4
16
The appliance complies with the following EC
directives:
• Low Voltage Directive 2006/95/EC and subsequent amendments;
• EMC Directive 2004/108/EC and subsequent amendments;
• European Stand-by Regulation 1275/2008;
• Materials and accessories coming into contact with food conform
to EC regulation 1935/2004.
DISPOSAL
In compliance with European directive 2002/96/EC,
the appliance must not be disposed of with hou-
sehold waste, but taken to an authorised waste sepa-
ration and recycling centre.
EXPLANATION OF LIGHTS
LIGHT POSSIBLE CAUSE REMEDY
FLASHING
Insucient water in the tank. Fill the tank with water and insert it correctly,
pushing it as far as it will go until it clicks into
place.
The tank is not correctly in place. Insert the tank correctly and press as far as it
will go.
FLASHING
The grounds container (A13) is full. Empty the grounds container and drip tray,
clean and replace. Important: when removing
the drip tray, the grounds container MUST be
emptied, even if it contains few grounds. If this
is not done, when you make the next coees,
the grounds container may ll up more than
expected and clog the machine.
After cleaning, the grounds contai-
ner has not been replaced.
Remove the drip tray and insert the grounds
container.
FLASHING
The grinding is too ne and the
coee is delivered too slowly or
not at all.
Repeat coee delivery and turn the grin-
ding adjustment dial (g. 11) one click
clockwise towards “7” while the coee mill is
in operation. If after making at least 2 coees
delivery is still too slow, repeat the correction
procedure, turning the grinding adjustment
dial another click until delivery is correct (see
the section: Adjusting the coee mill on page
11). If the problem persists, turn the steam
dial to the I position and deliver water from the
cappuccino maker.
FLASHING
The "pre-ground coee" function
has been selected without pla-
cing any pre-ground coee in the
funnel.
Place pre-ground coee in the funnel or dese-
lect the "pre-ground" function.
17
FLASHING
The machine must be descaled. The descaling procedure described in the sec-
tion “Descaling” needs to be performed as soon
as possible.
FLASHING
Too much coee has been used. Select a milder taste or reduce the quantity of
pre-ground coee then make the coee again.
FLASHING
The coee beans have run out. Fill the beans container
The pre-ground coee funnel is
clogged.
Empty the funnel with the help of a knife as
described in the section "Cleaning the pre-
ground coee funnel".
FLASHING
The infuser has not been replaced
after cleaning.
Insert the infuser as described in the section
“Cleaning the infuser”.
The inside of the appliance is very
dirty.
Clean the inside of the appliance thoroughly,
as described in the section “Cleaning and
maintenance”.
If the message is still displayed after cleaning,
contact a customer services.
TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
PROBLEM POSSIBLE CAUSE REMEDY
The coee is not hot The cups were not preheated. Warm the cups by rinsing them with hot water
(Please note you can use the hot water or rinse
function).
The infuser has cooled down because 2/3 mi-
nutes have elapsed since the last coee was
made.
Before making the coee, warm the infuser by
pressing the rinse button
.
The coee is thin or not cre-
amy enough.
The coee is ground too coarsely. Turn the grinding adjustment dial one click an-
ticlockwise while the coee mill is in operation
(g. 8).
Continue one click at a time until coee delive-
ry is satisfactory. The eect is only visible after
delivering two coees (see the section: “Adju-
sting the coee mill” on page 11).
The coee is unsuitable. Use pre-ground coee for espresso coee
makers.
18
The coee is delivered too
slowly or a drop at a time
The coee is ground too nely. Turn the grinding adjustment dial one click
clockwise while the coee mill is in operation
(g. 10). Continue one click at a time until cof-
fee delivery is satisfactory. The eect is only vi-
sible after delivering 2 coees (see the section:
“Adjusting the coee mill” on page 11).
Coee does not come out of
one of the spouts
The spouts are blocked. Clean the spouts with a toothpick.
The frothed milk has large
bubbles
The milk is not cold enough or is not
semi-skimmed.
You should ideally use skimmed or semi-skim-
med milk at refrigerator temperature (about
5°C).
If the result is still disappointing, try another
brand of milk.
The milk is not frothed Cappuccino maker dirty. Clean as described in the section "Cleaning the
cappuccino maker after use" on page 13.
Steam delivery stops during
use
A safety device stops steam delivery after 3
minutes.
Wait a few minutes, then activate the steam
function again.
The appliance does not come
on
It is not plugged into the mains socket. Plug into the mains socket.
The main switch (A8) is not turned on. Place the main switch in the I position (g. 1).
19
ELECTRICAL CONNECTION (UK ONLY)
Before using this appliance ensure that the voltage indicated on the product corresponds with the main voltage in your home, if you
are in any doubt about your supply contact your local electricity company.
The exible mains lead is supplied connected to a B.S. 1363 fused plug having a fuse of 13 amp capacity.
Should this plug not t the socket outlets in your home, it should be cut o and replaced with a suitable plug, following the proce-
dure outlined below.
Note: Such a plug cannot be used for any other appliance and should therefore be properly disposed of and not left where children
might nd it and plug it into a supply socket - with the obvious consequent danger.
Please note: We recommend the use of good quality plugs and wall sockets that can be switched o when the machine is not in
use.
IMPORTANT: The wires in the mains lead tted to this appliance are coloured in accordance with the following code:
GREEN AND YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
- The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or
by the earth symbol
or coloured green or green and yellow.
- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
When wiring the plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the mains
lead clamp on the plug. If your electricity supply point has only two pin socket outlets, or if you are in doubt, consult a qualied
electrician.
Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualied electrician and should
only be replaced with a exible cord of the same size.
After replacement of a fuse in the plug, the fuse cover must be retted. If the fuse cover is lost, the plug must not be used until a
replacement cover is obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the fuse
recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover.
Only 13amp replacement fuses which are asta approved to B.S. 1362 should be tted.
This appliance conforms to the Norms EN 55014 regarding the suppression of radio interference.
Warning - this appliance must be earthed
Green and Yellow to Earth
13 amp Fuse
Brown to live
Cord Clamp
Blue to
neutral
De’Longhi Appliances via Seitz, 47 31100 Treviso Italia www.delonghi.com
5713223301/03.14
