User Guide
Kasa Smart Wi-Fi Power Strip, 3-Outlet
KP303
© 2021 TP-Link 1910012924 REV2.0.0
Contents
About This Guide ···················································· 1
Introduction ······························································· 2
Appearance ······························································· 3
Set Up Your Smart Wi-Fi Power Strip ··········· 4
Main Device Controls ··········································· 6
Set Schedules ·························································· 7
Set Timer ····································································· 9
Set Away Mode ······················································10
Check Runtime·······················································11
Manage Device Settings ··································12
Reset Your Smart Power Strip ·······················15
Create Groups ························································18
Create Scenes························································23
Smart Actions ·························································25
Discover Kasa ·························································34
1
About This Guide
This guide provides a brief introduction to Kasa Smart Wi-Fi Power Strip and the Kasa Smart app, as well as regulatory information.
Please note that features of Kasa Smart Wi-Fi Power Strip may vary slightly depending on the model and software version you have, and on your
location, language and internet service provider. All images, steps, and descriptions in this guide are only examples and may not reect your actual
experience.
Conventions
In this guide, the following convention is used:
Convention Description
Teal
Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in teal and underlined. You can click to redirect to a website.
More Info
• Specications can be found on the product page at
https://www.tp-link.com.
• Our Technical Support and troubleshooting information can be found at
https://www.tp-link.com/support/.
2
Introduction
With independent control of 3 smart outlets and always-on USB ports to charge 2 others, the Kasa Smart Wi-Fi Power Strip is ideal for family rooms,
home oces and small businesses. Control 3 smart outlets from anywhere with the Kasa Smart app.
Surge ProtectionNo Hub RequiredControl from Anywhere
Scheduling
Individual Control
• 3 Smart Outlets - Independently control 3 smart outlets with the Kasa Smart app.
• Surge Protection - Surge protection shields electronics from power surges.
• 2 USB Ports - Charge your tablet, smartphone, or other devices using the always-on USB ports.
• No Hub Required - Connect to your existing Wi-Fi router.
• Scheduling - Set a schedule to automatically turn devices on and o.
• Voice Control - Use simple voice commands with Alexa and Google Assistant to control your devices.
Supported Load Types:
Coee Maker: 800 W Heater: 1500 W Toaster: 850 W
Desk Lamp: 235.2 W Humidier: 260 W Tower Fan: 50 W
LCD: 270 W Iron: 1500 W
3
Appearance
Smart Wi-Fi Power Strip has 3 individual smart outlets, with control buttons to turn on/o devices plugged in, and LEDs to show you the current status.
SYS and Protected LEDs change color according to its status. See the explanation below:
*KP303 (US version) is used for demonstration in this guide.
Protected LED
Lit up when it is under surge protection.
Smart Outlet (1-3 from left to right)
Plug in your device and control it from your smartphone.
Each outlet is independent.
LED of Smart Outlet (1-3 from left to right)
Lit up when the corresponding smart outlet is on.
Control Button (1-3 from left to right)
Press the control button to turn on or o the corresponding outlet.
Press and hold a control button for 5s to reenable setup mode.
Press and hold a control button for 10s to restore your Smart
Power Strip to factory default settings.
USB Port
Charge your tablet, smartphone or other devices.
Output: 5V/2.4A each; 5V/2.4A total
Blinking Orange
Resetting.
Blinking Green
Searching for Wi-Fi.
Red
No Wi-Fi connection.
Blinking Orange and Green
Setup mode initiated.
SYS Wi-Fi LED
Orange
Rebooting.
White
Connected to Wi-Fi network successfully.
1
3
45
2
6
4

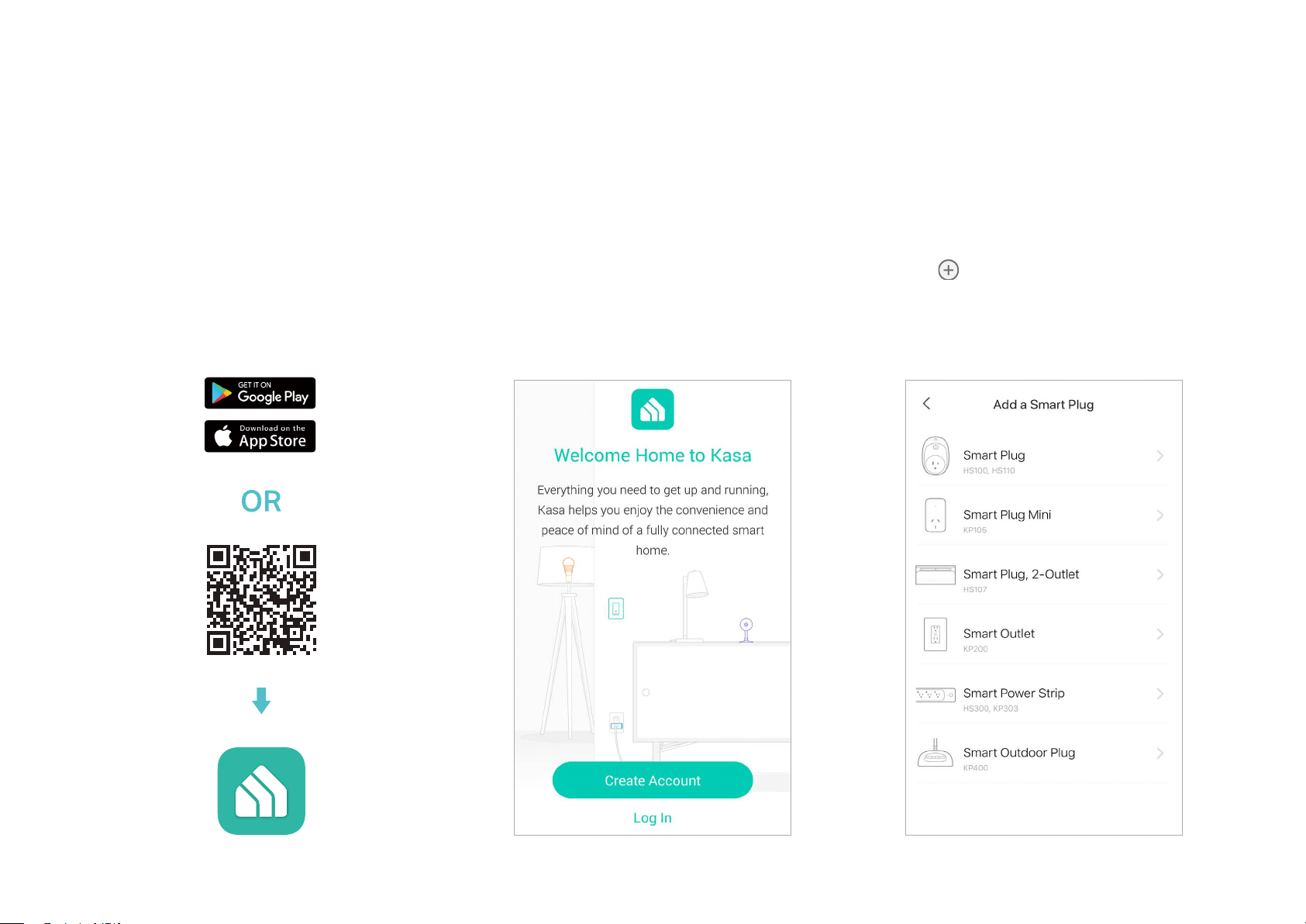

Set Up Your Smart Wi-Fi Power Strip
Follow the steps below to set up your Smart Wi-Fi Power Strip via Kasa Smart app.
1. Install Kasa Smart app
Get the Kasa Smart app from Google Play or
the Apple App Store, or scan the QR code
below to download it.
2. Log in or sign up with TP-Link ID
Open the Kasa Smart app and log in with
your TP-Link ID. If you don’t have an account,
create one rst.
3. Add Device
Tap the button in the Kasa Smart app,
select
Device >Smart Plugs > Smart Power
Strip and then follow step-by-step app
instructions to complete the setup.
5

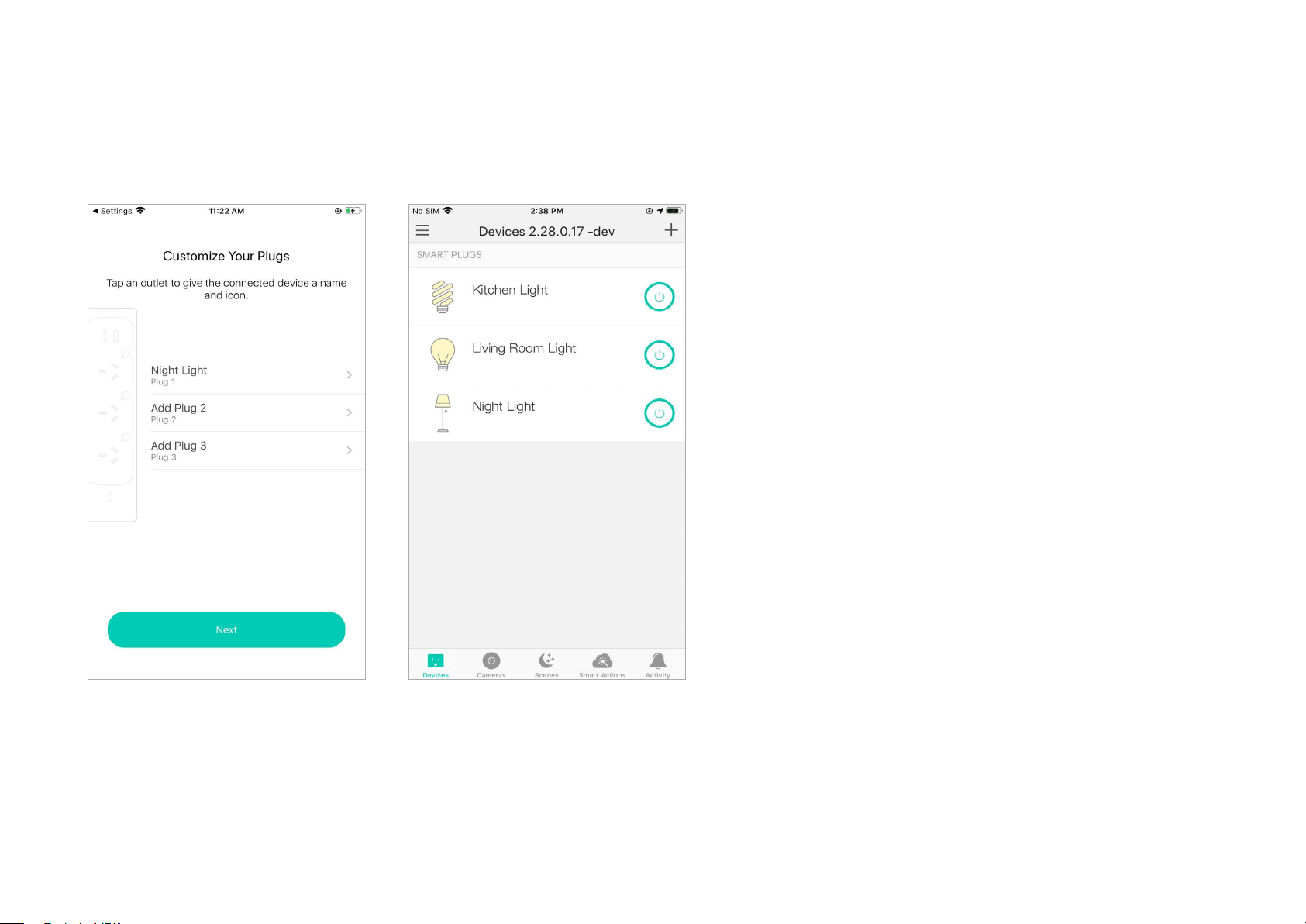

4. Name the three plugs
The KP303 has 3 individual smart outlets, equivalent to three plugs. You can add
a name and incon to them respectively. You can see them in the Home page.
6

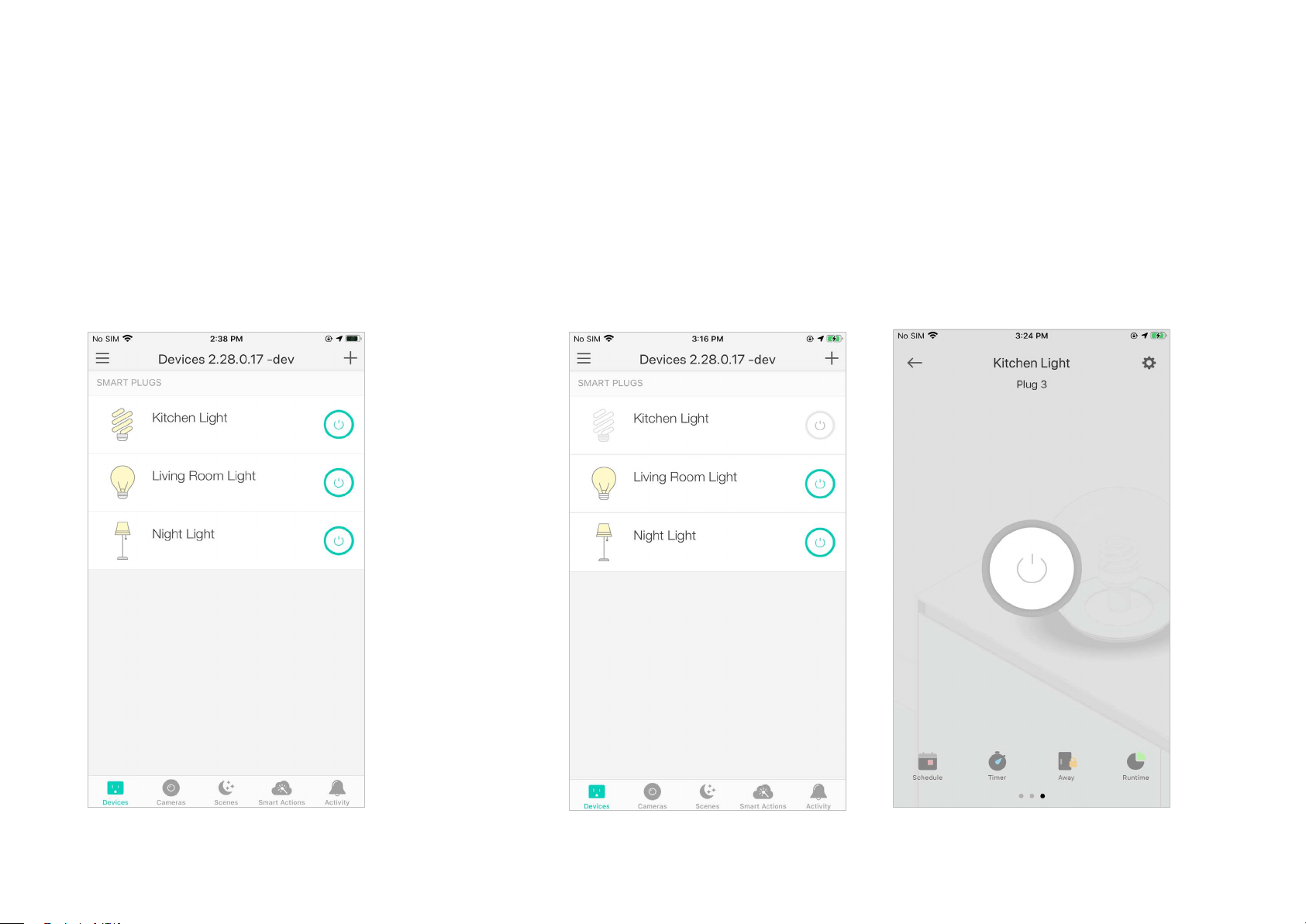

Main Device Controls
After you successfully set up your Smart Wi-Fi Power Strip, you will see the home page of the Kasa Smart app. Here you can view and manage all
devices that you've added to Kasa. Tap a smart power strip to control and manage it.
Home Page
You can see all your Kasa devices listed in
the Home page.
Turn on/o the smart outlet
Turn on/o any outlet of your Smart Wi-Fi Power Strip quickly by tapping the switch
each device. Tapping in the device, you can also see its status.
7

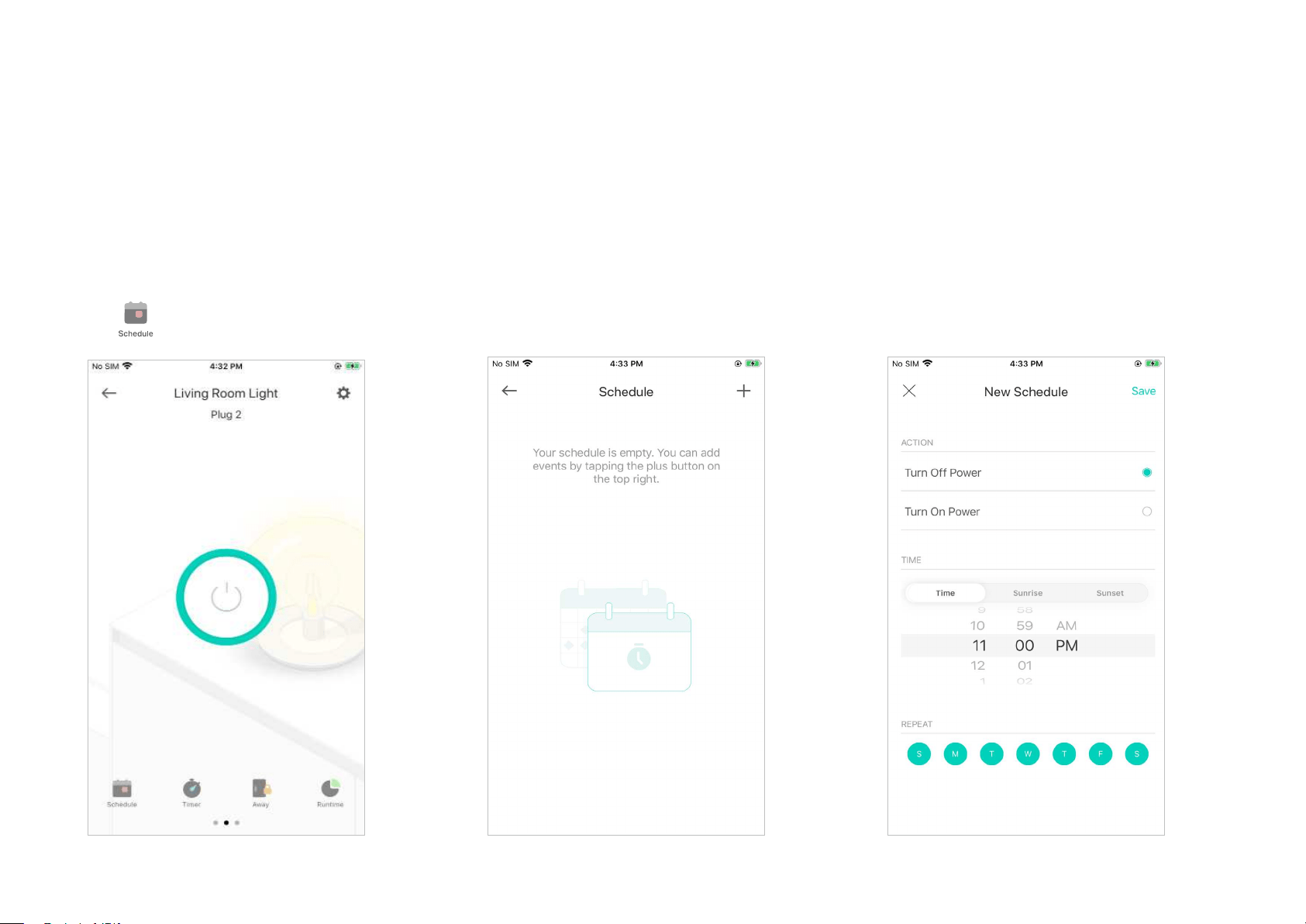

Set Schedules
Schedule:
Set schedules to automatically turn on/o the devices plugged in to the smart outlets of your
Smart Power Strip respectively according to your daily routine.
1. Tap a smart outlet that you want to set
a schedule for in the Home page, and then
Tap
.
2. Tap + on the top right corner.
3. Set a schedule to turn the smart outlet
on or o. For example, I want to turn o my
Living Room light at 11:00 PM every day.
8

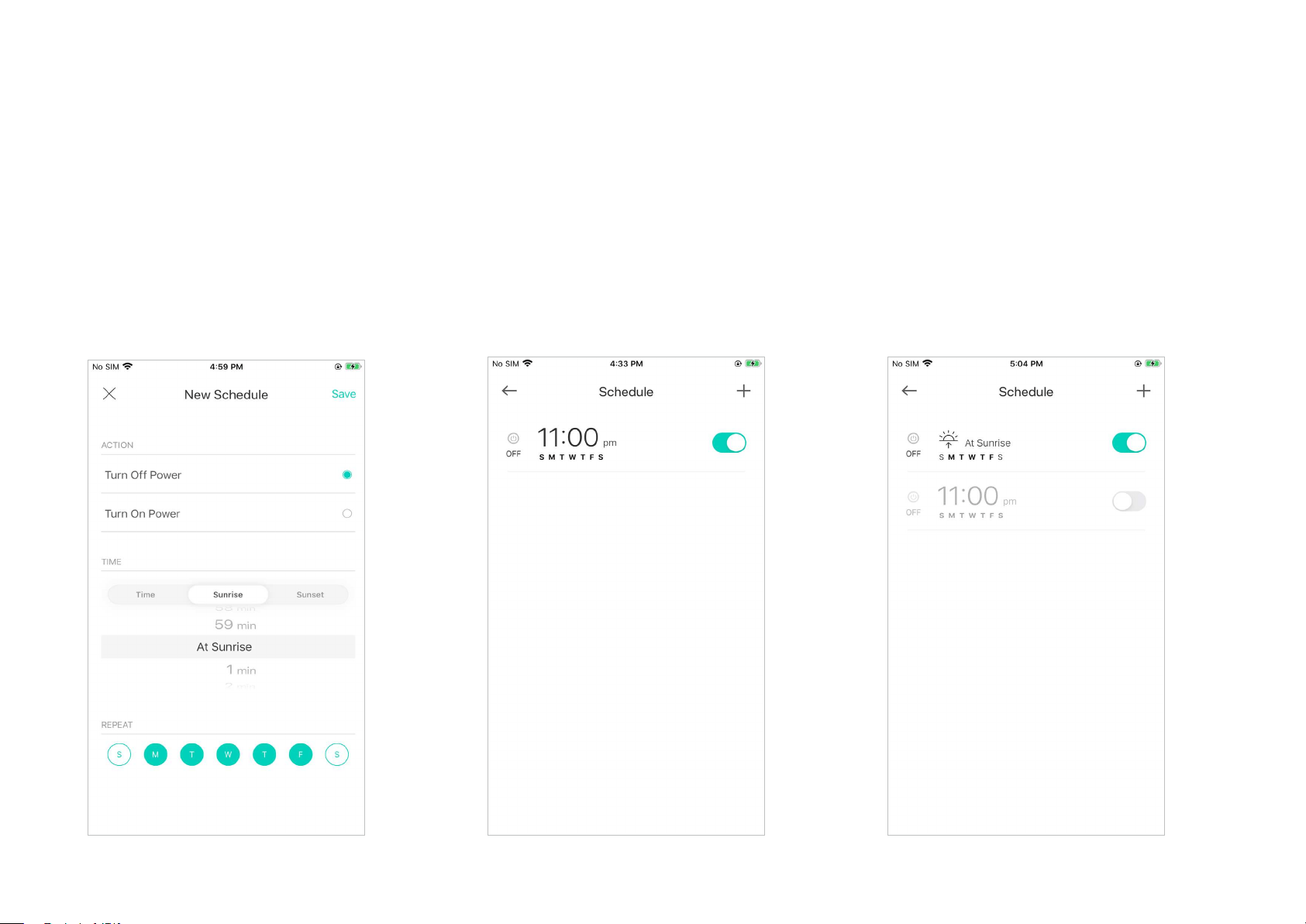

4. You can also choose to turn on/off the
smart outlet simply at Sunrise or Sunset.
Please note that the Sunrise and Sunset
times are based your location.
5. Tap Save and you'll see your schedule
listed in the Schedule Page. You can add
more schedules following the same steps.
6. You can turn off your schedule any time
at the Schedule page.
9

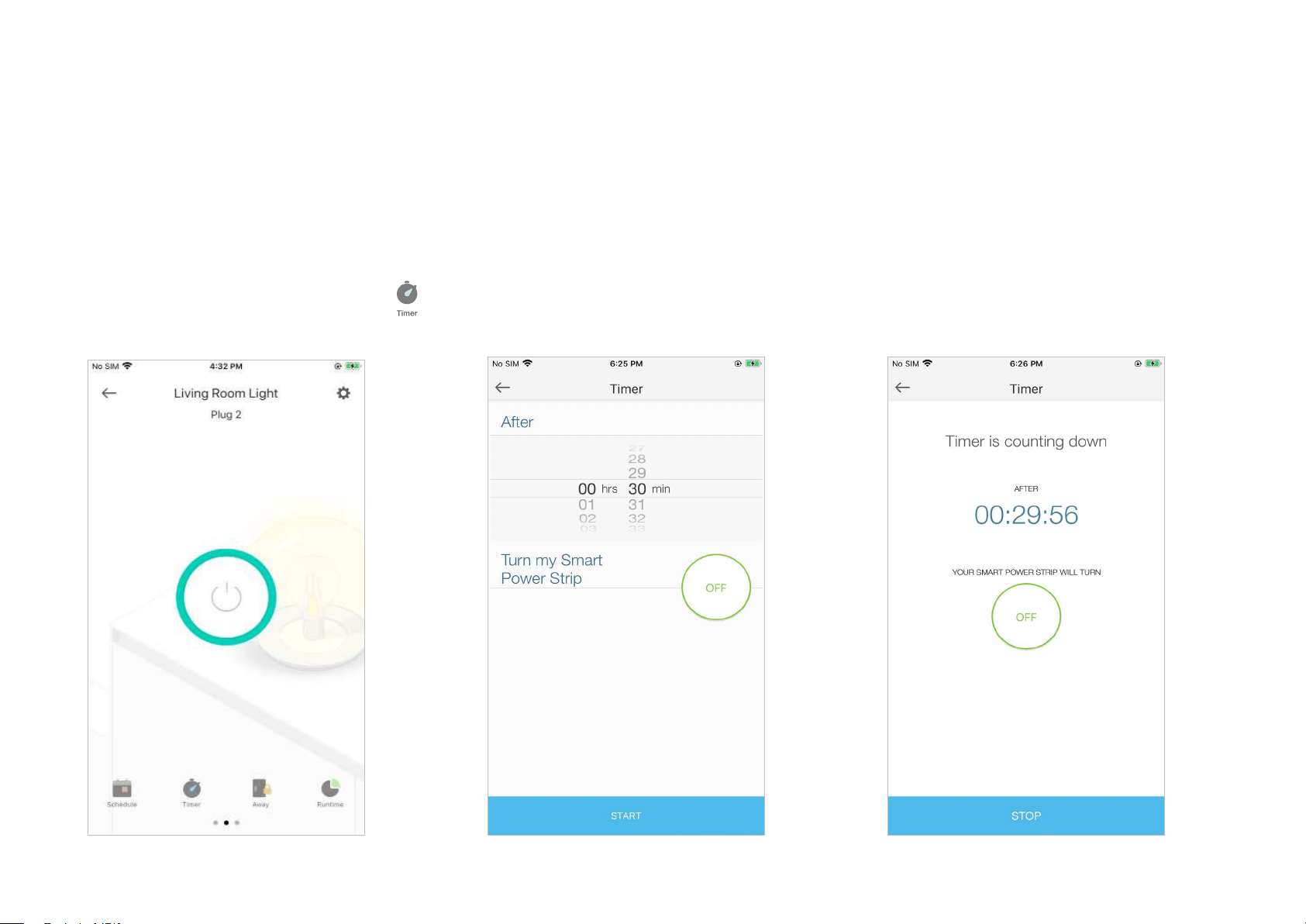

Set Timer
Timer:
Set set the timer for your smart outlet to automatically turn on/o after the time ends.
1. Tap a smart outlet that you want to set a
timer for in the Home page, and then tap
.
2. Set the time after which the smart outlet
will be automatically turned on/o.
For example, I want to turn off my Living
Room Light after 30 minutes.
3. Tap START and you'll see the timer is
counting down. Tap STOP to stop the Timer
at any time.
10

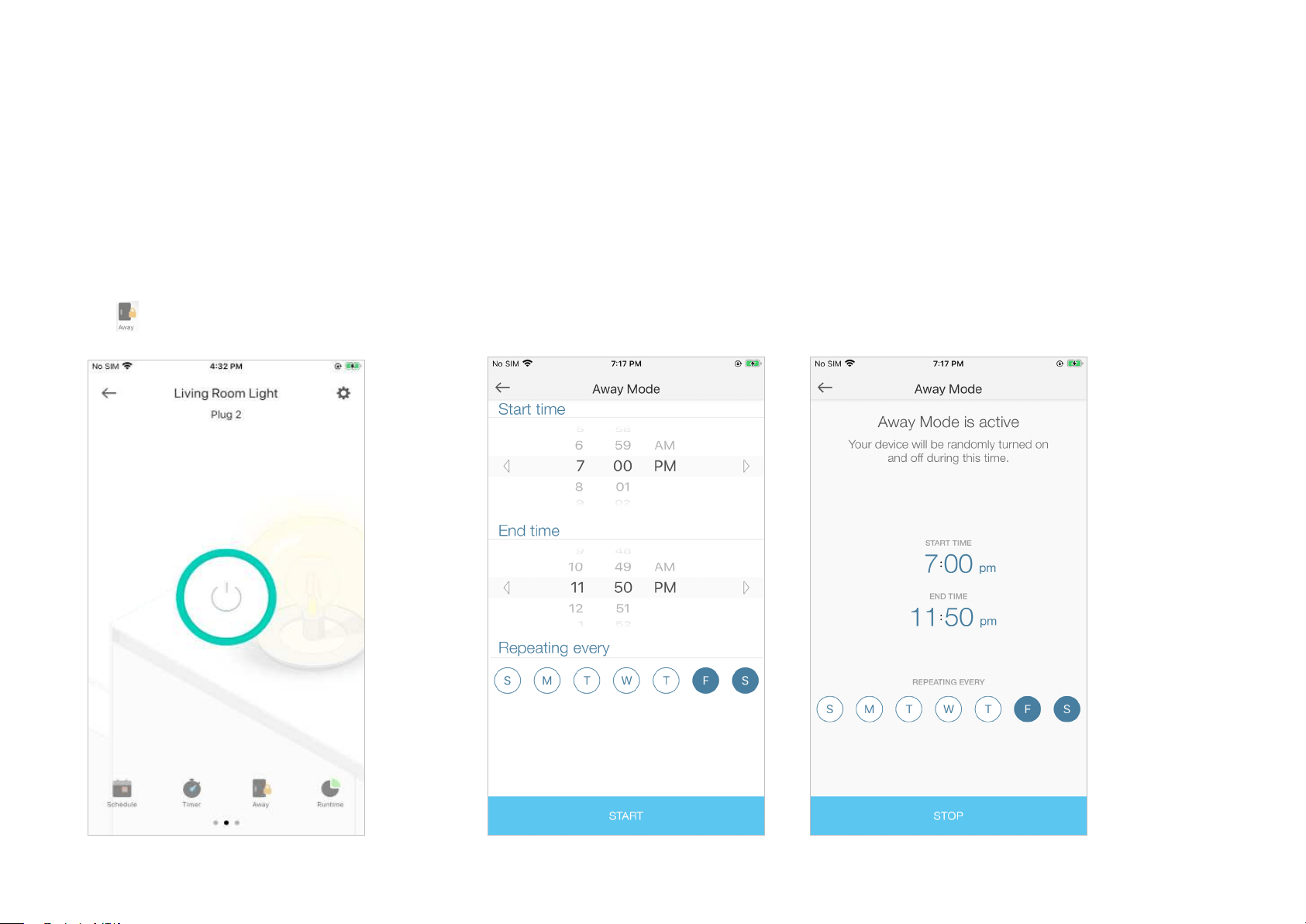

Set Away Mode
Away Mode:
Set Away Mode for the smart outlet of your power strip to turn on/o automatically at random
intervals while you are away to make the appearance that someone is at home.
1. Tap a smart outlet that you want to set
Away Mode for in the Home page, and then
tap
.
2. Set the start and end time during which the smart outlet will be automatically turned on and o
at random intervals, and the repeating frequency. For example, I want my Living Room Light to turn
on and o between 7:00 PM to 11:50 PM every Friday and Saturday.
Note: The start and end end time must be on the same day.
11

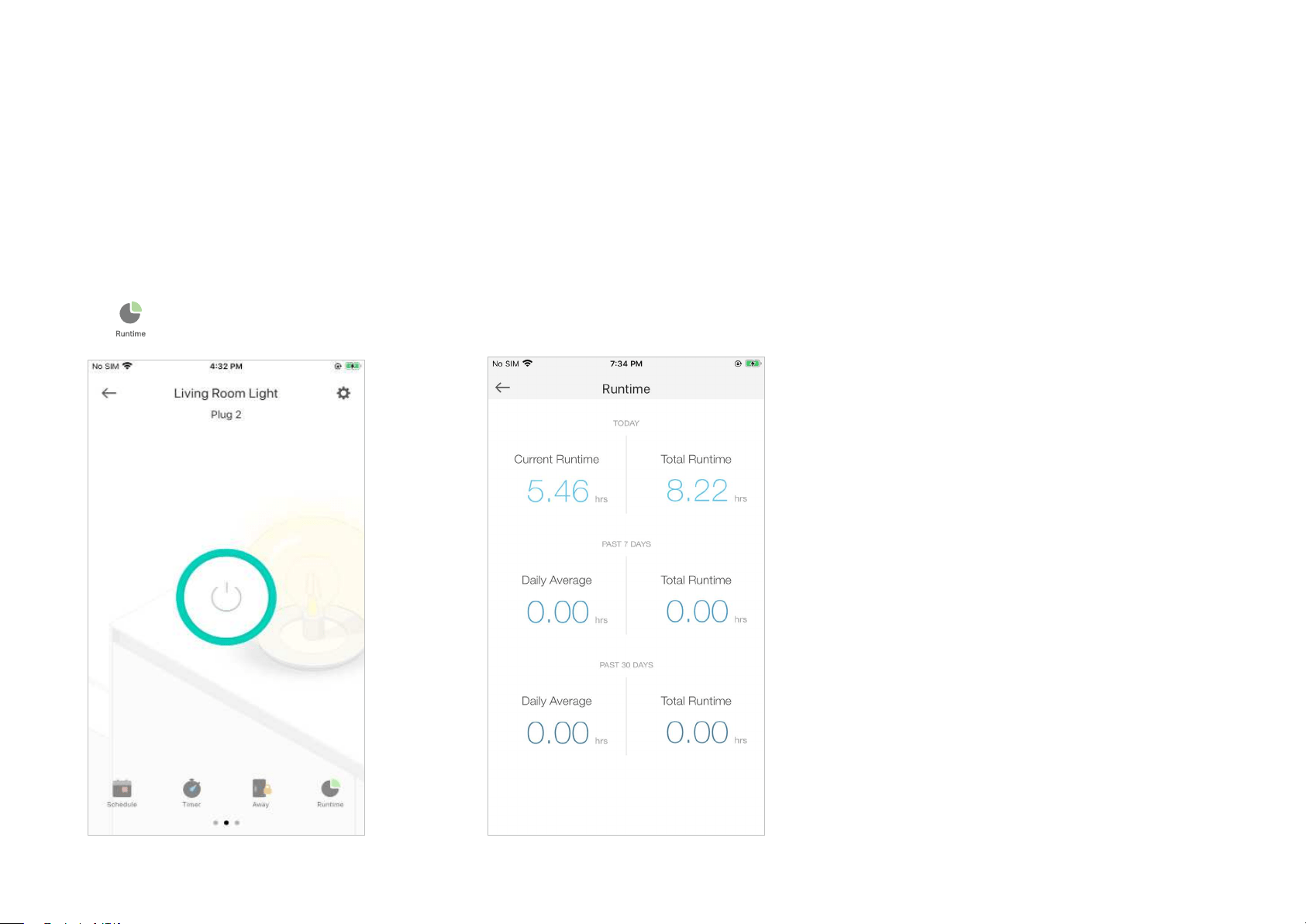

Check Runtime
Runtime:
Check runtime to keep track of how long each outlet of your Smart Power Strip has been working.
1. Tap a smart outlet whose runtime you
want to check in the Home page, and then
tap
.
2. Check the runtime for today, the past 7
days, or the past 30 days.
12
Manage Device Settings

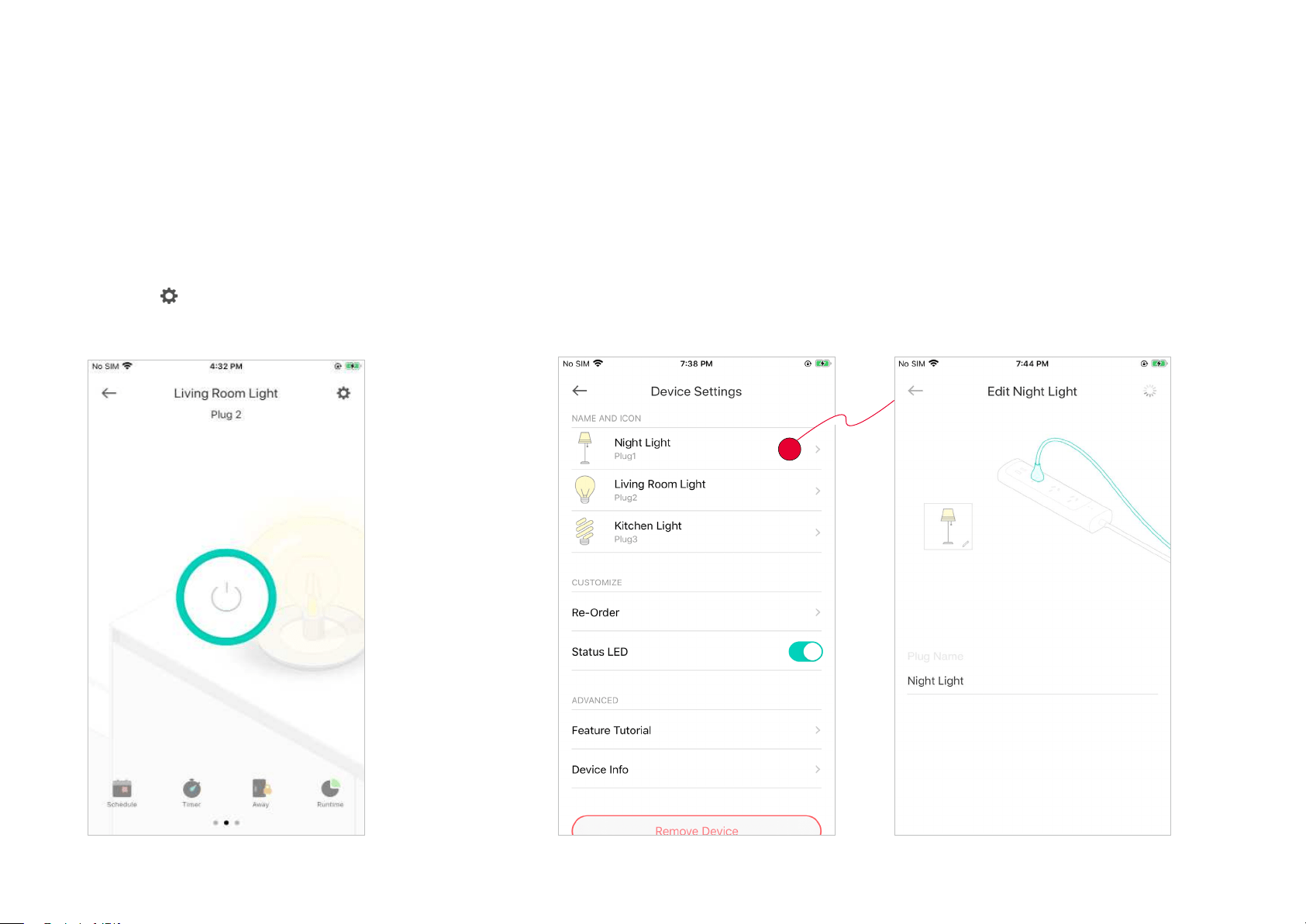

1. Tap any outlet of your smart power strip and
then tap
.
2. Change the name and icon of each outlet.
13

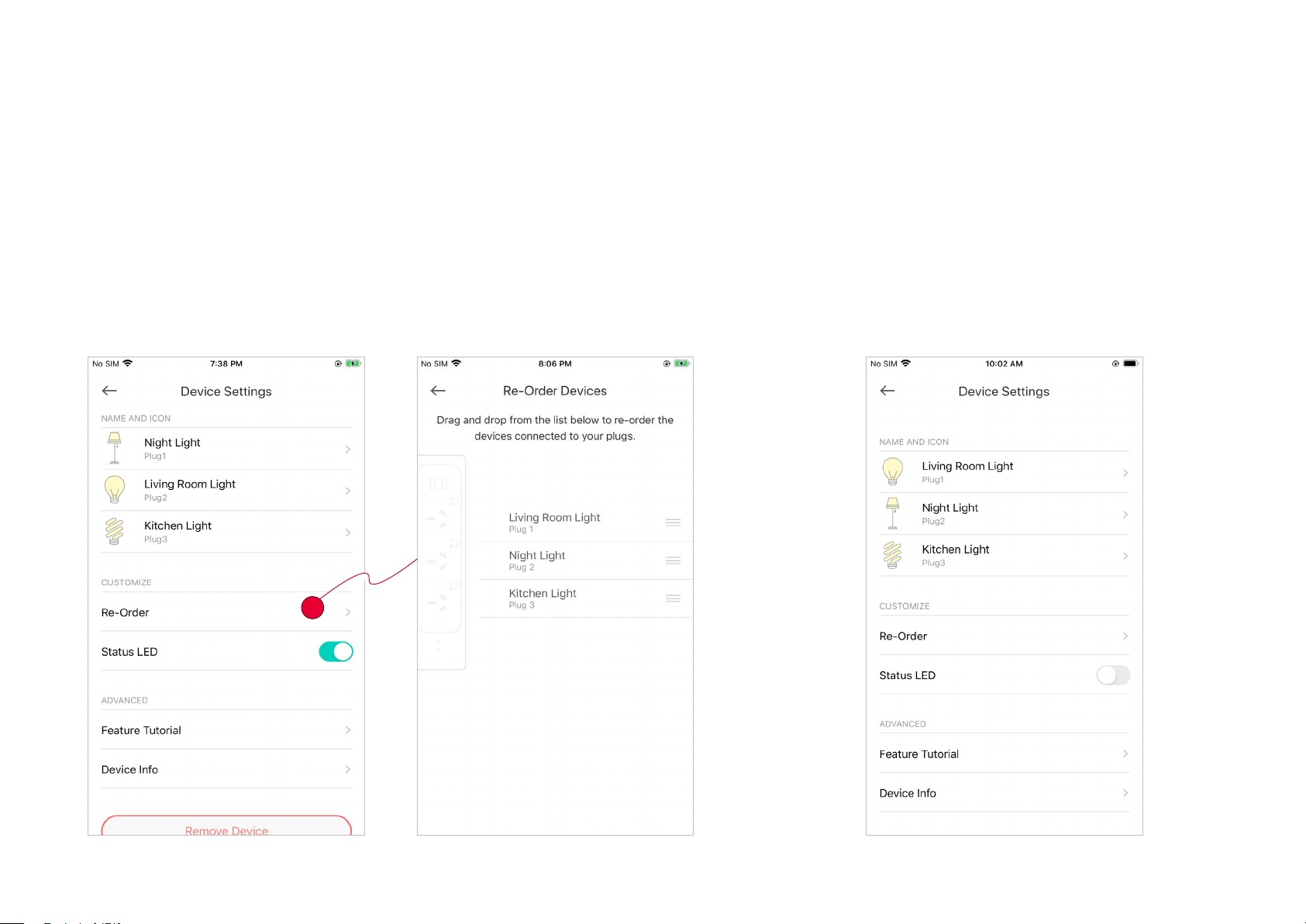

3. Tap Re-Order to change the order of the devices connected to the three outlets of
your Smart Power Strip.
4. Toggle on/off Status LED to turn on/off the
LEDs of the three smart outlets altogether.
14

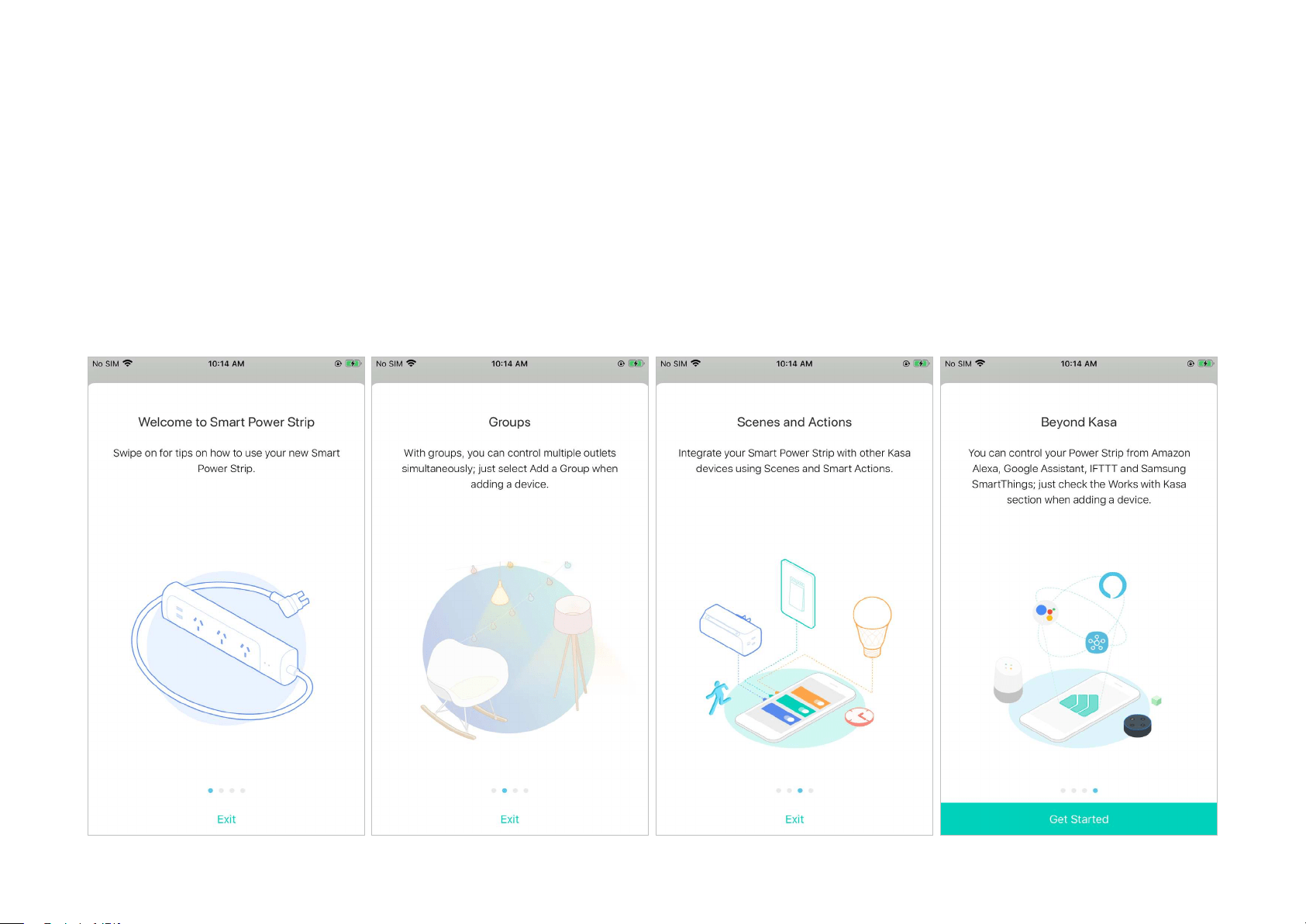

5. Tap Feature Tutorial to have a glance of the advanced features of your Smart Power Strip. More details on conguring these features
15
Reset Your Smart Power Strip
TP-Link provides three methods to reset your Smart Power Strip.

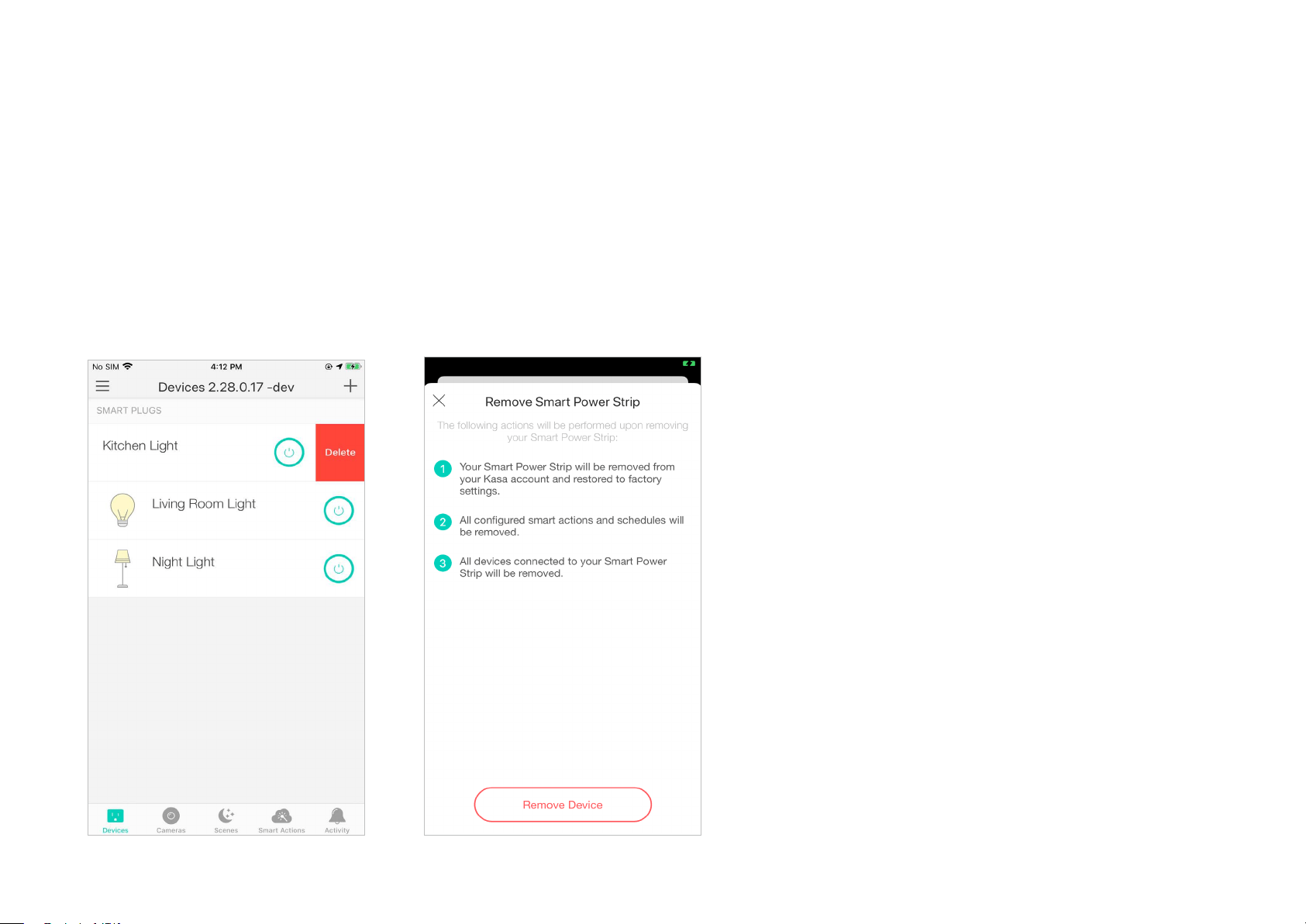

Method 1
Swipe left any of the outlets of your Smart Power Strip and tap Delete. Then tap Remove
Device. Your Smart Power Strip will be removed from your Kasa account and restored to
factory settings.
16

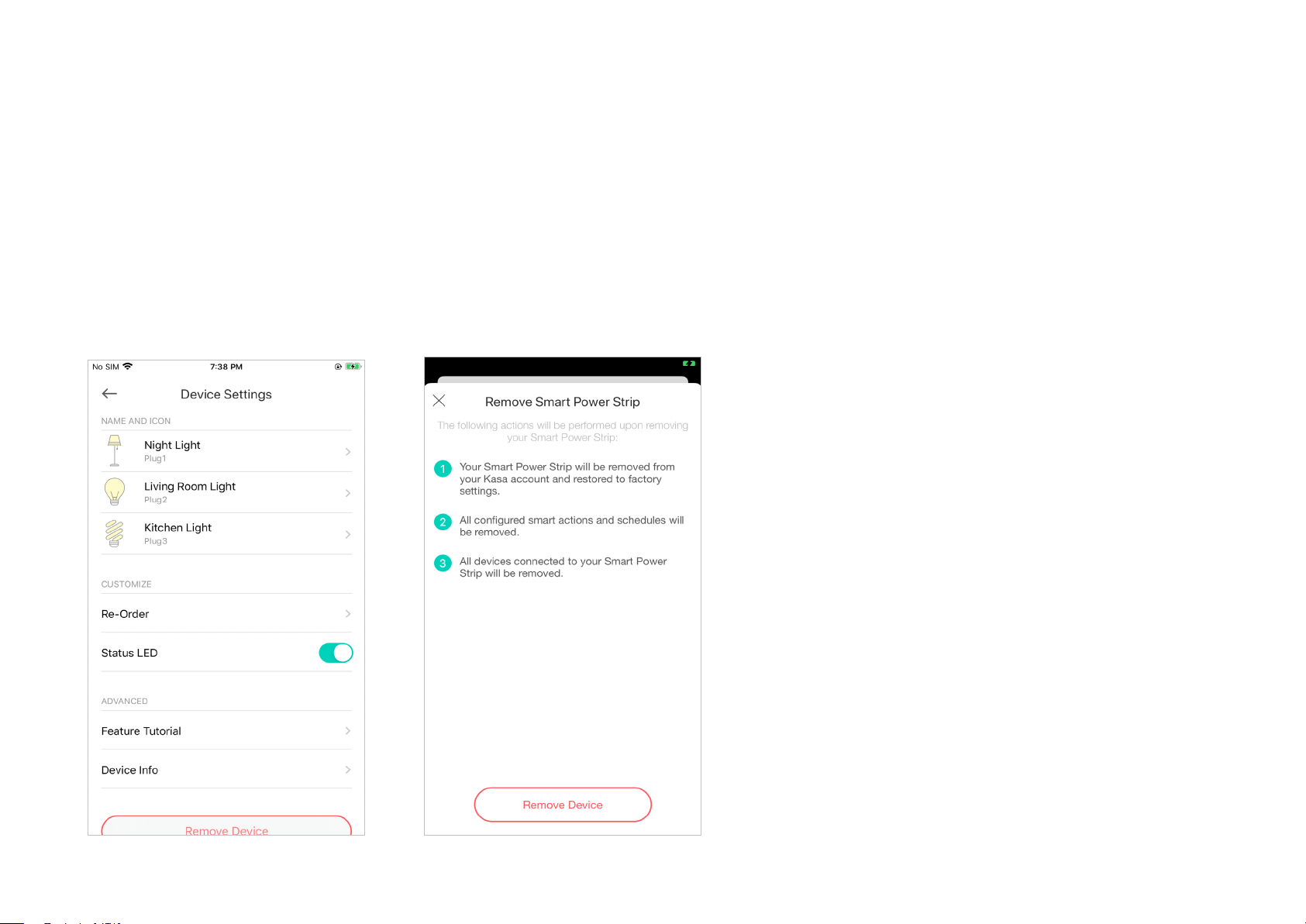

Method 2
Tap any of the outlets of your Smart Power Strip and go to the Devices Settings page.
Then tap Remove Device in the bottom. Your Smart Power Strip will be removed from
your Kasa account and restored to factory settings.
17
Method 3
Press and hold any of the control buttons of the three smart outlets for 10s to restore your Smart
Power Strip to factory default settings..
Control Button
18
Create Groups
With groups, ypu can control mutiple outlets simultaneously. This page allows you to add the outlets of your Smart Power Strip to a group for unied
management.

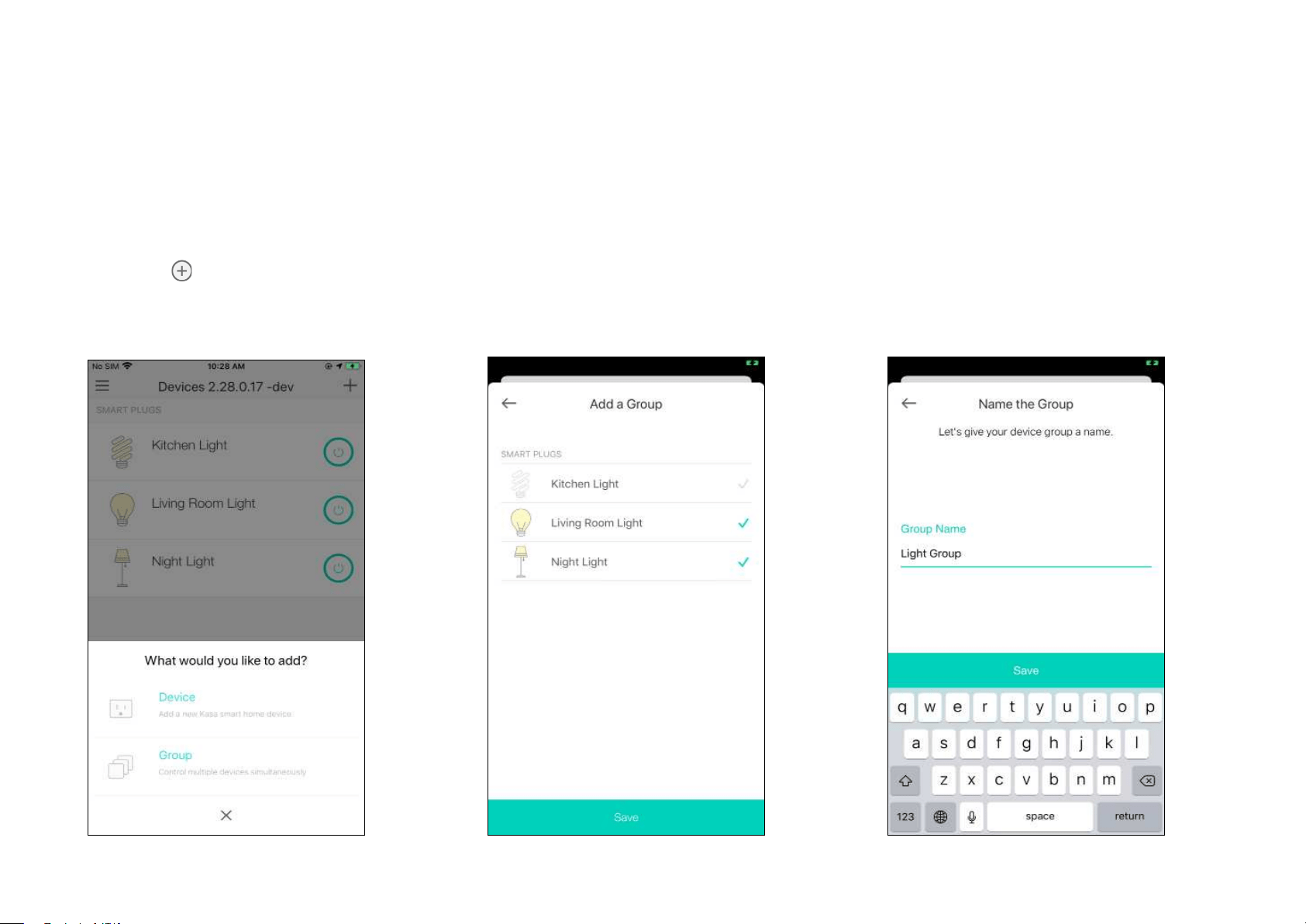

1. Create groups for your Smart Power Strip
1. Tap the button in the Home page of
the Kasa Smart app, and select
Group.
2. Select the smart outlets that you want to
add in a group and tap
Save. For example,
I want to group the Living Room Light and
the Night Light together for unied control.
3. Name the group.
19

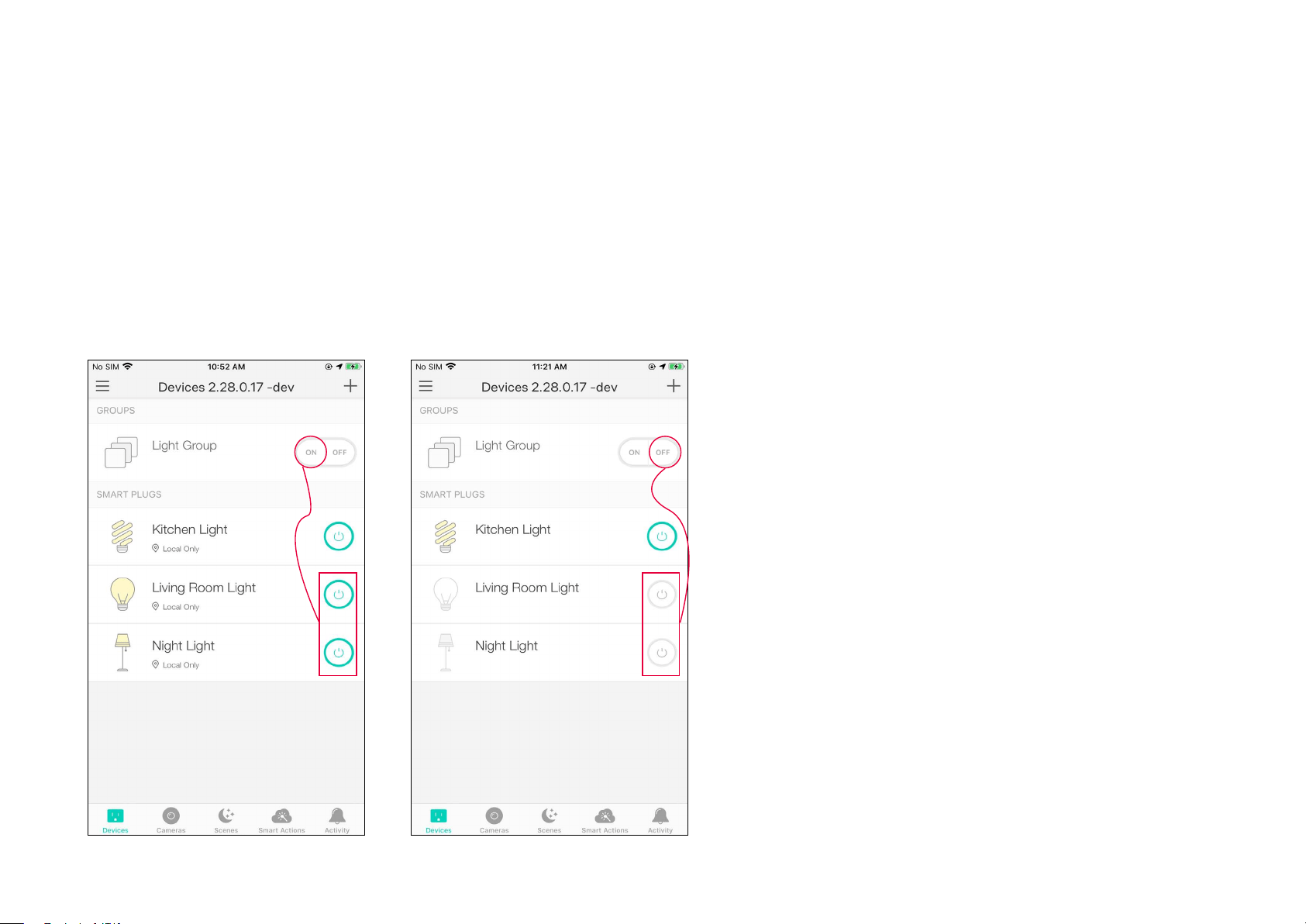

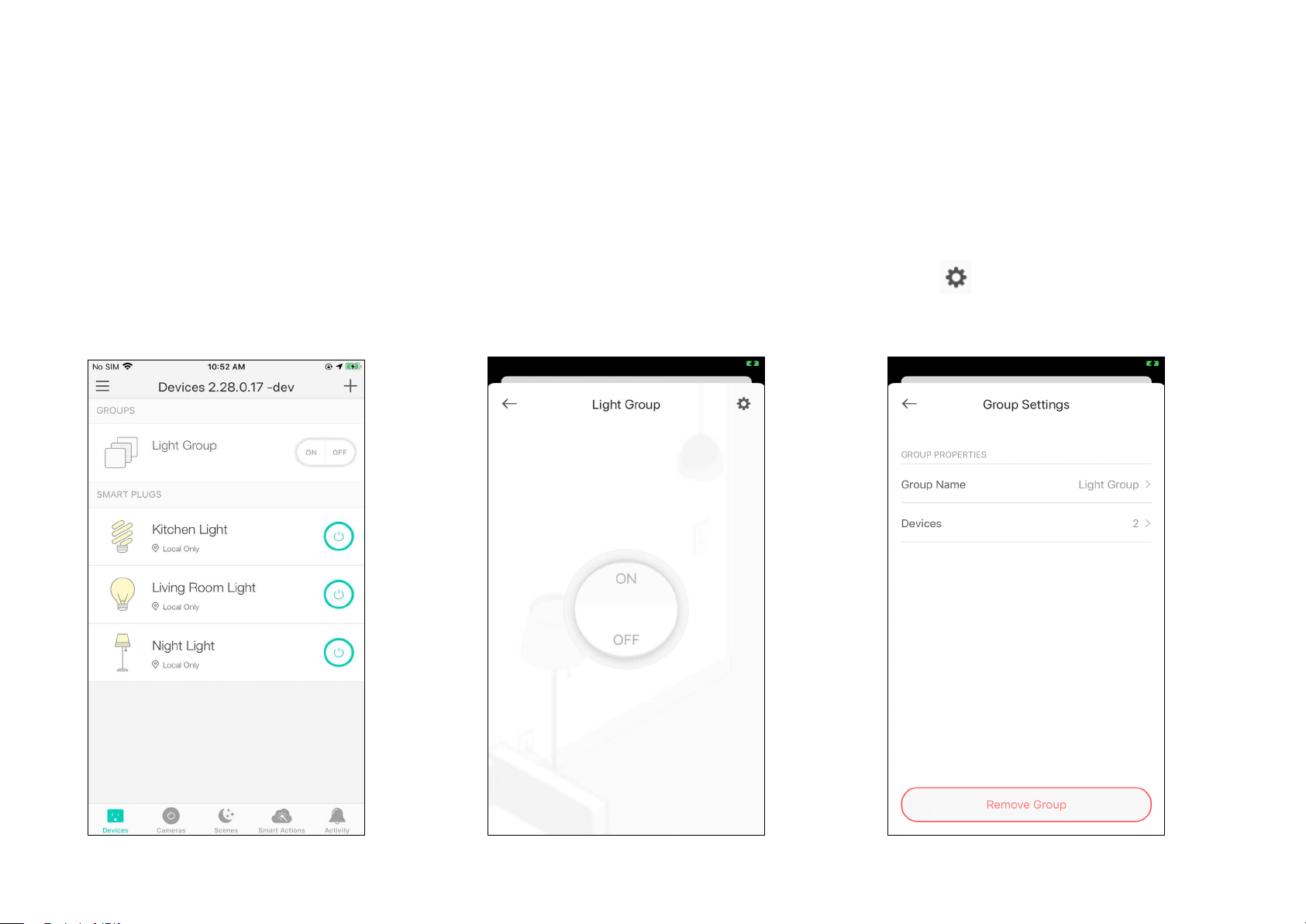

4. The created group is listed in the Home page. You can tap ON or OFF to turn on or o
the smart outlets together in the group.
For example, if I turn o the Light Group, the following Living Room Light and Night Light,
which are in the Light Group, will also show the status as o.
20
2. Manage the group
1. Tap the group you want to manage. 2. Turn on off off the Group in the status
page.
3. Tap in the top right corner to enter
the settings page.
21

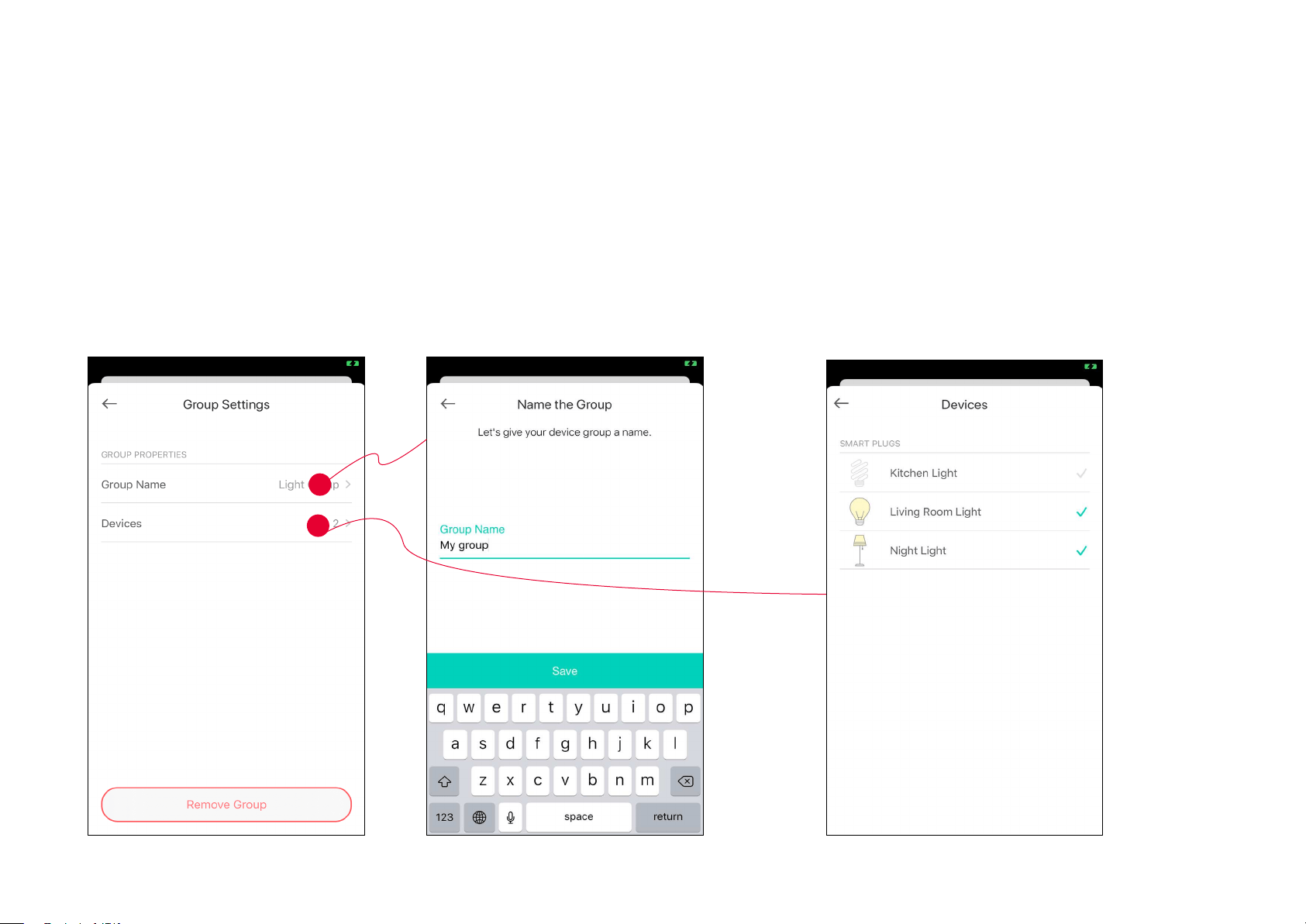

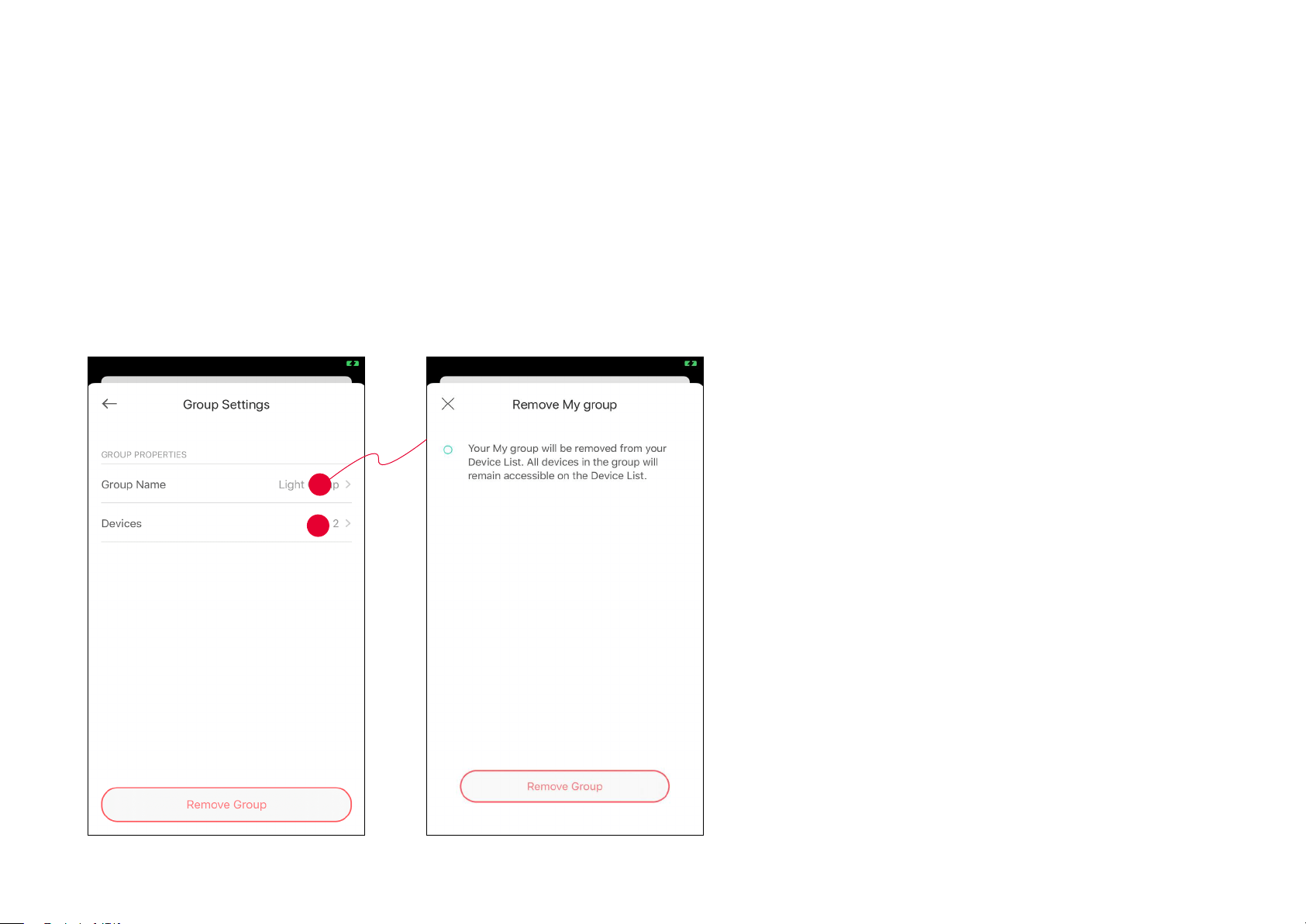

4. Tap Group Name to rename the group. 5. Tap Devices to add devices to or detele devices
from the group.
22
6. Tap Remove Group if you want to remove the group from your device list. All devices
in the group will remain accessible on the device list.
23
Create Scenes
A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your
smartphone or tablet, allowing you to easily set your mood, activity or t any special occasion. This page allows you to preset how your smart home
devices should act automatically at special occasions.

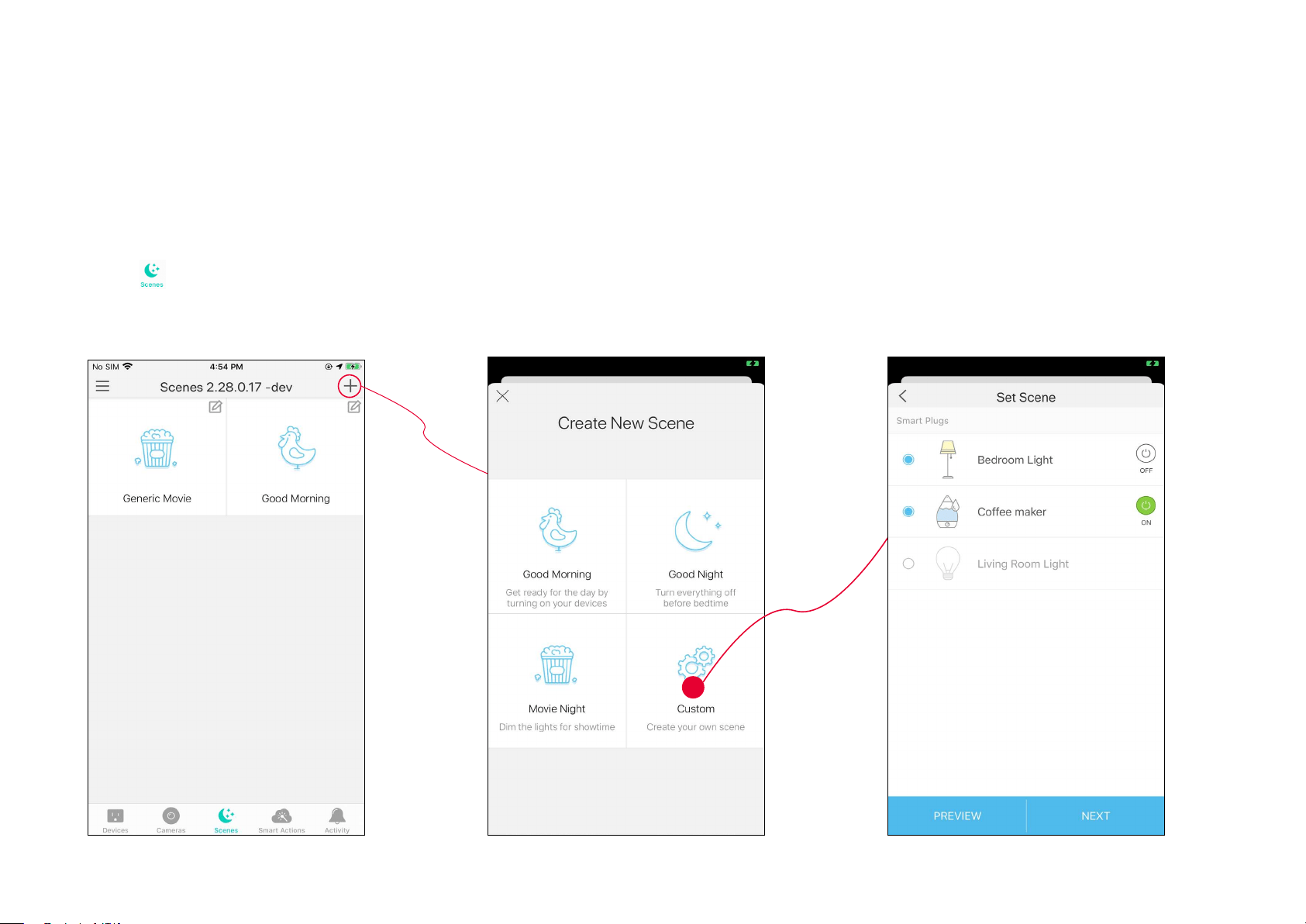

1. Tap
at the bottom, then tap + at the
top right corner.
2. Select a scene or create your own scene.
For example: I want to turn off bedroom light
and turn on coee maker when I get up in the
morning with just a tap in the Kasa Smart app .
3. Select devices for the scene to work on
and set their status respectively.
24

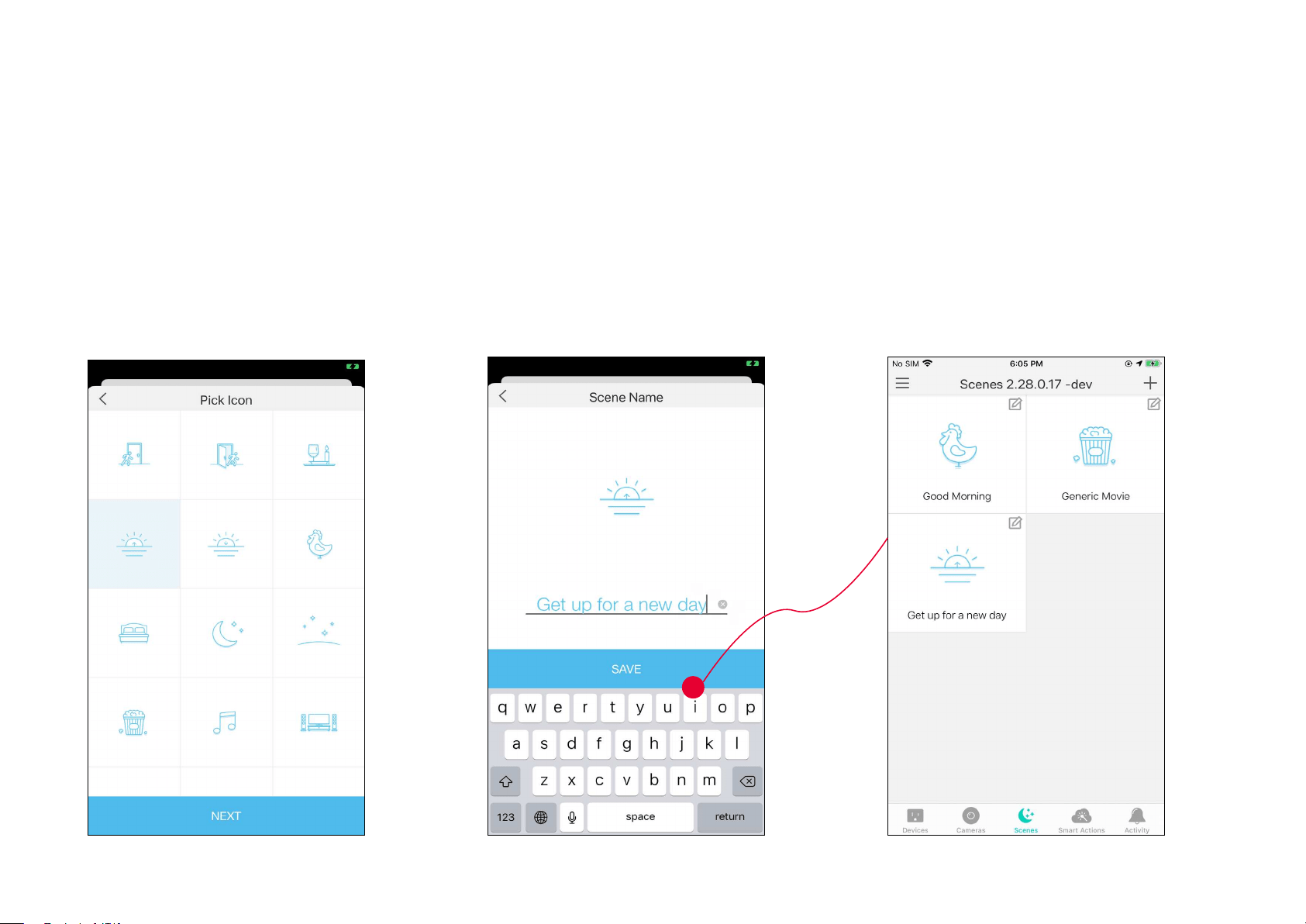

4. Pick an icon for your scene. 5. Name your scene. 6. Your scene is created and is displayed in
the scene list. Just tap the scene to activate
it.
25
Smart Actions
Smart Actions is a function provided that enables device interconnections and home automations. With Smart Actions, your Kasa devices can work
together to create a smarter smart home. From the moment you wake up to the moment you drift asleep, Smart Actions make your home safer and
more comfortable.

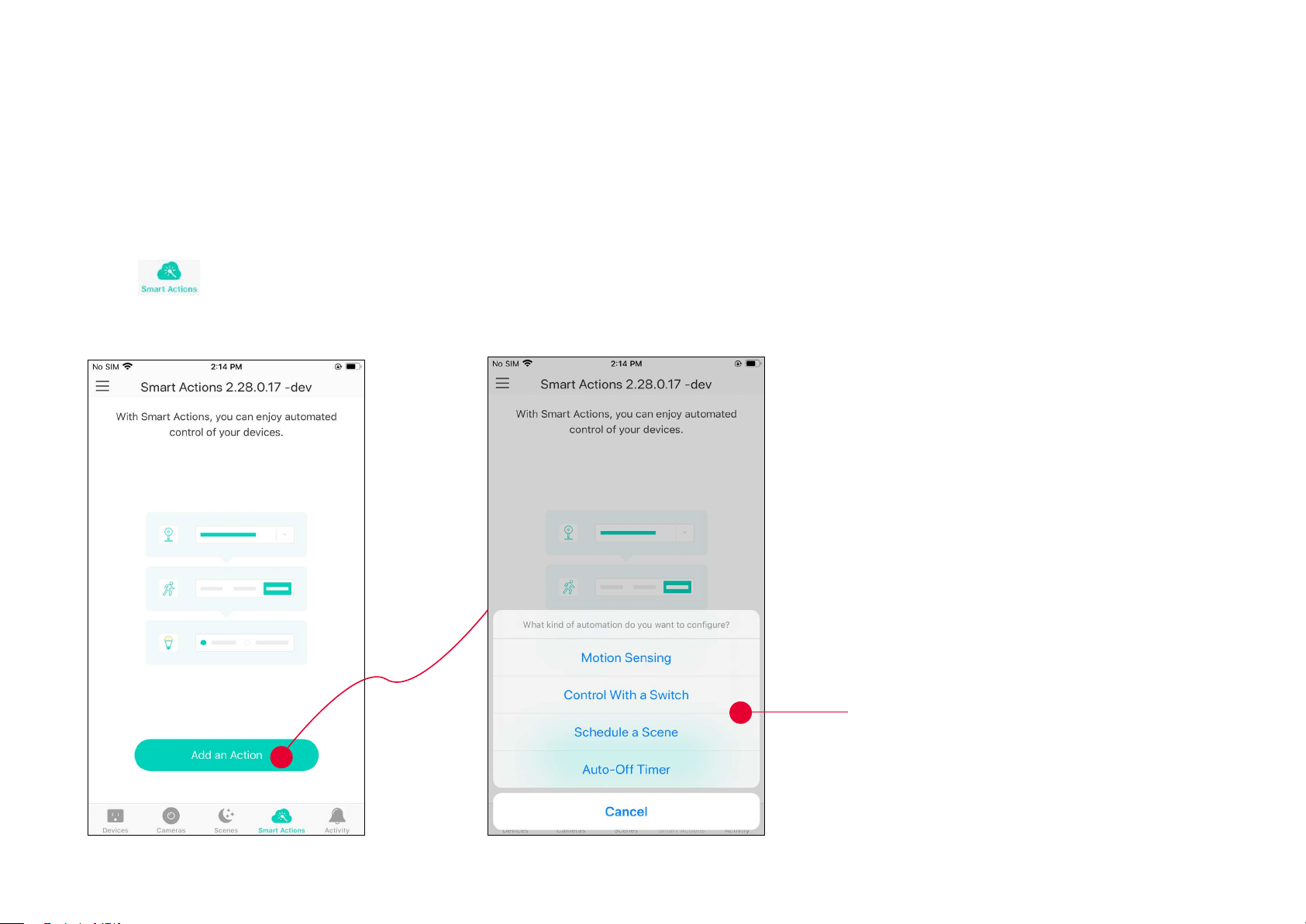

1. Tap
at the bottom, then tap Add
an Action
.
2. Select an automation type for your Smart
Actions.
Motion Sensing: Take actions when a Kasa
camera senses a motion.
Control With a Switch: Extending the Smart
Switch control to other Kasa Smart devices. Turn
on/o a group of devices with the Smart Switch
all together.
Schedule a Scene: Schedule a “Scene” to be
turned on automatically at the time specied.

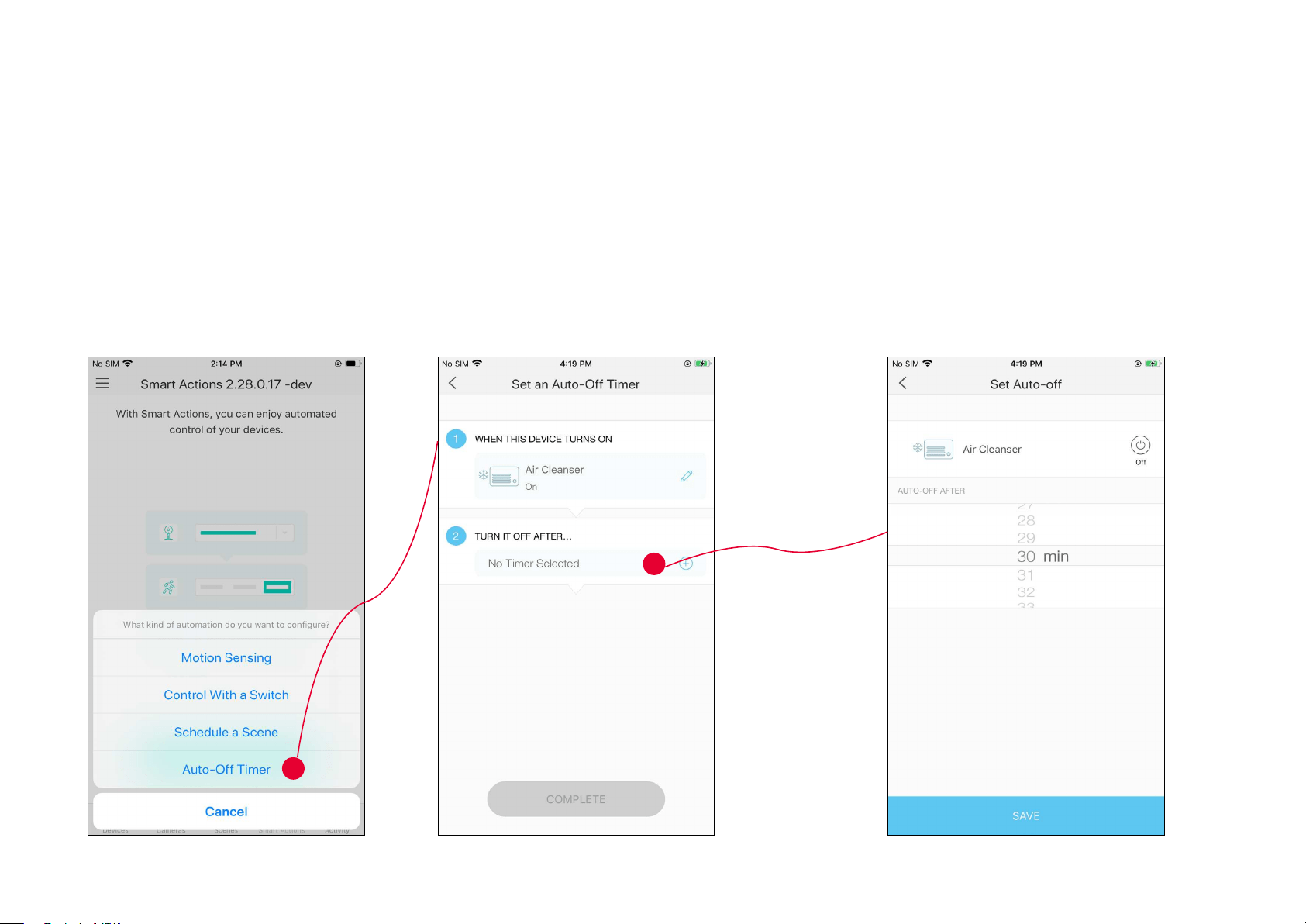

Auto-off Timer: Whenever a Smart device is
turned on, turn it o after the designated amount
of time.
26

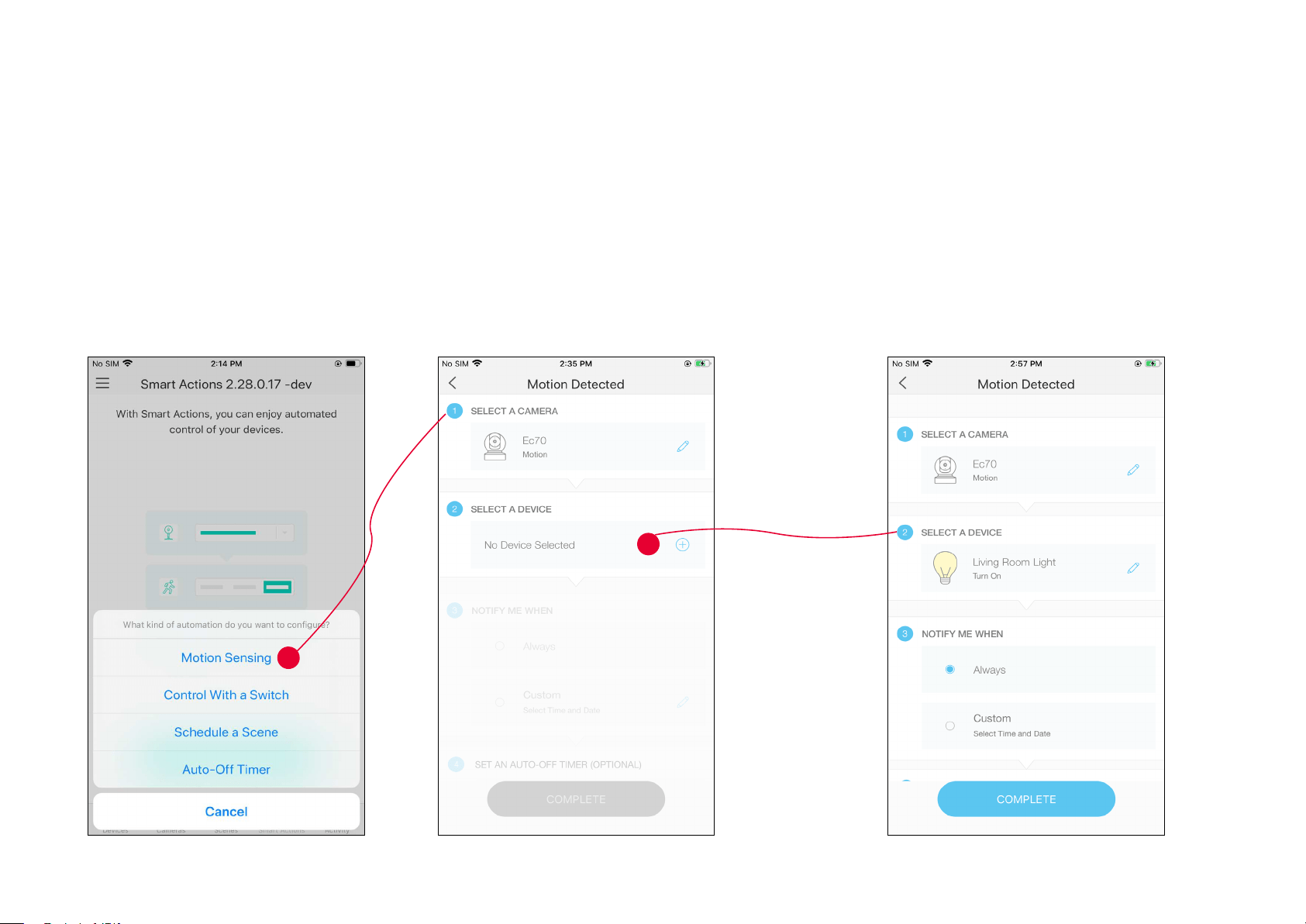

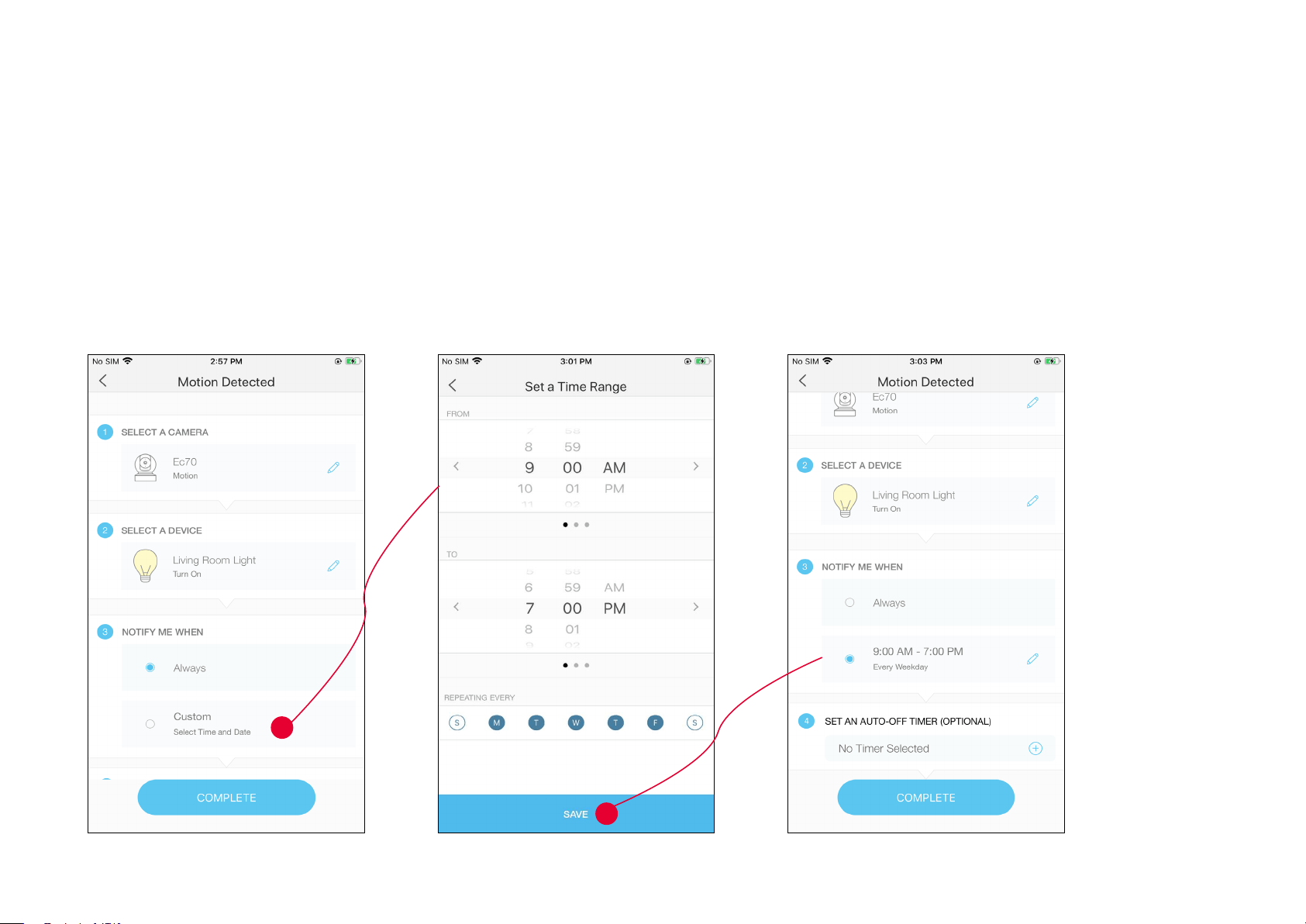

1. Tap Motion Sensing then select a camera. 2. Select the outlet of your Smart Power
Strip which your living room light is plugged
in.
1. Congure Motion Sensing If you already have a Kasa Smart Camera
For example: I want to turn the living room light when my Kasa camera senses a motion.
27
3. Set the time when you want to be notied. You can choose Always or tap Custom to choose time according to your needs.
For example: I want to be notied from 7:00 AM and 9:00 PM every weekday.
28

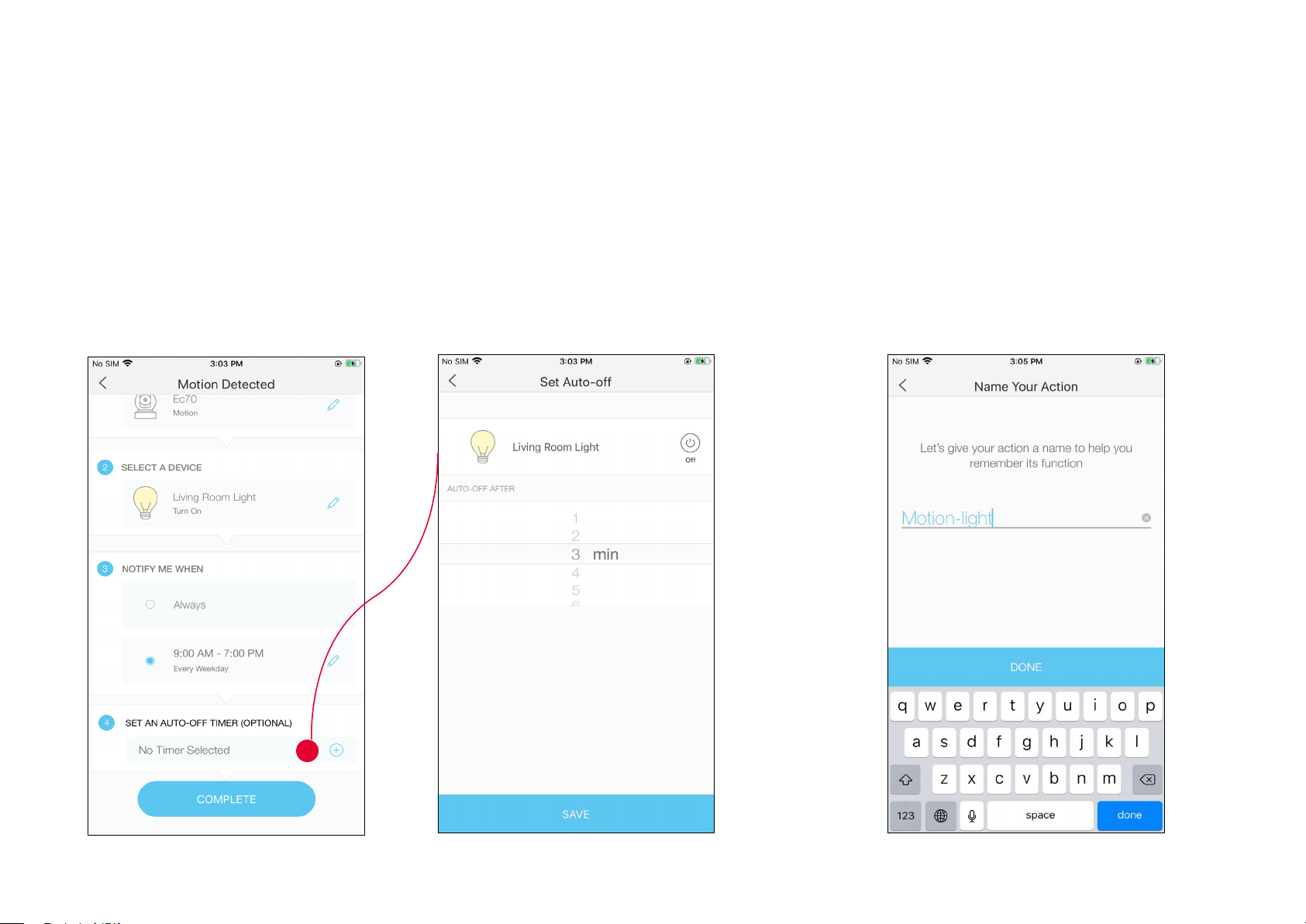

4. (Optional) Set an auto-o timer then tap Complete. Then your living room light will be
turned o after the time you set.

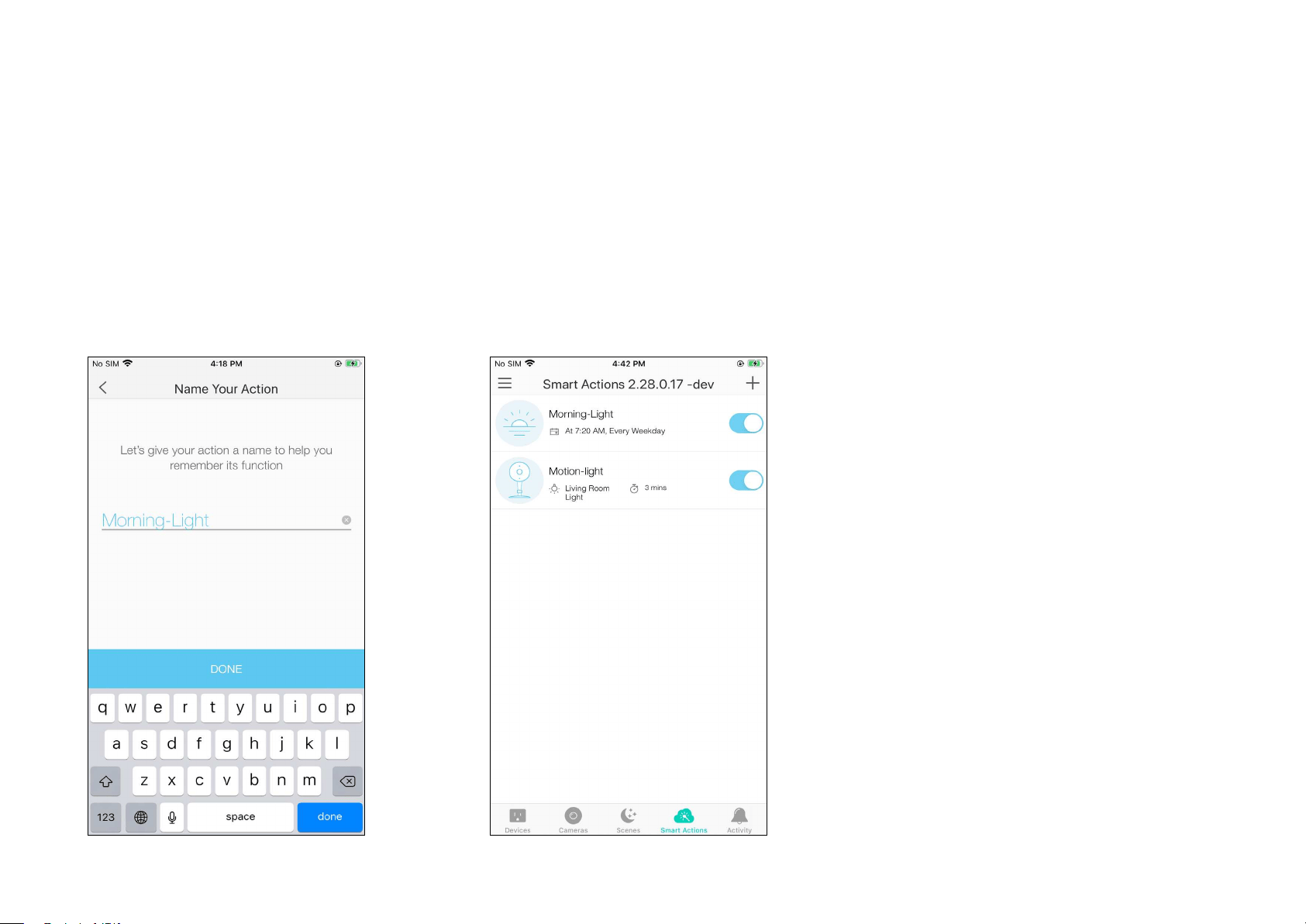

5. Name your action for easy identication.
29

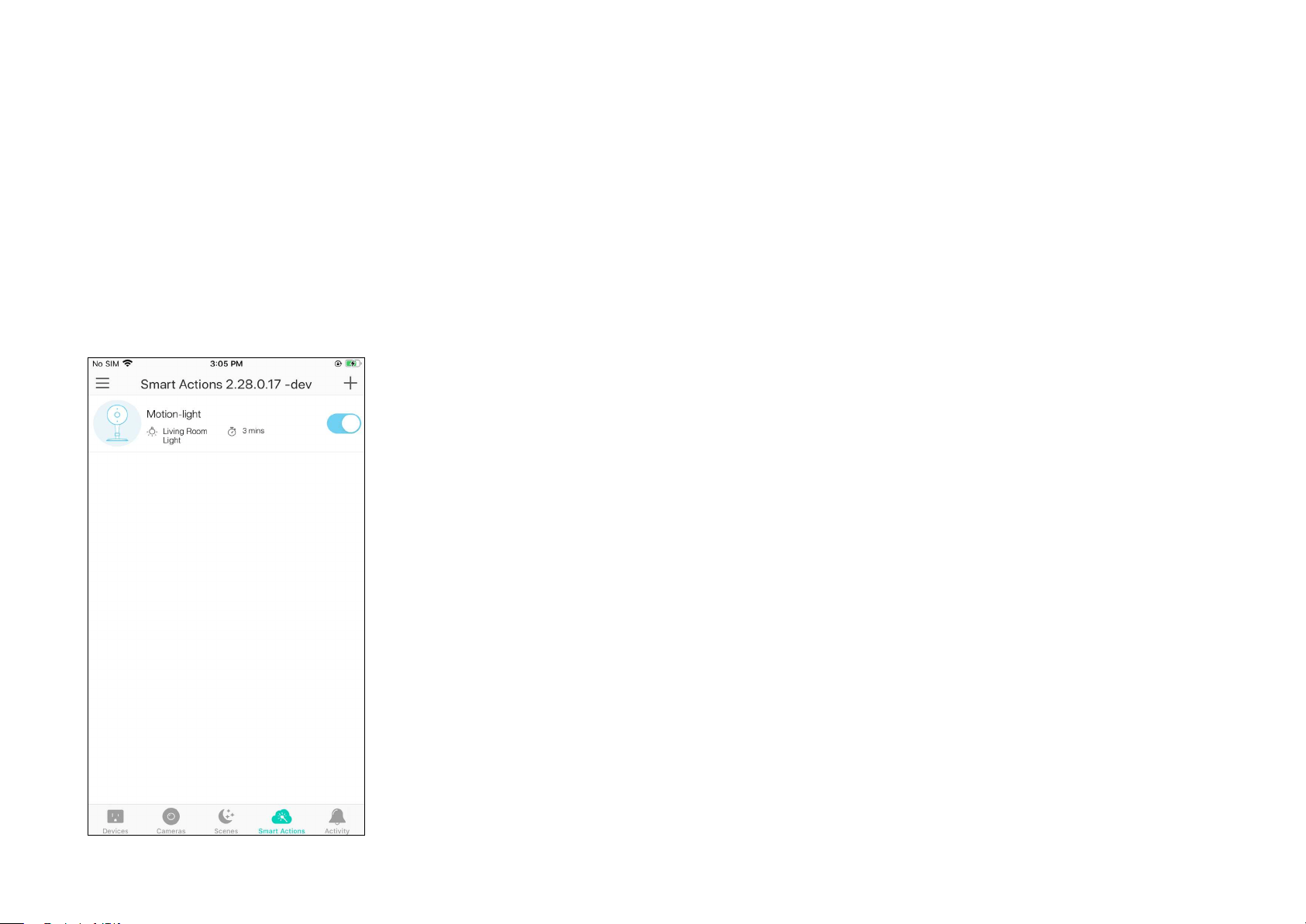

6. The Smart Action is created successfully
and displayed in the Smart Actions list.
30

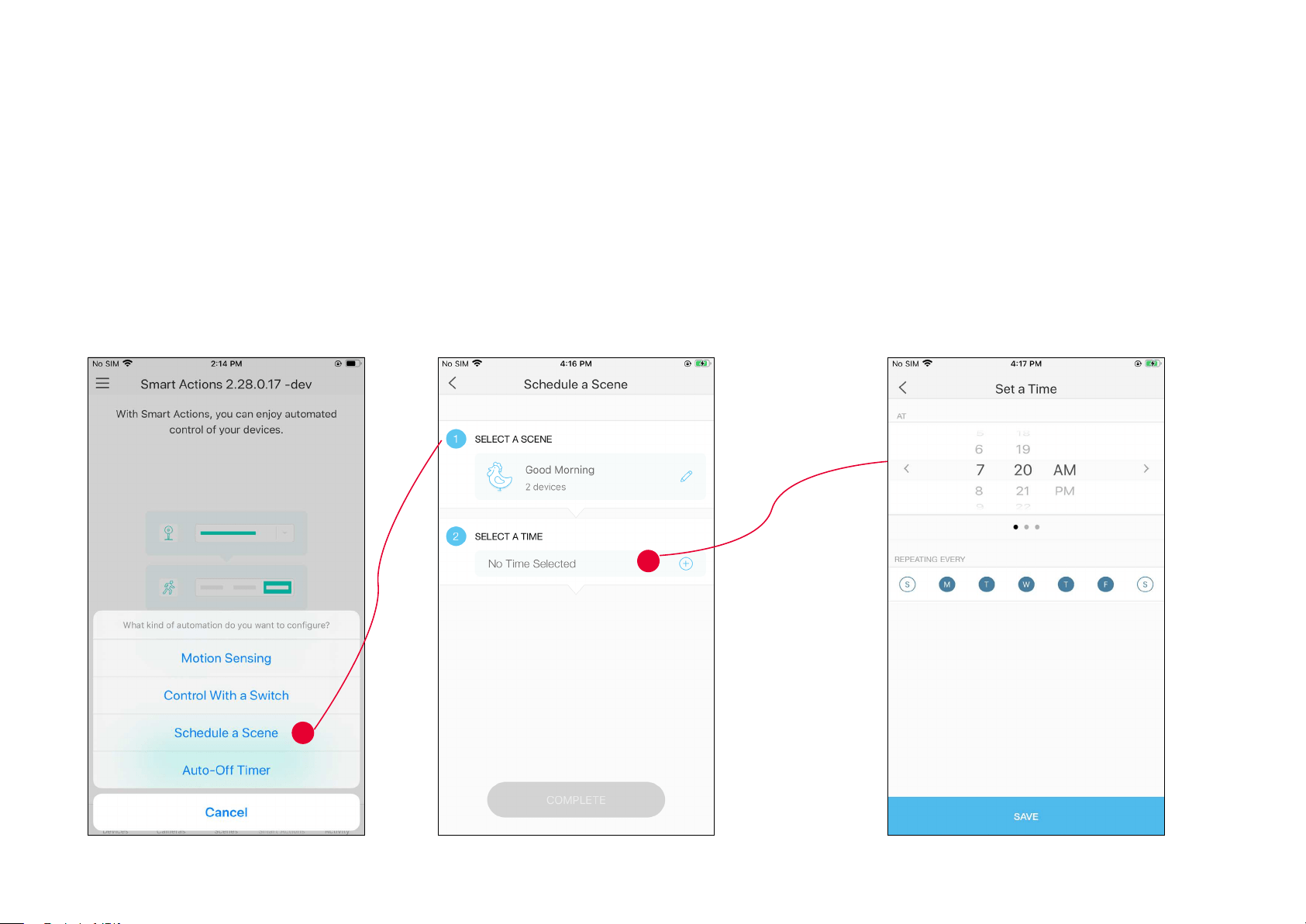

1. Tap
Schedule a Scene then select a scene you have created.
For example: I choose my
Good Morning scene which turns on my bedroom and kitched
light with just a tap.
2. Set the time and frequency at which you
want your scene to be turned on .
2. Congure Schedule a Scene
For example: I want to turn on the scene I have created automatically at scheduled time.
31
3. Name your action for easy identication. 4. The Smart Action is created successfully
and displayed in the Smart Actions list.
32
1. Tap Auto-O Timer then select a device. 2. Set the time.
3. Congure Auto-O Timer
For example: I want to turn o my air cleaner is plugged in after 30 minutes whenever it is turned on.
33
3. Name your action for easy identication. 4. Set the time.
34
Discover Kasa
Use the Kasa Smart app to pair your Smart Wi-Fi Power Strip with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience.
Kasa helps manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.

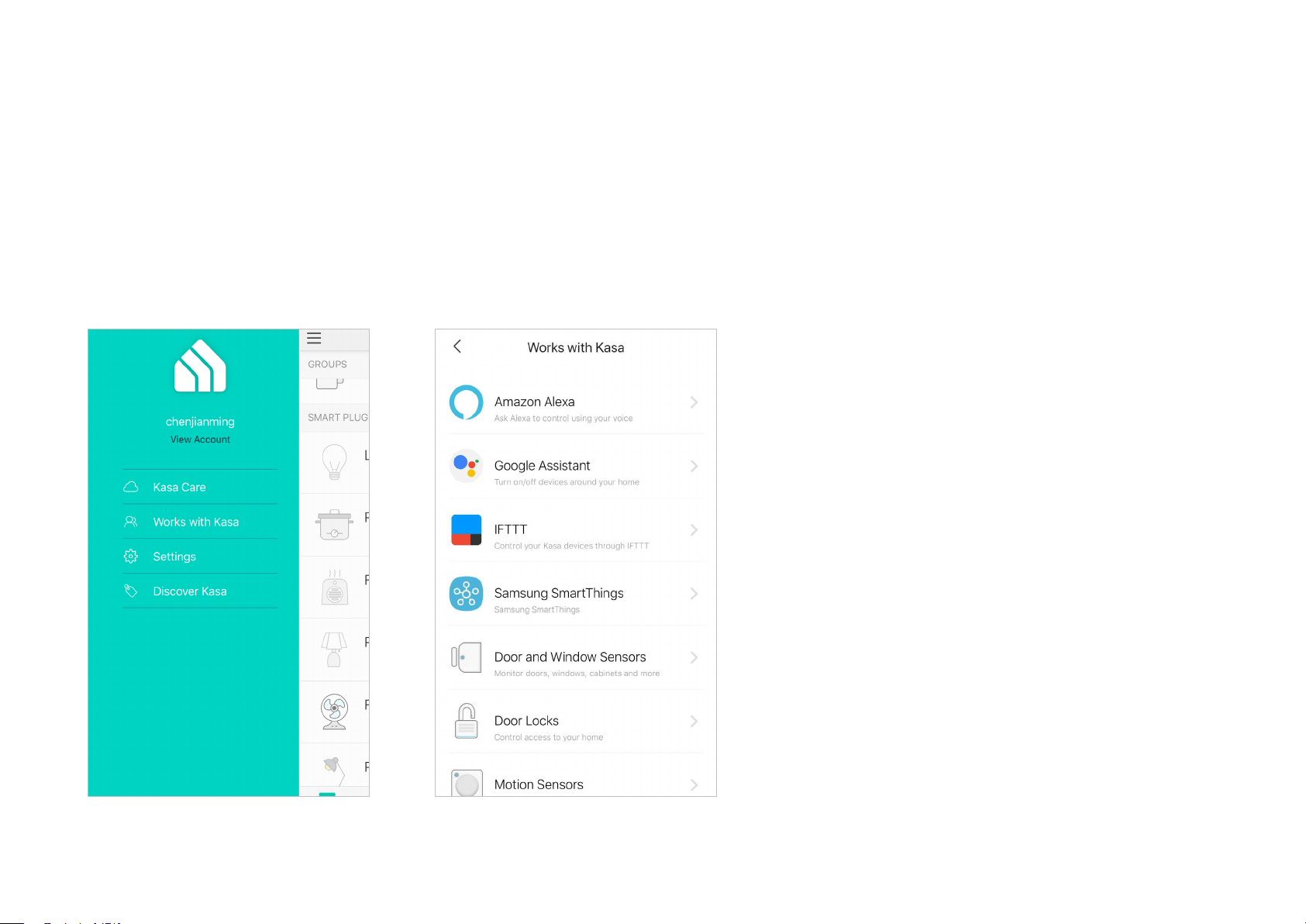

Launch the Kasa Smart app. Go to the sidebar and tap Work with Kasa. You can choose Amazon Alexa / Google Assistant/ IFTTT / Samsung
SmartThings for detailed instructions.
35
FCC compliance information statement
Product Name: Kasa Smart Wi-Fi Power Strip, 3-Outlets
Model Number: KP303
Responsible party:
TP-Link USA Corporation, d/b/a TP-Link North America, Inc.
Address: 145 South State College Blvd. Suite 400, Brea, CA 92821
Website:
http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6803
E-mail:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
36
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2020-12-22
37
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY(the maximum transmitted power)
2400 MHz -2483.5 MHz(20dBm)
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way
of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
38
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice
注意！
依據 低功率電波輻射性電機管理辦法
LP0002低功率射頻器材技術規範_章節3.8.2
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
BSMI Notice
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
39
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name
Kasa Smart Wi-Fi Power Strip, 3-Outlet
型號（型式）：
Type designation (Type)
KP303
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB○○○○○○
外殼○○○○○○
電源供應板—○○○○○
其他及其配件−○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value
of presence.
備考3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
40
Safety Information
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• Keep the device away from water, fire, humidity or hot environments.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
CAUTION
• Use only in dry locations.
• To reduce the risk of electric shock - Use only indoors.
• Not intended to be mounted on a desk or similar furnishing surface.
• Risk of electric shock. Do not plug into another relocatable power tap or an extension cord.
• Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the electrical outlet and the electrical service panel.
• WARNING: Timer could turn on unexpected without the user being present. To reduce the hazardous condition - Unplug the appliance that is
plugged into the receptacle(s) controlled by the timer before servicing.
Explanation of the symbols on the product label
Symbol Explanation
Indoor use only
AC voltage
DC voltage
41
Symbol Explanation
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
