Model No. PFEL39030
Seriat No.
Serial_
Number
Decal
if you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE,
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1°800°999°3756
Mon.=Fri., 6 a.m.=6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Patent Pending
, Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
PROFORM is a registered trademark of iCON Health & Fitness, inc.
2

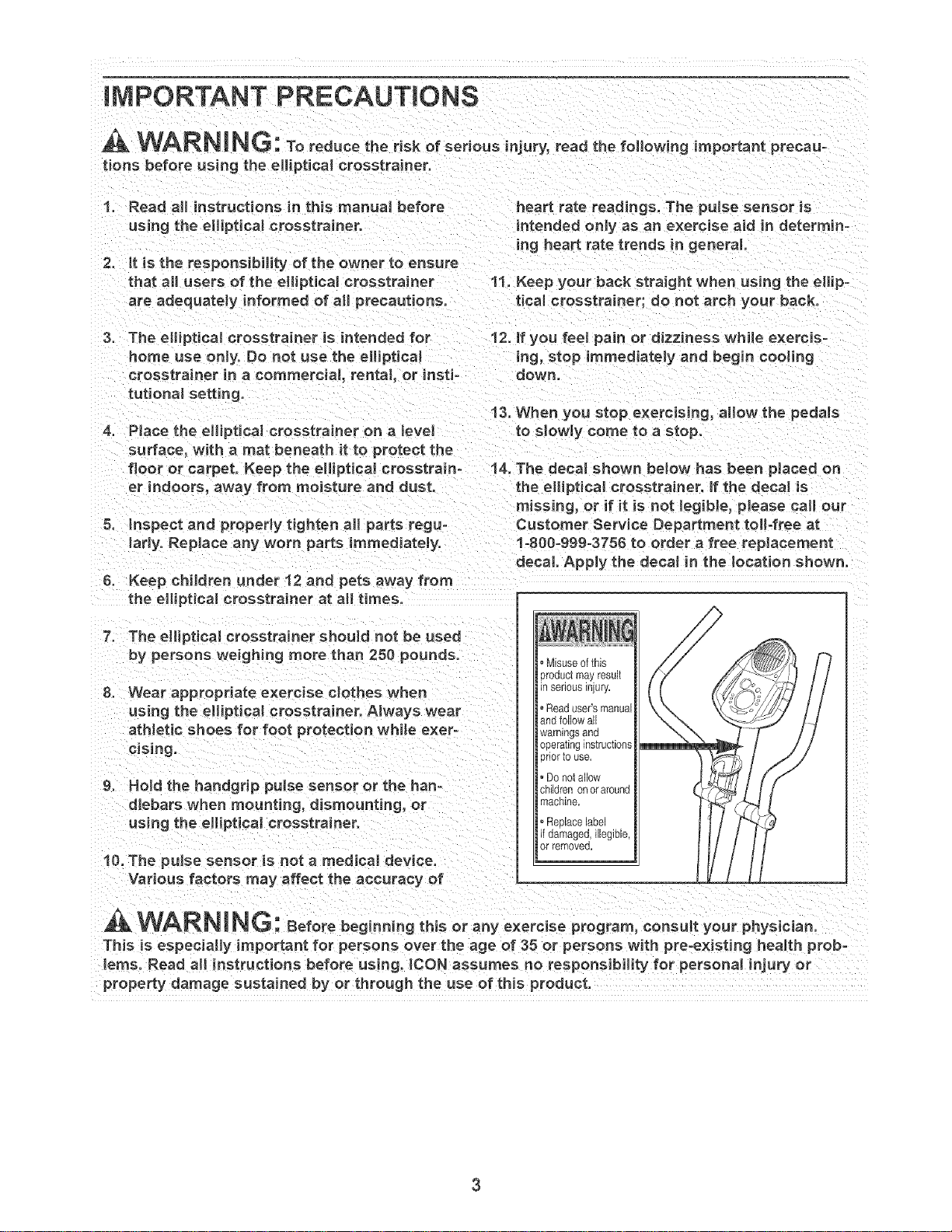

IMPORTANT PRECAUTIONS
'_ WARN ING: ToreducetheHskofseHou__.jury,readthefo.ow_ngimportant precau-
tionsbefore using the elliptical crosstrainer.
1. Read all instructions in this manual before heart rate readings. The pulse sensor is
using the elliptical crosstrainer, intended only as an exercise aid in determin-
ing heart rate trends in general
2. It Is the responsibility of the owner to ensure
that aH users of the ellipticaJ crosstrainer 11. Keep your back straight when using the eIHp-
are adequately informed of aH precautions, tical crosstrainet; do not arch your back,
3. The elliptical crosstrainer is intended for t2. ifyou feel pain or dizziness while exercis-
home use onlyo Do not use the elliptical
crosstrainer in a commercial, rental, or insti-
tutional setting.
13.
4. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrain= 14.
er indoors, away from moisture and dust,
5. Inspect and properly tighten aH parts regu=
ladyo Replace any worn parts immediately.
& Keep childrenunder i2 and petsaway from
the ellipticalcrosstrainerataH times,
ing, stop immediateJy and begin cooling
down.
When you stop exercising, allow the pedaJs
to slowly come to a stop.
The decal shown below has been placed on
the eIHpticalcrosstrainer,ifthedecal is
missing, or if it is not legible, please call our
Customer Service Department toll-free at
1-800-999-3758 to order a free replacement
decal Apply the decal inthe locationshown.
7. The eHiptica_crosstrainershould not be used
by persons weighing more than 250 pounds.
8_
Wear appropriate exercise clothes when
using the elliptical crosstrainero Nways wear
athleticshoes forfootprotectionwhile exer-
cising.
9. Hold the handgdp puJse sensor or the ban-
dJebars when mounting, dismounting, or
using the elliptical crosstrainer.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
A WARN ING: Beforebeginningthisoranyexerciseprogram,consuUfyourphysician.
This isespeciallyimportantfor persons over the age of35 or persons with pre-existinghealthprob-
lems, Read aH instructions before using. ICON assumes no responsibility for personaJ injury ot
propertydamage sustainedby or through the use ofthisproduct.
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM "_
800 CARDIO CROSSTRAINER. The PROFORM _'800
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. And the unique PROFORM "_
800 features adjustable resistance and a statezoFthe z
art console to help you get the most from your exer-
cise. Welcome to a whole new world of natural, elliptF
caFmotion exercise from PROFORM
For your benefit, read this manuat carefully before
you use the ellipticaJ crosstrainer, if you have
questions after reading this manual, call our Customer
Service Department toIFfree at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
PFEL39030. The serial number can be found on a
decal attached to the elliptical crosstrainer (see the
front cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgdp
Pulse Sensor
Handlebar
FRONT
Wheel _.,.,
Leveling Foot l
LEFT SIDE
*No water bottle is included
Console
Water Bottle Holder*
Pedal
Flex Bar
Pedal Disk
BACK
4
Assembly requires two persons Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials Do not dispose of the packing materials until assembly is completed In addition to the
included allen wrenches, assembly requires a phitlips screwdriver _ _, an adjustable
wrench __, and a rubber mallet
J
E
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly
The number in parenthesis below each drawing refers to the key number of the part, from the PART LiST on
page 22 The second number refers to the quantity needed for assembly Note: Some smalm parts may have
been pre-assembled If a part is not in the parts bag, check to see if it has been pre-assembled
M4 x 16mm M4 x 22mm M8 Nylon
Screw (66)-=4 Screw (93)-2 Locknut (46)-4
Frame Spacer (83)-1 MI0 Split
Washer (70)-1
\_ / /'
M103 Black
Washer (53)-2
M8 x 45mm Button Bolt (50)--4
M8 x 19mm Shoulder
Screw (22)=2
MI0 Nylon
Locknut (29)-6
MI0
Washer (38)=6
[ \
MI0 x 33mm Carriage
Bolt (20)=2
\,,
i /
i ./'
i
_i i' i
.... M10 x 78mm Button Bolt (27)-2
/
i /
1. Identify the Front Stabilizer (3). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 112mm
Carriage Bolts (34) and two M10 Nylon Locknuts (29).
Make sure that the Front Stabilizer is turned so the
Whee{s (32) are not touching the floor.
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (4) to the Frame with two
MI0 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (29).
3. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Lower Wire Harness (87). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack. While holding the upper end of the
Upper Wire Harness, insert the Upright into the
Frame (1). Do not pinch the Wire Harnesses.
Slide an M10 Split Washer (70) and a Frame Spacer
(83) onto an M10 x 88mm Button Bolt (63). Insert the
Button Bolt into the Frame (1) and the Upright (2).
Make sure that the concave end of the Frame
Spacer is turned toward the Frame. Do not tighten
the Button Bolt yet.
Attach the Water Bottle Holder (91) to the Upright
(2) with two M4 x 22mm Screws (93).
4. While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2). Next, attach
the Console to the Upright with four M4 x 16mm
Screws (66). Be careful to avoid p{nching the wire
harnesses.
1
32
34
2
1
Make sure the
wire harnesses
do not get
pinched and
91 damaged during
this step.
793
4
Wire /5
Harness
86
66
66
i i
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
6

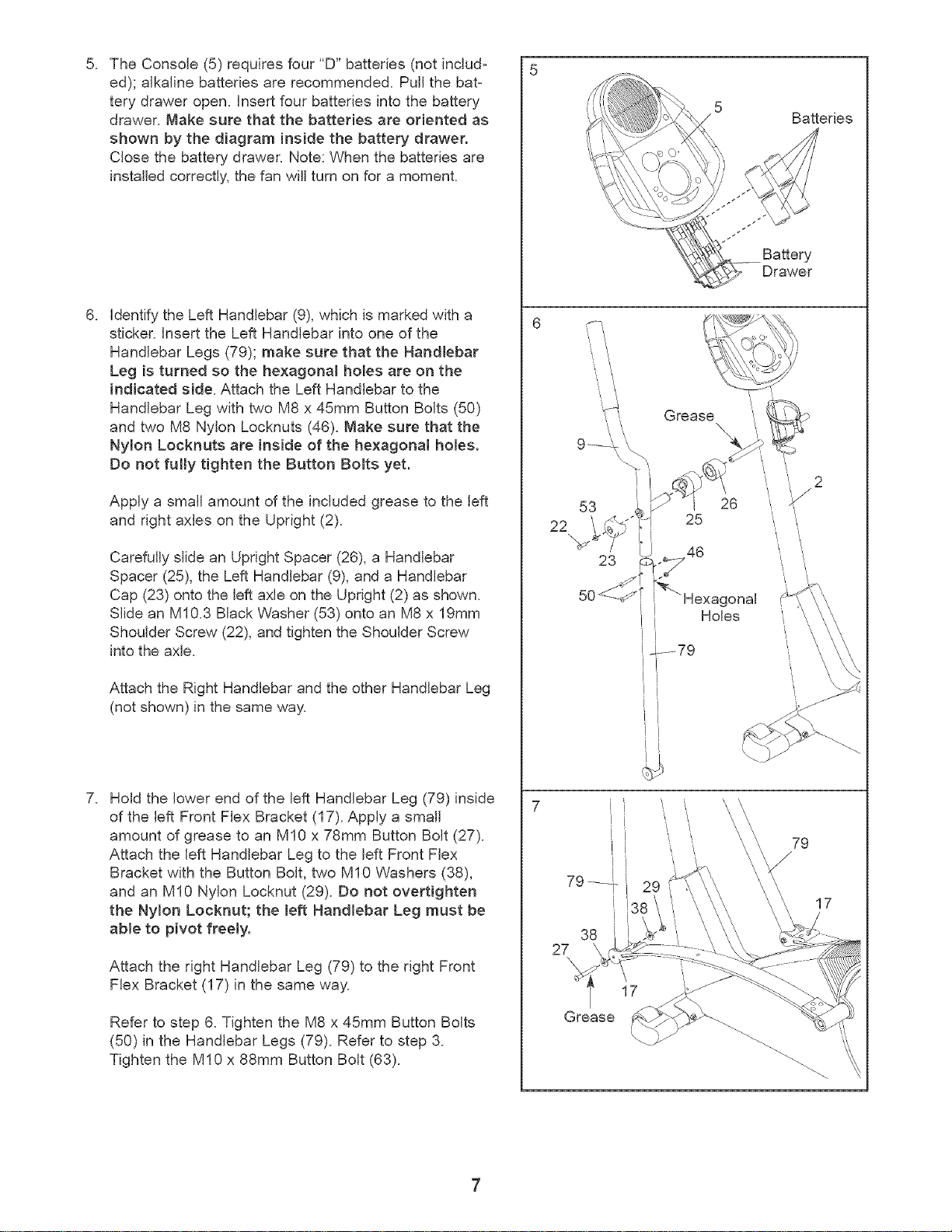

5. The Console (5) requires four "D" batteries (not includ=
ed); alkaline batteries are recommended. Pull the bat=
tery drawer open. Insert four batteries into the battery
drawer. Make sure that the batteries are oriented as
shown by the diagram inside the battery drawer.
Close the battery drawer. Note: When the batteries are
installed correctly, the fan will turn on for a moment.
6. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonam homes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (46). Make sure that the
Nylon Locknuts are inside of the hexagonN holes.
Do not fully tighten the Button Bolts yet.
Apply a small amount of the included grease to the left
and right axles on the Upright (2).
Carefully slide an Upright Spacer (26), a Handlebar
Spacer (25), the Left Handlebar (9), and a Handlebar
Cap (23) onto the left axle on the Upright (2) as shown.
Slide an M10.3 Black Washer (53) onto an M8 x 19mm
Shoulder Screw (22), and tighten the Shoulder Screw
into the axJe.
Attach the Right Handlebar and the other Handlebar Leg
(not shown) in the same way.
7. Hold the lower end of the left Handlebar Leg (79) inside
of the left Front Flex Bracket (17). Apply a small
amount of grease to an MI0 x 78mm Button Bolt (27).
Attach the left Handlebar Leg to the left Front Flex
Bracket with the Button Bolt, two MI0 Washers (38),
and an MI0 Nylon Locknut (29). Bo not overtighten
the Nylon Locknut; the left Handlebar Leg must be
able to pivot free{y.
Attach the right Handlebar Leg (79) to the right Front
Flex Bracket (17) in the same way.
Refer to step 6. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Legs (79). Refer to step 3.
Tighten the M10 x 88mm Button Bolt (63).
53
22
L
!
38
27
Grease
\
Grease
\
J 26
25
_46
tgonN
Holes
/-79
Batteries
Battery
Drawer
!
79
/
17

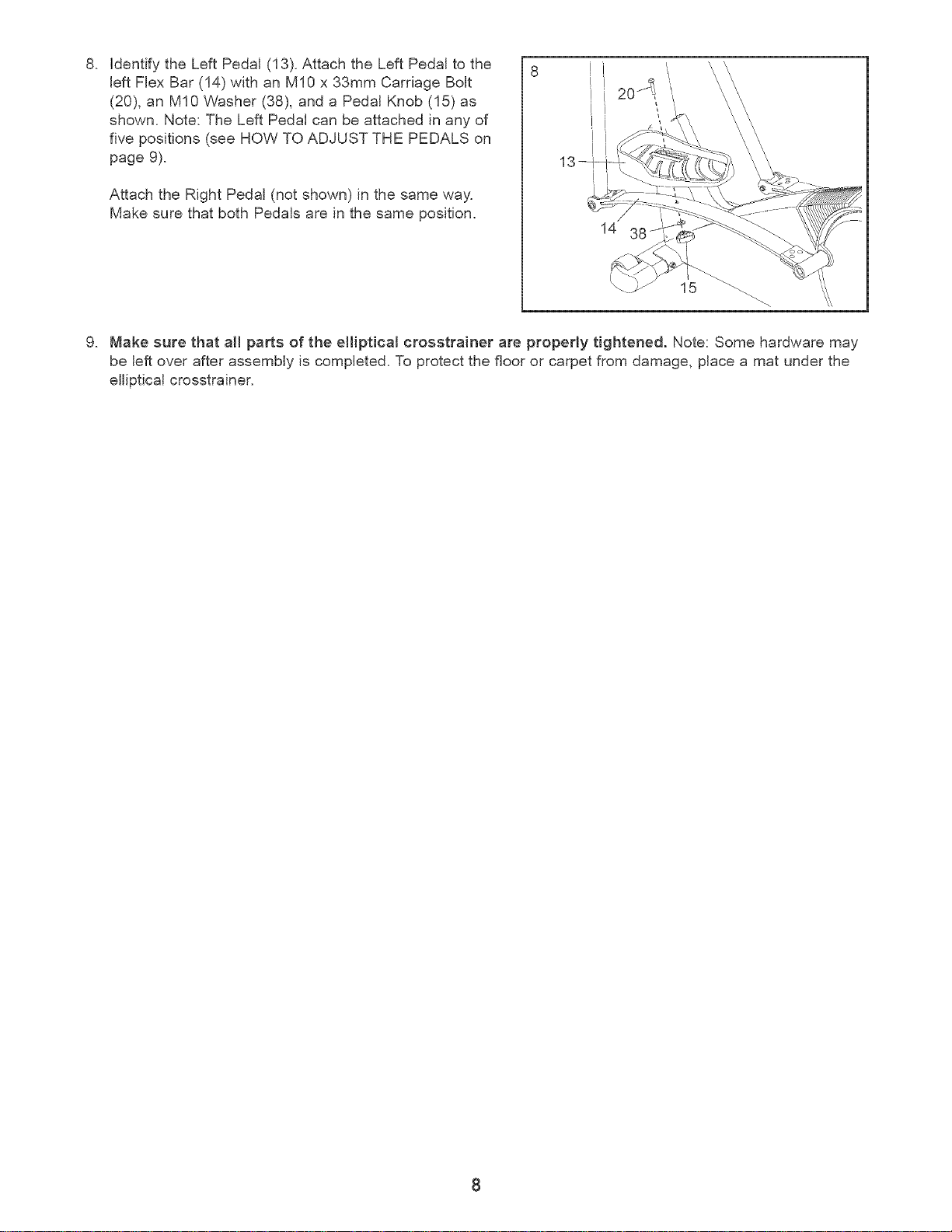

8. identify the Left Pedal (13). Attach the Left Pedal to the
left Flex Bar (14) with an MI0 x 33mm Carriage Bolt
(20), an M10 Washer (38), and a Pedal Knob (15) as
shown. Note: The Left Pedal can be attached in any of
five positions (see HOW TO ADJUST THE PEDALS on
page 9).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
14
15
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.

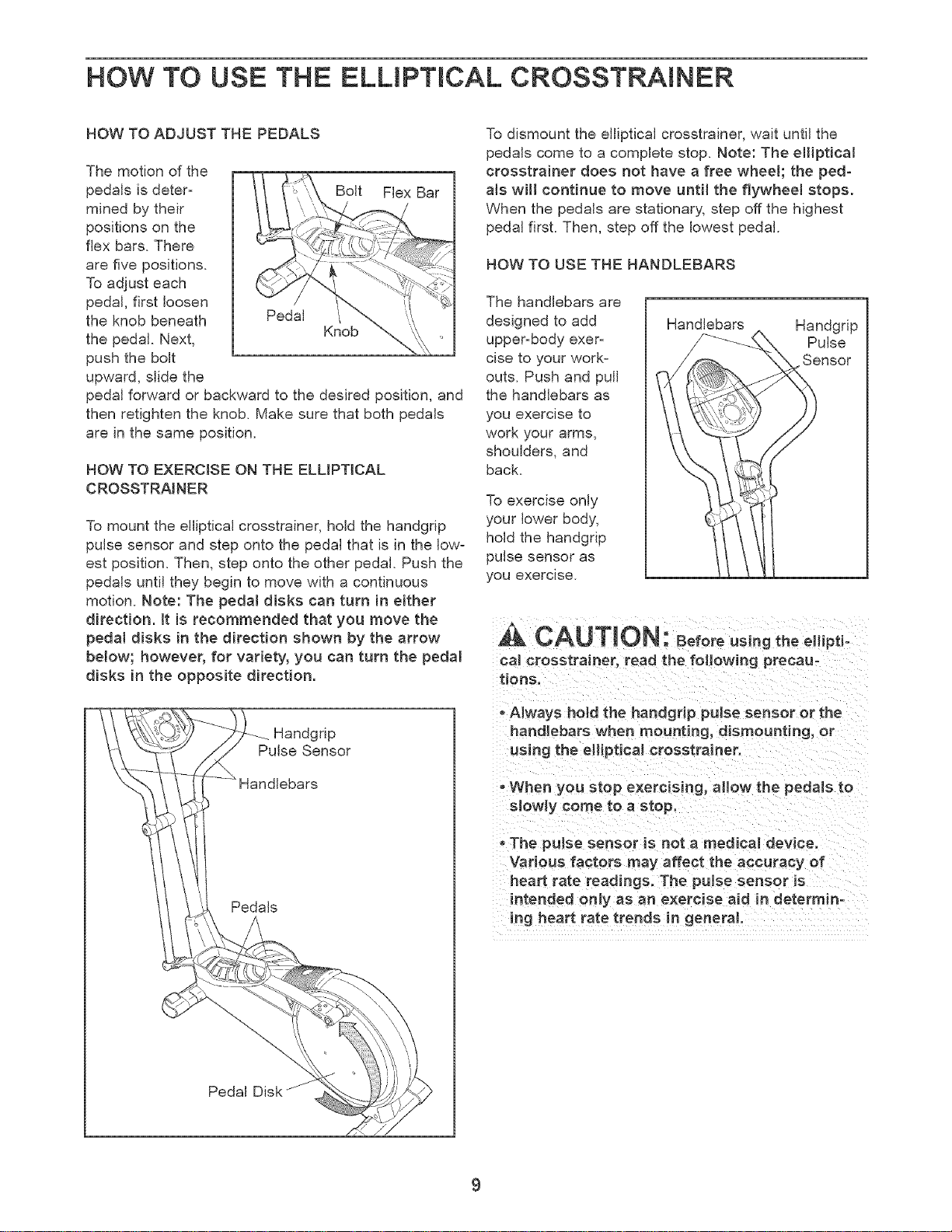

HOW TO USE THE ELUPTICAL CROSSTRAtNER
HOW TO ADJUST THE PEDALS
The motion of the
pedals is deter z Bolt Flex Bar
mined by their
positions on the
flex bars. There
are five positions.
To adjust each
pedal, first loosen
the knob beneath Pedal
the pedal. Next, Knob
push the bolt
upward, slide the
pedal forward or backward to the desired position, and
then retighten the knob. Make sure that both pedals
are in the same position.
HOW TO EXERCISE ON THE ELLiPTiCAL
CROSSTRAINER
To mount the elliptical crosstrainer, hold the handgrip
pulse sensor and step onto the pedal that is in the Iowz
est position. Then, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion. Note: The pedamdisks can turn in either
direction, it is recommended that you move the
pedal disks in the direction shown by the arrow
below; however, for variety, you can turn the pedam
disks in the opposite direction.
Handgrip
Pulse Sensor
Pedals
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the ped-
als will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO USE THE HANDLEBARS
The handlebars are
designed to add
upper-body exer-
cise to your work-
outs. Push and pull
the handlebars as
you exercise to
work your arms,
shoulders, and
back.
To exercise only
your lower body,
hold the handgrip
pulse sensor as
you exercise.
Handlebars
Handgrip
Pulse
Sensor
A CAUTION: Beforeusingthee. pt -
cal crosstrainer, read the following precau-
tions ....
• Always hold the handgrip pulse sensor or the
handlebars when mounting, dismounting, or
using the elliptical crosstrainer.
, When you stop exercising, allow the pedals to
sJowly come to a stop.
The pu_se sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general,
DisplayButtons
Button
f .........................................
_ Stoat±Programs
i, -,_ v _ i VVeightLoss Interval 1 3 Aerobic Progressfve
WeightLoss Plateau 4 Aerobic Interval
5 Performanoe Progressive
6 PeCrormance Interval
On/Reset Button
Resistance Buttons
\
I
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you pedal, the console
will provide continuous exercise feedback. You can
even measure your heart rate using the built-in hand-
grip pulse sensor.
in addition, the console offers six Smart programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pace as it guides you through an effective workout.
The console also features iFF.com interactive technol-
ogy. Having iFF.com interactive technology is like hav-
ing a personal trainer in your home. Using a stereo
audio cable (available at electronics stores), you can
connect the elliptical crosstrainer to your home stereo,
portable stereo, computer, or VCR and play special
iFIT.com CD and video programs (iFIT.com CDs and
videocassettes are available separately), iFF.com CD
and video programs automatically control the resis-
tance of the pedals and prompt you to vary your pace
as a personal trainer coaches you through every step
of your workout. High-energy music provides added
motivation. To purchase iFIT.com CDs and video-
cassettes, call toll-free 1-800-735-0768.
With the elJiptical crosstrainer connected to your com-
puter, you can also go to our Web site at
www.iFF.com and access programs directly from the
internet. Explore www.iFIT.com for more informa-
tion.
To use the manual mode of the console, see page
11. To use a Smart program, see page 13. To use
an iF_T.com CD or videocassette, see page 17. To
use a program directly from our Web site, see page
18.
10
HOW TO USE THE MANUAL MODE
Turn on the consoJe.
Note: The console requires four 1.5V "D" batteries
(see assembly step 5 on page 7).
To turn on the console, press the On/Reset button
or begin pedaling. (See the drawing on page 10 to
identify the On/Reset button.)
Select the manual mode.
Each time the console is
turned on, the manual
mode will be selected, if a
program has been select-
ed, select the manual
mode by pressing the
Program button repeated-
ly until the letters RPM
appear in the small display.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped=
ais by pressing the + and - buttons below the
large display. There are ten resistance levels--
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the resistance to reach the selected setting.
FoJtow your progress with the small display
and the large display.
The small display wHJ
show your pedaling pace,
in revolutions per minute
(RPM). The indicator bar
in the small display will
increase or decrease in
length as you increase or
decrease your pedaling
pace.
indicator Bar
The upper sec-
tion of the
large display
wiJJshow the
distance you
have pedaled
and the numbers of calories and fat ca[odes you
have burned (see FAT BURNING on page 20 for
an explanation of fat calories). The display will
change from one number to the next every few
seconds, if you use the handgrip pulse sensor,
the display will also show your heart rate (see
step 5 on page 12).
To view only the distance
you have pedaled or the
number of calories or fat
calories you have burned,
press the upper button on
the left side of the large
display until only the word
DISTANCE, CALORIES, or
Upper Button
FAT CALORIES appears in the upper section of
the large display. Make sure that the word SCAN
does not appear. To again view the distance you
have pedaled and the numbers of calories and
fat calories you have burned, press the upper
button until the word SCAN reappears.
The center of
the _arge display
will show the
elapsed time and
your current pace
(pace is shown in
minutes per mile). The display will change from
one number to the other every few seconds.
Note: When a program is selected, the display
will show the time remaining in the program
instead of the elapsed time.
To view only the elapsed time or your pace, press
the center button on the left side of the large dis-
play until only the word TIME or PACE appears.
Make sure that the word SCAN does not appear.
To view both the elapsed time and your pace,
press the center button until the word SCAN
reappears.
The lower sec-
tion of the marge
display will show
your pedaling
speed and the
resistance level.
The display will change from one number to the
other every few seconds.
To view only your pedaling speed or the resis-
tance level, press the lower button on the left
side of the large display until only the word
SPEED or RESISTANCE appears. Make sure
that the word SCAN does not appear. To view
both your pedaling speed and the resistance
level, press the lower button until the word SCAN
reappears.
11

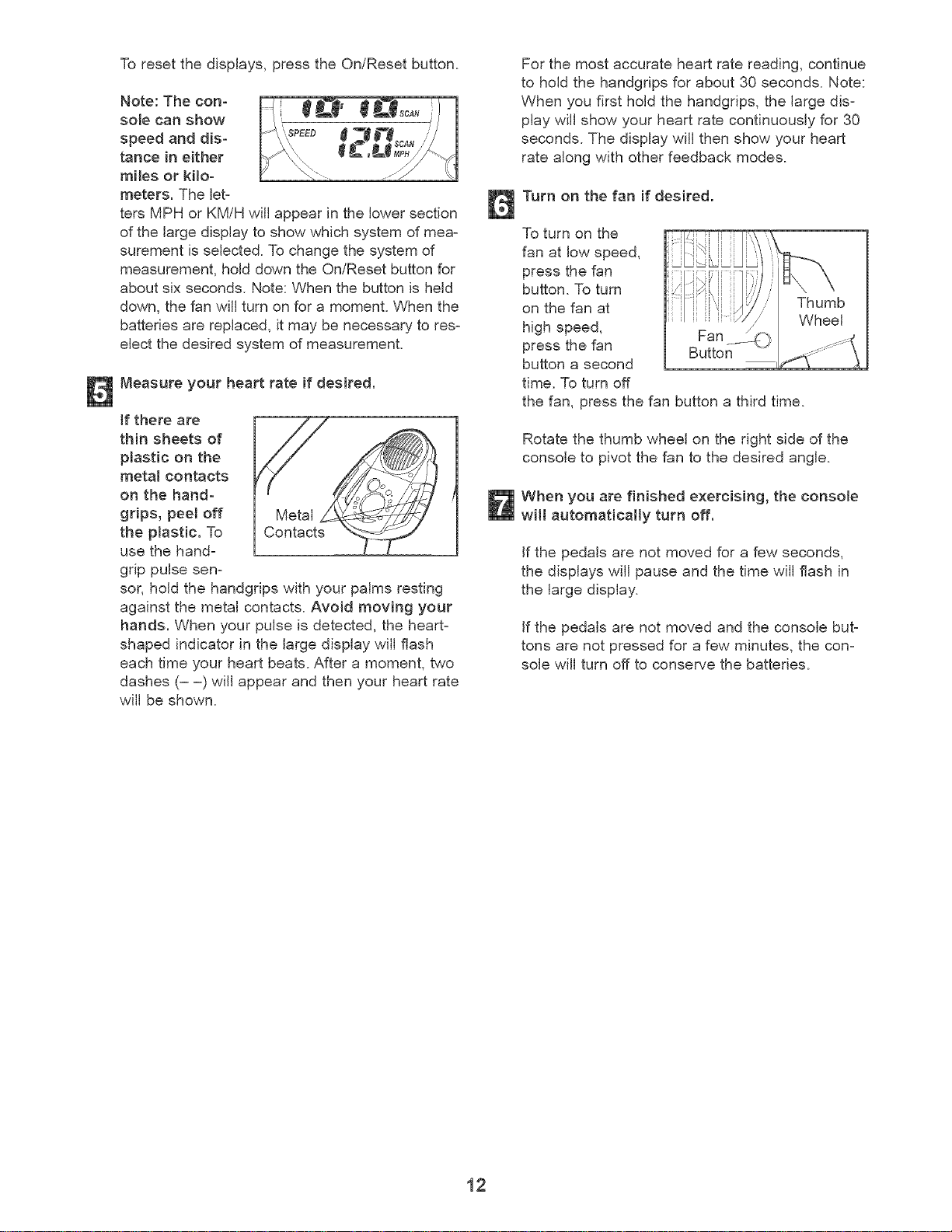

To reset the displays, press the On/Reset button.
Note: The con-
sole can show
speed and dis= ',,SPEED
tance in either
miles or kilo-
meters. The let=
ters MPH or KM/H will appear in the lower section
of the large display to show which system of mea=
surement is selected. To change the system of
measurement, hold down the On/Reset button for
about six seconds. Note: When the button is held
down, the fan will turn on for a moment. When the
batteries are replaced, it may be necessary to res=
elect the desired system of measurement.
Measure your heart rate if desired.
if there are
thin sheets of
plastic on the
metamcontacts
on the hand-
grips, peel off
the plastic. To
use the hand-
grip pulse sen-
Metal
Contacts
sor, hold the handgrips with your palms resting
against the metal contacts. Avoid moving your
hands. When your pulse is detected, the heart-
shaped indicator in the large display will flash
each time your heart beats. After a moment, two
dashes (= =) will appear and then your heart rate
will be shown.
For the most accurate heart rate reading, continue
to hold the handgdps for about 30 seconds. Note:
When you first hold the handgrips, the large dis-
play will show your heart rate continuously for 30
seconds. The display will then show your heart
rate along with other feedback modes.
Turn on the fan if desired.
To turn on the
fan at low speed,
press the fan
button. To turn
on the fan at
high speed,
press the fan Button
button a second
time. To turn off
the fan, press the fan button a third time.
Thumb
Wheel
Rotate the thumb wheel on the right side of the
console to pivot the fan to the desired angle.
When you are finished exercising, the console
witl automatically turn off.
if the pedals are not moved for a few seconds,
the displays wiJJpause and the time will flash in
the large display.
If the pedals are not moved and the console but=
tons are not pressed for a few minutes, the con=
sole will turn off to conserve the batteries.
12

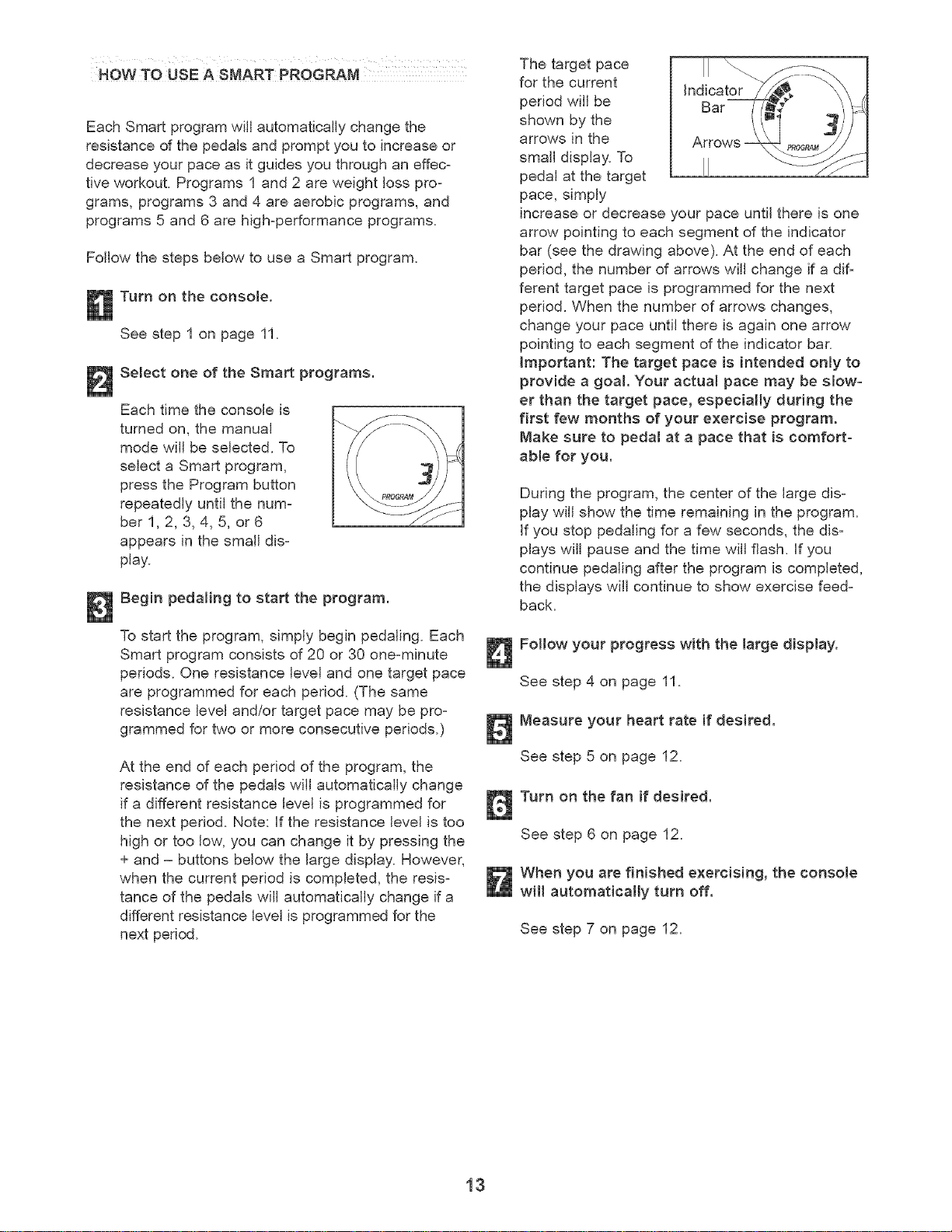

HOW TO USE A SMART PROGRAM
Each Smart program will automatically change the
resistance of the pedals and prompt you to increase or
decrease your pace as it guides you through an effec-
tive workout. Programs 1 and 2 are weight Josspro-
grams, programs 3 and 4 are aerobic programs, and
programs 5 and 6 are high-performance programs.
Follow the steps below to use a Smart program.
Turn on the console.
See step 1 on page 11.
Select one of the Smart programs.
Each time the console is
turned on, the manual
mode will be selected. To
select a Smart program,
press the Program button
repeatedly until the num=
ber 1, 2, 3, 4, 5, or 6
appears in the small dis=
play.
Begin pedaling to start the program.
To start the program, simply begin pedaling. Each
Smart program consists of 20 or 30 one-minute
periods. One resistance level and one target pace
are programmed for each period. (The same
resistance level and/or target pace may be pro-
grammed for two or more consecutive periods.)
At the end of each period of the program, the
resistance of the pedals will automatically change
if a different resistance level is programmed for
the next period. Note: if the resistance level is too
high or too low, you can change it by pressing the
+ and = buttons below the large display. However,
when the current period is completed, the resis-
tance of the pedals will automatically change if a
different resistance level is programmed for the
next period.
The target pace
for the current
period will be
shown by the
arrows in the
small display. To
pedal at the target
pace, simply
increase or decrease your pace until there is one
arrow pointing to each segment of the indicator
bar (see the drawing above). At the end of each
period, the number of arrows will change if a dif=
ferent target pace is programmed for the next
period. When the number of arrows changes,
change your pace until there is again one arrow
pointing to each segment of the indicator bar.
important: The target pace is intended only to
provide a goa!. Your actual pace may be slow-
er than the target pace, especially during the
first few months of your exercise program.
Make sure to pedal at a pace that is comfort-
able for you.
During the program, the center of the large dis=
play will show the time remaining in the program.
If you stop pedaling for a few seconds, the dis=
plays will pause and the time will flash. If you
continue pedaling after the program is completed,
the displays will continue to show exercise feed-
back.
Follow your progress with the large display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 12.
Turn on the fan if desired.
See step 6 on page 12.
When you are finished exercising, the console
witl automatically turn off.
See step 7 on page 12.
13

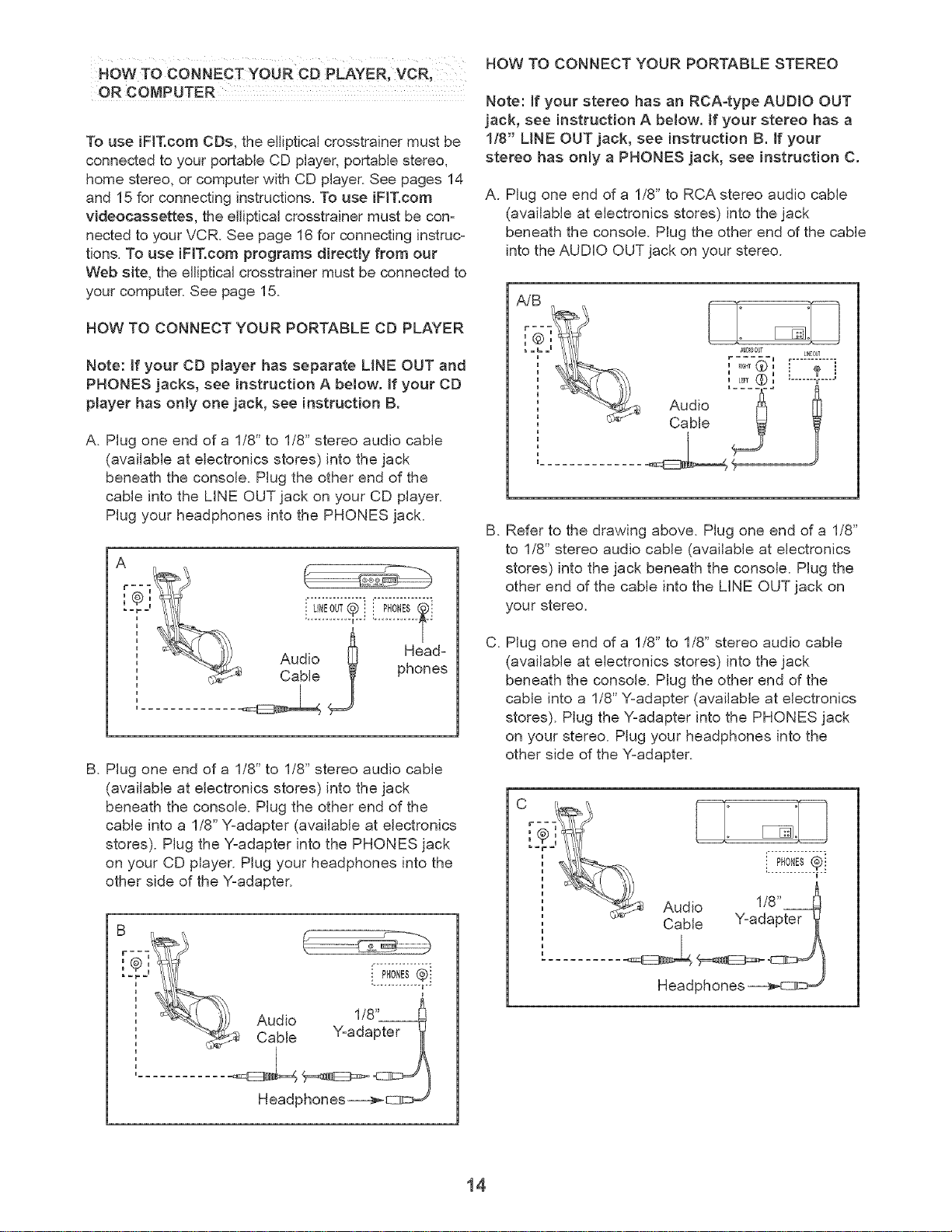

HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iF_T.com CDs, the elliptical crosstrainer must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages 14
and 15 for connecting instructions. To use iHT.com
videocassettes, the elliptical crosstrainer must be conz
nected to your VCR. See page 16 for connecting instrucz
tions. To use iF_T.comprograms directly from our
Web site, the elliptical crosstrainer must be connected to
your computer. See page 15.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LiNE OUT and
PHONES jacks, see instruct{on A below, if your CD
player has only one jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LiNE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: if your stereo has an RCA-type AUDIO OUT
jack, see instruction A below, if your stereo has a
118" LiNE OUT jack, see instruction B. if your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) intothe jack
beneath the console. Plug the other end of the cable
intothe AUDIO OUT jack on your stereo.
C
AUDIOOUT
LI_EOUT
Audio __
Cable
B.
C.
Refer to the drawing above. Plug one end of a 1/8"
to 1/8" stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable intothe LINE OUT jack on
your stereo.
Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) intothe jack
beneath the console. Plug the other end of the
cable into a 1/8" Y=adapter (available at electronics
stores). Plug the Y=adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y=adapter.
14
HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: if your stereo has an unused LiNE OUT jack,
see instruction A below. Jf the LiNE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LiNE OUT jack on your stereo.
Note: if your computer has a 1/8" LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LiNE OUT jack on your computer.
Audio l
Cable
B. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y=adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LiNE OUT jack on your stereo and plug the wire
intothe unused side of the Y=adapter. Plug the Y=
adapter intothe LiNE OUT jack on your stereo.
A
!!% ........
....... lu.....
u
Audio %_ __
Cable
n .........
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
_®.......
RCA
Audio Y-adapter
Cable
Wire removed from _E:_ _
LINE OUT jack
15

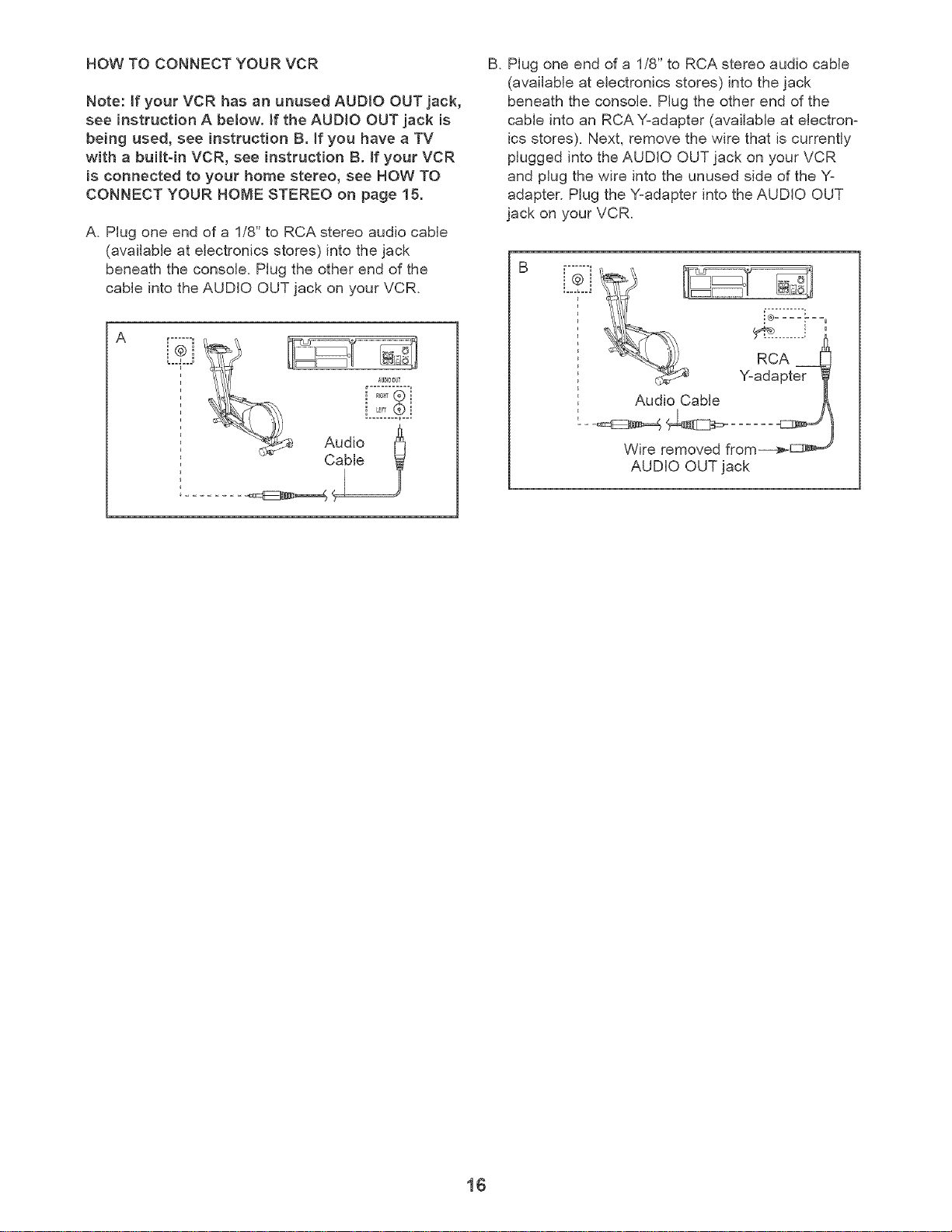

HOW TO CONNECT YOUR VCR
Note: Ifyour VCR has an unused AUDIO OUT jack,
see instructionA below.IftheAUDIO OUT jack is
being used, see instruction B. If you have a TV
witha buHtqn VCR, see instructionB. if your VCR
isconnected toyour home stereo,see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
A
Audio
Cable
B. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Yzadapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
B
AUDIO OUT jack
16
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFF.com CDs or videocassettes, the elliptical
crosstrainer must be connected to your portable CD
player, portable stereo, home stereo, computer with
CD player, or VCR. See HOW TO CONNECT YOUR
CD PLAYER, VCR, OR COMPUTER on page 14. To
purchase iFIT.com CDs and videocassettes, call
toll-free 1-800-735-0768.
Follow the steps below to use an iFF.com CD or
video program.
Turn on the console.
See step 1 on page 11.
Select the iF_T.com mode.
Each time the console is
turned on, the manual
mode will be selected. To
select the iFIT.com mode,
press the iFF.com button.
The indicator near the but=
ton will light and the letters
iF will appear in the small
display.
insert the iF_T.com CD or videocassette.
if you are using an iFIT.com CD, insert the CD
into your CD player, if you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer's
instructions.
The program will function in almost the same way
as a Smart program (see step 3 on page 13).
However, an electronic "chirping" sound will alert
you when the resistance level and/or the target
pace is about to change.
Note: If the resistance of the pedals and/or the
target pace does not change when a "chirp" is
heard:
Make sure that the indicator near the iFiT.com
button is lit.
, Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signams.
, Make sure that the audio cable is properly
connected and that it is fulty plugged in.
Follow your progress with the large display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 12.
Turn on the fan if desired.
See step 6 on page 12.
When you are finished exercising, the console
witl automatically turn off.
See step 7 on page 12.
17

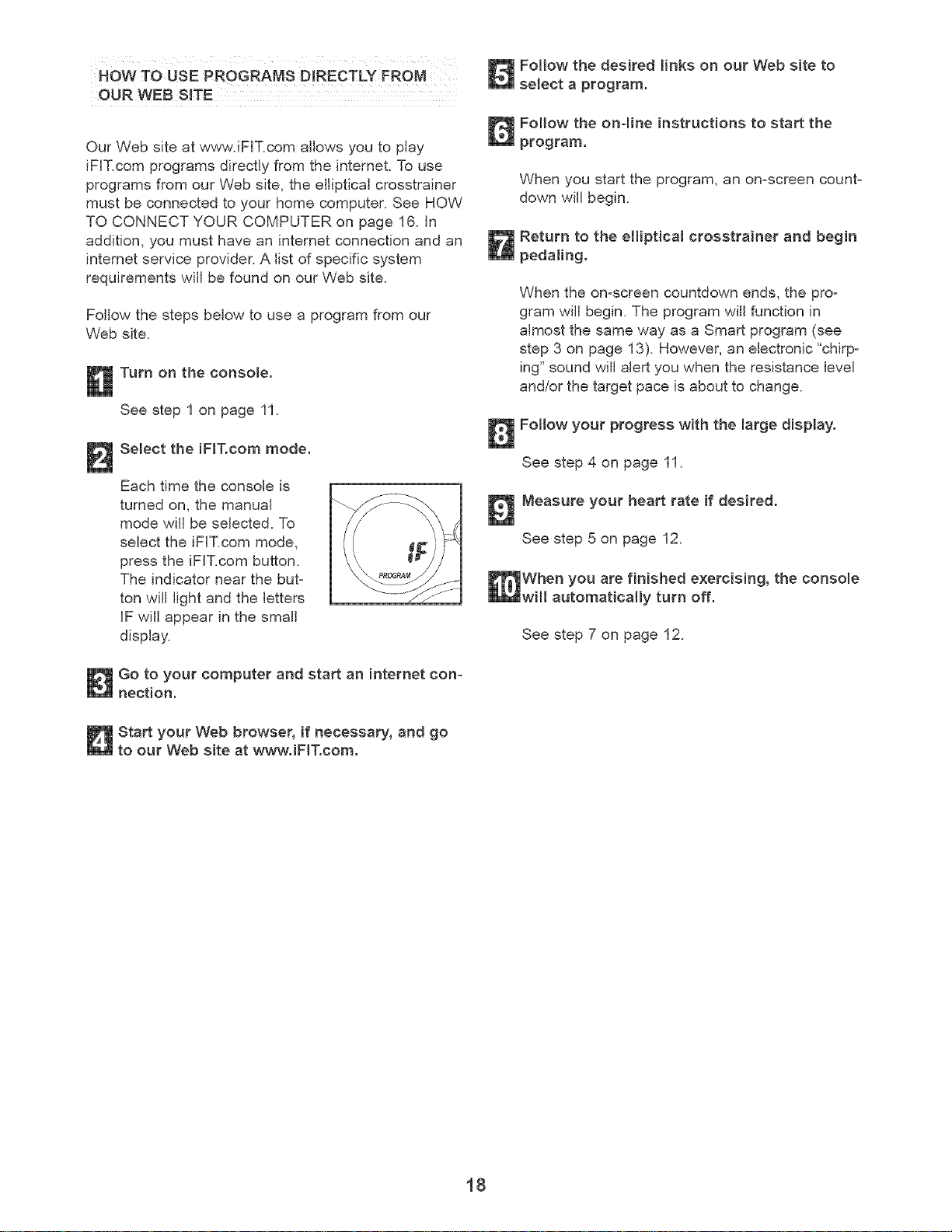

HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SiTE
Our Web site at www.iFF.com allows you to play
iFIT.com programs directly from the internet. To use
programs from our Web site, the elliptical crosstrainer
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 16. In
addition, you must have an internet connection and an
internet service provider. A list of specific system
requirements will be found on our Web site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
See step 1 on page 11.
Select the iF_T.com mode.
Each time the console is
turned on, the manual
mode will be selected. To
select the iFF.com mode,
press the iFF.com button.
The indicator near the but-
ton will light and the letters
iF will appear in the small
display
Go to your computer and start an internet con=
nection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Fol!ow the desired links on our Web site to
select a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the eIHptical crosstrainer and begin
pedaling.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a Smart program (see
step 3 on page 13). However, an electronic "chirp-
ing" sound will alert you when the resistance level
and/or the target pace is about to change.
Follow your progress with the large display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 12.
When you are finished exercising, the console
automatically turn off.
See step 7 on page 12.
18
MAINTENANCE AND TROUBLESHOOTING
inspect and tighten all parts of the elliptical crosstrainer
regularly Replace any worn parts immediately
To clean the elliptical crosstrainer, use a damp cloth
and a small amount of mild soap. Important: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
if the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. Refer to assembly step 5 on
page 7 for replacement instructions.
HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER
After the elliptical
crosstrainer has
been moved to
the location
where it will be
used, make sure
that the ends of
both stabilizers
are touching the Leveling Foot
floor, if the ellipti-
cal crosstrainer
rocks slightly during use, turn one or both of the level-
ing feet under the front stabilizer until the rocking
motion is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
Avoid moving your hands while using the handgdp
pulse sensor. Excessive movement may interfere
with heart rate readings.
Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth--never use alcohol,
abrasives, or chemicals.
19

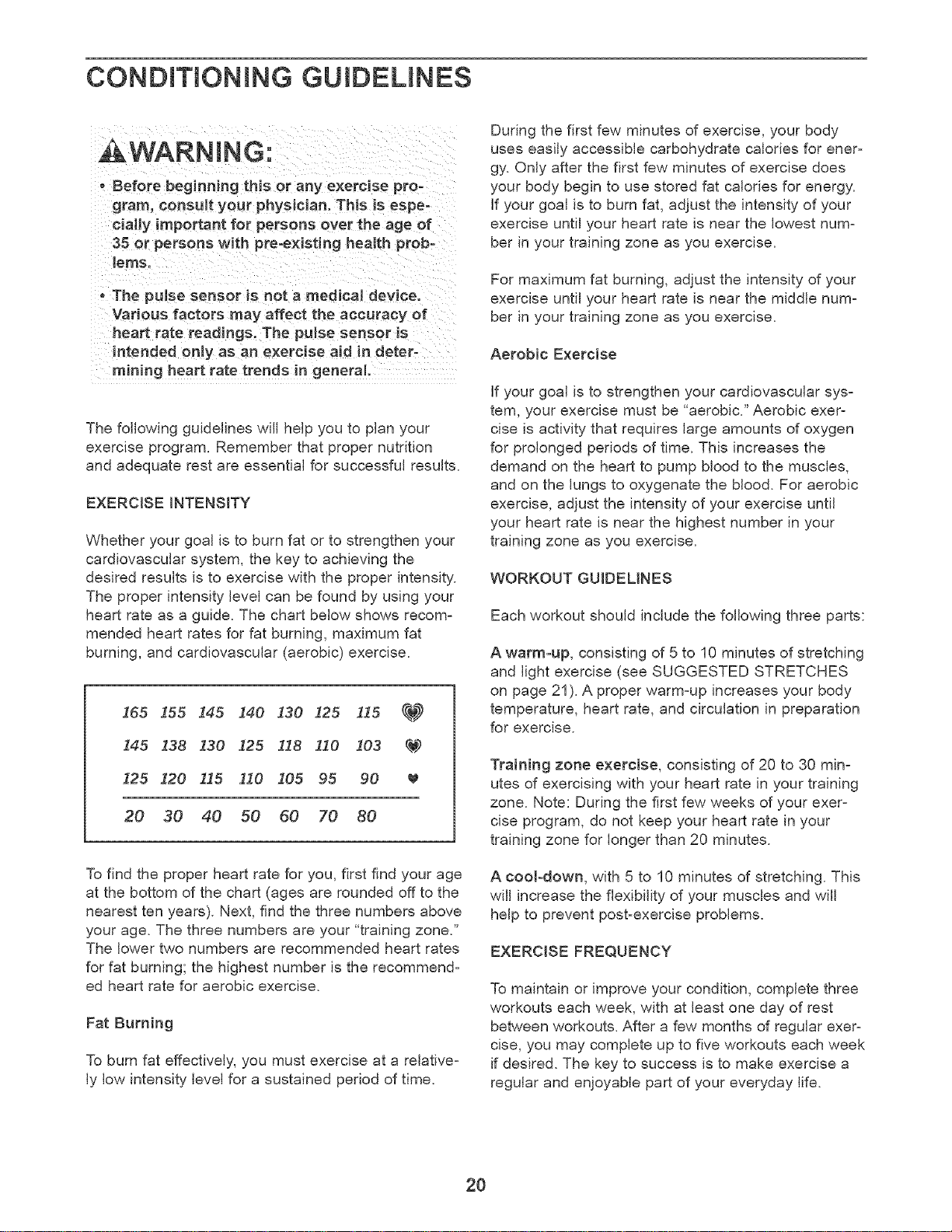

CONDITIONING GUIDELINES
_WARNING:
Before beginning this or any exercise pro=
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health prob-
lems.
o The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in deter-
mining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
165 155 145 140 130 125 I15 _
145 138 i30 125 118 110 103 C_
125 120 115 110 105 95 90
20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your "training zone."
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommend-
ed heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative=
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle num=
bet in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys=
tem, your exercise must be "aerobic." Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES
on page 21 ). A proper warm=up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exer-
cise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post=exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer=
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
2O

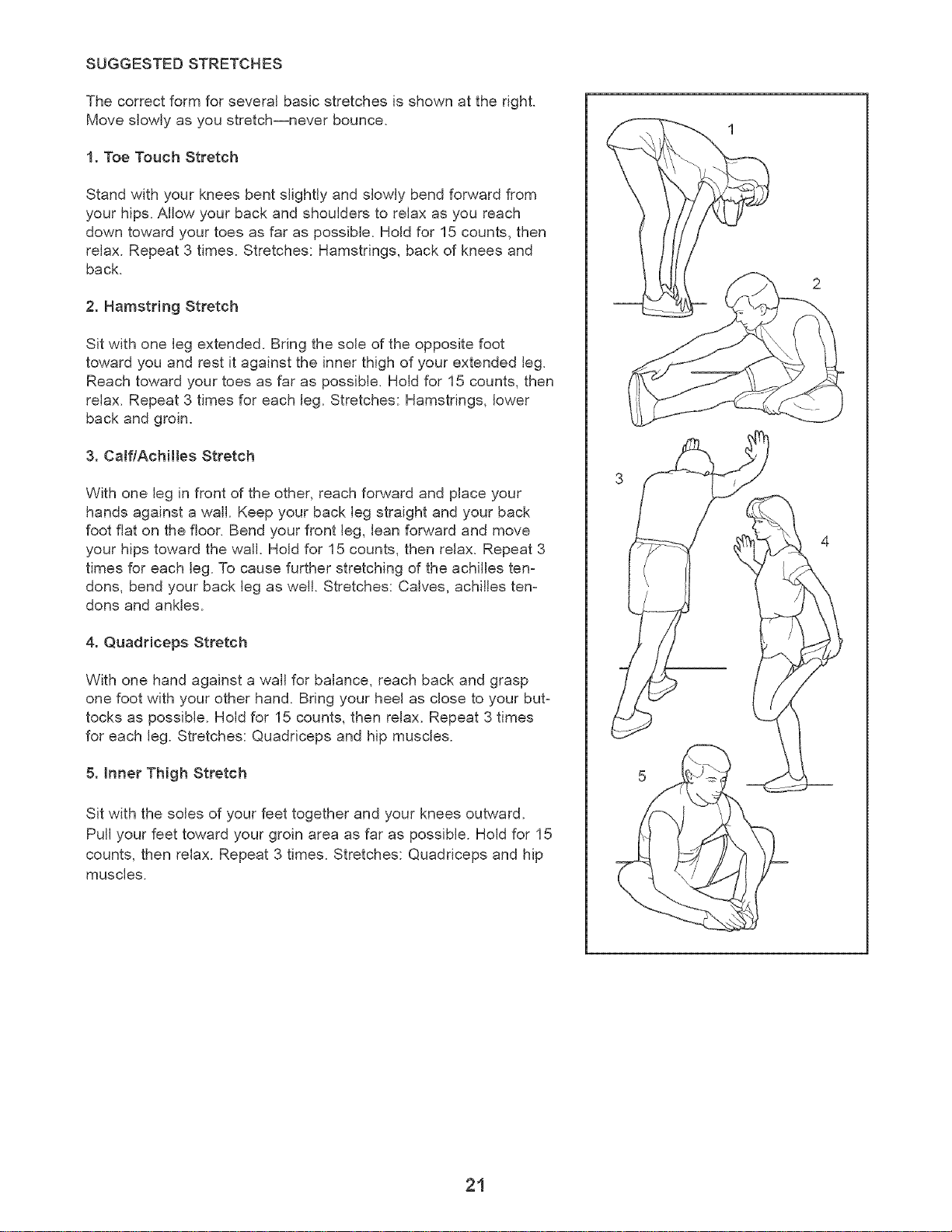

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch--never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstr{ng Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower
back and groin.
3. CamflAchHJes Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles ten-
dons, bend your back leg as well. Stretches: Calves, achilles ten-
dons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your but-
tocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
21
PART LiST--Model No. PFEL39030 RoG03A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 50 4 M8 x 45mm Button Bolt
2 1 Upright 51 4 M6 x 18mm Bolt
3 1 Front Stabilizer 52 1 "C" Magnet Bracket
4 1 Rear Stabilizer 53 2 MI 0.3 Black Washer
5 1 Console 54 1 "C" Magnet
6 1 Left Side Shield 55 1 Motor
7 1 Right Side Shield 56 1 Belt
8 2 Pedal Disc 57 2 M8 x 33mm Button Bolt
9 1 Left Handlebar 58 12 M6 Washer
10 1 Right Handlebar 59 16 M6 Nylon Locknut
11 2 Foam Grip 60 4 M6 Nut
12 1 Right Pedal 61 4 M5 Nylon Locknut
13 1 Left Pedal 62 4 M5 x 12mm Bolt
14 2 Flex Bar 63 1 MI0 x 88mm Button Screw
15 2 Pedal Knob 64 2 M4 x 6mm SeGtapping Screw
16 1 Left Flex Bracket 65 8 M5 x 33mm Screw
17 2 Front Flex Bracket 66 6 M4 x 16mm Screw
18 4 Rear Flex Bushing 67 4 M4 x 25mm Screw
19 12 M6 x 33mm Flat Bolt 68 1 Right Front Endcap
20 2 M10 x 33mm Carriage Bolt 69 1 Reed Switch Clamp
21 4 Snap Ring 70 1 MI0 Split Washer
22 2 M8 x 19mm Shoulder Screw 71 2 Handlebar Endcap
23 2 Handlebar Cap 72 2 Leveling Foot
24 4 Handlebar Bushing 73 1 M5 x 16mm Screw
25 2 Handlebar Spacer 74 8 M4 x 19mm Screw
26 2 Upright Spacer 75 2 M6 Eyebolt
27 2 M10 x 78mm Button Bolt 76 1 Spring
28 4 Front Flex Bushing 77 1 Reed Switch
29 6 M10 Nylon Locknut 78 1 Reed Switch Bracket
30 1 Upright Bushing 79 2 Handlebar Leg
31 1 Left Front Endcap 80 1 Side Shield Cover
32 2 Wheel 81 1 "U" Bracket
33 2 M6 x 72mm Button Screw 82 1 Right Flex Bracket
34 4 MI0 x 112mm Carriage Bolt 83 1 Frame Spacer
35 2 Rear Stabilizer Endcap 84 4 M4 x 12mm Tap Screw
36 1 Left Crank Arm 85 2 M5 Nut
37 1 Pulley 86 1 Upper Wire Harness
38 6 MI0 Washer 87 1 Lower Wire Harness
39 1 Crank 88 2 Flex Bracket Spacer
40 2 Crank Bearing 89 2 M8 x 22mm Button Bolt
41 1 Flywheel 90 4 Motor Washer
42 2 Flywheel Bearing 91 1 Water Bottle Holder
43 1 Magnet 92 4 M8 Nut
44 1 Flywheel Axle 93 2 M4 x 22mm Screw
45 4 M8.5mm Washer 94 1 M6 Large Washer
46 7 M8 Nylon Locknut # 2 Allen Wrench
47 2 Crank Screw # 1 Grease
48 1 Right Crank Arm # 1 User's Manual
49 1 M6 x 25mm Bolt
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
22

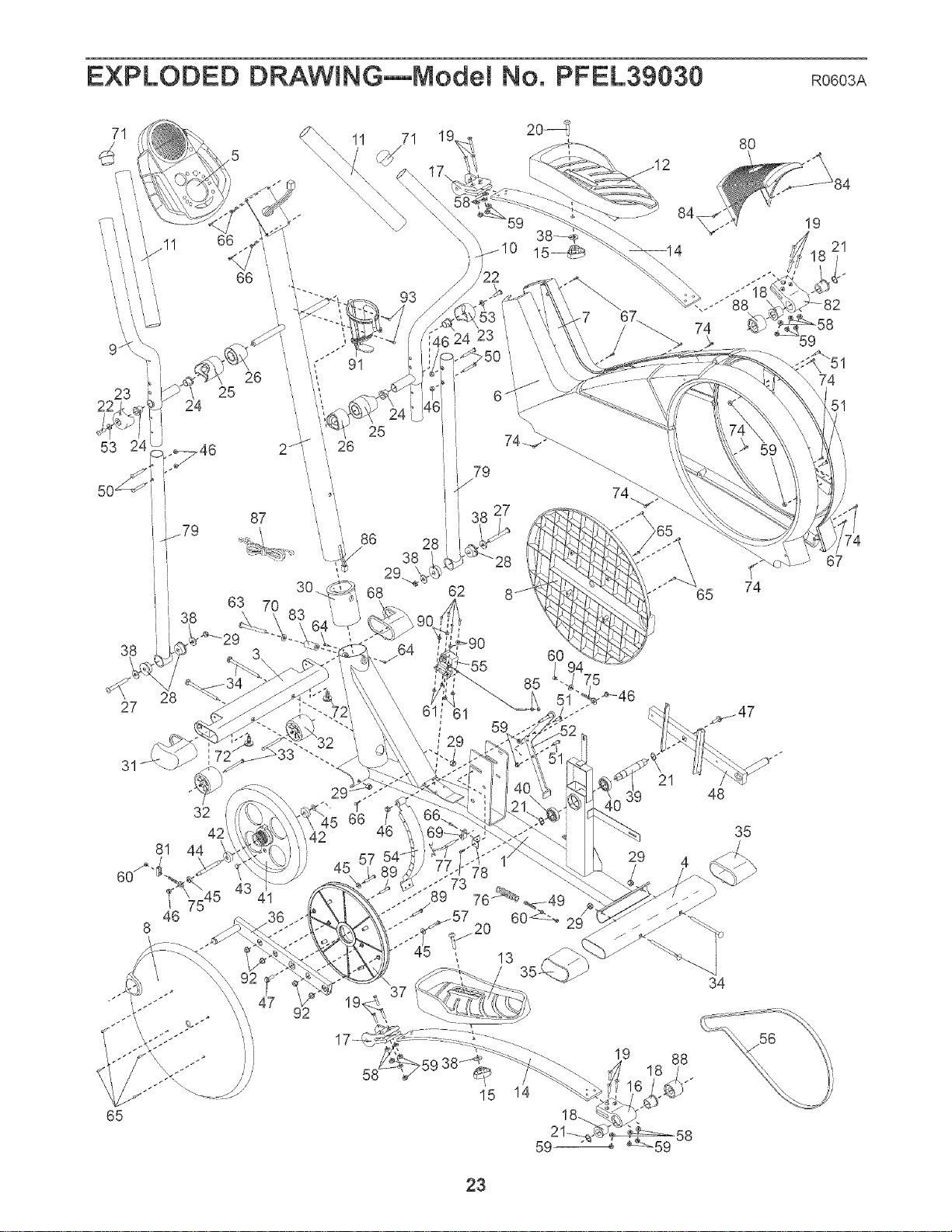

EXPLODED DRAVVING--Model No. PFEL39030 RoGo3A
71 11 71 19, 20-_
\
Io
23
53 24
_79
!
66
25
26
87
25
26
86
68
79
62
8O
65 74
19
21
51
67
38
27
31
46
8
65
32
81 44
47
92
\/
JJ
78
""" if .57
37
15 14
18_
21_
59_
48
35
34
23
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800o999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
• The MODEL NUMBER of the product (PFEL39030)
• The NAME of the product (PROFORM _"800 CARDIO CROSSTRAINER)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRiPTiON of the part(s) (see page 22)
LIMITED WARRANTY
iCON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser, iCON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by iCON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-
use, improper or abnormal usage or repairs not provided by an ICON authorized service center; products
used for commercial or rental purposes; or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
iCON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
iCON HEALTH & FITNESS, INC., 1800 S. 1000 W., LOGAN, UT 84321-9813
Part No. 197639 R0603A Printed in China © 2003 ICON Health & Fitness, Inc.
