User Manual
Smart Magnetic Standing Elliptical With Handlebars
E100
EN
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is
very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US.
1
Important Safety Information
We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly.
It is important to read this entire manual before assembling and using the equipment. Safe and effective use
can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to
ensure that all users of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical condition that could put your health and safety at risk or prevent you from using the
equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart
rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if
you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of
breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you
should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure
safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking
the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue
use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 lbs (100 kg).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extremely cold, hot
or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.
Statement of Purpose
The portable elliptical is designed to offer users a compact and convenient way to engage in low-impact
cardiovascular exercise. Whether used at home, in the office, or on the go, it supports increased daily activity,
improved circulation, and enhanced overall fitness. Its lightweight and space-saving design make it ideal for
users seeking an effective workout solution that fits seamlessly into a busy lifestyle.
Waste Disposal
JLL Fitness products are recyclable. At the end of its useful life please dispose of this article correctly and safely
(local refuse sites).
EU Declaration Of Conformity
You can find the declaration of conformity at the following link:
https://jllfitness.co.uk/pages/declaration-of-conformity
Technical Data
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm

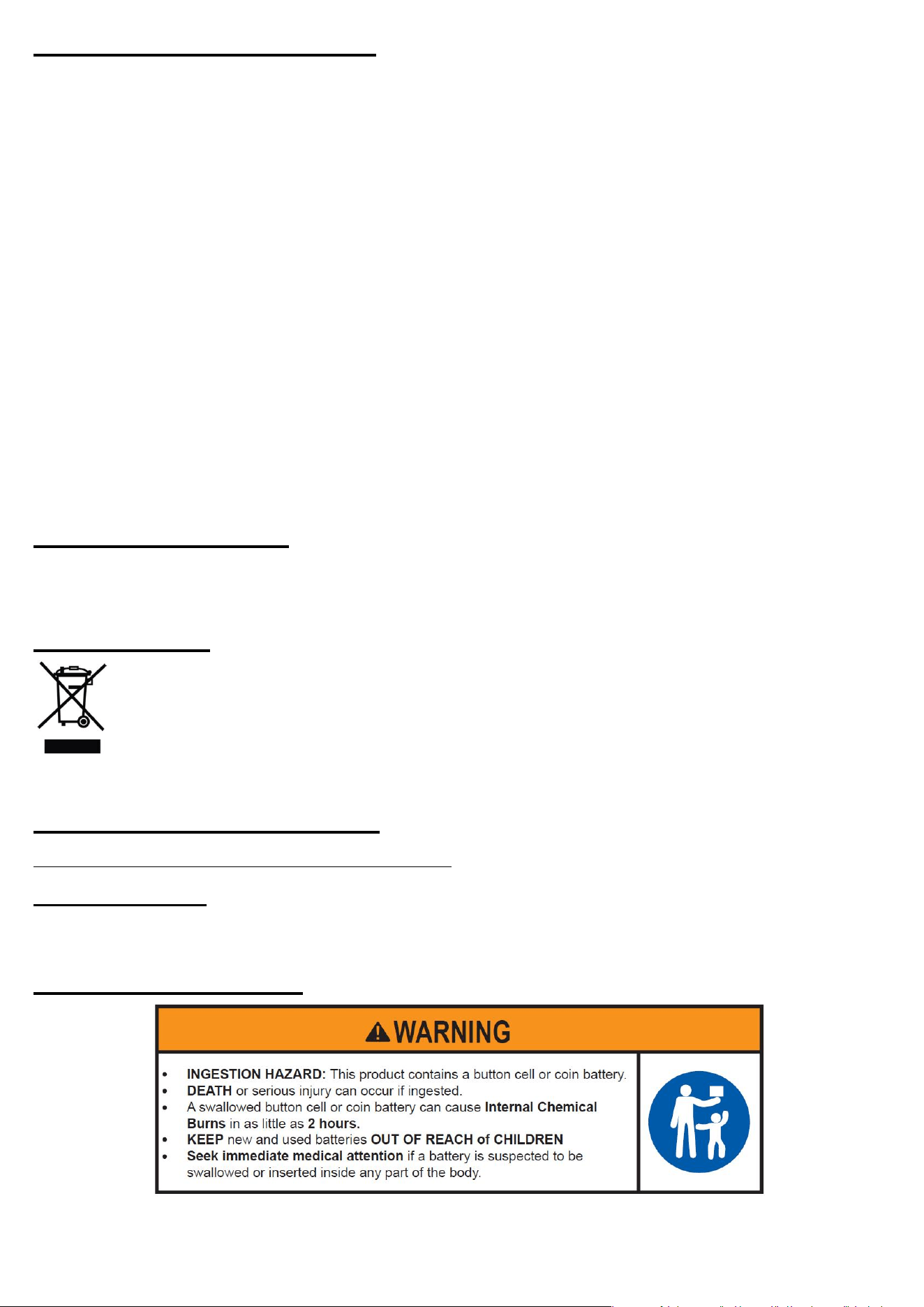

Battery Safety Warning
NOTES:
1) Remove and immediately recycle or dispose of used batteries according to local regulations and keep away
from children. Do NOT dispose of batteries in household trash or incinerate.
2) Even used batteries may cause severe injury or death.
2
3) Call a local poison control center for treatment information.
4) The compatible battery type CR2032 3V.
5) Non-rechargeable batteries are not to be recharged.
6) Do not force discharge, recharge, disassemble, heat above 50°C/122°F, or incinerate. Doing so may result in
injury due to venting, leakage or explosion, resulting in chemical burns.
7) Ensure the batteries are installed correctly according to polarity (+ and -).
8) Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of
time according to local regulations.
9) Always completely secure the battery compartment. If the battery compartment does not close securely,
stop using the product, remove the batteries, and keep them away from children.
Pre-Assembly Checklist

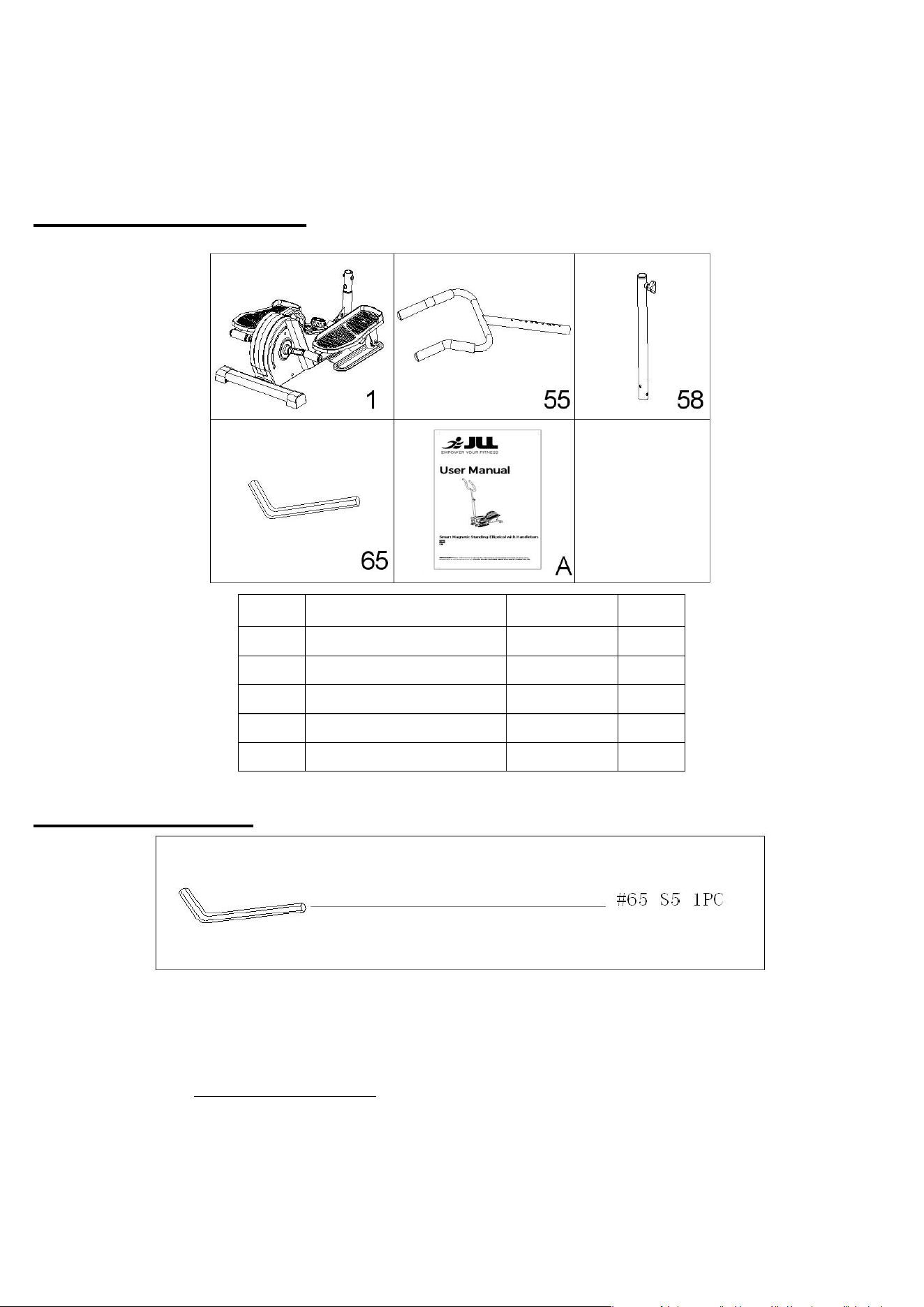

When you open the carton, you will find the following parts:
Hardware Package
Ordering Replacement Parts
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number
The product name
The part number
Please contact us at contact@jllfitness.co.uk or +44 (0)800 6123 988.
No.
Description
Spec.
Qty.
1
Main Frame
1
55
Handlebar
1
58
Upright Post
1
65
Allen Wrench
S5
1
A
User Manual
1
3

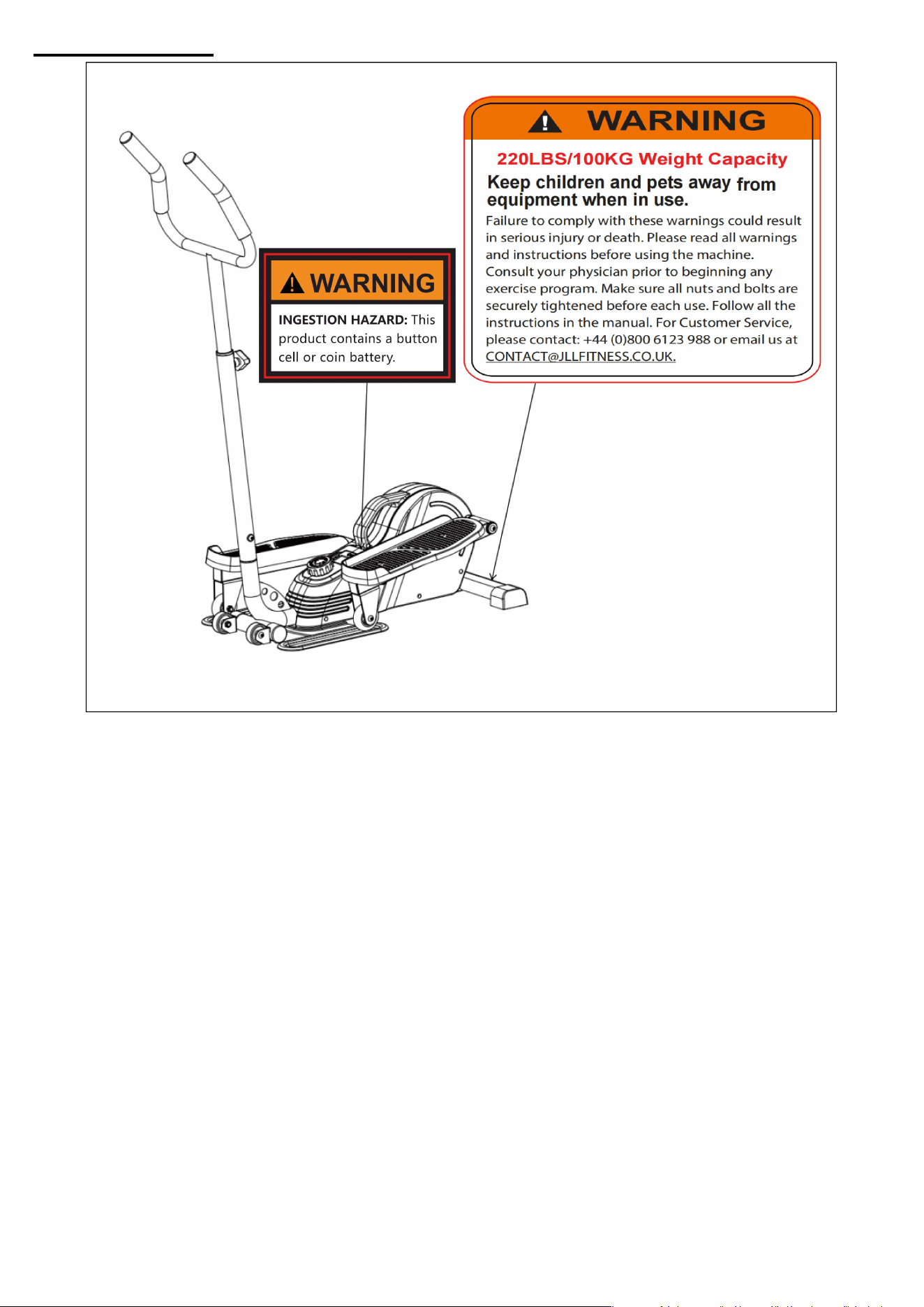

Warning Labels
4
Assembly Instructions
We value your experience using JLL Fitness products. For assistance with parts or troubleshooting, please
contact us at contact@jllfitness.co.uk or +44 (0)800 6123 988.
#59 1PC

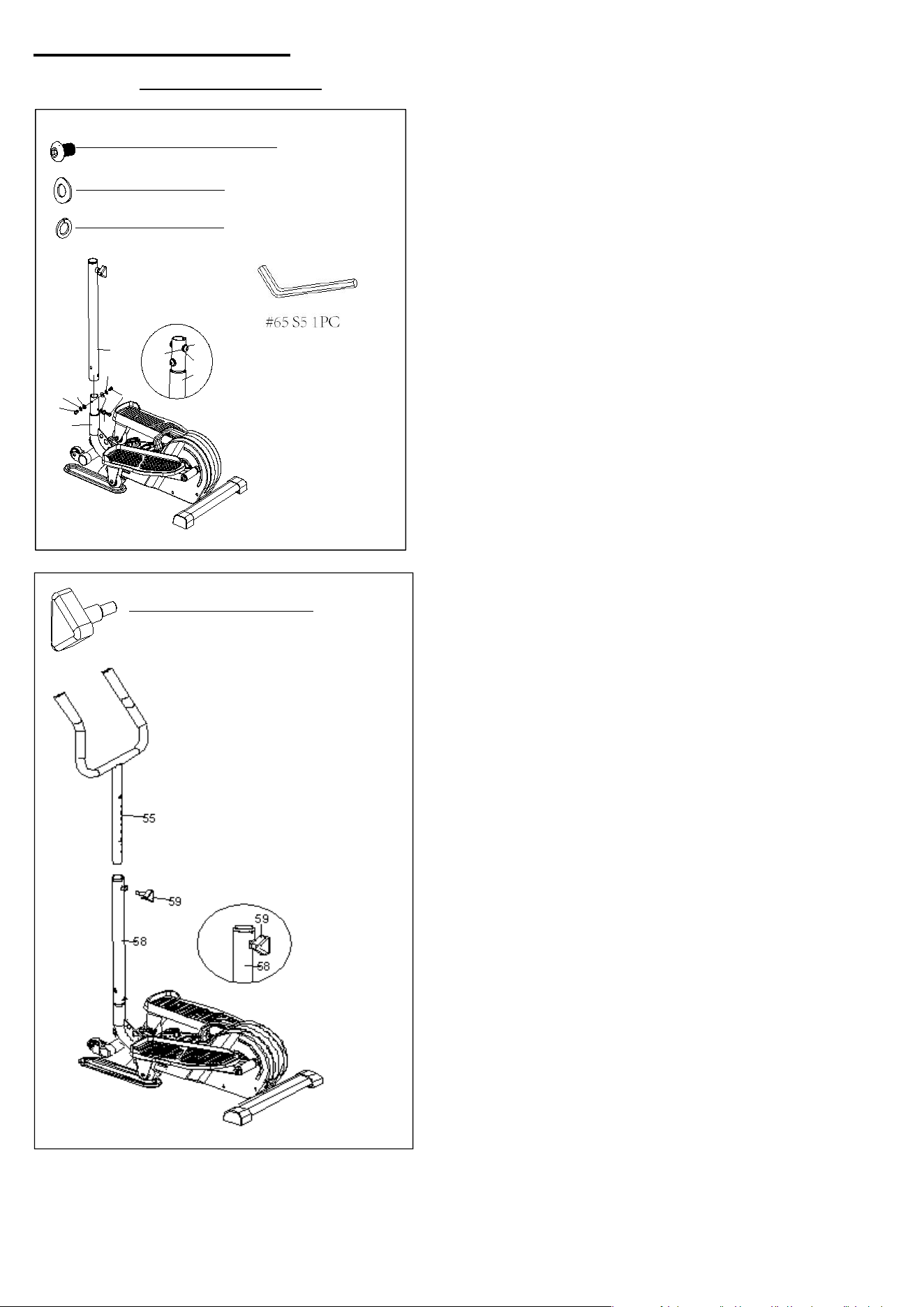

STEP 1:
Remove 3 Screws (No. 61), 3 Washers (No. 63) and 3
Arc Washers (No. 62) from Main Frame (No. 1) with
Allen Wrench (No. 65).
Insert Upright Post (No. 58) into Main Frame (No. 1)
using 3 Screws (No. 61), 3 Washers (No. 63) and 3
Arc Washers (No. 62) that were removed. Tighten
and secure with Allen Wrench (No. 65).
#61 M8x15 3PCS
#62 φ8.2xφ16x1.5 3PCS
#63 φ8.1xφ10.2x2 3PCS
61
62
61
62
1
58
61
62
1
63
63
63
63
STEP 2:
Remove Triangle Knob (No. 59) from Upright Post
(No. 58).
Insert Handlebar (No. 55) into Upright Post (No. 58),
adjust the Handlebar (No. 55) to desired height, and
tighten with Triangle Knob (No. 59).
The assembly is complete!
5
Lubricating the Elliptical Machine
IMPORTANT NOTE:
The machine will need to be lubricated before the first use!
Please lubricate the machine regularly and based on the frequency of use.
Lubricant can be purchased at your local store.
Raise the Right Pedal Frame (No. 2R) up on one side, then apply lubricant to the slide board. Thoroughly wipe
the lubricant over the slide board with a rag, and repeat the same process for the other side.

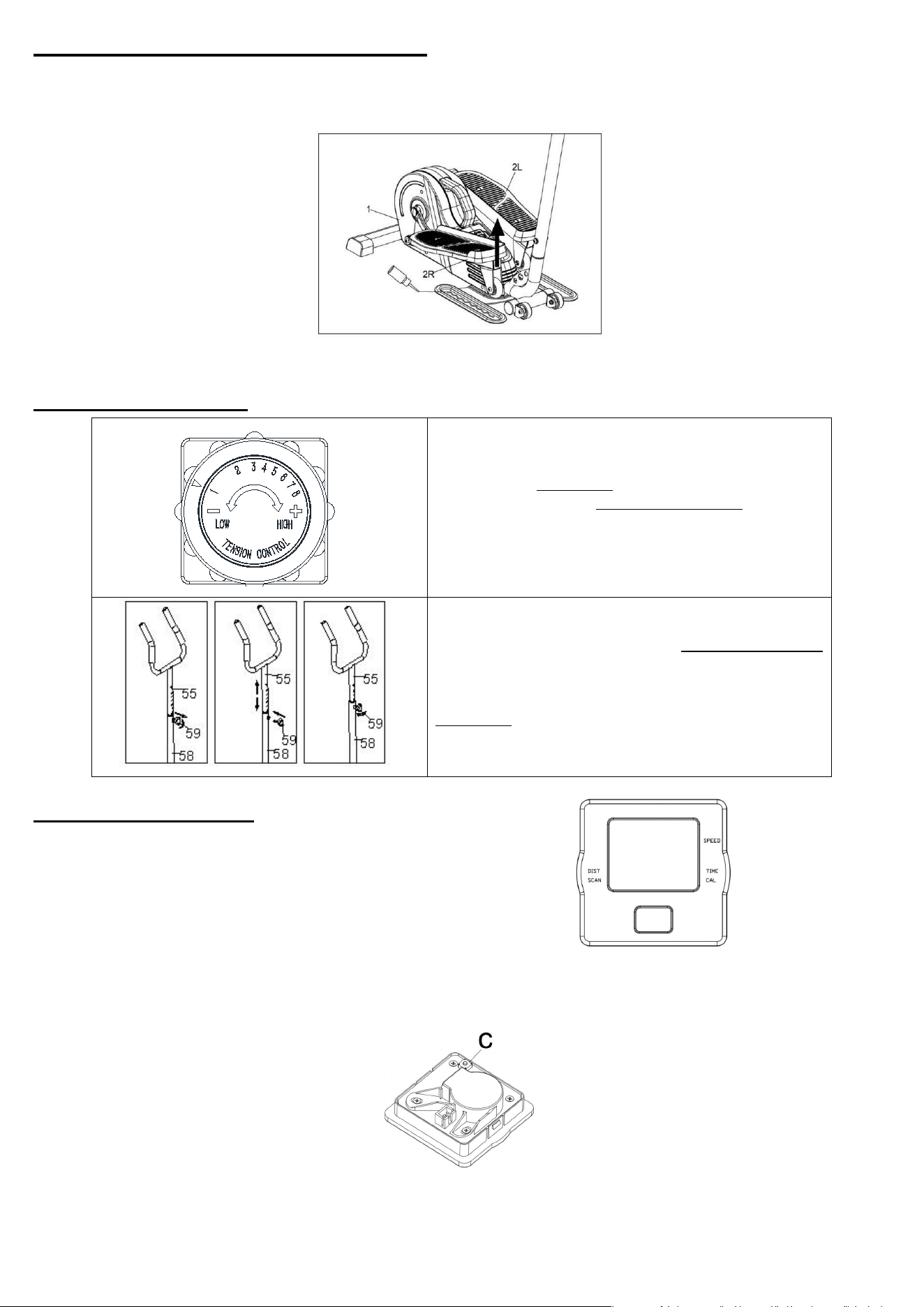

Adjustment Guide
Exercise Computer
SPECIFICATIONS:
SPEED--------------------------------------------0.0~999.9 M/H/ (KM/H)
TIME-----------------------------------------------0:00~99:59 MIN
DIST (DISTANCE)-------------------------------0.0~9999 ML/KM
CAL (CALORIES)--------------------------------0.0~9999 KCAL
UNIT CONVERTIONS FROM IMPERIAL TO METRIC SYSTEM
Pressing the button “C” on the back of the meter to convert Imperial/Metric System. The display will
show “K” or “M”. It's in Imperial System when “M” is displayed. It's in Metric System when “K” is displayed.
NOTE: If the elliptical is converted to Metric System, speed and distance will be measured in Kilometers/Hour
and Kilometers.
FUNCTION KEYS:
MODE: Press the key repeatedly to select the desired value {TIME, SPEED, DIST (DISTANCE), CAL (CALORIES),
SCAN}. Hold the key for 3 seconds to have all function values reset (total reset) when the Bluetooth is not
connected.
Hold the key 6 seconds can disconnect the SunntFit APP.
ADJUSTING THE TENSION
Adjust the tension by turning the Tension Control
Knob (No. 9)
clockwise
to increase the level of
resistance or turning
counter-clockwise
to
decrease the level of resistance.
Tension levels are set at Level 1 being the lowest
and Level 8 being the highest.
ADJUSTING THE HEIGHT OF HANDLEBAR
Turn the Triangle Knob (No. 59)
counter-clockwise
and remove it from Upright Post (No. 58). Adjust
the Handlebar (No. 55) to desired position, then
re-tighten the Triangle Knob (No. 59) by turning it
clockwise
.
6
FUNCTIONS:
SPEED: Displays current speed.
TIME: Counts the total time of the exercise from start to finish.
DISTANCE (DIST): Counts the distance of the exercise from start to finish.
CALORIES (CAL): Counts the total calories burned during an exercise from start to finish.
SCAN: Displays functions automatically in the following order: TIME, CAL (CALORIES) and DIST (DISTANCE).
NOTE:
1. Please use 1pc of 3.0V CR2032 battery as a power supply. If there is an abnormal display on the meter, please
replace the battery.
2. The meter will automatically power on when pedals are in motion or the MODE key is being pressed.
3. The meter will automatically start calculating when exercise begins.
4. All functions will automatically stop calculating with a “STOP” sign on the upper left corner of the meter
when there is no movement for about 4 seconds. “STOP” sign will be off and the meter will automatically
start calculating as soon as the machine is in motion.
5. The meter will automatically shut off if there is no movement for 4 to 5 minutes when the Bluetooth is not
connected.
Battery Replacement

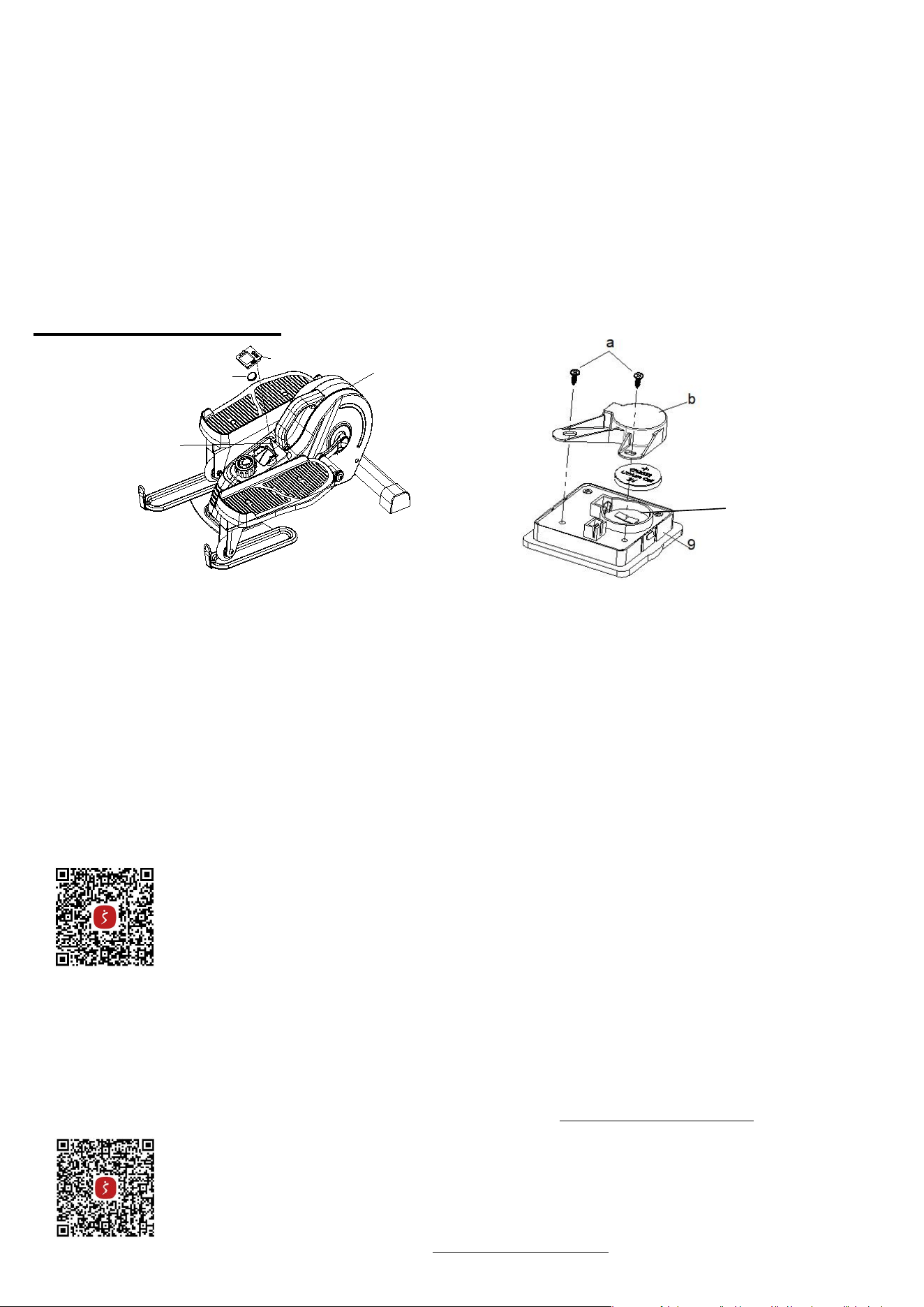

BATTERY INSTALLATION:
1. Remove the Meter (No. 9) from Main Frame (No. 1). Then disconnect the link wire of Inductor (No. 46) with
the Meter (No. 9).
2. Use the screwdriver to remove screws (a) and plastic cap (b) from the back of Meter (No. 9) and take out the
old battery.
3. Insert the new battery and ensure that the positive side of the battery, which is labeled with a + sign is facing
outward as shown in diagram above.
4. Attach the plastic cap back to the back of Meter (No. 9) using the screws (a), tighten with the screwdriver.
5. Insert the link wire of Inductor (No. 46) into the jack hole on the back of Meter (No. 9).
6. Attach the Meter (No. 9) onto Main Frame (No. 1).
The replacement is complete!
NOTE: Dispose battery according to your state and regional guidelines.
APP CONNECTION
Connect Smart Equipment To Sunnyfit App:
1. Scan to download SunnyFit from the app store.
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts to search
for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and recorded in
your account profile!
TROUBLESHOOTING
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or scan the QR
code below:
If you require additional support, please contact support@sunnyfit.com.
Battery Seat
9
BATTERY
46
1
7

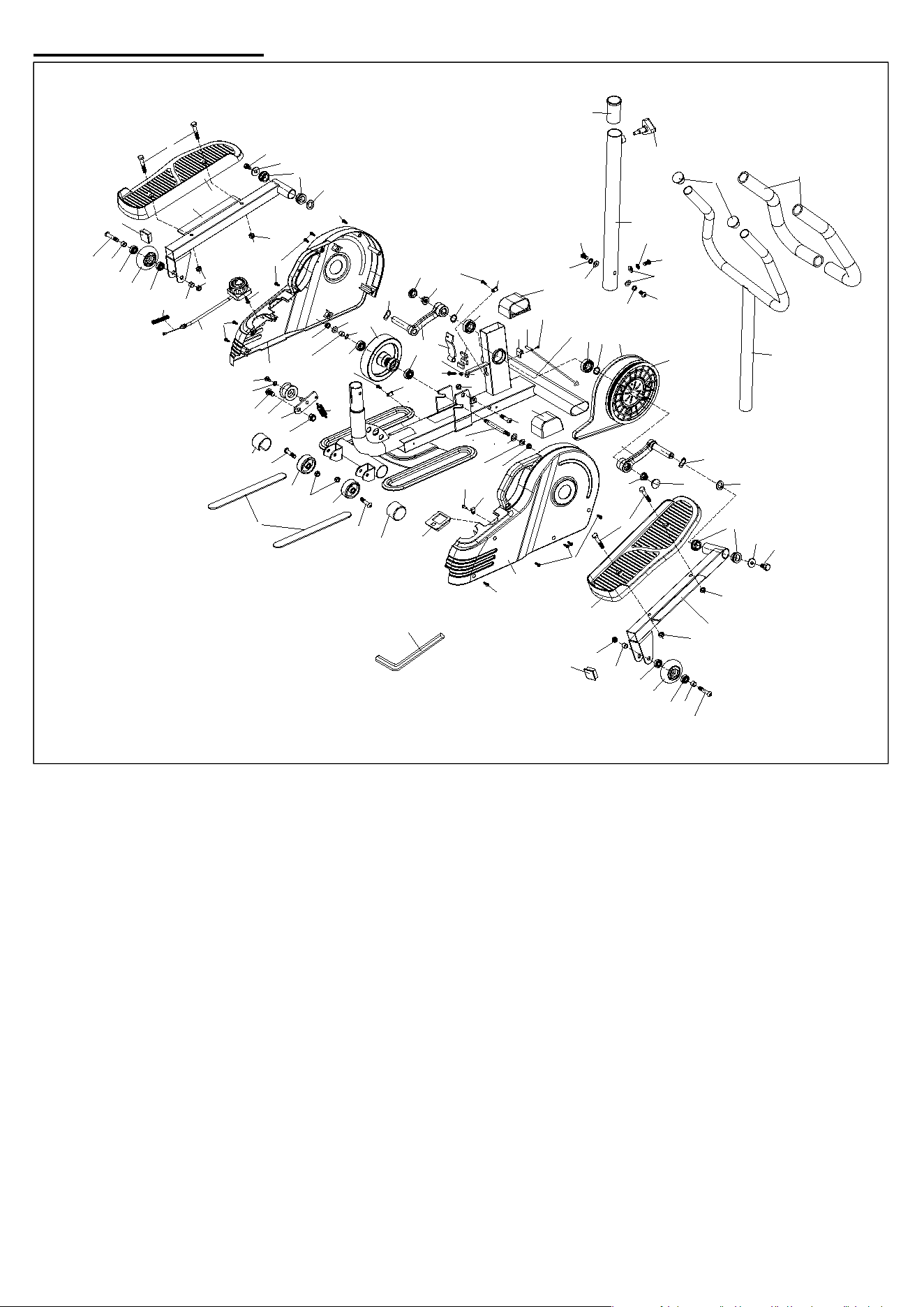

Parts List
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1
Main Frame
1
32
Flat Washer
Φ
8.2*
Φ
16*1.5
2
2R
Right Pedal Frame
1
33
Sleeve
1
2L
Left Pedal Frame
1
34
Bearing
6000
2
3
Crank
2
35
Washer
Φ10.2*Φ20*1.5
1
4
Magnetic Board
1
36
Screw
M10*20*12
1
5
Idler Wheel Shaft
1
37
Nylon Nut
M10
1
6L
Left Pedal
1
38
Spring
1
6R
Right Pedal
1
39
Wire Clip
3
7L
Left Belt Cover
1
40
Screw
M6*12
1
7R
Right Belt Cover
1
41
Flat Washer
Φ6.4*Φ12*1.2
1
8
Tension Control
Knob
1
42
Nut
M5
1
9
Meter
1
43
Sleeve
4
10
Inertial Wheel
1
44
Magnet
3
11
Wave Washer
Φ
10.2*
Φ
15*0.4
1
45
Bolt
M8*35*15
1
12
Idler Wheel
1
46
Inductor
1
13
Slide Wheel
2
47
Inductor Seat
1
14
EVA Non-Slip Pad
2
48
Spring
1
15
End Cap
2
49
Spindle
1
16
Bolt
M8*45*15
4
50
Screw
ST3.5*15
1
17
Alloy Wrap
4
51
End Cap
2
18
Flat Washer
Φ
8.2*
Φ
25*1.5
2
52
Transportation
Wheel
2
19
Screw
M8*16
2
53
Bolt
M8*40*15
2
20
Hex Bolt
M8*45*15
2
54
End Cap
2
21
Bearing
4
55
Handlebar
1
22
Nylon Nut
M8
11
56
Foam Grip
2
23
Screw
ST4.2*15
14
57
End Cap
2
24
Flange Nut
M10
2
58
Upright Post
1
25
End Cap
2
59
Triangle Knob
1
26
Wave Washer
Φ17*Φ21*0.4
2
60
Bushing
1
27
Belt Wheel
1
61
Screw
M8*15
3
28
Belt
J300
1
62
Arc Washer
Φ
8.2*
Φ
16*1.5
3
29
C-clip
2
63
Washer
Φ
8.1*
Φ
10.2*2
3
30
Bearing
6003
2
64
Washer
Φ
16.2*
Φ
28*1.2
2
31
Screw
M5*15
2
65
Allen Wrench
S5
1
8
Exploded Diagram
Version 1.0
1
2R
2L
3
3
4
5
6R
6L
7R
7L
8
9
10
12
13
13
14
15
15
16
16
17
17
18
19
19
18
20
21
21
21
21
20
22
22
22
22
22
22
22
22
23
23
23
23
23
23
24
24
25
25
26
26
23
28
29
30
29
30
31
32
32
33
34
34
36
37
38
39
39
41
40
42
31
44
49
45
46
47
48
43
43
43
43
23
39
50
35
11
51
51
52
52
22
53
54
53
54
55
56
57
58
59
60
61
61
62
61
62
65
63
63
63
64
64
27
Register
Register your product and verify warranty terms:
jllfitness.co.uk/warranty
Download
Track your fitness progress & join FREE workout courses!
Download SunnyFit App today!
Follow
Find us on social media
Contact
Get in touch with us for any questions
www.jllfitness.co.uk
