Lifespan LFTM-PURSUIT3 Fitness Pursuit 3 Treadmill

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner’s manual for future reference.

NOTE:

This manual may be subject to updates or changes. Up to date manuals are available through our

website at www.lifespanfitness.com.au

Pursuit 3

Treadmill

USER MANUAL

IV. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

V. Folding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

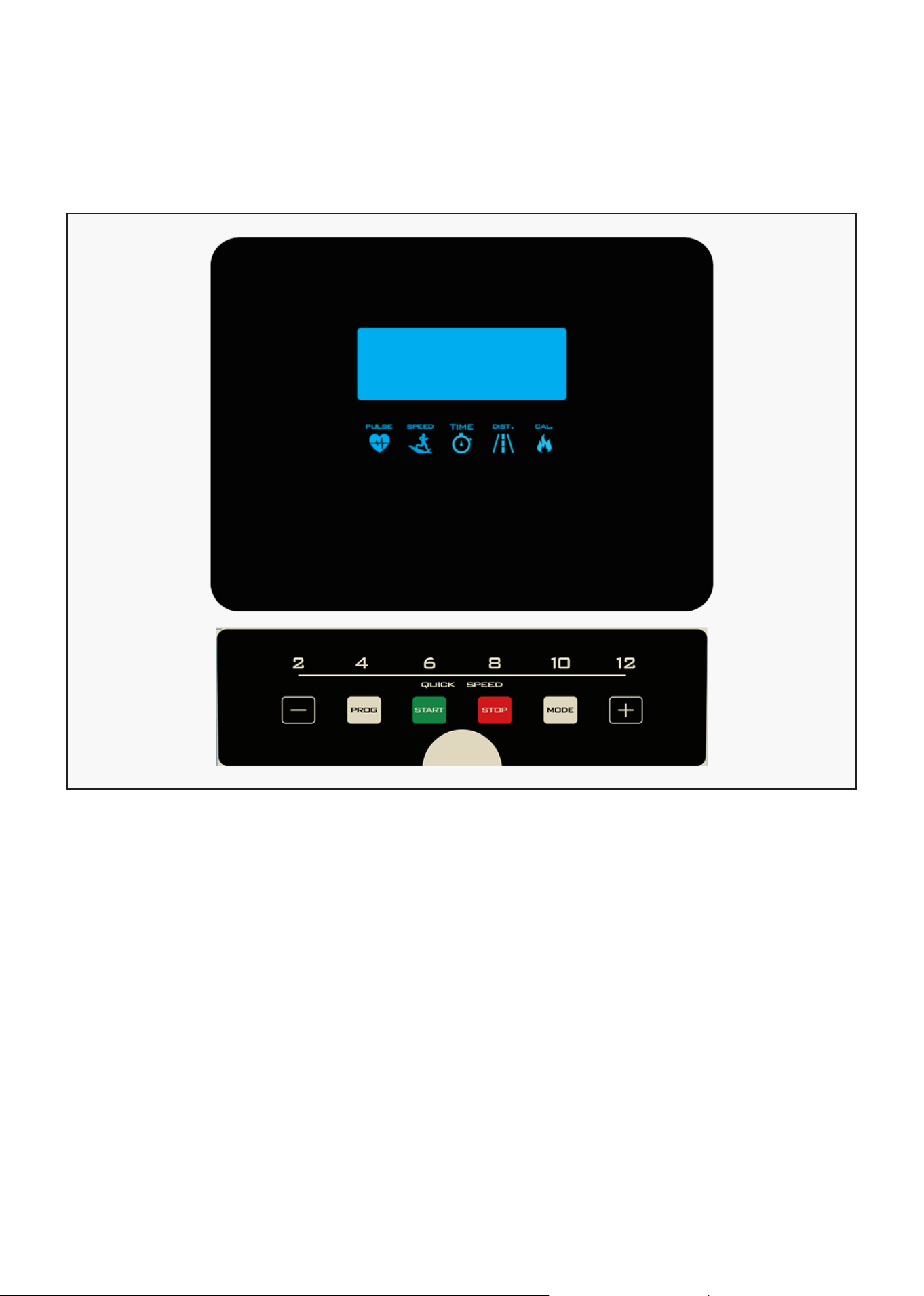

VI. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

VIII. Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

IX. Replacing Motor Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

X. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

XI. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

XII. Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

XIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DANGER

To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD:

DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS OR IN ANY

WAY MODIFY THE CORD SET.

• Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

• Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

• Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of the

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

• Keep the cord away from heated surfaces.

• Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

• Never drop or insert any object into any openings.

• The treadmill is intended for in-home use only and is not suitable for commercial environments.

• To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

• The pulse sensors are not medical devices. Various factors, including the user’s movement, may

• Injuries to health may result from incorrect or excessive training.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

immediately.

• Children should not be allowed on or around the equipment, even when not in use.

• Children should be supervised to ensure that they do not play with this machine.

• Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.

• Training shoes should be worn when using the equipment.

• Route the power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

a pool, or in any other high humidity environment.

• This is a high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

WARNING!

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of

grounded. Do not modify the plug provided with the product – if it will not fit the outlet, have a proper

outlet installed by a qualified electrician. This product is for use on a nominal 220-240/100-120-volt

circuit and has a grounding plug that looks like the plug illustrated in sketch A in following figure.

Make that the product is connected to an outlet having the same configuration as the plug. No adapter

should be used with this product. (The below picture is just for reference; the actual plug and jack is

depending on import country)

DANGER

Grounded Outlet

Grounding Pin

• Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in the

centre of the belt; which may result in serious injury.

• In order to prevent losing balance and suffering unexpected injury, never mount or dismount the\

treadmill while the belt is moving. This unit starts with at a very low speed. We recommend to stand

on the side rails then start the treadmill. Once the belt starts to move at low speed you can then step

onto the belt and start your workout.

This helps to preserve the motor as it does not put a lot of pressure at the starting point.

• Always hold on to handrail while making control changes.

• A safety key is provided with this machine. Remove the safety key will stop the walking belt

go away. The belt will stretch over time, causing it to ride smoother over the rollers.

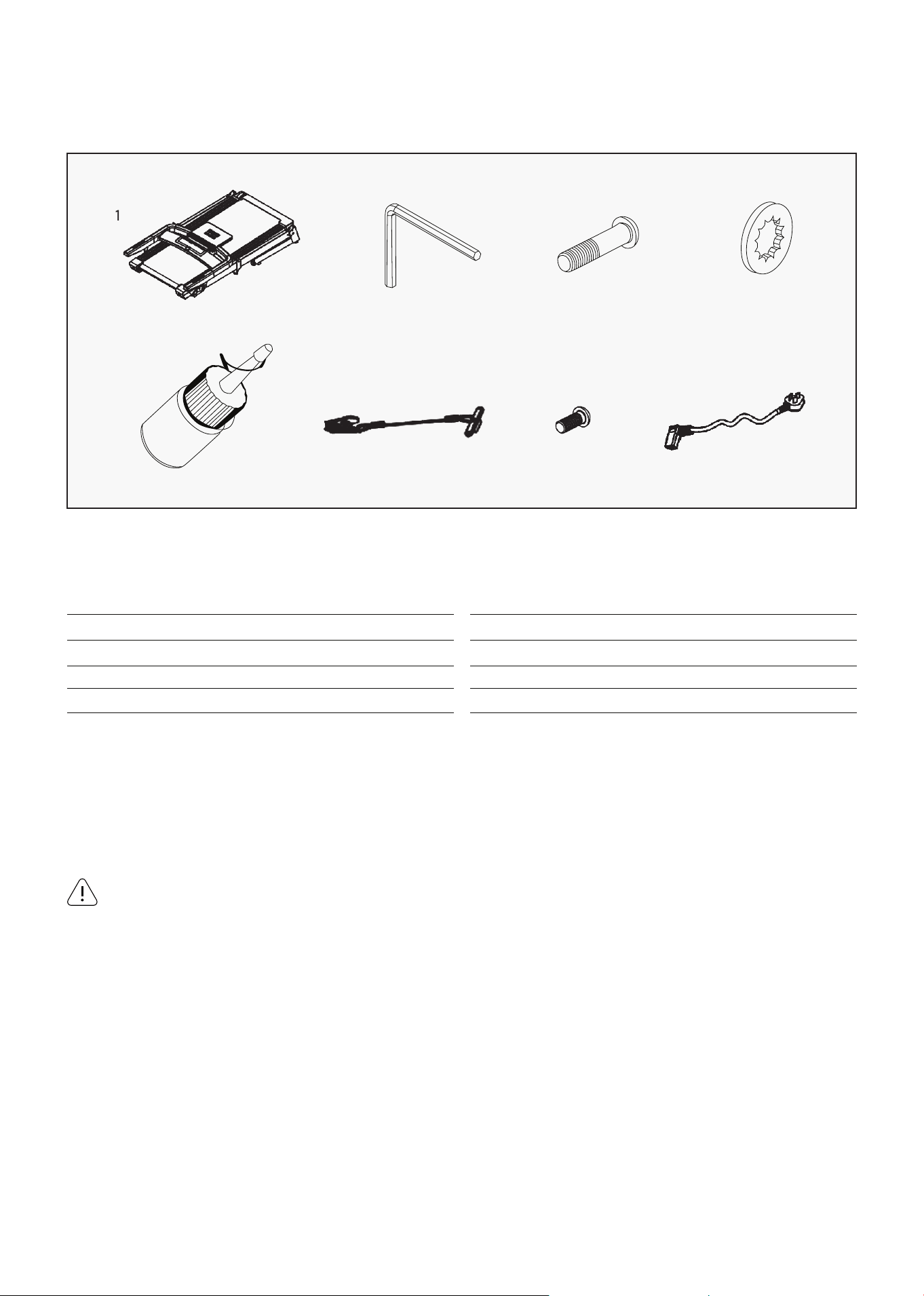

5# Allen Wrench 5mm 1PC

Wrench with screwdriver S=13/14/15 1PC

FIXING TOOLS:

67

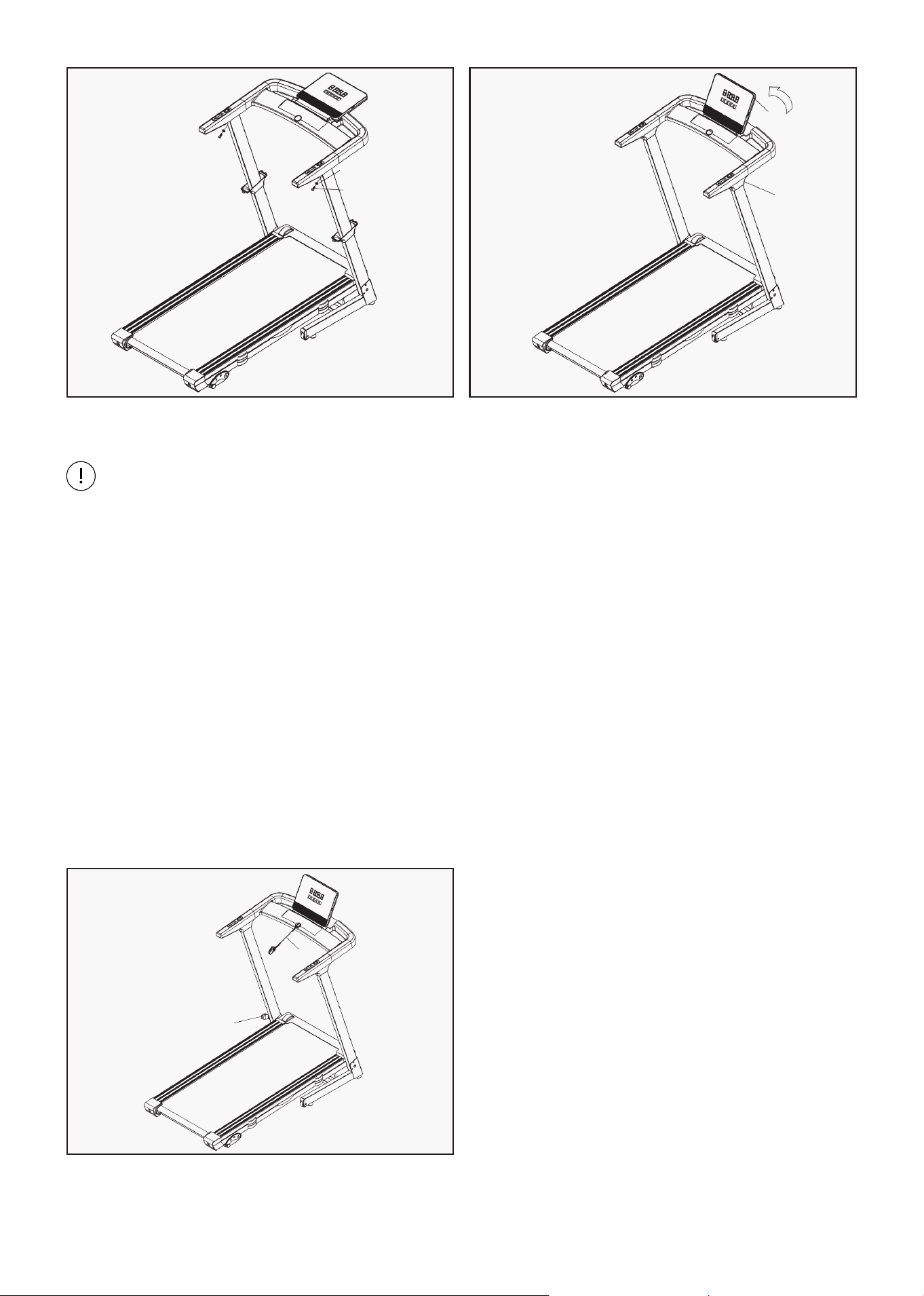

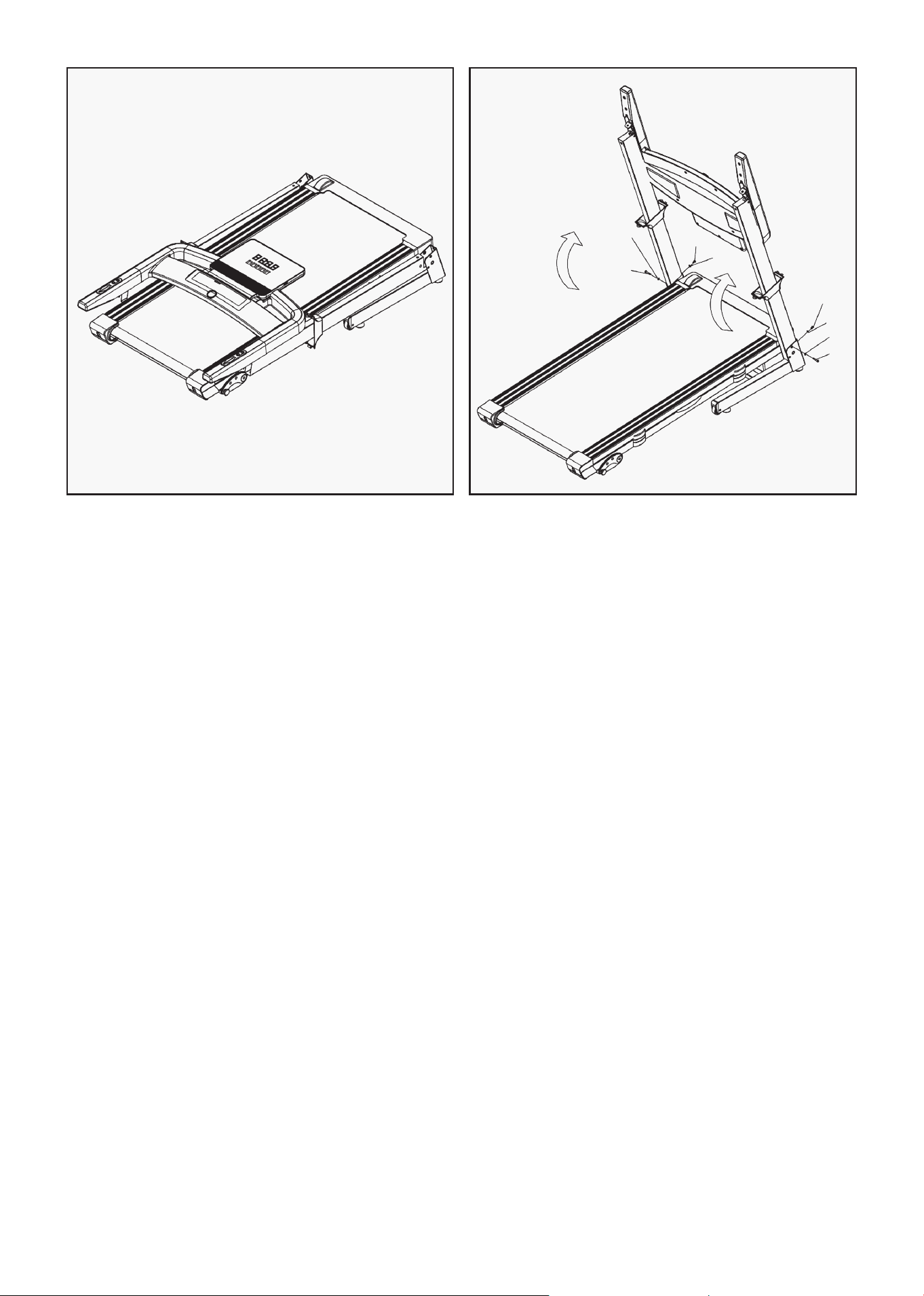

STEP 1

(67) through the hole on the left upright and

base frame (as pictured). Tighten the bolts.

2. Use the 5# Allen wrench to secure the bolt

(60) and lock washer (67) through the hole

on left upright and base frame (as pictured).

Tighten the bolts.

3. Repeat the same steps on the right upright.

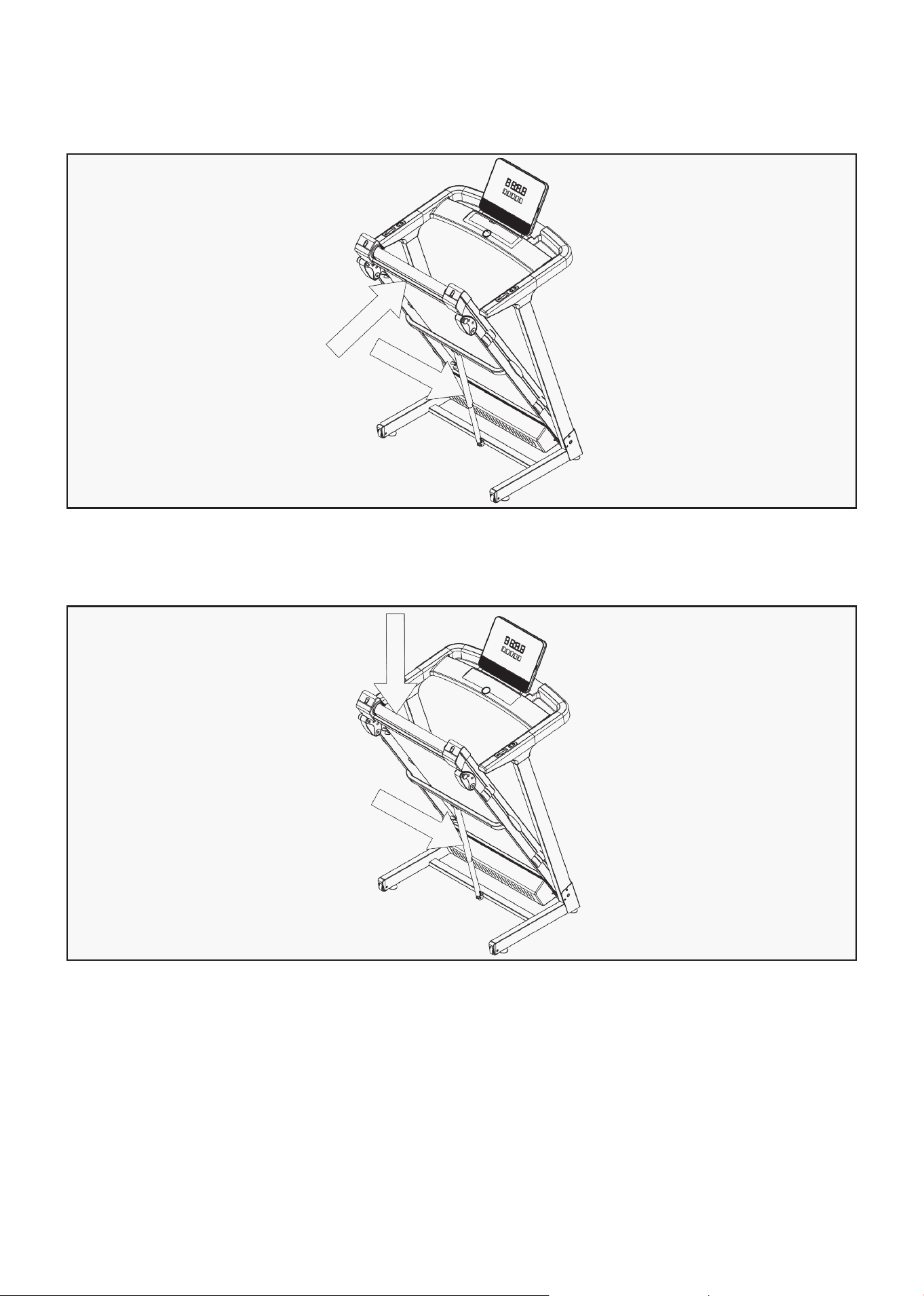

STEP 2

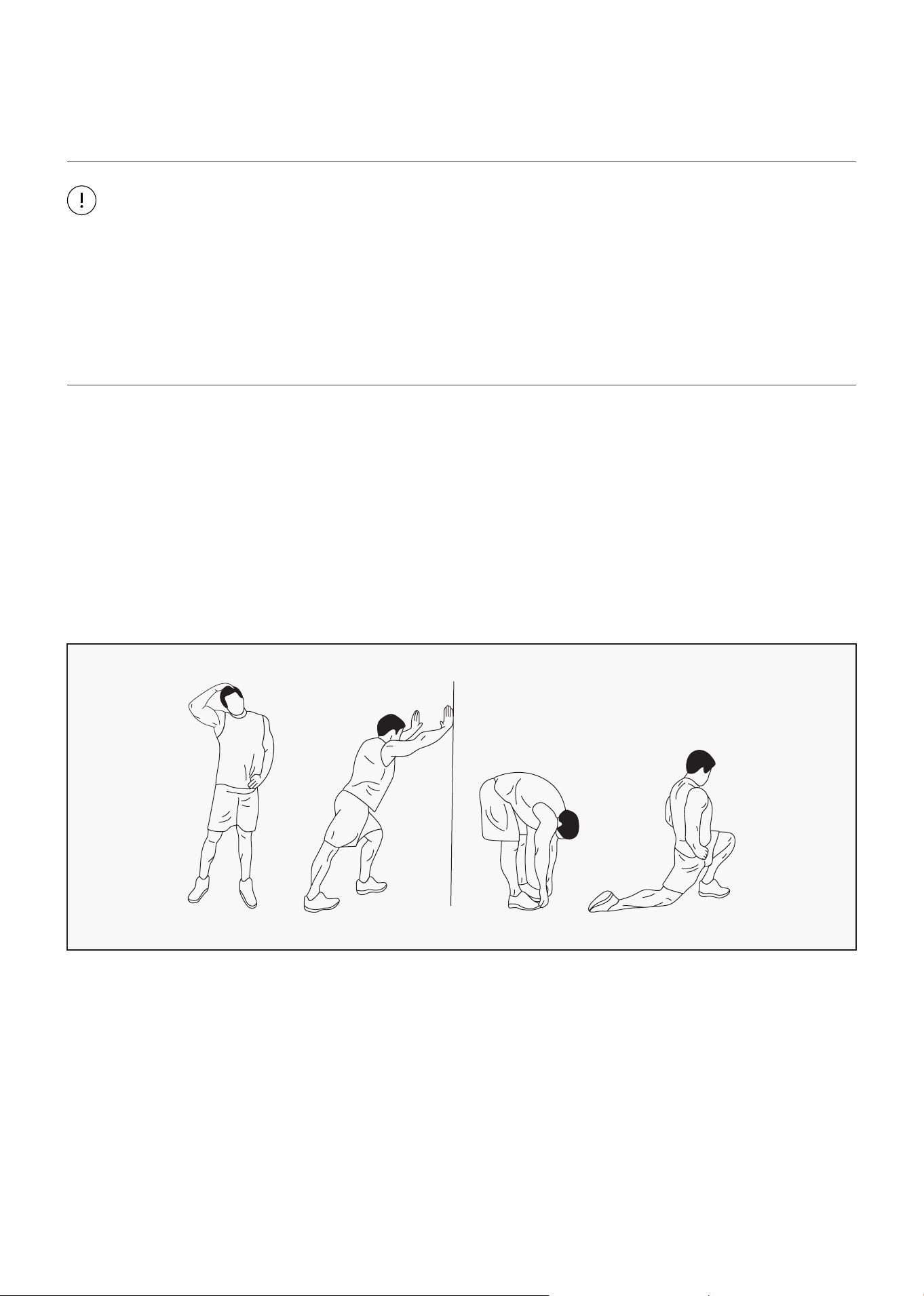

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of

stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-

exercise problems.

70%

COOL DOWN

AGE

HEART RATE

200

180

160

140

120

100

WARNING:

• The mat/deck friction may lay a major role in the function and life of your treadmill and that is why

we recommend you constantly lubricate this friction point to prolong the useful life of your treadmill.

Failing to do this may void your warranty.

• Unplug power cord before maintenance.

• Stop treadmill before folding.

• Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame. A

mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt.

This task should be done once a month. Allow to dry before using.

• On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you

2. GENERAL CARE

The mat/deck friction may play a major role in the function and life of your treadmill and that is why we

recommend you constantly lubricate this friction point to prolong the useful life of your treadmill. You

should apply lubrication after approximately the first 30 hours of operation.

3. BELT/DECK/ROLLER LUBRICATION

We recommend lubrication of the deck according to the following timetable:

• Light use (less than 3 hours per week) every 6 months.

• Medium use (3-5 hours a week) every 3 months.

the treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours

before relubricating is necessary.

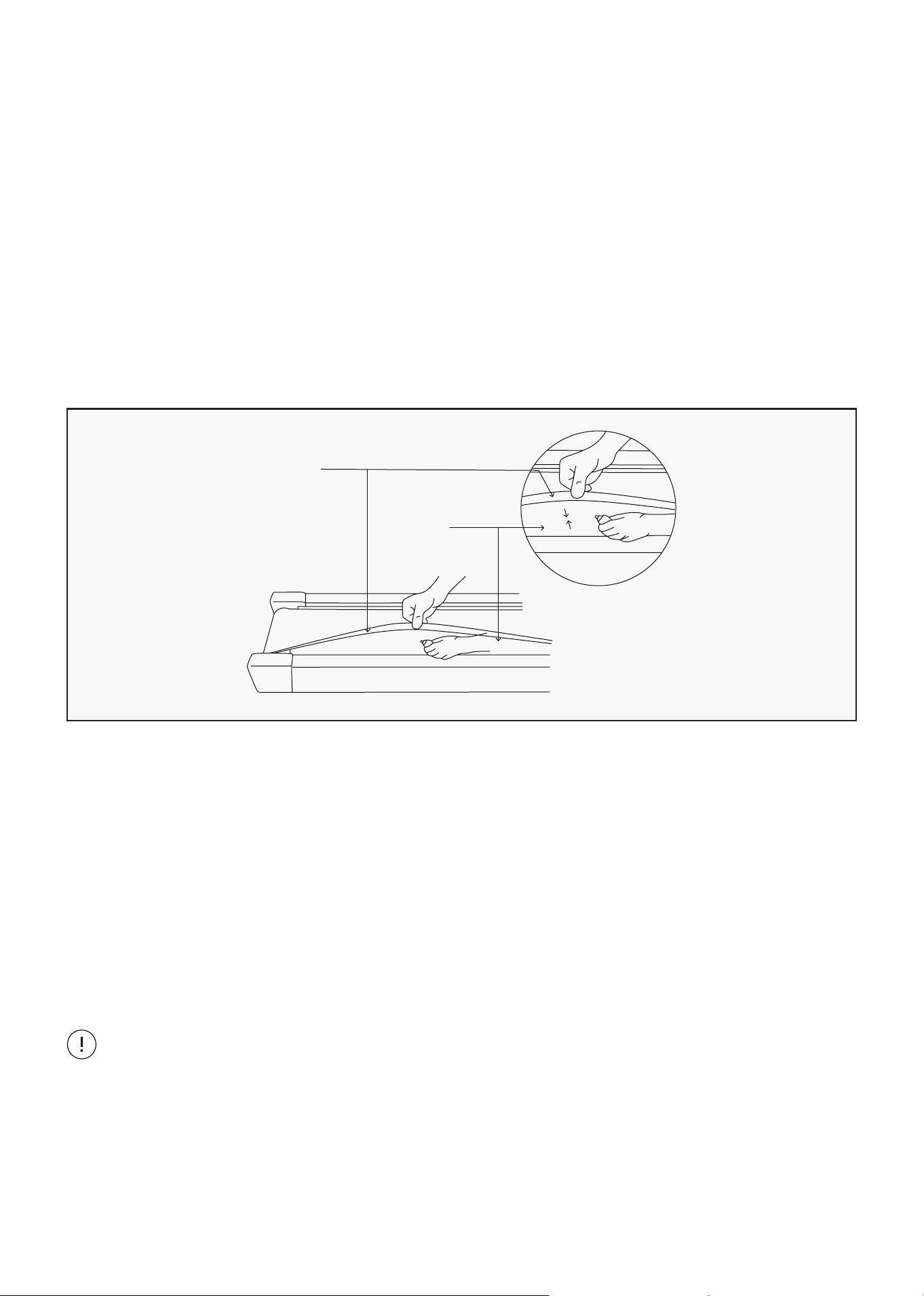

1. Disconnect the main power supply.

2. Fold the treadmill up into the storage position.

3. Feel the underside surface of the running mat.

If the surface is slick when touched, then no further lubrication is needed.

If the surface is dry to the touch, apply a suitable silicone lubricant.

4. HOW TO CHECK THE RUNNING MAT FOR PROPER LUBRICATION

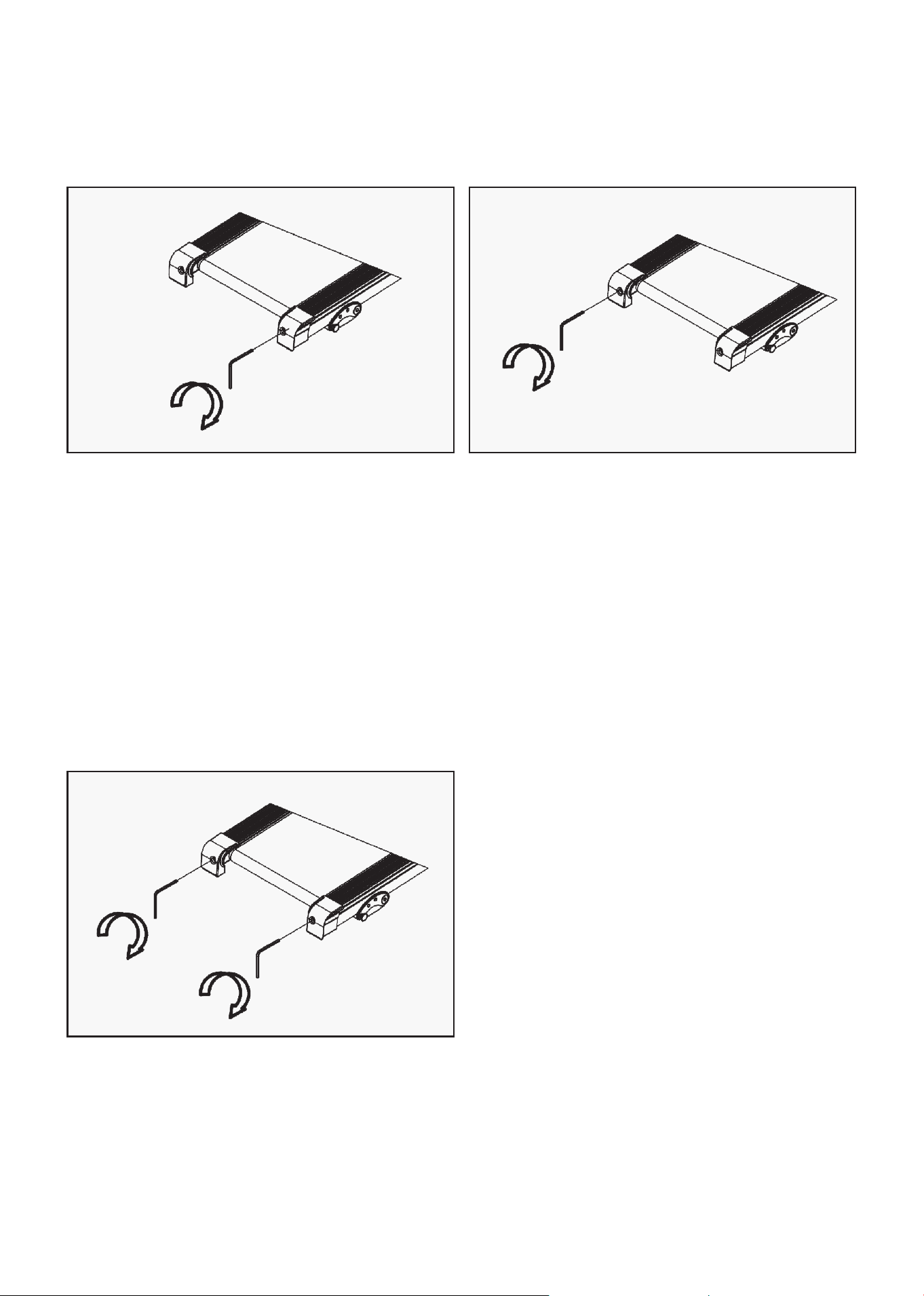

To adjust the tightness of the belt: Turn the

treadmill off. Turn both the left and right

adjusting bolts 1/4 turn clockwise. Repeat until

the belt correctly tightens.

If the belt is over tightened, simply do the

opposite to loosen.

Place treadmill on a level surface. Run treadmill at approximately 4km/h, checking the running

until the belt correctly centers.

If you have over adjusted the belt and it drifts

to the right, carefully turn the right adjusting

bolt anticlockwise until the belt centers.

until the belt correctly centers.

If you have over adjusted it, carefully turn the

left adjusting bolt anticlockwise and until the

belt centers.

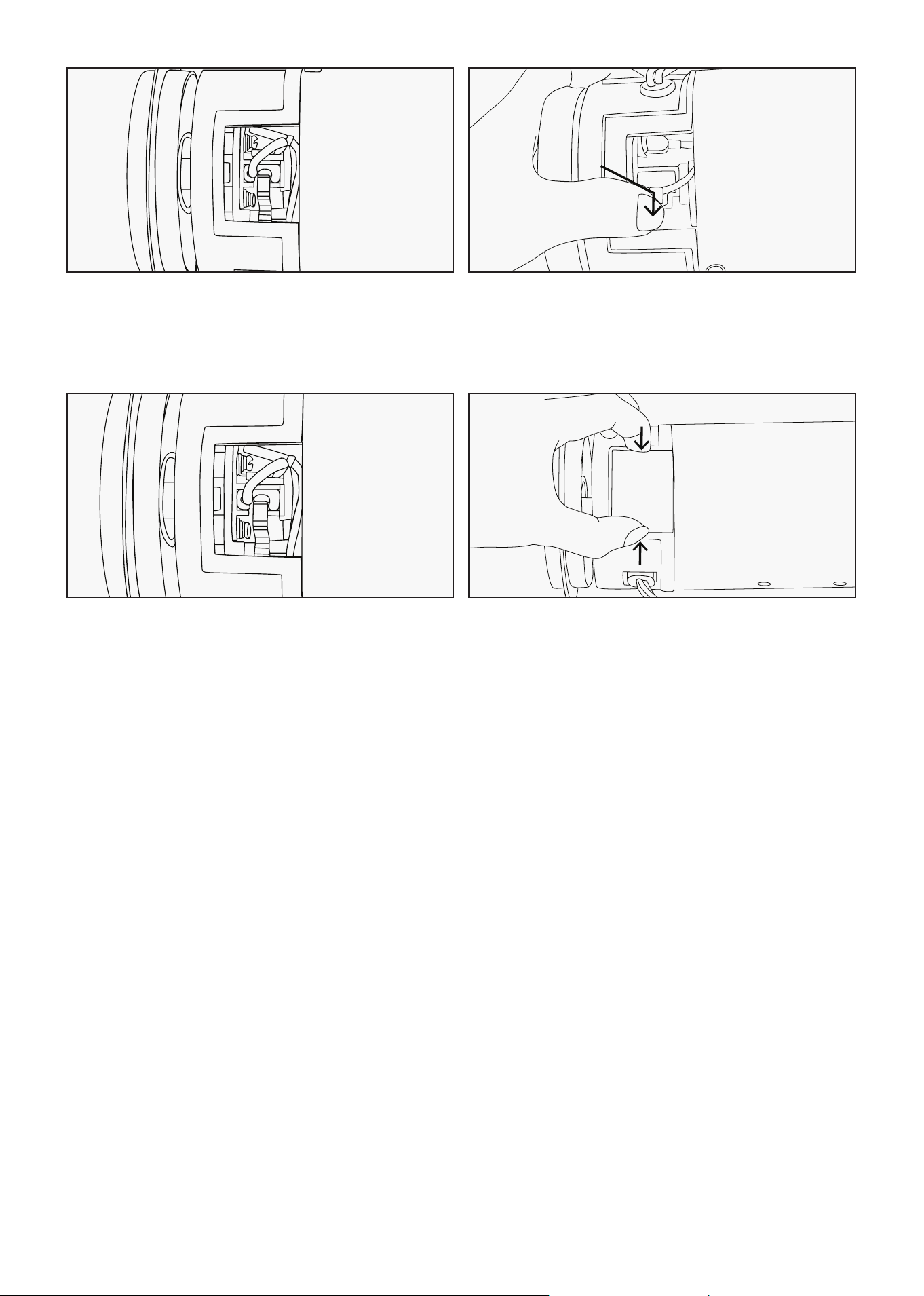

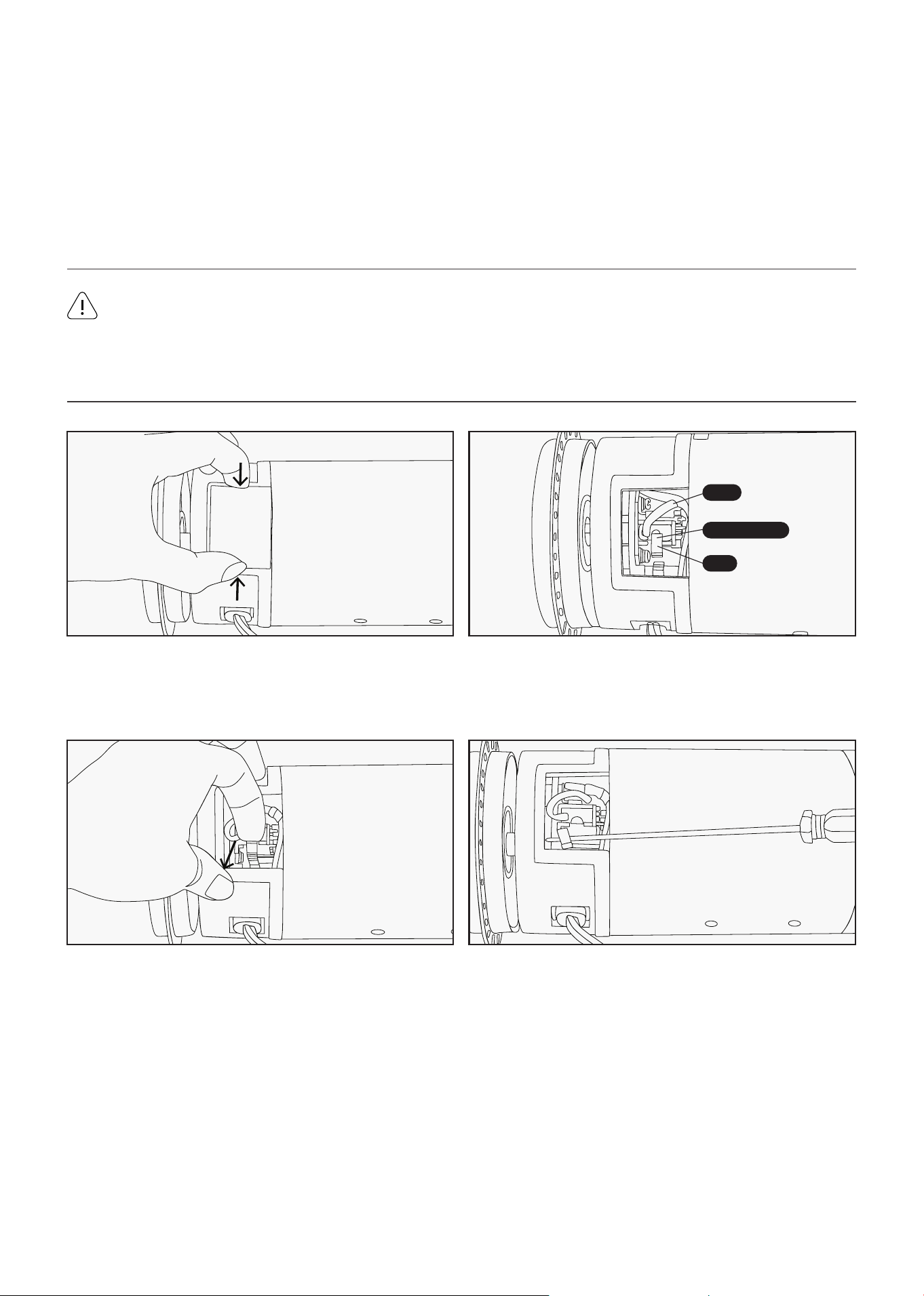

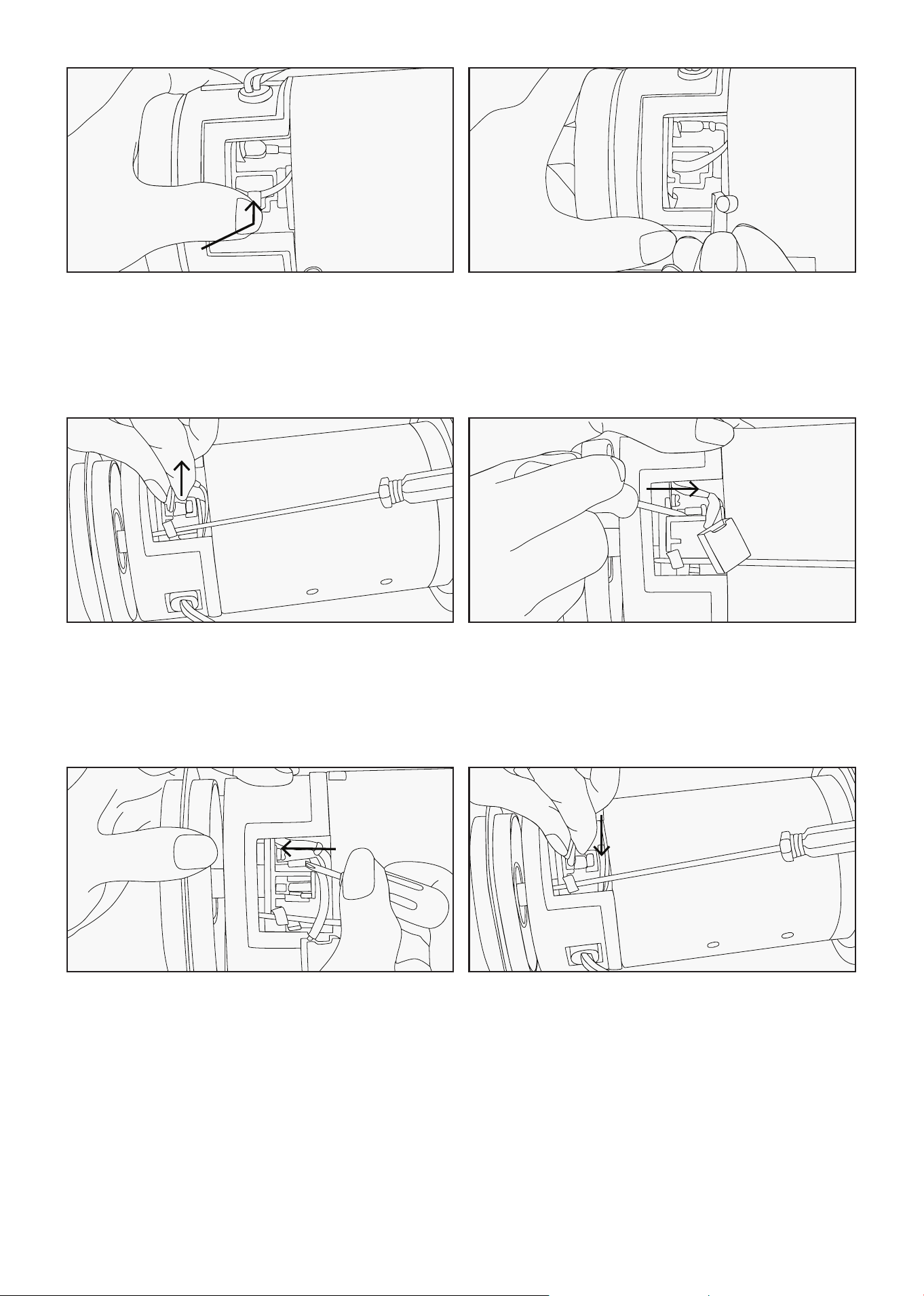

Before beginning the replacement of your motor brush, ensure that the treadmill is off and unplugged

10. Check that the motor brush is held firmly

in place by the clip, and that the lead is

plugged securely onto the terminal.

11. Replace the motor cover. Repeat steps 1-15

for the second brush located on the

opposing side of the motor.

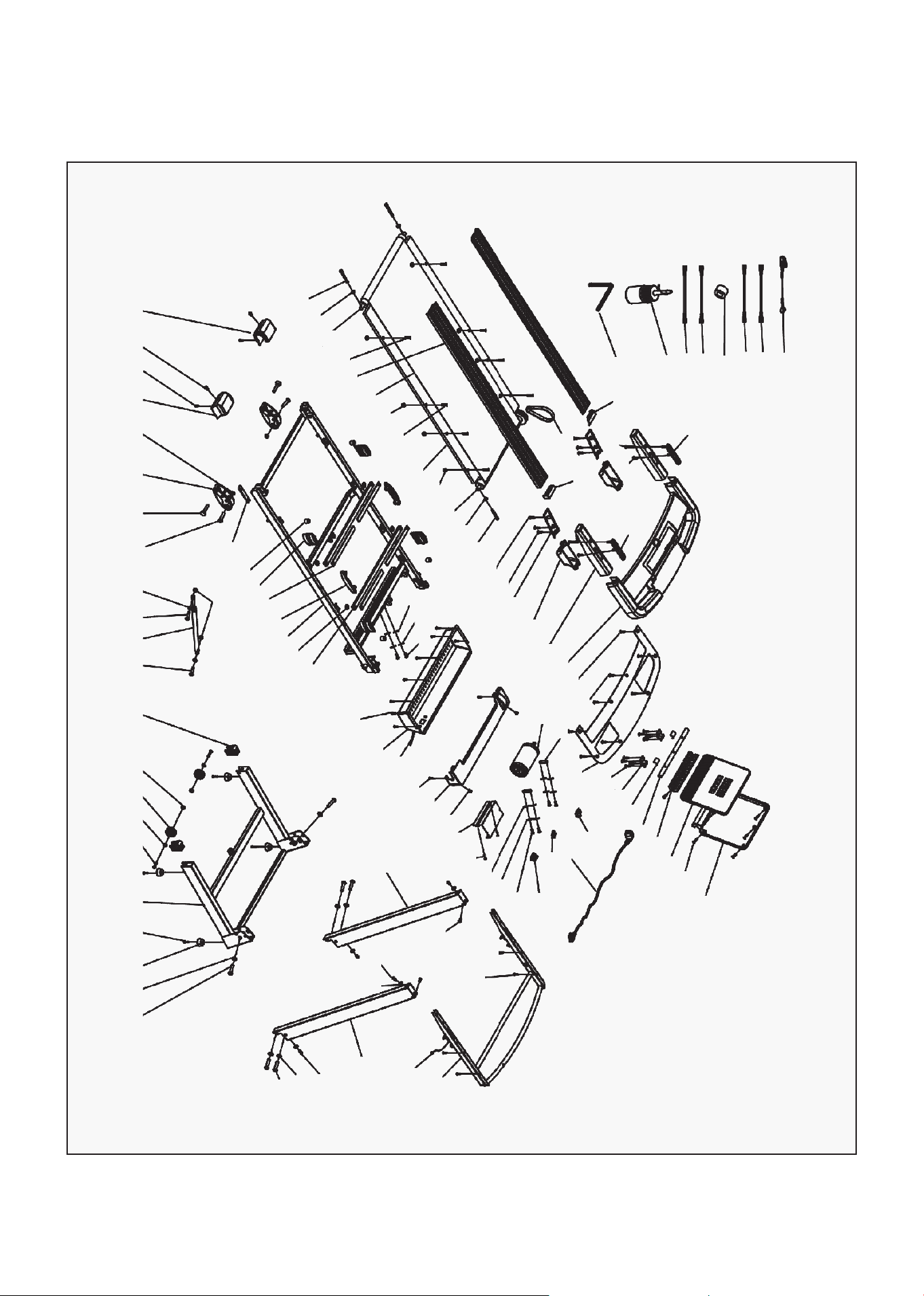

1

1

1

1

1

1

1

1

1

Length 250

1

Length 350

1

M8 12

M8*25 3

M8*16 4

M10*55 2

M8*45 2
