Pursuit Max Treadmill
USER MANUAL
2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Important Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
III. Important Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
IV. Assembly Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08
VI. Folding and Unfolding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
VII. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VIII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
IX. Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

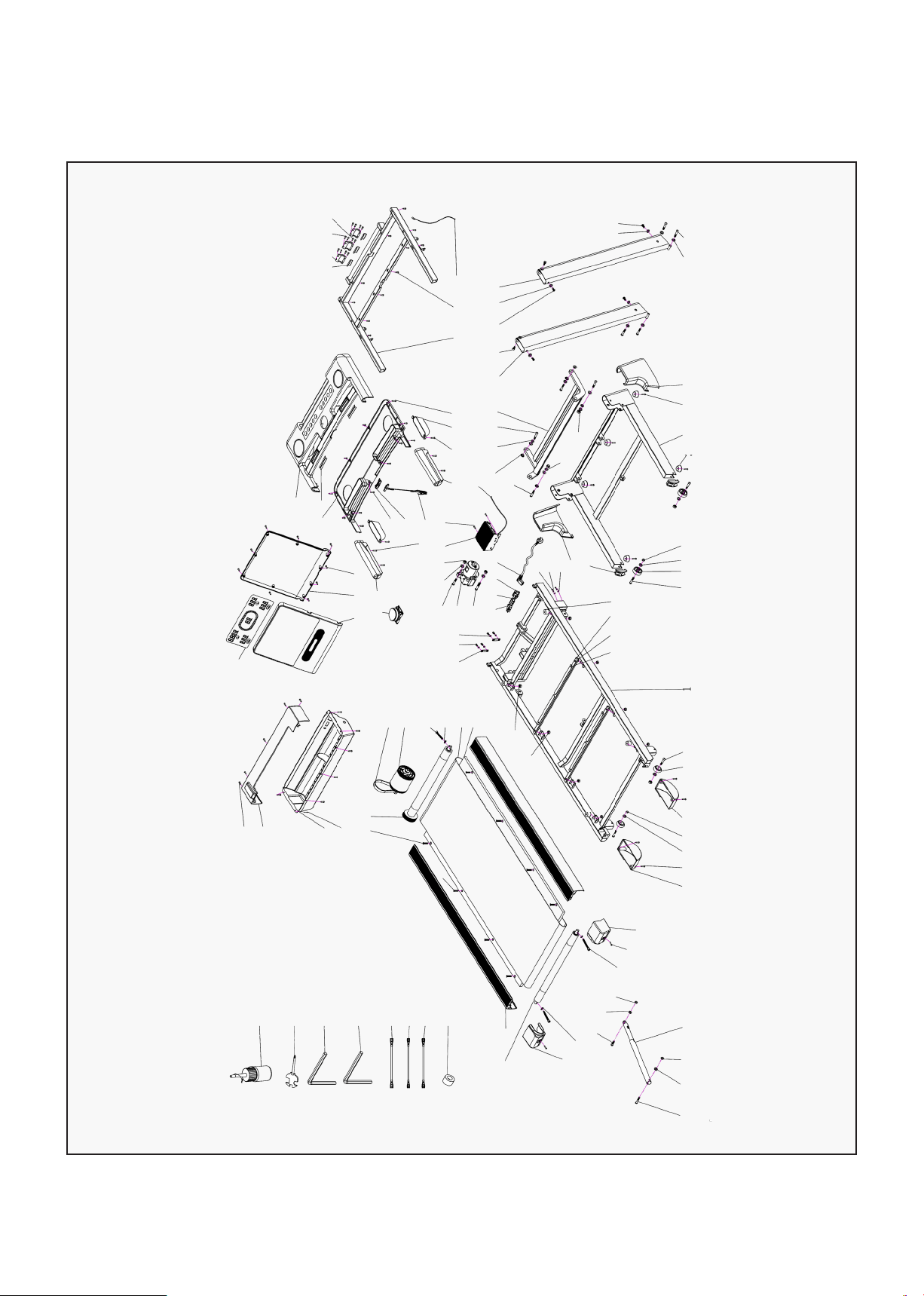

X. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
XI. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
XII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
| TABLE OF CONTENTS
3IMPORTANT SAFETY INSTRUCTIONS |
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
DANGER
To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD:
DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS OR IN ANY
WAY MODIFY THE CORD SET.
• Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
• Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
• Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of the
treadmill and any fixed object.
• Place your unit on a solid, level surface when in use.
• When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should you
fall or move too far back on the treadmill.
• Keep hands away from all moving parts.
• Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be
replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard.
• Keep the cord away from heated surfaces.
• Do not operate where aerosol spray products are being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous environment.
• Never drop or insert any object into any openings.
4 | IMPORTANT SAFETY INSTRUCTIONS
• The treadmill is intended for in-home use only and is not suitable for commercial environments.
• To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Use the handrails provided; they are for your safety.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
• Before undertaking any type of exercise program, it is recommended that you consult a doctor.
• Injuries to health may result from incorrect or excessive training.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• WARNING: Heart rate monitoring systems may be inaccurate. If you feel faint stop exercising
immediately.
• Children should not be allowed on or around the equipment, even when not in use.
• Children should be supervised to ensure that they do not play with this machine.
• Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.
• Training shoes should be worn when using the equipment.
• Equipment must be used on a level and stable surface.
• All fixings should be checked before the equipment is used.
• All literature relating to the use of the equipment should be retained for future reference.
• Recommended operating temperature: 5-40°C.
Remove the safety key after use to prevent unauthorized
treadmill operation.
5IMPORTANT ELECTRICAL INFORMATION |
II. IMPORTANT ELECTRICAL
INFORMATION
• Route the power cord away from any moving part of the treadmill including the elevation mechanism
and transport wheels.
• NEVER remove any cover without first disconnecting AC power.
• NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near
a pool, or in any other high humidity environment.
• This is a high-power item; please do not share the same outlet with other high power machines such
as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure
the fuse is 10A.
WARNING!
6 | IMPORTANT OPERATING INSTRUCTIONS
III. IMPORTANT OPERATING
INSTRUCTIONS
• Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the display console and release the adjustment key. The display will obey the command gradually.
• Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in the
centre of the belt; which may result in serious injury.
• This unit starts with at a very low speed. It is recommended to stand on the side rails and only step
on the treadmill as it is moving on a slow speed. This will prolong the life of your motor and run the
belt smoothly.
• Always hold on to handrail while making control changes.
• A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
• Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.
• Replace any defective components immediately. The machine must be kept out of use until repaired.
• Belt wear-in period: all treadmills make a certain type of thumping noise due to the belt riding over
the rollers, especially new treadmills. This noise will diminish over time, although may not completely
go away. The belt will stretch over time, causing it to ride smoother over the rollers.
7
IV. ASSEMBLY HARDWARE
1
5# Hexagon wrench 5mm 1pcs.
Wrench w/Screwdriver = 13, 14, 15 1pcs.
ASSEMBLY TOOLS:
Do not connect power before completing assembly.
NOTE:
PARTS LIST
ASSEMBLY HARDWARE |

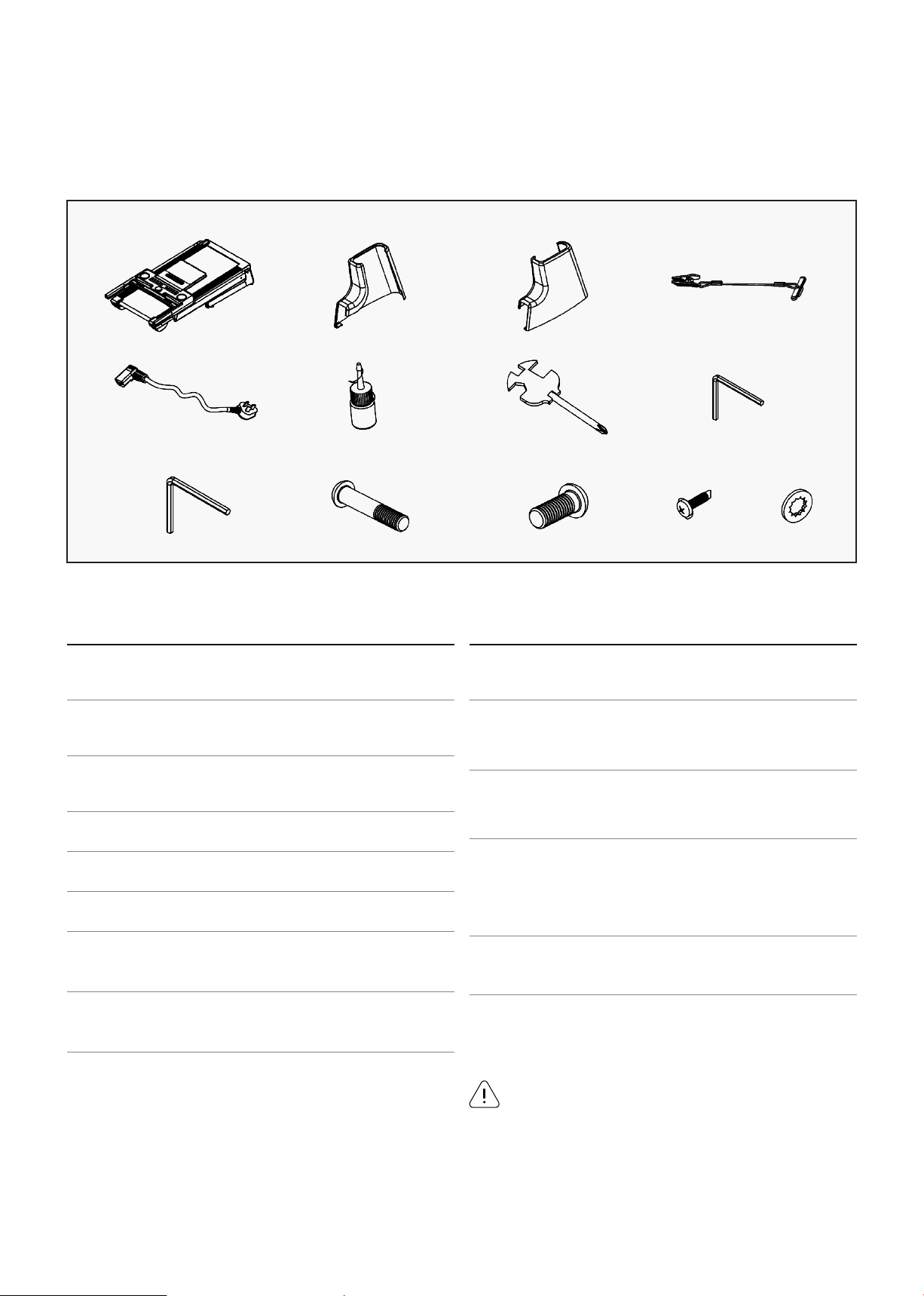

The following figure shows the scatter diagram of the parts installed in the whole machine table.
Open the packaging box, and you can remove the following parts from the box.
21 22 43
54 55 56 57
58 73 74 79 90
Key No. Description Specs Qty.
1
Main Frame
Assembly
1
21
Left Bottom Side
Cover
1
22
Right Bottom Side
Cover
1
43 Security Keylock 1
54 Power Line 1
55 Oil Bottle 1
56
Wrench w/
Screwdriver
S = 13, 14,
15
1
57
5# Hexagon
Wrench
5mm
1
Key No. Description Specs Qty.
58
6# Hexagon
Wrench
5mm
1
73
Inner Hexagonal
Flat Round Head
Screw
M8*42
2
74
Inner Hexagonal
Flat Round Head
Screw
M8*16
4
79
Cross Groove Disc
Head with Cushion
Self-attack Drill
Screw
ST4.2*19
2
61
Internal Serrated
Lock Washer
8
6
8 | ASSEMBLY HARDWARE

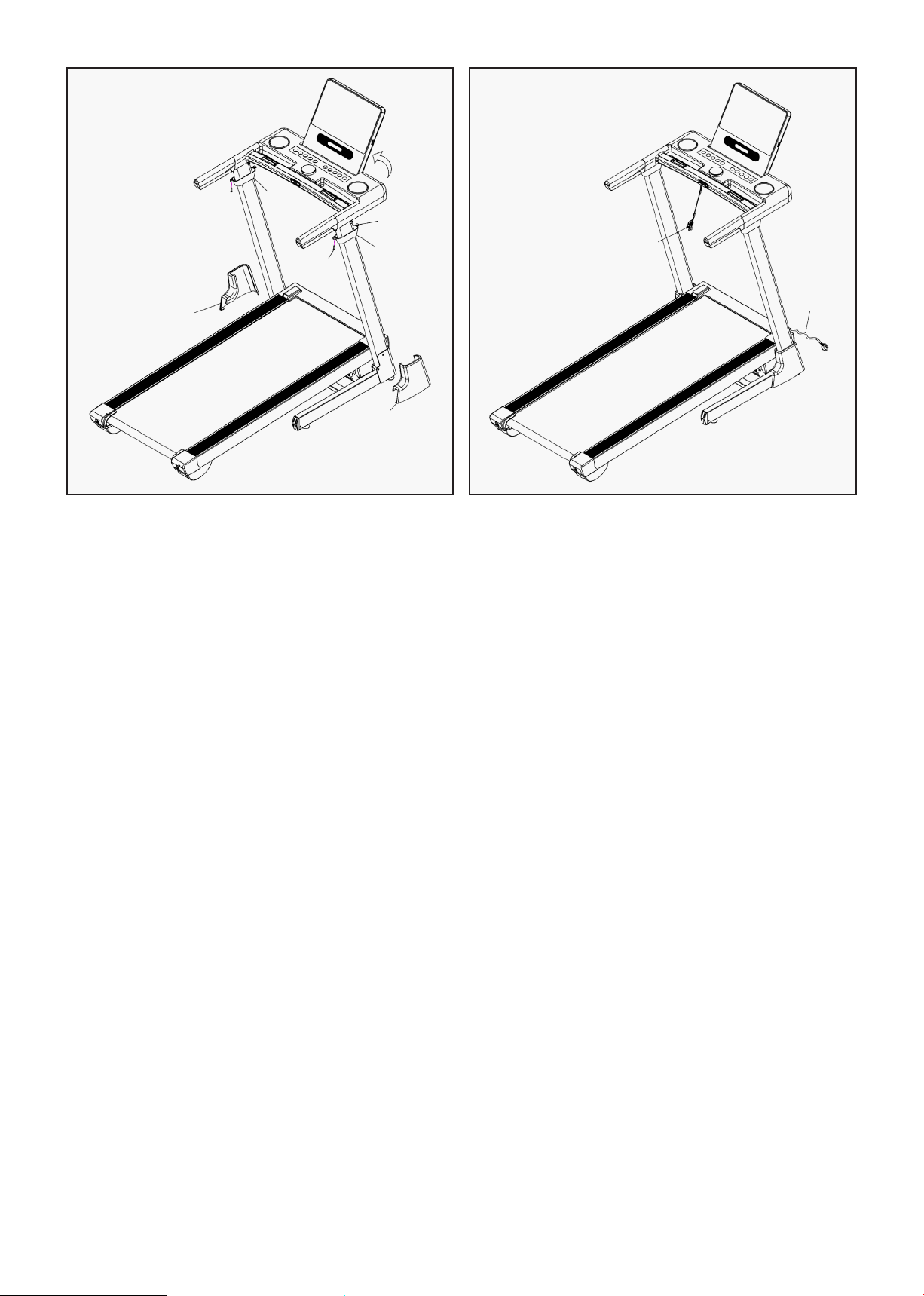

1. Open the carton and remove the above parts from the box.
2. Place the main frame onto level ground.
STEP 1
V. ASSEMBLY INSTRUCTIONS
1. Raise the display and the upright columns up, as shown in image.
STEP 2
NOTE: Support the upright with your hands to prevent it falling and causing injury.
9ASSEMBLY INSTRUCTIONS |

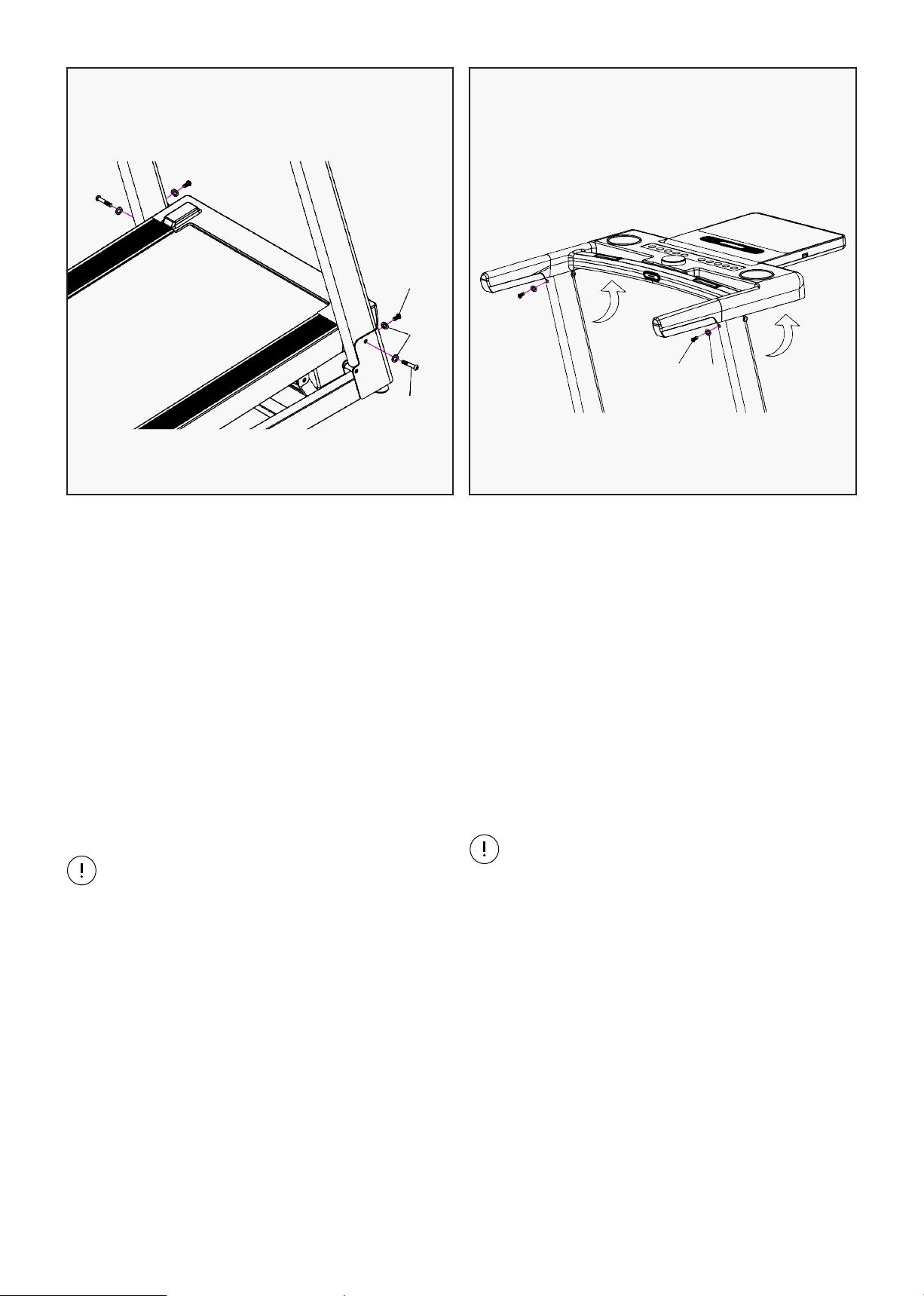

1. Use 5# hexagon wrench to secure M8*42
hexagon round head screw (73) and internal
sawtooth lock gasket (90) on the upright
column to the main frame base.
2. Use 5# hexagon wrench to secure M8*16
hexagon round head screw (74) and inner
sawtooth lock washer (90) on the upright
column to the main frame base.
3. Repeat the installation step on the other
side.
STEP 3
1. Carefully raise the display into the position as
pictured.
2. Do not damage the display wire when doing so.
3. Using a 5# inner hexagon wrench, secure
M8*16 hexagon round head screw (74) and inner
sawtooth lock washer (90) on the upright
column and display.
4. Repeat the same steps on the other side.
STEP 4
NOTE:
Support the upright with your hands to
prevent it falling and causing injury.
74
90
73
NOTE:
When un-folding, do not press the cable
line inside the column and check whether
the wire is well connected. Lock the screw
by hand first to avoid the column and the
display from falling down.
74 90
10 | ASSEMBLY INSTRUCTIONS
1. First secure the armrest cover (28) into the
display and lock with drill screw (79) with the
cross wrench.
2. Repeat the step on the other side.
3. Push the left and right base cover (21/22)
from the top to the column base.
4. Check all the bolts are fully tightened.
STEP 5
1. Place the safety lock (43) onto the display safety
key slot.
2. Then plug power cord (54) to a main power point
and you can now use the treadmill.
STEP 6
28
28
A
79
21
22
43
54
11

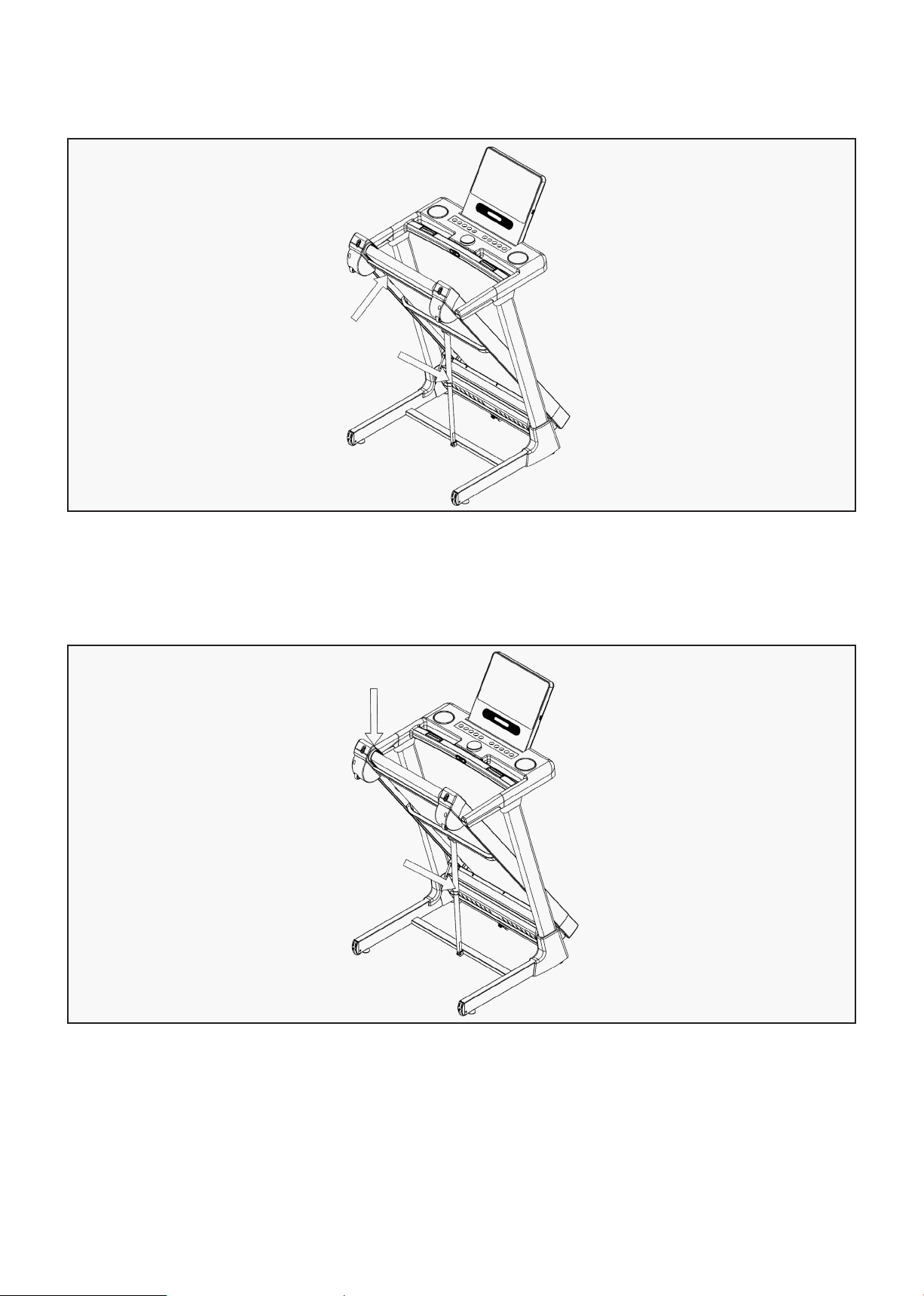

Place your hand on position (A), then pull up the base frame until you hear the click sound emitted
when the air pressure bar (B) is locked into the round tube.
FOLDING
FOLDING AND UNFOLDING |
VI. FOLDING AND UNFOLDING

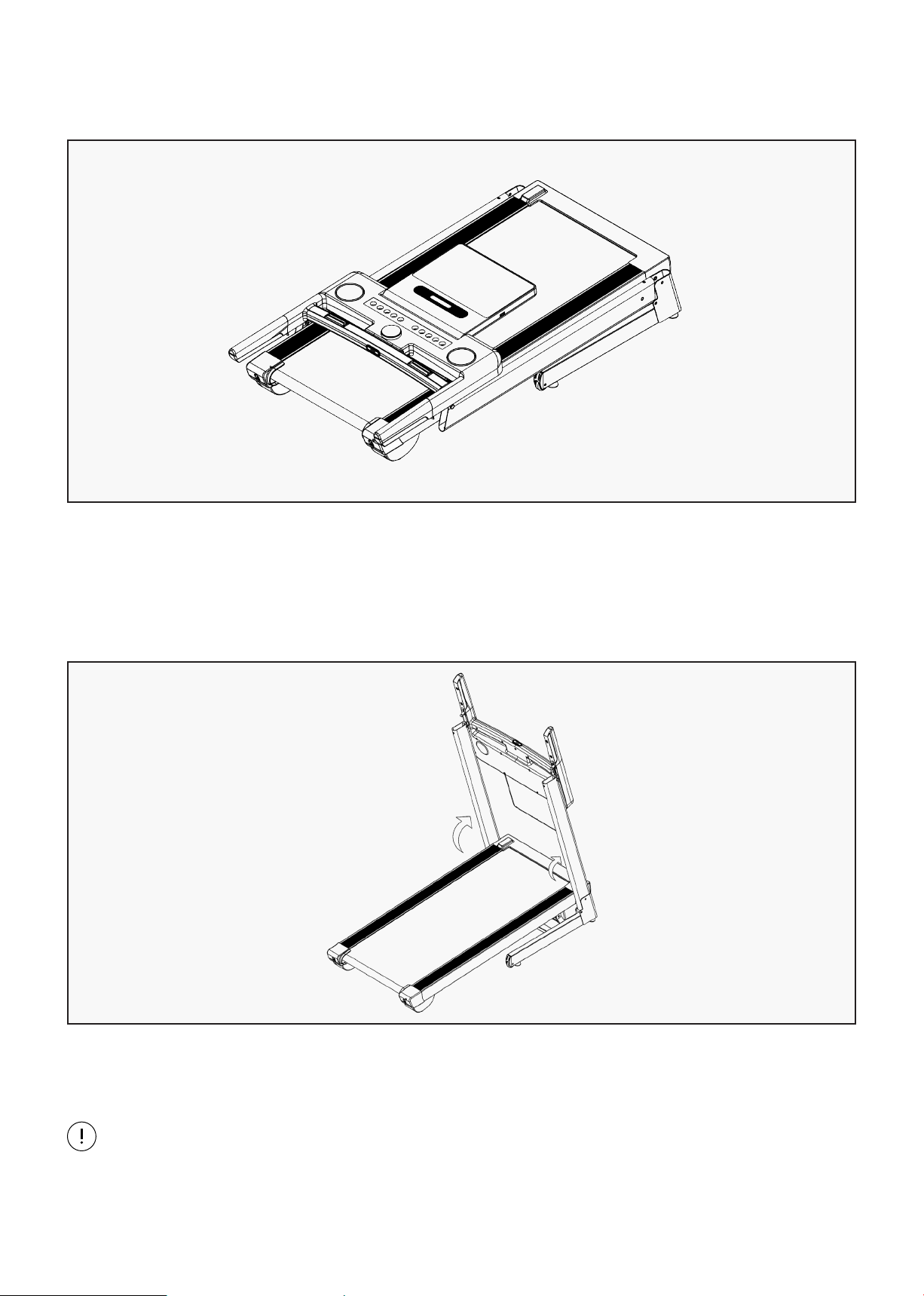

Whilst supporting position (A) with our hand, gently push position (B), the marked area on the air
pressure bar, with your foot. The base frame will descend automatically. (Please keep people and pets
away from the machine during descent).
UNFOLDING
A
B
A
B
12
VII. OPERATION GUIDE
DISPLAY
1. Incline/Calorie Window: Displays moving calories or incline level. The corresponding element is
displayed when the corresponding icon is illuminated.
2. Time Window: Displays exercise time.
3. Speed Window: Show the motion speed.
4. Pulse/Distance Window: Display the running distance or pulse reading. The corresponding element
is displayed when the corresponding icon is illuminated.
5. Dot Matrix Window: Show the track.
6. Loop Number Window: Display lap number.
| OPERATION GUIDE
BUTTON FUNCTION
1. "PROG." Button: Use this button to choose the program. The selection order is manual mode, P01-99,
and FAT.
2. MODE Button: Use this button as selection (enter) key.
a. During standby mode, use MODE to choose between countdown mode, from TIME countdown,
DISTANCE countdown and CALORIE.
b. Use the Mode to navigate through parameter selection for "Sex", "Age", "Height" and "Weight".
3. START Button: Press Start to turn on display and start machine.
4. STOP Button: Press this key during exercise and the treadmill slowly stops and enter into pause
mode. Your counts and settings will remain on pause mode. You can press start again to resume work
out. If you press the stop button again in Pause mode, the readings will be cleared to 0:00.
5. SPEED▲,▼: Increase or decrease speed when exercising. Sets parameters when stopped.
6. SPEED (8): Quick speed adjustment key.
7. INCLINE ▲,▼: Increase or decrease incline levels when exercising. Sets parameters when stopped.
8. INCLINE (8): Quick incline adjustment key.
9. SHUTTLE KNOB: Synchronize the data of display. Short press to start/pause, long press to stop,
clockwise rotation speed increases, counterclockwise rotation speed decreases.
• When any button is pressed effectively, there will be a prompt tone, and when the button is used for
parameter adjustment, there will be a long tone prompt. There will be no prompt tone when the
button is pressed ineffectively.
13
MAIN FUNCTIONS
On startup, all windows will light up for 2 seconds, and then enter the standby state.
1. Quick Start (Manual Mode): Put the safety key on the display and press the start button. After the 3
seconds countdown, the treadmill will start moving at the lowest speed. Adjust the speed by pressing
the SPEED ▲, ▼ button to adjust the speed. Press INCLINE ▲, ▼ button to adjust the incline of the
deck. To stop, press the stop button and it will pause the work-out. Press stop to clear settings back
to 0:00.
2. Countdown Mode: Press the MODE button to cycle options: timer countdown, distance countdown,
calories countdown. The default value corresponds to the window and flashing display. At this point,
the SPEED buttons serve as plus and minus functions to adjust to the desired value for timer,
distance or calories countdown. When settings are set, press the START, you can change speed/incline
with SPEED/INCLINE buttons once again. When the countdown reaches 0, the machine will stop. You
can also directly press the STOP button or disconnect the safety key to stop.
3. Program Mode: Press the "PROGRAM" button and select any one of the built-in programs.
"Time" will flash when you navigate through the programs. You can change the exercise time using
SPEED▲, ▼ (INCLINE ▲, ▼) buttons.
The built-in programs are divided into 20 segments with a running time of set time/20. Press the
START to run the program after adjusting your time. Again, there will be a 3 second countdown, the
machine will adjust the speed/incline to the first segment of the program. It will navigate through all
the segments and change speed/incline automatically.
Once the program segment is finished the treadmill will slowly stop. During operation, you can adjust
SPEED▲, ▼, INCLINE ▲, ▼ but it will automatically adjust to the program default value in the next
segment. You can also directly press the "STOP" button to stop running the program.
• The corresponding window at the end of the mode and the program motion flashes with the
15-sound prompts, after which all the data clear 0 goes into the standby state.
OPERATION GUIDE |
HEART RATE
When holding the hand pulse with two hands, the pulse window will show your heart rate after 5
seconds. To increase accuracy, please check heart rate after holding your hands on the sensors for
more than 30 seconds when the machine stops. Please turn to the final page of document for more
information about our pulse sensors.
The heart rate data is for reference purpose only and should not be used for medical purposes.
Please turn to the end of this document for further detail.
14
BODY FAT TEST FUNCTION
1. In the standby state, press "PROGRAM" until the window shows "FAT".
2. Press the "MODE" button to input data into parameters "SEX/AGE/HEIGHT/WEIGHT". The corresponding
window displays "-1-", "-2-", "-3-" and "-4-". For each parameter category selected, press SPEED▲, ▼ to
adjust the parameter value.
3. When adjusting all the parameters, press the MODE key again. The corresponding window will display
"-5-" and "- - -" respectively, indicating that the pending test state is entered. Hold the hand pulse
sensors with both hands and it will show your BMI data after 5 seconds.
| OPERATION GUIDE
Parameter Category Windows Default Set the Scope emarks
Sex (-1-) 0 (Male) 0—1 0= Male and 1= Female
Age (-2-) 25 Years old 10-99 Years old
Height (-3-) 170cm 100—240cm
Body Weight (-4-) 70kg 20—16kg
Input parameters display and set range
Body Fat Index (BMI) Result
<19 Under Weight
19--26 Normal Weight
27--30 Overweight
>30 Obese
Body Fat Index control
SLEEP FUNCTION
The treadmill automatically enters sleep mode after 10 minutes of inactivity. Press any key on the
display to wake the treadmill.
SAFETY KEY FUNCTION
Any time the safety lock is disconnected, the treadmill will stop running, and all data is cleared to 0. All
windows will display "- - -". Safety key must be placed back into the safety key slot to start the machine.
15OPERATION GUIDE |
Range Default Mode
The default value
of program
Set the scope
Speed 1-16km -------- -------- 1-16km
Incline 15% -------- -------- 0—15%
Time 0:00—99:59 30:00 30:00 5:00---99:00
Distance 0.00km —99.9km 1.00km -------- 0.5km —99.9km
Calories 0Kcl —999Kcl 50Kcl -------- 10Kcl —990Kcl
Data Display and Setting Range
AUDIO FUNCTION
1. MP3 function, input the external sound source through the MP3 line through the treadmill power
amplifier from the loudspeaker.
2. Bluetooth music function, search for the Bluetooth name FS-xxxxxx-A (where xxxxxx is the Bluetooth
serial number) through the mobile phone. After the successful matching connection, the mobile
phone music is played from the speaker after the treadmill power amplifier.
16
PROGRAM TIME
To set time/20 time = running time of each time period
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
P01
SPEED 2 3 3 4 5 3 4 5 5 3 4 5 4 4 4 2 3 3 5 3
INCLINE 1 1 2 2 2 3 3 3 2 2 1 2 2 1 1 3 3 2 2 2
P02
SPEED 2 4 4 5 6 4 6 6 6 4 5 6 4 4 4 2 2 5 4 2
INCLINE 1 2 2 2 2 3 3 2 2 2 2 2 3 3 3 4 4 3 2 2
P03
SPEED 2 4 4 6 6 4 7 7 7 4 7 7 4 4 4 2 4 5 3 2
INCLINE 2 3 3 2 2 3 3 3 2 2 2 2 4 4 4 6 6 3 2 2
P04
SPEED 3 5 5 6 7 7 5 7 7 8 8 5 9 5 5 6 6 4 4 3
INCLINE 2 3 3 2 2 3 3 3 2 2 2 2 4 4 4 6 6 3 2 2
P05
SPEED 2 4 4 5 6 7 7 5 6 7 8 8 5 4 3 3 6 5 4 2
INCLINE 3 3 3 4 4 5 5 5 4 4 4 4 5 5 3 3 3 2 2 2
P06
SPEED 2 4 4 4 5 6 8 8 6 7 8 8 6 4 4 2 5 4 3 2
INCLINE 3 5 5 5 4 4 4 3 3 3 3 4 4 4 3 3 3 4 3 2
P07
SPEED 2 3 3 3 4 5 3 4 5 3 4 5 3 3 3 6 6 5 3 3
INCLINE 4 4 4 4 3 3 6 6 6 7 7 8 8 9 9 6 6 5 4 4
P08
SPEED 2 3 3 6 7 7 4 6 7 4 6 7 4 4 4 2 3 4 4 2
INCLINE 4 5 5 5 6 6 6 7 8 9 9 9 10 10 10 12 12 8 6 3
P09
SPEED 2 4 4 7 7 4 7 8 4 8 9 9 4 4 4 5 6 3 3 2
INCLINE 5 5 5 6 6 6 4 4 6 6 5 5 8 8 9 9 9 7 4 2
P10
SPEED 2 4 5 6 7 5 4 6 8 8 6 6 5 4 4 2 4 4 3 3
INCLINE 5 6 6 6 7 5 8 8 4 4 4 5 5 8 8 10 10 8 6 3
P11
SPEED 2 5 8 10 7 7 10 10 7 7 10 10 5 5 9 9 5 5 4 3
INCLINE 4 5 3 2 6 6 2 2 2 2 2 4 5 6 3 2 5 5 2 0
P12
SPEED 3 4 9 9 5 9 5 8 5 9 7 5 5 7 9 9 5 7 6 3
INCLINE 1 2 3 2 3 5 5 0 0 2 3 5 7 3 3 5 6 5 3 3
P13
SPEED 3 6 7 5 9 9 7 5 5 7 9 5 8 5 9 5 9 9 4 3
INCLINE 3 3 5 6 5 3 3 7 5 3 2 0 0 5 5 3 2 3 2 1
P14
SPEED 2 2 4 5 6 5 4 3 2 1 2 3 4 5 6 5 4 3 2 1
INCLINE 4 4 4 4 3 3 6 6 6 7 7 8 8 9 9 6 6 5 4 4
P15
SPEED 2 4 6 8 6 6 4 4 2 2 2 4 6 8 6 6 4 4 2 2
INCLINE 3 3 3 4 4 5 5 5 4 4 4 4 5 5 3 3 3 2 2 2
15 Built-in Data Sheets for 20 paragraphs
| OPERATION GUIDE
17
VIII. EXERCISE GUIDE
PLEASE NOTE:
Before beginning any exercise program, consult your physician. This is important especially if you are
over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to
your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough
energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work
so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
WARM UP
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your
exercise.
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your
intensity for maximum performance. Breathe regularly and deeply as you exercise.
EXERCISE GUIDE |
18
COOL DOWN
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-
exercise problems.
WORKOUT GUIDELINES
This is how your pulse should behave during general fitness exercise. Remember to warm up and
cool down for a few minutes.
TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
The most important factor here is the amount of effort you put in. The harder and longer you work, the
more calories you will burn.
| EXERCISE GUIDE
19
IX. MAINTENANCE INSTRUCTIONS
Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is
maximized when the belt and mat are kept as clean as possible.
WARNING:
• The mat/deck friction may lay a major role in the function and life of your treadmill and that is why
we recommend you constantly lubricate this friction point to prolong the useful life of your treadmill.
Failing to do this may void your warranty.
• Unplug power cord before maintenance.
• Stop treadmill before folding.
• Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame. A
mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt.
This task should be done once a month. Allow to dry before using.
• On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you
should remove the black motor shield and vacuum out dirt that may accumulate.
1. GENERAL CLEANING
• Check parts for wear before use.
• Pay particular attention to the fixing knobs and make sure they are tight.
• Always replace the mat if worn and any other defective parts.
• If in doubt do not use the treadmill and contact us.
2. GENERAL CARE
Take care to protect carpets and floor in case of leakages. This product is a machine that
contains moving parts which have been greased / lubricated and could leak.
The mat/deck friction may play a major role in the function and life of your treadmill and that is why we
recommend you constantly lubricate this friction point to prolong the useful life of your treadmill. You
should apply lubrication after approximately the first 30 hours of operation.
3. BELT/DECK/ROLLER LUBRICATION
MAINTENANCE INSTRUCTIONS |
20
We recommend lubrication of the deck according to the following timetable:
• Light use (less than 3 hours per week) every 6 months.
• Medium use (3-5 hours a week) every 3 months.
• Heavy use (more than 5 hours per week) every 6-8 weeks.
See below procedures for lubricating:
1. Use a soft, dry cloth to wipe the area between the belt and deck.
2. Spread lubricant onto the inside surface of belt and deck evenly (make sure the machine is
turned off and power is disconnected).
3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If
the treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours
before relubricating is necessary.
| MAINTENANCE INSTRUCTIONS
Video Tutorial Available at: http://youtu.be/cP9NtFHfWlc
Lifespan Fitness YouTube Channel: http://www.youtube.com/user/treadmillsvideos
1. Disconnect the main power supply.
2. Fold the treadmill up into the storage position.
3. Feel the underside surface of the running mat.
If the surface is slick when touched, then no further lubrication is needed.
If the surface is dry to the touch, apply a suitable silicone lubricant.
4. HOW TO CHECK THE RUNNING MAT FOR PROPER LUBRICATION
Running
Belt
Board
We recommend that you use a silicone based spray to lubricate your treadmill.
This can be purchased directly from us or any hardware store.
Video Tutorial Available at: http://youtu.be/cP9NtFHfWlc
Lifespan Fitness YouTube Channel: http://www.youtube.com/user/treadmillsvideos
21
C

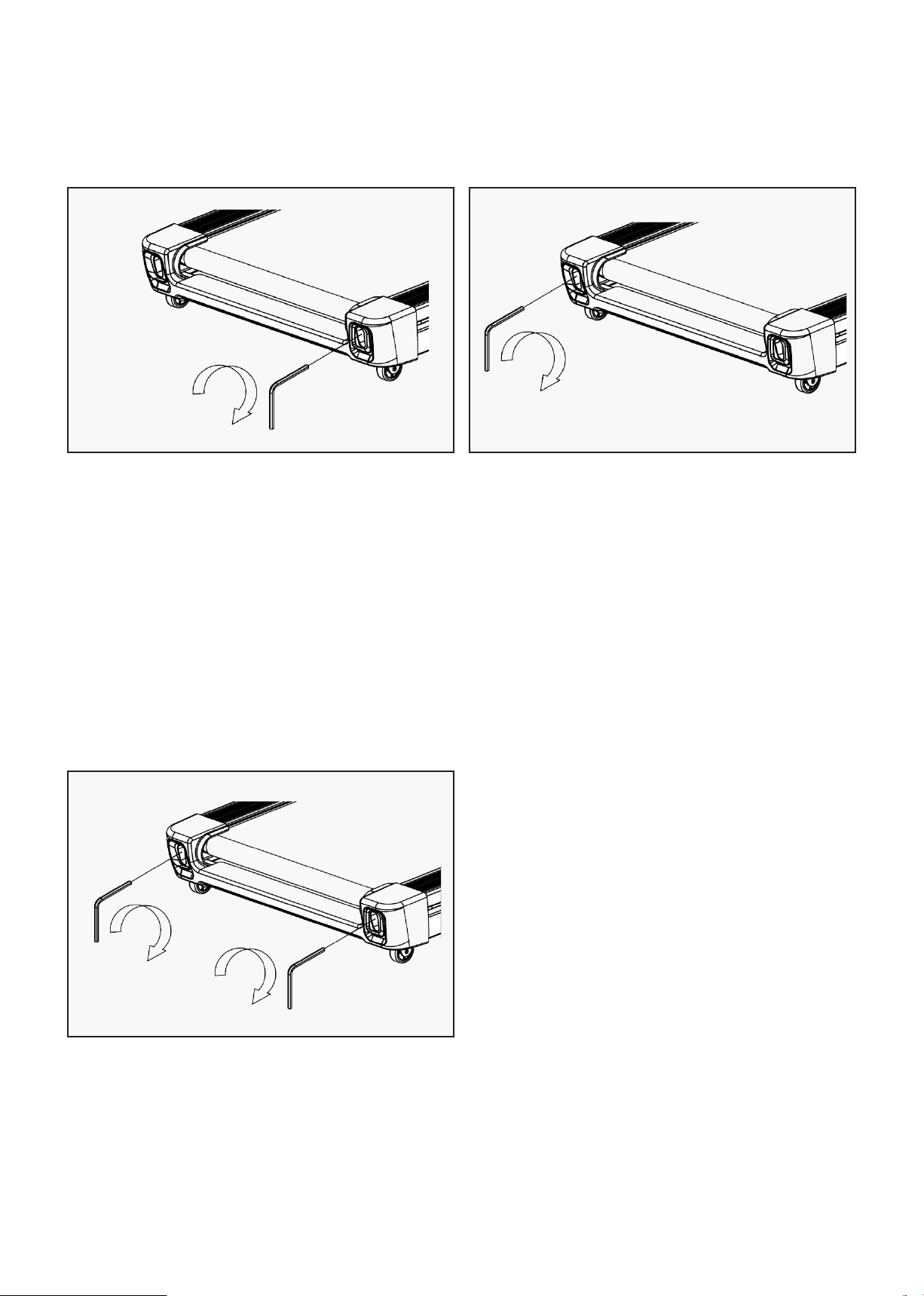

To adjust the tightness of the belt: Turn the
treadmill off. Turn both the left and right
adjusting bolts 1/4 turn clockwise. Repeat until
the belt correctly tightens.
See Picture C
If the belt is over tightened, simply do the
opposite to loosen.
MAINTENANCE INSTRUCTIONS |
Place treadmill on a level surface. Run treadmill at approximately 4km/h, checking the running
condition.
5. ADJUSTING THE RUNNING BELT
If the belt has drifted to the right: Whilst the
treadmill is running at 4km/h, carefully turn
the right adjusting bolt 1/4 turn clockwise. Then
monitor treadmill until the belt centers. Repeat
until the belt correctly centers.
See Picture A
If you have over adjusted the belt and it drifts
to the right, carefully turn the right adjusting
bolt anticlockwiseuntil the belt centers.
A
If the belt has drifted to the left: Whilst the
treadmill is running at 4km/h, carefully turn
the left adjusting bolt 1/4 turn clockwise. Then
monitor treadmill until the belt centers. Repeat
until the belt correctly centers.
See Picture B
If you have over adjusted it, carefully turn the
left adjusting bolt anticlockwiseand until the
belt centers.
B
22| MAINTENANCE INSTRUCTIONS
NOTE:
When properly tightened,you should be able to peel the very edge of the side of the belt up
approximately 2 inches. However, this is a rough reference and not all treadmills are the same.
Some treadmills that have longer belts may give different measurements for correct belt tightness.
Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening.
Video Tutorial Available at: http://youtu.be/vllsamTSvvA
Lifespan Fitness YouTube Channel: http://www.youtube.com/user/treadmillsvideos
23
X. EXPLODED DIAGRAM
55
56
57
58
59
60
61
62
23
9
64
17
90
90
75
65
73
90
65 10
69
79
18
19 79 9065 20 37 72
65
66
35 34 7 36
72 3290 65 31 2 80 22 90 73
90 74
5
90
74
714
37889
39
78
89
67
33
21
86
87
85
544948
47
77
12
76
88
7044
89 67
46
79
50
27 79 28 83
836
51
41
40 81
82
79
43
42
84
52
26
29 30 83
25
45
24
53
79
15
16
79
63 8
38
11
68
90
14
13
EXPLODED DIAGRAM |
24
XI. PARTS LIST
Key No. Description Specs. Qty.
1
Main Frame
Assembly
1
2 Base Assembly 1
3
Incline Frame
Assembly
1
4
Left Upright
Assembly
1
5
Right Upright
Assembly
1
6
Display Frame
Assembly
1
7
Running Board
Strengthening Pipe
2
8 Front Roller 1
9 Rear Roller 1
10 Cylinder 1
11 Brushless Motor 1
12 Incline Motor 1
13 Running Board 1
14 Running Belt 1
15 Motor Cover 1
16 Lower Motor Cover 1
17
Left Rear-guard
Angle
1
18
Right Rear-guard
Angle
1
19 Left Roller Shield 1
20 Right Roller Shield 1
21 Left Base Cover 1
22 Right Base Cover 1
23 Side Rail 2
24
Electronic Table
Upper Cover
1
25
Electronic Table
Lower Cover
1
Key No. Description Qty.
26
Left Foaming
Armrest
1
27
Right Foaming
Armrest
1
28 Handlebar Cover 2
29 Screen Panel 1
30 Panel Rear Cover 1
31 Foot Pad 5
32
Transportation
Wheel
2
33 Roller Cover 2
34 Nylon Isolation Pad 4
35
Strengthen Rod
Buffer Pad
4
36 Cushion 4
37 Wheel 2
38 Motor Belt 1
39 Interval Casing 8
40
Shingle Pressing
Plate
3
41 Tile 3
42 Safety Lock Base 1
43 Safety Lock Switch 1
44 Motor Fixed Sheet 2
45 Pulse Sensors 4
46 Lower Controller 1
47 Overload Protector 1
48 Mains Switch 1
49
Power Supply
Socket
1
50 Cable 1
51 Cable 1
52 Adjustable Unit 1
| PARTS LIST
25
Key No. Description Specs. Qty.
53 Electronic Meter 1
54 Power Line 1
55 Silicon Oil Bottle 1
56
Wrench w/
Screwdriver
1
57
5 # Hexagon
Wrench
1
58
6 # Hexagon
Wrench
1
59 AC Single Line 1
60 Blue Single Line 1
61
Brown Single
Branch Line
1
62 Magnet Ring 1
63
Internal Hexagonal
Head Screw
M8*45 4
64
Internal Hexagonal
Head Screw
M6*40
4
65
Type 1 non-metal
insert Hexagonal
Locking Nut
M8
10
66
Type 1 non-metal
insert Hexagonal
Locking Nut
M6
4
67
Type 1 non-metal
insert Hexagonal
Locking Nut
M10
4
68
Inner Hexagonal
Cylindrical Screw
M8*40 1
69
Inner Hexagonal
Cylindrical Screw
M8*60 2
70
Inner Hexagonal
Cylindrical Screw
M6*15 4
71
Inner Hexagonal
Cylindrical Screw
M8*25 2
72
Inner Hexagonal
Flat Round Head
Screw
M8*40 4
Key No. Description Specs. Qty.
73
Inner Hexagonal
Flat Round Head
Screw
M8*42 5
74
Inner Hexagonal
Flat Round Head
Screw
M8*16 4
75
Inner Hexagonal
Flat Round Head
Screw
M8*25 1
76
Inner Hexagonal
Flat Round Head
Screw
M10*42 1
77
Inner Hexagonal
Flat Round Head
Screw
M10*55 1
78
Inner Hexagonal
Flat Round Head
Screw
M10*35 4
79
Cross Groove Disc
Head with Padded
Self-tapping Drill
Screws
4.2 * 15 with
Pads
26
80
Cross Groove Disc
Head with Padded
Self-tapping Drill
Screws
4.2 * 25 with
Pads
5
81
Cross Slot Disc
Head Tapping
Screw
4.2*15 6
82
Cross Slot Disc
Head Tapping
Screw
4.2*20 6
83
Cross Slot Disc
Head Tapping
Screw
4.2*13 27
84
Cross Head
Self-drilling Screw
4.2*19 6
85
Cross Pan Head
Screw
M5*8 2
86
Internal Serrated
Lock Washer
5 2
87
Standard-type
Spring Washer
5 2
PARTS LIST |
26
Key No. Description Specs. Qty.
88
Standard-type
Spring Washer
6 4
89
Internal Serrated
Lock Washer
10 6
90
Internal Serrated
Lock Washer
8 17
| PARTS LIST
27WARRANTY |
XII. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
WWW.LIFESPANFITNESS.COM.AU
