IS-200
HookUpz
TM
2.0
Smartphone Optic Adapter
Congratulations on selecting your new HookUpz Smartphone Optic Adapter! In order to
achieve optimum performance, please follow instructions for proper use and care.

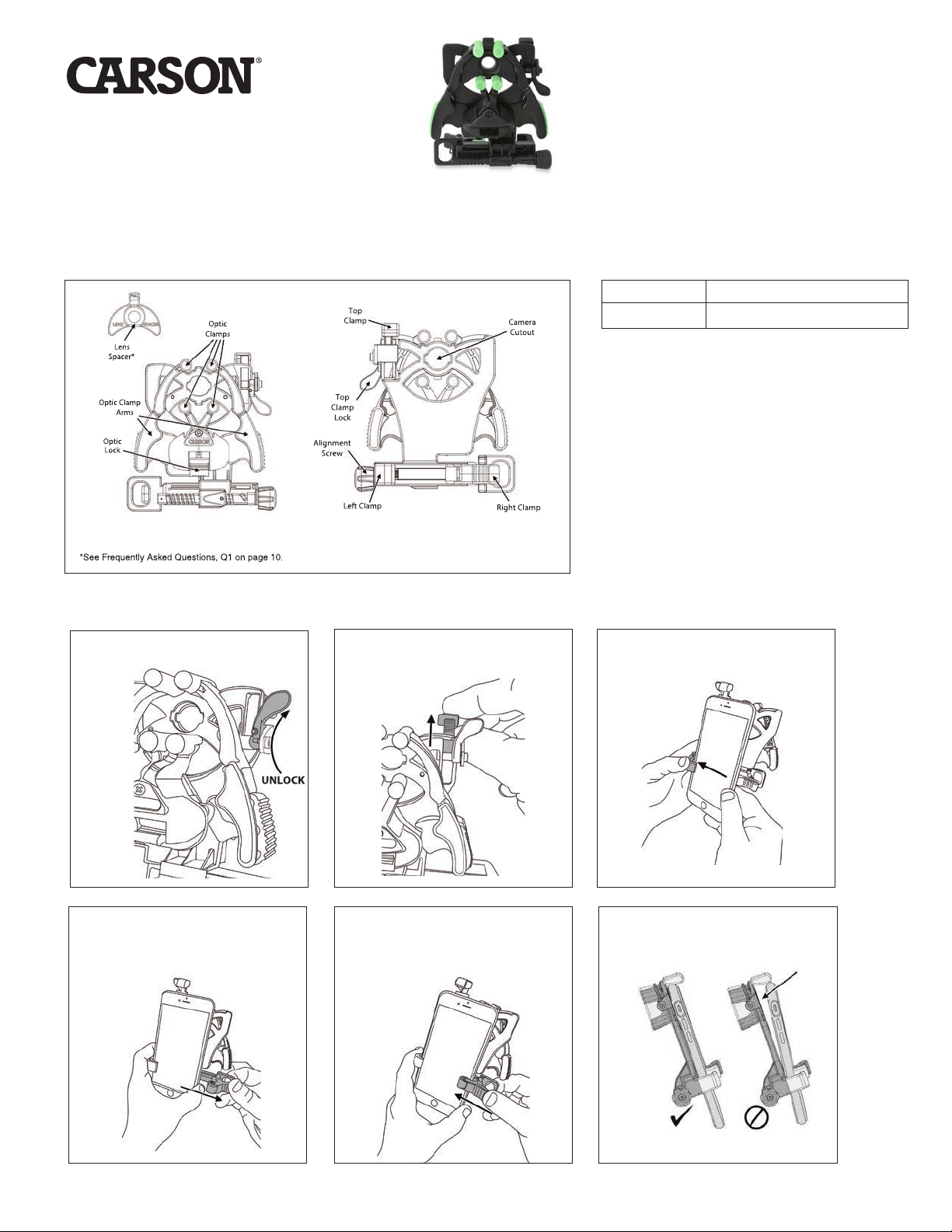

SMARTPHONE OPTIC ADAPTER DIAGRAM
FOR OPTIC: FOR PHONE:
•see
Frequently Asked Questions,
01
on page 10.
Alignment
Screw
Left
Clamp
Right
Clamp
PRODUCT SPECIFICATION:
Weight:
0.3 lbs
Dimensions:
4.3” x 2.3” x 4.5”
INSERTING PHONE:
1. Rotate to unlock top clamp.
2. Slide top clamp into
uppermost position.
3. Insert phone into left clamp.
4. Squeeze and pull right clamp
past edge of phone.
Fig. 1
Fig. 4
5. Release right clamp to secure
phone.
6. Ensure phone is flat as
possible to adapter.
Fig. 2 Fig. 3
Fig. 5
Fig. 6
CARSON®
1

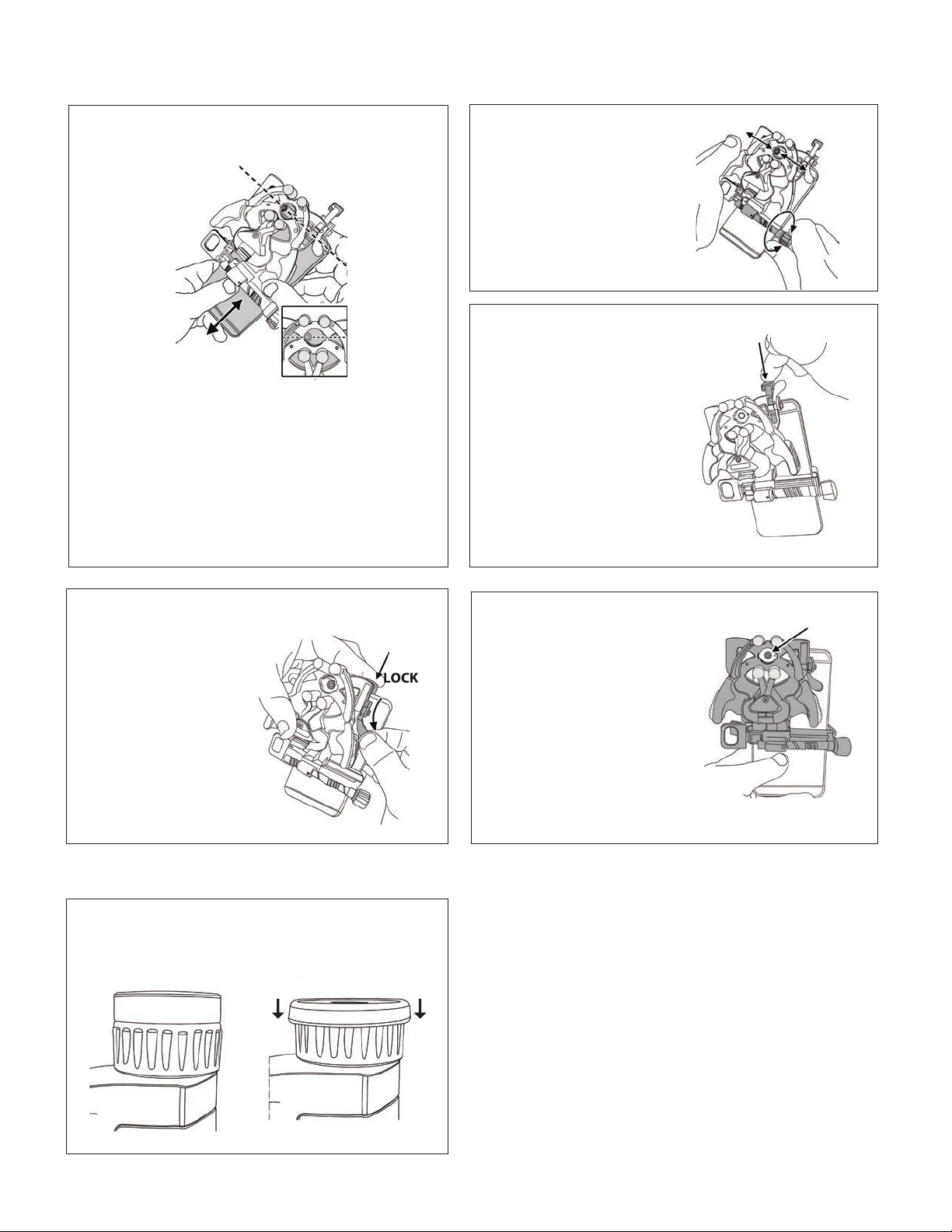

ALIGN AND LOCK:
1. Slide phone vertically until the primary camera* is
roughly aligned with camera cutout.
Fig. 7
*Multiple-Lens Camera Phones:
If there is more than one rear facing camera,
use the primary one. Typically, the primary is a
1x wide-angle color camera, and the other
camera(s) are secondary.
For the latest instructions on multiple camera
phones, please visit: www.carson.com/multicam
2. Turn alignment screw until
camera is centered in camera
cutout.
3. Slide top clamp down against
phone edge.
Fig. 8
Fig. 9
4. While holding top clamp tight
to phone, rotate to lock.
5. Figure 11 shows a properly
aligned camera. If needed,
use alignment screw and top
clamp to make further
adjustments.
Fig. 11
Fig. 10
BEFORE ATTACHING TO OPTIC:
Make sure optic is focused. If your optic has flexible
eyecups, fold down and attach optic.
Fig. 12
2

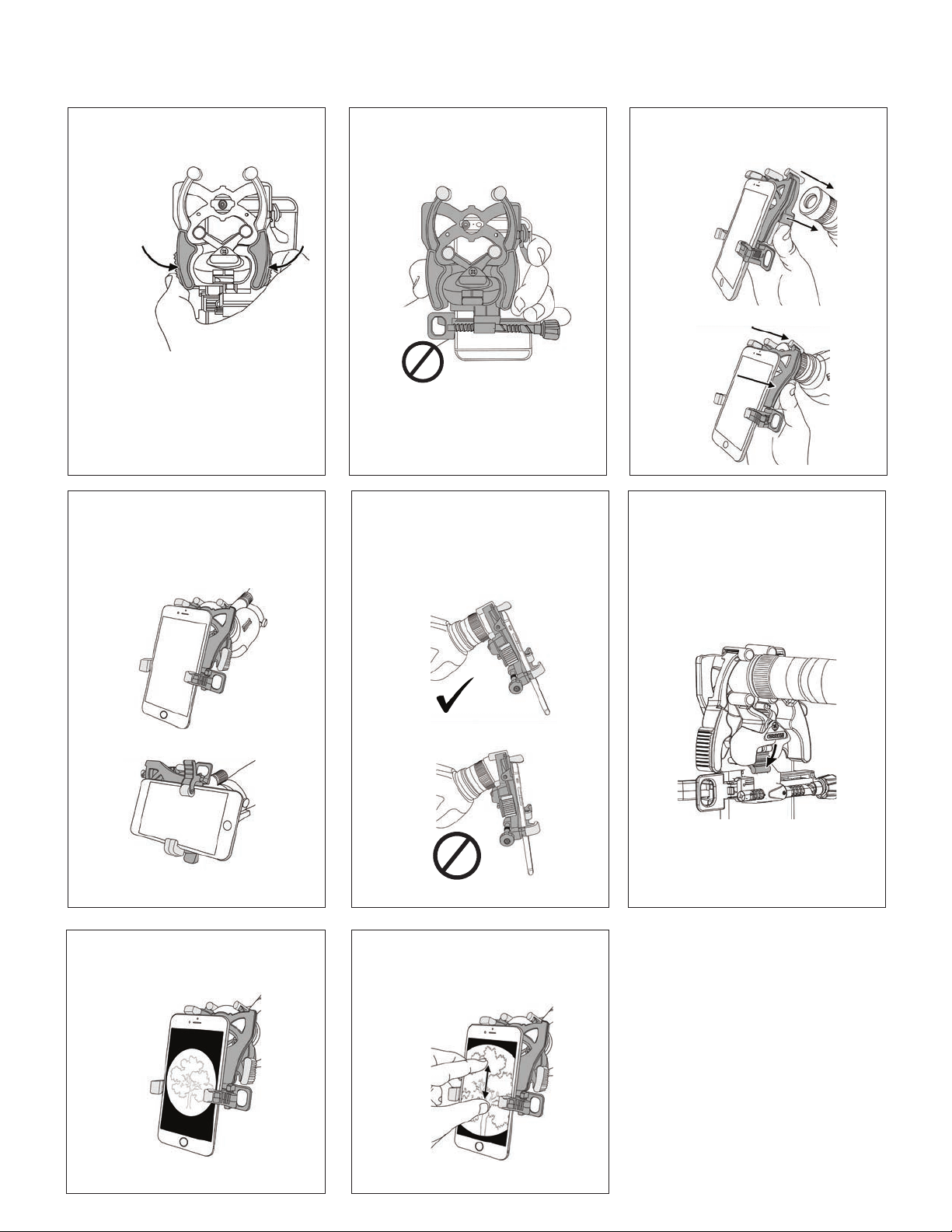

ATTACHING TO OPTIC:
1. Squeeze arms to open optic clamp.
Fig. 13
2. Do not squeeze arms while
reaching around phone, otherwise
phone alignment may be altered.
3. Once opened, place over
eyepiece and release.
4. Phone can be positioned in either
portrait or landscape.
Fig. 16
5. Ensure adapter is flush to the
eyepiece of your optic.
6. For smaller eyepieces, push optic
lock down while attached to
eyepiece.
Note: This is not needed for
larger eyepieces.
7. Turn on camera. If image is not
centered, repeat alignment steps.
Fig. 19
Fig. 14
Fig. 15
Fig. 17
Phone. 18
LOCK
8. To maximize your image, pinch to
enlarge image. For best results, use
in video mode.
TO REMOVE OPTIC FROM ADAPTER:
Press optic clamp arms together to open
adapter and remove from optic. To minimize
an audible click noise, or if the optic lock doe
not release automatically, rotate it upwards to
unlock.
TO REMOVE PHONE FROM ADAPTER:
To save your alignment, make no further
adjustments to the top clamp and alignment
knob. Simply remove phone using right clam
only as shown in Fig. 4.
USING ADAPTER AGAIN:
The alignment of your phone to the adapter
should be saved from the initial setup, so
many steps can be skipped (Fig. 1-2, 7-10)
and only a quick fine adjustment of the
alignment may be needed.
s
p
Fig. 20
3
Squeeze
open
optic
clamps
and
insert
lens
spacer
in
between
clamps.
Snap
lens
spacer
into
place
.

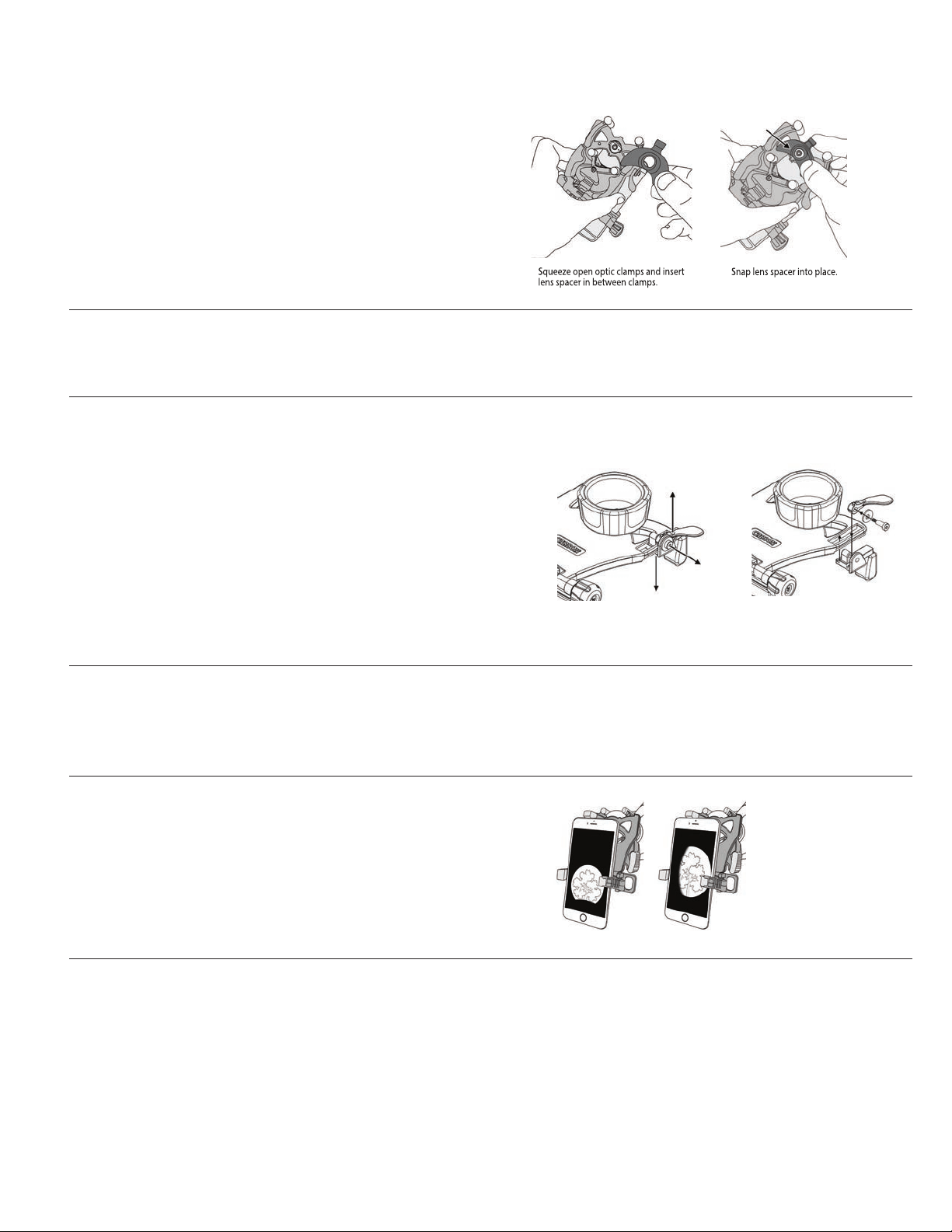

FREQUENTLY ASKED QUESTIONS:
Q1: I am trying to enlarge the image on my phone but its still a
small circle, what can I do?
A1: To maximize your image, select video mode and/or pinch your
phone screen to digitally zoom. Depending on the combination of
your phone and optic, you may need to use the included lens
spacer. Insert and snap lens spacer into place as shown in figure
below, and then reattach to optic. If image size does not increase,
remove lens spacer or that phone and optic combination.
Q2: The top clamp touches the round corner of my phone not the top flat edge of my phone. What do I do?
A2: This is normal for some models of phones. Just push as flush to rounded edge as possible and lock top clamp as normal.
Q3: I can’t align my phone vertically with the top clamp. It won’t fit. What
should I do?
Fig. 21
A3: If you go through the alignment process (Fig.7-11), and there is no way to
achieve vertical alignment because it’s restricted by the top clamp, try
removing your phone case.
Alternatively, you can remove top clamp assembly using screw as shown in
Fig. 21. For this configuration, you will not be able to save your vertical
alignment between uses.Your phone will have to be adjusted for vertical
positioning each time it’s placed within the adapter. We recommend you save
these four parts for use with other phones, and you can reassemble the top
clamp as shown as in Fig. 22.
Fig. 22
Q4: Can I use this on my riflescope?
A4: No, it is not recommended because of the long spacing required between the eyepiece of a riflescope and your eye so that the
image is very small on your phone screen. Also, we do not suggest using a firearm with the adapter on a riflescope, due to recoil.
Q5: My image is not centered or is not a complete round image,
what is wrong?
A5: Adjust phone alignment in vertical direction using top clamp
(Fig. 10), and in horizontal direction by using alignment screw
(Fig. 8). Check that phone is flat on adapter (Fig. 6), and adapter
is fllush with optic (Fig. 17).
Q6: My phone rotates on the eyepiece when used in landscape (horizontal) mode. What should I do?
A6: If the eyepiece can rotate on your optic, then you can try the following:
1. If your eyepiece can rotate outward, then you must place adapter in orientation to counter the rotation.
2. If the eyepiece has any method to secure from rotation such as a screw set, use it to lock down the eyepiece.
3. If above solutions are not possible or do not work for your application, it may not be possible to use in this mode. Please use only in
portrait (vertical mode).
4
FREQUENTLY ASKED QUESTIONS CONTINUED:
Q7: Why am I getting reflections and/or glare in my image?
A7: If there are bright spots in the image itself, this may occur with indor lighting. Please avoid overhead lighting or
change the angle of the lighting relative to the phone. Also, please use without flash to avoid reflections and/or
glare in photos. If there’s glare on your phone screen that makes image hard to view, increase brightness setting
on phone and view from a position with less overhead light.
Q8: My other phone camera or flash is covered by the adapter. Why is that?
A8: First, we recommend using the device with only the primary rear camera. If problems perist, please contact
customer support. Second, the flash can be covered, and is not needed for use with optic. We recommend flash
setting is turned off at all times when using adapter.
Q9: I have a large eyepiece, but it seems like it won’t fit or it’s too tight to get one, what do I do?
A9: For eyepieces at the maximum range (58-62mm), the adapter must be opened to its maximum, and then
some pressure must be used to push the adapter over the eyepiece. Any eyepiece beyond 62mm in external
diameter should not be used with this adapter. For these largest eyepieces, do not use the optic lock. Also, it’s
important not to leave the adapter attached to these largest eyepieces for longer than two continuous hours, as it
could cause permanent wear to the springs.
Q10: The adapter is sagging on the eyepiece and not staying flush, what do I do?
A10: Make sure once the adapter is flush on the optic, to use the optic lock as shown in Fig. 18.
Q11: Does this work on a tripod?
A11: The adapter itself does not have a tripod mount. However, for best stabilized images and videos, we suggest
the optic used is mounted to a tripod.
TIPS AND TRICKS:
PHOTOGRAPHY
• Tap object of interest on your phone screen to autofocus.
• For videos, tap and hold object of interest on phone screen for a second to lock focus. Tap again to release the focus lock.
• In low light conditions, turn your phone screen brightness to its lowest level. The rubber parts glow in the dark making it easier to use
the adapter.
• For long sessions, try using battery cases or phone chargers to prevent your battery from draining.
APPS
• Share photos and videos through various apps (e.g. FaceTime, Messages, Facebook, Instagram, etc.)
• Apps that allow you to sex exposure and focus manually can expand the potential of the adapter. This is especially helpful for
telescopes to set longer exposure times to get the best images of sky objects.
STABILIZATION
• To prevent shaking:
1. Use your headphones. Volume butter will now act as shutter button.
2. Attach to tripod.
• Many phones have image stabilization features. Check your phone and turn on this feature if available. If not, there are camera aps with
stabilization features.
5
~----------------------,,

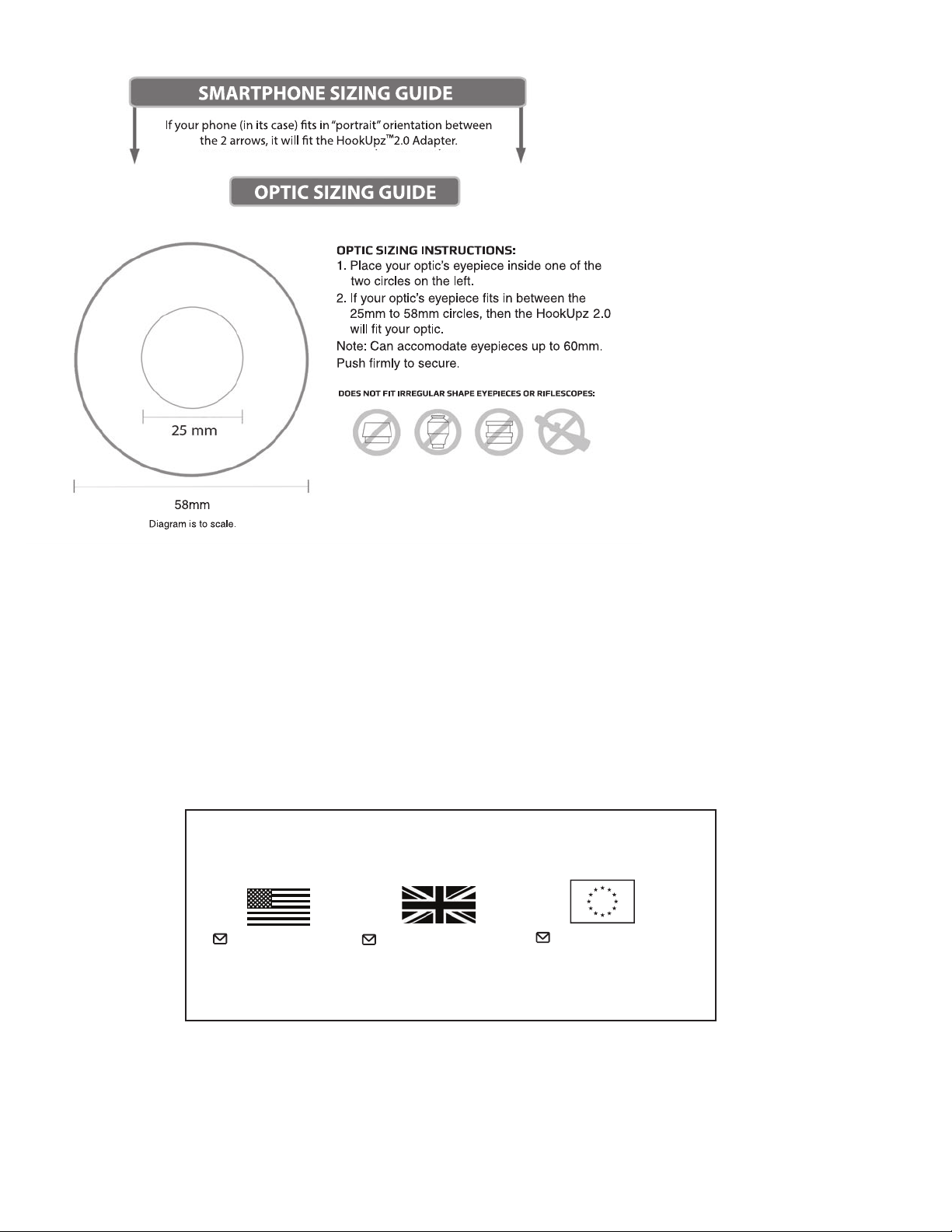

SMARTPHONE SIZING GUIDE ,
If
your phone (in its
case)
fits in "portrait" orientation between
the 2 arrows,
it
will
fit
the
HookUpz™2.0
Adapter.
-------------
1 OPTIC SIZING GUIDE I
~
-
OPTIC SIZING INSTRUCTIONS:
1. Place your optic's eyepiece inside one of the
two circles on the left.
2. If your optic's eyepiece fits in between the
25mm to 58mm circles, then the HookUpz 2.0
will fit your optic.
Note: Can accomodate eyepieces up to 60mm.
Push firmly to secure.
DOES
NOT
FIT
IRREGULAR
SHAPE
EYEPIECES
DR
RIFLESCOPES:
58mm
Diagram is to scale.
19
19
CLEANING / STORAGE:
• Adapter should be cleaned with a soft, damp microfiber cloth only. Do not use any chemicals, abrasives, or solvents.
• To avoid damage, always store adapter in protective case when not in use.
• Do not leave item attached to optical device as this may weaken the springs over time.
• Store in dry area at room temperature.
