WINE&BEVERAGE COOLER
FP10127US
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville
PL office: Gdańsk
US:cs.us@costway.com
UK:cs.uk@costway.com
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
02
The cooler is not level. Level the cooler.
This is normal during
high humidity periods.
Lower the room humidity.
This is normal in
high temperature
environment.
Move the cooler to a
cooler place, and avoid
heat and sunlight.
Prolonged or
frequent door
openings.
Less to open the door.
The door does not seal
completely.
Check door gaskets for
proper seal.
A sensor has failed. Contact the qualified
technician.
The door was reversed
and not properly
installed.
Re-install the door
properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
The door will
not close
properly.
Moisture
builds up on
interior or
exterior of
the Beverage
cooler.
Error Code:
E1-E2-E3-E4-
E7-E8
15
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
PRODUCT DIAGRAM
Installation Instructions
OPERATION INSTRUCTIONS
CARE & MAINTENANCE
Troubleshooting Guide
Before Using Your Beverage cooler
To Install Stainless Steel Handle
To Install Your Cooler
Controls
Storage
Removing Shelf
Cleaning Your Cooler
Power Failure
Vacation Time
Moving Your Cooler
Energy Saving Tips
03
Not plugged in. Plug the cooler in.
The cooler is not leveled. Check to assure that the
cooler is level.
The cooler is not level. Level the cooler.
Normal noise from the
flow of the refrigerant
The rattling noise may
come from the flow of
the refrigerant, which is
normal. As each cycle
ends, you may hear
gurgling sounds caused
by the flow of refrigerant
in your cooler.
Contraction and
expansion of the inside
walls may cause popping
and crackling noises.
The bottles are
vibrating.
Make sure the bottles
don’t touch each others.
There is an object under
the cooler.
Remove the object
under the cooler.
The circuit breaker
tripped or a blown fuse.
Check the breaker
and/or fuses.
The light button is
“OFF”.
Press to turn the
light ON.
PROBLEM POSSIBLE CAUSE SOLUTION
The light
does not
work.
Vibrations.
The cooler
seems to
make too
much
noise.
14
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for
daily use. However, basic safety precautions should always be followed when using
an electrical appliance, to reduce the risk of fire, electric shock, and personal injury.
• Plug into its own individual electrical outlet with a voltage rating that matches the
rating label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that
cannot be turned off by a switch or pull chain. Be sure that the plug is fully inserted
into the receptacle.
• Plug into a grounded 3-prong outlet. Do not under any circumstances cut or
remove the third ground prong from the power cord supplied.
• To protect against electric shock, do not immerse the Beverage cooler, plug or cord
in water or other liquids.
• Never unplug the cooler by pulling the power cord. To disconnect the Beverage
cooler, always grip the plug firmly and pull straight out from the wall outlet.
• Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along
its length or at either end.
• Do not connect or disconnect the electric plug when your hands are wet. Do not
operate the cooler with wet hands, while standing on a wet surface or while standing
in water.
• Unplug the Beverage cooler or disconnect power before cleaning or servicing.
Failure to do so can result in electric shock or death.
• When moving the Beverage cooler, be careful not to roll over or damage the power
cord.
• Never clean Beverage cooler parts with flammable fluids. These fumes can create a
fire hazard or explosion. And do not store or use gasoline or other flammable vapor
and liquids in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
• Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
• An empty Beverage cooler can be dangerous to children. Remove any latches, lids,
locks, and/or doors from unused or discarded Beverage coolers to prevent child
entrapment and suffocation. Never allow children to operate, play with or crawl
inside this Beverage cooler.
04
External environment
may require a higher
setting.
Set a colder setting. Allow
several hours for the
temperature to stabilize.
The Beverage cooler has
recently been
disconnected for a period
of time.
It takes 3-4 hours for the
Beverage cooler to cool
down completely.
Prolonged or frequent
door openings.
Open the door less often.
The door is not closed
completely.
Close the door properly.
The door gasket does not
seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
The room temperature is
hotter than normal.
It’s normal for the Beverage
cooler to work harder under
these conditions.
Prolonged or frequent
door openings.
The temperature has not
been set correctly.
The door is not closed
completely.
Close the door properly.
The door gasket does not
seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
Less to open the door.
A large amount of
items has been added
to the cooler.
A large amount of items can
Press either or to
check the set temperature,
and set the temperature
properly.
The Beverage
cooler is not
cold enough.
The
compressor
turns on and
off frequently.
13
reached.
desired temperature is
cause this condition until the
PRODUCT DIAGRAM
1
2
3
4
Control Panel
Metal Shelves
Front Vent
Leveling Legs
5
6
7
Top Hinge
Glass Door with Handle
Safety Child Lock
06
1
2
3
4
6
5
O
O
O
O
7
CARE AND MAINTENANCE
Power Failure
Most power failures are corrected within a few hours and should not affect the
temperature of your Beverage cooler. If the power is off for an extended period of
time, proper steps should be taken to protect your contents.
11
Cleaning your Cooler
● Turn off the power, unplug the appliance, and remove all items including shelves
● Wash the inside surfaces with a warm water and soft cloth
● Wash the shelves with a mild detergent solution
● Wring excess water out of the sponge or cloth when cleaning area of the
● Wash the outside cabinet with warm water and mild liquid detergent. Rinse well
controls, or any electrical parts
and rusting may occur.
stainless steel. These will contaminate the stainless steel with steel particles
and wipe dry with a clean soft cloth. Do not use steel wool or steel brush on the
8
8
Wooden shelf
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
• Remove the exterior and interior packaging.
• IMPORTANT: Before connecting this Beverage cooler to a power source, let it
stand upright for approximately 24 hours. This will reduce the possibility of a
malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
To Install Stainless Steel Handle
Illustration #1 Illustration #2
1) Pull away the door gasket in the area where the handle is to be installed, as
Illustration #1. The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the
screws with a screwdriver until the handles secure tightly against the door frame, as
Illustration #2. (Do NOT over tighten as this will cause damage to the handle
assembly).
3) Replace the door gasket to its original position.
1
2
3
4
Gasket
Screw
Screw Driver
Handle
07
It is important for the appliance to be leveled in order to work properly. You
may need to adjust the feet to make it level.
•
Storage
10

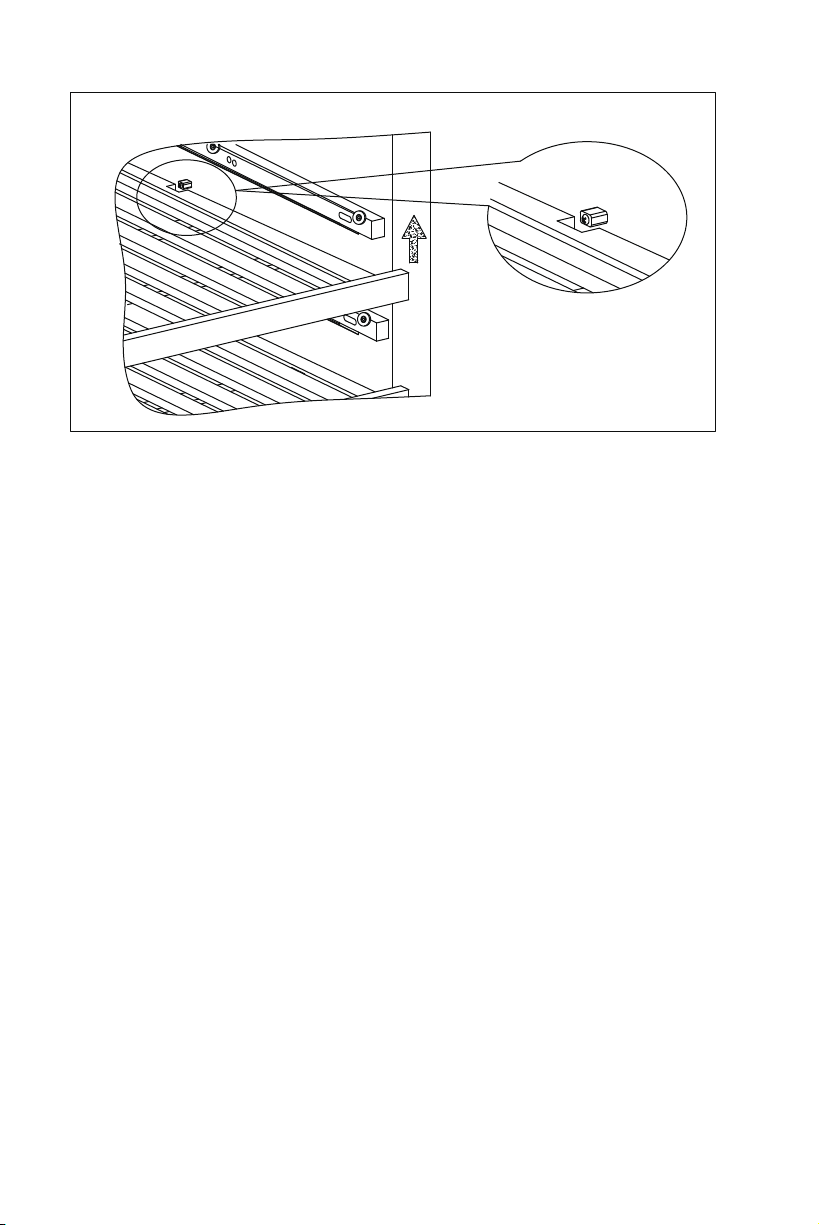

Removing Shelf
●To avoid the damage of door sealing, please open the door fully when you slide
●If you need to take off the shelf from cabinet, you can pull out the shelf to the
up and out. (See figure below)
position where the notch of shelf is exactly under the plastic post and then lift it
is designed with shelf holder to prevent the shelf pull over and fall off the cabinet.
●For your convenience of taking wine, you can pull out the shelf by 1/3. Our product
out the shelves.

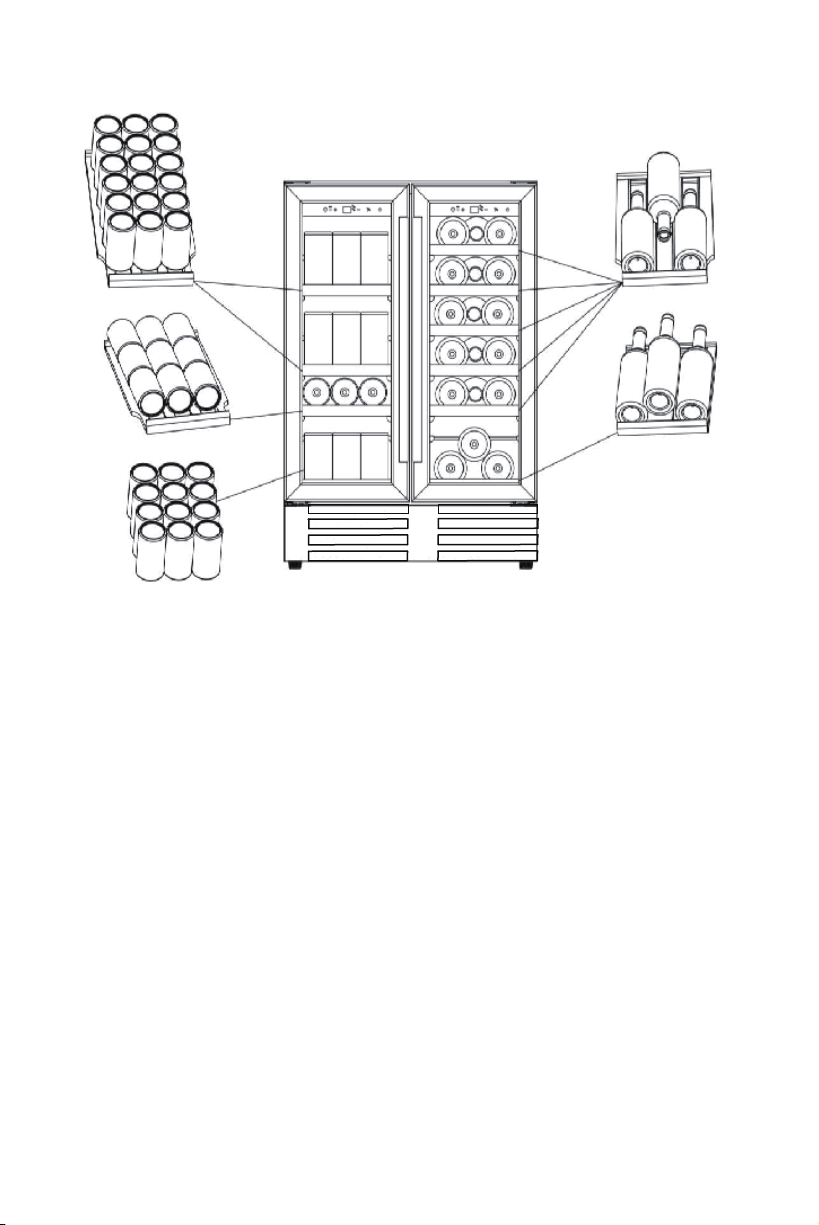

Beverage Cooler Zone
●Shelf one to two - 18 standard 12oz cans per shelf
●Shelf Three - 9 standard 12oz cans per shelf
●Bottom Section - 12 standard 12oz cans Wine Cooler Zone
●Bottom Section - 3 standard 750ml bottles
●Shelf One to Five - 3 standard 750ml bottles per shelf
To Install Your Cooler
• If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the
Beverage cooler it is connected to. Damages due to power surges are not considered
a manufacturer covered defect.
• This cooler is designed for free standing or built-in (fully recessed)
installation.
• Place your cooler on a solid and level floor that is strong enough to
support it when it is fully loaded. This will ensure a vibration-free and noise-free
operation. Adjust the leveling legs in and out to stabilize the cooler horizontally. If
the legs are not properly adjusted, the cooler may be unstable and result in excess
noise or vibration.
• Locate the cooler away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources
may increase power consumption. Extremely cold ambient temperatures may also
cause the cooler to not perform properly.
• It is not advisable to install this cooler in moist areas or directly adjacent to a
kitchen sink, as moisture could cause premature corrosion to the components of your
new cooler.
• It is recommended you install the cooler in a place with temperatures
above 60°F (15°C) and below 90°F (32°C), and humidity is under 60%. If the
ambient temperature is above or below recommended temperatures, the
performance of the cooler may be affected. Placing your cooler in extremely cold or
hot conditions may cause interior temperatures to fluctuate, and the temperature
range of 3ºC-18ºC (37ºF-64ºF) may not be reached.
• Connect the cooler to an exclusive, properly grounded, standard electrical
supply (115 V AC only, 60 Hz), in accordance with the National Electrical
Code and local codes and ordinances. Any questions concerning power and/or
grounding should be directed toward a certified electrician.
• The cooler should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating label on the cooler.
This provides the best performance and also prevents overloading of house
wiring circuits that could cause a fire hazard due to overheating.
• Under no circumstances should you cut or remove the third ground prong from the
power cord supplied.
• Do not use an extension cord or adapter plug. However, if you must use an
extension cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding
type cooler extension cord having a grounding type plug and outlet and
that the electrical rating of the cord is 10 amperes (minimum) and 120 volts.
• Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Warning: Improper use of the grounded plug can result in the risk of electric shock.
If the power cord is damaged, have it replaced by qualified technician.
OPERATION INSTRUCTIONS
Recommended temperature settings
Beverage: 3°C -10°C (37°F - 50°F)
Sparkling Wines:5°C - 8°C (41°F - 46°F)
Dry/white Wines: 9°C - 14°C (48°F - 57°F)
Rose Wines 10°C - 11°C ( 50°F - 52°F)
Red Wines: 15°C - 18°C (59°F - 64°F)
Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on
automatically and the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to
4 hours before placing wine bottles in the Beverage cooler.
Press once to turn the interior light ON or OF
F.
Press to increase or press to decrease the temperature
in 1 degree.
Press once to turn ON the cooler. Press and hold for
about 3 seconds to turn OFF the cooler.
Switch the temperature display between Celsius and Fahrenheit.
08 09
Cooling Zone Temperature Range：
Beverage Refrigerator (Left Zone) 2°C -10°C (35°F-50°F )
Wine Refrigerator (Right Zone) 5°C -18°C (41°F-64°F )
To Install Your Cooler
• If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the
Beverage cooler it is connected to. Damages due to power surges are not considered
a manufacturer covered defect.
• This cooler is designed for free standing or built-in (fully recessed)
installation.
• Place your cooler on a solid and level floor that is strong enough to
support it when it is fully loaded. This will ensure a vibration-free and noise-free
operation. Adjust the leveling legs in and out to stabilize the cooler horizontally. If
the legs are not properly adjusted, the cooler may be unstable and result in excess
noise or vibration.
• Locate the cooler away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources
may increase power consumption. Extremely cold ambient temperatures may also
cause the cooler to not perform properly.
• It is not advisable to install this cooler in moist areas or directly adjacent to a
kitchen sink, as moisture could cause premature corrosion to the components of your
new cooler.
• It is recommended you install the cooler in a place with temperatures
above 60°F (15°C) and below 90°F (32°C), and humidity is under 60%. If the
ambient temperature is above or below recommended temperatures, the
performance of the cooler may be affected. Placing your cooler in extremely cold or
hot conditions may cause interior temperatures to fluctuate, and the temperature
range of 3ºC-18ºC (37ºF-64ºF) may not be reached.
• Connect the cooler to an exclusive, properly grounded, standard electrical
supply (115 V AC only, 60 Hz), in accordance with the National Electrical
Code and local codes and ordinances. Any questions concerning power and/or
grounding should be directed toward a certified electrician.
• The cooler should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating label on the cooler.
This provides the best performance and also prevents overloading of house
wiring circuits that could cause a fire hazard due to overheating.
• Under no circumstances should you cut or remove the third ground prong from the
power cord supplied.
• Do not use an extension cord or adapter plug. However, if you must use an
extension cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding
type cooler extension cord having a grounding type plug and outlet and
that the electrical rating of the cord is 10 amperes (minimum) and 120 volts.
• Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Warning: Improper use of the grounded plug can result in the risk of electric shock.
If the power cord is damaged, have it replaced by qualified technician.
OPERATION INSTRUCTIONS
Recommended temperature settings
Beverage: 3°C -10°C (37°F - 50°F)
Sparkling Wines:5°C - 8°C (41°F - 46°F)
Dry/white Wines: 9°C - 14°C (48°F - 57°F)
Rose Wines 10°C - 11°C ( 50°F - 52°F)
Red Wines: 15°C - 18°C (59°F - 64°F)
Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on
automatically and the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to
4 hours before placing wine bottles in the Beverage cooler.
Press once to turn the interior light ON or OF
F.
Press to increase or press to decrease the temperature
in 1 degree.
Press once to turn ON the cooler. Press and hold for
about 3 seconds to turn OFF the cooler.
Switch the temperature display between Celsius and Fahrenheit.
08 09
Cooling Zone Temperature Range：
Beverage Refrigerator (Left Zone) 2°C -10°C (35°F-50°F )
Wine Refrigerator (Right Zone) 5°C -18°C (41°F-64°F )
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
• Remove the exterior and interior packaging.
• IMPORTANT: Before connecting this Beverage cooler to a power source, let it
stand upright for approximately 24 hours. This will reduce the possibility of a
malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
To Install Stainless Steel Handle
Illustration #1 Illustration #2
1) Pull away the door gasket in the area where the handle is to be installed, as
Illustration #1. The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the
screws with a screwdriver until the handles secure tightly against the door frame, as
Illustration #2. (Do NOT over tighten as this will cause damage to the handle
assembly).
3) Replace the door gasket to its original position.
1
2
3
4
Gasket
Screw
Screw Driver
Handle
07
It is important for the appliance to be leveled in order to work properly. You
may need to adjust the feet to make it level.
•
Storage
10
Removing Shelf
●To avoid the damage of door sealing, please open the door fully when you slide
●If you need to take off the shelf from cabinet, you can pull out the shelf to the
up and out. (See figure below)
position where the notch of shelf is exactly under the plastic post and then lift it
is designed with shelf holder to prevent the shelf pull over and fall off the cabinet.
●For your convenience of taking wine, you can pull out the shelf by 1/3. Our product
out the shelves.
Beverage Cooler Zone
●Shelf one to two - 18 standard 12oz cans per shelf
●Shelf Three - 9 standard 12oz cans per shelf
●Bottom Section - 12 standard 12oz cans Wine Cooler Zone
●Bottom Section - 3 standard 750ml bottles
●Shelf One to Five - 3 standard 750ml bottles per shelf
PRODUCT DIAGRAM
1
2
3
4
Control Panel
Metal Shelves
Front Vent
Leveling Legs
5
6
7
Top Hinge
Glass Door with Handle
Safety Child Lock
06
1
2
3
4
6
5
O
O
O
O
7
CARE AND MAINTENANCE
Power Failure
Most power failures are corrected within a few hours and should not affect the
temperature of your Beverage cooler. If the power is off for an extended period of
time, proper steps should be taken to protect your contents.
11
Cleaning your Cooler
● Turn off the power, unplug the appliance, and remove all items including shelves
● Wash the inside surfaces with a warm water and soft cloth
● Wash the shelves with a mild detergent solution
● Wring excess water out of the sponge or cloth when cleaning area of the
● Wash the outside cabinet with warm water and mild liquid detergent. Rinse well
controls, or any electrical parts
and rusting may occur.
stainless steel. These will contaminate the stainless steel with steel particles
and wipe dry with a clean soft cloth. Do not use steel wool or steel brush on the
8
8
Wooden shelf
WARNING
FLAMMABLE REFRIGERANT GAS
• Do not use this beverage cooler for other than its intended purpose. For indoor,
household use only.
• Move this beverage cooler by 2 people. Failure to do so can result in injury.
• Place this beverage cooler in a well-ventilated area with temperatures above 15°C
(60°F) and below 32°C (90°F).
• To ensure proper ventilation for your beverage cooler, the front of the cooler must
be completely unobstructed.
• This beverage cooler must be installed in an area away from wind, rain, water
spray or drips.
• The beverage cooler should not be located next to ovens, grills or other sources of
high heat.
• Do not kink or pinch the power supply cord of beverage cooler.
• It is important for the beverage cooler to be leveled in order to work properly. You
may need to make several adjustments to level it.
• This beverage cooler is designed for storing and cooling wines. Do not store
perishable food or medical products inside the cooler.
• When disposing of refrigeration beverage coolers, special handling is often
required. It is the consumer’s responsibility to comply with federal and local
regulations when disposing of this product.
• WARNING: Risk of child entrapment and suffocation. Before you throw away this
or an old cooler, remove the door. Leave the shelves in place, so that children may
not easily climb inside.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture
refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only
by qualified technician. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair
manual / owner’s guide before attempting to service this product. All safety
precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal
or local regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow
handling instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children
and not in the vicinity of the cooler.
05
Vacation Time
Leave the beverage cooler running for less than three weeks of vacation. For
longer than this, turn the Beverage cooler off and leave the door slightly ajar
prevent odor from building inside the Beverage cooler.
Moving Your Cooler
• Remove all items (bottles) from the cooler;
• Securely tape down any loose items, such as shelves, inside the cooler.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Ensure that the cooler stays securely in the upright position during
transportation. Protect the outside of the cooler with a blanket or a similar
item.
Energy Saving Tips
TROUBLESHOOTING GUIDE
- The cooler should be located in the coolest area of the room away from heat
sources or direct sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door
will affect internal temperature.
The Beverage cooler
may not be plugged in,
or plug may be loose.
Ensure the Beverage
cooler has been plugged
in properly.
The Beverage cooler is
turned off.
Press to turn on the
cooler.
House fuse blown or
tripped circuit breaker.
Check/replace fuse.
Reset circuit breaker.
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does
not run.
12
periods
to
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for
daily use. However, basic safety precautions should always be followed when using
an electrical appliance, to reduce the risk of fire, electric shock, and personal injury.
• Plug into its own individual electrical outlet with a voltage rating that matches the
rating label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that
cannot be turned off by a switch or pull chain. Be sure that the plug is fully inserted
into the receptacle.
• Plug into a grounded 3-prong outlet. Do not under any circumstances cut or
remove the third ground prong from the power cord supplied.
• To protect against electric shock, do not immerse the Beverage cooler, plug or cord
in water or other liquids.
• Never unplug the cooler by pulling the power cord. To disconnect the Beverage
cooler, always grip the plug firmly and pull straight out from the wall outlet.
• Repair or replace immediately all power cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along
its length or at either end.
• Do not connect or disconnect the electric plug when your hands are wet. Do not
operate the cooler with wet hands, while standing on a wet surface or while standing
in water.
• Unplug the Beverage cooler or disconnect power before cleaning or servicing.
Failure to do so can result in electric shock or death.
• When moving the Beverage cooler, be careful not to roll over or damage the power
cord.
• Never clean Beverage cooler parts with flammable fluids. These fumes can create a
fire hazard or explosion. And do not store or use gasoline or other flammable vapor
and liquids in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
• Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
• An empty Beverage cooler can be dangerous to children. Remove any latches, lids,
locks, and/or doors from unused or discarded Beverage coolers to prevent child
entrapment and suffocation. Never allow children to operate, play with or crawl
inside this Beverage cooler.
04
External environment
may require a higher
setting.
Set a colder setting. Allow
several hours for the
temperature to stabilize.
The Beverage cooler has
recently been
disconnected for a period
of time.
It takes 3-4 hours for the
Beverage cooler to cool
down completely.
Prolonged or frequent
door openings.
Open the door less often.
The door is not closed
completely.
Close the door properly.
The door gasket does not
seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
The room temperature is
hotter than normal.
It’s normal for the Beverage
cooler to work harder under
these conditions.
Prolonged or frequent
door openings.
The temperature has not
been set correctly.
The door is not closed
completely.
Close the door properly.
The door gasket does not
seal properly.
Check the door gasket.
Clean or change gasket if
necessary.
Less to open the door.
A large amount of
items has been added
to the cooler.
A large amount of items can
Press either or to
check the set temperature,
and set the temperature
properly.
The Beverage
cooler is not
cold enough.
The
compressor
turns on and
off frequently.
13
reached.
desired temperature is
cause this condition until the
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
PRODUCT DIAGRAM
Installation Instructions
OPERATION INSTRUCTIONS
CARE & MAINTENANCE
Troubleshooting Guide
Before Using Your Beverage cooler
To Install Stainless Steel Handle
To Install Your Cooler
Controls
Storage
Removing Shelf
Cleaning Your Cooler
Power Failure
Vacation Time
Moving Your Cooler
Energy Saving Tips
03
Not plugged in. Plug the cooler in.
The cooler is not leveled. Check to assure that the
cooler is level.
The cooler is not level. Level the cooler.
Normal noise from the
flow of the refrigerant
The rattling noise may
come from the flow of
the refrigerant, which is
normal. As each cycle
ends, you may hear
gurgling sounds caused
by the flow of refrigerant
in your cooler.
Contraction and
expansion of the inside
walls may cause popping
and crackling noises.
The bottles are
vibrating.
Make sure the bottles
don’t touch each others.
There is an object under
the cooler.
Remove the object
under the cooler.
The circuit breaker
tripped or a blown fuse.
Check the breaker
and/or fuses.
The light button is
“OFF”.
Press to turn the
light ON.
PROBLEM POSSIBLE CAUSE SOLUTION
The light
does not
work.
Vibrations.
The cooler
seems to
make too
much
noise.
14
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
02
The cooler is not level. Level the cooler.
This is normal during
high humidity periods.
Lower the room humidity.
This is normal in
high temperature
environment.
Move the cooler to a
cooler place, and avoid
heat and sunlight.
Prolonged or
frequent door
openings.
Less to open the door.
The door does not seal
completely.
Check door gaskets for
proper seal.
A sensor has failed. Contact the qualified
technician.
The door was reversed
and not properly
installed.
Re-install the door
properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
The door will
not close
properly.
Moisture
builds up on
interior or
exterior of
the Beverage
cooler.
Error Code:
E1-E2-E3-E4-
E7-E8
15
Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
Contact Us!
Do NOT return this item.
WINE&BEVERAGE COOLER
FP10127US
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville
PL office: Gdańsk
US:cs.us@costway.com
UK:cs.uk@costway.com
