• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole
luminaire should be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

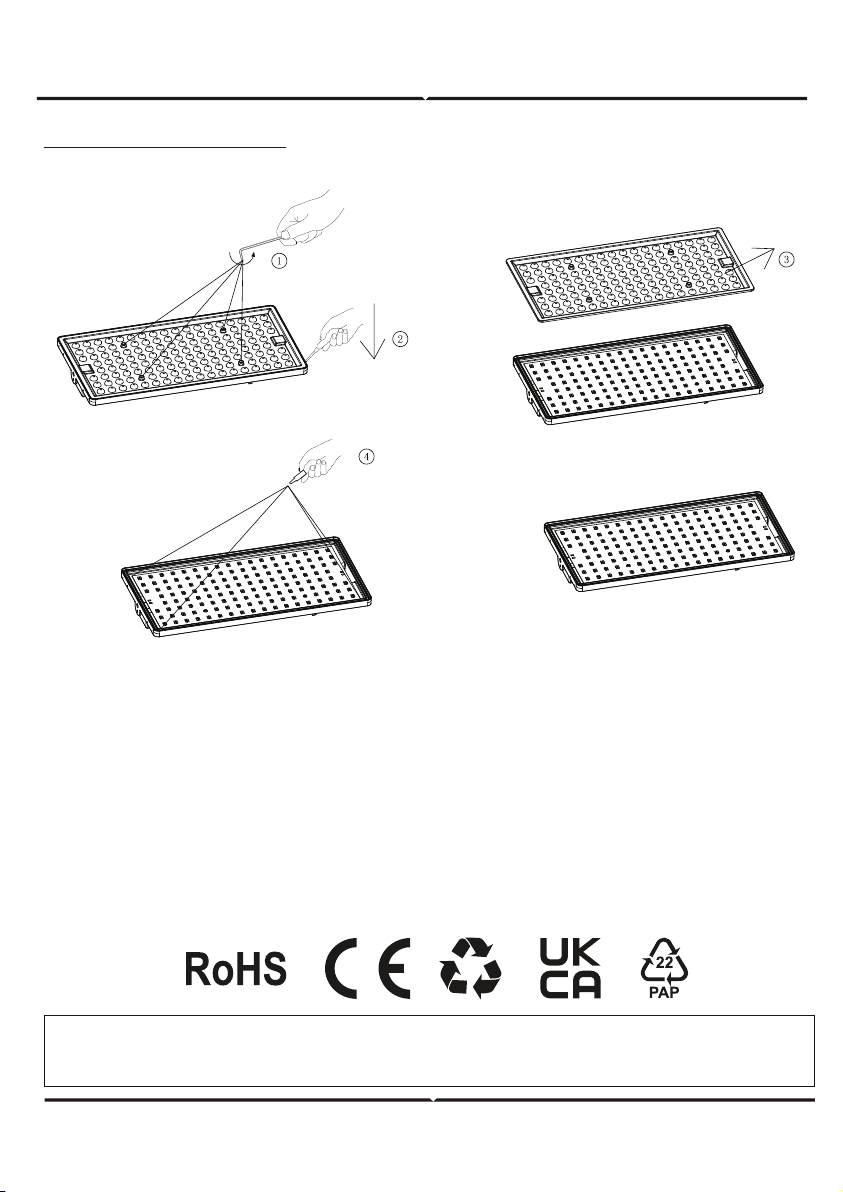

• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.

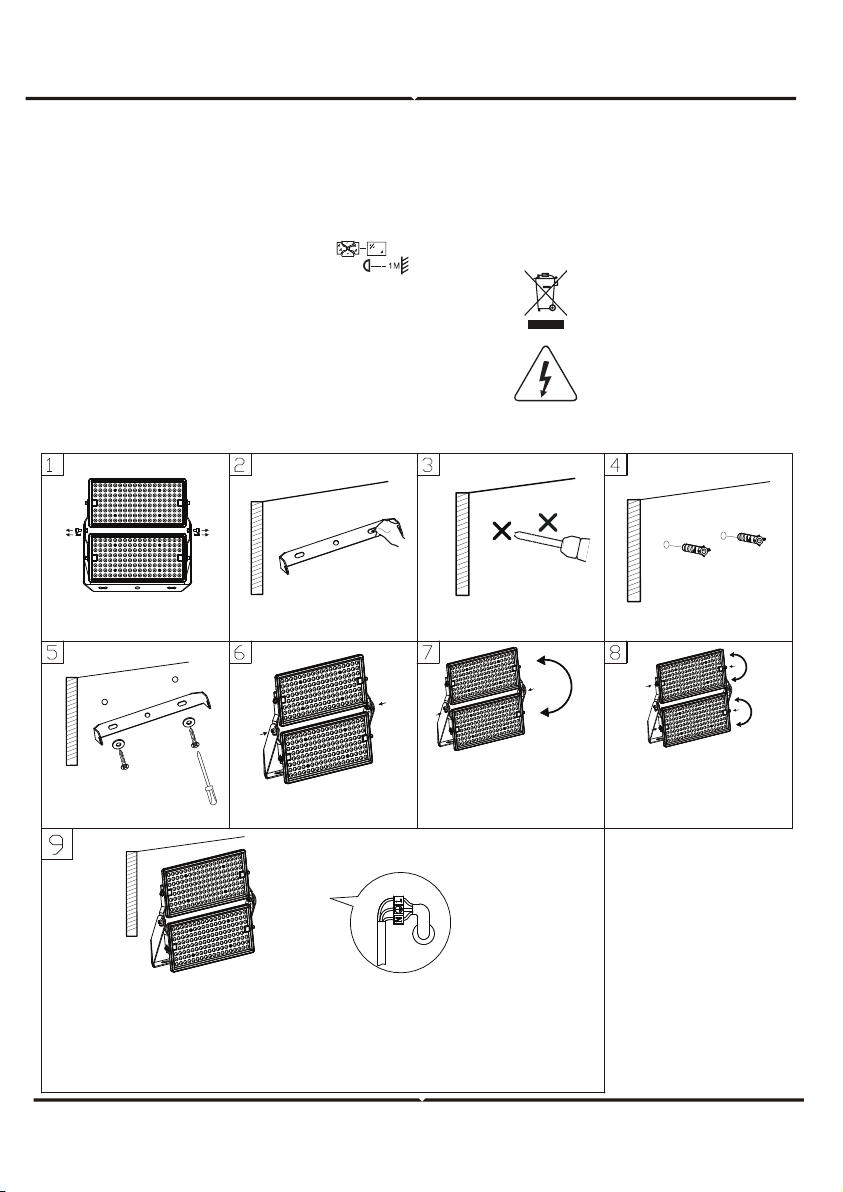

1.Loosen the screws to remove
the bracket.
2.Determine installation
location.
3.Punching holes on building
surfaces with drills.
4.Insert Wall plug.
5.Fixed bracket.
6.Install the lamp body and
lock the bracket screws.
7.Adjust the angle of the entire lamp,
with an adjustable angle of 0-180 °
and a grid adjustment of 22.5 °.
After adjusting the angle, tighten the
angle adjustment screw and bracket
fixing bolt.
8.Adjust the angle of the single lamp,
with an adjustable angle of -60 ° to
+60 °,and a single grid adjustment
of 30 °. After adjusting the angle, lock
the angle adjustment screw and bracket
fixing bolt.
INSTRUCTION MANUAL
LED FLOOD LIGHT
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best.
Please read these instructions carefully before starting the installation and keep this
manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best. The warranty is valid for 2 years from
the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product.
The products are suitable for 10-12 Hours Daily operation. Usage of product for 24
Hours a day would void the warranty. This product is warranted for manufacturing
defects only.
INTRODUCTION & WARRANTY
INSTALLATION DIAGRAM
WARNING
TECHNICAL DATA
*This product contains a light source of energy eciency class<D>, where <D> shall be replaced
by the energy class of the contained light source.
SUPER BRIGHT
LM/WATT EFFICIENCY
135+
MODEL
SKU
LUMENS
WATTS
INPUT VOLTAGE
BEAM ANGLE
LIFE SPAN
ON/OFF CYCLE
DF
CRI
MATERIAL
OPERATION TEMPERATURE
DIMENSION
VT-48500
23089, 97212
67500 Lm
500W
AC: 220-240V, 50Hz
Sphere 360°
25,000 Hours
>15,000
>0.9
>70
Diecast Aluminium
-20°C to +45°C
530x65x523mm
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
9.The input line is connected to the "L" live wire in brown, the "N" zero wire in
blue, and the yellow green wire is connected to the ground wire. Aer
connecting the wires, it is necessary to use insulation tape and waterproof
tape for insulation and waterproofing treatment. It is recommended to use a
professional waterproof junction box
NOTE: To reduce the risk of strangulation the flexible wiring
connected to this luminaire shall be eectively fixed to the wall
if the wiring is within arm's reach.
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in
multiple languages.
