Vgate iCar Pro Wi-Fi Quick Start Guide

This is the main product document for model ICAR PRO WIFI.

The file format is pdf, 10 pages, you can download this manual here .

4
background
4.2 Pair iCar Pro Wi-Fi to Android device
4.What parameters and sensors does
iCar Pro Wi-Fi support?
5. How to read and understand OBD Codes ?
P0123
Throle Posion Sensor/Switch A Circuit High Input
Step 1:

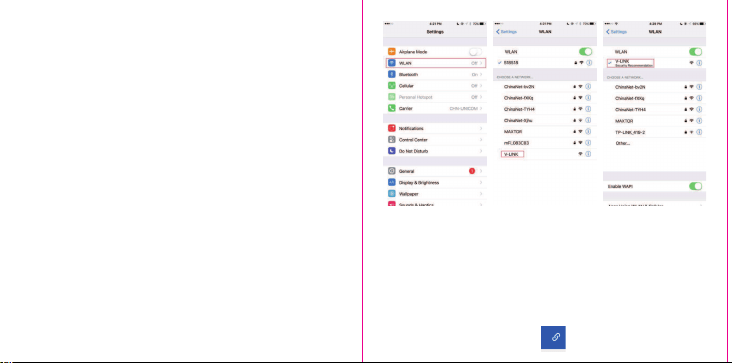

√ Enable WLAN on your iPhone or iPad
√ Choice V-LINK to connect
√ Connected<V-LINK>

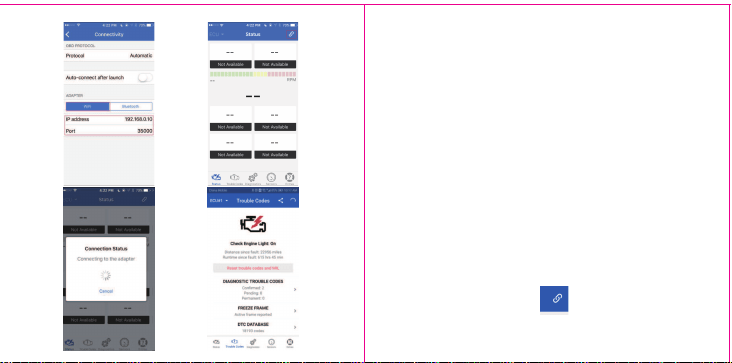

√ Run OBD Auto Doctor app
√ Tap Extras buon on the Status page
√ Tap Connecvity in the seng menu to select
connecon type
√ Select adapter type to Wi-Fi（IP address 192.168.0.10 ,
Port 35000 is automated. Please don’t change it）
√ Back to Status page, Click Start connect
IMPORTANT NOTE:
Different OBD II app has different Bluetooth seng steps.
Please follow the steps on the app to configure the seng.
√ Connected. All LED indicators lights on while sync data
from vehicle
Step 2: Configure connecvity seng on the OBD Auto Doctor

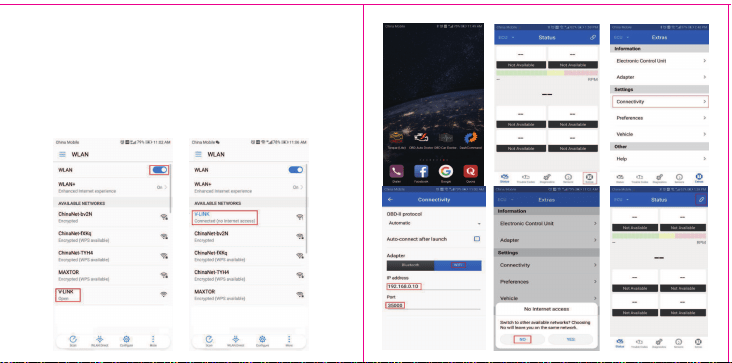

Step 1:
√ Enable Wi-Fi on your Andriod phone or Pad.
√
√ Select Wi-Fi device “ V-LINK” to pair.
√ Get Paired
Step 2: Configure connecvity seng on the OBD Auto
Doctor
√ Run OBD Auto Doctor app
√ Tap Extras buon on status page
√ Tap Connecvity in the seng menu to select
connecon type
√ Select adapter type to Wi-Fi.（IP address 192.168.0.10 ,
Port 35000 is automated. Please don’t change it）
√ Back to Status page,click to start connect
√ Inial adapter and connecng to vehicle .Bluetooth
indicator LED (BLUE)and OBD data indicator (GREEN)
keep blinking while system connecng.It will take about
30 seconds to connect
√ Connected. All LED indicators lights on while sync data
from vehicle
iCar Pro Wi-Fi supports the standard OBD-II parameters (PIDs) as
defined in SAE J1979 AUG2014(OBD AUTO DOCTOR app) .The actual
list of available parameters is vehicle specific. Your vehicle must
have those sensors to work with app.Different OBDII app might
support different list of parameters and sensors.
Please refer to : hps://www.obdautodoctor.com/obd-parameters
Supported Parameters(NOT FULL LIST):
PID Sensors
$01 Monitor status since DTCs Cleared
$02 DTC that caused required freeze frame data storage
$03 Fuel system status
$04 Calculated load value
$05 Engine coolant temperature
$06,$08 Short term fuel trim
$7,$9 Long term fuel trim
$10 Air flow rate from mass air flow sensor
$11 Absolute throle posion
.....
$0A Fuel pressure
$0B Intake manifold absolute pressure
$0C Engine RPM
$0D Vehicle speed sensor
$0E Ignion ming advance for #1 Cylinder
$0F Intake air temperature
P- Powertrain (Engine&Transmission/Gearbox)
0-Generic OBD Code
1- Fuel & Air metering
2& 3 --Fault descripon: Throle Posion Sensor(TPS) /Switch
A Circuit High Input
( When the PCM sees a voltage that is higher than the normal
upper limit, P0123 will set) .User can internet the OBD Code
meaning and know the possible causes)
More descripon please visit here : hps://www.obd-codes.com/p0123
Thank you for your purchase!
If you like Vgate iCar Pro Wi-Fi ,please post your review on.
√ Inial adapter and connecng to vehicle .Bluetooth
indicator LED (BLUE)and OBD data indicator (GREEN)
keep blinking while system connecng.It will take about
30 seconds to connect
4.How to Pair iCar Pro Wi-Fi to your device
(use OBD Auto Doctor)
4.1 Pair iCar Pro Wi-Fi to iOS device
√ Allow the user to leave the iCar Pro in OBD Socket
without unplug and plug operaon .Supper low power
consumpon<sleep mode> is low to “2.7 ma” level.
Troubleshoong note:
◆ No LED lighng?
√ Please check blown fuses on the vehicle
√ The adapter is improperly installed. Please remove it
from DLC port and plug it again.
Automacally OBD device wake up and
Super Power Saving on iCar Pro series
√ Automacally wake up funcon to power on iCar Pro
every me when you are start with key on engine off
(KOEO)posion. The device wake up speed is fast to
“ms” level . Allow user to start the diagnosc operaon
more quickly.
Vgate iCar Pro Wi-Fi
How do I know whether my vehicle
is OBDII compliant?
What OBDII Protocols does iCar Pro
Wi-Fi support?

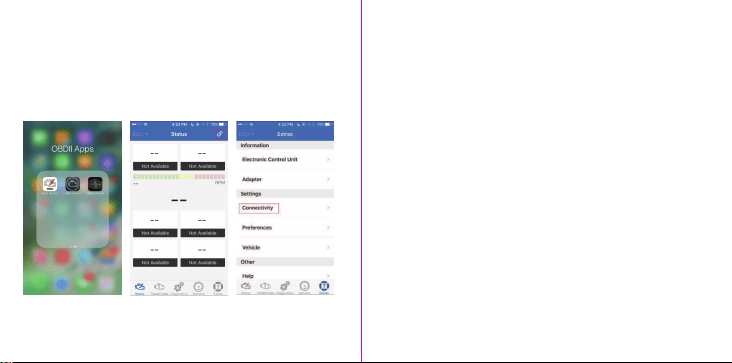

1.1 Download OBD II app and install<iOS>
3. Turn vehicle ignion to Key On,Engine
Off posion
2.Plug iCar Pro Wi-Fi adapter to DLC
(OBDII Diagnosc Link Connector)
What is the best OBDII app works
great with iCar Pro Wi-Fi?
1996 or newer model year vehicle sold in the United
States.United States legislaon requires all cars and light
trucks model year (MY) 1996 and newer to be OBD2
compliant.
2001 or newer model year gasoline vehicle sold in the
European Union. 2004 or newer model year diesel
vehicle sold in the European Union
√ SAE J1850 PWM √ ISO 14230-4 KWP
√ SAE J1850 VPW √ ISO 15765-4 CAN
√ ISO 9141-2
√ Download 3rd party apps from App store
√ The App developer was tested and recommended
iCar Pro Wi-Fi.
1. 2 Download OBD II app and install <Android>

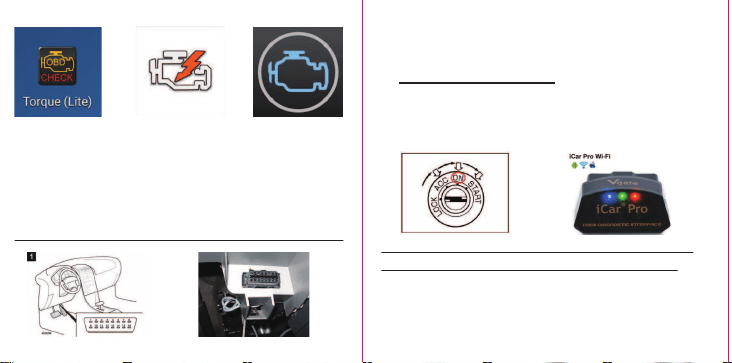

The OBDII DLC is usually located under instrument panel
(Dash)on the driver side.
If you want to know more above DLC, Please visit :
√ RED : Power indicator. Light will on
√ GREEN : OBD indicator . Blink once
√ BLUE: Bluetooth indicator . Blink once
LED indicator status
hps://en.wikipedia.org/wiki/Data_link_connector_(automove)
√ Torque Lite < Most popular.Lite version is free>
√ OBD Auto Doctor < Excellent Free app, Upgrade to
Pro in-app >
We recommend OBD AUTO DOCTOR app. iCar Pro series
was well tested with this app.Scan below QR Code to get
the free version( in-app upgrade to Pro)
（U.S OBDII Cerfied label）
Quick Start Guide
iOS & Android
Scan QR code OBD Auto Doctor Android App
Scan QR code OBD Auto Doctor iOS App
Product Upgrade:
Website: hp://www.vgatemall.com/downloadcenter
To upgrade the product, please download the upgrade package
and user manual of the corresponding model.
