CaddyLite 11.5 V3
User Manual
CaddyTek Inc.
2075 S. Atlantic Blvd., # C
Monterey Park, CA 91754, USA
www.caddytek.com
WARNING:
FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND
KEEP THIS USER GUIDE FOR FUTURE REFERENCE.
●Before using this golf cart, please read and understand the important
instructions and warnings in this user guide.
●AVOID INJURY by always following the instructions carefully.
●AVOID INJURY by keeping clear of moving parts while adjusting, folding
or unfolding this cart.
●ALWAYS make sure the cart is fully extended and locked before use.
●ALWAYS make sure the cart is folded and locked properly before lifting or
transporting.
●ALWAYS use the brake when parking the cart.
●DO NOT run while using this cart.
●DO NOT use accessories other than those designed specifically for this
cart.
●Keep hands and fingers away from moving parts or sliding sections of the
cart.
Package contents:
1. The main frame of the cart
2. Two main wheels
3. Front wheel assembly
4. Umbrella holder
5. Drink holder
6. This user manual
7. Tools for adjustment
In case any of the above items are missing or damaged, please call 800-906-6918 or email

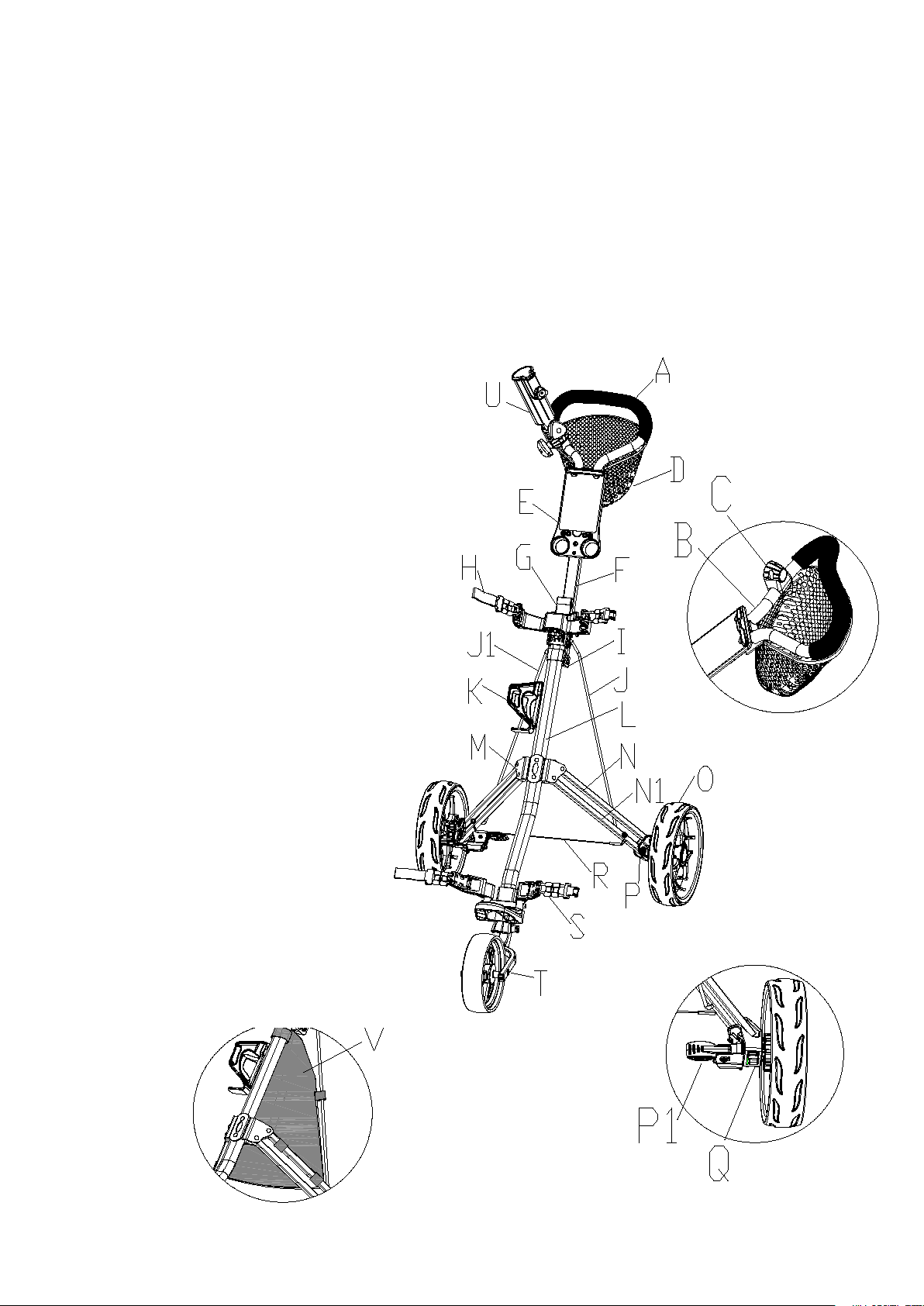

Parts identification:
A:
B:
C:
D:
E:
F:
G:
H:
I:
J:
J1:
K:
L:
M:
N:
N1:
O:
P:
P1:
Q:
R:
S:
T:
U:
V:
Foam grip
Handle frame
Umbrella holder base
Mesh net basket
Scorecard holder assembly
Upper main frame
Sliding locking/unlocking holder bracket
Upper bag holder bracket assembly
Connection joint
Right stabilization bar
Left stabilization bar
Beverage holder
Main frame
Leg bracket
2 holes leg frame
4 holes leg frame
Rear wheel assembly
Right wheel locking mechanism
Left wheel locking mechanism
Foot brake assembly
Anti-splay wire
Lower bag holder bracket assembly
Front wheel assembly
Umbrella holder
Basket
1

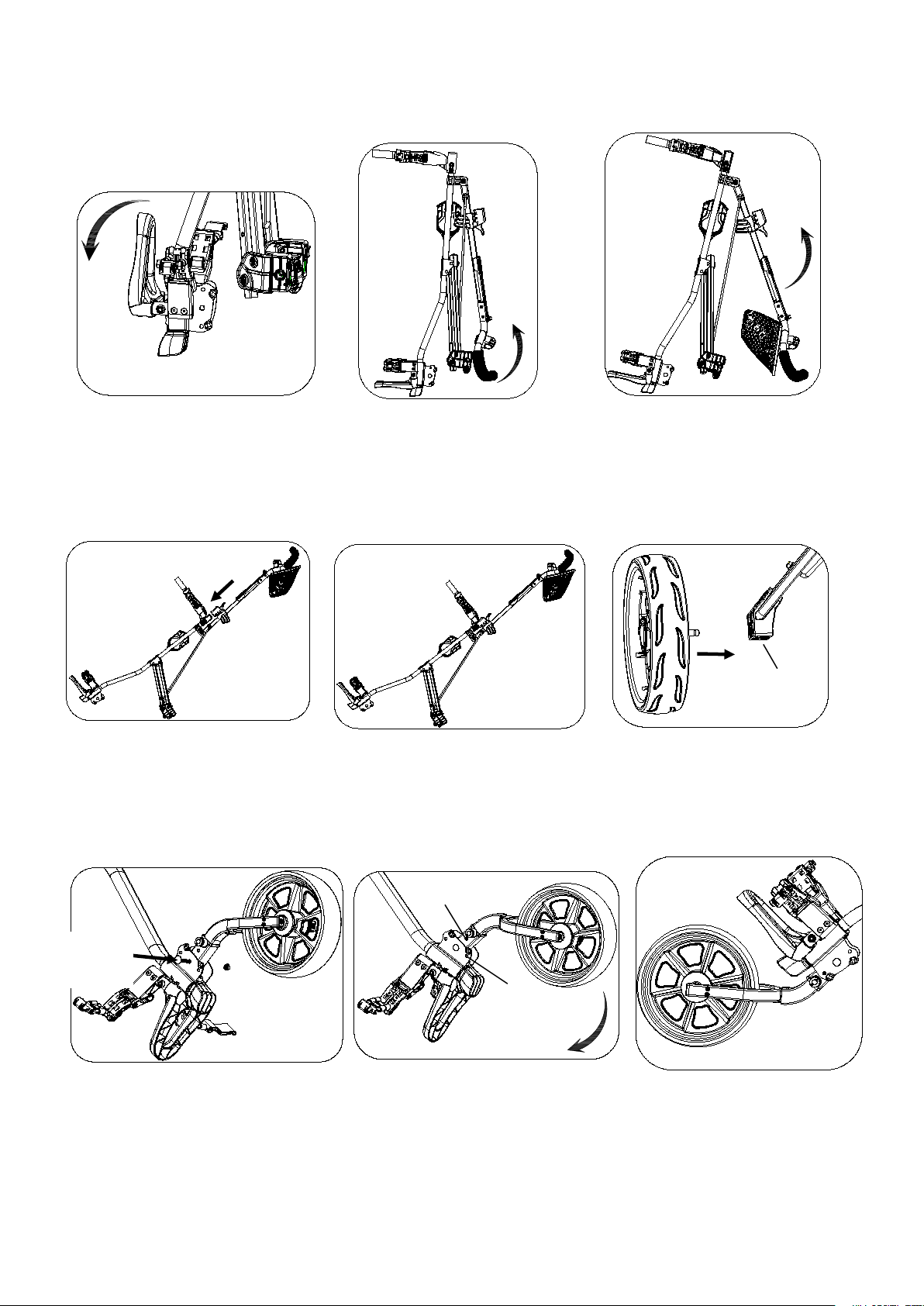

Assembly the cart
Holding the lower main frame with one hand and lift the
handle/upper frame upward to extend the cart as shown Fig
2&3 till the cart is fully extended as Fig. 4. Slide down the
locking holder into the top of the main body frame to lock the
cart as Fig. 4.
The upper and main frames
are fully extended as Shown
in Fig. 5.
Fig. 2
Fig. 3
Fig. 7
Fig. 8
Fig. 9
Assembly front wheel set into the lower frame by 1pc M6*40mm screw and nut as Fig.7,then
rotate until the pin inserts in the hole as Fig.8
＆
9.
Fig. 4
Fig. 5
Fig. 6
button
Press the button on the wheel
lock mechanism to assembly
rear wheel as Fig.6.
M6*40mm
screw
pin
hole
Fig. 1
Extend the lower bag holder
assembly as Fig. 1.
2

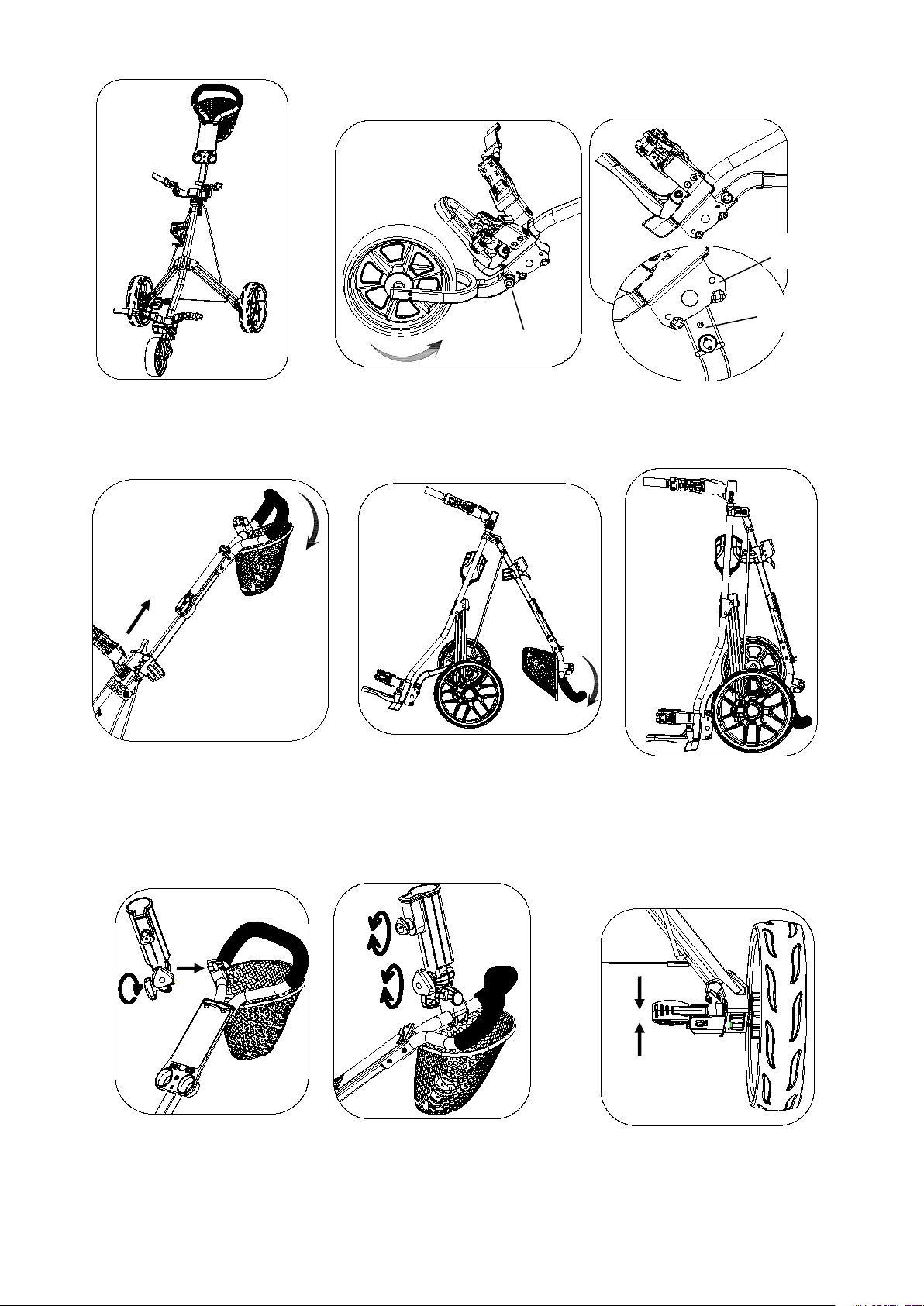

To put in use:
Simply attach the umbrella holder
onto the cart as in Fig. 16＆17.
Fig. 10
Fig. 14
Fig. 16
Fig. 17
Folding the cart
Use the brake
The cart is fully assembled
and extended as Fig.10.
Press the footbrake to brake,
lift it up to release as Fig. 18.
Fig. 18
Fig. 11
Fig. 13
Slide the connecting holder upward to release the upper
main frame and fold the upper main frame downward fully
to fold the cart as shown in Fig.13＆14.
& 14.
Fig. 12
Press the button to release the front wheel,
then fold until the pin inserts in the hole as
Fig.11
＆
12.
Fig. 15
The cart is fully folded as
shown in Fig.15.
hole
pin
button
Umbrella Holder
3
Refer to the Fig. 22 & Fig.23:
1. Pull the elastic strap out of the strap buckle
as in fig. 22.
2. Adjust the strap to the desired length.
3. Push the elastic strap back to the strap
buckle as in fig. 23.
Fig. 22
Fig. 23
Adjusting Handle Height
Press the red buckle to adjust the
suitable handle height, and then
release the buckle to lock the
handle in position as Fig.24.
Front Wheel Adjustment Mechanism
If during use, you find the
cart veers to the right or
left please see the
instructions below to
correct this
problem.(Fig.19)
If the cart veers to the left,
face the front wheel of the
cart and use the Allen wrench
provided to screw the right
bolt counterclockwise or the
left bolt clockwise until the
front wheel is centered
between the front
fork.(Fig.20)
If the cart veers to the right,
face the front wheel of the cart
and use the Allen wrench
provided to screw the left bolt
counterclockwise or the right
bolt clockwise until the front
wheel is centered between the
front fork.(Fig.21)
Bag Holder Strap Length Adjustment
Fig. 24
buckle
left
right
left
left
right
right
Fig.19
Fig.20
Fig.21
4
WARRANTY
CaddyTek Inc. warrants its products to be free of defects and workmanship
for one year from the date of purchase. We will either repair or replace
defective products at our option.
Normal wear and fading of products are not considered manufacturer's
defect. This warranty does not apply to claim of damage to items used in
connection with CaddyTek Inc. products. In the case of deterioration due to
normal use we will repair the item for a normal charge. CaddyTek Inc. is the
sole judge of any claim or warranty.
For customers in North America, please contact CaddyTek Inc. for the
service. For customers outside of North America, please contact with your
dealer for the warranty service or you are welcome to contact CaddyTek Inc.
directly.
REGISTER YOUR PRODUCT
Please register your golf cart and purchase on line at www.caddytek.com.
Failure to do so may results in the delayed response to your warranty claim.
5
