Microwave Oven Safety ................................................................................................................................................... 1
IMPORTANT SAFETY INSTRUCTIONS .......................................................................................................................2-4
INSTALLATION AND GROUNDING INSTRUCTIONS ..................................................................................................5-6
Safety Precautions ........................................................................................................................................................7-8
Accessories Safety Precautions ....................................................................................................................................... 9
Cooking Mode & Cookware Guide ............................................................................................................................ 10-11
Oven Components Diagram ........................................................................................................................................... 12
Control Panel .................................................................................................................................................................. 13
Display Window .............................................................................................................................................................. 14
Dial Features .................................................................................................................................................................. 14
Cooking Modes .............................................................................................................................................................. 14
Function Features .......................................................................................................................................................... 15
Setting the Clock ............................................................................................................................................................ 16
Operation Guide ............................................................................................................................................................. 16
Child Safety Lock ........................................................................................................................................................... 16
Selecting Microwave Power and Cooking Time ............................................................................................................. 17
Keep Warm Feature ....................................................................................................................................................... 18
Cooking Time Adjustment Feature ................................................................................................................................. 19
Inverter Turbo Defrost Feature ....................................................................................................................................... 20
Defrosting Tips & Techniques ....................................................................................................................................20-21
Microwave with Steam Feature ...................................................................................................................................... 22
Bake Feature .................................................................................................................................................................. 22
Combination Feature ...................................................................................................................................................... 23
Steam Shot Feature ....................................................................................................................................................... 23
Timer Setting .................................................................................................................................................................. 24
Food Characteristics ...................................................................................................................................................... 25
Cooking Techniques ..................................................................................................................................................25-26
Auto Menu Feature ....................................................................................................................................................27-38
Microwave Auto Menu Feature .......................................................................................................................28-29
Bake Auto Menu Feature ................................................................................................................................30-33
Combination Auto Menu Feature ....................................................................................................................34-36
Auto Menu Recipe ................................................................................................................................................ 37
Auto Cleaning Feature ......................................................................................................................................... 38
Care and Cleaning of your Microwave Oven .................................................................................................................. 39
Before Requesting Service ............................................................................................................................................. 40
Warranty & Service ......................................................................................................................................................... 41
Specifications ................................................................................................................................................................. 42
User's Record ................................................................................................................................................................. 42
Table of Contents
IP1479_38S71CP_Eng_02_071107.indd 2IP1479_38S71CP_Eng_02_071107.indd 2 2007-11-7 @Tom@ 11:33:482007-11-7 @Tom@ 11:33:48
1
Microwave Oven Safety
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that
there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
© Copyrighted by Matsushita Electric Industrial Co., Ltd. 2007.
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you
and others.
The safety messages will follow the safety alert symbol and either the word "DANGER",
"WARNING" or "CAUTION". These words mean:
You can be killed or seriously injured if you don't immediately follow
instructions.
You can be killed or seriously injured if you don't follow instructions.
You can be exposed to a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
The safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
DANGER
WARNING
CAUTION
IP1479_38S71CP_Eng_02_071107.indd Sec2:1IP1479_38S71CP_Eng_02_071107.indd Sec2:1 2007-11-7 @Tom@ 11:33:492007-11-7 @Tom@ 11:33:49
2
Thank you for purchasing a Panasonic Microwave Oven.
Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other
cooking appliance. When using this electrical appliance, basic safety precautions should be followed, including the
following:
WARNING
— To reduce the risk of burns, electric shock, fire, injury to persons, or
exposure to excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY," found on page 1.
3. This appliance must be grounded. Connect only to a properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found on page 5 and 6.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 5.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water— for example, near a kitchen sink, in
a wet basement, or near a swimming pool or similar locations.
8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors,
or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It is not
designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage the
appliance and may result in radiation leaks.
9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive
soaps or detergents applied with a sponge or soft cloth.
10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that
because a child has mastered one cooking skill he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been
damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service
centre for examination, repair or adjustment.
16. Some products such as whole eggs with or without shell, narrow neck bottles and sealed containers — for
example, closed glass jars — may explode and should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in
the cavity when not in use.
18. Superheated Liquids
Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without showing evidence
(or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave
oven. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING IT.
(b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent
eruption.
(c) DO NOT use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a short time before removing the
container.
19. DO NOT cook directly on the glass tray. It can crack, cause injury or damage to the oven.
IMPORTANT SAFETY INSTRUCTIONS
IP1479_38S71CP_Eng_02_071107.indd Sec1:2IP1479_38S71CP_Eng_02_071107.indd Sec1:2 2007-11-7 @Tom@ 11:33:492007-11-7 @Tom@ 11:33:49
3
TO AVOID THE RISK OF SHOCK:
DO NOT remove outer panel from oven. Repairs must be done only by a qualified service
person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame,
Safety Interlock Switches, or any other part of oven, microwave leakage may result.
TO AVOID THE RISK OF FIRE:
1. DO NOT operate the oven empty. The microwave energy will reflect continuously
throughout the oven causing overheating and damage, if food or water is not present to
absorb energy.
2. DO NOT store flammable materials next to, on top of, or in the oven.
3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or
paper bags for cooking.
4. DO NOT hit or strike Control Panel. Damage to controls may occur.
5. DO NOT use recycled paper products unless the paper product is labeled as safe for microwave oven use.
Recycled paper products may contain impurities which may cause sparking.
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food to
the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after removing
the cooking container from the oven.
SAVE THESE INSTRUCTIONS
For proper use of your oven, read remaining safety cautions and operating instructions.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
(continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:3IP1479_38S71CP_Eng_02_071107.indd Sec1:3 2007-11-7 @Tom@ 11:33:492007-11-7 @Tom@ 11:33:49
4
8. Liquids and foods must not be heated in sealed
containers since they are liable to explode.
9. Take CAUTION when sliding out the metal pan from
the sliding rail, do not let the metal pan rest half way
on the sliding rail inside the oven. The sliding rail
inside the oven is not designed with a stop-lock and
the rail can not hold the metal pan.
10. To avoid possible burns, place the metal pan only
on the bottom sliding rail. The top sliding rail is not
designed to hold the metal pan. Do not use the top
sliding rail in the oven.

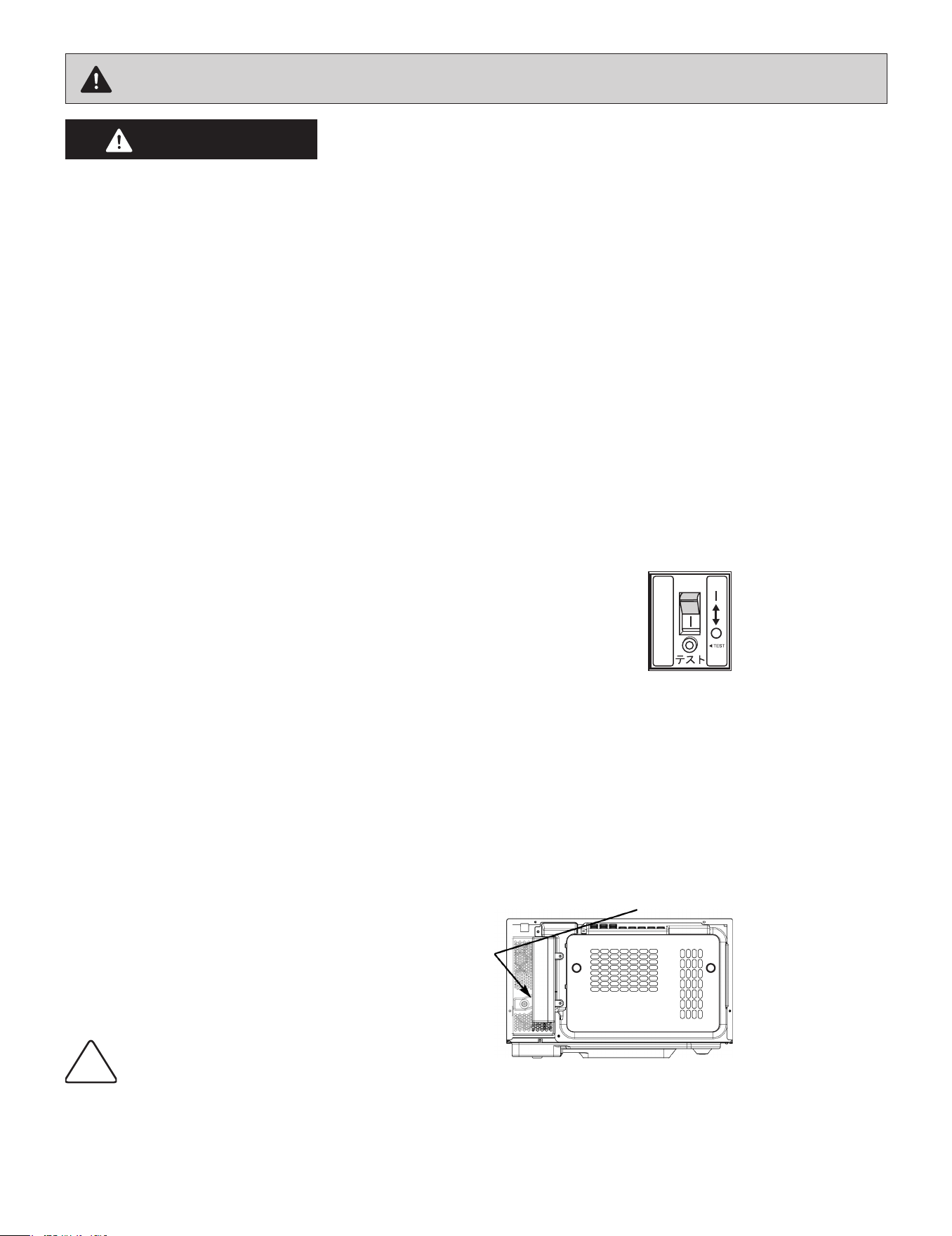

Operating the Oven Circuit Breaker
If the oven is not operating correctly, please check the
position of the breaker switch. If the switch is at the
'O' position, please position it to the 'I' position. If the
switch does not return to the 'I' position, please contact
Panasonic for the nearest authorized service centre for
examination or repair. Contact information is provided in
the Customer Services Directory page 41.
Testing the Oven Circuit Breaker
To ensure that the breaker is in working order, please
test it regularly by pressing the 'TEST' button. Testing it
once a month is recommended.
Press the 'TEST' button when the oven is switched on.
If the switch does not go back to 'O', please contact
Panasonic for the nearest authorized service centre for
examination or repair. Contact information is provided in
the Customer Services Directory page 41.
WARNING
1. The door seals and door seal areas should be
cleaned with a damp cloth. The appliance should
be inspected for damage to the door seals and
door seal areas and if these areas are damaged
the appliance should not be operated until it has
been repaired by a service technician trained by the
manufacturer.
2. Do not attempt to tamper with or make any
adjustments or repairs to the door, control panel
housing, safety interlock switches or any other part
of the oven. Do not remove the outer panel from the
oven which gives protection against exposure to
microwave energy.
Repairs should only be done by a qualified service
technician.
3. Do not operate this appliance if it has a damaged
CORD OR PLUG, if it is not working properly, or if it
has been damaged or dropped. It is dangerous for
anyone other than a service technician trained by
the manufacturer to perform repair service.
4. If the supply cord of this appliance is damaged, it
must be replaced with the special cord available
from the manufacturer.
5. Do not use the water tank if it is cracked or broken,
as leaking water could result in electrical failure and
danger of electric shock. If the water tank becomes
damaged, please contact Panasonic for the nearest
authorized service centre for examination or repair.
Contact information is provided in the Customer
Services Directory page 41.
6. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Young children
should be supervised to ensure that they do not play
with the appliance.
7. Only allow children to use the oven without
supervision when adequate instructions have been
given so that the child is able to use the oven in a
safe way and understands the hazards of improper
use, including escaping steam. To prevent burns,
ensure that children do not touch either the hot inner
surfaces or the hot outer casing after operation of
the oven.
WARNING: This appliance produces
boiling hot steam.
!
IMPORTANT SAFETY INSTRUCTIONS
(continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:4IP1479_38S71CP_Eng_02_071107.indd Sec1:4 2007-11-7 @Tom@ 11:33:492007-11-7 @Tom@ 11:33:49
5

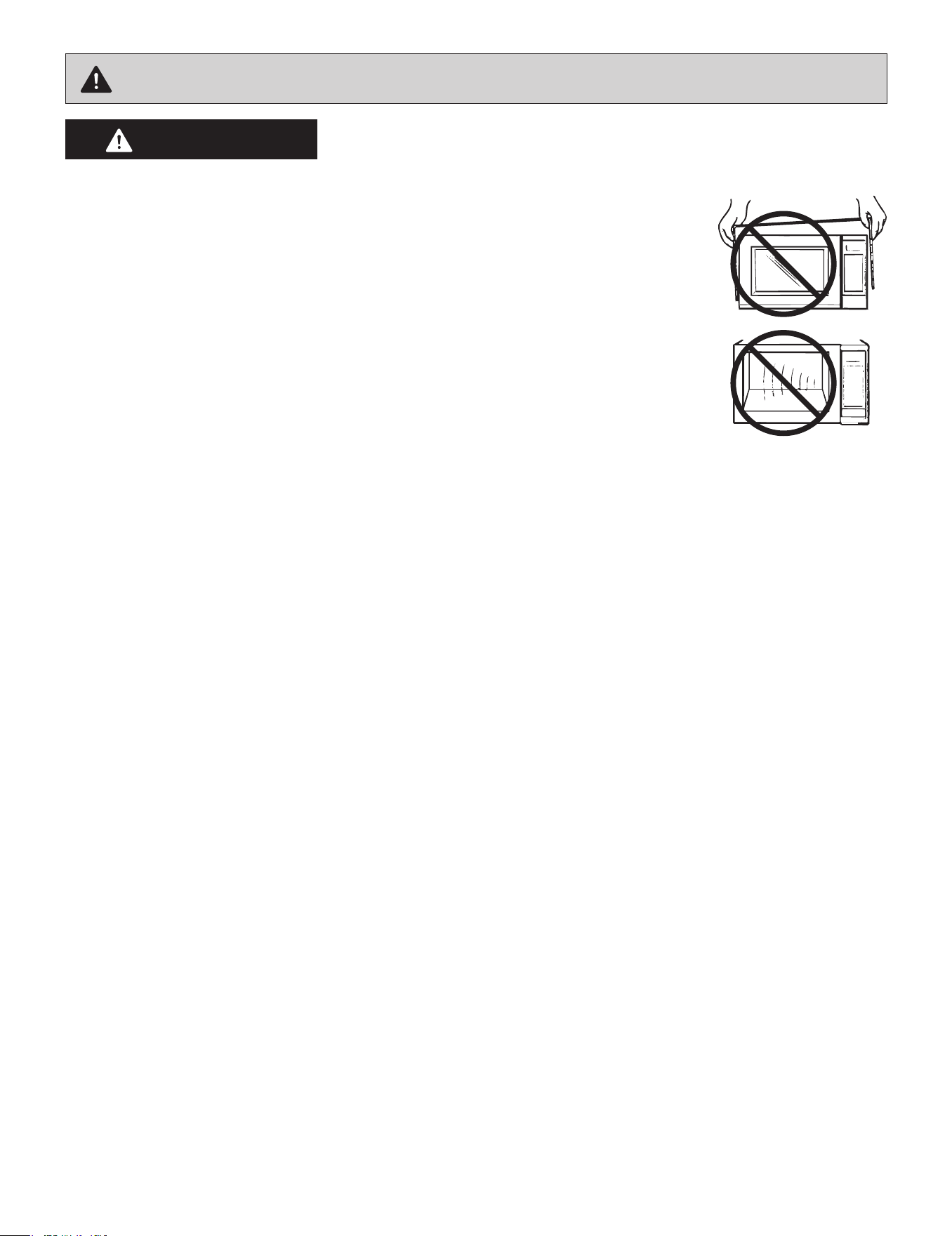

Examine Your Oven
Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches
or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged.
Placement of Oven

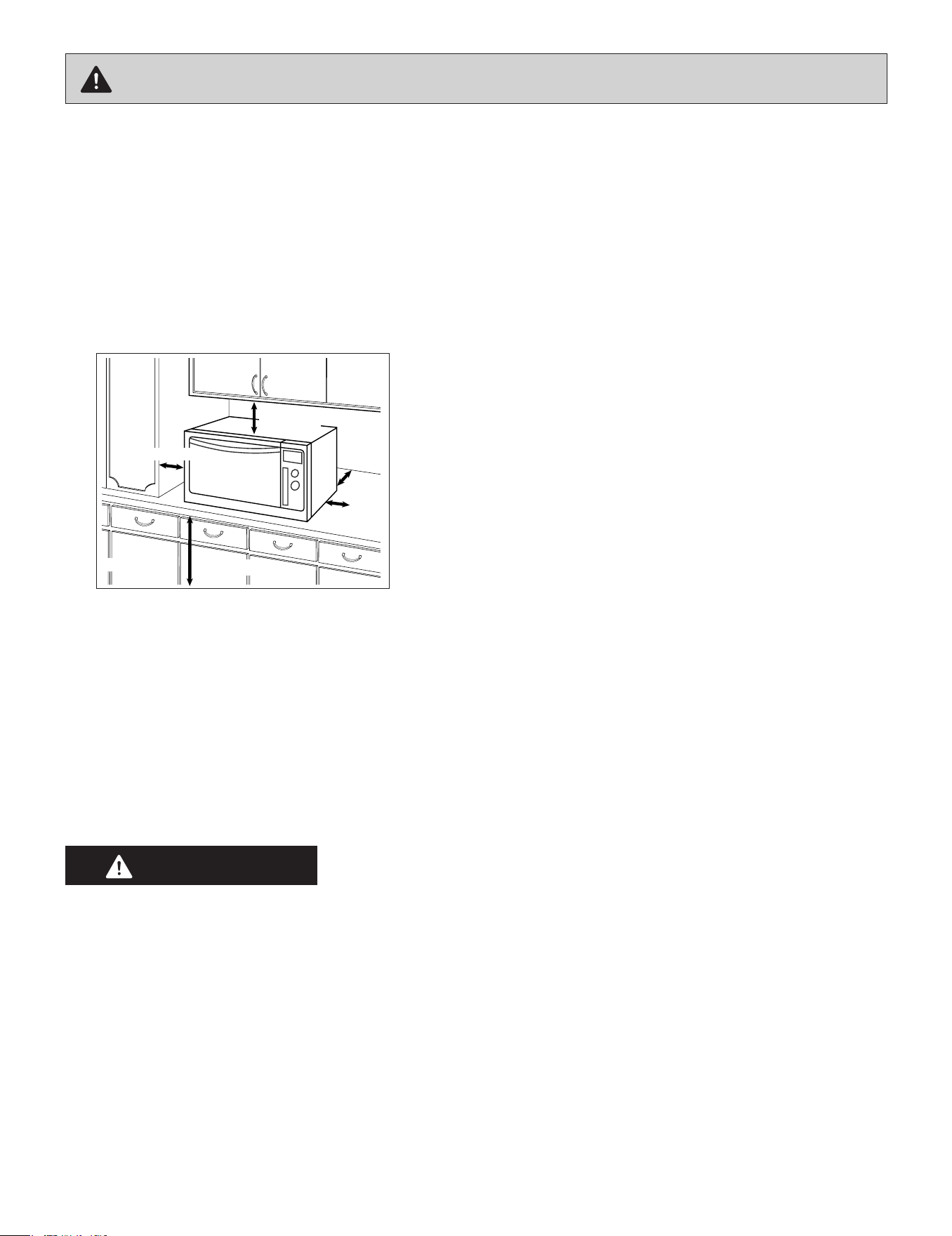

1. The oven must be placed on a flat, stable surface, which is 36" (91.6 cm) height from the ground. Place the front
surface of the door three inches or more from the counter top edge to avoid accidental tipping of the microwave
oven during normal use. For proper operation, the oven must have sufficient air flow. Allow 6" (15 cm) of space
on the top of the oven, 4" (10 cm) at the back, 2" (5 cm) on the left and the other side being open. If one
side of the oven is placed flush against wall, the other side or the top must not be blocked. Do not remove
the bottom feet from the oven.
6" (15 cm)
4"
(10 cm)
OPEN
2" (5 cm)
Counter-top
36" (91.6 cm)
a) DO NOT block air vents. If they are blocked during operation, the oven may overheat and be damaged. Also
allow sufficient space on back and both sides of the oven.
b) DO NOT place oven near a hot or damp surface such as a gas stove, electric range or sink etc.
c) DO NOT operate oven when room humidity is too high.
2. This oven was manufactured for household use only. It is not approved or tested for mobile vehicle, marine, or
commercial use.
Installation
DO NOT block air vents. If they are blocked during operation, the oven may overheat. If the oven overheats, a thermal
safety device will turn the oven off. The oven will remain inoperable until it has been serviced and the safety switch is
reset.
— IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK
OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
WARNING
INSTALLATION AND GROUNDING INSTRUCTIONS
IP1479_38S71CP_Eng_02_071107.indd Sec1:5IP1479_38S71CP_Eng_02_071107.indd Sec1:5 2007-11-7 @Tom@ 11:33:502007-11-7 @Tom@ 11:33:50
6
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.
• PLUG INTO properly installed and grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
Power Supply
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a
longer cord.
2. Longer cord sets or extension cords may be used if care is exercised in their use. DO NOT let cord hang over
edge of a table or counter.
3. If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be
at least as great as the electrical rating of the appliance, (2) the extension cord must be a
grounding-type 3-wire cord, and (3) the longer cord should be arranged so that it will not
drape over the counter top or tabletop where it can be pulled on by children or tripped over
accidentally.
Wiring Requirements
1. The oven must be operated on a SEPARATE CIRCUIT. No other appliance should share the circuit with the
microwave oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip.
2. The oven must be plugged into a 15 AMP or 20 AMP, 120 VOLT, 60 Hz GROUNDED OUTLET. Where a standard
two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced
with a properly grounded three-prong outlet.
3. The VOLTAGE used must be the same as specified on this microwave oven (120 V, 60 Hz). Using a higher voltage
is dangerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is
NOT responsible for any damages resulting from the use of the oven with any voltage other than specified.
TV / Radio Interference
1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
(a) Place the radio, TV, etc. away from the microwave oven as far as possible.
(b) Use a properly installed antenna to obtain stronger signal reception.
(c) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your Microwave Oven)
Fan Motor Operation
After using the oven repeatedly or for long time, the fan may operate to cool the electric components. This is perfectly
normal, and you can take out the food from the oven while the fan operates.
It is recommended to keep the oven plugged in until the Fan Motor completely stops operating.
Oven Light
When it becomes necessary to replace the oven light, please consult Panasonic for the nearest authorized service
centre for examination or repair. Contact information is provided in the Customer Services Directory page 41.
INSTALLATION AND GROUNDING INSTRUCTIONS
(continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:6IP1479_38S71CP_Eng_02_071107.indd Sec1:6 2007-11-7 @Tom@ 11:33:502007-11-7 @Tom@ 11:33:50
7
Follow These Safety Precautions When Cooking in Your Oven.
IMPORTANT
Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion
than recommended but cook at the time for the recommended portion, fire could result.
1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL QUANTITIES OF FOODS
• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning
temperature. The food may be contaminated and then spoil.
• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high
temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture
content can dry out, scorch or catch on fire if overheated.
2) POPCORN
Popcorn may be popped in a microwave oven. Microwave popcorn which pops in its own package is also
available. Follow popcorn manufacturers' directions and use a brand suitable for the cooking power of your
microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can follow recommended package instructions
or use the popcorn program in Auto Menu. Otherwise, the popcorn may not pop adequately or may ignite and
cause a fire. Never leave oven unattended when popping popcorn. Allow the popcorn bag to cool before opening,
always open the bag facing away from your face and body to prevent steam burns.
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames and may cause damage to the
oven and perhaps result in burns. Microwave utensils may not withstand the temperature of the hot oil, and can
shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL. Steam buildup in whole eggs may
cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and
cooking SCRAMBLED eggs is safe.
• Potatoes, apples, whole squash and sausages are examples of foods with nonporous skins. These types of
foods must be pierced before microwave cooking to prevent them from exploding.
CAUTION: Cooking dry or old potatoes can cause fire.
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is transferred from the HOT food to the container and the
Glass Tray. Use pot holders when removing containers from the oven or when removing lids or plastic wrap
covers from cooking containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed to cool before handling or before paper products,
such as paper plates or microwave popcorn bags, are placed in the oven for microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of space between foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing may occur.
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths which contain a synthetic fiber woven into them. The synthetic fiber may
cause the towel to ignite. Use paper toweling under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking only. Always follow instructions provided by the
manufacturer. DO NOT preheat browning dish more than 6 minutes.
• If an oven cooking bag is used for microwave cooking, prepare according to package directions. DO NOT use a
wire twist-tie to close bag, instead use plastic ties, cotton string or a strip cut from the open end of the bag.
Safety Precautions
IP1479_38S71CP_Eng_02_071107.indd Sec1:7IP1479_38S71CP_Eng_02_071107.indd Sec1:7 2007-11-7 @Tom@ 11:33:502007-11-7 @Tom@ 11:33:50
8
8) THERMOMETERS
• DO NOT use a conventional meat thermometer in your oven. Arcing may occur. Microwave safe thermometers
are available for both meat and candy.
9) BABY FORMULA / BABY FOOD
• DO NOT heat baby formula or baby food in the microwave oven. The glass jar or surface of the food may appear
warm while the interior can be so hot as to burn the infant's mouth and esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any fillings before eating. Some foods have fillings which
heat faster and can be extremely hot, while the surface remains warm to the touch (e.g. Jelly Donuts).
11) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any reason other than the preparation of food. This oven is specifically designed to
heat or cook food. DO NOT use this oven to heat chemicals or other non-food products.
• Before use, check that utensils/containers are suitable for use in microwave ovens.
•
DO NOT attempt to use this microwave oven to dry newspaper, clothing or any other materials. They may catch fire.
• When the oven is not being used, DO NOT store any objects other than oven accessories inside the oven in
case it is accidentally turned on.
• The appliance shall not be operated by Microwave or Combination WITHOUT FOOD IN THE OVEN.
Operation in this manner may damage the appliance, with the exception of preheating on Bake with the Metal
Pan accessory or during the "BEFORE USING YOUR OVEN" instructions found on page 8.
• If smoke or a fire occurs in the oven, press the Stop/Reset pad and leave the door closed in order to extinguish
the flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel.
• During and after cooking with the steam function, do not open the oven door when your face is very close to the
oven. Care must be taken when opening the door as steam may cause injury.
CAUTION!: Hot steam will escape when the door is opened. If there is steam in the oven, use caution
when taking containers out of the oven. Always use oven gloves to remove items from the oven TO
AVOID THE RISK OF SCALDING. Do Not reach in with your bare hands.
• Extreme caution must be used when moving hot liquids.
• When handling cooking containers take care not to let the contents spill.
• Avoid hot steam, serious burns and scalds could result.
• To prevent injury, Do not allow anyone to lean, hang, sit or place heavy items on the open door of the appliance.
Severe personal injury could result.
• Do not use a steam cleaner to clean this appliance. The steam from the cleaning appliance could penetrate live
components and permanently damage the oven or cause injury.
• The use of accessories not recommended by Panasonic may cause injury.
• To prevent burns, do not touch the Ceramic Cover during or after using the oven.
12) HEATER OPERATION
• Exterior oven surfaces, including air vents on the cabinet and the oven door will get hot during Bake,
Combination or Microwave with Steam functions. To prevent burns, take care when opening or closing the door
and when inserting or removing food and accessories.
• The oven has a heater situated in the rear of the oven. During and after using either the Bake, Combination or
Microwave with Steam functions, all inside surfaces of the oven will be very hot. To prevent burns, care should
be taken to avoid touching the inside surfaces of the oven or hot water inside the Evaporation Tray.
• TO AVOID THE RISK OF SCALDING, please use caution when touching accessible parts when oven is
operated in Bake or Combination mode, because the accessible parts may become extremely hot.
13) BEFORE USING YOUR OVEN
• Before using the oven for the first time, wipe excessive oil off in the oven cavity and operate the oven without
food and accessories on Bake at 450°F (230°C), for 10 minutes. This will allow the oil that is used for rust
protection to be burned off. This is the only time the oven is used empty. (with the exception of preheating
on Bake)
• Never exceed the "350ml" water level marker when filling up the Water Tank.
• DO NOT use the water tank without the sealed lid and never remove the sealing band from around the water
tank lid, as leaking water could result in electrical failure and danger of electric shock.
Safety Precautions
(continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:8IP1479_38S71CP_Eng_02_071107.indd Sec1:8 2007-11-7 @Tom@ 11:33:512007-11-7 @Tom@ 11:33:51
9
Drip Tray
1. Before using the oven, place the drip tray in
position. Holding with both hands, snap into position
on the two front oven feet.
2. The purpose of the drip tray is to collect excess
water during Microwave with Steam mode. It should
always be emptied after Microwave with Steam
operation.
3. Always keep Drip Tray in position.
Ceramic Cover
Before using the oven, place the ceramic cover over the
Evaporation Tray.
The oven comes equipped with a variety of accessories.
Always follow the directions given for use of the
accessories.
Glass Tray
1. Use only the Glass Tray specifically designed for
this oven.
2. If the Glass Tray is hot, allow to cool before cleaning
or placing in water.
3. DO NOT cook food directly on the Glass Tray.
Always place food in a microwave safe dish.
4. Only use Glass Tray when Microwave cooking time
is over 15 minutes.
Metal Pan
The Metal Pan is for cooking on Bake mode only.
Do not use on Microwave, Microwave with Steam or
Combination modes.
Glass Tray Metal Pan
Microwave
Yes
(over 15 minutes)
No
Bake No Yes
Combination No No
Microwave
with Steam
No No
Accessories Safety Precautions
IP1479_38S71CP_Eng_02_071107.indd Sec1:9IP1479_38S71CP_Eng_02_071107.indd Sec1:9 2007-11-7 @Tom@ 11:33:512007-11-7 @Tom@ 11:33:51
10
Cooking Mode & Cookware Guide
Item Microwave
Microwave
with Steam
Bake Combination Comments
Heating Mode Microwave
Microwave
& Steam
Heater
Heating
Element
Microwave
& Heating
Element
Please see page 14.
Aluminum Foil
Yes for
Shielding
only
Yes for
Shielding
only
Yes
Yes for
Shielding only
Small strips of foil can be molded
around thin parts of meat or poultry to
prevent overcooking. Arcing can occur if
foil is too close to oven wall or door and
damage to your oven will result.
Browning Dish Yes Yes No No
Browning dishes are designed for
microwave cooking only. Check
browning dish information for
instructions and heating chart. Do not
preheat for more than 6 minutes.
Dinnerware
Labeled
"Oven/
Microwave
Safe"
Yes Yes Yes Yes
Check manufacturers' use and care
directions for use in oven/microwave
heating. Some dinnerware may state on
the back of the dish, "Oven/Microwave
Safe".
Labeled
"Microwave
Safe"
Yes Yes No No
Unlabeled ? ? No No Use CONTAINER TEST page 11.
Disposable polyester
Paperboard Dishes
Yes Yes No No
Some frozen foods are packaged in
these dishes. Can be purchased in
grocery stores.
Fast Food Carton with
Metal Handle
No No No No
Metal handle may cause arcing and
create a fire hazard.
Frozen Dinner Tray
Metal
No No Yes No
Metal can cause arcing and damage
to your oven in the Microwave and
Combination modes.
Frozen Dinner Tray
Microwave safe
Yes Yes No No For one time use only. Do not reuse.
Glass Jars No No No No
Most glass jars are not heat resistant.
Do not use for cooking or reheating.
Heat Resistant Oven
Glassware & Ceramics
Yes Yes Yes Yes
Ideal for microwave cooking and browning.
(See CONTAINER TEST on next page)
Metal Convection Bakeware No No Yes No
Metal can cause arcing and damage
to your oven in the Microwave and
Combination modes.
Metal Twist-Ties No No Yes No
Metal can cause arcing and damage
to your oven in the Microwave and
Combination modes.
Oven Cooking Bag Yes Yes Yes Yes
Follow manufacturers' directions. Close
bag with the nylon tie provided, a strip
cut from the end of the bag, or a piece
of cotton string. Do not close with
metal twist-tie for the Microwave or
Combination mode.
Make six
1
/
2
-inch (1 cm) slits near the
closure.
Paper bags No No No No May cause a fire in the oven.
IP1479_38S71CP_Eng_02_071107.indd Sec1:10IP1479_38S71CP_Eng_02_071107.indd Sec1:10 2007-11-7 @Tom@ 11:33:512007-11-7 @Tom@ 11:33:51
11
Cooking Mode & Cookware Guide (continued)
Item Microwave
Microwave
with Steam
Bake Combination Comments
Paper Plates & Cups
Yes, with
supervision
Yes, with
supervision
No No
Use to warm cooked foods, and to cook
foods that require short cooking times
such as hot dogs in the Microwave
mode.
Paper Towels & Napkins
Yes, with
supervision
Yes, with
supervision
No No
Use to warm rolls and sandwiches, only
if labeled safe for microwave use.
Recycled Paper Towels &
Napkins
No No No No
Recycled paper products may contain
impurities which may cause sparks or
create a fire hazard.
Parchment Paper Yes Yes Yes Yes
Use as a cover to prevent spattering.
Safe for use in the Microwave,
Convection Bake and Combination
modes.
Plastic, Microwave Safe
Yes, use
caution
Yes, use
caution
No No
Should be labeled, "Suitable
for Microwave Heating." Check
manufacturers' directions for
recommended uses. Some microwave
safe plastic containers are not suitable
for cooking foods with high fat or sugar
content. The heat from hot food may
cause the plastic to warp.
Plastic, Melamine No No No No
This material absorbs microwave
energy. Dishes get HOT!
Plastic Foam Cups
Yes, short
term only
Yes, short
term only
No No
Plastic foam will melt if foods reach a
high temperature. Use caution to reheat
foods to a low serving temperature only.
Silicon Rubber Container Yes Yes Yes Yes
Check Manufacturer's directions for
recommended uses.
Plastic Wrap Yes No need No No
Use to cover food during cooking to
retain moisture and prevent spattering.
Should be labeled "Suitable for
Microwave Heating". Check package
directions.
Straw, Wicker, Wood
Yes, short
term only
Yes, short
term only
No No
Use only for short term reheating and to
bring food to a low serving temperature.
Wood may dry out & split or crack when
used.
Thermometers, Microwave
safe
Yes Yes No No
Use only microwave safe meat and
candy thermometers.
Thermometers,
Conventional
No No Yes No
Not suitable for use in microwave oven,
will cause sparks and get hot.
Wax paper Yes Yes No No
Use as a cover to prevent spattering
and to retain moisture in the Microwave
mode only.
CONTAINER TEST
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it
in the microwave oven alongside the empty container to be tested; heat one (1) minute at P10 (HIGH). If the container
is microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and
the water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This
test cannot be used for plastic containers.
IP1479_38S71CP_Eng_02_071107.indd Sec1:11IP1479_38S71CP_Eng_02_071107.indd Sec1:11 2007-11-7 @Tom@ 11:33:522007-11-7 @Tom@ 11:33:52
12
Ceramic Cover
1. Install over the Evaporation Tray.
2. After using steam function, do not
touch the ceramic cover to avoid
scalding.
3. Clean after cooling down.
Oven Cavity Floor
1. If the Oven Cavity Floor is hot, allow cooling down before cleaning.
2. Do not cook directly on the Oven Cavity Floor. Always put food in a container.
Water Tank
1. Pour in water to the full mark (350ml) in the water tank.
2. Before installation, always place water tank sealed lid on water tank.
3. Install the tank in the direction of the arrow.
4. Incorrect installation may cause leakage of water.
5. Clean the tank and sealing band frequently.
6. Removing the sealing band may cause water leakage.
7. Use tap water. Do not use mineral water.
8. Maximum water capacity of water tank is 350ml (12.4 oz).
Glass Tray
1. Place in the direction of the arrow.
2. Dragging the glass tray on the
oven window may cause damage
to the window.
Metal Pan
1. For Bake function only.
2. Insert directly between rails.
3. After cooking, carefully remove the
pan from oven.
350
Evaporation Tray
Rail
Use only for Metal Pan.
Control Panel
Identification Label

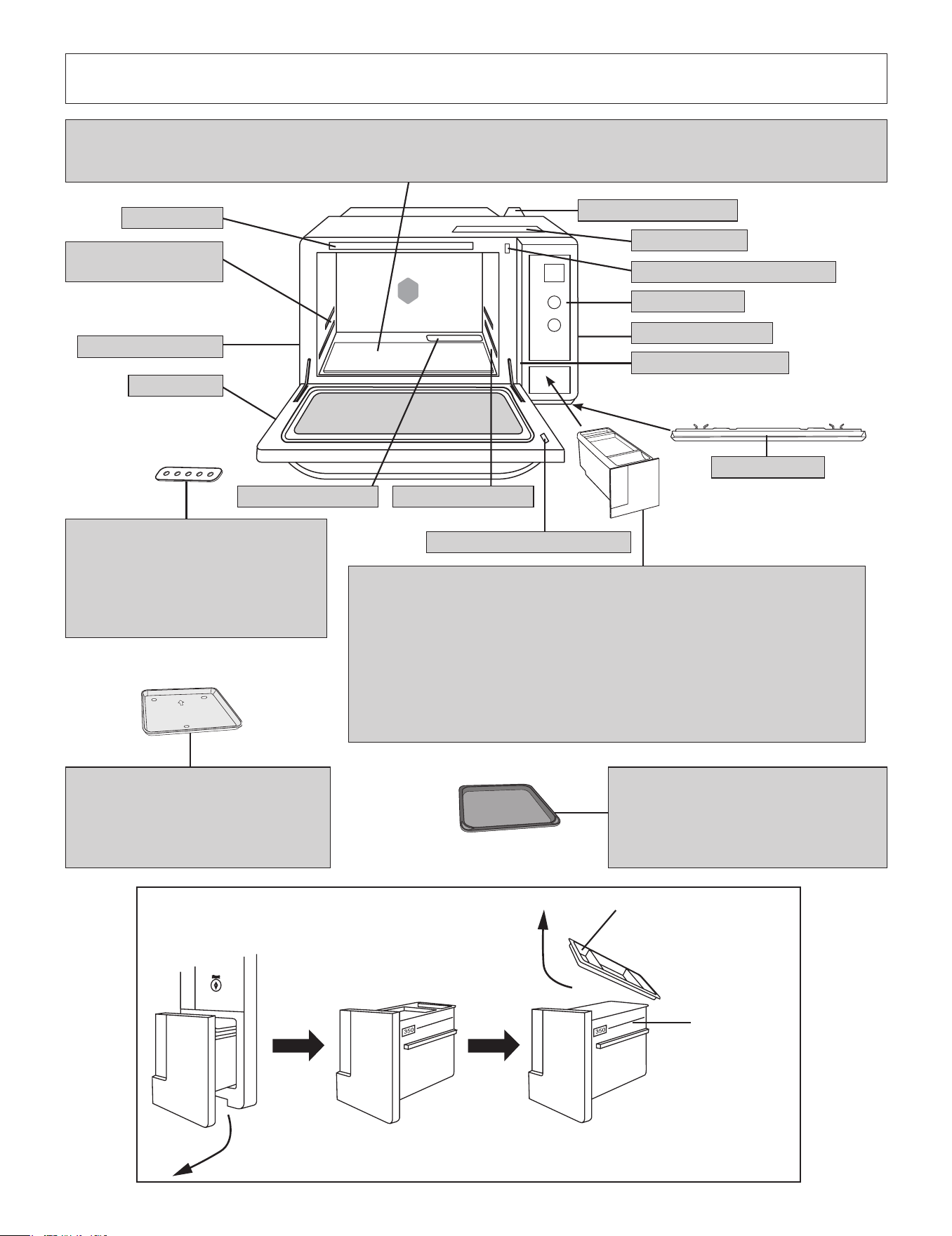

Oven Components Diagram
Oven Circuit Breaker
Drip Tray
Door Safety Lock System
Door Safety Lock System
Remove Water Tank and Water Tank Sealed Lid
Water Tank Sealed Lid
Water Level
Oven Door
External Air Vents
Menu Label
Warning Label
External Air Vents
Internal Air Vents
IP1479_38S71CP_Eng_02_071107.indd Sec1:12IP1479_38S71CP_Eng_02_071107.indd Sec1:12 2007-11-7 @Tom@ 11:33:522007-11-7 @Tom@ 11:33:52
13

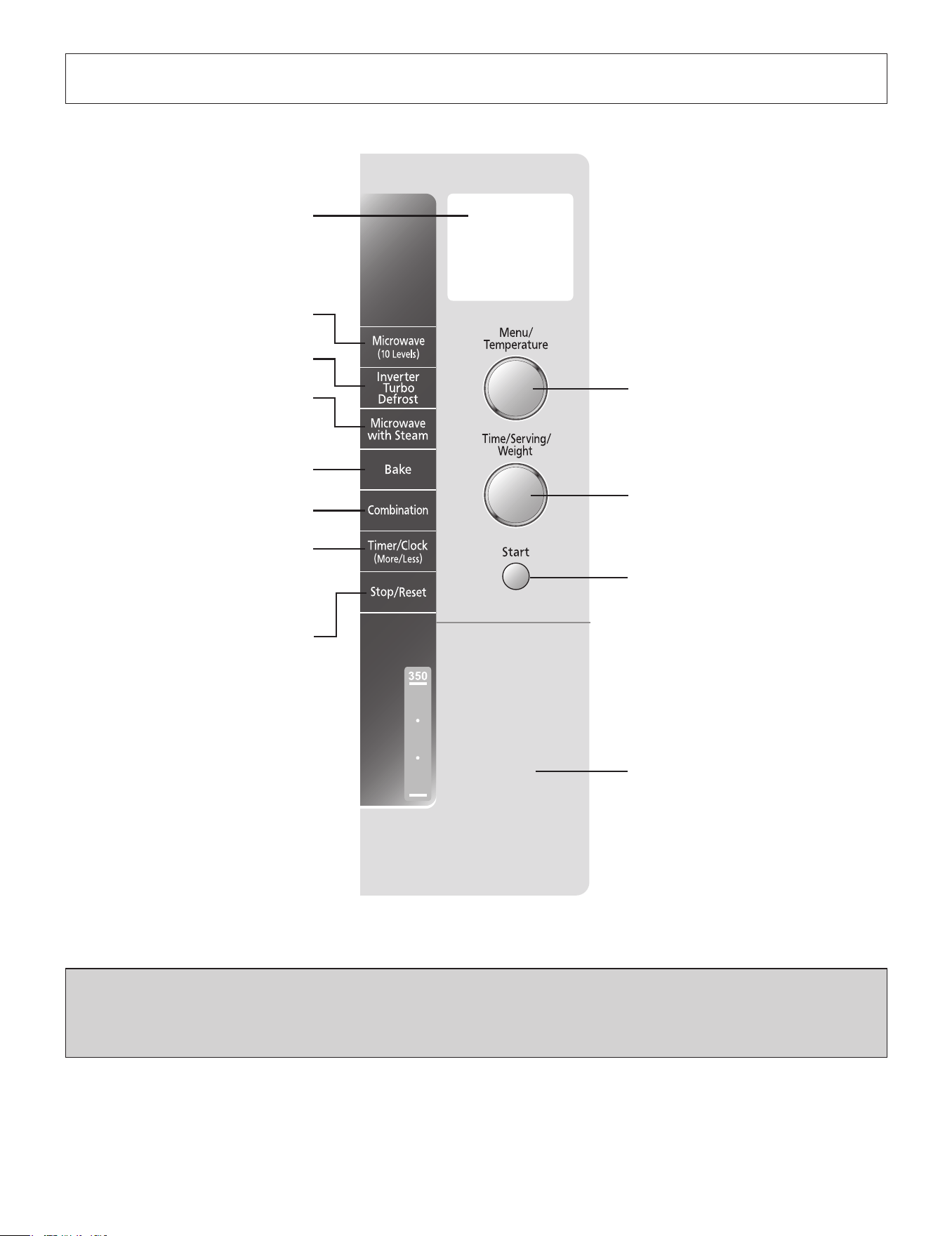

Beep Sound:
When a pad is pressed correctly, a beep sound will be heard. If a pad is pressed and no beep is heard, the unit did
not or could not accept the instruction. The oven will beep twice between programmed stages. At the end of any
completed program, the oven will beep 5 times.
Display Window
Microwave Pad
(page 17)
Inverter Turbo Defrost Pad
(page 20)
Microwave with Steam Pad
(page 22)
Note: This pad is also
a Steam Shot pad (page 23)
Bake Pad
(page 22)
Combination Pad
(page 23)
Timer/Clock Pad
(page 16, 24)
* To be "More" or "Less" Pad when
using Auto Menu. (page 28)
Stop/Reset Pad
Note: This pad is also a Child
Safety Lock Release Pad.
Before cooking: One tap clears
your instructions.
During cooking: One tap
temporarily stops the cooking
process. Another tap cancels all
your instructions and colon or
time of day appears in the Display
Window.
Child Lock Release: Three taps
release Child Safety Lock
(page 16).
Menu/Temperature Dial
(page 14)
Time/Serving/Weight Dial
(page 14)
Start Button
Note: This button is also a Child
Safety Lock Button.
After cooking program setting, one
tap allows oven to begin functioning.
If door is opened or Stop/Reset
pad is pressed once during oven
operation, Start button must be
pressed again to restart oven.
Child Safety Lock: Press three times
for Child Safety Lock. (Page 16)
Water Tank
(for steam function)
Note:
If no operation after cooking program setting, 6 minutes later, the oven will automatically cancel the cooking program.
The display will return to clock or colon display.
Control Panel
IP1479_38S71CP_Eng_02_071107.indd Sec1:13IP1479_38S71CP_Eng_02_071107.indd Sec1:13 2007-11-7 @Tom@ 11:33:522007-11-7 @Tom@ 11:33:52
14

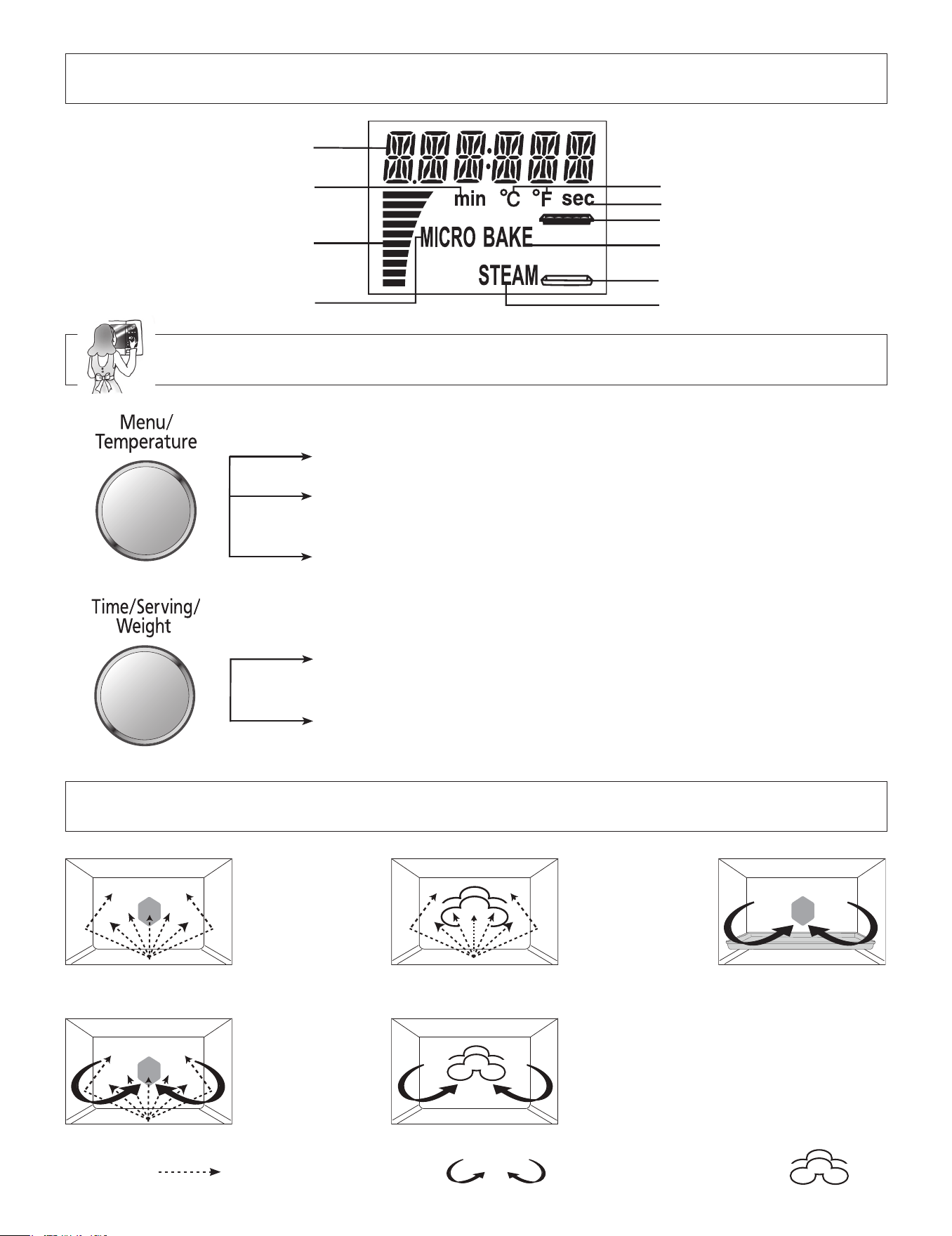

Display Window
Number/Character
(Time/Weight/Temperature/Menu)
Timer (Minute)
Power Level
Microwave Feature
Temperature
Timer (Second)
Metal Pan
Bake Feature
Glass Tray
Steam Feature
Dial Features
Auto Menu Choice
Rotate the dial to select desired menu among the auto menus.
Temperature Choice
Rotate the dial clockwise to increase the temperature and rotate it counter-clockwise to
decrease the temperature of Bake.
Power Level Choice
Rotate the dial clockwise to increase the power level and rotate it counter-clockwise to
decrease the power level.
Time Choice
Rotate the dial clockwise to increase the cooking time and rotate the dial counter-
clockwise to decrease the cooking time.
Serving/Weight Choice
Rotate the dial clockwise to increase the serving/weight and rotate the dial counter-
clockwise to decrease the serving/weight setting.
BakeMicrowave
Combination
(Bake + Microwave)
Microwave with Steam
Steam Shot
(Bake + Steam)
Cooking Modes
Microwave Bake Steam
IP1479_38S71CP_Eng_02_071107.indd Sec1:14IP1479_38S71CP_Eng_02_071107.indd Sec1:14 2007-11-7 @Tom@ 11:33:532007-11-7 @Tom@ 11:33:53
15
Function Features
Language/Lb-°F/KG-°C Choice
The oven has a choice of English, French or Spanish display.
English is the default display. Also, the oven has both
imperial/metric weight and Fahrenheit/Centigrade temperature
measurements. Lb-°F is the default display.
Display Window
1.
• Plug into a properly grounded
electrical outlet.
The display window shows "REFER
TO OPERATING INSTRUCTIONS
BEFORE USE".
2.
• Press Start button once to enter
language display choice.
Default display is English.
3.
• Rotate the Menu/Temperature dial
clockwise for selecting French or
Spanish.
(Continued) To set Lb-°F/KG-°C Choice
4.
• Do not quit the Language display
choice.
5.
• Press Start button once to enter
Weight/Temperature display choice.
Default display is Lb-°F.
6.
• Rotate the Menu/Temperature dial
clockwise for selecting KG-°C mode.
(Directly) To set Lb-°F/KG-°C Choice
Display Window
1.
• Plug into a properly grounded
electrical outlet.
The display window shows "REFER
TO OPERATING INSTRUCTIONS
BEFORE USE".
2.
• Press Start button twice to enter
Weight/Temperature display choice.
3.
• Rotate the Menu/Temperature dial
clockwise for selecting KG-°C mode.
DEMO MODE
When "DEMO MODE PRESS ANY KEY" appears in the display window, it means the oven is under demonstration mode,
microwave does not emit. Demo mode is designed for retail store display. In this mode, the oven can be demonstrated with no
cooking power in the oven.
Press 4 times Enter Demo mode.
Press 4 more times Exit Demo mode.
IP1479_38S71CP_Eng_02_071107.indd Sec1:15IP1479_38S71CP_Eng_02_071107.indd Sec1:15 2007-11-7 @Tom@ 11:33:532007-11-7 @Tom@ 11:33:53
16

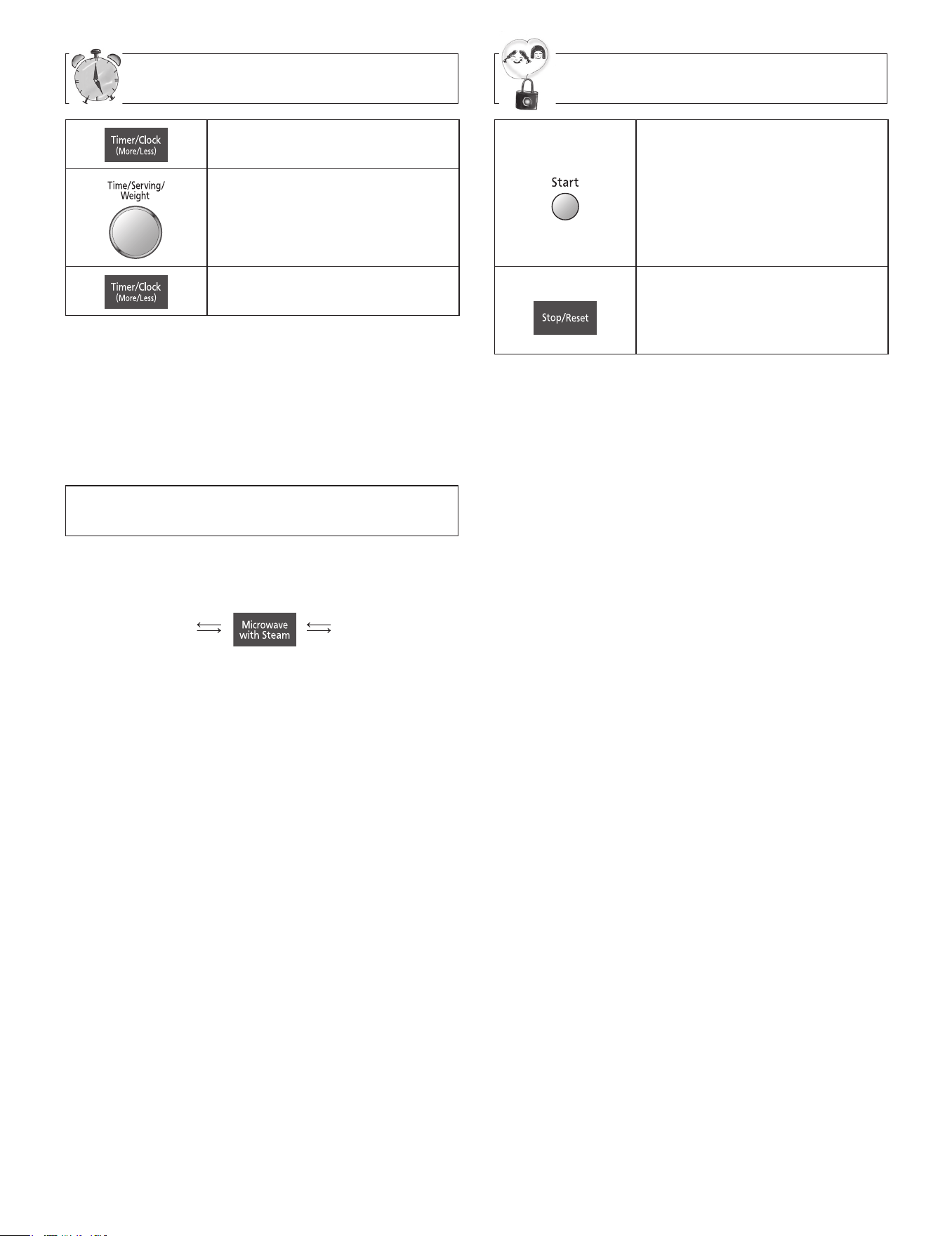

Setting the Clock
1.
• Press Timer/Clock pad twice.
2.
• Rotate the Time/Serving/Weight
dial to set the current time "11:25".
3.
• Press Timer/Clock pad once.
Notes:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as long as the oven is
plugged in and electricity is supplied.
3. Clock is a 12 hour display.
4. Oven will not operate while colon is flashing.
Operation Guide
Operation Guide helps you to program your oven by prompting
the next step to be taken. When you become familiar with your
oven, the prompt can be turned off.
ON*
OFF
Press 3 times
* Default Mode
Child Safety Lock
To Set:
• Press Start button 3 times.
"LOCK" appears in the display
window.
³ "LOCK" continues to be
displayed until Child Safety Lock
is cancelled. Keypads may be
pressed but the microwave will
not start.
To Cancel:
• Press Stop/Reset pad 3 times.
³ The display will return to colon or
clock when Child Safety Lock has
been cancelled.
Note:
You can set Child Safety Lock feature when the display shows
a colon or clock.
IP1479_38S71CP_Eng_02_071107.indd Sec1:16IP1479_38S71CP_Eng_02_071107.indd Sec1:16 2007-11-7 @Tom@ 11:33:542007-11-7 @Tom@ 11:33:54
17

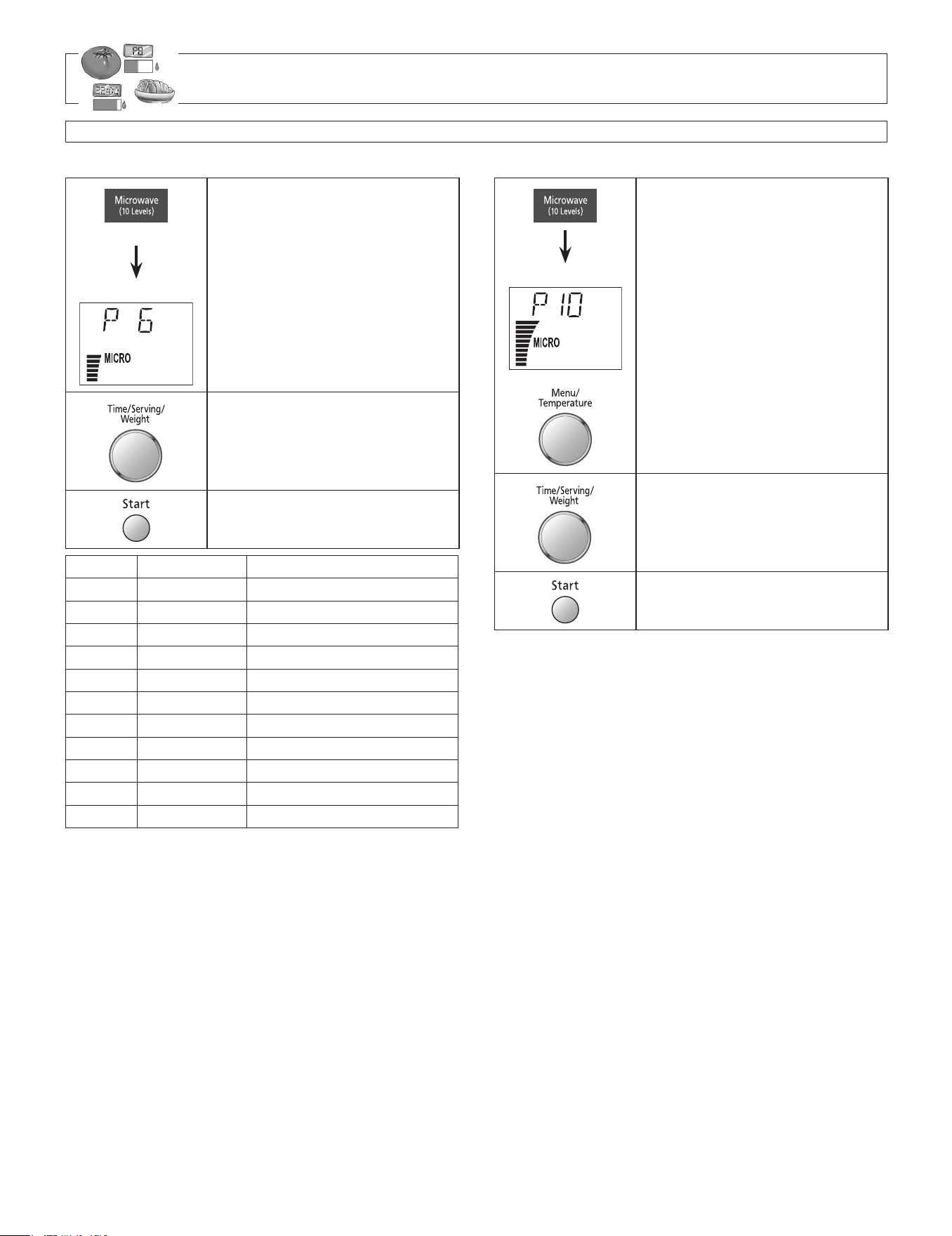

Selecting Microwave Power and Cooking Time
Method 1:
Display Window
1.
Press 5 times
• Press Microwave pad until the
desired power level appears in the
display window.
2.
• Rotate the Time/Serving/Weight
dial to set cooking time (1 minute and
30 seconds ).
3.
• Press Start button.
³ Cooking will start. The time in the
display window will count down.
Press Display Power Level
once P10 P10 (HIGH)
twice P 9 P9
3 times P 8 P8
4 times P 7 P7 (MED-HIGH)
5 times P 6 P6 (MEDIUM)
6 times P 5 P5
7 times P 4 P4
8 times P 3 P3 (MED-LOW)/DEFROST
9 times P 2 P2
10 times P 1 P1 (LOW)
11 times KEEP WARM Keep warm
Note:
If total cooking time is over 15 minutes, please use Glass Tray.
(refer to page 9)
Method 2:
Display Window
1.
a)
• Press Microwave pad once.
³ P10 power level appears in the
display window.
b)
• Rotate the Menu/Temperature dial
counter-clockwise to select P6 power
level.
2.
• Rotate the Time/Serving/Weight
dial to set cooking time (1 minute and
30 seconds ).
3.
• Press Start button.
³ Cooking will start. The time in the
display window will count down.
5-Stage Cooking Setting:
1. For more than one stage cooking, repeat steps 1 and 2
for each stage of cooking before pressing Start button.
The maximum number of stages for cooking is 5. When
operating, two beeps will sound between each stage. Five
beeps will sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for the first stage, you
may begin at step 2.
3. When selecting P10 (HIGH) power, the maximum
programmable time is 30 minutes. For other power levels,
the maximum time is 90 minutes.
4. For reheating, use P10 (HIGH) for liquids, P7 (MED-HIGH)
for most foods and P6 (MEDIUM) for dense foods.
5. For defrosting, use P3 (MED-LOW/DEFROST).
Example: To cook at P 6 (MEDIUM) power for 1 minute 30 seconds.
IP1479_38S71CP_Eng_02_071107.indd Sec1:17IP1479_38S71CP_Eng_02_071107.indd Sec1:17 2007-11-7 @Tom@ 11:33:542007-11-7 @Tom@ 11:33:54
18

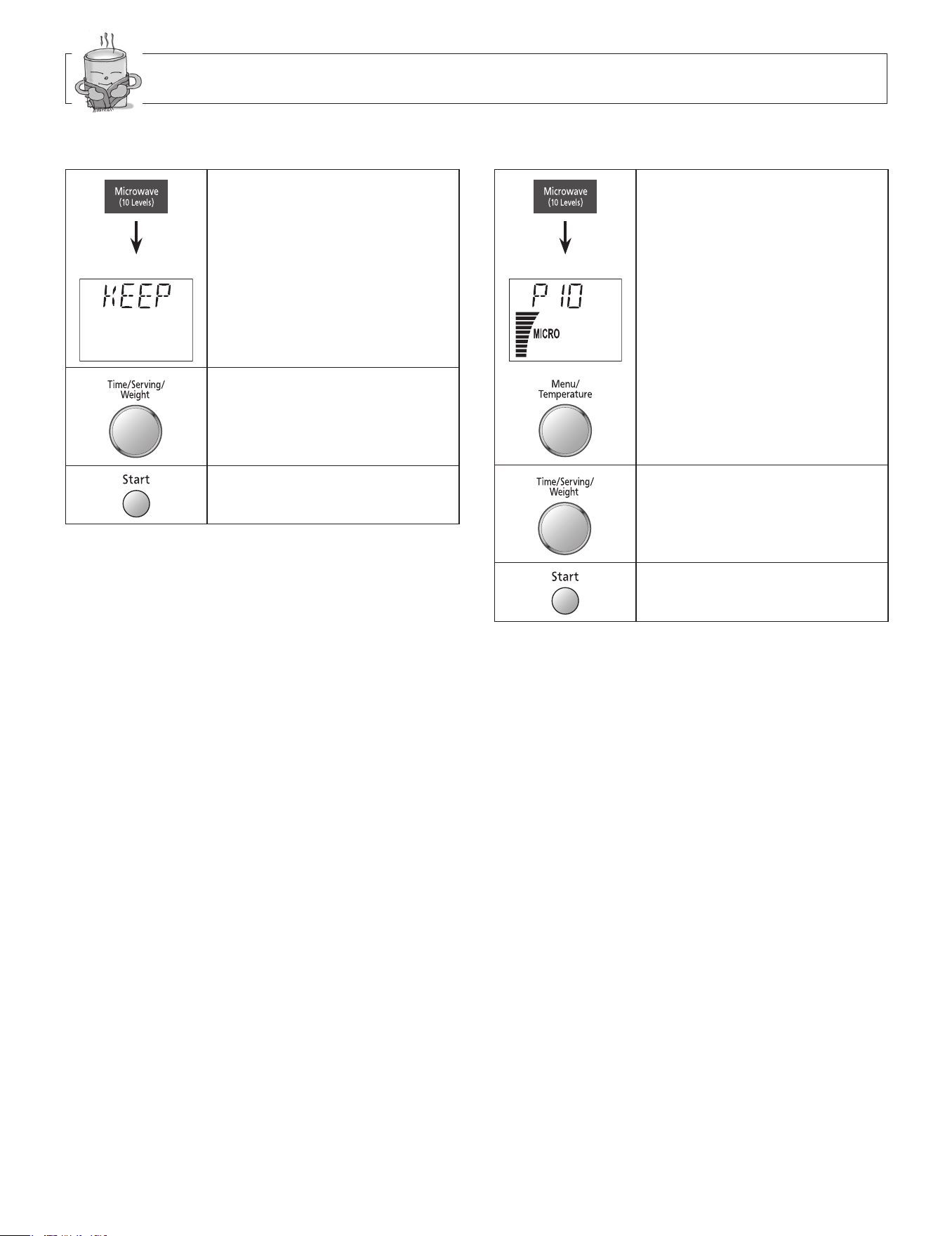

Keep Warm Feature
Method 1:
Display Window
1.
• Press Microwave pad 11 times.
³ "KEEP WARM" appears in the
display window.
2.
• Rotate the Time/Serving/Weight
dial to set time, up to 30 minutes.
3.
• Press Start button.
³ Cooking will start. The time in the
display window will count down.
Method 2:
Display Window
1.
a)
• Press Microwave pad once.
³ P10 power level appears in the
display window.
b)
• Rotate the Menu/Temperature dial
counter-clockwise to select Keep
Warm.
2.
• Rotate the Time/Serving/Weight
dial to set time, up to 30 minutes.
3.
• Press Start button.
³ Cooking will start. The time in the
display window will count down.
Note:
Keep Warm can be programmed as the final stage after cook
time/s have been manually entered. It cannot be used in
combination with Auto features.
This feature will keep food warm for up to 30 minutes after cooking.
IP1479_38S71CP_Eng_02_071107.indd Sec1:18IP1479_38S71CP_Eng_02_071107.indd Sec1:18 2007-11-7 @Tom@ 11:33:552007-11-7 @Tom@ 11:33:55
19

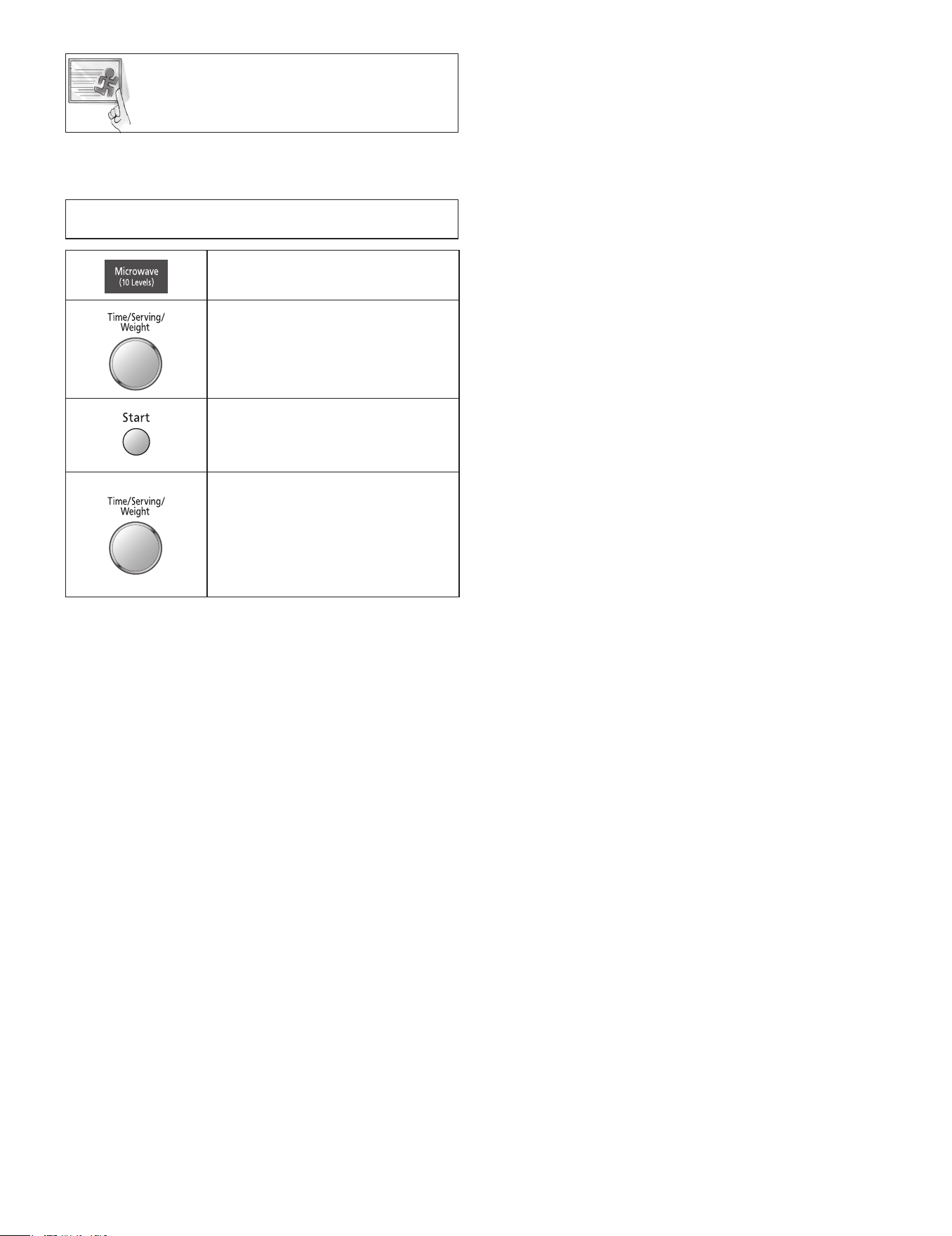

This feature allows you to add or reduce the cooking time
during Microwave, Combination, Bake setting. Turning the dial
will count up in 1 minute.
Example: To cook at P8 power for 5 minutes, add 3 more
minutes during the cooking.
1.
• Press Microwave pad 3 times to
select P8 power.
2.
• Enter cooking time by using the
Time/Serving/Weight dial as 5
minutes.
3.
• Press Start button.
³ The cooking time appears in the
display window and begins to
count down.
4.
• During the cooking, turn the Time/
Serving/Weight dial clockwise to
add 3 minutes. (Maximum adding
time is 10 minutes, you can also
reduce cooking time by turning
Time/Serving/Weight dial counter-
clockwise.)
Notes:
1. Do not over cook food while using this feature.
2. This feature is not available during Auto Cook and
Microwave with Steam function.
3. The cooking stops when the reduced cooking time is less
than the remaining time.
Cooking Time
Adjustment Feature
IP1479_38S71CP_Eng_02_071107.indd Sec1:19IP1479_38S71CP_Eng_02_071107.indd Sec1:19 2007-11-7 @Tom@ 11:33:552007-11-7 @Tom@ 11:33:55
20

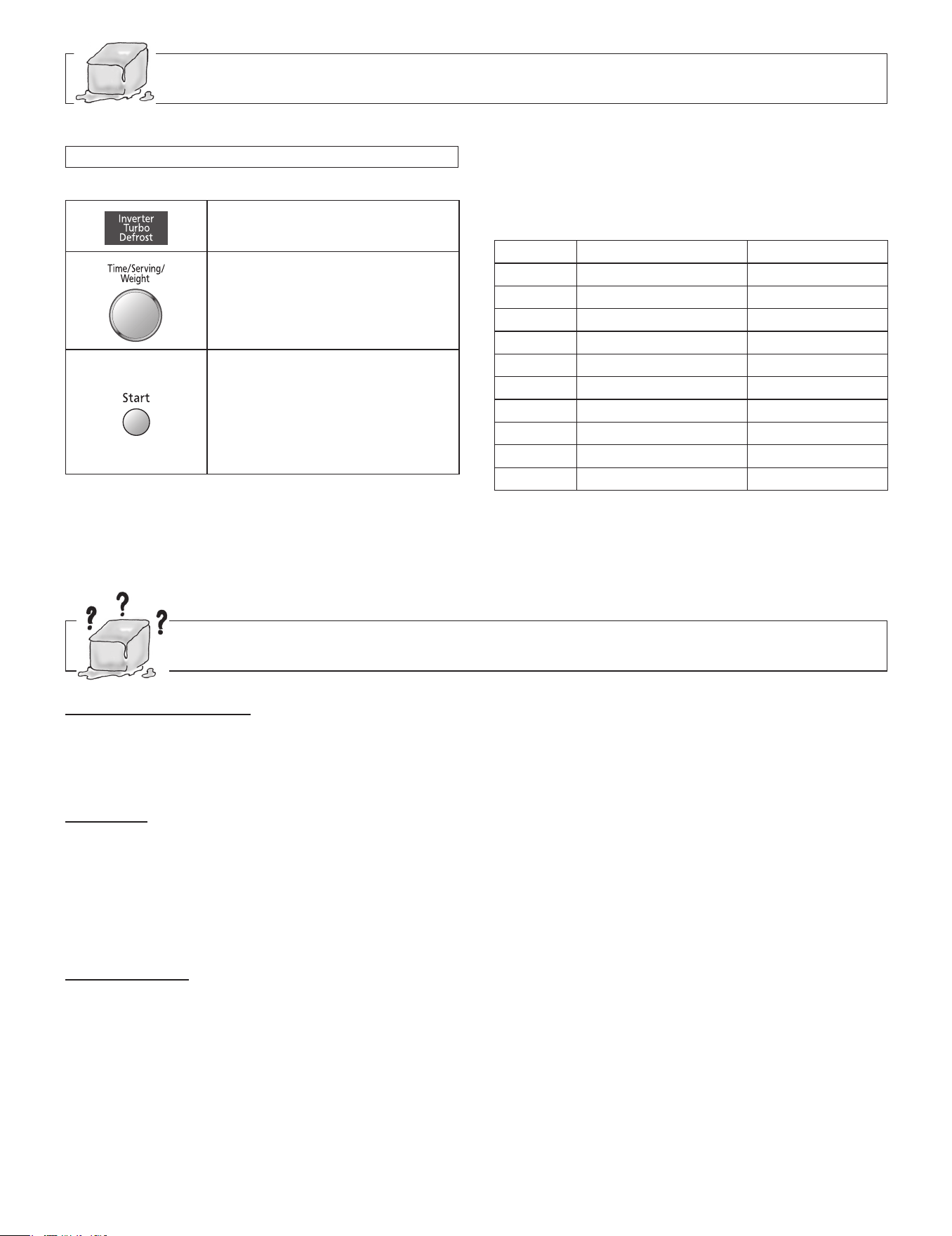

Inverter Turbo Defrost Feature
Example: To defrost 1.5 pounds of meat.
Place food on microwave safe dish.
1.
• Press Inverter Turbo Defrost pad.
2.
• Rotate the Time/Serving/Weight
dial to set 1.5 pounds.
(Max setting weight: 6.0 lbs or 3.0 kg)
3.
• Press Start button.
³ Defrosting will start. The time
will count down. Larger weight
foods will cause a signal midway
through defrosting. If 2 beeps
sound, turn over, rearrange foods
or shield with aluminum foil.
Conversion Chart:
Follow the chart to convert ounces or hundredths of a pound
into tenths of a pound. To use Inverter Turbo Defrost, enter
the weight of the food in lbs. (1.0) and tenths of a lb. (0.1). If a
piece of meat weighs 1.95 lbs. or 1 lb. 14 oz., enter 1.9 lbs.
Ounces Hundredths of a Pound Tenths of a Pound
0 .01 - .05 0.0
1 - 2 .06 - .15 0.1
3 - 4 .16 - .25 0.2
5 .26 - .35 0.3
6 - 7 .36 - .45 0.4
8 .46 - .55 0.5
9 - 10 .56 - .65 0.6
11 - 12 .66 - .75 0.7
13 .76 - .85 0.8
14 - 15 .86 - .95 0.9
This feature allows you to automatically defrost foods such as: meat, poultry and seafood simply by entering the weight.
Defrosting Tips & Techniques
Preparation for Freezing:
1. Freeze meats, poultry, and fish in packages with only 1 or 2 layers of food. Place wax paper between layers.
2. Package in heavy-duty plastic wraps, bags (labeled "For Freezer"), or freezer paper.
3. Remove as much air as possible.
4. Seal securely, date, and label.
To Defrost:
1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and cook the food.
2. Set food in microwave safe dish.
3. Place roasts fat-side down. Place whole poultry breast-side down.
4. Select power and minimum time so that items will be under-defrosted.
5. Drain liquids during defrosting.
6. Turn over (invert) items during defrosting, if the weight is over 1.0 lb.
7. Shield edges and ends if needed. (See Cooking Techniques).
After Defrosting:
1. Large items may be icy in the centre. Defrosting will complete during STANDING TIME.
2. Let stand, covered, following stand timer directions on page 24.
3. Rinse foods indicated in the chart on page 21.
4. Items which have been layered should be rinsed separately or have a longer stand time.
IP1479_38S71CP_Eng_02_071107.indd Sec1:20IP1479_38S71CP_Eng_02_071107.indd Sec1:20 2007-11-7 @Tom@ 11:33:562007-11-7 @Tom@ 11:33:56
21
Defrosting Tips & Techniques
(continued)
FOOD
DEFROST TIME at P3
mins (per lb)
DURING DEFROSTING
AFTER DEFROSTING
Stand Time Rinse
Fish and Seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat
6 Break apart/Rearrange
5 min. YES
Fish Steaks 4 to 6 Turn over
Fish Fillets 4 to 6 Turn over/Rearrange/Shield ends
Sea Scallops 4 to 6 Break apart/Remove defrosted pieces
Whole fish 4 to 6 Turn over
Meat
Ground Meat
4 to 5
Turn over/Remove defrosted portion/
Shield edges
10 min.
NO
Roasts
[21/2-4 lbs. (1.1-1.8 kg)]
4 to 8
Turn over/Shield ends and defrosted
surface
30 min. in
refrig.
Chops/Steak 6 to 8
Turn over/Rearrange/Shield ends and
defrosted surface
5 min.
Ribs/T-bone 6 to 8
Turn over/Rearrange/Shield ends and
defrosted surface
Stew Meat 4 to 8
Break apart/Rearrange/Remove
defrosted pieces
Liver (thinly sliced) 4 to 6
Drain liquid/Turn over/Separate
pieces
Bacon (sliced) 4 Turn over - - - -
Poultry
Chicken, Whole
[up to 5 lbs. (2.5 kg)]
4 to 6 Turn over/Shield
20 min. in
refrig.
YES
Cutlets 4 to 6
Break apart/Turn over/Remove
defrosted Pieces
5 min.
Pieces 4 to 6 Break apart/Turn over/Shield
10 min.
Cornish Hens 6 to 8 Turn over/Shield
Turkey Breast
[5-6 lbs. (2.3-2.7 kg)]
6 Turn over/Shield
20 min. in
refrig.
IP1479_38S71CP_Eng_02_071107.indd Sec1:21IP1479_38S71CP_Eng_02_071107.indd Sec1:21 2007-11-7 @Tom@ 11:33:562007-11-7 @Tom@ 11:33:56
22

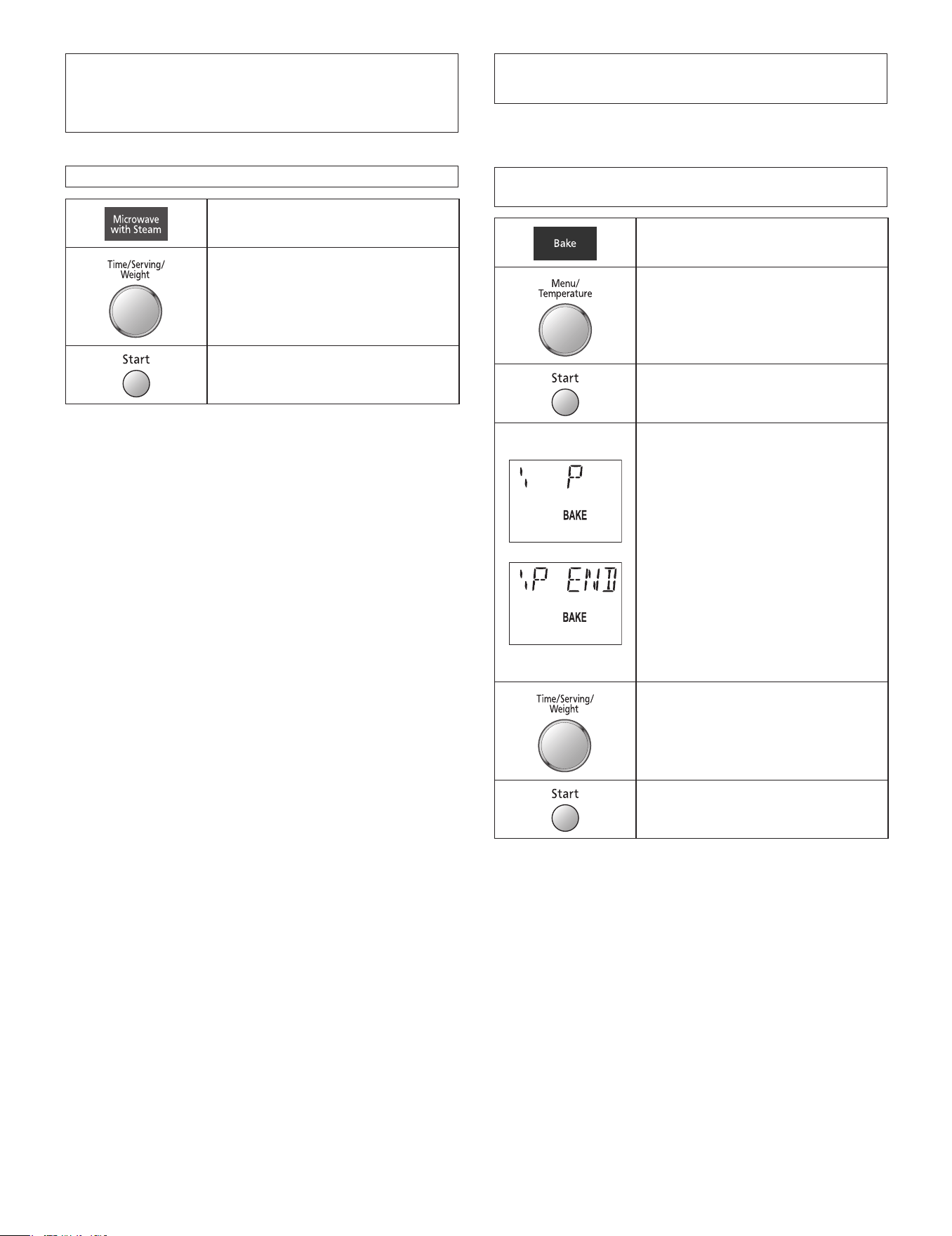

This feature combines steam and microwave power.
Example: To cook at microwave with steam for 5 minutes.
1.
• Press Microwave with Steam pad
once.
2.
• Rotate the Time/Serving/Weight
dial to set 5 minutes.
(Maximum time is 15 minutes.)
3.
• Press Start button.
³ Cooking will start. The time will
count down.
Notes:
1. Always fill the water tank before using.
2. If setting this function as the first stage, one minute
preheating proceeds the cooking time.
3. No cover, lid or plastic wrap is required when using this
feature.
4. The temperature of the Evaporation Tray will be very high
just after using microwave with steam, please do not touch
it.
5. Always wipe the remaining water in the Evaporation Tray
after the cavity has cooled.
6. This function uses P3 Microwave power.
Microwave with Steam
Feature
Bake Feature
This feature offers a choice of bake temperatures from 200°F
to 450°F in 25°F increments (or from 100°C to 230°C in 10°C
increments). Most baked items require preheating the oven.
Example: To bake at 350°F for 20 minutes. Need
preheating.
1.
• Press Bake pad once.
2.
• Rotate the Menu/Temperature dial
to set temperature.
(up to 450°F )
3.
• Press Start button.
³ Preheating will start.
• If you don't need preheating,
eliminate Step 3.
• During preheating, "P" appears in
the display window. Do not open the
door.
• When preheating is completed,
the oven will beep three times and
"P END" will appear in the display
window.
• If the oven door is not opened after
preheating, the selected temperature
will be maintained for 30 minutes.
After 30 minutes, the oven will shut
off automatically and beep five
times.
4.
• After preheating, place food in
the oven. Set the baking time 20
minutes (up to 9 hours).
• If you don't need preheating, set the
baking time directly.
5.
• Press Start button.
³ Baking will start.
Notes:
1. Always use Metal Pan when using Bake Feature.
2. Do not preheat with Metal Pan.
3. For recipes that do not require preheating, eliminate step 3.
4. When the selected cooking time is less than one hour, the
time counts down second by second.
5. When the selected cooking time is more than one hour, the
time counts down minute by minute until 1 hour remains.
The timer will then count down second by second.
6. Press Bake pad during preheating or baking to display the
temperature you programmed.
IP1479_38S71CP_Eng_02_071107.indd Sec1:22IP1479_38S71CP_Eng_02_071107.indd Sec1:22 2007-11-7 @Tom@ 11:33:572007-11-7 @Tom@ 11:33:57
23

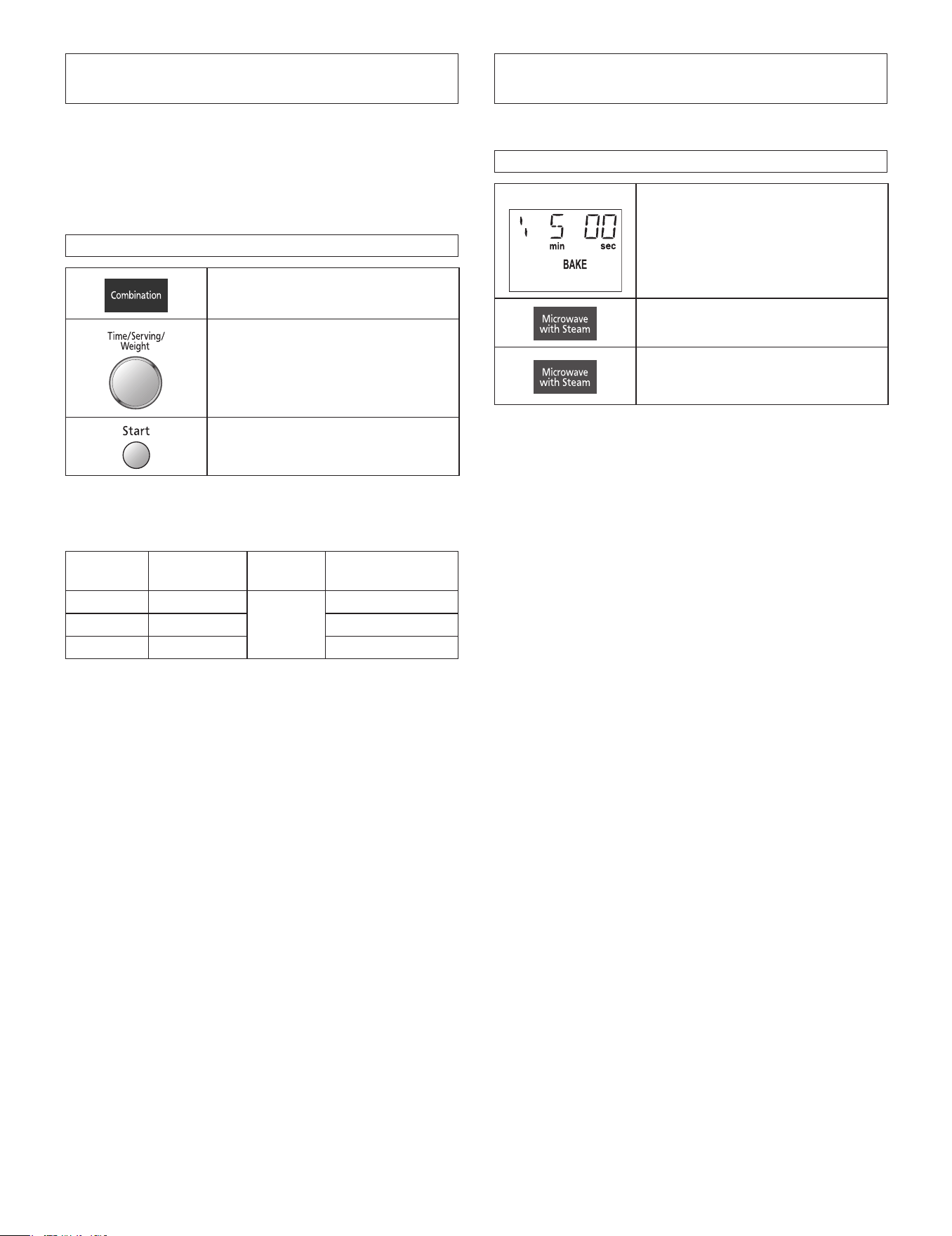

Steam Shot Feature
This feature allows you add steam during Bake cooking (up to
3 minutes).
Example: Add 1 minute Steam during Bake cooking.
1.
• Bake cooking.
2.
• Press and hold for 2 seconds, 1
minute of steam shot will be added.
3.
• If you want to add 3 minutes steam,
press Microwave with Steam pad
twice within 5 seconds after step 2.
Notes:
1. This feature only can be used in Bake cooking.
2. Always fill the water tank before using.
3. The original time you set is still counting down when setting
steam shot.
4. The steam shot setting time cannot exceed the remaining
cooking time.
5. Steam Shot is only to add Steam. This does not use
microwave power.
Combination Feature
There are three setting levels for combination. COMB 1, 2 or
3. It's a good way for roasting foods by combining microwave
and bake effectively. It's suitable for roasting poultry, meat and
seafood. This function can ensure the foods cook evenly and
retain their crispness as well as browning of certain foods.
Please turn over the foods when half of the cooking time has
elapsed, then continue cooking.
Example: To cook at COMB 2 for 30 minutes.
1.
• Press Combination pad twice.
³ Default power is COMB 1.
2.
• Rotate the Time/Serving/Weight
dial to set time.
(up to 9 hours)
3.
• Press Start button.
³ Cooking will start.
Notes:
1. Use only microwavable and heat-safe dishes.
2. Metal cookwave should be avoided in Combination cooking.
3. Do not use plastic wrap or wax paper.
Settings Oven Temp.
Microwave
Power
Food
COMB 1 400 °F
10 %
Pork, Poultry
COMB 2 350 °F Beef (med.)
COMB 3 300 °F Beef (rare)
IP1479_38S71CP_Eng_02_071107.indd Sec1:23IP1479_38S71CP_Eng_02_071107.indd Sec1:23 2007-11-7 @Tom@ 11:33:572007-11-7 @Tom@ 11:33:57
24
Timer Setting
To set Kitchen Timer:
Example: To count down 5 minutes.
1.
• Press once to select "Timer".
2.
• Set time as 5 minutes by using
Time/Serving/Weight dial.
(up to 90 minutes)
3.
• Press Start button.
³ Time will count down without oven
operating.
To set Stand Timer:
Example: To cook at P8 power for 3 minutes, with stand
time of 5 minutes.
1.
• Press 3 times to select "P8 power".
2.
• Set the desired time as 3 minutes by
using Time/Serving/Weight dial.
3.
• Press once.
4.
• Set stand time as 5 minutes by using
Time/Serving/Weight dial.
(up to 90 minutes)
5.
• Press Start button.
³ Cooking will start. After cooking,
stand time will count down without
oven operating.
Note: Oven will beep twice between each stage.
To set Delay Start:
Example: To delay the start of cooking for 5 minutes, and
cook at P8 power for 3 minutes.
1.
• Press once to select "Timer".
2.
• Set delay time as 5 minutes by using
Time/Serving/Weight dial.
(up to 90 minutes)
3.
• Press 3 times to select "P8 power".
4.
• Set the desired time as 3 minutes by
using Time/Serving/Weight dial.
5.
• Press Start button.
³ Delay time will count down. Oven
will beep twice then cooking will
start.
Notes:
1. If the oven door is opened during Kitchen Timer, Stand
Time, Delay Start, the time in the display window will
continue to count down.
2. Stand Time and Delay Start cannot be programmed
together with automatic function. This is to prevent the
starting temperature of food from rising before defrosting
or cooking begins. A change in starting temperature could
cause inaccurate results and/or food poisoning.
This feature allows you to program the oven as a kitchen timer. It can be also used to program a stand time after cooking is finished
or to program a delay start.
IP1479_38S71CP_Eng_02_071107.indd Sec1:24IP1479_38S71CP_Eng_02_071107.indd Sec1:24 2007-11-7 @Tom@ 11:33:572007-11-7 @Tom@ 11:33:57
25

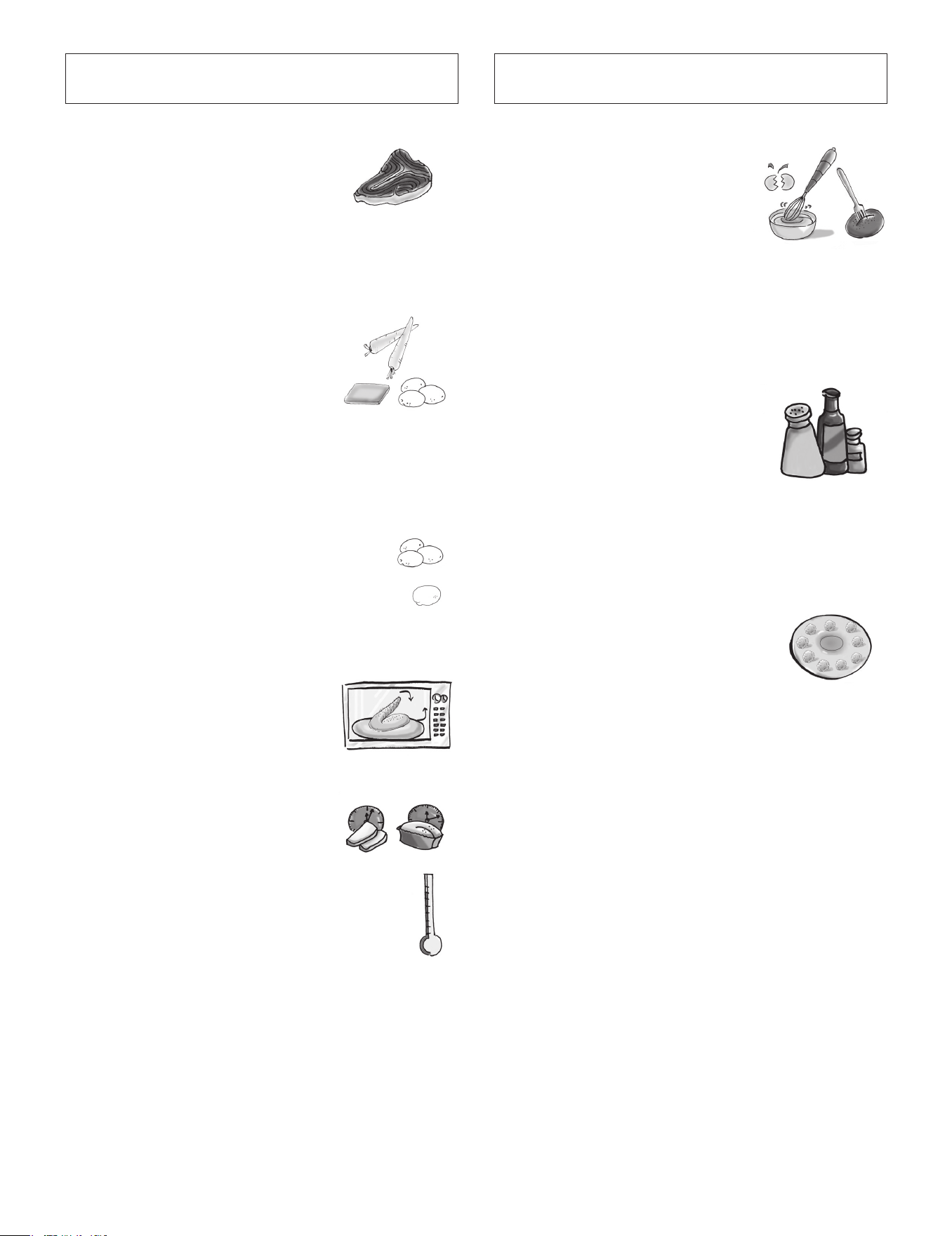

Food Characteristics
Bone and Fat
Both bone and fat affect cooking. Bones
may cause irregular cooking. Meat next to
the tips of bones may overcook while meat
positioned under a large bone, such as a
ham bone, may be undercooked. Large
amounts of fat absorb microwave energy and the meat next to
these areas may overcook.
Density
Porous, airy foods such as breads, cakes
or rolls take less time to cook than heavy,
dense foods such as potatoes and roasts.
When reheating donuts or other foods with
different centres be very careful. Certain
foods have centres made with sugar, water,
or fat and these centres attract microwaves
(For example, jelly donuts). When a jelly
donut is heated, the jelly can become extremely hot while the
exterior remains warm to the touch. This could result in a burn
if the food is not allowed to cool properly in the centre.
Quantity
Two potatoes take longer to cook than one potato.
As the quantity of the food decreases so does the
cooking time. Overcooking will cause the moisture
content in the food to decrease and a fire could
result. Never leave microwave unattended while in
use.
Shape
Uniform sizes heat more evenly. The thin
end of a drumstick will cook more quickly
than the meaty end. To compensate for
irregular shapes, place thin parts toward
the centre of the dish and thick pieces
toward the edge.
Size
Thin pieces cook more quickly than thick
pieces.
Starting Temperature
Foods that are at room temperature take less time to
cook than if they are chilled, refrigerated, or frozen.
Cooking Techniques
Piercing
Foods with skins or membranes must
be pierced scored or have a strip of
skin peeled before cooking to allow
steam to escape. Pierce clams, oysters,
chicken livers, whole potatoes and
whole vegetables. Whole apples or new
potatoes should have a 1-inch strip of
skin peeled before cooking. Score sausages and frankfurters.
Do not Cook/Reheat whole eggs with or without the shell.
Steam build up in whole eggs may cause them to explode, and
possibly damage the oven or cause injury. Reheating SLICED
hard-boiled eggs and cooking SCRAMBLED eggs is safe.
Browning
Foods will not have the same brown
appearance as conventionally cooked
foods or those foods which are cooked
utilizing a browning feature. Meats and
poultry may be coated with browning
sauce, Worcestershire sauce, barbecue
sauce or shake-on browning sauce. To use, combine browning
sauce with melted butter or margarine and brush on before
cooking. For quick breads or muffins, brown sugar can be used
in the recipe in place of granulated sugar, or the surface can be
sprinkled with dark spices before baking.
Spacing
Individual foods, such as baked potatoes,
cupcakes and appetizers, will cook more
evenly if placed in the oven equal distances
apart. When possible, arrange foods in a
circular pattern.
IP1479_38S71CP_Eng_02_071107.indd Sec1:25IP1479_38S71CP_Eng_02_071107.indd Sec1:25 2007-11-7 @Tom@ 11:33:582007-11-7 @Tom@ 11:33:58
26
Cooking Techniques
(continued)
Turning
It is not possible to stir some foods to distribute the heat evenly.
At times, microwave energy will concentrate in one area of
the food. To help ensure even cooking, these foods need to
be turned. Turn over large foods, such as roasts or turkeys,
halfway through cooking.
Stand Time
Most foods will continue to cook by conduction after the
microwave oven is turned off. In meat cookery, the internal
temperature will rise 5°F to 15°F (3°C to 8°C), if allowed to
stand, tented with foil, for 10 to 15 minutes. Casseroles and
vegetables need a shorter amount of standing time, but this
standing time is necessary to allow foods to complete cooking
to the centre without overcooking on the edges.
Test for Doneness
The same tests for doneness used in conventional cooking
may be used for microwave cooking. Meat is done when fork-
tender or splits at fibers. Chicken is done when juices are clear
yellow and drumstick moves freely. Fish is done when it flakes
and is opaque. Cake is done when a toothpick or cake tester is
inserted and comes out clean.
ABOUT FOOD SAFETY AND COOKING
TEMPERATURE
Check foods to see that they are cooked to the United States
Department of Agriculture's recommended temperatures.
TEMP FOOD
160°F (72°C) Fish,
Seafood,
Ground beef, veal, and lamb
fresh pork (medium)
egg dishes
beef, veal, lamb (roasts, steaks chops)
medium.
165°F (74°C) leftovers
ready to reheat refrigerated deli and carryout
"fresh food" ground chicken or turkey.
170°F (77°C) beef, veal, lamb (roasts, steaks, chops) well
done
fresh pork (roasts, steaks, chops) well done
white meat or poultry.
180°F (83°C) dark meat or poultry
To test for doneness, insert a meat thermometer in a thick
or dense area away from fat or bone. NEVER leave the
thermometer in the food during cooking, unless it is approved
for microwave oven use.
Covering
As with conventional cooking, moisture evaporates during
microwave cooking. Casserole lids or plastic wrap are used
for a tighter seal. When using plastic wrap, vent the plastic
wrap by folding back part of the plastic wrap from the edge of
the dish to allow steam to escape. Loosen or remove plastic
wrap as recipe directs for stand time. When removing plastic
wrap covers, as well as any glass lids, be careful to remove
them away from you to avoid steam burns. Various degrees
of moisture retention are also obtained by using wax paper or
paper towels.
Shielding
Thin areas of meat and poultry cook more quickly than meaty
portions. To prevent overcooking, these thin areas can be
shielded with strips of aluminum foil. Wooden toothpicks may
be used to hold the foil in place.
CAUTION is to be exercised when using foil. Arcing can
occur if foil is too close to oven wall or door and damage to
your oven will result.
Cooking time
A range of cooking time is given in each recipe. The time range
compensates for the uncontrollable differences in food shapes,
starting temperature, and regional preferences. Always cook
food for the minimum cooking time given in a recipe and check
for doneness. If the food is undercooked, continue cooking. It is
easier to add time to an undercooked product. Once the food is
overcooked, nothing can be done.
Stirring
Stirring is usually necessary during microwave cooking. Always
bring the cooked outside edges toward the centre and the less
cooked centre portions toward the outside of the dish.
Rearranging
Rearrange small items such as chicken pieces, shrimp,
hamburger patties, or pork chops. Rearrange pieces from the
edge to the centre and pieces from the centre to the edge of
the dish.
IP1479_38S71CP_Eng_02_071107.indd Sec1:26IP1479_38S71CP_Eng_02_071107.indd Sec1:26 2007-11-7 @Tom@ 11:34:002007-11-7 @Tom@ 11:34:00
27
Auto Menu Feature
This feature allows you to cook certain menus by setting their serving size/weight. It will cook automatically without you setting
power and cooking time.
Auto Cook menus are shown in the chart on the following pages.
Auto Menu Feature has:
Microwave Auto Menu
• Auto Reheat
• Popcorn
• Bacon
• Shrimp (with Steam)
• Fresh Vegetables
• Frozen Vegetables
• Potatoes
• Frozen Entrées
• Frozen Dinner
Bake Auto Menu
• Cake
• Pie*
• Cream Puff (with Steam)*
• Dinner Roll
• French Bread (with Steam)
Combination Auto Menu
• Beef Medium
• Pot Roast*
• Pork Roast
• Whole Chicken (with Steam)
• Meat Loaf*
Auto Cleaning
• Cleaning (with Steam)
• Cleaning of Evaporation Tray
Notes:
1. This section has detailed recipes for the Auto Menu with " * " mark shown above. Please refer to page 37.
2. NEVER USE Metal Pan in Microwave cooking and Bake preheating.
3. Always fill the Water Tank before cooking with Steam.
Caution:
Glass Tray and Metal Pan can get hot during cooking. Cooking oils and grease can splash after cooking time is finished. Use
potholders to avoid burns when removing accessories from the oven. Avoid contact with splashing grease.
IP1479_38S71CP_Eng_02_071107.indd Sec1:27IP1479_38S71CP_Eng_02_071107.indd Sec1:27 2007-11-7 @Tom@ 11:34:012007-11-7 @Tom@ 11:34:01
28
Microwave Auto Menu Feature
Microwave Auto Menu Chart:
Menu
Serving Display
More/Less
Accessories
Hints
Lb KG Glass Tray Metal Pan
Auto
Reheat
1 Serv
(4 - 6 oz)
1 Serv
(110 g - 170 g)
+10%/-10% No No
1. All foods must be previously cooked.
2. Foods should always be covered loosely
with plastic wrap, wax paper or casserole
lid.
3. All foods should have a covered stand
time of 3 to 5 minutes.
4. DO NOT reheat bread and pastry
products using Auto Reheat. Use manual
power and time instead.
5. DO NOT reheat beverages.
6. Times are based on an approximate
serving size of 4 oz.
7. A plate of food is normally 3-4 servings.
2 Serv
(8 oz)
2 Serv
(225 g)
3 Serv
(12 oz)
3 Serv
(340 g)
4 Serv
(16 oz)
4 Serv
(450 g)
Popcorn
3.5 oz 99 g
1 tap = More +
(Adds about 5 seconds)
2 taps = More ++
(Adds about 10 seconds)
3 taps = Less −
(Subtracts 5 seconds)
4 taps = Less −−
(Subtracts 10 seconds)
5 taps = Original setting
No No
1. Pop one bag at a time.
2. Place bag in oven according to
manufacturers' directions.
3. Start with popcorn at room temperature.
4. To obtain best cooking results, fold in the
four corners of the bag, so that the bag
turns freely.
5. After popping, allow the contents of the
bag to cool for a few minutes before
opening. Open bag carefully away from
face and body because popcorn and
steam are extremely hot.
6. Do not reheat unpopped kernels or reuse
bag.
7. If popcorn is of a different weight than
listed, follow instructions on popcorn
package. Never leave the oven
unattended. If popping slows to 2 to 3
seconds between pops, stop oven.
Overcooking can cause fire.
3.0 oz 85 g
1.75 oz 50 g
Bacon
4 Slices 4 Slices
+10%/-10% No No
Place slices of bacon on top of paper-towel-
lined microwave safe dish. Cover with paper
towel. Time may vary by brand and weight. If
bacon is not cooked to your liking, continue to
heat by manually adding more time. Please
rotate the plate after two-beep signal sounds.
6 Slices 6 Slices
10 Slices 10 Slices
12 Slices 12 Slices
Shrimp
(with
Steam)
4 oz 110 g
+10%/-10% No No
1 Always fill the water tank before cooking.
2 If the water tank is empty during cooking,
the cooking will stop, the display window
shows "CHECK WATER LEVEL", please
refill water tank then press Start button.
3 Arrange in a single layer in a microwave
safe container.
4 Don't cover with lid of plastic wrap.
8 oz 225 g
Fresh
Vegetables
4 oz 110 g
+10%/-10% No No
All pieces should be the same size. Wash
thoroughly, add 1 tbsp. of water per
1
/
2
cup
of vegetables, and cover with lid or vented
plastic wrap. Do not salt/butter until after
cooking.
8 oz 225 g
12 oz 340 g
16 oz 450 g
IP1479_38S71CP_Eng_02_071107.indd Sec1:28IP1479_38S71CP_Eng_02_071107.indd Sec1:28 2007-11-7 @Tom@ 11:34:012007-11-7 @Tom@ 11:34:01
29
Operation:
1.
• Rotate Menu/Temperature dial
clockwise to select the desired
menu.
2.
• Rotate Time/Serving/Weight dial to
set serving or weight.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
Microwave Auto Menu Feature (continued)
Menu
Serving Display
More/Less
Accessories
Hints
Lb KG Glass Tray Metal Pan
Frozen
Vegetables
6 oz 170 g
+10%/-10% No No
Wash thoroughly, add 1 tbsp. of water per
1
/
2
cup of vegetables, and cover with lid or
vented plastic wrap. Do not salt/butter until
after cooking. (Not suitable for vegetables in
butter or sauce.)
10 oz 300 g
16 oz 450 g
Potatoes
1 pc 1 pc
+10%/-10% No No
Pierce each potato with a fork 6 times spacing
around surface. Place potato or potatoes on
paper-towel-lined Oven Cavity Floor, at least
1 inch (2.5 cm) apart. Do not cover. Let stand
5 minutes to complete cooking. After two-
beep signal sounds, please turn over.
2 pcs 2 pcs
3 pcs 3 pcs
4 pcs 4 pcs
Frozen
Entrées
8 oz 225 g
+10%/-10% No No
Follow manufacturers' directions for
preparation. After 2 beeps, stir or rearrange.
Be careful when removing the film cover
after cooking. Remove facing away from you
to avoid steam burns. If additional time is
needed, continue to cook manually. After two-
beep sound, stir and rotate.
10 oz 300 g
20 oz 600 g
32 oz 900 g
Frozen
Dinner
12 oz 340 g
+10%/-10% No No
Follow manufacturer's directions for covering
or removing covers. Do not use frozen foods
packaged in foil trays. After two-beep sound,
please stir and rotate.
16 oz 450 g
IP1479_38S71CP_Eng_02_071107.indd Sec1:29IP1479_38S71CP_Eng_02_071107.indd Sec1:29 2007-11-7 @Tom@ 11:34:012007-11-7 @Tom@ 11:34:01
30
Bake Auto Menu Feature
Bake Auto Menu Chart:
Menu Serving More/Less Preheat
Accessories
Hints
Glass Tray Metal Pan
Cake
Cake A
+10%/-10% No
No Yes
This menu is a 8 or 9 inch round cake.
Please follow manufacturer's cooking
preparations.
Cake B No Yes
This menu is a bundt or tube. Please
follow manufacturer's cooking
preparations.
Cake C No Yes
This menu is a loaf for over 50 minutes of
cooking. Loaf pan(s) need to be rotated
when 2 beeps sound.
Cake D No Yes
This menu is a loaf for less than 50
minutes of cooking. Loaf pan(s) need to
be rotated when 2 beeps sound.
Pie
Frozen Pie
+10%/-10% No
No Yes
Use a 9 inch round pie. Please follow
manufacturer's cooking preparations.
Fresh Pie No Yes
Please refer to page 37 to see recipe
specifications.
Pre-Cooked No Yes
Please follow manufacturer's cooking
preparations.
Cream Puff
(with Steam)
Cream Puff +10%/-10% Yes No
No
(preheating)
This menu uses a Steam function.
Please fill water tank. For recipe, please
refer to page 37.
Yes
(cooking)
Dinner Roll Dinner Roll +10%/-10% Yes No
No
(preheating)
Please follow manufacturer's cooking
preparations.
Yes
(cooking)
French Bread
(with Steam)
French Bread +10%/-10% Yes No
No
(preheating)
This menu uses a Steam function.
Please fill water tank. Please follow
manufacturer's cooking preparations.
Yes
(cooking)
IP1479_38S71CP_Eng_02_071107.indd Sec1:30IP1479_38S71CP_Eng_02_071107.indd Sec1:30 2007-11-7 @Tom@ 11:34:022007-11-7 @Tom@ 11:34:02
31
Operation:
CAKE:
1.
• Rotate Menu/Temperature dial
clockwise to CAKE.
2.
• Rotate Time/Serving/Weight dial
clockwise to desired cake setting.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
Serving Food
CAKE A Round Cake
CAKE B Bundt or Tube
CAKE C Loaf Pan - over 50 minutes of cooking
CAKE D L
oaf Pan - less than 50 minutes of cooking
Notes:
1. This cooking does not require preheating.
2. Place cooking pan on Metal Pan. Do not place Metal Pan
directly onto Oven Cavity Floor. Insert Metal Pan directly
between rails.
3. During cooking for CAKE C and CAKE D, cooking pan
needs to be rotated after 2 beeps sound.
4. CAREFULLY REMOVE Metal Pan during or after cooking
to avoid dropping.
PIE:
1.
• Rotate Menu/Temperature dial
clockwise to PIE.
2.
• Rotate Time/Serving/Weight dial
clockwise to desired PIE setting.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
Serving Food Hints
Frozen Pie 9" whole pie Double crust pies that are
frozen. (Weight should not be
more than 3lbs) Follow the
manufacturer's directions for
preparation.
Fresh Pie 9" whole pie Double-crust pies with fresh
fruit fillings.
Pre-cooked 9" pie It should be stored at
refrigerator temperature
(35-40°F). After cooking
temperature should be 125°F.
Notes:
1. This cooking does not require preheating.
2. Place cooking pan on Metal Pan. Do not place Metal Pan
directly onto Oven Cavity Floor. Insert Metal Pan directly
between rails.
3. CAREFULLY REMOVE Metal Pan during or after cooking
to avoid dropping.
Bake Auto Menu Feature (continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:31IP1479_38S71CP_Eng_02_071107.indd Sec1:31 2007-11-7 @Tom@ 11:34:022007-11-7 @Tom@ 11:34:02
32

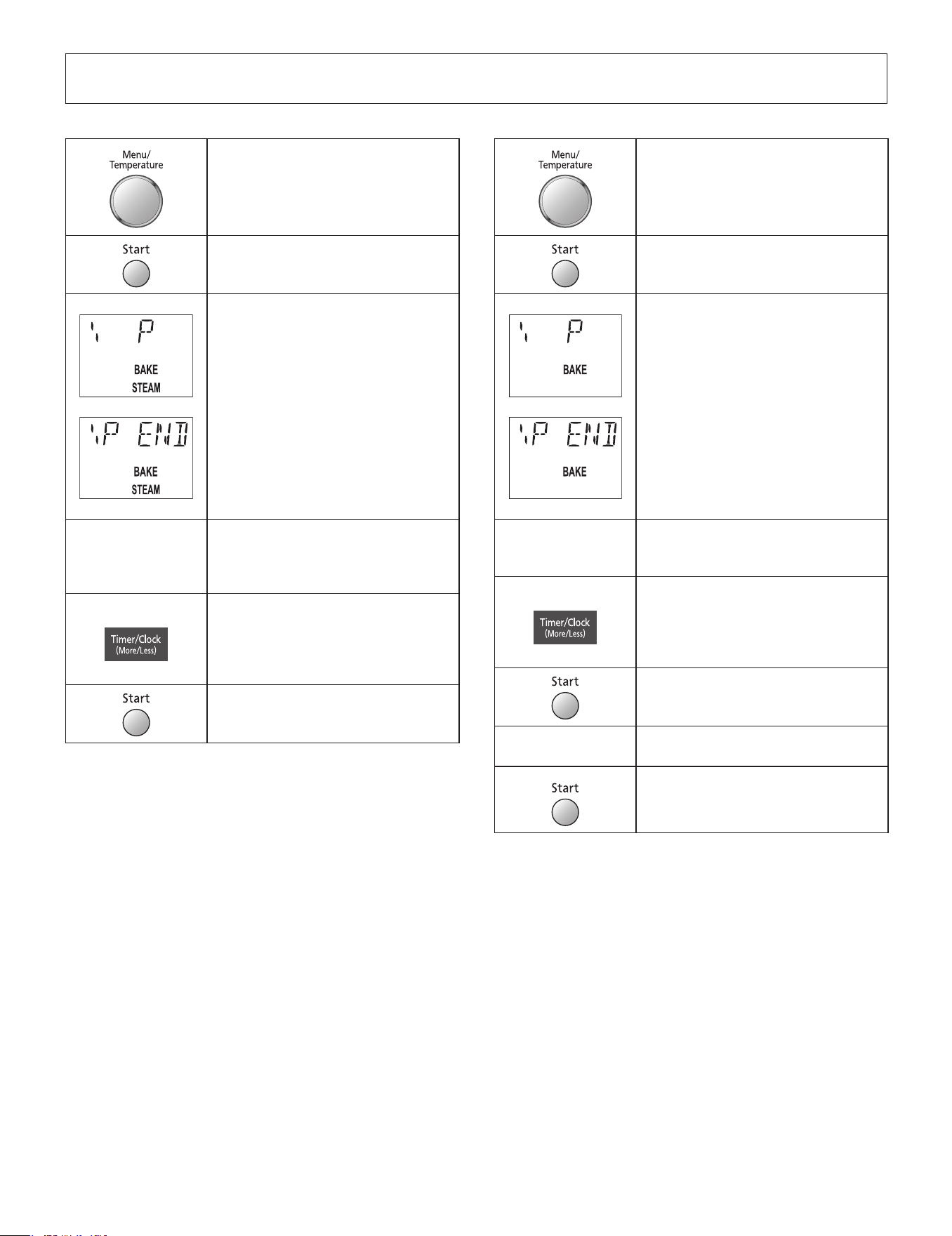

CREAM PUFF:
1.
• Rotate Menu/Temperature dial
clockwise to Cream Puff.
2.
• Press Start button.
³ Preheating will start.
• During preheating, "P" appears in
the display window. Do not open the
door.
• When preheating is completed, the
oven will keep beeping and "P END"
will appear in the display window,
until oven door is opened.
• If the oven door is not opened after
preheating, the selected temperature
will be maintained for 30 minutes.
After 30 minutes, the oven will shut
off automatically and beep five
times.
• After preheating, oven will continue
to beep.
• Place food in oven and fill the water
tank.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
Notes:
1. This cooking requires preheating.
2. Use a non-stick pan lines to cover top of Metal Pan. This is
used for easy removal of cream puffs.
3. Do not place Metal Pan directly onto Oven Cavity Floor.
Insert it directly between rails.
4. CAREFULLY REMOVE Metal Pan during or after cooking
to avoid dropping.
DINNER ROLL:
1.
• Rotate Menu/Temperature dial
clockwise to Dinner Roll.
2.
• Press Start button.
³ Preheating will start.
• During preheating, "P" appears in
the display window. Do not open the
door.
• When preheating is completed, the
oven will keep beeping and "P END"
will appear in the display window,
until oven door is opened.
• If the oven door is not opened after
preheating, the selected temperature
will be maintained for 30 minutes.
After 30 minutes, the oven will shut
off automatically and beep five
times.
• After preheating, oven will continue
to beep.
• Place food in oven.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
• During cooking after 2 beeps sound,
rotate Metal Pan.
5.
• Press Start button.
³ Cooking will continue.
Notes:
1. This cooking requires preheating.
2. Manufacturer's directions for preparation.
3. Do not place Metal Pan directly onto Oven Cavity Floor.
Insert it directly between rails.
4. CAREFULLY REMOVE Metal Pan during or after cooking
to avoid dropping.
Bake Auto Menu Feature (continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:32IP1479_38S71CP_Eng_02_071107.indd Sec1:32 2007-11-7 @Tom@ 11:34:022007-11-7 @Tom@ 11:34:02
33

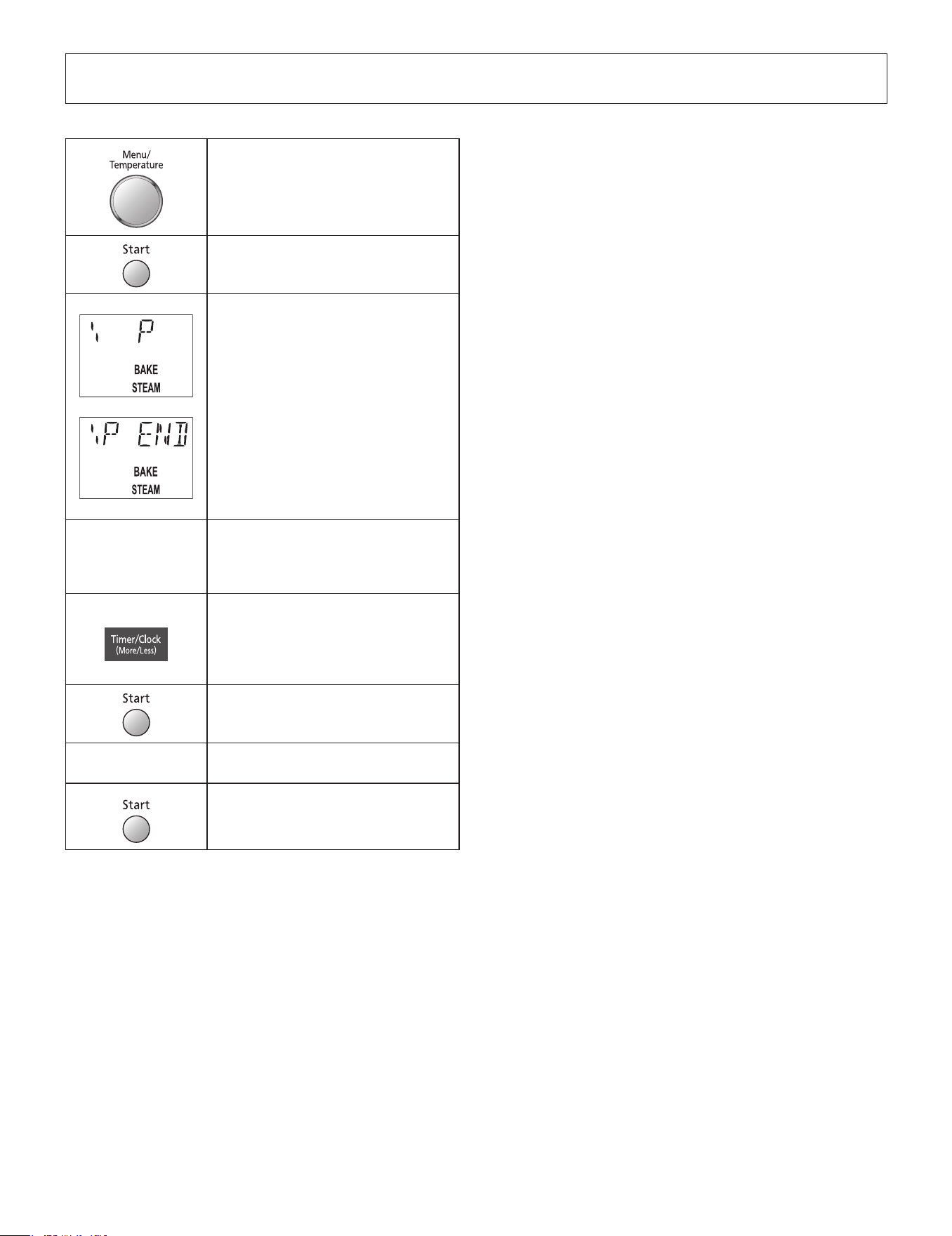

FRENCH BREAD:
1.
• Rotate Menu/Temperature Dial
clockwise to French Bread.
2.
• Press Start button.
³ Preheating will start.
• During preheating, "P" appears in
the display window. Do not open the
door.
• When preheating is completed, the
oven will keep beeping and "P END"
will appear in the display window,
until oven door is opened.
• If the oven door is not opened after
preheating, the selected temperature
will be maintained for 30 minutes.
After 30 minutes, the oven will shut
off automatically and beep five
times.
• After preheating, oven will continue
to beep.
• Place food in oven and fill the water
tank.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ The cooking time appears in the
display window and count down.
• During cooking after 2 beeps sound,
rotate Metal Pan.
5.
• Press Start button.
³ Cooking will continue.
Notes:
1. This cooking requires preheating.
2. Follow manufacturer's directions for preparation.
3. Do not place metal pan directly onto Oven Cavity Floor.
Insert metal pan directly between rails.
4. CAREFULLY REMOVE Metal Pan during or after cooking
to avoid dropping Metal Pan.
5. If the water tank is empty, the cooking will continue.
6. The maximum length of French Bread dough should be 4
inches shorter than the length of the Metal Pan to get the
best baking result. Place the Metal Pan 2 inches from the
pan edge.
Bake Auto Menu Feature (continued)
IP1479_38S71CP_Eng_02_071107.indd Sec1:33IP1479_38S71CP_Eng_02_071107.indd Sec1:33 2007-11-7 @Tom@ 11:34:032007-11-7 @Tom@ 11:34:03
34

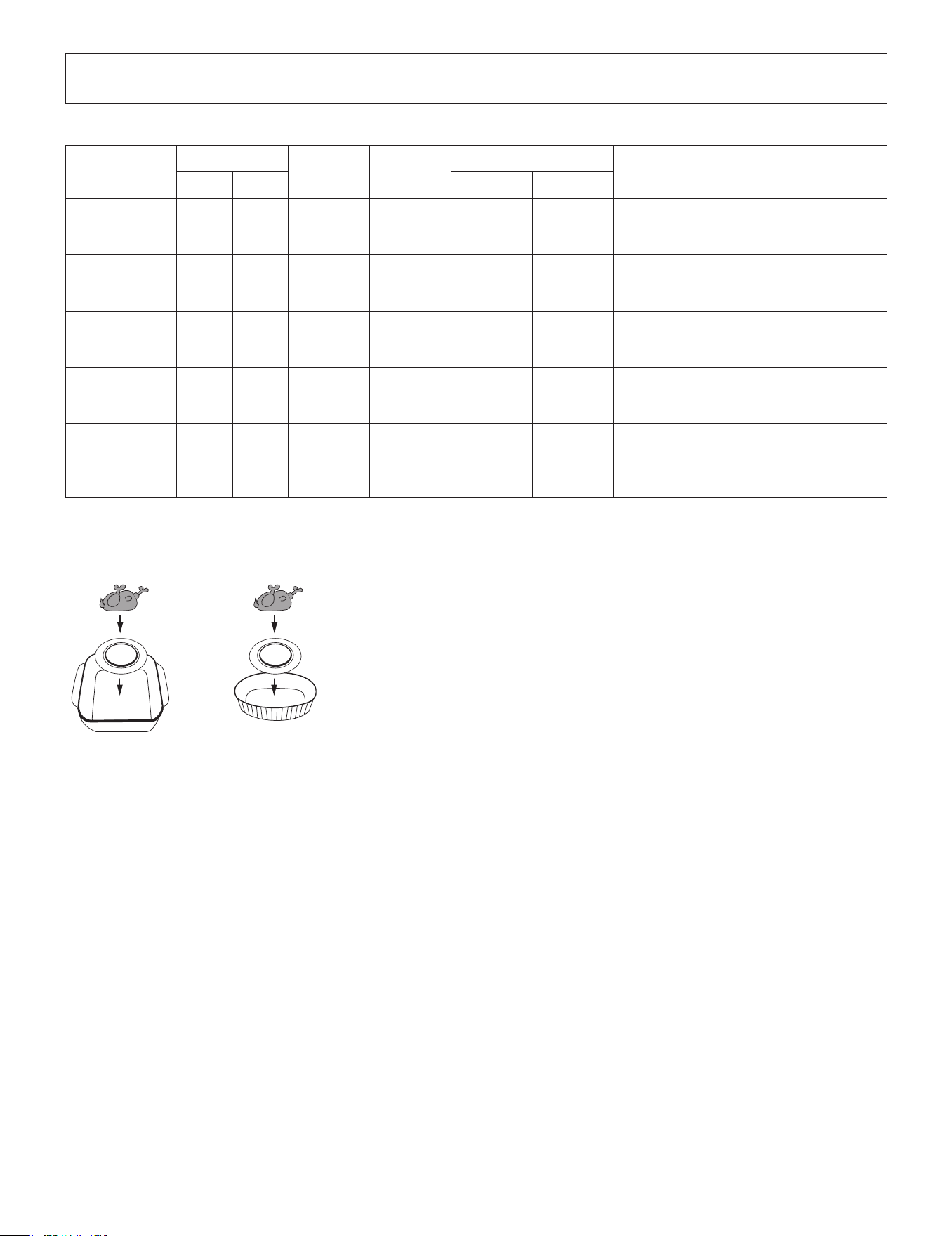

Combination Auto Menu Feature
Combination Auto Menu Chart:
Menu
Serving
More/Less Preheat
Accessories
Hints
Lb KG Glass Tray Metal Pan
Beef Medium 2.0-4.0 1.0-2.0 ±10% No No No
For recommended cooking container, refer
to the Illustration 1 on the bottom of this
page. After 2 beeps sound, turn over.
Pot Roast 2.0-4.0 1.0-2.0 ±10% No No No
Use cooking container with lid 4 qt or
larger. After 2 beeps sound, turn over. For
recipe, please refer to page 37.
Pork Roast 1.0-4.0 0.5-2.0 ±10% No No No
For recommended cooking container, refer
to the Illustration 1 on the bottom of this
page. After 2 beeps sound, turn over.
Whole Chicken
(with Steam)
2.0-5.0 1.0-2.5 ±10% No No No
For recommended cooking container, refer
to the Illustration 1 on the bottom of this
page. After 2 beeps sound, turn over.
Meat Loaf 1.5 0.7 ±10% No No No
Use only glass, ceramic, or silicon
container. Do not use any metal cooking
pan. After 2 beeps sound, rotate cooking
pan. For recipe, please refer to page 37.
* Do not use any other cooking pan unless specified. Do not use Metal Pan.
Illustration 1
or
• Use only glass, ceramic, or silicon cooking pan.
• Use a cooking pan size 8 x 8 or larger.
• Place a microwave-safe dish up-side down on bottom of cooking pan.
• Place cooking pan directly onto Oven Cavity Floor.
IP1479_38S71CP_Eng_02_071107.indd Sec1:34IP1479_38S71CP_Eng_02_071107.indd Sec1:34 2007-11-7 @Tom@ 11:34:032007-11-7 @Tom@ 11:34:03
35
Combination Auto Menu Feature (continued)
Operation:
BEEF MEDIUM, POT ROAST, PORK ROAST:
1.
• Rotate Menu/Temperature dial
clockwise to select the desired
menu.
2.
• Rotate Time/Serving/Weight dial to
set weight.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ Cooking will start.
• During cooking after 2 beeps sound,
turn meat over.
5.
• Press Start button.
³ Cooking will continue.
Notes:
1. Place meat, fat side down, on a cooking container. After 2
beeps sound, turn meat over.
2. Use caution when moving the cooking container during and
after cooking.
3. When selecting weight of POT ROAST appeared in the
Display Window, the weight is of meat only, not including
other ingredients.
WHOLE CHICKEN:
1.
• Rotate Menu/Temperature dial
clockwise to select the desired
menu.
2.
• Rotate Time/Serving/Weight dial to
set weight.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
Place food in oven and fill the water
tank.
4.
• Press Start button.
³ Cooking will start.
• During cooking after 2 beeps sound,
turn meat over.
5.
• Press Start button.
³ Cooking will continue.
Notes:
1. Place WHOLE CHICKEN, breast side down, on a cooking
container. After 2 beeps sound, turn bird over.
2. Use caution when moving the cooking container during and
after cooking.
IP1479_38S71CP_Eng_02_071107.indd Sec1:35IP1479_38S71CP_Eng_02_071107.indd Sec1:35 2007-11-7 @Tom@ 11:34:042007-11-7 @Tom@ 11:34:04
36
Combination Auto Menu Feature (continued)
MEAT LOAF:
1.
• Rotate Menu/Temperature dial
clockwise to select the desired
menu.
2.
• Rotate Time/Serving/Weight dial
clockwise to desired.
3.
• To adjust the cooking time for a
larger or shorter time if desired.
• Press once to choose "more". Press
twice to choose "less".
• If no need to adjust, skip this step.
4.
• Press Start button.
³ Cooking will start.
• During cooking after 2 beeps sound,
rotate.
5.
• Press Start button.
³ Cooking will continue.
No te:
After 2 beeps sound, rotate the loaf pan 180 degrees.
IP1479_38S71CP_Eng_02_071107.indd Sec1:36IP1479_38S71CP_Eng_02_071107.indd Sec1:36 2007-11-7 @Tom@ 11:34:042007-11-7 @Tom@ 11:34:04
37
Auto Menu Recipe
PIE (FRESH)
Ingredients:
2 cup (500 ml) flour
1 tsp (5 ml) salt
2
/
3
cup (150 ml) shortening
5-7 tbsp (75-100 ml) cold water
2 lb (1 kg) fresh baking apples
1 tbsp (15 ml) lemon juice
3
/
4
cup (175 ml) sugar
2 tbsp (25 ml) flour
1 tsp (5 ml) cinnamon
1
/
8
tsp (0.5 ml) nutmeg
1
/
8
tsp (0.5 ml) salt
Method:
Pie Crust:
In a medium bowl, combine flour and salt. Cut in shortening
until mixture resembles coarse crumbs. Add water, a
tablespoon at a time, stirring lightly with fork. Gather dough into
a ball. Roll dough
1
/
8
" (0.5 cm) thick. Roll out half of pastry and
line 9" (23 cm) pie plate. Roll out top crust, set aside.
Filling:
Peel, core, and slice each apple into sixteenths; toss with
lemon juice. In a small bowl combine sugar, flour, cinnamon,
nutmeg, and salt; add apples and toss until well coated. Place
in lined pie plate. Dot with butter. Fit top crust and flute edges;
cut 4 vent holes in top crust. Place pie plate on Metal Pan and
place in oven between rails. Allow to cool after cooking.
POT ROAST
Ingredients:
2
1
/
2
-3 lb (1.25-1.5 kg) short rib or blade foiled roast
3 onions, quartered
2 carrots
2 celery stalks, cut into pieces
1 cup (250 ml) turnip, cubed
1 (19 oz) (540 ml) can of tomatoes
1 garlic clove
1 tsp (5 ml) basil
1
/
2
tsp (2 ml) salt
Method:
Put meat with vegetables and seasonings in a casserole. Fat
side down. Cover with lid.
CREAM PUFF
Ingredients:
7
1
/
2
tbsp (100 g) butter or margarine
3
/
4
cup (150 g) water
2
/
3
cup (100 g) unbleached organic white flour
4 (190 g) eggs
Method:
Bring butter and water to a boil in a saucepan. Stir with
wooden spoon until butter has melted. Add the flour in pan
and stir continuously. Keep stirring until the mixture appears
transparent. Remove the pan from the heat. Gradually add
beaten eggs and mix well. Lay a sheet of kitchen parchment
paper onto Metal Pan. Place mixture into pastry bag with all air
removed. Squeeze out the mixture into 1
1
/
2
" (4 cm) in diameter.
MEAT LOAF
Ingredients:
1
1
/
2
lb (750 g) ground beef
1 egg
1 cup milk
1
/
2
cup plain bread crumbs
1
/
4
cup celery (finely chopped)
1 (100 g) onion (finely chopped)
1 tbsp ketchup
1
/
2
tsp salt
1
/
4
tsp pepper
Method:
Combine in one bowl ground beef, egg, milk, celery, and onion.
In another bowl, combine bread crumbs, ketchup, salt, and
pepper. Then combine second mixture with the first mixture
and mix well together. Pack mixture into a loaf pan and smooth
out top.
IP1479_38S71CP_Eng_02_071107.indd Sec1:37IP1479_38S71CP_Eng_02_071107.indd Sec1:37 2007-11-7 @Tom@ 11:34:042007-11-7 @Tom@ 11:34:04
38
To Set Cleaning Function
Cleaning
This feature is used to assist in the removal of fat/grease by
softening it. (30 minutes is required)
1.
• Rotate Menu/Temperature dial
clockwise to Cleaning.
2.
• Press Start button.
³ Cleaning will start.
Notes:
1. Fill the Water Tank before using.
2. The indicator light will be on during operation.
3. After cleaning, open the door and wipe the oven cavity with
a dry cloth.
Cleaning of Evaporation Tray
This feature is used when the Evaporation Tray has sediment,
and takes 30 minutes.
Preparing the cleaner: Dilute
3
/
4
tsp (2 g) citric acid into 4 tsp
(20 ml) water, then pour into the Evaporation Tray.
1.
• Rotate Menu/Temperature dial
clockwise to Cleaning of Evaporation
Tray.
2.
• Press Start button.
³ Cleaning will start.
Notes:
1. The indicator light will be off during operation.
2. After cleaning, open the door and clean the Ceramic Cover
with water.
3. Dry off the remaining liquid in the Evaporation Tray with a
paper towel.
4. Lemon juice can be used instead of citric acid.
Auto Cleaning Feature
IP1479_38S71CP_Eng_02_071107.indd Sec1:38IP1479_38S71CP_Eng_02_071107.indd Sec1:38 2007-11-7 @Tom@ 11:34:052007-11-7 @Tom@ 11:34:05
39

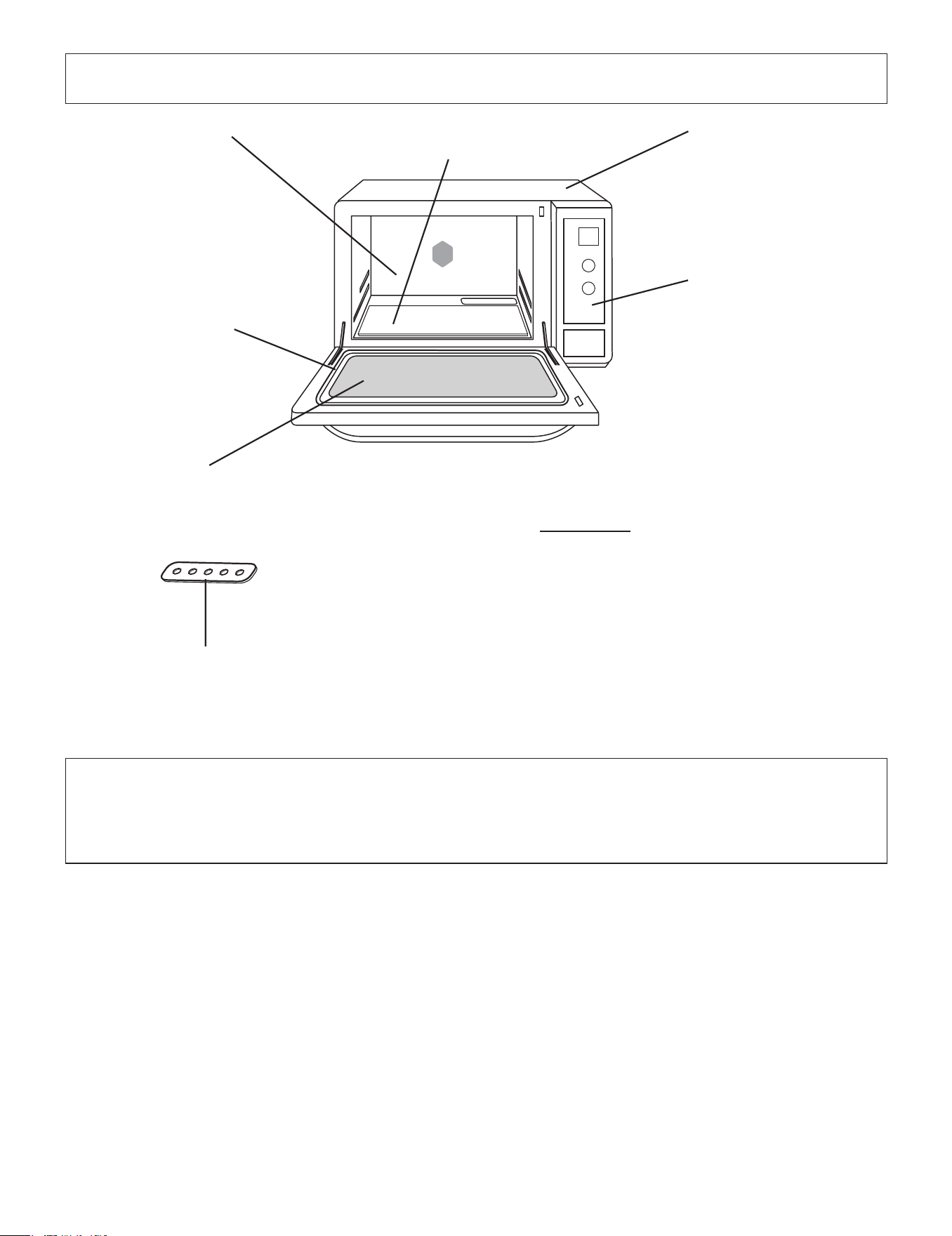

Care and Cleaning of your Microwave Oven
Inside of the oven:
Wipe with a damp cloth after
using. Mild detergent may be
used if needed.
Do not use harsh detergents or
abrasives.
Outside oven surfaces:
Clean with a damp cloth.
To prevent damage to the operating
parts inside the oven, water
should not be allowed to seep into
ventilation openings.
Control Panel:
* Covered with a removable
protective film to prevent
scratches during shipping. Small
bubbles may appear under this
film.
(Hint - To remove film, apply
masking or clear tape to an
exposed corner and pull gently.)
* If the Control Panel becomes
wet, clean it with a soft dry cloth.
Do not use harsh detergents or
abrasives.
Oven Door:
Wipe with a soft dry cloth when steam accumulates inside or around the outside of the oven
door. During cooking, especially under high humidity conditions, steam is given off from the food.
(Some steam will condense on cooler surfaces, such as the oven door. This is normal.)
Inside surface is covered with reinforced glass as a heat and vapor barrier. Do not remove.
IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY.
FOOD RESIDUE AND CONDENSATION MAY CAUSE RUSTING OR ARCING AND DAMAGE
TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES INCLUDING VENT OPENINGS,
OVEN SEAMS.
Notes:
• When decalcifying the oven, only use decalcifying agents with a citric acid base. Do not use vinegar or decalcifying agents
containing vinegar or acetic acid, they will damage the appliance.
• Do not use a steam cleaner to clean this appliance. The steam from the cleaning appliance could penetrate live components and
permanently damage the oven or cause injury.
• Never use cleaners containing sand, silica, soda, chlorides or scouring agents. Hard brushes, scouring cloths, steel wool and
other abrasive materials should not be used.
• Only use tap water to fill the Water Tank. Never use distilled or mineral water.
• Never exceed the "350ml" water level marker when filling up the Water Tank.
• Clean the Water Tank and Sealed Lid frequently. Never remove the sealing band from around the Water Tank Lid, as leaking
water would result in electrical failure and danger of electric shock.
• The Drip Tray, Metal Pan, Glass Tray and Ceramic Cover should be washed and dried each time they are used. They can be
washed in the dishwasher.
Rubber Seal:
Wipe with a soft dry cloth.
Mild detergent may be used
if needed. Do not use knife or
sharp edge.
Oven Cavity Floor:
Always clean the Ceramic Plate after cooling
down with a mild detergent and wipe to dry.
Ceramic Cover:
Always clean the Ceramic Cover with a mild
detergent to avoid obstruction. Clean the cover
after the oven cools down. After using the steam
function and the oven is cooling down, dry up the
water in the evaporating Channel.
IP1479_38S71CP_Eng_02_071107.indd Sec1:39IP1479_38S71CP_Eng_02_071107.indd Sec1:39 2007-11-7 @Tom@ 11:34:052007-11-7 @Tom@ 11:34:05
40
Before Requesting Service
These things are normal:
The oven causes interference with my TV. Some radio and TV interference might occur when you cook with the microwave
oven. This interference is similar to the interference caused by small appliances
such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your
oven.
Steam accumulates on the oven door and
warm air comes from the oven vents.
During cooking, steam and warm air are given off from the food. Most of the steam
and warm air are removed from the oven by the air which circulates in the oven
cavity. However, some steam will condense on cooler surfaces such as the oven
door. This is normal. After use, the oven should be wiped dry (see page 39).
PROBLEM POSSIBLE CAUSE REMEDY
Oven will not turn on.
The oven is not plugged in securely. Remove plug from outlet, wait 10
seconds and re-insert.
Main circuit breaker or main fuse is
tripped or blown.
Reset main circuit breaker or replace
main fuse.
There is a problem with the outlet. Plug another appliance into the outlet to
check if it is working.
Oven Circuit Breaker is tripped. Reset Oven Circuit Breaker to "I"
position.
Oven will not start cooking.
The door is not closed completely. Close the oven door securely.
Start button was not pressed after
programming.
Press Start button.
Another program is already entered into
the oven.
Press Stop/Reset Pad to cancel the
previous program and enter new
program.
The program is not correct. Program again according to the
Operating Instructions.
Stop/Reset Pad has been pressed
accidentally.
Program oven again.
The word "LOCK" appears in the
Display Window.
The CHILD SAFETY LOCK was
activated by pressing Start button 3
times.
Deactivate LOCK by pressing Stop/
Reset pad 3 times.
The oven stops cooking by
microwave and "H97" or "H98"
appears in the display window.
This displaying indicates a problem with
the microwave generation system.
Please contact an authorised Service
Centre (see page 41).
"DEMO MODE PRESS ANY KEY"
appears in the display window.
The oven is in demonstration mode. Press Timer/Clock pad 4 times to exit
the mode.
The fan motor continue operating
after cooking is over.
The fan motor is cooling the electric
components.
It is normal.
IP1479_38S71CP_Eng_02_071107.indd Sec1:40IP1479_38S71CP_Eng_02_071107.indd Sec1:40 2007-11-7 @Tom@ 11:34:052007-11-7 @Tom@ 11:34:05
41
Warranty & Service
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such
defect for a period as stated below from the date of original purchase.
Microwave Oven: Two (2) years, parts and labour (Carry-in Service). Additional three (3) year warranty on the magnetron
(parts only, labour extra).
In-home Service applies to convection, over-the-range and stainless steel ovens.
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service
facility.
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed,
subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been
altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is
used commercially. Dry cell batteries are also excluded from coverage under this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is
required before warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the
exclusion of implied warranties, so the above limitations and exclusions may not be applicable.
WARRANTY SERVICE
FOR PRODUCT OPERATION ASSISTANCE, please contact:
Our Customer Care Centre: Telephone #: (905) 624-5505
1-800 #: 1-800-561-5505
Fax #: (905) 238-2360
Email link: "Contact Us" on www.panasonic.ca
FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :
Link : "Servicentres™ locator" under "Customer support"
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
IP1479_38S71CP_Eng_02_071107.indd Sec1:41IP1479_38S71CP_Eng_02_071107.indd Sec1:41 2007-11-7 @Tom@ 11:34:062007-11-7 @Tom@ 11:34:06
42
Specifications
NN-CS597S
Power Source: 120 V, 60 Hz
Power Consumption: Microwave:
1,400 W
Bake:
1,300 W
Steam+Microwave:
1,380 W
Cooking Power:* 1,000 W
Outside Dimensions (W x D x H): 20
19
/32" x 19
7
/8" x 12
19
/32"
(523 mm x 505 mm x 320 mm)
Oven Cavity Dimensions (W x D x H): 13
15
/16" x 13
1
/2" x 9
1
/16"
(354 mm x 343 mm x 230 mm)
Operating Frequency: 2,450 MHz
Net Weight: Approx. 41.5 lbs. (18.8 kg)
* IEC Test procedure
Specifications subject to change without notice.
User's Record
The serial number of this product may be found on the left
side of the control panel. You should note the model number
and the serial number of this oven in the space provided and
retain this book as a permanent record of your purchase for
future reference.
Model No. ______________________________________
Serial No. ______________________________________
Date of Purchase ________________________________
IP1479_38S71CP_Eng_02_071107.indd Sec1:42IP1479_38S71CP_Eng_02_071107.indd Sec1:42 2007-11-7 @Tom@ 11:34:062007-11-7 @Tom@ 11:34:06
